This document summarizes the specifications and features of the 40" Tech Global single-touch LED touch screen. Key details include: - It has a 40" screen with 1920x1080 resolution, 5000:1 contrast ratio, and 178 degree viewing angle. - The touch technology provides fast, accurate touch response. It supports finger, glove, and stylus input. - Additional features include built-in speakers, media player, and video wall capability. - Applications include digital signage, kiosks, and interactive displays.

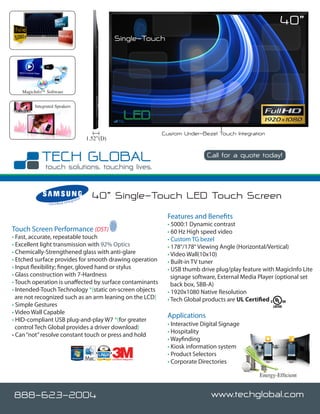

1. 40”
Single-Touch
MagicInfo™ Software
Integrated Speakers
Custom Under-Bezel Touch Integration
1.52”(D)
Call for a quote today!
www.techglobal.com
nteg
rato
r 40” Single-Touch LED Touch Screen
C e r t i fi e d I
Features and Benefits
• 5000:1 Dynamic contrast
Touch Screen Performance (DST) • 60 Hz High speed video
• Fast, accurate, repeatable touch • Custom TG bezel
• Excellent light transmission with 92% Optics • 178°/178° Viewing Angle (Horizontal/Vertical)
• Chemically-Strengthened glass with anti-glare • Video Wall(10x10)
• Etched surface provides for smooth drawing operation • Built-in TV tuner
• Input flexibility; finger, gloved hand or stylus • USB thumb drive plug/play feature with MagicInfo Lite
• Glass construction with 7-Hardness signage software, External Media Player (optional set
• Touch operation is unaffected by surface contaminants back box, SBB-A)
• Intended-Touch Technology *(static on-screen objects • 1920x1080 Native Resolution
are not recognized such as an arm leaning on the LCD) • Tech Global products are UL Certified
• Simple Gestures
• Video Wall Capable
Applications
• HID-compliant USB plug-and-play W7 *(for greater
• Interactive Digital Signage
control Tech Global provides a driver download)
• Hospitality
• Can “not” resolve constant touch or press and hold
• Wayfinding
• Kiosk information system
• Product Selectors
• Corporate Directories
Certified Integrator
Energy-Efficient
888-623-2004 www.techglobal.com

2. nteg
rato
r 40” Single-Touch LED Touch Screen
C e r t i fi e d I

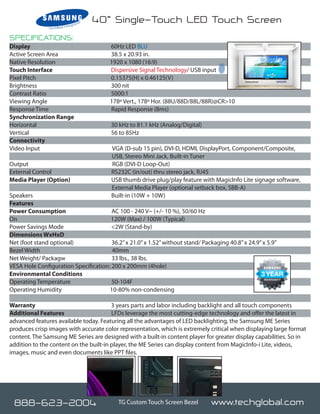

SPECIFICATIONS:
Display 60Hz LED BLU
Active Screen Area 38.5 x 20.93 in.
Native Resolution 1920 x 1080 (16:9)
Touch Interface Dispersive Signal Technology/ USB input
Pixel Pitch 0.15375(H) x 0.46125(V)
Brightness 300 nit
Contrast Ratio 5000:1
Viewing Angle 178º Vert., 178º Hor. (88U/88D/88L/88R)@CR>10
Response Time Rapid Response (8ms)
Synchronization Range
Horizontal 30 kHz to 81.1 kHz (Analog/Digital)
Vertical 56 to 85Hz
Connectivity
Video Input VGA (D-sub 15 pin), DVI-D, HDMI, DisplayPort, Component/Composite,
USB, Stereo Mini Jack, Built-in Tuner
Output RGB (DVI-D Loop-Out)
External Control RS232C (in/out) thru stereo jack, RJ45
Media Player (Option) USB thumb drive plug/play feature with MagicInfo Lite signage software,
External Media Player (optional setback box, SBB-A)
Speakers Built-in (10W + 10W)
Features
Power Consumption AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
On 120W (Max) / 100W (Typical)
Power Savings Mode <2W (Stand-by)
Dimensions WxHxD
Net (foot stand optional) 36.2” x 21.0” x 1.52” without stand/ Packaging 40.8” x 24.9” x 5.9”
Bezel Width 40mm
Net Weight/ Packagw 33 lbs., 38 lbs.
VESA Hole Configuration Specification: 200 x 200mm (4hole)
Environmental Conditions
Operating Temperature 50-104F
Operating Humidity 10-80% non-condensing
Warranty 3 years parts and labor including backlight and all touch components
Additional Features LFDs leverage the most cutting-edge technology and offer the latest in
advanced features available today. Featuring all the advantages of LED backlighting, the Samsung ME Series
produces crisp images with accurate color representation, which is extremely critical when displaying large format
content. The Samsung ME Series are designed with a built-in content player for greater display capabilities. So in
addition to the content on the built-in player, the ME Series can display content from MagicInfo-i Lite, videos,
images, music and even documents like PPT files.
888-623-2004 TG Custom Touch Screen Bezel www.techglobal.com
