This document provides specifications for a 17-inch LCD touch screen made by Tech Global. Key details include:
- It has a 17-inch screen with 1280x1024 native resolution and capacitive touch interface.
- Features include anti-glare coating, wide viewing angles, energy efficiency certifications, and 3-year warranty.
- Intended for commercial and industrial applications like POS, kiosks, and more.
- Includes VESA mounting, dual video inputs, and low power consumption of 21W or less.
1. 14.7”(W)
17”
Single-Touch
12.2”(H)
Under-Bezel Touch Integration
2.5”(D)
Call for a quote today!
Certified Integrator
17” LCD Standard-Aspect Touch Screen
Features and Benefits
• Commercial LCD Panel
Touch Screen Performance (3M SCT) • Energy efficiency
• Durable Capacitive Touch Screen (225 Million Touch • Heavy duty board level components
Activations) • 3 Year Warranty
• 91% Optics for quality viewing • Energy Star 5.0 Compliance
• Glass construction with 7-Hardness • TCO Certified
• ClearTek II hard coat with optimal anti-glare • Ambix technology allows DVI-I,VGA and DVI-D video
properties. input
• Scratch resistant top coat provides smooth, easy glide • VESA wall and arm mounting compliant
touch surface • Intelligent Power Manager (IPM) system
• Touch operation is unaffected by surface contaminants • XtraView technology provides widest viewing angles
• Tech Global products are UL Certified
Applications
• Mission Critical Applications
• Point-of-Sale (POS)
Certified Integrator
• Hospitality
• Internet access points
• Kiosk information system (KIS)
• Industrial
888-623-2004 www.techglobal.com

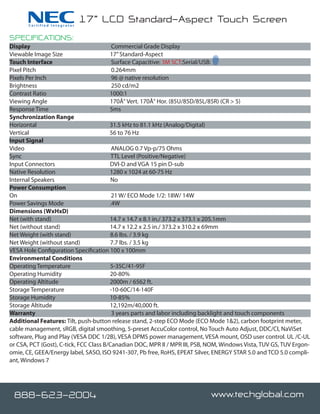

2. Certified Integrator
17” LCD Standard-Aspect Touch Screen
SPECIFICATIONS:
Display Commercial Grade Display
Viewable Image Size 17” Standard-Aspect
Touch Interface Surface Capacitive: 3M SCT:Serial/USB:
Pixel Pitch 0.264mm
Pixels Per Inch 96 @ native resolution
Brightness 250 cd/m2
Contrast Ratio 1000:1
Viewing Angle 170° Vert. 170° Hor. (85U/85D/85L/85R) (CR > 5)
Response Time 5ms
Synchronization Range
Horizontal 31.5 kHz to 81.1 kHz (Analog/Digital)
Vertical 56 to 76 Hz
Input Signal
Video ANALOG 0.7 Vp-p/75 Ohms
Sync TTL Level (Positive/Negative)
Input Connectors DVI-D and VGA 15 pin D-sub
Native Resolution 1280 x 1024 at 60-75 Hz
Internal Speakers No
Power Consumption
On 21 W/ ECO Mode 1/2: 18W/ 14W
Power Savings Mode .4W
Dimensions (WxHxD)
Net (with stand) 14.7 x 14.7 x 8.1 in./ 373.2 x 373.1 x 205.1mm
Net (without stand) 14.7 x 12.2 x 2.5 in./ 373.2 x 310.2 x 69mm
Net Weight (with stand) 8.6 lbs. / 3.9 kg
Net Weight (without stand) 7.7 lbs. / 3.5 kg
VESA Hole Configuration Specification 100 x 100mm
Environmental Conditions
Operating Temperature 5-35C/41-95F
Operating Humidity 20-80%
Operating Altitude 2000m / 6562 ft.
Storage Temperature -10-60C/14-140F
Storage Humidity 10-85%
Storage Altitude 12,192m/40,000 ft.
Warranty 3 years parts and labor including backlight and touch components
Additional Features: Tilt, push-button release stand, 2-step ECO Mode (ECO Mode 1&2), carbon footprint meter,
cable management, sRGB, digital smoothing, 5-preset AccuColor control, No Touch Auto Adjust, DDC/CI, NaViSet
software, Plug and Play (VESA DDC 1/2B), VESA DPMS power management, VESA mount, OSD user control. UL /C-UL
or CSA, PCT (Gost), C-tick, FCC Class B/Canadian DOC, MPR II / MPR III, PSB, NOM, Windows Vista, TUV GS, TUV Ergon-
omie, CE, GEEA/Energy label, SASO, ISO 9241-307, Pb free, RoHS, EPEAT Silver, ENERGY STAR 5.0 and TCO 5.0 compli-
ant, Windows 7
888-623-2004 www.techglobal.com
