1. 46”
Single-Touch
Ultra-Thin Design
Under-Bezel
Touch Integration
1.7”(D)
Call for a quote today!
www.techglobal.com
Certified Integrator
46” Single-Touch LED Touch Screen
Features and Benefits
• Under-Bezel touch integration
Touch Screen Performance (DST) • Single-Touch with simple gestures
• Fast, accurate, repeatable touch • 4,000:1 Dynamic contrast
• Excellent light transmission with 92% Optics • 120 Hz High speed video
• Chemically-Strengthened glass with anti-glare • LED edge-lit technology (reduce energy consumption
• Etched surface provides for smooth drawing operation from 30 - 50%)
• Input flexibility; finger, gloved hand or stylus • 1.7” ultra-slim design and reduced weight
• Glass construction with 7-Hardness • Commercial SPVA panel technology for 24/7 usage
• Touch operation is unaffected by surface contaminants • Landscape and Portrait orientations
• Intended-Touch Technology *(static on-screen objects • Expansion slot: PC (Option) Intel’s Open Pluggable
are not recognized such as an arm leaning on the LCD) Specification (OPS)
• Simple Gestures • Tech Global products are UL Certified
• Video Wall Capable
• HID-compliant USB plug-and-play W7 *(for greater
Applications
control Tech Global provides a driver download)
• Interactive Digital Signage
• Can “not” resolve constant touch or press and hold
• Hospitality
• Mission Critical
• Kiosk Information System (KIS)
Certified Integrator
• Interactive White Board
• Corporate Directories
888-623-2004 www.techglobal.com

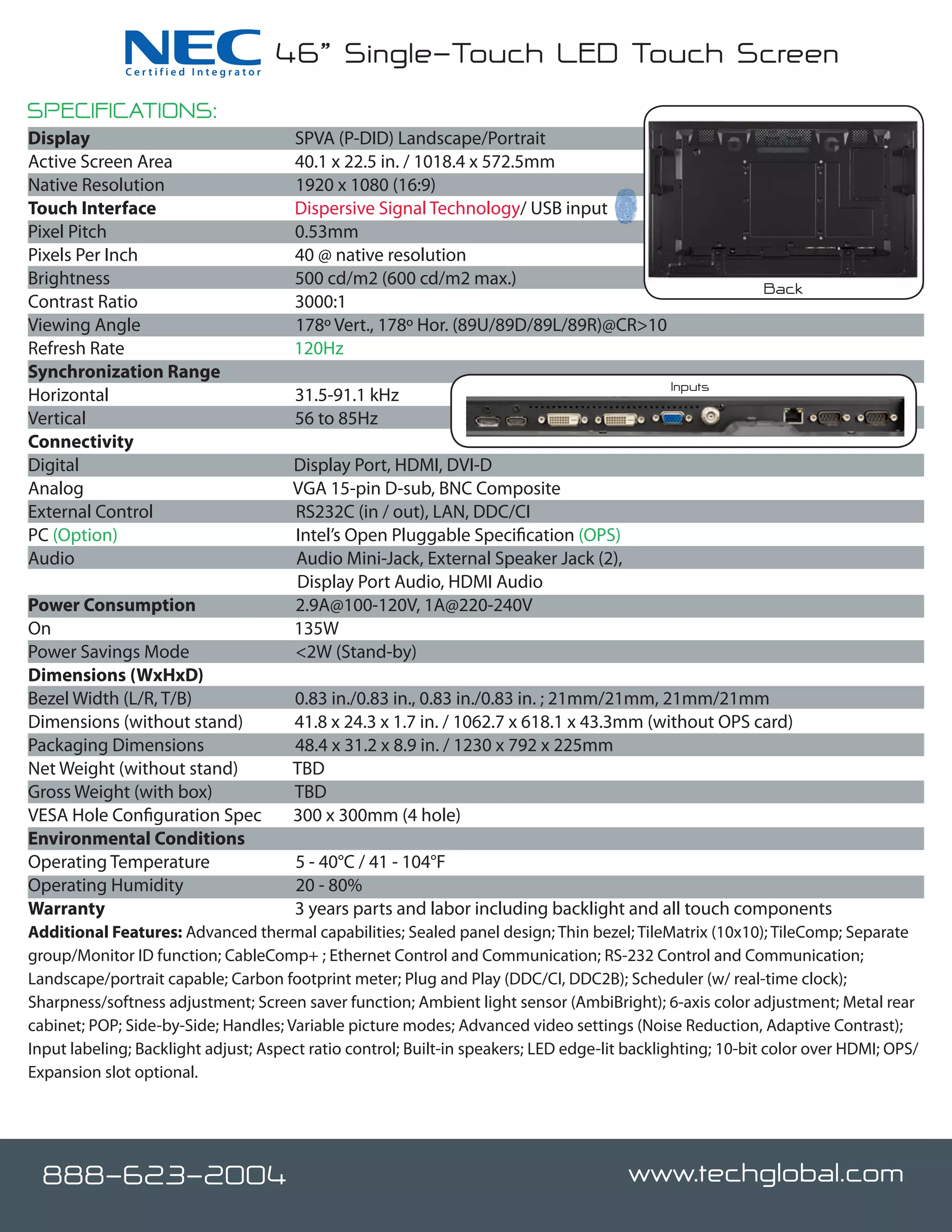

2. Certified Integrator
46” Single-Touch LED Touch Screen
SPECIFICATIONS:
Display SPVA (P-DID) Landscape/Portrait
Active Screen Area 40.1 x 22.5 in. / 1018.4 x 572.5mm
Native Resolution 1920 x 1080 (16:9)
Touch Interface Dispersive Signal Technology/ USB input
Pixel Pitch 0.53mm
Pixels Per Inch 40 @ native resolution
Brightness 500 cd/m2 (600 cd/m2 max.)
Back
Contrast Ratio 3000:1
Viewing Angle 178º Vert., 178º Hor. (89U/89D/89L/89R)@CR>10
Refresh Rate 120Hz
Synchronization Range
Inputs
Horizontal 31.5-91.1 kHz
Vertical 56 to 85Hz
Connectivity
Digital Display Port, HDMI, DVI-D
Analog VGA 15-pin D-sub, BNC Composite
External Control RS232C (in / out), LAN, DDC/CI
PC (Option) Intel’s Open Pluggable Specification (OPS)
Audio Audio Mini-Jack, External Speaker Jack (2),
Display Port Audio, HDMI Audio
Power Consumption 2.9A@100-120V, 1A@220-240V
On 135W
Power Savings Mode <2W (Stand-by)
Dimensions (WxHxD)
Bezel Width (L/R, T/B) 0.83 in./0.83 in., 0.83 in./0.83 in. ; 21mm/21mm, 21mm/21mm
Dimensions (without stand) 41.8 x 24.3 x 1.7 in. / 1062.7 x 618.1 x 43.3mm (without OPS card)
Packaging Dimensions 48.4 x 31.2 x 8.9 in. / 1230 x 792 x 225mm
Net Weight (without stand) TBD
Gross Weight (with box) TBD
VESA Hole Configuration Spec 300 x 300mm (4 hole)
Environmental Conditions
Operating Temperature 5 - 40°C / 41 - 104°F
Operating Humidity 20 - 80%
Warranty 3 years parts and labor including backlight and all touch components
Additional Features: Advanced thermal capabilities; Sealed panel design; Thin bezel; TileMatrix (10x10); TileComp; Separate
group/Monitor ID function; CableComp+ ; Ethernet Control and Communication; RS-232 Control and Communication;
Landscape/portrait capable; Carbon footprint meter; Plug and Play (DDC/CI, DDC2B); Scheduler (w/ real-time clock);
Sharpness/softness adjustment; Screen saver function; Ambient light sensor (AmbiBright); 6-axis color adjustment; Metal rear
cabinet; POP; Side-by-Side; Handles; Variable picture modes; Advanced video settings (Noise Reduction, Adaptive Contrast);
Input labeling; Backlight adjust; Aspect ratio control; Built-in speakers; LED edge-lit backlighting; 10-bit color over HDMI; OPS/
Expansion slot optional.
888-623-2004 www.techglobal.com
