The LMD-1541W is a 15-inch widescreen LCD monitor designed for flexible installation including monitor walls. It has a slim bezel and compact design. Key features include a high resolution LCD panel, wide viewing angle, color matching technology, multiple input/output interfaces, and remote control capabilities making it suitable for studio and broadcast applications.

1. LMD-1541W
15-inch Wide Screen High Grade LCD Monitor
Compact, slim bezel design for flexible installation colour space within this gamut.
In addition, ChromaTRU™ technology provides these
monitors with colour consistency essential for a multi-
monitor system, and offers the best solution for a
monitor-wall installation.
* 388.2 mm, viewing area measured diagonally.
Extremely Wide Viewing Angle
IPS panel technology ensures the LMD-1541W offers
The compact LMD-1541W has a slim, robust alumini- exceptional horizontal and vertical viewing angles -
um bezel and is specifically designed to suit a ideal for group viewing.
monitor-wall installation in studios and outside broad-
cast (OB) vans. It is also ideal for a wide variety of Compact Design for Monitor-Wall Installation
professional video and industrial image-monitoring The LMD-1541W has a compact body with a light-
applications where critical picture quality and profes- weight, robust aluminium slim bezel - making it an
sional features are required. ideal choice for monitor-wall installation, both in
studio sub-control rooms and OB vans.
The 15.3-inch* WXGA (1280 x 768 pixels) high per-
formance LCD panel reproduces lifelike images and Desk-top Editing and Office Viewing
stunning colours with a wide viewing angle. Chro-
The LMD-1541W can be used as a desk-top monitor
maTRU™ colour matching technology helps ensure
both for editing and office viewing with an optional
display consistency - ideal for multi-monitor systems.
SU-562 or SU-561 monitor stand.
The LMD-1541W also features built-in SDI (3G/HD/
SD), composite, and HDMI interfaces for operational Ideal for CRT Monitor Replacement
versatility.
The LMD-1541W and the PVM-14L2, Sony’s most pop-
This product comes with the full PrimeSupport pack- ular 14- inch 4:3 aspect CRT monitor, share almost
age. That’s fast, hassle-free repairs, a helpline offer- the same viewable area height. The body of the
ing expert technical advice, and a free loan unit while LMD-1541W is 74.5 mm shorter in height and only
yours is repaired. Plus the peace of mind that Sony is 27.2 mm wider than the PVM-14L2 body. And with its
looking after your equipment – and your business. space-saving design, the LMD-1541W can be installed
effectively in small spaces.
* 388.2 mm, viewing area measured diagonally.
Built-in Input Versatility
The LMD-1541W has built-in standard input inter-
Features faces: two SDI (3G/HD/SD-SDI), one composite, and
one HDMI input.
Superb Picture Performance and Colour
Easy-to-use Control Panel
Consistency
A rotary-type switch and seven function-assignable
The 15.3-inch* WXGA (1280 x 768 pixels) resolution
buttons allow users speedy and intuitive operation,
high-performance LCD panel reproduces lifelike pre-
even in dark environments thanks to LED indicators
cise images and accurate colour. Sony’s unique Chro-
(which can be switched on/off).
maTRU™ colour matching technology and 10-bit sig-
nal processing delivers a stunning smooth grey scale,
emulating the colours and gammas of broadcast-
standard CRT monitors. Users can select the required
www.pro.sony.eu/monitors 1

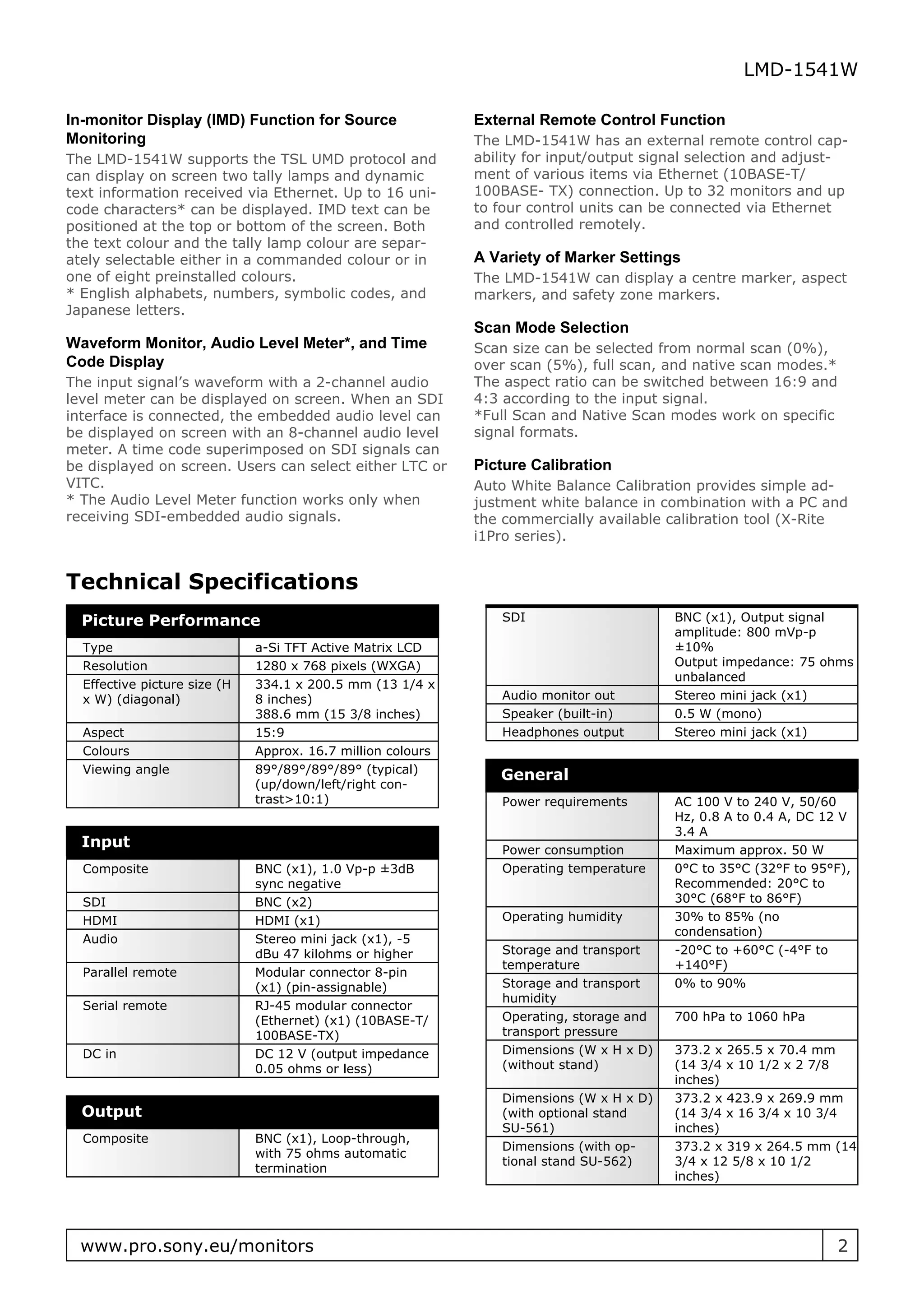

2. LMD-1541W
In-monitor Display (IMD) Function for Source External Remote Control Function
Monitoring The LMD-1541W has an external remote control cap-
The LMD-1541W supports the TSL UMD protocol and ability for input/output signal selection and adjust-
can display on screen two tally lamps and dynamic ment of various items via Ethernet (10BASE-T/
text information received via Ethernet. Up to 16 uni- 100BASE- TX) connection. Up to 32 monitors and up
code characters* can be displayed. IMD text can be to four control units can be connected via Ethernet
positioned at the top or bottom of the screen. Both and controlled remotely.
the text colour and the tally lamp colour are separ-
ately selectable either in a commanded colour or in A Variety of Marker Settings
one of eight preinstalled colours. The LMD-1541W can display a centre marker, aspect
* English alphabets, numbers, symbolic codes, and markers, and safety zone markers.
Japanese letters.
Scan Mode Selection
Waveform Monitor, Audio Level Meter*, and Time Scan size can be selected from normal scan (0%),
Code Display over scan (5%), full scan, and native scan modes.*
The input signal’s waveform with a 2-channel audio The aspect ratio can be switched between 16:9 and
level meter can be displayed on screen. When an SDI 4:3 according to the input signal.
interface is connected, the embedded audio level can *Full Scan and Native Scan modes work on specific
be displayed on screen with an 8-channel audio level signal formats.
meter. A time code superimposed on SDI signals can
be displayed on screen. Users can select either LTC or Picture Calibration
VITC. Auto White Balance Calibration provides simple ad-
* The Audio Level Meter function works only when justment white balance in combination with a PC and
receiving SDI-embedded audio signals. the commercially available calibration tool (X-Rite
i1Pro series).
Technical Specifications
Picture Performance SDI BNC (x1), Output signal
amplitude: 800 mVp-p
Type a-Si TFT Active Matrix LCD ±10%
Resolution 1280 x 768 pixels (WXGA) Output impedance: 75 ohms
unbalanced
Effective picture size (H 334.1 x 200.5 mm (13 1/4 x
x W) (diagonal) 8 inches) Audio monitor out Stereo mini jack (x1)
388.6 mm (15 3/8 inches) Speaker (built-in) 0.5 W (mono)
Aspect 15:9 Headphones output Stereo mini jack (x1)
Colours Approx. 16.7 million colours
Viewing angle 89°/89°/89°/89° (typical)
General
(up/down/left/right con-
trast>10:1) Power requirements AC 100 V to 240 V, 50/60
Hz, 0.8 A to 0.4 A, DC 12 V
3.4 A
Input Power consumption Maximum approx. 50 W
Composite BNC (x1), 1.0 Vp-p ±3dB Operating temperature 0°C to 35°C (32°F to 95°F),
sync negative Recommended: 20°C to
SDI BNC (x2) 30°C (68°F to 86°F)
HDMI HDMI (x1) Operating humidity 30% to 85% (no
condensation)
Audio Stereo mini jack (x1), -5
dBu 47 kilohms or higher Storage and transport -20°C to +60°C (-4°F to
temperature +140°F)
Parallel remote Modular connector 8-pin
(x1) (pin-assignable) Storage and transport 0% to 90%
humidity
Serial remote RJ-45 modular connector
(Ethernet) (x1) (10BASE-T/ Operating, storage and 700 hPa to 1060 hPa
100BASE-TX) transport pressure
DC in DC 12 V (output impedance Dimensions (W x H x D) 373.2 x 265.5 x 70.4 mm
0.05 ohms or less) (without stand) (14 3/4 x 10 1/2 x 2 7/8
inches)
Dimensions (W x H x D) 373.2 x 423.9 x 269.9 mm
Output (with optional stand (14 3/4 x 16 3/4 x 10 3/4
SU-561) inches)
Composite BNC (x1), Loop-through,
Dimensions (with op- 373.2 x 319 x 264.5 mm (14
with 75 ohms automatic
tional stand SU-562) 3/4 x 12 5/8 x 10 1/2
termination
inches)
www.pro.sony.eu/monitors 2

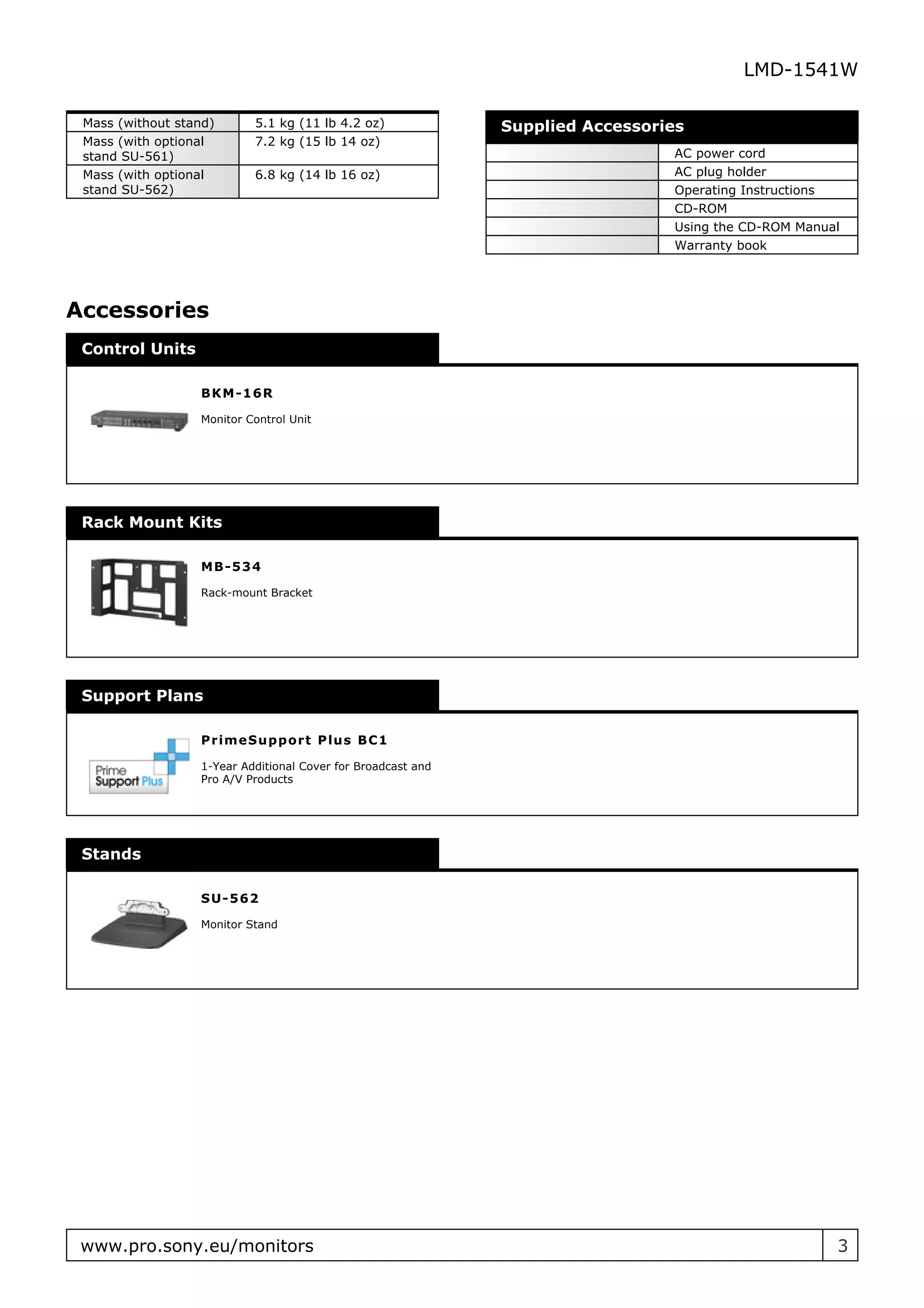

3. LMD-1541W
Mass (without stand) 5.1 kg (11 lb 4.2 oz) Supplied Accessories
Mass (with optional 7.2 kg (15 lb 14 oz)
stand SU-561) AC power cord
Mass (with optional 6.8 kg (14 lb 16 oz) AC plug holder
stand SU-562) Operating Instructions
CD-ROM
Using the CD-ROM Manual
Warranty book
Accessories
Control Units
B K M - 16R
Monitor Control Unit
Rack Mount Kits
M B - 534
Rack-mount Bracket
Support Plans
P r im eSu ppo r t P lu s B C 1
1-Year Additional Cover for Broadcast and
Pro A/V Products
Stands
SU- 562
Monitor Stand
www.pro.sony.eu/monitors 3
