This document summarizes the key features and specifications of the 46" Single-Touch LCD Touch Screen. It has an under-bezel touch integration, single-touch interface, high brightness and contrast ratio, and OPS expansion slot. It is intended for applications such as digital signage, interactive whiteboards, and kiosks. It has a 3 year warranty and is UL certified.

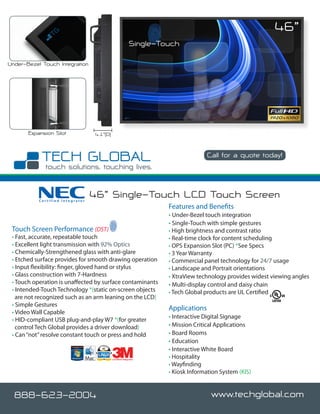

1. 46”
Single-Touch
Under-Bezel Touch Integration
Expansion Slot 4.1”(D)
Call for a quote today!
Certified Integrator
46” Single-Touch LCD Touch Screen
Features and Benefits
• Under-Bezel touch integration
• Single-Touch with simple gestures
Touch Screen Performance (DST) • High brightness and contrast ratio
• Fast, accurate, repeatable touch • Real-time clock for content scheduling
• Excellent light transmission with 92% Optics • OPS Expansion Slot (PC) *See Specs
• Chemically-Strengthened glass with anti-glare • 3 Year Warranty
• Etched surface provides for smooth drawing operation • Commercial panel technology for 24/7 usage
• Input flexibility: finger, gloved hand or stylus • Landscape and Portrait orientations
• Glass construction with 7-Hardness • XtraView technology provides widest viewing angles
• Touch operation is unaffected by surface contaminants • Multi-display control and daisy chain
• Intended-Touch Technology *(static on-screen objects • Tech Global products are UL Certified
are not recognized such as an arm leaning on the LCD)
• Simple Gestures
Applications
• Video Wall Capable
• HID-compliant USB plug-and-play W7 *(for greater • Interactive Digital Signage
control Tech Global provides a driver download) • Mission Critical Applications
• Can “not” resolve constant touch or press and hold • Board Rooms
• Education
• Interactive White Board
Certified Integrator
• Hospitality
• Wayfinding
• Kiosk Information System (KIS)
888-623-2004 www.techglobal.com

2. Certified Integrator
46” Single-Touch LCD Touch Screen
SPECIFICATIONS:
Display Professional SPVA (B-DID)/ Landscape/Portrait
Active Screen Area 40.1 x 22.5 in. / 1018.1 x 572.7mm
Touch Interface Dispersive Signal Technology/ USB input
Pixel Pitch 0.53mm
Brightness 500 cd/m2
Contrast Ratio 3500:1
Viewing Angle 178º Vert., 178º Hor. (88U/88D/88L/88R)@CR>10
Response Time Rapid Response (8ms) 60Hz
Synchronization Range Full connectivity and control with the option for expansion in every display
Horizontal 5.625, 15.744, 31.5-91.1 KHz (Analog) / 31.5-91.1 KHz (Digital)
The P Series touts the industry’s most extensive control, diagnostics and communication, providing the highest level of remote display
management. These include:
• RS-232 enables multi-display control and daisy chain, allowing for individual and group-addressable control, and simple,
Vertical 58-85 Hz Analog/Digital •
effective setup and monitoring of the display
Ethernet connectivity adds the same RS-232 control plus automatic email notification for diagnostic purposes
Input Signal • NaViSet™ software offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and
keyboard. NaViSet Administrator provides all the advanced control to remotely located IT professionals.
•
Digital Display Port, HDMI, DVI-D •
DDC/CI standard allows for PC control of the display based on the VESA command set
CableComp+ uses a digitized signal delay circuit to automatically compensate for each red, green and blue cable’s length and
video signal delay, ensuring sharp image reproduction despite long cables and low output level*
Analog VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video
• Expanded connectivity with digital loop through (DVI-D and DisplayPort)**
A built-in expansion slot future-proofs your display investment, allowing for seamless integration of optional NEC and third-party
Audio RCA Audio, Stereo Mini-Jack • HDMI Audio, Display Port Audio
(2), components, including:
Open Pluggable Specification (OPS)**: The first industry-wide standardization in option slots, simplifying installation, use and
Sync TTL Level (Positive/Negative)• maintenance of digital signage.
HD-SDI card (SB-L007KK): Achieve broadcast-grade video with this internal card that provides an HD-SDI input without using
External Control RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
•
additional space or power.
Single board computer (NET-SBC-01/02/03/04, OPS-PCAF-WH/WS/H/S, N8000-8830)**: This option provides for a seamless
Native Resolution 1920 x 1080
internal PC solution that is both cost-efficient and flexible. It eliminates the need for external cabling, mounting and power supply,
providing for a clean look that simplifies installation and reduces maintenance.
• DVI daisychain (SB-L008WU): Loop in and out a single digital video signal to up to nine displays with this option, which eliminates
Internal Speakers Integrated 10W (2), Optional 15W (2; SP-4046PV)the need for external distribution equipment and power supply. These benefits make the board ideal for video banners, ribbons and
walls in addition to back-to-back installations.
Power Consumption 3.6 A@100-120V 1.5 A@220-240V • Digital IP tuner (MPD-DTi): This IPTV card enables you to stream up to 1080p content directly to the display as well as ATSC/NTSC/
Clear QAM signals. Other features include auto scan, DTV signal strength, parental controls, closed caption and network settings—
On 155 W
all adjustable from the display.
• CAT5 receiver: Using NEC-approved third-party solutions, you’ll be able to safely send your video over longer distances.
Power Savings Mode <1W (Stand-by) The P Series sets the standard for connectivity. Improved input options include quick input change, customized detection and naming.
See below for the complete list of P Series input/output terminals.
Dimensions (WxHxD) P701
RCA Component
Bezel Width (L/R, T/B) 0.65 in./0.65 in., 0.65 in./0.65 in. ; 16.5mm/16.5mm, 16.5mm/16.5mm
DisplayPort
5 BNC Out (RGBHV, Video In
In
DVD/HD or BNC Composite Speaker Out
Composite Video) Audio
VGA D-Sub In Video Out
Net (without stand) 41.6 x 24.0 x 4.1 in. / 1055.4 x 608.6 x 103.0mm
Mini-Jack In
RS-232 In/Out
Net Weight (without stand) 62.5 lbs. LAN Port
IR In/Out
VESA Hole Configuration Spec 300 x 300mm (4hole) DVI-D In RCA S-Video
HDMI In
Environmental Conditions 5 BNC In (RGBHV,
DVD/HD or Composite
Video)
Composite
Video In
BNC Composite Video In
In
RCA Audio
In/Out
Operating Temperature 5-40C/ 41-104F P402/P462/P552 5 BNC In (RGBHV,
DVD/HD or
Audio
Mini-Jack
DisplayPort
Operating Humidity 20-80%
Composite Video) In/Out
LAN Port RS-232 In/Out In/Out VGA D-Sub In RCA Audio In
Operating Altitude 0 - 3000 m
Storage Temperature -20-60ºC / 14-140ºF IR In/Out DVI-D In/Out HDMI In BNC Composite
Video In/Out
S-Video
In
Speaker Out
Storage Humidity 10-90% Inputs
*use under the environmental conditions noted in the specifications and user’s manual
**available on select models
Storage Altitude 12,000m / 39,370 ft.
Warranty 3 years parts and labor including backlight and touch components
Additional Features Advanced thermal capabilities; Advanced cooling system; Sealed panel design;
Thin bezel; TileMatrix (10x10); TileComp; Separate group/Monitor ID function; CableComp+; Ethernet Control and
Communication; RS-232 Control and Communication; Landscape/portrait capable; Carbon footprint meter; Ac-
cuBlend; Plug and Play (DDC/CI, DDC2B); Scheduler (w/ real-time clock); Sharpness/softness adjustment; Screen
saver function; Ambient light sensor (AmbiBright); 6-axis color adjustment; Metal rear cabinet; POP; Side-by-Side;
Kensington lock; 10-bit gamma; Handles; Touch- and protective screen-ready; Variable picture modes; Movie Set-
tings; Input labeling; Backlight adjust; Aspect ratio control; Built-in speakers; OPS/Expansion slot; Input detect op-
tions; TAA-compliant
