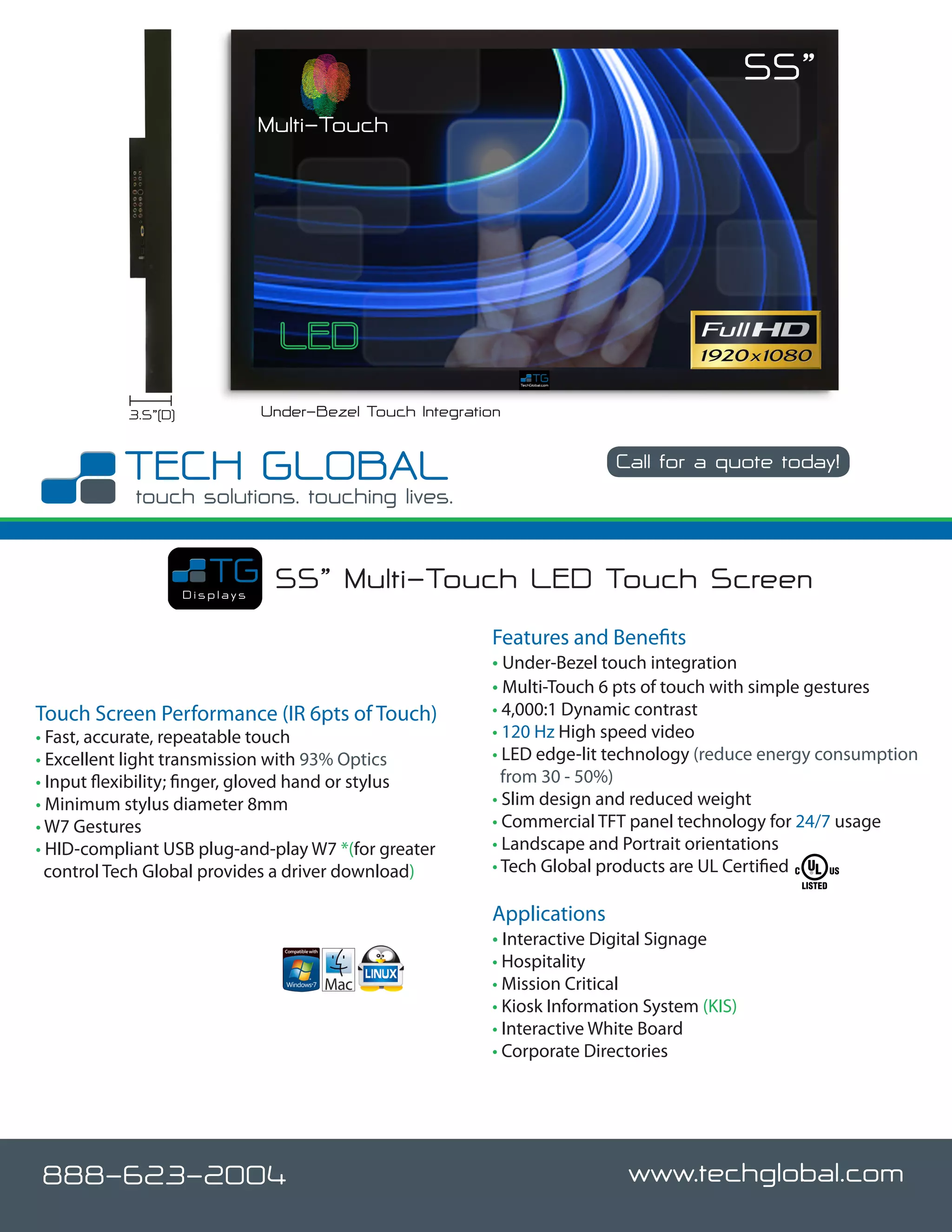

1. 55”
Multi-Touch
3.5”(D) Under-Bezel Touch Integration
Call for a quote today!
www.techglobal.com
Displays
55” Multi-Touch LED Touch Screen
Features and Benefits
• Under-Bezel touch integration
• Multi-Touch 6 pts of touch with simple gestures
Touch Screen Performance (IR 6pts of Touch) • 4,000:1 Dynamic contrast
• Fast, accurate, repeatable touch • 120 Hz High speed video
• Excellent light transmission with 93% Optics • LED edge-lit technology (reduce energy consumption
• Input flexibility; finger, gloved hand or stylus from 30 - 50%)
• Minimum stylus diameter 8mm • Slim design and reduced weight
• W7 Gestures • Commercial TFT panel technology for 24/7 usage
• HID-compliant USB plug-and-play W7 *(for greater • Landscape and Portrait orientations
control Tech Global provides a driver download) • Tech Global products are UL Certified
Applications
• Interactive Digital Signage
• Hospitality
• Mission Critical
• Kiosk Information System (KIS)
• Interactive White Board
• Corporate Directories
888-623-2004 www.techglobal.com

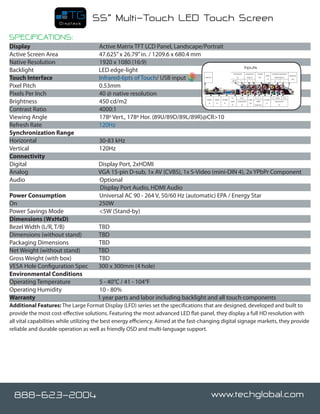

2. Displays
55” Multi-Touch LED Touch Screen
SPECIFICATIONS:
Display Active Matrix TFT LCD Panel, Landscape/Portrait
Active Screen Area 47.625” x 26.79” in. / 1209.6 x 680.4 mm
Native Resolution 1920 x 1080 (16:9)
Inputs
Backlight LED edge-light
Touch Interface Infrared-6pts of Touch/ USB input
Pixel Pitch 0.53mm
Pixels Per Inch 40 @ native resolution
Brightness 450 cd/m2
Contrast Ratio 4000:1
Viewing Angle 178º Vert., 178º Hor. (89U/89D/89L/89R)@CR>10
Refresh Rate 120Hz
Synchronization Range
Horizontal 30-83 kHz
Vertical 120Hz
Connectivity
Digital Display Port, 2xHDMI
Analog VGA 15-pin D-sub, 1x AV (CVBS), 1x S-Video (mini-DIN 4), 2x YPbPr Component
Audio Optional
Display Port Audio, HDMI Audio
Power Consumption Universal AC 90 - 264 V, 50/60 Hz (automatic) EPA / Energy Star
On 250W
Power Savings Mode <5W (Stand-by)
Dimensions (WxHxD)
Bezel Width (L/R, T/B) TBD
Dimensions (without stand) TBD
Packaging Dimensions TBD
Net Weight (without stand) TBD
Gross Weight (with box) TBD
VESA Hole Configuration Spec 300 x 300mm (4 hole)
Environmental Conditions
Operating Temperature 5 - 40°C / 41 - 104°F
Operating Humidity 10 - 80%
Warranty 1 year parts and labor including backlight and all touch components
Additional Features: The Large Format Display (LFD) series set the specifications that are designed, developed and built to
provide the most cost-effective solutions. Featuring the most advanced LED flat-panel, they display a full HD resolution with
all vital capabilities while utilizing the best energy efficiency. Aimed at the fast-changing digital signage markets, they provide
reliable and durable operation as well as friendly OSD and multi-language support.
