This document provides specifications for a 22-inch single-touch LCD touch screen. Key features include a commercial grade LCD panel, capacitive touch interface, 250 cd/m2 brightness, 1080p native resolution, 5ms response time, VESA mounting compatibility, 3-year warranty, and compliance with various industry standards. It is suited for point-of-sale, hospitality, industrial, and medical applications.

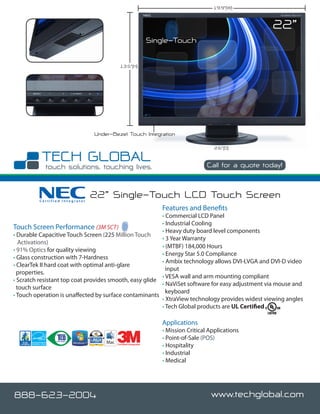

1. 19.9”(W)
22”
Single-Touch
13.5”(H)
Under-Bezel Touch Integration
2.6”(D)
Call for a quote today!
Certified Integrator
22” Single-Touch LCD Touch Screen
Features and Benefits
• Commercial LCD Panel
• Industrial Cooling
Touch Screen Performance (3M SCT) • Heavy duty board level components
• Durable Capacitive Touch Screen (225 Million Touch
• 3 Year Warranty
Activations)
• (MTBF) 184,000 Hours
• 91% Optics for quality viewing
• Energy Star 5.0 Compliance
• Glass construction with 7-Hardness
• Ambix technology allows DVI-I,VGA and DVI-D video
• ClearTek II hard coat with optimal anti-glare
input
properties.
• VESA wall and arm mounting compliant
• Scratch resistant top coat provides smooth, easy glide
• NaViSet software for easy adjustment via mouse and
touch surface
keyboard
• Touch operation is unaffected by surface contaminants
• XtraView technology provides widest viewing angles
• Tech Global products are UL Certified
Applications
• Mission Critical Applications
• Point-of-Sale (POS)
Certified Integrator
• Hospitality
• Industrial
• Medical
888-623-2004 www.techglobal.com

2. Certified Integrator
22” Single-Touch LCD Touch Screen
SPECIFICATIONS:
Display Commercial Grade Panel
Viewable Image Size 18.73” x 11.74”
Mean Time Between Failure (MTBF) 184,000 Hours
Touch Interface Surface Capacitive: 3M SCT: Serial/USB
Pixel Pitch 0.282mm
Pixels Per Inch 90 @ native resolution
Brightness 250 cd/m2
Contrast Ratio 1000:1
Viewing Angle 176º Vert., 176º Hor. (88U/88D/88L/88R)
Response Time Rapid Response (5ms)
Synchronization Range
Horizontal 31.5 kHz to 81.1 kHz (Analog/Digital)
Vertical 56 to 76 Hz
Input Signal
Video ANALOG 0.7 Vp-p/75 Ohms
Sync TTL Level (Positive/Negative)
Input Connectors DVI-D and VGA 15 pin D-sub
Native Resolution 1680 x 1050 @ 60 Hz
Internal Speakers Built-in multimedia speakers provide quality sound
Power Consumption
On 24W/ ECO Mode 1/2: 21W / 17W: Power Savings Mode .4W
Dimensions (WxHxD)
Net (with stand) 19.9 x 15.4 x 8.7 in. / 505.2 x 390.9 x 221.8mm
Net (without stand) 19.9 x 13.5 x 2.6 in. / 505.2 x 342.9 x 65.2mm
Net Weight (with stand) 11 lbs. / 5 kg
Net Weight (without stand) 10.4 lbs. / 4.7 kg
VESA Hole Configuration Specification 100 x 100mm
Environmental Conditions
Operating Temperature 5-35C/41-95F
Operating Humidity 20-80%
Operating Altitude 2000m / 6562 ft.
Storage Temperature -10-60C/14-140F
Storage Humidity 10-85%
Storage Altitude 12,192m/40,000 ft.
Warranty 3 years parts and labor including backlight and touch components
Additional Features: Tilt, 2-step ECO Mode (ECO Mode 1&2), carbon footprint meter, cable management, DVI-D
with HDCP, sRGB, digital smoothing, 5-preset AccuColor control, No Touch Auto Adjust, DDC/CI, NaViSet software,
Plug and Play (VESA DDC 1/2B), VESA DPMS power management, VESA mount, OSC user control. Regulatories and
Compliance: UL /C-UL or CSA, PCT (Gost), C-tick, SB-50 (California), FCC Class B/ Canadian DOC, MPR II / MPR III, PSB,
NOM, Windows Vista, TUV GS, TUV Ergonomie, CE, GEEA/Energy label, SASO, ISO 9241-307, Pb free, RoHS, EPEAT Sil-
ver, ENERGY STAR 5.0 and TCO 5.0 compliant, Windows (XP, Vista & W7) Linux and Mac
