The IGEP v2 is a compact, fanless industrial processor board powered by a 1GHz ARM Cortex A8 CPU and capable of low power consumption, making it suitable for various industrial applications. It features stereo audio in/out, Wi-Fi, Bluetooth, Ethernet, and expansion options within a 65mm x 95mm form factor while operating within a temperature range of -40°C to 85°C. With 512MB of RAM and flash storage, it provides laptop-like performance in a small package, ideal for applications like medical imaging, navigation, and industrial control.

1. IGEP v2 TM
Micro-SD Antenna INDUSTRIAL - LONG LIFE
Audio IN/OUT Temperature range -40ºC to 85ºC
WiFi + Bluetooth
+5V DC Power Ethernet
10/100
DVI-D
POP
Memory
USB
mini-AB
DM3730
Expansion connectors
RS485
USB
JTAG
RS232

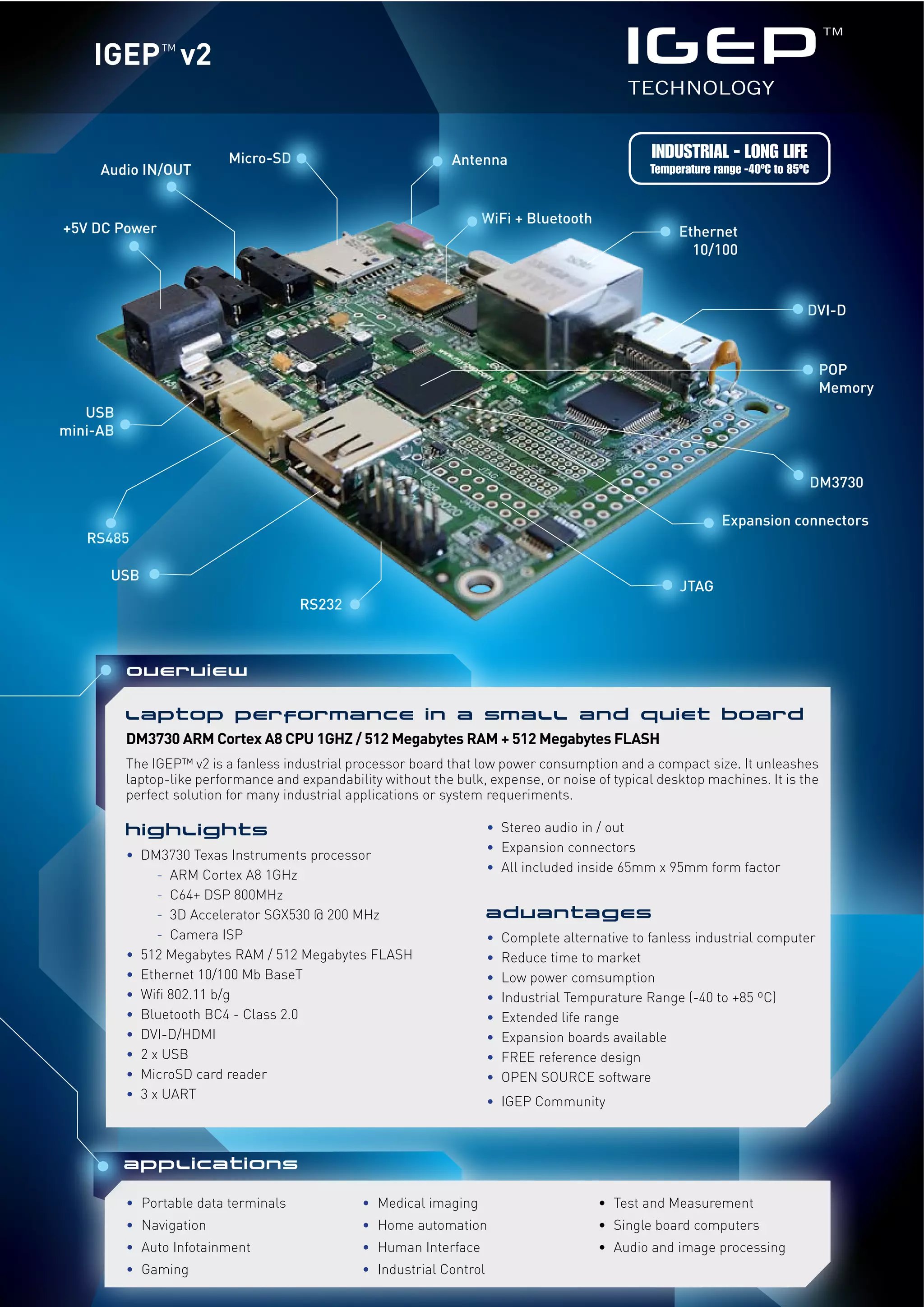

overview
LAPTOP PERFORMANCE IN A SMALL and QUIET BOARD
DM3730 ARM Cortex A8 CPU 1GHZ / 512 Megabytes RAM + 512 Megabytes FLASH
The IGEP™ v2 is a fanless industrial processor board that low power consumption and a compact size. It unleashes
laptop-like performance and expandability without the bulk, expense, or noise of typical desktop machines. It is the
perfect solution for many industrial applications or system requeriments.
HIGHLIGHTS • Stereo audio in / out
• Expansion connectors
• DM3730 Texas Instruments processor
• All included inside 65mm x 95mm form factor
- ARM Cortex A8 1GHz
- C64+ DSP 800MHz
- 3D Accelerator SGX530 @ 200 MHz advantages
- Camera ISP • Complete alternative to fanless industrial computer
• 512 Megabytes RAM / 512 Megabytes FLASH • Reduce time to market
• Ethernet 10/100 Mb BaseT • Low power comsumption
• Wifi 802.11 b/g • Industrial Tempurature Range (-40 to +85 ºC)
• Bluetooth BC4 - Class 2.0 • Extended life range
• DVI-D/HDMI • Expansion boards available
• 2 x USB • FREE reference design
• MicroSD card reader • OPEN SOURCE software
• 3 x UART
• IGEP Community
APPLICATIONS
• Portable data terminals • Medical imaging • Test and Measurement
• Navigation • Home automation • Single board computers
• Auto Infotainment • Human Interface • Audio and image processing
• Gaming • Industrial Control

2. IGEP v2
TM

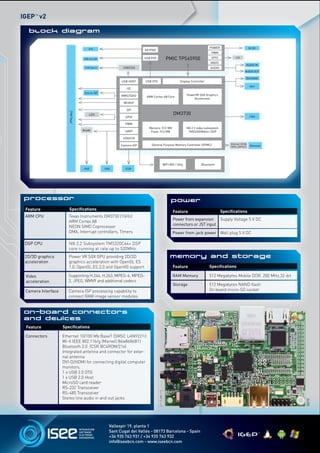

Block diagram
J970 POWER 5V DC
KEYPAD
PWM
USB mini-AB USB PHY PMIC TPS65950 GPIO LED
MADC
AUDIO IN
USB Type-A USB3326 AUDIO
AUDIO OUT
DVI/HDMI
USB HOST USB OTG Display Controller
JA41
I2C
micro-SD
MMC/SDIO PowerVR SGX Graphics
ARM Cortex-A8 Core
Accelerator
MCBSP
SPI
DM3730
J990,JA42
LED
GPIO JTAG
PWM
Memory: 512 MB IVA 2.2 video subsystem
RS485 UART Flash: 512 MB TMS320DM64x+ DSP
IrDA/CIR
General Purpose Memory Controller (GPMC) Ethernet 10/100
Camera ISP SMSC LAN9221i Ethernet
WIFI 802.11b/g Bluetooth
J940 J960 JC30
Processor Power
Feature Specifications
Feature Specifications
ARM CPU Texas Instruments DM3730 (1GHz)
ARM Cortex A8 Power from expansion Supply Voltage 5 V DC
NEON SIMD Coprocessor connectors or JST input
DMA, Interrupt controllers, Timers Power from jack power Wall plug 5 V DC
DSP CPU IVA 2.2 Subsystem TMS320C64+ DSP
core running at rate up to 520MHz.
2D/3D graphics Power VR SGX GPU providing 2D/3D memory and Storage
acceleration graphics acceleration with OpenGL ES
1.0, OpenGL ES 2.0 and OpenVG support Feature Specifications
Video Supporting H.264, H.263, MPEG-4, MPEG- RAM Memory 512 Megabytes Mobile DDR, 200 MHz,32-bit
acceleration 2, JPEG, WMV9 and additional codecs
Storage 512 Megabytes NAND flash
Camera Interface Camera ISP processing capability to On board micro-SD socket
connect RAW image sensor modules
On-board connectors
and devices
Feature Specifications
Connectors Ethernet 10/100 Mb BaseT (SMSC LAN9221i)
Wi-fi IEEE 802.11b/g (Marvell 86w8686B1)
Bluetooth 2.0 (CSR BC4ROM/21e)
Integrated antenna and connector for exter-
nal antenna
DVI-D/HDMI for connecting digital computer
monitors.
1 x USB 2.0 OTG
1 x USB 2.0 Host
MicroSD card reader
RS-232 Transceiver
RS-485 Transceiver
1 cm
Stereo line audio in and out jacks
