The LMD-2051W is a 20-inch LCD monitor designed for professional applications. It has a resolution of 1680x1050 pixels and delivers high brightness, contrast, and accurate color reproduction. The monitor accepts various video and computer inputs and has features like an on-screen waveform display and tally lights. It is suitable for applications like broadcast, production, and post-production.

1. LMD-2051W
20-inch High Grade Multi Format LCD Monitor
Affordable high picture performance This product comes with the full PrimeSupport pack-
age. That’s fast, hassle-free repairs, a helpline offer-
The LMD-2051W is a 20-inch widescreen LCD monitor ing expert technical advice, and a free loan unit while
designed for demanding broadcast and professional yours is repaired. Plus the peace of mind that Sony is
applications. looking after your equipment – and your business.
Redefining high performance in the mid-market sec-
tor, the new model incorporates a WSXGA+ resolution Features
(1680x1050 pixels) LCD panel, displaying high bright-
ness and contrast images together with a superior New High Definition 1680x1050 WSXGA+ LCD Panel
viewing angle. The LMD-2051W offers highly accurate Delivers outstandingly crisp, high brightness and high
and consistent colour reproduction through its unique contrast images
Sony ChromaTRU technology. This allows assured pic-
ture quality decisions as well as facilitating close col- Extremely wide Viewing Angle
our matching for tiling applications.
Class-leading horizontal and vertical viewing angle –
ideal for group viewing.
The LMD-2051W inherits the technology and features
of the LMD-2050W. It also includes the latest genera-
High Purity Colour Filters
tion of LCD panel which provides improved colour ac-
curacy and viewing angle. The LMD-2051W uses precisely manufactured RGB
colour filters, allowing the reproduction of colours with
Full digital 10-bit processing adds to the already im- stunning depth and saturation to create highly natural
pressive array of specifications, delivering smooth images.
greyscale and colour transitions.
Colour Temperature
The LMD-2051W accepts a 3G SDI input interface to Colour temperatures of 9300k, 6500k, or a user pre-
display 1080p format for future proof capability. set value can be selected.
A DVI-D input is available enabling a third-party man- Accurate and Repeatable Colour Reproduction
ufacturer’s multi-image processor to be connected. ChromaTRU technology ensures close CRT colour ac-
The Quad Split board developed by Harris can be in- curacy and gamma matching throughout the product’s
serted in a slot on the LMD-2051W saving space in life and delivers consistent colour temperature across
confined environments. the entire greyscale range. Both control characterist-
ics also assure extremely tight colour matching
It also sports a new on-screen video waveform and between different model samples.
audio level meter combined together plus a picture-
in-picture mode for greater user flexibility. Three settings are available to simulate EBU, SMPTE
and ITU-709 colour reproduction.
Entirely at home in broadcast, OB, production, post-
production and corporate environments, the 10-bit Picture Processing
LMD-2051W accepts a wide variety of PC and ana- Delivers smooth colour and greyscale transitions for
logue video formats and optional decoder boards are high quality video production.
available for standard and high definition digital video
display. Sophisticated I/P Conversion
The LMD-2051W monitor uses a motion-adaptive I/P-
All LMD Monitors come supplied with a 2-year
conversion process to achieve conversion results that
PrimeSupport contract which offers unique extra ser-
are optimized to the picture content - whether it is
vices and benefits for added peace of mind.
static or dynamic. Highly accurate I/P conversion is
www.pro.sony.eu/monitors 1

2. LMD-2051W
provided regardless of signal resolution, for example, and a safety zone marker. These flexible marker con-
whether the input is HD or SD. trols, together with the choice of many different as-
pect markers, make the LMD-2051W monitor ex-
Multi-Format Signal Support - up to 3G SDI Input tremely convenient display devices for a variety of
LMD-2051W can accept almost any SD or HD video shooting scenarios - from standard video acquisition
format, both analogue and digital. Includes NTSC, to digital cinematography.
PAL, component, RGB, Y/C, 480/60i, 575/50i, 480/
60p, 576/50p, 1080/50i, 1080/60i, 1080/50p, 1080/ Three Colour Tally
60p, 720/50p, 720/60p, 1080/24psf, 1080/25psf, The LMD-2051W comes equipped with a tally lamp
1080/24p, 1080/25p, 1080/30p and PC signals from that can be lit via a parallel remote connector. The
VGA to WSXGA+. status of the signal displayed on the monitor can be
identified by the tally colour - red, green, or amber.
3G SDI Input
The LMD-2051W has a 3G SDI input capability. On Selectable Scan Size for Video Input and Aspect
Sony’s monitors, the 3G SDI interface is compliant Ratio
with the SMPTE 425 standard, transmitting up to The scan size can be selected between 5% over scan
4:2:2/10-bit 1080/60P video data using one SDI and 0% scan modes. The aspect ratio can be switched
cable. This single-link system is known as a SD-SDI between 16:9 and 4:3 according to the input signal.
or HD-SDI system, but it can also handle both Dual-
Link HD-SDI and 3G SDI video data with the use of Smart APA (Auto Pixel Alignment) for Computer
Sony’s 3G SDI interface. This 3G SDI interface en- Input
ables LMD-2051W monitor to accept 50P and 60P The image size can be automatically adjusted to its
video data. Where an upgrade to a Dual-Link HD-SDI optimal setting with the one-touch APA key
system is necessary, this single-link 3G SDI system is
also the ideal alternative. Remote Control Options
Computer Input Frequencies Three connection methods are available –, parallel
8-pin, serial RJ45 Ethernet and serial RS232C links.
The LMD-2051W monitor is factory preset to accept The parallel connection allows up to 38 functions to be
32 typical computer input signal frequencies. remotely controlled.
Signal Interface Options Centralised Monitor-Wall Control
The monitor can accept up to two optional video Via the serial RJ45 Ethernet connector using the
boards for additional video analogue or digital inputs BKM-16R control unit.
(HD/SD SDI). Note that the new LMD-2051W is com-
patible with current decoder boards. Stereo Audio Monitoring
Quad Split functionality The LMD-2051W is equipped with stereo speakers. Up
to 16 embedded digital audio channels can be de-
Harris QS-100HD board has been designed to fit in- coded and routed to the speakers. Analogue audio in-
side the LMD-2051W for space saving. It provides ul- puts are also catered for.
timate quad images with many functions associated.
Smart Function Key Lighting
New Video Waveform and Audio Level Meter
The key lighting contributes to the elegant design and
A combined video waveform and Audio Level Meter is enhances user functionality. And to increase flexibil-
available on the On-screen display of the monitor. ity, the lighting can be switched off to eliminate any
visual disturbance when multiple displays are em-
Picture-In-Picture mode ployed for tiling purposes.
Side by side or Picture-in-Picture (PiP) mode allows
users to check two images on the same screen. Com- Protected Controls
bination of video and computer images side by side is A key-inhibit switch prevents inadvertent operation
also available. from the control panel.
Selectable Scan Size and Aspect Ratio VESA Mounting Standard
Over-scan and Normal-scan as well as full scan is Table, wall or ceiling mounting
available, and aspect ratio can be switched between
16:9 and 4:3.
Multiple-Language On-Screen Display
English, French, Spanish, German, Italian, Japanese
and Chinese.
Advanced Video Markers
The LMD-2051W monitor can display various area
markers, including a center marker, aspect markers,
www.pro.sony.eu/monitors 2

3. LMD-2051W
Benefits Exceptionally Versatile
Equally suited to AV or IT-based applications due to a
Suitable for a Wide Range of Applications broad range of inputs and multi-format signal
capabilities.
Ideal for BROADCAST (studio, office viewing, control
room etc.), PRODUCTION (OB, monitor wall, VTR con- Future Proof
trol, audio monitoring etc.), POST-PRODUCTION (mid-
range multi-format editing consoles), CORPORATE Multi-format and HD capability plus optional decoder
(high-end multi-format use) and GRAPHIC DESIGN boards will ensure that the LMD-2051W remains
current.
Superb High Definition Display
Indoor or Outdoor Operation
1680x1050 LCD panel resolution delivers outstand-
ingly sharp high brightness and contrast pictures Can be powered by AC or DC power supplies.
Perfect for Group Viewing Easier to Install and Accommodate than CRT
An ultra-wide viewing angle of 178 degrees makes Space saving / lightweight / low heat output – and
this no problem ideal for OB or mobile applications.
Outstanding greyscale and colour transitions Air Conditioning Requirements lower than with CRT
provide lifelike picture quality LCD monitors generate less heat.
Thanks to full digital 10-bit processing.
Low Maintenance
Colour Quality Decisions can be made with No routine convergence, geometry or linearity adjust-
Confidence ments necessary. No susceptibility to magnetic fields.
Enhanced colour gamut and innovative Sony Chro- Reduced Operator Fatigue
maTRU technology ensure consistent and repeatable
Flicker-free picture is more comfortable to view and
colour to ITU-709, SMPTE and EBU standards and
reduces eye-strain.
from monitor to monitor.
Consistently Optimal Picture Performance Lower Total Cost of Ownership than CRT
Simpler and cheaper to install, transport and store.
Less ‘drift’ than CRT displays, with no convergence,
Long operational life / high reliability. Low energy
geometry or linearity issues, and no susceptibility to
bills. Low maintenance cost. Reduced environmental
magnetic fields.
disposal costs.
Ideal for ‘Tiling’ Applications
Peace of Mind
Consistent and repeatable chroma and greyscale per-
All LMD monitors come supplied with a 2-year
formance ensures close matching between monitors.
PrimeSupport contract which offers unique extra ser-
Lighting function keys contribute to an elegant design
vices and benefits.
ideally suited for display wall.
Productivity Boost 2 years’ cover
With new picture-in-picture and on-screen Video Free telephone helpdesk support in English, German,
waveform and audio level meter. French, Italian and Spanish.
Collection and replacement product delivery anywhere
in EU, Norway and Switzerland.
Technical Specifications
Picture Performance Input
Type a-Si TFT Active Matrix LCD Composite BNC (x1), 1.0 Vp-p ±3dB
Resolution 1680 x 1050 pixels sync negative
(WSXGA+) Y/C Mini DIN 4-pin (x1)
Effective picture size (H 433.4 x 270.9 mm (17 1/8 x Y: 1.0 Vp-p ±3dB sync neg-
x W) (Diagonal) 10 3/4 inches) ative, C: 0.286 Vp-p ±3dB
511.1 mm (20 1/8 inches) (NTSC burst signal level),
0.3 Vp-p ±3dB (PAL burst
Aspect 16:10
signal level)
Colors Approx. 16.7 million colors
Viewing angle 89°/89°/89°/89° (typical)
(up/down/left/right contrast
> 10:1)
www.pro.sony.eu/monitors 3

4. LMD-2051W
RGB, Component BNC (x3) External sync BNC (x1), Loop-through,
RGB: 0.7 Vp-p ±3dB (Sync with 75 ohms automatic
On Green, 0.3 Vp-p sync termination
negative) Audio monitor out Phono jack (x2) (L, R)
Component: 0.7 Vp-p ±3dB
Speaker (Built-in) 1.0 W + 1.0 W (stereo)
(75% chrominance standard
color bar signal)
DVI-D DVI-D (x1) General
TMDS single link
HD15 D-sub 15-pin (x1) Power requirement AC 100 V to 240 V, 50/60
R/G/B: 0.7 Vp-p sync posit- Hz, 0.8 A to 0.4 A
ive (Sync On Green, 0.3 Vp- DC 24 V, 3.3 A
p sync negative) Power consumption Maximum approx. 95 W
Sync: Total level (polarity (with 2 x BKM-229X)
free, H/V separate sync) Operating temperature 0°C to 35°C (32°F to 95°F)
Plug & Play function: corres- Recommended: 20°C to
ponds to DDC2B 30°C (68°F to 86°F)
Audio Phono jack (x2) (L, R), -5 Operating humidity 30% to 85% (no
dBu 47 kilohms or higher condensation)
External sync BNC (x1) Storage and transport -20°C to +60°C (-4°F to
0.3 Vp-p to 4.0 Vp-p ± bi- temperature +140°F)
polarity ternary or negative Storage and transport 0% to 90%
polarity binary humidity
Option slot 2 slots Operating, storage, and 700 hPa to 1060 hPa
Signal format: H: 15 kHz to transport pressure
45 kHz, V: 48 Hz to 60 Hz
Dimensions (W x H x D) 518.5 x 444.1 x 269.9 mm
Parallel remote Modular connector 8-pin (with stand) (20 1/2 x 17 1/2 x 10 3/4
(x1) (Pin-assignable) inches)
Serial remote D-sub 9-pin (RS-232C) (x1), Dimensions (W x H x D) 518.5 x 328.7 x 104.7 mm
RJ-45 modular connector (without stand) (20 1/2 x 13 x 4 1/8 inches)
(Ethernet) (x1) (10BASE-T/
100BASE-TX) Mass (with options) 10.5 kg (23 lb 2 oz) (with 2
x BKM-229X)
DC in DC 24 V (output impedance
0.05 ohms or less) Mass 10.1 kg (22 lb 4 oz)
Output Supplied Accessories
Composite BNC (x1), Loop-through, AC power cords
with 75 ohms automatic AC plug holder (1)
termination Operating Instructions
Y/C Mini DIN 4-pin (x1), Loop- (1)
through, with 75 ohms auto- CD-ROM (1)
matic termination Using the CD-ROM
RGB, Component BNC (x3), Loop-through, Manual (1)
with 75 ohms automatic Display Stand
termination
Accessories
Control Units
B K M - 16R
Monitor Control Unit
www.pro.sony.eu/monitors 4

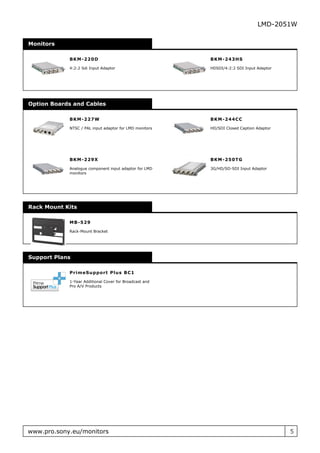

5. LMD-2051W
Monitors
B K M - 220D BKM- 2 4 3 HS
4:2:2 Sdi Input Adaptor HDSDI/4:2:2 SDI Input Adaptor
Option Boards and Cables
B K M - 227W BKM- 2 4 4 C C
NTSC / PAL input adaptor for LMD monitors HD/SDI Closed Caption Adaptor
B K M - 229X BKM- 2 5 0 T G
Analogue component input adaptor for LMD 3G/HD/SD-SDI Input Adaptor
monitors
Rack Mount Kits
M B - 529
Rack-Mount Bracket
Support Plans
P r im eSu ppo r t P lu s B C 1
1-Year Additional Cover for Broadcast and
Pro A/V Products
www.pro.sony.eu/monitors 5
