The Datavideo MS-900 is a fully integrated 8-channel SD mobile video studio. It accepts up to 8 SD inputs of different formats and provides standard outputs including DV, YUV, S-Video, and Composite Video. Thanks to a built-in frame synchronizer and TBC, no external genlock is required. Optional boards allow for chroma keying of 4 channels and overlay of graphics. The system is compact and portable for live production in and out of the studio.

1. S h a r i n g t h e V a l u e
www.datavideo-tek.com

2. MOBILE VIDEO STUDIO MS-900
8-channel SD mobile video studio C H R OM A
8 KEY
MS-900
Datavideo MS-900 is a fully integrated source is highlighted in Red and the cued
mobile video studio designed around source is highlighted in yellow. In addition
Datavideo SE-900 modular 8-channel each input card offers a Composite Video
SD switcher. The MS-900 feature preview putput, irrespective of the input
set can be expanded with additional type.
input cards and accessories as your The Datavideo MS-900 features also
requirements evolve. include a down stream keyer (DSK) for
The Datavideo MS-900 accepts up to integration with character generator such
8 SD inputs of your choice including as Datavideo CG-100 or CG-350. Overlay
DV, SDI, DVI YUV and Composite Keying can be performed internally or
Video. Standard outputs include DV, externally. A separate Logo Display can
YUV, S-Video (Y/C) and Composite be used independently of the DSK utilising
Video. two built in stores.
Thanks to a built in frame synchroniser An optional Chroma Key board can be fitted
and TBC for each channel no external to add a 4 channel Chroma Key function.
genlock is required for flicker free Each channel can be set independently,
switching between all 8 inputs - in any and you can seamlessly switch from one
format. to another. This is ideal for virtual studio or
Optional genlock input card is newsroom type applications.
available for genlock to existing house To accommodate for anydelay in DV or SDI
reference. equipment SE-900 includes an audio
The Multi Image Preview output delay function as well as a DV/SDI audio
allows all 8 input channels, together embedder for output. Additionally each DV
with the preview and program buses and SDI video in put has an audio Digital SD Switcher SE-900
to be seen on one screen. The screen de-embedder which provides dual channel Talkback /Intercom ITC-100
also features tally information, the live balanced audio output. 17" TFT LCD Monitor TLM-170
Digital Video Recorder DN-500
FEATURES
■ Complete integrated solution, ■ Built in frame synchroniser and ■ Integrated high-capacity removable hard
including 8-channel SD switcher, TBC for each channel, no external disk video recorders.
multi display monitor, hard drive genlock is required for flicker free ■ Integrated Datavideo PD-1 power distribu
recorder and talk back system with switching between all 8 inputs tion centre provides a simple and secure
built in tally feature. in any format. solution for connecting power in the studio
■ Multi-format video – up to 8 inputs ■ Advanced multi-screen monitor for or in the field from a 12V source, such as a
with a choice of SDI, DV, DVI, confident preview or each source generator
Component (Y:U:V), S-video (Y/C) together with next source/effect ■ Easy Setup, breakdown and storage at any
& Composite Video. preview and program output – with location. Designed to be "live-in-seconds"
■ Balanced audio input with built in overlayed tally indicator. ■ Anti shock padding protects the MS-900
delay function to ensure perfect ■ Up to 4 live camera input virtual during transit.
synchronizing of video. studio with optional Chroma Key
card
FEATURES
Built in
1 TLM-170
pull-out 17"
monitor
Connect a computer and SDI Overlay Board enables
switch between live video overlay of text and anima-
2 and popular computer applica- tions using a Character
tions such as presentation Generator Software such as Use the optional dual
and more. Datavideo’s CG-100 or colour chromakey board
CG-350 to produce exciting
The Key- chromakey studio setup
Transit lock of the with up to four back-
board folds grounds.
SE-900 keyboard to
up during
avoid transit dam- Add logo to your video with
3 transport 5 the easy to use lumakey
age.
function

3. MOBILE VIDEO STUDIO
APPLICATION DIAGRAM
PREVIEW IMAGE
5
5
Happy New Yeay
5
Happy New Yeay
SD
I
CG-100
DN-400 SDI TO HDMI
CONVERTER
CV
TCP/IP
PROJECT
NVS-10
NETWORK VIDEO
SERVER
MS-900
MOBILE VIDEO STUDIO
PREVIEW IMAGE
SD
I
S
PUT SDI TO HDMI
4 IN CONVERTER
EOS
VID
UND
GRO
ACK CV PROJECTOR
4B
TCP/IP
NVS-10
MS-900 NETWORK VIDEO
MOBILE VIDEO STUDIO SERVER
SETUP DIAGRAM
INDOOR STUDIO
SDI
1
MS-900
SDI
2 CG
PVW PGM SDI OUT
SDI
3 SDI IN
SDI CG GENERATOR
CG-100
SDI
4 SDI HDMI
HDMI
L R 8
SDI PROJECTOR
SDI TO HDMI CONVERTER
AUDIO
5 AUDIO R OUT
PC
IN INTERCOM
SDI L
+TALLY
1
CV
6
CAMERA
2 TCP/IP PC
AUDIO NETWORK
YUV
3 VIDEO SERVER
NVS-10
CP-100 7 4
PC
EXT.MIC AUDIO MIXER
PC DVI
8

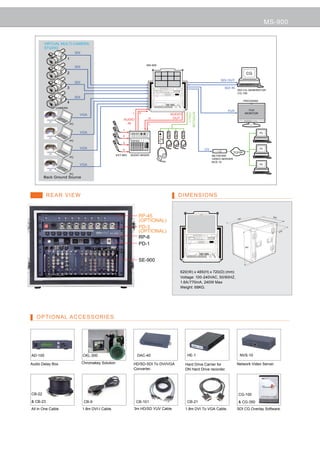

4. MS-900
VIRTUAL MULTI-CAMERA
STUDIO
SDI
1
MS-900
SDI
2 CG
SDI OUT
SDI
3 SDI IN
SDI CG GENERATOR
CG-100
SDI
PROGRAM
4
CAMERA
YUV YUV
L R MONITOR
+TALLY
INTERCOM
VGA AUDIO
AUDIO R OUT
PC IN L
1
VGA PC
2
PC
3
VGA 4 CV PC
TCP/IP
EXT.MIC AUDIO MIXER NETWORK
PC
VIDEO SERVER
NVS-10
VGA PC
PC
Back Ground Source
REAR VIEW DIMENSIONS
RP-45 620
(OPTIONAL) 720
PD-3
(OPTIONAL) 475
RP-6
PD-1
485
SE-900
620(W) x 485(H) x 720(D) (mm)
Voltage: 100-240VAC, 50/60HZ,
1.6A/770mA, 240W Max
Weight: 68KG.
OPTIONAL ACCESSORIES
AD-100 CKL-300 DAC-40 HE-1 NVS-10
Audio Delay Box Chromakey Solution HD/SD-SDI To DVI/VGA Hard Drive Carrier for Network Video Server.
Converter. DN Hard Drive recorder.
CB-22 CG-100
& CB-23 CB-9 CB-101 CB-21 & CG-350
All in One Cable. 1.8m DVI-I Cable. 3m HD/SD YUV Cable. 1.8m DVI To VGA Cable. SDI CG Overlay Software.

5. MOBILE VIDEO STUDIO
OPTIONAL ACCESSORIES
Complete your system with an All In One Cable D C To D C C o n v e r te r
CB-22 - 30 Meter or CB-23 - 50 Meter. DDC-2512
Secure, Easy & Convenient On Location
The DDC-2512 allows equipment connection to unregulated power
sources, such as generators, batteries or other sources typically
found on location.
Ideal for use with the CB-22 or CB-23 all in one cable.
P o w e r C e n te r
PD-3
The Datavideo PD-3 is universal power distribution center, with eight
separate power outlet - Each can be configured individually, DC24V,
18V, 14.4V & 12V, with a total power consumptions of 360 Watts.
Vid e o d is tr ib u tio n a m p lifie r
RP-45
4-Pin 5-Pin BNC BNC BNC BNC 4-Pin 5-Pin
XLR XLR SDI CV SDI CV XLR XLR
power commu- signal signal signal signal power commu-
cable nication cable cable cable cable cable nication
cable cable The Datavideo RP-45 is an eight composite video distribution
The Datavideo All in One Cable is a easy and convenient amplifier for use with the CB-22 or CB-23.
solutions to cabling on location, as well as in studio.
Available in both 30 meters (CB-22) or 50 meters (CB-23) lengths.
SETUP DIAGRAM
RP-44
VIDEO
POWER
PD-3
INTERCOM
ITC-100
SDI-
SE-900
VIDEO
CB-22/ CB-23
ALL IN ONE CABLE
TLM-700
MONITOR
VIDEO
DC TO DC CONVERTER CAMERA
POWER
DDC-2512
SDI VIDEO
1
INTERCOM
ITC-100SL
INTERCOM
BELTPACK

6. MS-900
OPTIONAL BOARDS
The Datavideo MS-900 allows easy installation of optional boards,
including SDI, DVI, Down Stream Keyer, Genlock in, and others.
All inputs are synchronised internally, so no genlock is required, even
between ordinary consumer camcorders/players and computer equipment
I NC L U D E D
External Control Board SDI Overlay Board
RS-232, RS-422 & GPI control interface board A down stream keyer (DSK) board offers both
allow easy integration with existing equipment Internal and External keying options.
that can be controlled such as tape recorders and Perfect for integration with character generator
players or presentation control panels hardware/software such as Datavideo CG-100
or CG-350
DVI Multi Viewer Board Analogue and DV - Output Board
The DVI multi-image output display allows
all inputs, master & next source output Output card for a range of popular
to be displayed on a single monitor, with video formats including DV (with
superimposed tally and source information to embedded audio from the audio delay
assist the producer in a hectic live production circuit) Composite Video, S-Video (Y/
environment in high resolution using traditional C) and Component (Y:U:V)
computer monitors or LCD TV's
O P T ION A L
SDI Input Board Analogue Video - Input Board
For users who work with SDI. The SDI For users who require input from a range of popular
input board also includes audio analogue video formats including Composite Video,
deembedding to a balanced pair. S-Video (Y/C) and Component (Y:U:V) – Built in Time
Features a useful Composite monitor Base Corrector synchronises each input - enabling
output, for easy connection to an non genlock equipment to be used without glitches.
external preview monitor Features a useful Composite Video monitor output, for
easy connection to an external preview monitor
DVI-D & VGA Input Board DV Input Board
Connect a computer and switch between live For users who work with Digital Video (DV).
video and popular computer applications such as The DV input board also de-embeds the
presentation and more. audio to a pair of balanced outputs
Perfect for live events like worship and company
presentations.
Features a Composite monitor output, for easy
connection to an external preview monitor
Four Channel Chromakey Board SDI Output Board
Create a virtual Chromakey video studio with For users who work with SDI.
glitchfree switching between up to four video inputs. The SDI Output board also features
You can pair four foregrounds (e. g. talent/actor a useful Composite Video monitor
in front of the camera) and backgrounds (like output, for easy connection to an
virtual created backgrounds) - the internal Time external preview monitor
Base Corrector takes care of synchronizing - even
non genlock equipment, like ordinary consumer
camcorders can be used
Genlock Board
GENLOCK card is a common technique where
the video output of one source, or a specific
reference signal, is used to synchronize other
sources together.
Sync to external black-burst reference design
