The LMD-2110W is a 21.5-inch LCD monitor designed for entry-level video applications. It offers Full HD resolution, a 10-bit processor for accurate color reproduction, and inputs like HDMI, component, and SD-SDI via an adapter. The monitor also provides a CRT-like gamma curve, 109% peak white reproduction, and minimized picture delay for audio synchronization. It is suitable for applications like non-linear editing, office viewing, and security due to its professional features and cost-effective performance.

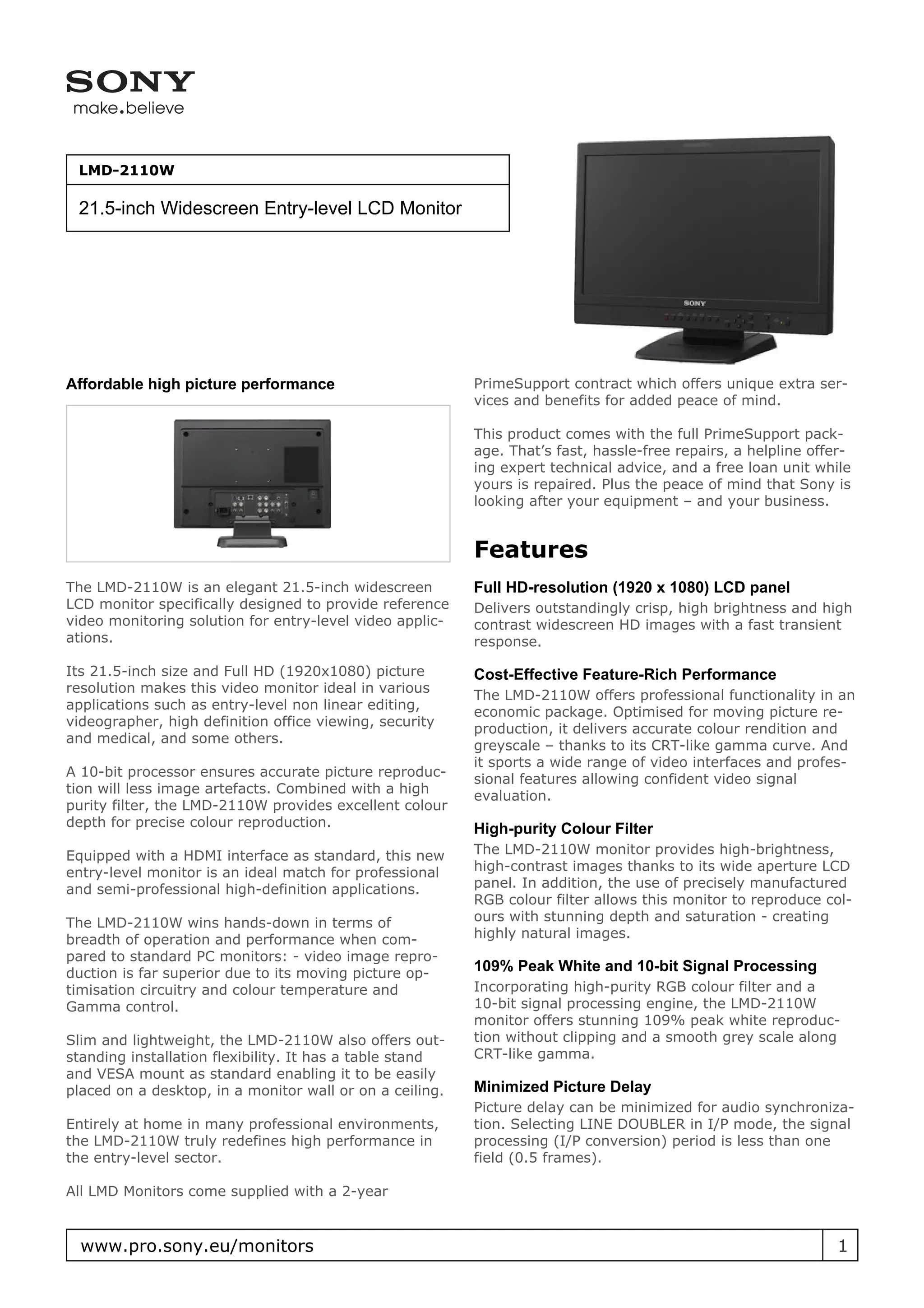

1. LMD-2110W
21.5-inch Widescreen Entry-level LCD Monitor
Affordable high picture performance PrimeSupport contract which offers unique extra ser-
vices and benefits for added peace of mind.
This product comes with the full PrimeSupport pack-
age. That’s fast, hassle-free repairs, a helpline offer-
ing expert technical advice, and a free loan unit while
yours is repaired. Plus the peace of mind that Sony is
looking after your equipment – and your business.
Features
The LMD-2110W is an elegant 21.5-inch widescreen Full HD-resolution (1920 x 1080) LCD panel
LCD monitor specifically designed to provide reference Delivers outstandingly crisp, high brightness and high
video monitoring solution for entry-level video applic- contrast widescreen HD images with a fast transient
ations. response.
Its 21.5-inch size and Full HD (1920x1080) picture Cost-Effective Feature-Rich Performance
resolution makes this video monitor ideal in various
The LMD-2110W offers professional functionality in an
applications such as entry-level non linear editing,
economic package. Optimised for moving picture re-
videographer, high definition office viewing, security
production, it delivers accurate colour rendition and
and medical, and some others.
greyscale – thanks to its CRT-like gamma curve. And
it sports a wide range of video interfaces and profes-
A 10-bit processor ensures accurate picture reproduc-
sional features allowing confident video signal
tion will less image artefacts. Combined with a high
evaluation.
purity filter, the LMD-2110W provides excellent colour
depth for precise colour reproduction. High-purity Colour Filter
Equipped with a HDMI interface as standard, this new The LMD-2110W monitor provides high-brightness,
entry-level monitor is an ideal match for professional high-contrast images thanks to its wide aperture LCD
and semi-professional high-definition applications. panel. In addition, the use of precisely manufactured
RGB colour filter allows this monitor to reproduce col-
The LMD-2110W wins hands-down in terms of ours with stunning depth and saturation - creating
breadth of operation and performance when com- highly natural images.
pared to standard PC monitors: - video image repro-
duction is far superior due to its moving picture op- 109% Peak White and 10-bit Signal Processing
timisation circuitry and colour temperature and Incorporating high-purity RGB colour filter and a
Gamma control. 10-bit signal processing engine, the LMD-2110W
monitor offers stunning 109% peak white reproduc-
Slim and lightweight, the LMD-2110W also offers out- tion without clipping and a smooth grey scale along
standing installation flexibility. It has a table stand CRT-like gamma.
and VESA mount as standard enabling it to be easily
placed on a desktop, in a monitor wall or on a ceiling. Minimized Picture Delay
Picture delay can be minimized for audio synchroniza-
Entirely at home in many professional environments, tion. Selecting LINE DOUBLER in I/P mode, the signal
the LMD-2110W truly redefines high performance in processing (I/P conversion) period is less than one
the entry-level sector. field (0.5 frames).
All LMD Monitors come supplied with a 2-year
www.pro.sony.eu/monitors 1

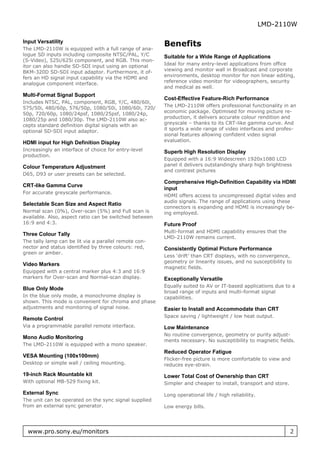

2. LMD-2110W
Input Versatility
Benefits
The LMD-2110W is equipped with a full range of ana-
logue SD inputs including composite NTSC/PAL, Y/C Suitable for a Wide Range of Applications
(S-Video), 525i/625i component, and RGB. This mon-
itor can also handle SD-SDI input using an optional Ideal for many entry-level applications from office
BKM-320D SD-SDI input adaptor. Furthermore, it of- viewing and monitor wall in Broadcast and corporate
fers an HD signal input capability via the HDMI and environments, desktop monitor for non linear editing,
analogue component interface. reference video monitor for videographers, security
and medical as well.
Multi-Format Signal Support
Cost-Effective Feature-Rich Performance
Includes NTSC, PAL, component, RGB, Y/C, 480/60i,
575/50i, 480/60p, 576/50p, 1080/50i, 1080/60i, 720/ The LMD-2110W offers professional functionality in an
50p, 720/60p, 1080/24psf, 1080/25psf, 1080/24p, economic package. Optimised for moving picture re-
1080/25p and 1080/30p. The LMD-2110W also ac- production, it delivers accurate colour rendition and
cepts standard definition digital signals with an greyscale – thanks to its CRT-like gamma curve. And
optional SD-SDI input adaptor. it sports a wide range of video interfaces and profes-
sional features allowing confident video signal
HDMI input for High Definition Display evaluation.
Increasingly an interface of choice for entry-level Superb High Resolution Display
production.
Equipped with a 16:9 Widescreen 1920x1080 LCD
Colour Temperature Adjustment panel it delivers outstandingly sharp high brightness
and contrast pictures
D65, D93 or user presets can be selected.
Comprehensive High-Definition Capability via HDMI
CRT-like Gamma Curve
input
For accurate greyscale performance.
HDMI offers access to uncompressed digital video and
audio signals. The range of applications using these
Selectable Scan Size and Aspect Ratio
connectors is expanding and HDMI is increasingly be-
Normal scan (0%), Over-scan (5%) and Full scan is ing employed.
available. Also, aspect ratio can be switched between
16:9 and 4:3. Future Proof
Multi-format and HDMI capability ensures that the
Three Colour Tally
LMD-2110W remains current.
The tally lamp can be lit via a parallel remote con-
nector and status identified by three colours: red, Consistently Optimal Picture Performance
green or amber.
Less ‘drift’ than CRT displays, with no convergence,
geometry or linearity issues, and no susceptibility to
Video Markers
magnetic fields.
Equipped with a central marker plus 4:3 and 16:9
markers for Over-scan and Normal-scan display. Exceptionally Versatile
Equally suited to AV or IT-based applications due to a
Blue Only Mode
broad range of inputs and multi-format signal
In the blue only mode, a monochrome display is capabilities.
shown. This mode is convenient for chroma and phase
adjustments and monitoring of signal noise. Easier to Install and Accommodate than CRT
Space saving / lightweight / low heat output.
Remote Control
Via a programmable parallel remote interface. Low Maintenance
No routine convergence, geometry or purity adjust-
Mono Audio Monitoring
ments necessary. No susceptibility to magnetic fields.
The LMD-2110W is equipped with a mono speaker.
Reduced Operator Fatigue
VESA Mounting (100x100mm)
Flicker-free picture is more comfortable to view and
Desktop or simple wall / ceiling mounting. reduces eye-strain.
19-inch Rack Mountable kit Lower Total Cost of Ownership than CRT
With optional MB-529 fixing kit. Simpler and cheaper to install, transport and store.
External Sync Long operational life / high reliability.
The unit can be operated on the sync signal supplied
from an external sync generator. Low energy bills.
www.pro.sony.eu/monitors 2

3. LMD-2110W
Low maintenance cost.
2 years’ cover
Reduced environmental disposal costs.
Free telephone helpdesk support in English, German,
Peace of Mind French, Italian and Spanish.
All LMD monitors come supplied with a 2-year
PrimeSupport contract which offers unique extra ser- Collection and replacement product delivery anywhere
vices and benefits; in EU, Norway and Switzerland.
Technical Specifications
Picture Performance RGB, Component BNC (x3), loop-through, with
75 ohms automatic
Type a-Si TFT Active Matrix LCD termination
Resolution 1920 x 1080 pixels External sync BNC (x1), loop-through, with
Effective picture size (H 477 x 268 mm (18 7/8 x 10 75 ohms automatic
x W) (diagonal) 5/8 inches), 547 mm (21 termination
5/8 inches) Audio monitor out Phono jack (x2), loop-
Aspect 16:9 through
Colors Approx. 16.7 million colors Speaker (built-in) 0.5 W (mono)
Viewing angle 170°/160° (typical)
(horizontal/vertical con-
General
trast>10:1)
Power requirements AC 100 V to 240 V, 50/60 Hz
Power consumption Maximum approx. 56 W, 1.0
Input A to 0.5 A
Composite BNC (x1), 1.0 Vp-p ±3dB Operating temperature 0°C to 35°C (32°F to 95°F)
sync negative Recommended: 20°C to
Y/C Mini DIN 4-pin (x1) 30°C (68°F to 86°F)
Y: 1.0 Vp-p ±3dB sync neg- Operating humidity 30% to 85% (no
ative, condensation)
C: 0.286 Vp-p ±3dB (NTSC Storage and transport -20°C to +60°C (-4°F to
burst signal level), temperature +140°F)
0.3 Vp-p ±3dB (PAL burst
Storage and transport 0% to 90%
signal level)
humidity
RGB, Component BNC (x3)
Operating, storage and 700 hPa to 1060 hPa
RGB : 0.7 Vp-p ±3dB (sync
transport pressure
on green, 0.3 Vp-p sync
negative) Dimensions (W x H x D) 515 x 403 x 264 mm (20
Component : 0.7 Vp-p ±3dB (with stand) 3/8 x 15 7/8 x 10 1/2
(75% chrominance standard inches)
color bar signal) Dimensions (W x H x D) 515 x 355 x 86 mm (20 3/8
HDMI HDMI (x1) (without stand) x 14 x 3 1/2 inches)
Audio Phono jack (x2), -5 dBu 47 Mass 8.6 kg (18 lb 15 oz)
kilohms or higher Mass (without stand) 6.9 kg (14 lb 19 oz)
OPTION AUDIO IN: Phono Accessories supplied AC power cord (1), AC plug
jack (x1), -5 dBu 47 kilohms holder (1), Operating In-
or higher structions (1), CD-ROM (1),
External sync BNC (x1), 0.3 Vp-p to 4 Vp- Using the CD-ROM Manual
p negative polarity binary (1), Warranty book (1)
Option in connector D-sub 9-pin (x1), female
Parallel remote Modular connector 8-pin Supplied Accessories
(x1) (pin-assignable)
AC power cord (1)
AC plug holder (1)
Output
Operating Instructions
Composite BNC (x1), loop-through, with (1)
75 ohms automatic CD-ROM (1)
termination Using the CD-ROM
Y/C Mini DIN 4-pin (x1) loop- Manual (1)
through, with 75 ohms auto-
matic termination
www.pro.sony.eu/monitors 3

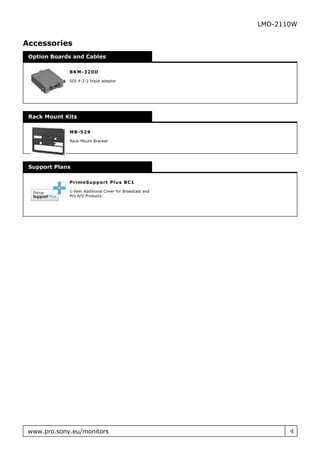

4. LMD-2110W
Accessories
Option Boards and Cables
B K M - 320D
SDI 4:2:2 Input adaptor
Rack Mount Kits
M B - 529
Rack-Mount Bracket
Support Plans
P r im eSu ppo r t P lu s B C 1
1-Year Additional Cover for Broadcast and
Pro A/V Products
www.pro.sony.eu/monitors 4
