MyHeritage - QA Automations in a Continuous Deployment environment
- 1. Matan Goren QAAutomation Tech Lead Automations in a Continuous Deployment Environment

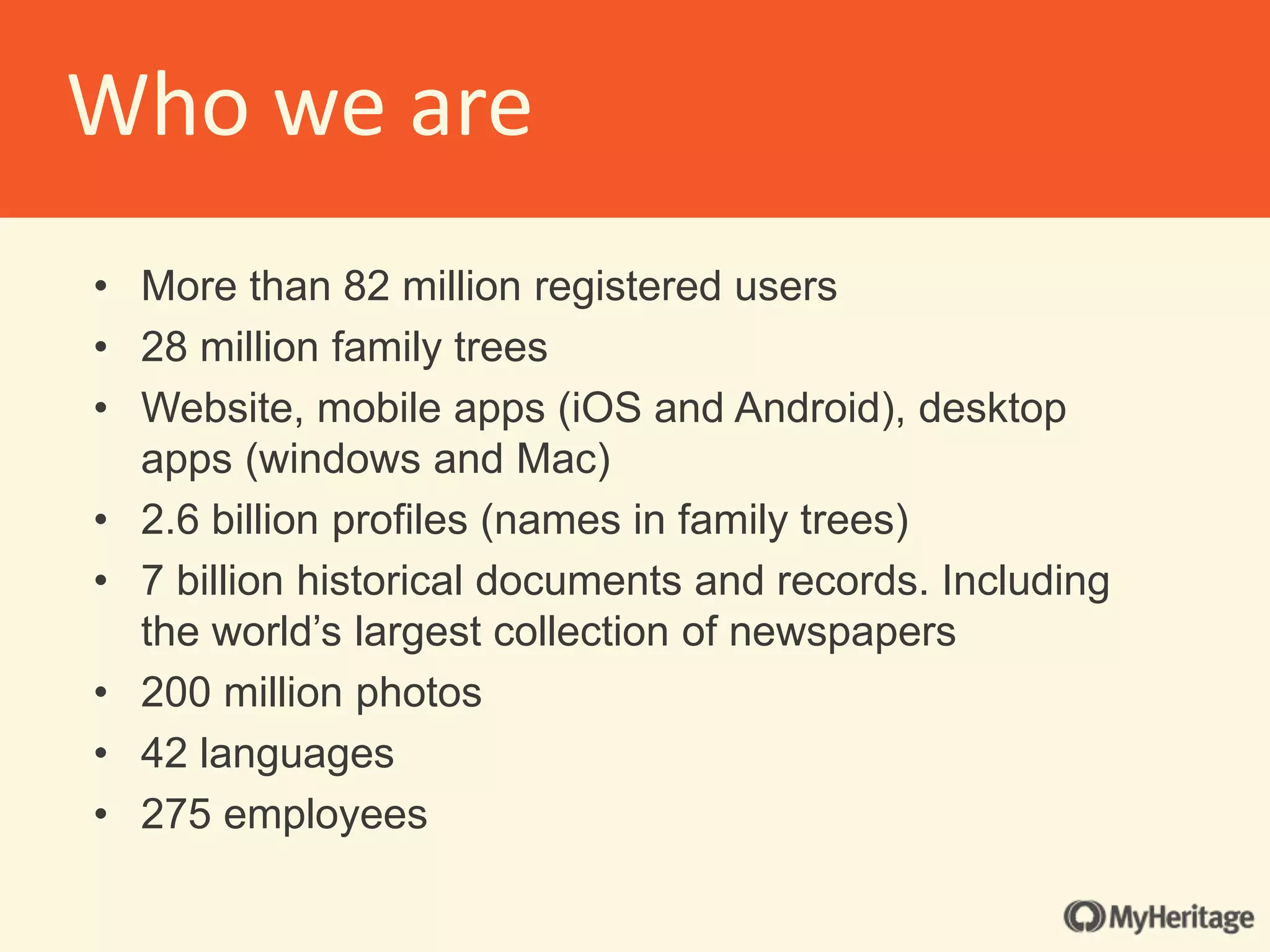

- 2. Who we are •More than 82 million registered users • 28 million family trees • Website, mobile apps (iOS and Android), desktop apps (windows and Mac) • 2.6 billion profiles (names in family trees) • 7 billion historical documents and records. Including the world’s largest collection of newspapers • 200 million photos • 42 languages • 275 employees

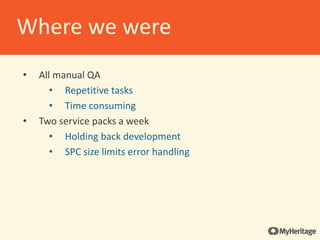

- 3. • All manualQA • Repetitive tasks • Time consuming • Two service packs a week • Holding back development • SPC size limits error handling Where we were

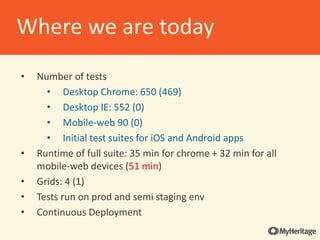

- 4. • Number oftests • Desktop Chrome: 650 (469) • Desktop IE: 552 (0) • Mobile-web 90 (0) • Initial test suites for iOS and Android apps • Runtime of full suite: 35 min for chrome + 32 min for all mobile-web devices (51 min) • Grids: 4 (1) • Tests run on prod and semi staging env • Continuous Deployment Where we are today
- 5. “In software, whensomething is painful, the way to reduce the pain is to do it more frequently, not less.” - David Farley

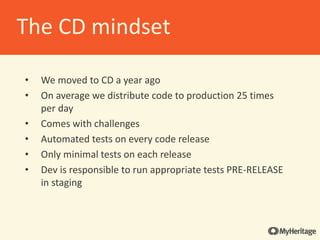

- 6. • We movedto CD a year ago • On average we distribute code to production 25 times per day • Comes with challenges • Automated tests on every code release • Only minimal tests on each release • Dev is responsible to run appropriate tests PRE-RELEASE in staging The CD mindset

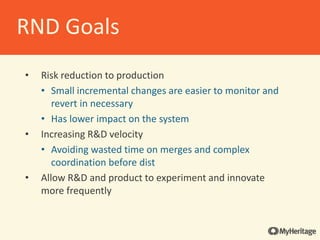

- 7. • Risk reductionto production • Small incremental changes are easier to monitor and revert in necessary • Has lower impact on the system • Increasing R&D velocity • Avoiding wasted time on merges and complex coordination before dist • Allow R&D and product to experiment and innovate more frequently RND Goals

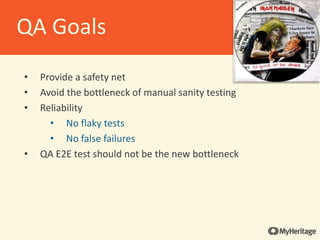

- 8. • Provide asafety net • Avoid the bottleneck of manual sanity testing • Reliability • No flaky tests • No false failures • QA E2E test should not be the new bottleneck QA Goals

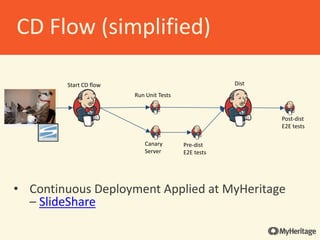

- 9. • Continuous DeploymentApplied at MyHeritage – SlideShare Run Unit Tests Canary Server Pre-dist E2E tests Dist Post-dist E2E tests Start CD flow CD Flow (simplified)

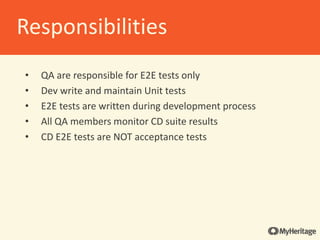

- 10. • QA areresponsible for E2E tests only • Dev write and maintain Unit tests • E2E tests are written during development process • All QA members monitor CD suite results • CD E2E tests are NOT acceptance tests Responsibilities

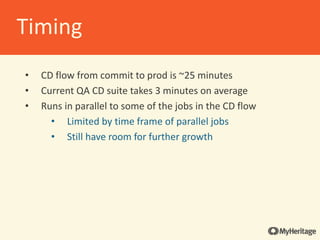

- 11. • CD flowfrom commit to prod is ~25 minutes • Current QA CD suite takes 3 minutes on average • Runs in parallel to some of the jobs in the CD flow • Limited by time frame of parallel jobs • Still have room for further growth Timing
- 12. • Minimal suite– No full regression on commit • Each Dev is responsible to run the desired Automated regression tests • Reliability • Monitor a new test before adding it to the CD suite • Velocity of tests • Run parallel tests (currently up to 16) • Write new CD dedicated tests if existing tests are too long • Add hardware if needed Challenges of CD And how we face them

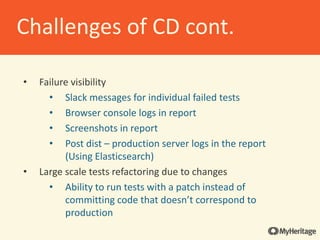

- 13. • Failure visibility •Slack messages for individual failed tests • Browser console logs in report • Screenshots in report • Post dist – production server logs in the report (Using Elasticsearch) • Large scale tests refactoring due to changes • Ability to run tests with a patch instead of committing code that doesn’t correspond to production Challenges of CD cont.

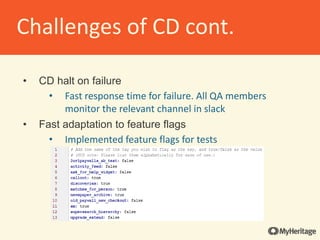

- 14. • CD halton failure • Fast response time for failure. All QA members monitor the relevant channel in slack • Fast adaptation to feature flags • Implemented feature flags for tests Challenges of CD cont.

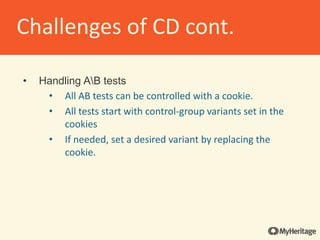

- 15. • Handling ABtests • All AB tests can be controlled with a cookie. • All tests start with control-group variants set in the cookies • If needed, set a desired variant by replacing the cookie. Challenges of CD cont.
- 16. Gray Area forfull image “You don't have to be a genius or a visionary or even a college graduate to be successful. You just need a framework and a dream.” - Michael Dell

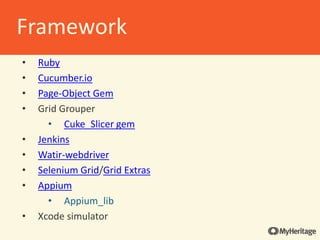

- 17. • Ruby • Cucumber.io •Page-Object Gem • Grid Grouper • Cuke_Slicer gem • Jenkins • Watir-webdriver • Selenium Grid/Grid Extras • Appium • Appium_lib • Xcode simulator Framework

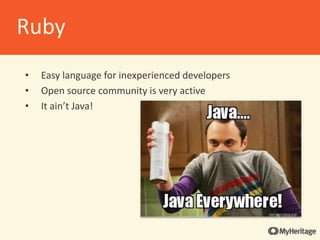

- 18. • Easy languagefor inexperienced developers • Open source community is very active • It ain’t Java! Ruby
- 19. • Native toRuby • Cleaner than Selenium • Adds methods not native to Selenium • “Being able to select an element by a explicit identifier” –watirmelon.com Watir-webdriver

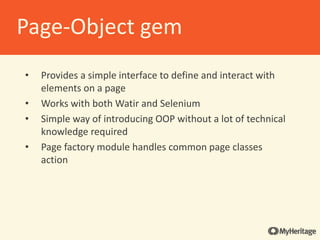

- 20. • Provides asimple interface to define and interact with elements on a page • Works with both Watir and Selenium • Simple way of introducing OOP without a lot of technical knowledge required • Page factory module handles common page classes action Page-Object gem

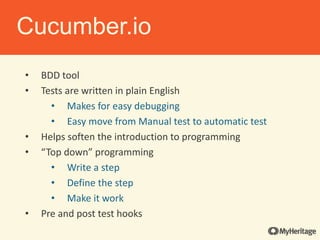

- 21. • BDD tool •Tests are written in plain English • Makes for easy debugging • Easy move from Manual test to automatic test • Helps soften the introduction to programming • “Top down” programming • Write a step • Define the step • Make it work • Pre and post test hooks Cucumber.io

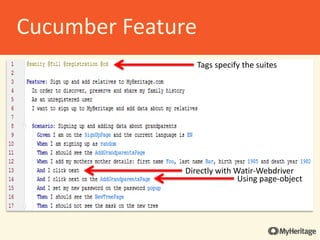

- 22. Directly with Watir-Webdriver Usingpage-object Tags specify the suites Cucumber Feature

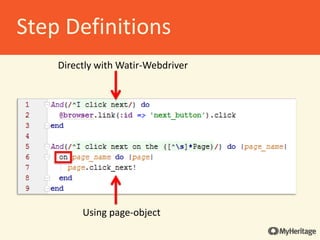

- 23. Directly with Watir-Webdriver Usingpage-object Step Definitions

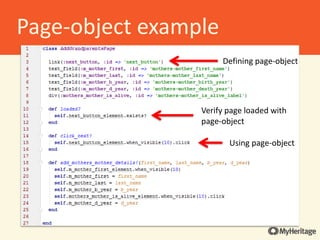

- 24. Using page-object Defining page-object Verifypage loaded with page-object Page-object example
- 25. • Tests runnightly on the build or on demand • Using two Mac minis as test machines • Device parameters are passed from Jenkins (or configuration if running locally) • The apps are built on the tests machines and deployed to the simulatoremulator • Support for iOS and Android within existing infra • iOS simulator, Android emulator and Appium server are opened by command from within the code Native Mobile Apps
- 26. • Support foriOS and Android within existing infra Native Mobile Apps

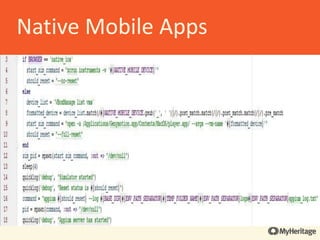

- 27. • iOS simulator,Android emulator and Appium server are opened by command from within the code Native Mobile Apps
- 28. Native Mobile TestFlow • Start E2E flow • Build App • Start test flow • Open simulatoremulator • Open Appium server • Start Appium driver • Perform test • Close Appium driver • Close Appium server • Build Report • Send slack notifications and emails

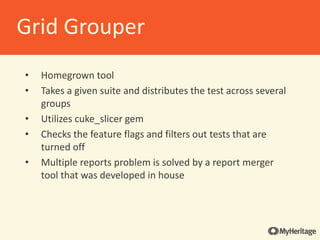

- 29. • Homegrown tool •Takes a given suite and distributes the test across several groups • Utilizes cuke_slicer gem • Checks the feature flags and filters out tests that are turned off • Multiple reports problem is solved by a report merger tool that was developed in house Grid Grouper
- 30. • Chuck Norris! •Was already in use by RND • Open source (lot’s of available plugins) • Schedule automated builds • Kick off manual builds with a few clicks • Control build parameters (server, suite, etc) • Can build in any of our environments with any combination of tags • Holds build history for a specified amount of time • Merged report is stored in each build • Slack and email notifications Jenkins

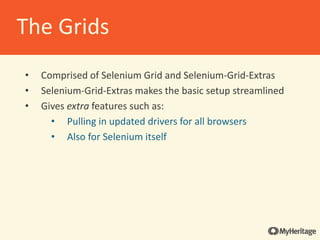

- 31. • Comprised ofSelenium Grid and Selenium-Grid-Extras • Selenium-Grid-Extras makes the basic setup streamlined • Gives extra features such as: • Pulling in updated drivers for all browsers • Also for Selenium itself The Grids

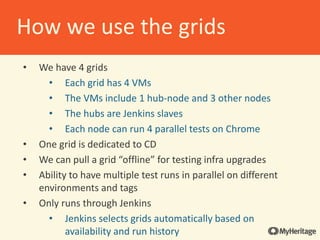

- 32. • We have4 grids • Each grid has 4 VMs • The VMs include 1 hub-node and 3 other nodes • The hubs are Jenkins slaves • Each node can run 4 parallel tests on Chrome • One grid is dedicated to CD • We can pull a grid “offline” for testing infra upgrades • Ability to have multiple test runs in parallel on different environments and tags • Only runs through Jenkins • Jenkins selects grids automatically based on availability and run history How we use the grids
- 33. “A challenge onlybecomes an obstacle when you bow to it.” - Ray A. Davis

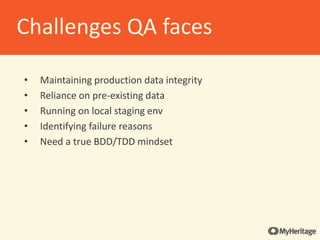

- 34. • Maintaining productiondata integrity • Reliance on pre-existing data • Running on local staging env • Identifying failure reasons • Need a true BDD/TDD mindset Challenges QA faces
- 35.
- 36. AA Milne Thanks! We arehiring
