Steve Povilaitis presented on continuous deployment and its benefits. Continuous deployment involves continuous developer integrations and deployments executed by automatic builds. It reduces risk by integrating code changes frequently through automated testing and deployment. The presentation outlined a roadmap for implementing continuous deployment practices like version control, automated builds, testing, and deployment through tools like Jenkins.

1. Continuous Delivery
Never SEND a human to do a
machine’s job
Presenter: Steve Povilaitis

2. Steve Povilaitis
Enterprise Agile Coach
•steve@leadingagile.com
•386.690.3118
•www.leadingagile.com
•twitter.com/stevepov
•facebook.com/leadingagile
•linkedin.com/in/stevepov

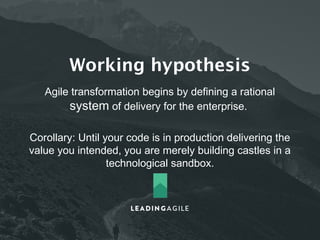

3. Working hypothesis
Agile transformation begins by defining a rational
system of delivery for the enterprise.
Corollary: Until your code is in production delivering the
value you intended, you are merely building castles in a
technological sandbox.

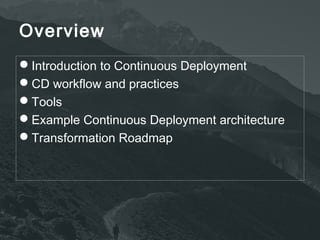

4. Overview
Introduction to Continuous Deployment
CD workflow and practices
Tools
Example Continuous Deployment architecture
Transformation Roadmap

5. How long would it take your organization to deploy a change [to
production] that involves just one single line of code?
Do you do this on a repeatable, reliable basis?
- Mary and Tom Poppendieck, Implementing Lean Software Development

6. What is Continuous
Deployment?
•A development methodology
•Of continuous developer integrations/deployments
•Executed by automatic builds

7. “Never send a human to do a machine’s job”

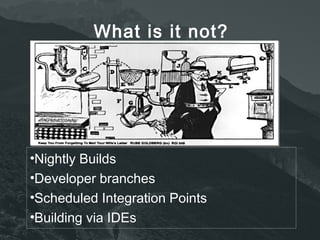

8. What is it not?
•Nightly Builds
•Developer branches
•Scheduled Integration Points
•Building via IDEs

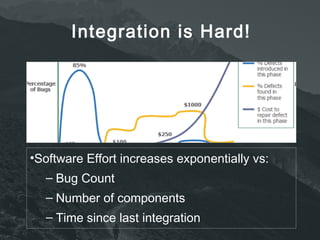

9. Integration is Hard!
•Software Effort increases exponentially vs:
– Bug Count
– Number of components
– Time since last integration

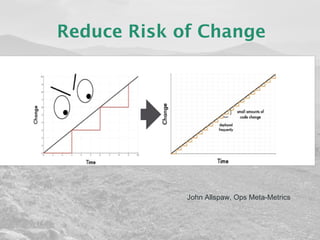

10. Reduce Risk of Change
John Allspaw, Ops Meta-Metrics

11. SCRUM PROVIDES A PROCESS
FOR EARLY VALUE DELIVERY

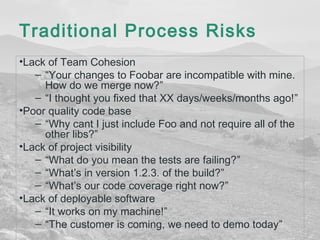

12. Traditional Process Risks
•Lack of Team Cohesion
– “Your changes to Foobar are incompatible with mine.
How do we merge now?”
– “I thought you fixed that XX days/weeks/months ago!”
•Poor quality code base
– “Why cant I just include Foo and not require all of the
other libs?”
•Lack of project visibility
– “What do you mean the tests are failing?”
– “What’s in version 1.2.3. of the build?”
– “What’s our code coverage right now?”
•Lack of deployable software
– “It works on my machine!”
– “The customer is coming, we need to demo today”

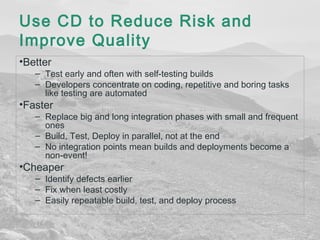

13. Use CD to Reduce Risk and
Improve Quality
•Better
– Test early and often with self-testing builds
– Developers concentrate on coding, repetitive and boring tasks
like testing are automated
•Faster
– Replace big and long integration phases with small and frequent
ones
– Build, Test, Deploy in parallel, not at the end
– No integration points mean builds and deployments become a
non-event!
•Cheaper
– Identify defects earlier
– Fix when least costly
– Easily repeatable build, test, and deploy process

14. Continuous Integration
Workflow
•Monitor source repository for
changes
•Checkout source whenever
there are ANY changes
•Ensure code actually compiles
on every target platform
•Run unit and integration tests
•Generate documentation
•Package and deploy

15. Automated Build Process
SCM
Build Results
Test Results
Doxygen output
Email/Web/IM
1. Bootstrap
2. Check for modifications
3. Get the revision log
Jenkins
Javac
ant
Junit
Doxygen
etc
4.2 Run Build
5. Publish Artifacts
6. Send to publisher
4.1. Get the latest
source
4.3. Tag source
(optional)
4. Run Build
Jenkins SCM adapter

16. Compilation != A Build
Build Inputs
•Sources
– .java .js
•Configuration files
– XML files
– Properties
•Resources
– Libraries
Build Outputs
Executable / Library
Test Results
Junit
Documentation
doxygen
Installers
Source Package

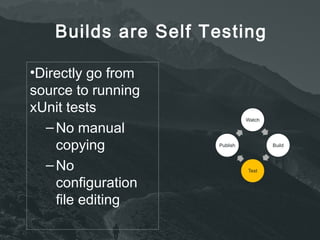

17. Builds are Self Testing
•Directly go from
source to running
xUnit tests
–No manual
copying
–No
configuration
file editing

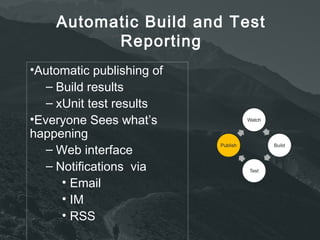

18. Automatic Build and Test
Reporting
•Automatic publishing of
– Build results
– xUnit test results
•Everyone Sees what’s
happening
– Web interface
– Notifications via
• Email
• IM
• RSS

19. CD roadmap
Implement Version control - using a next generation
tool such SVN,Perforce, TFS, Git.
Not Clearcase or VSS, or CVS or some other POS.
Goal - Implement a versioning system that allows
developers to work in a distributed manner in a non-file
locked environment

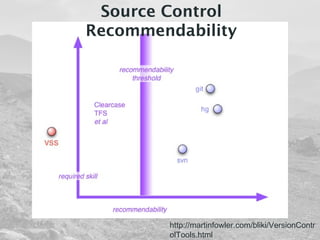

20. Source Control
Recommendability
http://martinfowler.com/bliki/VersionContr
olTools.html

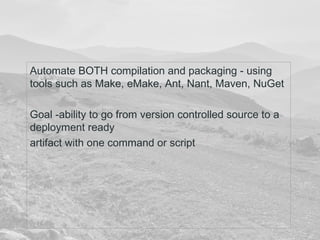

21. Automate BOTH compilation and packaging - using
tools such as Make, eMake, Ant, Nant, Maven, NuGet
Goal -ability to go from version controlled source to a
deployment ready
artifact with one command or script

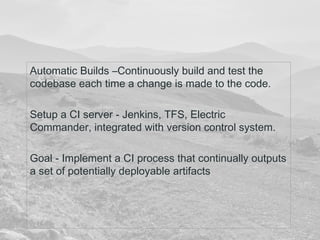

22. Automatic Builds –Continuously build and test the
codebase each time a change is made to the code.
Setup a CI server - Jenkins, TFS, Electric
Commander, integrated with version control system.
Goal - Implement a CI process that continually outputs
a set of potentially deployable artifacts

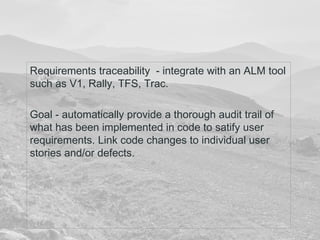

23. Requirements traceability - integrate with an ALM tool
such as V1, Rally, TFS, Trac.
Goal - automatically provide a thorough audit trail of
what has been implemented in code to satify user
requirements. Link code changes to individual user
stories and/or defects.

24. Automated Testing: Automate as much of the following as
possible.
Unit tests
Integration Tests
Load Tests
Performance Tests
Simulation tests
Smoke tests
Quality Tests
Goal - automate as much testing as possible and provide
sufficient test coverage at multiple levels

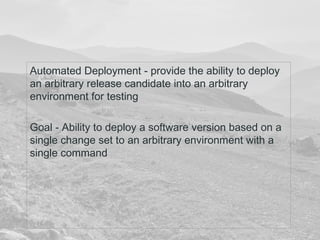

25. Automated Deployment - provide the ability to deploy
an arbitrary release candidate into an arbitrary
environment for testing
Goal - Ability to deploy a software version based on a
single change set to an arbitrary environment with a
single command

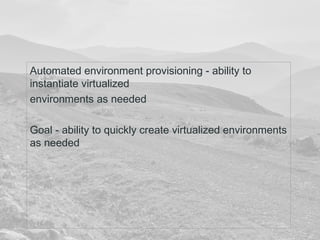

26. Automated environment provisioning - ability to
instantiate virtualized
environments as needed
Goal - ability to quickly create virtualized environments
as needed

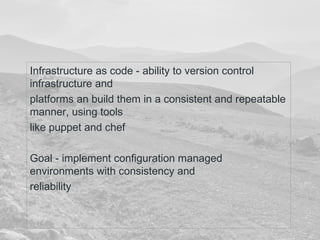

27. Infrastructure as code - ability to version control
infrastructure and
platforms an build them in a consistent and repeatable
manner, using tools
like puppet and chef
Goal - implement configuration managed
environments with consistency and
reliability

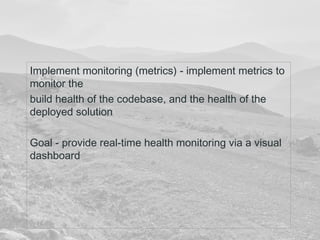

28. Implement monitoring (metrics) - implement metrics to
monitor the
build health of the codebase, and the health of the
deployed solution
Goal - provide real-time health monitoring via a visual
dashboard

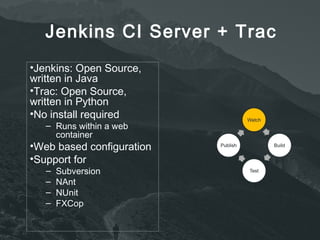

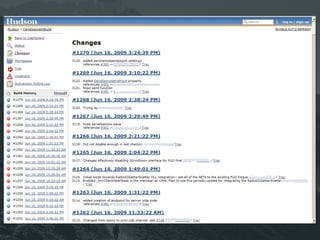

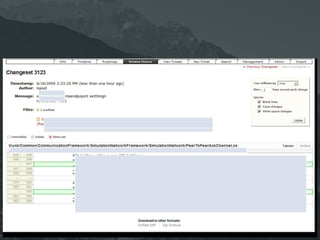

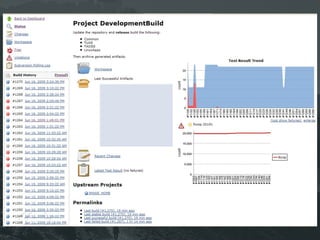

29. Jenkins CI Server + Trac
•Jenkins: Open Source,
written in Java
•Trac: Open Source,
written in Python
•No install required
– Runs within a web
container
•Web based configuration
•Support for
– Subversion
– NAnt
– NUnit
– FXCop

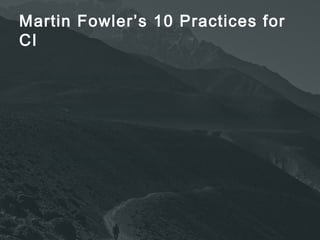

34. Martin Fowler’s 10 Practices for
CI
Maintain a Single Source Repository.
Automate the Build
Make Your Build Self-Testing
Everyone Commits Every Day
Every Commit Should Build the Mainline on an Integration Machine
Keep the Build Fast
Test in a Clone of the Production Environment
Make it Easy for Anyone to Get the Latest Executable
Everyone can see what's happening
Automate Deployment
