TadGAN: Time Series Anomaly Detection Using GANs (2020)

TadGAN: Time Series Anomaly Detection
Using GANs (2020)
JunPyo Park
Financial Engineering Lab
Department of Industrial Engineering
Alexander Geiger et al.
acXiv

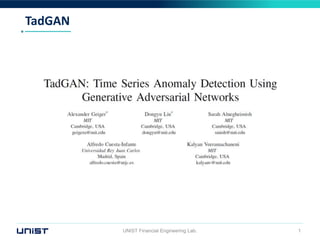

TadGAN
UNIST Financial Engineering Lab. 1

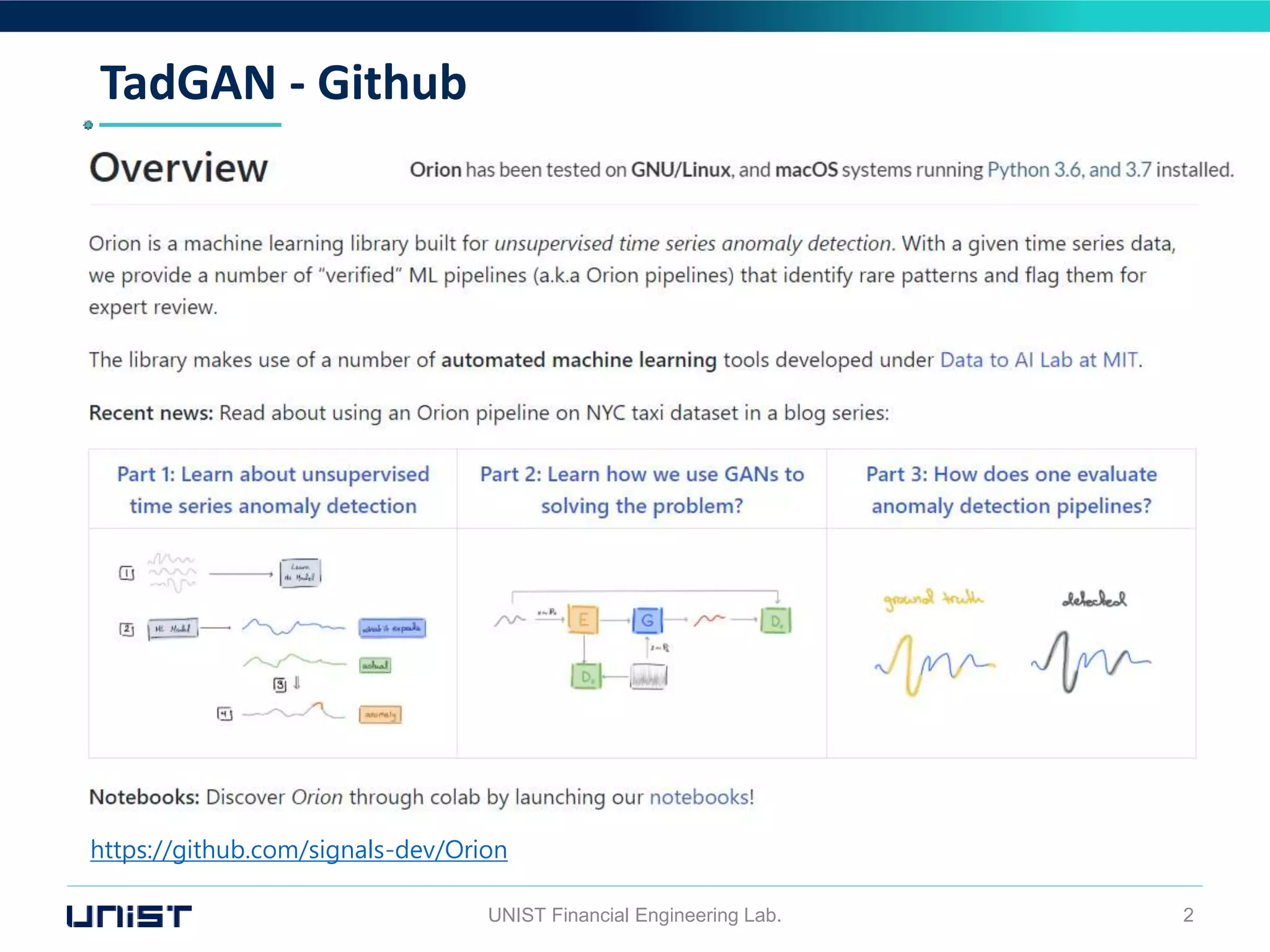

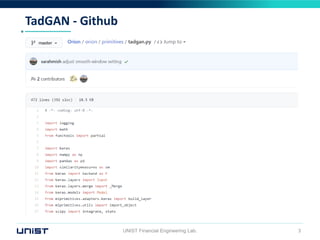

TadGAN - Github
https://github.com/signals-dev/Orion

TadGAN - Github

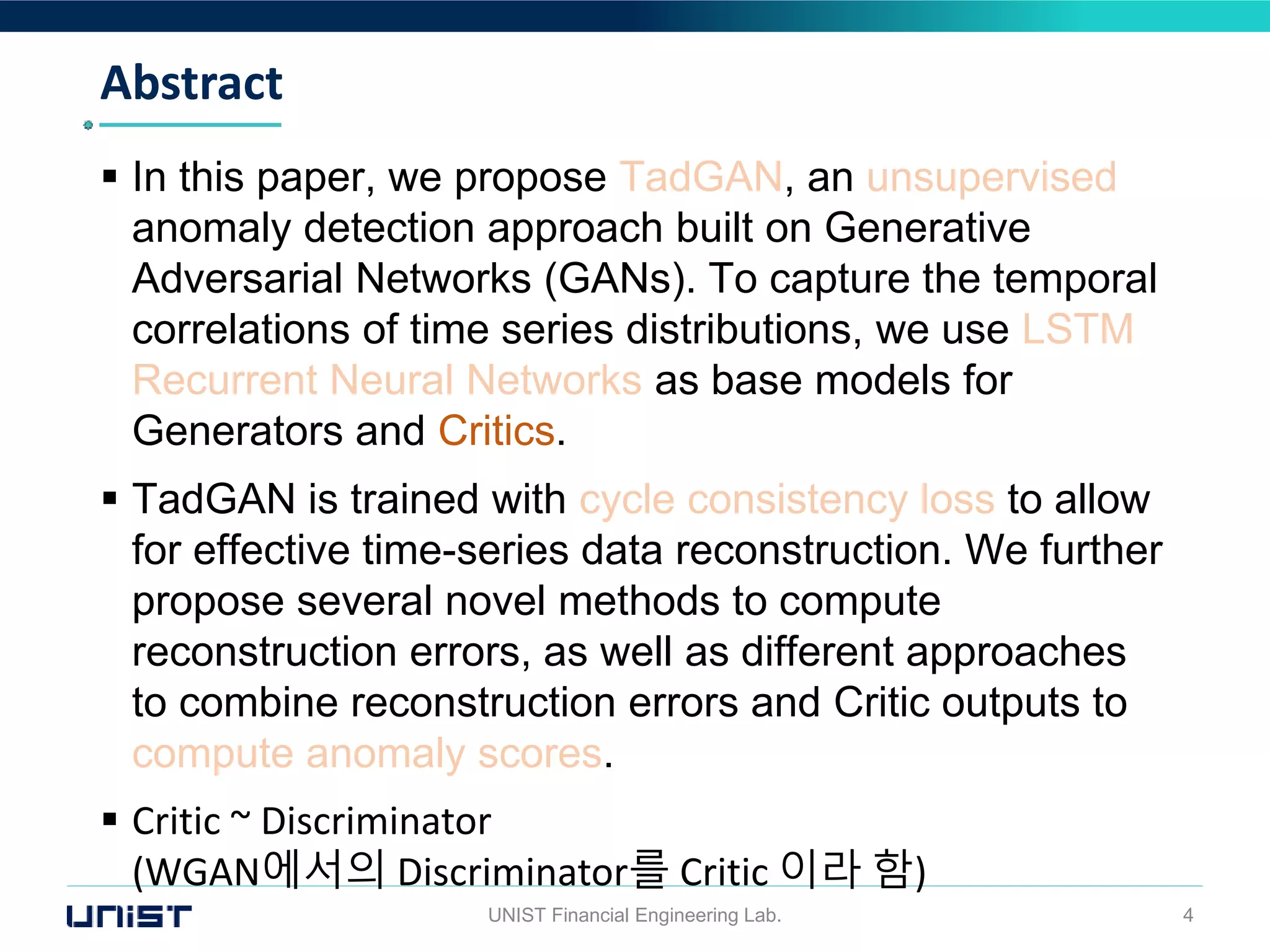

Abstract
 In this paper, we propose TadGAN, an unsupervised
anomaly detection approach built on Generative
Adversarial Networks (GANs). To capture the temporal
correlations of time series distributions, we use LSTM
Recurrent Neural Networks as base models for
Generators and Critics.
 TadGAN is trained with cycle consistency loss to allow
for effective time-series data reconstruction. We further
propose several novel methods to compute
reconstruction errors, as well as different approaches
to combine reconstruction errors and Critic outputs to
compute anomaly scores.
 Critic ~ Discriminator
(WGAN에서의 Discriminator를 Critic 이라 함)

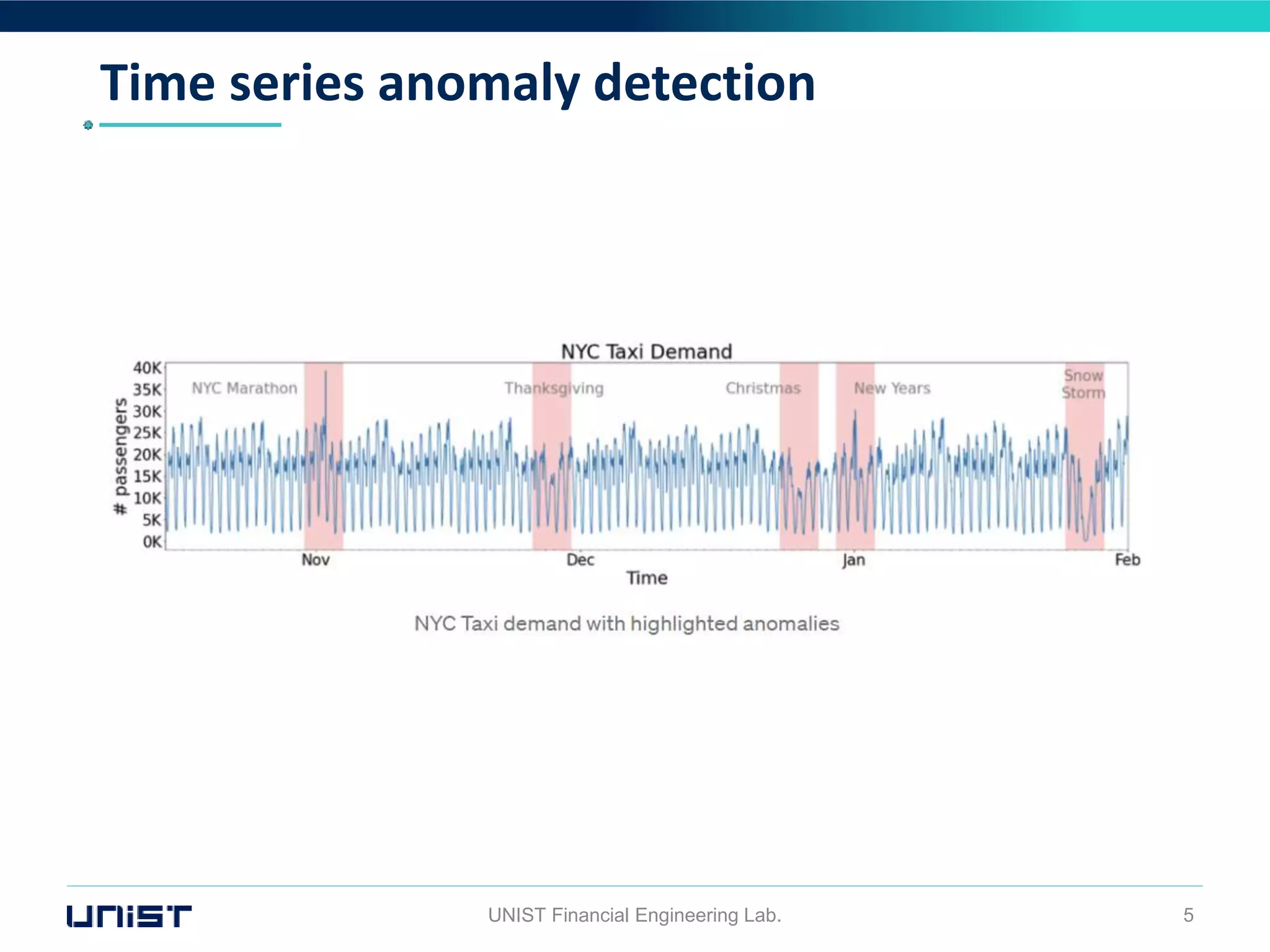

Time series anomaly detection

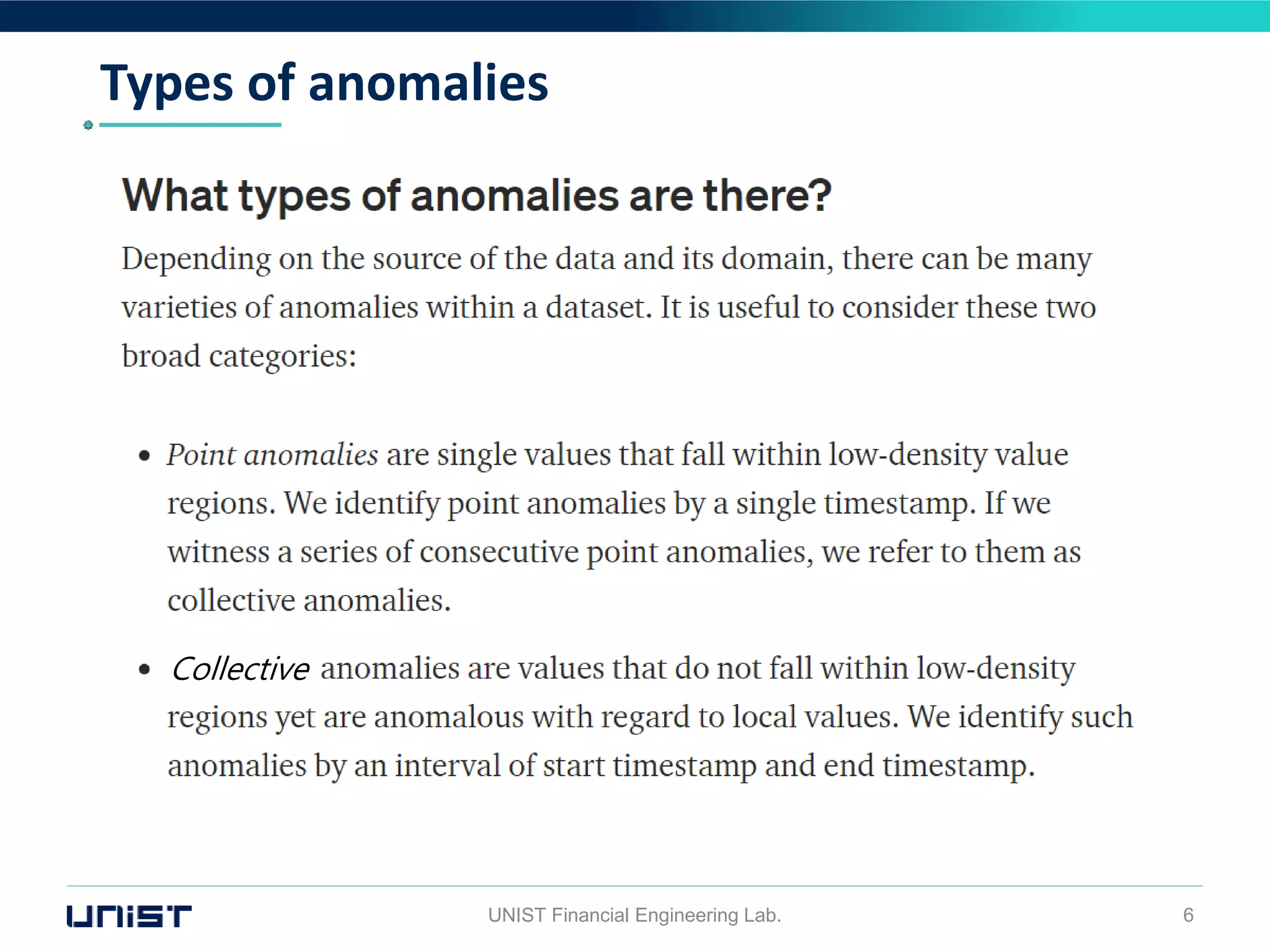

Types of anomalies
Collective

Types of anomalies

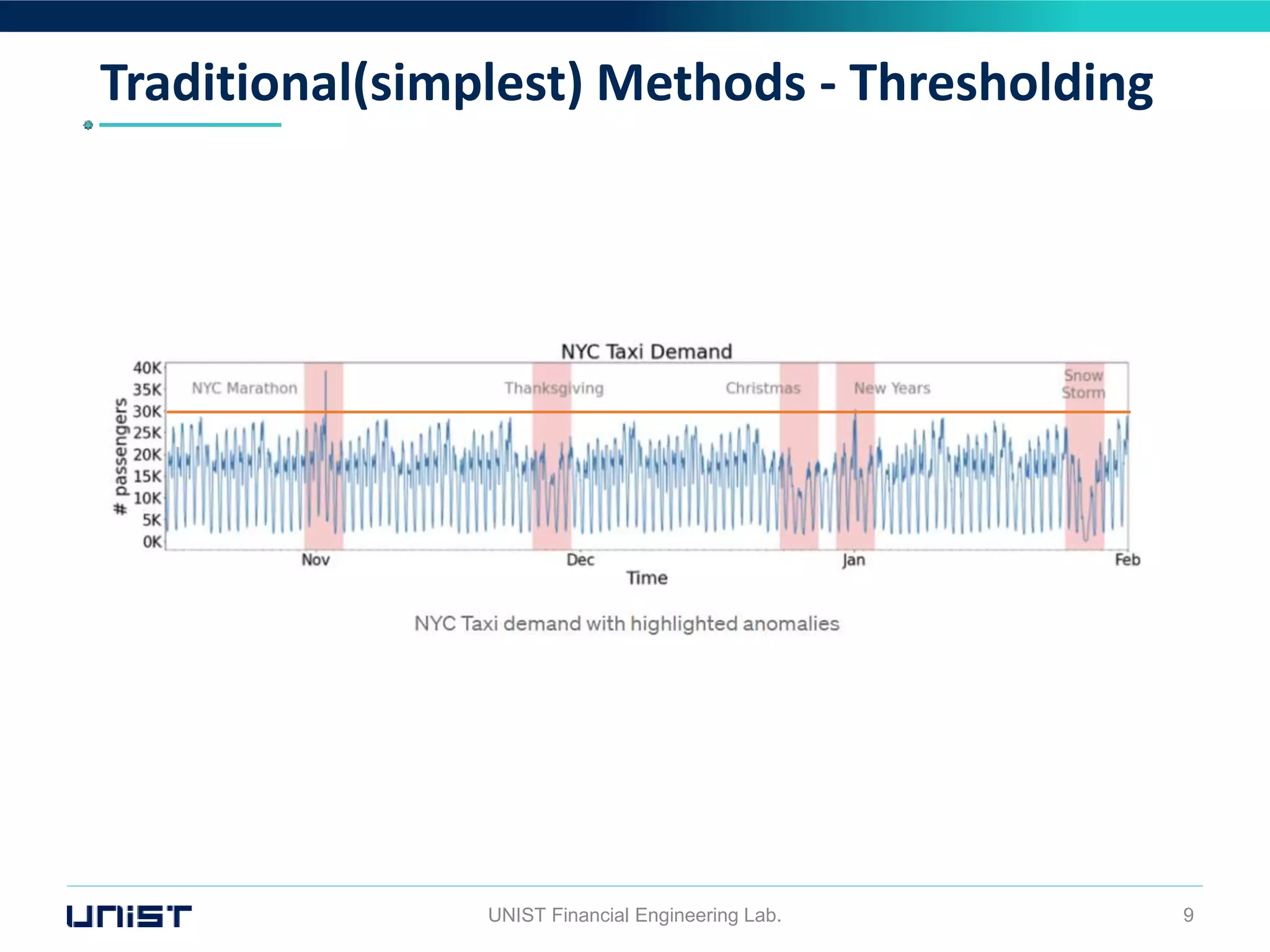

Traditional(simplest) Methods - Thresholding

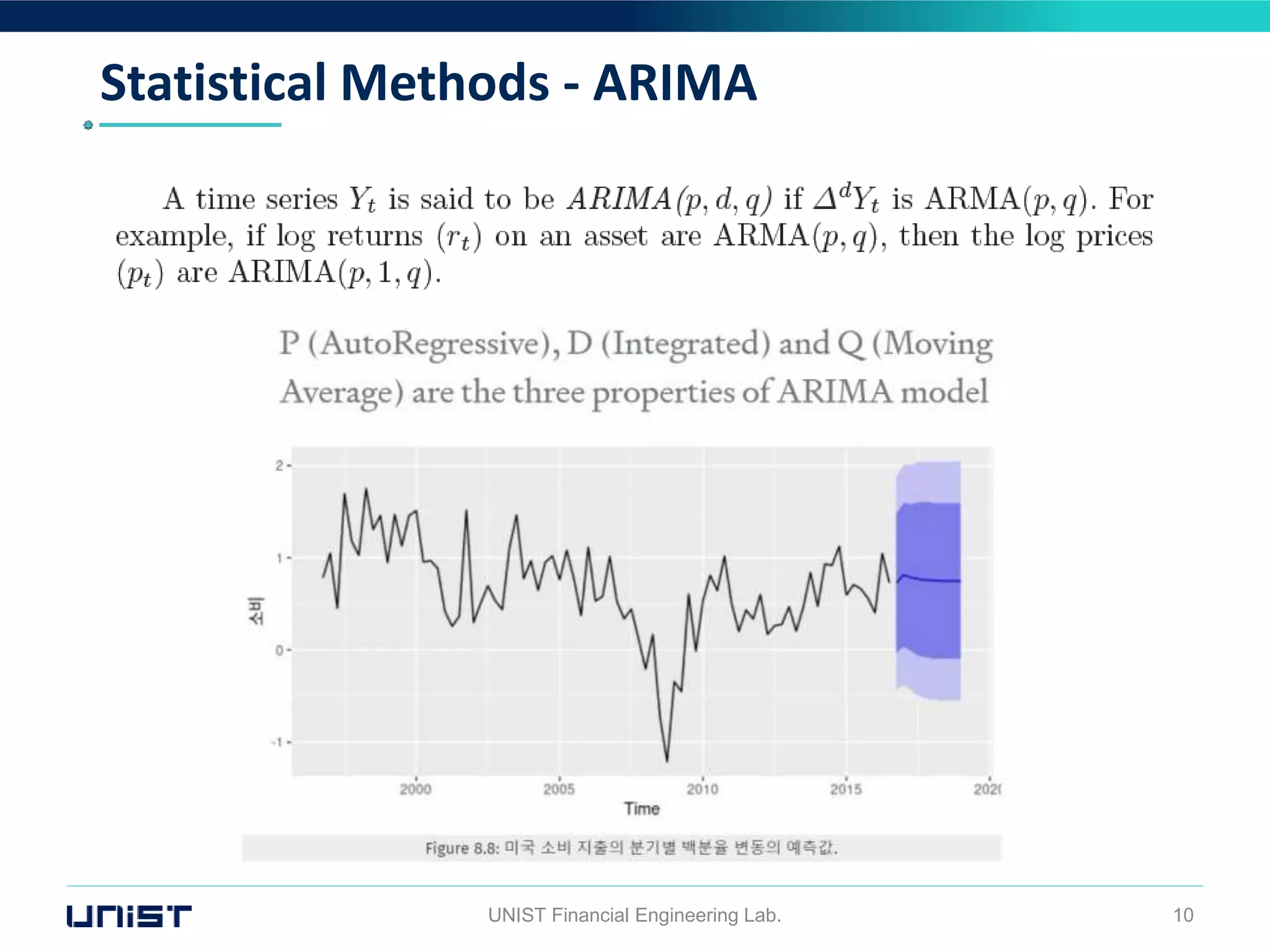

Statistical Methods - ARIMA

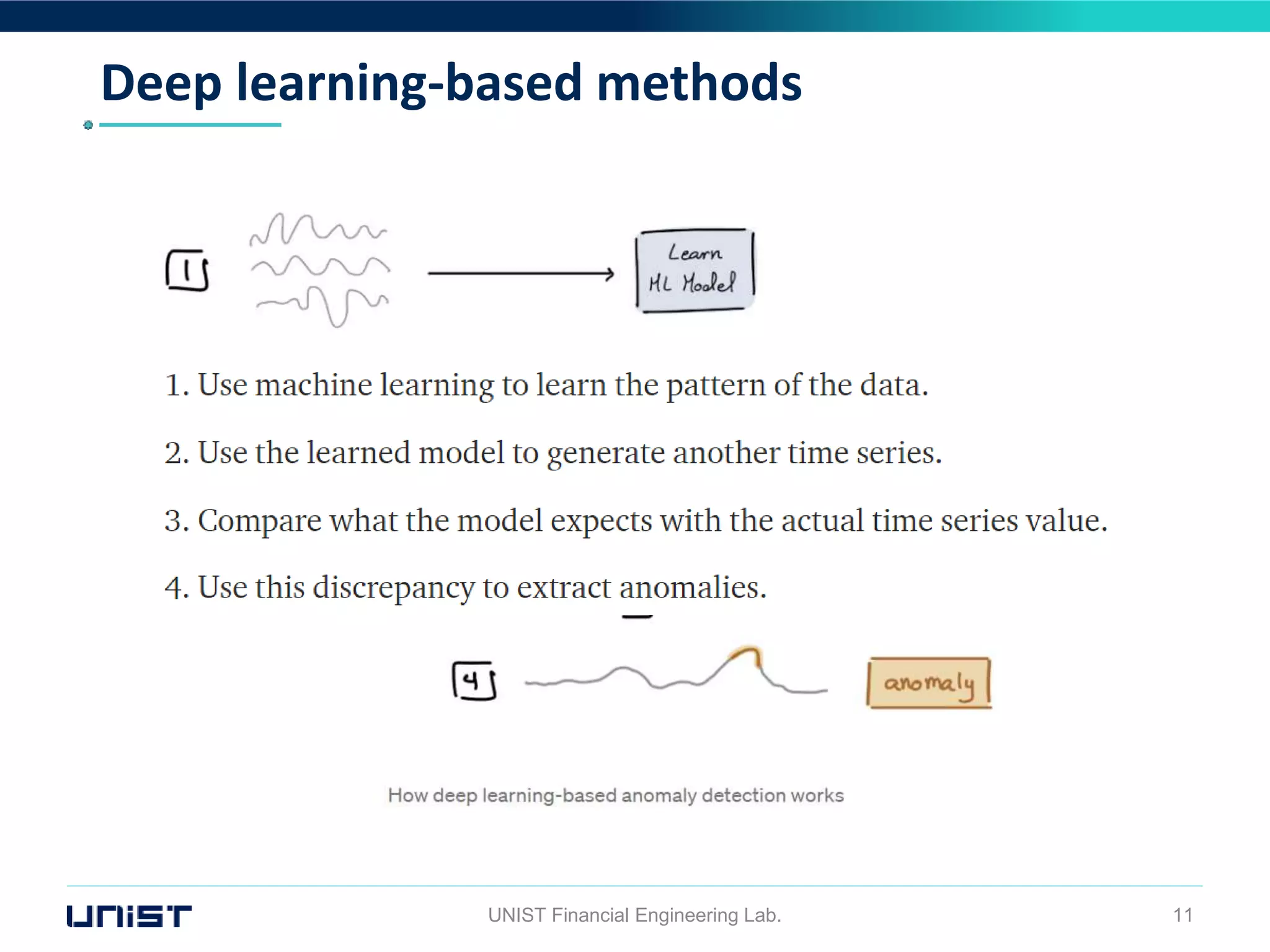

Deep learning-based methods

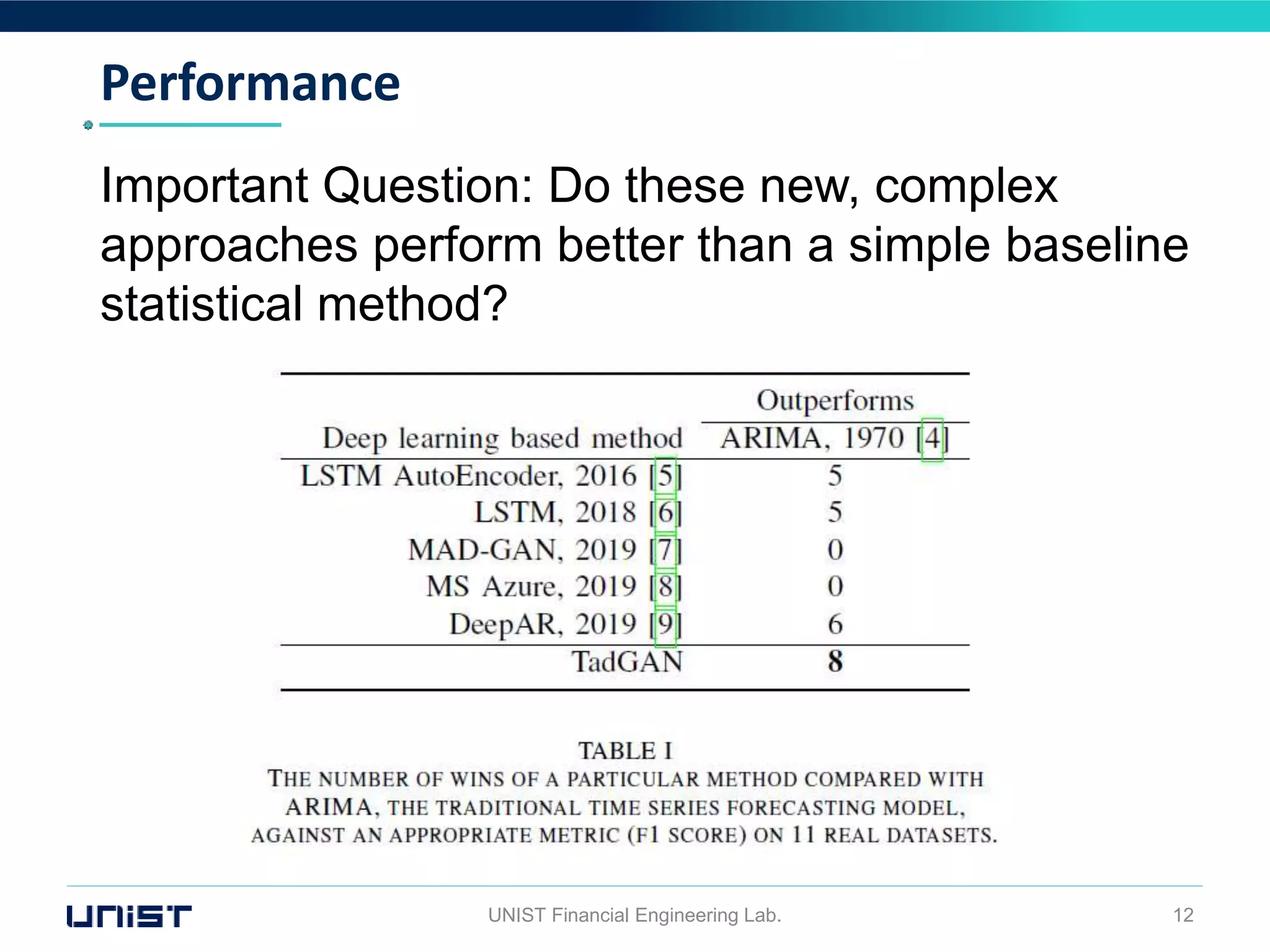

Performance
Important Question: Do these new, complex
approaches perform better than a simple baseline
statistical method?

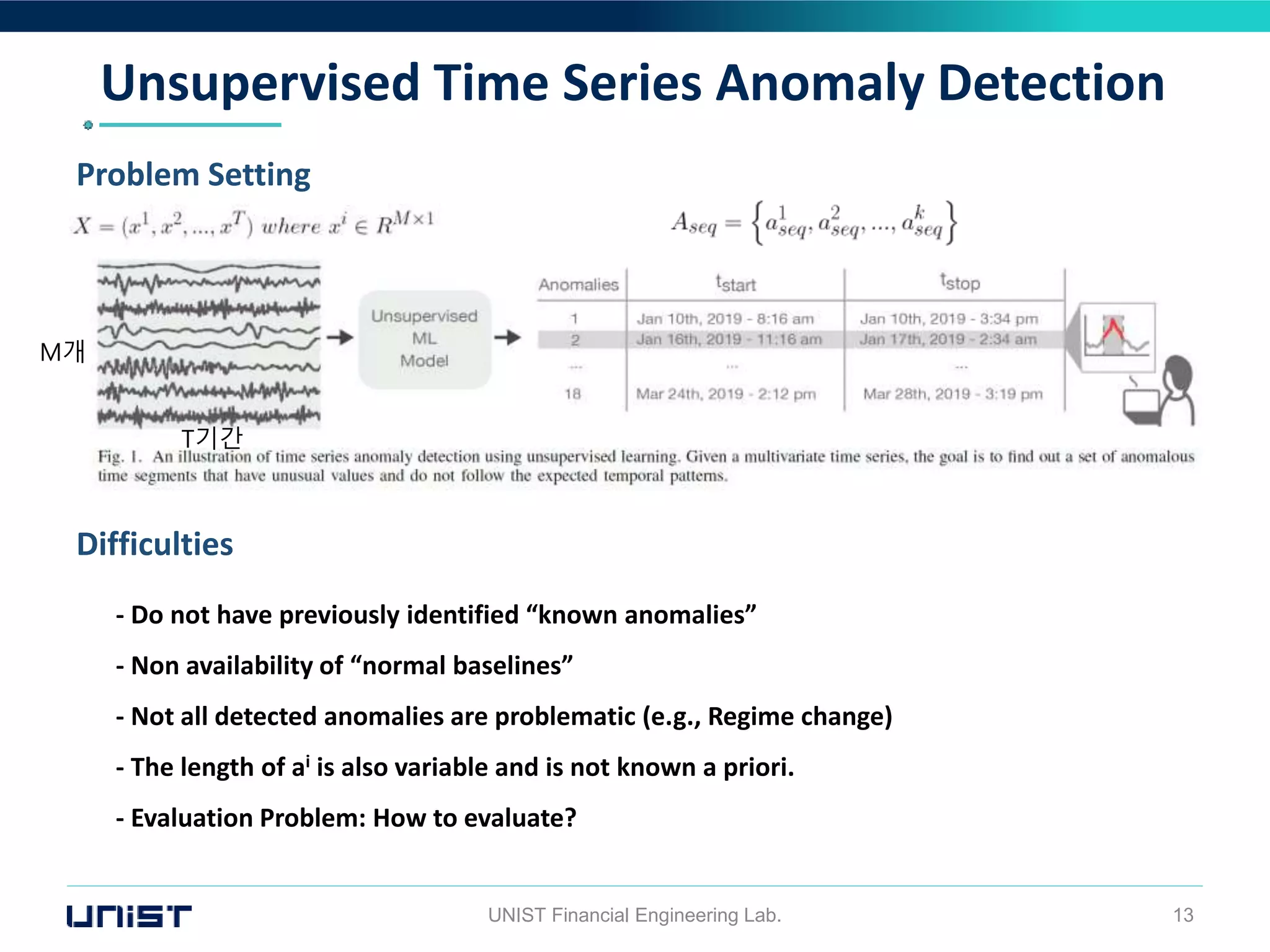

Unsupervised Time Series Anomaly Detection
M개
T기간
Problem Setting
Difficulties
- Do not have previously identified “known anomalies”
- Non availability of “normal baselines”
- Not all detected anomalies are problematic (e.g., Regime change)
- The length of ai is also variable and is not known a priori.
- Evaluation Problem: How to evaluate?

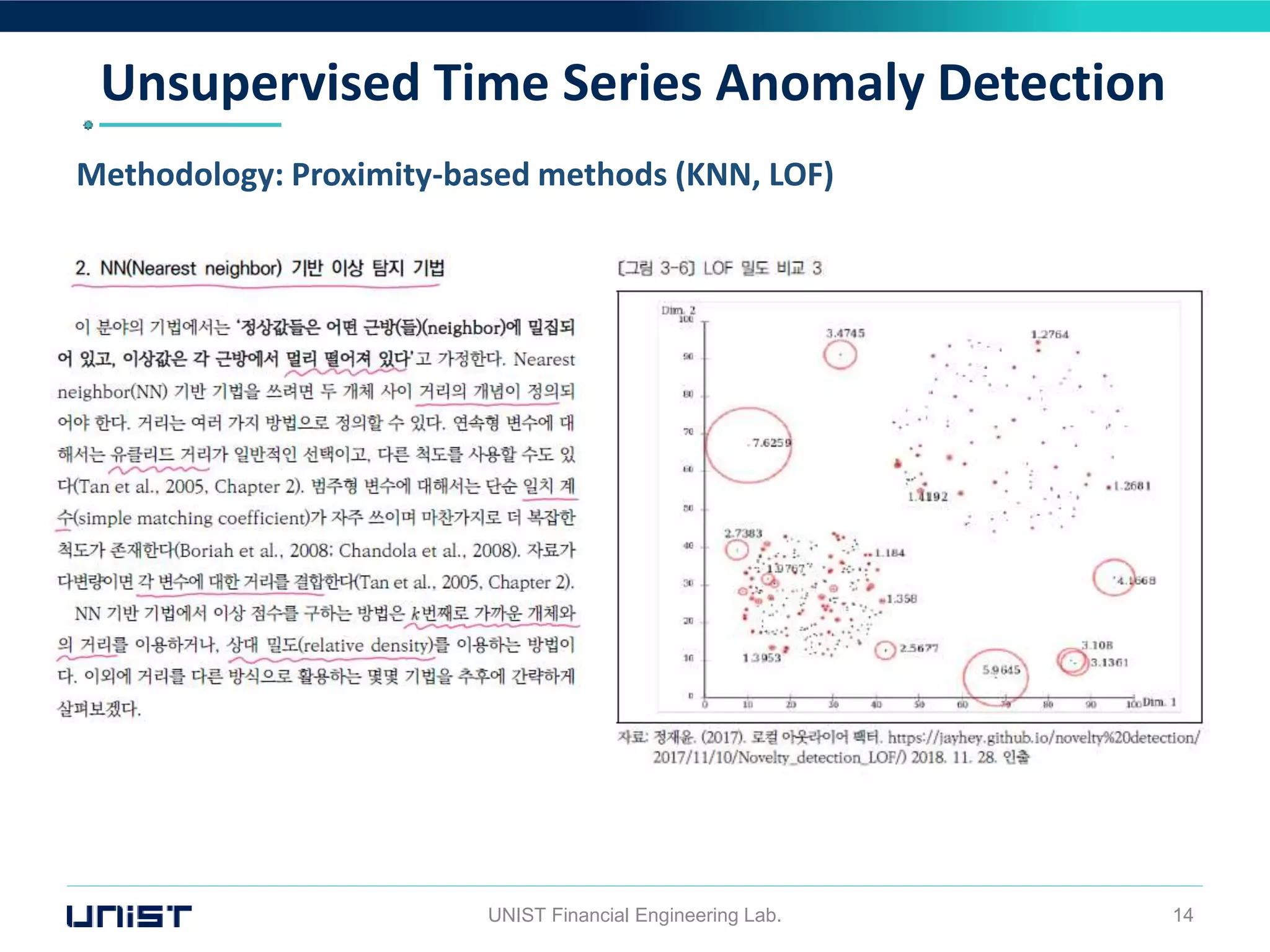

Methodology: Proximity-based methods (KNN, LOF)

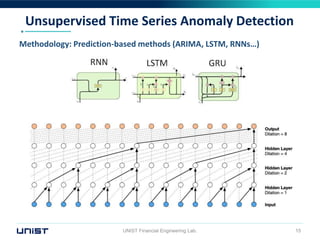

Methodology: Prediction-based methods (ARIMA, LSTM, RNNs…)

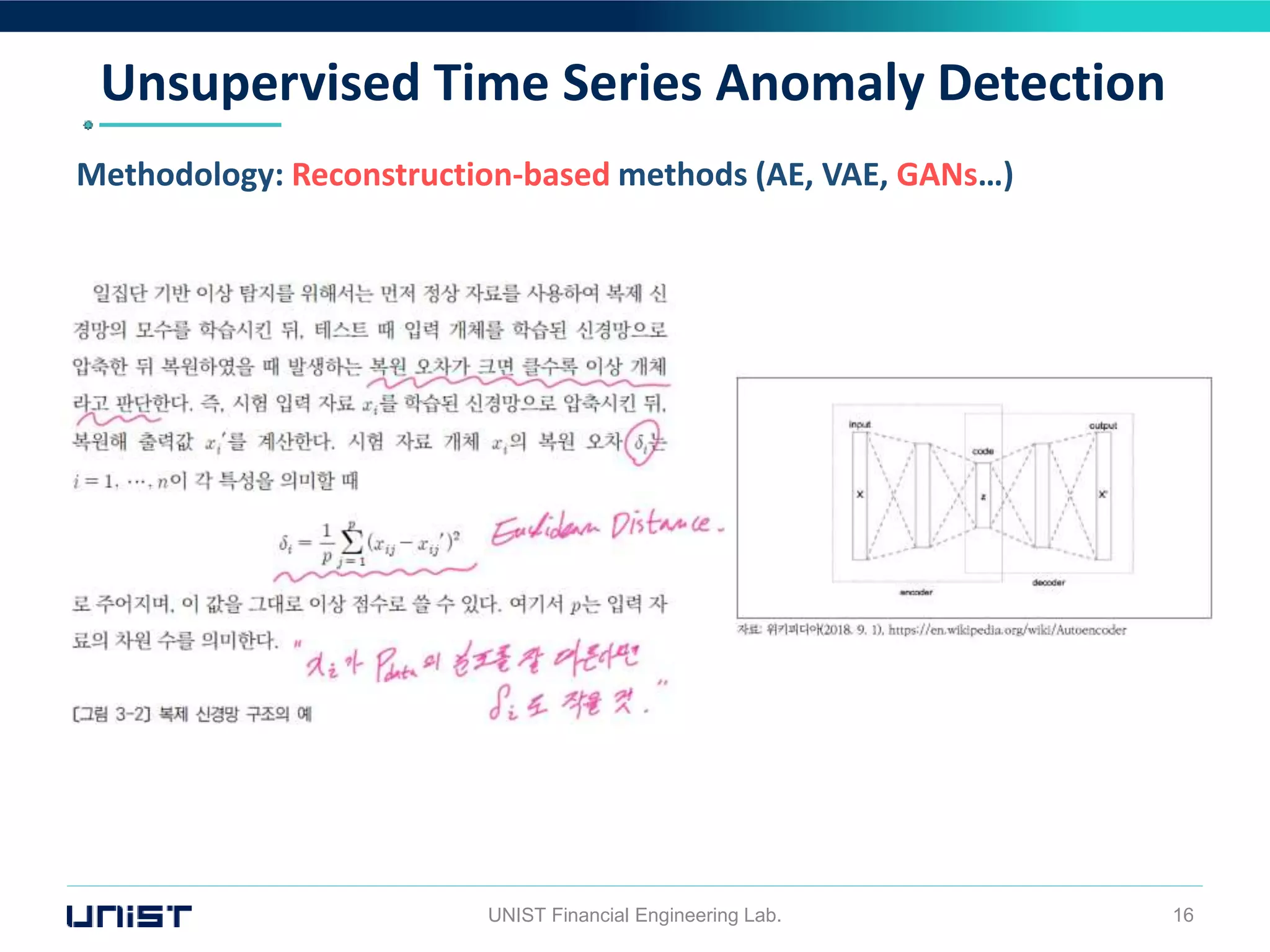

Methodology: Reconstruction-based methods (AE, VAE, GANs…)

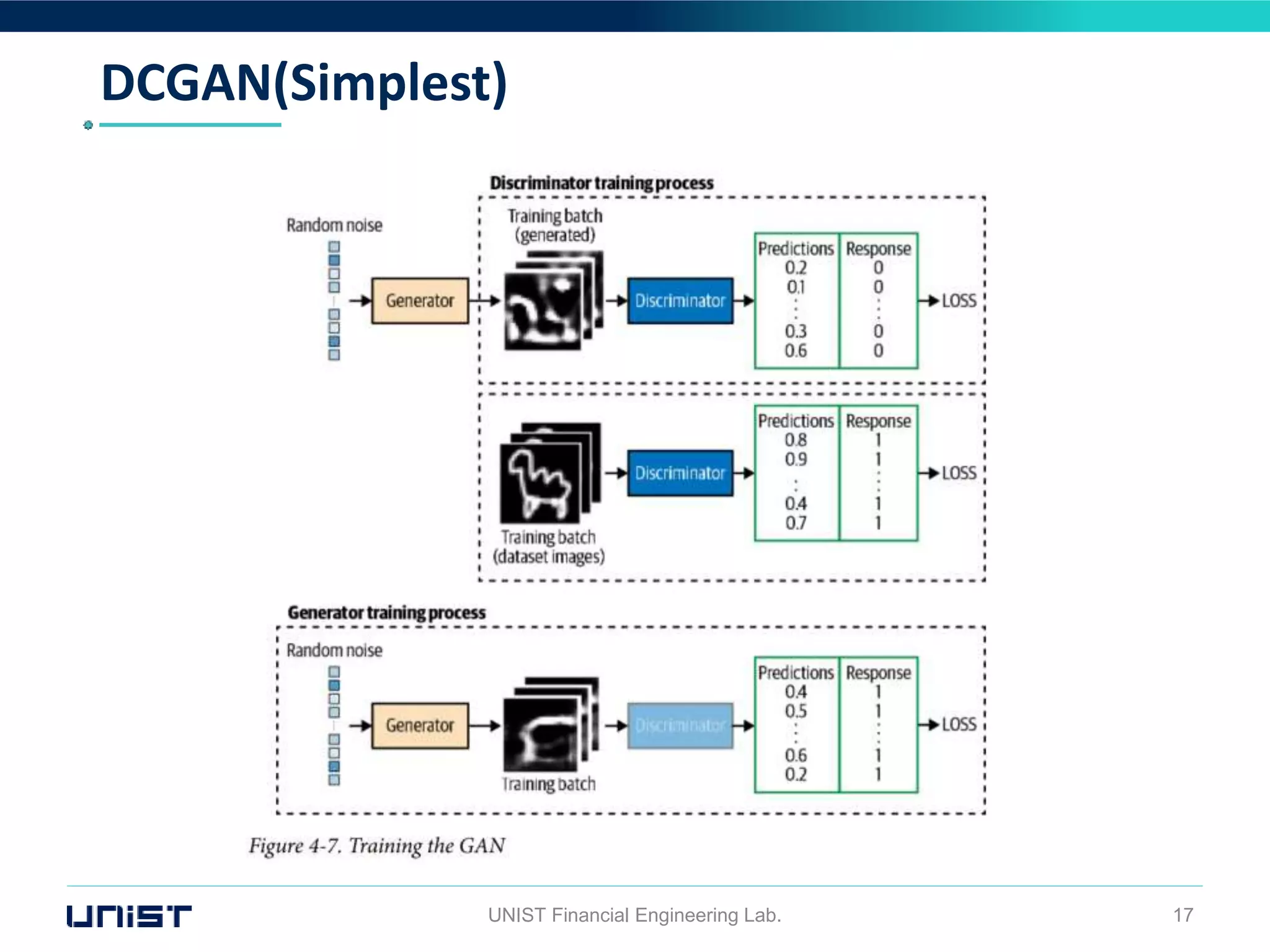

DCGAN(Simplest)

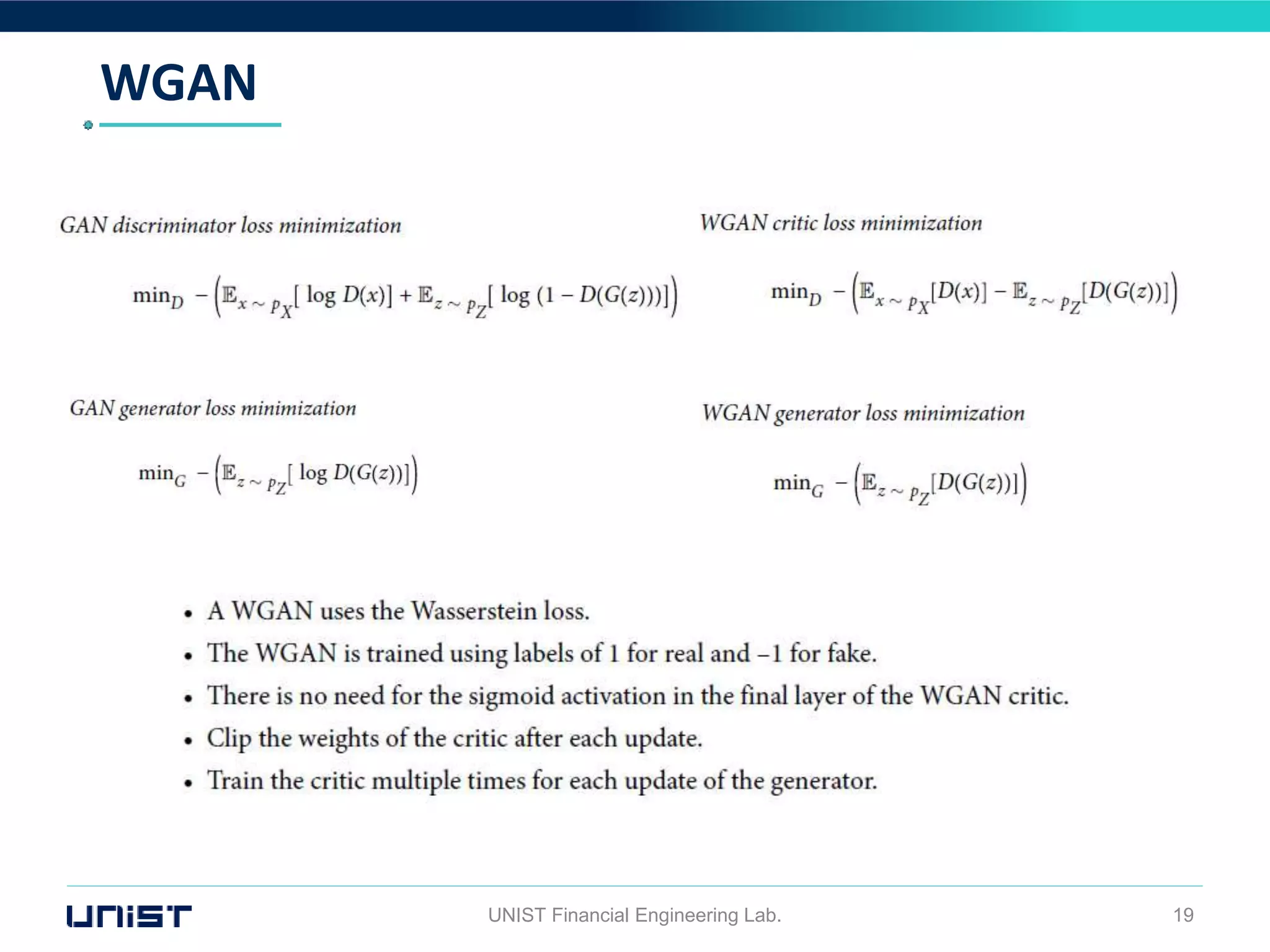

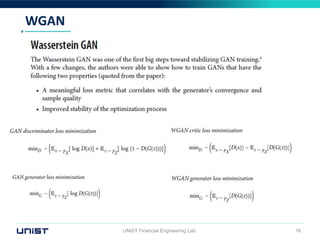

WGAN

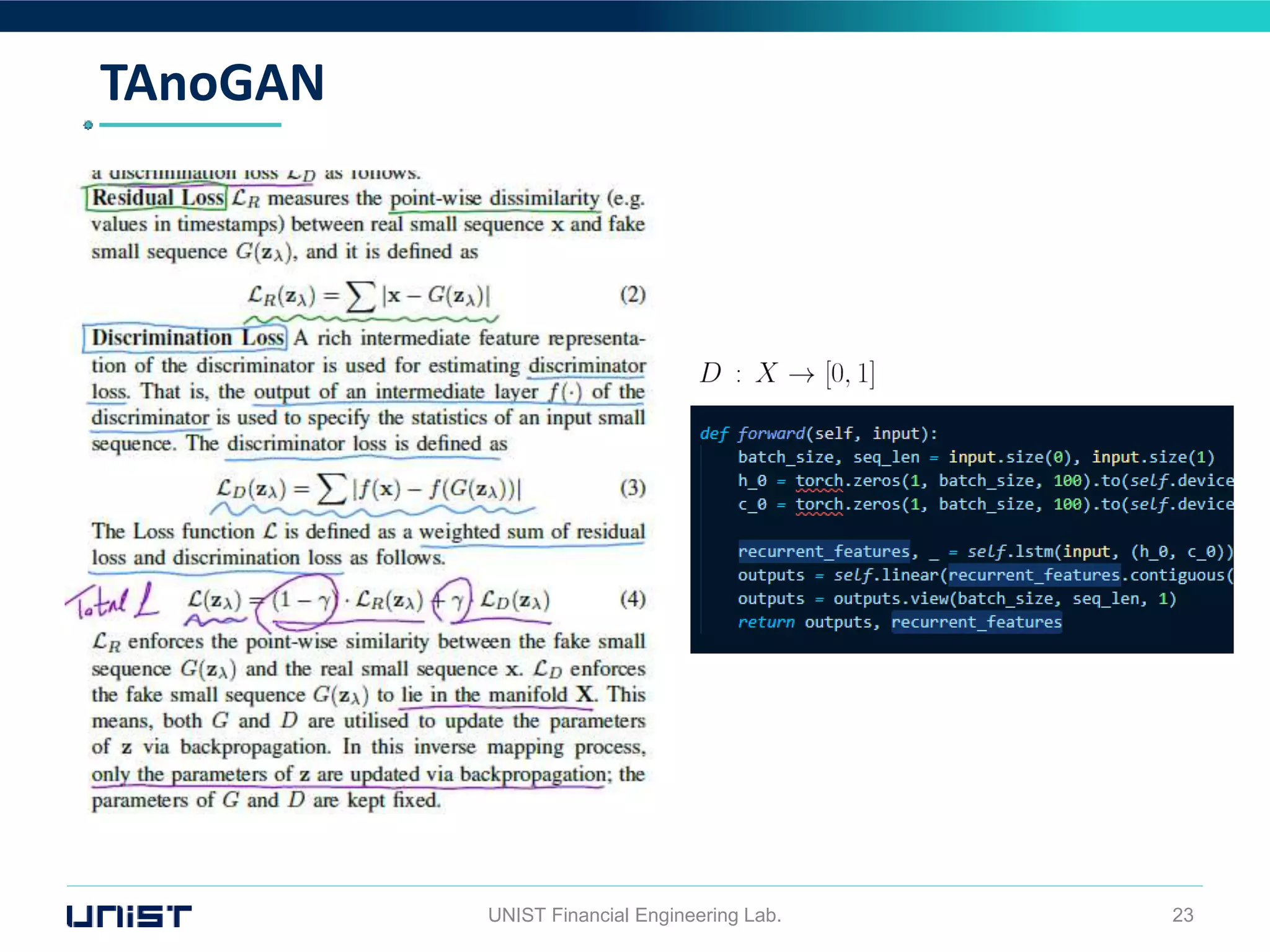

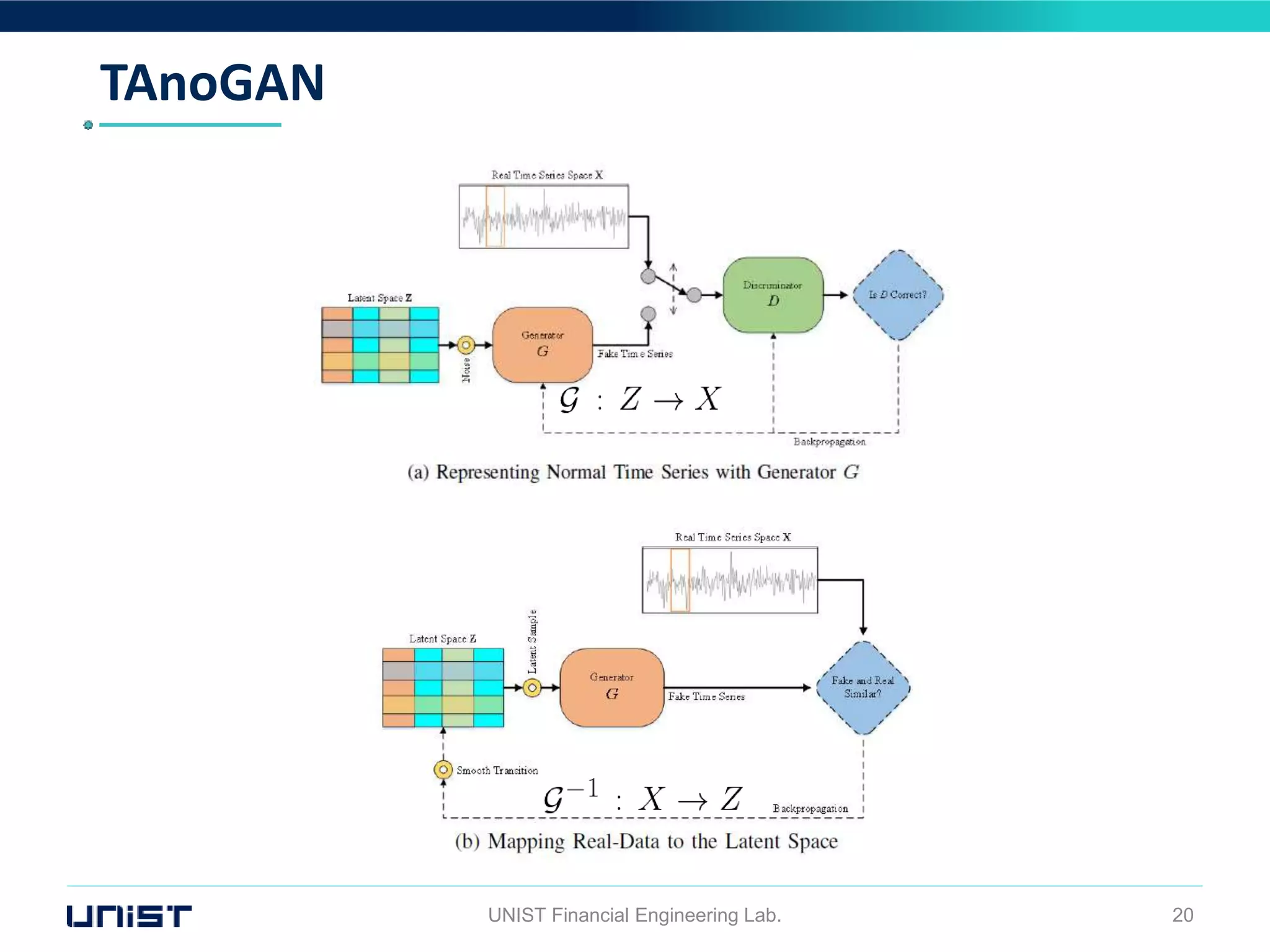

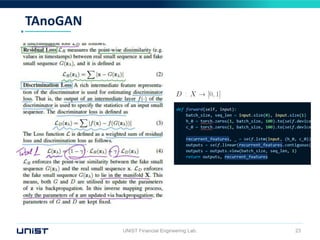

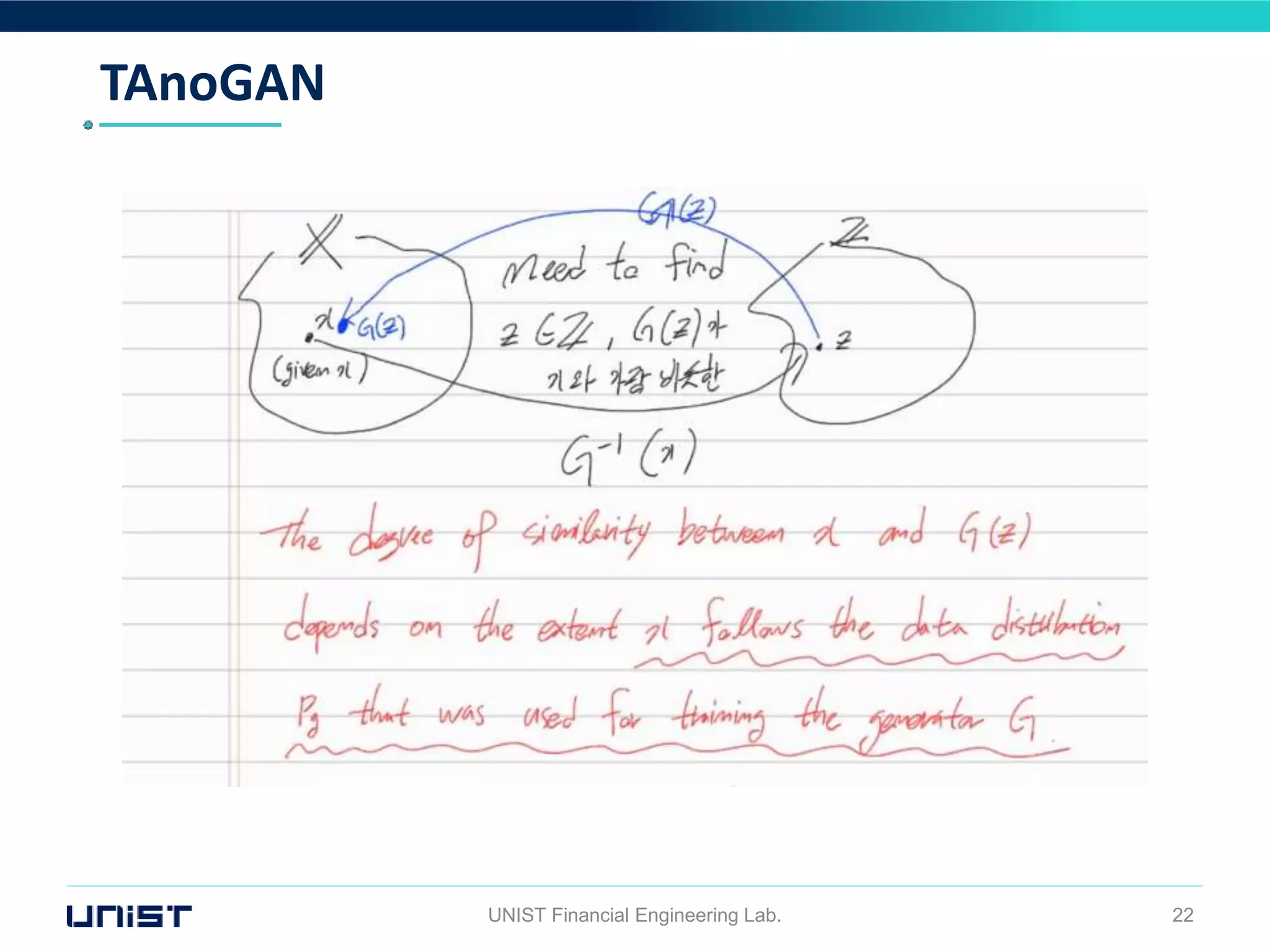

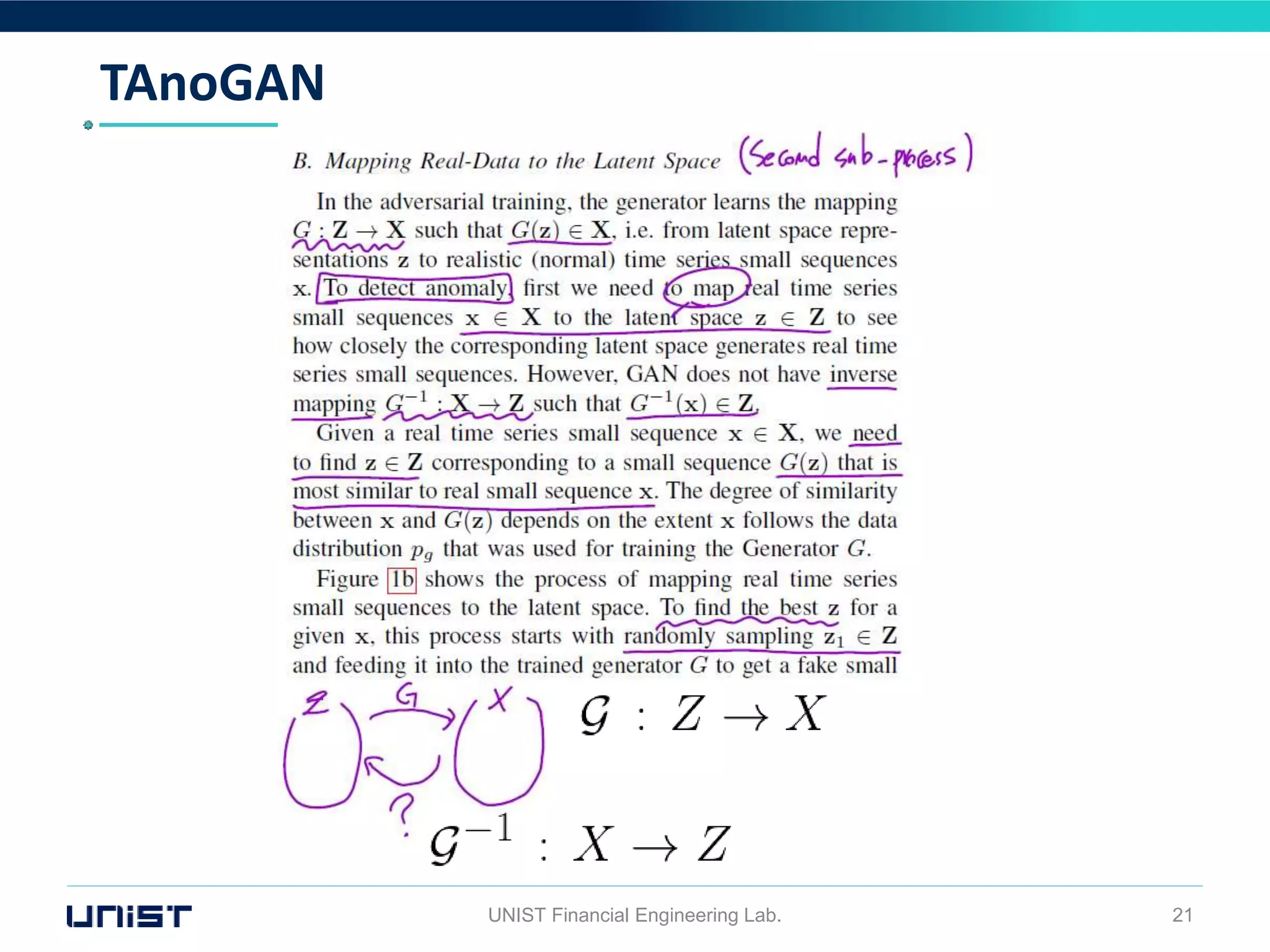

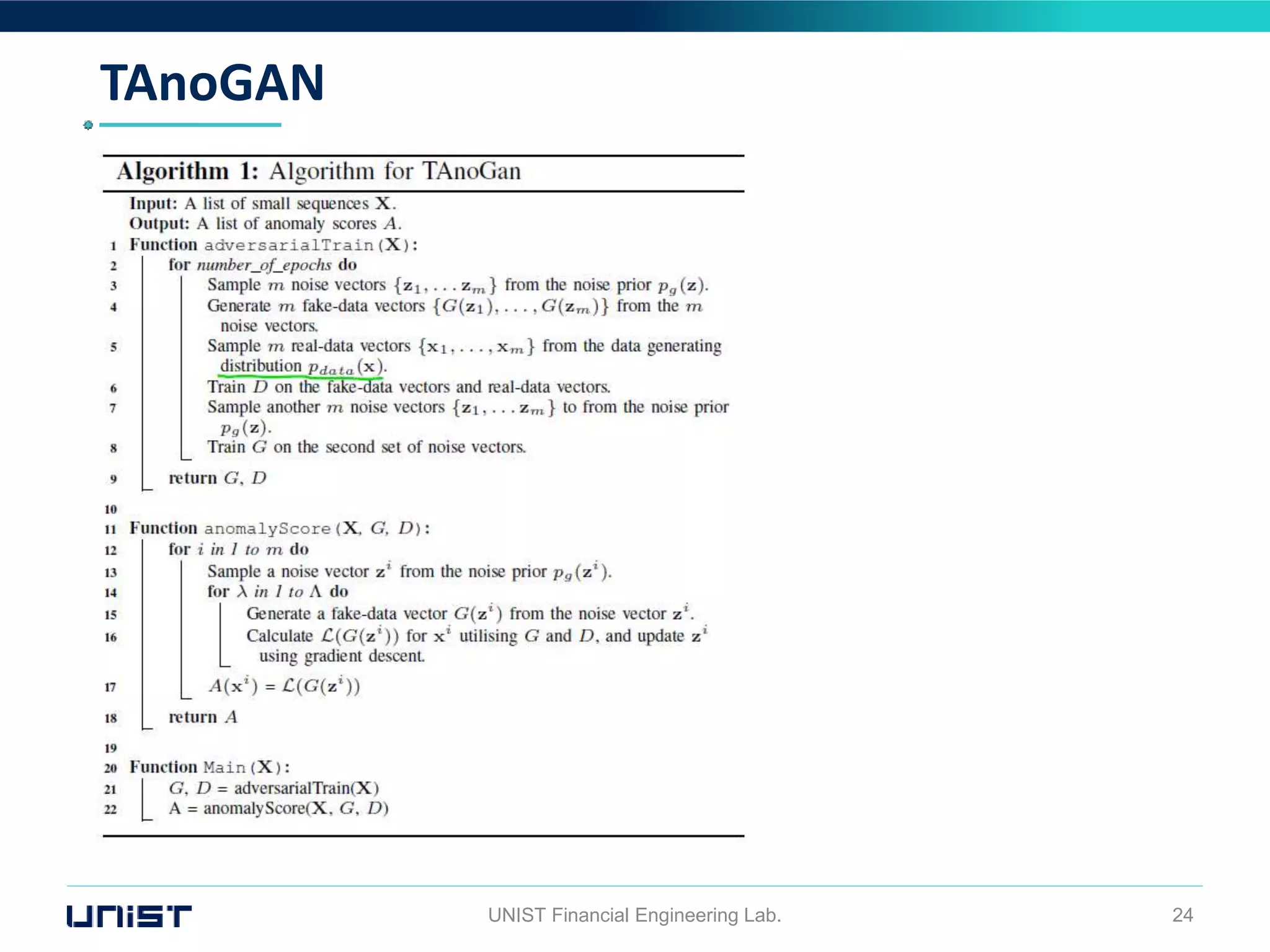

TAnoGAN

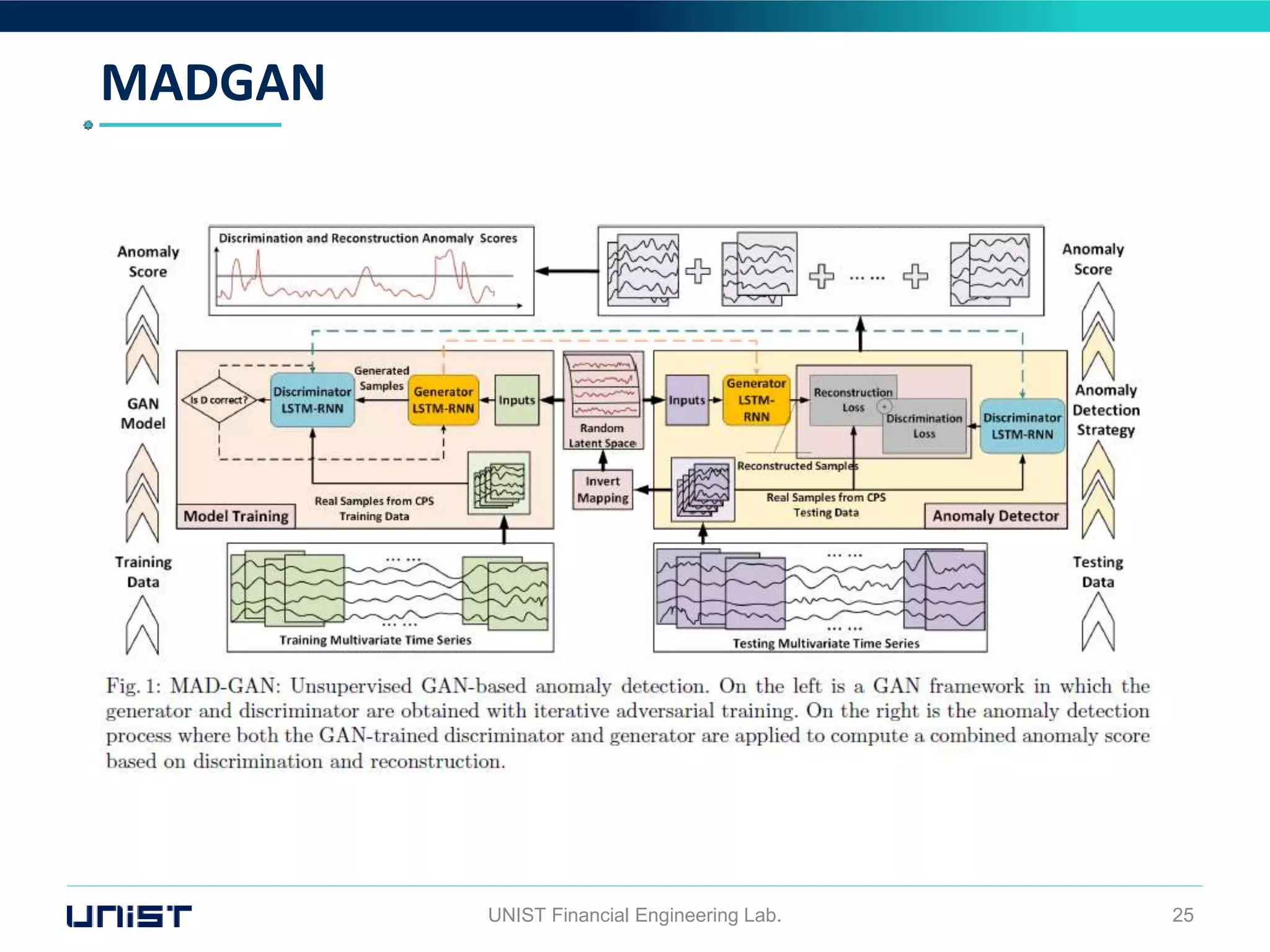

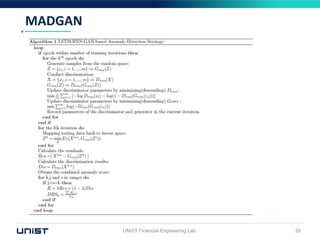

MADGAN

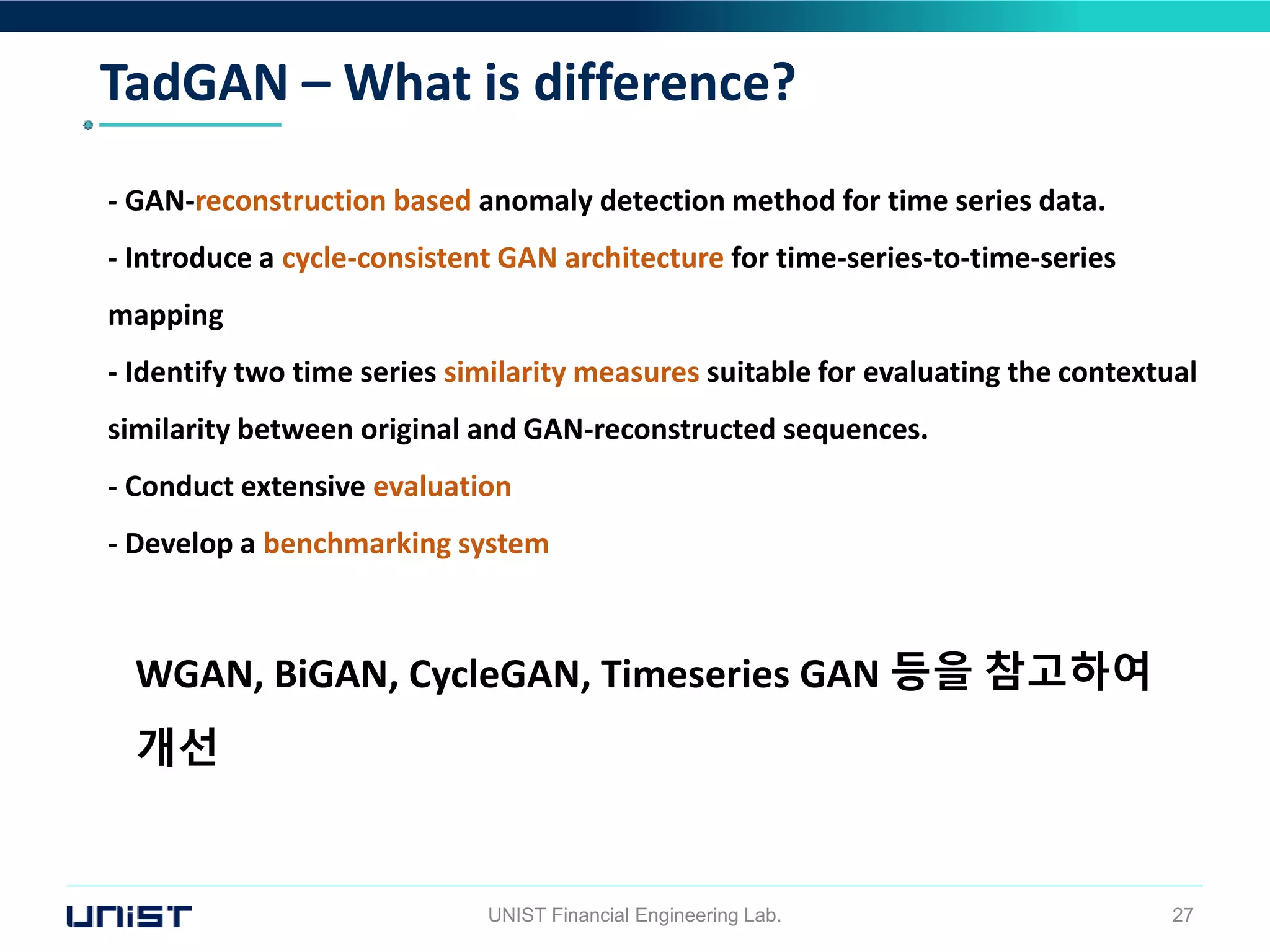

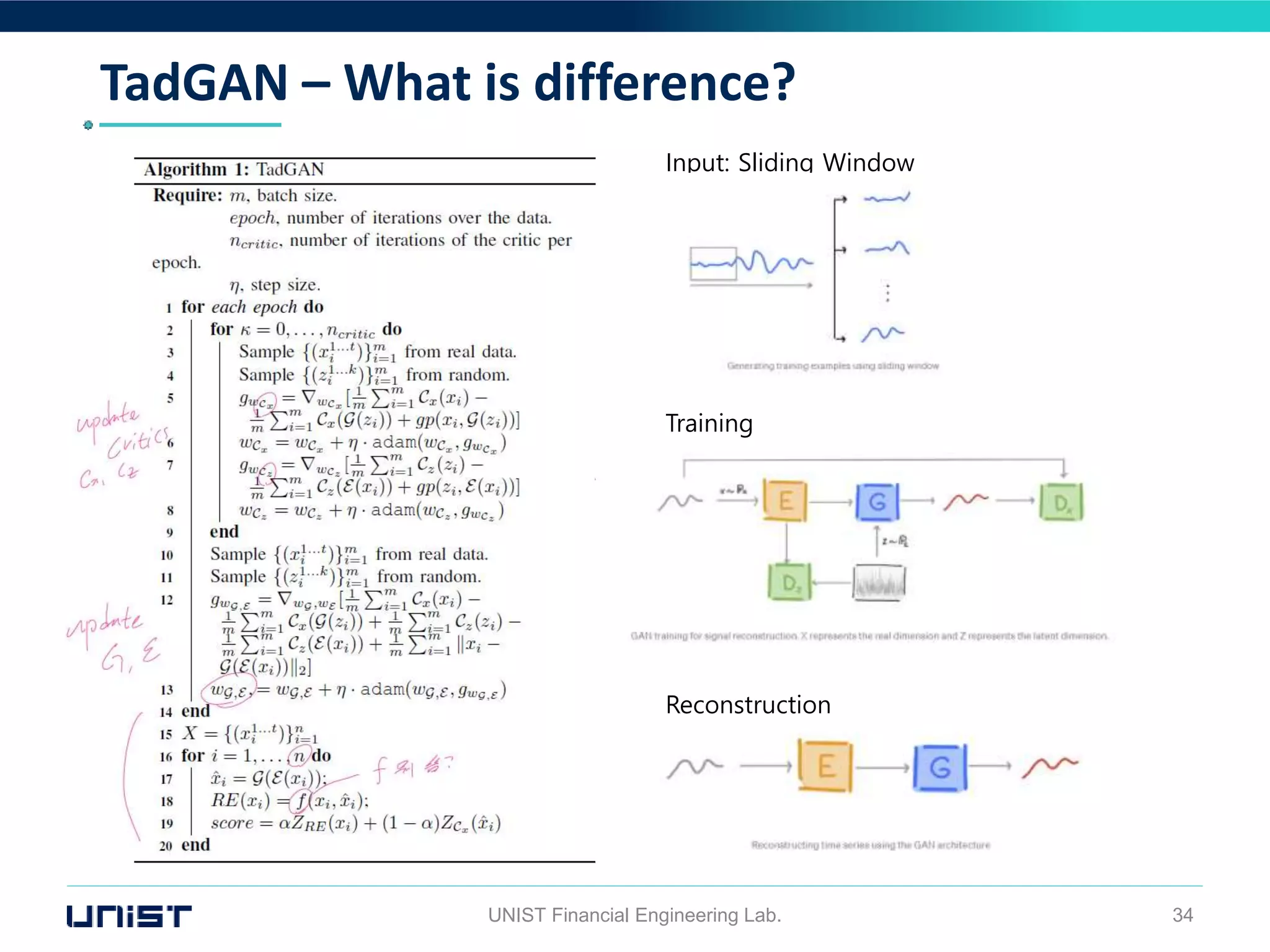

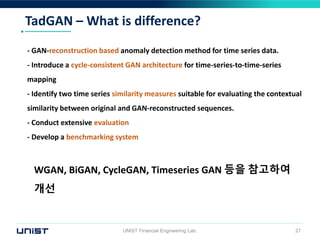

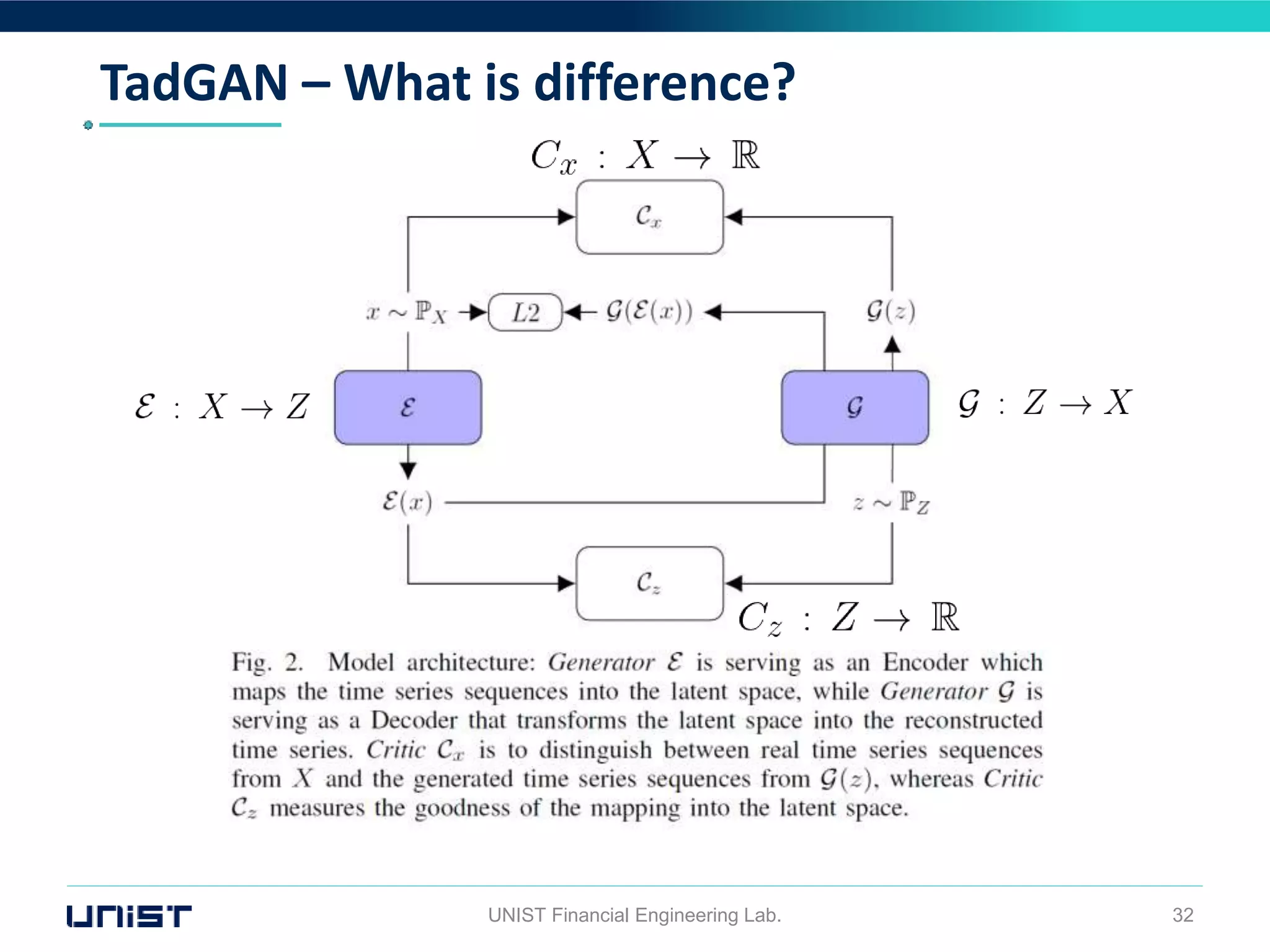

TadGAN – What is difference?
- GAN-reconstruction based anomaly detection method for time series data.
- Introduce a cycle-consistent GAN architecture for time-series-to-time-series
mapping
- Identify two time series similarity measures suitable for evaluating the contextual
similarity between original and GAN-reconstructed sequences.
- Conduct extensive evaluation
- Develop a benchmarking system
WGAN, BiGAN, CycleGAN, Timeseries GAN 등을 참고하여
개선

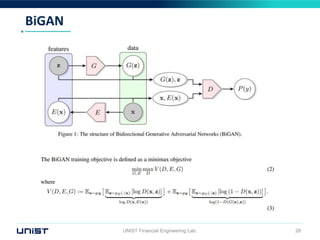

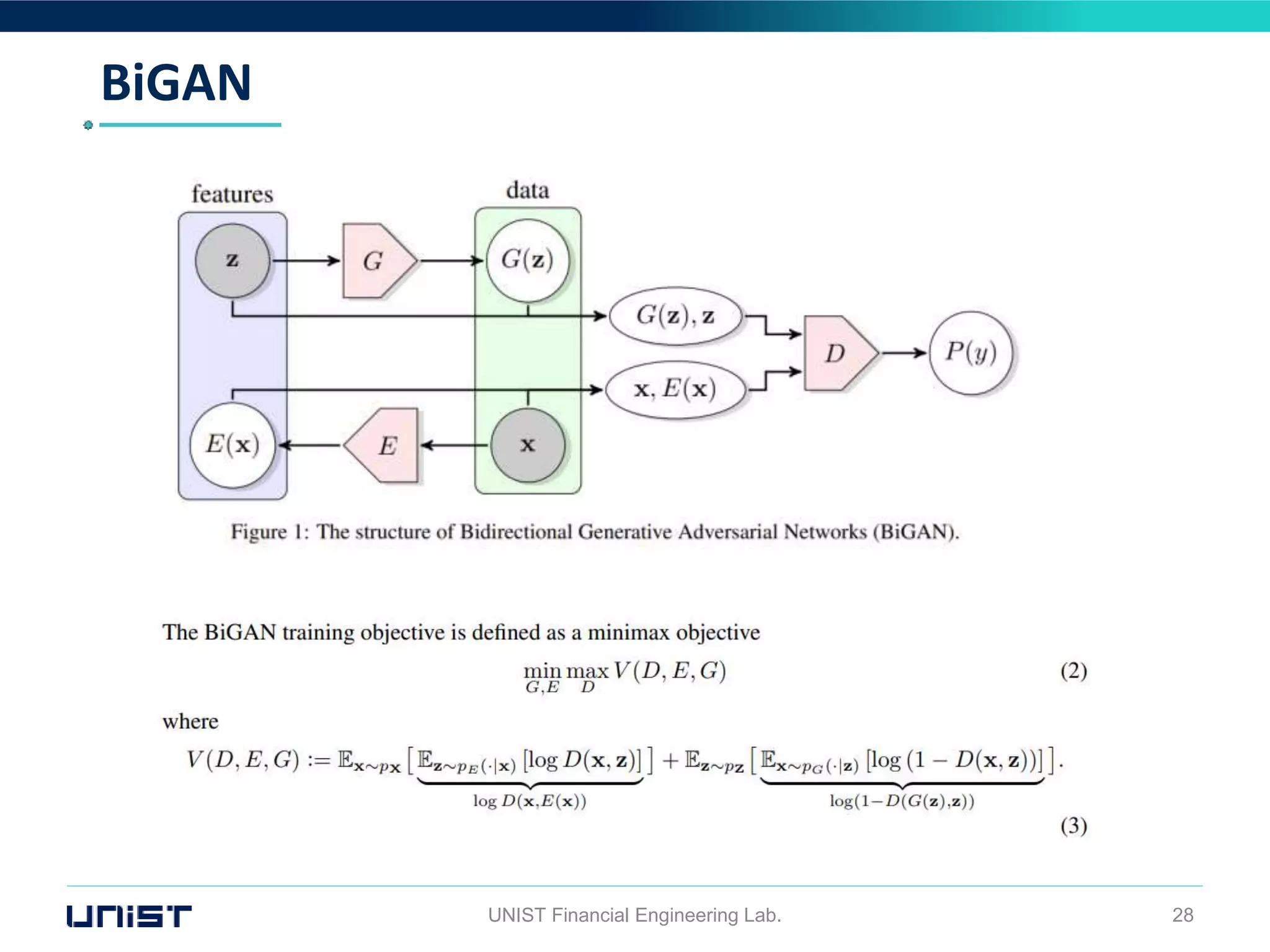

BiGAN

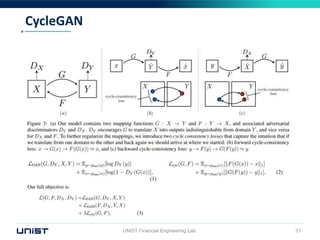

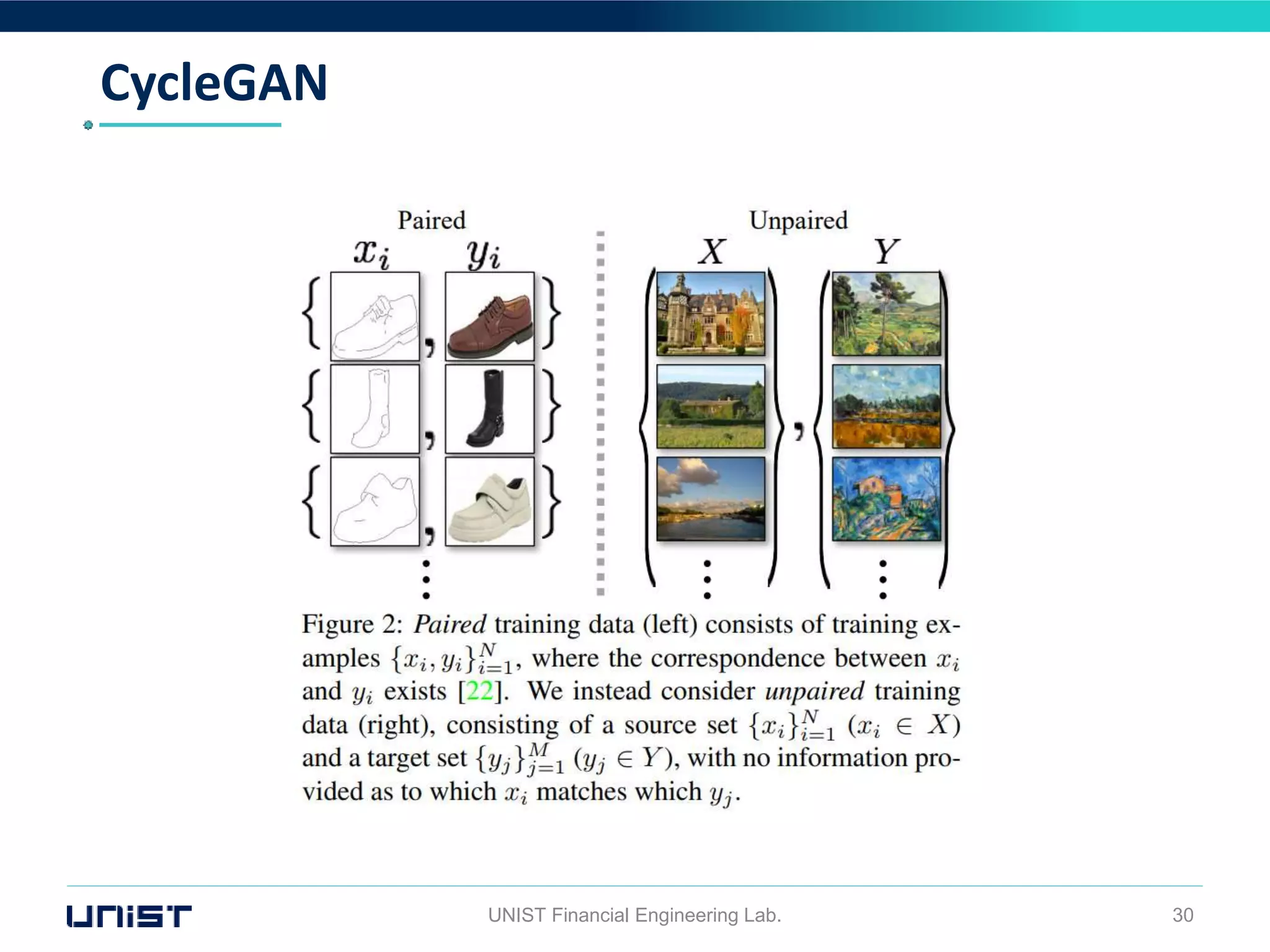

CycleGAN

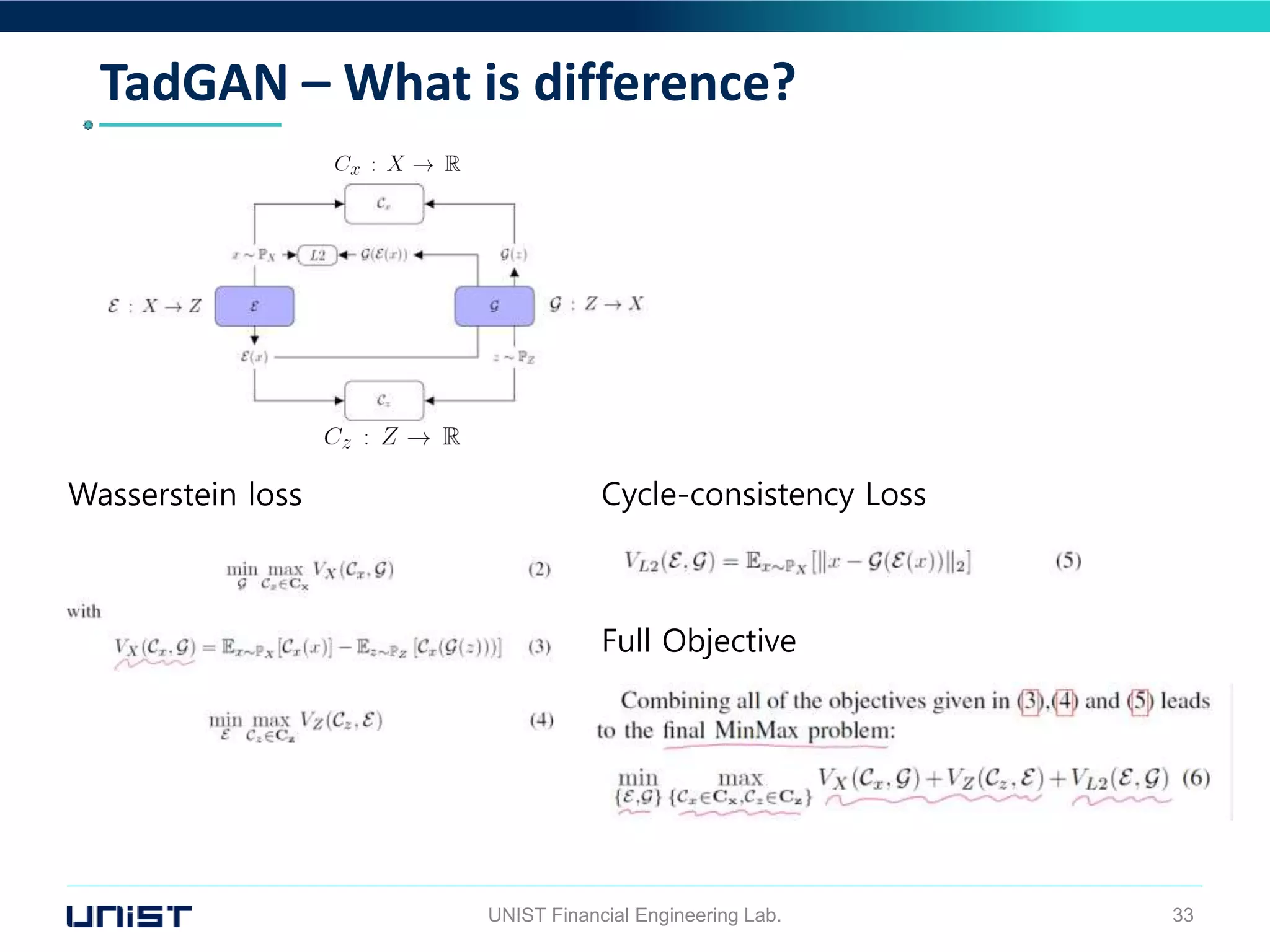

Cycle-consistency Loss
Wasserstein loss
Full Objective

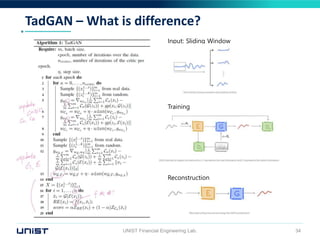

Input: Sliding Window
Training
Reconstruction

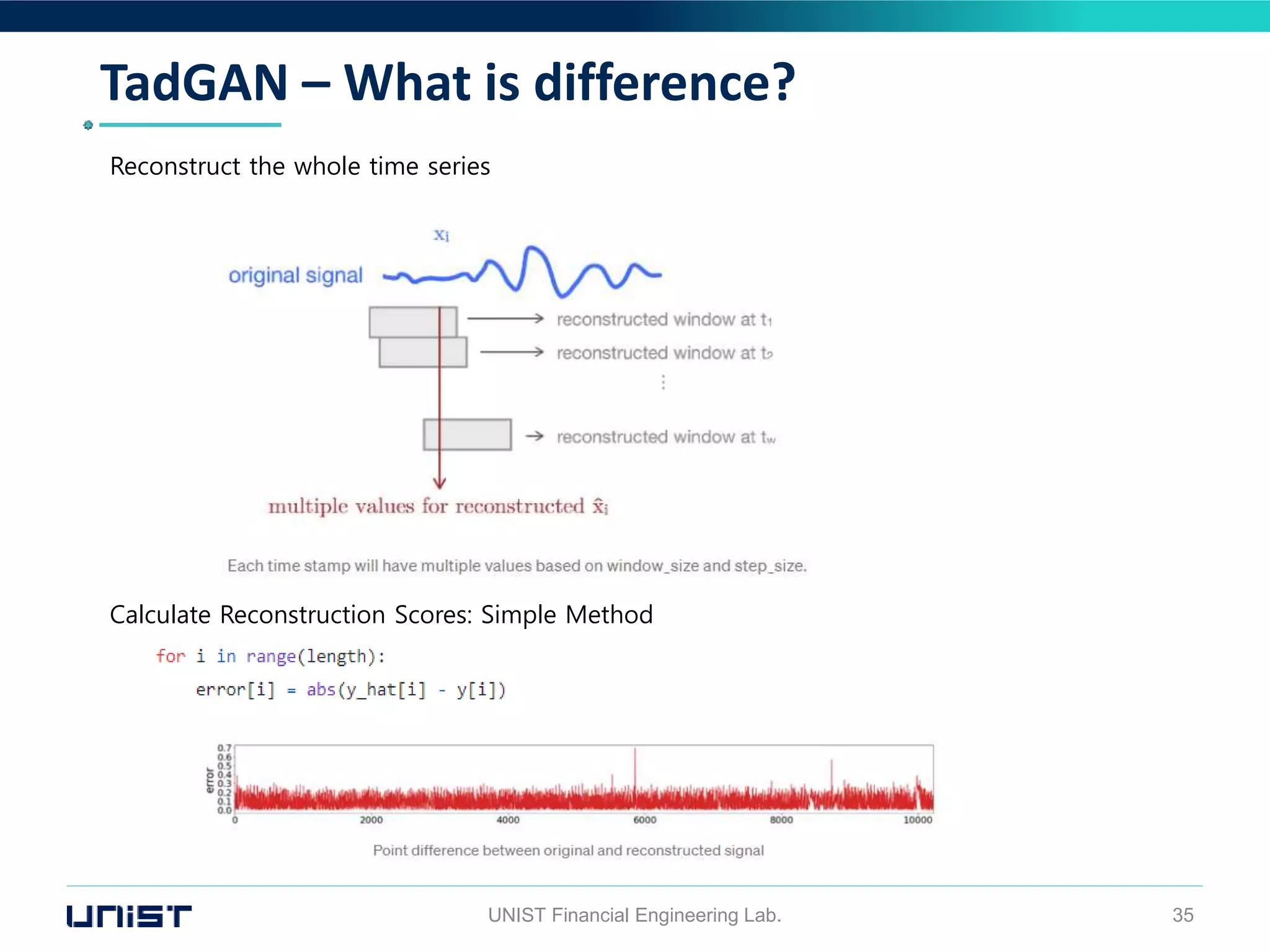

Reconstruct the whole time series
Calculate Reconstruction Scores: Simple Method

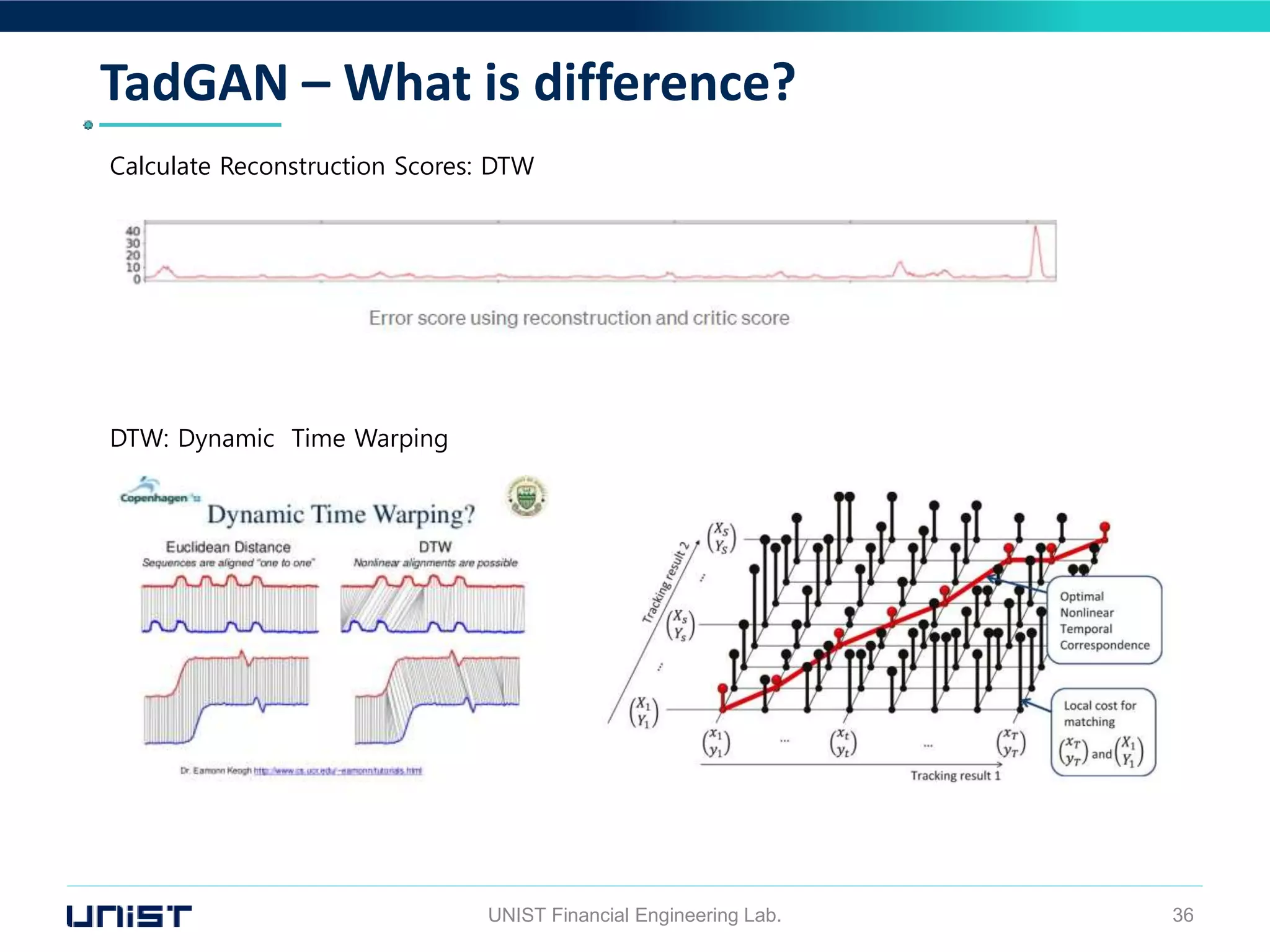

Calculate Reconstruction Scores: DTW
DTW: Dynamic Time Warping

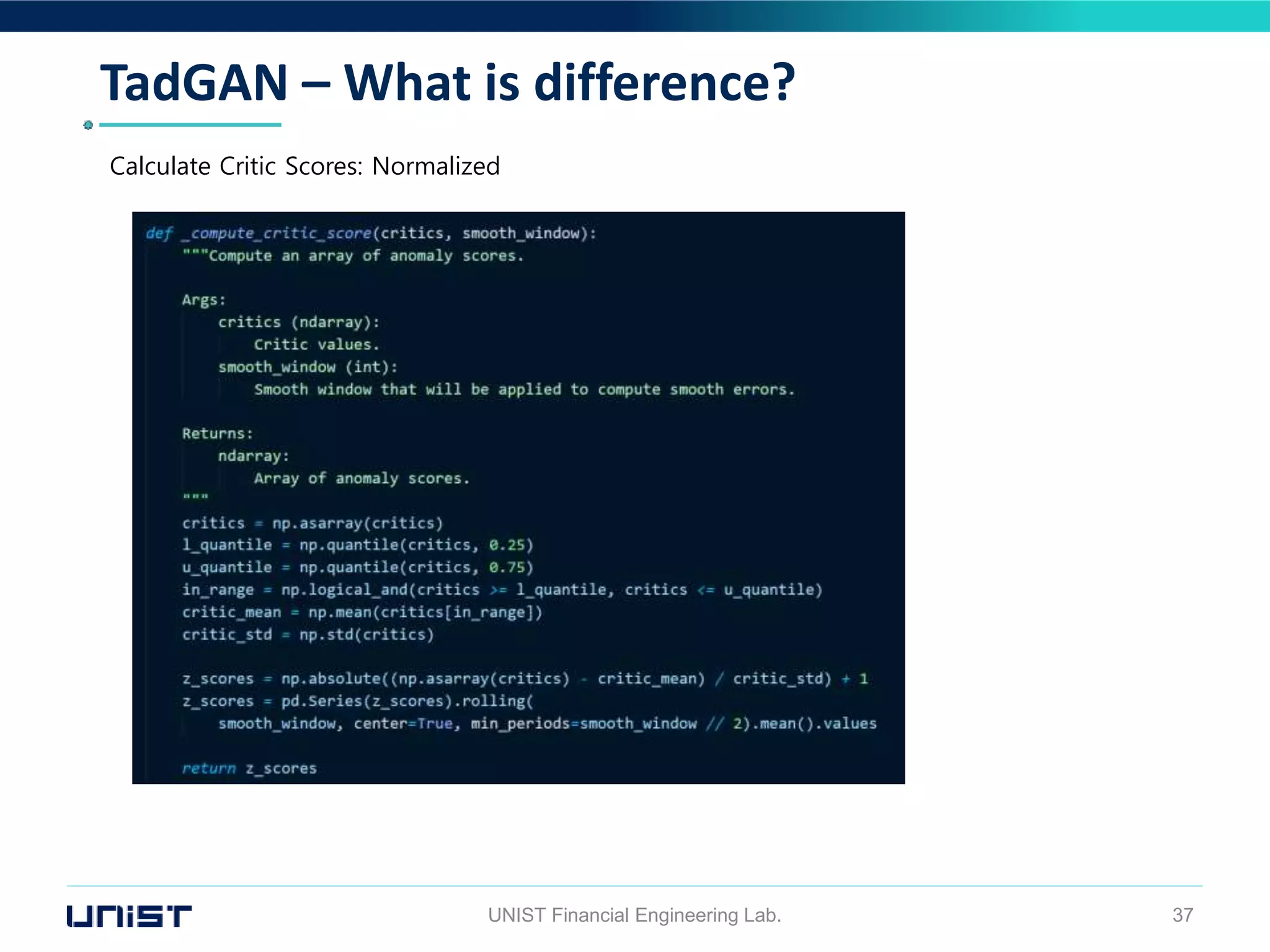

Calculate Critic Scores: Normalized

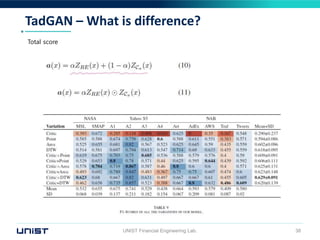

Total score

Thank you for listening!
