WIFI SSID:Spark+AISummit | Password: UnifiedDataAnalytics
Layla Yang, Databricks
Unified approach to interpret
machine learning model: SHAP
+ LIME
#UnifiedDataAnalytics #SparkAISummit
Overview
• What is Machine Learning Interpreter?
• Why is it important?
• Why is interpreting ML model difficult?
• Different methodologies of model explainer
• SHAP: SHapley Additive exPlanations
• LIME: Local Interpretable Model-Agnostic Explanations
• Application: real world use case
3#UnifiedDataAnalytics #SparkAISummit
ML interpreter: What is it?
Black box
4#UnifiedDataAnalytics #SparkAISummit
Accuracy and Interpretability
Trade-off
Input Data Output
ML interpreter: What is it?
“ Interpretability is the degree to which a human can
understand the cause of a decision.”
-- Miller, Tim. “Explanation in artificial intelligence: Insights from the social sciences.”
5#UnifiedDataAnalytics #SparkAISummit
Why is it important?
Commercial Drive:
● Many enterprises rely on machine learning models to make important decision:
○ Loan, credit card application
○ To buy / sell commodities, stocks or advertisements
○ Diagnose cancer or benign cells
6#UnifiedDataAnalytics #SparkAISummit
● Trust
○ It is easier for humans to trust a business that explains its decisions
● Legal Regulation
○ GDPR: the customer has right to obtain explanation
Why is it important?
Technical Drive: Can you trust your model based on accuracy?
7#UnifiedDataAnalytics #SparkAISummit
● Understand edge cases and
circumstances of failure
● Knowing the ‘why’ can help you learn
more about the problem and the data
● Improve the model

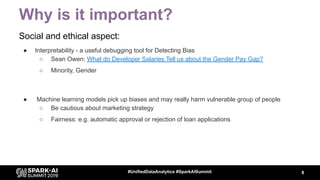

Why is it important?
Social and ethical aspect:
● Interpretability - a useful debugging tool for Detecting Bias
○ Sean Owen: What do Developer Salaries Tell us about the Gender Pay Gap?
○ Minority, Gender
8#UnifiedDataAnalytics #SparkAISummit
● Machine learning models pick up biases and may really harm vulnerable group of people
○ Be cautious about marketing strategy
○ Fairness: e.g. automatic approval or rejection of loan applications
Why is it difficult?
ML creates functions to
explicitly or implicitly combine
variables (features) in
sophisticated way
9#UnifiedDataAnalytics #SparkAISummit
Disaggregate the final
prediction to single feature
contribution and untangle
interaction between features
are very difficult!
Why it’s difficult?
Explain one model out of many good
models: if they give different pictures of
nature’s mechanism and lead to different
conclusions - how to justify one against
another and recommend to the business?
10#UnifiedDataAnalytics #SparkAISummit
“ Data will often point with almost equal emphasis on several possible models. The
question of which one most accurately reflects the data is difficult to resolve.”
-- Leo Breiman, “Statistical Modeling: The Two Cultures”
Different methodologies
● Surrogate model
○ simple model out of fancy model (to establish relationship between input and prediction)
11#UnifiedDataAnalytics #SparkAISummit
● Tree interpreter
○ feature importance
○ it measures how often and how much
a feature was used in the model
○ report relative score for feature
importance
○ global picture of the effect of features
LIME (Local Interpretable Model-Agnostic Explanations)
● Model Agnostic! Approximate a black-box model by a simple linear surrogate model locally
● Learned on perturbations of the original instance in some cases faster than SHAP
● It doesn’t work out-of-the-box on all models.
12#UnifiedDataAnalytics #SparkAISummit
SHAP (SHapley Additive exPlanation)
● To unify various model explanation methods: Model-Agnostic or Model-Specific Approximations
● Based on the game theory, Shapley Values, by Scott Lundberg
● Shapley value is the average contribution of features which are predicting in different situation.
13#UnifiedDataAnalytics #SparkAISummit
● SHAP provides multiple explainers for different kind of models:
○ TreeExplainer: Support XGBoost, LightGBM, CatBoost and scikit-learn models by Tree SHAP.
○ DeepExplainer (DEEP SHAP): Support TensorFlow and Keras models by using DeepLIFT and Shapley
values.
○ KernelExplainer (Kernel SHAP): Applying to any models by using LIME and Shapley values.
○ GradientExplainer: Support TensorFlow and Keras models.
SHAP: Important Benefits
14#UnifiedDataAnalytics #SparkAISummit
Produce explanations at the level of individual inputs
● Traditional feature importance algorithms
will tell us which features are most
important across the entire population
● With individual-level SHAP values, we
can pinpoint which factors are most
impactful for each customer

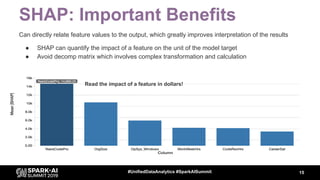

SHAP: Important Benefits
15#UnifiedDataAnalytics #SparkAISummit
Can directly relate feature values to the output, which greatly improves interpretation of the results
● SHAP can quantify the impact of a feature on the unit of the model target
● Avoid decomp matrix which involves complex transformation and calculation
Read the impact of a feature in dollars!
Application
SHAP explainer: CNN
16#UnifiedDataAnalytics #SparkAISummit
LIME: NLP Fasttext

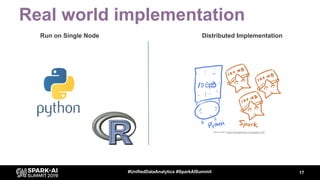

Real world implementation
17#UnifiedDataAnalytics #SparkAISummit
Run on Single Node Distributed Implementation
DON’T FORGET TO RATE
AND REVIEW THE SESSIONS
SEARCH SPARK + AI SUMMIT
