TDSProtocol Reference
TDS - Tabular Data Stream
Reference and information to assist in
diagnosing client/server problems
Author: Paul Vero
March, 2015

2. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

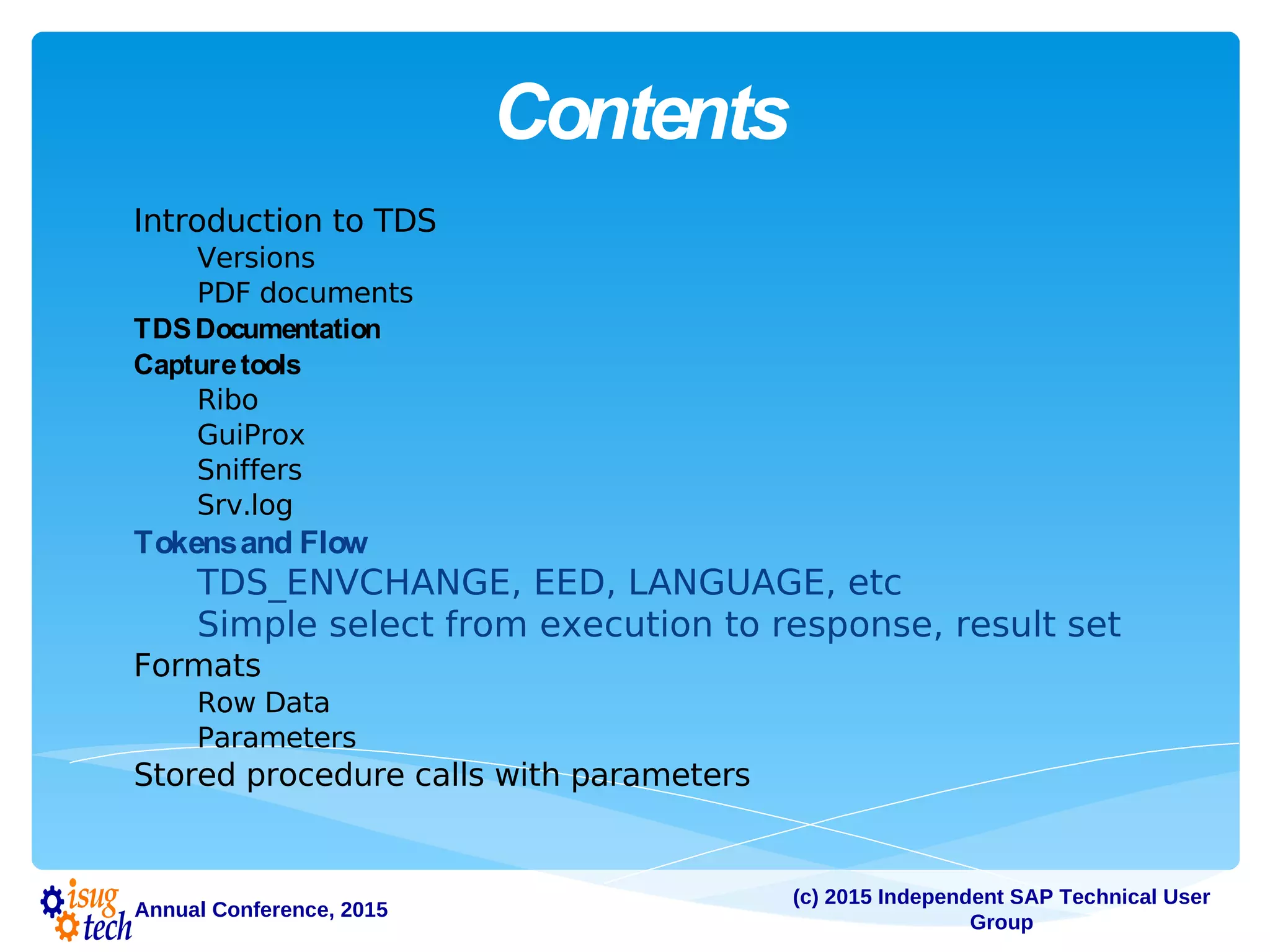

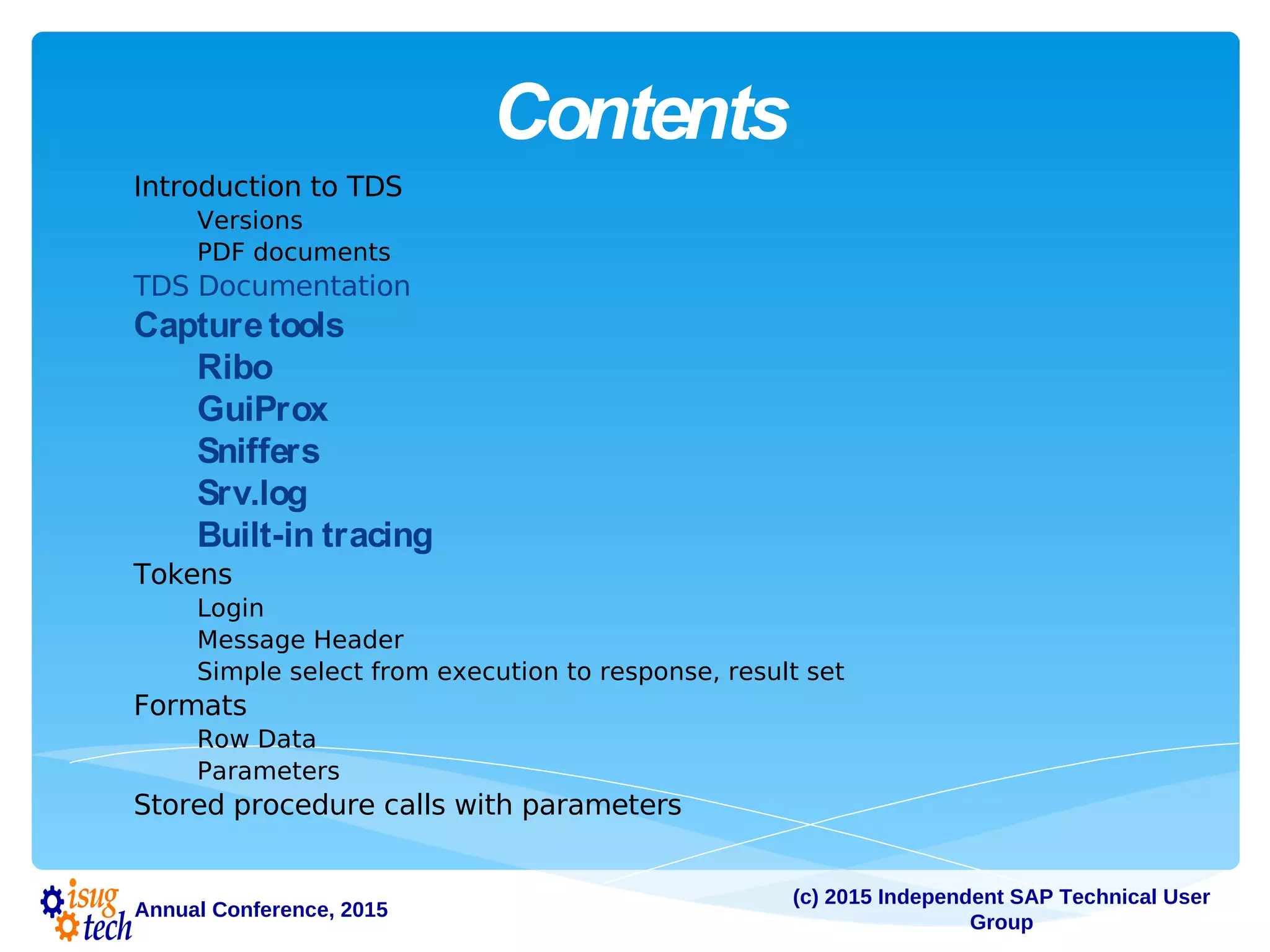

Contents
Introduction to TDS
Versions
PDF documents
TDS Documentation
Capture tools
Ribo
GuiProx
Sniffers
Srv.log
Built-in tracing
Tokens
Login
Simple select from execution to response, result set
Formats
Row Data
Parameters
Stored procedure calls with parameters

3. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Contents
Introduction toTDS
Versions
PDF documents
TDS Documentation
Capture tools
Ribo
GuiProx
Sniffers
Srv.log
Tokens
Login
Simple select from execution to response, result set
Formats
Row Data
Parameters
Stored procedure calls with parameters

4. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

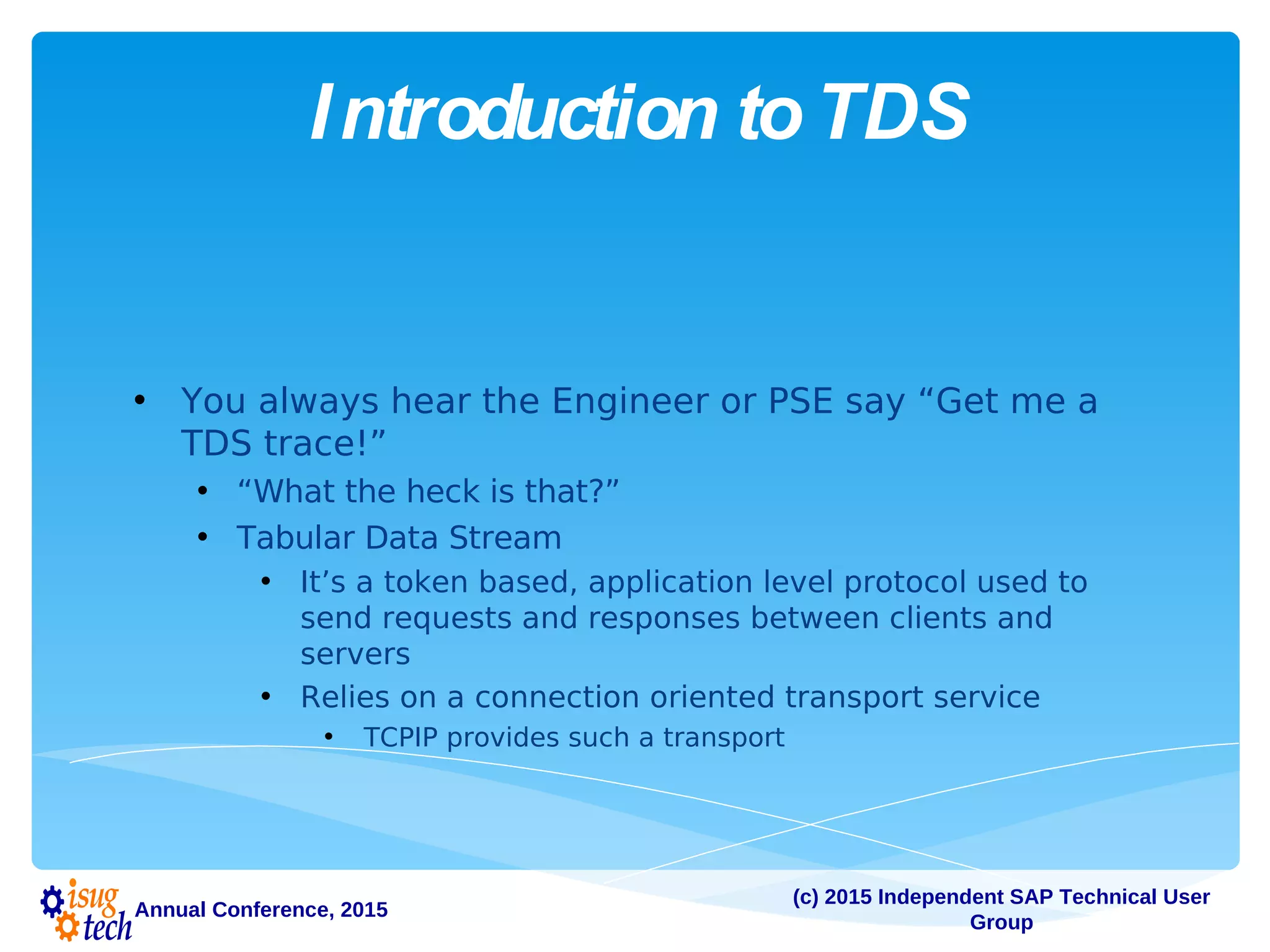

Introduction toTDS
• You always hear the Engineer or PSE say “Get me a
TDS trace!”
• “What the heck is that?”
• Tabular Data Stream
• It’s a token based, application level protocol used to
send requests and responses between clients and
servers
• Relies on a connection oriented transport service
• TCPIP provides such a transport

5. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Versions

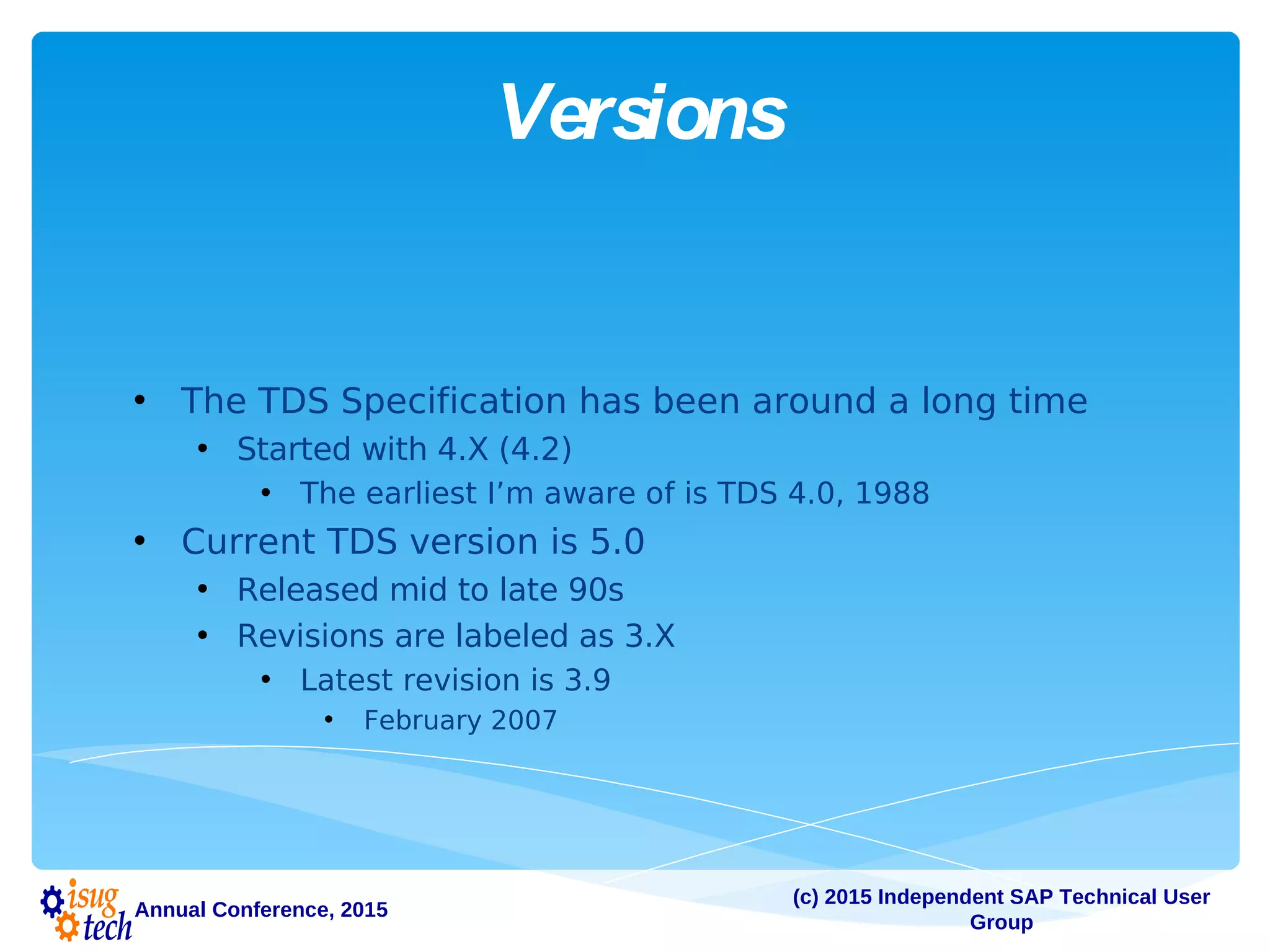

• The TDS Specification has been around a long time
• Started with 4.X (4.2)
• The earliest I’m aware of is TDS 4.0, 1988
• Current TDS version is 5.0
• Released mid to late 90s
• Revisions are labeled as 3.X
• Latest revision is 3.9
• February 2007

6. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Contents
Introduction to TDS
Versions
PDF documents
TDSDocumentation
Capture tools
Ribo
GuiProx
Sniffers
Srv.log
Tokens
Login
Message Header
Simple select from execution to response, result set
Formats
Row Data
Parameters
Stored procedure calls with parameters

7. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

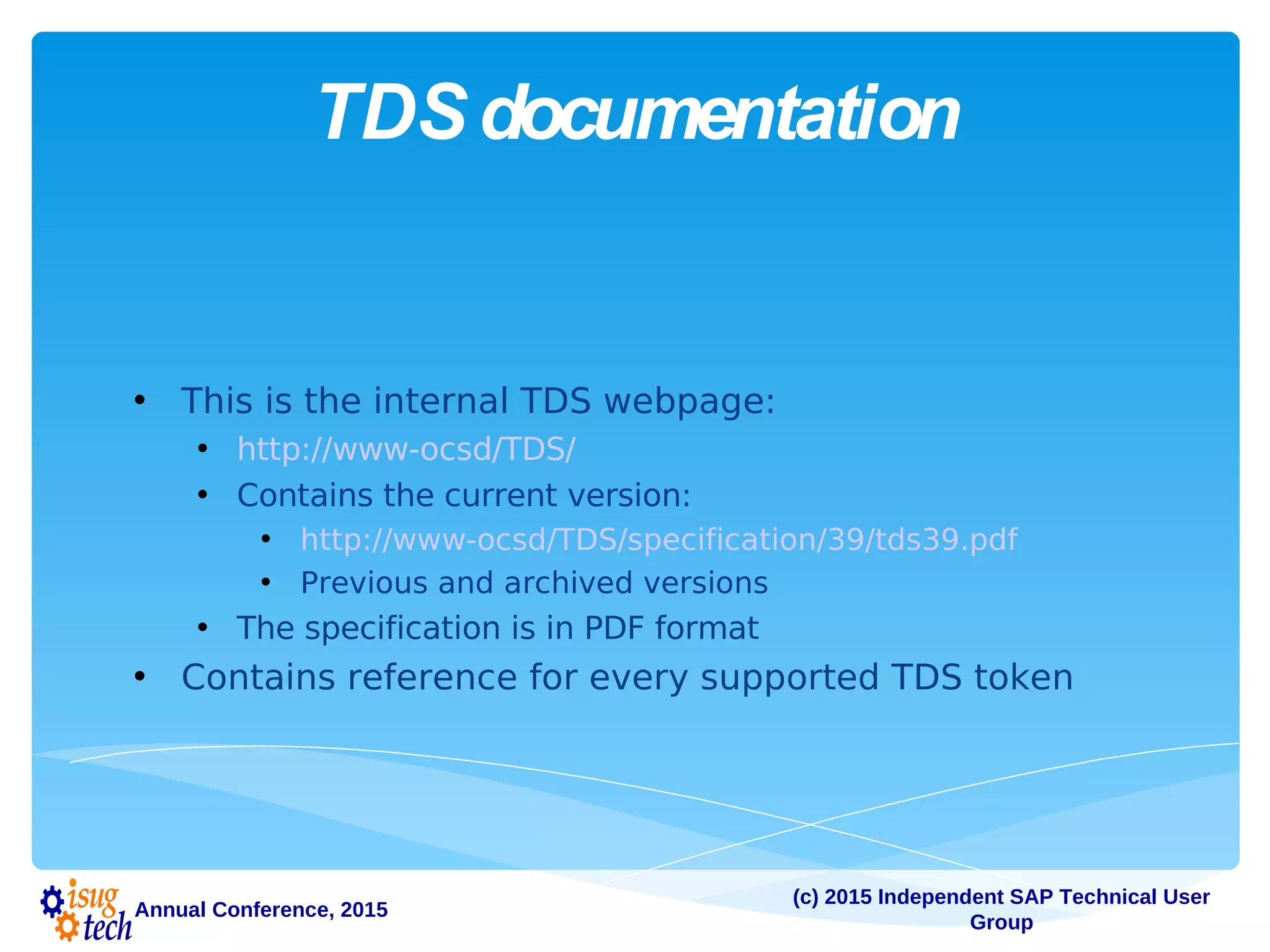

TDSdocumentation
• This is the internal TDS webpage:
• http://www-ocsd/TDS/
• Contains the current version:
• http://www-ocsd/TDS/specification/39/tds39.pdf
• Previous and archived versions
• The specification is in PDF format
• Contains reference for every supported TDS token

8. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
TDSdocumentation
• This section will provide additional information as it
walks through the TDS specification document,
tds39.pdf
• This is a high level explanation of the sections
• This is useful to understand the concept of a
client/server protocol
• This presentation will not cover every chapter in the
specification
• Guide to get you used to the document

9. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

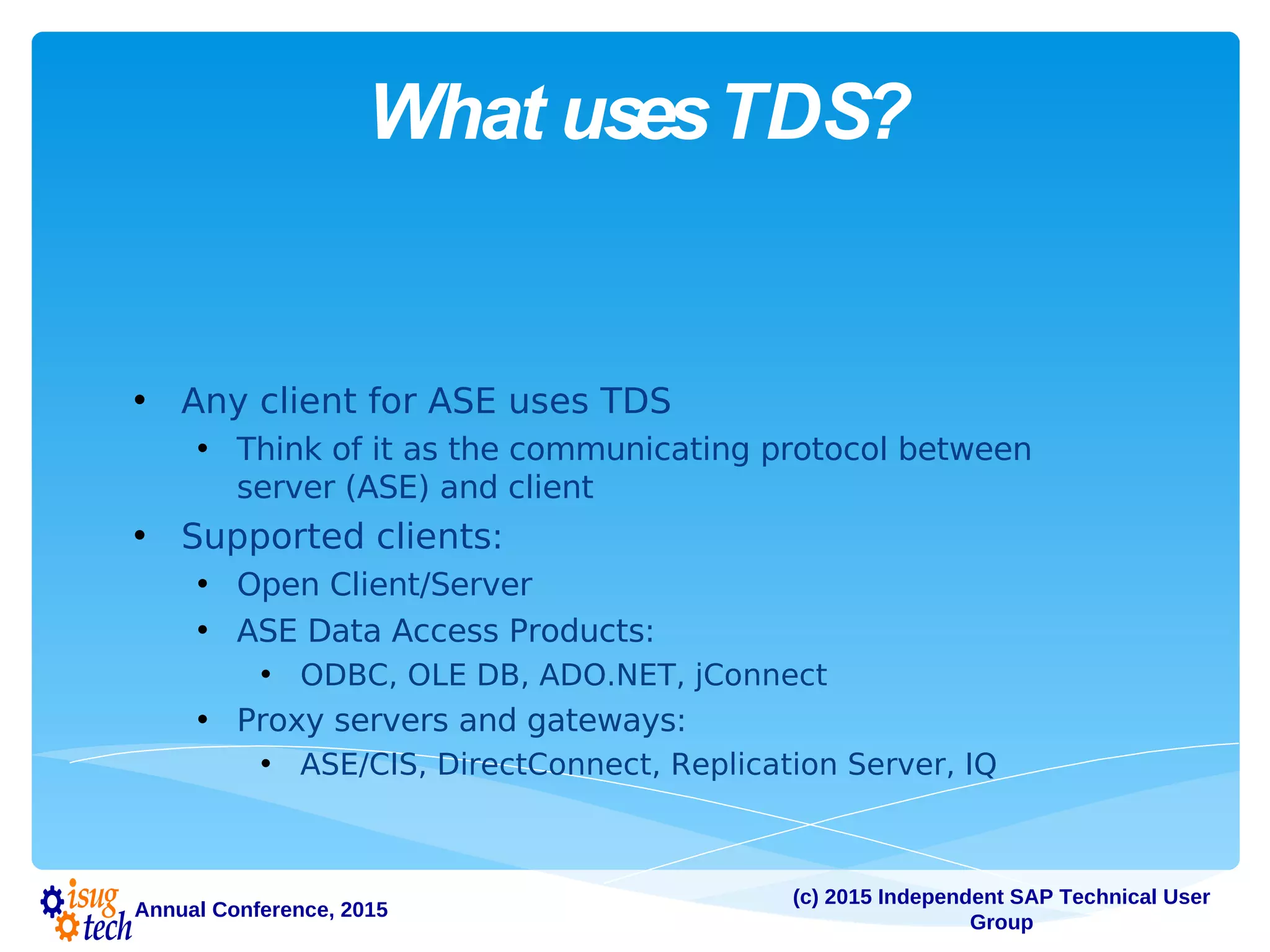

What usesTDS?
• Any client for ASE uses TDS
• Think of it as the communicating protocol between
server (ASE) and client
• Supported clients:
• Open Client/Server
• ASE Data Access Products:
• ODBC, OLE DB, ADO.NET, jConnect
• Proxy servers and gateways:
• ASE/CIS, DirectConnect, Replication Server, IQ

10. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

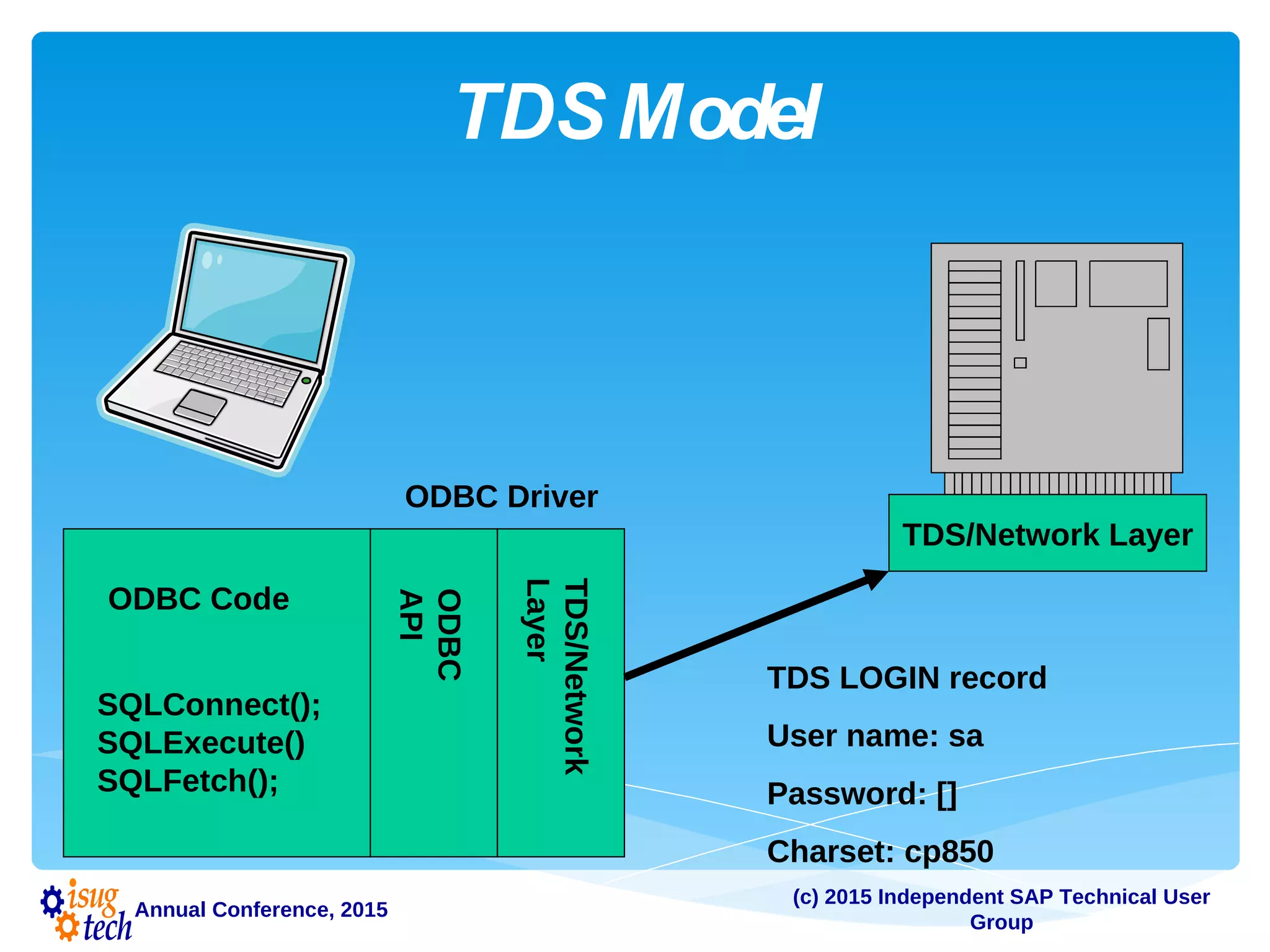

TDSModel
SQLConnect();
SQLExecute()
SQLFetch();
ODBC Code
ODBC
API
TDS/Network
Layer
ODBC Driver
TDS/Network Layer
TDS LOGIN record
User name: sa
Password: []
Charset: cp850

11. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
SampleTDSSession

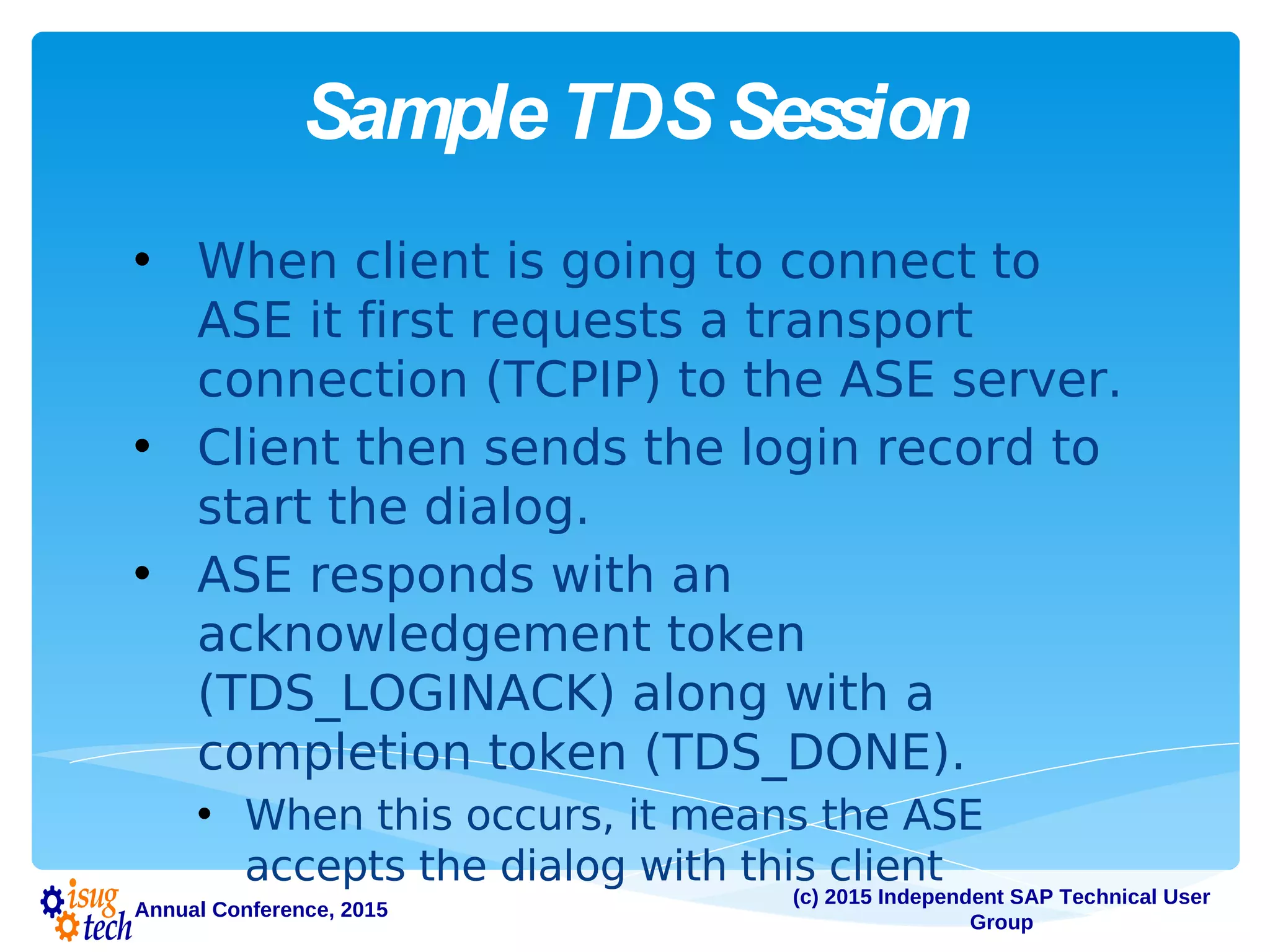

• When client is going to connect to
ASE it first requests a transport
connection (TCPIP) to the ASE server.
• Client then sends the login record to
start the dialog.
• ASE responds with an
acknowledgement token
(TDS_LOGINACK) along with a
completion token (TDS_DONE).
• When this occurs, it means the ASE
accepts the dialog with this client

12. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
SampleTDSSession

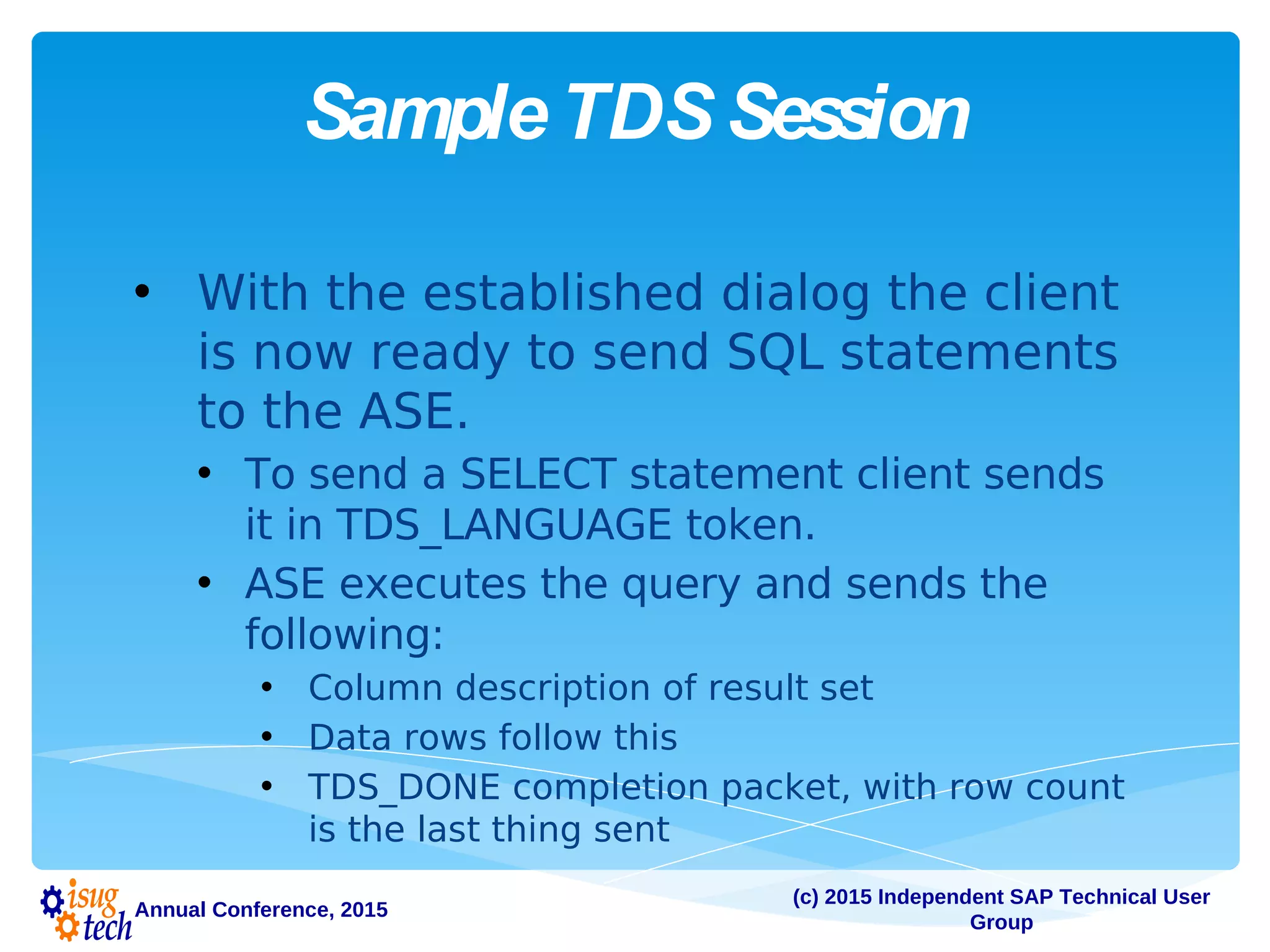

• With the established dialog the client
is now ready to send SQL statements
to the ASE.
• To send a SELECT statement client sends
it in TDS_LANGUAGE token.
• ASE executes the query and sends the
following:
• Column description of result set
• Data rows follow this
• TDS_DONE completion packet, with row count
is the last thing sent

13. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

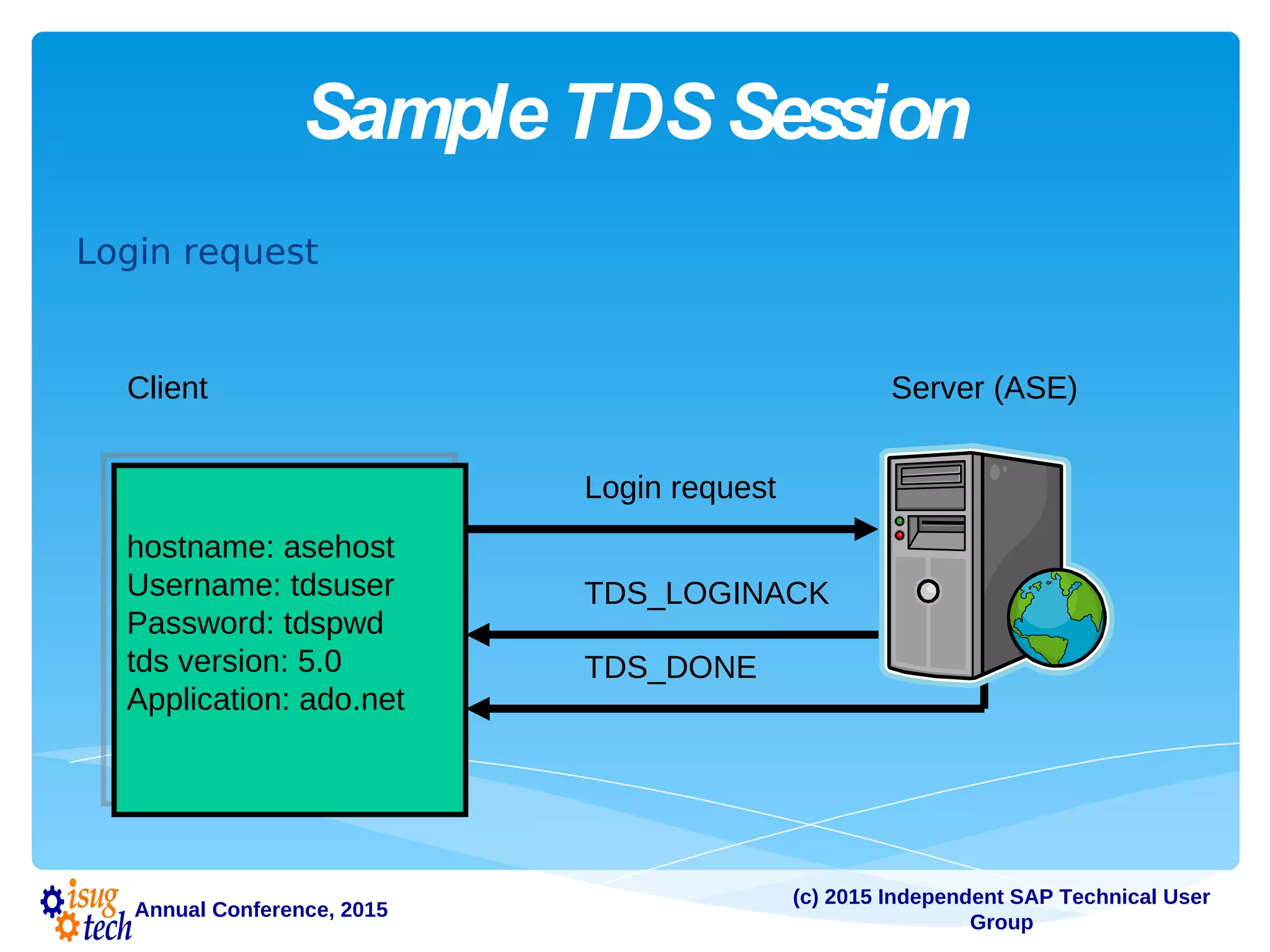

SampleTDSSession
Login request
Client Server (ASE)
hostname: asehost
Username: tdsuser
Password: tdspwd
tds version: 5.0
Application: ado.net
Login request
TDS_LOGINACK
TDS_DONE

14. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

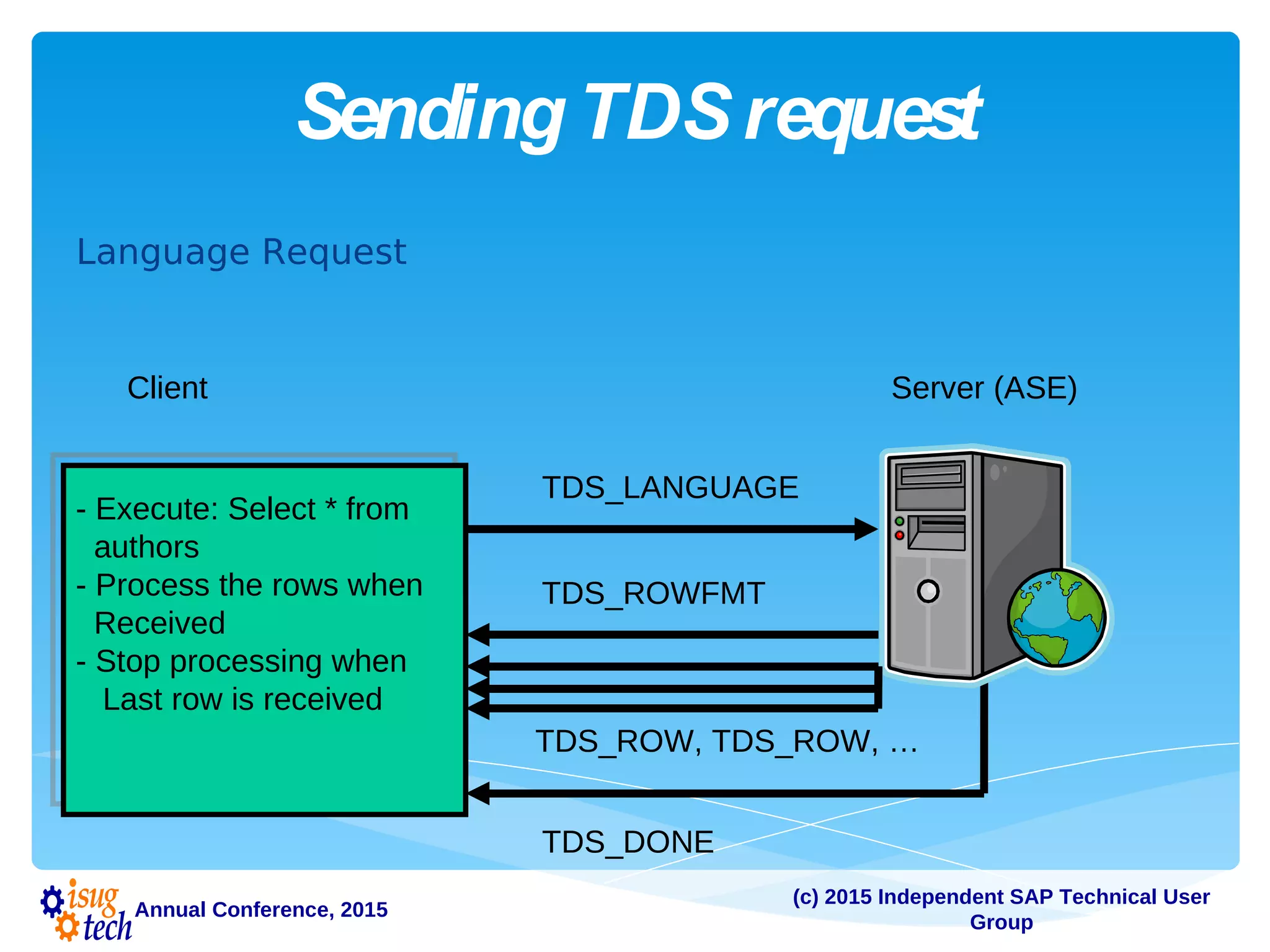

SendingTDSrequest
Language Request
Client Server (ASE)
- Execute: Select * from
authors
- Process the rows when
Received
- Stop processing when
Last row is received
TDS_LANGUAGE
TDS_ROWFMT
TDS_DONE
TDS_ROW, TDS_ROW, …

15. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

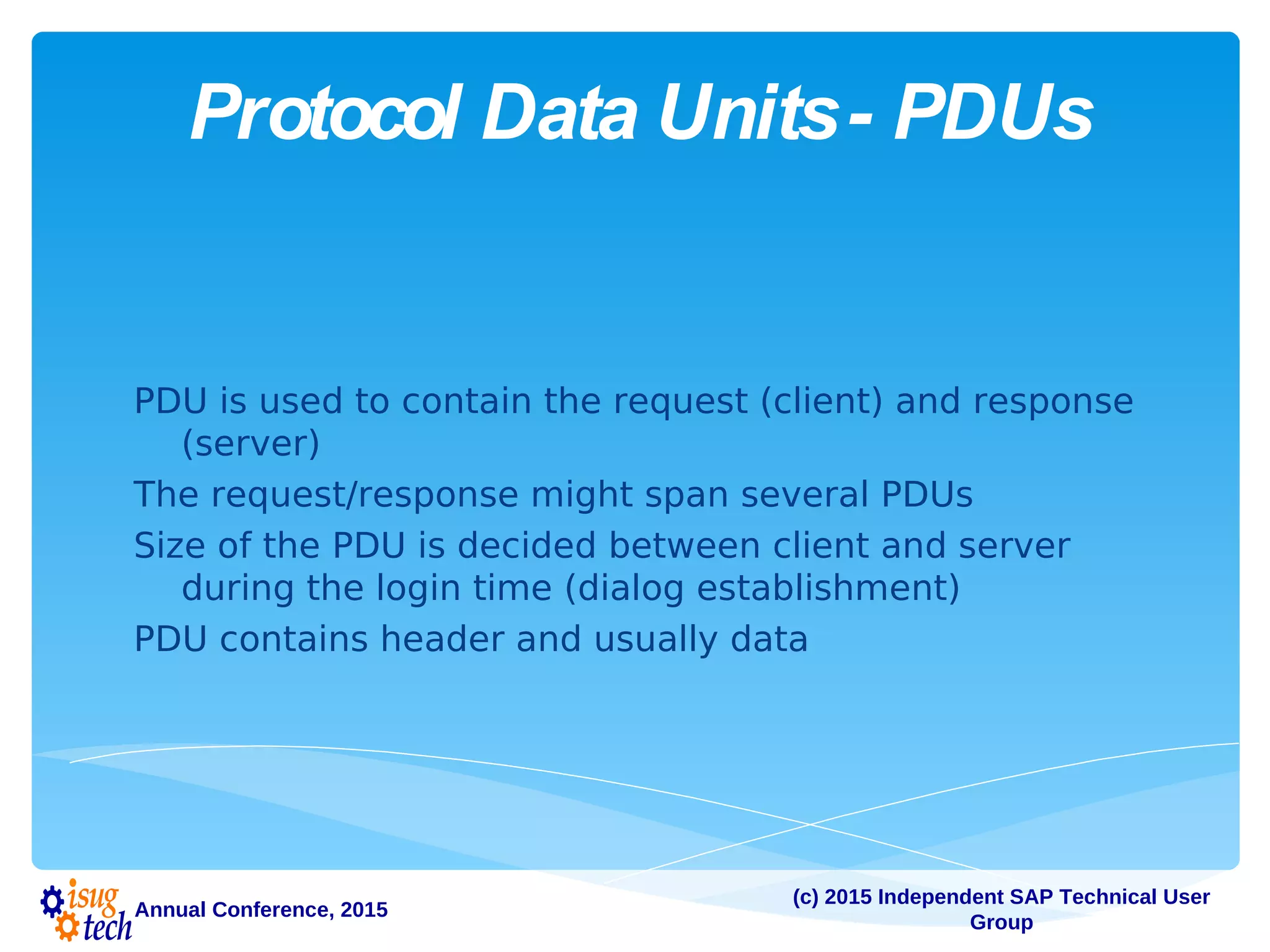

Protocol Data Units- PDUs
PDU is used to contain the request (client) and response
(server)
The request/response might span several PDUs
Size of the PDU is decided between client and server
during the login time (dialog establishment)
PDU contains header and usually data

16. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

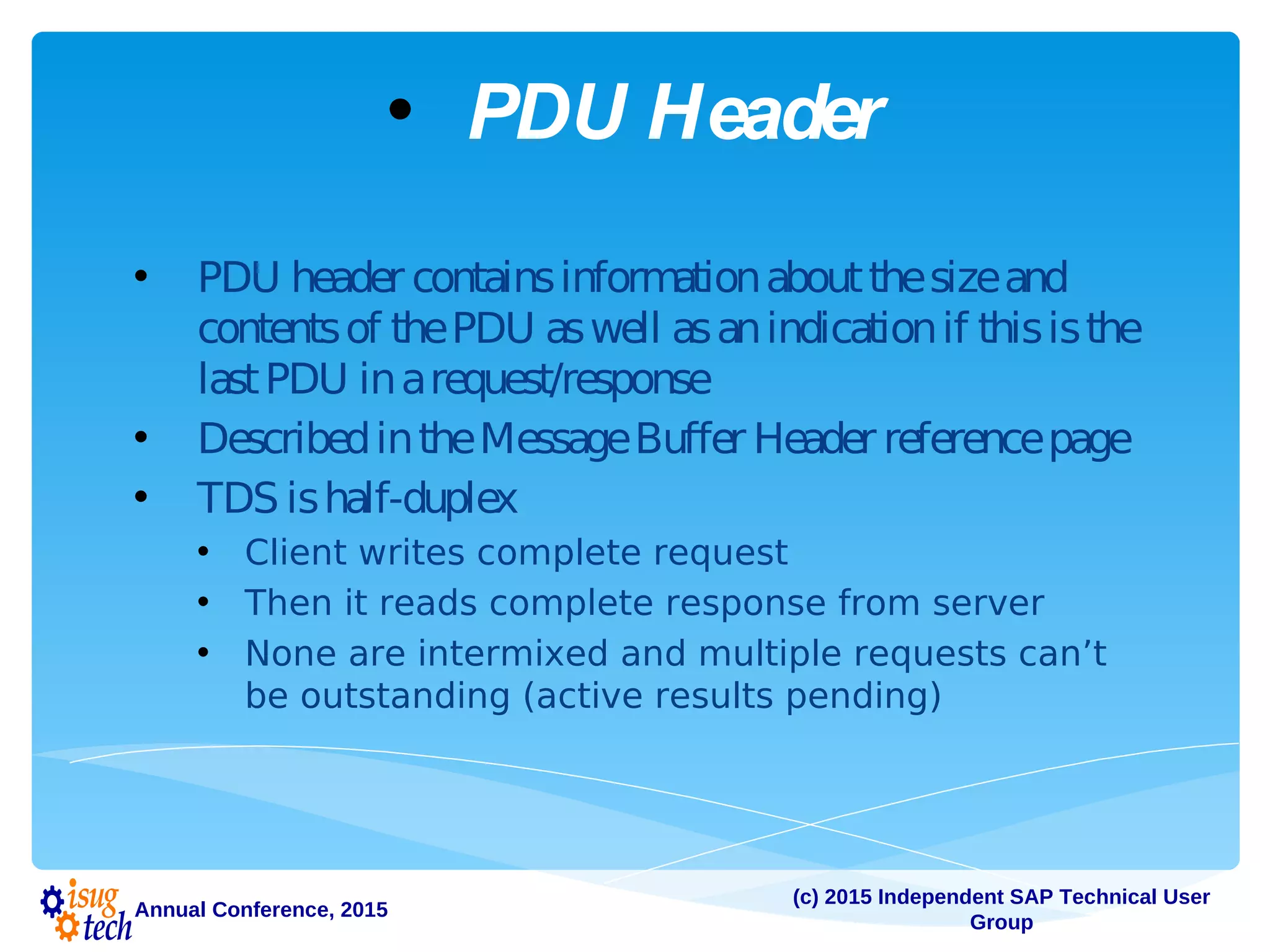

• PDU Header
• PDU header containsinformationaboutthesizeand
contentsof thePDU aswell asanindicationif thisisthe
lastPDU inarequest/response
• DescribedintheMessageBuffer Header referencepage
• TDS ishalf-duplex
• Client writes complete request
• Then it reads complete response from server
• None are intermixed and multiple requests can’t
be outstanding (active results pending)

17. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

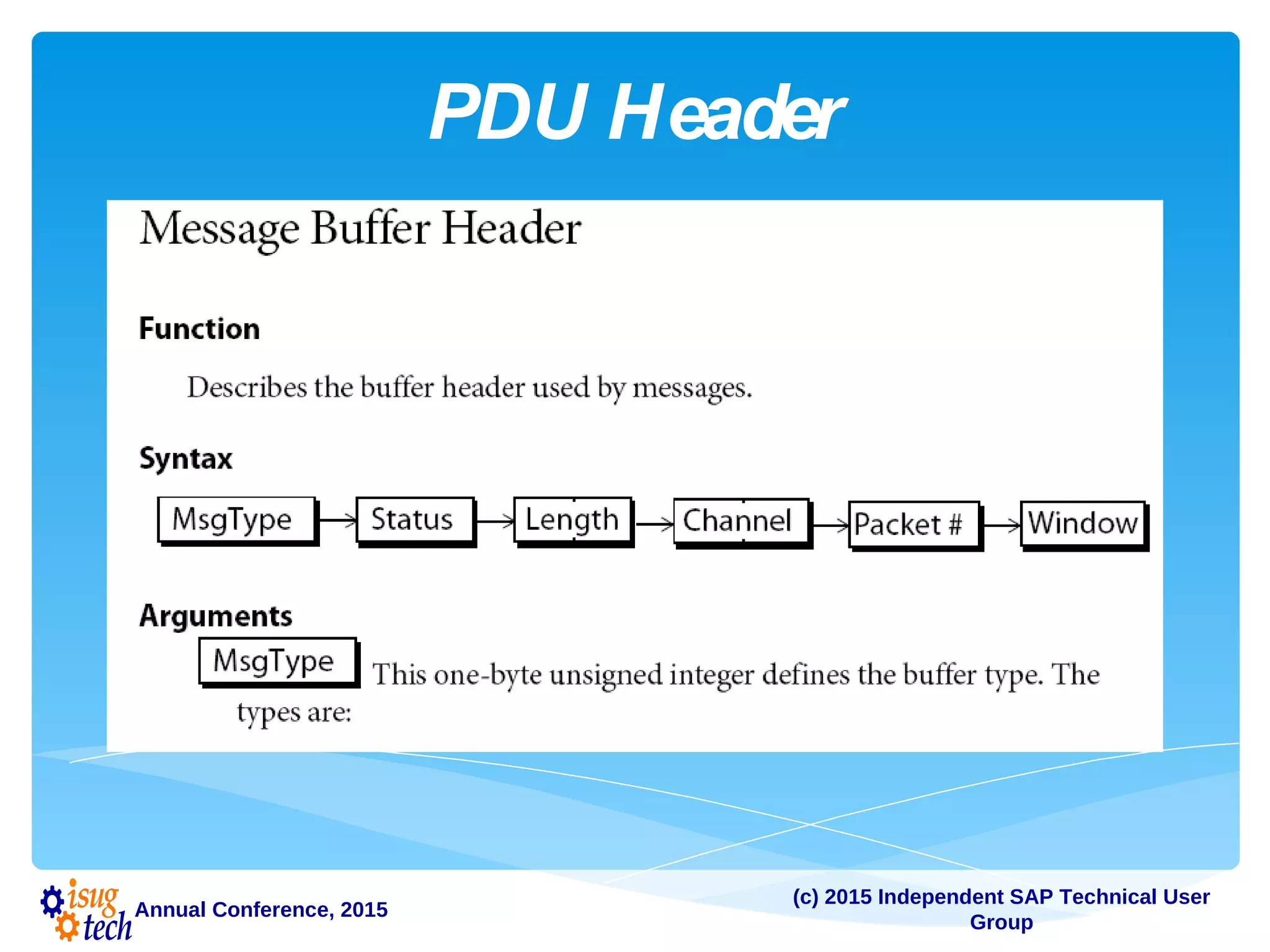

PDU Header

18. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
PDU Header

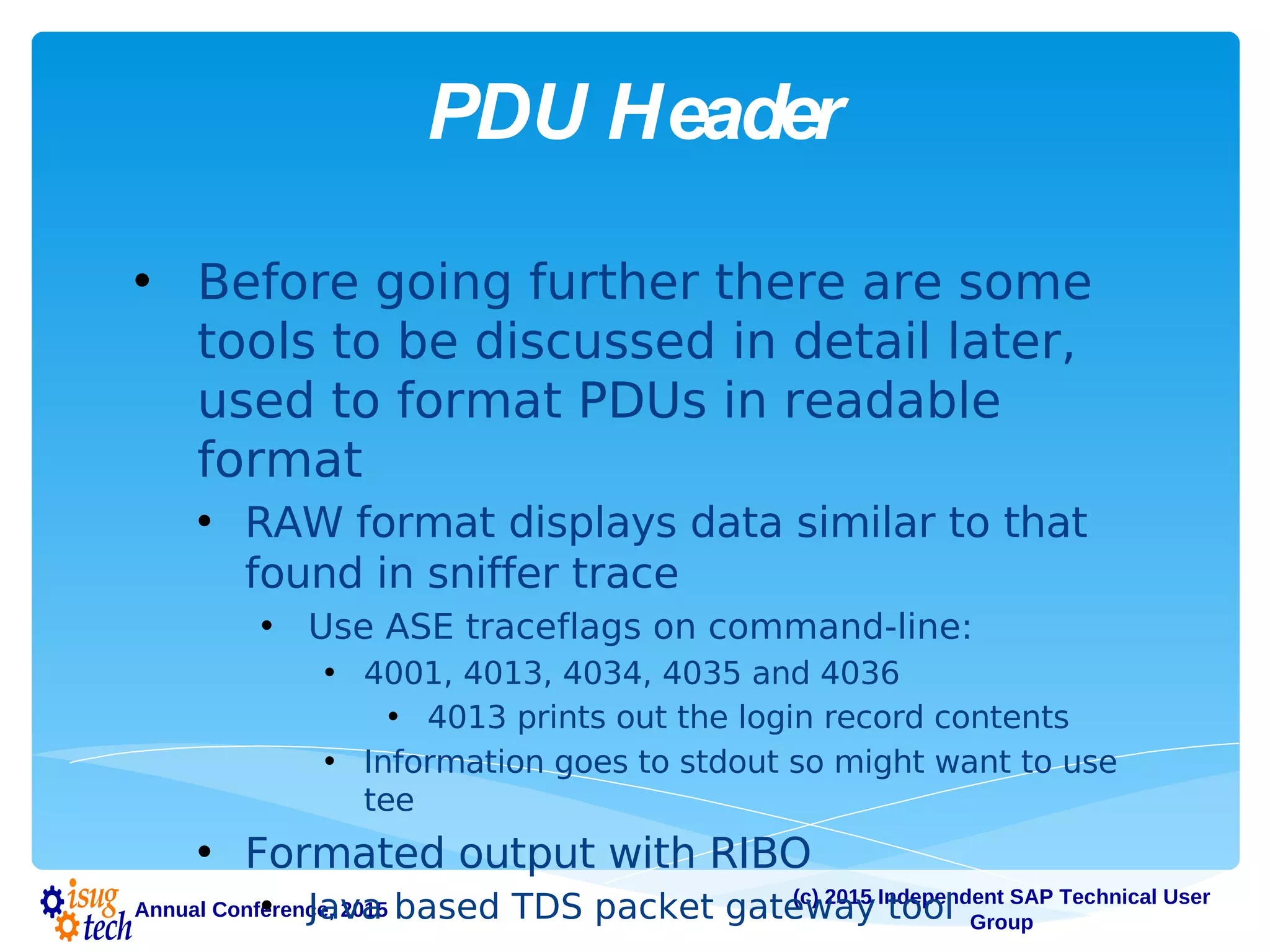

• Before going further there are some
tools to be discussed in detail later,
used to format PDUs in readable
format
• RAW format displays data similar to that
found in sniffer trace
• Use ASE traceflags on command-line:
• 4001, 4013, 4034, 4035 and 4036
• 4013 prints out the login record contents
• Information goes to stdout so might want to use
tee
• Formated output with RIBO
• Java based TDS packet gateway tool

19. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

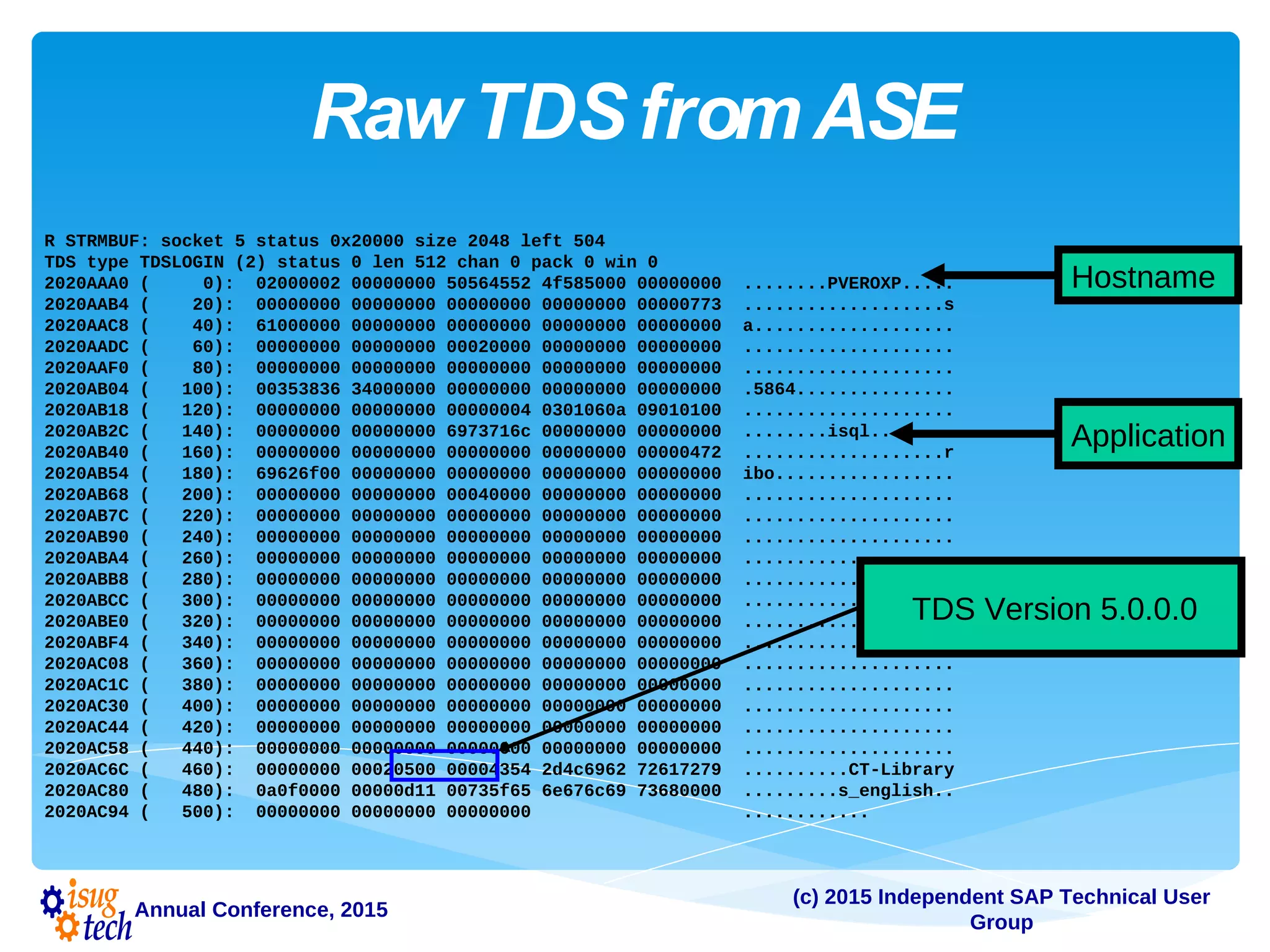

RawTDSfromASE
R STRMBUF: socket 5 status 0x20000 size 2048 left 504
TDS type TDSLOGIN (2) status 0 len 512 chan 0 pack 0 win 0
2020AAA0 ( 0): 02000002 00000000 50564552 4f585000 00000000 ........PVEROXP.....
2020AAB4 ( 20): 00000000 00000000 00000000 00000000 00000773 ...................s
2020AAC8 ( 40): 61000000 00000000 00000000 00000000 00000000 a...................
2020AADC ( 60): 00000000 00000000 00020000 00000000 00000000 ....................
2020AAF0 ( 80): 00000000 00000000 00000000 00000000 00000000 ....................
2020AB04 ( 100): 00353836 34000000 00000000 00000000 00000000 .5864...............
2020AB18 ( 120): 00000000 00000000 00000004 0301060a 09010100 ....................
2020AB2C ( 140): 00000000 00000000 6973716c 00000000 00000000 ........isql........
2020AB40 ( 160): 00000000 00000000 00000000 00000000 00000472 ...................r
2020AB54 ( 180): 69626f00 00000000 00000000 00000000 00000000 ibo.................
2020AB68 ( 200): 00000000 00000000 00040000 00000000 00000000 ....................
2020AB7C ( 220): 00000000 00000000 00000000 00000000 00000000 ....................
2020AB90 ( 240): 00000000 00000000 00000000 00000000 00000000 ....................
2020ABA4 ( 260): 00000000 00000000 00000000 00000000 00000000 ....................
2020ABB8 ( 280): 00000000 00000000 00000000 00000000 00000000 ....................
2020ABCC ( 300): 00000000 00000000 00000000 00000000 00000000 ....................
2020ABE0 ( 320): 00000000 00000000 00000000 00000000 00000000 ....................
2020ABF4 ( 340): 00000000 00000000 00000000 00000000 00000000 ....................
2020AC08 ( 360): 00000000 00000000 00000000 00000000 00000000 ....................
2020AC1C ( 380): 00000000 00000000 00000000 00000000 00000000 ....................
2020AC30 ( 400): 00000000 00000000 00000000 00000000 00000000 ....................
2020AC44 ( 420): 00000000 00000000 00000000 00000000 00000000 ....................
2020AC58 ( 440): 00000000 00000000 00000000 00000000 00000000 ....................
2020AC6C ( 460): 00000000 00020500 00004354 2d4c6962 72617279 ..........CT-Library
2020AC80 ( 480): 0a0f0000 00000d11 00735f65 6e676c69 73680000 .........s_english..
2020AC94 ( 500): 00000000 00000000 00000000 ............
Hostname
TDS Version 5.0.0.0
Application

20. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Login recordfromASE errorlog

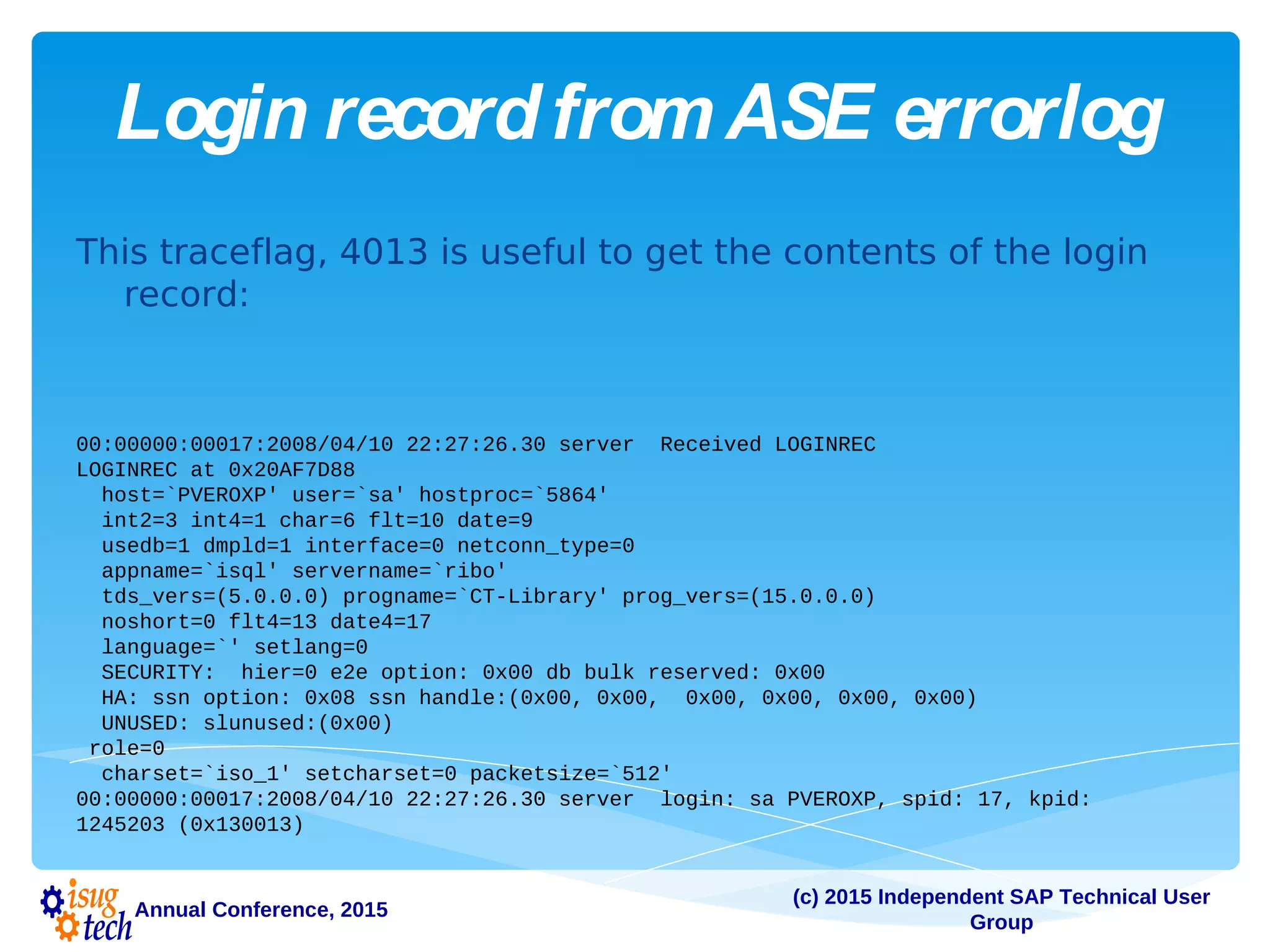

This traceflag, 4013 is useful to get the contents of the login
record:
00:00000:00017:2008/04/10 22:27:26.30 server Received LOGINREC
LOGINREC at 0x20AF7D88
host=`PVEROXP' user=`sa' hostproc=`5864'
int2=3 int4=1 char=6 flt=10 date=9
usedb=1 dmpld=1 interface=0 netconn_type=0
appname=`isql' servername=`ribo'
tds_vers=(5.0.0.0) progname=`CT-Library' prog_vers=(15.0.0.0)
noshort=0 flt4=13 date4=17
language=`' setlang=0
SECURITY: hier=0 e2e option: 0x00 db bulk reserved: 0x00
HA: ssn option: 0x08 ssn handle:(0x00, 0x00, 0x00, 0x00, 0x00, 0x00)
UNUSED: slunused:(0x00)
role=0
charset=`iso_1' setcharset=0 packetsize=`512'
00:00000:00017:2008/04/10 22:27:26.30 server login: sa PVEROXP, spid: 17, kpid:
1245203 (0x130013)

21. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

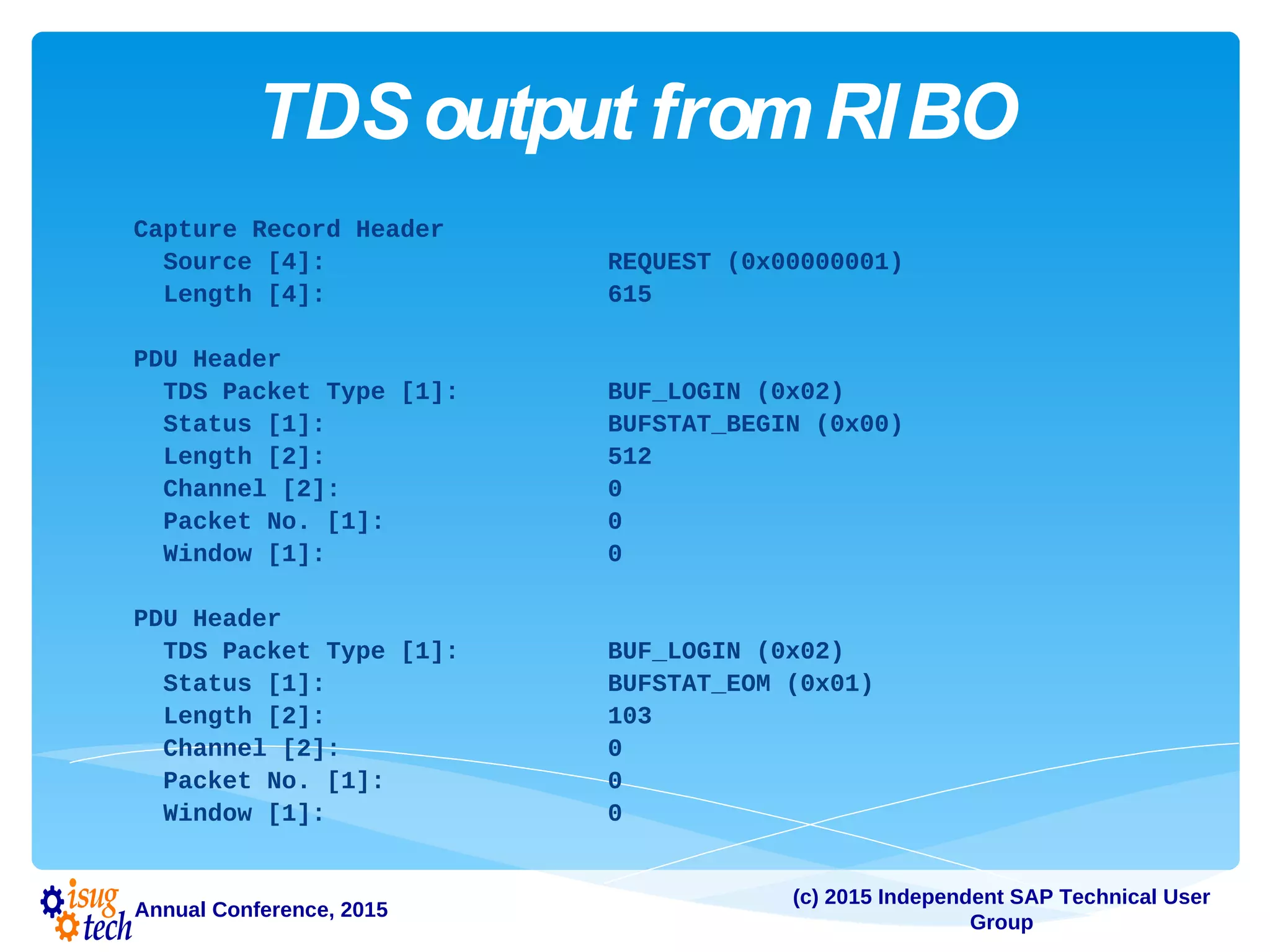

TDSoutput fromRIBO
Capture Record Header
Source [4]: REQUEST (0x00000001)
Length [4]: 615
PDU Header
TDS Packet Type [1]: BUF_LOGIN (0x02)
Status [1]: BUFSTAT_BEGIN (0x00)
Length [2]: 512
Channel [2]: 0
Packet No. [1]: 0
Window [1]: 0
PDU Header
TDS Packet Type [1]: BUF_LOGIN (0x02)
Status [1]: BUFSTAT_EOM (0x01)
Length [2]: 103
Channel [2]: 0
Packet No. [1]: 0
Window [1]: 0

22. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

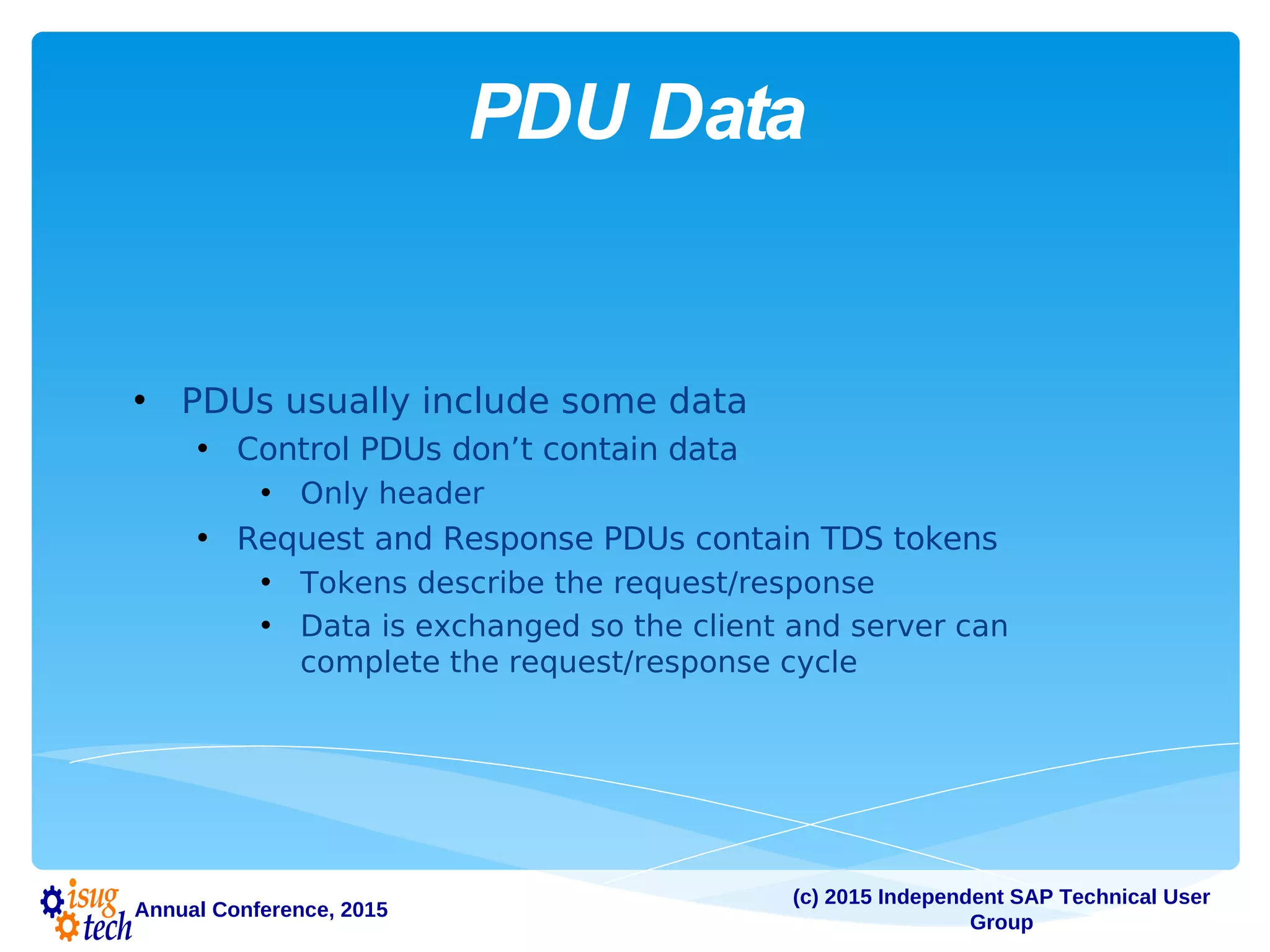

PDU Data
• PDUs usually include some data
• Control PDUs don’t contain data
• Only header
• Request and Response PDUs contain TDS tokens
• Tokens describe the request/response
• Data is exchanged so the client and server can
complete the request/response cycle

23. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

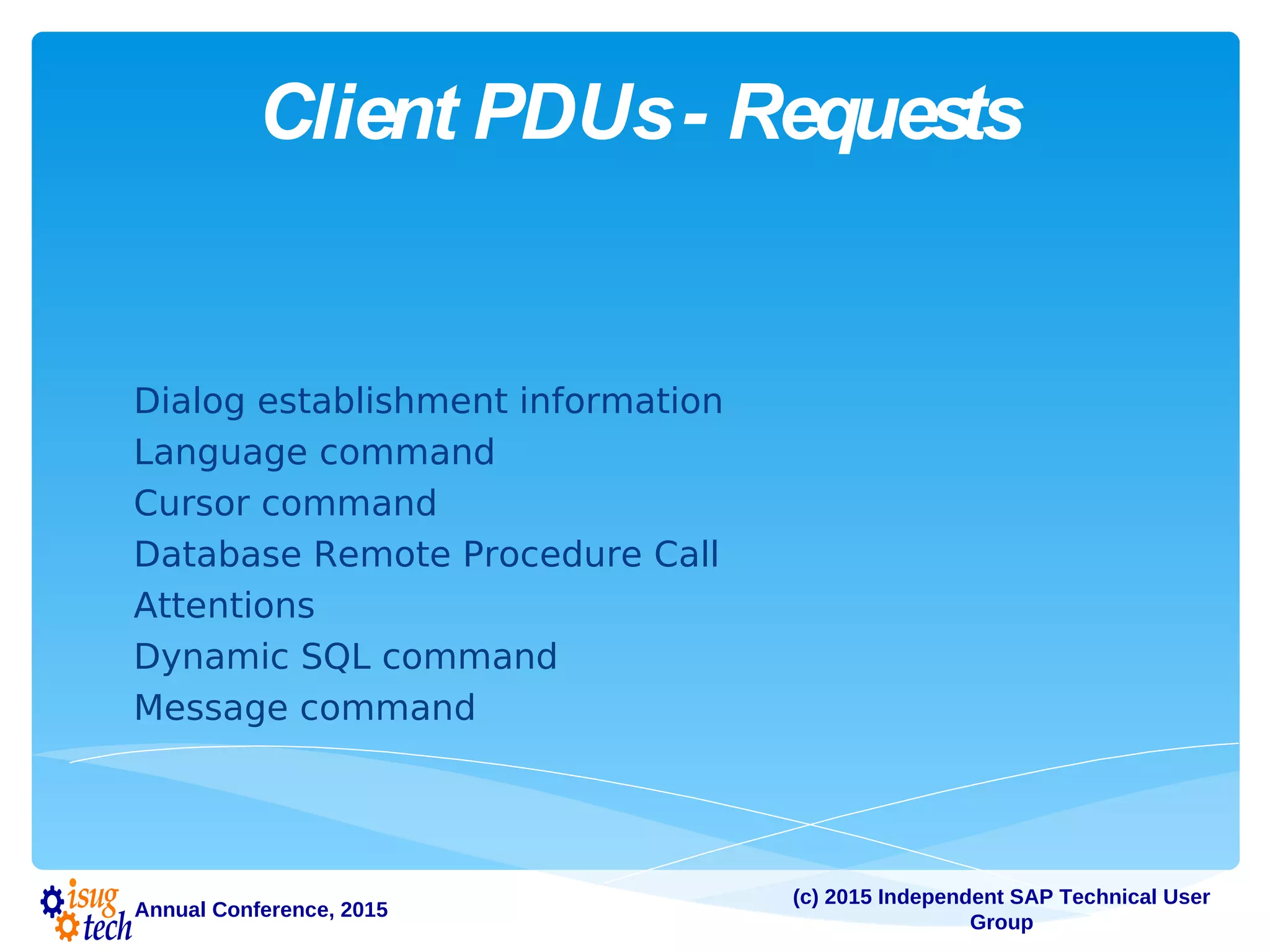

Client PDUs- Requests
Dialog establishment information
Language command
Cursor command
Database Remote Procedure Call
Attentions
Dynamic SQL command
Message command

24. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Client PDU: DialogEstablishment

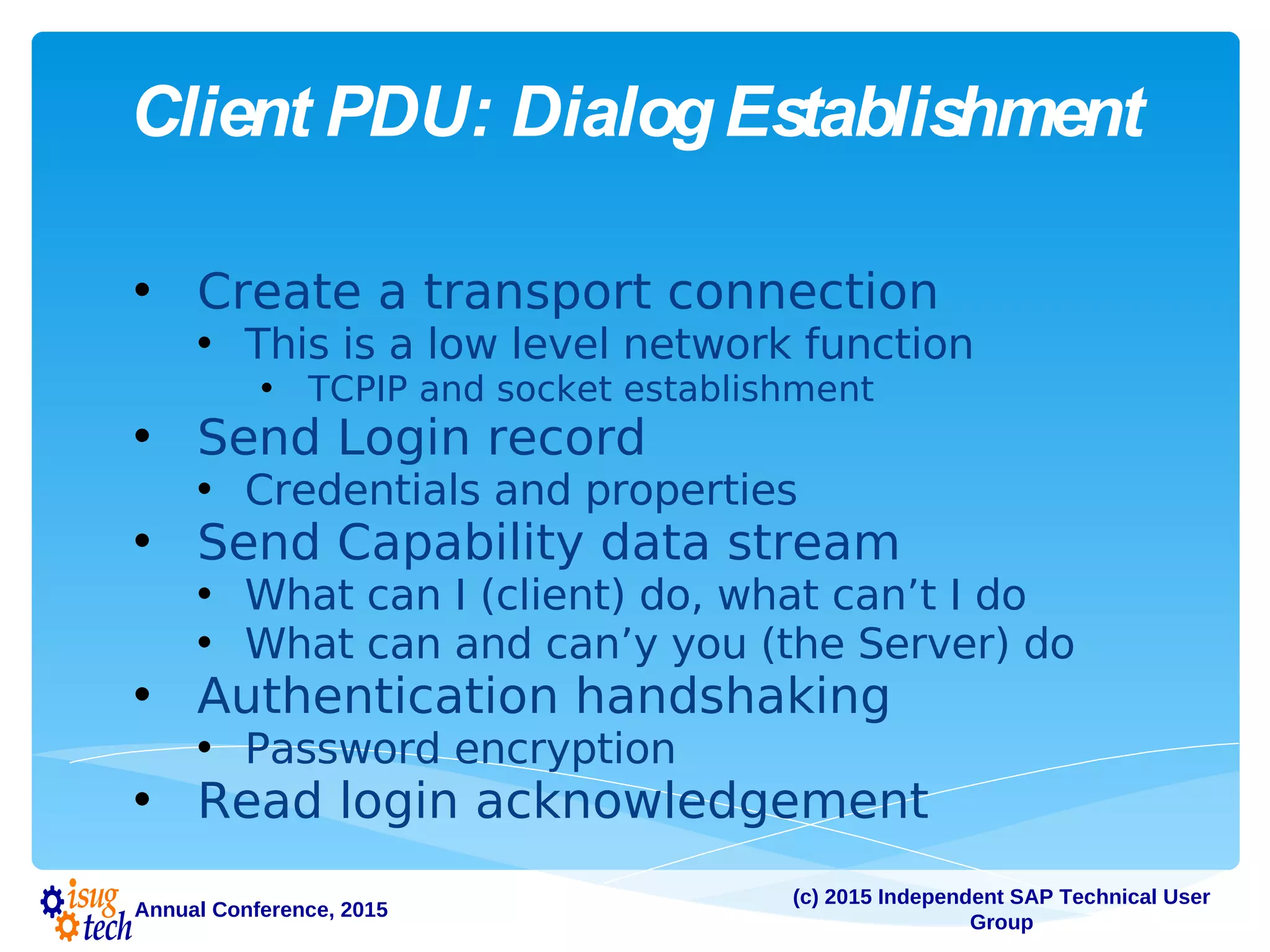

• Create a transport connection
• This is a low level network function
• TCPIP and socket establishment
• Send Login record
• Credentials and properties
• Send Capability data stream
• What can I (client) do, what can’t I do
• What can and can’y you (the Server) do
• Authentication handshaking
• Password encryption
• Read login acknowledgement

25. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

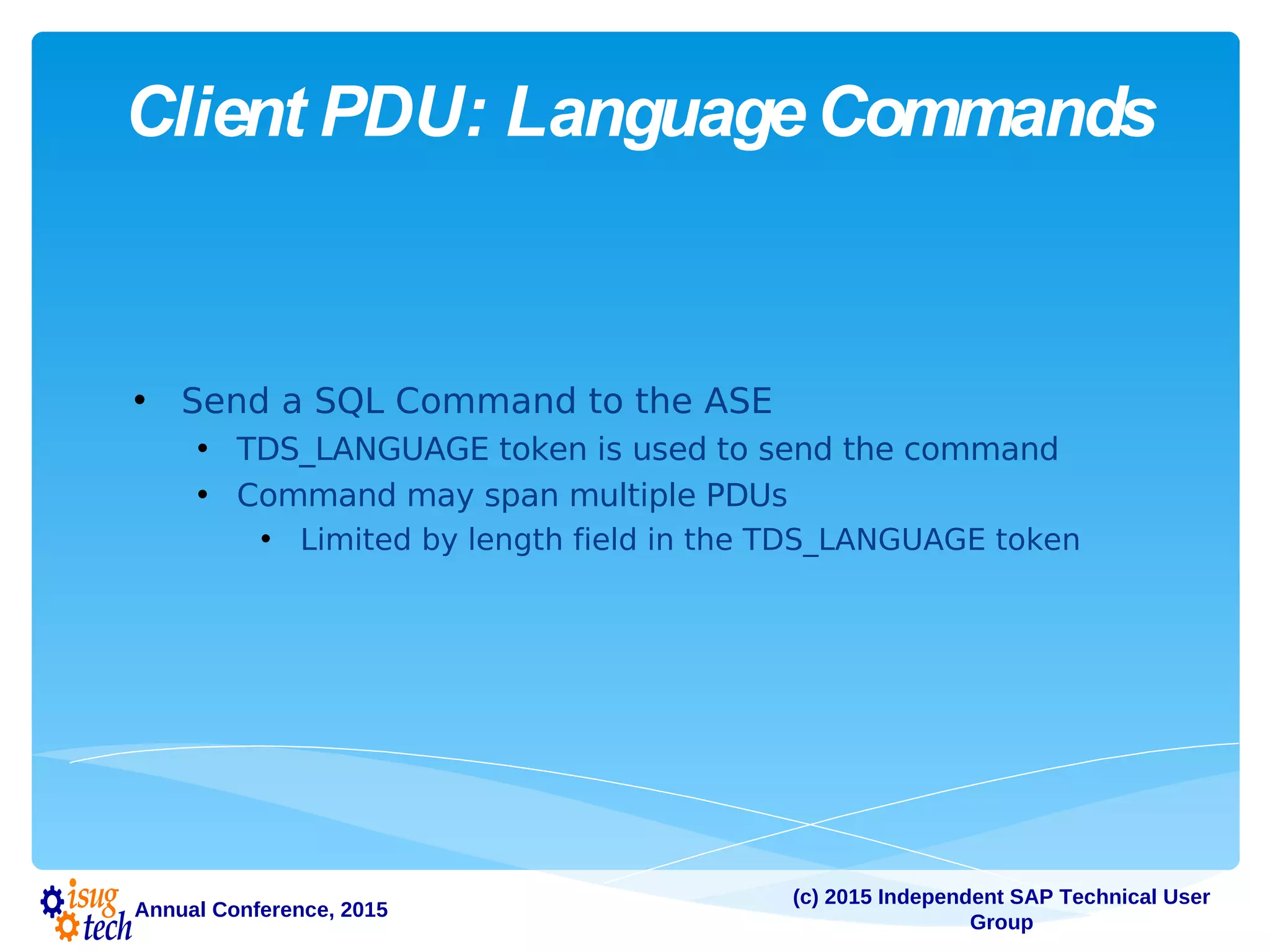

Client PDU: LanguageCommands
• Send a SQL Command to the ASE
• TDS_LANGUAGE token is used to send the command
• Command may span multiple PDUs
• Limited by length field in the TDS_LANGUAGE token

26. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Client PDU: Cursor Commands
• Therearetwowaystosendcursor commands
• Language commands
• TDS_LANGUAGE
• Send to ASE using Cursor T-SQL commands
• Other servers require to parse language and be able
to implement the cursor language
• Cursor TDS tokens
• ANSI specified cursor operations
• Native token support
• Efficient by eliminating parsing sequence
• TDS_CUR* tokens

27. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

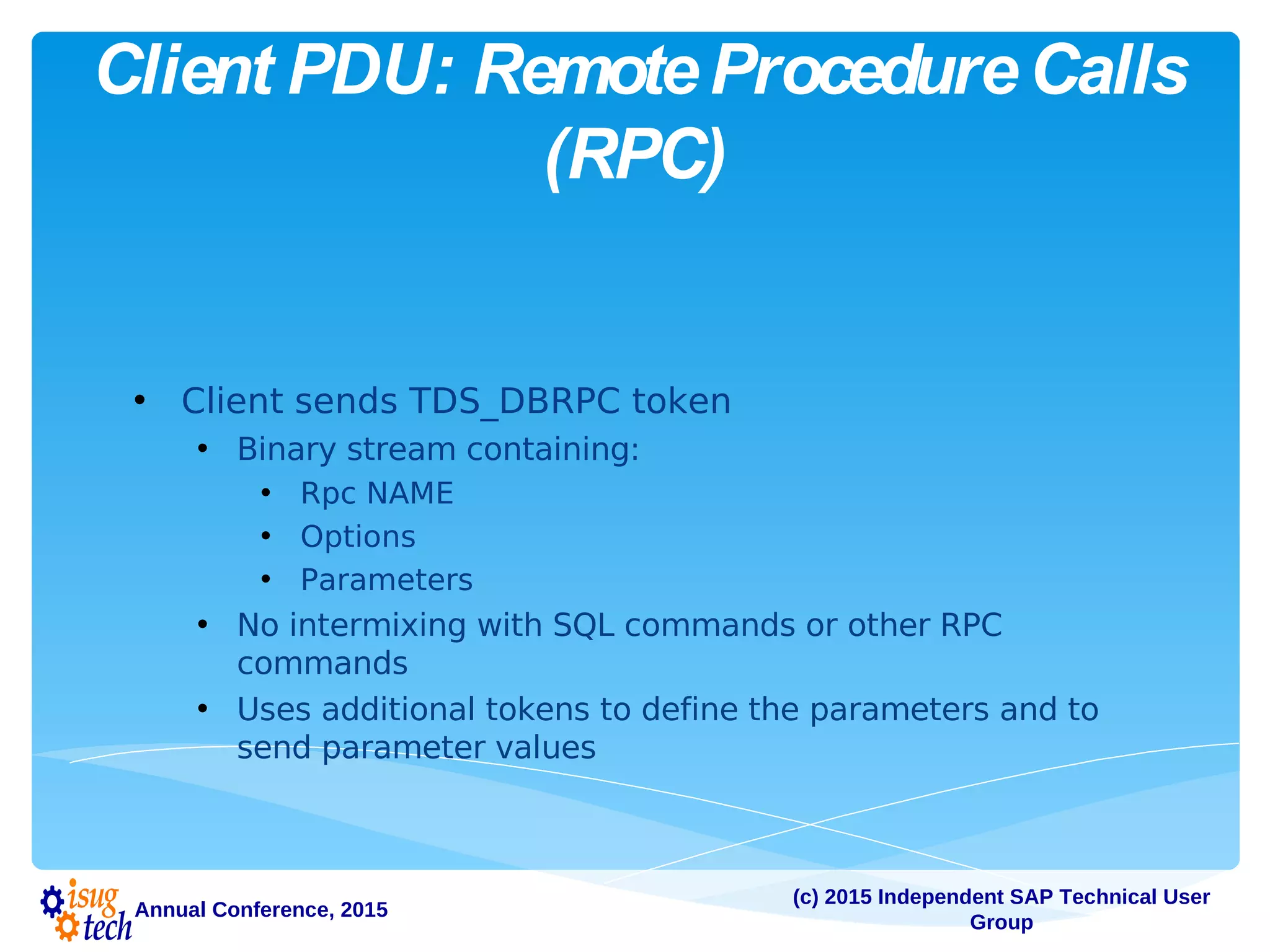

Client PDU: RemoteProcedureCalls
(RPC)
• Client sends TDS_DBRPC token
• Binary stream containing:
• Rpc NAME
• Options
• Parameters
• No intermixing with SQL commands or other RPC
commands
• Uses additional tokens to define the parameters and to
send parameter values

28. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

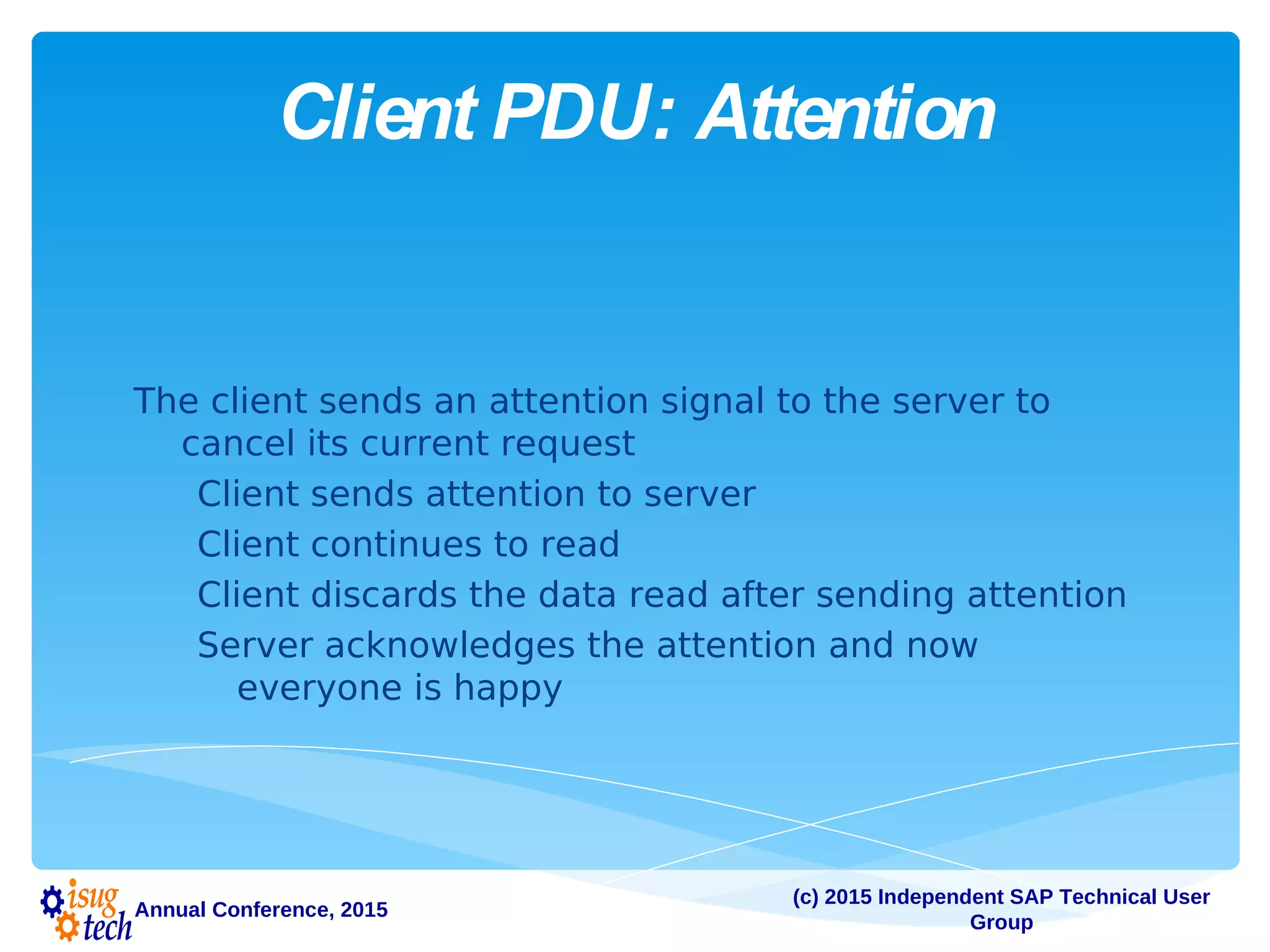

Client PDU: Attention
The client sends an attention signal to the server to
cancel its current request
Client sends attention to server
Client continues to read
Client discards the data read after sending attention
Server acknowledges the attention and now
everyone is happy

29. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Client PDU: DynamicSQL
The client sends TDS_DYNAMIC or TDS_DYNAMIC2 data
stream to execute dynamic SQL on the server.
Stream indicates various functionality:
Prepare
Execute
Deallocate
Arguments included?
SQL Statement and identification

30. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

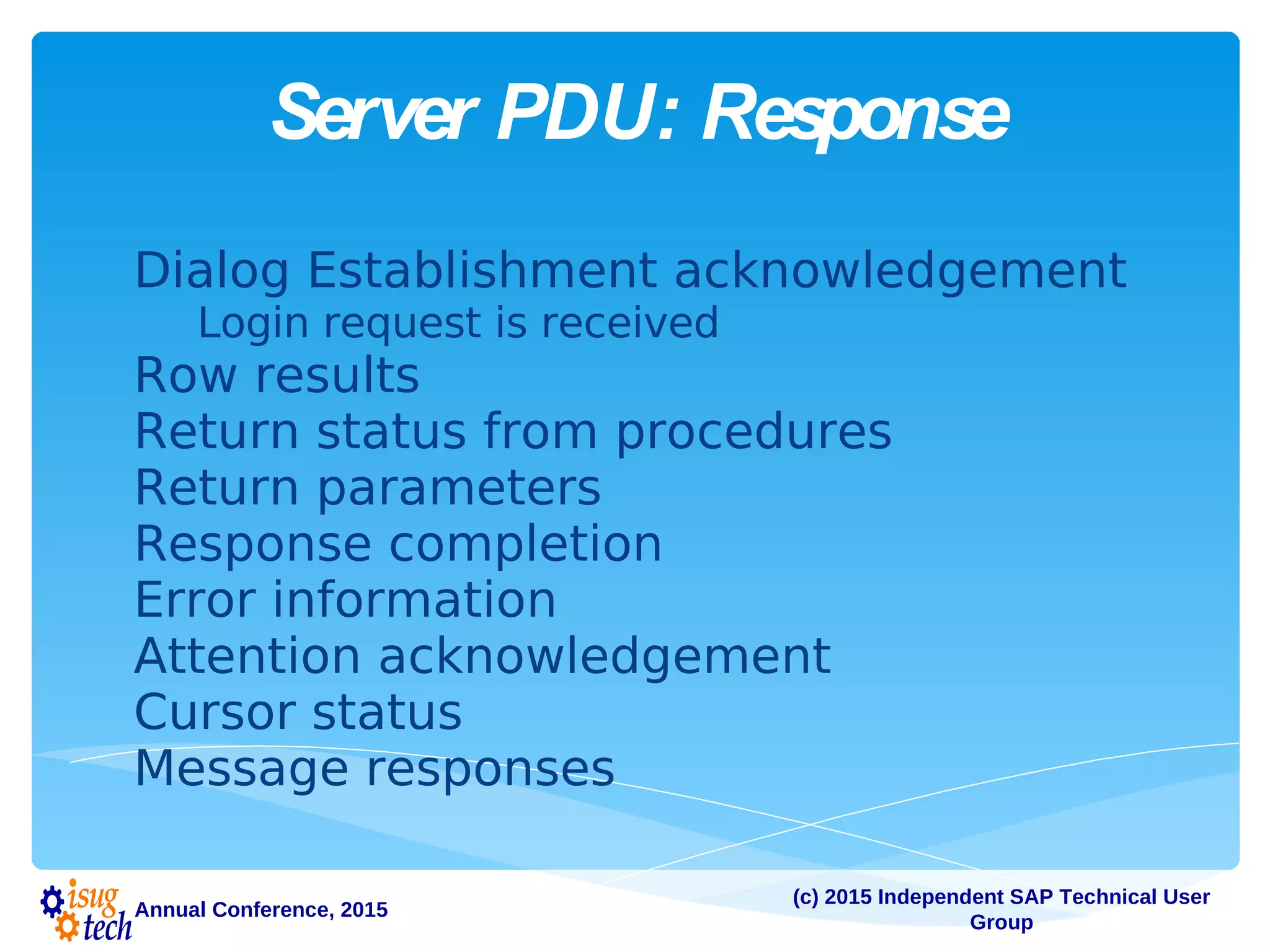

Server PDU: Response
Dialog Establishment acknowledgement
Login request is received
Row results
Return status from procedures
Return parameters
Response completion
Error information
Attention acknowledgement
Cursor status
Message responses

31. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

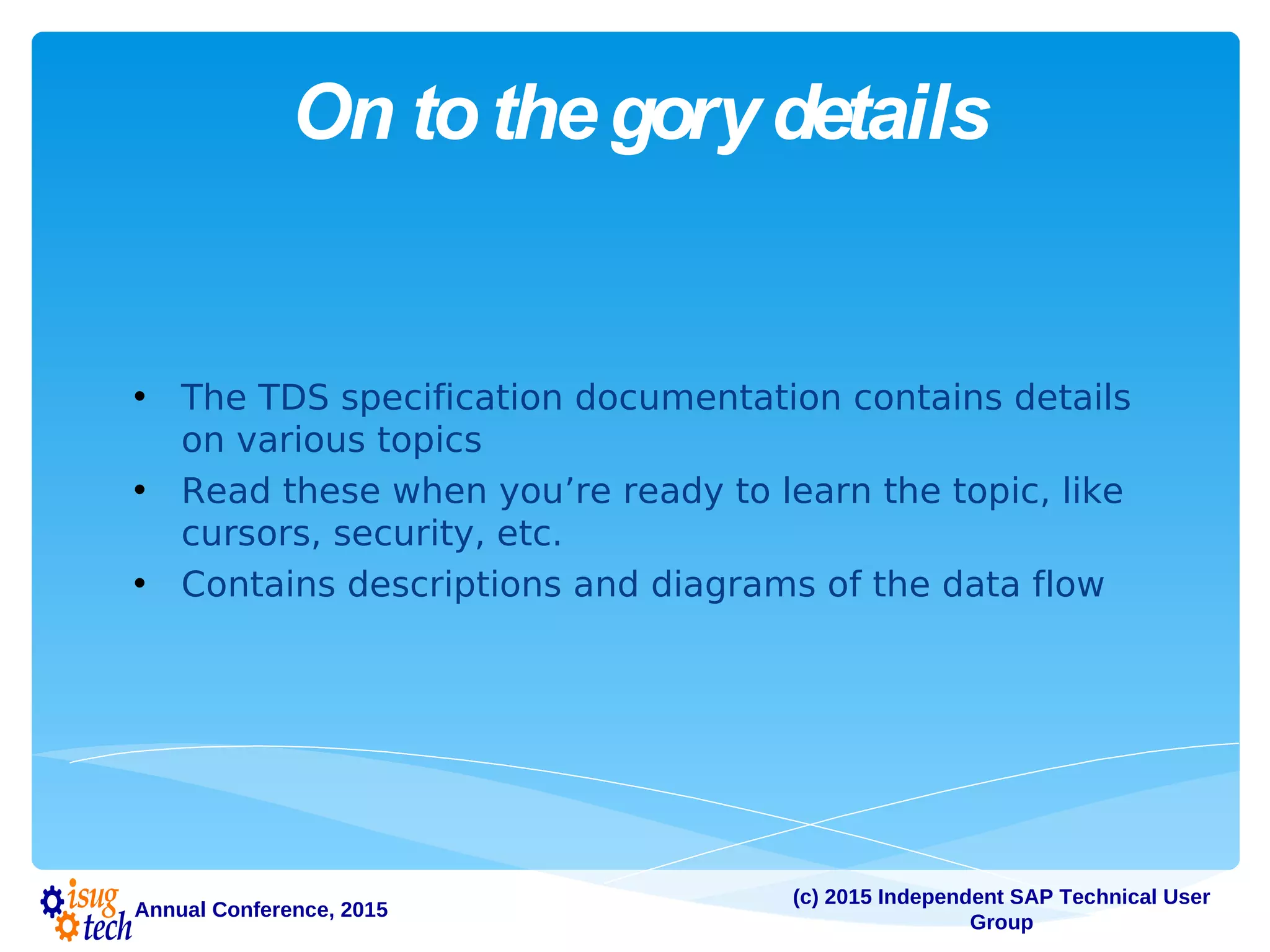

On tothegorydetails
• The TDS specification documentation contains details
on various topics
• Read these when you’re ready to learn the topic, like
cursors, security, etc.
• Contains descriptions and diagrams of the data flow

32. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

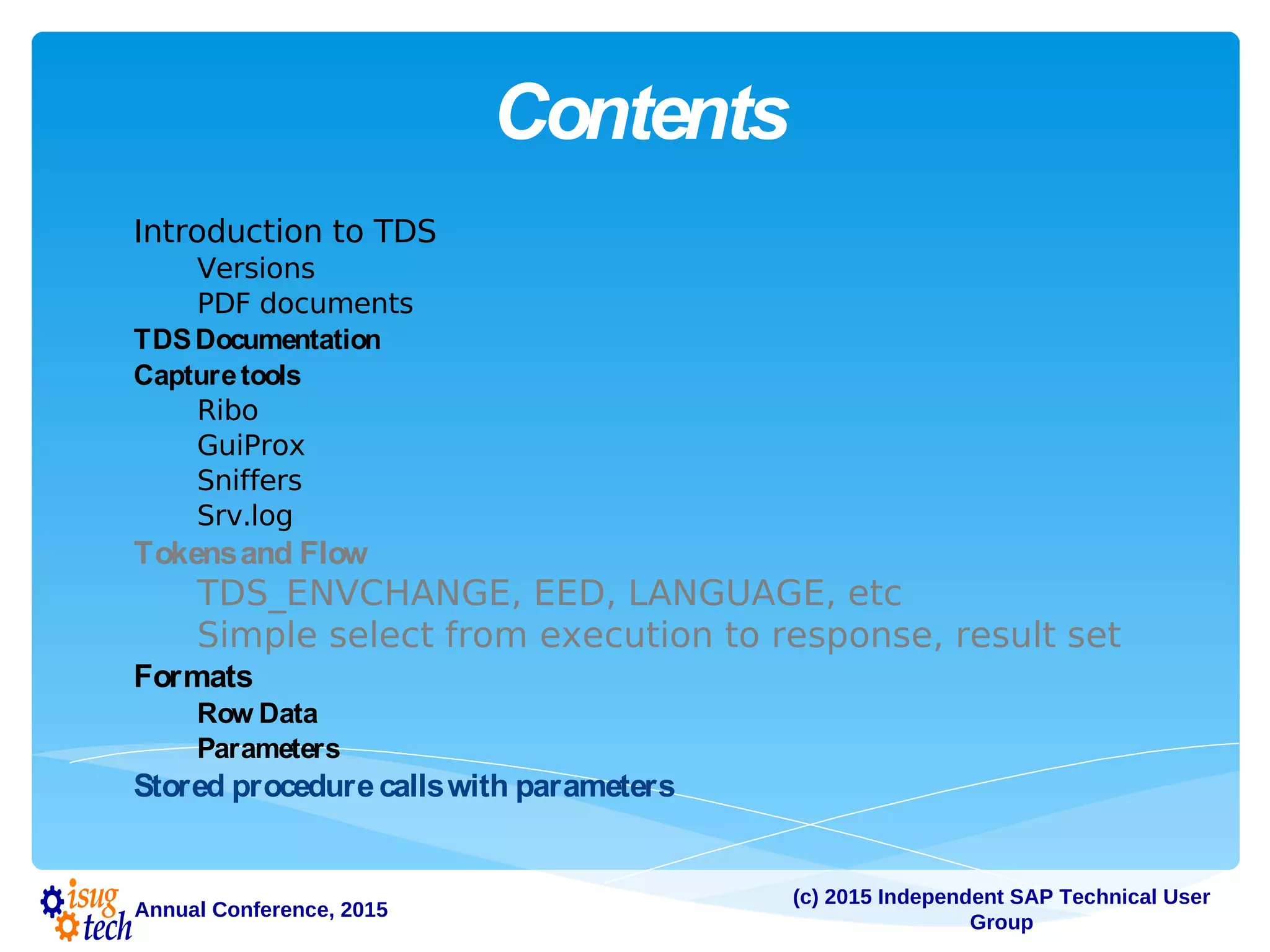

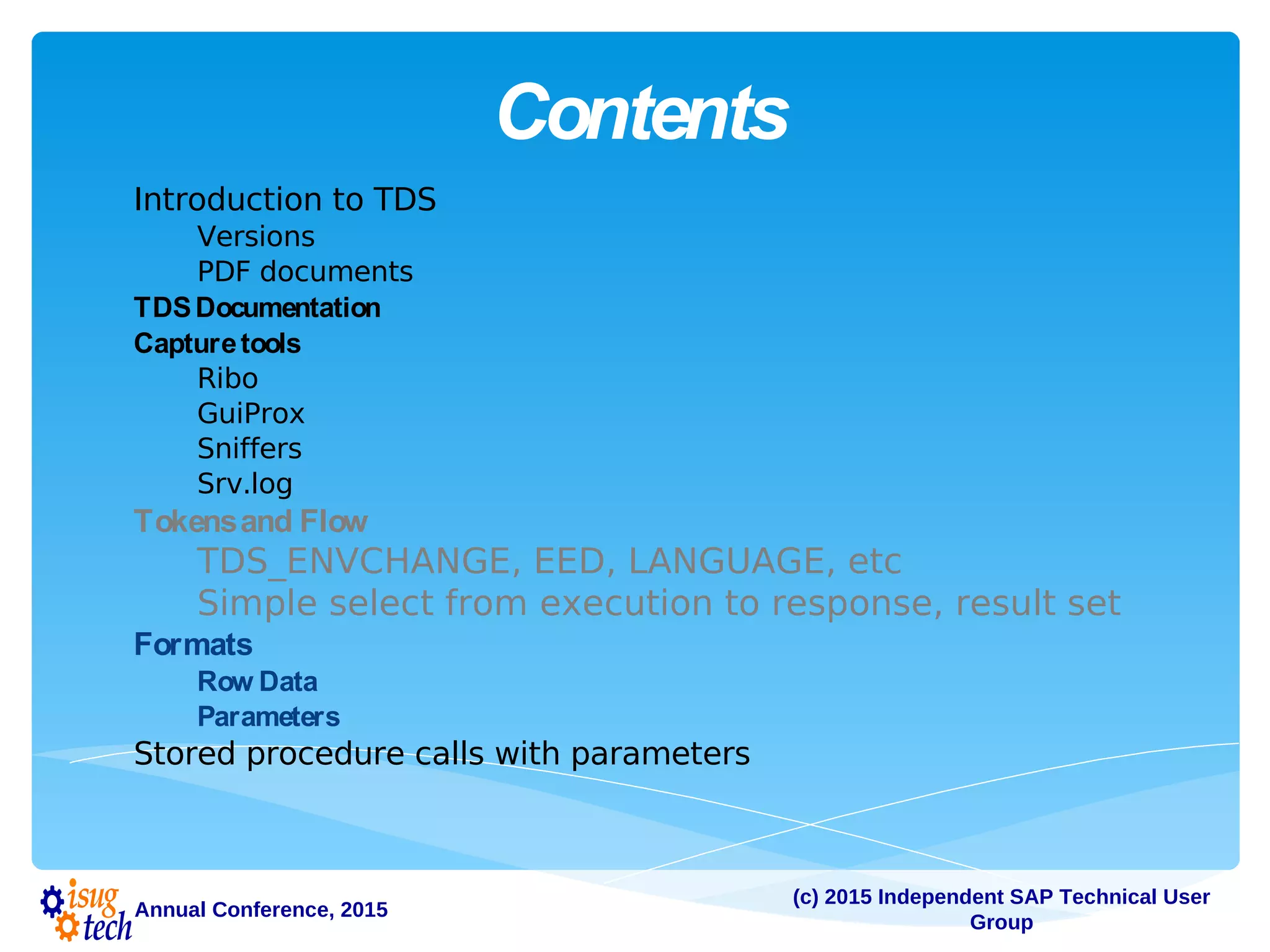

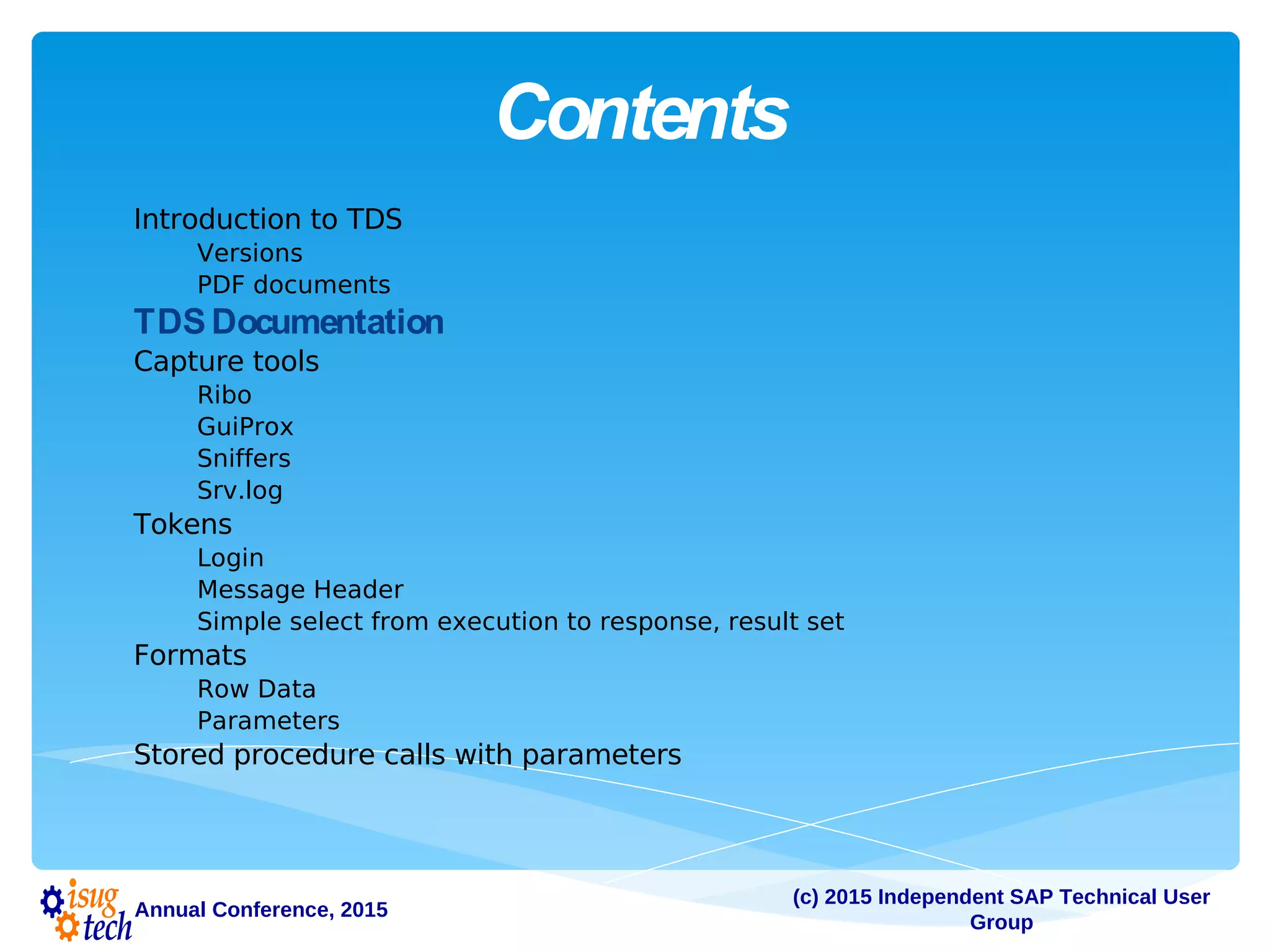

Contents
Introduction to TDS
Versions
PDF documents
TDS Documentation
Capturetools
Ribo
GuiProx
Sniffers
Srv.log
Built-in tracing
Tokens
Login
Message Header
Simple select from execution to response, result set
Formats
Row Data
Parameters
Stored procedure calls with parameters

33. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

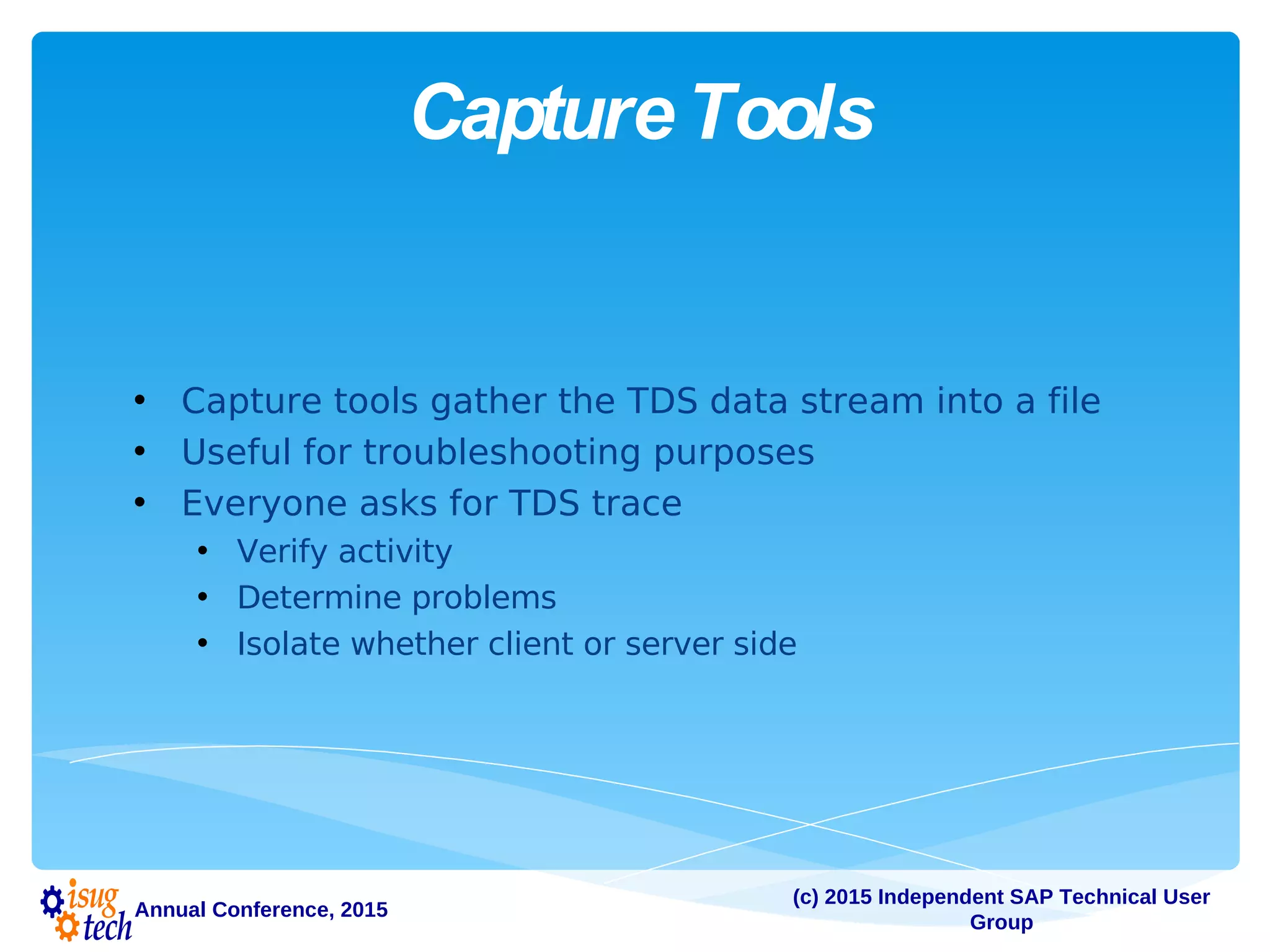

CaptureTools
• Capture tools gather the TDS data stream into a file
• Useful for troubleshooting purposes
• Everyone asks for TDS trace
• Verify activity
• Determine problems
• Isolate whether client or server side

34. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

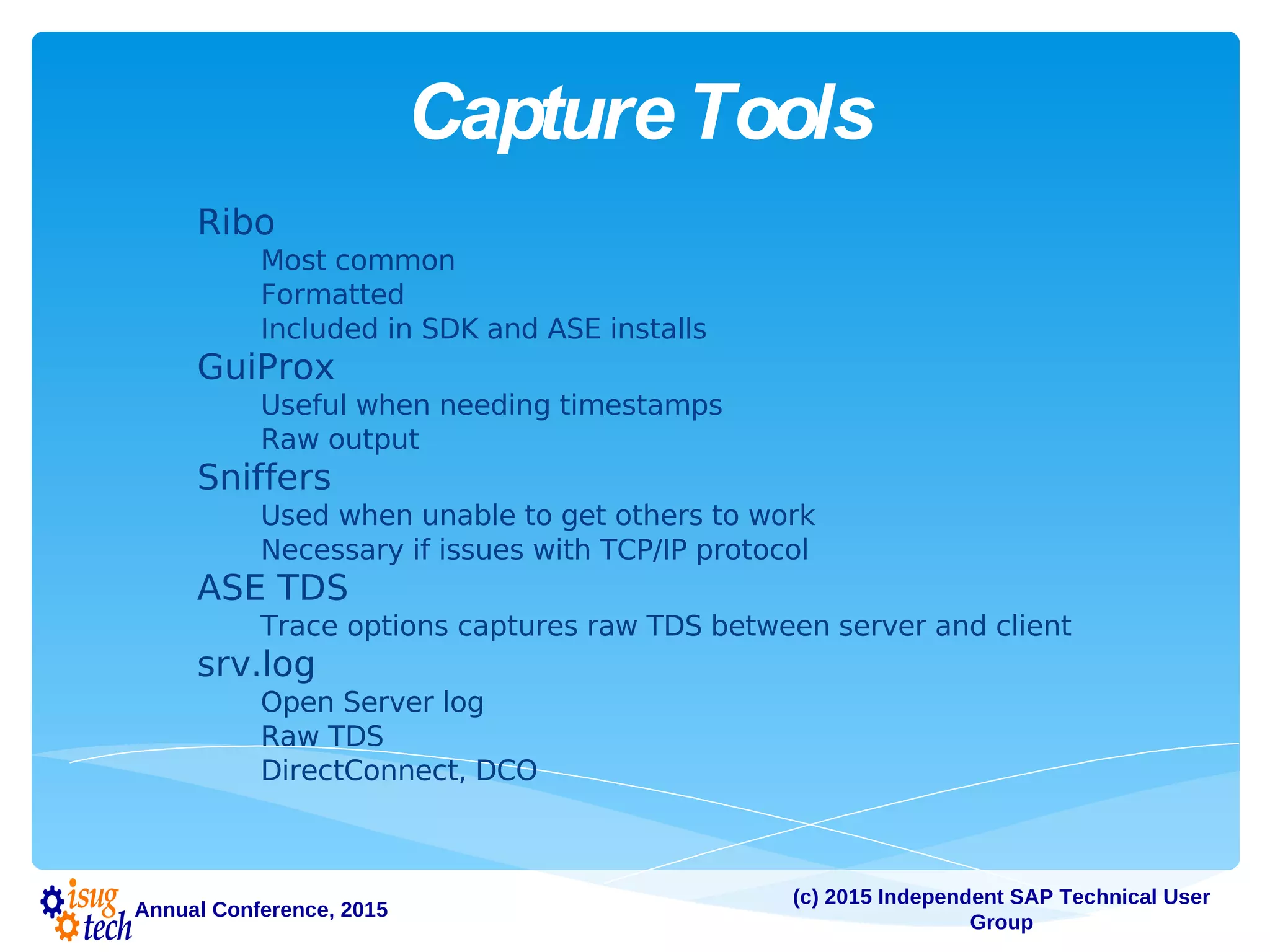

CaptureTools
Ribo
Most common
Formatted
Included in SDK and ASE installs
GuiProx
Useful when needing timestamps
Raw output
Sniffers
Used when unable to get others to work
Necessary if issues with TCP/IP protocol
ASE TDS
Trace options captures raw TDS between server and client
srv.log
Open Server log
Raw TDS
DirectConnect, DCO

35. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Ribo

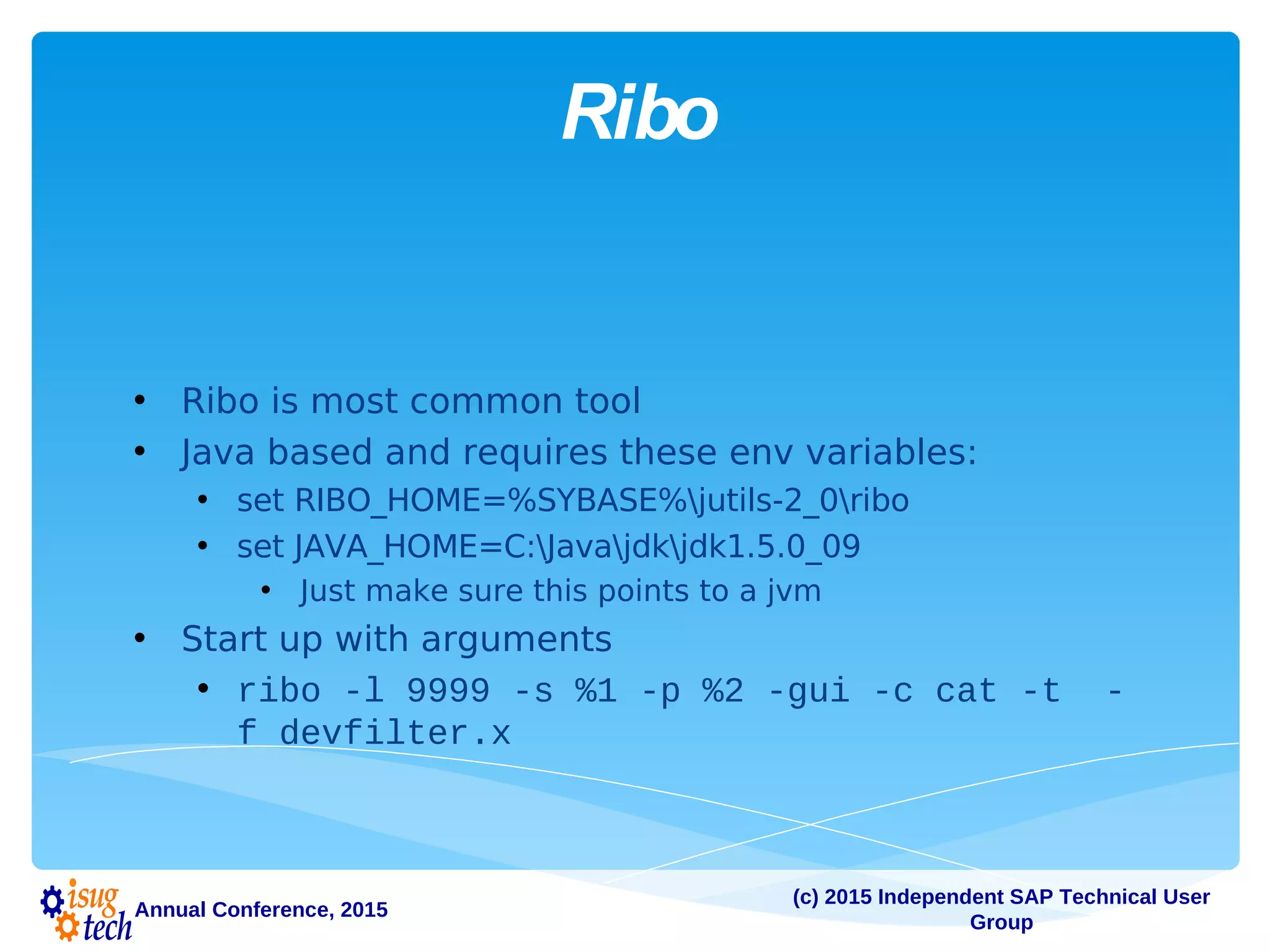

• Ribo is most common tool
• Java based and requires these env variables:
• set RIBO_HOME=%SYBASE%jutils-2_0ribo
• set JAVA_HOME=C:Javajdkjdk1.5.0_09
• Just make sure this points to a jvm
• Start up with arguments
• ribo -l 9999 -s %1 -p %2 -gui -c cat -t -
f devfilter.x

36. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

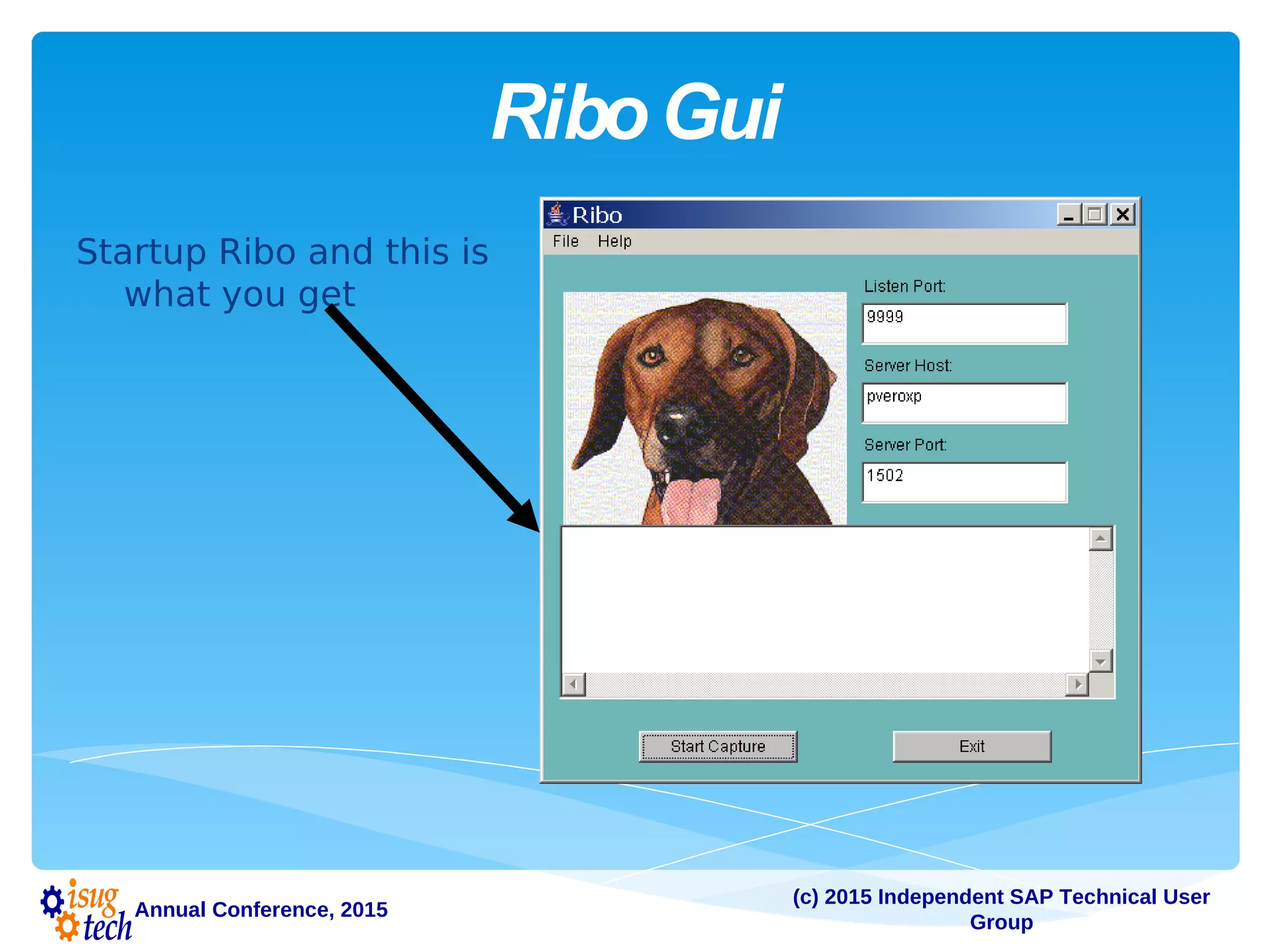

RiboGui
Startup Ribo and this is
what you get

37. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
RiboGui

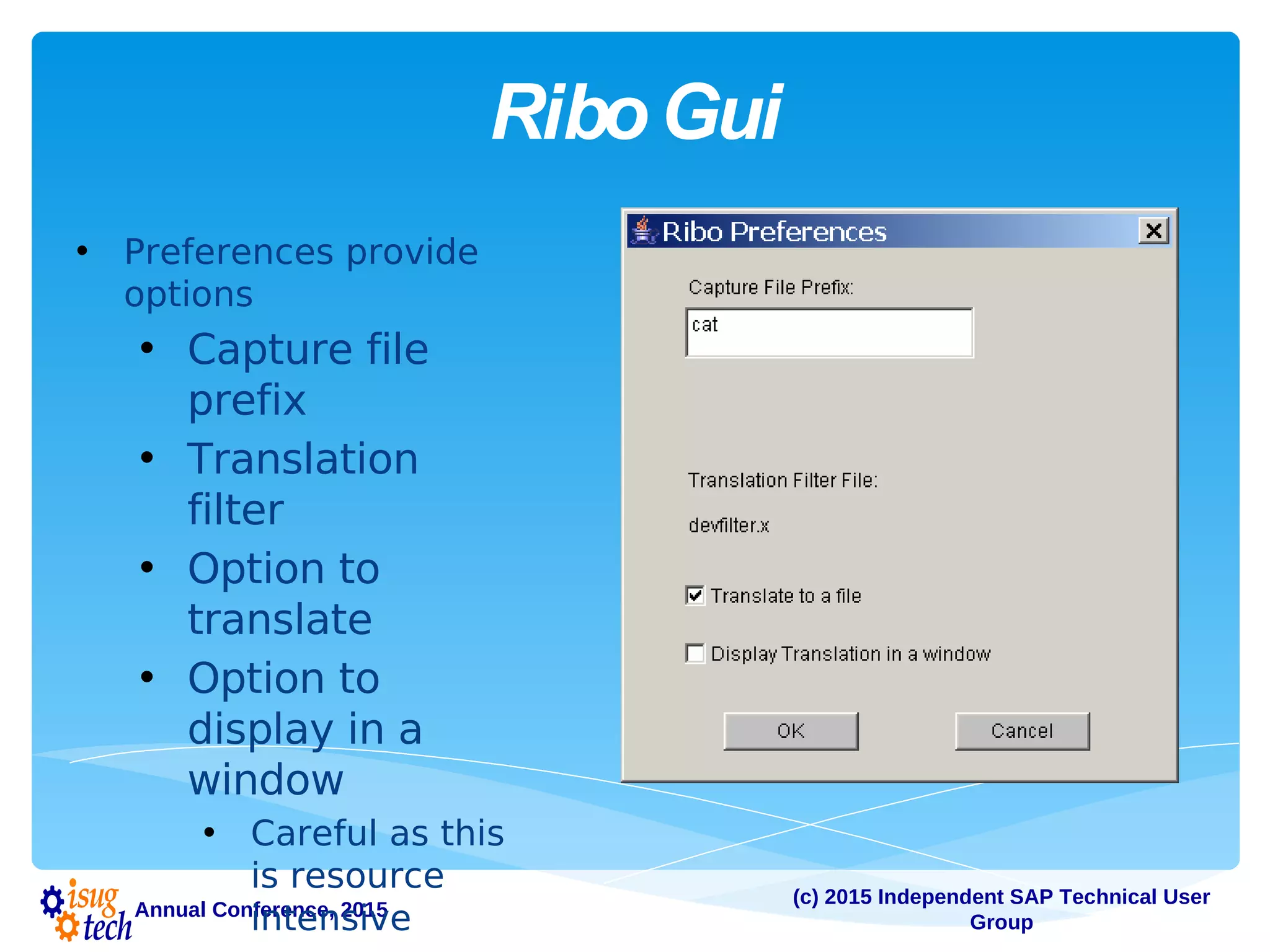

• Preferences provide
options
• Capture file
prefix
• Translation
filter
• Option to
translate
• Option to
display in a
window
• Careful as this
is resource
intensive

38. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

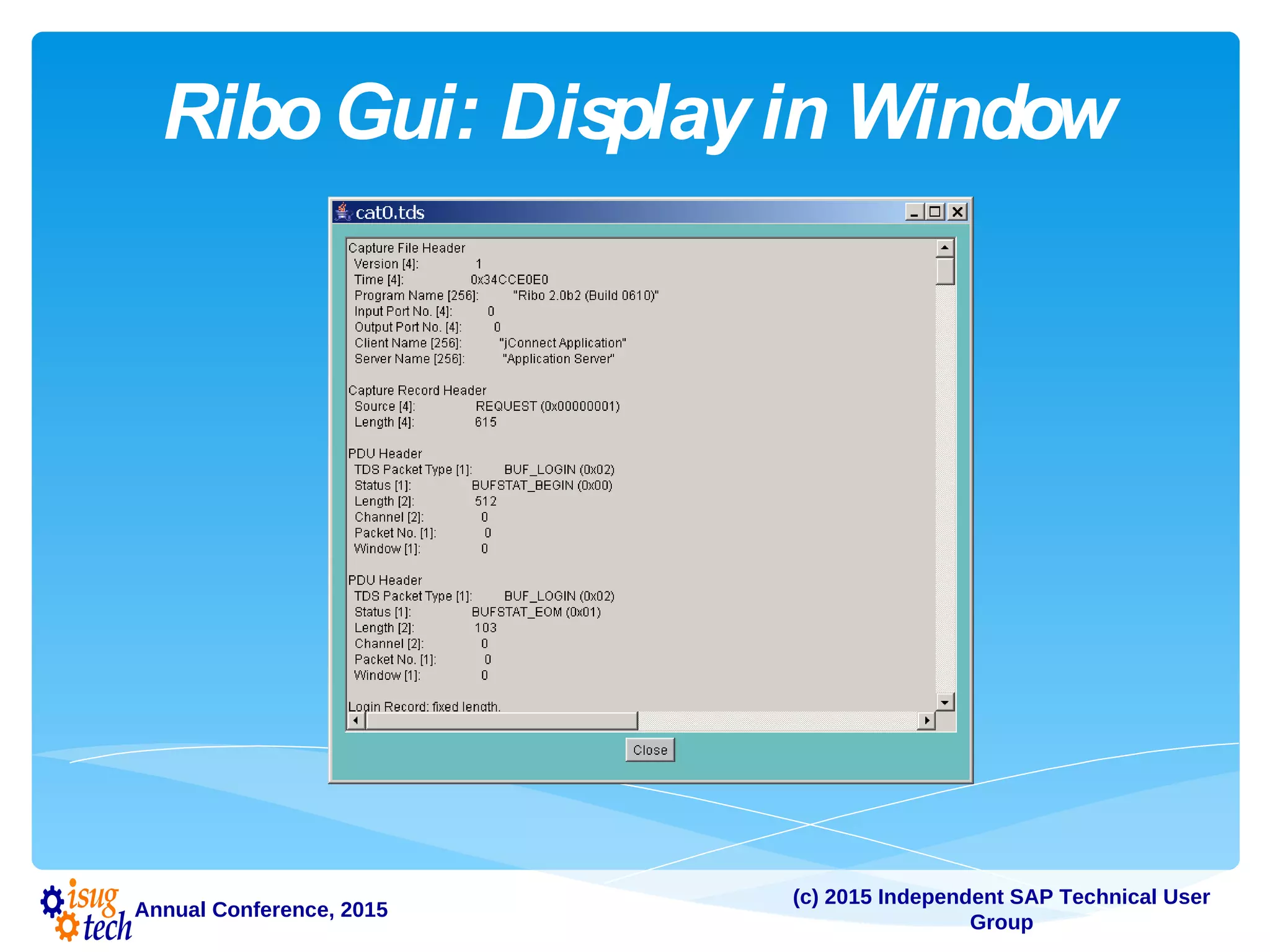

RiboGui: Displayin Window

39. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

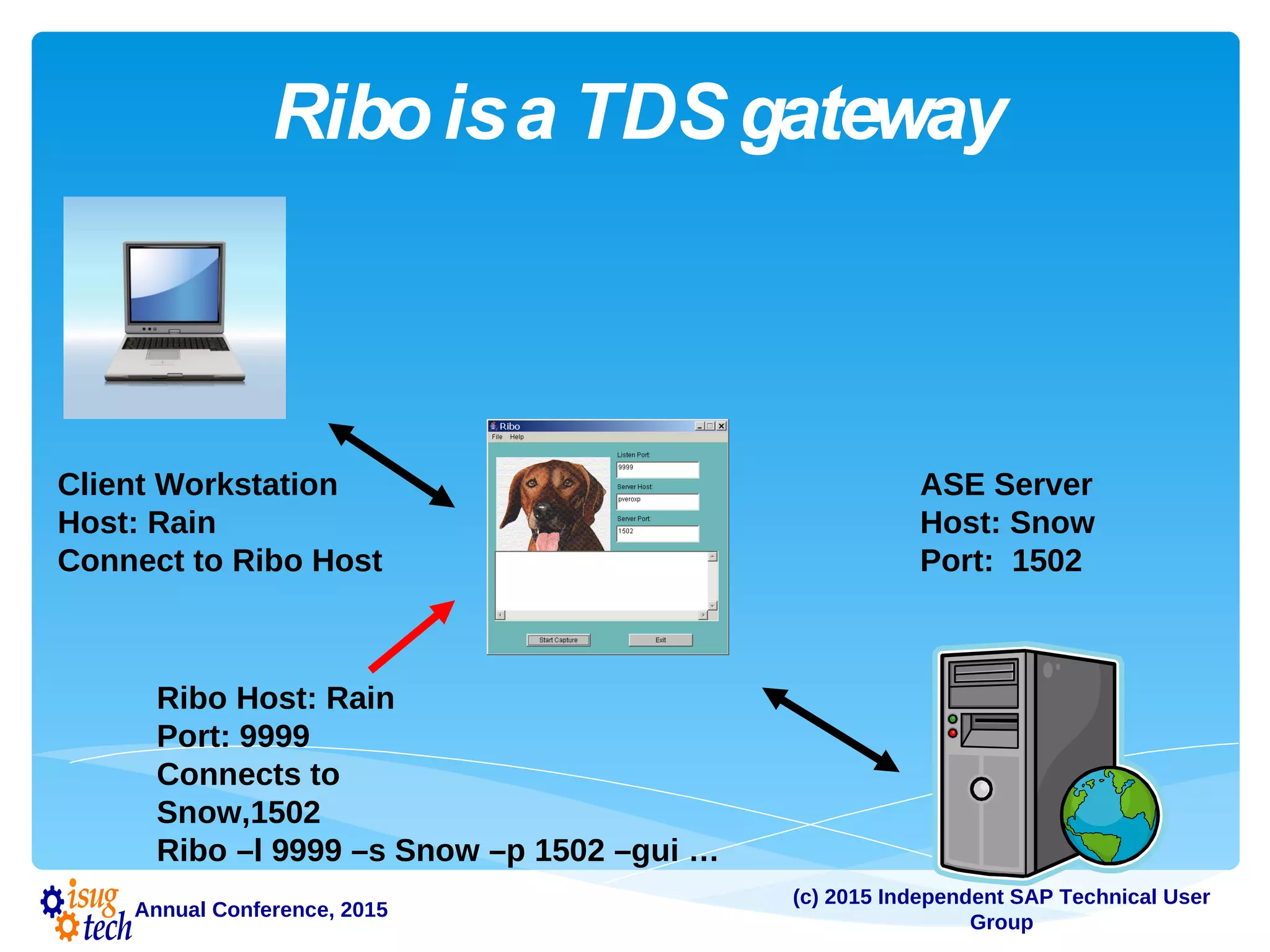

Riboisa TDSgateway
Client Workstation
Host: Rain
Connect to Ribo Host
ASE Server
Host: Snow
Port: 1502
Ribo Host: Rain
Port: 9999
Connects to
Snow,1502
Ribo –l 9999 –s Snow –p 1502 –gui …

40. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

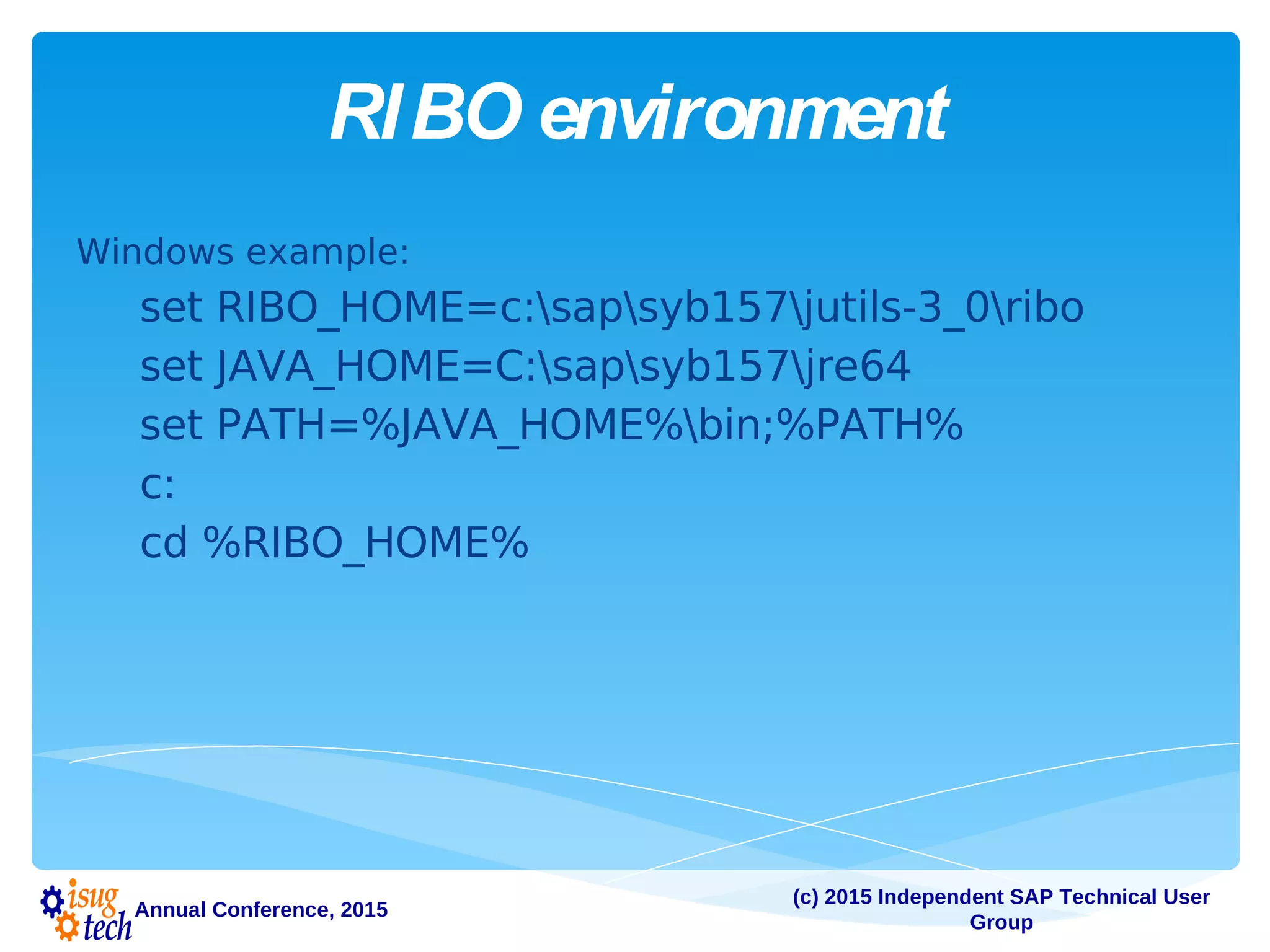

RIBO environment
Windows example:
set RIBO_HOME=c:sapsyb157jutils-3_0ribo
set JAVA_HOME=C:sapsyb157jre64
set PATH=%JAVA_HOME%bin;%PATH%
c:
cd %RIBO_HOME%

41. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

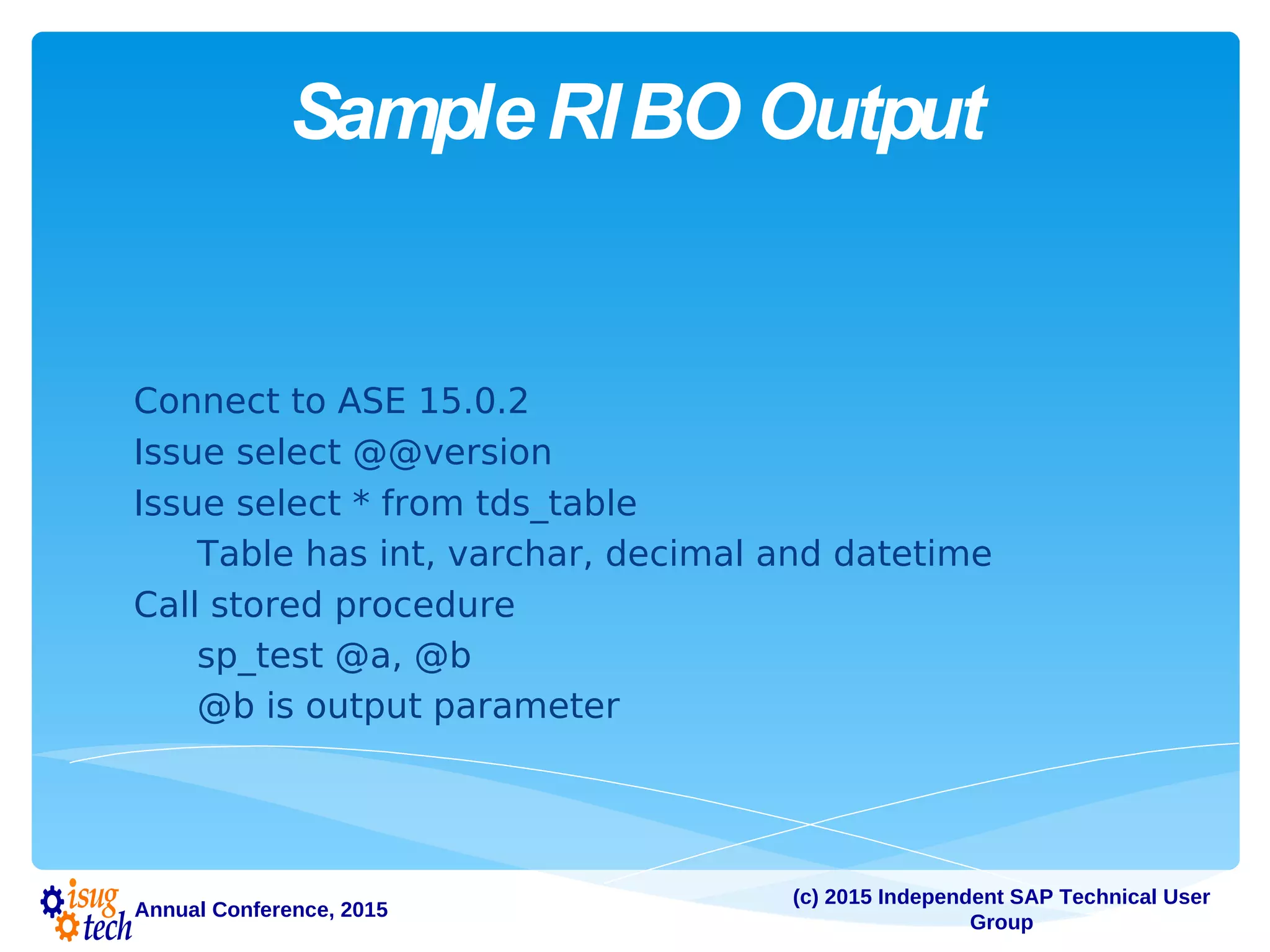

SampleRIBO Output
Connect to ASE 15.0.2
Issue select @@version
Issue select * from tds_table
Table has int, varchar, decimal and datetime
Call stored procedure
sp_test @a, @b
@b is output parameter

42. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

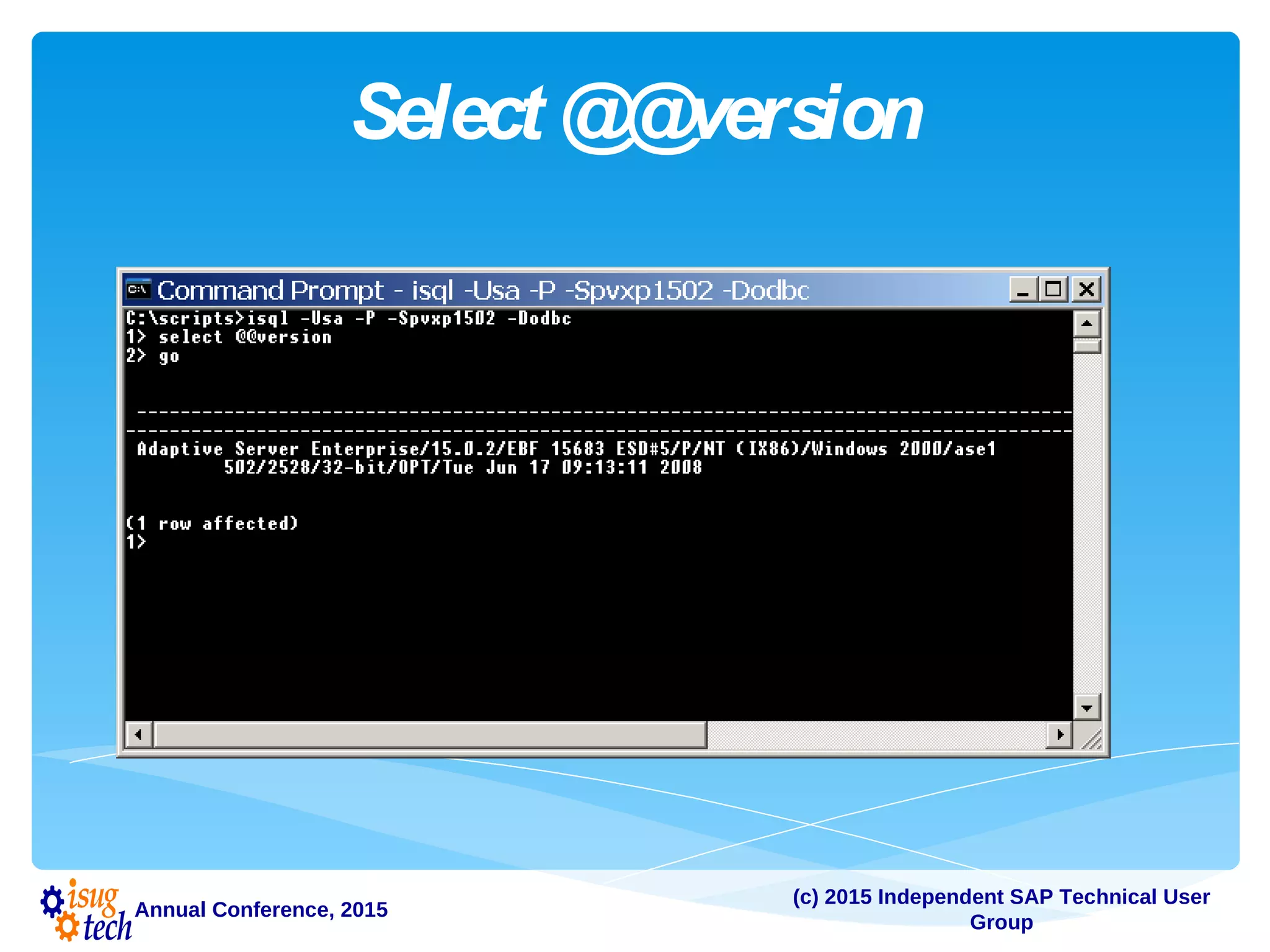

Select @@version

43. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

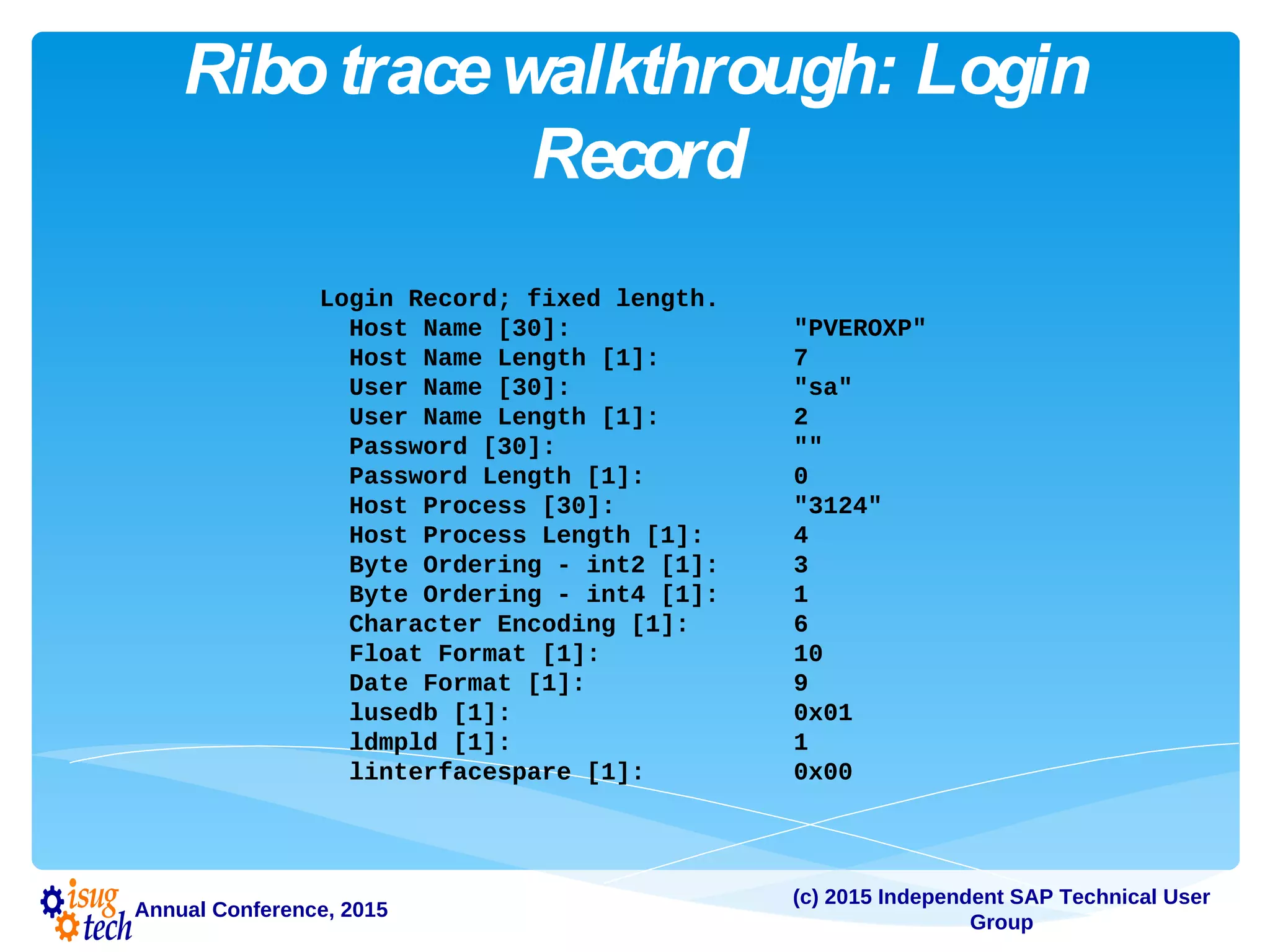

Ribotracewalkthrough: Login
Record
Login Record; fixed length.
Host Name [30]: "PVEROXP"
Host Name Length [1]: 7
User Name [30]: "sa"
User Name Length [1]: 2
Password [30]: ""
Password Length [1]: 0
Host Process [30]: "3124"
Host Process Length [1]: 4
Byte Ordering - int2 [1]: 3
Byte Ordering - int4 [1]: 1
Character Encoding [1]: 6
Float Format [1]: 10
Date Format [1]: 9
lusedb [1]: 0x01
ldmpld [1]: 1
linterfacespare [1]: 0x00

44. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

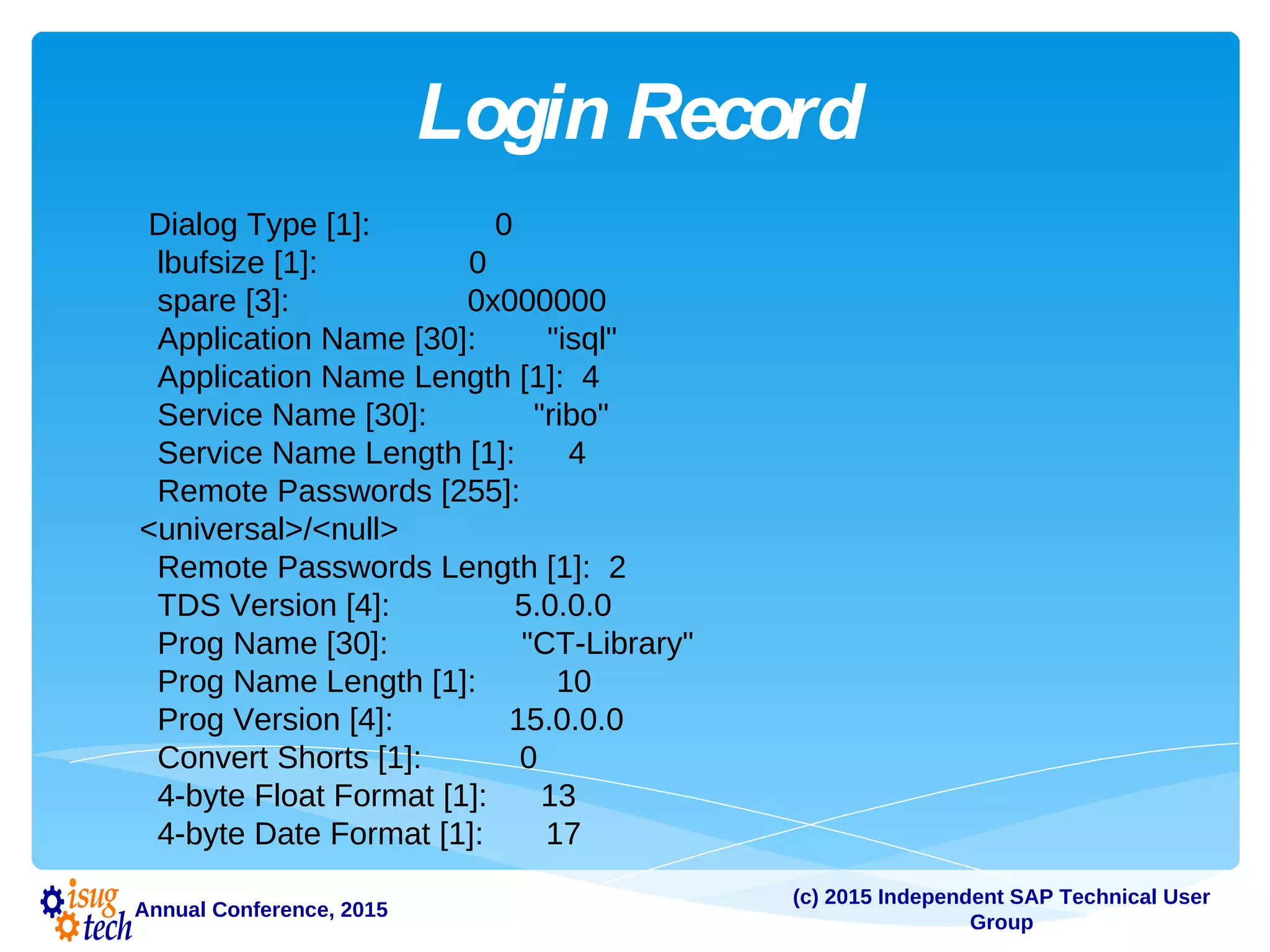

Login Record
Dialog Type [1]: 0
lbufsize [1]: 0
spare [3]: 0x000000
Application Name [30]: "isql"
Application Name Length [1]: 4
Service Name [30]: "ribo"
Service Name Length [1]: 4
Remote Passwords [255]:
<universal>/<null>
Remote Passwords Length [1]: 2
TDS Version [4]: 5.0.0.0
Prog Name [30]: "CT-Library"
Prog Name Length [1]: 10
Prog Version [4]: 15.0.0.0
Convert Shorts [1]: 0
4-byte Float Format [1]: 13
4-byte Date Format [1]: 17

45. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

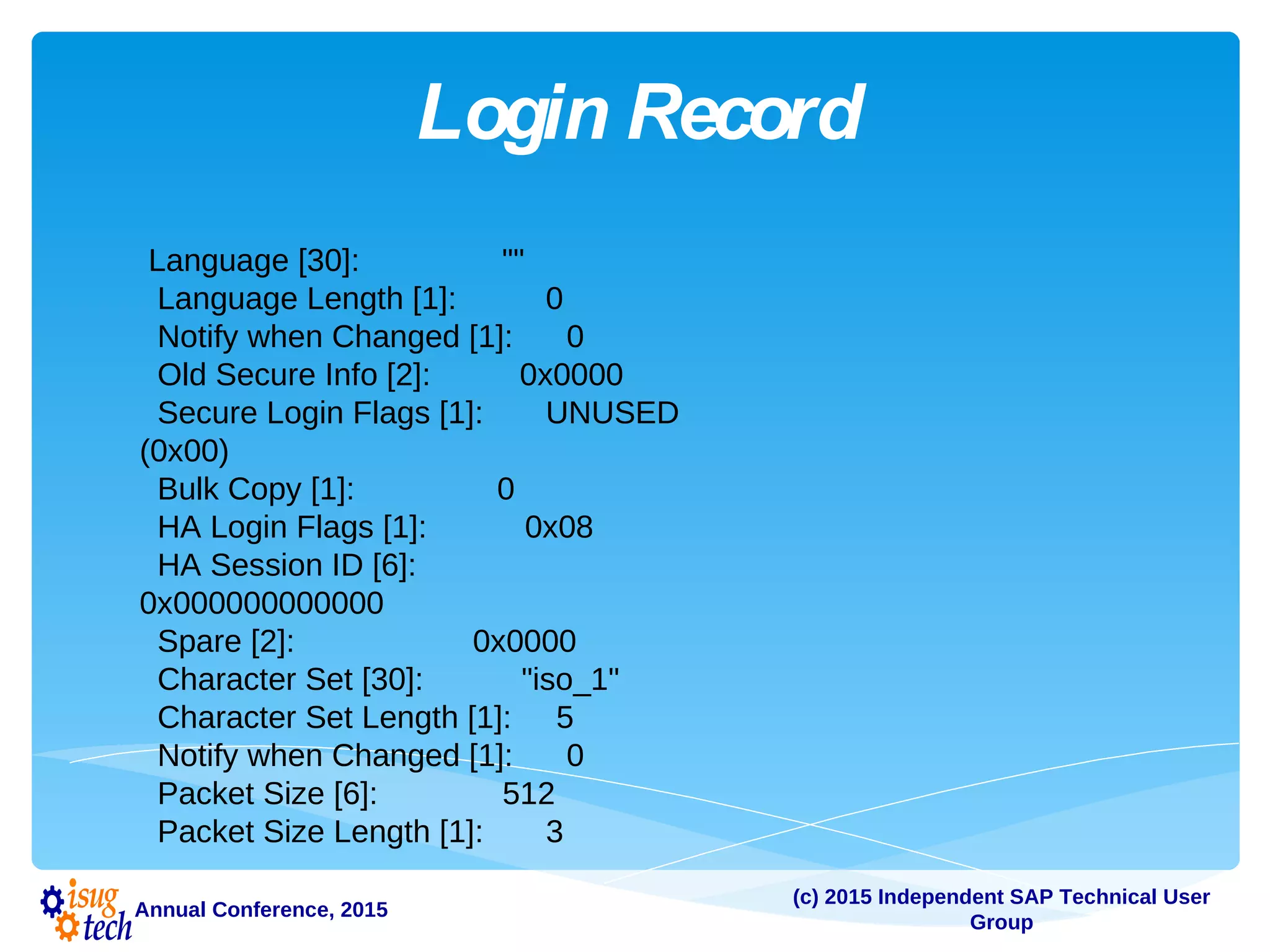

Login Record
Language [30]: ""
Language Length [1]: 0
Notify when Changed [1]: 0
Old Secure Info [2]: 0x0000
Secure Login Flags [1]: UNUSED
(0x00)
Bulk Copy [1]: 0
HA Login Flags [1]: 0x08
HA Session ID [6]:
0x000000000000
Spare [2]: 0x0000
Character Set [30]: "iso_1"
Character Set Length [1]: 5
Notify when Changed [1]: 0
Packet Size [6]: 512
Packet Size Length [1]: 3

46. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

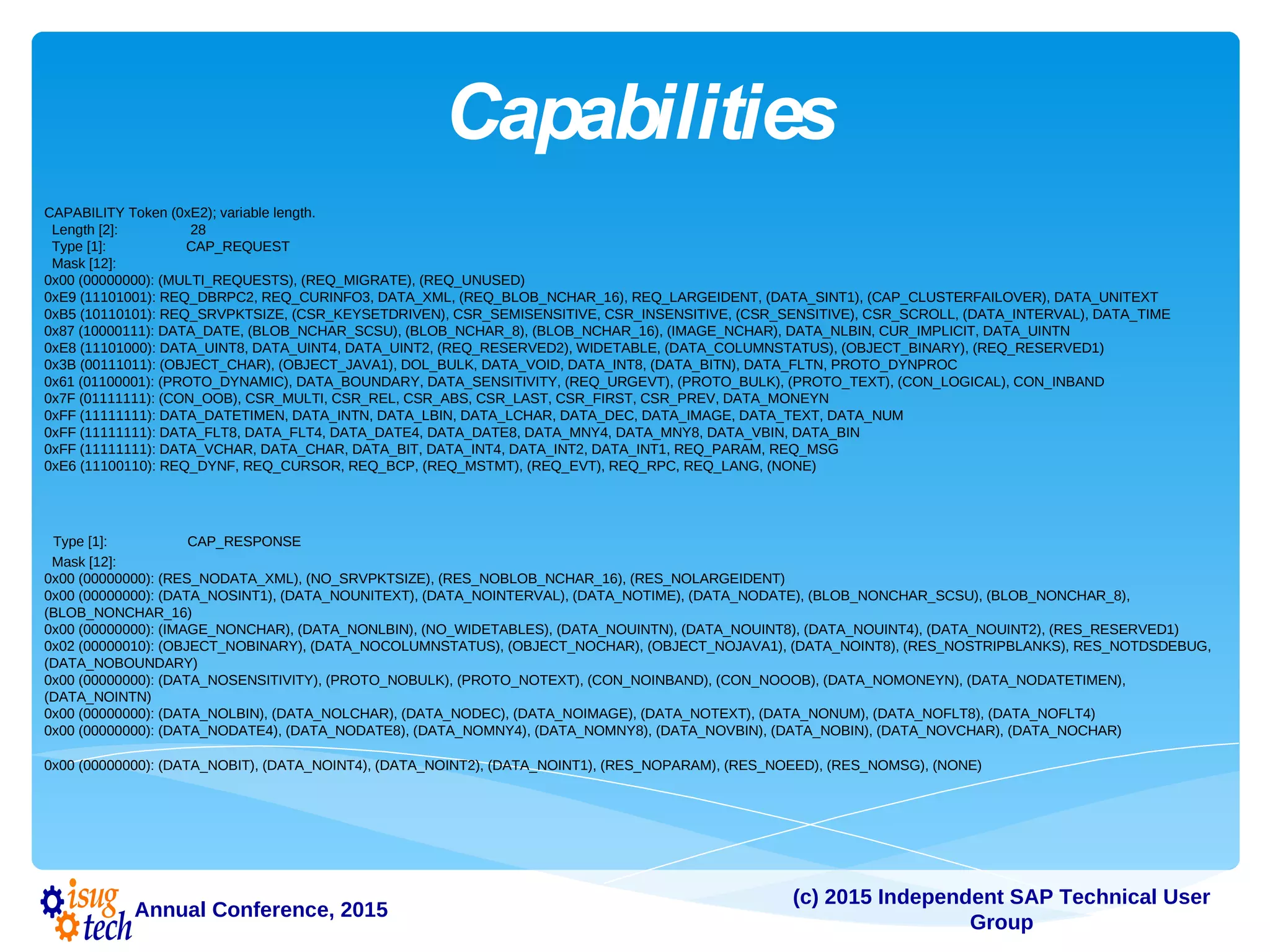

Capabilities
CAPABILITY Token (0xE2); variable length.
Length [2]: 28
Type [1]: CAP_REQUEST
Mask [12]:
0x00 (00000000): (MULTI_REQUESTS), (REQ_MIGRATE), (REQ_UNUSED)
0xE9 (11101001): REQ_DBRPC2, REQ_CURINFO3, DATA_XML, (REQ_BLOB_NCHAR_16), REQ_LARGEIDENT, (DATA_SINT1), (CAP_CLUSTERFAILOVER), DATA_UNITEXT
0xB5 (10110101): REQ_SRVPKTSIZE, (CSR_KEYSETDRIVEN), CSR_SEMISENSITIVE, CSR_INSENSITIVE, (CSR_SENSITIVE), CSR_SCROLL, (DATA_INTERVAL), DATA_TIME
0x87 (10000111): DATA_DATE, (BLOB_NCHAR_SCSU), (BLOB_NCHAR_8), (BLOB_NCHAR_16), (IMAGE_NCHAR), DATA_NLBIN, CUR_IMPLICIT, DATA_UINTN
0xE8 (11101000): DATA_UINT8, DATA_UINT4, DATA_UINT2, (REQ_RESERVED2), WIDETABLE, (DATA_COLUMNSTATUS), (OBJECT_BINARY), (REQ_RESERVED1)
0x3B (00111011): (OBJECT_CHAR), (OBJECT_JAVA1), DOL_BULK, DATA_VOID, DATA_INT8, (DATA_BITN), DATA_FLTN, PROTO_DYNPROC
0x61 (01100001): (PROTO_DYNAMIC), DATA_BOUNDARY, DATA_SENSITIVITY, (REQ_URGEVT), (PROTO_BULK), (PROTO_TEXT), (CON_LOGICAL), CON_INBAND
0x7F (01111111): (CON_OOB), CSR_MULTI, CSR_REL, CSR_ABS, CSR_LAST, CSR_FIRST, CSR_PREV, DATA_MONEYN
0xFF (11111111): DATA_DATETIMEN, DATA_INTN, DATA_LBIN, DATA_LCHAR, DATA_DEC, DATA_IMAGE, DATA_TEXT, DATA_NUM
0xFF (11111111): DATA_FLT8, DATA_FLT4, DATA_DATE4, DATA_DATE8, DATA_MNY4, DATA_MNY8, DATA_VBIN, DATA_BIN
0xFF (11111111): DATA_VCHAR, DATA_CHAR, DATA_BIT, DATA_INT4, DATA_INT2, DATA_INT1, REQ_PARAM, REQ_MSG
0xE6 (11100110): REQ_DYNF, REQ_CURSOR, REQ_BCP, (REQ_MSTMT), (REQ_EVT), REQ_RPC, REQ_LANG, (NONE)
Type [1]: CAP_RESPONSE
Mask [12]:
0x00 (00000000): (RES_NODATA_XML), (NO_SRVPKTSIZE), (RES_NOBLOB_NCHAR_16), (RES_NOLARGEIDENT)
0x00 (00000000): (DATA_NOSINT1), (DATA_NOUNITEXT), (DATA_NOINTERVAL), (DATA_NOTIME), (DATA_NODATE), (BLOB_NONCHAR_SCSU), (BLOB_NONCHAR_8),
(BLOB_NONCHAR_16)
0x00 (00000000): (IMAGE_NONCHAR), (DATA_NONLBIN), (NO_WIDETABLES), (DATA_NOUINTN), (DATA_NOUINT8), (DATA_NOUINT4), (DATA_NOUINT2), (RES_RESERVED1)
0x02 (00000010): (OBJECT_NOBINARY), (DATA_NOCOLUMNSTATUS), (OBJECT_NOCHAR), (OBJECT_NOJAVA1), (DATA_NOINT8), (RES_NOSTRIPBLANKS), RES_NOTDSDEBUG,
(DATA_NOBOUNDARY)
0x00 (00000000): (DATA_NOSENSITIVITY), (PROTO_NOBULK), (PROTO_NOTEXT), (CON_NOINBAND), (CON_NOOOB), (DATA_NOMONEYN), (DATA_NODATETIMEN),
(DATA_NOINTN)
0x00 (00000000): (DATA_NOLBIN), (DATA_NOLCHAR), (DATA_NODEC), (DATA_NOIMAGE), (DATA_NOTEXT), (DATA_NONUM), (DATA_NOFLT8), (DATA_NOFLT4)
0x00 (00000000): (DATA_NODATE4), (DATA_NODATE8), (DATA_NOMNY4), (DATA_NOMNY8), (DATA_NOVBIN), (DATA_NOBIN), (DATA_NOVCHAR), (DATA_NOCHAR)
0x00 (00000000): (DATA_NOBIT), (DATA_NOINT4), (DATA_NOINT2), (DATA_NOINT1), (RES_NOPARAM), (RES_NOEED), (RES_NOMSG), (NONE)

47. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
GuiProx

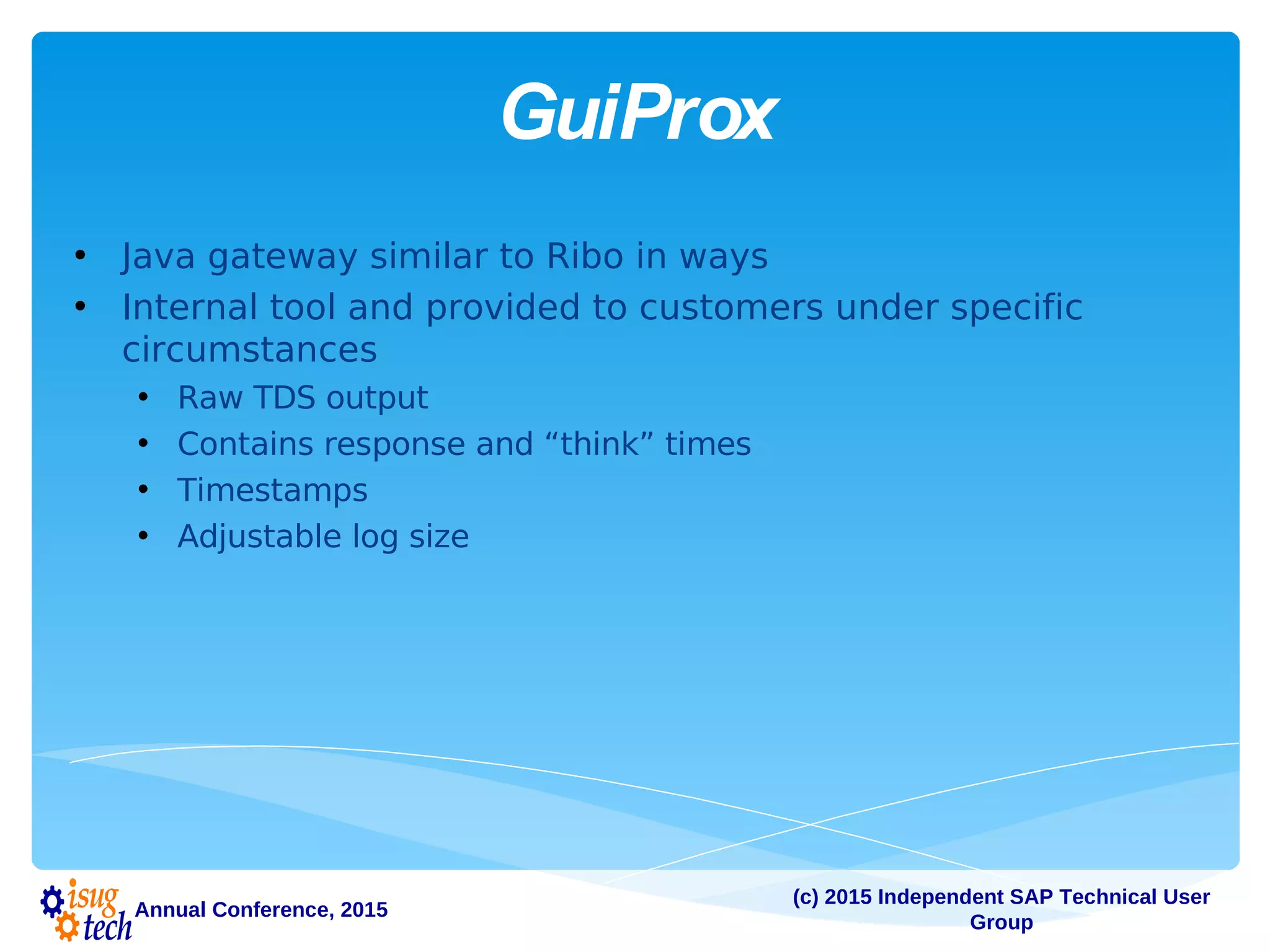

• Java gateway similar to Ribo in ways
• Internal tool and provided to customers under specific
circumstances
• Raw TDS output
• Contains response and “think” times
• Timestamps
• Adjustable log size

48. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
GuiProx

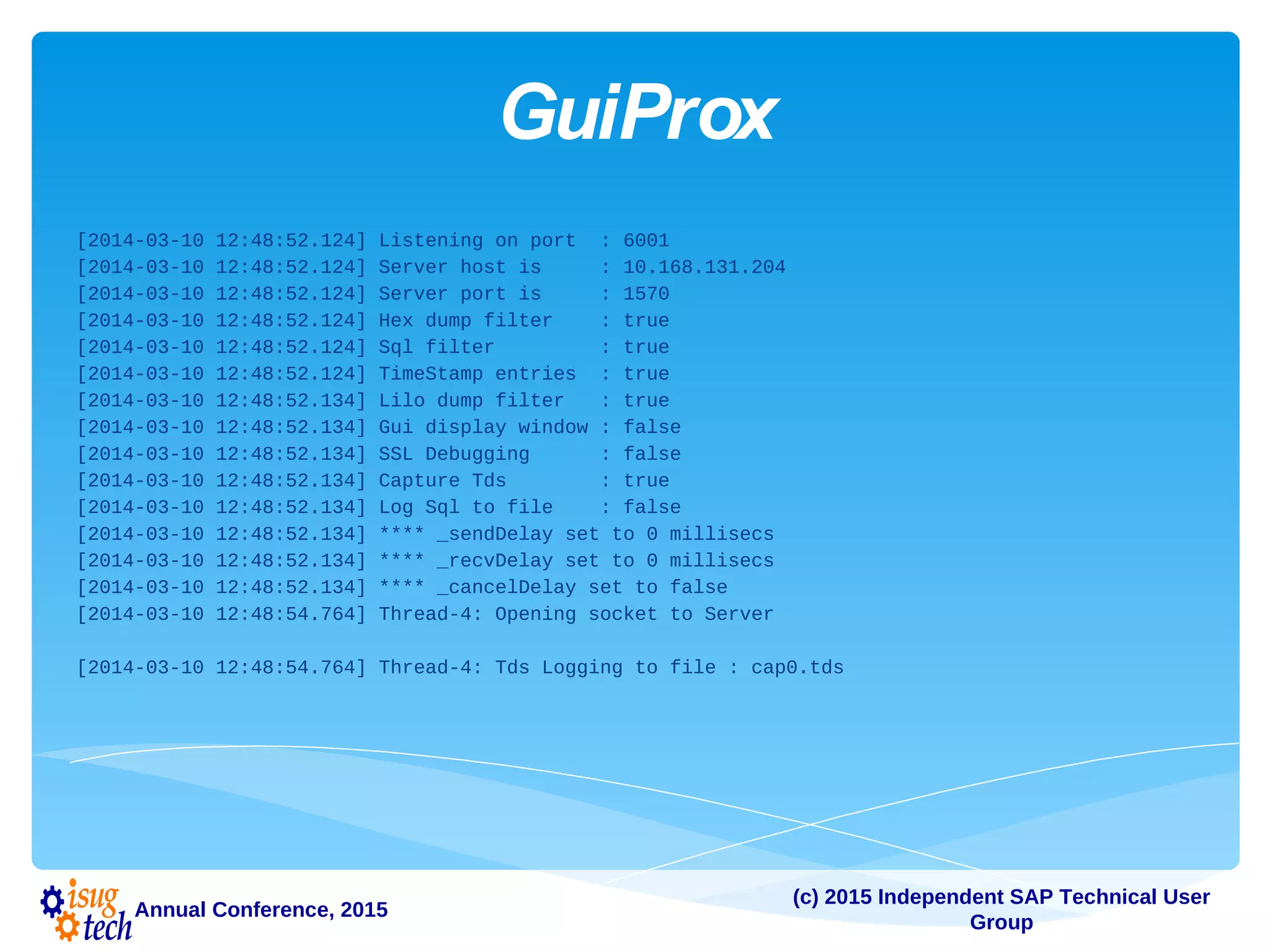

[2014-03-10 12:48:52.124] Listening on port : 6001
[2014-03-10 12:48:52.124] Server host is : 10.168.131.204
[2014-03-10 12:48:52.124] Server port is : 1570
[2014-03-10 12:48:52.124] Hex dump filter : true
[2014-03-10 12:48:52.124] Sql filter : true
[2014-03-10 12:48:52.124] TimeStamp entries : true
[2014-03-10 12:48:52.134] Lilo dump filter : true
[2014-03-10 12:48:52.134] Gui display window : false
[2014-03-10 12:48:52.134] SSL Debugging : false
[2014-03-10 12:48:52.134] Capture Tds : true
[2014-03-10 12:48:52.134] Log Sql to file : false
[2014-03-10 12:48:52.134] **** _sendDelay set to 0 millisecs
[2014-03-10 12:48:52.134] **** _recvDelay set to 0 millisecs
[2014-03-10 12:48:52.134] **** _cancelDelay set to false
[2014-03-10 12:48:54.764] Thread-4: Opening socket to Server
[2014-03-10 12:48:54.764] Thread-4: Tds Logging to file : cap0.tds

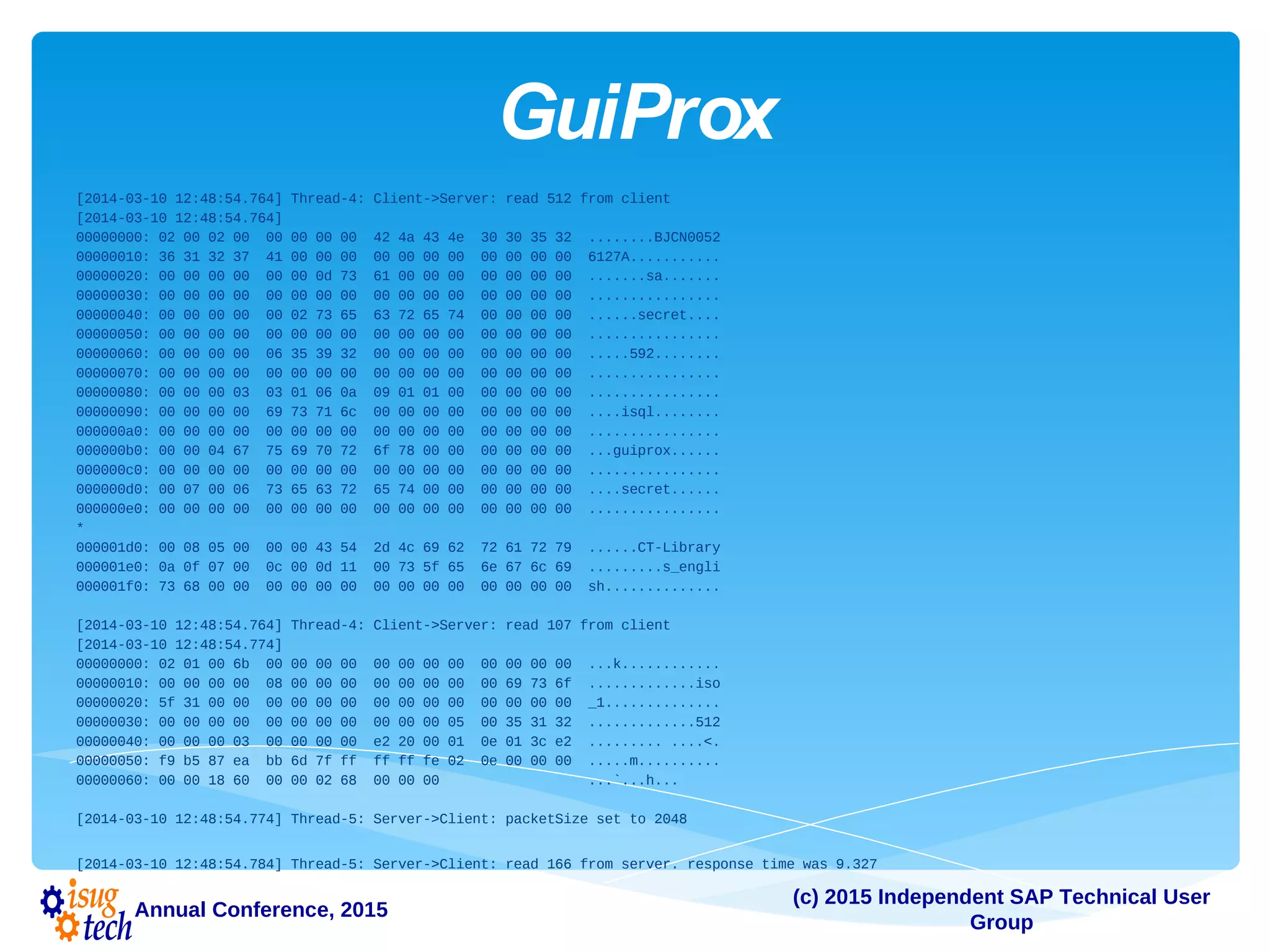

49. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
GuiProx
[2014-03-10 12:48:54.764] Thread-4: Client->Server: read 512 from client
[2014-03-10 12:48:54.764]
00000000: 02 00 02 00 00 00 00 00 42 4a 43 4e 30 30 35 32 ........BJCN0052
00000010: 36 31 32 37 41 00 00 00 00 00 00 00 00 00 00 00 6127A...........
00000020: 00 00 00 00 00 00 0d 73 61 00 00 00 00 00 00 00 .......sa.......
00000030: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00000040: 00 00 00 00 00 02 73 65 63 72 65 74 00 00 00 00 ......secret....
00000050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00000060: 00 00 00 00 06 35 39 32 00 00 00 00 00 00 00 00 .....592........
00000070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00000080: 00 00 00 03 03 01 06 0a 09 01 01 00 00 00 00 00 ................
00000090: 00 00 00 00 69 73 71 6c 00 00 00 00 00 00 00 00 ....isql........
000000a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
000000b0: 00 00 04 67 75 69 70 72 6f 78 00 00 00 00 00 00 ...guiprox......
000000c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
000000d0: 00 07 00 06 73 65 63 72 65 74 00 00 00 00 00 00 ....secret......
000000e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
*
000001d0: 00 08 05 00 00 00 43 54 2d 4c 69 62 72 61 72 79 ......CT-Library
000001e0: 0a 0f 07 00 0c 00 0d 11 00 73 5f 65 6e 67 6c 69 .........s_engli
000001f0: 73 68 00 00 00 00 00 00 00 00 00 00 00 00 00 00 sh..............
[2014-03-10 12:48:54.764] Thread-4: Client->Server: read 107 from client
[2014-03-10 12:48:54.774]
00000000: 02 01 00 6b 00 00 00 00 00 00 00 00 00 00 00 00 ...k............
00000010: 00 00 00 00 08 00 00 00 00 00 00 00 00 69 73 6f .............iso
00000020: 5f 31 00 00 00 00 00 00 00 00 00 00 00 00 00 00 _1..............
00000030: 00 00 00 00 00 00 00 00 00 00 00 05 00 35 31 32 .............512
00000040: 00 00 00 03 00 00 00 00 e2 20 00 01 0e 01 3c e2 ......... ....<.
00000050: f9 b5 87 ea bb 6d 7f ff ff ff fe 02 0e 00 00 00 .....m..........
00000060: 00 00 18 60 00 00 02 68 00 00 00 ...`...h...
[2014-03-10 12:48:54.774] Thread-5: Server->Client: packetSize set to 2048
[2014-03-10 12:48:54.784] Thread-5: Server->Client: read 166 from server. response time was 9.327

50. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

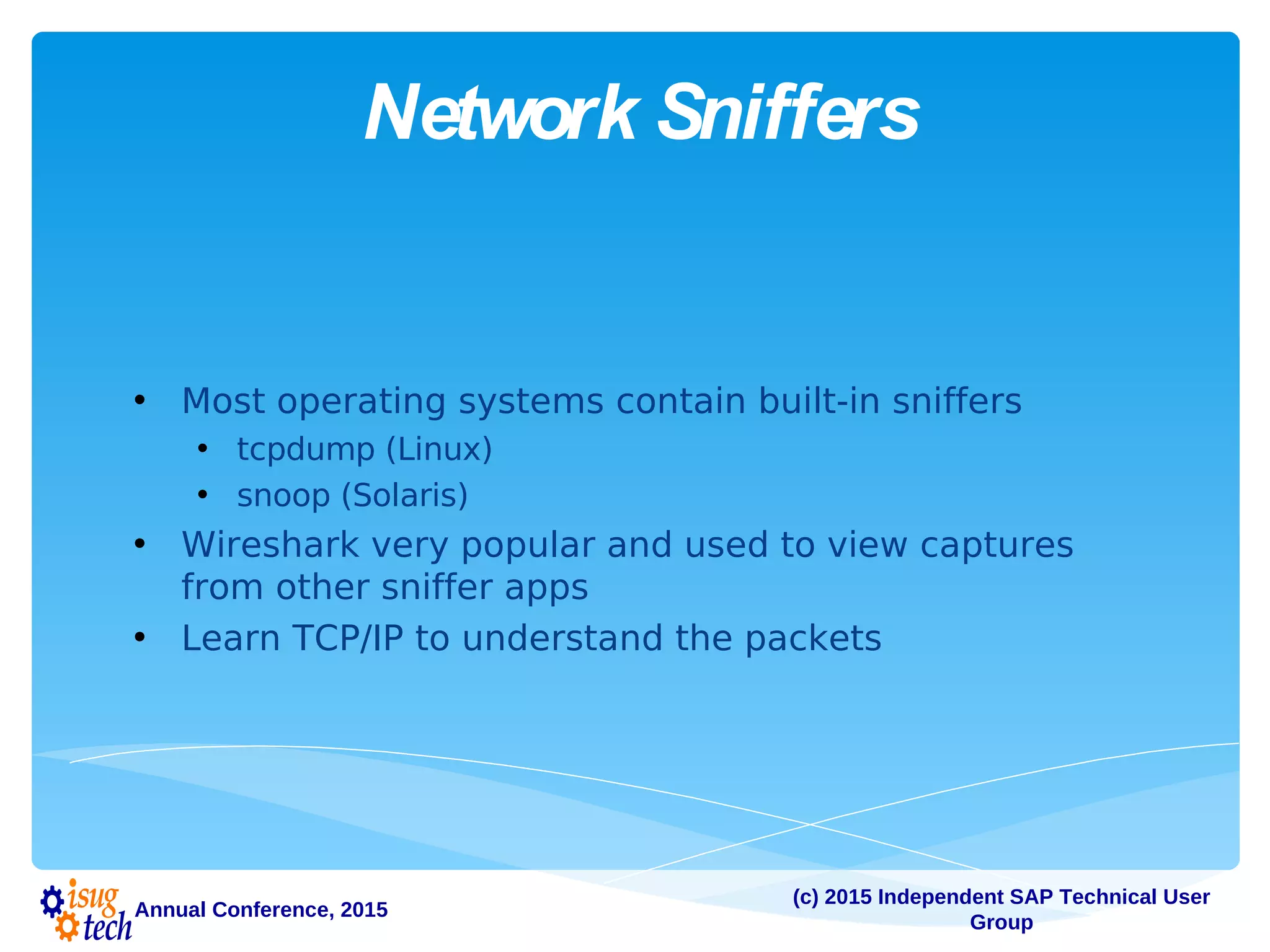

Network Sniffers
• Most operating systems contain built-in sniffers
• tcpdump (Linux)
• snoop (Solaris)
• Wireshark very popular and used to view captures
from other sniffer apps
• Learn TCP/IP to understand the packets

51. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

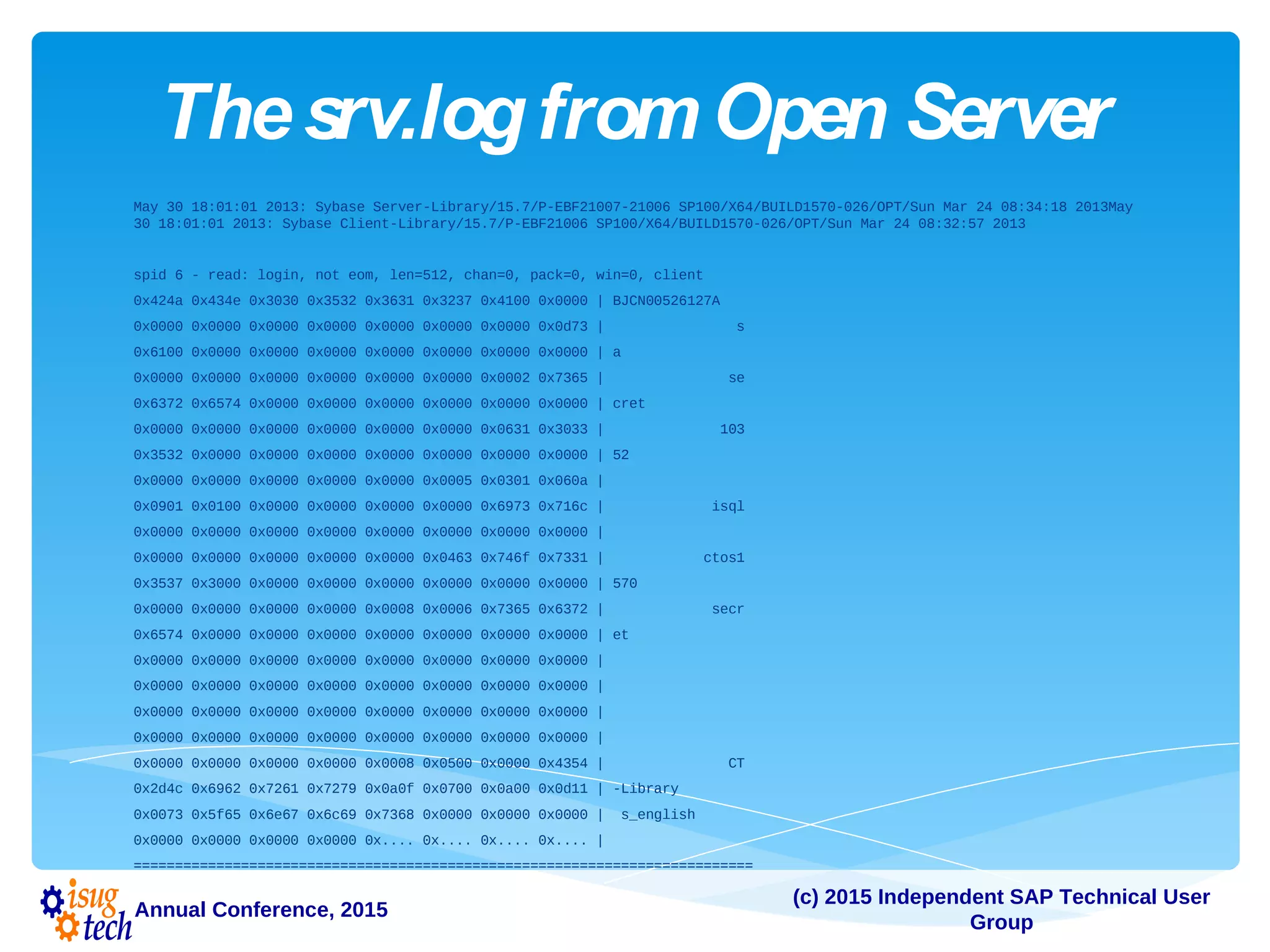

Thesrv.logfromOpen Server
May 30 18:01:01 2013: Sybase Server-Library/15.7/P-EBF21007-21006 SP100/X64/BUILD1570-026/OPT/Sun Mar 24 08:34:18 2013May
30 18:01:01 2013: Sybase Client-Library/15.7/P-EBF21006 SP100/X64/BUILD1570-026/OPT/Sun Mar 24 08:32:57 2013
spid 6 - read: login, not eom, len=512, chan=0, pack=0, win=0, client
0x424a 0x434e 0x3030 0x3532 0x3631 0x3237 0x4100 0x0000 | BJCN00526127A
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0d73 | s
0x6100 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 | a
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0002 0x7365 | se
0x6372 0x6574 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 | cret
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0631 0x3033 | 103
0x3532 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 | 52
0x0000 0x0000 0x0000 0x0000 0x0000 0x0005 0x0301 0x060a |
0x0901 0x0100 0x0000 0x0000 0x0000 0x0000 0x6973 0x716c | isql
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 |
0x0000 0x0000 0x0000 0x0000 0x0000 0x0463 0x746f 0x7331 | ctos1
0x3537 0x3000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 | 570
0x0000 0x0000 0x0000 0x0000 0x0008 0x0006 0x7365 0x6372 | secr
0x6574 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 | et
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 |
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 |
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 |
0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 |
0x0000 0x0000 0x0000 0x0000 0x0008 0x0500 0x0000 0x4354 | CT
0x2d4c 0x6962 0x7261 0x7279 0x0a0f 0x0700 0x0a00 0x0d11 | -Library
0x0073 0x5f65 0x6e67 0x6c69 0x7368 0x0000 0x0000 0x0000 | s_english
0x0000 0x0000 0x0000 0x0000 0x.... 0x.... 0x.... 0x.... |
===========================================================================

52. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

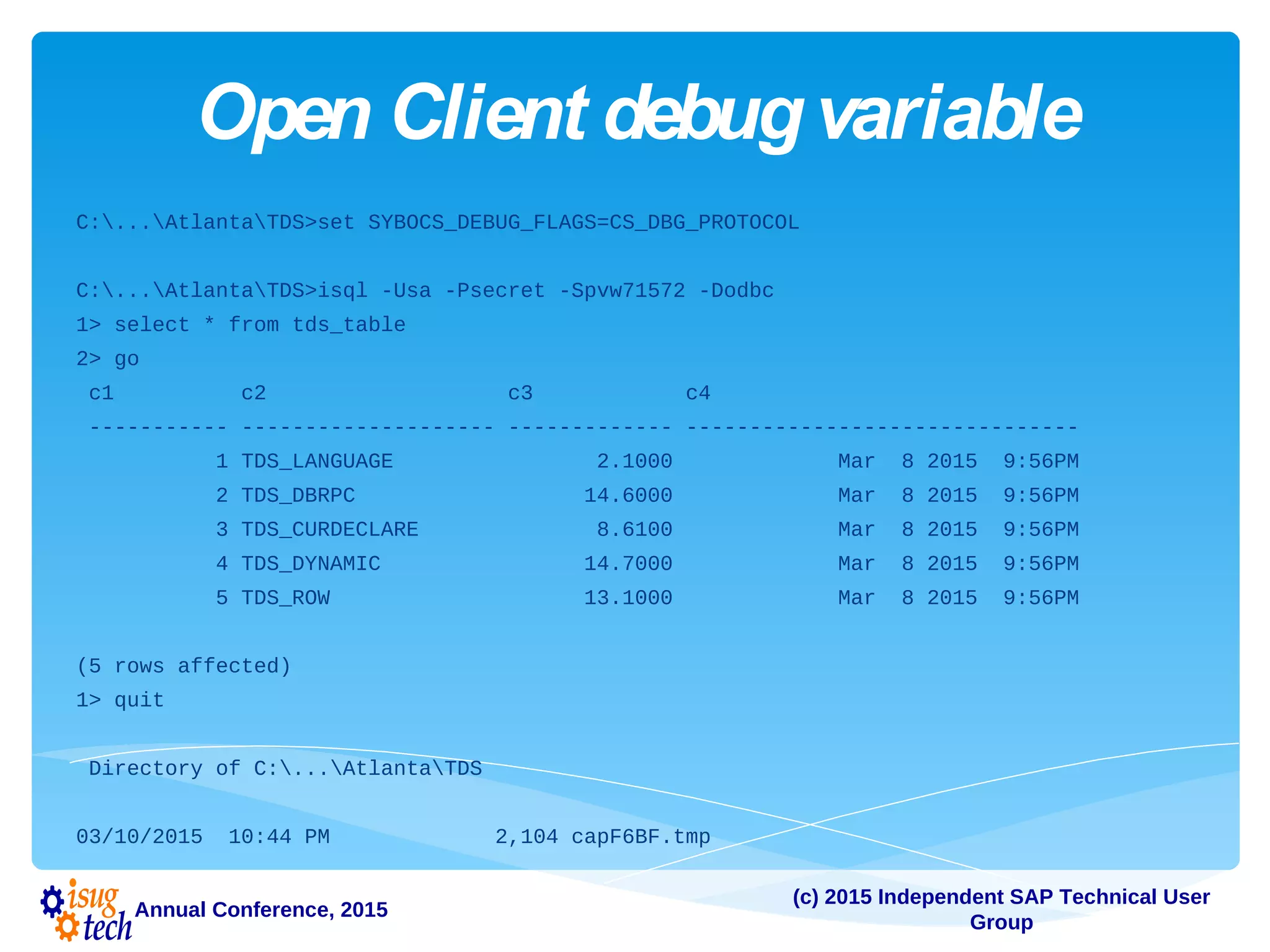

Open Client debugvariable
C:...AtlantaTDS>set SYBOCS_DEBUG_FLAGS=CS_DBG_PROTOCOL
C:...AtlantaTDS>isql -Usa -Psecret -Spvw71572 -Dodbc
1> select * from tds_table
2> go
c1 c2 c3 c4
----------- -------------------- ------------- -------------------------------
1 TDS_LANGUAGE 2.1000 Mar 8 2015 9:56PM
2 TDS_DBRPC 14.6000 Mar 8 2015 9:56PM
3 TDS_CURDECLARE 8.6100 Mar 8 2015 9:56PM
4 TDS_DYNAMIC 14.7000 Mar 8 2015 9:56PM
5 TDS_ROW 13.1000 Mar 8 2015 9:56PM
(5 rows affected)
1> quit
Directory of C:...AtlantaTDS
03/10/2015 10:44 PM 2,104 capF6BF.tmp

53. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

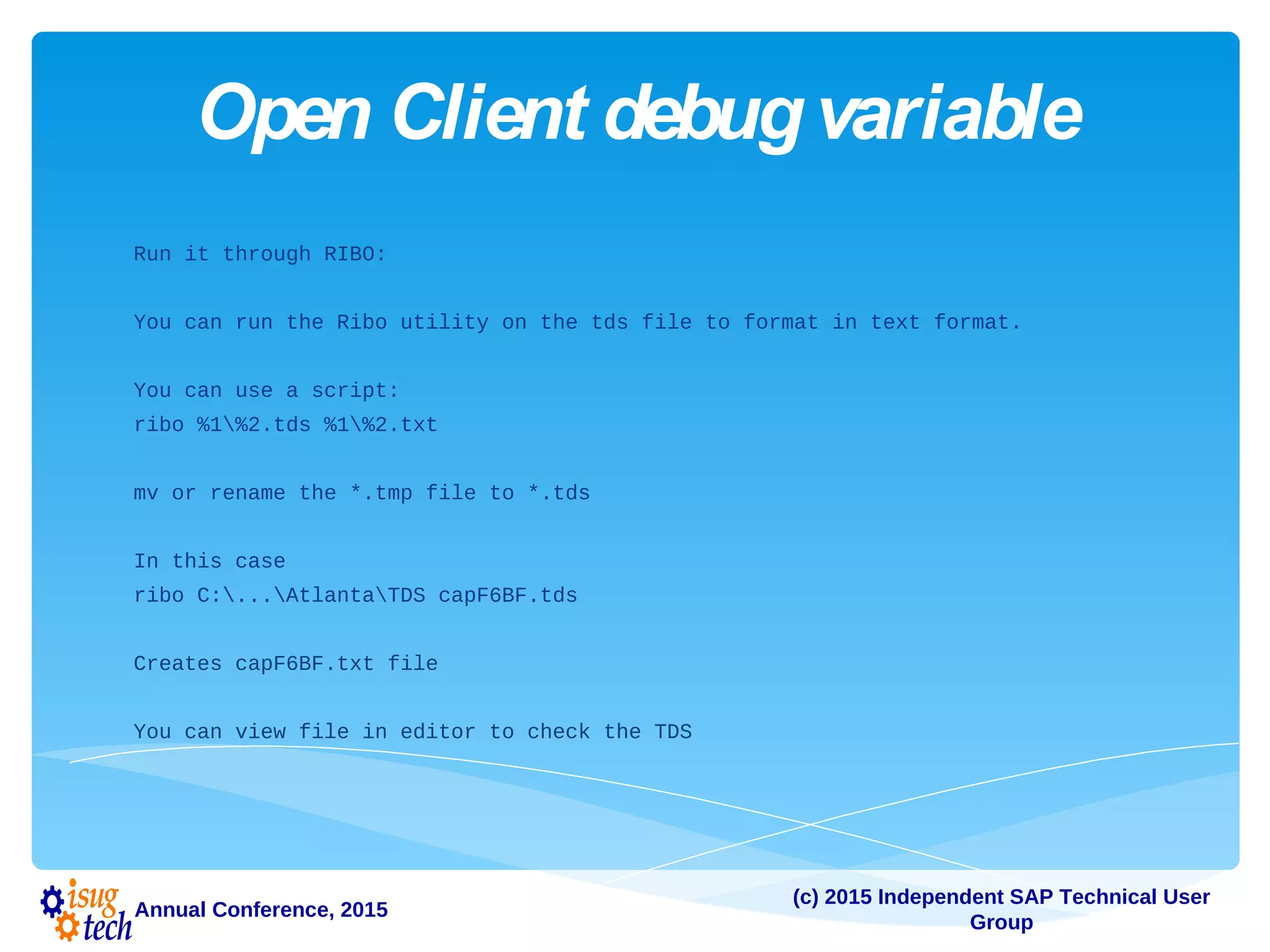

Open Client debugvariable
Run it through RIBO:
You can run the Ribo utility on the tds file to format in text format.
You can use a script:
ribo %1%2.tds %1%2.txt
mv or rename the *.tmp file to *.tds
In this case
ribo C:...AtlantaTDS capF6BF.tds
Creates capF6BF.txt file
You can view file in editor to check the TDS

54. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

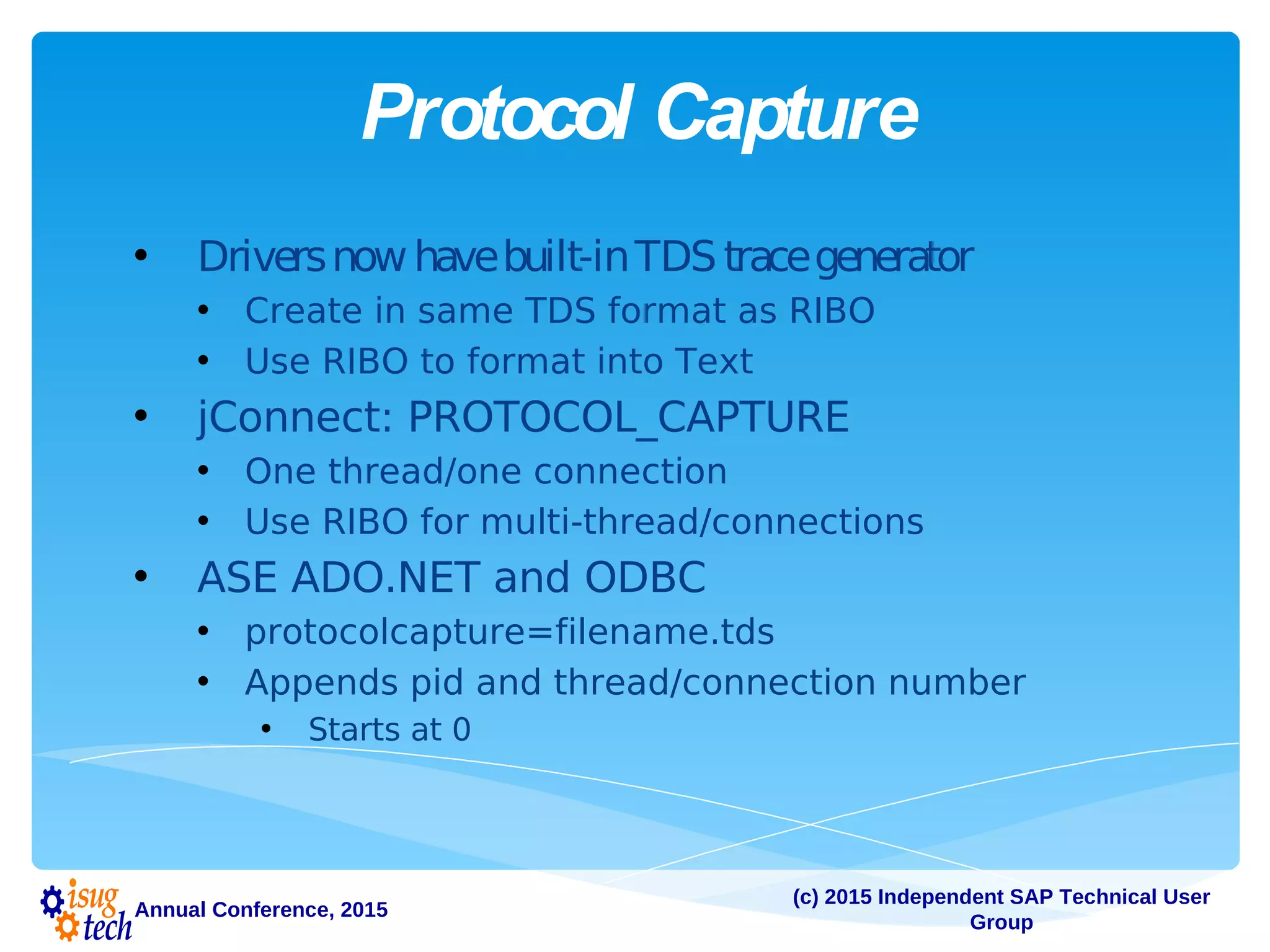

Protocol Capture
• Driversnowhavebuilt-inTDS tracegenerator
• Create in same TDS format as RIBO
• Use RIBO to format into Text
• jConnect: PROTOCOL_CAPTURE
• One thread/one connection
• Use RIBO for multi-thread/connections
• ASE ADO.NET and ODBC
• protocolcapture=filename.tds
• Appends pid and thread/connection number
• Starts at 0

55. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Contents
Introduction to TDS
Versions
PDF documents
TDSDocumentation
Capturetools
Ribo
GuiProx
Sniffers
Srv.log
Tokensand Flow
TDS_ENVCHANGE, EED, LANGUAGE, etc
Simple select from execution to response, result set
Formats
Row Data
Parameters
Stored procedure calls with parameters

56. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

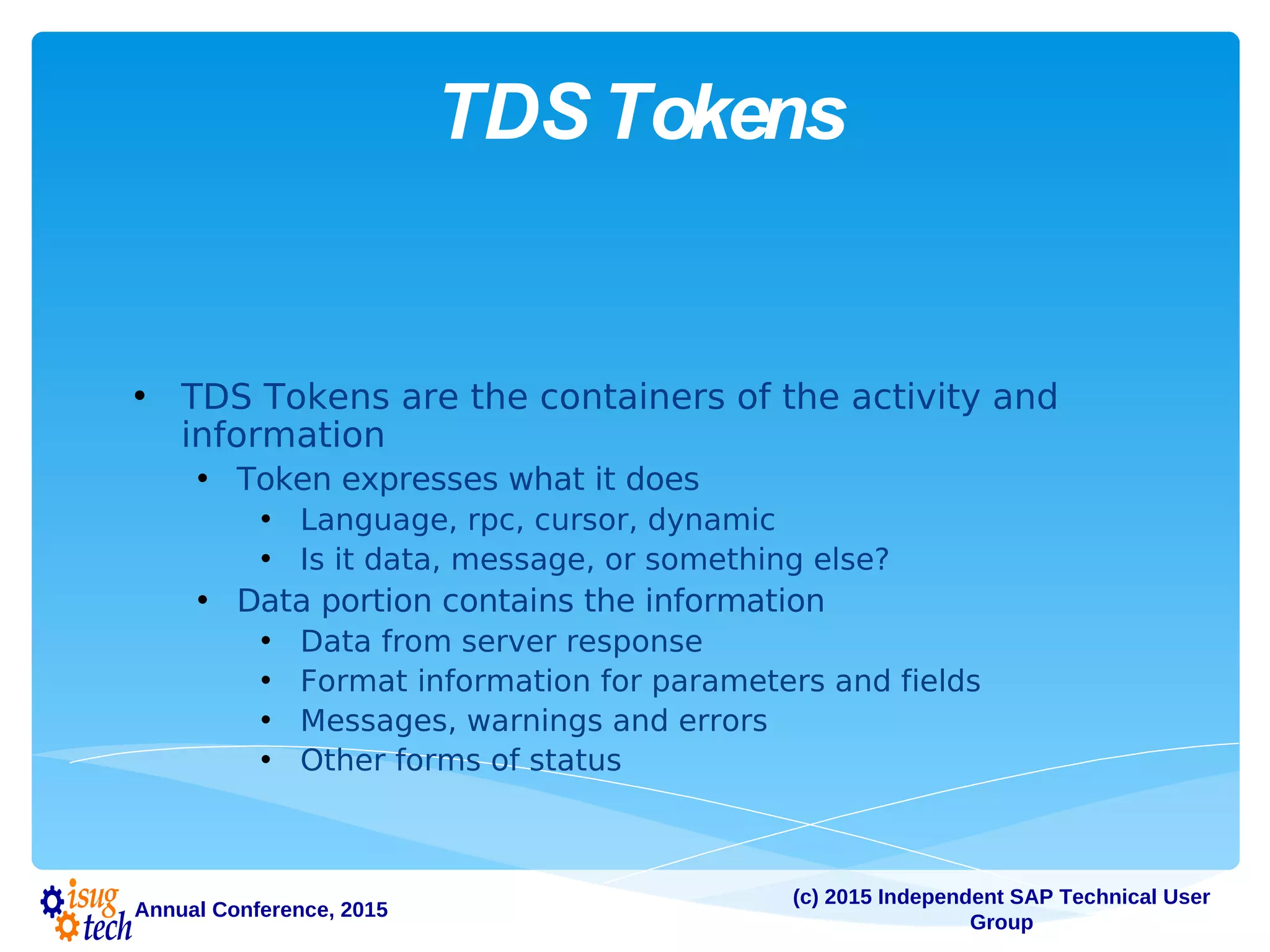

TDSTokens
• TDS Tokens are the containers of the activity and
information
• Token expresses what it does
• Language, rpc, cursor, dynamic
• Is it data, message, or something else?
• Data portion contains the information
• Data from server response
• Format information for parameters and fields
• Messages, warnings and errors
• Other forms of status

57. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

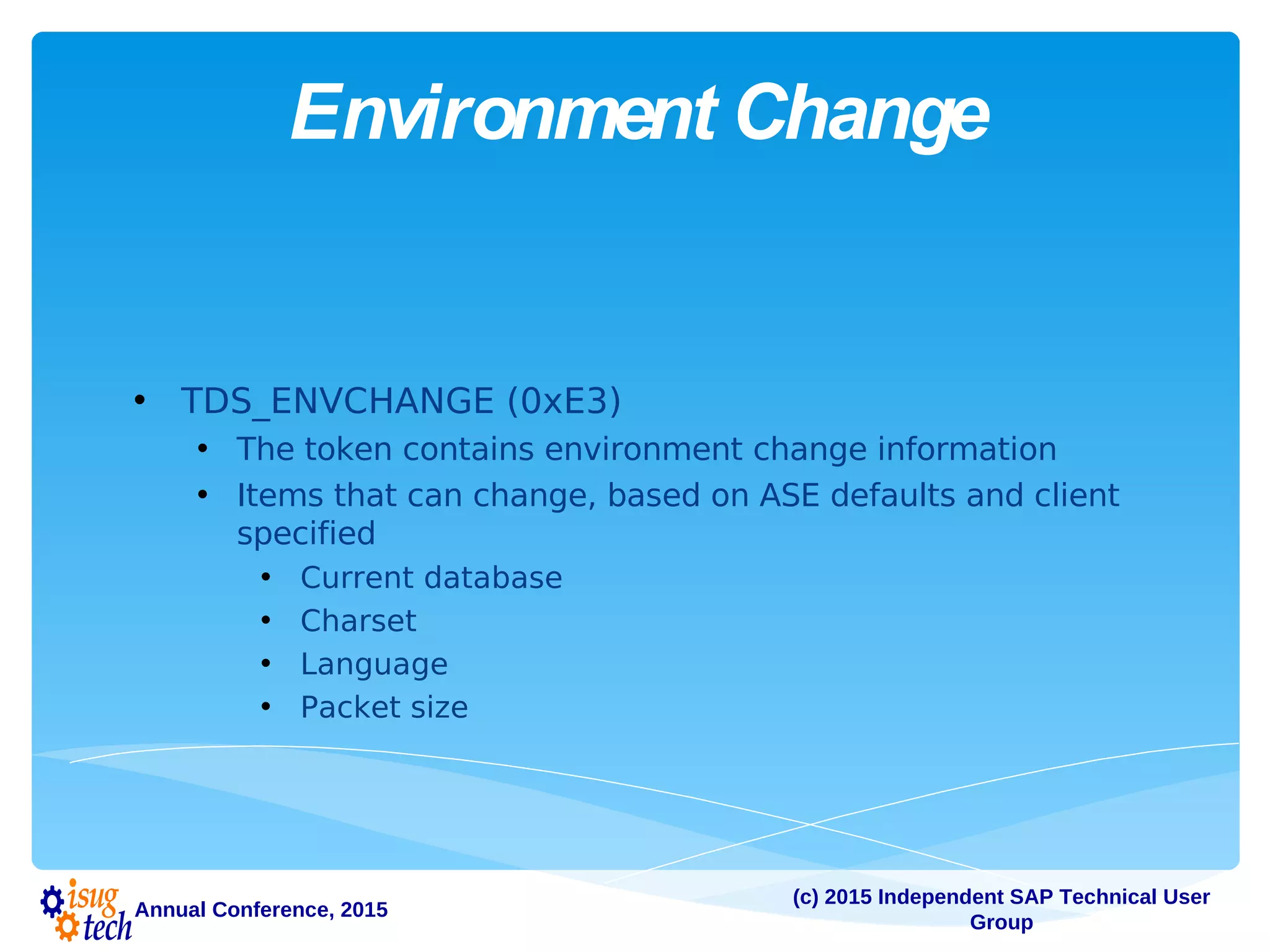

Environment Change
• TDS_ENVCHANGE (0xE3)
• The token contains environment change information
• Items that can change, based on ASE defaults and client
specified
• Current database
• Charset
• Language
• Packet size

58. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

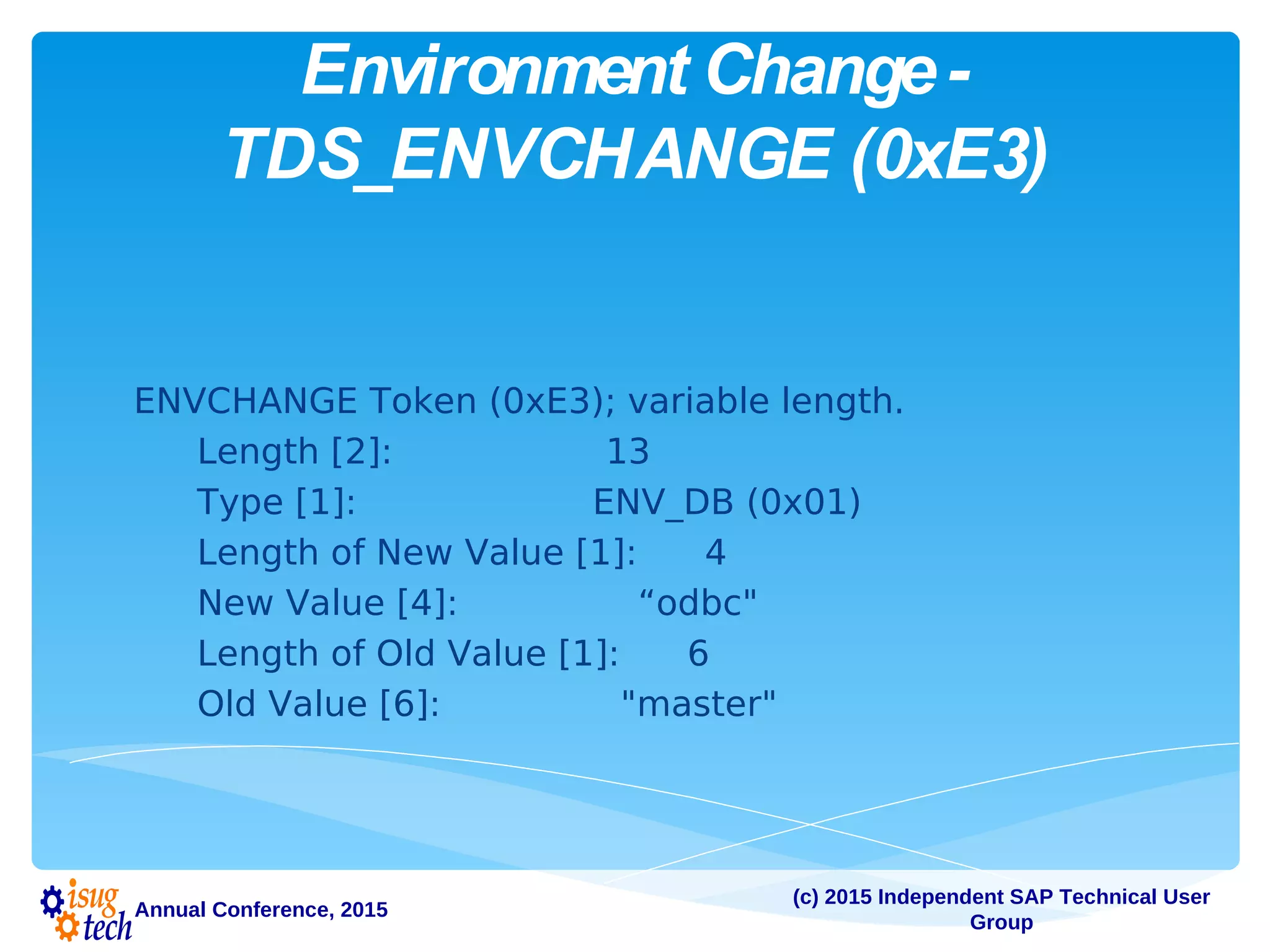

Environment Change-
TDS_ENVCHANGE (0xE3)
ENVCHANGE Token (0xE3); variable length.
Length [2]: 13
Type [1]: ENV_DB (0x01)
Length of New Value [1]: 4
New Value [4]: “odbc"
Length of Old Value [1]: 6
Old Value [6]: "master"

59. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

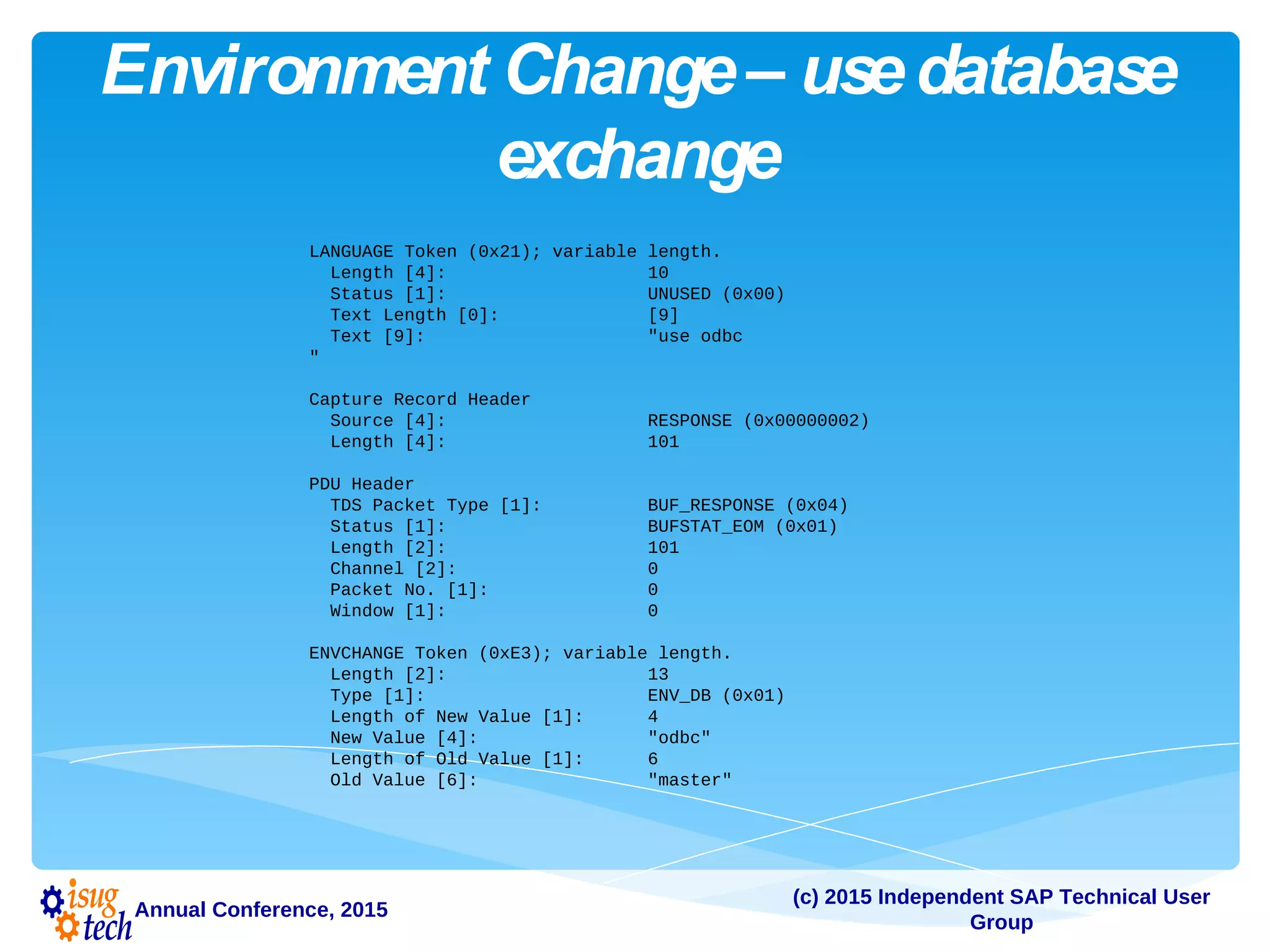

Environment Change– usedatabase
exchange
LANGUAGE Token (0x21); variable length.
Length [4]: 10
Status [1]: UNUSED (0x00)
Text Length [0]: [9]
Text [9]: "use odbc
"
Capture Record Header
Source [4]: RESPONSE (0x00000002)
Length [4]: 101
PDU Header
TDS Packet Type [1]: BUF_RESPONSE (0x04)
Status [1]: BUFSTAT_EOM (0x01)
Length [2]: 101
Channel [2]: 0
Packet No. [1]: 0
Window [1]: 0
ENVCHANGE Token (0xE3); variable length.
Length [2]: 13
Type [1]: ENV_DB (0x01)
Length of New Value [1]: 4
New Value [4]: "odbc"
Length of Old Value [1]: 6
Old Value [6]: "master"

60. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

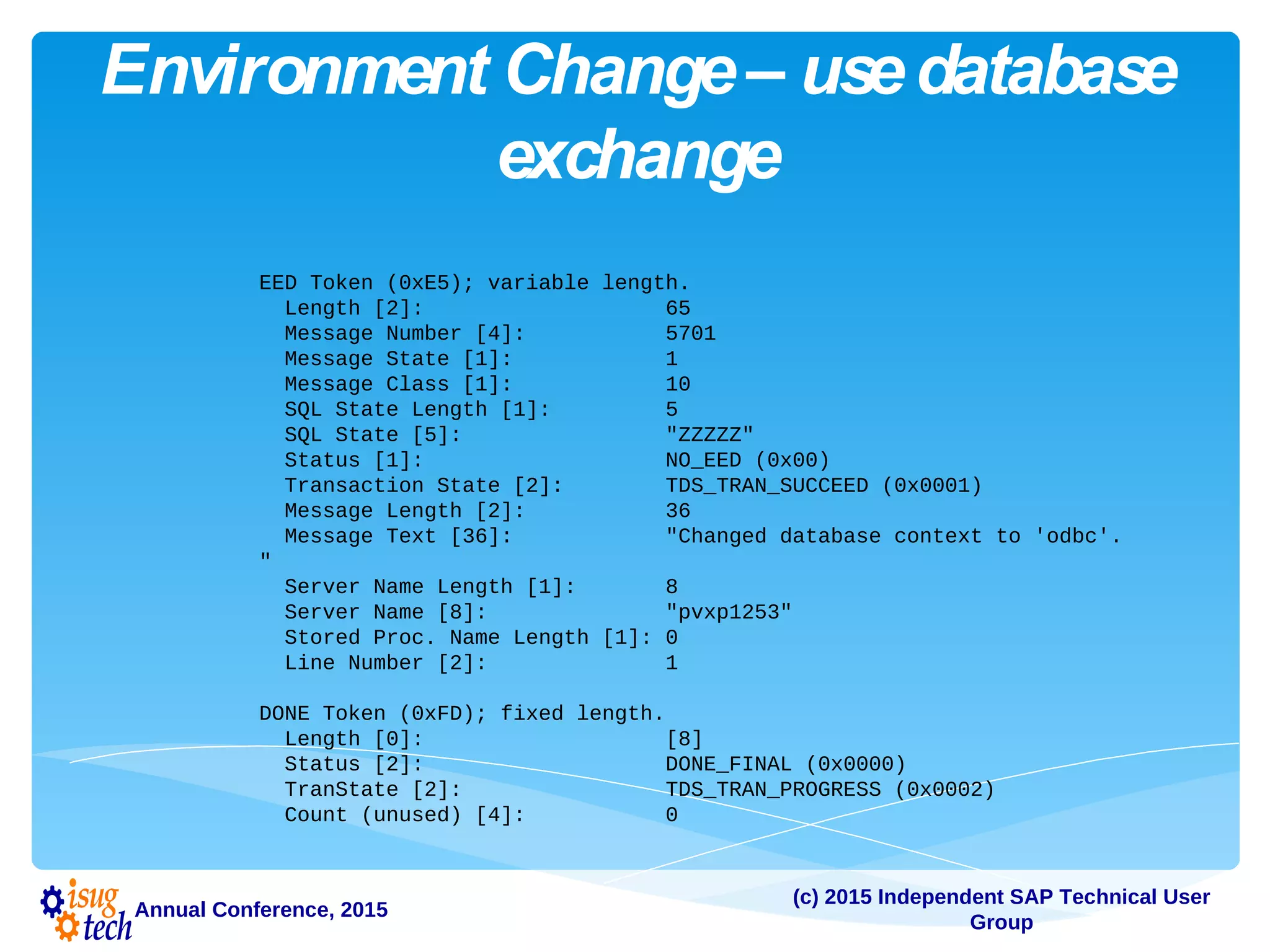

Environment Change– usedatabase
exchange
EED Token (0xE5); variable length.
Length [2]: 65
Message Number [4]: 5701
Message State [1]: 1
Message Class [1]: 10
SQL State Length [1]: 5
SQL State [5]: "ZZZZZ"
Status [1]: NO_EED (0x00)
Transaction State [2]: TDS_TRAN_SUCCEED (0x0001)
Message Length [2]: 36
Message Text [36]: "Changed database context to 'odbc'.
"
Server Name Length [1]: 8
Server Name [8]: "pvxp1253"
Stored Proc. Name Length [1]: 0
Line Number [2]: 1
DONE Token (0xFD); fixed length.
Length [0]: [8]
Status [2]: DONE_FINAL (0x0000)
TranState [2]: TDS_TRAN_PROGRESS (0x0002)
Count (unused) [4]: 0

61. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

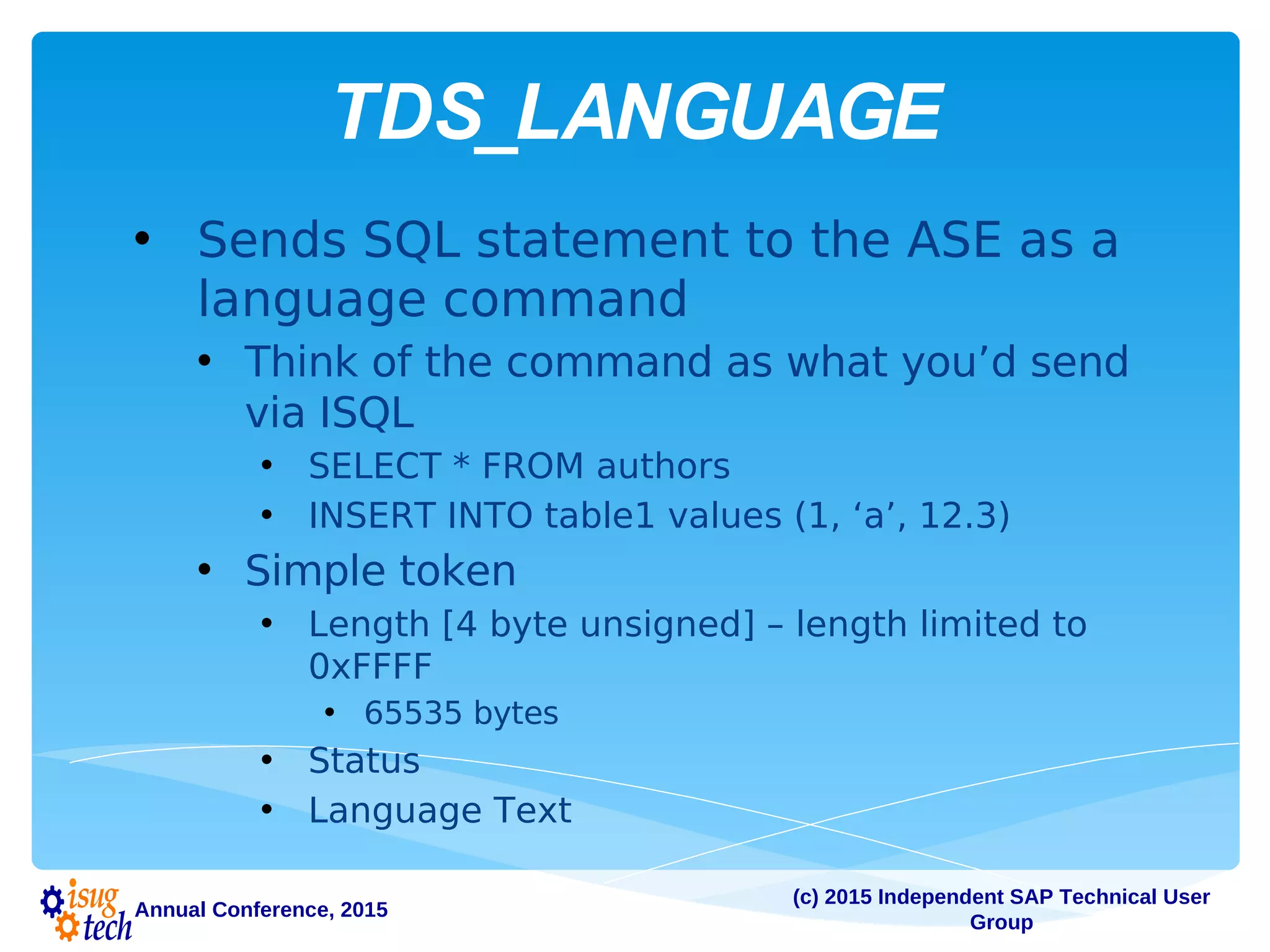

TDS_LANGUAGE
• Sends SQL statement to the ASE as a
language command
• Think of the command as what you’d send
via ISQL
• SELECT * FROM authors
• INSERT INTO table1 values (1, ‘a’, 12.3)
• Simple token
• Length [4 byte unsigned] – length limited to
0xFFFF
• 65535 bytes
• Status
• Language Text

62. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
TDS_LANGUAGE
Here’s the sample “select @@version”
LANGUAGE Token (0x21); variable length.
Length [4]: 18
Status [1]: UNUSED (0x00)
Text Length [0]: [17]
Text [17]: "select
@@version
"

63. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

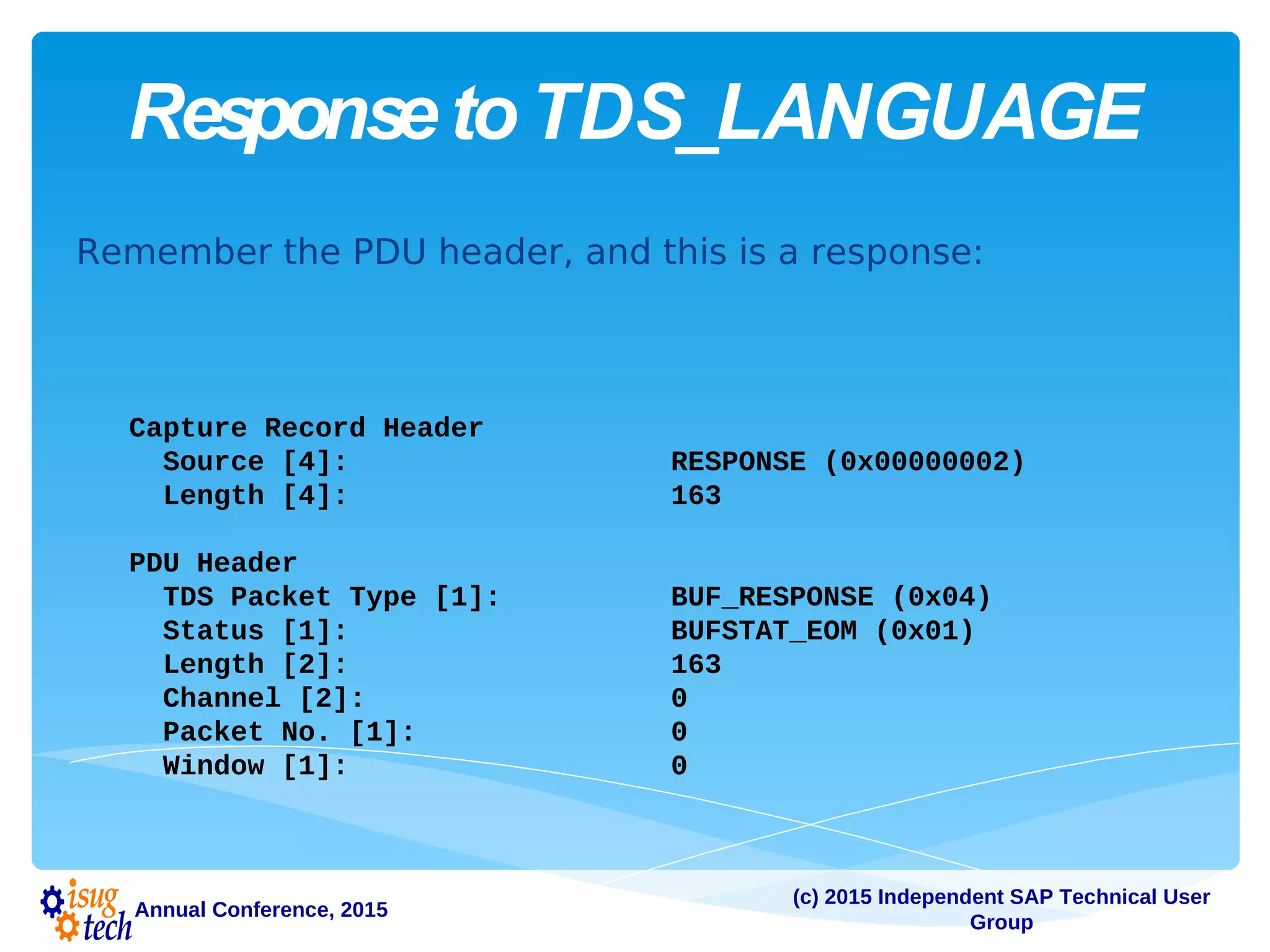

ResponsetoTDS_LANGUAGE
Remember the PDU header, and this is a response:
Capture Record Header
Source [4]: RESPONSE (0x00000002)
Length [4]: 163
PDU Header
TDS Packet Type [1]: BUF_RESPONSE (0x04)
Status [1]: BUFSTAT_EOM (0x01)
Length [2]: 163
Channel [2]: 0
Packet No. [1]: 0
Window [1]: 0

64. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

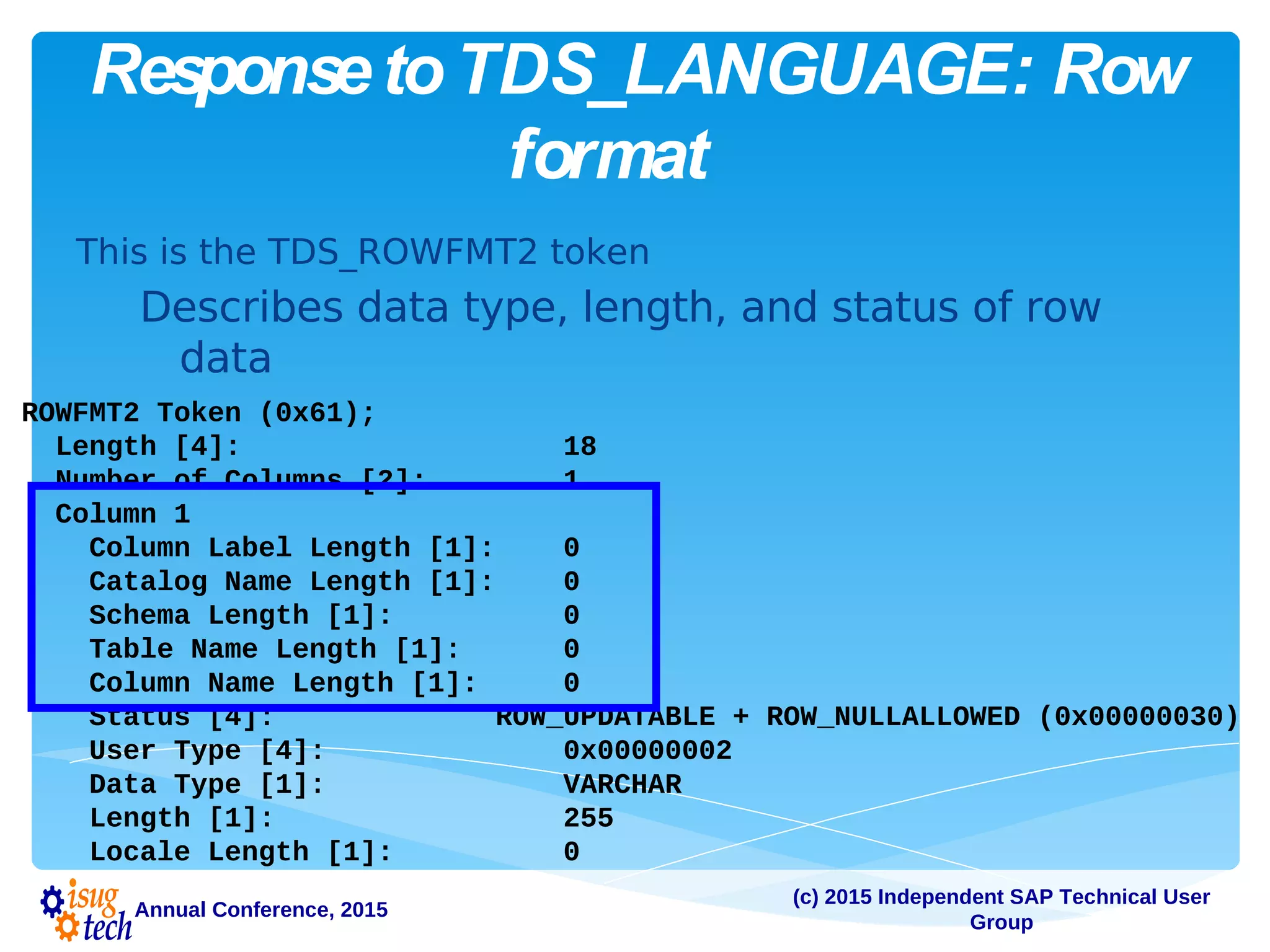

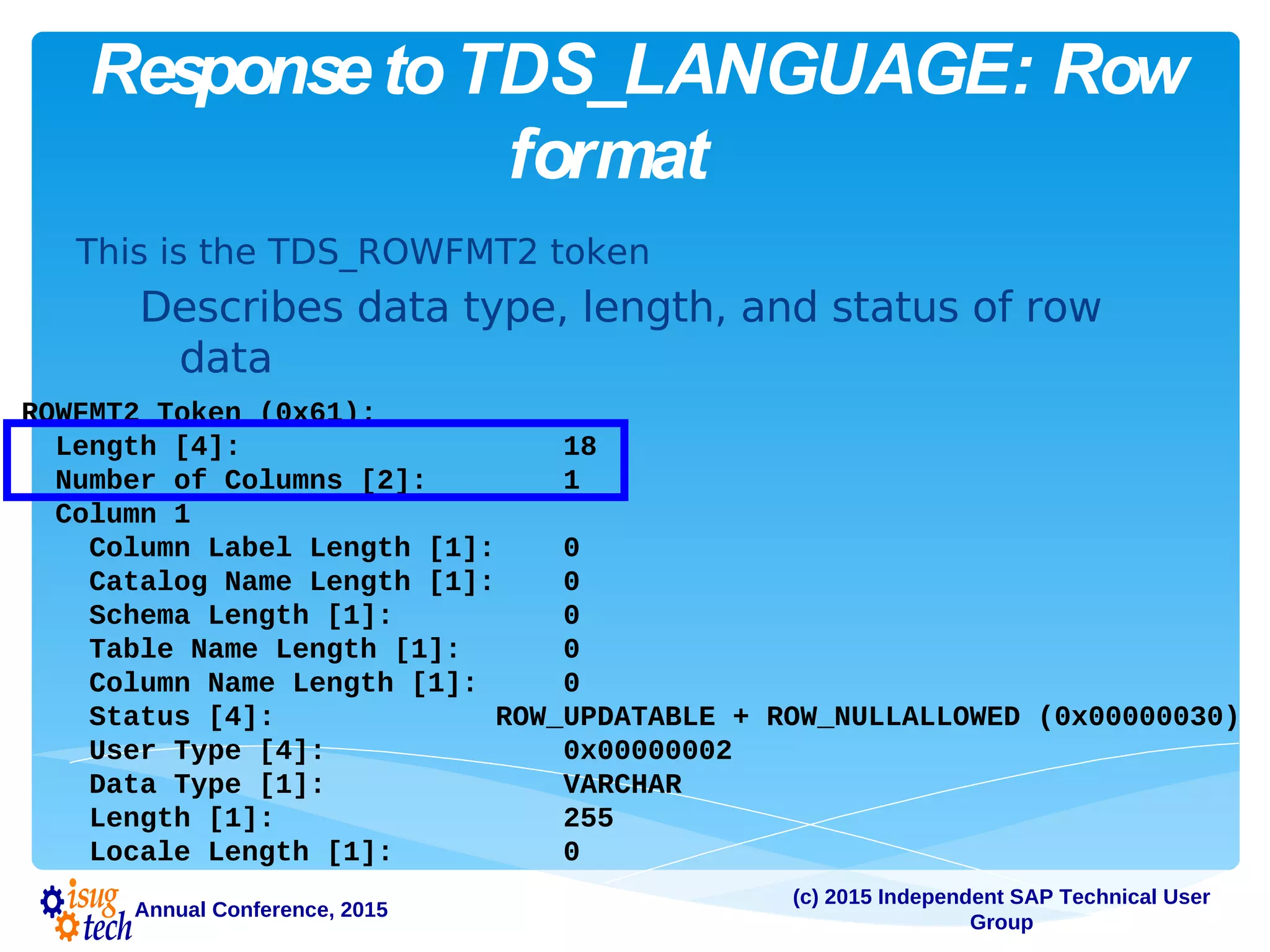

ResponsetoTDS_LANGUAGE: Row
format
This is the TDS_ROWFMT2 token
Describes data type, length, and status of row
data
ROWFMT2 Token (0x61);
Length [4]: 18
Number of Columns [2]: 1
Column 1
Column Label Length [1]: 0
Catalog Name Length [1]: 0
Schema Length [1]: 0
Table Name Length [1]: 0
Column Name Length [1]: 0
Status [4]: ROW_UPDATABLE + ROW_NULLALLOWED (0x00000030)
User Type [4]: 0x00000002
Data Type [1]: VARCHAR
Length [1]: 255
Locale Length [1]: 0

65. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
ResponsetoTDS_LANGUAGE: Row
format
This is the TDS_ROWFMT2 token
Describes data type, length, and status of row
data
ROWFMT2 Token (0x61);
Length [4]: 18
Number of Columns [2]: 1
Column 1
Column Label Length [1]: 0
Catalog Name Length [1]: 0
Schema Length [1]: 0
Table Name Length [1]: 0
Column Name Length [1]: 0
Status [4]: ROW_UPDATABLE + ROW_NULLALLOWED (0x00000030)
User Type [4]: 0x00000002
Data Type [1]: VARCHAR
Length [1]: 255
Locale Length [1]: 0

66. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

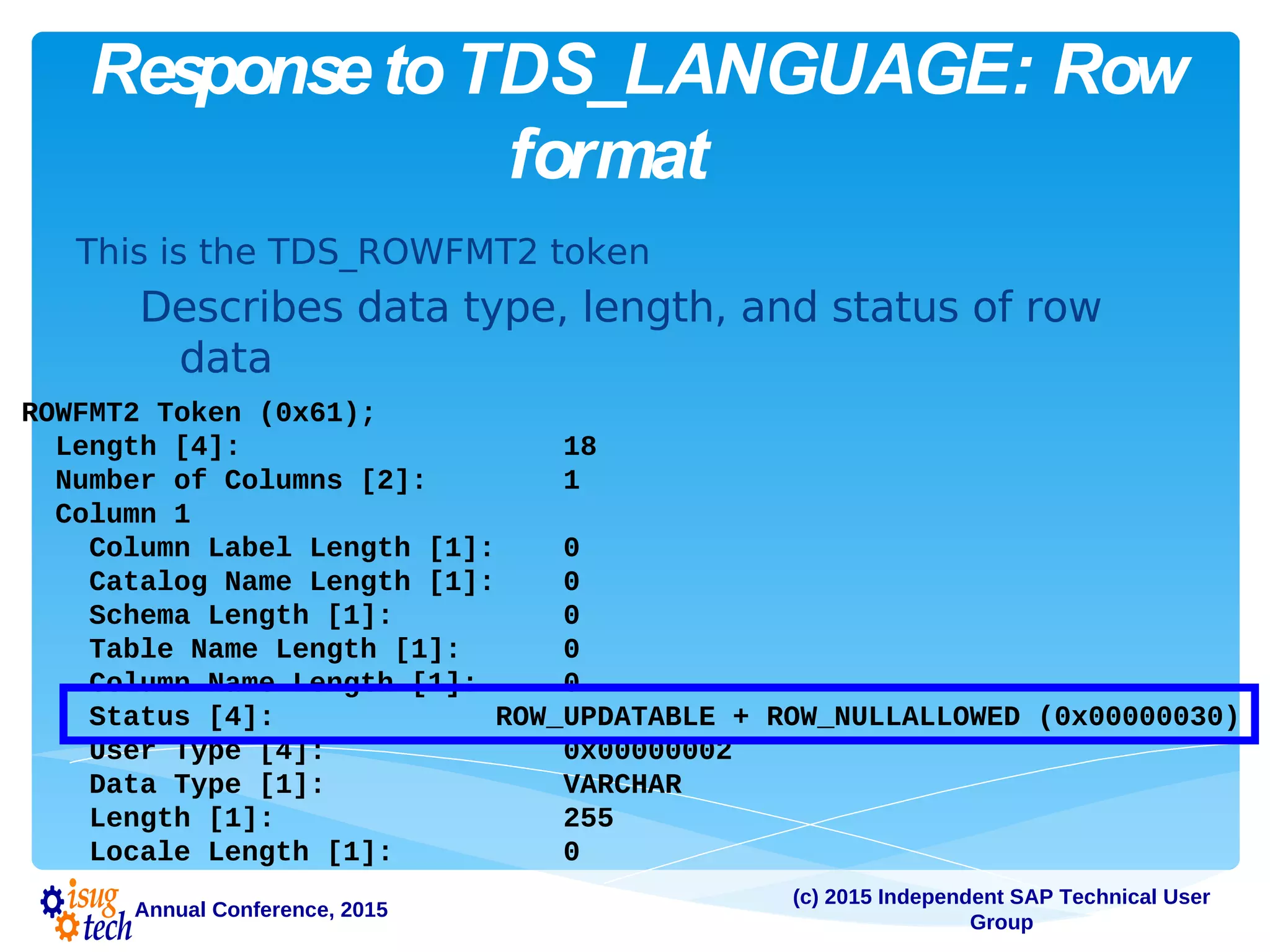

ResponsetoTDS_LANGUAGE: Row
format
This is the TDS_ROWFMT2 token
Describes data type, length, and status of row
data
ROWFMT2 Token (0x61);
Length [4]: 18
Number of Columns [2]: 1
Column 1
Column Label Length [1]: 0
Catalog Name Length [1]: 0
Schema Length [1]: 0
Table Name Length [1]: 0
Column Name Length [1]: 0
Status [4]: ROW_UPDATABLE + ROW_NULLALLOWED (0x00000030)
User Type [4]: 0x00000002
Data Type [1]: VARCHAR
Length [1]: 255
Locale Length [1]: 0

67. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

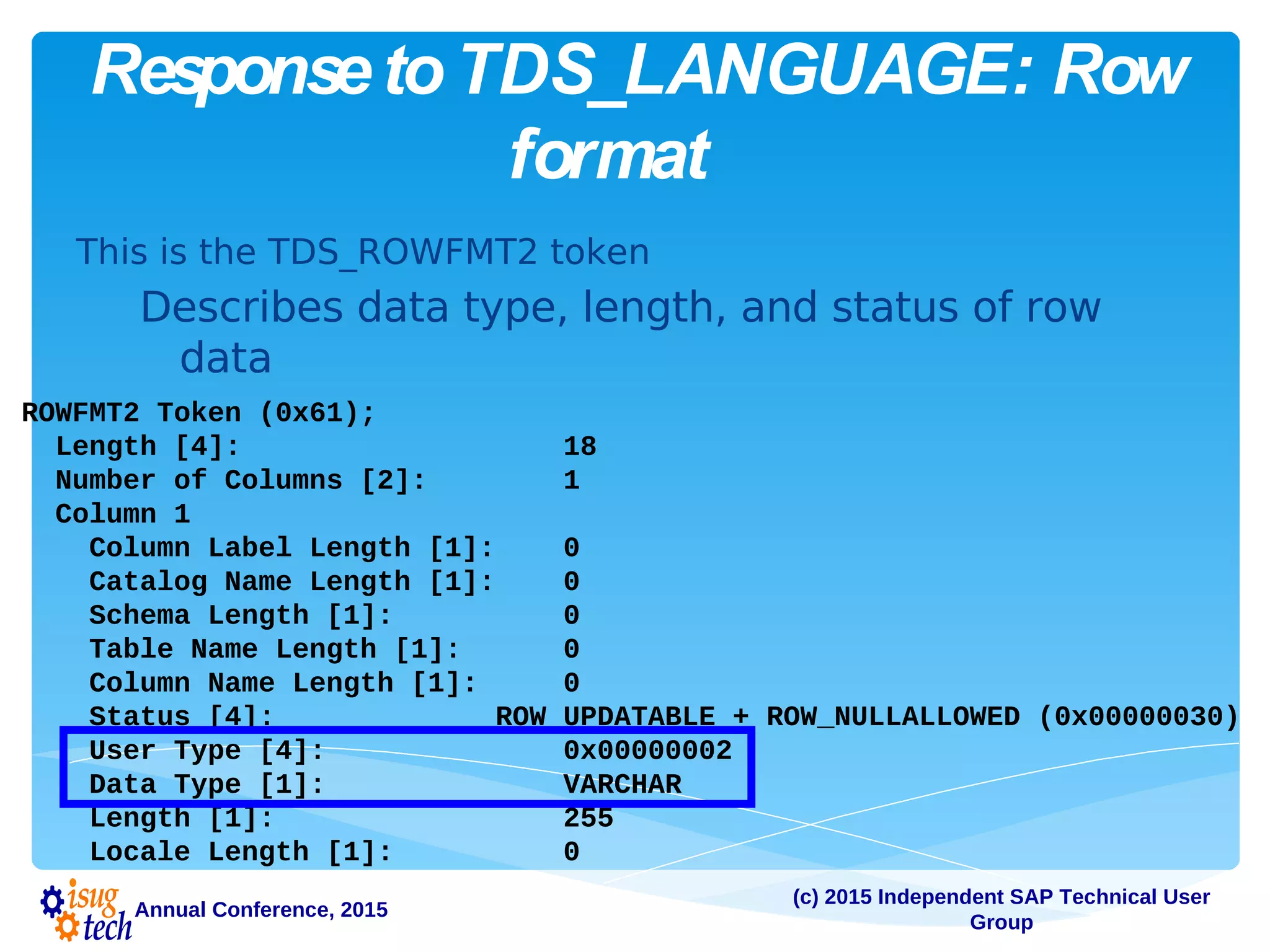

ResponsetoTDS_LANGUAGE: Row
format
This is the TDS_ROWFMT2 token
Describes data type, length, and status of row
data
ROWFMT2 Token (0x61);
Length [4]: 18
Number of Columns [2]: 1
Column 1
Column Label Length [1]: 0
Catalog Name Length [1]: 0
Schema Length [1]: 0
Table Name Length [1]: 0
Column Name Length [1]: 0
Status [4]: ROW_UPDATABLE + ROW_NULLALLOWED (0x00000030)
User Type [4]: 0x00000002
Data Type [1]: VARCHAR
Length [1]: 255
Locale Length [1]: 0

68. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

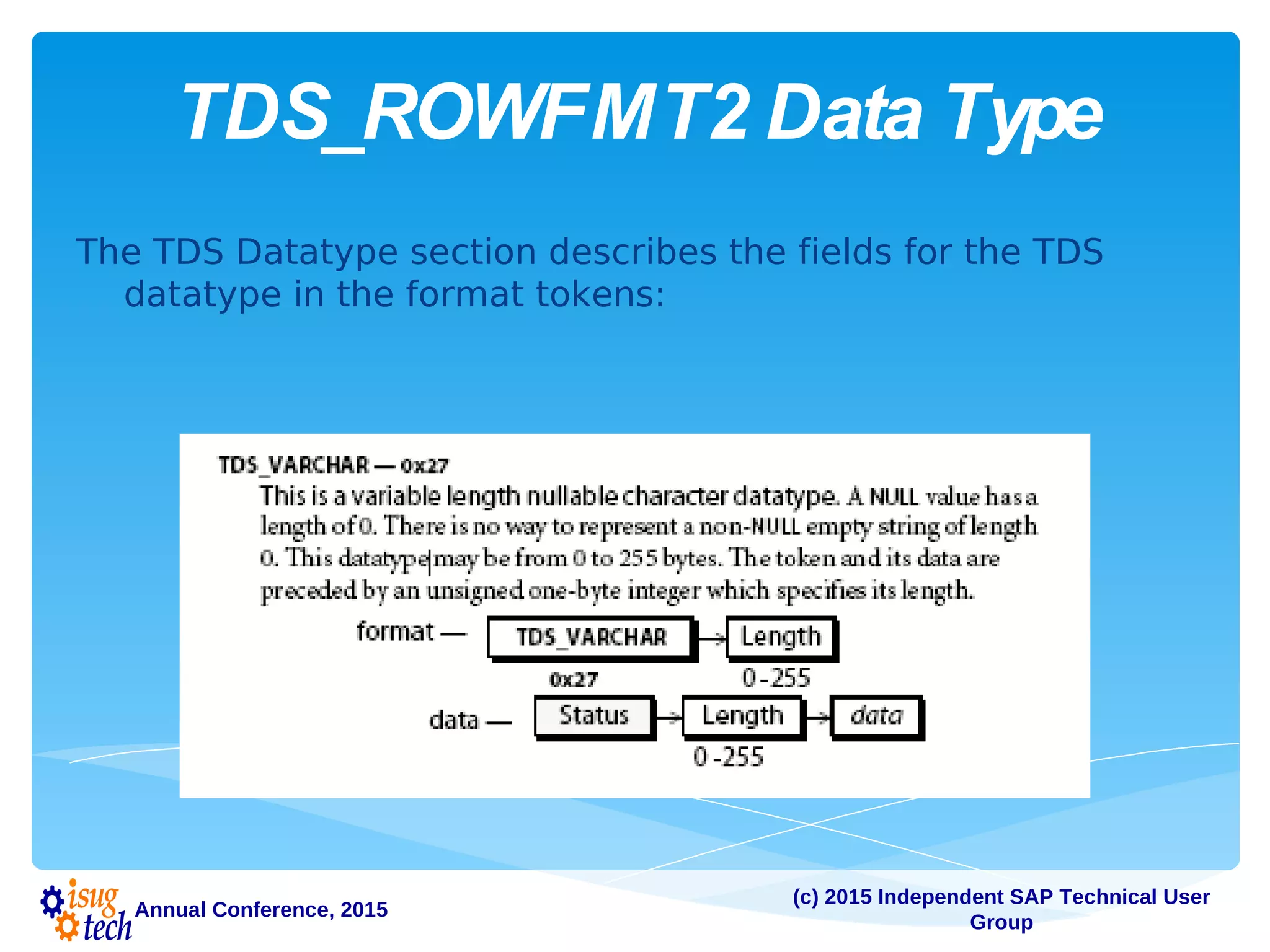

TDS_ROWFMT2 Data Type
The TDS Datatype section describes the fields for the TDS
datatype in the format tokens:

69. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

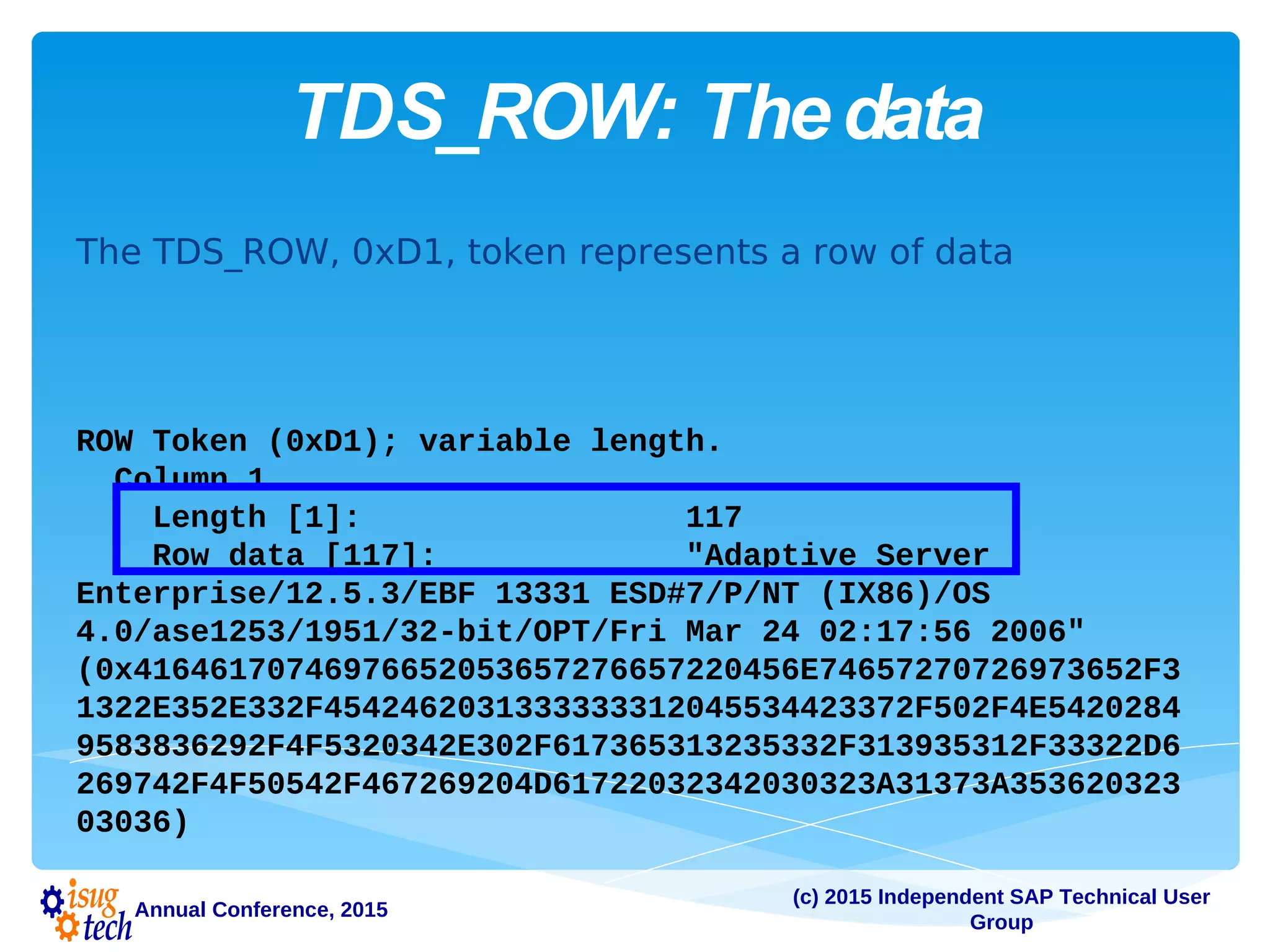

TDS_ROW: Thedata
The TDS_ROW, 0xD1, token represents a row of data
ROW Token (0xD1); variable length.
Column 1
Length [1]: 117
Row data [117]: "Adaptive Server
Enterprise/12.5.3/EBF 13331 ESD#7/P/NT (IX86)/OS
4.0/ase1253/1951/32-bit/OPT/Fri Mar 24 02:17:56 2006"
(0x41646170746976652053657276657220456E74657270726973652F3
1322E352E332F4542462031333333312045534423372F502F4E5420284
9583836292F4F5320342E302F617365313235332F313935312F33322D6
269742F4F50542F467269204D61722032342030323A31373A353620323
03036)

70. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

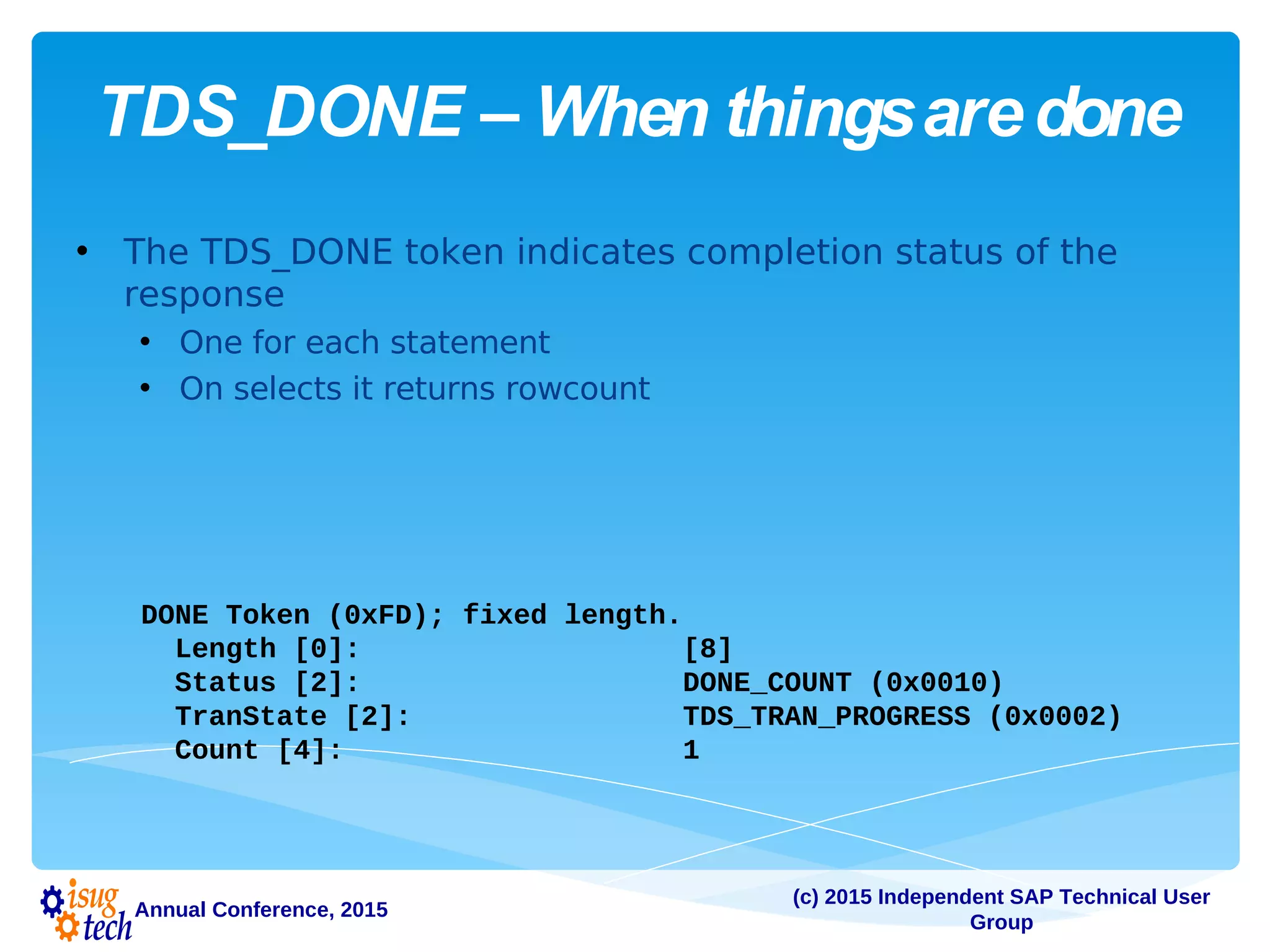

TDS_DONE – When thingsaredone
• The TDS_DONE token indicates completion status of the
response
• One for each statement
• On selects it returns rowcount
DONE Token (0xFD); fixed length.
Length [0]: [8]
Status [2]: DONE_COUNT (0x0010)
TranState [2]: TDS_TRAN_PROGRESS (0x0002)
Count [4]: 1

71. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

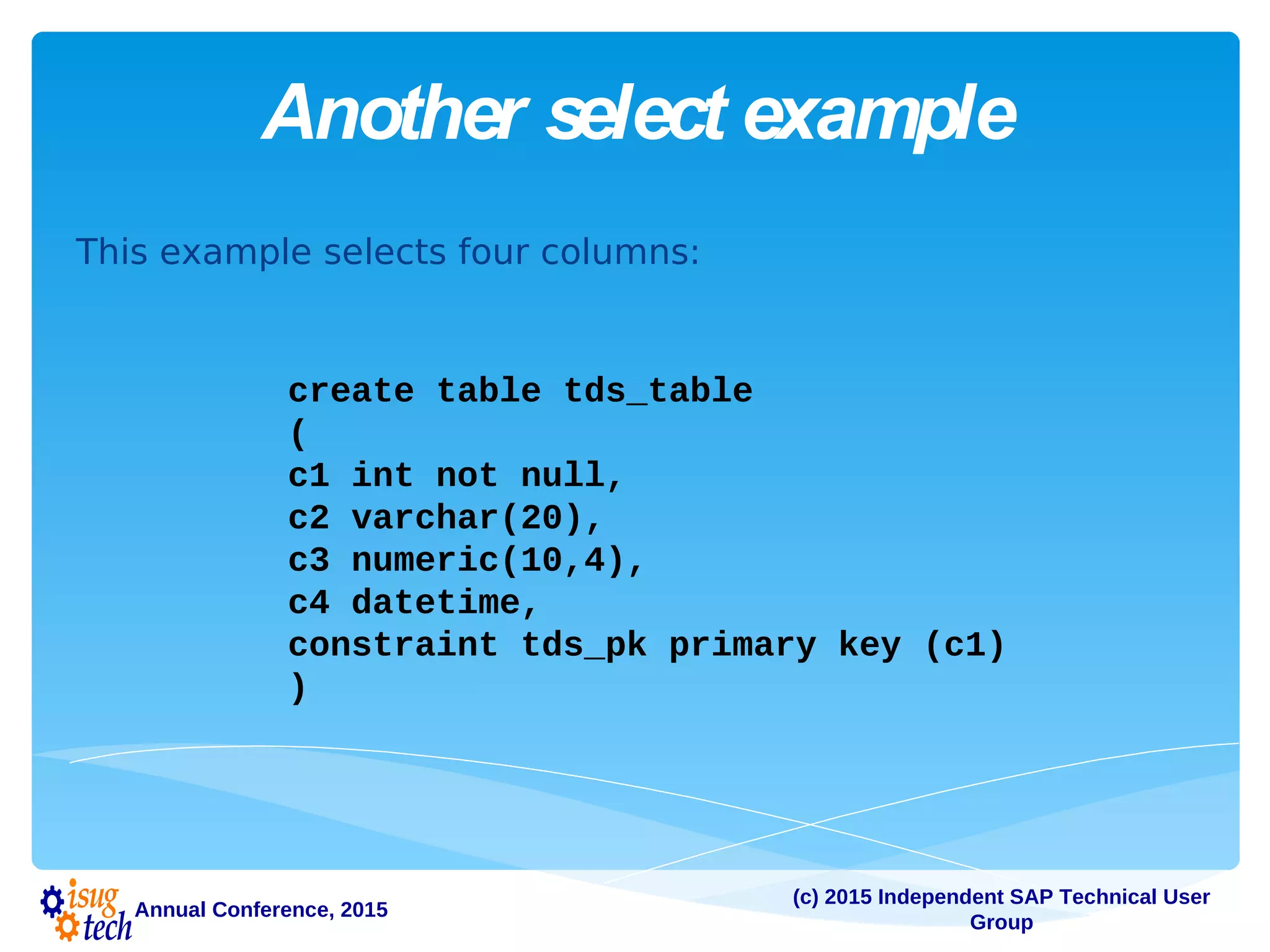

Another select example
This example selects four columns:
create table tds_table
(
c1 int not null,
c2 varchar(20),
c3 numeric(10,4),
c4 datetime,
constraint tds_pk primary key (c1)
)

72. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

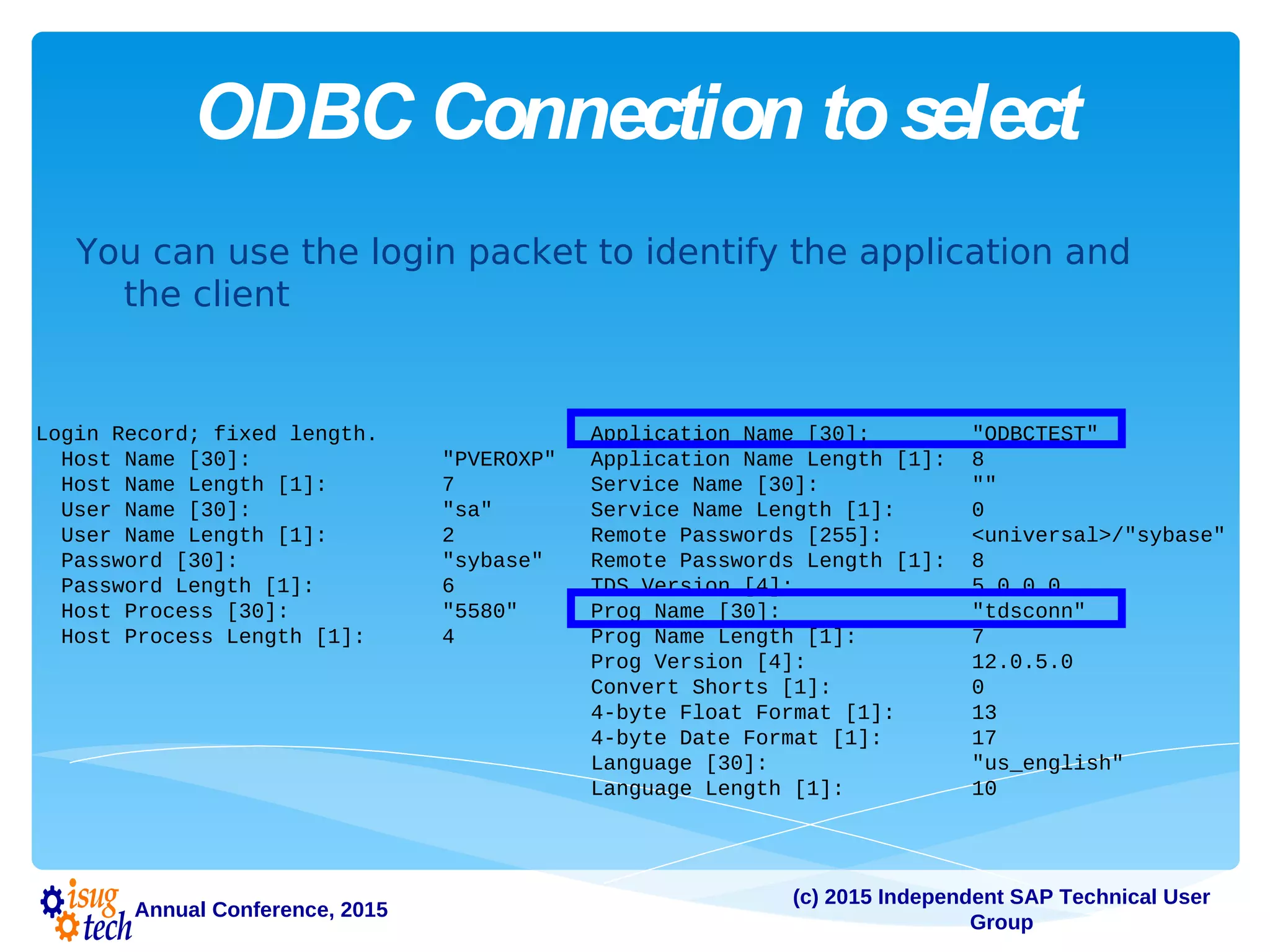

ODBC Connection toselect
You can use the login packet to identify the application and
the client
Login Record; fixed length.
Host Name [30]: "PVEROXP"
Host Name Length [1]: 7
User Name [30]: "sa"
User Name Length [1]: 2
Password [30]: "sybase"
Password Length [1]: 6
Host Process [30]: "5580"
Host Process Length [1]: 4
Application Name [30]: "ODBCTEST"
Application Name Length [1]: 8
Service Name [30]: ""
Service Name Length [1]: 0
Remote Passwords [255]: <universal>/"sybase"
Remote Passwords Length [1]: 8
TDS Version [4]: 5.0.0.0
Prog Name [30]: "tdsconn"
Prog Name Length [1]: 7
Prog Version [4]: 12.0.5.0
Convert Shorts [1]: 0
4-byte Float Format [1]: 13
4-byte Date Format [1]: 17
Language [30]: "us_english"
Language Length [1]: 10

73. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

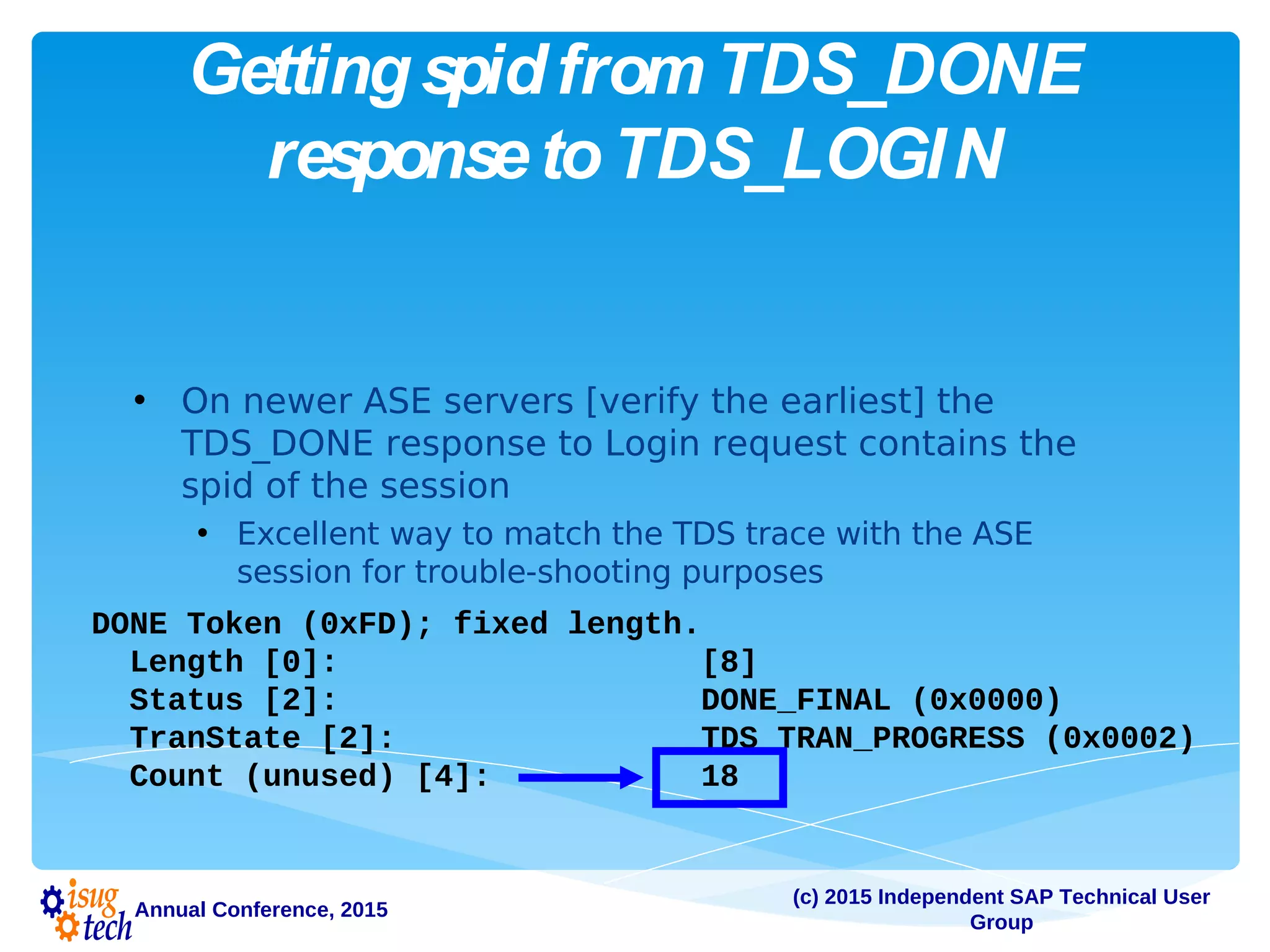

GettingspidfromTDS_DONE
responsetoTDS_LOGIN
• On newer ASE servers [verify the earliest] the
TDS_DONE response to Login request contains the
spid of the session
• Excellent way to match the TDS trace with the ASE
session for trouble-shooting purposes
DONE Token (0xFD); fixed length.
Length [0]: [8]
Status [2]: DONE_FINAL (0x0000)
TranState [2]: TDS_TRAN_PROGRESS (0x0002)
Count (unused) [4]: 18

74. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

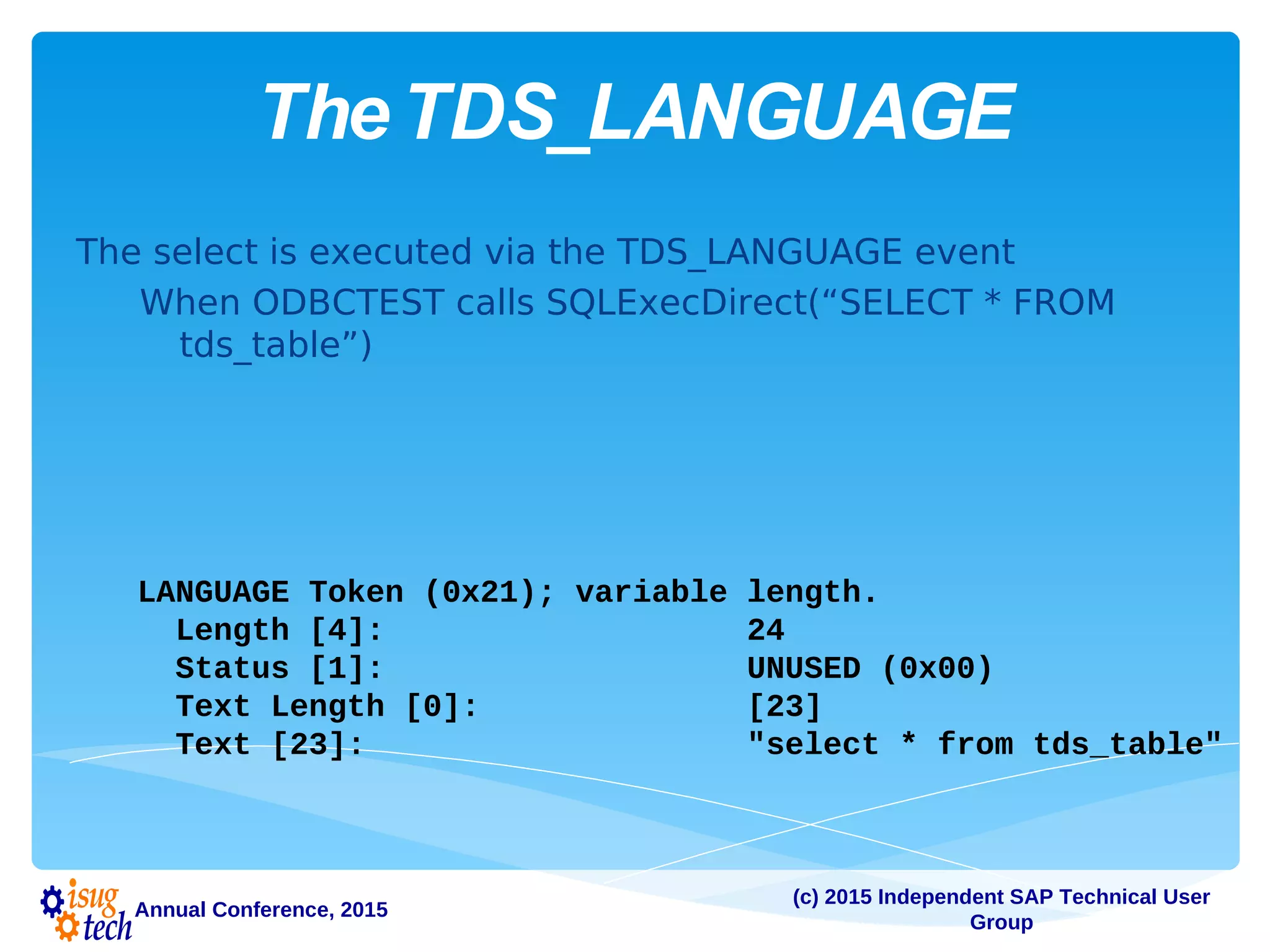

TheTDS_LANGUAGE
The select is executed via the TDS_LANGUAGE event
When ODBCTEST calls SQLExecDirect(“SELECT * FROM
tds_table”)
LANGUAGE Token (0x21); variable length.
Length [4]: 24
Status [1]: UNUSED (0x00)
Text Length [0]: [23]
Text [23]: "select * from tds_table"

75. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Contents
Introduction to TDS
Versions
PDF documents
TDSDocumentation
Capturetools
Ribo
GuiProx
Sniffers
Srv.log
Tokensand Flow
TDS_ENVCHANGE, EED, LANGUAGE, etc
Simple select from execution to response, result set
Formats
Row Data
Parameters
Stored procedure calls with parameters

76. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

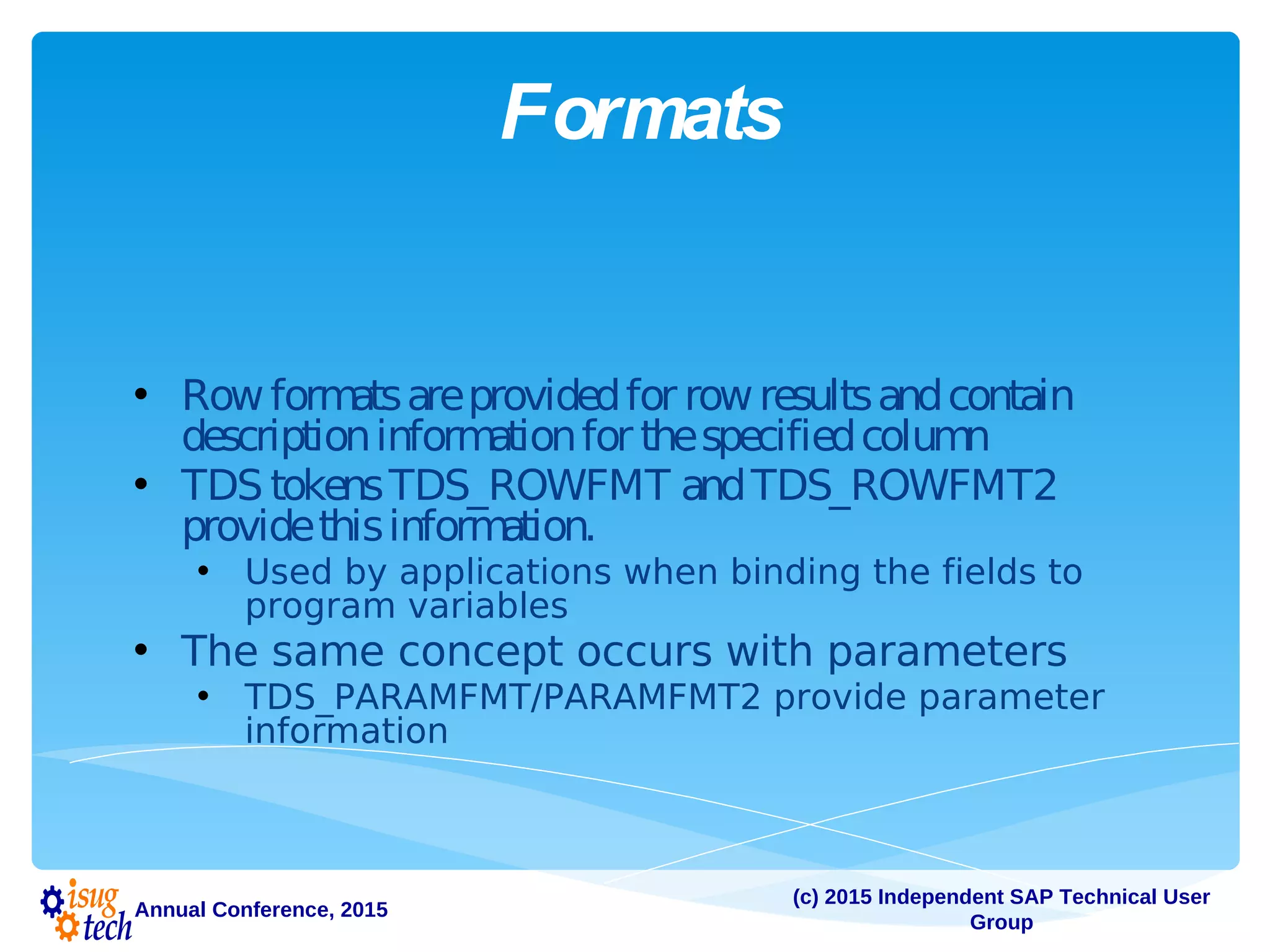

Formats
• Rowformatsareprovidedfor rowresultsandcontain
descriptioninformationfor thespecifiedcolumn
• TDS tokensTDS_ROWFMT andTDS_ROWFMT2
providethisinformation.
• Used by applications when binding the fields to
program variables
• The same concept occurs with parameters
• TDS_PARAMFMT/PARAMFMT2 provide parameter
information

77. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

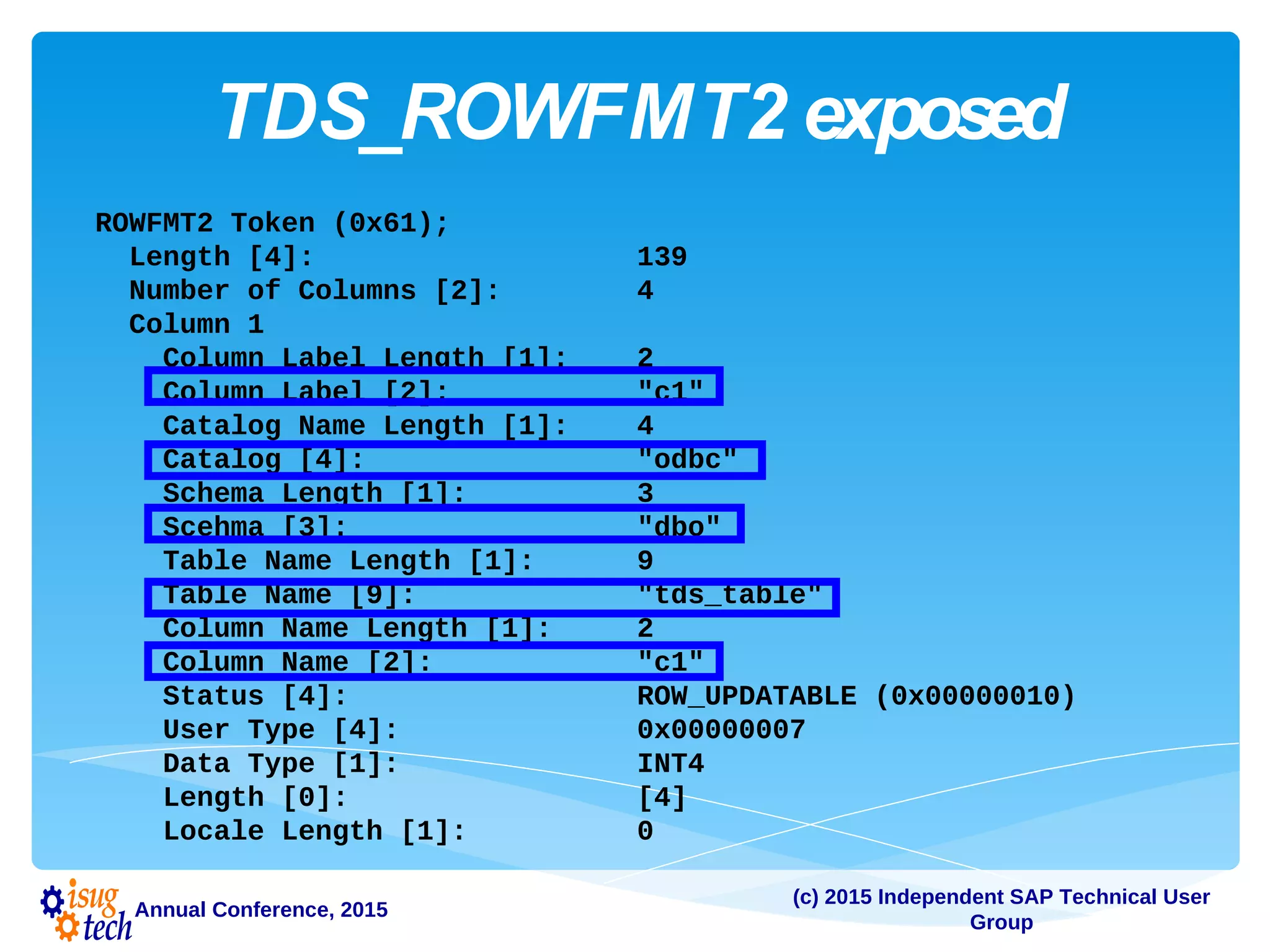

TDS_ROWFMT2 exposed
ROWFMT2 Token (0x61);
Length [4]: 139
Number of Columns [2]: 4
Column 1
Column Label Length [1]: 2
Column Label [2]: "c1"
Catalog Name Length [1]: 4
Catalog [4]: "odbc"
Schema Length [1]: 3
Scehma [3]: "dbo"
Table Name Length [1]: 9
Table Name [9]: "tds_table"
Column Name Length [1]: 2
Column Name [2]: "c1"
Status [4]: ROW_UPDATABLE (0x00000010)
User Type [4]: 0x00000007
Data Type [1]: INT4
Length [0]: [4]
Locale Length [1]: 0

78. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

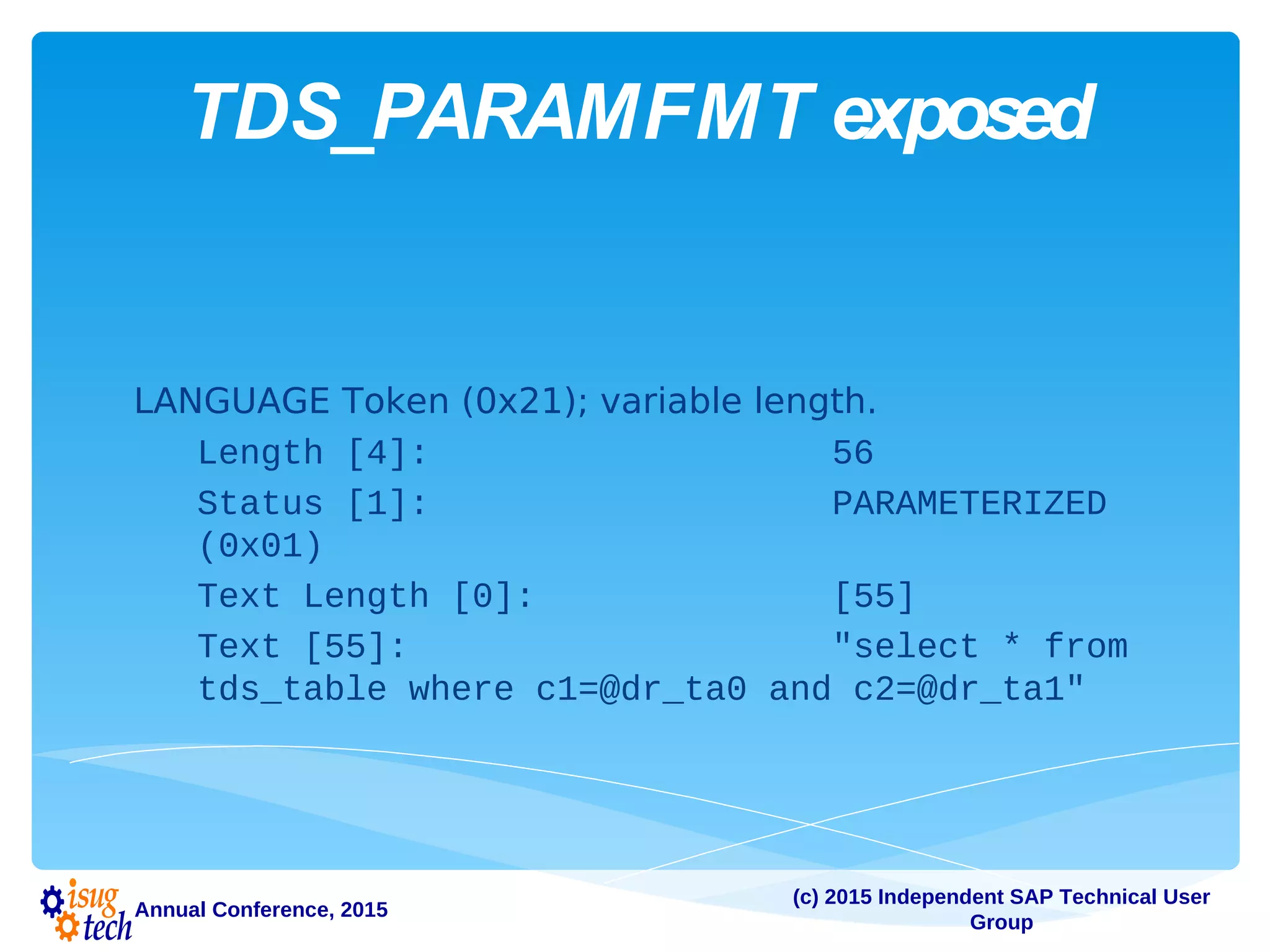

TDS_PARAMFMT exposed
LANGUAGE Token (0x21); variable length.
Length [4]: 56
Status [1]: PARAMETERIZED
(0x01)
Text Length [0]: [55]
Text [55]: "select * from
tds_table where c1=@dr_ta0 and c2=@dr_ta1"

79. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

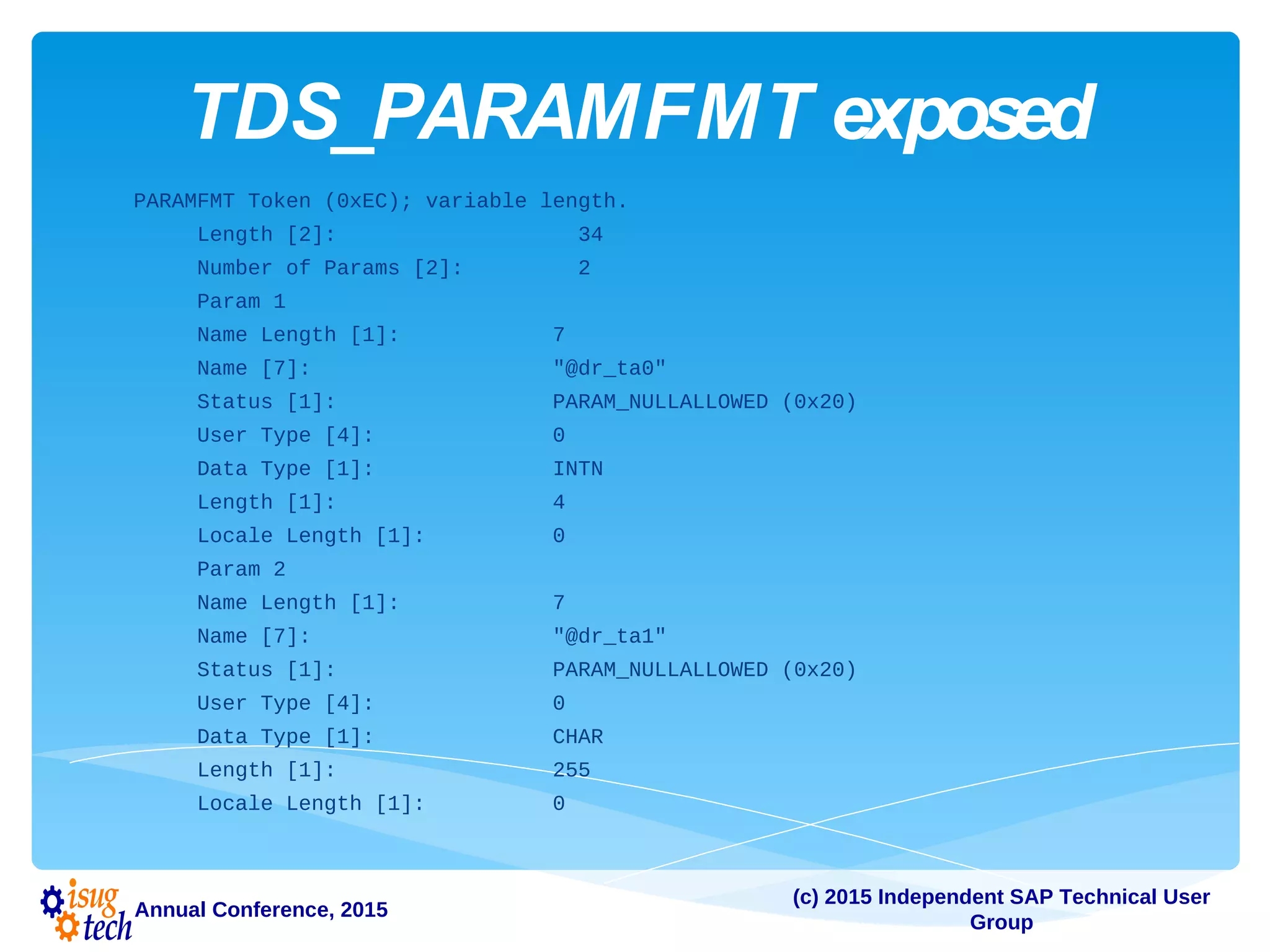

TDS_PARAMFMT exposed
PARAMFMT Token (0xEC); variable length.
Length [2]: 34
Number of Params [2]: 2
Param 1
Name Length [1]: 7
Name [7]: "@dr_ta0"
Status [1]: PARAM_NULLALLOWED (0x20)
User Type [4]: 0
Data Type [1]: INTN
Length [1]: 4
Locale Length [1]: 0
Param 2
Name Length [1]: 7
Name [7]: "@dr_ta1"
Status [1]: PARAM_NULLALLOWED (0x20)
User Type [4]: 0
Data Type [1]: CHAR
Length [1]: 255
Locale Length [1]: 0

80. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

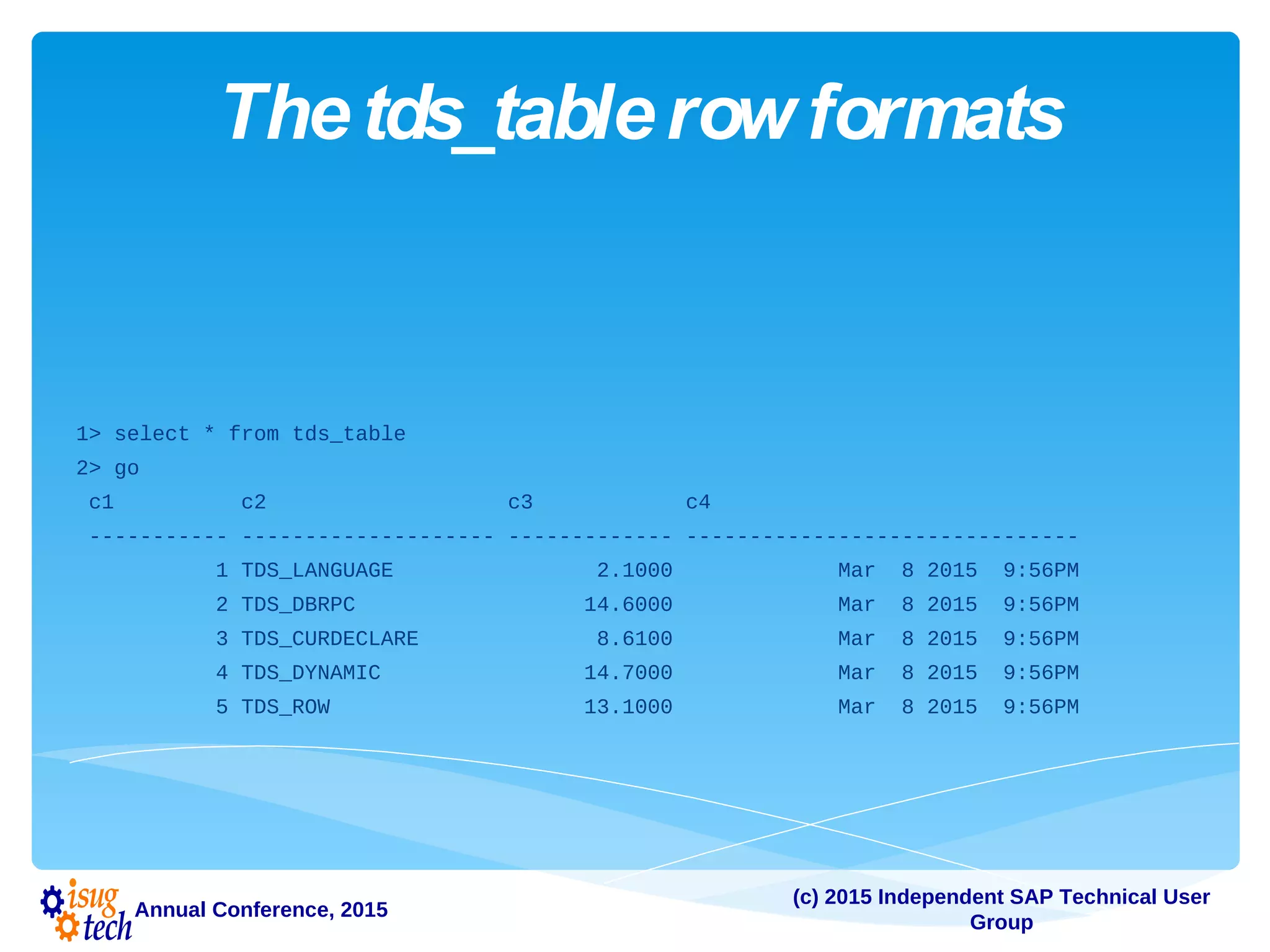

Thetds_tablerowformats
1> select * from tds_table
2> go
c1 c2 c3 c4
----------- -------------------- ------------- -------------------------------
1 TDS_LANGUAGE 2.1000 Mar 8 2015 9:56PM
2 TDS_DBRPC 14.6000 Mar 8 2015 9:56PM
3 TDS_CURDECLARE 8.6100 Mar 8 2015 9:56PM
4 TDS_DYNAMIC 14.7000 Mar 8 2015 9:56PM
5 TDS_ROW 13.1000 Mar 8 2015 9:56PM

81. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Thetds_tablerowformats
ROWFMT Token (0xEE);
Length [2]: 46
Number of Columns [2]: 4
Column 1
Name Length [1]: 2
Name [2]: "c1"
Status [1]: ROW_UPDATABLE (0x10)
User Type [4]: 7
Data Type [1]: INT4
Length [0]: [4]
Locale Length [1]: 0

82. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Thetds_tablerowformats

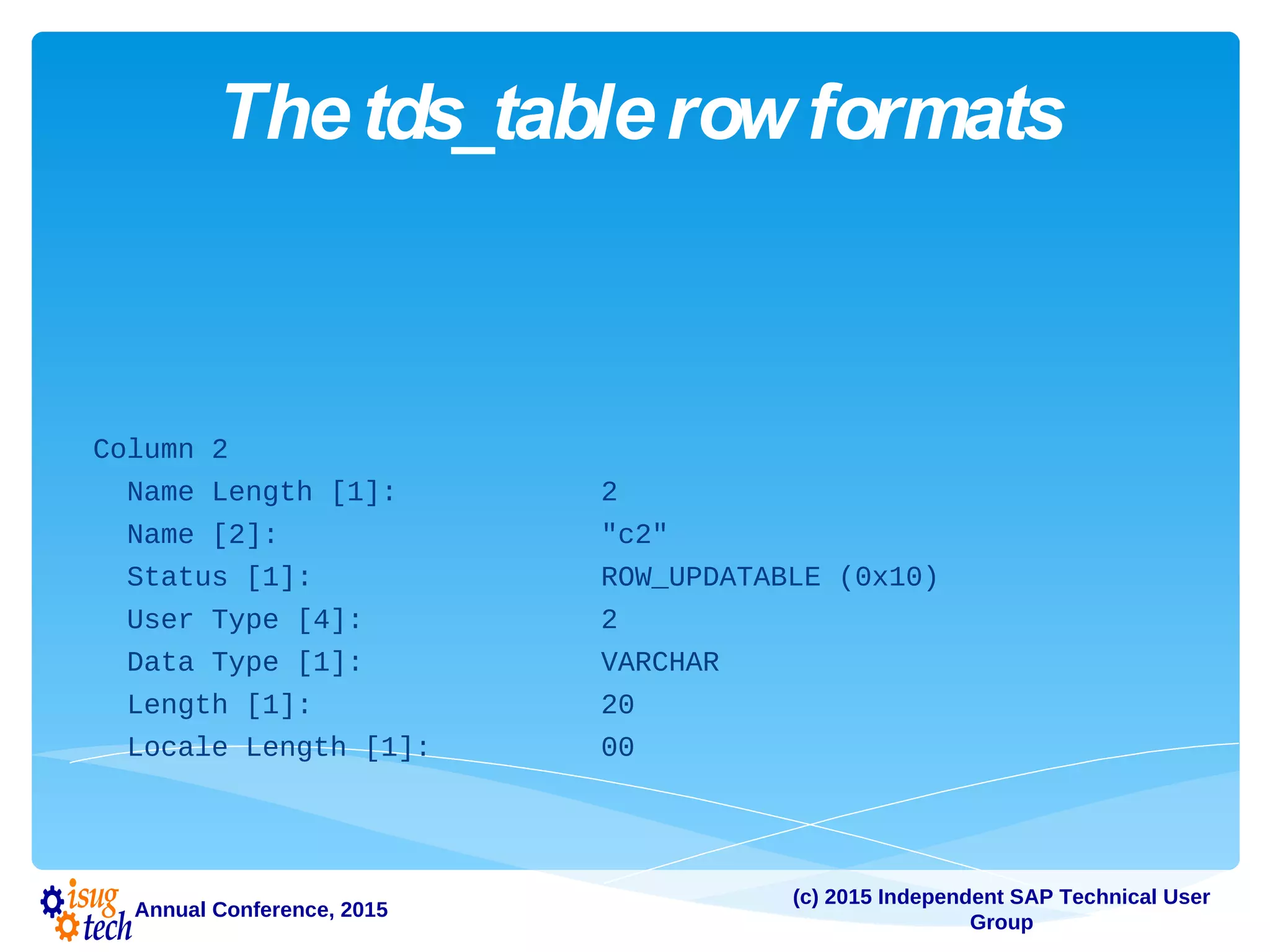

Column 2
Name Length [1]: 2
Name [2]: "c2"
Status [1]: ROW_UPDATABLE (0x10)
User Type [4]: 2
Data Type [1]: VARCHAR
Length [1]: 20
Locale Length [1]: 00

83. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Thetds_tablerowformats

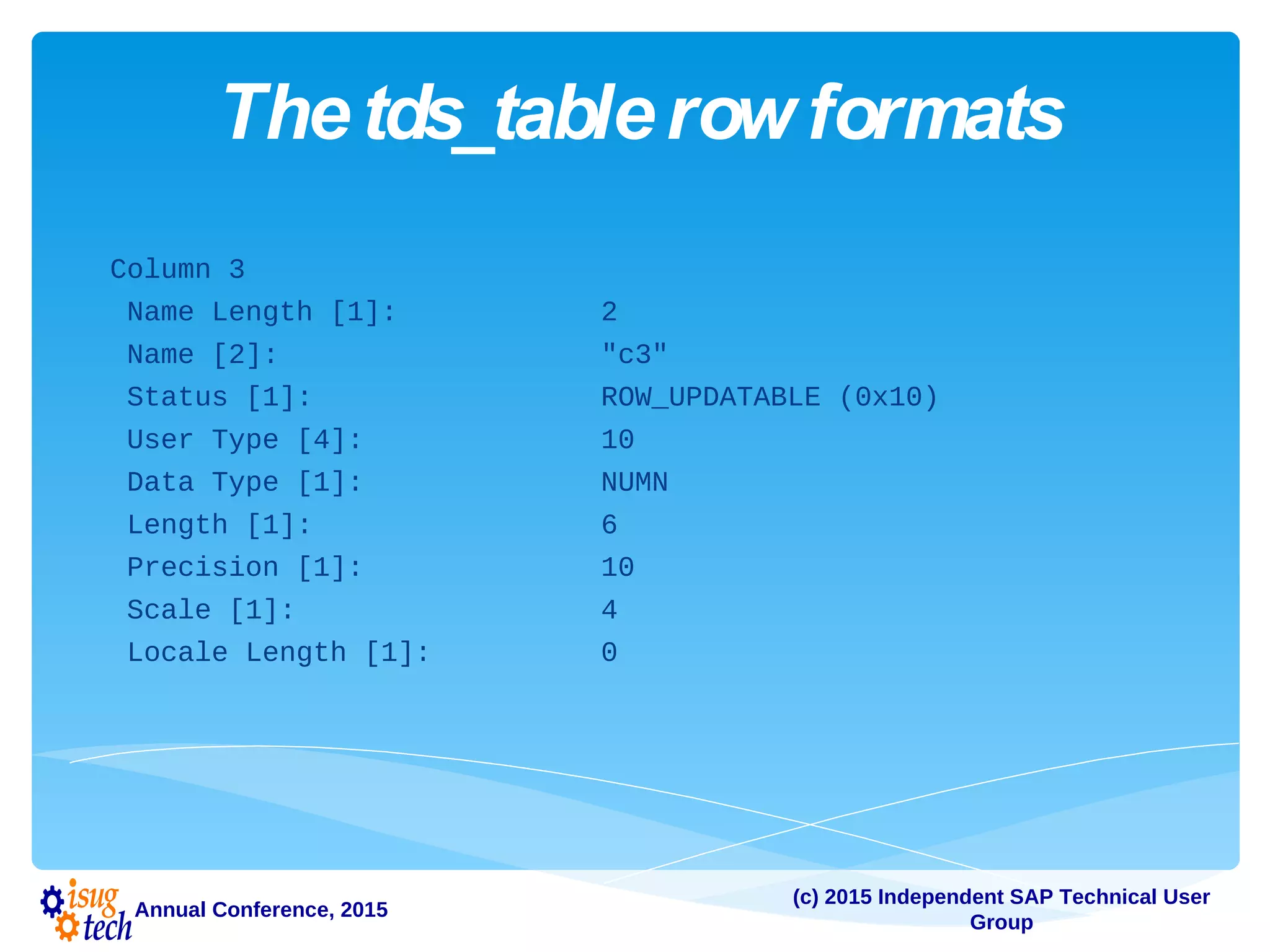

Column 3
Name Length [1]: 2
Name [2]: "c3"
Status [1]: ROW_UPDATABLE (0x10)
User Type [4]: 10
Data Type [1]: NUMN
Length [1]: 6
Precision [1]: 10
Scale [1]: 4
Locale Length [1]: 0

84. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Thetds_tablerowformats
Column 4
Name Length [1]: 2
Name [2]: "c4"
Status [1]: ROW_UPDATABLE (0x10)
User Type [4]: 12
Data Type [1]: DATETIM
Length [0]: [8]
Locale Length [1]: 0

85. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

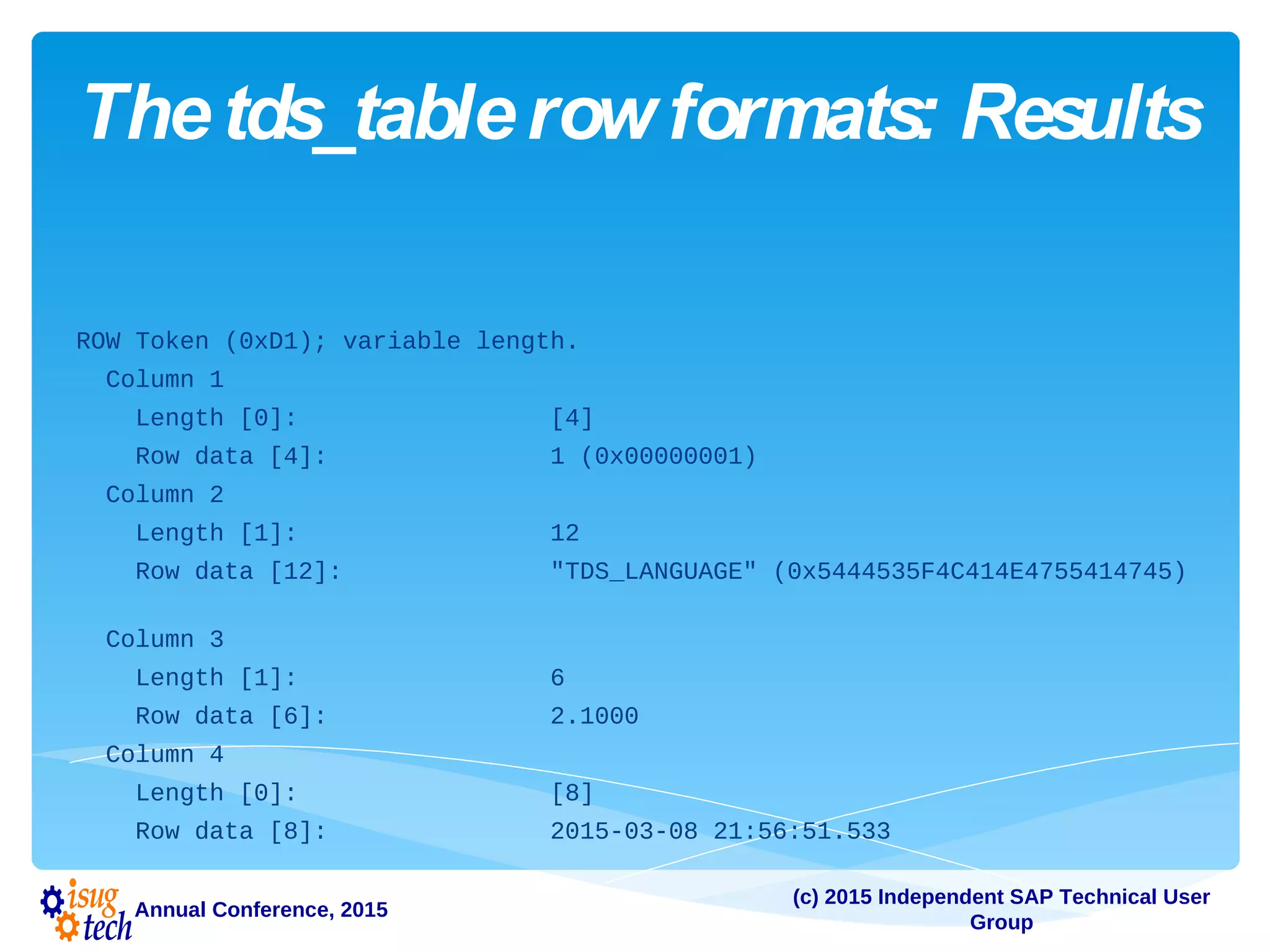

Thetds_tablerowformats: Results
ROW Token (0xD1); variable length.
Column 1
Length [0]: [4]
Row data [4]: 1 (0x00000001)
Column 2
Length [1]: 12
Row data [12]: "TDS_LANGUAGE" (0x5444535F4C414E4755414745)
Column 3
Length [1]: 6
Row data [6]: 2.1000
Column 4
Length [0]: [8]
Row data [8]: 2015-03-08 21:56:51.533

86. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Contents
Introduction to TDS
Versions
PDF documents
TDSDocumentation
Capturetools
Ribo
GuiProx
Sniffers
Srv.log
Tokensand Flow
TDS_ENVCHANGE, EED, LANGUAGE, etc
Simple select from execution to response, result set
Formats
Row Data
Parameters
Stored procedurecallswith parameters

87. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

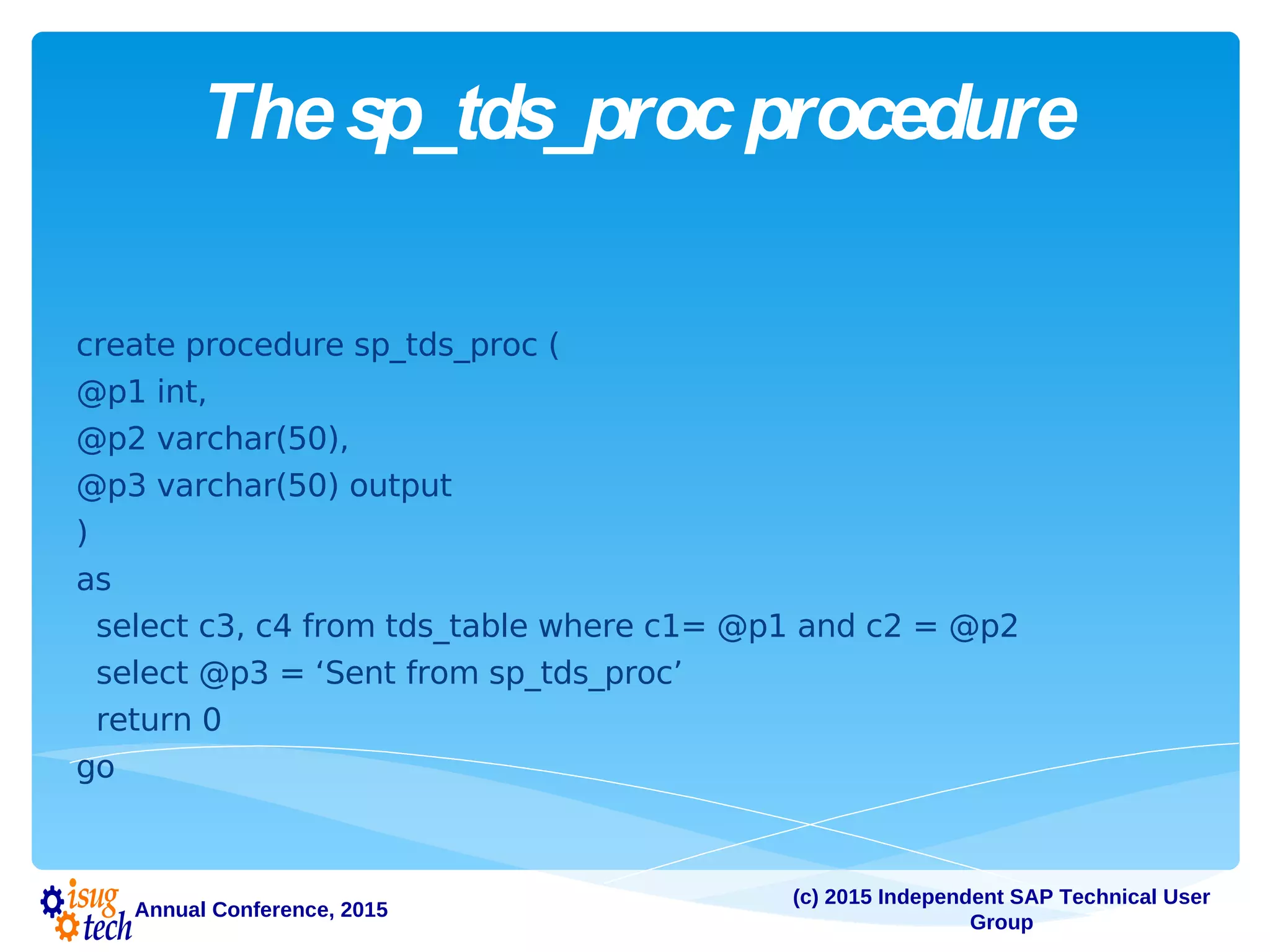

Thesp_tds_procprocedure
create procedure sp_tds_proc (
@p1 int,
@p2 varchar(50),
@p3 varchar(50) output
)
as
select c3, c4 from tds_table where c1= @p1 and c2 = @p2
select @p3 = ‘Sent from sp_tds_proc’
return 0
go

88. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

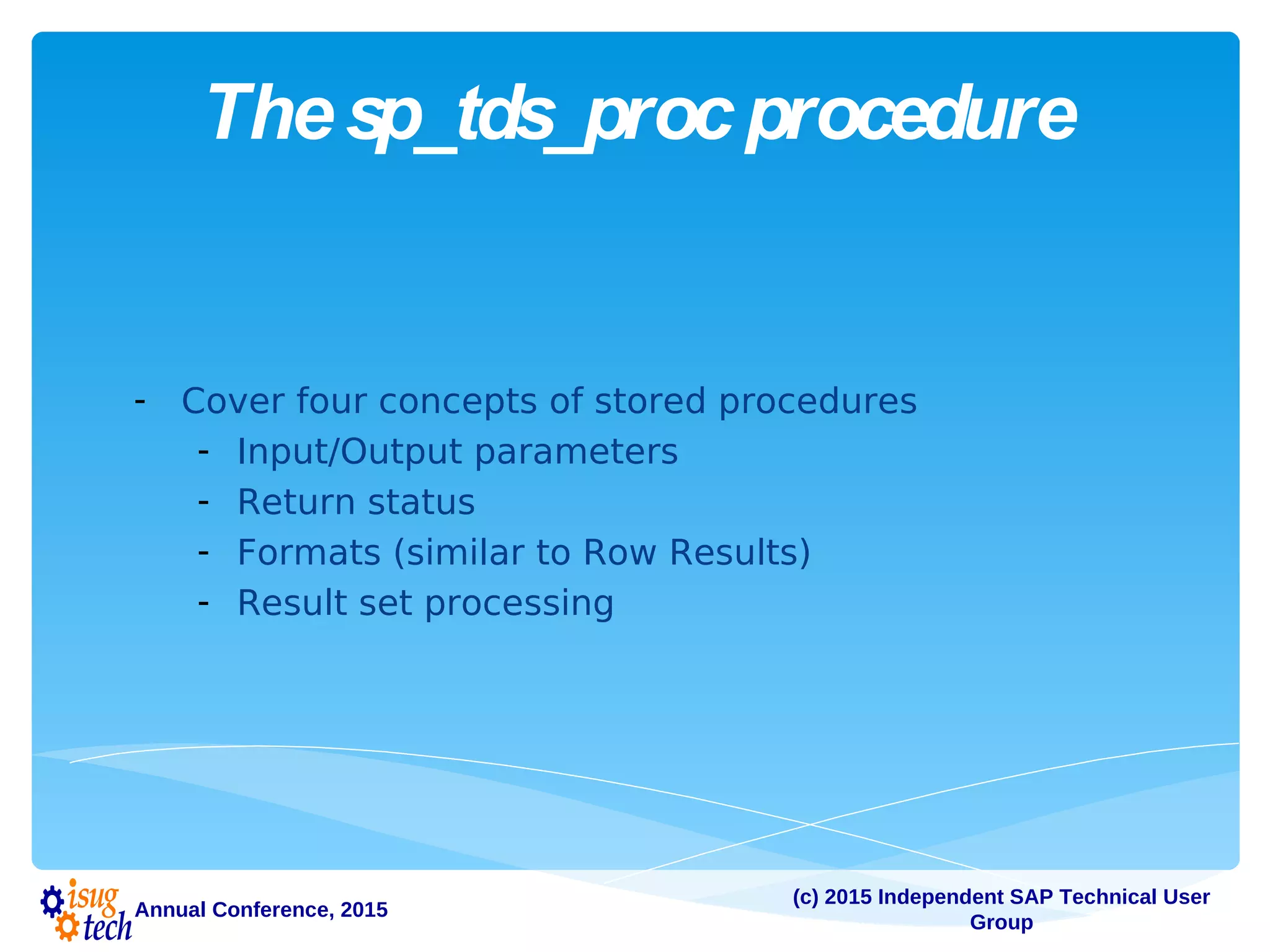

Thesp_tds_procprocedure
- Cover four concepts of stored procedures
- Input/Output parameters
- Return status
- Formats (similar to Row Results)
- Result set processing

89. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

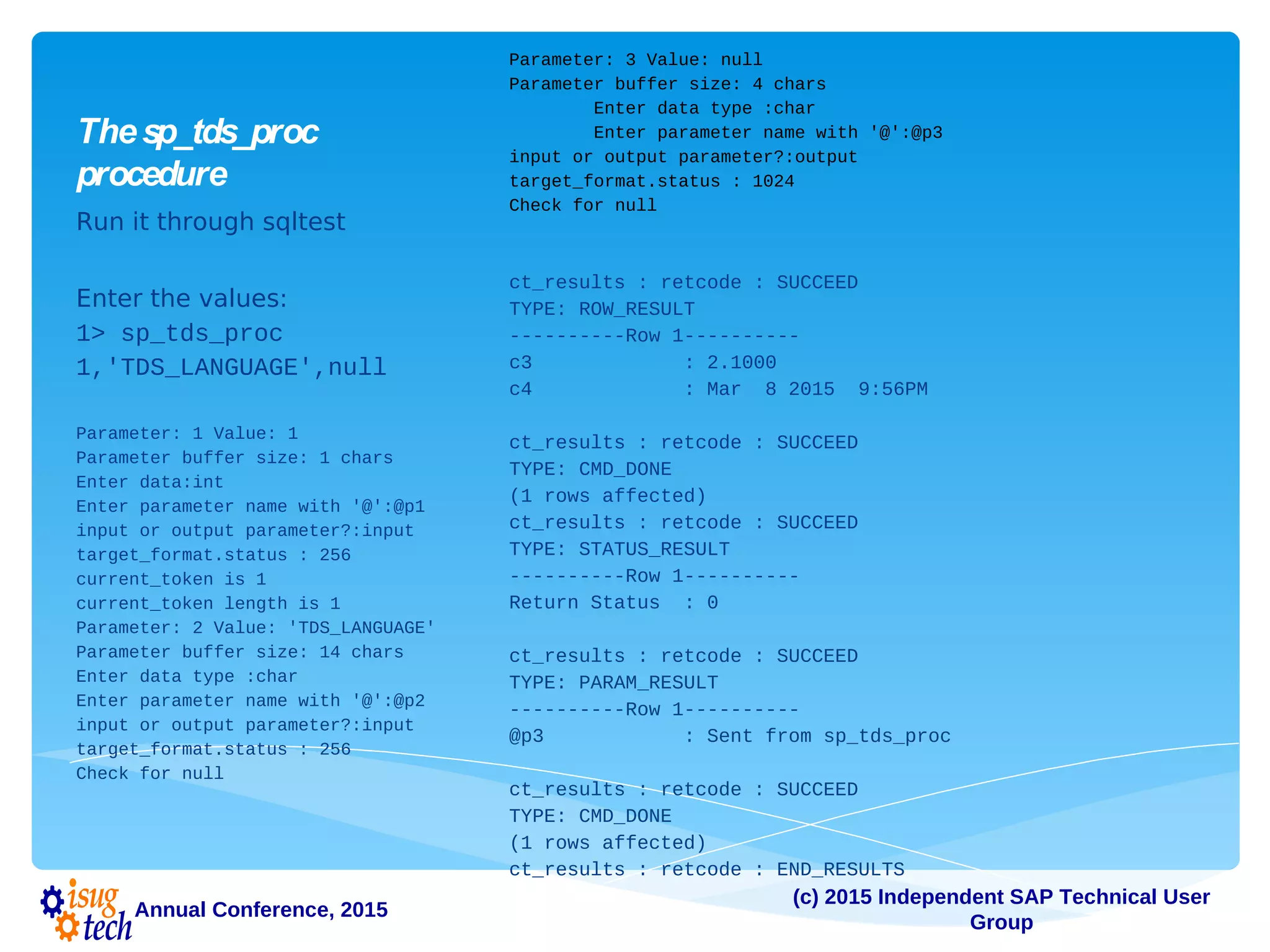

Thesp_tds_proc
procedure
Parameter: 3 Value: null
Parameter buffer size: 4 chars
Enter data type :char
Enter parameter name with '@':@p3
input or output parameter?:output
target_format.status : 1024
Check for null
ct_results : retcode : SUCCEED
TYPE: ROW_RESULT
----------Row 1----------
c3 : 2.1000
c4 : Mar 8 2015 9:56PM
ct_results : retcode : SUCCEED
TYPE: CMD_DONE
(1 rows affected)
ct_results : retcode : SUCCEED
TYPE: STATUS_RESULT
----------Row 1----------
Return Status : 0
ct_results : retcode : SUCCEED
TYPE: PARAM_RESULT
----------Row 1----------
@p3 : Sent from sp_tds_proc
ct_results : retcode : SUCCEED
TYPE: CMD_DONE
(1 rows affected)
ct_results : retcode : END_RESULTS
Run it through sqltest
Enter the values:
1> sp_tds_proc
1,'TDS_LANGUAGE',null
Parameter: 1 Value: 1
Parameter buffer size: 1 chars
Enter data:int
Enter parameter name with '@':@p1
input or output parameter?:input
target_format.status : 256
current_token is 1
current_token length is 1
Parameter: 2 Value: 'TDS_LANGUAGE'
Parameter buffer size: 14 chars
Enter data type :char
Enter parameter name with '@':@p2
input or output parameter?:input
target_format.status : 256
Check for null

90. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

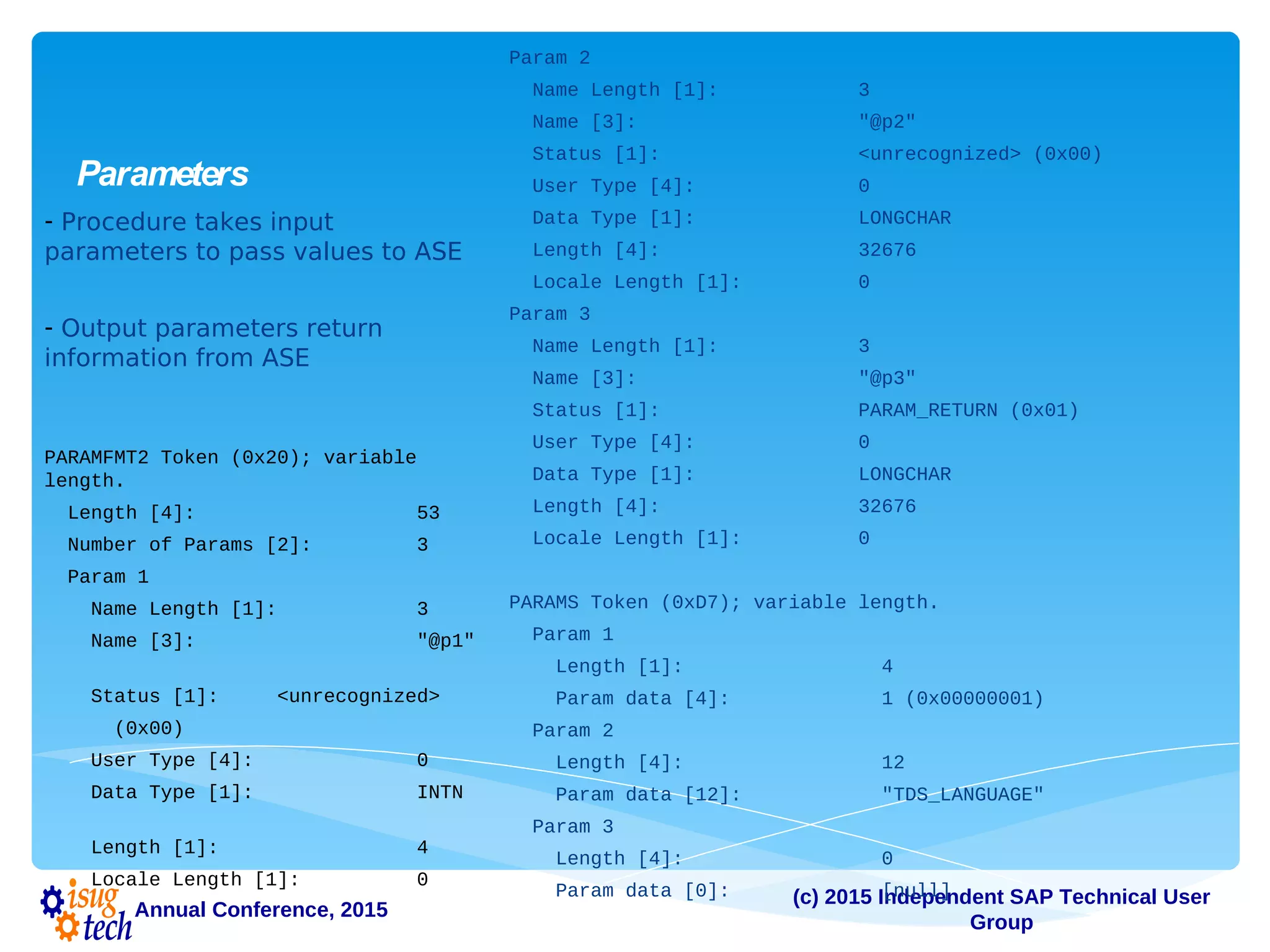

Parameters
Param 2
Name Length [1]: 3
Name [3]: "@p2"
Status [1]: <unrecognized> (0x00)
User Type [4]: 0
Data Type [1]: LONGCHAR
Length [4]: 32676
Locale Length [1]: 0
Param 3
Name Length [1]: 3
Name [3]: "@p3"
Status [1]: PARAM_RETURN (0x01)
User Type [4]: 0
Data Type [1]: LONGCHAR
Length [4]: 32676
Locale Length [1]: 0
PARAMS Token (0xD7); variable length.
Param 1
Length [1]: 4
Param data [4]: 1 (0x00000001)
Param 2
Length [4]: 12
Param data [12]: "TDS_LANGUAGE"
Param 3
Length [4]: 0
Param data [0]: [null]
- Procedure takes input
parameters to pass values to ASE
- Output parameters return
information from ASE
PARAMFMT2 Token (0x20); variable
length.
Length [4]: 53
Number of Params [2]: 3
Param 1
Name Length [1]: 3
Name [3]: "@p1"
Status [1]: <unrecognized>
(0x00)
User Type [4]: 0
Data Type [1]: INTN
Length [1]: 4
Locale Length [1]: 0

91. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

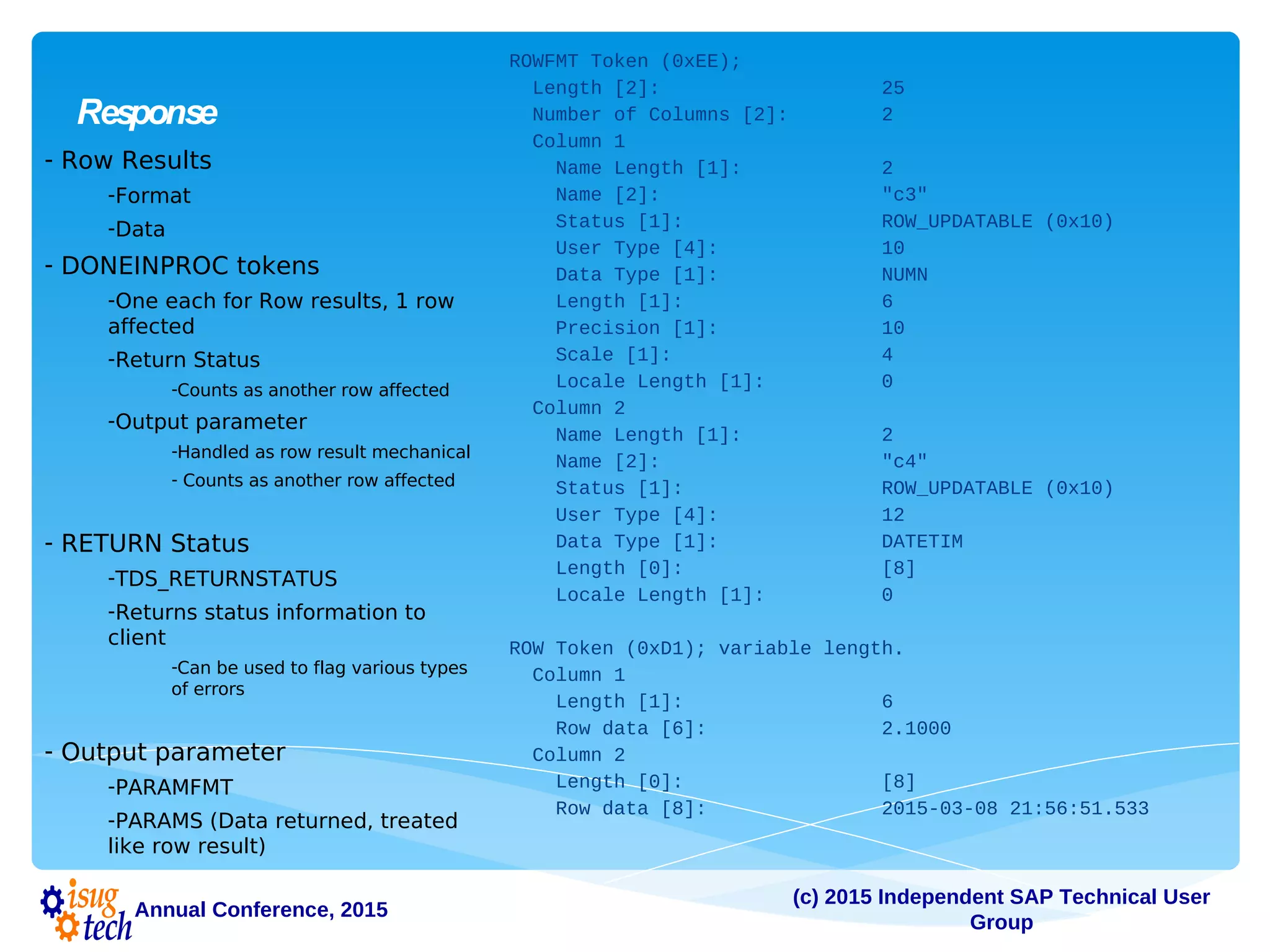

Response
ROWFMT Token (0xEE);
Length [2]: 25
Number of Columns [2]: 2
Column 1
Name Length [1]: 2
Name [2]: "c3"
Status [1]: ROW_UPDATABLE (0x10)
User Type [4]: 10
Data Type [1]: NUMN
Length [1]: 6
Precision [1]: 10
Scale [1]: 4
Locale Length [1]: 0
Column 2
Name Length [1]: 2
Name [2]: "c4"
Status [1]: ROW_UPDATABLE (0x10)
User Type [4]: 12
Data Type [1]: DATETIM
Length [0]: [8]
Locale Length [1]: 0
ROW Token (0xD1); variable length.
Column 1
Length [1]: 6
Row data [6]: 2.1000
Column 2
Length [0]: [8]
Row data [8]: 2015-03-08 21:56:51.533
- Row Results
-Format
-Data
- DONEINPROC tokens
-One each for Row results, 1 row
affected
-Return Status
-Counts as another row affected
-Output parameter
-Handled as row result mechanical
- Counts as another row affected
- RETURN Status
-TDS_RETURNSTATUS
-Returns status information to
client
-Can be used to flag various types
of errors
- Output parameter
-PARAMFMT
-PARAMS (Data returned, treated
like row result)

92. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

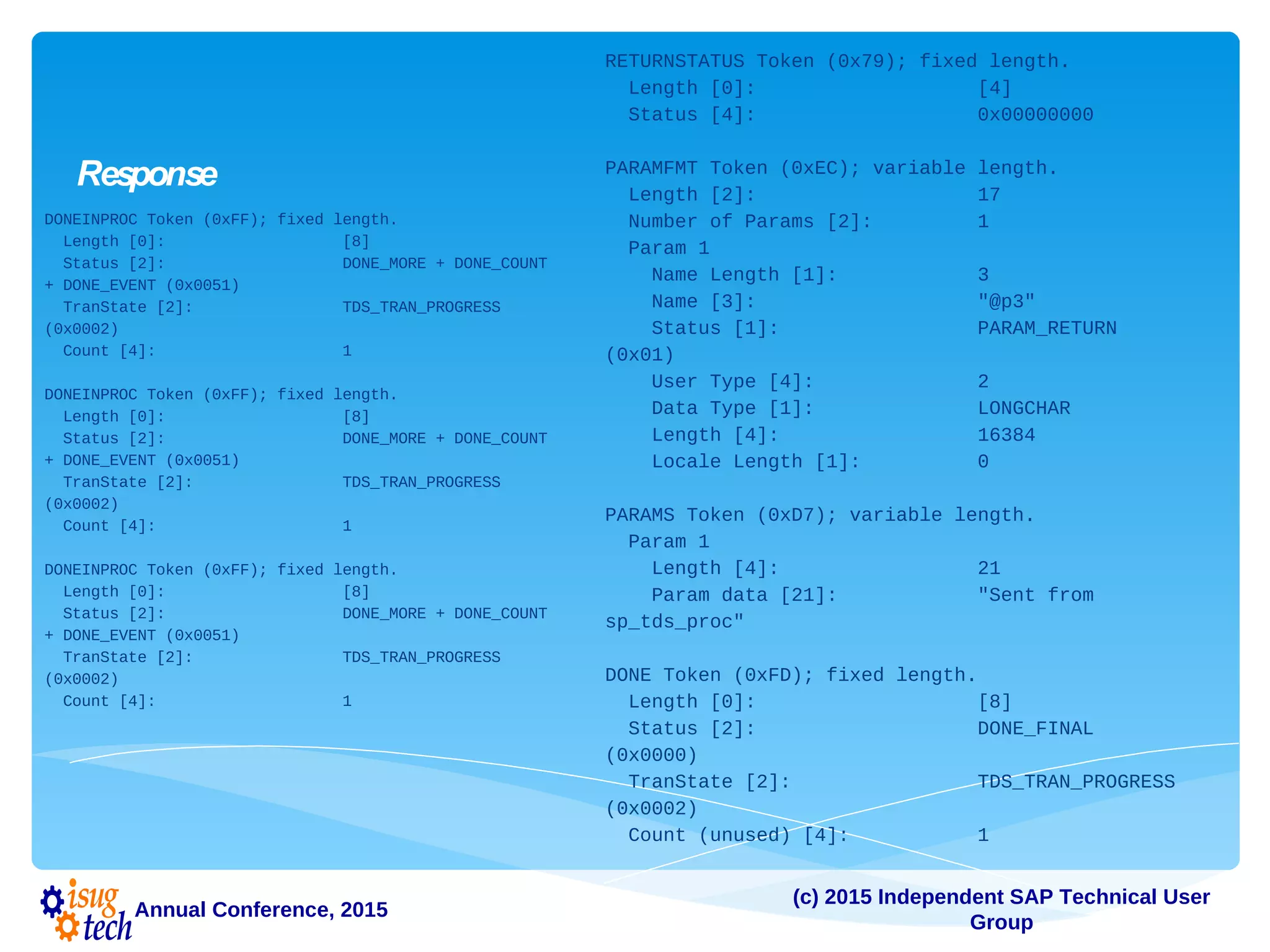

Response
RETURNSTATUS Token (0x79); fixed length.
Length [0]: [4]
Status [4]: 0x00000000
PARAMFMT Token (0xEC); variable length.
Length [2]: 17
Number of Params [2]: 1
Param 1
Name Length [1]: 3
Name [3]: "@p3"
Status [1]: PARAM_RETURN
(0x01)
User Type [4]: 2
Data Type [1]: LONGCHAR
Length [4]: 16384
Locale Length [1]: 0
PARAMS Token (0xD7); variable length.
Param 1
Length [4]: 21
Param data [21]: "Sent from
sp_tds_proc"
DONE Token (0xFD); fixed length.
Length [0]: [8]
Status [2]: DONE_FINAL
(0x0000)
TranState [2]: TDS_TRAN_PROGRESS
(0x0002)
Count (unused) [4]: 1
DONEINPROC Token (0xFF); fixed length.
Length [0]: [8]
Status [2]: DONE_MORE + DONE_COUNT
+ DONE_EVENT (0x0051)
TranState [2]: TDS_TRAN_PROGRESS
(0x0002)
Count [4]: 1
DONEINPROC Token (0xFF); fixed length.
Length [0]: [8]
Status [2]: DONE_MORE + DONE_COUNT
+ DONE_EVENT (0x0051)
TranState [2]: TDS_TRAN_PROGRESS
(0x0002)
Count [4]: 1
DONEINPROC Token (0xFF); fixed length.
Length [0]: [8]
Status [2]: DONE_MORE + DONE_COUNT
+ DONE_EVENT (0x0051)
TranState [2]: TDS_TRAN_PROGRESS
(0x0002)
Count [4]: 1

93. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015

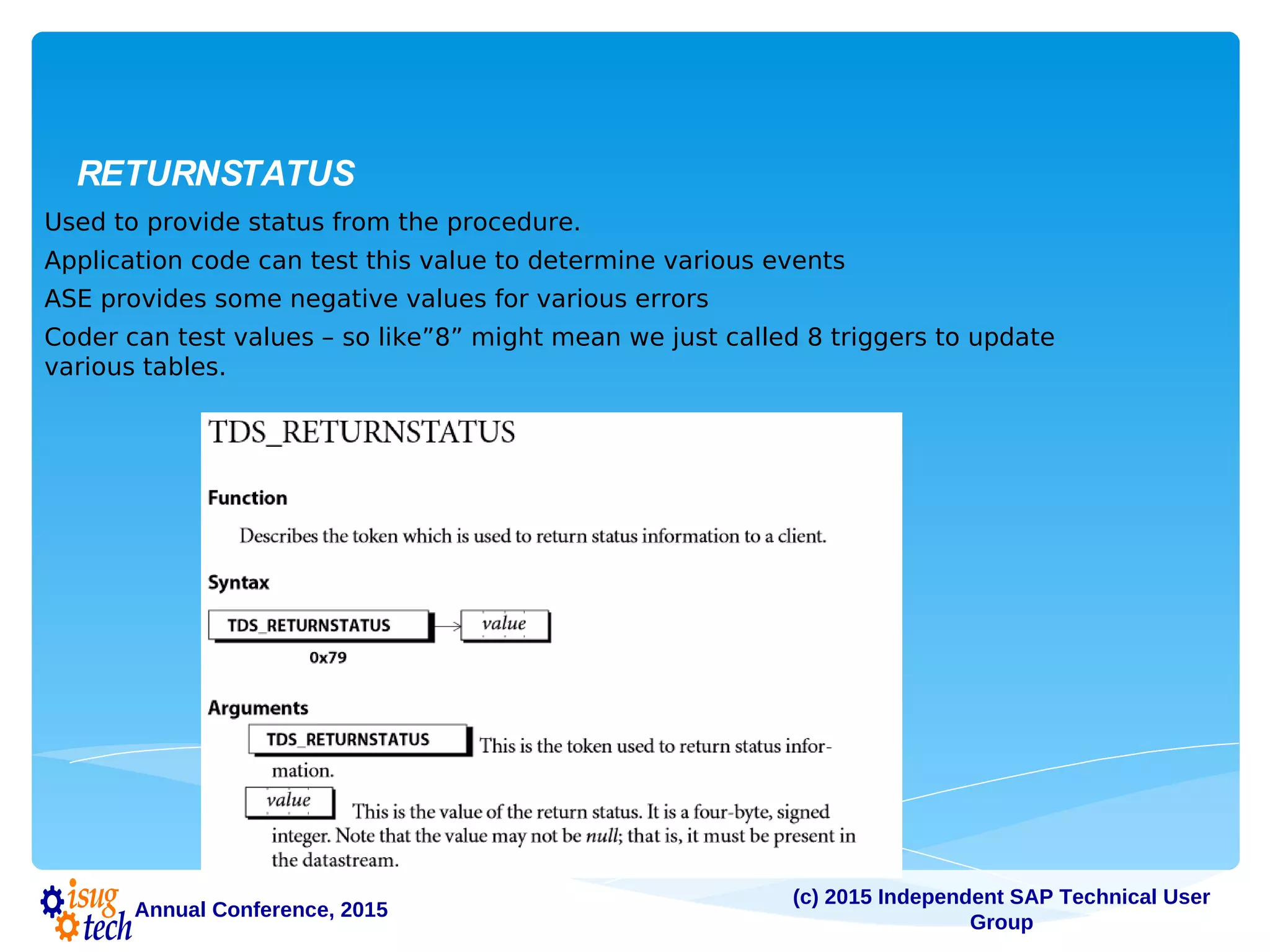

RETURNSTATUS
Used to provide status from the procedure.
Application code can test this value to determine various events
ASE provides some negative values for various errors
Coder can test values – so like”8” might mean we just called 8 triggers to update
various tables.

94. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Summary
TDS used to troubleshoot errors
On client or ASE?
Reverse Engineer
Can use the output to write test code to represent
problem
Understand communication between Server and Client

95. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
Question andAnswer
Questions

96. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
ISUG articles
• TDS Revealed: A Primer to Understanding the
Communication Language of ASE
• Issue 2, 2009
• Chomping on the Network with Wireshark
• November 2010 and January 2011
• TDS Case Studies: Root Cause Analysis Techniques
for ASE Drivers
• September 2010

97. (c) 2015 Independent SAP Technical User
Group
Annual Conference, 2015
MoreResources
• Product Documentation
•
http://help.sap.com/adaptive-server-enterprise?current= database&show_children= false
• How to get best results from an SAP Search
• https://service.sap.com/sap/support/notes/2081285
• Service Market Place/Support
• https://service.sap.com
• https://support.sap.com/home.html
• SAP Communities
• http://scn.sap.com/community/sybase-adaptive-server-enterprise
• http://scn.sap.com/community/developer-center/oltp-db
• Social Media Product Support Channels
• https://www.facebook.com/SapProductSupport
• https://twitter.com/SAPSupporthelp
