1. On MongoDB Backup
2014.05.02.
葉秉哲
William Yeh

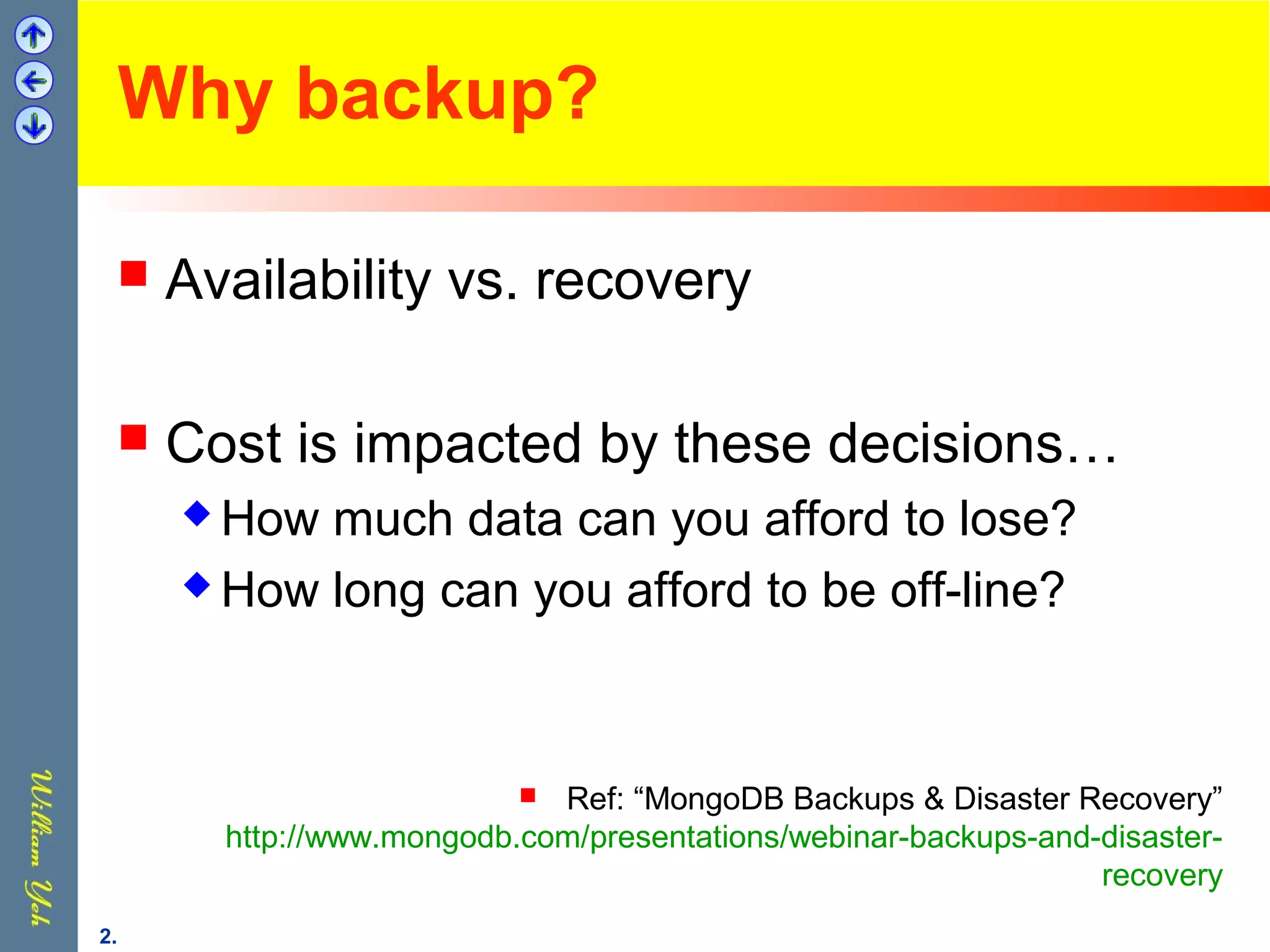

2. Why backup?
 Availability vs. recovery
 Cost is impacted by these decisions…
 How much data can you afford to lose?
 How long can you afford to be off-line?
 Ref: “MongoDB Backups & Disaster Recovery”
http://www.mongodb.com/presentations/webinar-backups-and-disaster-
recovery
2.

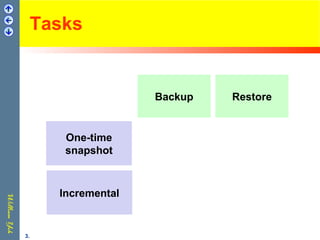

3. Tasks
3.
Backup Restore
One-time
snapshot
Incremental

4. Two kinds of backup
 One-time snapshot
 Capture a consistent snapshot at a specific
point in time
Not easy in a distributed zero-downtime
production system.
 Incremental backup
 Capture differences since last one-time
snapshot
Oplog is N/A in MongoDB config servers (to be
discussed later)
4.

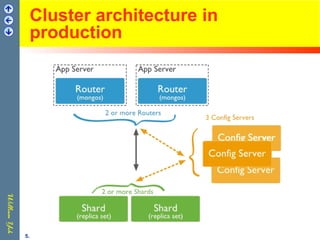

5. Cluster architecture in
production
5.

6. How about MMS?
MongoDB Management Service http://mms.mongodb.com
6.

7. $$
7.

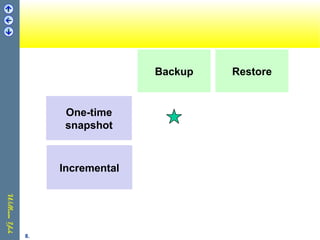

8. 8.
Backup Restore
One-time
snapshot
Incremental

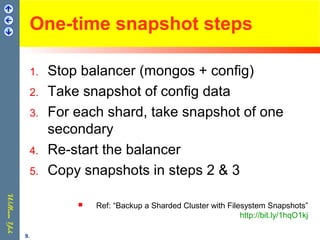

9. One-time snapshot steps
1. Stop balancer (mongos + config)
2. Take snapshot of config data
3. For each shard, take snapshot of one
secondary
4. Re-start the balancer
5. Copy snapshots in steps 2 & 3
 Ref: “Backup a Sharded Cluster with Filesystem Snapshots”
http://bit.ly/1hqO1kj
9.

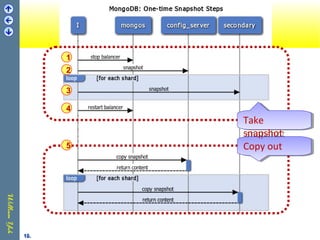

10. 10.10.
1
2
3
4
5
Copy outCopy out
Take
snapshot
Take
snapshot

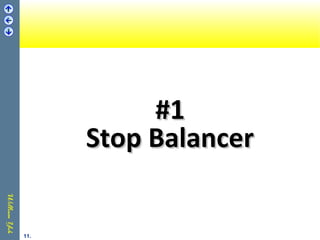

11. #1#1
Stop BalancerStop Balancer
11.

12. Stop balancer… Why?
 “If MongoDB migrates a chunk during a backup, you can
end with an inconsistent snapshot of your sharded
cluster. Never run a backup while the balancer is
active.”
 Ref: “Disable Balancing During Backups”
http://bit.ly/1rnRMfV
12.

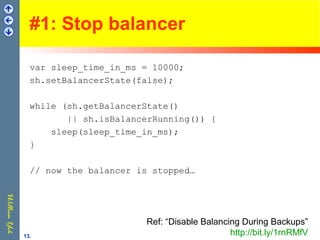

13. #1: Stop balancer
var sleep_time_in_ms = 10000;
sh.setBalancerState(false);
while (sh.getBalancerState()
|| sh.isBalancerRunning()) {
sleep(sleep_time_in_ms);
}
// now the balancer is stopped…
Ref: “Disable Balancing During Backups”
http://bit.ly/1rnRMfV13.

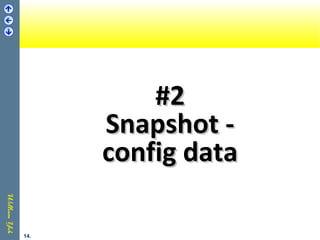

14. #2#2
Snapshot -Snapshot -
config dataconfig data
14.

15. #3#3
Snapshot -Snapshot -
secondarysecondary
of each shardof each shard
15.

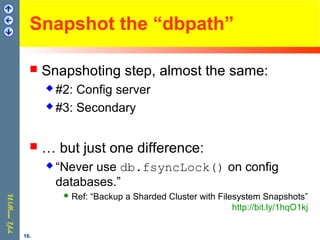

16. Snapshot the “dbpath”
 Snapshoting step, almost the same:
 #2: Config server
 #3: Secondary
 … but just one difference:
 “Never use db.fsyncLock() on config
databases.”
 Ref: “Backup a Sharded Cluster with Filesystem Snapshots”
http://bit.ly/1hqO1kj
16.

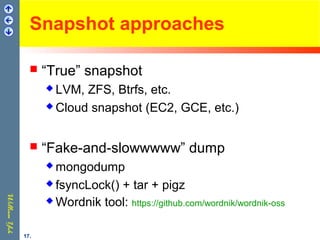

17. Snapshot approaches
 “True” snapshot
 LVM, ZFS, Btrfs, etc.
 Cloud snapshot (EC2, GCE, etc.)
 “Fake-and-slowwwww” dump
 mongodump
 fsyncLock() + tar + pigz
 Wordnik tool: https://github.com/wordnik/wordnik-oss
17.

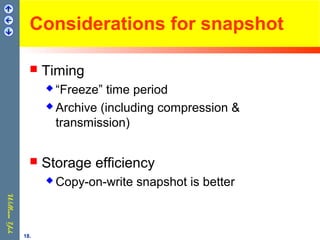

18. Considerations for snapshot
 Timing
 “Freeze” time period
 Archive (including compression &
transmission)
 Storage efficiency
 Copy-on-write snapshot is better
18.

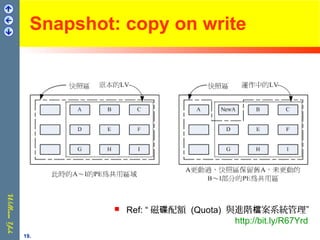

19. Snapshot: copy on write
 Ref: “ 磁 配額碟 (Quota) 與進階 案系統管理”檔
http://bit.ly/R67Yrd
19.

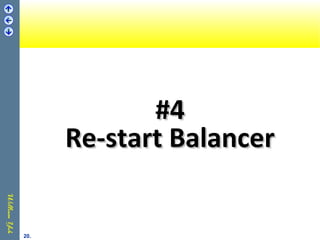

20. #4#4
Re-start BalancerRe-start Balancer
20.

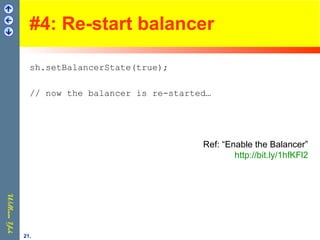

21. #4: Re-start balancer
sh.setBalancerState(true);
// now the balancer is re-started…
Ref: “Enable the Balancer”
http://bit.ly/1hfKFl2
21.

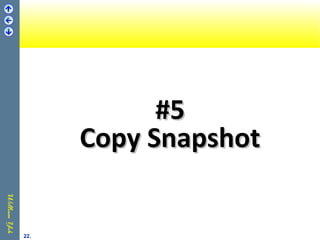

22. #5#5
Copy SnapshotCopy Snapshot
22.

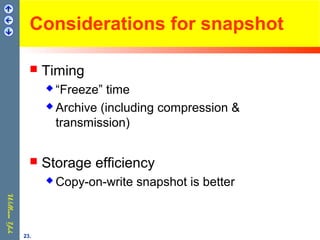

23. Considerations for snapshot
 Timing
 “Freeze” time
 Archive (including compression &
transmission)
 Storage efficiency
 Copy-on-write snapshot is better
23.

24. 24.
Backup Restore
One-time
snapshot
Incremental

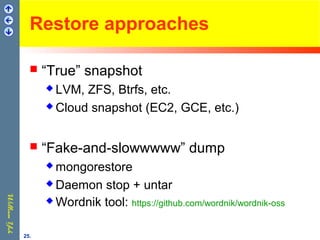

25. Restore approaches
 “True” snapshot
 LVM, ZFS, Btrfs, etc.
 Cloud snapshot (EC2, GCE, etc.)
 “Fake-and-slowwwww” dump
 mongorestore
 Daemon stop + untar
 Wordnik tool: https://github.com/wordnik/wordnik-oss
25.

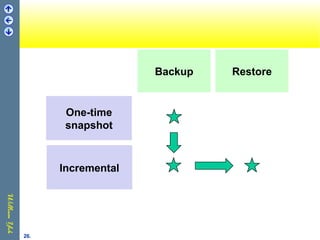

26. 26.
Backup Restore
One-time
snapshot
Incremental

27. Oplog
 Ordered list of write operations
27.

28. Oplog tools
 Ready-to-use command line tools
 mongodump + mongorestore
 Wordnik tool: https://github.com/wordnik/wordnik-oss
 Tayra tool:
http://www.jroller.com/DhavalDalal/entry/tayra_an_incremental_
backup_tool
 mongosync:
http://nosqldb.org/topic/5173d275cbce24580a033bd8
 Still many others:
 https://github.com/search?q=mongo+oplog&type=Repositories
28.

29. Oplog in real-life
 Replication lag
 Inspect it in real production environment!
 Oplog is N/A in MongoDB config servers
 … Still need to deal with the balancer
 … Still need to use snapshot techniques
29.

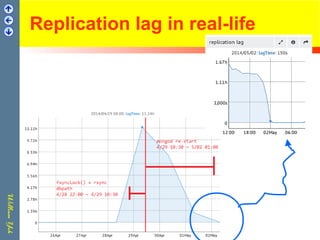

30. Replication lag in real-life
30.

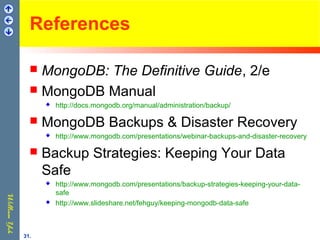

31. References
 MongoDB: The Definitive Guide, 2/e
 MongoDB Manual
 http://docs.mongodb.org/manual/administration/backup/
 MongoDB Backups & Disaster Recovery
 http://www.mongodb.com/presentations/webinar-backups-and-disaster-recovery
 Backup Strategies: Keeping Your Data
Safe
 http://www.mongodb.com/presentations/backup-strategies-keeping-your-data-
safe
 http://www.slideshare.net/fehguy/keeping-mongodb-data-safe
31.
