This document discusses thermal spray coating processes. It describes various thermal spray methods like flame spraying, arc spraying, plasma spraying, and cold spraying. These methods create coatings through different combinations of melted or partially melted spray materials applied at high velocities. The document compares coating properties like hardness, porosity, and adhesion achieved through different spray methods. It outlines applications of thermal spray coatings for wear resistance, corrosion protection, and high temperature applications in industries like oil and gas, aerospace, and automotive.

1. SURFACE ENGINEERING (2)
THERMAL SPRAY
Prof. GOLD KING
1

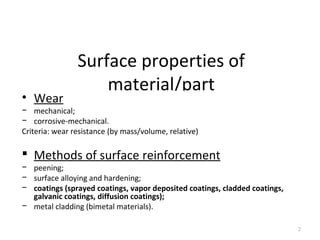

2. Surface properties of
material/part
• Wear
− mechanical;
− corrosive-mechanical.
Criteria: wear resistance (by mass/volume, relative)
 Methods of surface reinforcement
− peening;
− surface alloying and hardening;
− coatings (sprayed coatings, vapor deposited coatings, cladded coatings,
galvanic coatings, diffusion coatings);
− metal cladding (bimetal materials).
2

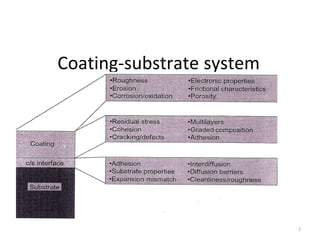

3. Coating-substrate system
3

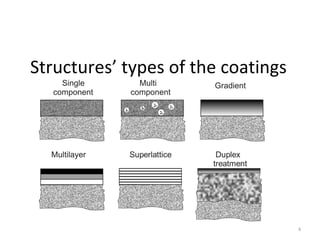

4. Structures’ types of the coatings
4

5. Coatigns’ processes
 CHEMICAL
 ELECTROCHEMICAL
 THERMOCHEMICAL
 THERMOCOATING
 VAPOR DEPOSITION
 MECHANICAL
5

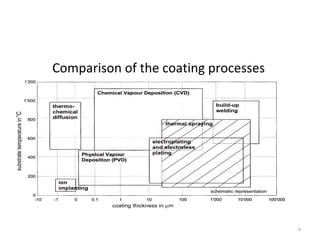

6. Comparison of the coating processes
6

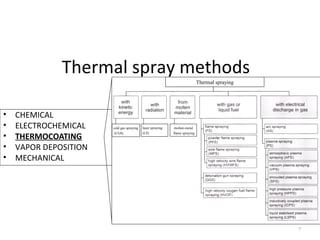

7. Thermal spray methods
• CHEMICAL
• ELECTROCHEMICAL
• THERMOCOATING
• VAPOR DEPOSITION
• MECHANICAL
7
cold gas spraying
(CGS)
laser spraying
(LS)
molten-metal
flame spraying
Thermal spraying

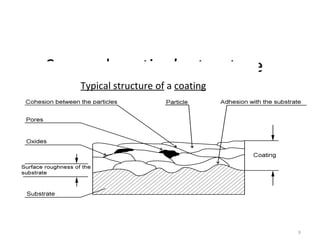

8. Sprayed coating’s structure
Typical structure of a coating
8

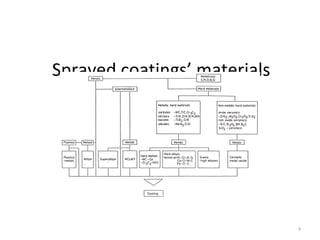

9. Sprayed coatings’ materials
9

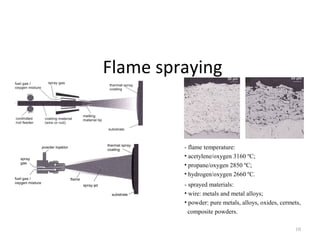

10. Flame spraying
10
- flame temperature:
• acetylene/oxygen 3160 ºC;
• propane/oxygen 2850 ºC;
• hydrogen/oxygen 2660 ºC.
- sprayed materials:
• wire: metals and metal alloys;
• powder: pure metals, alloys, oxides, cermets,
composite powders.

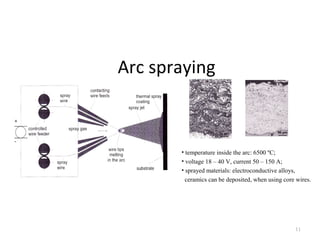

11. Arc spraying
11
• temperature inside the arc: 6500 ºC;
• voltage 18 – 40 V, current 50 – 150 A;
• sprayed materials: electroconductive alloys,
ceramics can be deposited, when using core wires.

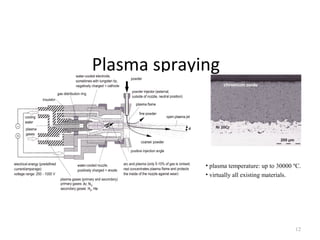

12. Plasma spraying
12
• plasma temperature: up to 30000 ºC.
• virtually all existing materials.

13. Plasma transfered arc spraying (PTA)
13
• Fe, Ni, Co, Cr based alloys,
stainless steels, cermets

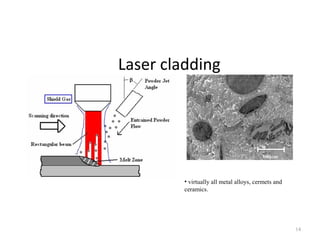

14. Laser cladding
14
• virtually all metal alloys, cermets and
ceramics.

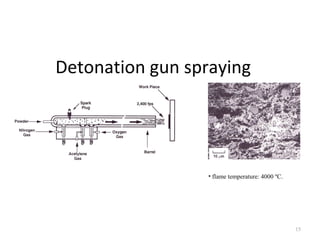

15. Detonation gun spraying
15
• flame temperature: 4000 ºC.

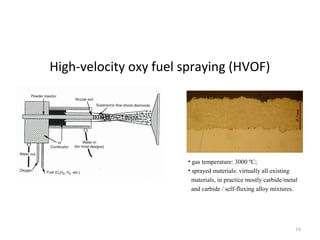

16. High-velocity oxy fuel spraying (HVOF)
16
• gas temperature: 3000 ºC;
• sprayed materials: virtually all existing
materials, in practice mostly carbide/metal
and carbide / self-fluxing alloy mixtures.

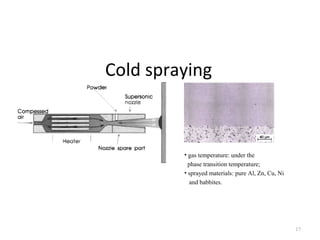

17. Cold spraying
17
• gas temperature: under the
phase transition temperature;
• sprayed materials: pure Al, Zn, Cu, Ni
and babbites.

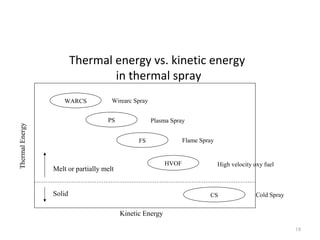

18. Thermal energy vs. kinetic energy
in thermal spray
18
ThermalEnergy
Kinetic Energy
WARCS
PS
FS
HVOF
CS
Wirearc Spray
Plasma Spray
Flame Spray
High velocity oxy fuel
Cold Spray
Melt or partially melt
Solid

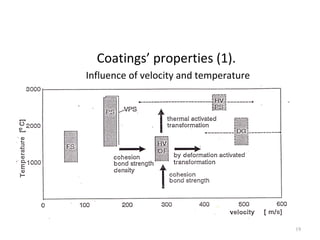

19. Coatings’ properties (1).
Influence of velocity and temperature
19

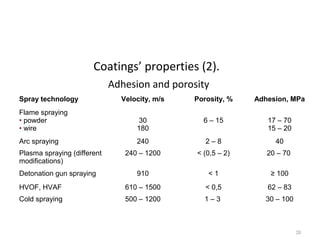

20. Coatings’ properties (2).
Adhesion and porosity
Spray technology Velocity, m/s Porosity, % Adhesion, MPa
Flame spraying
• powder
• wire
30
180
6 – 15 17 – 70
15 – 20
Arc spraying 240 2 – 8 40
Plasma spraying (different
modifications)
240 – 1200 < (0,5 – 2) 20 – 70
Detonation gun spraying 910 < 1 ≥ 100
HVOF, HVAF 610 – 1500 < 0,5 62 – 83
Cold spraying 500 – 1200 1 – 3 30 – 100
20

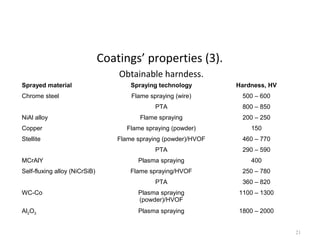

21. Coatings’ properties (3).
Obtainable harndess.
Sprayed material Spraying technology Hardness, HV
Chrome steel Flame spraying (wire) 500 – 600
PTA 800 – 850
NiAl alloy Flame spraying 200 – 250
Copper Flame spraying (powder) 150
Stellite Flame spraying (powder)/HVOF 460 – 770
PTA 290 – 590
MCrAlY Plasma spraying 400
Self-fluxing alloy (NiCrSiB) Flame spraying/HVOF 250 – 780
PTA 360 – 820
WC-Co Plasma spraying
(powder)/HVOF
1100 – 1300
Al2O3 Plasma spraying 1800 – 2000
21

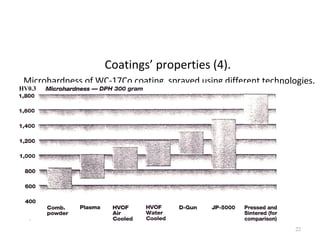

22. Coatings’ properties (4).
Microhardness of WC-17Co coating, sprayed using different technologies.
22
HV0.3

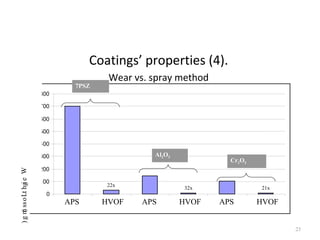

23. Coatings’ properties (4).
Wear vs. spray method
23
0
100
200
300
400
500
600
700
800
1 2 3 4 5 6
WeightLoss(mg)
7PSZ
Al2O3
Cr2O3
22x
32x 21x
APS HVOF APS HVOF APS HVOF

24. Coatings’ properties (5)
Hardness vs. fracture toughness
24

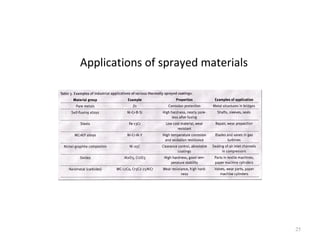

25. Applications of sprayed materials
25

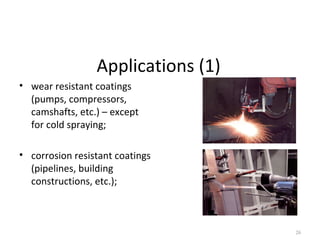

26. Applications (1)
• wear resistant coatings
(pumps, compressors,
camshafts, etc.) – except
for cold spraying;
• corrosion resistant coatings
(pipelines, building
constructions, etc.);
26

27. Applications (2)
• temperature resistant and
dielectrical coatings (gas
turbines, flue tubes);
• antifriction coatings (sliding
bearings);
• size restoration (shafts,
bearings, etc.)
27

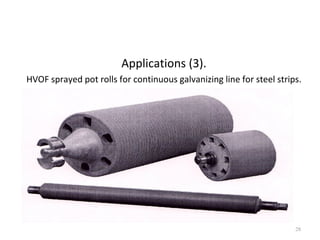

28. Applications (3).
HVOF sprayed pot rolls for continuous galvanizing line for steel strips.
28

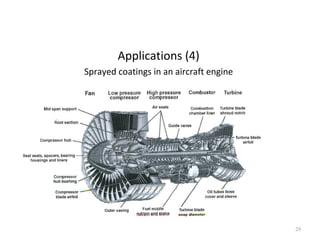

29. Applications (4)
Sprayed coatings in an aircraft engine
29

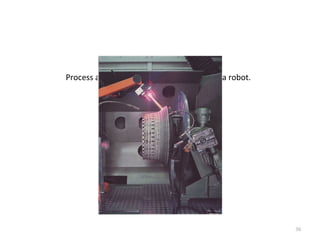

30. Applications (5)
Process automation. Flame spraying by Kuka robot.
30

31. Thank you for the attention!
Questions?
31
