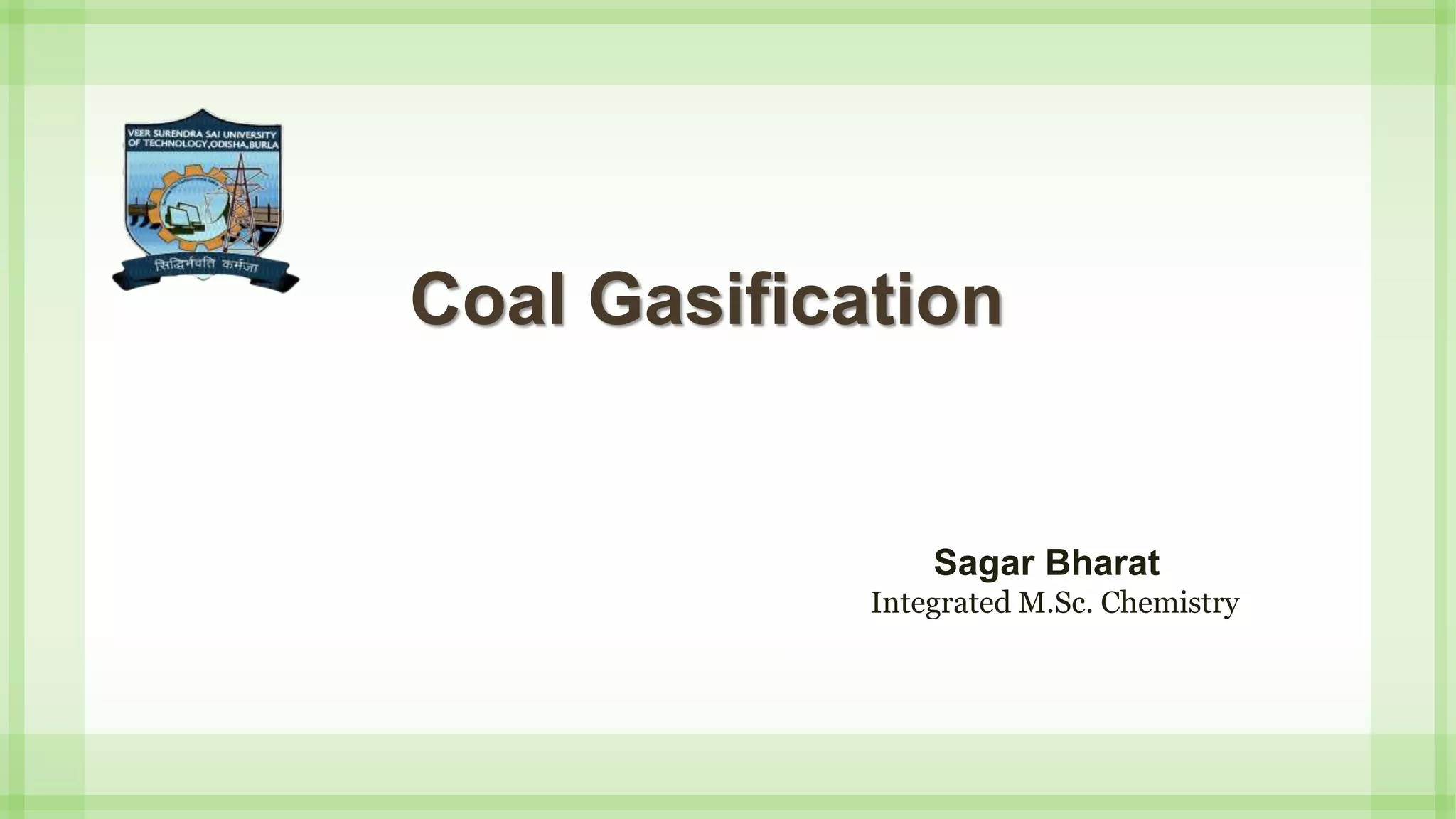

1. Coal Gasification
Sagar Bharat
Integrated M.Sc. Chemistry

2. Contents:
 Introduction
 Reactions & Compositions
 Gasifiers
 Catalytic Gasification
 Applications
 Conclusions
 References
2

3.  Introduction
3
Gasification is a technological process that can convert any
carbonaceous raw material such as coal into fuel gas, also known as
synthesis gas (syngas).
Syngas is Composed primarily of the colorless, odorless, highly
flammable gases carbon monoxide (CO) and hydrogen (H2).
Gasification occurs in a gasifier, generally a high temperature/pressure
vessel where oxygen and steam are directly contacted with the coal
causing a series of chemical reactions to occur that convert the feed to
syngas and ash/slag.
Gasification is a partial oxidation process.

4. 4

5.  Reactions & Compositions
 In a gasifier, the carbonaceous feedstock undergoes several different
processes and/or reactions. Some of the major chemical reactions are :
5

6.  The heat produced by the partial oxidation provides most of the
energy required to drive the endothermic gasification reactions.
 SYNGAS COMPOSITION-
 Can vary significantly depending on the feedstock and the
gasification process involved.
 However typically syngas is 30 - 60% carbon monoxide (CO), 25 -
30% hydrogen (H2), 0 - 5% methane (CH4), 5 - 15% carbon dioxide
(CO2).
 Plus a lesser or greater amount of water vapor, smaller amounts of
the sulfur compounds hydrogen sulfide (H2S), carbonyl sulfide (COS),
and finally some ammonia and other trace contaminants.
6

7.  Gasifiers (Mainly 3 types)
 Counter-current flow of coal and oxidizing blast.
 Operate on lump coal.
 A top temperature of about 540°C and bottom
temperature of about 980°C & at a moderate
pressure(25-30 atms).
 Product gas at relatively low temperatures.
 High methane content in product gas.
7
Lurgi Dry-Ash Gasifier
Coal
Ash
Rotating grate Crude gas
Steam &
oxygen
feeder
 Moving-bed gasifiers :
(e.g. Lurgi Dry-Ash gasifier)

8.  Entrained-flow gasifiers
(e.g. GE Energy gasifier)
8
GE Enegy Glasifier
 Co-current flow of coal with the oxidant.
 High-temperature (1200 to 1500°C) slagging operation.
 Relatively large oxidant requirements.
 Carbon source is made of very fine particles in a
liquid or slurry for very good mass transfer.
 The syngas produced contains mostly hydrogen (H2)
and carbon monoxide (CO).

9.  Fluidized-bed gasifiers
(e.g. HTW gasifier)
• Can operate about 800 to 900°C & pressure can
be as high as 25 to 30 bar.
• Fuel flexibility, can gasify a wide range of
feedstocks.
• Good mixing between feed and oxidant, which
promotes both heat and mass transfer.
• The fine solid particles removed in the cyclone
are returned to the gasifier base to maximize
carbon conversion.
• Slagging will reduce fluidization, so temp remains
below softening point for ash.
9
HT Winker gasifier system

10.  Catalytic Gasification
• Use of catalysts to lower gasifier operating temperatures & enhance the
rate of reactions.
• Alkali metal salts of weak acids (like potassium carbonate [K2CO3], sodium
carbonate [Na2CO3], potassium sulfide [K2S], and sodium sulfide [Na2S])
can catalyze steam gasification of coal.
• In the early 1970s, research confirmed that 10-20% by weight K2CO3 could
lower acceptable bituminous coal gasifier temperatures from 925°C to
700°C and that the catalyst could be introduced to the gasifier impregnated
on coal or char.
• Catalysts can also be used to favor or suppress the formation of certain
components in the syngas product.
• Disadvantages- Increase material cost for catalyst, catalysts can also be
diminished by poisoning.
10

11.  Applications
• One of the most abundant energy sources.
• Can be used to produce ultra-clean fuel.
• Leading source of electricity today (IGCC).
• Chemical Production.( Methanol, ammonia, acetic acid etc)
• Hydrogen made from coal or other solid fuels can be used to refine oil, or to
make products such as ammonia and fertilizer (urea).
• By-product of burning (ash or slag ) can be used for concrete and roadways.
11

12. Conclusions
 There are several challenges to using coal gasification to produce
hydrogen at target costs and with near-zero greenhouse gas
emissions. Additional R&D is needed to:
 Develop carbon capture, utilization, and storage technologies that
ensure minimal carbon dioxide is released in the production process.
 Develop new technologies that can replace the cryogenic process
currently used to separate the required oxygen from air.
 Particularly in clean generation of electricity from coal, gasification
may make an increasingly important part of the world's energy and
industrial markets.
12

13.  References :
• Gasification,National Energy Technology Laboratory, U.S. DEPARTMENT OF ENERGY
https://www.netl.doe.gov/research/coal/energy-systems/gasification/gasifipedia/intro-to-
gasification
• Gasification Processes, Chris Higman, Maarten van der Burgt, 2 September 2007,
https://doi.org/10.1016/B978-075067707-3/50005-X
• Gasification System,
https://energy.gov/fe/science-innovation/clean-coal-research/gasification
• High Temperature Winkler (HTW) Coal Gasfiction – A Fully Developed Process For Methanol and
Electricity Production, by W. Renzenbrink; R. Wischnewski; J. Engelhard; and A. Mittelstadt,
Rheinbrawn
https://www.netl.doe.gov/File%20Library/research/coal/energy%20systems/gasification/gasifipe
dia/GTC9808P.pdf
13
