This document provides an overview of SCADA (Supervisory Control and Data Acquisition) systems. It defines SCADA as combining telemetry and data acquisition to collect information from remote sites, transfer it back to a central location, analyze the data, and display it for operators. The key benefits of SCADA are remote monitoring and control to reduce costs. Core SCADA components are the master terminal unit, remote terminal units, communication network, and software interface. Typical configurations connect one master station to multiple remote stations or allow direct peer-to-peer connections between all sites.

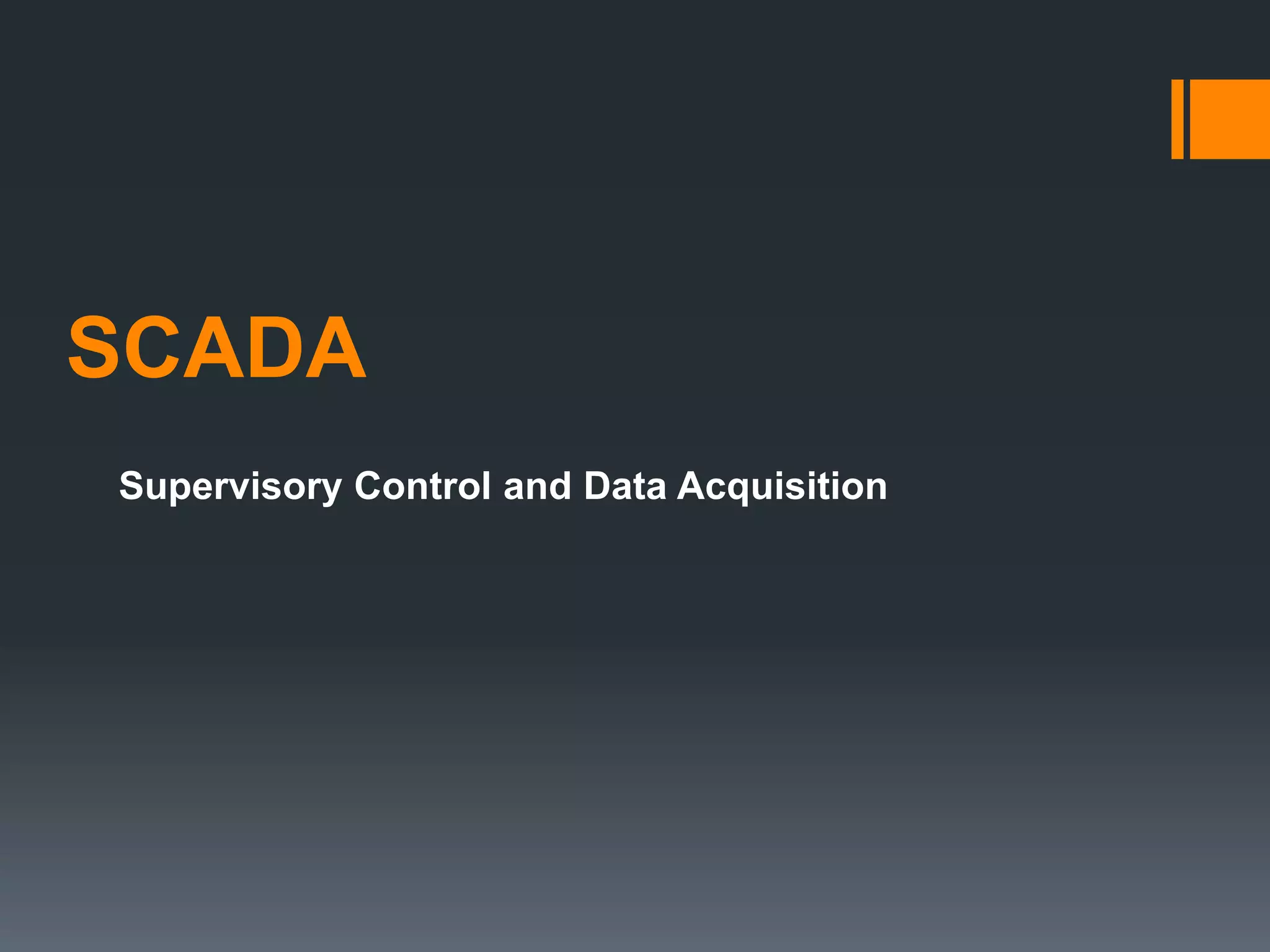

1. SCADA
Supervisory Control and Data Acquisition

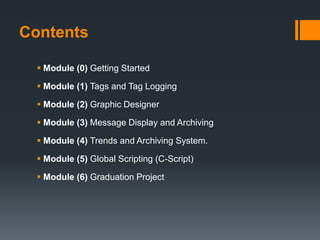

2. Contents
 Module (0) Getting Started
 Module (1) Tags and Tag Logging
 Module (2) Graphic Designer
 Module (3) Message Display and Archiving
 Module (4) Trends and Archiving System.
 Module (5) Global Scripting (C-Script)
 Module (6) Graduation Project

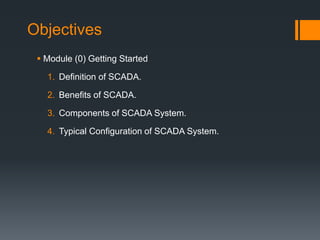

3. Objectives
 Module (0) Getting Started
1. Definition of SCADA.
2. Benefits of SCADA.
3. Components of SCADA System.
4. Typical Configuration of SCADA System.

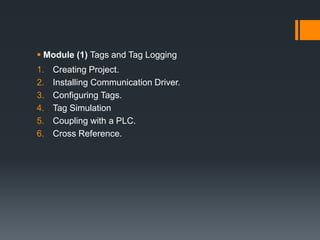

4.  Module (1) Tags and Tag Logging
1. Creating Project.
2. Installing Communication Driver.
3. Configuring Tags.
4. Tag Simulation
5. Coupling with a PLC.
6. Cross Reference.

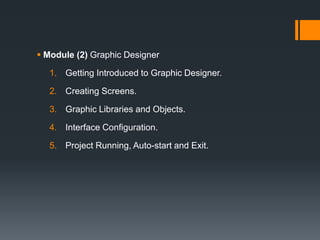

5.  Module (2) Graphic Designer
1. Getting Introduced to Graphic Designer.
2. Creating Screens.
3. Graphic Libraries and Objects.
4. Interface Configuration.
5. Project Running, Auto-start and Exit.

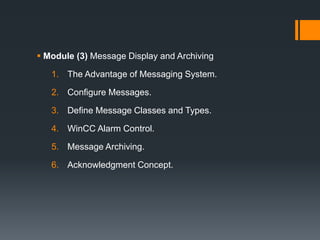

6.  Module (3) Message Display and Archiving
1. The Advantage of Messaging System.
2. Configure Messages.
3. Define Message Classes and Types.
4. WinCC Alarm Control.
5. Message Archiving.
6. Acknowledgment Concept.

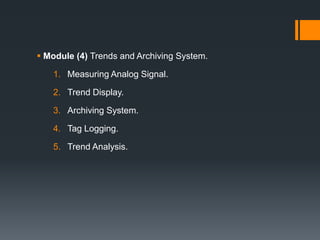

7.  Module (4) Trends and Archiving System.
1. Measuring Analog Signal.
2. Trend Display.
3. Archiving System.
4. Tag Logging.
5. Trend Analysis.

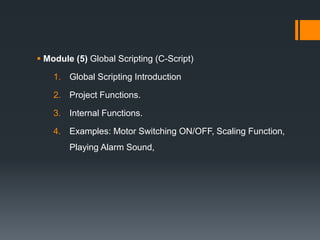

8.  Module (5) Global Scripting (C-Script)
1. Global Scripting Introduction
2. Project Functions.
3. Internal Functions.
4. Examples: Motor Switching ON/OFF, Scaling Function,
Playing Alarm Sound,

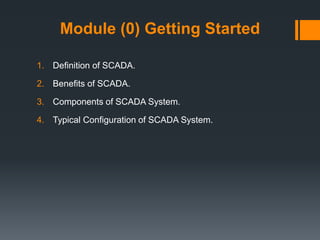

9. Module (0) Getting Started
1. Definition of SCADA.
2. Benefits of SCADA.
3. Components of SCADA System.
4. Typical Configuration of SCADA System.

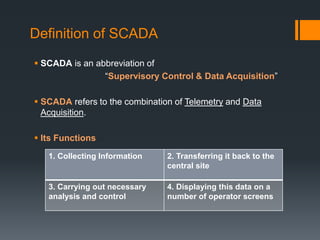

10. Definition of SCADA
 SCADA is an abbreviation of
“Supervisory Control & Data Acquisition”
 SCADA refers to the combination of Telemetry and Data
Acquisition.
 Its Functions
1. Collecting Information 2. Transferring it back to the
central site
3. Carrying out necessary
analysis and control
4. Displaying this data on a
number of operator screens

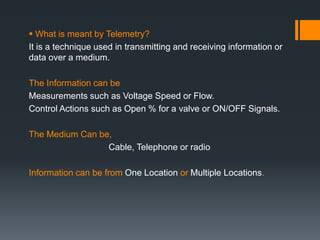

11.  What is meant by Telemetry?
It is a technique used in transmitting and receiving information or
data over a medium.
The Information can be
Measurements such as Voltage Speed or Flow.
Control Actions such as Open % for a valve or ON/OFF Signals.
The Medium Can be,
Cable, Telephone or radio
Information can be from One Location or Multiple Locations.

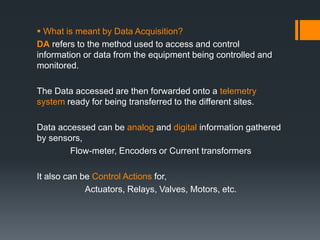

12.  What is meant by Data Acquisition?
DA refers to the method used to access and control
information or data from the equipment being controlled and
monitored.
The Data accessed are then forwarded onto a telemetry
system ready for being transferred to the different sites.
Data accessed can be analog and digital information gathered
by sensors,
Flow-meter, Encoders or Current transformers
It also can be Control Actions for,
Actuators, Relays, Valves, Motors, etc.

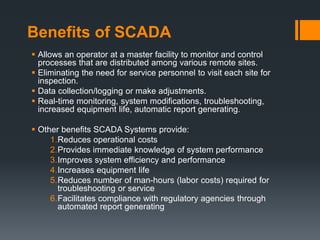

13. Benefits of SCADA
 Allows an operator at a master facility to monitor and control
processes that are distributed among various remote sites.
 Eliminating the need for service personnel to visit each site for
inspection.
 Data collection/logging or make adjustments.
 Real-time monitoring, system modifications, troubleshooting,
increased equipment life, automatic report generating.
 Other benefits SCADA Systems provide:
1.Reduces operational costs
2.Provides immediate knowledge of system performance
3.Improves system efficiency and performance
4.Increases equipment life
5.Reduces number of man-hours (labor costs) required for
troubleshooting or service
6.Facilitates compliance with regulatory agencies through
automated report generating

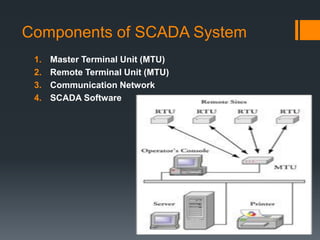

14. Components of SCADA System
1. Master Terminal Unit (MTU)
2. Remote Terminal Unit (MTU)
3. Communication Network
4. SCADA Software

15.  Master Terminal Unit (MTU)
- MTU is the master or heart of a SCADA system and is
located at the operator’s central control facility.
- Data from remote field devices (pumps, valves, alarms,
etc.) is sent to the MTU to be processed, stored and/or sent
to other systems.
For example,
The MTU may send the data to the operator’s display
console, store the information, and then send an operator’s
initiate command to a field pump’s RTU.
 Remote Terminal Unit (RTU)
- RTU is a controller located at the remote site.
- It gathers data from field devices (pumps, valves, alarms,
etc.) in memory until the MTU initiates a send command.

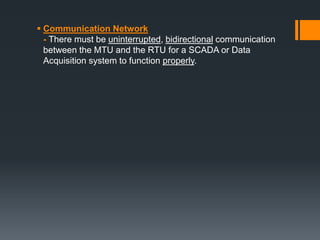

16.  Communication Network
- There must be uninterrupted, bidirectional communication
between the MTU and the RTU for a SCADA or Data
Acquisition system to function properly.

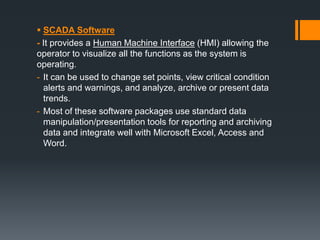

17.  SCADA Software
- It provides a Human Machine Interface (HMI) allowing the
operator to visualize all the functions as the system is
operating.
- It can be used to change set points, view critical condition
alerts and warnings, and analyze, archive or present data
trends.
- Most of these software packages use standard data
manipulation/presentation tools for reporting and archiving
data and integrate well with Microsoft Excel, Access and
Word.

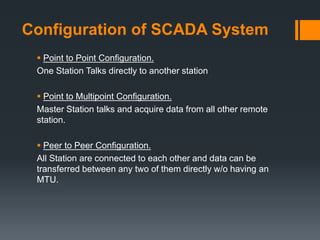

18. Configuration of SCADA System
 Point to Point Configuration.
One Station Talks directly to another station
 Point to Multipoint Configuration.
Master Station talks and acquire data from all other remote
station.
 Peer to Peer Configuration.
All Station are connected to each other and data can be
transferred between any two of them directly w/o having an
MTU.
