The document discusses the structural analysis of truss displacement using the unit load method. It includes an introduction, methodology for external loading, and procedures for calculating truss deflection through examples. The focus is on understanding internal axial forces in trusses under external loads.

1. STRUCTURE
ANALYSIS

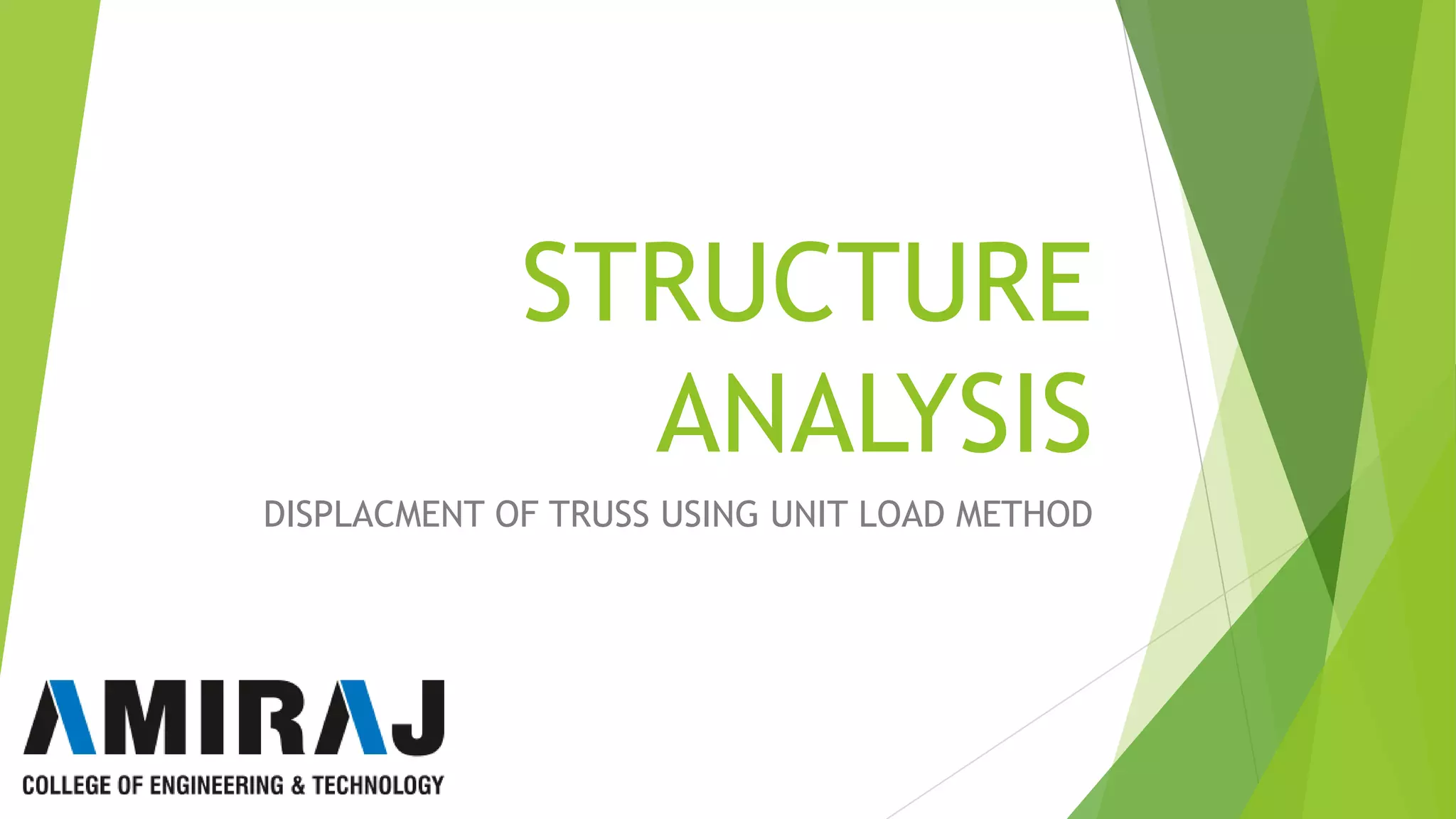

DISPLACMENT OF TRUSS USING UNIT LOAD METHOD

2. -: CREATED BY :-
 ALAY MEHTA 141080106011
 SHIVANI PATEL 141080106021
 KAVIN RAVAL 141080106026
 KUNTAL SONI 141080106028
-:CONTENT:-
 INTRODUCTION
 METHOD

3. External Loading

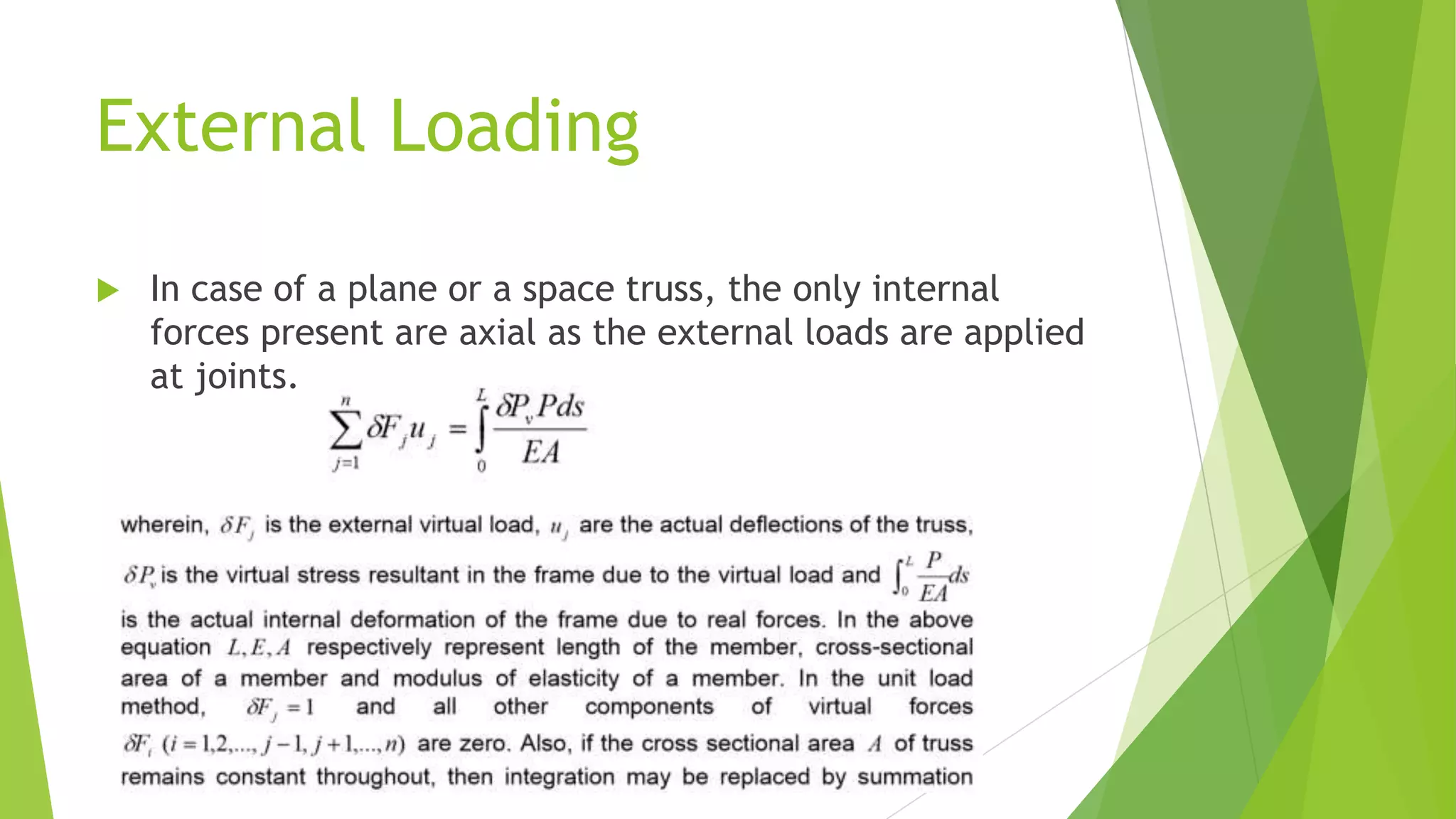

 In case of a plane or a space truss, the only internal
forces present are axial as the external loads are applied
at joints.

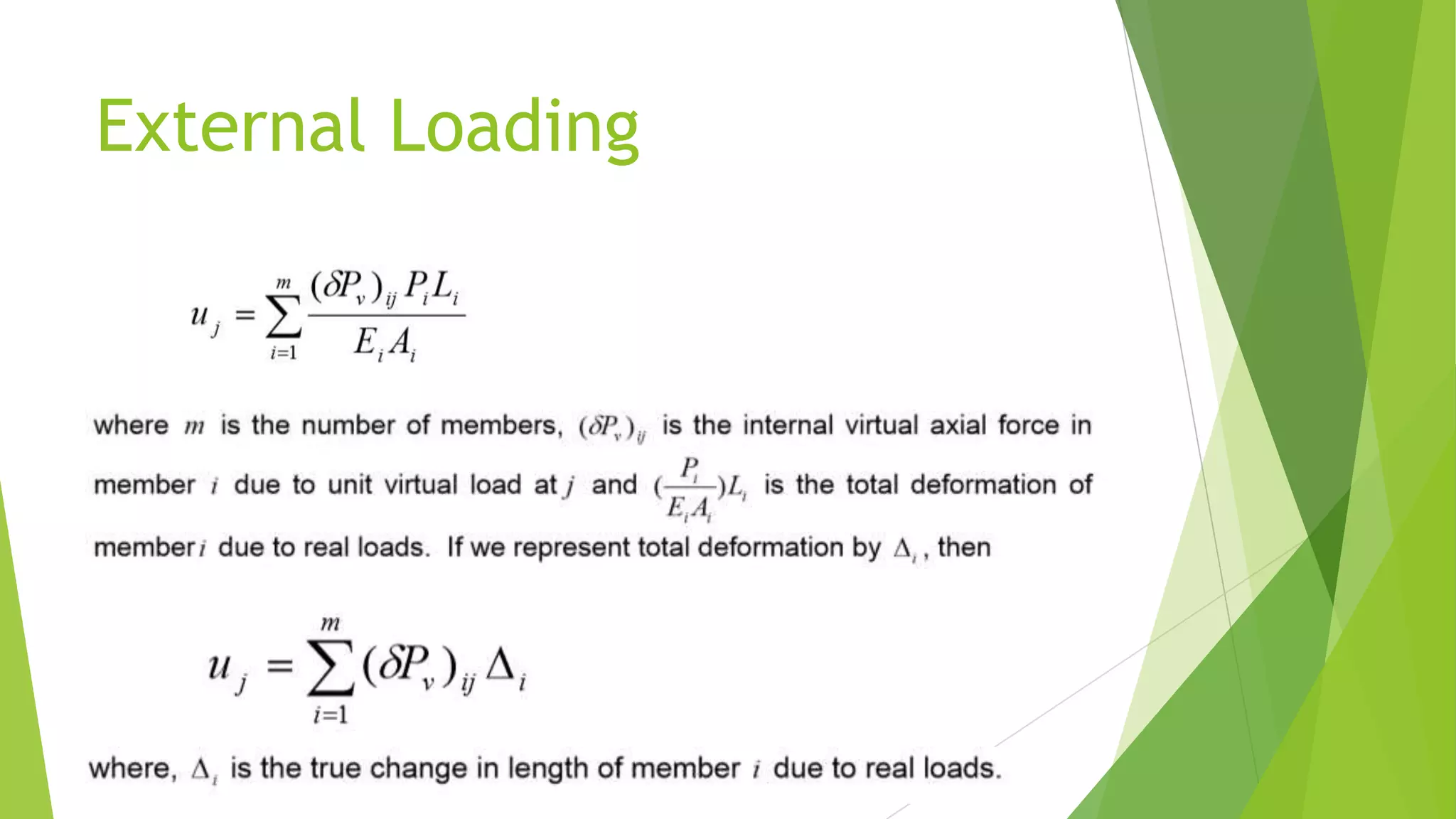

4. External Loading

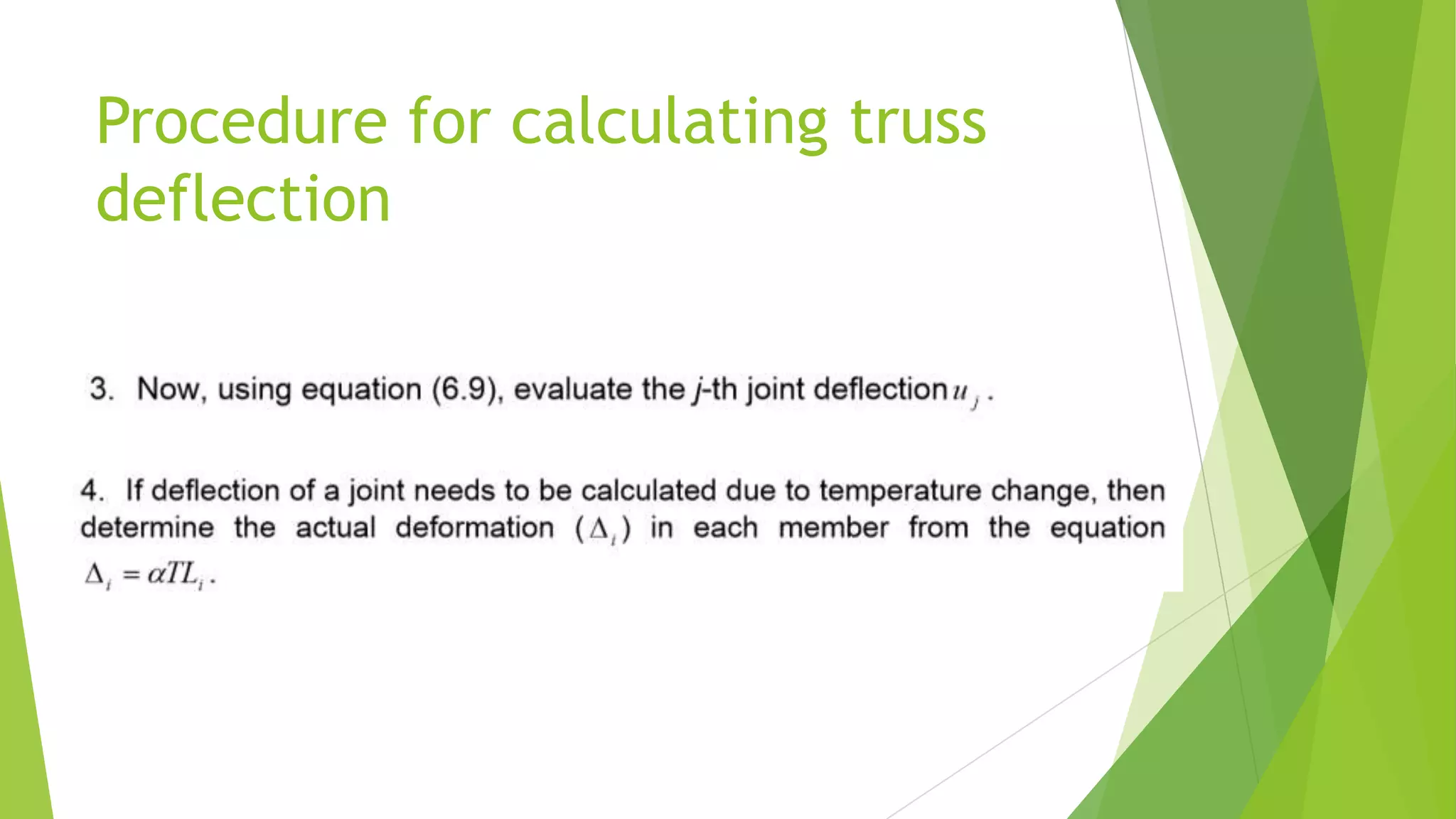

5. Procedure for calculating truss
deflection

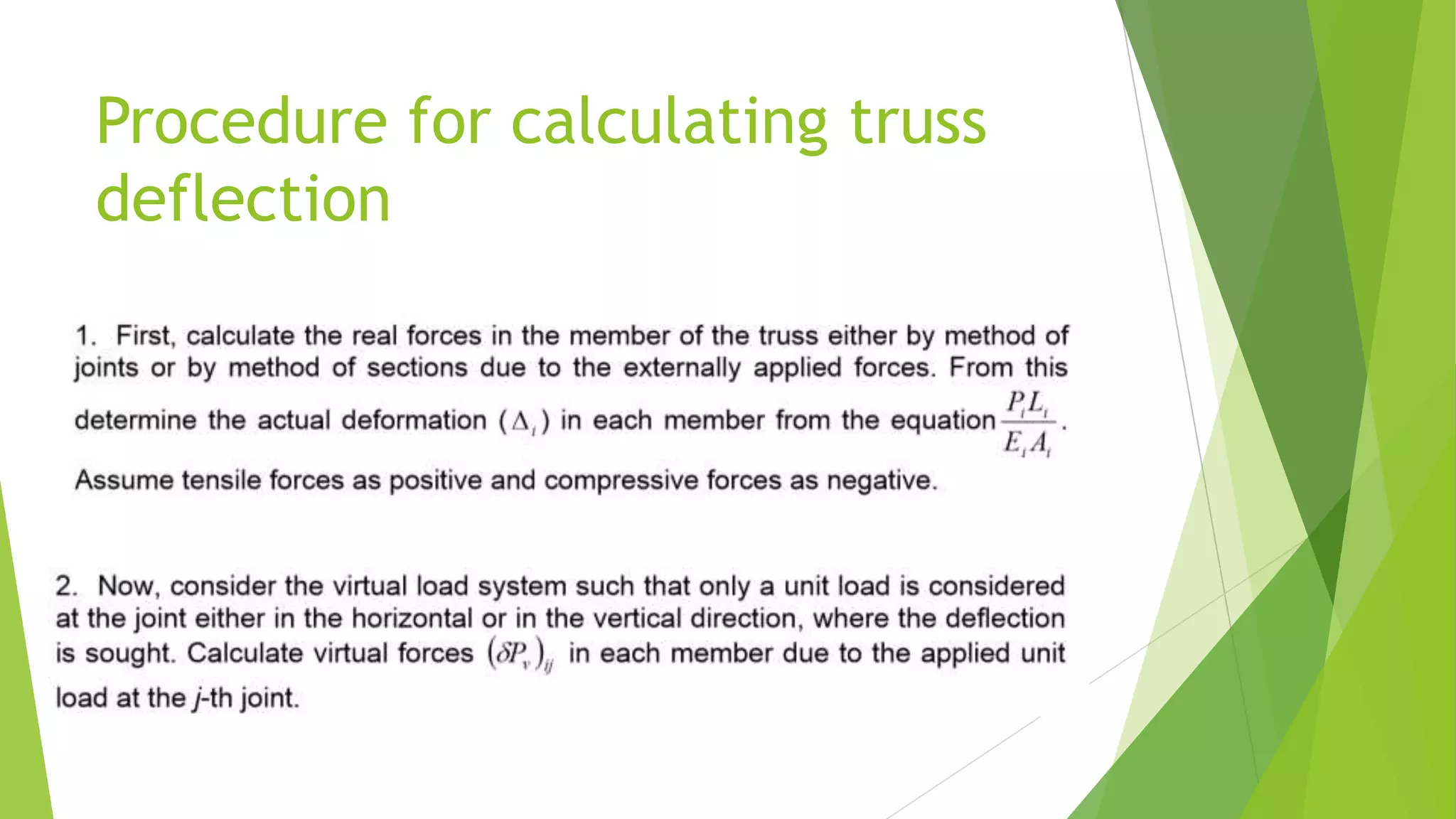

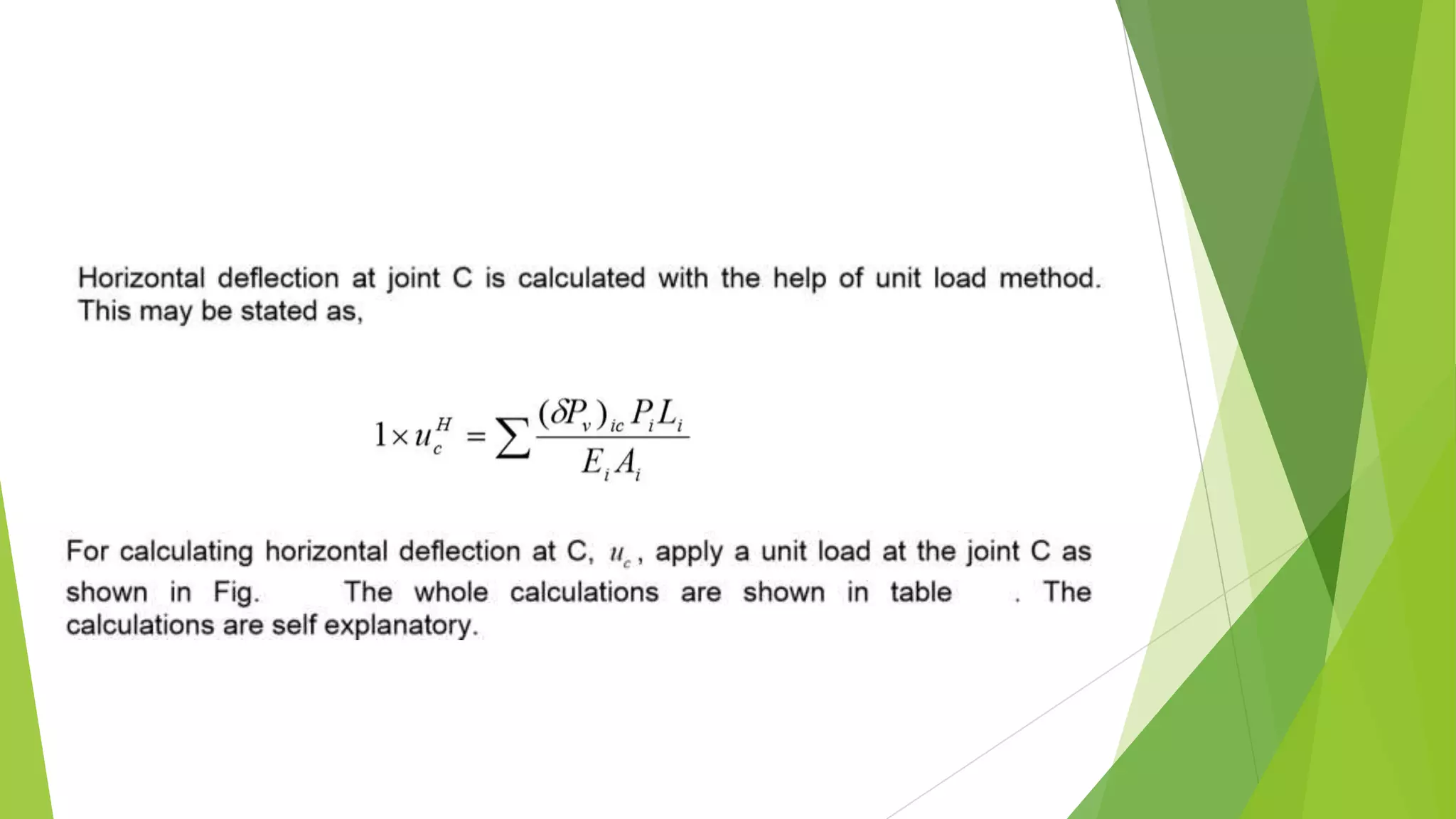

6. Procedure for calculating truss
deflection

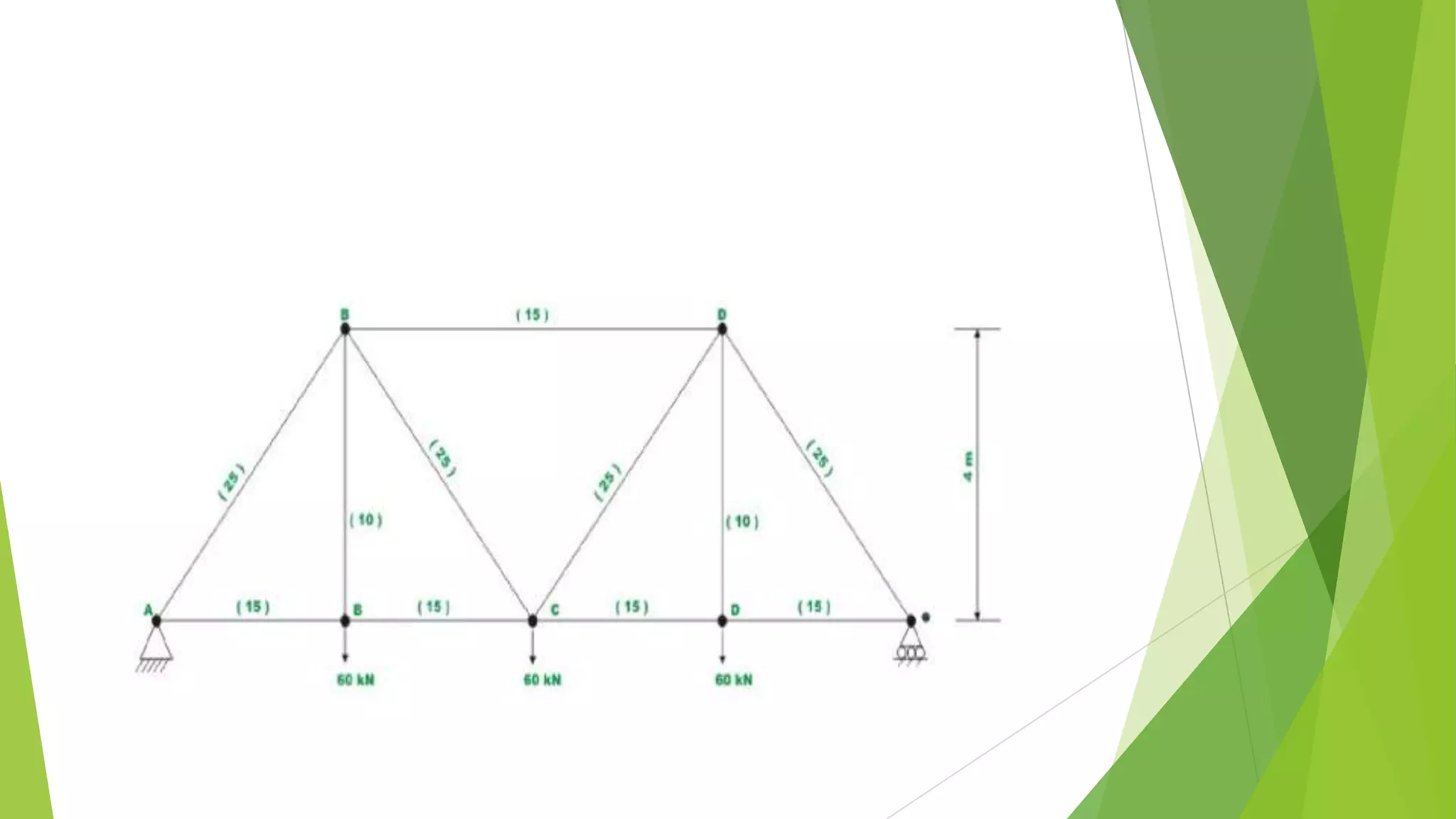

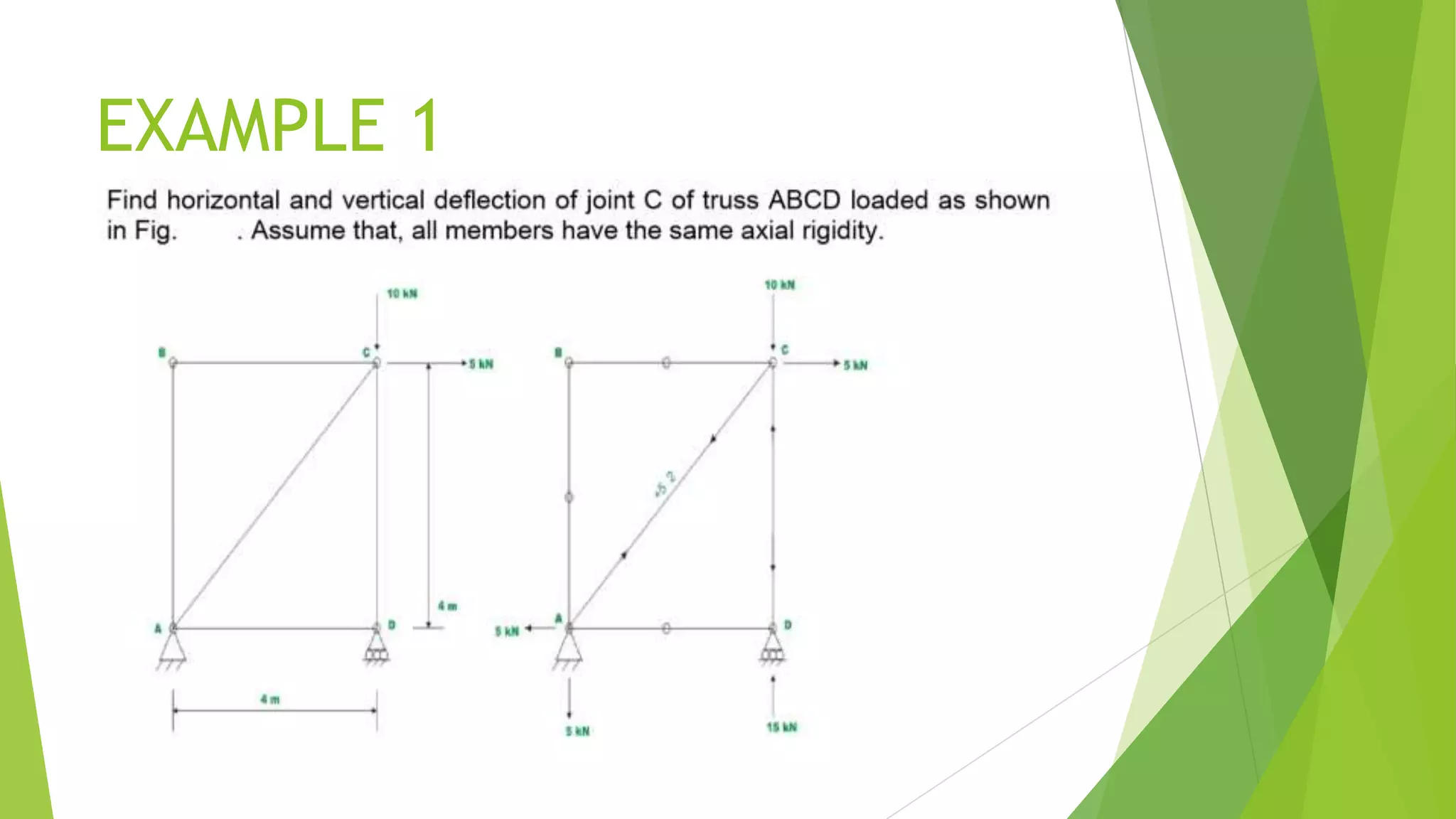

7. EXAMPLE 1

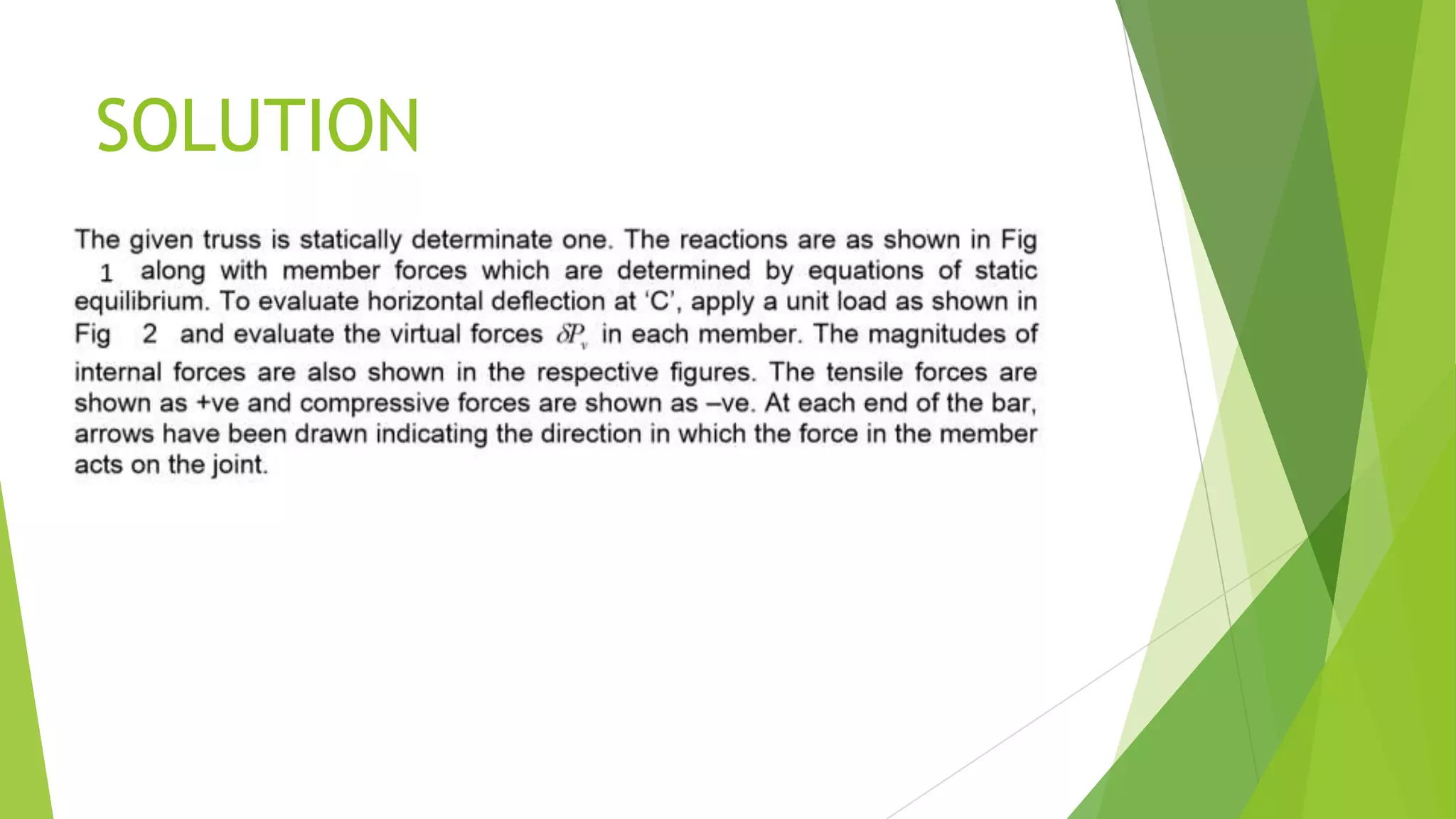

8. SOLUTION

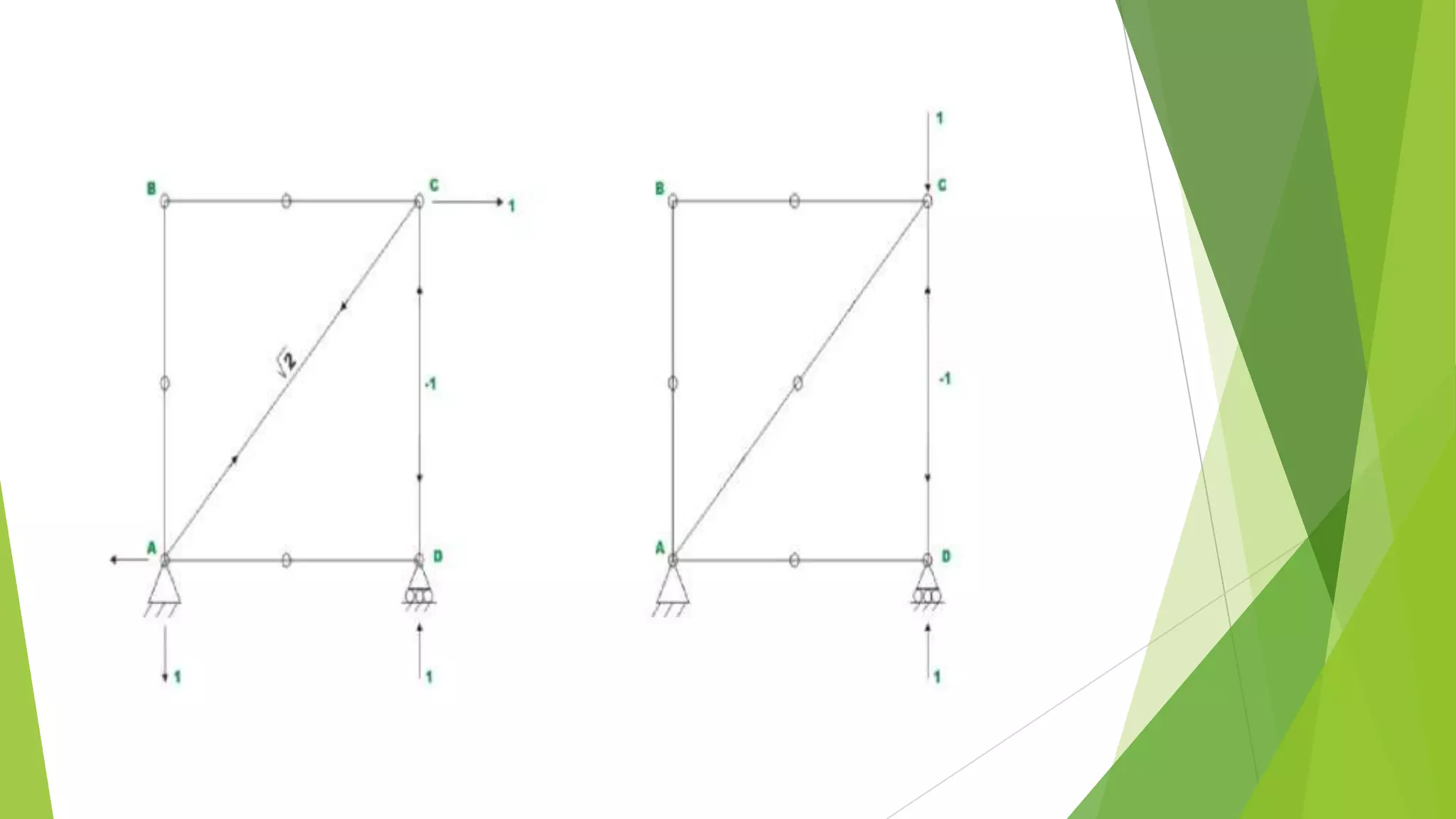

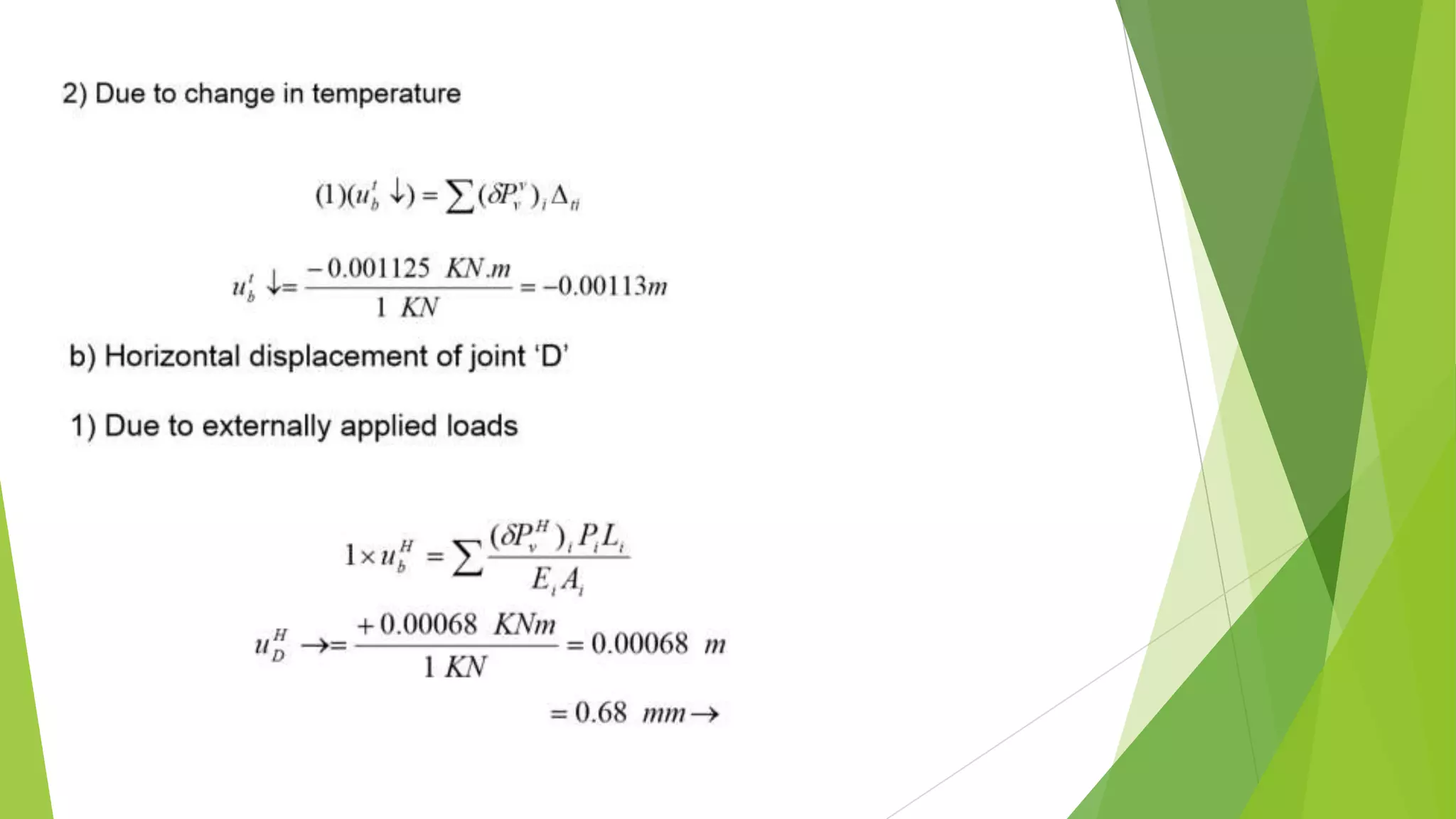

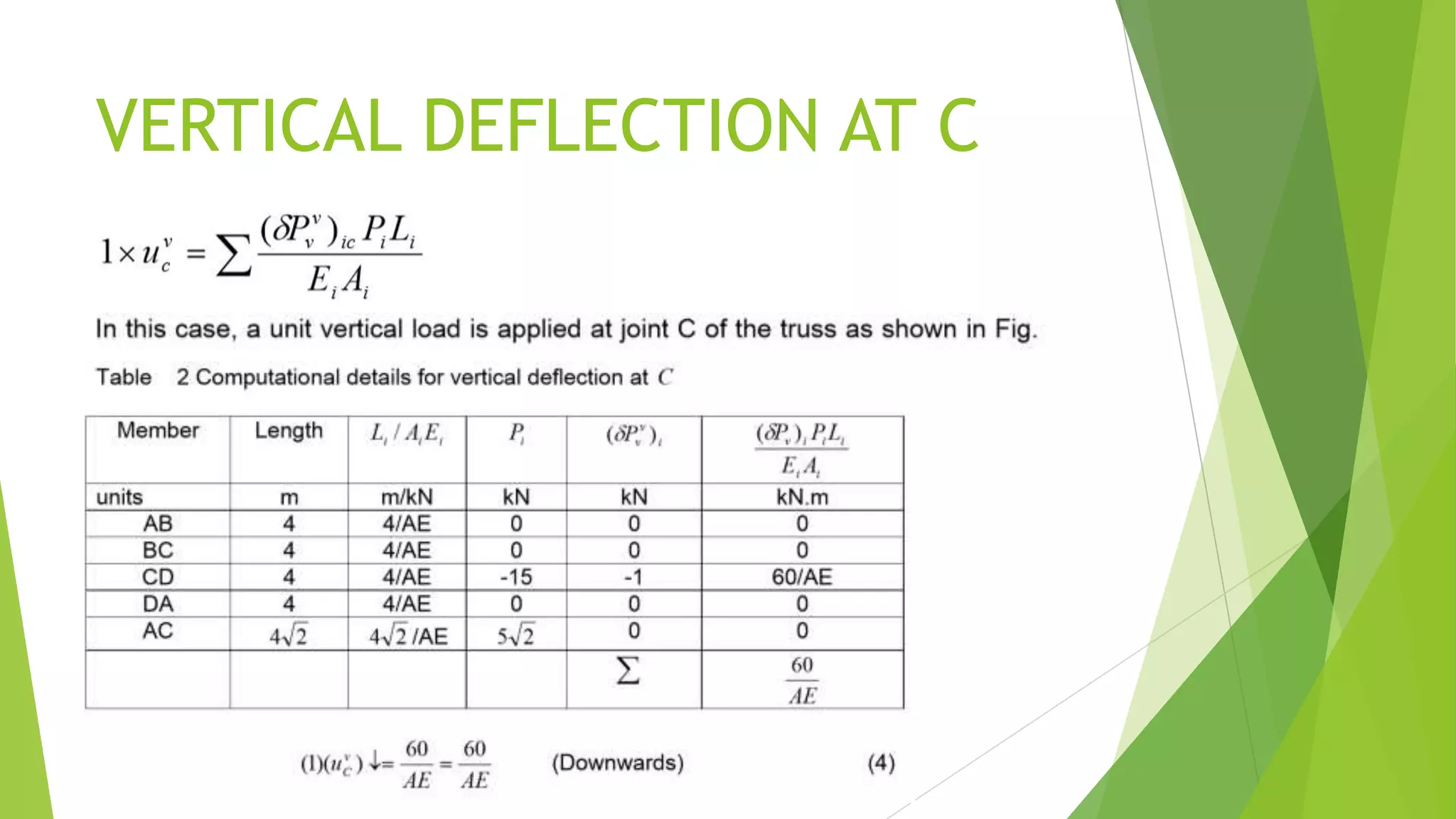

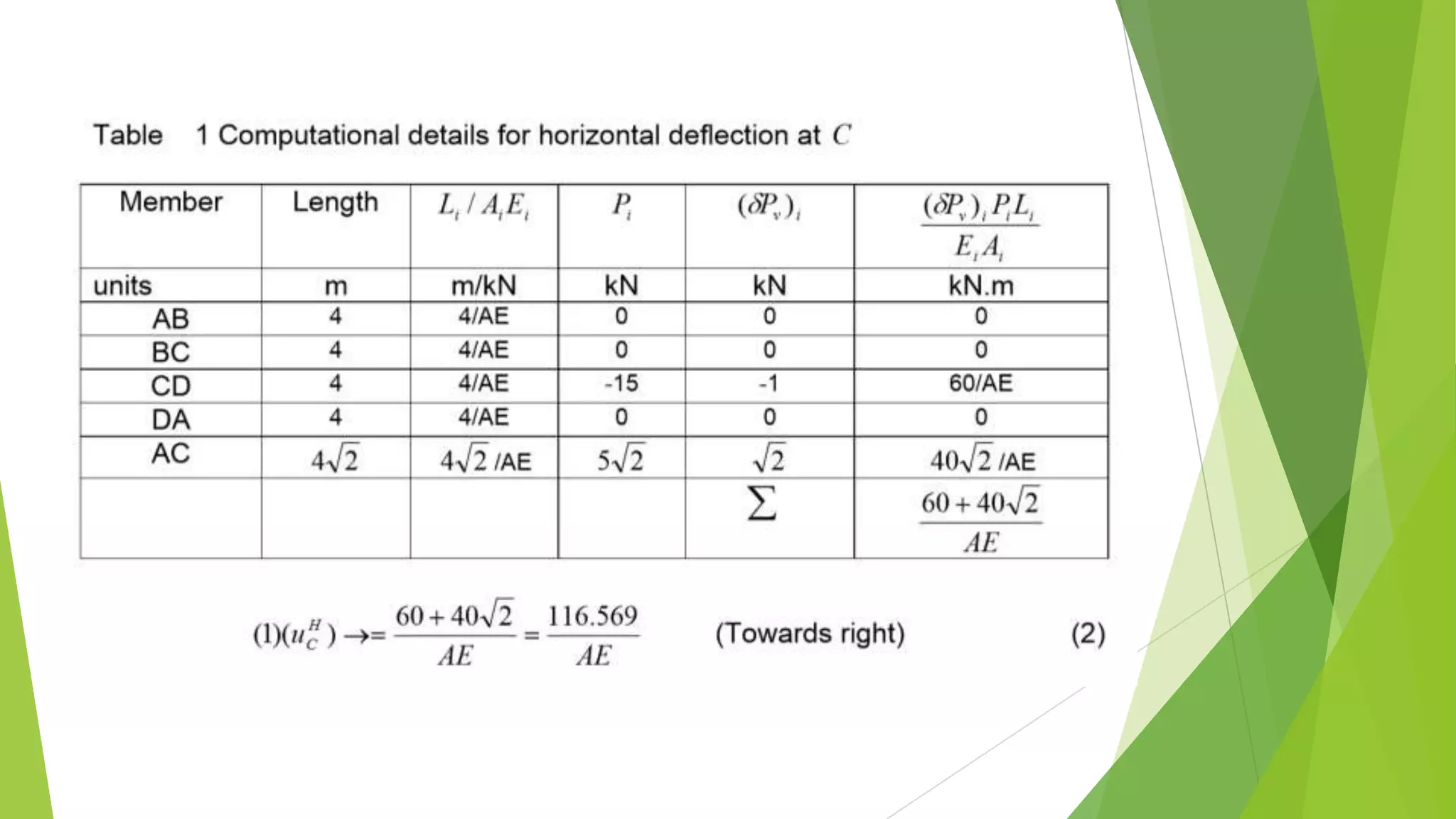

12. VERTICAL DEFLECTION AT C

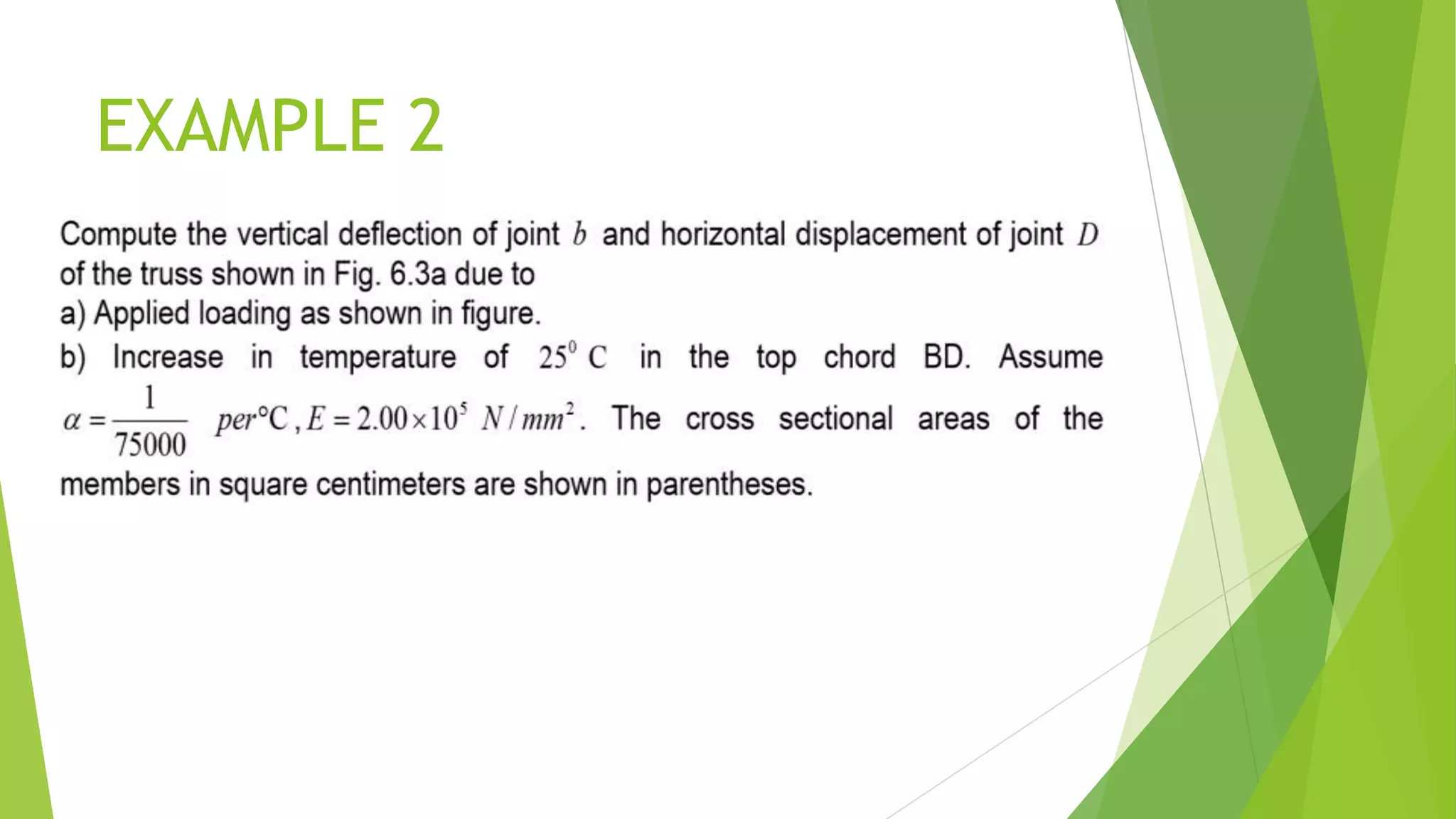

13. EXAMPLE 2

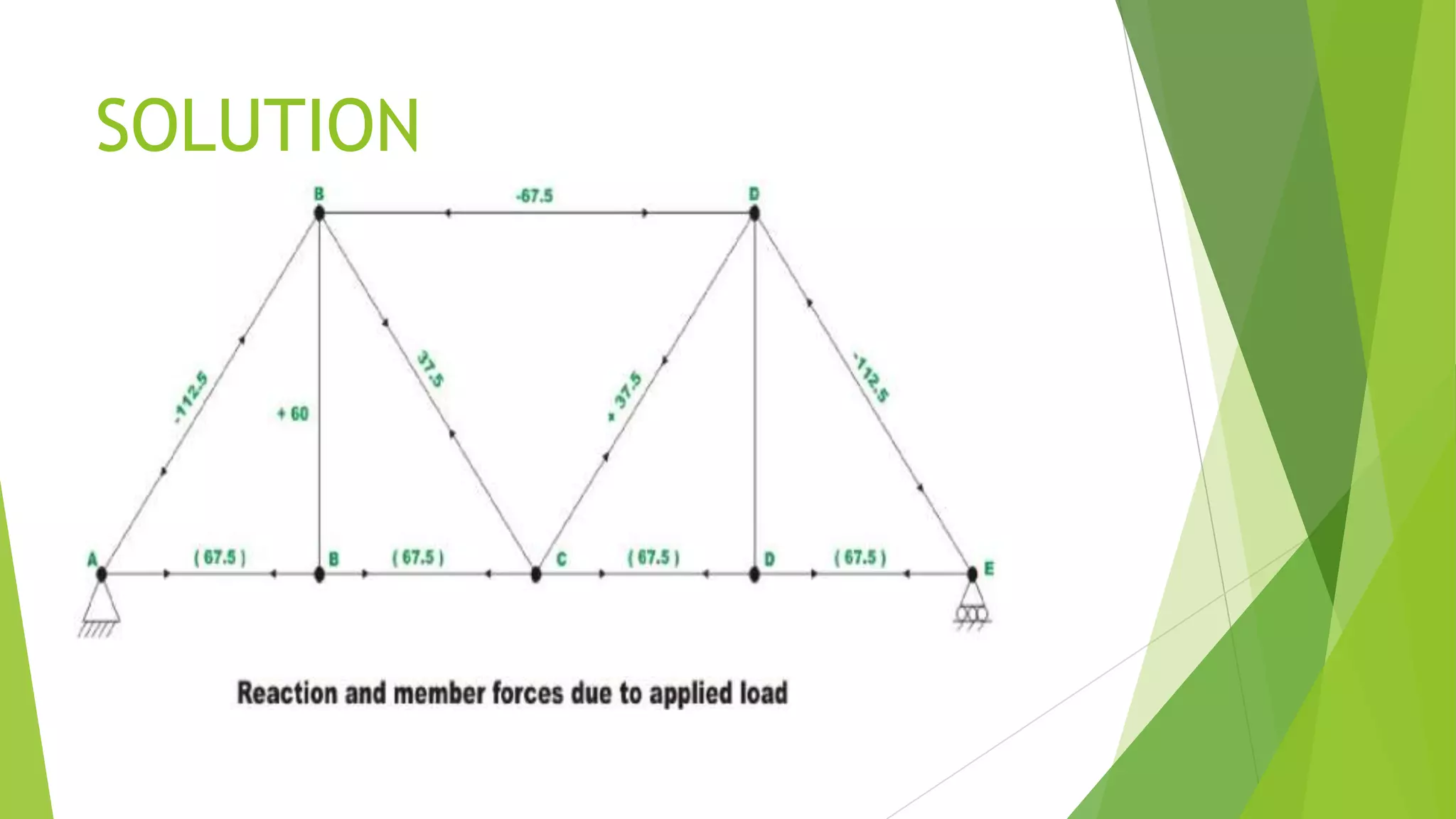

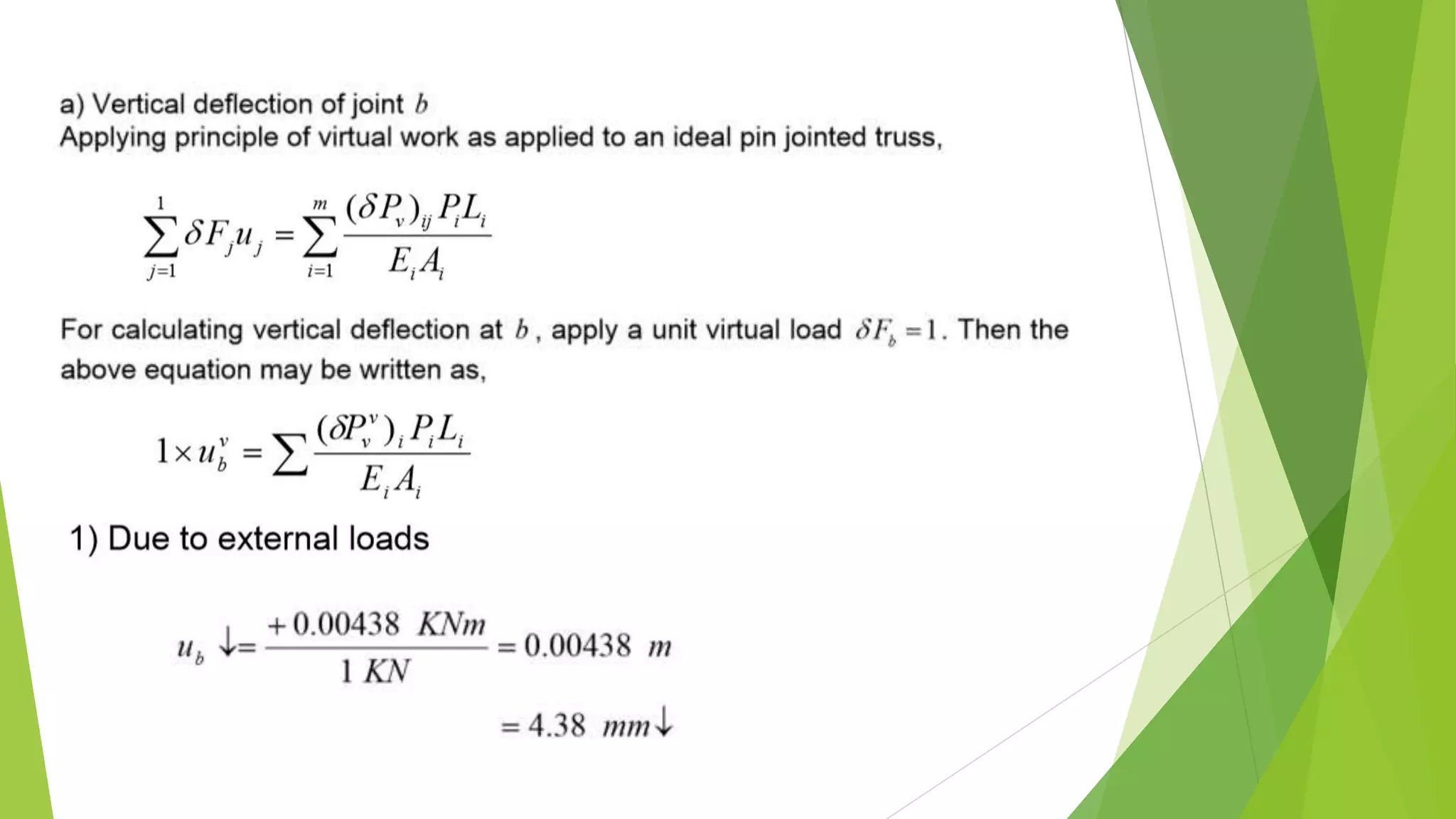

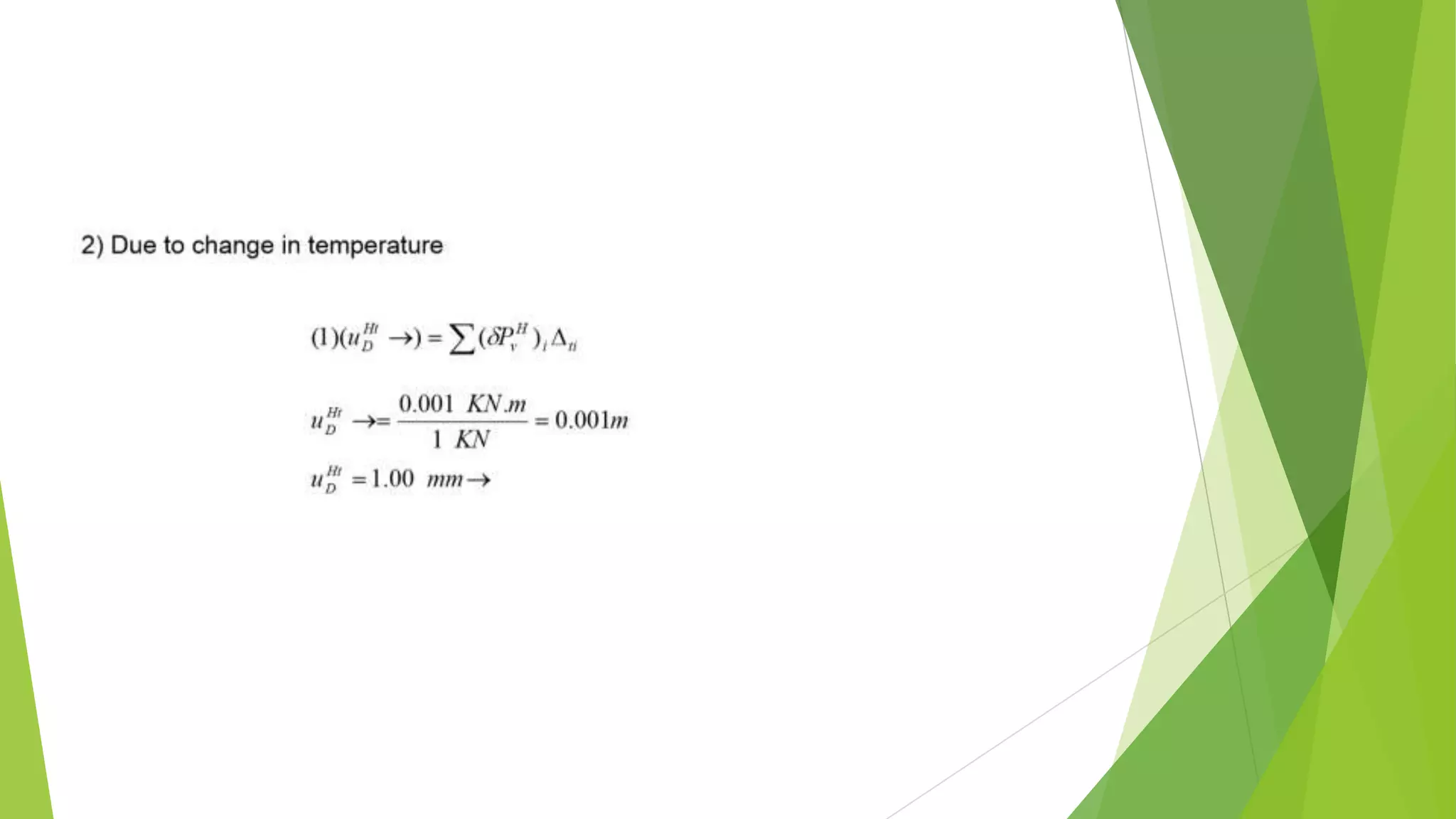

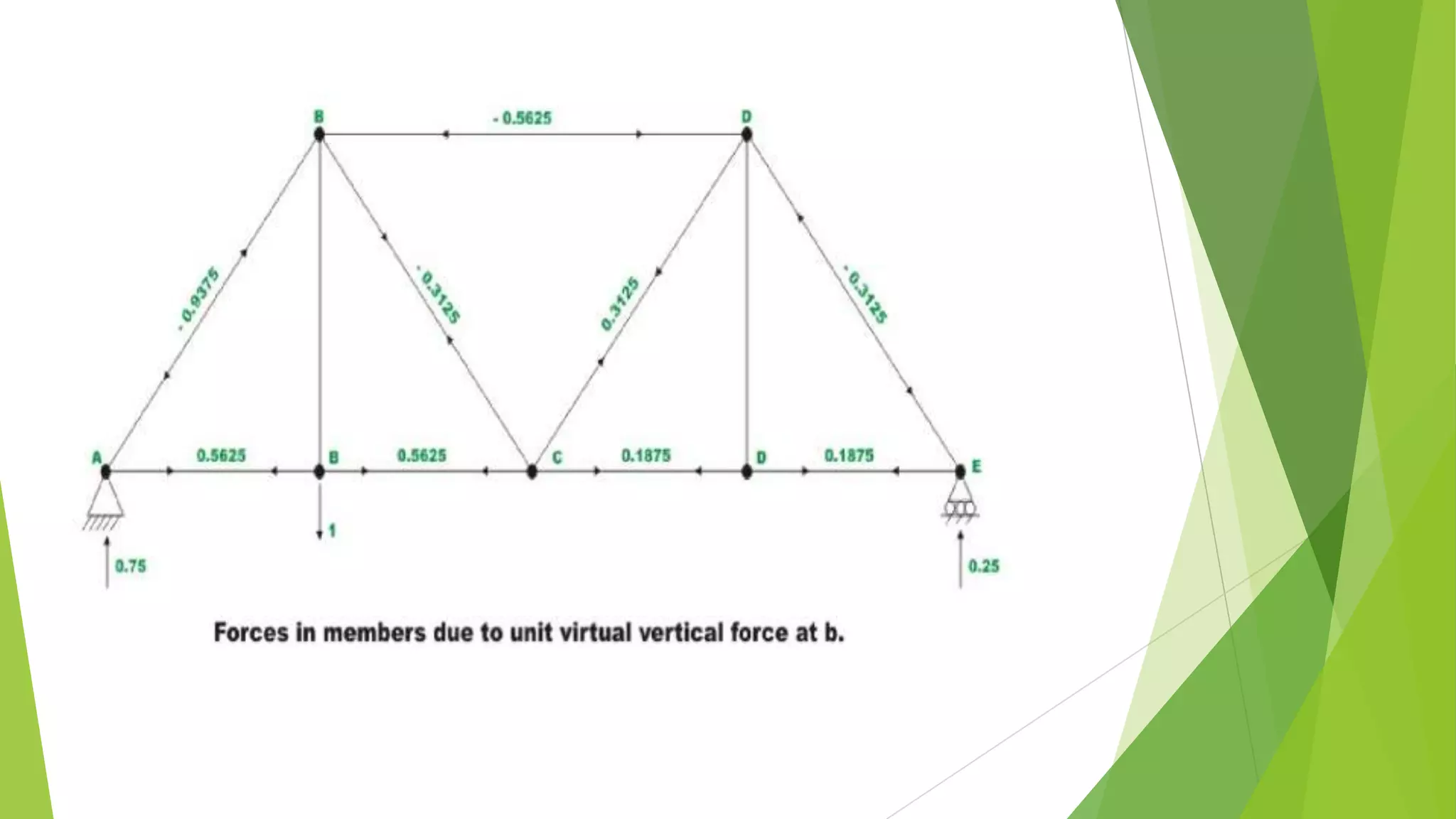

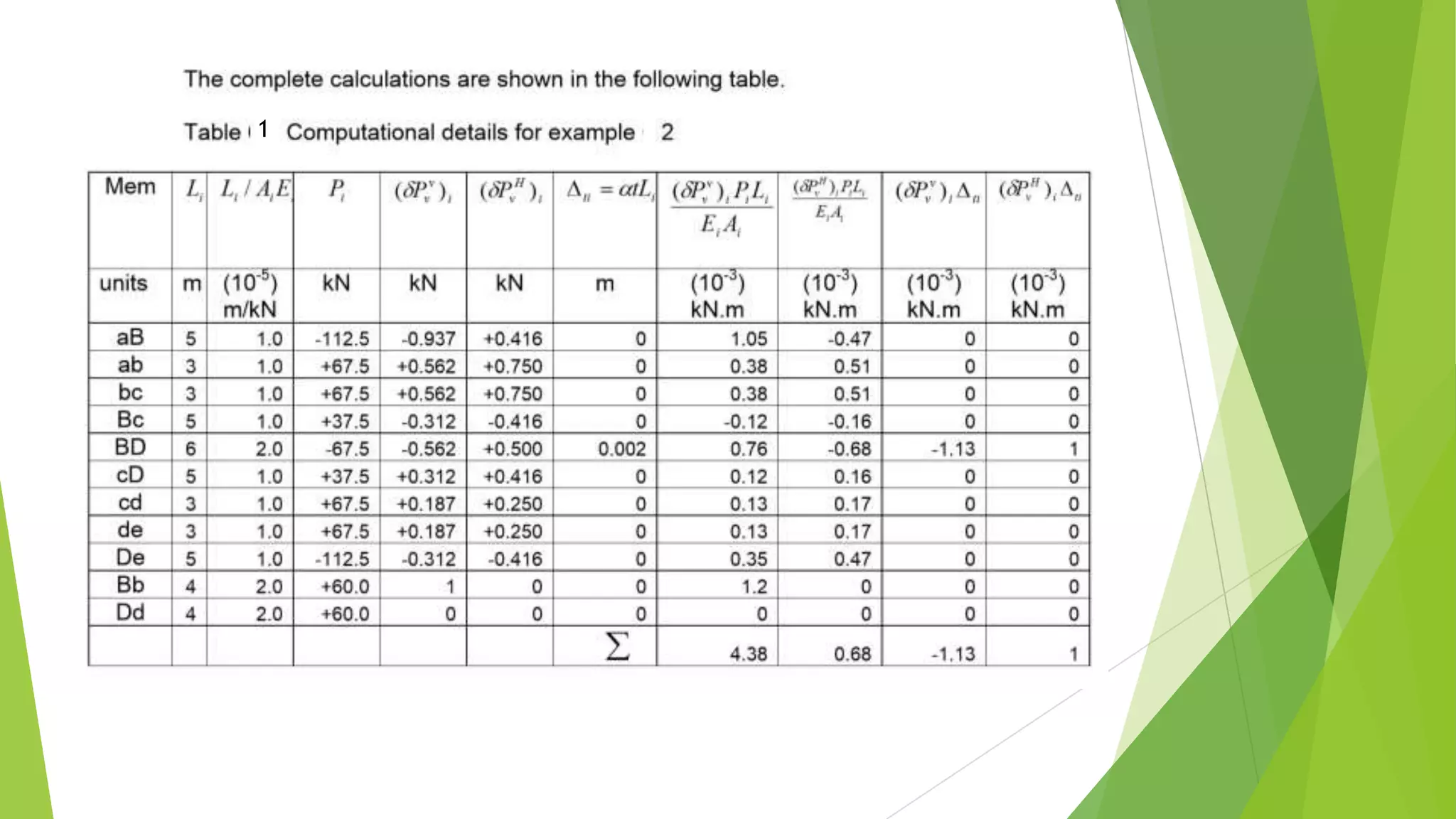

15. SOLUTION
