Standards for mobile towers
- 1. 1 Standards for MobileTowers SELECTING A SAFE MOBILE TOWER LOGO
- 2. COLLECTIVE MARK ® PREFABRICATED ACCESSSUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION Standards for Mobile Towers Don Aers Technical Director
- 3. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION About PASMA The Prefabricated Access Suppliers and Manufacturers Association Formed in 1974 Represents the mobile access tower industry Is the recognised training provider and authority for mobile access towers Working with regulatory authorities and standards setting bodies
- 4. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION Mobile Access Towers STANDARD TOWERS Platform heights 2.5m to 12m indoors 2.5m to 8m outdoors EN1004

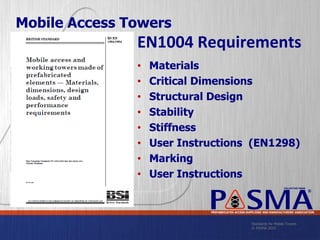

- 5. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION Mobile Access Towers EN1004 Requirements • Materials • Critical Dimensions • Structural Design • Stability • Stiffness • User Instructions (EN1298) • Marking • User Instructions

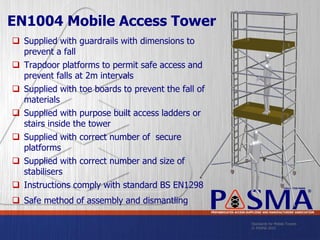

- 6. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION EN1004 Mobile Access Tower Supplied with guardrails with dimensions to prevent a fall Trapdoor platforms to permit safe access and prevent falls at 2m intervals Supplied with toe boards to prevent the fall of materials Supplied with purpose built access ladders or stairs inside the tower Supplied with correct number of secure platforms Supplied with correct number and size of stabilisers Instructions comply with standard BS EN1298 Safe method of assembly and dismantling

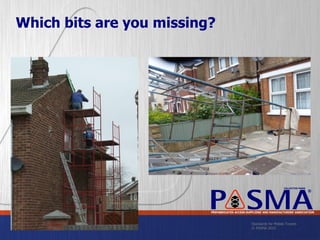

- 7. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION Which bits are you missing?

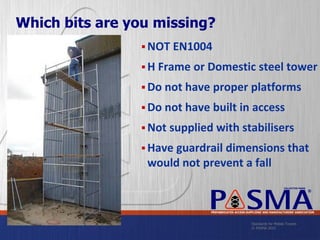

- 8. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION Which bits are you missing? NOT EN1004 H Frame or Domestic steel tower Do not have proper platforms Do not have built in access Not supplied with stabilisers Have guardrail dimensions that would not prevent a fall

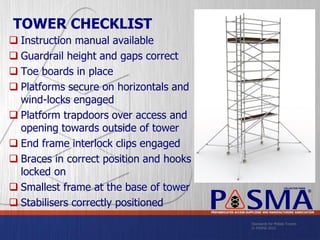

- 9. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION TOWER CHECKLIST Instruction manual available Guardrail height and gaps correct Toe boards in place Platforms secure on horizontals and wind-locks engaged Platform trapdoors over access and opening towards outside of tower End frame interlock clips engaged Braces in correct position and hooks locked on Smallest frame at the base of tower Stabilisers correctly positioned
- 10. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION TOWER CHECKLIST Ballast (if used) of correct type, correctly positioned and secure If tied in, ties are adequate Tower is vertical and level Adjustable legs not over-extended Brakes applied, wheels in contact with ground Base plates (if used) in contact with ground Ground conditions are appropriate Weather conditions – wind speed Inspection record completed

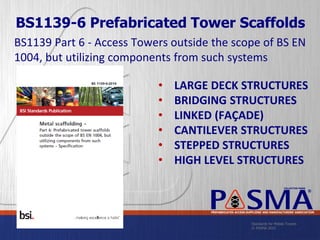

- 11. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION BS1139 Part 6 - Access Towers outside the scope of BS EN 1004, but utilizing components from such systems • LARGE DECK STRUCTURES • BRIDGING STRUCTURES • LINKED (FAÇADE) • CANTILEVER STRUCTURES • STEPPED STRUCTURES • HIGH LEVEL STRUCTURES BS1139-6 Prefabricated Tower Scaffolds
- 12. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION BS1139 Part 6 - Access Towers outside the scope of BS EN 1004, but utilizing components from such systems • LARGE DECK STRUCTURES • BRIDGING STRUCTURES • LINKED (FAÇADE) • CANTILEVER STRUCTURES • STEPPED STRUCTURES • HIGH LEVEL STRUCTURES BS1139-6 Prefabricated Tower Scaffolds
- 13. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION BS1139 Part 6 - Access Towers outside the scope of BS EN 1004, but utilizing components from such systems BS1139-6 Prefabricated Tower Scaffolds Materials Critical Dimensions Structural Design Stability User Instructions Marking
- 14. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION SAFE BUILD 3T – Through The Trap AGR – Advance Guard Rail
- 15. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION INSPECTION 1) Recorded pre-use inspections following assembly of the tower: Inspect after assembly, before use At least every 7 days it remains in use After any event that may have caused the tower to be unsafe 2) Routine recorded inspections on the components of the tower

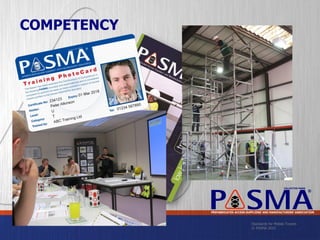

- 16. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION COMPETENCY
- 17. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION DISCUSSION & QUESTIONS
- 18. Standards for MobileTowers © PASMA 2015 COLLECTIVE MARK ® PREFABRICATED ACCESS SUPPLIERS’ AND MANUFACTURERS’ ASSOCIATION DISCUSSION & QUESTIONS
