1. Energy Efficient Building Envelope Kiev, 13.5.2010
Dr.‐Ing. R. Himmler
energydesign stuttgart –
Ingenieurgesellschaft mbH
Gropiusplatz 10
70563 Stuttgart
Germany
www.energydesign‐st.com
robert.himmler@energydesign‐st.com
Seite 1

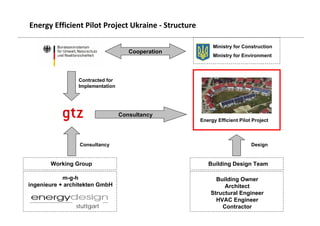

2. Energy Efficient Pilot Project Ukraine ‐ Structure
Ministry for Construction
Cooperation
Ministry for Environment
Contracted for
Implementation
Consultancy
Energy Efficient Pilot Project
Consultancy Design
Working Group Building Design Team
m-g-h Building Owner
ingenieure + architekten GmbH Architect
Structural Engineer
HVAC Engineer
stuttgart Contractor
Seite 2

3. Objectives of the „Energy Efficient Pilot Project“
Development of energy‐efficient building
concepts during the planning stage and
implementation
Awarness‐raising within the relevant national
and municipal institutions, associations,
chambers and the general public
Training and instruction of architects,
engineers, municipalities and construction
companies
Seite 3

4. Building Envelopes – Nowadays
Berlin Kiev Abu Dhabi
Seite 4

5. Hot and Humid Climate
Seite 5

6. Cold and Dry Climate
Seite 6

7. Traditional Buildings in Ukraine
CO2 neutral
energy supply
thermal insulation
passive shading system
sufficient
window/wall area
Seite 7

8. Energy Balance of a Building
Transmission
QS
QT
Solar
QV
Qi
Ventilation
Internal Gains
QT
Heat Loss - Heat Gains = Qh
QT + QV - η ( QS + Qi ) = Qh (Heating Demand)
Seite 8

9. Heating Demand – Energy Balance
120
110
Heat Losses ‐ Heat Gains = Heating Demand (Qh)
100
passiv‐
90 solar 20 %
Ventilation QS
80 Nutzbare
Heating Energy [kWh/m2]
QV 50 % Gewinne
70 30 %
internal
60 Qi
50
40
30
Trans‐ Heating 50 %
mission 50 %
20 Demand
QT Q h
10
0
Source: TU Braunschweig, IGS
Seite 9

10. Compact Building Design ‐ Surface‐to‐Volume Ratio
A Area of Building Envelope
V Volume of Building
Source: TU Braunschweig, IGS
Seite 10

11. Kiev, Sherbakova
A/V = 0,24
Source: AAA Architects
Seite 11

12. Passive solar gains ‐ shading
N
Building Orientation
So
t
es
ut
hw
he
as
ut
t
So
Shading Angle 15°
avoid high plants (e.g. trees)
Seite 12

13. Passive solar gains ‐ shading
• Stepping of Buildings
• Roof Forms
Seite 13

14. Urban City Design – Considering Orientation of the Buildings
Heating Demand
Solar Gains
Appartment Area
Seite 14

15. Solarisation of Urban Planning ‐ Passive House Neighbourhood Ulm
SOUTH
Seite 15

16. Solarhaus des Sokrates (469 ‐ 397 v. Chr.)
1 Solar Radiation in Summertime
2 Solar Radiation in Wintertime
3 Terrasse
4 Living Room
5 Storage Room
6 Massiv Walls (Heat Storage)
7 Stone Floor (Heat Storage)
Quelle: M. Trebersprung, Neues Bauen mit der Sonne
Solar Heating
Shading in Heating
in Winter
Summer
6
Seite 16

17. Roller Shutter ‐ Examples
Advantages:
‐ improves thermal comfort
‐ reduces cooling demand
‐ blinds
‐ burglar protection
Seite 17

18. Thermal Insulation: Roof, Walls, Floors
Seite 18

19. Wall types
thermal insulation light‐frame
monolithic composite system construction sandwich
Seite 19

20. Comparison of Insulation Standards
EnEV‐Standard Passive House
U‐Value U‐Value
[W/m²K] [W/m²K]
Wall 10 cm < 0,45 30 cm < 0,15
also monolithic
Roof 16 cm < 0,35 40 cm < 0,1
Windows 2‐fach < 1,70 3‐fach < 0,8
Seite 20

21. Only Good Quality during the Construction Process Guarantees Good Results!
Thermal
Insulation
QT QT
Source: Hasit
-15°C 20°C -15°C 20°C
0°C
Adhesive
Source: StoCretec
Wall
Seite 21

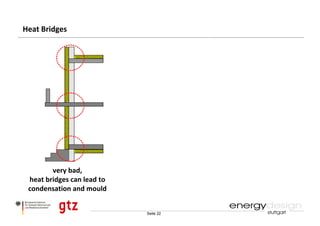

22. Heat Bridges
very bad,
heat bridges can lead to better optimised solution
condensation and mould
Seite 22

23. Example: connection wall ‐ floor
conventional
solution
improved
solution
Seite 23

24. Reduce Heat Bridges!
Standard Frame covered Frame shifted into
by insulation insulation layer
Ψ = 0,12 W/(mK)
Ψ = 0,03 W/(mK)
Ψ = 0,55 W/(mK)
Seite 24

25. Heat bridges lead to condensation and mould
Seite 25

26. Air Tight Building Envelope
Seite 26

27. Which materials are air tight?
air tight:
• plaster
• concrete
• steam brake / plastic
• wood
• glazing / window frames
not air tight:
• thermal insulation
• foam insulation
• brick wall
Seite 27

28. Example for damaged steam brake
Seite 28

29. Quality Control during Design, Construction and Commissioning
concept design
comissioning construction
Seite 29

30. Blower‐Door‐Test
n50 limit defined by German standard DIN 4108
pressure
difference: 50 Pa
leakage
ventilator
Seite 30

31. Thermography for Quality Control of the Facade
Seite 31

32. Summary
• adapt the building envelope to the climate
• plan compact buildings with low A/V ratio
• increase passive solar heat gains through windows with south
orientation
• don‘t forget sun shading and passive cooling strategies, avoid
HVAC
• thoroughly plan a thermal insulation and air tightness strategy
• pay attention to construction details (heat bridges, air leakage)
• teach the craftsmen and carry our construction site inspections
• check the building quality with blower door tests or thermography
Seite 32
