Intel® Gateway
Solutions for the
Internet of Things
(IoT) Overview
1

2. INTEL CONFIDENTIAL
• INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS
DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO
SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT.
• A "Mission Critical Application" is any application in which failure of the Intel® Product could result, directly or indirectly, in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION
CRITICAL APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS SUBSIDIARIES, SUBCONTRACTORS AND AFFILIATES, AND THE DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL CLAIMS COSTS,
DAMAGES, AND EXPENSES AND REASONABLE ATTORNEYS' FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF PRODUCT LIABILITY, PERSONAL INJURY, OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION
CRITICAL APPLICATION, WHETHER OR NOT INTEL OR ITS SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN, MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS PARTS.
• Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked “reserved" or "undefined". Intel
reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information here is subject to change without notice. Do not finalize a
design with this information.
• The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.
• Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
• This document contains information on products in the design phase of development.
• Intel® processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different processor families: Go to: Learn About Intel® Processor Numbers
• All products, computer systems, dates and figures specified are preliminary based on current expectations, and are subject to change without notice.
• Intel® product plans in this presentation do not constitute Intel plan of record product roadmaps. Please contact your Intel representative to obtain Intel's current plan of record product roadmaps.
• **Code Names are only for use by Intel to identify products, platforms, programs, services, etc. (“products”) in development by Intel that have not been made commercially available to the public, i.e., announced, launched or
shipped. They are never to be used as “commercial” names for products. Also, they are not intended to function as trademarks.
• Intel, the Intel logo, Intel Atom and Intel SpeedStep are trademarks of Intel Corporation in the U.S. and/or other countries.
• Intel® Active Management Technology (Intel® AMT) requires the platform to have an Intel AMT-enabled chipset, network hardware and software, as well as connection with a power source and a corporate network connection.
With regard to notebooks, Intel AMT may not be available or certain capabilities may be limited over a host OS-based VPN or when connecting wirelessly, on battery power, sleeping, hibernating or powered off. For more
information, see http://www.intel.com/technology/iamt.
• Enhanced Intel SpeedStep® Technology for specified units of this processor available Q2/06. See the Processor Spec Finder at http://processorfinder.intel.com or contact your Intel representative for more information
• 64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Performance will vary depending on your
hardware and software configurations. Consult with your system vendor for more information.
• No computer system can provide absolute security under all conditions. Intel® Trusted Execution Technology is a security technology under development by Intel and requires for operation a computer system with Intel®
Virtualization Technology, an Intel Trusted Execution Technology-enabled processor, chipset, BIOS, Authenticated Code Modules, and an Intel or other compatible measured virtual machine monitor. In addition, Intel Trusted
Execution Technology requires the system to contain a TPMv1.2 as defined by the Trusted Computing Group and specific software for some uses. See http://www.intel.com/technology/security/ for more information.
• Intel® Hyper-Threading Technology (Intel® HT Technology) requires a computer system with an Intel® Pentium® 4 Processor supporting Intel HT Technology and an Intel HT Technology-enabled chipset, BIOS, and operating system.
Performance will vary depending on the specific hardware and software you use. See www.intel.com/products/ht/hyperthreading_more.htm for more information including details on which processors support Intel HT Technology.
• Intel® Virtualization Technology requires a computer system with an enabled Intel® processor, BIOS, virtual machine monitor (VMM) and, for some uses, certain platform software enabled for it. Functionality, performance or other
benefits will vary depending on hardware and software configurations and may require a BIOS update. Software applications may not be compatible with all operating systems. Please check with your application vendor.
• Other vendors are listed by Intel as a convenience to Intel's general customer base, but Intel does not make any representations or warranties whatsoever regarding quality, reliability, functionality, or compatibility of these
devices. This list and/or these devices may be subject to change without notice.
• *Other names and brands may be claimed as the property of others.
• Copyright © 2014 Intel Corporation. All rights reserved.

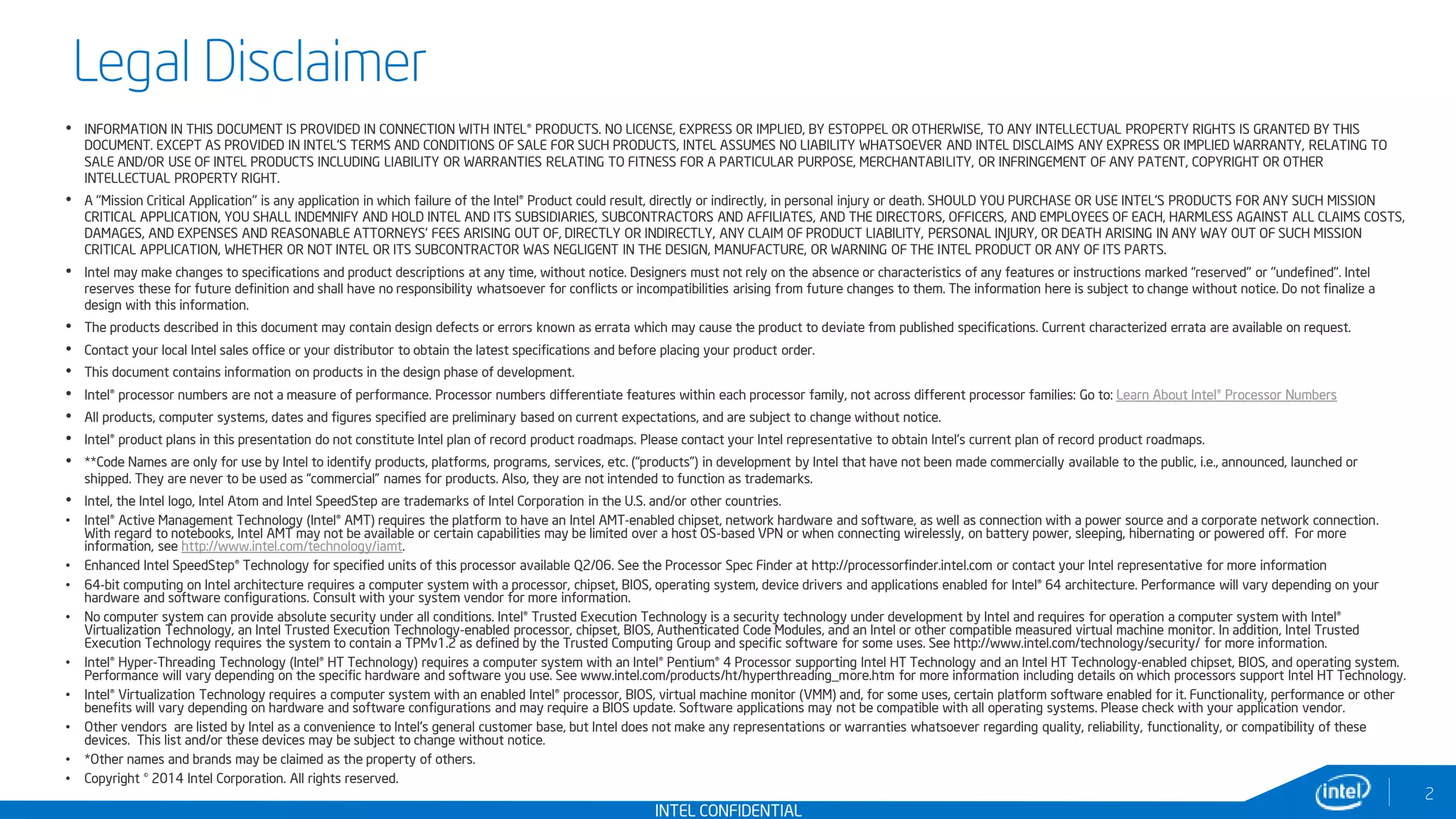

Legal Disclaimer
2

3. INTEL CONFIDENTIAL
IOT Opportunity
*Other names and brands may be claimed as the property of others.
Industry Alignment
IoT is a Big
Opportunity
3

4. INTEL CONFIDENTIAL

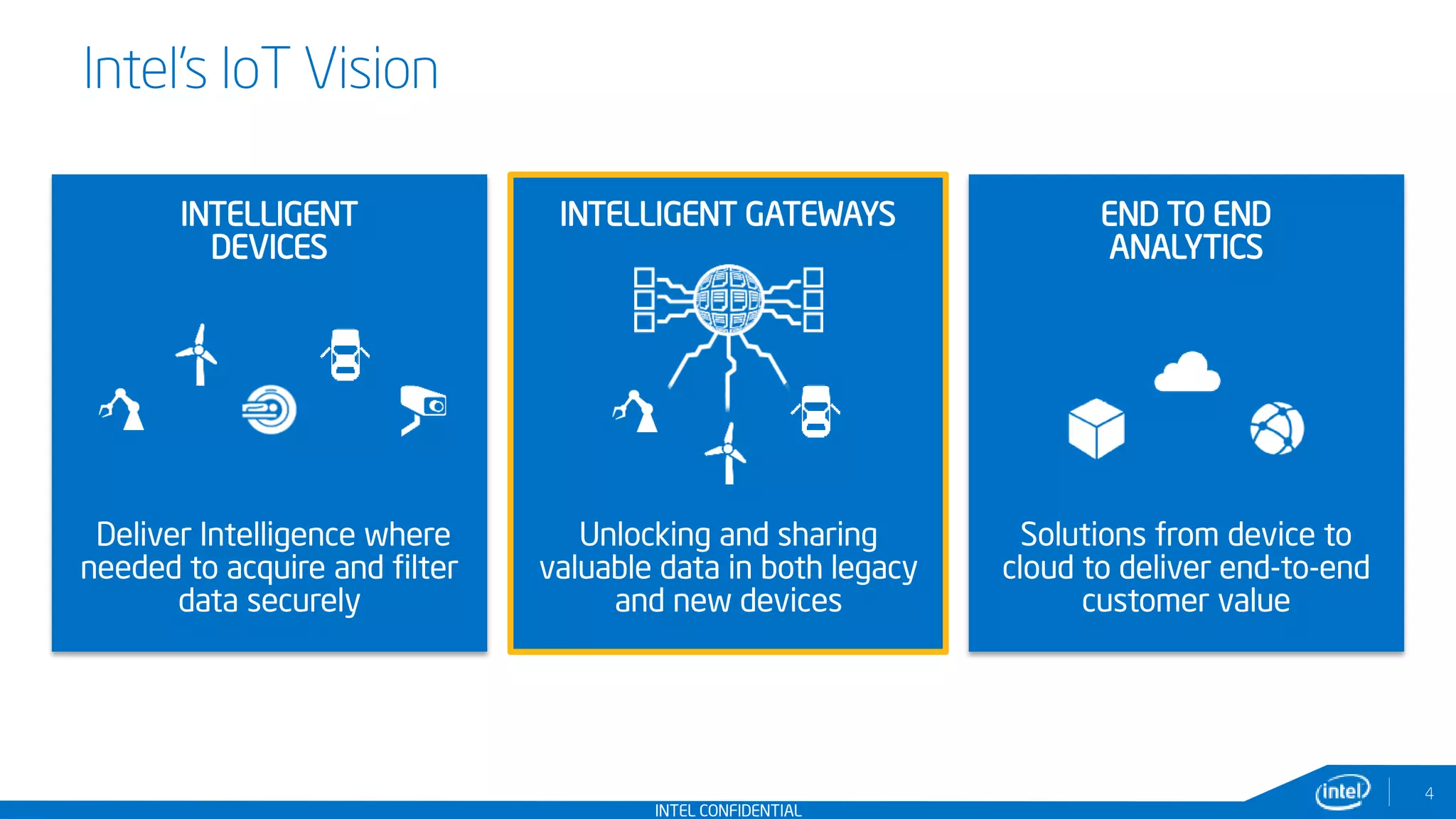

END TO END
ANALYTICS
INTELLIGENT GATEWAYSINTELLIGENT
DEVICES
Solutions from device to
cloud to deliver end-to-end
customer value
Unlocking and sharing
valuable data in both legacy
and new devices
Deliver Intelligence where
needed to acquire and filter
data securely
Intel’s IoT Vision
4

5. INTEL CONFIDENTIAL
Assetsto Deliver Value
Integrated, highly optimized platforms
Aligning
Intel’s Approach to IoT Gateways:
McAfee*Assetsto Deliver Value *
*Other names and brands may be claimed as the property of others. 5

6. INTEL CONFIDENTIAL

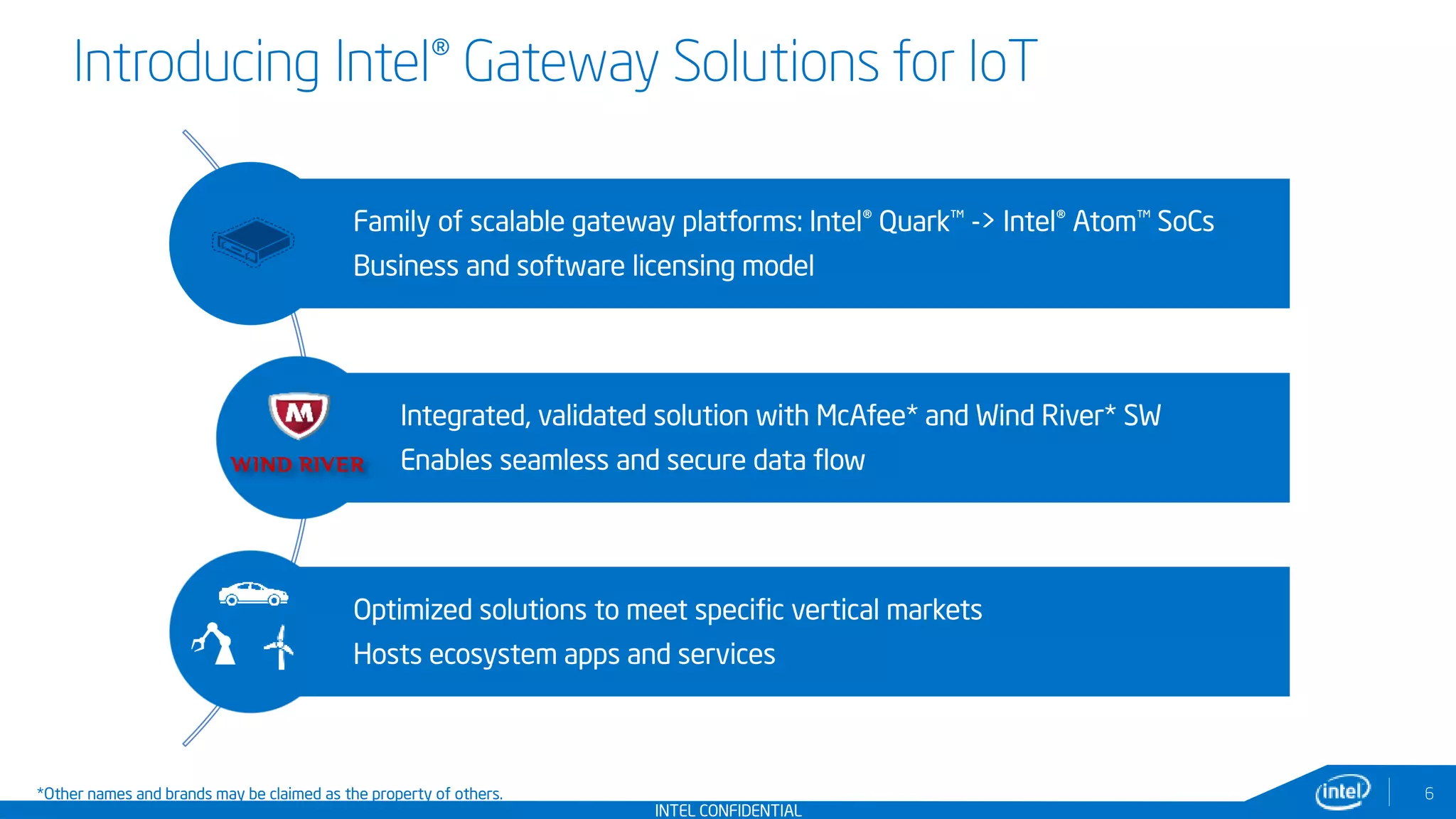

Family of scalable gateway platforms: Intel® Quark™ -> Intel® Atom™ SoCs
Business and software licensing model
Integrated, validated solution with McAfee* and Wind River* SW
Enables seamless and secure data flow
Optimized solutions to meet specific vertical markets
Hosts ecosystem apps and services
Introducing Intel® Gateway Solutions for IoT
*Other names and brands may be claimed as the property of others. 6

7. INTEL CONFIDENTIAL
• Fast Time to Market
• Unmatched Scalability
• Integrated Security
Intel® Gateway Solutions for IoT Value Proposition
7

8. INTEL CONFIDENTIAL
Intel Gateways Solutions for IoT Platform Technology Pillars
Connectivity Manageability Security
• PAN (Wi-Fi, Bluetooth*,
ZigBee*)
• LAN (Ethernet, Wi-Fi)
• WAN (2G/3G/LTE)
• Connection manager
• Cloud connector
• OMA DM
• TR-069
• OSGi
• Web-interface-based
configuration and
management
• Secure device
• Secure data
• Secure remote
management
• McAfee* Embedded
Control
*Other names and brands may be claimed as the property of others. 8

9. INTEL CONFIDENTIAL
Connectivity
DevelopmentEnvironment
Intel BSP: Board and Modules (Intel® Quark™ SoC, Intel® Atom™ SoC)
Linux* 5.0.1
Ecosystem
Apps &
Services
SI/ITOs,
Customers
Manageability SecurityCloud Connector
OMA DM
TR-069
Web Config
OpenSSL* TPM Engine
SRM Signing Tool
Certificate Management
Secure Boot
Application Integrity Monitor
Application Resource Control
Remote Attestation
Secure Package Management
Encrypted Storage
FIPS 140-2 OpenSSL Lib
McAfee* Embedded
Control

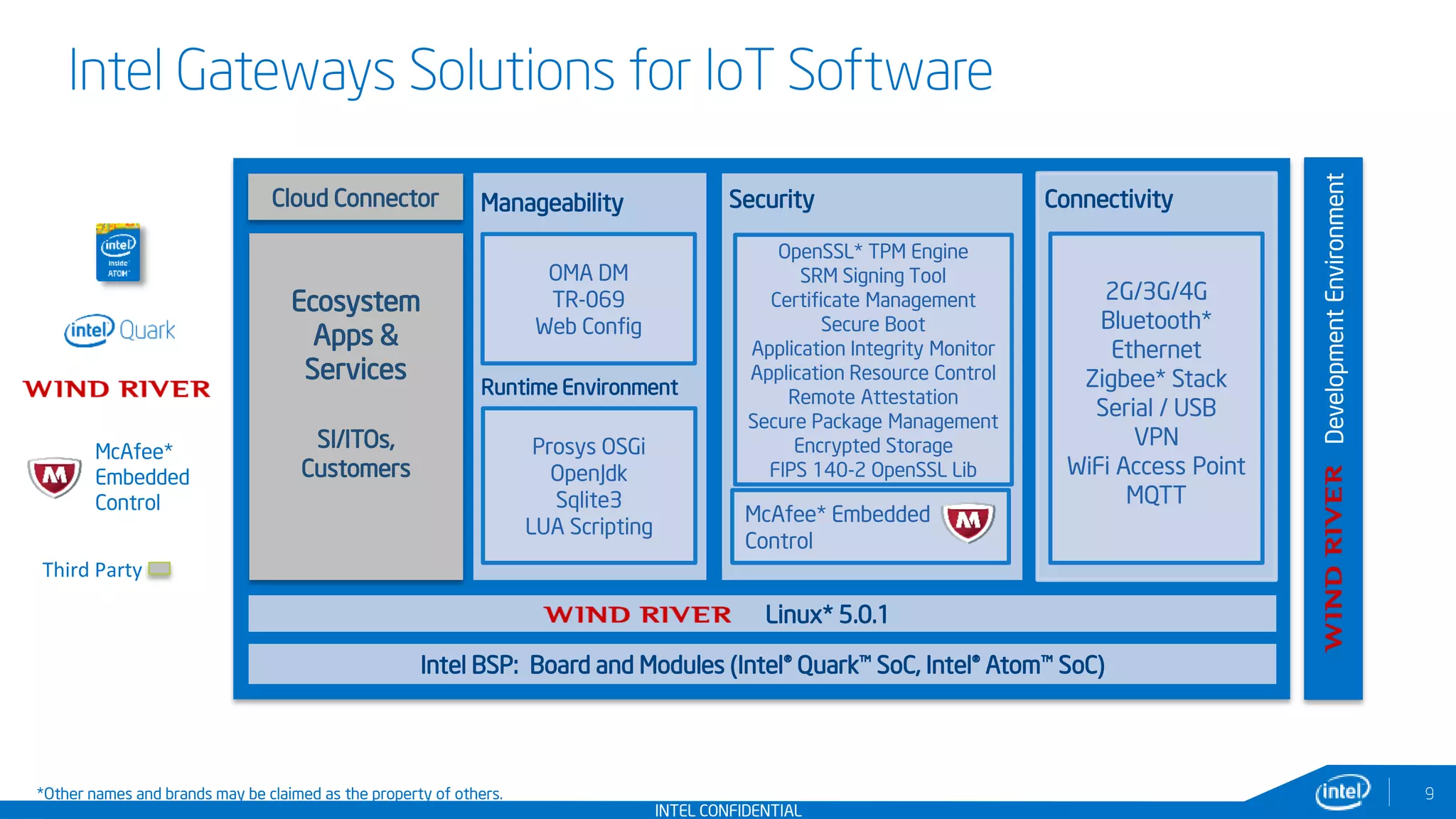

Intel Gateways Solutions for IoT Software
Third Party
2G/3G/4G
Bluetooth*
Ethernet
Zigbee* Stack
Serial / USB
VPN
WiFi Access Point
MQTT
Prosys OSGi
OpenJdk
Sqlite3
LUA Scripting
McAfee*
Embedded
Control
*Other names and brands may be claimed as the property of others.
Runtime Environment
9

10. INTEL CONFIDENTIAL
Intel® Gateway Solutions for IoT
Industrial Markets &
Energy Markets
1H’ 14 Solutions:
Codename: DK & PK 100
Series
DK & PK 300
Series
SOC Intel® Quark™ SoC
X1021
Intel® Atom™
Processor E3800
Series
Temp
Range
0° - 55°C -20° - 60°C
Production WW26 - 32 WW26 - 32
10
Transport Markets
1H’ 14 Solutions:
Codename: DK & PK 200
Series
DK & PK 300
Series
SOC Intel® Quark™ SoC
X1021
Intel® Atom™
Processor E3800
Series
Temp
Range
0° - 55° -20° - 60°C
Production WW26 - 32 WW26 - 32
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
Target Market:
Developers
1H’ 14 Solutions:
Codename: DK 50 Series
SOC Intel® Quark™ SoC
X1021
Temp Range
N/A
Production N/A
• Development Kit 100, 200, and 300 Series provides customers a commercial SW license as well as
production-ready systems from ODMs
• Development Kit 50 Series provides developers a low cost platform with a non-production, limited
term SW license (6 months) for development, prototyping, and testing.
•

11. INTEL CONFIDENTIAL
Intel® Gateway Solutions for the Internet of Things Development Kits
DK 50 Series DK 100 Series DK 200 Series DK 300 Series
Intel® Quark™ SoC X1000   
Intel® Atom™ Processor E3826 
Board, radio(s), chassis, power
supply
Board and Power
Supply Only
  
Software Components:
• Wind River* Linux* OS
• Wind River IDP XT 2.1 &
Workbench Tools
• McAfee* Embedded Control
• SW License
   
SW License Non-production, Limited
Term License
Commercial License
Commercial
License
Commercial
License
Target Markets Developers Industrial & Energy Transportation Multi Vertical
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others. 11

12. INTEL CONFIDENTIAL
12
DK50 – Galileo based development kit
 Intel® Quark™ SoC X1000
 400 MHz Quark™ Core
 512KB eSRAM, 16KB L1 cache
 256MB DDR3-800
 10/100Mb Ethernet Port
 USB2.0 Device Port
 USB2.0 Host Port (EHCI/OHCI)
 RS-232 UART Port, 3.5mm jack
 PCIe Gen 2 Full Mini-card slot
 Micro SD slot, up to 32GB
 8MB NVRAM SPI NOR flash chip
 SPI programming port
 10 pin JTAG
 Physical Characteristics
 6 Layer Board
 10cm x 7cm
 Arduino Compatible Interface
For Educators, Students, and Makers
 6 channel A-to-D Converter
 1 SPI port (up to 25MHz)
 1 UART
 1 I2C
 14 GPIOs w prog interrupts
 6 PWM
 Open Source Hardware and Software:
 Arduino Software IDE for the
Intel® Quark™ SoC X1000
 Linux* firmware pre-installed with
 Full open source driver
 Full open source tool chain
 Open HW Documentation
 BOM/Schematic/Board File/
 Datasheet

13. INTEL CONFIDENTIAL
13
Industrial/Energy Form Factor Reference Design (FFRD) - DK100
 Physical System Characteristics
 4 Layer Board
 10cm x 15cm in enclosure
 Intel® Quark™ X1000 Core
 400 MHz Quark™ Core
 ECC Enabled
 Secure Boot
 Wireless Connectivity
 Intel® Centrino® 6205 Wi-Fi
 Telit* HE910 3G with GPS
 Zigbee* (X-bee* & Exigen*)
 Wired Connectivity
 4GB MicroSD
 2 10/100 Ethernet Ports
 1 USB2.0 Device Port
 1 USB2.0 Host Port
 1 RS-232 UART Port
 Industrial /Energy Specific Features
 1 GB DDR3-800
 8 channel ADC for sensing raw inputs
 1 RS-485 port
 Option 3 Energy sensor Modules various
voltages ranges and configurations
 Certifications (CE, FCC, PTCRB ..)
 Development Kit Content:
 Chassis with CRB installed
 Linux image pre-installed
 Power supply, Accessories
 Documentation
 Quark™ X1000 Software Stack to be
downloaded via web site
 Safety & Carrier Certified
 SW Licenses
Comes WITH enclosure

14. INTEL CONFIDENTIAL
DK100 front and rear view
14

15. INTEL CONFIDENTIAL
15
Transport Form Factor Reference Design (FFRD) – DK200
 Physical System Characteristics
 Board in Enclosure
 Intel® Quark™ X1000 Core
 400 MHz Quark™ Core
 ECC Enabled, Secure Boot
 512 MB DDR3-800
 Vehicle Interface and Network Connectivity
 1 High Speed CAN (up to 1Mbps)
 1 Fault Tolerant CAN (up to 125 kbps)
 6 Ch 12-bit ADC
 Wireless Connectivity
 PCIe based Wi-Fi
 Bluetooth* 4.0
 Telit* HE910 3G Modem with GPS
 Wired Connectivity
 2 10/100 Ethernet Ports
 1 USB2.0 Device Port
 3 USB2.0 Host Port
 1 RS-232 UART Port
 4GB MicroSD
 Transportation Specific Features
 Collision and Rollover Detection via on board
Accelerometer
 Emergency Call Support with Microphone In and
Line Out
 Driver Call Button
 Driver Alarm Button
 4.5V to 28V with Battery Backup
 Battery Monitor(s)
 Certifications for Transportation use, including
CE, FCC, PTCRB)
 Development Kit Content:
 Chassis with CRB installed
 Linux image pre-installed
 Power supply, Accessories
 Documentation
 Safety & Carrier Certified
 Quark™ X1000 Software Stack
battery
mPCIe
Comes WITH enclosure

16. INTEL CONFIDENTIAL
Wind River IDP main features
16

17. INTEL CONFIDENTIAL

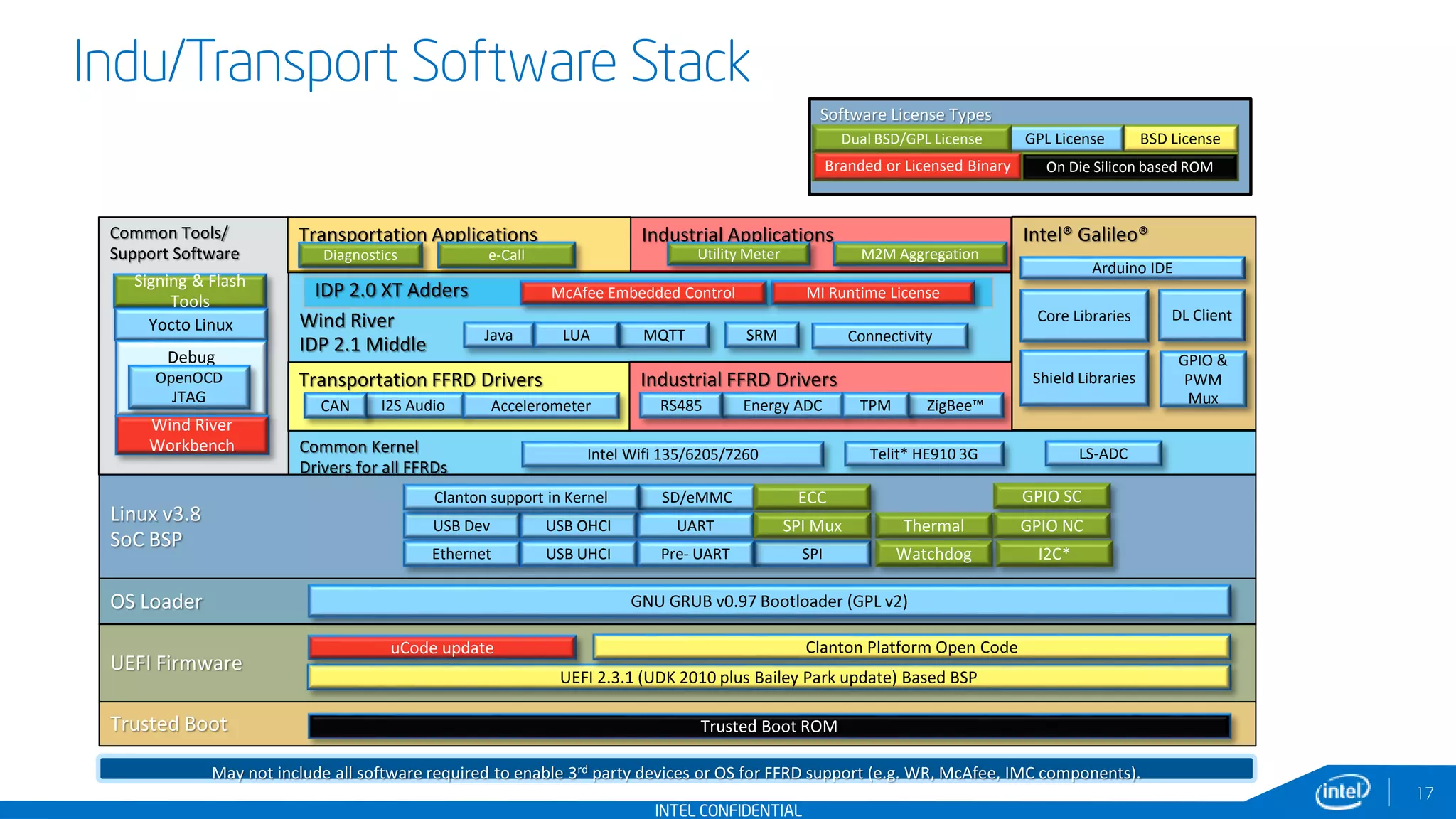

Indu/Transport Software Stack
17
Software License Types
BSD License
Branded or Licensed Binary
GPL LicenseDual BSD/GPL License
On Die Silicon based ROM
Wind River
IDP 2.1 Middle
IDP 2.0 XT Adders
Industrial FFRD DriversTransportation FFRD Drivers
Common Kernel
Drivers for all FFRDs
Common Tools/
Support Software
Trusted Boot Trusted Boot ROM
OS Loader
Linux v3.8
SoC BSP
USB Dev
SD/eMMC ECC
Ethernet SPI
USB OHCI
GPIO SC
ThermalUART
UEFI Firmware
UEFI 2.3.1 (UDK 2010 plus Bailey Park update) Based BSP
Clanton Platform Open CodeuCode update
Signing & Flash
Tools
Yocto Linux
Debug
OpenOCD
JTAG
Clanton support in Kernel
GNU GRUB v0.97 Bootloader (GPL v2)
May not include all software required to enable 3rd party devices or OS for FFRD support (e.g. WR, McAfee, IMC components).
USB UHCI Watchdog
GPIO NC
Pre- UART
Telit* HE910 3G LS-ADC
I2S Audio
Intel Wifi 135/6205/7260
Energy ADC ZigBee™
SPI Mux
I2C*
RS485CAN
Wind River
Workbench
Transportation Applications
Diagnostics e-Call
Industrial Applications
M2M AggregationUtility Meter
Accelerometer
Intel® Galileo®
GPIO &
PWM
MuxTPM
Arduino IDE
Shield Libraries
Core Libraries DL Client
Java MQTTLUA SRM Connectivity
McAfee Embedded Control MI Runtime License

18. INTEL CONFIDENTIAL
Tested drivers for Intel IoT Gateway Platform
18

19. INTEL CONFIDENTIAL
Intel Gateways Solutions for IoT Development Kits
19
DK50 series DK100 series DK200 series DK300 series
Target Markets Developers Industrial, Energy Transportation
Industrial, Energy, and
Transportation
SoC Intel® Quark™ SoC X1000 Intel® Quark™ SoC X1000 Intel® Quark™ SoC X1000 Intel® Atom™ Processor E3826
Software
Same with Non-production, Limited
Term SW License
Wind River Linux* 5.0.1 (Host), Wind River* Intelligent Device Platform XT 2.1, Wind River Workbench,
McAfee® Embedded Control 6.1
Data Security and Attestation OpenSSL Library, VPN
Certificate Management, Remote Attestation, OpenSSL (HW TPM for DK300), FIPS 140-2 OpenSSL* Library,
SRM Signing Tool, Encrypted Storage, VPN
End Point Security McAfee* Embedded Control
McAfee* Embedded Control, Application Integrity Monitor, Application Resource Control, Secure Package
Management, Secure Boot
Manageability and Provisioning
OMA DM, TR-069, Web-based
configuration interfaces
OMA DM, TR-069, Web-based configuration interfaces
Communications and
Connectivity
Serial, USB, VPN, MQTT
Cellular 2G/3G/4G, Bluetooth*, Serial, USB, VPN, Wi-Fi* Access Point, MQTT, and 802.15.4 (ZigBee* DK100
series only)
Runtime Environments Java, OSGi Lua*, Java*, and OSGi*
I/O
Ethernet* 10/100, USB 2.0 host &
device, RS-232, full PCIe* mini card
slot, UART 5V/3.3V, SPI for Arduino
shield, I2C, 14 digital I/O pins, 12bit
8 channel ADC
2x Ethernet* 10/100, USB 2.0 host
& device, RS-232, RS-485, third
party optional 802.15.4 (ZigBee*),
Wi-Fi*/Bluetooth* mini PCIe Module,
3G (data), SPI (internal), 12bit 8
channel ADC
2x Ethernet* 10/100, USB 2.0 host
& device, RS-232, Audio line in/out,
CAN*, Wi-Fi*/Bluetooth* mini PCIe
Module, 3G (data and voice), 3 axis
accelerometer (internal), 12bit 8
channel ADC
2x Ethernet* 10/100/1000,
2x USB 2.0, 1X USB 3.0, RS-
232/422/485, Line in/out, Wi-
Fi*/Bluetooth* mini PCIe
Module, Cellular WAN mini PCIe
module, optional third party
ZigBee* via USB, HDMI
Memory and Storage
512k SRAM; 256MBytes DDR3,
optional micro SD card
512k SRAM; 1 GB ECC DDR3,
Onboard SD Card
512k SRAM; 512MB ECC DDR3,
Onboard SD Card
Up to 8 GB DDR3, 2.5¨ SSD via
onboard SATA
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.

20. INTEL CONFIDENTIAL

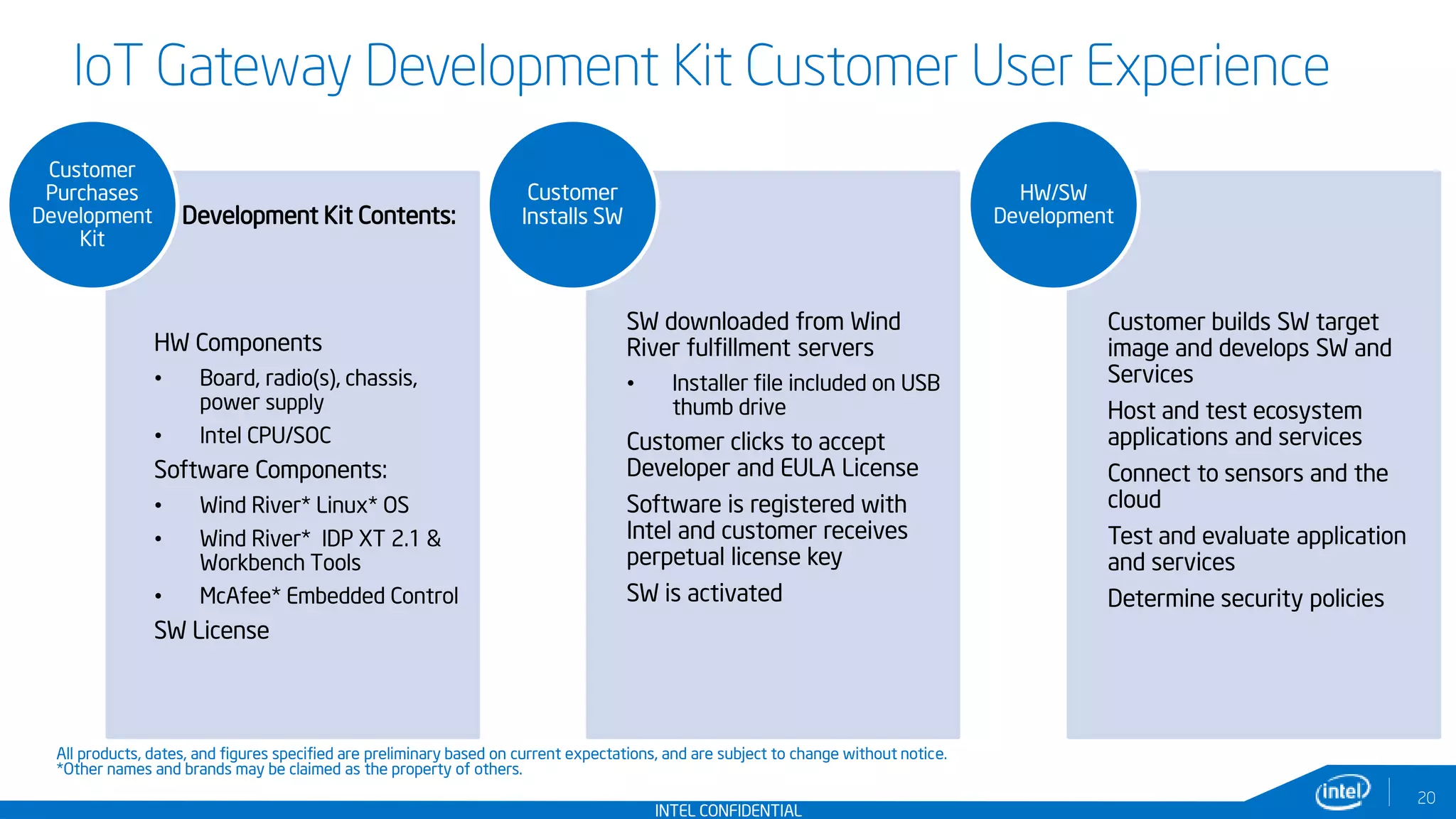

IoT Gateway Development Kit Customer User Experience
20
HW Components
• Board, radio(s), chassis,
power supply
• Intel CPU/SOC
Software Components:
• Wind River* Linux* OS
• Wind River* IDP XT 2.1 &
Workbench Tools
• McAfee* Embedded Control
SW License
Customer
Purchases
Development
Kit
Development Kit Contents:
SW downloaded from Wind
River fulfillment servers
• Installer file included on USB
thumb drive
Customer clicks to accept
Developer and EULA License
Software is registered with
Intel and customer receives
perpetual license key
SW is activated
Customer
Installs SW
Customer builds SW target
image and develops SW and
Services
Host and test ecosystem
applications and services
Connect to sensors and the
cloud
Test and evaluate application
and services
Determine security policies
HW/SW
Development
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.

21. INTEL CONFIDENTIAL
IoT Gateway Development Kit Customer User Experience
21
HW Components
• Intel CPU/SOC
Software Components:
• N/A
SW Entitlement Document
• Obtained “rights” to copy
the runtime SW onto the
production kit and
associated HW
• Customer is reminded that
binaries of system image
are inseparably embedded
to production kit
Customer
Purchases
Gateway
from
ecosystem
Gateway contains
Production Kit from Intel
Production Kit Contents:
Gateway integrated with
applications and services and
provisioned
End to End system integration
Gateway
shipped to
Customer
Gateway is deployed in a
production environment
Services deployed
Gateway is
deployed
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.

22. INTEL CONFIDENTIAL
Ecosystem Engagement
Engagements require selling a solution with ecosystem partners
Scalable and inter-operable ecosystem is needed to accelerate
deployments
ODM
ISV
SI
Telco
SP
OEM
End User
22

23. INTEL CONFIDENTIAL
DEVICES DEVICES
Addressing Endless Use
Cases
23

24. INTEL CONFIDENTIAL
Intel Gateways Solutions for IoT Industrial HVAC Use Case
Securely connect to HVAC units
and send data to the cloud
Aggregate, Analyze, Manage
Data
Intel Gateway
Solution for IoT
Accelerating Business Transformation
Cloud Services Creation and Deployment
Performance Management (Owner)
• Energy performance benchmarking
• Utility grade demand response
• Sustainability and regulatory reporting
Asset Management (Service)
• 24/7/365 anywhere access
• Remote diagnostics and monitoring
• Online integrated service and parts locator
24

25. INTEL CONFIDENTIAL
Summary
Intel is developing scalable gateway solutions for IoT
Integrated with foundational HW, SW, and security building blocks
Securely connects and aggregates data from the edge to the cloud
Simplifies the development process and deployment of IoT gateways
Delivers value by accelerating business transformation
25

26. INTEL CONFIDENTIAL

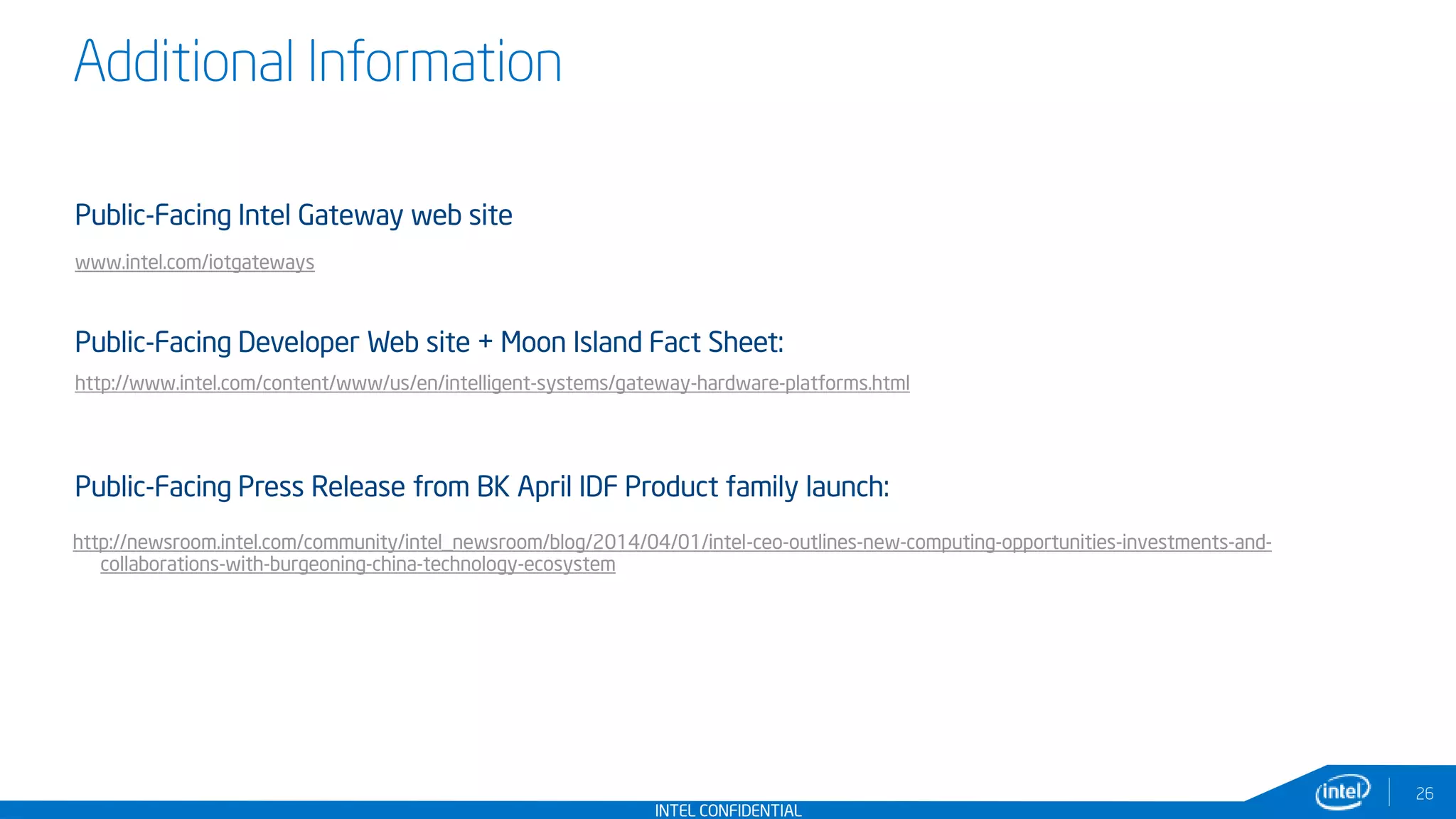

Additional Information
http://newsroom.intel.com/community/intel_newsroom/blog/2014/04/01/intel-ceo-outlines-new-computing-opportunities-investments-and-
collaborations-with-burgeoning-china-technology-ecosystem
26
Public-Facing Press Release from BK April IDF Product family launch:
Public-Facing Intel Gateway web site
http://www.intel.com/content/www/us/en/intelligent-systems/gateway-hardware-platforms.html
www.intel.com/iotgateways
Public-Facing Developer Web site + Moon Island Fact Sheet:

27. Intel Confidential — Do Not Forward

28. INTEL CONFIDENTIAL

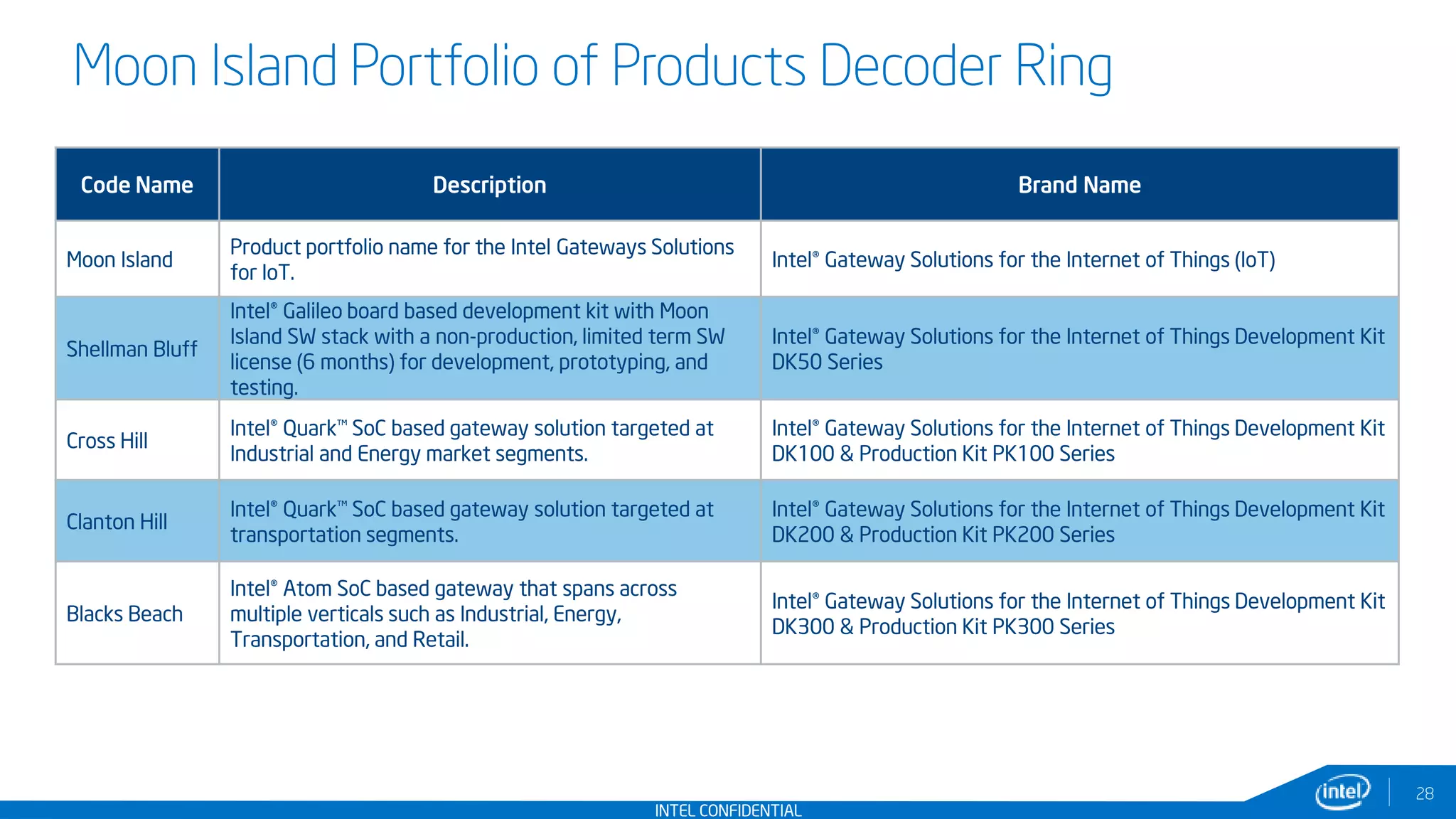

Moon Island Portfolio of Products Decoder Ring
28
Code Name Description Brand Name
Moon Island
Product portfolio name for the Intel Gateways Solutions
for IoT.
Intel® Gateway Solutions for the Internet of Things (IoT)
Shellman Bluff
Intel® Galileo board based development kit with Moon
Island SW stack with a non-production, limited term SW
license (6 months) for development, prototyping, and
testing.
Intel® Gateway Solutions for the Internet of Things Development Kit
DK50 Series
Cross Hill
Intel® Quark™ SoC based gateway solution targeted at
Industrial and Energy market segments.
Intel® Gateway Solutions for the Internet of Things Development Kit
DK100 & Production Kit PK100 Series
Clanton Hill
Intel® Quark™ SoC based gateway solution targeted at
transportation segments.
Intel® Gateway Solutions for the Internet of Things Development Kit
DK200 & Production Kit PK200 Series
Blacks Beach
Intel® Atom SoC based gateway that spans across
multiple verticals such as Industrial, Energy,
Transportation, and Retail.
Intel® Gateway Solutions for the Internet of Things Development Kit
DK300 & Production Kit PK300 Series

29. INTEL CONFIDENTIAL

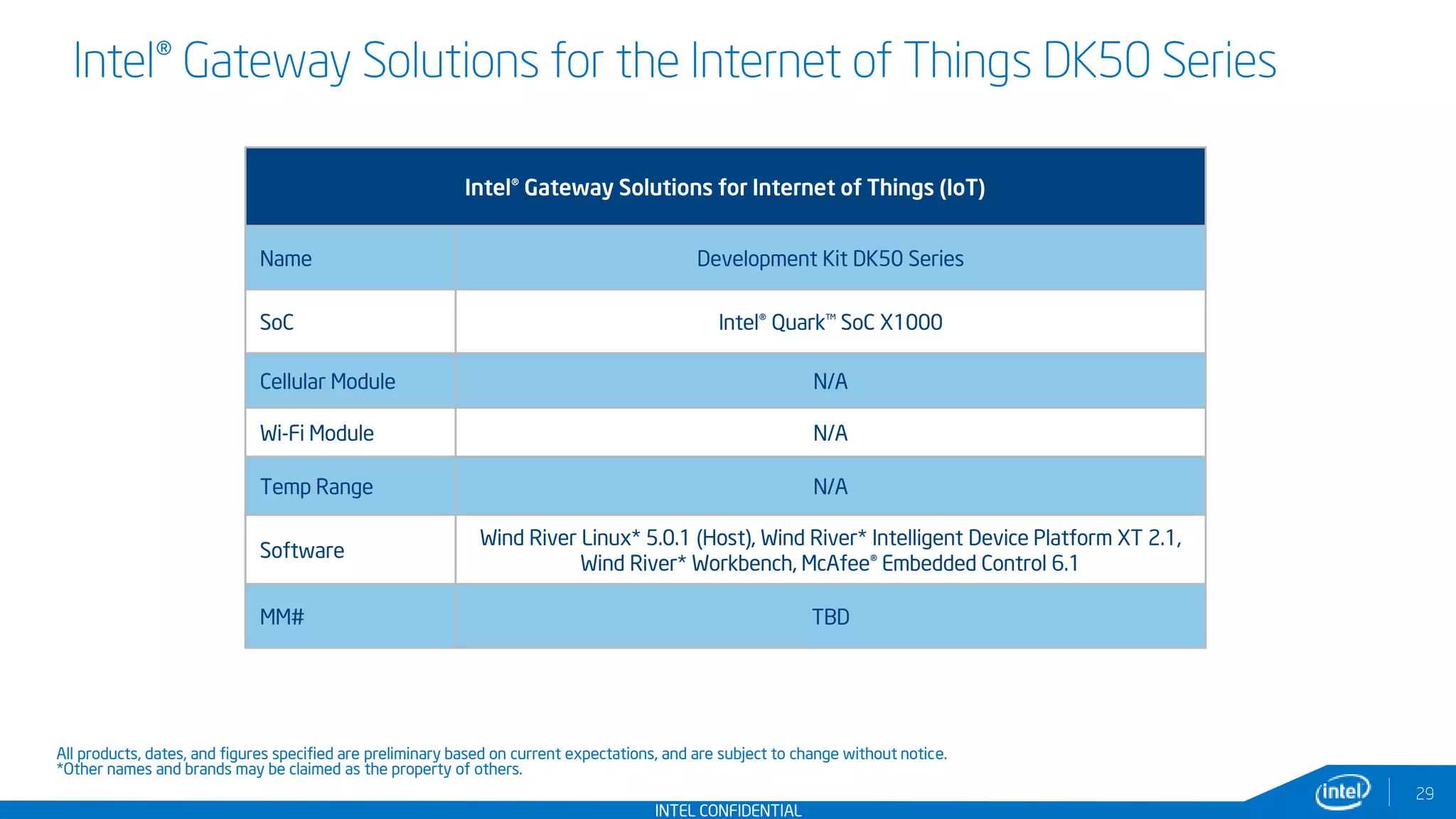

Intel® Gateway Solutions for the Internet of Things DK50 Series
29
Intel® Gateway Solutions for Internet of Things (IoT)
Name Development Kit DK50 Series
SoC Intel® Quark™ SoC X1000
Cellular Module N/A
Wi-Fi Module N/A
Temp Range N/A
Software
Wind River Linux* 5.0.1 (Host), Wind River* Intelligent Device Platform XT 2.1,
Wind River* Workbench, McAfee® Embedded Control 6.1
MM# TBD
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.

30. INTEL CONFIDENTIAL
Intel® Gateway Solutions for the Internet of Things DK100 & PK100 Series
Intel® Gateway Solutions for Internet of Things (IoT)
Name Development Kit - DK100 Series Production Kit – PK100 Series
SoC Intel® Quark™ SoC X1000 Intel® Quark™ SoC X1021
Cellular Module Telit* HE-910 N/A
Wi-Fi Module Intel® Dual Band Wireless-AC 7260 N/A
Temp Range 0° - 55°C N/A
Software
Wind River Linux* 5.0.1 (Host),
Wind River* Intelligent Device Platform XT 2.1, Wind River*
Workbench, McAfee® Embedded Control 6.1
N/A (SW entitlement document stating customer can ship
runtime software with the production kit)
MM#
935950 (w/o PRC certification)
935951 (w PRC certification)
TBD
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.
30

31. INTEL CONFIDENTIAL
Intel® Gateway Solutions for the Internet of Things DK200 & PK200 Series
31
Intel® Gateway Solutions for Internet of Things (IoT)
Name Development Kit – DK200 Series Production Kit – PK200 Series
SoC Intel® Quark™ SoC X1000 Intel® Quark™ SoC X1021
Cellular Module Telit* HE-910 N/A
Wi-Fi Module Intel® Dual Band Wireless-AC 7260 N/A
Temp Range 0° - 55°C N/A
Software
Wind River* Linux* 5.0.1 (Host),
Wind River* Intelligent Device Platform XT 2.1, Wind
River* Workbench, McAfee® Embedded Control 6.1
N/A (SW entitlement document stating customer can ship
runtime software with the production kit)
MM# 935953 TBD
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.

32. INTEL CONFIDENTIAL
Intel® Gateway Solutions for the Internet of Things DK300 & PK 300 Series
32
Intel® Gateway Solutions for Internet of Things (IoT)
Code Name Development Kit – DK300 Series Production Kit – PK300 Series
SoC Intel® Atom™ Processor E3826 Intel® Atom™ Processor E3800 Series
Cellular Module Telit* HE-910 N/A
Wi-Fi Module Intel® Dual Band Wireless-AC 7260 N/A
Temp Range -20° - 60°C N/A
Software
Wind River Linux* 5.0.1 (Host),
Wind River* Intelligent Device Platform XT 2.1, Wind
River* Workbench, McAfee® Embedded Control 6.1
N/A (SW entitlement document stating customer can ship
runtime software with the production kit)
MM# 935952 TBD
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.

33. INTEL CONFIDENTIAL
eODM Moon Island Production Kit Process
33
HW Components
• Intel CPU/SOC
Software Components:
• N/A
SW Entitlement Document
• Obtained “rights” to copy
the runtime SW onto the
production kit and
associated HW
• Customer is reminded that
binaries of system image
are inseparably embedded
to production kit
Customer
Purchases
Production
Kits
Production Kit Contents:
Ships to OEMs, End Users,
ISVs, or Integrators
Gateway
Ready to
ship
All products, dates, and figures specified are preliminary based on current expectations, and are subject to change without notice.
*Other names and brands may be claimed as the property of others.
