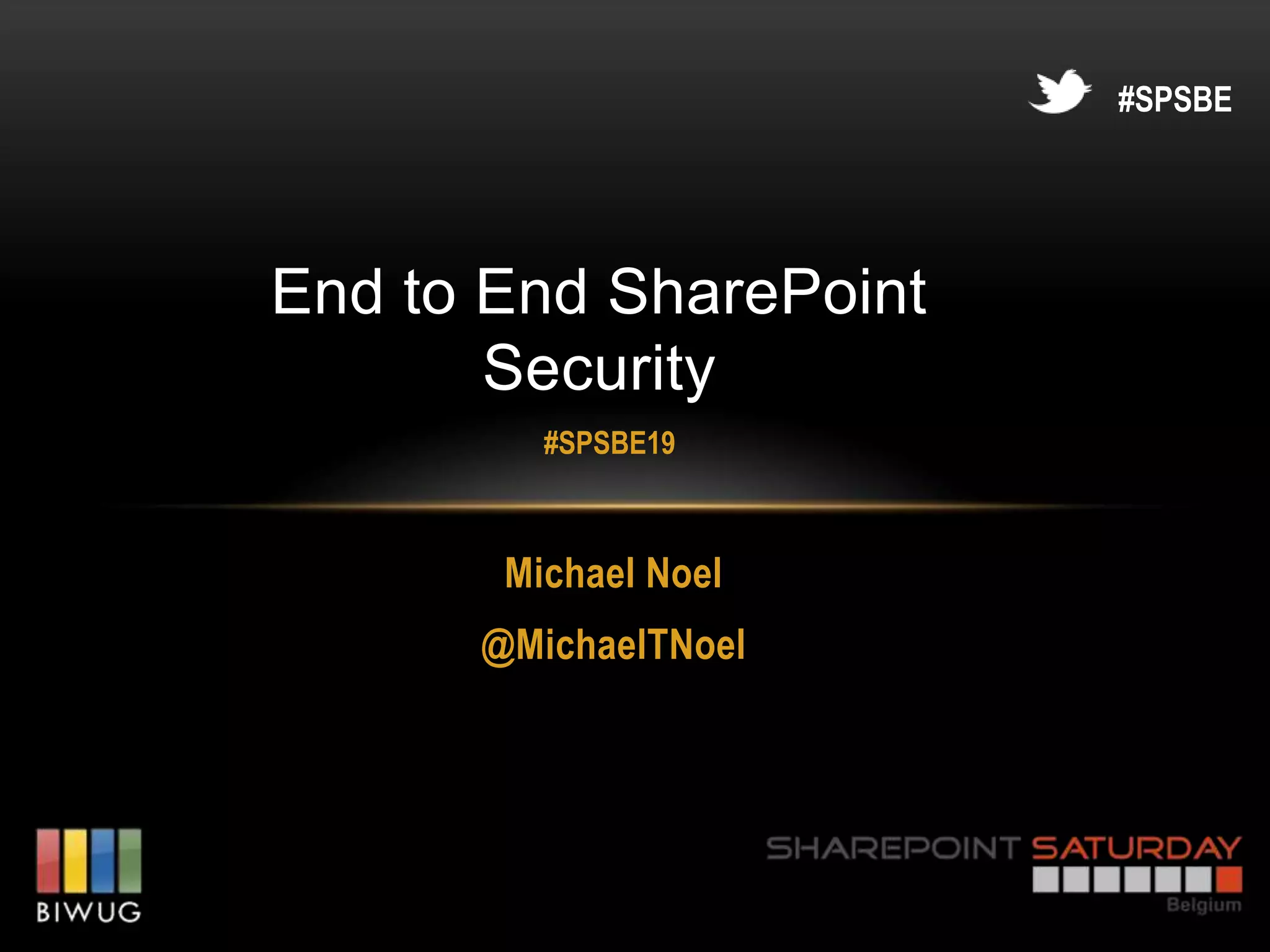

This document discusses security layers in a SharePoint environment. It covers 5 layers of security: infrastructure security, data security, transport security, edge security, and rights management. For infrastructure security, it discusses service account setup, Kerberos authentication, and physical security. For data security, it covers role-based access control, SQL transparent data encryption, and antivirus. It also provides steps for configuring Kerberos and SQL TDE. The document then discusses transport security using SSL and IPSec, edge security with UAG/TMG, and rights management with Active Directory Rights Management Services.

1. #SPSBE
End to End SharePoint
Security
#SPSBE19
Michael Noel
@MichaelTNoel

2. MICHAEL NOEL
• Author of SAMS Publishing titles “SharePoint 2010 Unleashed,” “SharePoint 2007
Unleashed,” “SharePoint 2003 Unleashed”, “Teach Yourself SharePoint 2003 in 10 Minutes,”
“Windows Server 2008 R2 Unleashed,” “Exchange Server 2010 Unleashed”, “ISA Server
2006 Unleashed”, and many other titles .
• Partner at Convergent Computing (www.cco.com / +1(510)444-5700) – San Francisco Bay
Area based Infrastructure/Security specialists for SharePoint, AD, Exchange, Security

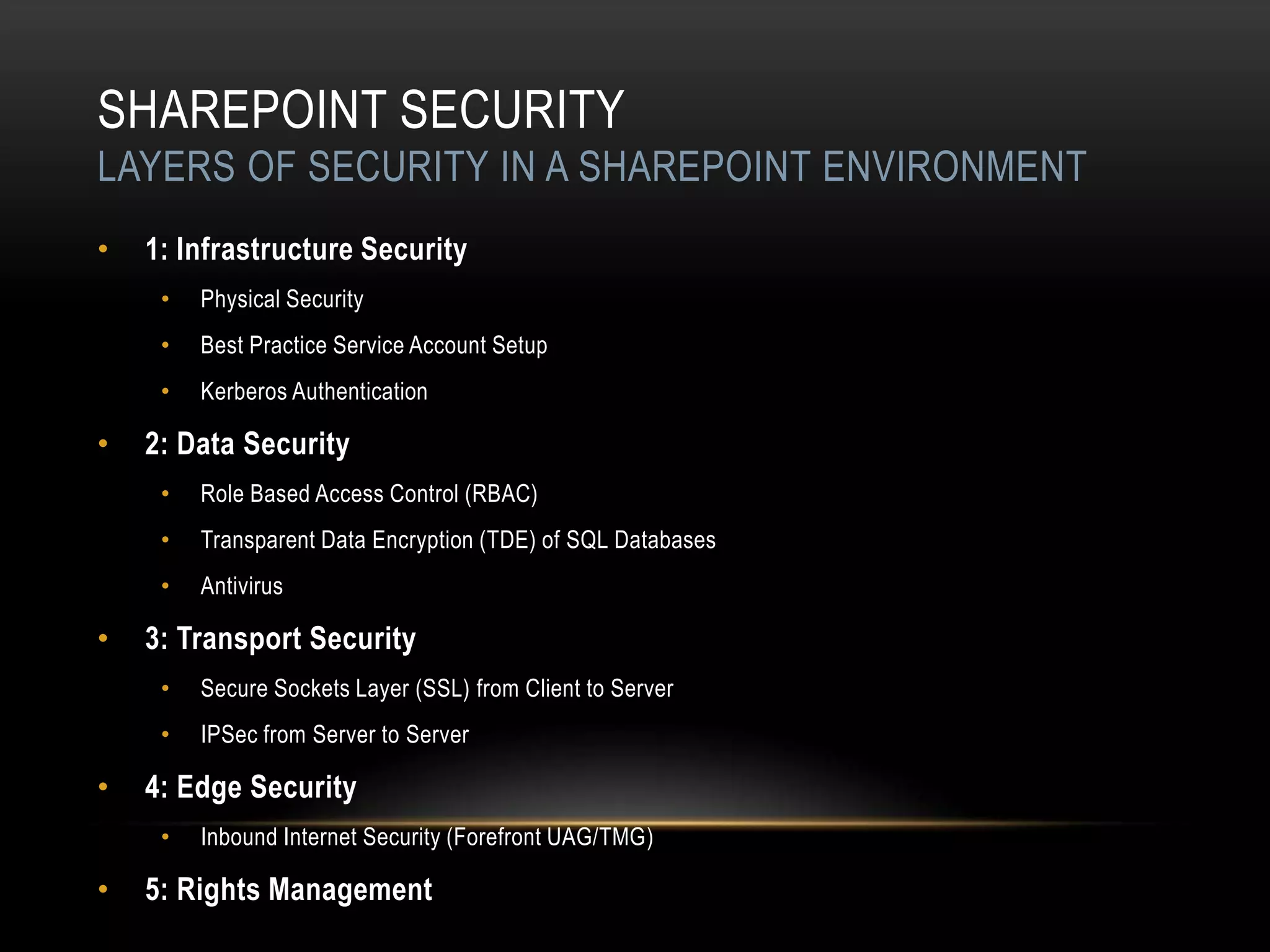

3. SHAREPOINT SECURITY
LAYERS OF SECURITY IN A SHAREPOINT ENVIRONMENT
• 1: Infrastructure Security
• Physical Security
• Best Practice Service Account Setup
• Kerberos Authentication
• 2: Data Security
• Role Based Access Control (RBAC)
• Transparent Data Encryption (TDE) of SQL Databases
• Antivirus
• 3: Transport Security
• Secure Sockets Layer (SSL) from Client to Server
• IPSec from Server to Server
• 4: Edge Security
• Inbound Internet Security (Forefront UAG/TMG)
• 5: Rights Management

4. INFRASTRUCTURE
SECURITY
Layer

5. LAYER 1: INFRASTRUCTURE SECURITY

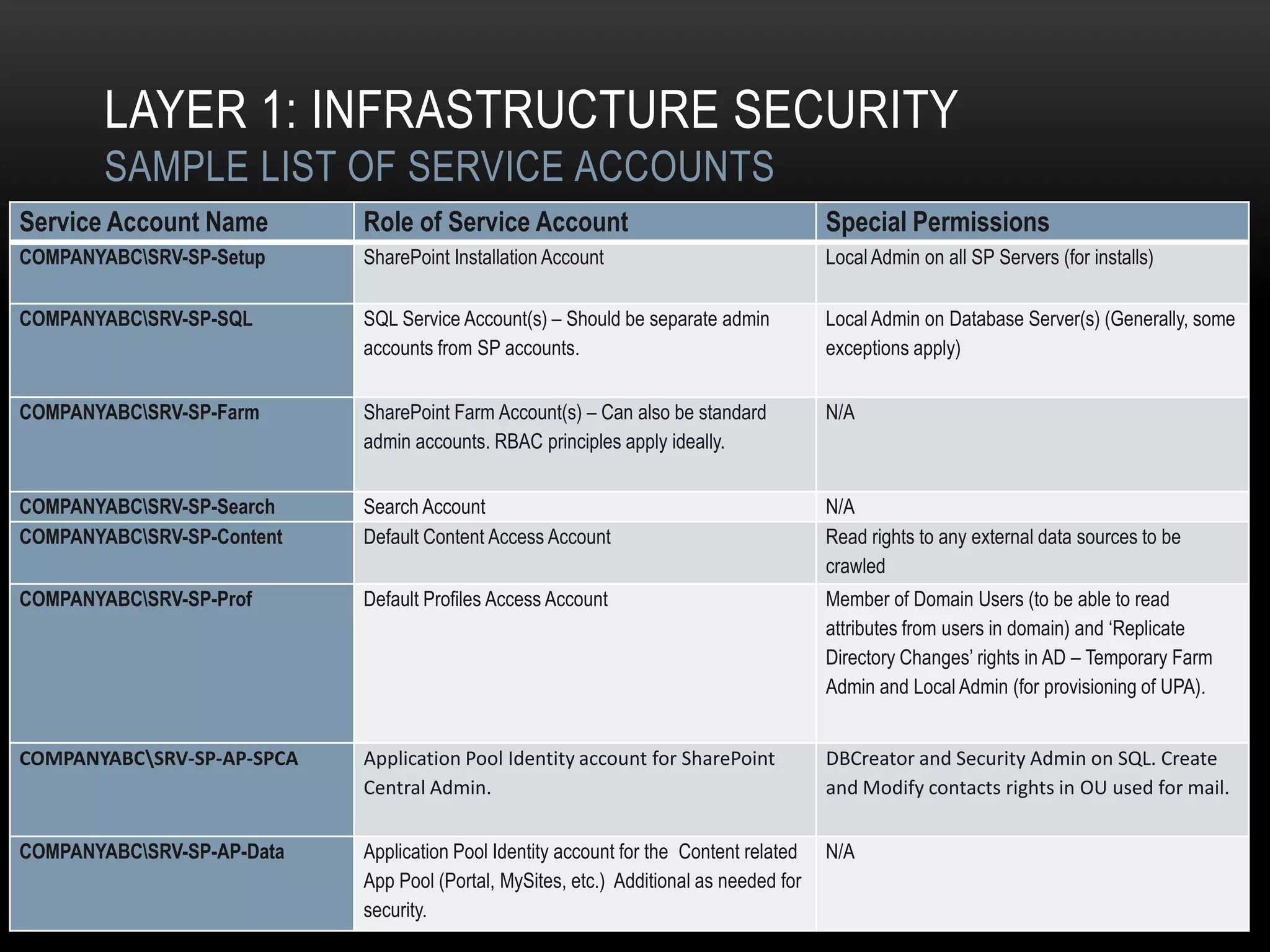

SAMPLE LIST OF SERVICE ACCOUNTS
Service Account Name Role of Service Account Special Permissions
COMPANYABCSRV-SP-Setup SharePoint Installation Account Local Admin on all SP Servers (for installs)
COMPANYABCSRV-SP-SQL SQL Service Account(s) – Should be separate admin Local Admin on Database Server(s) (Generally, some
accounts from SP accounts. exceptions apply)
COMPANYABCSRV-SP-Farm SharePoint Farm Account(s) – Can also be standard N/A
admin accounts. RBAC principles apply ideally.
COMPANYABCSRV-SP-Search Search Account N/A
COMPANYABCSRV-SP-Content Default Content Access Account Read rights to any external data sources to be
crawled
COMPANYABCSRV-SP-Prof Default Profiles Access Account Member of Domain Users (to be able to read
attributes from users in domain) and „Replicate
Directory Changes‟ rights in AD – Temporary Farm
Admin and Local Admin (for provisioning of UPA).
COMPANYABCSRV-SP-AP-SPCA Application Pool Identity account for SharePoint DBCreator and Security Admin on SQL. Create
Central Admin. and Modify contacts rights in OU used for mail.
COMPANYABCSRV-SP-AP-Data Application Pool Identity account for the Content related N/A
App Pool (Portal, MySites, etc.) Additional as needed for
security.

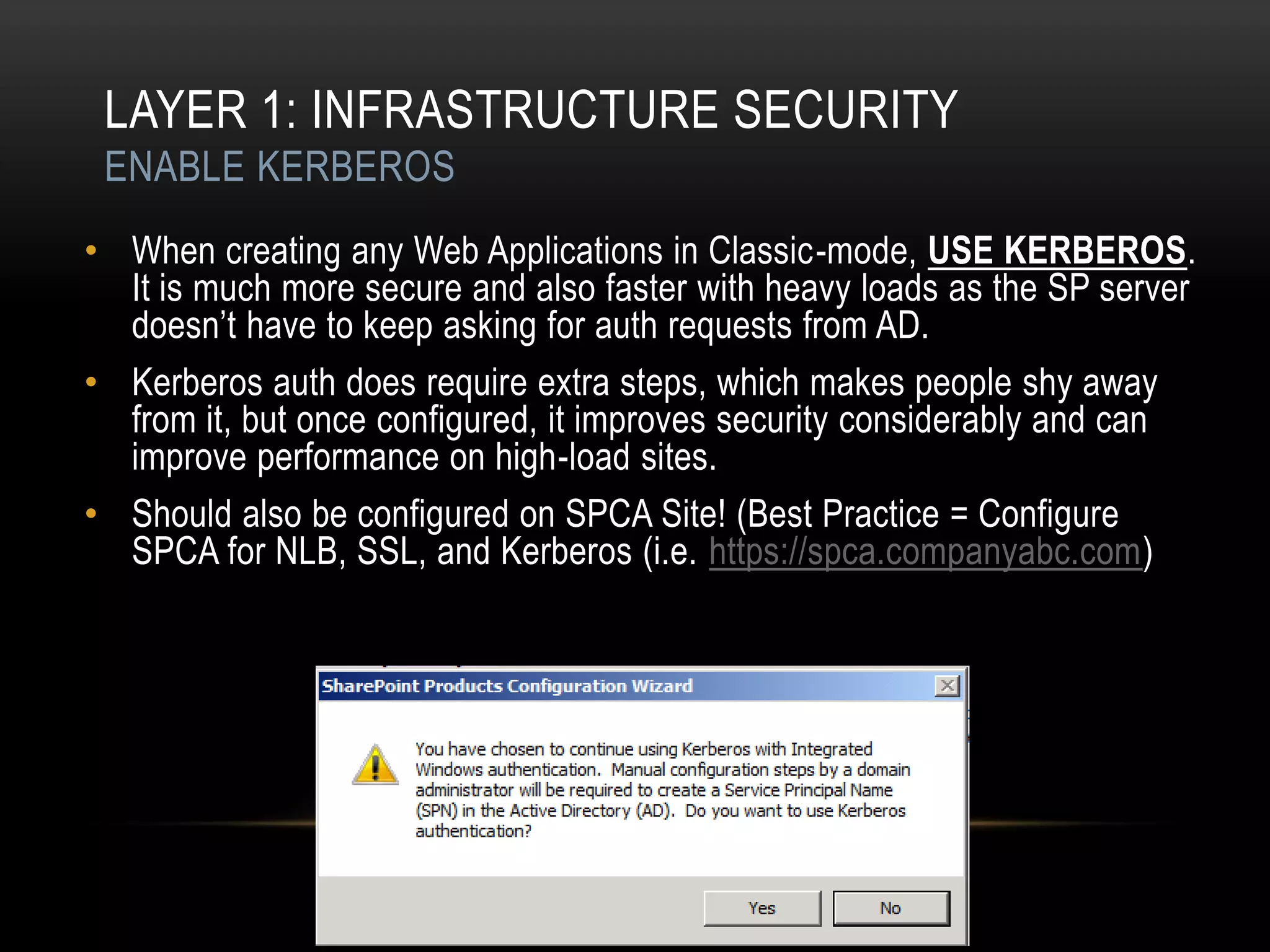

6. LAYER 1: INFRASTRUCTURE SECURITY
ENABLE KERBEROS
• When creating any Web Applications in Classic-mode, USE KERBEROS.
It is much more secure and also faster with heavy loads as the SP server
doesn‟t have to keep asking for auth requests from AD.
• Kerberos auth does require extra steps, which makes people shy away
from it, but once configured, it improves security considerably and can
improve performance on high-load sites.
• Should also be configured on SPCA Site! (Best Practice = Configure
SPCA for NLB, SSL, and Kerberos (i.e. https://spca.companyabc.com)

7. LAYER 1: INFRASTRUCTURE SECURITY

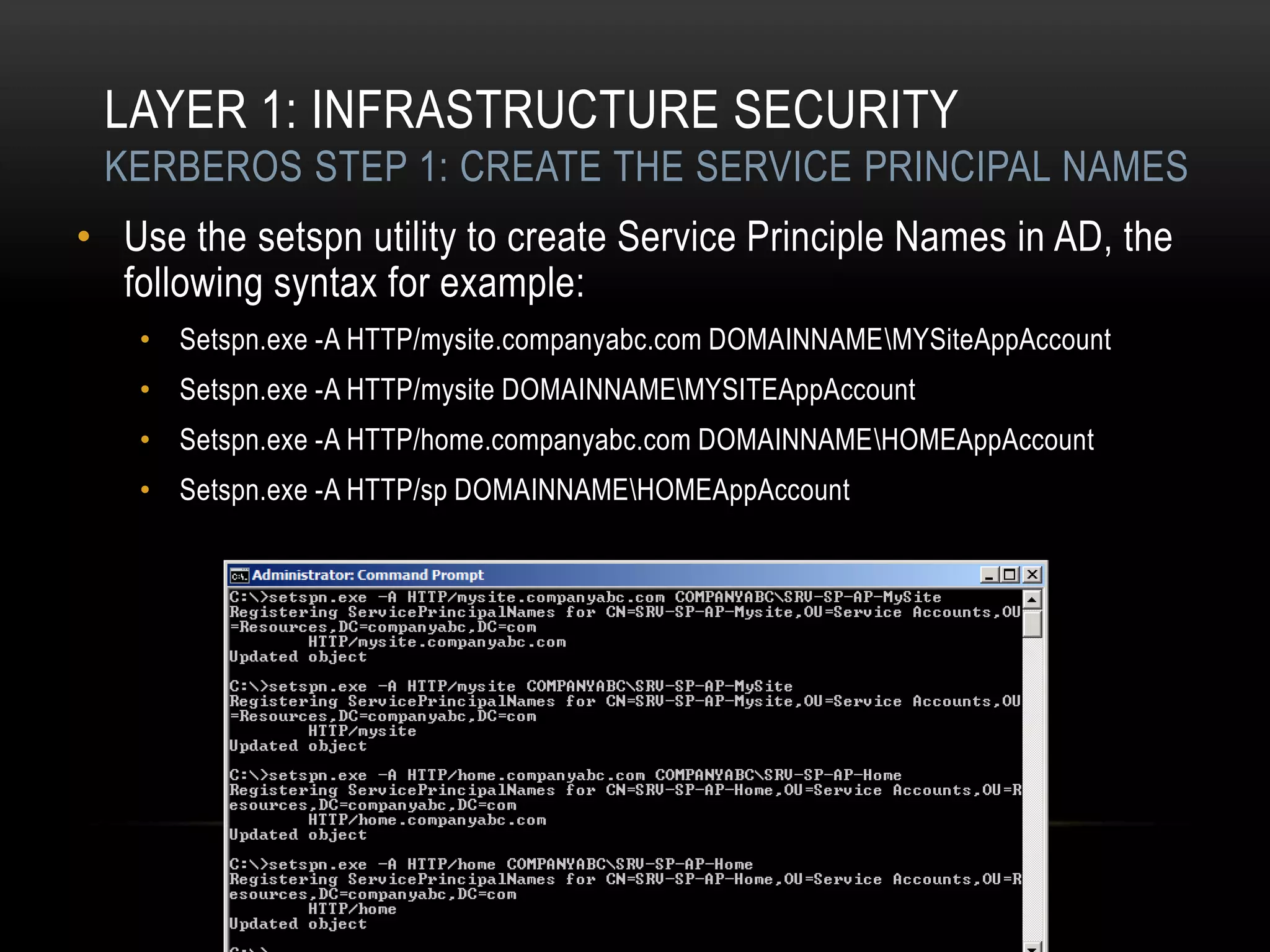

KERBEROS STEP 1: CREATE THE SERVICE PRINCIPAL NAMES
• Use the setspn utility to create Service Principle Names in AD, the
following syntax for example:
• Setspn.exe -A HTTP/mysite.companyabc.com DOMAINNAMEMYSiteAppAccount
• Setspn.exe -A HTTP/mysite DOMAINNAMEMYSITEAppAccount
• Setspn.exe -A HTTP/home.companyabc.com DOMAINNAMEHOMEAppAccount
• Setspn.exe -A HTTP/sp DOMAINNAMEHOMEAppAccount

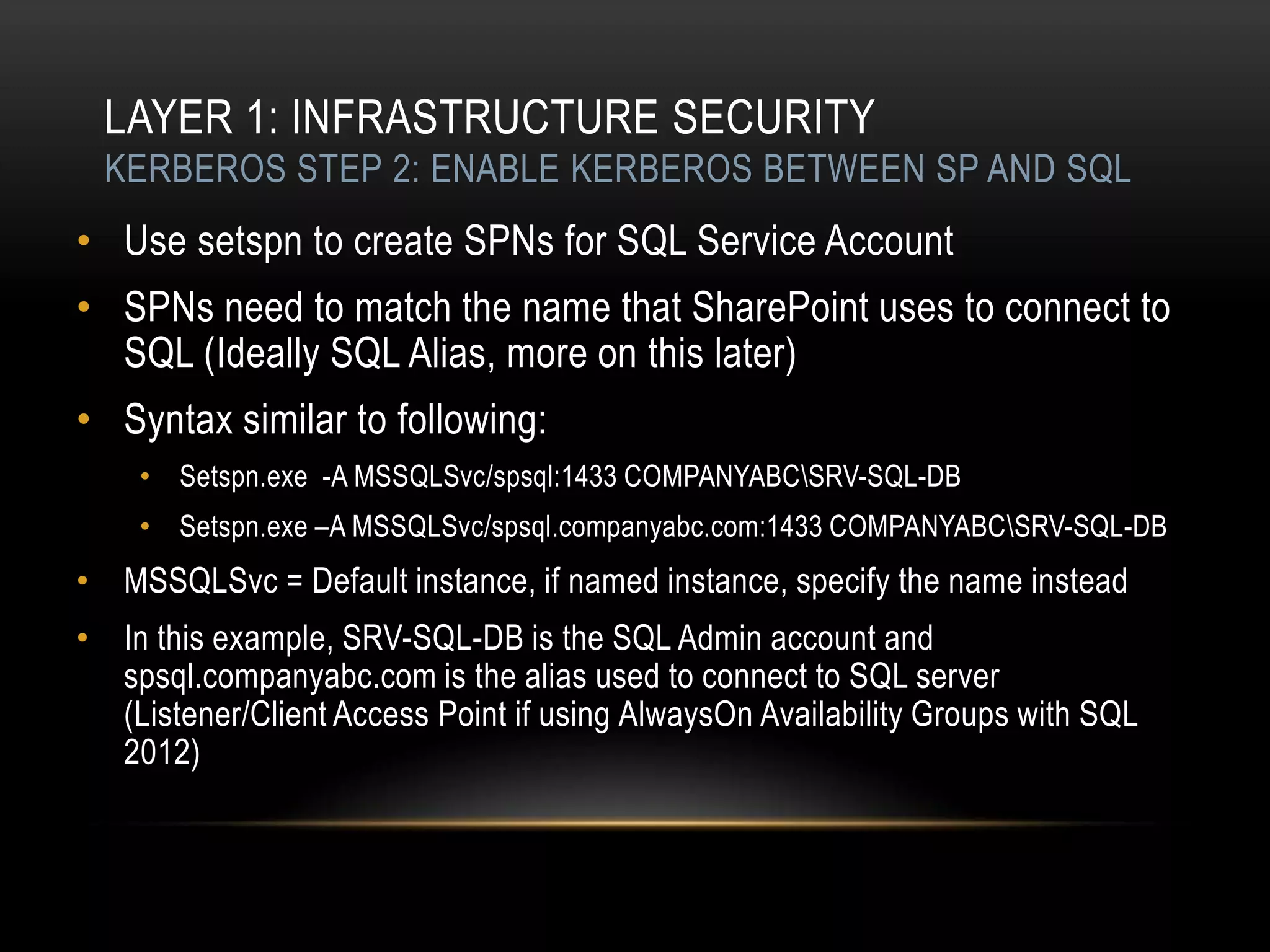

8. LAYER 1: INFRASTRUCTURE SECURITY
KERBEROS STEP 2: ENABLE KERBEROS BETWEEN SP AND SQL
• Use setspn to create SPNs for SQL Service Account
• SPNs need to match the name that SharePoint uses to connect to
SQL (Ideally SQL Alias, more on this later)
• Syntax similar to following:
• Setspn.exe -A MSSQLSvc/spsql:1433 COMPANYABCSRV-SQL-DB
• Setspn.exe –A MSSQLSvc/spsql.companyabc.com:1433 COMPANYABCSRV-SQL-DB
• MSSQLSvc = Default instance, if named instance, specify the name instead
• In this example, SRV-SQL-DB is the SQL Admin account and
spsql.companyabc.com is the alias used to connect to SQL server
(Listener/Client Access Point if using AlwaysOn Availability Groups with SQL
2012)

9. LAYER 1: INFRASTRUCTURE SECURITY

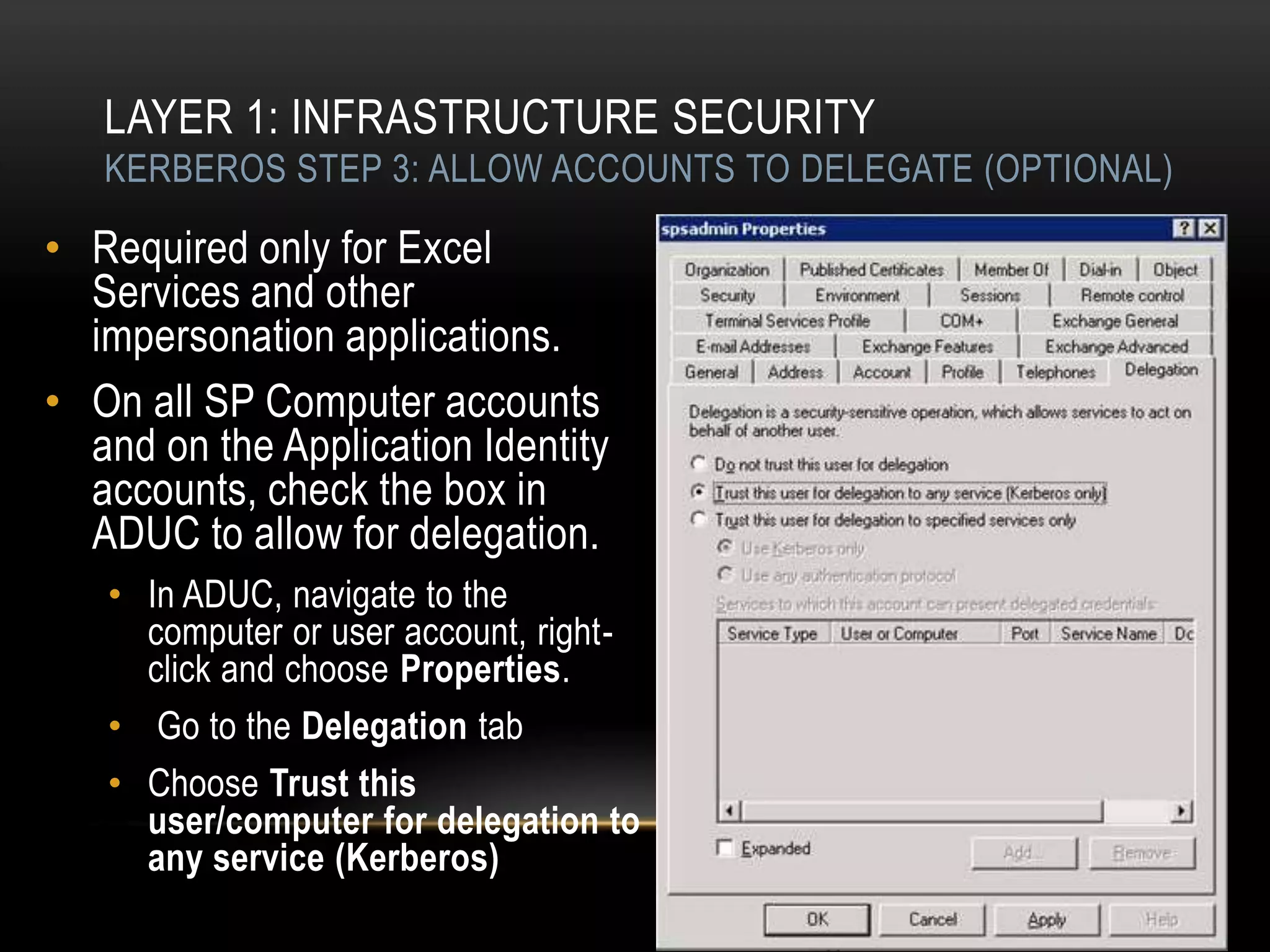

KERBEROS STEP 3: ALLOW ACCOUNTS TO DELEGATE (OPTIONAL)
• Required only for Excel
Services and other
impersonation applications.
• On all SP Computer accounts
and on the Application Identity
accounts, check the box in
ADUC to allow for delegation.
• In ADUC, navigate to the
computer or user account, right-
click and choose Properties.
• Go to the Delegation tab
• Choose Trust this
user/computer for delegation to
any service (Kerberos)

10. LAYER 1: INFRASTRUCTURE SECURITY

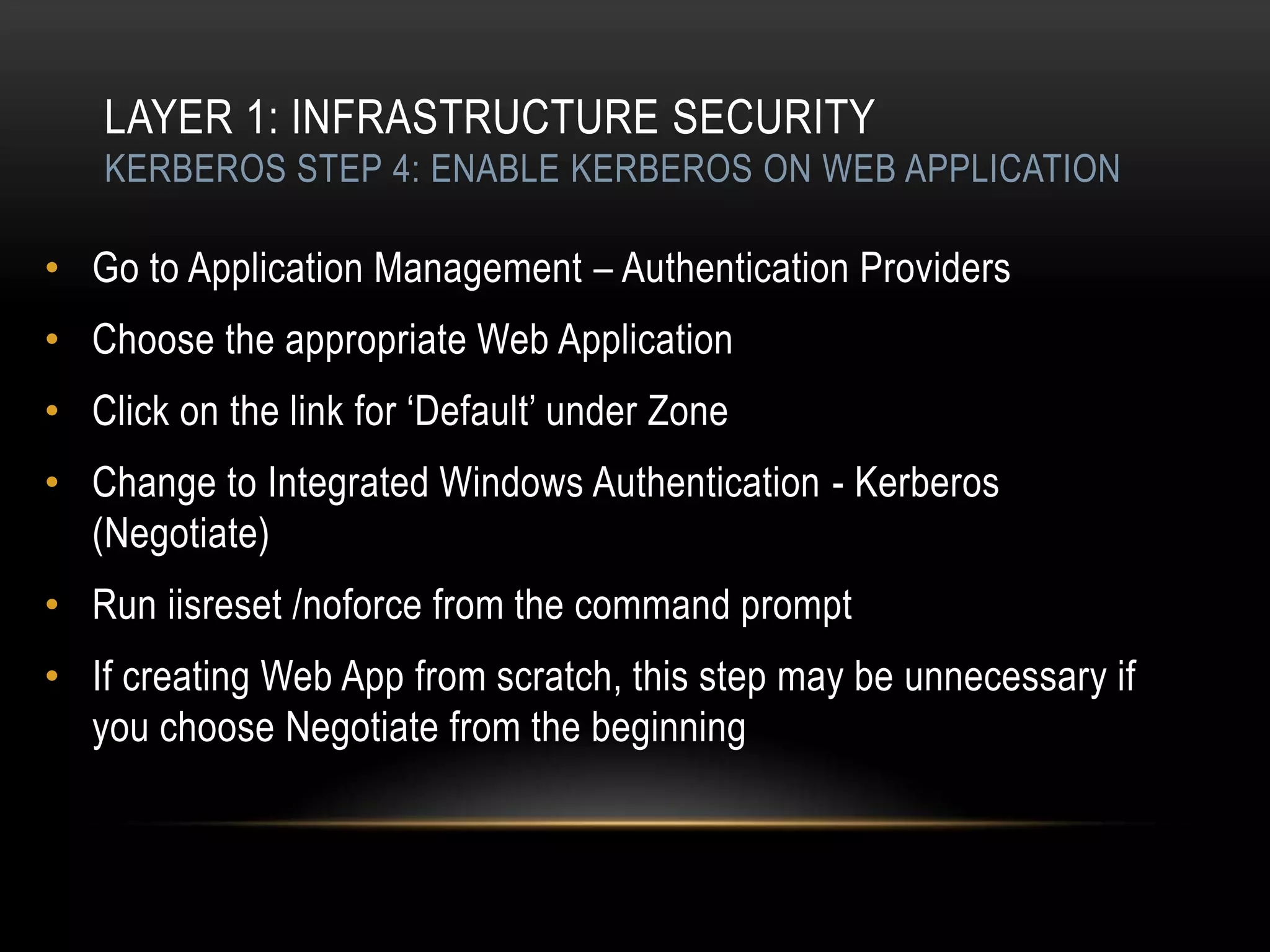

KERBEROS STEP 4: ENABLE KERBEROS ON WEB APPLICATION
• Go to Application Management – Authentication Providers
• Choose the appropriate Web Application
• Click on the link for „Default‟ under Zone
• Change to Integrated Windows Authentication - Kerberos
(Negotiate)
• Run iisreset /noforce from the command prompt
• If creating Web App from scratch, this step may be unnecessary if
you choose Negotiate from the beginning

11. DATA SECURITY
Layer

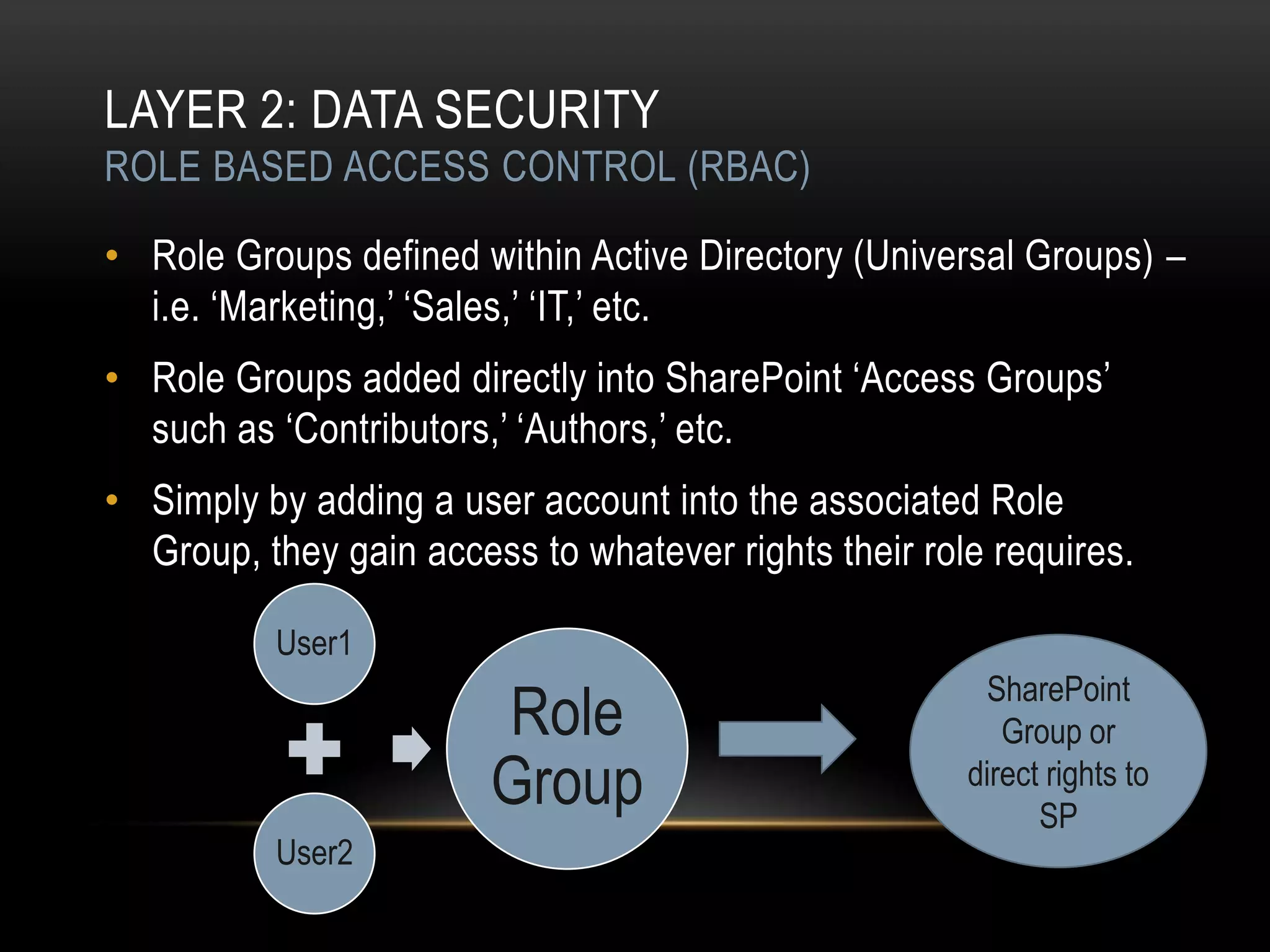

12. LAYER 2: DATA SECURITY
ROLE BASED ACCESS CONTROL (RBAC)
• Role Groups defined within Active Directory (Universal Groups) –
i.e. „Marketing,‟ „Sales,‟ „IT,‟ etc.
• Role Groups added directly into SharePoint „Access Groups‟
such as „Contributors,‟ „Authors,‟ etc.
• Simply by adding a user account into the associated Role
Group, they gain access to whatever rights their role requires.
User1
SharePoint
Role Group or
Group direct rights to
SP
User2

13. LAYER 2: DATA SECURITY

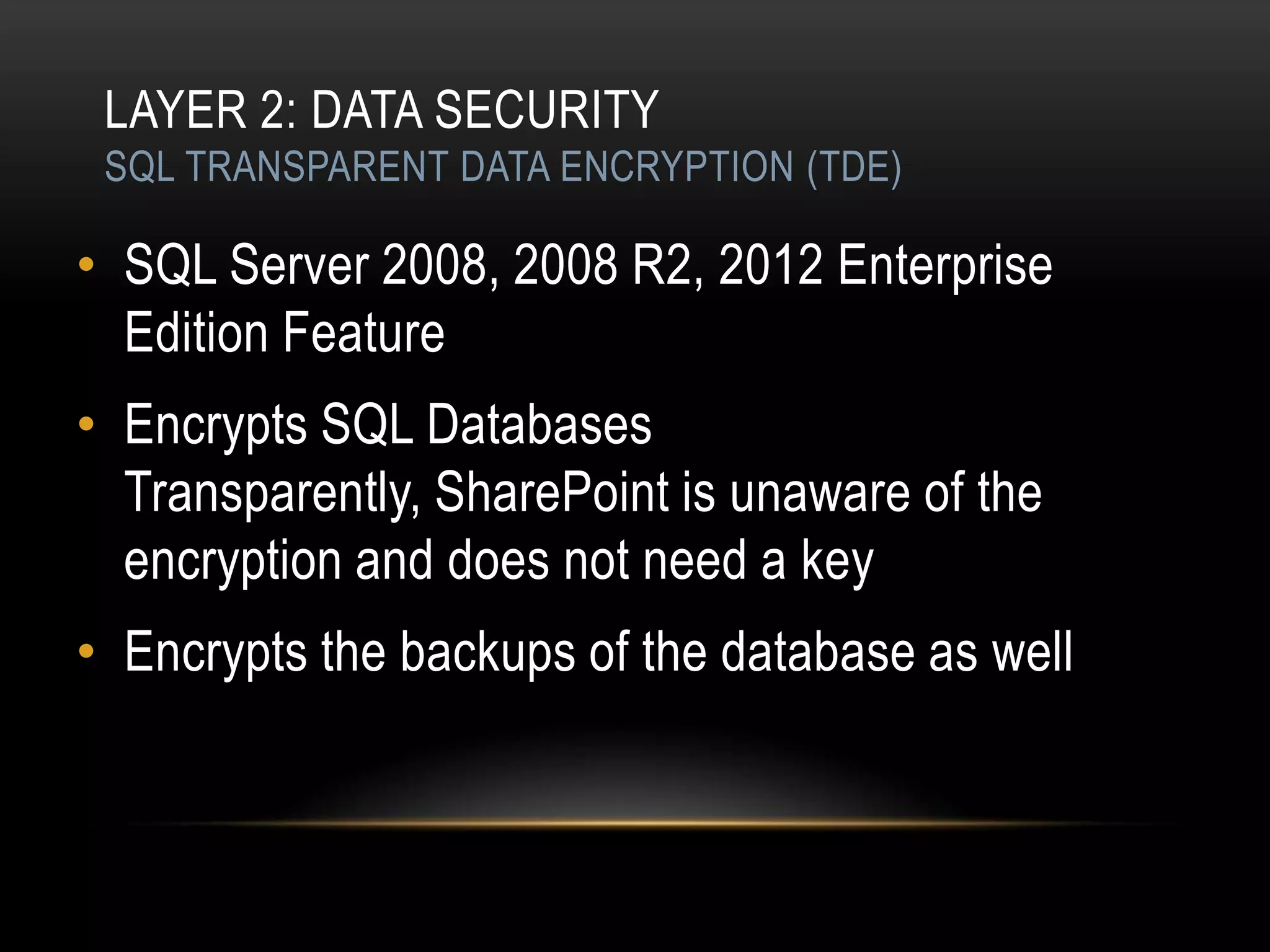

SQL TRANSPARENT DATA ENCRYPTION (TDE)
• SQL Server 2008, 2008 R2, 2012 Enterprise
Edition Feature
• Encrypts SQL Databases
Transparently, SharePoint is unaware of the
encryption and does not need a key
• Encrypts the backups of the database as well

14. LAYER 2: DATA SECURITY

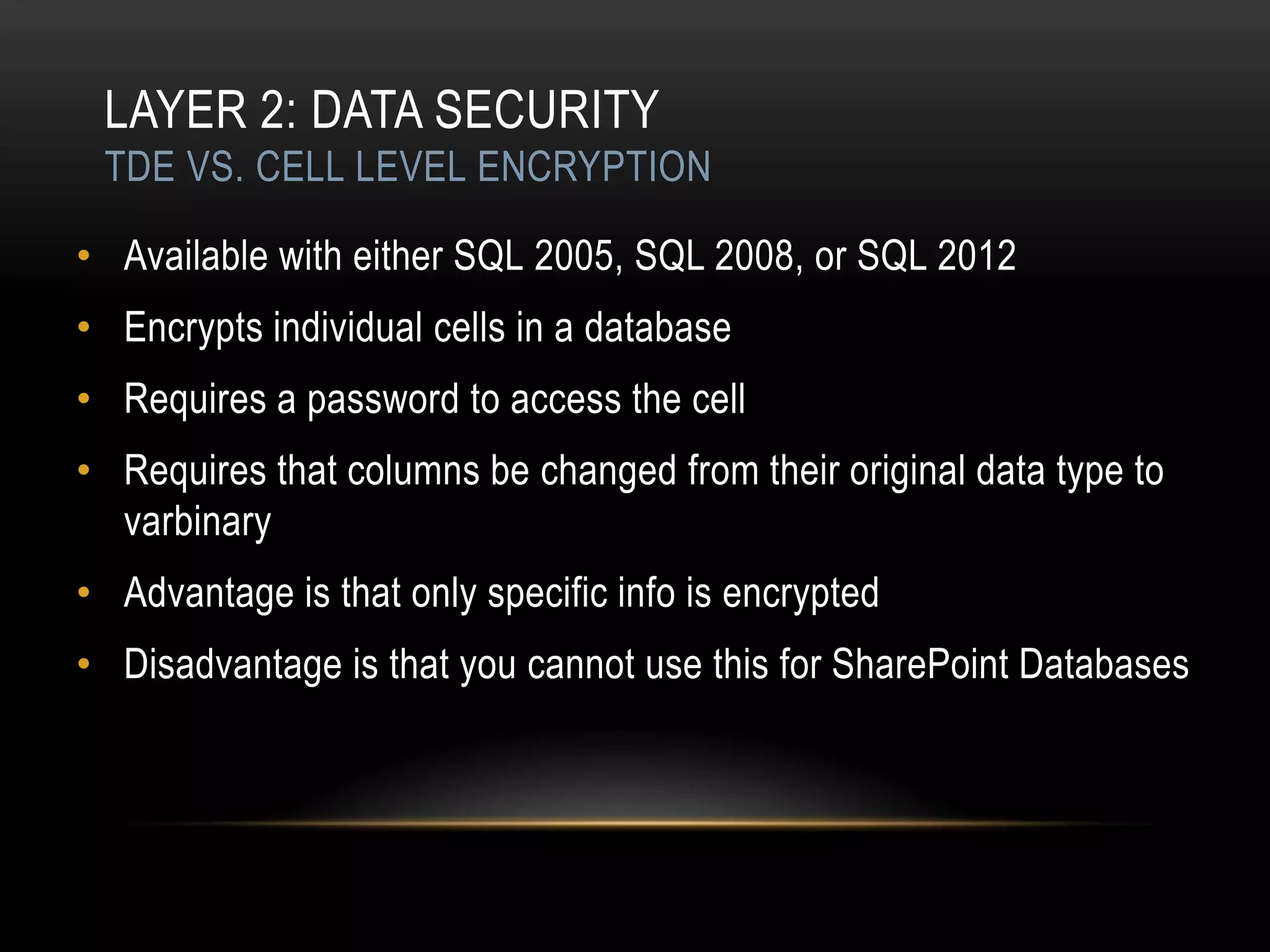

TDE VS. CELL LEVEL ENCRYPTION
• Available with either SQL 2005, SQL 2008, or SQL 2012
• Encrypts individual cells in a database
• Requires a password to access the cell
• Requires that columns be changed from their original data type to
varbinary
• Advantage is that only specific info is encrypted
• Disadvantage is that you cannot use this for SharePoint Databases

15. LAYER 2: DATA SECURITY

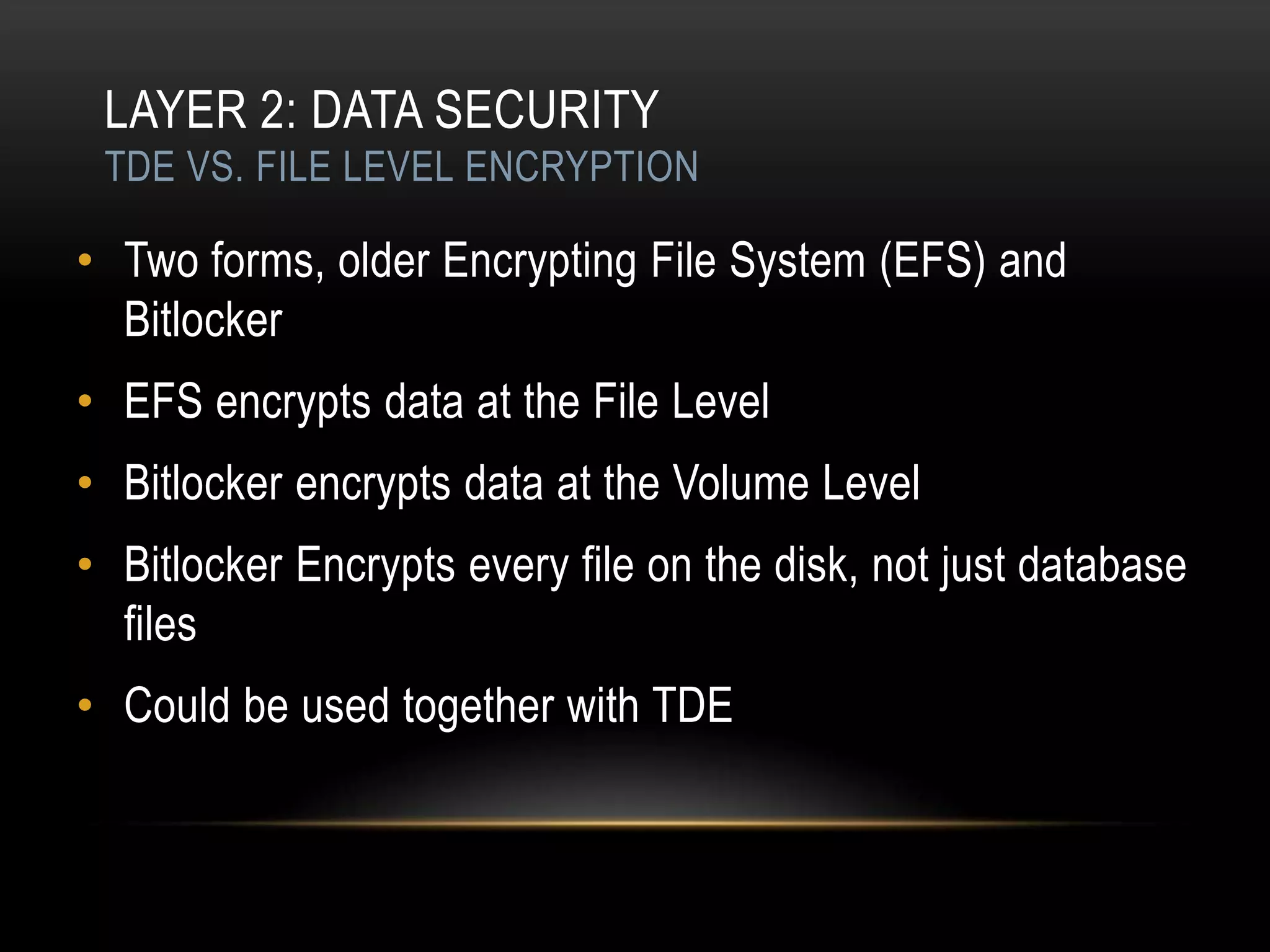

TDE VS. FILE LEVEL ENCRYPTION
• Two forms, older Encrypting File System (EFS) and
Bitlocker
• EFS encrypts data at the File Level
• Bitlocker encrypts data at the Volume Level
• Bitlocker Encrypts every file on the disk, not just database
files
• Could be used together with TDE

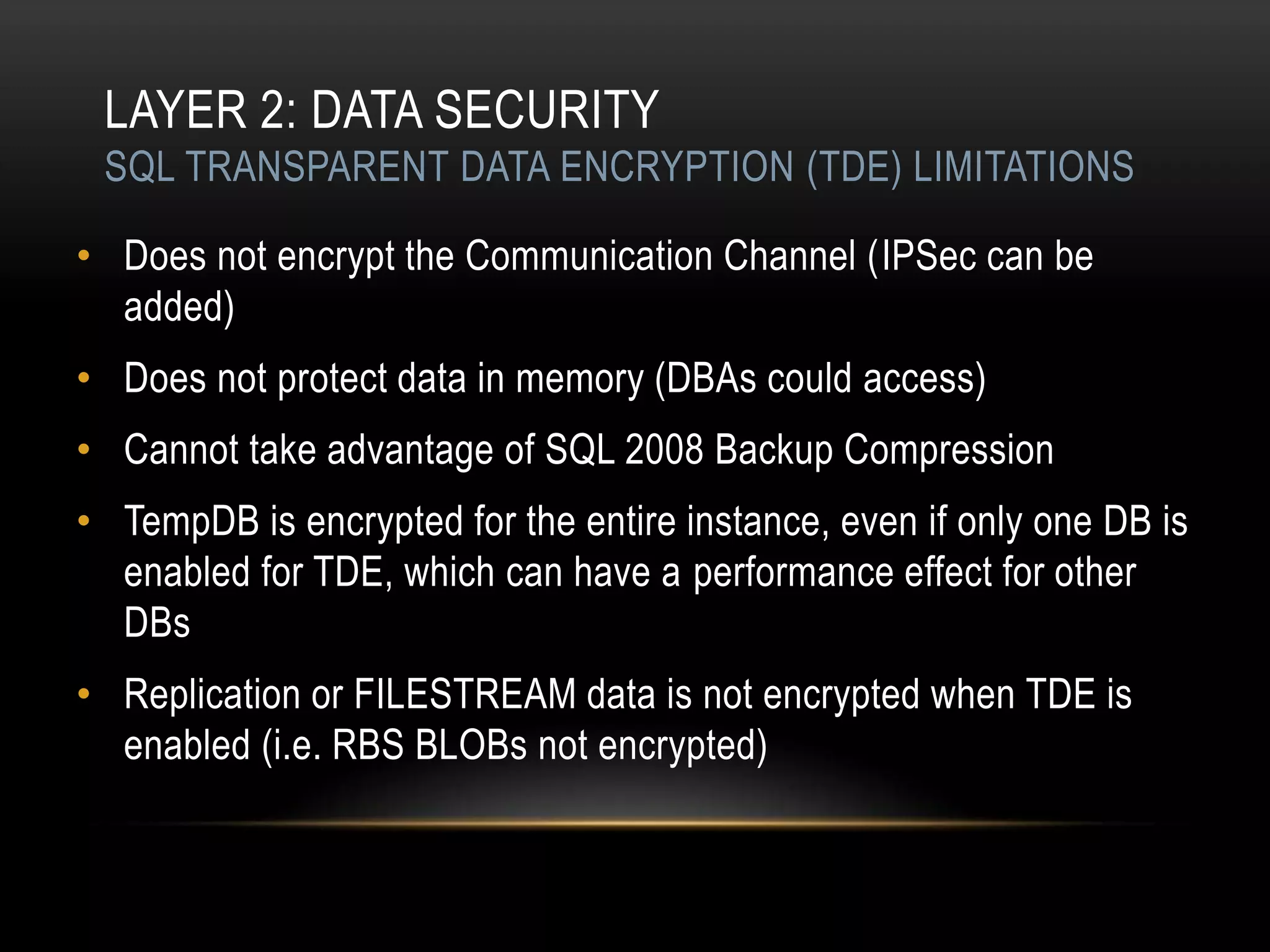

16. LAYER 2: DATA SECURITY
SQL TRANSPARENT DATA ENCRYPTION (TDE) LIMITATIONS
• Does not encrypt the Communication Channel (IPSec can be
added)
• Does not protect data in memory (DBAs could access)
• Cannot take advantage of SQL 2008 Backup Compression
• TempDB is encrypted for the entire instance, even if only one DB is
enabled for TDE, which can have a performance effect for other
DBs
• Replication or FILESTREAM data is not encrypted when TDE is
enabled (i.e. RBS BLOBs not encrypted)

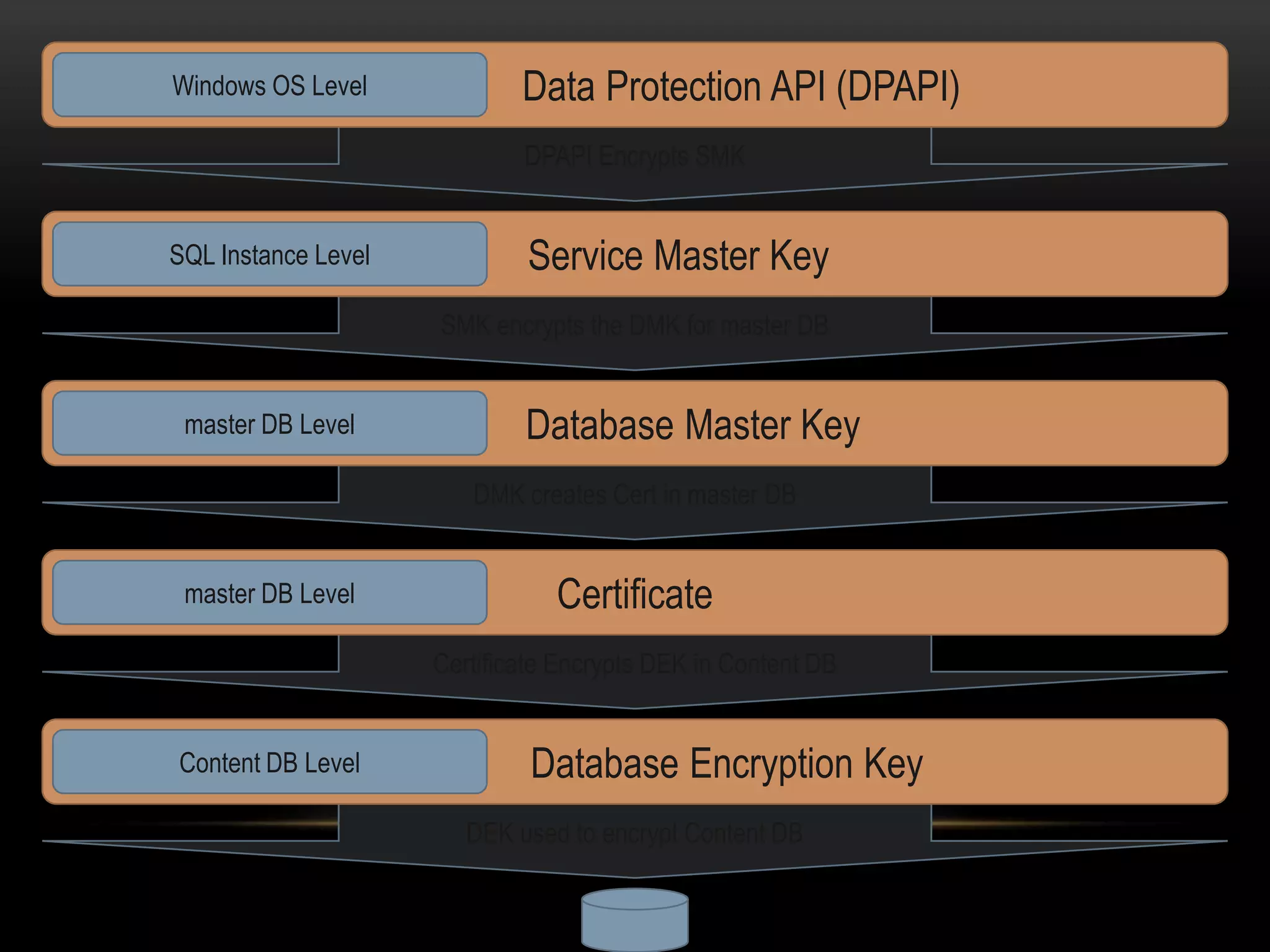

17. Key and OS Level Hierarchy
Windows Cert Data Protection API (DPAPI)
DPAPI Encrypts SMK
SQL Instance Level Service Master Key
SMK encrypts the DMK for master DB
master DB Level Database Master Key
DMK creates Cert in master DB
master DB Level Certificate
Certificate Encrypts DEK in Content DB
Content DB Level Database Encryption Key
DEK used to encrypt Content DB

18. LAYER 2: DATA SECURITY

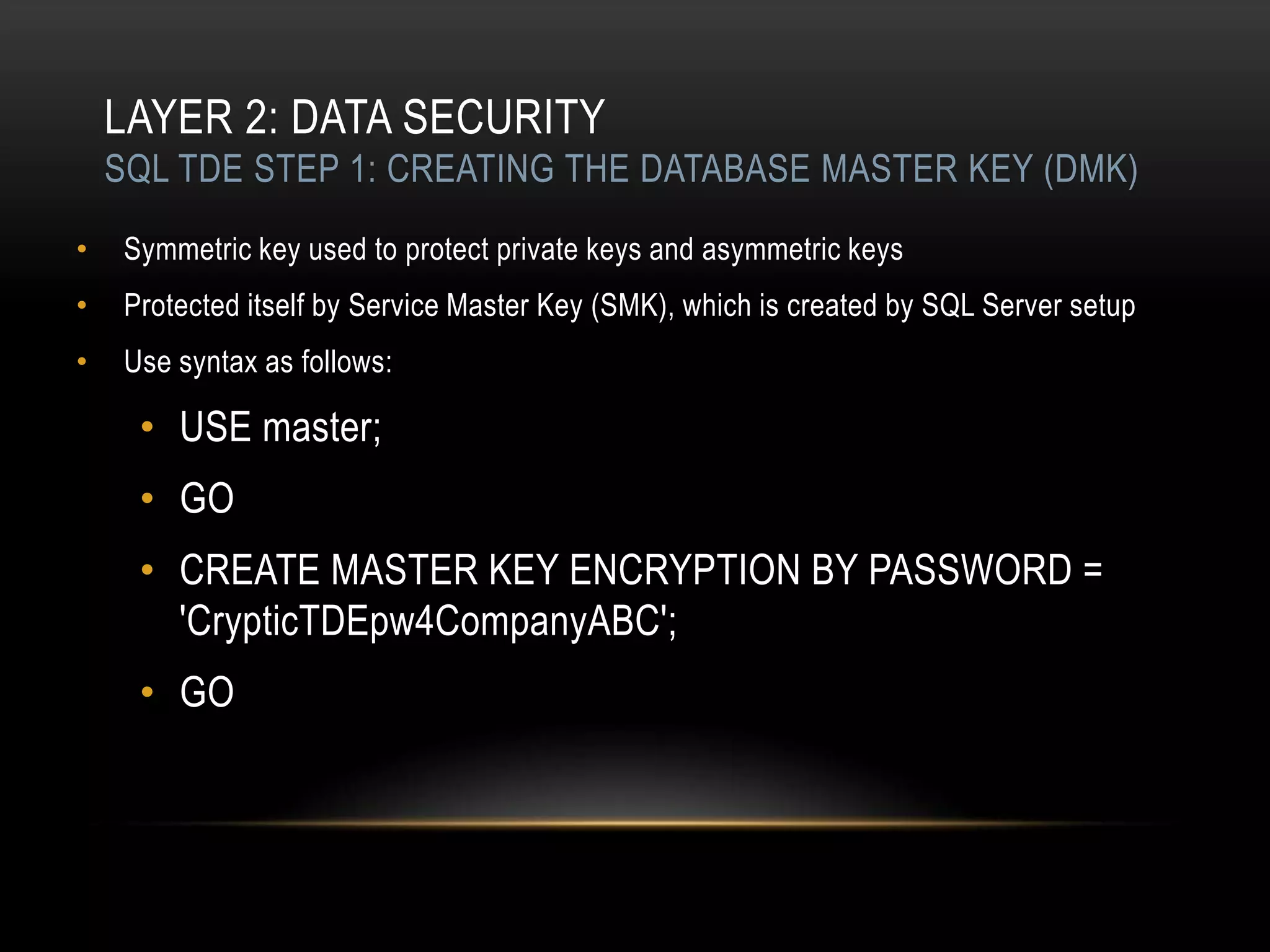

SQL TDE STEP 1: CREATING THE DATABASE MASTER KEY (DMK)
• Symmetric key used to protect private keys and asymmetric keys
• Protected itself by Service Master Key (SMK), which is created by SQL Server setup
• Use syntax as follows:
• USE master;
• GO
• CREATE MASTER KEY ENCRYPTION BY PASSWORD =
'CrypticTDEpw4CompanyABC';
• GO

19. LAYER 2: DATA SECURITY

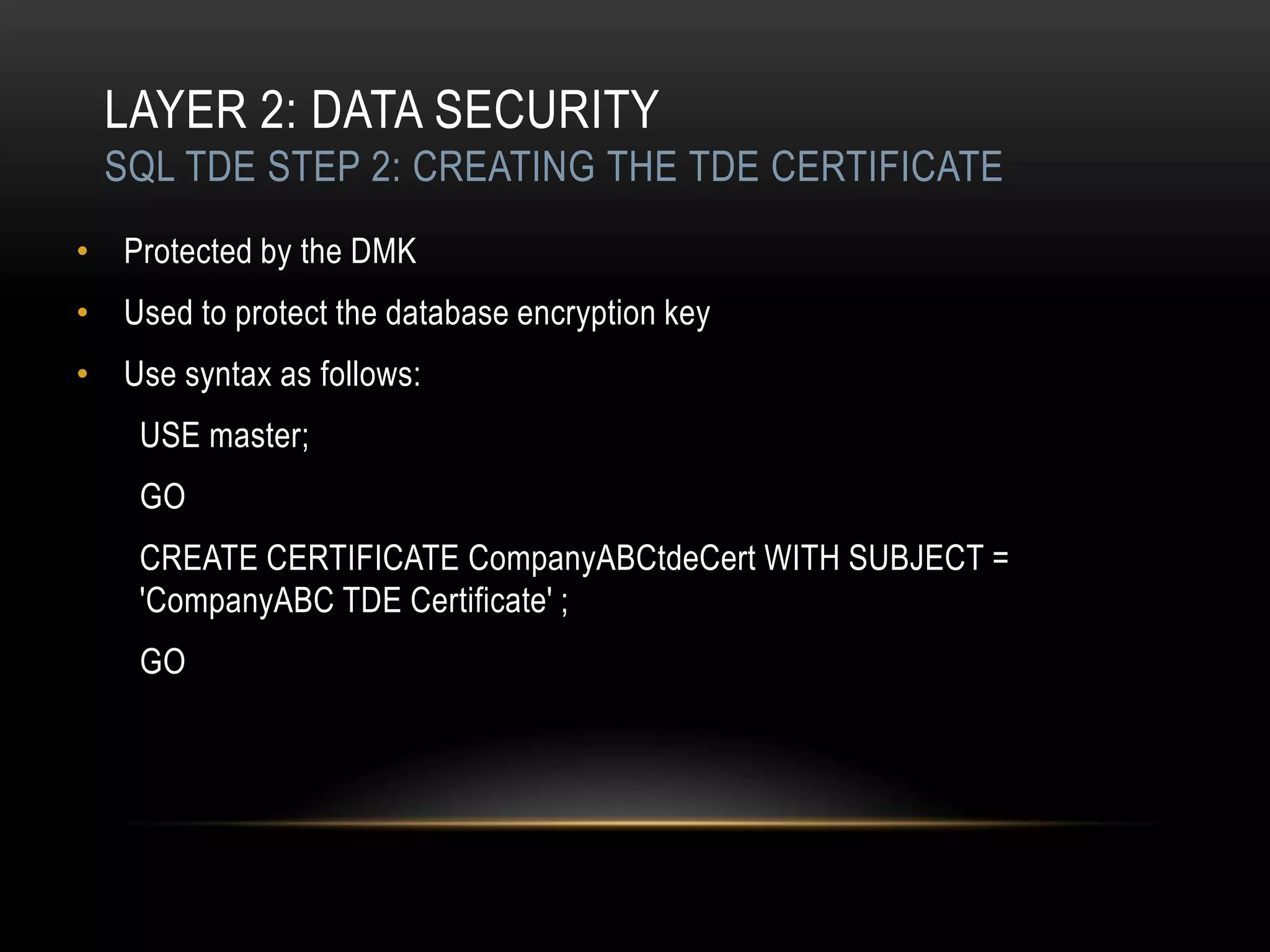

SQL TDE STEP 2: CREATING THE TDE CERTIFICATE
• Protected by the DMK
• Used to protect the database encryption key
• Use syntax as follows:
USE master;
GO
CREATE CERTIFICATE CompanyABCtdeCert WITH SUBJECT =
'CompanyABC TDE Certificate' ;
GO

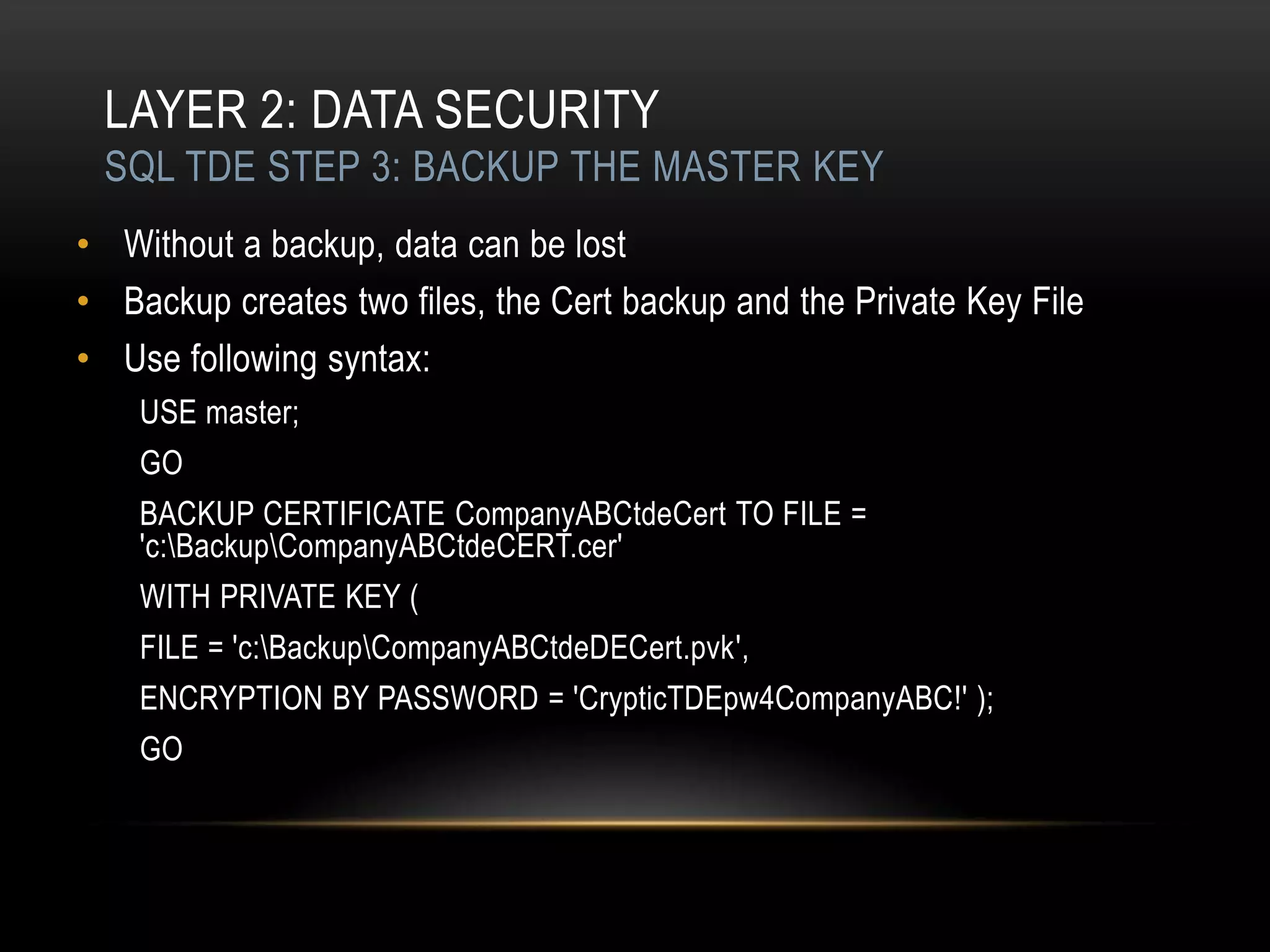

20. LAYER 2: DATA SECURITY
SQL TDE STEP 3: BACKUP THE MASTER KEY
• Without a backup, data can be lost
• Backup creates two files, the Cert backup and the Private Key File
• Use following syntax:
USE master;
GO
BACKUP CERTIFICATE CompanyABCtdeCert TO FILE =
'c:BackupCompanyABCtdeCERT.cer'
WITH PRIVATE KEY (
FILE = 'c:BackupCompanyABCtdeDECert.pvk',
ENCRYPTION BY PASSWORD = 'CrypticTDEpw4CompanyABC!' );
GO

21. LAYER 2: DATA SECURITY

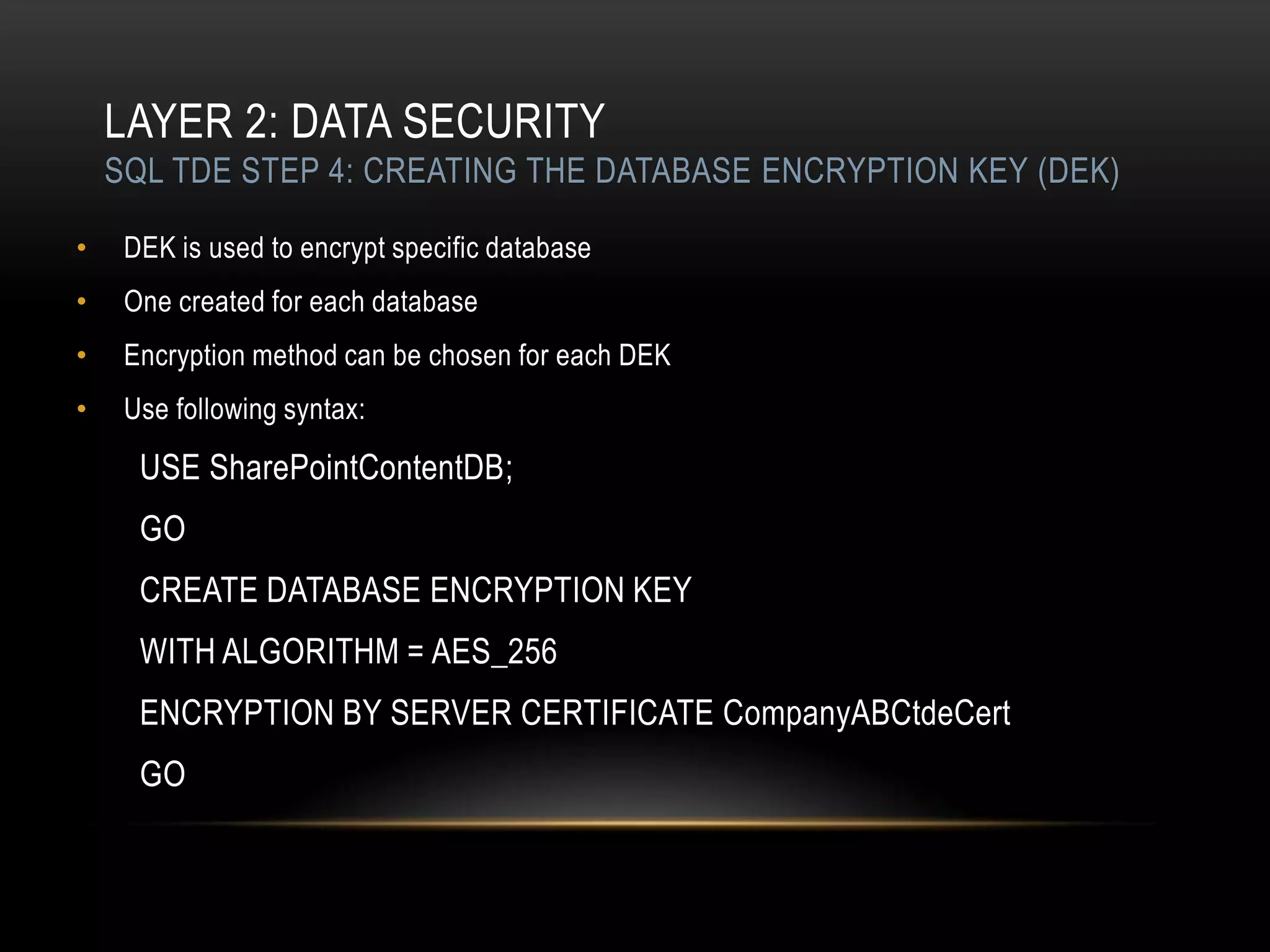

SQL TDE STEP 4: CREATING THE DATABASE ENCRYPTION KEY (DEK)
• DEK is used to encrypt specific database
• One created for each database
• Encryption method can be chosen for each DEK
• Use following syntax:
USE SharePointContentDB;
GO
CREATE DATABASE ENCRYPTION KEY
WITH ALGORITHM = AES_256
ENCRYPTION BY SERVER CERTIFICATE CompanyABCtdeCert
GO

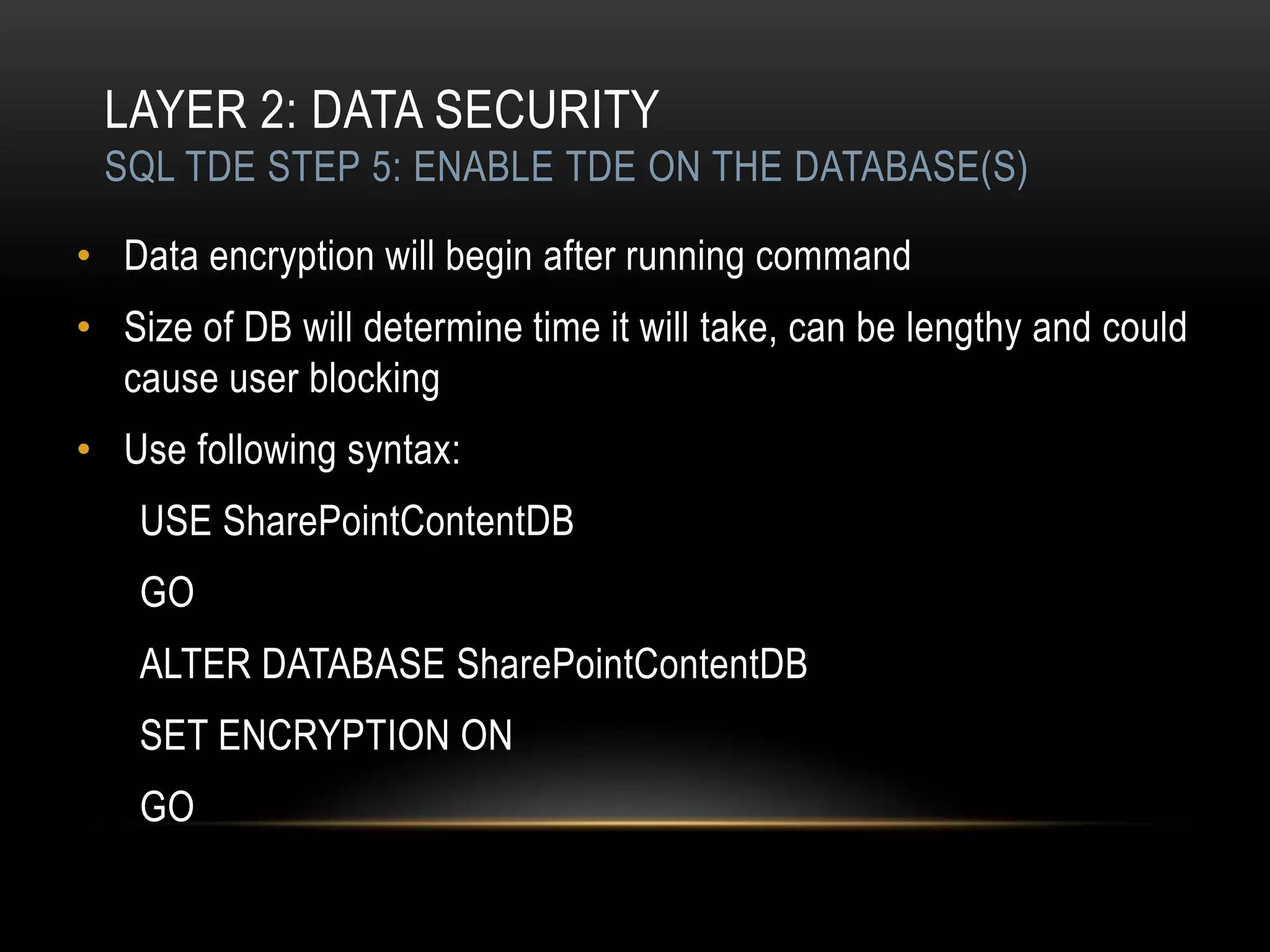

22. LAYER 2: DATA SECURITY
SQL TDE STEP 5: ENABLE TDE ON THE DATABASE(S)
• Data encryption will begin after running command
• Size of DB will determine time it will take, can be lengthy and could
cause user blocking
• Use following syntax:
USE SharePointContentDB
GO
ALTER DATABASE SharePointContentDB
SET ENCRYPTION ON
GO

23. LAYER 2: DATA SECURITY

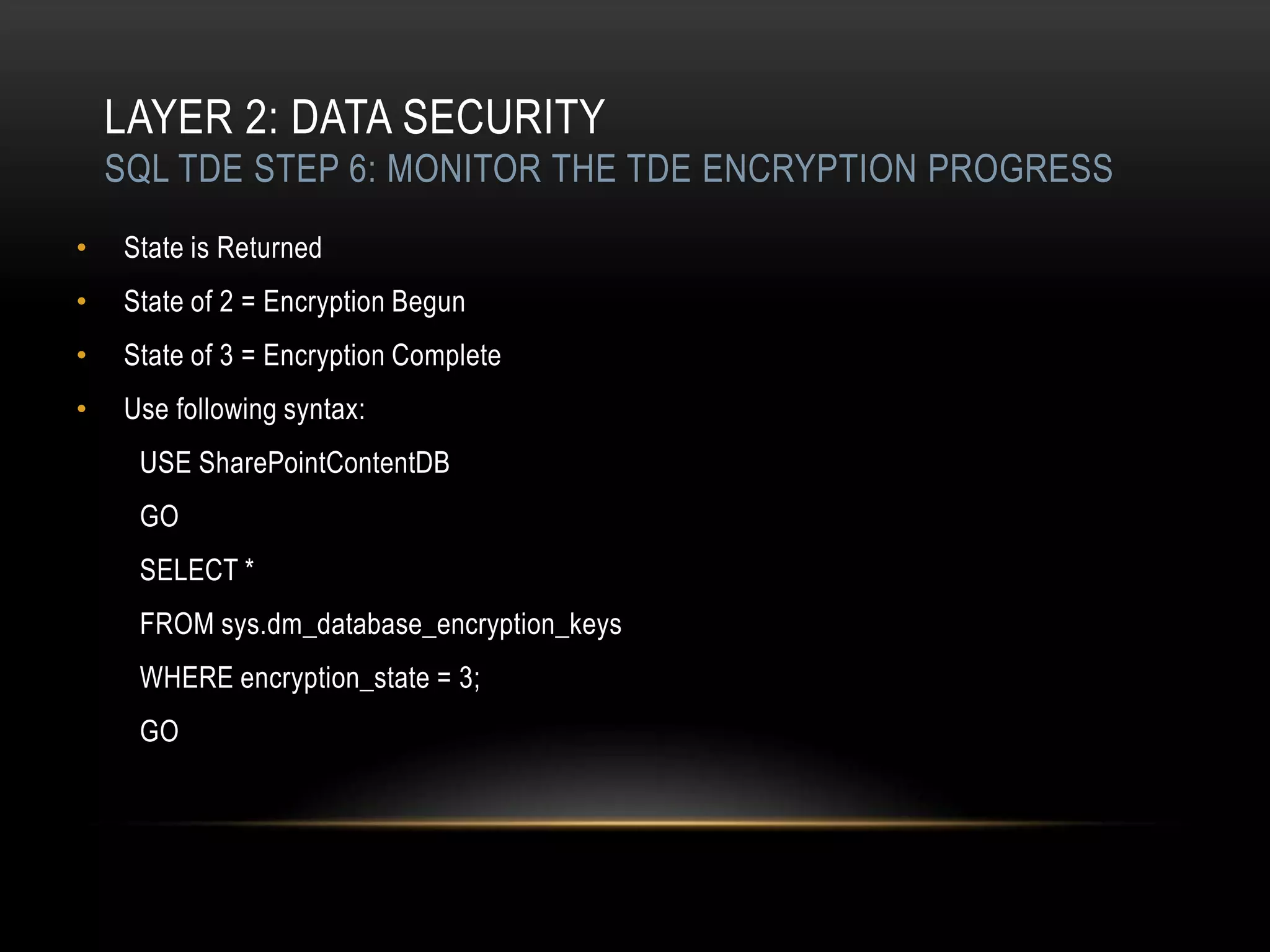

SQL TDE STEP 6: MONITOR THE TDE ENCRYPTION PROGRESS
• State is Returned
• State of 2 = Encryption Begun
• State of 3 = Encryption Complete
• Use following syntax:
USE SharePointContentDB
GO
SELECT *
FROM sys.dm_database_encryption_keys
WHERE encryption_state = 3;
GO

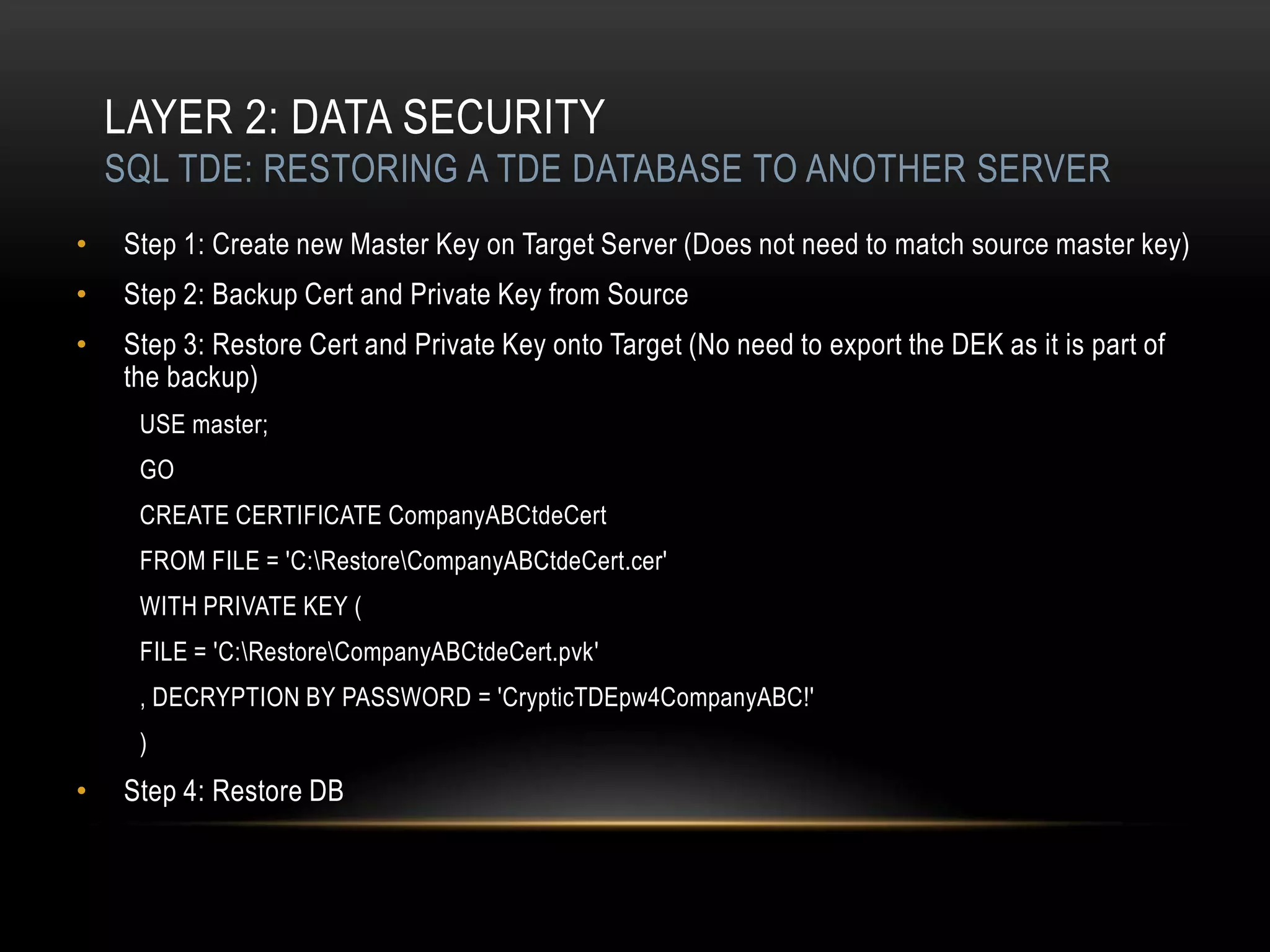

24. LAYER 2: DATA SECURITY
SQL TDE: RESTORING A TDE DATABASE TO ANOTHER SERVER
• Step 1: Create new Master Key on Target Server (Does not need to match source master key)
• Step 2: Backup Cert and Private Key from Source
• Step 3: Restore Cert and Private Key onto Target (No need to export the DEK as it is part of
the backup)
USE master;
GO
CREATE CERTIFICATE CompanyABCtdeCert
FROM FILE = 'C:RestoreCompanyABCtdeCert.cer'
WITH PRIVATE KEY (
FILE = 'C:RestoreCompanyABCtdeCert.pvk'
, DECRYPTION BY PASSWORD = 'CrypticTDEpw4CompanyABC!'
)
• Step 4: Restore DB

25. LAYER 2: DATA SECURITY

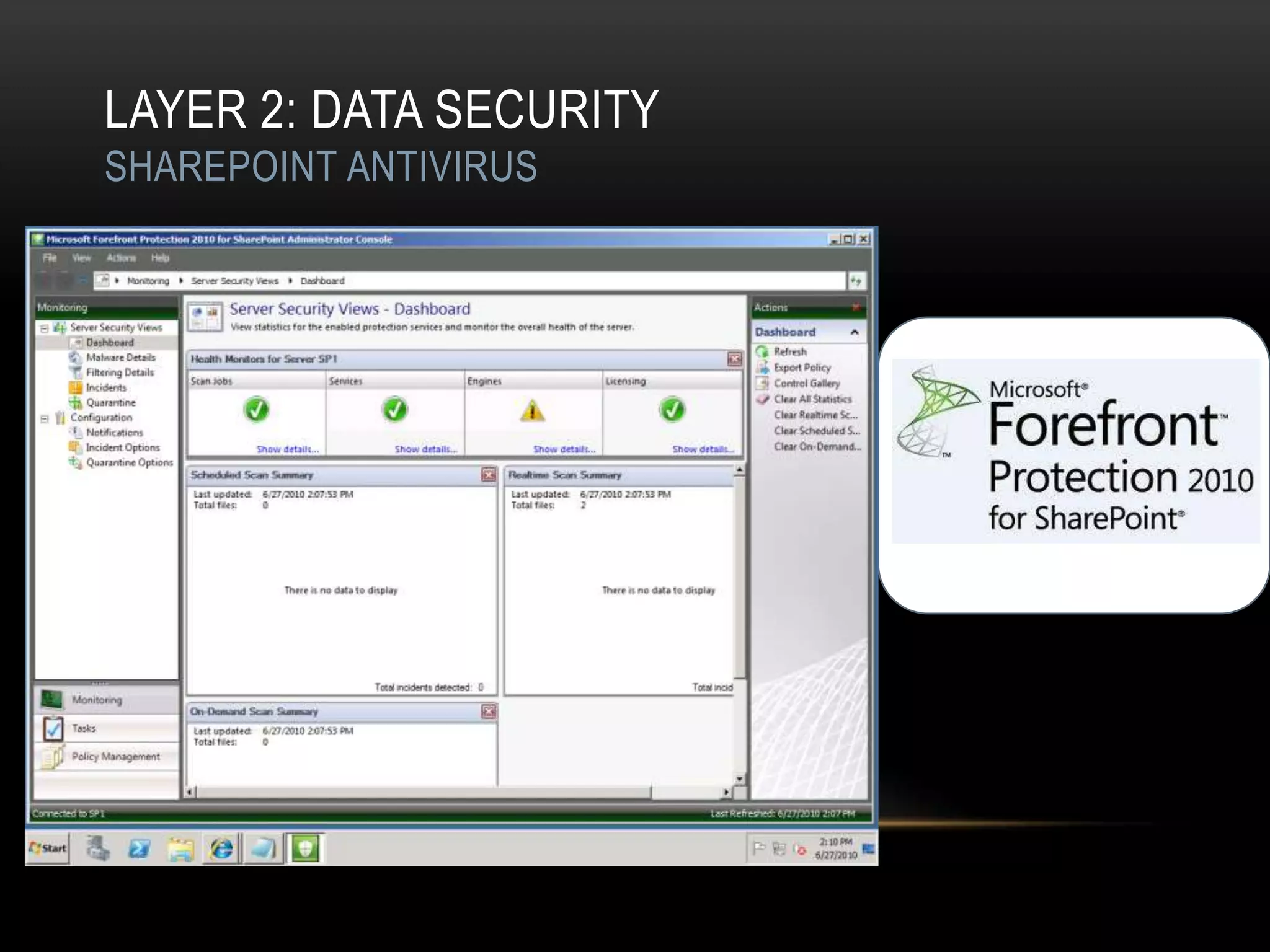

SHAREPOINT ANTIVIRUS

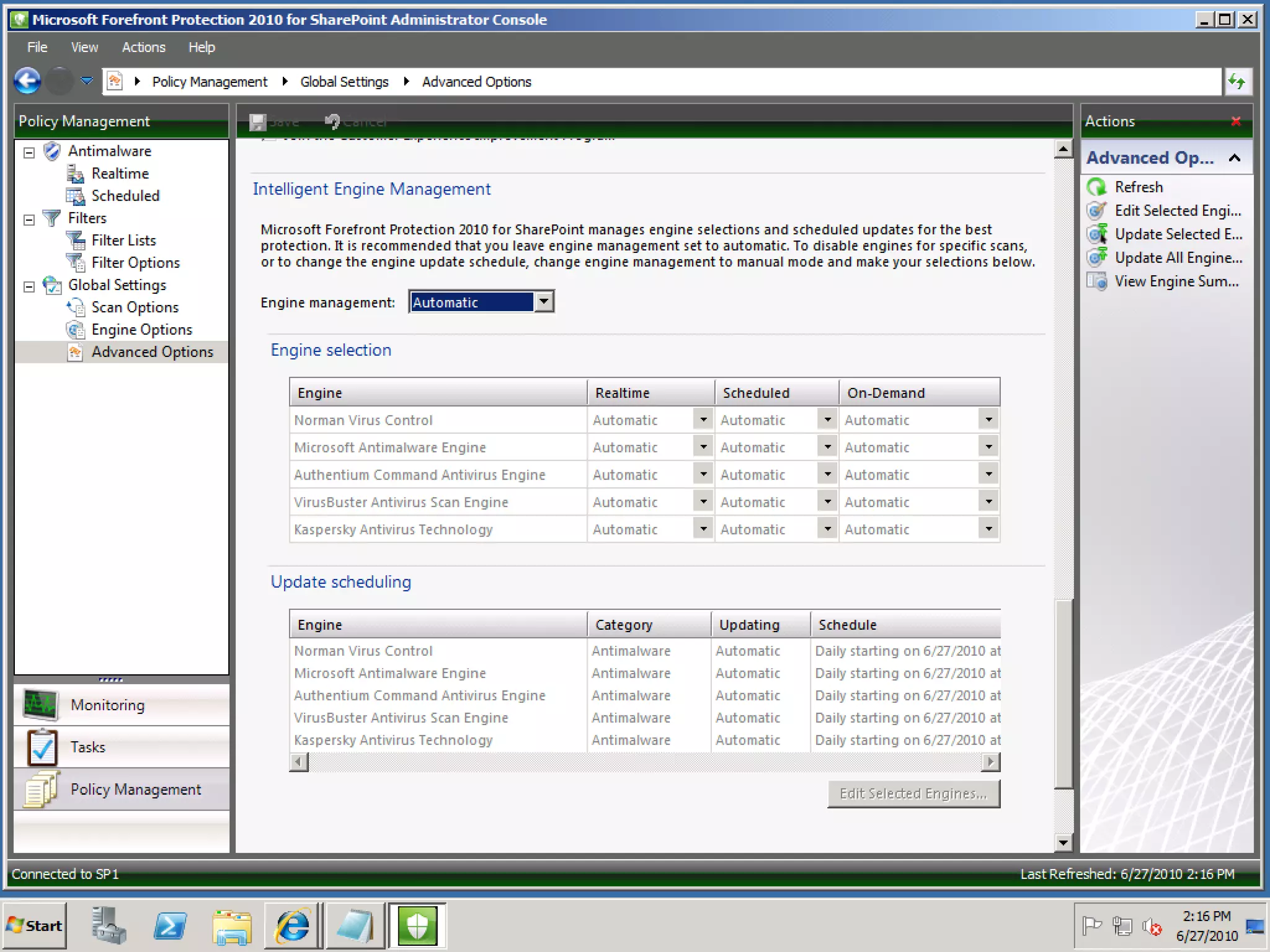

27. LAYER 2: DATA SECURITY

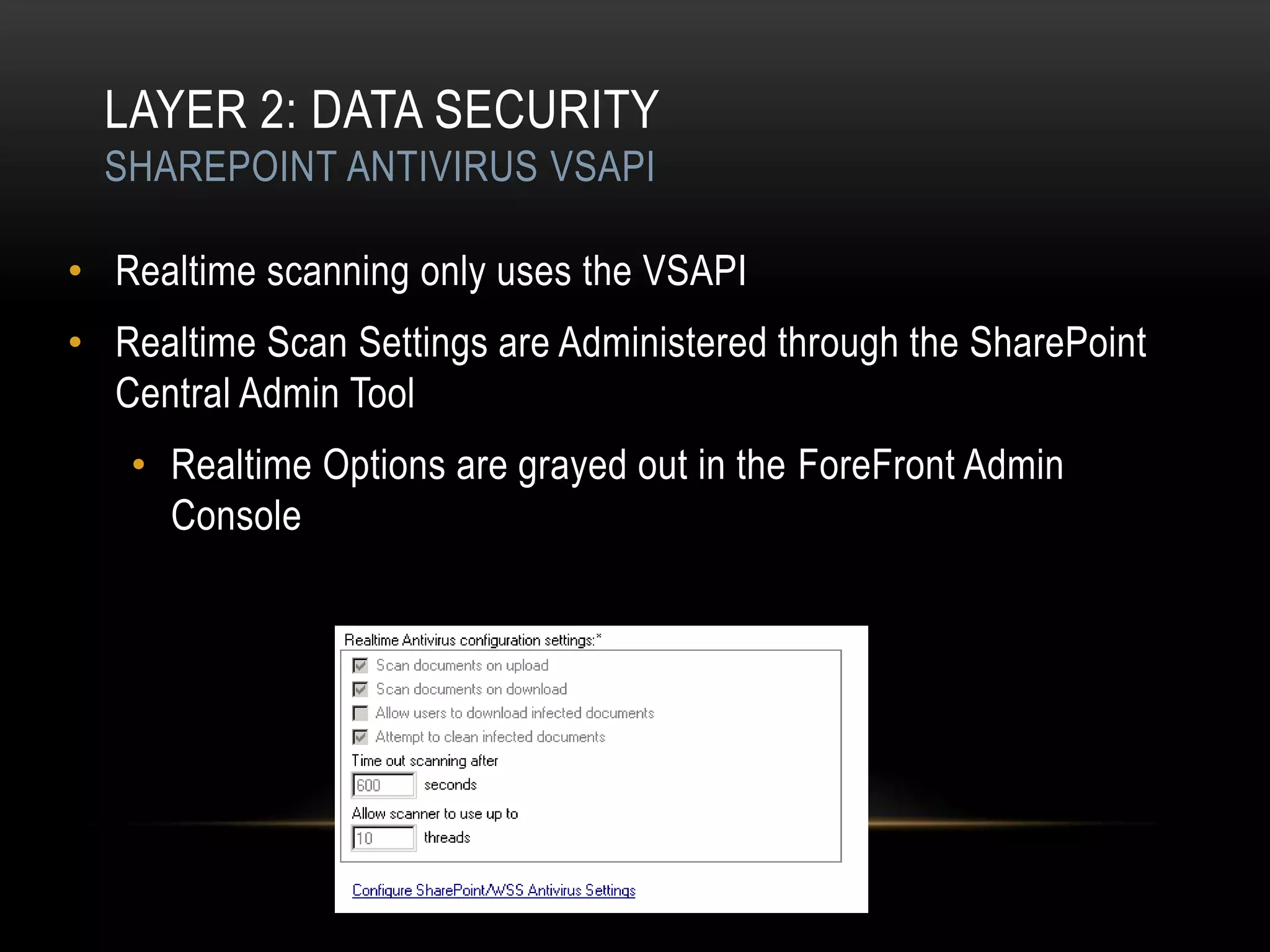

SHAREPOINT ANTIVIRUS VSAPI
• Realtime scanning only uses the VSAPI
• Realtime Scan Settings are Administered through the SharePoint
Central Admin Tool
• Realtime Options are grayed out in the ForeFront Admin
Console

28. LAYER 2: DATA SECURITY

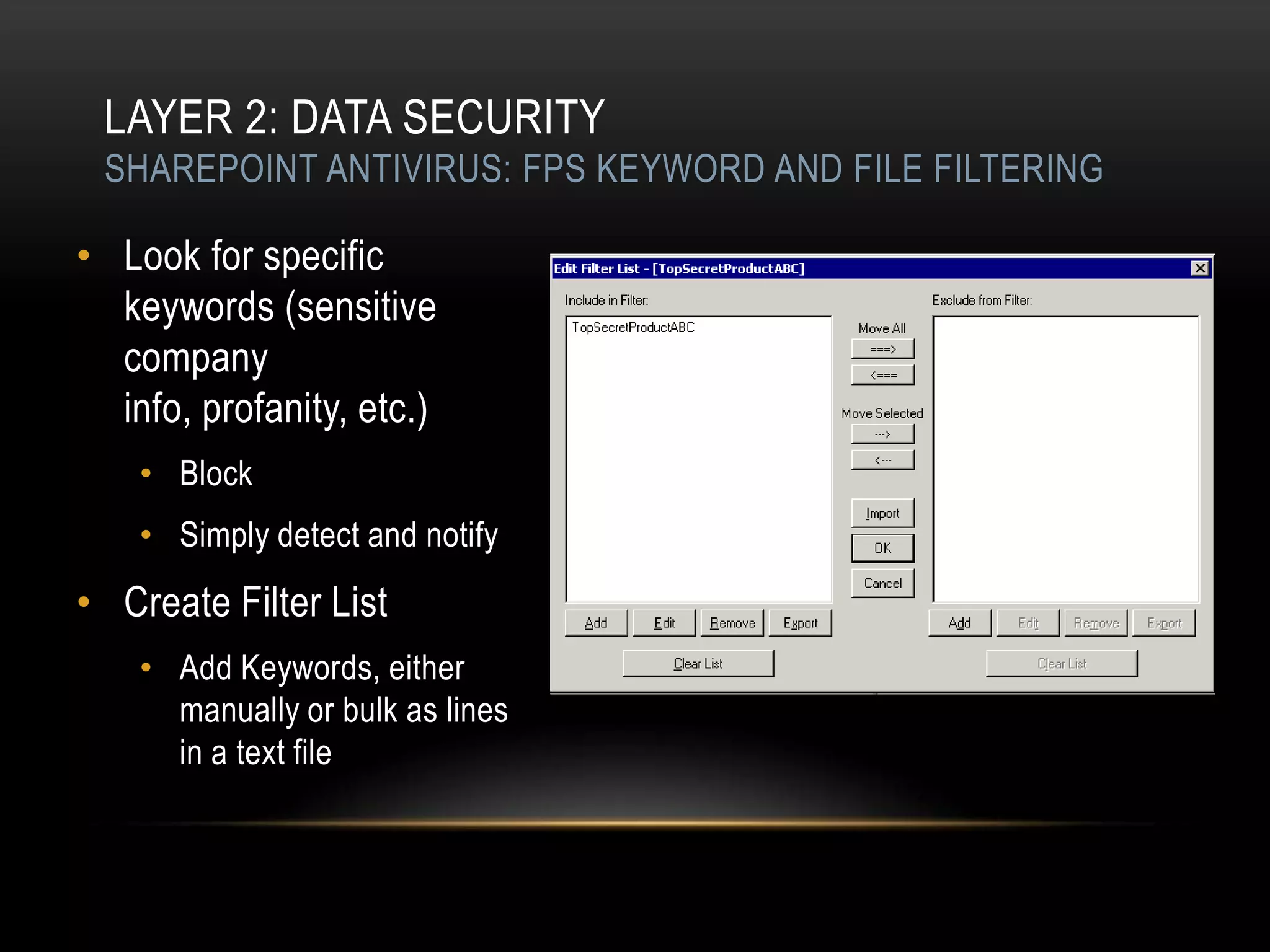

SHAREPOINT ANTIVIRUS: FPS KEYWORD AND FILE FILTERING
• Look for specific
keywords (sensitive
company
info, profanity, etc.)
• Block
• Simply detect and notify
• Create Filter List
• Add Keywords, either
manually or bulk as lines
in a text file

29. LAYER 2: DATA SECURITY

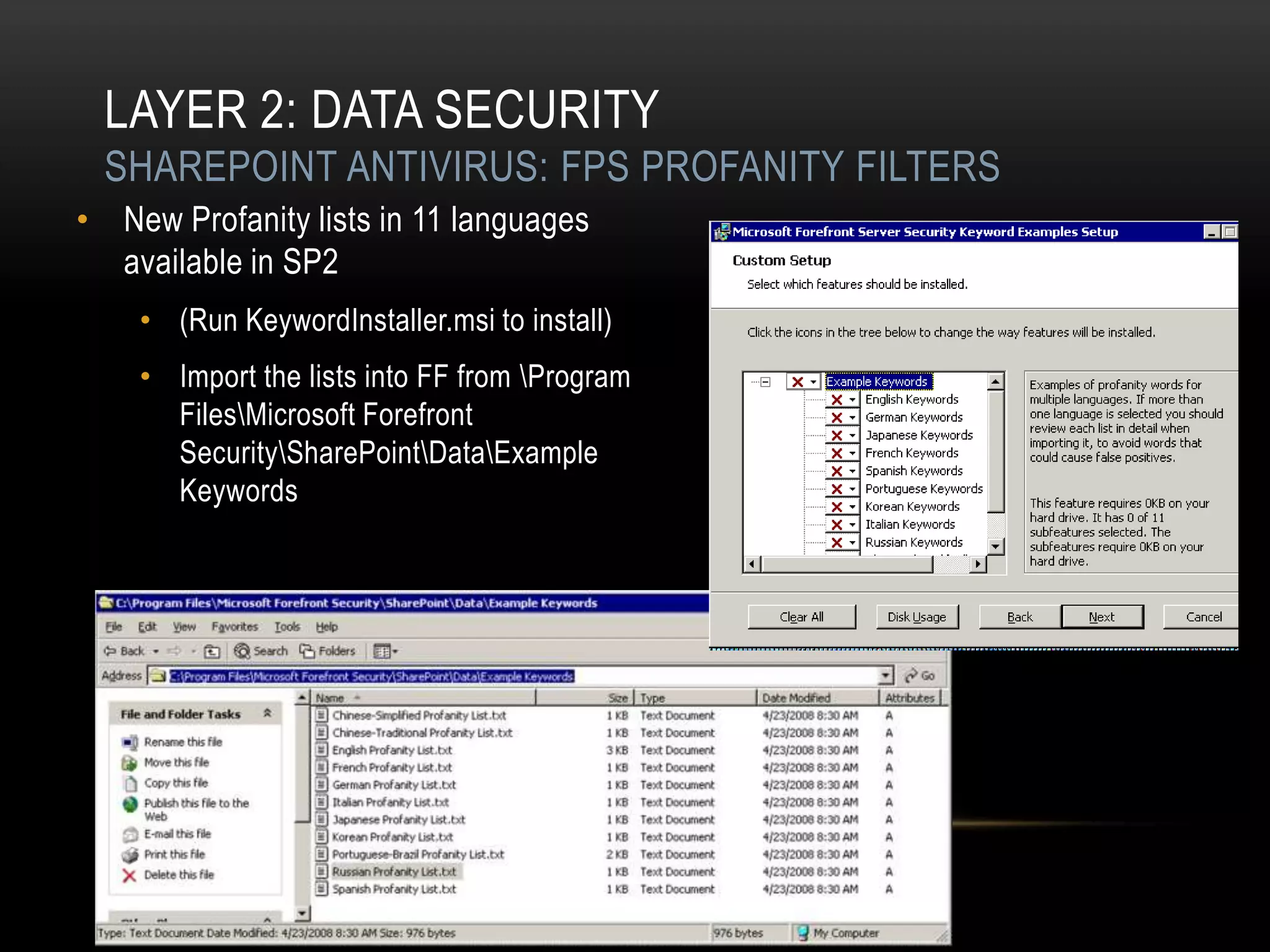

SHAREPOINT ANTIVIRUS: FPS PROFANITY FILTERS
• New Profanity lists in 11 languages
available in SP2
• (Run KeywordInstaller.msi to install)
• Import the lists into FF from Program
FilesMicrosoft Forefront
SecuritySharePointDataExample
Keywords

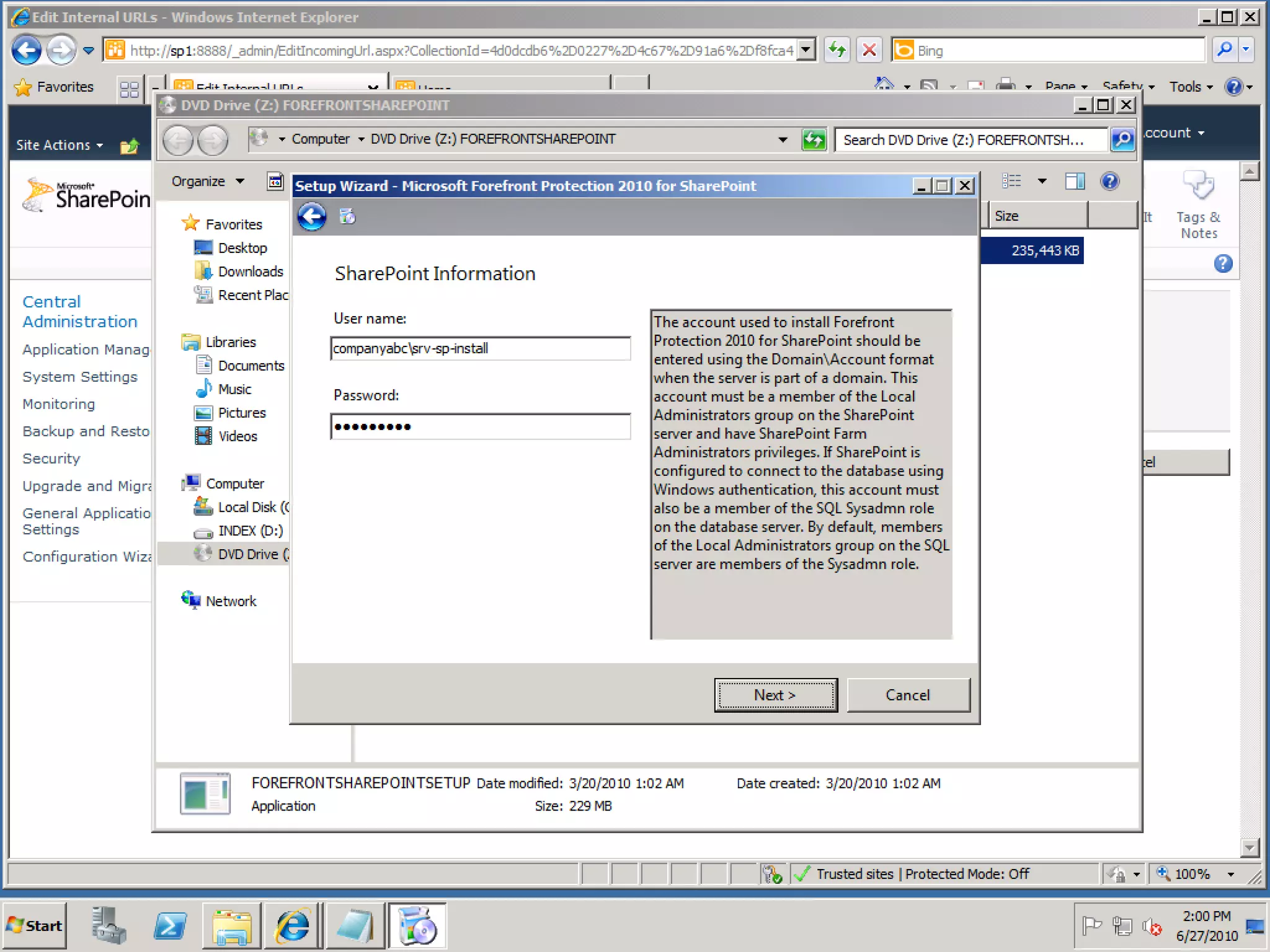

31. TRANSPORT SECURITY
Layer

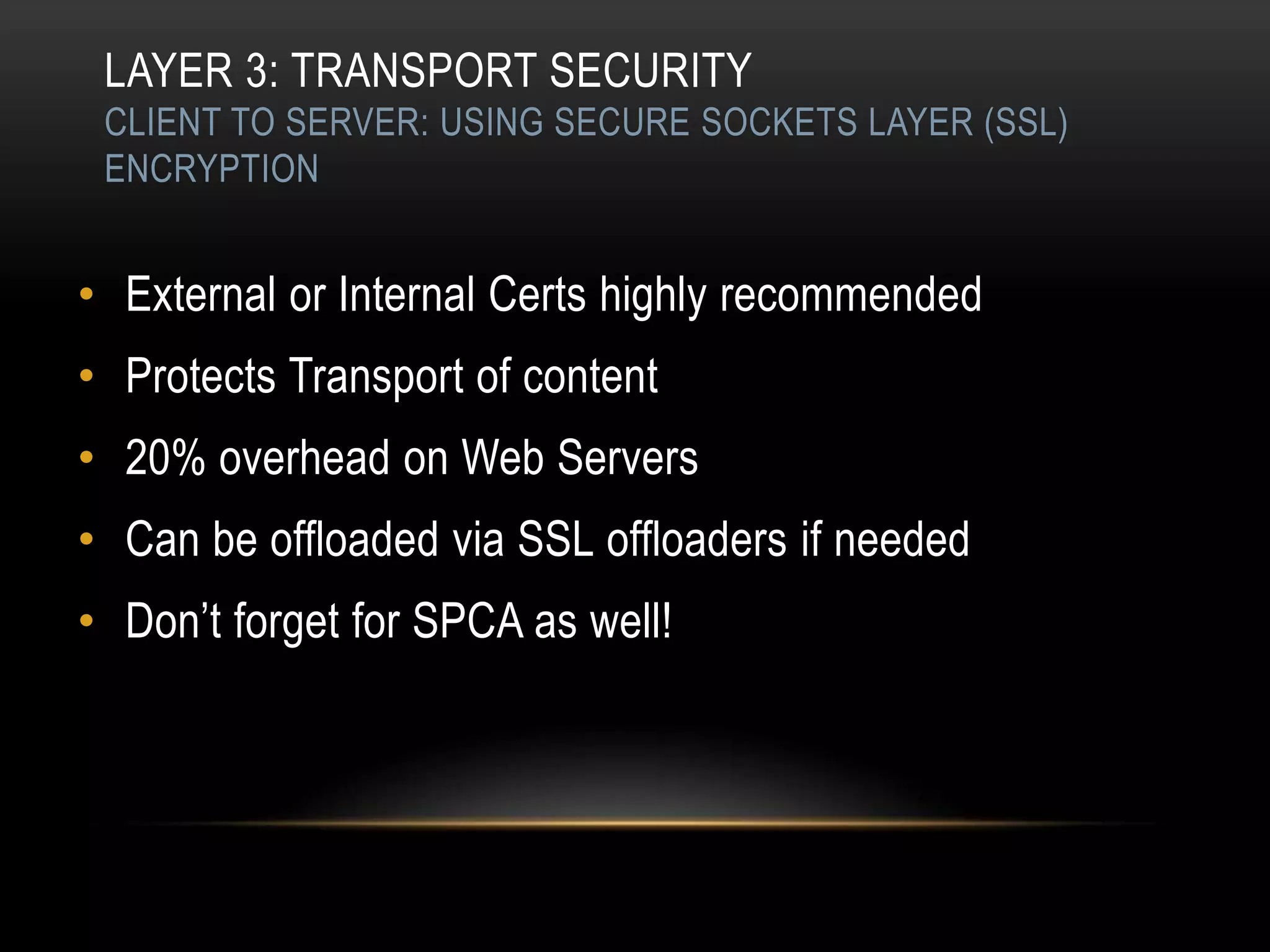

32. LAYER 3: TRANSPORT SECURITY
CLIENT TO SERVER: USING SECURE SOCKETS LAYER (SSL)
ENCRYPTION
• External or Internal Certs highly recommended
• Protects Transport of content
• 20% overhead on Web Servers
• Can be offloaded via SSL offloaders if needed
• Don‟t forget for SPCA as well!

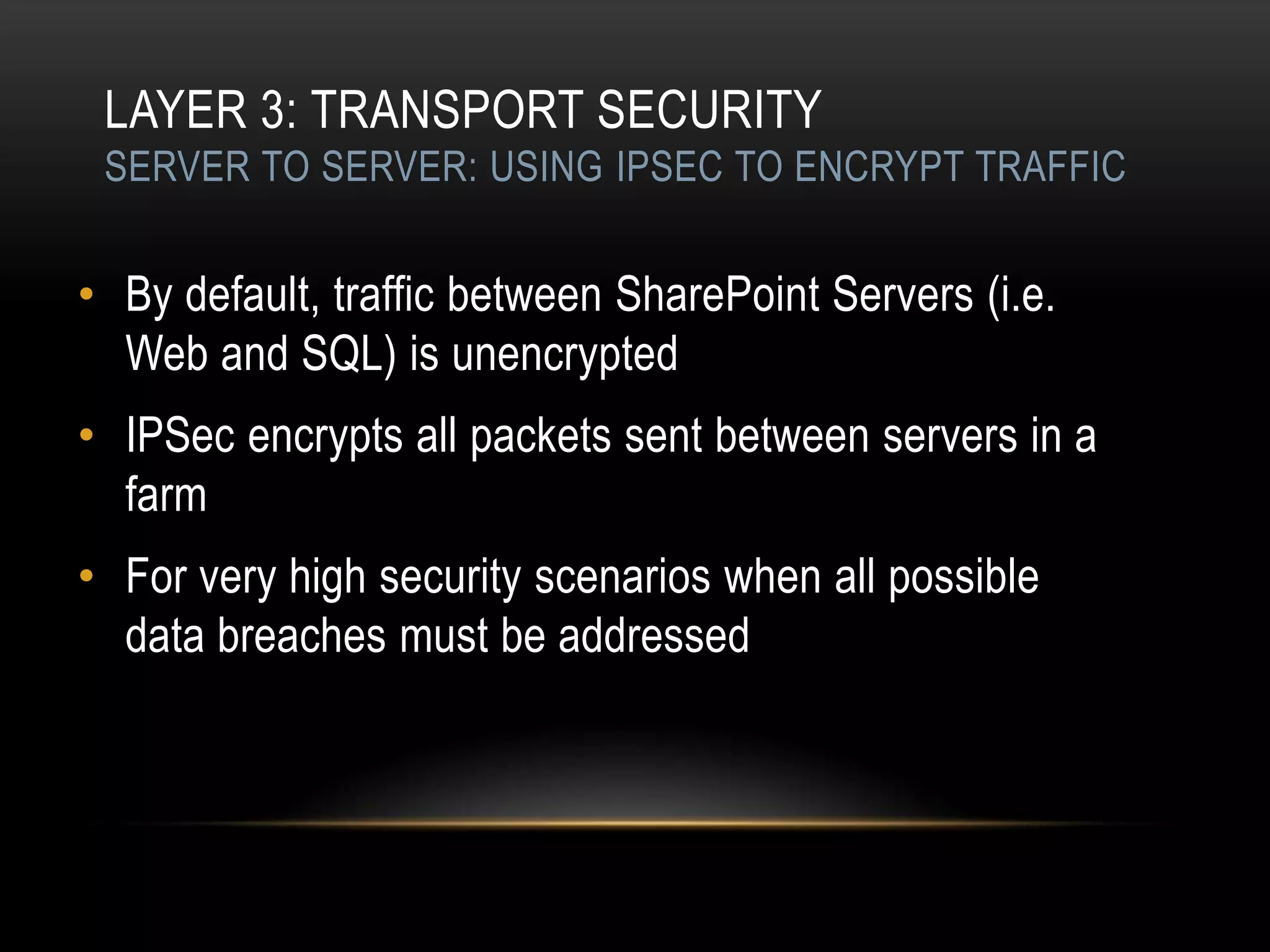

33. LAYER 3: TRANSPORT SECURITY
SERVER TO SERVER: USING IPSEC TO ENCRYPT TRAFFIC
• By default, traffic between SharePoint Servers (i.e.
Web and SQL) is unencrypted
• IPSec encrypts all packets sent between servers in a
farm
• For very high security scenarios when all possible
data breaches must be addressed

34. EDGE SECURITY
Layer

35. LAYER 4: EDGE SECURITY

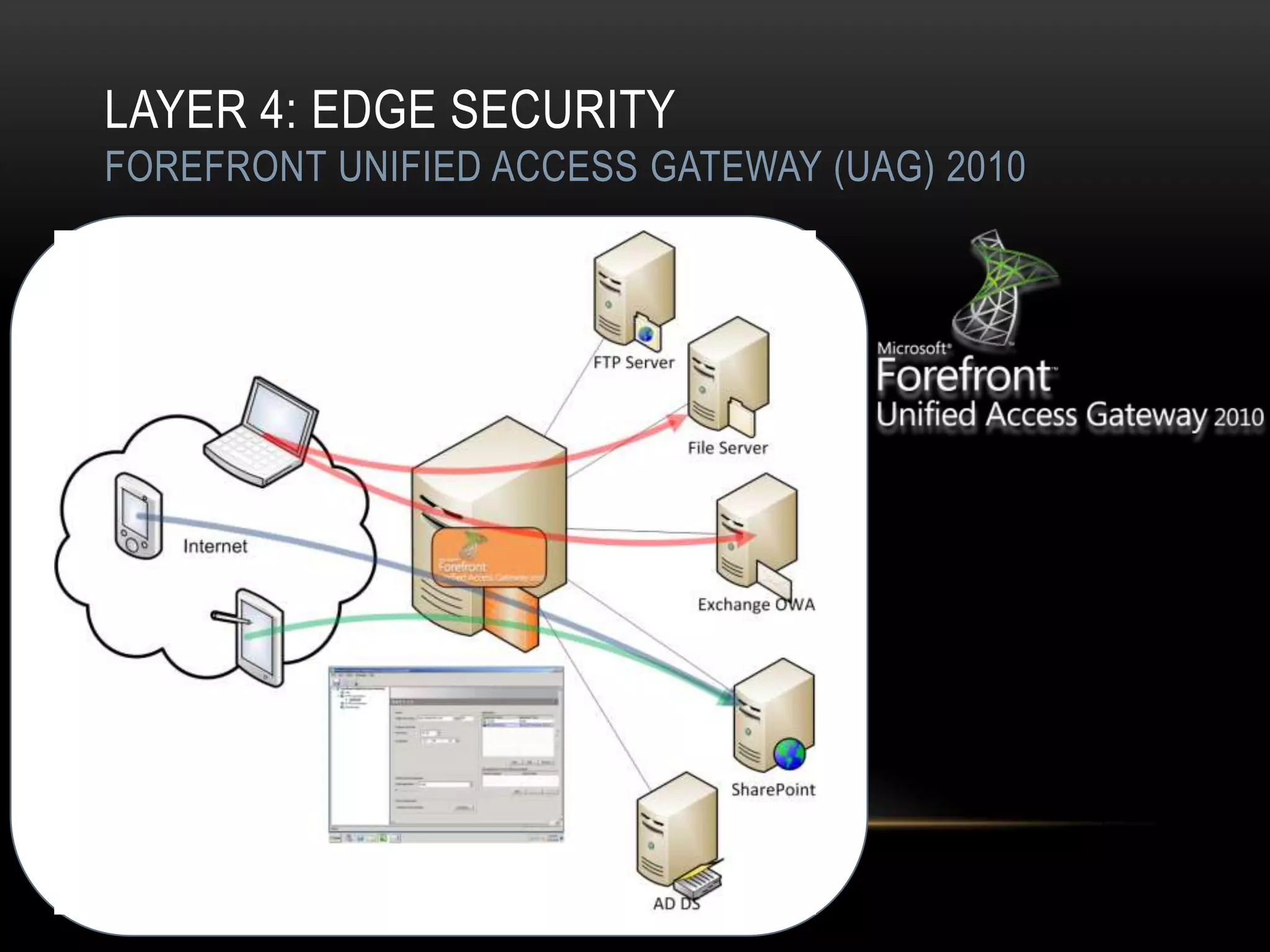

FOREFRONT UNIFIED ACCESS GATEWAY (UAG) 2010

36. LAYER 4: EDGE SECURITY

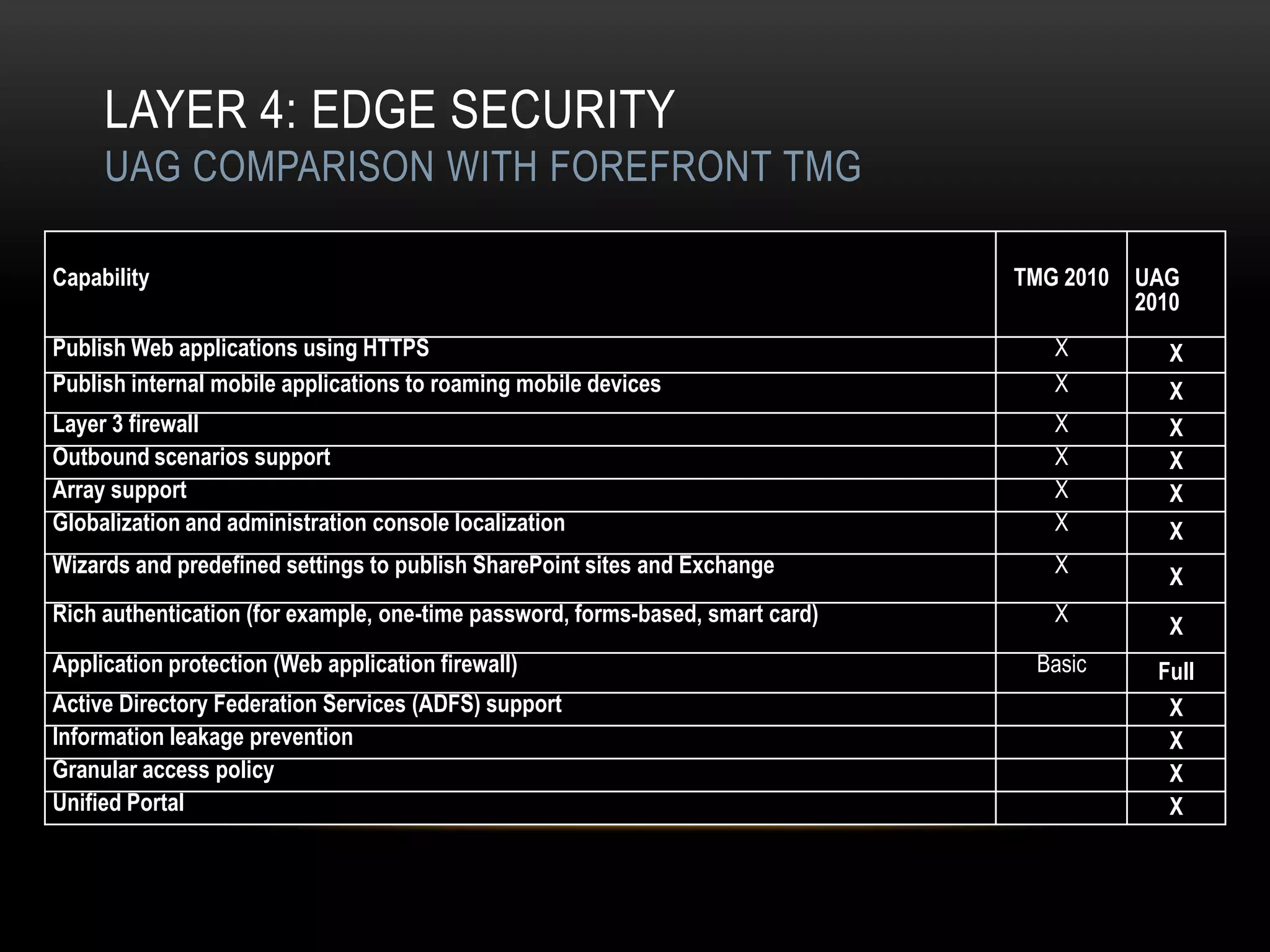

UAG COMPARISON WITH FOREFRONT TMG
Capability TMG 2010 UAG
2010
Publish Web applications using HTTPS X X
Publish internal mobile applications to roaming mobile devices X X
Layer 3 firewall X X
Outbound scenarios support X X
Array support X X
Globalization and administration console localization X X
Wizards and predefined settings to publish SharePoint sites and Exchange X X
Rich authentication (for example, one-time password, forms-based, smart card) X
X
Application protection (Web application firewall) Basic Full
Active Directory Federation Services (ADFS) support X
Information leakage prevention X
Granular access policy X
Unified Portal X

37. RIGHTS MANAGEMENT
Layer

38. LAYER 5: RIGHTS MANAGEMENT

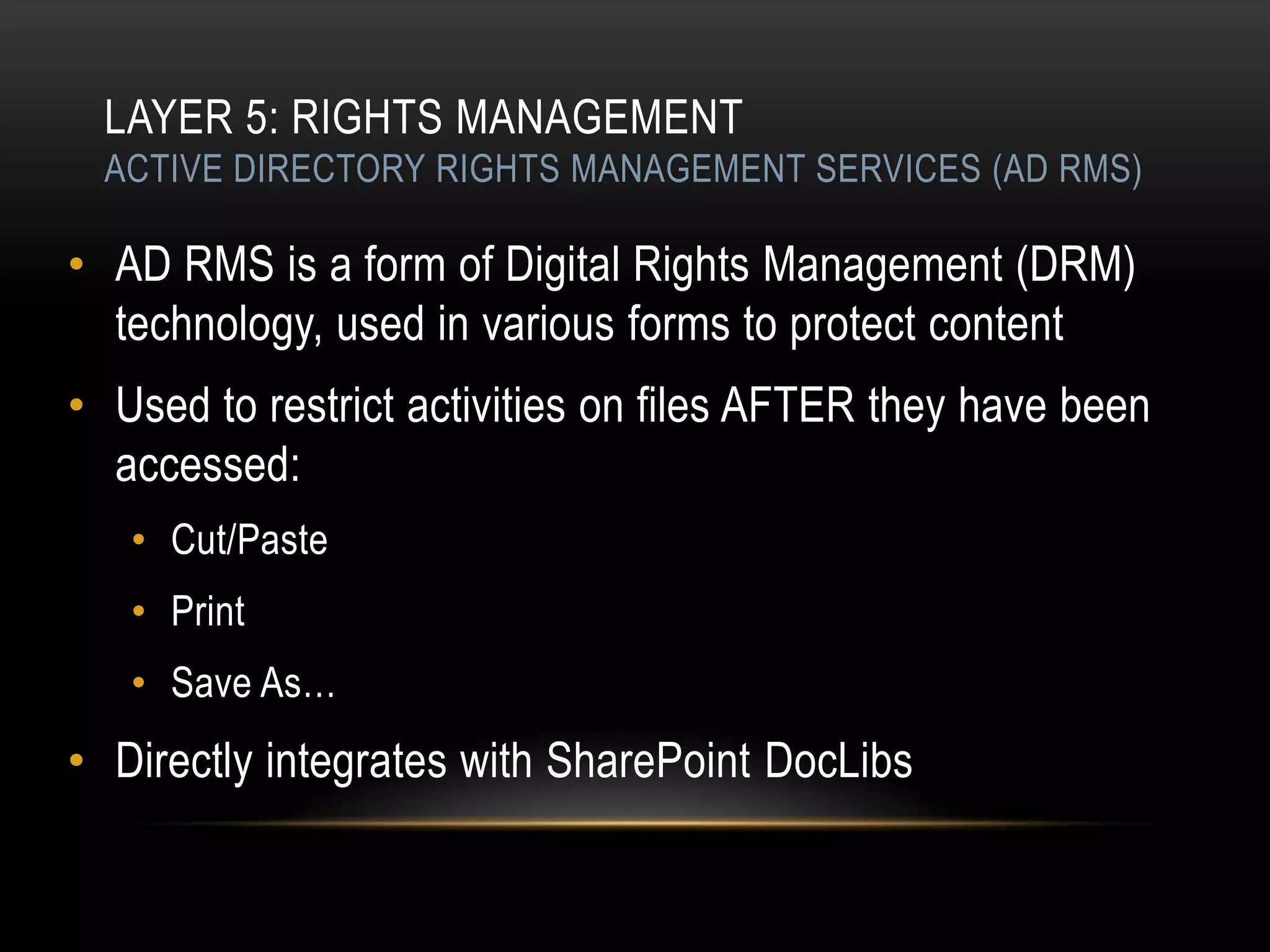

ACTIVE DIRECTORY RIGHTS MANAGEMENT SERVICES (AD RMS)
• AD RMS is a form of Digital Rights Management (DRM)
technology, used in various forms to protect content
• Used to restrict activities on files AFTER they have been
accessed:
• Cut/Paste
• Print
• Save As…
• Directly integrates with SharePoint DocLibs

39. LAYER 5: RIGHTS MANAGEMENT

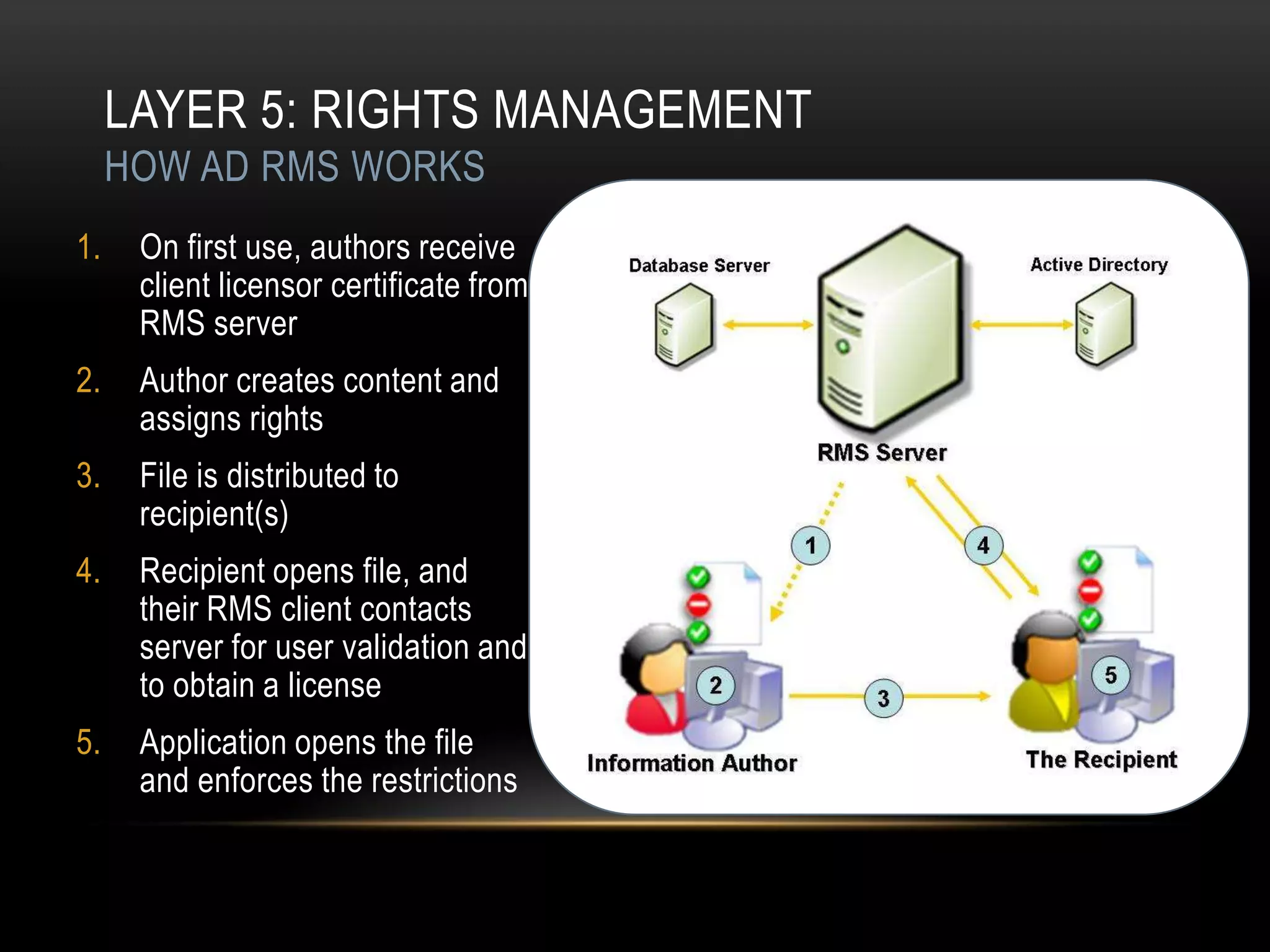

HOW AD RMS WORKS
1. On first use, authors receive
client licensor certificate from
RMS server
2. Author creates content and
assigns rights
3. File is distributed to
recipient(s)
4. Recipient opens file, and
their RMS client contacts
server for user validation and
to obtain a license
5. Application opens the file
and enforces the restrictions

40. LAYER 5: RIGHTS MANAGEMENT

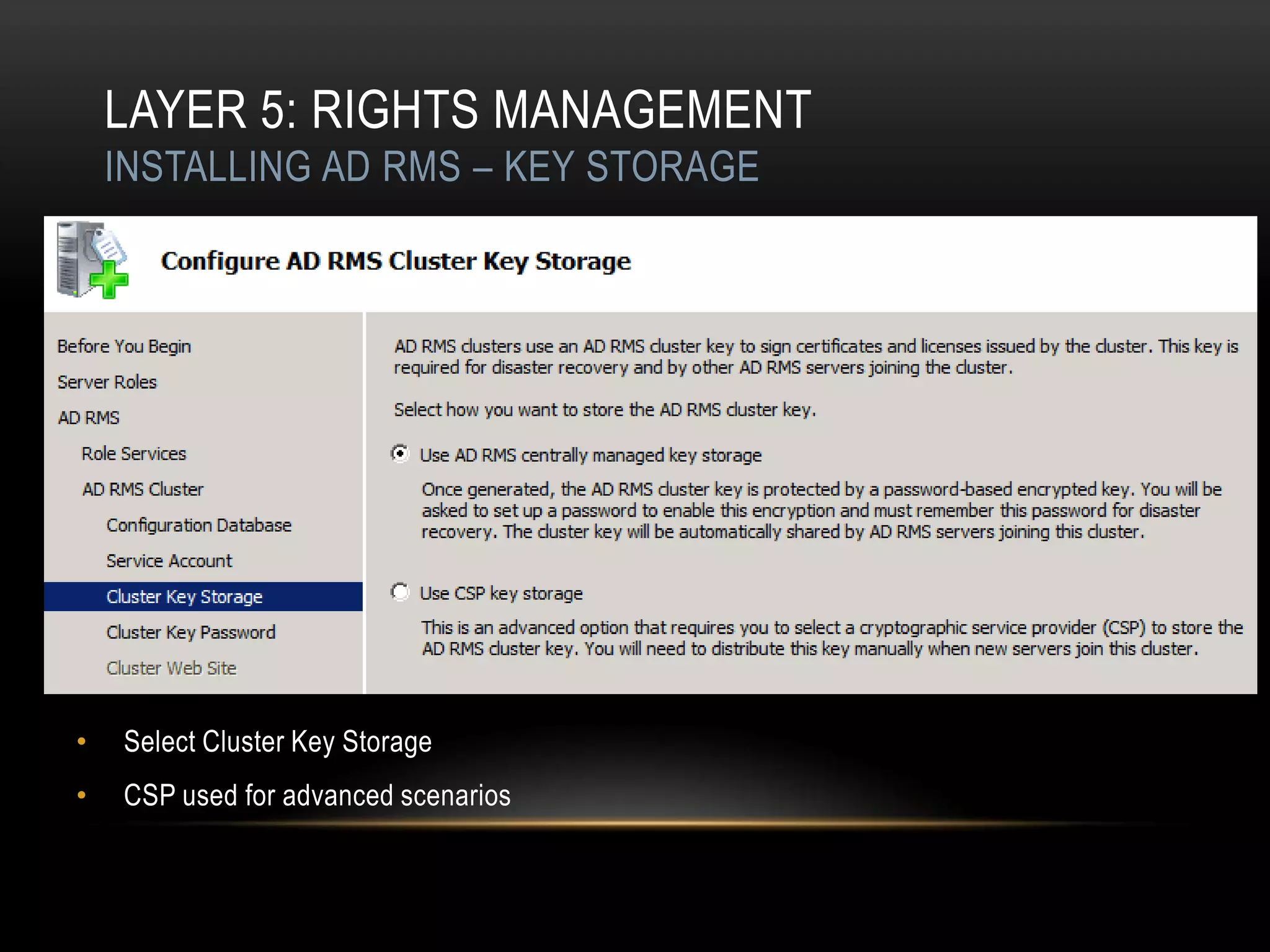

INSTALLING AD RMS – KEY STORAGE
• Select Cluster Key Storage
• CSP used for advanced scenarios

41. LAYER 5: RIGHTS MANAGEMENT

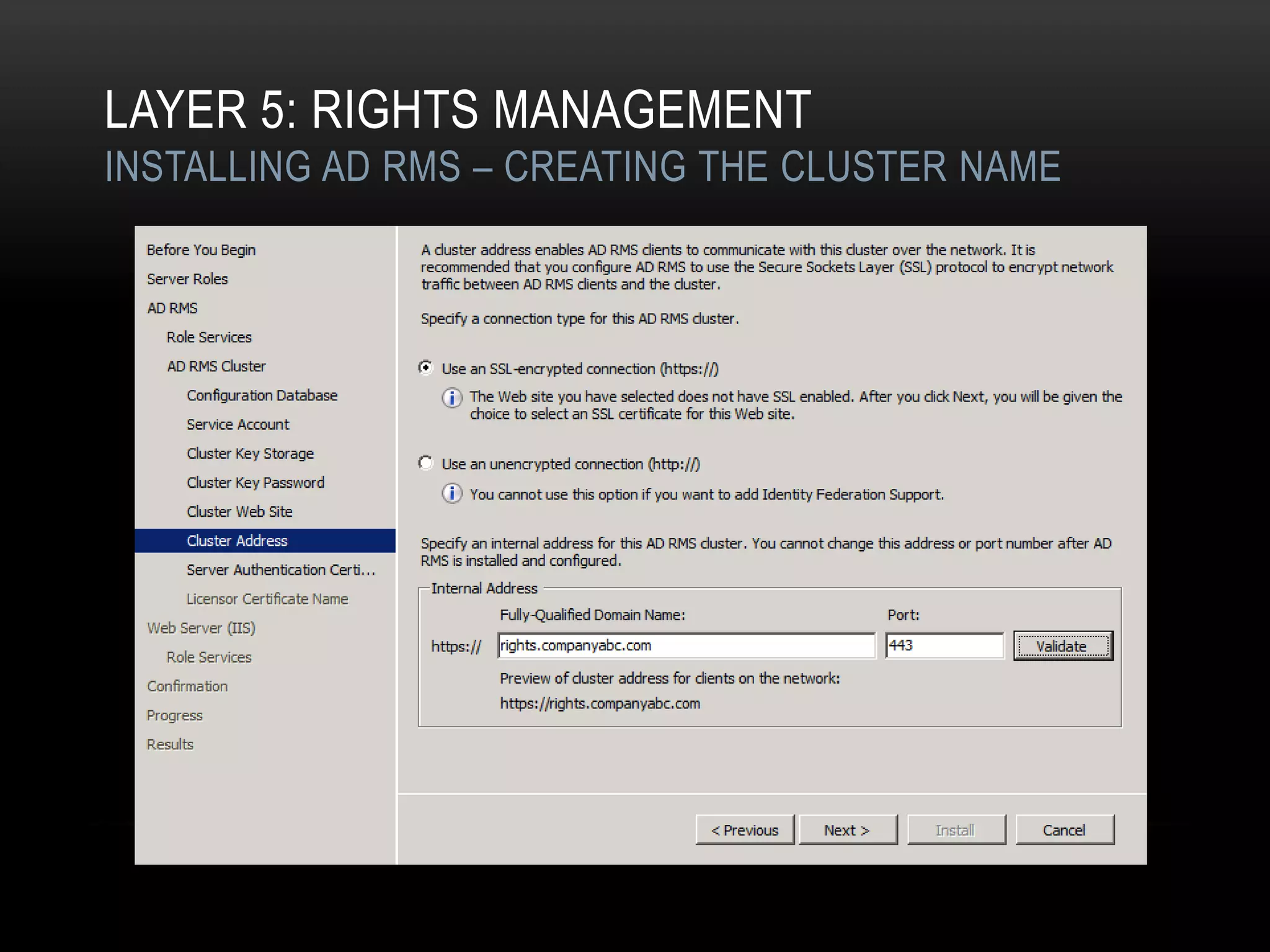

INSTALLING AD RMS – CREATING THE CLUSTER NAME

42. LAYER 5: RIGHTS MANAGEMENT

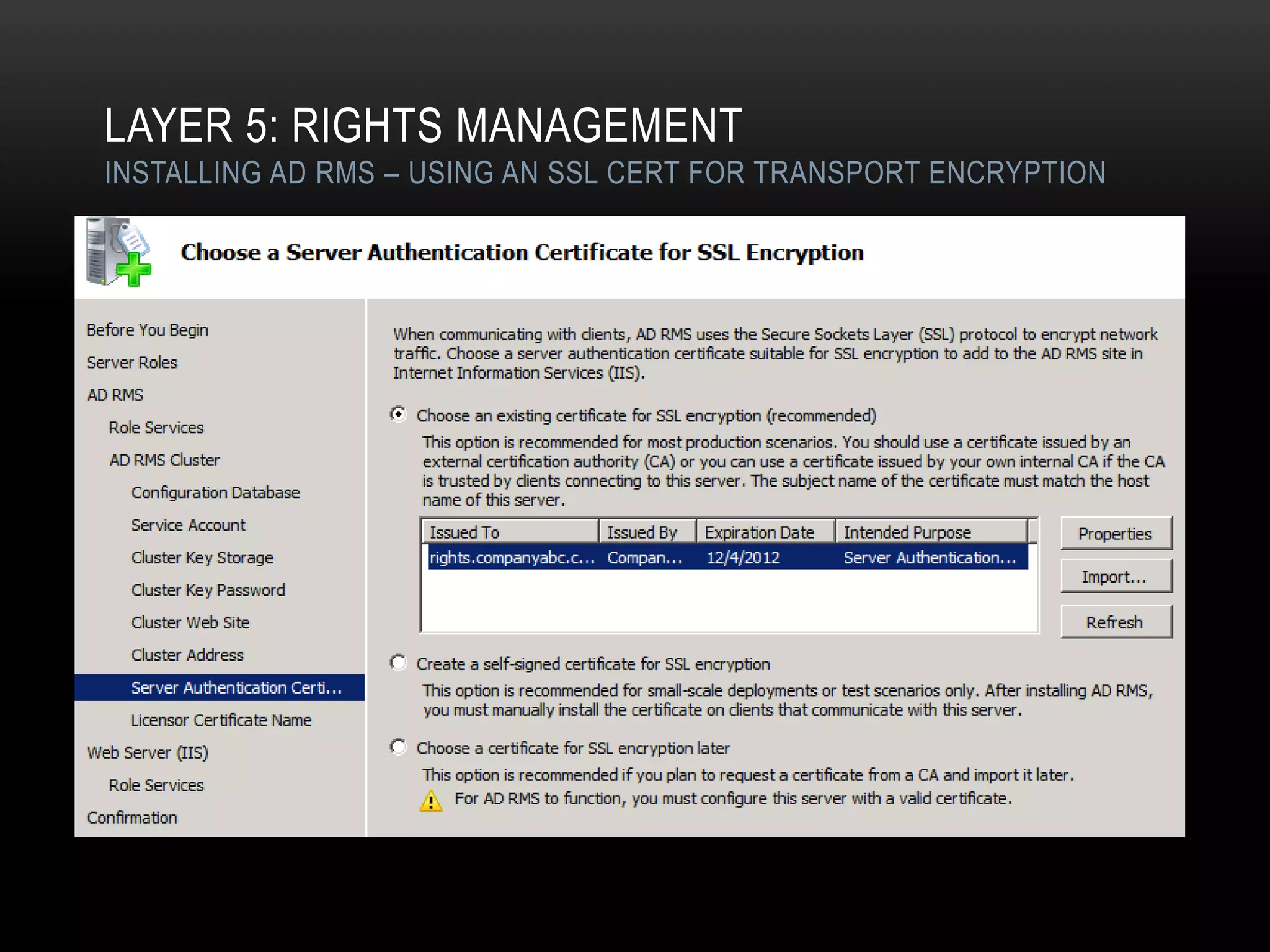

INSTALLING AD RMS – USING AN SSL CERT FOR TRANSPORT ENCRYPTION

43. LAYER 5: RIGHTS MANAGEMENT

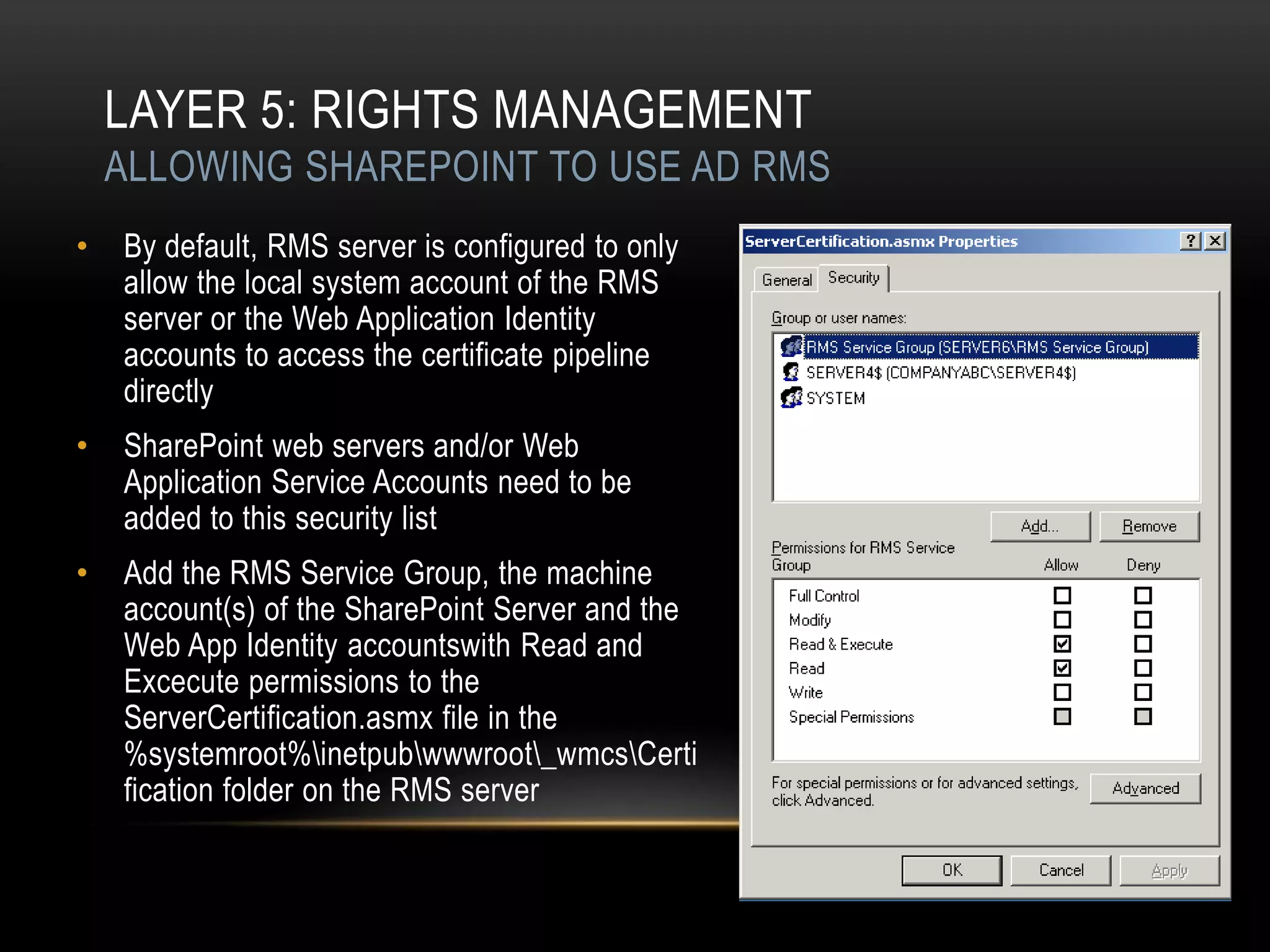

ALLOWING SHAREPOINT TO USE AD RMS
• By default, RMS server is configured to only
allow the local system account of the RMS
server or the Web Application Identity
accounts to access the certificate pipeline
directly
• SharePoint web servers and/or Web
Application Service Accounts need to be
added to this security list
• Add the RMS Service Group, the machine
account(s) of the SharePoint Server and the
Web App Identity accountswith Read and
Excecute permissions to the
ServerCertification.asmx file in the
%systemroot%inetpubwwwroot_wmcsCerti
fication folder on the RMS server

44. LAYER 5: RIGHTS MANAGEMENT

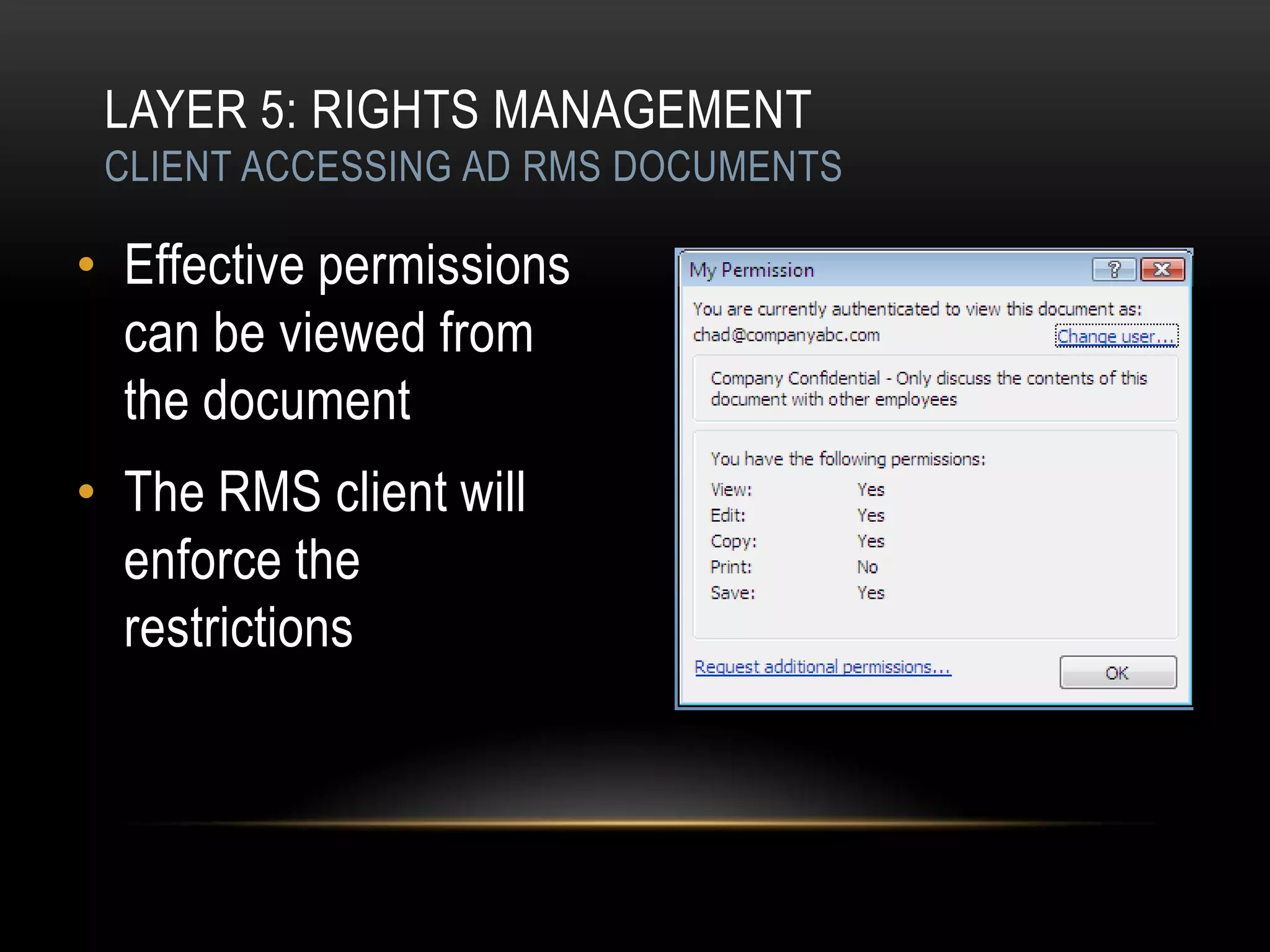

CLIENT ACCESSING AD RMS DOCUMENTS
• Effective permissions
can be viewed from
the document
• The RMS client will
enforce the
restrictions

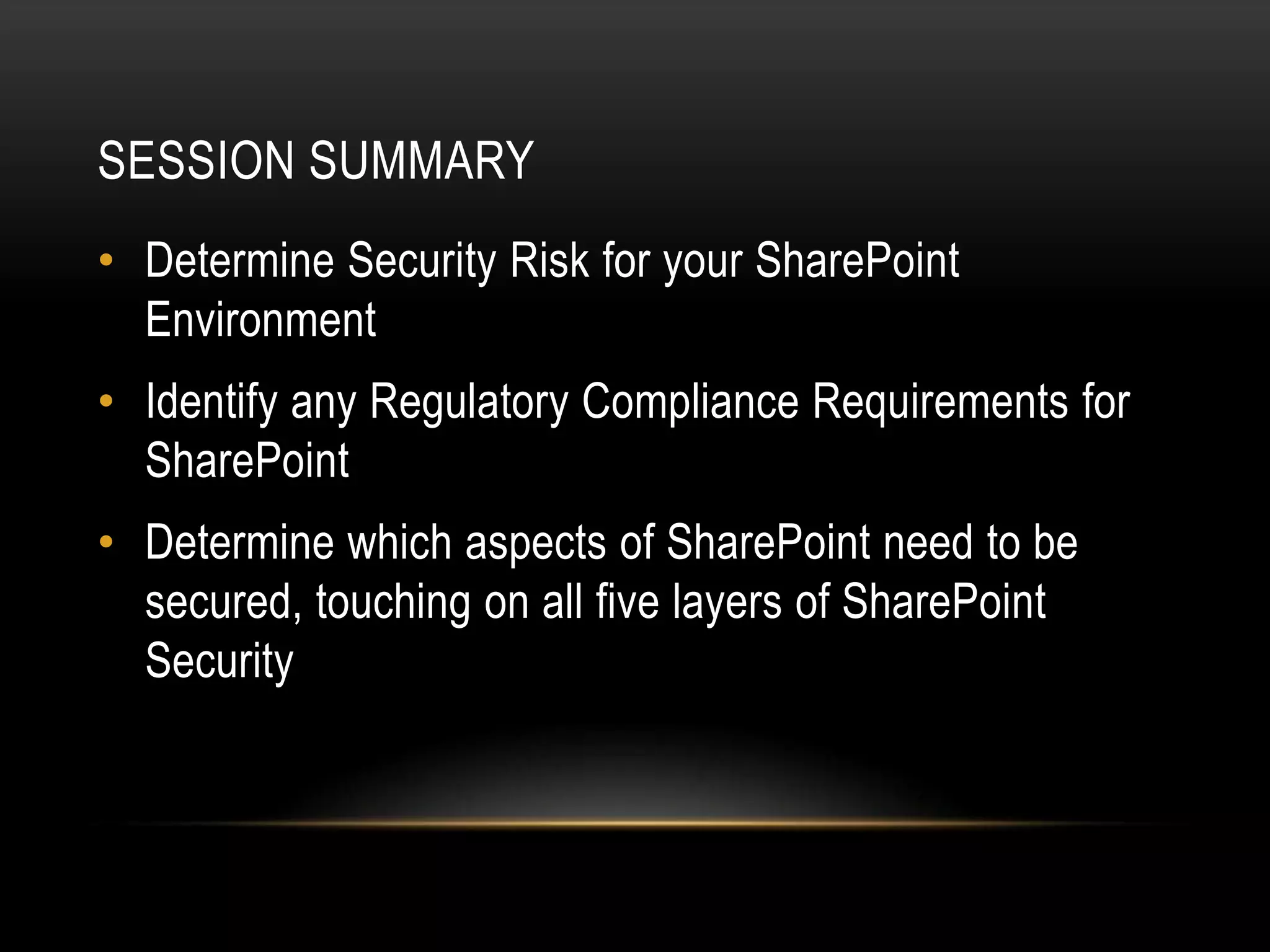

45. SESSION SUMMARY
• Determine Security Risk for your SharePoint
Environment
• Identify any Regulatory Compliance Requirements for
SharePoint
• Determine which aspects of SharePoint need to be
secured, touching on all five layers of SharePoint
Security

46. Michael Noel
Twitter: @MichaelTNoel
www.cco.com
Slides: slideshare.net/michaeltnoel
Travel blog: sharingtheglobe.com

47. A big thanks to our sponsors
Platinum Sponsors
Gold Premium Sponsors Venue Sponsor
Gold Sponsors

48. We need your feedback!
Scan this QR code or visit
http://svy.mk/sps2012be
Our sponsors:
