Oracle E-Business Suite
Release 12 - Architecture and
       Tools Overview
                 Presenter:
                 Sandra Vucinic
                 VLAD Group, Inc.

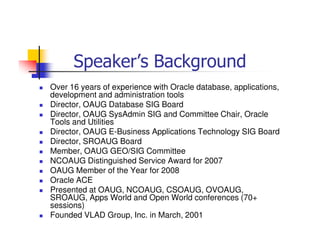

Speaker’s Background
Over 16 years of experience with Oracle database, applications,
development and administration tools
Director, OAUG Database SIG Board
Director, OAUG SysAdmin SIG and Committee Chair, Oracle
Tools and Utilities
Director, OAUG E-Business Applications Technology SIG Board
Director, SROAUG Board
Member, OAUG GEO/SIG Committee
NCOAUG Distinguished Service Award for 2007
OAUG Member of the Year for 2008
Oracle ACE
Presented at OAUG, NCOAUG, CSOAUG, OVOAUG,
SROAUG, Apps World and Open World conferences (70+
sessions)
Founded VLAD Group, Inc. in March, 2001

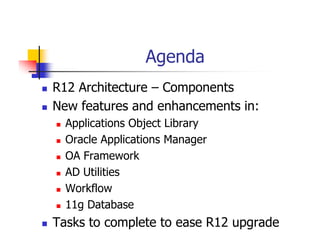

Agenda
R12 Architecture – Components
New features and enhancements in:
  Applications Object Library
  Oracle Applications Manager
  OA Framework
  AD Utilities
  Workflow
  11g Database
Tasks to complete to ease R12 upgrade

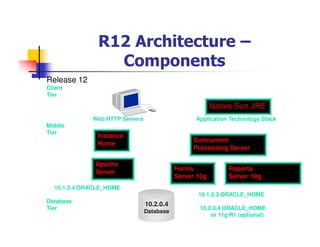

R12 Architecture –
                 Components
Release 12
Client
Tier

                                                        Native Sun JRE
             Web HTTP Servers                    Application Technology Stack
Middle
Tier
               Instance
                                                Concurrent
               Home
                                                Processing Server

              Apache
                                           Forms            Reports
              Server
                                           Server 10g       Server 10g
  10.1.3.4 ORACLE_HOME
                                                  10.1.2.3 ORACLE_HOME
Database
                                10.2.0.4
Tier                                              10.2.0.4 ORACLE_HOME
                                Database
                                                      or 11g R1 (optional)

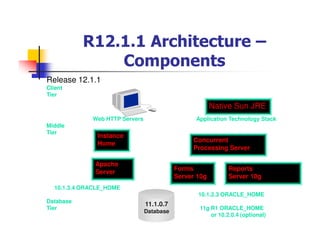

R12.1.1 Architecture –
               Components
Release 12.1.1
Client
Tier

                                                        Native Sun JRE
             Web HTTP Servers                    Application Technology Stack
Middle
Tier
               Instance
                                                Concurrent
               Home
                                                Processing Server

              Apache
                                           Forms             Reports
              Server
                                           Server 10g        Server 10g
  10.1.3.4 ORACLE_HOME
                                                  10.1.2.3 ORACLE_HOME
Database
                                11.1.0.7
Tier                                              11g R1 ORACLE_HOME
                                Database
                                                      or 10.2.0.4 (optional)

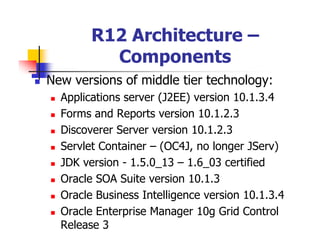

R12 Architecture –
          Components
New versions of middle tier technology:
  Applications server (J2EE) version 10.1.3.4
  Forms and Reports version 10.1.2.3
  Discoverer Server version 10.1.2.3
  Servlet Container – (OC4J, no longer JServ)
  JDK version - 1.5.0_13 – 1.6_03 certified
  Oracle SOA Suite version 10.1.3
  Oracle Business Intelligence version 10.1.3.4
  Oracle Enterprise Manager 10g Grid Control
  Release 3

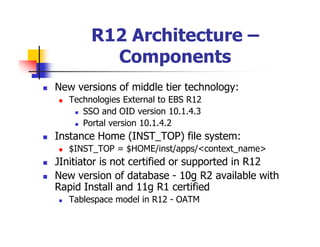

R12 Architecture –
          Components
New versions of middle tier technology:
   Technologies External to EBS R12
      SSO and OID version 10.1.4.3
      Portal version 10.1.4.2
Instance Home (INST_TOP) file system:
   $INST_TOP = $HOME/inst/apps/<context_name>
JInitiator is not certified or supported in R12
New version of database - 10g R2 available with
Rapid Install and 11g R1 certified
   Tablespace model in R12 - OATM

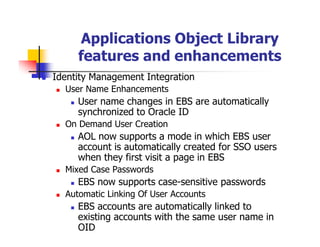

Applications Object Library
     features and enhancements
Identity Management Integration
  User Name Enhancements
     User name changes in EBS are automatically
     synchronized to Oracle ID
  On Demand User Creation
     AOL now supports a mode in which EBS user
     account is automatically created for SSO users
     when they first visit a page in EBS
  Mixed Case Passwords
     EBS now supports case-sensitive passwords
  Automatic Linking Of User Accounts
     EBS accounts are automatically linked to
     existing accounts with the same user name in
     OID

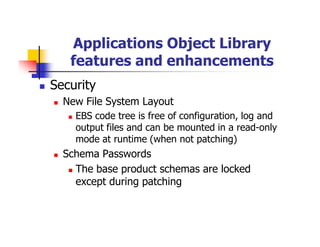

Applications Object Library
   features and enhancements
Security
  New File System Layout
    EBS code tree is free of configuration, log and
    output files and can be mounted in a read-only
    mode at runtime (when not patching)
  Schema Passwords
    The base product schemas are locked
    except during patching

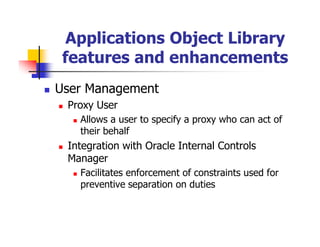

Applications Object Library
 features and enhancements
User Management
 Proxy User
   Allows a user to specify a proxy who can act of
   their behalf
 Integration with Oracle Internal Controls
 Manager
   Facilitates enforcement of constraints used for
   preventive separation on duties

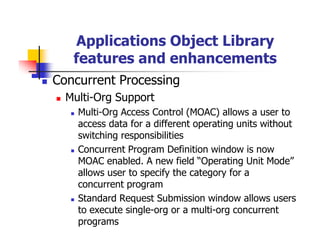

Applications Object Library
   features and enhancements
Concurrent Processing
  Multi-Org Support
    Multi-Org Access Control (MOAC) allows a user to
    access data for a different operating units without
    switching responsibilities
    Concurrent Program Definition window is now
    MOAC enabled. A new field “Operating Unit Mode”
    allows user to specify the category for a
    concurrent program
    Standard Request Submission window allows users
    to execute single-org or a multi-org concurrent
    programs

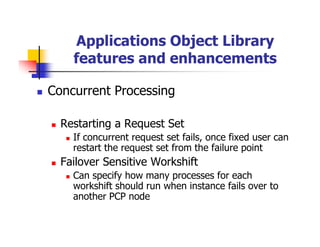

Applications Object Library
    features and enhancements

Concurrent Processing

  Restarting a Request Set
    If concurrent request set fails, once fixed user can
    restart the request set from the failure point
  Failover Sensitive Workshift
    Can specify how many processes for each
    workshift should run when instance fails over to
    another PCP node

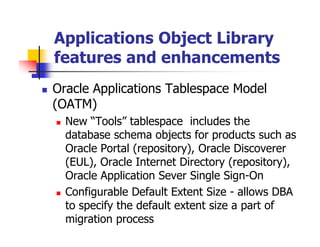

Applications Object Library
features and enhancements
Oracle Applications Tablespace Model
(OATM)
  New “Tools” tablespace includes the
  database schema objects for products such as
  Oracle Portal (repository), Oracle Discoverer
  (EUL), Oracle Internet Directory (repository),
  Oracle Application Sever Single Sign-On
  Configurable Default Extent Size - allows DBA
  to specify the default extent size a part of
  migration process

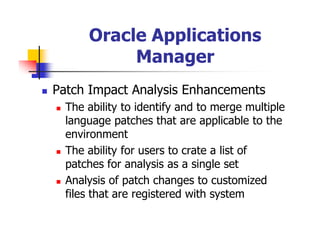

Oracle Applications
           Manager
Patch Impact Analysis Enhancements
  The ability to identify and to merge multiple
  language patches that are applicable to the
  environment
  The ability for users to crate a list of
  patches for analysis as a single set
  Analysis of patch changes to customized
  files that are registered with system

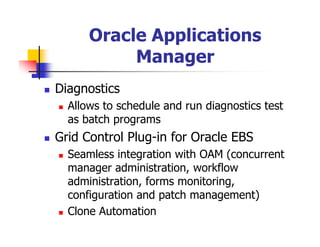

Oracle Applications
           Manager
Diagnostics
  Allows to schedule and run diagnostics test
  as batch programs
Grid Control Plug-in for Oracle EBS
  Seamless integration with OAM (concurrent
  manager administration, workflow
  administration, forms monitoring,
  configuration and patch management)
  Clone Automation

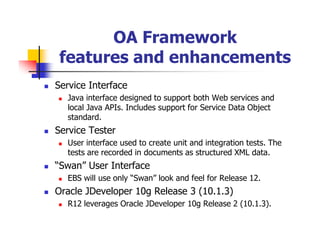

OA Framework
 features and enhancements
Service Interface
  Java interface designed to support both Web services and
  local Java APIs. Includes support for Service Data Object
  standard.
Service Tester
  User interface used to create unit and integration tests. The
  tests are recorded in documents as structured XML data.
“Swan” User Interface
  EBS will use only “Swan” look and feel for Release 12.
Oracle JDeveloper 10g Release 3 (10.1.3)
  R12 leverages Oracle JDeveloper 10g Release 2 (10.1.3).
OA Framework
features and enhancements
BI Publisher integration
Extensive personalization capability
Allows integration of content from
multiple vendors into portal pages
Record history
Allows EBS content to be exposed in
third party Portal server

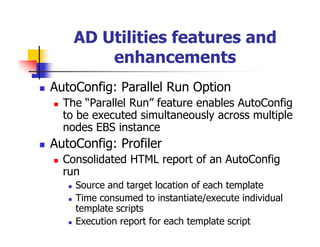

AD Utilities features and
        enhancements
AutoConfig: Parallel Run Option
  The “Parallel Run” feature enables AutoConfig
  to be executed simultaneously across multiple
  nodes EBS instance
AutoConfig: Profiler
  Consolidated HTML report of an AutoConfig
  run
    Source and target location of each template
    Time consumed to instantiate/execute individual
    template scripts
    Execution report for each template script

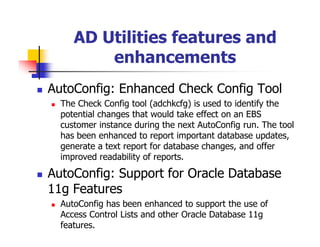

AD Utilities features and
         enhancements
AutoConfig: Enhanced Check Config Tool
  The Check Config tool (adchkcfg) is used to identify the
  potential changes that would take effect on an EBS
  customer instance during the next AutoConfig run. The tool
  has been enhanced to report important database updates,
  generate a text report for database changes, and offer
  improved readability of reports.

AutoConfig: Support for Oracle Database
11g Features
  AutoConfig has been enhanced to support the use of
  Access Control Lists and other Oracle Database 11g
  features.

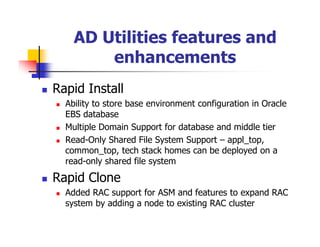

AD Utilities features and
        enhancements
Rapid Install
  Ability to store base environment configuration in Oracle
  EBS database
  Multiple Domain Support for database and middle tier
  Read-Only Shared File System Support – appl_top,
  common_top, tech stack homes can be deployed on a
  read-only shared file system

Rapid Clone
  Added RAC support for ASM and features to expand RAC
  system by adding a node to existing RAC cluster

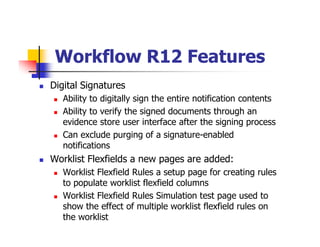

Workflow R12 Features
Digital Signatures
   Ability to digitally sign the entire notification contents
   Ability to verify the signed documents through an
   evidence store user interface after the signing process
   Can exclude purging of a signature-enabled
   notifications
Worklist Flexfields a new pages are added:
   Worklist Flexfield Rules a setup page for creating rules
   to populate worklist flexfield columns
   Worklist Flexfield Rules Simulation test page used to
   show the effect of multiple worklist flexfield rules on
   the worklist

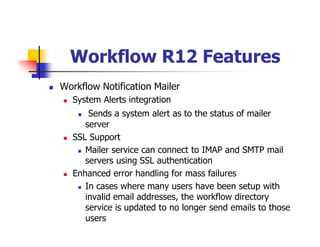

Workflow R12 Features
Workflow Notification Mailer
  System Alerts integration
      Sends a system alert as to the status of mailer
     server
  SSL Support
     Mailer service can connect to IMAP and SMTP mail
     servers using SSL authentication
  Enhanced error handling for mass failures
     In cases where many users have been setup with
     invalid email addresses, the workflow directory
     service is updated to no longer send emails to those
     users

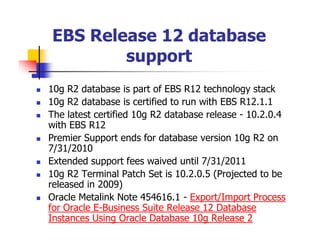

EBS Release 12 database
        support
10g R2 database is part of EBS R12 technology stack
10g R2 database is certified to run with EBS R12.1.1
The latest certified 10g R2 database release - 10.2.0.4
with EBS R12
Premier Support ends for database version 10g R2 on
7/31/2010
Extended support fees waived until 7/31/2011
10g R2 Terminal Patch Set is 10.2.0.5 (Projected to be
released in 2009)
Oracle Metalink Note 454616.1 - Export/Import Process
for Oracle E-Business Suite Release 12 Database
Instances Using Oracle Database 10g Release 2

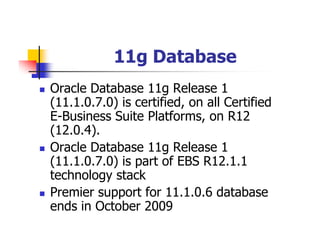

11g Database
Oracle Database 11g Release 1
(11.1.0.7.0) is certified, on all Certified
E-Business Suite Platforms, on R12
(12.0.4).
Oracle Database 11g Release 1
(11.1.0.7.0) is part of EBS R12.1.1
technology stack
Premier support for 11.1.0.6 database
ends in October 2009

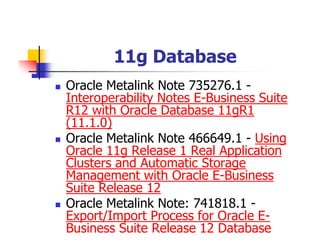

11g Database
Oracle Metalink Note 735276.1 -
Interoperability Notes E-Business Suite
R12 with Oracle Database 11gR1
(11.1.0)
Oracle Metalink Note 466649.1 - Using
Oracle 11g Release 1 Real Application
Clusters and Automatic Storage
Management with Oracle E-Business
Suite Release 12
Oracle Metalink Note: 741818.1 -
Export/Import Process for Oracle E-
Business Suite Release 12 Database
Instances Using Oracle Database 11g

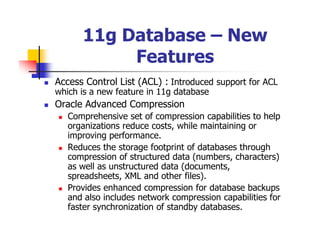

11g Database – New
           Features
Access Control List (ACL) : Introduced support for ACL
which is a new feature in 11g database
Oracle Advanced Compression
   Comprehensive set of compression capabilities to help
   organizations reduce costs, while maintaining or
   improving performance.
   Reduces the storage footprint of databases through
   compression of structured data (numbers, characters)
   as well as unstructured data (documents,
   spreadsheets, XML and other files).
   Provides enhanced compression for database backups
   and also includes network compression capabilities for
   faster synchronization of standby databases.

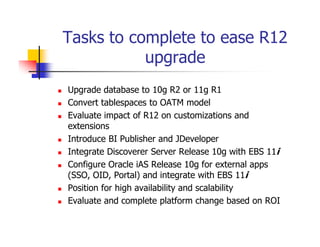

Tasks to complete to ease R12
           upgrade
Upgrade database to 10g R2 or 11g R1
Convert tablespaces to OATM model
Evaluate impact of R12 on customizations and
extensions
Introduce BI Publisher and JDeveloper
Integrate Discoverer Server Release 10g with EBS 11i
Configure Oracle iAS Release 10g for external apps
(SSO, OID, Portal) and integrate with EBS 11i
Position for high availability and scalability
Evaluate and complete platform change based on ROI
Questions
Thank You

    Sandra Vucinic
sandrav@vladgroup.com
   (630) 202-1248
 www.vladgroup.com

More Related Content

What's hot

SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...
SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...
SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...
Michael Noel

E business suite r12.2 changes for database administrators
E business suite r12.2 changes for database administratorsE business suite r12.2 changes for database administrators
E business suite r12.2 changes for database administrators
Srinivasa Pavan Marti

R12 architectural changes
R12 architectural changesR12 architectural changes
R12 architectural changes
dataQapps Technologies

Powering the Cloud with Oracle WebLogic
Powering the Cloud with Oracle WebLogicPowering the Cloud with Oracle WebLogic
Powering the Cloud with Oracle WebLogic
Lucas Jellema

Sp2010 high availlability
Sp2010 high availlabilitySp2010 high availlability
Sp2010 high availlability
Samuel Zürcher

SPTechCon SFO 2012 - Understanding the Five Layers of SharePoint Security
SPTechCon SFO 2012 - Understanding the Five Layers of SharePoint SecuritySPTechCon SFO 2012 - Understanding the Five Layers of SharePoint Security
SPTechCon SFO 2012 - Understanding the Five Layers of SharePoint SecurityMichael Noel

Oracle applications r12.2, ebr, online patching means lot of work for devel...
Oracle applications r12.2, ebr, online patching   means lot of work for devel...Oracle applications r12.2, ebr, online patching   means lot of work for devel...
Oracle applications r12.2, ebr, online patching means lot of work for devel...
Ajith Narayanan

What's new for Apache Flink's Table & SQL APIs?
What's new for Apache Flink's Table & SQL APIs?What's new for Apache Flink's Table & SQL APIs?
What's new for Apache Flink's Table & SQL APIs?
Timo Walther

ibm websphere admin training | websphere admin course | ibm websphere adminis...
ibm websphere admin training | websphere admin course | ibm websphere adminis...ibm websphere admin training | websphere admin course | ibm websphere adminis...
ibm websphere admin training | websphere admin course | ibm websphere adminis...
Nancy Thomas

SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...
SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...
SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...
Michael Noel

R12 d49656 gc10-apps dba 00
R12 d49656 gc10-apps dba 00R12 d49656 gc10-apps dba 00
R12 d49656 gc10-apps dba 00
zeesniper

Ibm web sphere application server interview questions
Ibm web sphere application server interview questionsIbm web sphere application server interview questions
Ibm web sphere application server interview questions
praveen_guda

SQL Server 2008 Highlights
SQL Server 2008 HighlightsSQL Server 2008 Highlights
SQL Server 2008 Highlights
Intergen

COUG_AAbate_Oracle_Database_12c_New_Features
COUG_AAbate_Oracle_Database_12c_New_FeaturesCOUG_AAbate_Oracle_Database_12c_New_Features
COUG_AAbate_Oracle_Database_12c_New_FeaturesAlfredo Abate

OFC418 Advanced MOSS Administration
OFC418 Advanced MOSS AdministrationOFC418 Advanced MOSS Administration
OFC418 Advanced MOSS Administration
Chandima Kulathilake

Websphere Application Server v7
Websphere Application Server v7Websphere Application Server v7
Websphere Application Server v7
Chris Sparshott

IBM Websphere concepts
IBM Websphere conceptsIBM Websphere concepts
IBM Websphere concepts
Kuldeep Saxena


What's hot (20)

SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...
SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...
SEASPC 2011 - SharePoint Security in an Insecure World: Understanding the Fiv...

E business suite r12.2 changes for database administrators
E business suite r12.2 changes for database administratorsE business suite r12.2 changes for database administrators
E business suite r12.2 changes for database administrators

R12 architectural changes
R12 architectural changesR12 architectural changes
R12 architectural changes

Powering the Cloud with Oracle WebLogic
Powering the Cloud with Oracle WebLogicPowering the Cloud with Oracle WebLogic
Powering the Cloud with Oracle WebLogic

Sp2010 high availlability
Sp2010 high availlabilitySp2010 high availlability
Sp2010 high availlability

SPTechCon SFO 2012 - Understanding the Five Layers of SharePoint Security
SPTechCon SFO 2012 - Understanding the Five Layers of SharePoint SecuritySPTechCon SFO 2012 - Understanding the Five Layers of SharePoint Security
SPTechCon SFO 2012 - Understanding the Five Layers of SharePoint Security

Oracle applications r12.2, ebr, online patching means lot of work for devel...
Oracle applications r12.2, ebr, online patching   means lot of work for devel...Oracle applications r12.2, ebr, online patching   means lot of work for devel...
Oracle applications r12.2, ebr, online patching means lot of work for devel...

What's new for Apache Flink's Table & SQL APIs?
What's new for Apache Flink's Table & SQL APIs?What's new for Apache Flink's Table & SQL APIs?
What's new for Apache Flink's Table & SQL APIs?

SharePoint Topology
SharePoint Topology SharePoint Topology
SharePoint Topology

ibm websphere admin training | websphere admin course | ibm websphere adminis...
ibm websphere admin training | websphere admin course | ibm websphere adminis...ibm websphere admin training | websphere admin course | ibm websphere adminis...
ibm websphere admin training | websphere admin course | ibm websphere adminis...

SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...
SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...
SharePoint Saturday Michigan Keynote - Top 5 Infrastructure Concerns for a Sh...

Amjad_Oracle_2016
Amjad_Oracle_2016Amjad_Oracle_2016
Amjad_Oracle_2016

R12 d49656 gc10-apps dba 00
R12 d49656 gc10-apps dba 00R12 d49656 gc10-apps dba 00
R12 d49656 gc10-apps dba 00

Ibm web sphere application server interview questions
Ibm web sphere application server interview questionsIbm web sphere application server interview questions
Ibm web sphere application server interview questions

SQL Server 2008 Highlights
SQL Server 2008 HighlightsSQL Server 2008 Highlights
SQL Server 2008 Highlights

COUG_AAbate_Oracle_Database_12c_New_Features
COUG_AAbate_Oracle_Database_12c_New_FeaturesCOUG_AAbate_Oracle_Database_12c_New_Features
COUG_AAbate_Oracle_Database_12c_New_Features

Mobile
MobileMobile
Mobile

OFC418 Advanced MOSS Administration
OFC418 Advanced MOSS AdministrationOFC418 Advanced MOSS Administration
OFC418 Advanced MOSS Administration

Websphere Application Server v7
Websphere Application Server v7Websphere Application Server v7
Websphere Application Server v7

IBM Websphere concepts
IBM Websphere conceptsIBM Websphere concepts
IBM Websphere concepts


Viewers also liked

Oracle EBS R11i to R12 financials
Oracle EBS R11i to R12 financialsOracle EBS R11i to R12 financials
Oracle EBS R11i to R12 financials
Vatis Consulting Pty Ltd

Presentation oracle ebs r12
Presentation oracle ebs r12Presentation oracle ebs r12
Presentation oracle ebs r12
Feras Ahmad

OOW09 R12.1 Standalone Solutions
OOW09 R12.1 Standalone SolutionsOOW09 R12.1 Standalone Solutions
OOW09 R12.1 Standalone Solutionsjucaab

Differences R12 Vs 11i.5.10
Differences R12 Vs 11i.5.10Differences R12 Vs 11i.5.10
Differences R12 Vs 11i.5.10
Dharmalingam Kandampalayam Shanmugam

R12 Oracle Inventory Management, New Features
R12 Oracle Inventory Management, New FeaturesR12 Oracle Inventory Management, New Features
R12 Oracle Inventory Management, New Features
iWare Logic Technologies Pvt. Ltd.

Oracle inventory-latest
Oracle inventory-latestOracle inventory-latest
Oracle inventory-latest
kishoak

Oracle Inventory Complete Implementation Setups.
Oracle Inventory Complete Implementation Setups.Oracle Inventory Complete Implementation Setups.
Oracle Inventory Complete Implementation Setups.
Muhammad Mansoor Ali

Oracle inventory R12 Setup Guide
Oracle inventory R12 Setup GuideOracle inventory R12 Setup Guide
Oracle inventory R12 Setup Guide
Ahmed Elshayeb

R12 features presentation inventory management
R12 features presentation inventory managementR12 features presentation inventory management
R12 features presentation inventory managementAmine Gallah


Viewers also liked (9)

Oracle EBS R11i to R12 financials
Oracle EBS R11i to R12 financialsOracle EBS R11i to R12 financials
Oracle EBS R11i to R12 financials

Presentation oracle ebs r12
Presentation oracle ebs r12Presentation oracle ebs r12
Presentation oracle ebs r12

OOW09 R12.1 Standalone Solutions
OOW09 R12.1 Standalone SolutionsOOW09 R12.1 Standalone Solutions
OOW09 R12.1 Standalone Solutions

Differences R12 Vs 11i.5.10
Differences R12 Vs 11i.5.10Differences R12 Vs 11i.5.10
Differences R12 Vs 11i.5.10

R12 Oracle Inventory Management, New Features
R12 Oracle Inventory Management, New FeaturesR12 Oracle Inventory Management, New Features
R12 Oracle Inventory Management, New Features

Oracle inventory-latest
Oracle inventory-latestOracle inventory-latest
Oracle inventory-latest

Oracle Inventory Complete Implementation Setups.
Oracle Inventory Complete Implementation Setups.Oracle Inventory Complete Implementation Setups.
Oracle Inventory Complete Implementation Setups.

Oracle inventory R12 Setup Guide
Oracle inventory R12 Setup GuideOracle inventory R12 Setup Guide
Oracle inventory R12 Setup Guide

R12 features presentation inventory management
R12 features presentation inventory managementR12 features presentation inventory management
R12 features presentation inventory management


Similar to Architecture and tools

OOW09 EBS Tech Essentials
OOW09 EBS Tech EssentialsOOW09 EBS Tech Essentials
OOW09 EBS Tech Essentialsjucaab

abhi_apps_middleware_CV
abhi_apps_middleware_CVabhi_apps_middleware_CV
abhi_apps_middleware_CVAbhishek singh

Census Bureau PBOCS
Census Bureau PBOCSCensus Bureau PBOCS
Census Bureau PBOCS
Tolu A Williams

New Enhancements + Upgrade Path to Oracle EBS R12.1.3
New Enhancements + Upgrade Path to Oracle EBS R12.1.3New Enhancements + Upgrade Path to Oracle EBS R12.1.3
New Enhancements + Upgrade Path to Oracle EBS R12.1.3
iWare Logic Technologies Pvt. Ltd.

Performance Testing in Oracle Apps
Performance Testing in Oracle AppsPerformance Testing in Oracle Apps
Performance Testing in Oracle Apps
Biswajit Pratihari

Satyapriya rajguru oracle app test
Satyapriya rajguru oracle app testSatyapriya rajguru oracle app test
Satyapriya rajguru oracle app test
Satyapriya Rajguru

Oracle ebs r12_architecture
Oracle ebs r12_architectureOracle ebs r12_architecture
Oracle ebs r12_architectureprasanna432

Report From Oracle Open World 2008 AMIS 2 October2008
Report From Oracle Open World 2008 AMIS 2 October2008Report From Oracle Open World 2008 AMIS 2 October2008
Report From Oracle Open World 2008 AMIS 2 October2008
Lucas Jellema

WebLogic Developer Experience and Java EE 6
WebLogic Developer Experience and Java EE 6WebLogic Developer Experience and Java EE 6
WebLogic Developer Experience and Java EE 6
Jeffrey West

Mobicents Summit 2012 - Eduardo Martins - JAIN SLEE Update
Mobicents Summit 2012 - Eduardo Martins - JAIN SLEE UpdateMobicents Summit 2012 - Eduardo Martins - JAIN SLEE Update
Mobicents Summit 2012 - Eduardo Martins - JAIN SLEE Updatetelestax

Velmurugan_AnnamalaiSrademantrasdb
Velmurugan_AnnamalaiSrademantrasdbVelmurugan_AnnamalaiSrademantrasdb
Velmurugan_AnnamalaiSrademantrasdbAnnamalai Velmurugan

Web Center Services and Framework
Web Center Services and  FrameworkWeb Center Services and  Framework
Web Center Services and Framework
Jaime Cid

8i r3 nfs
8i r3 nfs8i r3 nfs
8i r3 nfs
Anil Pandey

Oracle ebs r12_architecture
Oracle ebs r12_architectureOracle ebs r12_architecture
Oracle ebs r12_architecture
srinivas sunkara

A journey from oracle e
A journey from oracle eA journey from oracle e
A journey from oracle e
ansalapi

Oracle Applications R12 Architecture
Oracle Applications R12 ArchitectureOracle Applications R12 Architecture
Oracle Applications R12 ArchitectureViveka Solutions

NZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices Session
NZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices SessionNZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices Session
NZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices SessionMichael Noel

Maruthi_YH_resume
Maruthi_YH_resumeMaruthi_YH_resume
Maruthi_YH_resumeMaruthi YH

Perfsystems- Consulting Services
Perfsystems- Consulting ServicesPerfsystems- Consulting Services
Perfsystems- Consulting ServicesPerfsys Tems

The AMIS Report from Oracle Open World and JavaOne 2011
The AMIS Report from Oracle Open World and JavaOne 2011The AMIS Report from Oracle Open World and JavaOne 2011
The AMIS Report from Oracle Open World and JavaOne 2011
Lucas Jellema


Similar to Architecture and tools (20)

OOW09 EBS Tech Essentials
OOW09 EBS Tech EssentialsOOW09 EBS Tech Essentials
OOW09 EBS Tech Essentials

abhi_apps_middleware_CV
abhi_apps_middleware_CVabhi_apps_middleware_CV
abhi_apps_middleware_CV

Census Bureau PBOCS
Census Bureau PBOCSCensus Bureau PBOCS
Census Bureau PBOCS

New Enhancements + Upgrade Path to Oracle EBS R12.1.3
New Enhancements + Upgrade Path to Oracle EBS R12.1.3New Enhancements + Upgrade Path to Oracle EBS R12.1.3
New Enhancements + Upgrade Path to Oracle EBS R12.1.3

Performance Testing in Oracle Apps
Performance Testing in Oracle AppsPerformance Testing in Oracle Apps
Performance Testing in Oracle Apps

Satyapriya rajguru oracle app test
Satyapriya rajguru oracle app testSatyapriya rajguru oracle app test
Satyapriya rajguru oracle app test

Oracle ebs r12_architecture
Oracle ebs r12_architectureOracle ebs r12_architecture
Oracle ebs r12_architecture

Report From Oracle Open World 2008 AMIS 2 October2008
Report From Oracle Open World 2008 AMIS 2 October2008Report From Oracle Open World 2008 AMIS 2 October2008
Report From Oracle Open World 2008 AMIS 2 October2008

WebLogic Developer Experience and Java EE 6
WebLogic Developer Experience and Java EE 6WebLogic Developer Experience and Java EE 6
WebLogic Developer Experience and Java EE 6

Mobicents Summit 2012 - Eduardo Martins - JAIN SLEE Update
Mobicents Summit 2012 - Eduardo Martins - JAIN SLEE UpdateMobicents Summit 2012 - Eduardo Martins - JAIN SLEE Update
Mobicents Summit 2012 - Eduardo Martins - JAIN SLEE Update

Velmurugan_AnnamalaiSrademantrasdb
Velmurugan_AnnamalaiSrademantrasdbVelmurugan_AnnamalaiSrademantrasdb
Velmurugan_AnnamalaiSrademantrasdb

Web Center Services and Framework
Web Center Services and  FrameworkWeb Center Services and  Framework
Web Center Services and Framework

8i r3 nfs
8i r3 nfs8i r3 nfs
8i r3 nfs

Oracle ebs r12_architecture
Oracle ebs r12_architectureOracle ebs r12_architecture
Oracle ebs r12_architecture

A journey from oracle e
A journey from oracle eA journey from oracle e
A journey from oracle e

Oracle Applications R12 Architecture
Oracle Applications R12 ArchitectureOracle Applications R12 Architecture
Oracle Applications R12 Architecture

NZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices Session
NZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices SessionNZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices Session
NZSPC 2013 - Ultimate SharePoint Infrastructure Best Practices Session

Maruthi_YH_resume
Maruthi_YH_resumeMaruthi_YH_resume
Maruthi_YH_resume

Perfsystems- Consulting Services
Perfsystems- Consulting ServicesPerfsystems- Consulting Services
Perfsystems- Consulting Services

The AMIS Report from Oracle Open World and JavaOne 2011
The AMIS Report from Oracle Open World and JavaOne 2011The AMIS Report from Oracle Open World and JavaOne 2011
The AMIS Report from Oracle Open World and JavaOne 2011


Recently uploaded

How to get verified on Coinbase Account?_.docx
How to get verified on Coinbase Account?_.docxHow to get verified on Coinbase Account?_.docx
How to get verified on Coinbase Account?_.docx
Buy bitget

Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...
Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...
Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...
beulahfernandes8

The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...
The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...
The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...
beulahfernandes8

what is the best method to sell pi coins in 2024
what is the best method to sell pi coins in 2024what is the best method to sell pi coins in 2024
what is the best method to sell pi coins in 2024
DOT TECH

when will pi network coin be available on crypto exchange.
when will pi network coin be available on crypto exchange.when will pi network coin be available on crypto exchange.
when will pi network coin be available on crypto exchange.
DOT TECH

how to sell pi coins on Binance exchange
how to sell pi coins on Binance exchangehow to sell pi coins on Binance exchange
how to sell pi coins on Binance exchange
DOT TECH

US Economic Outlook - Being Decided - M Capital Group August 2021.pdf
US Economic Outlook - Being Decided - M Capital Group August 2021.pdfUS Economic Outlook - Being Decided - M Capital Group August 2021.pdf
US Economic Outlook - Being Decided - M Capital Group August 2021.pdf
pchutichetpong

Turin Startup Ecosystem 2024 - Ricerca sulle Startup e il Sistema dell'Innov...
Turin Startup Ecosystem 2024  - Ricerca sulle Startup e il Sistema dell'Innov...Turin Startup Ecosystem 2024  - Ricerca sulle Startup e il Sistema dell'Innov...
Turin Startup Ecosystem 2024 - Ricerca sulle Startup e il Sistema dell'Innov...
Quotidiano Piemontese

The secret way to sell pi coins effortlessly.
The secret way to sell pi coins effortlessly.The secret way to sell pi coins effortlessly.
The secret way to sell pi coins effortlessly.
DOT TECH

This assessment plan proposal is to outline a structured approach to evaluati...
This assessment plan proposal is to outline a structured approach to evaluati...This assessment plan proposal is to outline a structured approach to evaluati...
This assessment plan proposal is to outline a structured approach to evaluati...
lamluanvan.net Viết thuê luận văn

Chương 6. Ancol - phenol - ether (1).pdf
Chương 6. Ancol - phenol - ether (1).pdfChương 6. Ancol - phenol - ether (1).pdf
Chương 6. Ancol - phenol - ether (1).pdf
va2132004

how can i use my minded pi coins I need some funds.
how can i use my minded pi coins I need some funds.how can i use my minded pi coins I need some funds.
how can i use my minded pi coins I need some funds.
DOT TECH

how to sell pi coins on Bitmart crypto exchange
how to sell pi coins on Bitmart crypto exchangehow to sell pi coins on Bitmart crypto exchange
how to sell pi coins on Bitmart crypto exchange
DOT TECH

what is the future of Pi Network currency.
what is the future of Pi Network currency.what is the future of Pi Network currency.
what is the future of Pi Network currency.
DOT TECH

The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...
The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...
The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...
muslimdavidovich670

655264371-checkpoint-science-past-papers-april-2023.pdf
655264371-checkpoint-science-past-papers-april-2023.pdf655264371-checkpoint-science-past-papers-april-2023.pdf
655264371-checkpoint-science-past-papers-april-2023.pdf
morearsh02

how to sell pi coins in South Korea profitably.
how to sell pi coins in South Korea profitably.how to sell pi coins in South Korea profitably.
how to sell pi coins in South Korea profitably.
DOT TECH

BYD SWOT Analysis and In-Depth Insights 2024.pptx
BYD SWOT Analysis and In-Depth Insights 2024.pptxBYD SWOT Analysis and In-Depth Insights 2024.pptx
BYD SWOT Analysis and In-Depth Insights 2024.pptx
mikemetalprod

The new type of smart, sustainable entrepreneurship and the next day | Europe...
The new type of smart, sustainable entrepreneurship and the next day | Europe...The new type of smart, sustainable entrepreneurship and the next day | Europe...
The new type of smart, sustainable entrepreneurship and the next day | Europe...
Antonis Zairis

The European Unemployment Puzzle: implications from population aging
The European Unemployment Puzzle: implications from population agingThe European Unemployment Puzzle: implications from population aging
The European Unemployment Puzzle: implications from population aging
GRAPE


Recently uploaded (20)

How to get verified on Coinbase Account?_.docx
How to get verified on Coinbase Account?_.docxHow to get verified on Coinbase Account?_.docx
How to get verified on Coinbase Account?_.docx

Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...
Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...
Exploring Abhay Bhutada’s Views After Poonawalla Fincorp’s Collaboration With...

The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...
The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...
The Evolution of Non-Banking Financial Companies (NBFCs) in India: Challenges...

what is the best method to sell pi coins in 2024
what is the best method to sell pi coins in 2024what is the best method to sell pi coins in 2024
what is the best method to sell pi coins in 2024

when will pi network coin be available on crypto exchange.
when will pi network coin be available on crypto exchange.when will pi network coin be available on crypto exchange.
when will pi network coin be available on crypto exchange.

how to sell pi coins on Binance exchange
how to sell pi coins on Binance exchangehow to sell pi coins on Binance exchange
how to sell pi coins on Binance exchange

US Economic Outlook - Being Decided - M Capital Group August 2021.pdf
US Economic Outlook - Being Decided - M Capital Group August 2021.pdfUS Economic Outlook - Being Decided - M Capital Group August 2021.pdf
US Economic Outlook - Being Decided - M Capital Group August 2021.pdf

Turin Startup Ecosystem 2024 - Ricerca sulle Startup e il Sistema dell'Innov...
Turin Startup Ecosystem 2024  - Ricerca sulle Startup e il Sistema dell'Innov...Turin Startup Ecosystem 2024  - Ricerca sulle Startup e il Sistema dell'Innov...
Turin Startup Ecosystem 2024 - Ricerca sulle Startup e il Sistema dell'Innov...

The secret way to sell pi coins effortlessly.
The secret way to sell pi coins effortlessly.The secret way to sell pi coins effortlessly.
The secret way to sell pi coins effortlessly.

This assessment plan proposal is to outline a structured approach to evaluati...
This assessment plan proposal is to outline a structured approach to evaluati...This assessment plan proposal is to outline a structured approach to evaluati...
This assessment plan proposal is to outline a structured approach to evaluati...

Chương 6. Ancol - phenol - ether (1).pdf
Chương 6. Ancol - phenol - ether (1).pdfChương 6. Ancol - phenol - ether (1).pdf
Chương 6. Ancol - phenol - ether (1).pdf

how can i use my minded pi coins I need some funds.
how can i use my minded pi coins I need some funds.how can i use my minded pi coins I need some funds.
how can i use my minded pi coins I need some funds.

how to sell pi coins on Bitmart crypto exchange
how to sell pi coins on Bitmart crypto exchangehow to sell pi coins on Bitmart crypto exchange
how to sell pi coins on Bitmart crypto exchange

what is the future of Pi Network currency.
what is the future of Pi Network currency.what is the future of Pi Network currency.
what is the future of Pi Network currency.

The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...
The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...
The WhatsPump Pseudonym Problem and the Hilarious Downfall of Artificial Enga...

655264371-checkpoint-science-past-papers-april-2023.pdf
655264371-checkpoint-science-past-papers-april-2023.pdf655264371-checkpoint-science-past-papers-april-2023.pdf
655264371-checkpoint-science-past-papers-april-2023.pdf

how to sell pi coins in South Korea profitably.
how to sell pi coins in South Korea profitably.how to sell pi coins in South Korea profitably.
how to sell pi coins in South Korea profitably.

BYD SWOT Analysis and In-Depth Insights 2024.pptx
BYD SWOT Analysis and In-Depth Insights 2024.pptxBYD SWOT Analysis and In-Depth Insights 2024.pptx
BYD SWOT Analysis and In-Depth Insights 2024.pptx

The new type of smart, sustainable entrepreneurship and the next day | Europe...
The new type of smart, sustainable entrepreneurship and the next day | Europe...The new type of smart, sustainable entrepreneurship and the next day | Europe...
The new type of smart, sustainable entrepreneurship and the next day | Europe...

The European Unemployment Puzzle: implications from population aging
The European Unemployment Puzzle: implications from population agingThe European Unemployment Puzzle: implications from population aging
The European Unemployment Puzzle: implications from population aging


Architecture and tools

  • 1. Oracle E-Business Suite Release 12 - Architecture and Tools Overview Presenter: Sandra Vucinic VLAD Group, Inc.
  • 2. Speaker’s Background Over 16 years of experience with Oracle database, applications, development and administration tools Director, OAUG Database SIG Board Director, OAUG SysAdmin SIG and Committee Chair, Oracle Tools and Utilities Director, OAUG E-Business Applications Technology SIG Board Director, SROAUG Board Member, OAUG GEO/SIG Committee NCOAUG Distinguished Service Award for 2007 OAUG Member of the Year for 2008 Oracle ACE Presented at OAUG, NCOAUG, CSOAUG, OVOAUG, SROAUG, Apps World and Open World conferences (70+ sessions) Founded VLAD Group, Inc. in March, 2001
  • 3. Agenda R12 Architecture – Components New features and enhancements in: Applications Object Library Oracle Applications Manager OA Framework AD Utilities Workflow 11g Database Tasks to complete to ease R12 upgrade
  • 4. R12 Architecture – Components Release 12 Client Tier Native Sun JRE Web HTTP Servers Application Technology Stack Middle Tier Instance Concurrent Home Processing Server Apache Forms Reports Server Server 10g Server 10g 10.1.3.4 ORACLE_HOME 10.1.2.3 ORACLE_HOME Database 10.2.0.4 Tier 10.2.0.4 ORACLE_HOME Database or 11g R1 (optional)
  • 5. R12.1.1 Architecture – Components Release 12.1.1 Client Tier Native Sun JRE Web HTTP Servers Application Technology Stack Middle Tier Instance Concurrent Home Processing Server Apache Forms Reports Server Server 10g Server 10g 10.1.3.4 ORACLE_HOME 10.1.2.3 ORACLE_HOME Database 11.1.0.7 Tier 11g R1 ORACLE_HOME Database or 10.2.0.4 (optional)
  • 6. R12 Architecture – Components New versions of middle tier technology: Applications server (J2EE) version 10.1.3.4 Forms and Reports version 10.1.2.3 Discoverer Server version 10.1.2.3 Servlet Container – (OC4J, no longer JServ) JDK version - 1.5.0_13 – 1.6_03 certified Oracle SOA Suite version 10.1.3 Oracle Business Intelligence version 10.1.3.4 Oracle Enterprise Manager 10g Grid Control Release 3
  • 7. R12 Architecture – Components New versions of middle tier technology: Technologies External to EBS R12 SSO and OID version 10.1.4.3 Portal version 10.1.4.2 Instance Home (INST_TOP) file system: $INST_TOP = $HOME/inst/apps/<context_name> JInitiator is not certified or supported in R12 New version of database - 10g R2 available with Rapid Install and 11g R1 certified Tablespace model in R12 - OATM
  • 8. Applications Object Library features and enhancements Identity Management Integration User Name Enhancements User name changes in EBS are automatically synchronized to Oracle ID On Demand User Creation AOL now supports a mode in which EBS user account is automatically created for SSO users when they first visit a page in EBS Mixed Case Passwords EBS now supports case-sensitive passwords Automatic Linking Of User Accounts EBS accounts are automatically linked to existing accounts with the same user name in OID
  • 9. Applications Object Library features and enhancements Security New File System Layout EBS code tree is free of configuration, log and output files and can be mounted in a read-only mode at runtime (when not patching) Schema Passwords The base product schemas are locked except during patching
  • 10. Applications Object Library features and enhancements User Management Proxy User Allows a user to specify a proxy who can act of their behalf Integration with Oracle Internal Controls Manager Facilitates enforcement of constraints used for preventive separation on duties
  • 11. Applications Object Library features and enhancements Concurrent Processing Multi-Org Support Multi-Org Access Control (MOAC) allows a user to access data for a different operating units without switching responsibilities Concurrent Program Definition window is now MOAC enabled. A new field “Operating Unit Mode” allows user to specify the category for a concurrent program Standard Request Submission window allows users to execute single-org or a multi-org concurrent programs
  • 12. Applications Object Library features and enhancements Concurrent Processing Restarting a Request Set If concurrent request set fails, once fixed user can restart the request set from the failure point Failover Sensitive Workshift Can specify how many processes for each workshift should run when instance fails over to another PCP node
  • 13. Applications Object Library features and enhancements Oracle Applications Tablespace Model (OATM) New “Tools” tablespace includes the database schema objects for products such as Oracle Portal (repository), Oracle Discoverer (EUL), Oracle Internet Directory (repository), Oracle Application Sever Single Sign-On Configurable Default Extent Size - allows DBA to specify the default extent size a part of migration process
  • 14. Oracle Applications Manager Patch Impact Analysis Enhancements The ability to identify and to merge multiple language patches that are applicable to the environment The ability for users to crate a list of patches for analysis as a single set Analysis of patch changes to customized files that are registered with system
  • 15. Oracle Applications Manager Diagnostics Allows to schedule and run diagnostics test as batch programs Grid Control Plug-in for Oracle EBS Seamless integration with OAM (concurrent manager administration, workflow administration, forms monitoring, configuration and patch management) Clone Automation
  • 16. OA Framework features and enhancements Service Interface Java interface designed to support both Web services and local Java APIs. Includes support for Service Data Object standard. Service Tester User interface used to create unit and integration tests. The tests are recorded in documents as structured XML data. “Swan” User Interface EBS will use only “Swan” look and feel for Release 12. Oracle JDeveloper 10g Release 3 (10.1.3) R12 leverages Oracle JDeveloper 10g Release 2 (10.1.3).
  • 17. OA Framework features and enhancements BI Publisher integration Extensive personalization capability Allows integration of content from multiple vendors into portal pages Record history Allows EBS content to be exposed in third party Portal server
  • 18. AD Utilities features and enhancements AutoConfig: Parallel Run Option The “Parallel Run” feature enables AutoConfig to be executed simultaneously across multiple nodes EBS instance AutoConfig: Profiler Consolidated HTML report of an AutoConfig run Source and target location of each template Time consumed to instantiate/execute individual template scripts Execution report for each template script
  • 19. AD Utilities features and enhancements AutoConfig: Enhanced Check Config Tool The Check Config tool (adchkcfg) is used to identify the potential changes that would take effect on an EBS customer instance during the next AutoConfig run. The tool has been enhanced to report important database updates, generate a text report for database changes, and offer improved readability of reports. AutoConfig: Support for Oracle Database 11g Features AutoConfig has been enhanced to support the use of Access Control Lists and other Oracle Database 11g features.
  • 20. AD Utilities features and enhancements Rapid Install Ability to store base environment configuration in Oracle EBS database Multiple Domain Support for database and middle tier Read-Only Shared File System Support – appl_top, common_top, tech stack homes can be deployed on a read-only shared file system Rapid Clone Added RAC support for ASM and features to expand RAC system by adding a node to existing RAC cluster
  • 21. Workflow R12 Features Digital Signatures Ability to digitally sign the entire notification contents Ability to verify the signed documents through an evidence store user interface after the signing process Can exclude purging of a signature-enabled notifications Worklist Flexfields a new pages are added: Worklist Flexfield Rules a setup page for creating rules to populate worklist flexfield columns Worklist Flexfield Rules Simulation test page used to show the effect of multiple worklist flexfield rules on the worklist
  • 22. Workflow R12 Features Workflow Notification Mailer System Alerts integration Sends a system alert as to the status of mailer server SSL Support Mailer service can connect to IMAP and SMTP mail servers using SSL authentication Enhanced error handling for mass failures In cases where many users have been setup with invalid email addresses, the workflow directory service is updated to no longer send emails to those users
  • 23. EBS Release 12 database support 10g R2 database is part of EBS R12 technology stack 10g R2 database is certified to run with EBS R12.1.1 The latest certified 10g R2 database release - 10.2.0.4 with EBS R12 Premier Support ends for database version 10g R2 on 7/31/2010 Extended support fees waived until 7/31/2011 10g R2 Terminal Patch Set is 10.2.0.5 (Projected to be released in 2009) Oracle Metalink Note 454616.1 - Export/Import Process for Oracle E-Business Suite Release 12 Database Instances Using Oracle Database 10g Release 2
  • 24. 11g Database Oracle Database 11g Release 1 (11.1.0.7.0) is certified, on all Certified E-Business Suite Platforms, on R12 (12.0.4). Oracle Database 11g Release 1 (11.1.0.7.0) is part of EBS R12.1.1 technology stack Premier support for 11.1.0.6 database ends in October 2009
  • 25. 11g Database Oracle Metalink Note 735276.1 - Interoperability Notes E-Business Suite R12 with Oracle Database 11gR1 (11.1.0) Oracle Metalink Note 466649.1 - Using Oracle 11g Release 1 Real Application Clusters and Automatic Storage Management with Oracle E-Business Suite Release 12 Oracle Metalink Note: 741818.1 - Export/Import Process for Oracle E- Business Suite Release 12 Database Instances Using Oracle Database 11g
  • 26. 11g Database – New Features Access Control List (ACL) : Introduced support for ACL which is a new feature in 11g database Oracle Advanced Compression Comprehensive set of compression capabilities to help organizations reduce costs, while maintaining or improving performance. Reduces the storage footprint of databases through compression of structured data (numbers, characters) as well as unstructured data (documents, spreadsheets, XML and other files). Provides enhanced compression for database backups and also includes network compression capabilities for faster synchronization of standby databases.
  • 27. Tasks to complete to ease R12 upgrade Upgrade database to 10g R2 or 11g R1 Convert tablespaces to OATM model Evaluate impact of R12 on customizations and extensions Introduce BI Publisher and JDeveloper Integrate Discoverer Server Release 10g with EBS 11i Configure Oracle iAS Release 10g for external apps (SSO, OID, Portal) and integrate with EBS 11i Position for high availability and scalability Evaluate and complete platform change based on ROI
  • 29. Thank You Sandra Vucinic sandrav@vladgroup.com (630) 202-1248 www.vladgroup.com
