Why Spark Is
the Next Top
(Compute)
Model
Big
Data
Everywhere
Chicago,
Oct.
1,
2014
@deanwampler
polyglotprogramming.com/talks
Tuesday, September 30, 14
Copyright (c) 2014, Dean Wampler, All Rights Reserved, unless otherwise noted.
Image: Detail of the London Eye

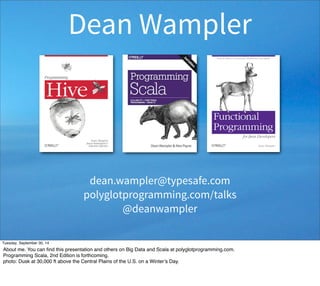

Dean Wampler
dean.wampler@typesafe.com
polyglotprogramming.com/talks
@deanwampler
Tuesday, September 30, 14
About me. You can find this presentation and others on Big Data and Scala at polyglotprogramming.com.
Programming Scala, 2nd Edition is forthcoming.
photo: Dusk at 30,000 ft above the Central Plains of the U.S. on a Winter’s Day.

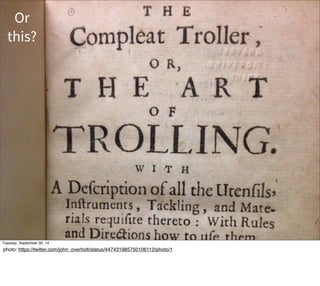

Or
this?
Tuesday, September 30, 14
photo: https://twitter.com/john_overholt/status/447431985750106112/photo/1
Hadoop
circa 2013
Tuesday, September 30, 14
The state of Hadoop as of last year.
Image: Detail of the London Eye

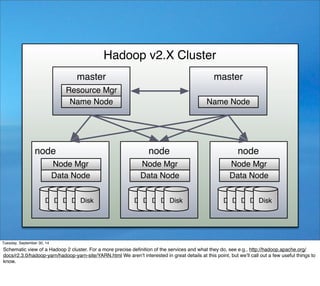

Hadoop v2.X Cluster
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
master
Resource Mgr
Name Node
master
Name Node
Tuesday, September 30, 14
Schematic view of a Hadoop 2 cluster. For a more precise definition of the services and what they do, see e.g., http://hadoop.apache.org/
docs/r2.3.0/hadoop-yarn/hadoop-yarn-site/YARN.html We aren’t interested in great details at this point, but we’ll call out a few useful things to
know.
Resource and Node Managers
Hadoop v2.X Cluster
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
master
Resource Mgr
Name Node
master
Name Node
Tuesday, September 30, 14
Hadoop 2 uses YARN to manage resources via the master Resource Manager, which includes a pluggable job scheduler and an Applications
Manager. It coordinates with the Node Manager on each node to schedule jobs and provide resources. Other services involved, including
application-specific Containers and Application Masters are not shown.

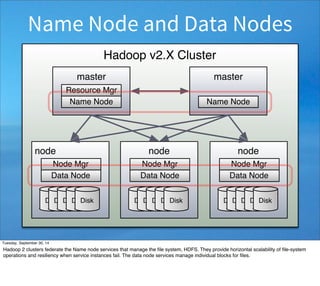

Name Node and Data Nodes
Hadoop v2.X Cluster
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
node
Node Mgr
Data Node
DiskDiskDiskDiskDisk
master
Resource Mgr
Name Node
master
Name Node
Tuesday, September 30, 14
Hadoop 2 clusters federate the Name node services that manage the file system, HDFS. They provide horizontal scalability of file-system
operations and resiliency when service instances fail. The data node services manage individual blocks for files.

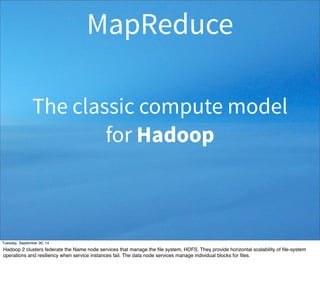

MapReduce
The classic compute model
for Hadoop
Tuesday, September 30, 14
Hadoop 2 clusters federate the Name node services that manage the file system, HDFS. They provide horizontal scalability of file-system
operations and resiliency when service instances fail. The data node services manage individual blocks for files.
MapReduce
1 map step + 1 reduce step
(wash, rinse, repeat)
Tuesday, September 30, 14
You get 1 map step (although there is limited support for chaining mappers) and 1 reduce step. If you can’t implement an algorithm in these
two steps, you can chain jobs together, but you’ll pay a tax of flushing the entire data set to disk between these jobs.
MapReduce
Example:
Inverted Index
Tuesday, September 30, 14
The inverted index is a classic algorithm needed for building search engines.
Tuesday, September 30, 14

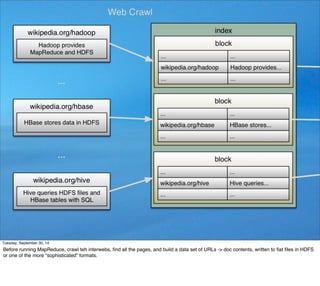

Before running MapReduce, crawl teh interwebs, find all the pages, and build a data set of URLs -> doc contents, written to flat files in HDFS
or one of the more “sophisticated” formats.
Tuesday, September 30, 14

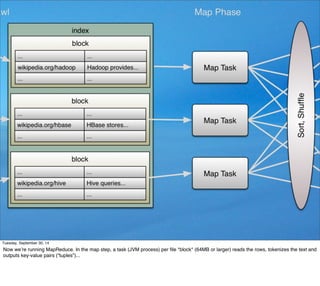

Now we’re running MapReduce. In the map step, a task (JVM process) per file *block* (64MB or larger) reads the rows, tokenizes the text and
outputs key-value pairs (“tuples”)...

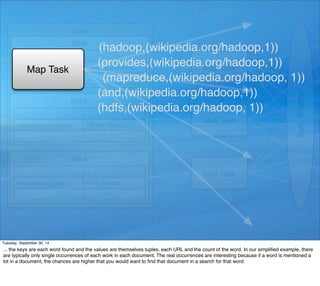

Map Task
(hadoop,(wikipedia.org/hadoop,1))
(provides,(wikipedia.org/hadoop,1))
(mapreduce,(wikipedia.org/hadoop, 1))
(and,(wikipedia.org/hadoop,1))
(hdfs,(wikipedia.org/hadoop, 1))
Tuesday, September 30, 14
... the keys are each word found and the values are themselves tuples, each URL and the count of the word. In our simplified example, there
are typically only single occurrences of each work in each document. The real occurrences are interesting because if a word is mentioned a
lot in a document, the chances are higher that you would want to find that document in a search for that word.
Tuesday, September 30, 14

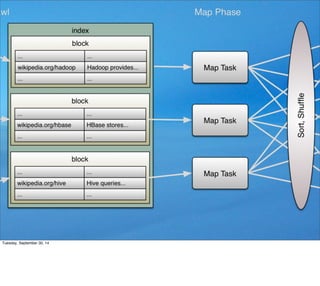

Tuesday, September 30, 14

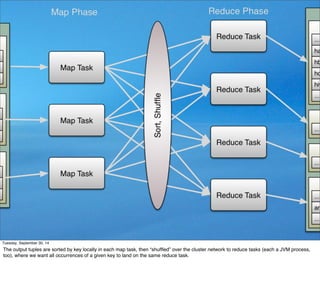

The output tuples are sorted by key locally in each map task, then “shuffled” over the cluster network to reduce tasks (each a JVM process,
too), where we want all occurrences of a given key to land on the same reduce task.
Tuesday, September 30, 14
Finally, each reducer just aggregates all the values it receives for each key, then writes out new files to HDFS with the words and a list of
(URL-count) tuples (pairs).

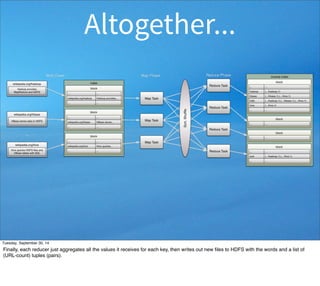

Altogether...
Tuesday, September 30, 14
Finally, each reducer just aggregates all the values it receives for each key, then writes out new files to HDFS with the words and a list of
(URL-count) tuples (pairs).
What’s
not to like? Tuesday, September 30, 14
This seems okay, right? What’s wrong with it?

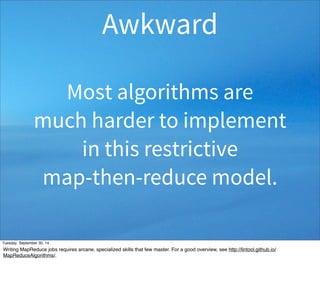

Awkward
Most algorithms are
much harder to implement
in this restrictive
map-then-reduce model.
Tuesday, September 30, 14
Writing MapReduce jobs requires arcane, specialized skills that few master. For a good overview, see http://lintool.github.io/
MapReduceAlgorithms/.

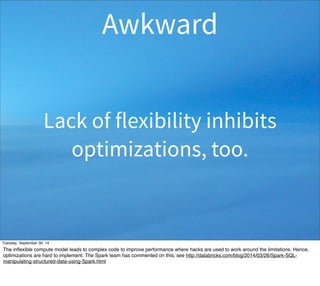

Awkward
Lack of flexibility inhibits
optimizations, too.
Tuesday, September 30, 14
The inflexible compute model leads to complex code to improve performance where hacks are used to work around the limitations. Hence,
optimizations are hard to implement. The Spark team has commented on this, see http://databricks.com/blog/2014/03/26/Spark-SQL-manipulating-
structured-data-using-Spark.html
Performance
Full dump to disk
between jobs.
Tuesday, September 30, 14
Sequencing jobs wouldn’t be so bad if the “system” was smart enough to cache data in memory. Instead, each job dumps everything to disk,
then the next job reads it back in again. This makes iterative algorithms particularly painful.
Enter
Spark
spark.apache.org
Tuesday, September 30, 14
Cluster Computing
Can be run in:
•YARN (Hadoop 2)
•Mesos (Cluster management)
•EC2
•Standalone mode
Tuesday, September 30, 14
If you have a Hadoop cluster, you can run Spark as a seamless compute engine on YARN. (You can also use pre-YARN Hadoop v1 clusters,
but there you have manually allocate resources to the embedded Spark cluster vs Hadoop.) Mesos is a general-purpose cluster resource
manager that can also be used to manage Hadoop resources. Scripts for running a Spark cluster in EC2 are available. Standalone just means
you run Spark’s built-in support for clustering (or run locally on a single box - e.g., for development). EC2 deployments are usually
standalone...

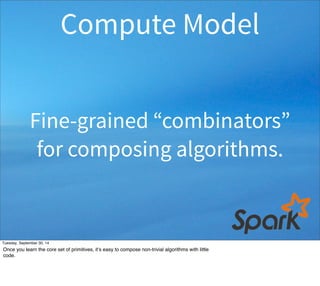

Compute Model
Fine-grained “combinators”
for composing algorithms.
Tuesday, September 30, 14
Once you learn the core set of primitives, it’s easy to compose non-trivial algorithms with little
code.

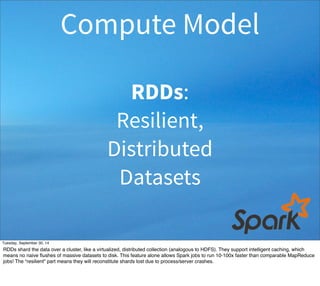

Compute Model
RDDs:
Resilient,
Distributed
Datasets
Tuesday, September 30, 14
RDDs shard the data over a cluster, like a virtualized, distributed collection (analogous to HDFS). They support intelligent caching, which
means no naive flushes of massive datasets to disk. This feature alone allows Spark jobs to run 10-100x faster than comparable MapReduce
jobs! The “resilient” part means they will reconstitute shards lost due to process/server crashes.

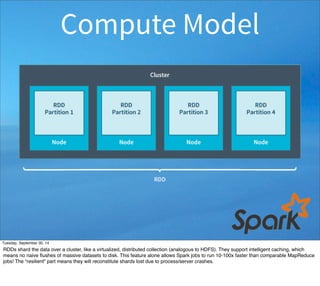

Compute Model
Tuesday, September 30, 14
RDDs shard the data over a cluster, like a virtualized, distributed collection (analogous to HDFS). They support intelligent caching, which
means no naive flushes of massive datasets to disk. This feature alone allows Spark jobs to run 10-100x faster than comparable MapReduce
jobs! The “resilient” part means they will reconstitute shards lost due to process/server crashes.
Compute Model
Written in Scala,
with Java and Python APIs.
Tuesday, September 30, 14
Once you learn the core set of primitives, it’s easy to compose non-trivial algorithms with little
code.
Inverted Index
in MapReduce
(Java).
Tuesday, September 30, 14
Let’s
see
an
an
actual
implementaEon
of
the
inverted
index.
First,
a
Hadoop
MapReduce
(Java)
version,
adapted
from
hOps://
developer.yahoo.com/hadoop/tutorial/module4.html#soluEon
It’s
about
90
lines
of
code,
but
I
reformaOed
to
fit
beOer.
This
is
also
a
slightly
simpler
version
that
the
one
I
diagrammed.
It
doesn’t
record
a
count
of
each
word
in
a
document;
it
just
writes
(word,doc-­‐Etle)
pairs
out
of
the
mappers
and
the
final
(word,list)
output
by
the
reducers
just
has
a
list
of
documentaEons,
hence
repeats.
A
second
job
would
be
necessary
to
count
the
repeats.
import java.io.IOException;
import java.util.*;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.*;
import org.apache.hadoop.mapred.*;
public class LineIndexer {
public static void main(String[] args) {
JobClient client = new JobClient();
JobConf conf =
new JobConf(LineIndexer.class);
conf.setJobName("LineIndexer");
conf.setOutputKeyClass(Text.class);
conf.setOutputValueClass(Text.class);
FileInputFormat.addInputPath(conf,
new Path("input"));
FileOutputFormat.setOutputPath(conf,
Tuesday, September 30, 14

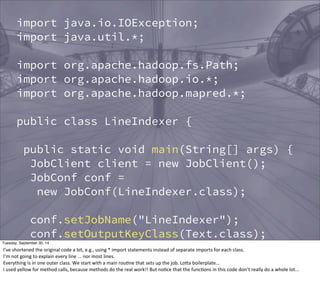

I’ve
shortened
the
original
code
a
bit,
e.g.,
using
*
import
statements
instead
of
separate
imports
for
each
class.
I’m
not
going
to
explain
every
line
...
nor
most
lines.
Everything
is
in
one
outer
class.
We
start
with
a
main
rouEne
that
sets
up
the
job.
LoOa
boilerplate...
I
used
yellow
for
method
calls,
because
methods
do
the
real
work!!
But
noEce
that
the
funcEons
in
this
code
don’t
really
do
a
whole
lot...

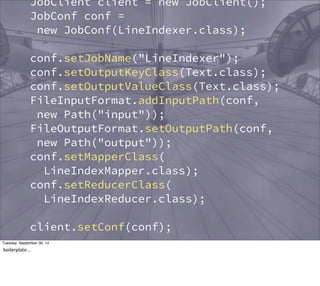

JobClient client = new JobClient();
JobConf conf =
new JobConf(LineIndexer.class);
conf.setJobName("LineIndexer");
conf.setOutputKeyClass(Text.class);
conf.setOutputValueClass(Text.class);
FileInputFormat.addInputPath(conf,
new Path("input"));
FileOutputFormat.setOutputPath(conf,
new Path("output"));
conf.setMapperClass(
LineIndexMapper.class);
conf.setReducerClass(
LineIndexReducer.class);
client.setConf(conf);
try {
JobClient.runJob(conf);
} catch (Exception e) {
Tuesday, September 30, 14

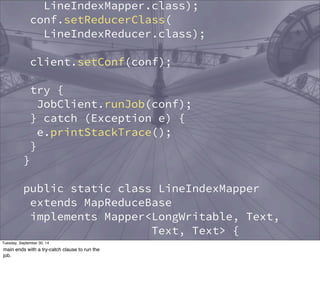

boilerplate...
LineIndexMapper.class);
conf.setReducerClass(
LineIndexReducer.class);
client.setConf(conf);
try {
JobClient.runJob(conf);
} catch (Exception e) {
e.printStackTrace();
}
}
public static class LineIndexMapper
extends MapReduceBase
implements Mapper<LongWritable, Text,
Text, Text> {
private final static Text word =
new Text();
private final static Text location =
new Text();
Tuesday, September 30, 14
main ends with a try-catch clause to run the
job.

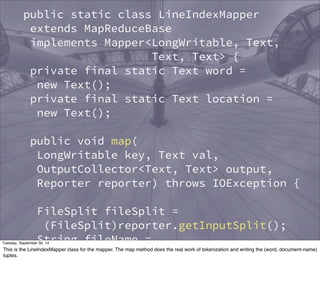

public static class LineIndexMapper
extends MapReduceBase
implements Mapper<LongWritable, Text,
Text, Text> {
private final static Text word =
new Text();
private final static Text location =
new Text();
public void map(
LongWritable key, Text val,
OutputCollector<Text, Text> output,
Reporter reporter) throws IOException {
FileSplit fileSplit =
(FileSplit)reporter.getInputSplit();
String fileName =
fileSplit.getPath().getName();
location.set(fileName);
Tuesday, September 30, 14
This is the LineIndexMapper class for the mapper. The map method does the real work of tokenization and writing the (word, document-name)
tuples.
Reporter reporter) throws IOException {
FileSplit fileSplit =
(FileSplit)reporter.getInputSplit();
String fileName =
fileSplit.getPath().getName();
location.set(fileName);
String line = val.toString();
StringTokenizer itr = new
StringTokenizer(line.toLowerCase());
while (itr.hasMoreTokens()) {
word.set(itr.nextToken());
output.collect(word, location);
}
}
}
public static class LineIndexReducer
extends MapReduceBase
implements Reducer<Text, Text,
Text, Text> {
Tuesday, September 30, 14

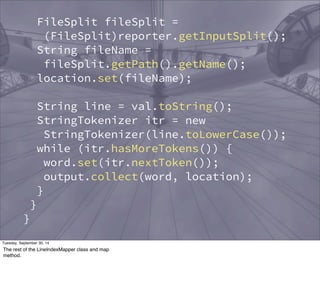

The rest of the LineIndexMapper class and map
method.

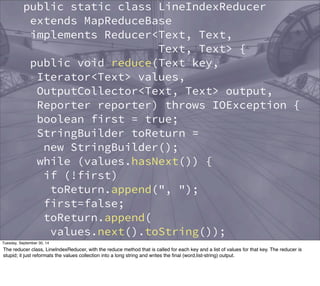

public static class LineIndexReducer
extends MapReduceBase
implements Reducer<Text, Text,
Text, Text> {
public void reduce(Text key,
Iterator<Text> values,
OutputCollector<Text, Text> output,
Reporter reporter) throws IOException {
boolean first = true;
StringBuilder toReturn =
new StringBuilder();
while (values.hasNext()) {
if (!first)
toReturn.append(", ");
first=false;
toReturn.append(
values.next().toString());
}
output.collect(key,
new Text(toReturn.toString()));
}
Tuesday, September 30, 14

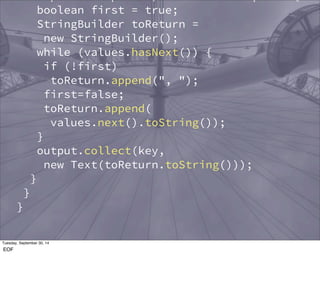

The reducer class, LineIndexReducer, with the reduce method that is called for each key and a list of values for that key. The reducer is
stupid; it just reformats the values collection into a long string and writes the final (word,list-string) output.
Reporter reporter) throws IOException {
boolean first = true;
StringBuilder toReturn =
new StringBuilder();
while (values.hasNext()) {
if (!first)
toReturn.append(", ");
first=false;
toReturn.append(
values.next().toString());
}
output.collect(key,
new Text(toReturn.toString()));
}
}
}
Tuesday, September 30, 14
EOF

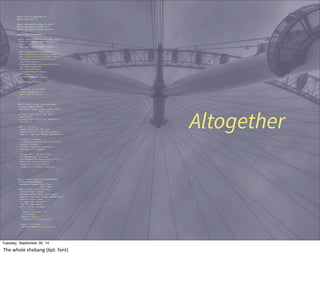

Altogether
import java.io.IOException;
import java.util.*;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.*;
import org.apache.hadoop.mapred.*;
public class LineIndexer {
public static void main(String[] args) {
JobClient client = new JobClient();
JobConf conf =
new JobConf(LineIndexer.class);
conf.setJobName("LineIndexer");
conf.setOutputKeyClass(Text.class);
conf.setOutputValueClass(Text.class);
FileInputFormat.addInputPath(conf,
new Path("input"));
FileOutputFormat.setOutputPath(conf,
new Path("output"));
conf.setMapperClass(
LineIndexMapper.class);
conf.setReducerClass(
LineIndexReducer.class);
client.setConf(conf);
try {
JobClient.runJob(conf);
} catch (Exception e) {
e.printStackTrace();
}
}
public static class LineIndexMapper
extends MapReduceBase
implements Mapper<LongWritable, Text,
Text, Text> {
private final static Text word =
new Text();
private final static Text location =
new Text();
public void map(
LongWritable key, Text val,
OutputCollector<Text, Text> output,
Reporter reporter) throws IOException {
FileSplit fileSplit =
(FileSplit)reporter.getInputSplit();
String fileName =
fileSplit.getPath().getName();
location.set(fileName);
String line = val.toString();
StringTokenizer itr = new
StringTokenizer(line.toLowerCase());
while (itr.hasMoreTokens()) {
word.set(itr.nextToken());
output.collect(word, location);
}
}
}
public static class LineIndexReducer
extends MapReduceBase
implements Reducer<Text, Text,
Text, Text> {
public void reduce(Text key,
Iterator<Text> values,
OutputCollector<Text, Text> output,
Reporter reporter) throws IOException {
boolean first = true;
StringBuilder toReturn =
new StringBuilder();
while (values.hasNext()) {
if (!first)
toReturn.append(", ");
first=false;
toReturn.append(
values.next().toString());
}
output.collect(key,
new Text(toReturn.toString()));
}
}
}
Tuesday, September 30, 14
The
whole
shebang
(6pt.
font)

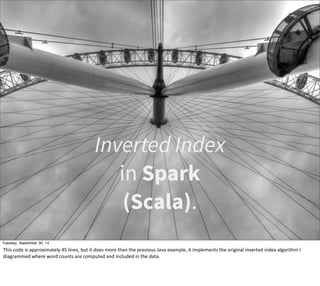

Inverted Index
in Spark
(Scala).
Tuesday, September 30, 14
This
code
is
approximately
45
lines,
but
it
does
more
than
the
previous
Java
example,
it
implements
the
original
inverted
index
algorithm
I
diagrammed
where
word
counts
are
computed
and
included
in
the
data.
import org.apache.spark.SparkContext
import org.apache.spark.SparkContext._
object InvertedIndex {
def main(args: Array[String]) = {
val sc = new SparkContext(
"local", "Inverted Index")
sc.textFile("data/crawl")
.map { line =>
val array = line.split("t", 2)
(array(0), array(1))
}
.flatMap {
case (path, text) =>
text.split("""W+""") map {
word => (word, path)
}
Tuesday, September 30, 14

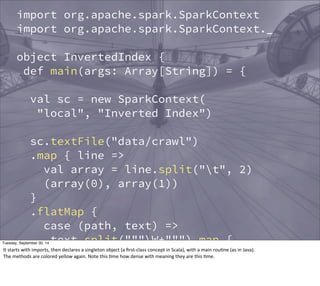

It
starts
with
imports,
then
declares
a
singleton
object
(a
first-­‐class
concept
in
Scala),
with
a
main
rouEne
(as
in
Java).
The
methods
are
colored
yellow
again.
Note
this
Eme
how
dense
with
meaning
they
are
this
Eme.
}

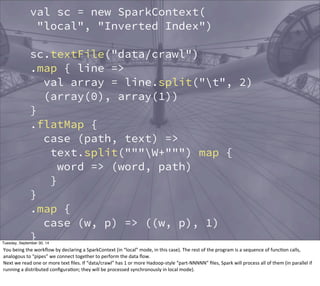

val sc = new SparkContext(
"local", "Inverted Index")
sc.textFile("data/crawl")
.map { line =>
val array = line.split("t", 2)
(array(0), array(1))
}
.flatMap {
case (path, text) =>
text.split("""W+""") map {
word => (word, path)
}
}
.map {
case (w, p) => ((w, p), 1)
}
.reduceByKey {
case (n1, n2) => n1 + n2
}
.map {
Tuesday, September 30, 14
You
being
the
workflow
by
declaring
a
SparkContext
(in
“local”
mode,
in
this
case).
The
rest
of
the
program
is
a
sequence
of
funcEon
calls,
analogous
to
“pipes”
we
connect
together
to
perform
the
data
flow.
Next
we
read
one
or
more
text
files.
If
“data/crawl”
has
1
or
more
Hadoop-­‐style
“part-­‐NNNNN”
files,
Spark
will
process
all
of
them
(in
parallel
if
running
a
distributed
configuraEon;
they
will
be
processed
synchronously
in
local
mode).
sc.textFile("data/crawl")
.map { line =>
val array = line.split("t", 2)
(array(0), array(1))
}
.flatMap {
case (path, text) =>
text.split("""W+""") map {
word => (word, path)
}
}
.map {
case (w, p) => ((w, p), 1)
}
.reduceByKey {
case (n1, n2) => n1 + n2
}
.map {
case ((w, p), n) => (w, (p, n))
}
.groupBy {
case (w, (p, n)) => w
Tuesday, September 30, 14

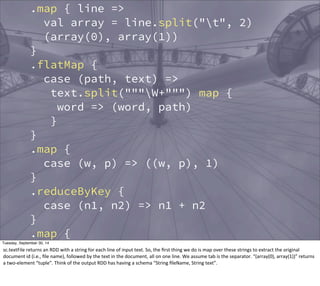

sc.textFile
returns
an
RDD
with
a
string
for
each
line
of
input
text.
So,
the
first
thing
we
do
is
map
over
these
strings
to
extract
the
original
document
id
(i.e.,
file
name),
followed
by
the
text
in
the
document,
all
on
one
line.
We
assume
tab
is
the
separator.
“(array(0),
array(1))”
returns
a
two-­‐element
“tuple”.
Think
of
the
output
RDD
has
having
a
schema
“String
fileName,
String
text”.
}
.flatMap {
case (path, text) =>
text.split("""W+""") map {
word => (word, path)
}
Beautiful,
}
.map {
case (w, p) => ((w, p), 1)
}
.reduceByKey {
case (n1, n2) => n1 + n2
}
.map {
case ((w, p), n) => (w, (p, n))
}
.groupBy {
case (w, (p, n)) => w
}
.map {
case (w, seq) =>
no?
Tuesday, September 30, 14

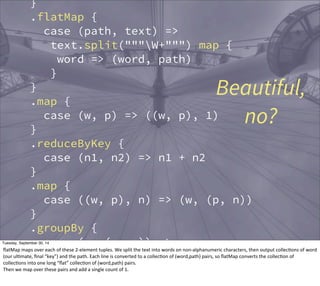

flatMap
maps
over
each
of
these
2-­‐element
tuples.
We
split
the
text
into
words
on
non-­‐alphanumeric
characters,
then
output
collecEons
of
word
(our
ulEmate,
final
“key”)
and
the
path.
Each
line
is
converted
to
a
collecEon
of
(word,path)
pairs,
so
flatMap
converts
the
collecEon
of
collecEons
into
one
long
“flat”
collecEon
of
(word,path)
pairs.
Then
we
map
over
these
pairs
and
add
a
single
count
of
1.
Tuesday, September 30, 14
Another
example
of
a
beauEful
and
profound
DSL,
in
this
case
from
the
world
of
Physics:
Maxwell’s
equaEons:
hOp://upload.wikimedia.org/
wikipedia/commons/c/c4/Maxwell'sEquaEons.svg
case (w, p) => ((w, p), 1)
}
.reduceByKey {
case (n1, n2) => n1 + n2
}
.map {
case ((w, p), n) => (w, (p, n))
}
.groupBy {
case (w, (p, n)) => w
}
.map {
case (w, seq) =>
(word1,
(path1,
n1))
(word2,
(path2,
n2))
...
val seq2 = seq map {
case (_, (p, n)) => (p, n)
}
(w, seq2.mkString(", "))
}
.saveAsTextFile(argz.outpath)
sc.stop()
}
Tuesday, September 30, 14
reduceByKey
does
an
implicit
“group
by”
to
bring
together
all
occurrences
of
the
same
(word,
path)
and
then
sums
up
their
counts.
Note
the
input
to
the
next
map
is
now
((word,
path),
n),
where
n
is
now
>=
1.
We
transform
these
tuples
into
the
form
we
actually
want,
(word,
(path,
n)).
}
.groupBy {
case (w, (p, n)) => w
}
.map {
case (w, seq) =>
(word,
seq((word,
(path1,
n1)),
(word,
(path2,
n2)),
...))
val seq2 = seq map {
case (_, (p, n)) => (p, n)
}
(w, seq2.mkString(", "))
}
.saveAsTextFile(argz.outpath)
sc.stop()
}
}
(word,
“(path1,
n1),
(path2,
n2),
...”)
Tuesday, September 30, 14

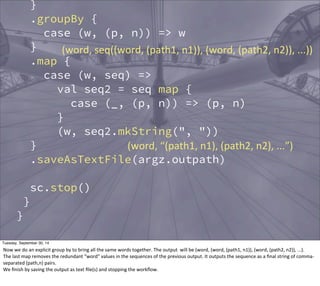

Now
we
do
an
explicit
group
by
to
bring
all
the
same
words
together.
The
output
will
be
(word,
(word,
(path1,
n1)),
(word,
(path2,
n2)),
...).
The
last
map
removes
the
redundant
“word”
values
in
the
sequences
of
the
previous
output.
It
outputs
the
sequence
as
a
final
string
of
comma-­‐
separated
(path,n)
pairs.
We
finish
by
saving
the
output
as
text
file(s)
and
stopping
the
workflow.
import org.apache.spark.SparkContext
import org.apache.spark.SparkContext._
object InvertedIndex {
def main(args: Array[String]) = {
val sc = new SparkContext(
"local", "Inverted Index")
sc.textFile("data/crawl")
.map { line =>
val array = line.split("t", 2)
(array(0), array(1))
}
.flatMap {
case (path, text) =>
text.split("""W+""") map {
word => (word, path)
}
}
.map {
case (w, p) => ((w, p), 1)
}
.reduceByKey {
case (n1, n2) => n1 + n2
}
.map {
case ((w, p), n) => (w, (p, n))
}
.groupBy {
case (w, (p, n)) => w
}
.map {
case (w, seq) =>
val seq2 = seq map {
case (_, (p, n)) => (p, n)
}
(w, seq2.mkString(", "))
}
.saveAsTextFile(argz.outpath)
sc.stop()
}
}
Altogether
Tuesday, September 30, 14

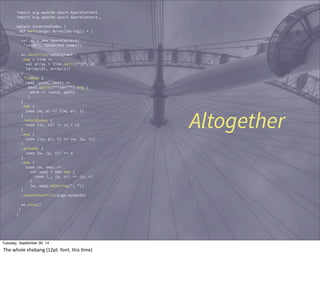

The
whole
shebang
(12pt.
font,
this
Eme)

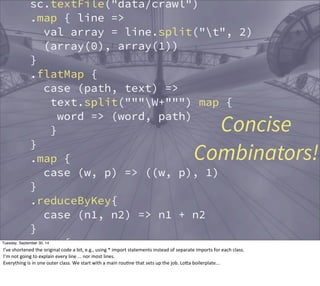

sc.textFile("data/crawl")
.map { line =>
val array = line.split("t", 2)
(array(0), array(1))
}
.flatMap {
case (path, text) =>
text.split("""W+""") map {
word => (word, path)
}
Concise
Combinators!
}
.map {
case (w, p) => ((w, p), 1)
}
.reduceByKey{
case (n1, n2) => n1 + n2
}
.map {
case ((w, p), n) => (w, (p, n))
}
.groupBy {
Tuesday, September 30, 14
I’ve
shortened
the
original
code
a
bit,
e.g.,
using
*
import
statements
instead
of
separate
imports
for
each
class.
I’m
not
going
to
explain
every
line
...
nor
most
lines.
Everything
is
in
one
outer
class.
We
start
with
a
main
rouEne
that
sets
up
the
job.
LoOa
boilerplate...

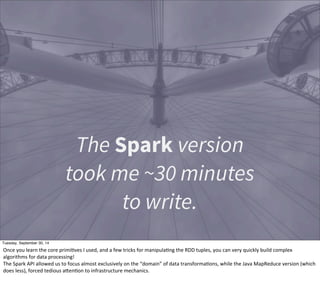

The Spark version
took me ~30 minutes
to write.
Tuesday, September 30, 14
Once
you
learn
the
core
primiEves
I
used,
and
a
few
tricks
for
manipulaEng
the
RDD
tuples,
you
can
very
quickly
build
complex
algorithms
for
data
processing!
The
Spark
API
allowed
us
to
focus
almost
exclusively
on
the
“domain”
of
data
transformaEons,
while
the
Java
MapReduce
version
(which
does
less),
forced
tedious
aOenEon
to
infrastructure
mechanics.
Use a SQL query when
you can!!
Tuesday, September 30, 14

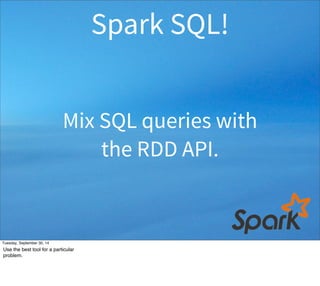

Spark SQL!
Mix SQL queries with
the RDD API.
Tuesday, September 30, 14
Use the best tool for a particular
problem.

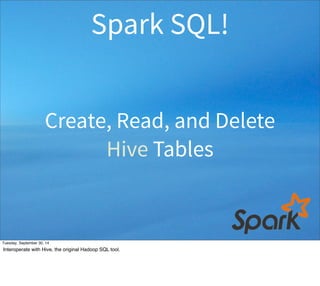

Spark SQL!
Create, Read, and Delete
Hive Tables
Tuesday, September 30, 14
Interoperate with Hive, the original Hadoop SQL tool.
Spark SQL!
Read JSON and
Infer the Schema
Tuesday, September 30, 14
Read strings that are JSON records, infer the schema on the fly. Also, write RDD records as
JSON.

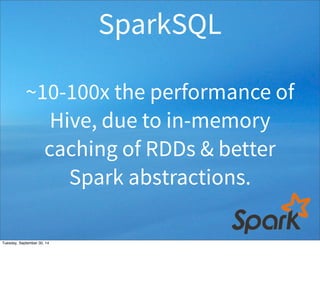

SparkSQL
~10-100x the performance of
Hive, due to in-memory
caching of RDDs & better
Spark abstractions.
Tuesday, September 30, 14
Combine SparkSQL
queries with Machine
Learning code.
Tuesday, September 30, 14
We’ll
use
the
Spark
“MLlib”
in
the
example,
then
return
to
it
in
a
moment.

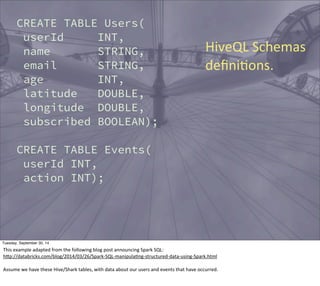

CREATE TABLE Users(
userId INT,
name STRING,
email STRING,
age INT,
latitude DOUBLE,
longitude DOUBLE,
subscribed BOOLEAN);
CREATE TABLE Events(
userId INT,
action INT);
HiveQL
Schemas
definiEons.
Tuesday, September 30, 14
This
example
adapted
from
the
following
blog
post
announcing
Spark
SQL:
hOp://databricks.com/blog/2014/03/26/Spark-­‐SQL-­‐manipulaEng-­‐structured-­‐data-­‐using-­‐Spark.html
Assume
we
have
these
Hive/Shark
tables,
with
data
about
our
users
and
events
that
have
occurred.

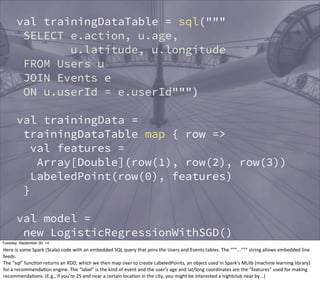

val trainingDataTable = sql("""
SELECT e.action, u.age,
u.latitude, u.longitude
FROM Users u
JOIN Events e
ON u.userId = e.userId""")
val trainingData =
trainingDataTable map { row =>
val features =
Array[Double](row(1), row(2), row(3))
LabeledPoint(row(0), features)
}
val model =
new LogisticRegressionWithSGD()
.run(trainingData)
val allCandidates = sql("""
SELECT userId, age, latitude, longitude
Tuesday, September 30, 14
Here
is
some
Spark
(Scala)
code
with
an
embedded
SQL
query
that
joins
the
Users
and
Events
tables.
The
“””...”””
string
allows
embedded
line
feeds.
The
“sql”
funcEon
returns
an
RDD,
which
we
then
map
over
to
create
LabeledPoints,
an
object
used
in
Spark’s
MLlib
(machine
learning
library)
for
a
recommendaEon
engine.
The
“label”
is
the
kind
of
event
and
the
user’s
age
and
lat/long
coordinates
are
the
“features”
used
for
making
recommendaEons.
(E.g.,
if
you’re
25
and
near
a
certain
locaEon
in
the
city,
you
might
be
interested
a
nightclub
near
by...)
}

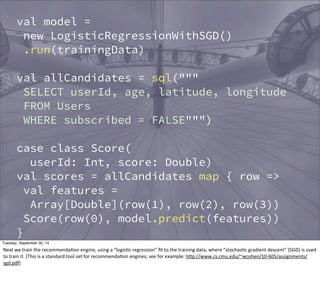

val model =
new LogisticRegressionWithSGD()
.run(trainingData)
val allCandidates = sql("""
SELECT userId, age, latitude, longitude
FROM Users
WHERE subscribed = FALSE""")
case class Score(
userId: Int, score: Double)
val scores = allCandidates map { row =>
val features =
Array[Double](row(1), row(2), row(3))
Score(row(0), model.predict(features))
}
// Hive table
scores.registerAsTable("Scores")
Tuesday, September 30, 14
Next
we
train
the
recommendaEon
engine,
using
a
“logisEc
regression”
fit
to
the
training
data,
where
“stochasEc
gradient
descent”
(SGD)
is
used
to
train
it.
(This
is
a
standard
tool
set
for
recommendaEon
engines;
see
for
example:
hOp://www.cs.cmu.edu/~wcohen/10-­‐605/assignments/
sgd.pdf)
.run(trainingData)

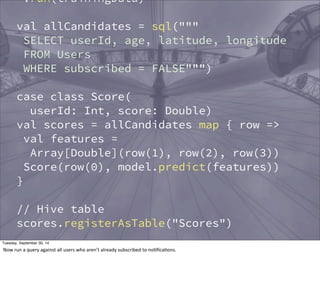

val allCandidates = sql("""
SELECT userId, age, latitude, longitude
FROM Users
WHERE subscribed = FALSE""")
case class Score(
userId: Int, score: Double)
val scores = allCandidates map { row =>
val features =
Array[Double](row(1), row(2), row(3))
Score(row(0), model.predict(features))
}
// Hive table
scores.registerAsTable("Scores")
val topCandidates = sql("""
SELECT u.name, u.email
FROM Scores s
JOIN Users u ON s.userId = u.userId
Tuesday, September 30, 14
Now
run
a
query
against
all
users
who
aren’t
already
subscribed
to
noEficaEons.

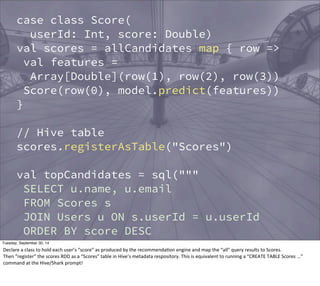

case class Score(
userId: Int, score: Double)
val scores = allCandidates map { row =>
val features =
Array[Double](row(1), row(2), row(3))
Score(row(0), model.predict(features))
}
// Hive table
scores.registerAsTable("Scores")
val topCandidates = sql("""
SELECT u.name, u.email
FROM Scores s
JOIN Users u ON s.userId = u.userId
ORDER BY score DESC
LIMIT 100""") Tuesday, September 30, 14
Declare
a
class
to
hold
each
user’s
“score”
as
produced
by
the
recommendaEon
engine
and
map
the
“all”
query
results
to
Scores.
Then
“register”
the
scores
RDD
as
a
“Scores”
table
in
Hive’s
metadata
respository.
This
is
equivalent
to
running
a
“CREATE
TABLE
Scores
...”
command
at
the
Hive/Shark
prompt!
}

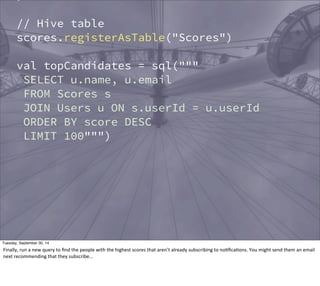

// Hive table
scores.registerAsTable("Scores")
val topCandidates = sql("""
SELECT u.name, u.email
FROM Scores s
JOIN Users u ON s.userId = u.userId
ORDER BY score DESC
LIMIT 100""")
Tuesday, September 30, 14
Finally,
run
a
new
query
to
find
the
people
with
the
highest
scores
that
aren’t
already
subscribing
to
noEficaEons.
You
might
send
them
an
email
next
recommending
that
they
subscribe...
Event Stream
Processing
Tuesday, September 30, 14
Spark Streaming
Use the same abstractions
for near real-time,
event streaming.
Tuesday, September 30, 14
Once you learn the core set of primitives, it’s easy to compose non-trivial algorithms with little
code.
Tuesday, September 30, 14
A DSTream (discretized stream) wraps the RDDs for each “batch” of events. You can specify the granularity, such as all events in 1 second
batches, then your Spark job is passed each batch of data for processing. You can also work with moving windows of batches.
Very similar code...
Tuesday, September 30, 14

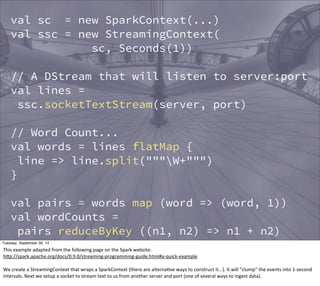

val sc = new SparkContext(...)
val ssc = new StreamingContext(
sc, Seconds(1))
// A DStream that will listen to server:port
val lines =
ssc.socketTextStream(server, port)
// Word Count...
val words = lines flatMap {
line => line.split("""W+""")
}
val pairs = words map (word => (word, 1))
val wordCounts =
pairs reduceByKey ((n1, n2) => n1 + n2)
wordCount.print() // print a few counts...
ssc.start()
Tuesday, September 30, 14
This
example
adapted
from
the
following
page
on
the
Spark
website:
hOp://spark.apache.org/docs/0.9.0/streaming-­‐programming-­‐guide.html#a-­‐quick-­‐example
We
create
a
StreamingContext
that
wraps
a
SparkContext
(there
are
alternaEve
ways
to
construct
it...).
It
will
“clump”
the
events
into
1-­‐second
intervals.
Next
we
setup
a
socket
to
stream
text
to
us
from
another
server
and
port
(one
of
several
ways
to
ingest
data).

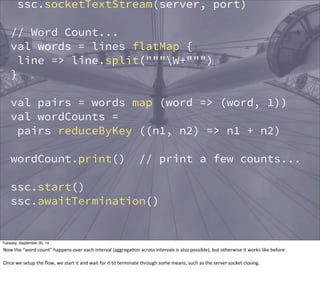

ssc.socketTextStream(server, port)
// Word Count...
val words = lines flatMap {
line => line.split("""W+""")
}
val pairs = words map (word => (word, 1))
val wordCounts =
pairs reduceByKey ((n1, n2) => n1 + n2)
wordCount.print() // print a few counts...
ssc.start()
ssc.awaitTermination()
Tuesday, September 30, 14
Now
the
“word
count”
happens
over
each
interval
(aggregaEon
across
intervals
is
also
possible),
but
otherwise
it
works
like
before.
Once
we
setup
the
flow,
we
start
it
and
wait
for
it
to
terminate
through
some
means,
such
as
the
server
socket
closing.
Machine Learning
Library
Tuesday, September 30, 14
MLlib
•Linear regression
•Binary classification
•Collaborative filtering
•Clustering
•Others...
Tuesday, September 30, 14
Not as full-featured as more mature toolkits, but the Mahout project has announced they are going to port their algorithms to Spark, which
include powerful Mathematics, e.g., Matrix support libraries.
Distributed Graph
Computing
Tuesday, September 30, 14
Some problems are more naturally represented as graphs.
Extends RDDs to support property graphs with directed edges.
Graphs
•Examples:
•Facebook friend networks
•Twitter followers
•Page Rank
Tuesday, September 30, 14

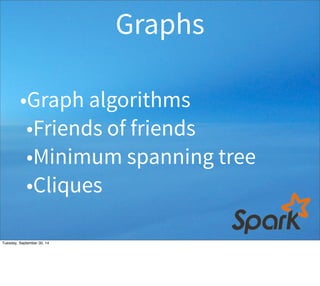

Graphs
•Graph algorithms
•Friends of friends
•Minimum spanning tree
•Cliques
Tuesday, September 30, 14
Recap
Tuesday, September 30, 14
Tuesday, September 30, 14

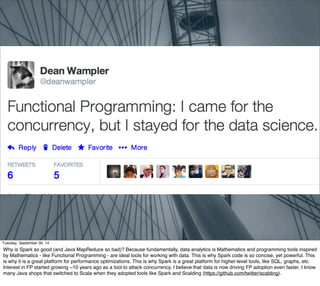

Why is Spark so good (and Java MapReduce so bad)? Because fundamentally, data analytics is Mathematics and programming tools inspired
by Mathematics - like Functional Programming - are ideal tools for working with data. This is why Spark code is so concise, yet powerful. This
is why it is a great platform for performance optimizations. This is why Spark is a great platform for higher-level tools, like SQL, graphs, etc.
Interest in FP started growing ~10 years ago as a tool to attack concurrency. I believe that data is now driving FP adoption even faster. I know
many Java shops that switched to Scala when they adopted tools like Spark and Scalding (https://github.com/twitter/scalding).
Spark
A flexible, scalable distributed
compute platform with
concise, powerful APIs and
higher-order tools.
spark.apache.org
Tuesday, September 30, 14
Why Spark Is
the Next Top
(Compute)
Model
@deanwampler
polyglotprogramming.com/talks
Tuesday, September 30, 14
Copyright (c) 2014, Dean Wampler, All Rights Reserved, unless otherwise noted.
Image: The London Eye on one side of the Thames, Parliament on the other.

More Related Content

What's hot

Stuart russell and peter norvig artificial intelligence - a modern approach...
Stuart russell and peter norvig   artificial intelligence - a modern approach...Stuart russell and peter norvig   artificial intelligence - a modern approach...
Stuart russell and peter norvig artificial intelligence - a modern approach...
Lê Anh Đạt


What's hot (20)

Artificial Intelligence -- Search Algorithms
Artificial Intelligence-- Search Algorithms Artificial Intelligence-- Search Algorithms
Artificial Intelligence -- Search Algorithms

Artificial Intelligence
Artificial IntelligenceArtificial Intelligence
Artificial Intelligence

Hadoop ecosystem
Hadoop ecosystemHadoop ecosystem
Hadoop ecosystem

Apache PIG
Apache PIGApache PIG
Apache PIG

Python GUI
Python GUIPython GUI
Python GUI

AI_Session 10 Local search in continious space.pptx
AI_Session 10 Local search in continious space.pptxAI_Session 10 Local search in continious space.pptx
AI_Session 10 Local search in continious space.pptx

Operating Systems Process Scheduling Algorithms
Operating Systems   Process Scheduling AlgorithmsOperating Systems   Process Scheduling Algorithms
Operating Systems Process Scheduling Algorithms

Introduction to Map Reduce
Introduction to Map ReduceIntroduction to Map Reduce
Introduction to Map Reduce

AI: Logic in AI
AI: Logic in AIAI: Logic in AI
AI: Logic in AI

Hadoop Map Reduce
Hadoop Map ReduceHadoop Map Reduce
Hadoop Map Reduce

Introduction Artificial Intelligence a modern approach by Russel and Norvig 1
Introduction Artificial Intelligence a modern approach by Russel and Norvig 1Introduction Artificial Intelligence a modern approach by Russel and Norvig 1
Introduction Artificial Intelligence a modern approach by Russel and Norvig 1

Stuart russell and peter norvig artificial intelligence - a modern approach...
Stuart russell and peter norvig   artificial intelligence - a modern approach...Stuart russell and peter norvig   artificial intelligence - a modern approach...
Stuart russell and peter norvig artificial intelligence - a modern approach...

AI: Learning in AI
AI: Learning in AI AI: Learning in AI
AI: Learning in AI

HADOOP TECHNOLOGY ppt
HADOOP  TECHNOLOGY pptHADOOP  TECHNOLOGY ppt
HADOOP TECHNOLOGY ppt

Cpu scheduling
Cpu schedulingCpu scheduling
Cpu scheduling

Semantic Networks
Semantic NetworksSemantic Networks
Semantic Networks

Problem reduction AND OR GRAPH & AO* algorithm.ppt
Problem reduction AND OR GRAPH & AO* algorithm.pptProblem reduction AND OR GRAPH & AO* algorithm.ppt
Problem reduction AND OR GRAPH & AO* algorithm.ppt

Servlets
ServletsServlets
Servlets

Prolog Programming : Basics
Prolog Programming : BasicsProlog Programming : Basics
Prolog Programming : Basics

Map reduce in BIG DATA
Map reduce in BIG DATAMap reduce in BIG DATA
Map reduce in BIG DATA


Viewers also liked

"Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo...
"Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo..."Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo...
"Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo...
Lucidworks

Introducing Kafka's Streams API
Introducing Kafka's Streams APIIntroducing Kafka's Streams API
Introducing Kafka's Streams API
confluent


Viewers also liked (20)

Introduction to Apache Spark
Introduction to Apache SparkIntroduction to Apache Spark
Introduction to Apache Spark

Spark the next top compute model
Spark   the next top compute modelSpark   the next top compute model
Spark the next top compute model

MapReduce and Its Discontents
MapReduce and Its DiscontentsMapReduce and Its Discontents
MapReduce and Its Discontents

Transformations and actions a visual guide training
Transformations and actions a visual guide trainingTransformations and actions a visual guide training
Transformations and actions a visual guide training

Scala dreaded underscore
Scala dreaded underscoreScala dreaded underscore
Scala dreaded underscore

"Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo...
"Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo..."Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo...
"Spark Search" - In-memory, Distributed Search with Lucene, Spark, and Tachyo...

[Sneak Preview] Apache Spark: Preparing for the next wave of Reactive Big Data
[Sneak Preview] Apache Spark: Preparing for the next wave of Reactive Big Data[Sneak Preview] Apache Spark: Preparing for the next wave of Reactive Big Data
[Sneak Preview] Apache Spark: Preparing for the next wave of Reactive Big Data

MapReduce Design Patterns
MapReduce Design PatternsMapReduce Design Patterns
MapReduce Design Patterns

Reactive design: languages, and paradigms
Reactive design: languages, and paradigmsReactive design: languages, and paradigms
Reactive design: languages, and paradigms

Cracking the Interview Skills (Coding, Soft Skills, Product Management) Handouts
Cracking the Interview Skills (Coding, Soft Skills, Product Management) HandoutsCracking the Interview Skills (Coding, Soft Skills, Product Management) Handouts
Cracking the Interview Skills (Coding, Soft Skills, Product Management) Handouts

Promcon2016
Promcon2016Promcon2016
Promcon2016

Real Time Data Processing using Spark Streaming | Data Day Texas 2015
Real Time Data Processing using Spark Streaming | Data Day Texas 2015Real Time Data Processing using Spark Streaming | Data Day Texas 2015
Real Time Data Processing using Spark Streaming | Data Day Texas 2015

Latent Semantic Analysis of Wikipedia with Spark
Latent Semantic Analysis of Wikipedia with SparkLatent Semantic Analysis of Wikipedia with Spark
Latent Semantic Analysis of Wikipedia with Spark

Apache Spark チュートリアル
Apache Spark チュートリアルApache Spark チュートリアル
Apache Spark チュートリアル

Asynchronous API in Java8, how to use CompletableFuture
Asynchronous API in Java8, how to use CompletableFutureAsynchronous API in Java8, how to use CompletableFuture
Asynchronous API in Java8, how to use CompletableFuture

AMIS SIG - Introducing Apache Kafka - Scalable, reliable Event Bus & Message ...
AMIS SIG - Introducing Apache Kafka - Scalable, reliable Event Bus & Message ...AMIS SIG - Introducing Apache Kafka - Scalable, reliable Event Bus & Message ...
AMIS SIG - Introducing Apache Kafka - Scalable, reliable Event Bus & Message ...

Monitoring Kafka w/ Prometheus
Monitoring Kafka w/ PrometheusMonitoring Kafka w/ Prometheus
Monitoring Kafka w/ Prometheus

Introducing Kafka's Streams API
Introducing Kafka's Streams APIIntroducing Kafka's Streams API
Introducing Kafka's Streams API

Apache Spark in Depth: Core Concepts, Architecture & Internals
Apache Spark in Depth: Core Concepts, Architecture & InternalsApache Spark in Depth: Core Concepts, Architecture & Internals
Apache Spark in Depth: Core Concepts, Architecture & Internals

Apache Spark 2.0: Faster, Easier, and Smarter
Apache Spark 2.0: Faster, Easier, and SmarterApache Spark 2.0: Faster, Easier, and Smarter
Apache Spark 2.0: Faster, Easier, and Smarter


Similar to Why Spark Is the Next Top (Compute) Model

Parallel Computing for Econometricians with Amazon Web Services
Parallel Computing for Econometricians with Amazon Web ServicesParallel Computing for Econometricians with Amazon Web Services
Parallel Computing for Econometricians with Amazon Web Services
stephenjbarr

Hadoop interview question
Hadoop interview questionHadoop interview question
Hadoop interview question
pappupassindia


Similar to Why Spark Is the Next Top (Compute) Model (20)

Why Spark Is the Next Top (Compute) Model
Why Spark Is the Next Top (Compute) ModelWhy Spark Is the Next Top (Compute) Model
Why Spark Is the Next Top (Compute) Model

Parallel Computing for Econometricians with Amazon Web Services
Parallel Computing for Econometricians with Amazon Web ServicesParallel Computing for Econometricians with Amazon Web Services
Parallel Computing for Econometricians with Amazon Web Services

Hadoop Seminar Report
Hadoop Seminar ReportHadoop Seminar Report
Hadoop Seminar Report

Apache Spark Introduction @ University College London
Apache Spark Introduction @ University College LondonApache Spark Introduction @ University College London
Apache Spark Introduction @ University College London

20150716 introduction to apache spark v3
20150716 introduction to apache spark v3 20150716 introduction to apache spark v3
20150716 introduction to apache spark v3

Why Scala Is Taking Over the Big Data World
Why Scala Is Taking Over the Big Data WorldWhy Scala Is Taking Over the Big Data World
Why Scala Is Taking Over the Big Data World

Getting started with Hadoop, Hive, and Elastic MapReduce
Getting started with Hadoop, Hive, and Elastic MapReduceGetting started with Hadoop, Hive, and Elastic MapReduce
Getting started with Hadoop, Hive, and Elastic MapReduce

Understanding hadoop
Understanding hadoopUnderstanding hadoop
Understanding hadoop

hadoop-spark.ppt
hadoop-spark.ppthadoop-spark.ppt
hadoop-spark.ppt

spark_v1_2
spark_v1_2spark_v1_2
spark_v1_2

Hadoop interview questions
Hadoop interview questionsHadoop interview questions
Hadoop interview questions

lecture3.pdf
lecture3.pdflecture3.pdf
lecture3.pdf

Hadoop interview question
Hadoop interview questionHadoop interview question
Hadoop interview question

Hadoop 31-frequently-asked-interview-questions
Hadoop 31-frequently-asked-interview-questionsHadoop 31-frequently-asked-interview-questions
Hadoop 31-frequently-asked-interview-questions

Finding the needles in the haystack. An Overview of Analyzing Big Data with H...
Finding the needles in the haystack. An Overview of Analyzing Big Data with H...Finding the needles in the haystack. An Overview of Analyzing Big Data with H...
Finding the needles in the haystack. An Overview of Analyzing Big Data with H...

Report Hadoop Map Reduce
Report Hadoop Map ReduceReport Hadoop Map Reduce
Report Hadoop Map Reduce

Hadoop Seminar Report
Hadoop Seminar ReportHadoop Seminar Report
Hadoop Seminar Report

Why Spark over Hadoop?
Why Spark over Hadoop?Why Spark over Hadoop?
Why Spark over Hadoop?

Spark vs Hadoop
Spark vs HadoopSpark vs Hadoop
Spark vs Hadoop

Introduction to Apache Hadoop
Introduction to Apache HadoopIntroduction to Apache Hadoop
Introduction to Apache Hadoop


Recently uploaded

如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样
如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样
如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样
jk0tkvfv

obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...
obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...
obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...
yulianti213969

如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证
acoha1

原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证
原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证
原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证
pwgnohujw

如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证
acoha1

1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证
1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证
1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证
ppy8zfkfm

Abortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotec
Abortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotecAbortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotec
Abortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotec
Abortion pills in Riyadh +966572737505 get cytotec

NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
Amil baba


Recently uploaded (20)

如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样
如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样
如何办理(UCLA毕业证书)加州大学洛杉矶分校毕业证成绩单学位证留信学历认证原件一样

NOAM AAUG Adobe Summit 2024: Summit Slam Dunks
NOAM AAUG Adobe Summit 2024: Summit Slam DunksNOAM AAUG Adobe Summit 2024: Summit Slam Dunks
NOAM AAUG Adobe Summit 2024: Summit Slam Dunks

Credit Card Fraud Detection: Safeguarding Transactions in the Digital Age
Credit Card Fraud Detection: Safeguarding Transactions in the Digital AgeCredit Card Fraud Detection: Safeguarding Transactions in the Digital Age
Credit Card Fraud Detection: Safeguarding Transactions in the Digital Age

obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...
obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...
obat aborsi Bontang wa 081336238223 jual obat aborsi cytotec asli di Bontang6...

如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(UPenn毕业证书)宾夕法尼亚大学毕业证成绩单本科硕士学位证留信学历认证

Seven tools of quality control.slideshare
Seven tools of quality control.slideshareSeven tools of quality control.slideshare
Seven tools of quality control.slideshare

原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证
原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证
原件一样(UWO毕业证书)西安大略大学毕业证成绩单留信学历认证

Northern New England Tableau User Group (TUG) May 2024
Northern New England Tableau User Group (TUG) May 2024Northern New England Tableau User Group (TUG) May 2024
Northern New England Tableau User Group (TUG) May 2024

Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...
Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...
Data Visualization Exploring and Explaining with Data 1st Edition by Camm sol...

How to Transform Clinical Trial Management with Advanced Data Analytics
How to Transform Clinical Trial Management with Advanced Data AnalyticsHow to Transform Clinical Trial Management with Advanced Data Analytics
How to Transform Clinical Trial Management with Advanced Data Analytics

Identify Rules that Predict Patient’s Heart Disease - An Application of Decis...
Identify Rules that Predict Patient’s Heart Disease - An Application of Decis...Identify Rules that Predict Patient’s Heart Disease - An Application of Decis...
Identify Rules that Predict Patient’s Heart Disease - An Application of Decis...

如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证
如何办理(WashU毕业证书)圣路易斯华盛顿大学毕业证成绩单本科硕士学位证留信学历认证

1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证
1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证
1:1原版定制利物浦大学毕业证(Liverpool毕业证)成绩单学位证书留信学历认证

What is Insertion Sort. Its basic information
What is Insertion Sort. Its basic informationWhat is Insertion Sort. Its basic information
What is Insertion Sort. Its basic information

Predictive Precipitation: Advanced Rain Forecasting Techniques
Predictive Precipitation: Advanced Rain Forecasting TechniquesPredictive Precipitation: Advanced Rain Forecasting Techniques
Predictive Precipitation: Advanced Rain Forecasting Techniques

Statistics Informed Decisions Using Data 5th edition by Michael Sullivan solu...
Statistics Informed Decisions Using Data 5th edition by Michael Sullivan solu...Statistics Informed Decisions Using Data 5th edition by Michael Sullivan solu...
Statistics Informed Decisions Using Data 5th edition by Michael Sullivan solu...

Abortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotec
Abortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotecAbortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotec
Abortion pills in Riyadh Saudi Arabia (+966572737505 buy cytotec

NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...
NO1 Best Kala Jadu Expert Specialist In Germany Kala Jadu Expert Specialist I...

Identify Customer Segments to Create Customer Offers for Each Segment - Appli...
Identify Customer Segments to Create Customer Offers for Each Segment - Appli...Identify Customer Segments to Create Customer Offers for Each Segment - Appli...
Identify Customer Segments to Create Customer Offers for Each Segment - Appli...

Aggregations - The Elasticsearch "GROUP BY"
Aggregations - The Elasticsearch "GROUP BY"Aggregations - The Elasticsearch "GROUP BY"
Aggregations - The Elasticsearch "GROUP BY"


Why Spark Is the Next Top (Compute) Model

  • 1. Why Spark Is the Next Top (Compute) Model Big Data Everywhere Chicago, Oct. 1, 2014 @deanwampler polyglotprogramming.com/talks Tuesday, September 30, 14 Copyright (c) 2014, Dean Wampler, All Rights Reserved, unless otherwise noted. Image: Detail of the London Eye
  • 2. Dean Wampler dean.wampler@typesafe.com polyglotprogramming.com/talks @deanwampler Tuesday, September 30, 14 About me. You can find this presentation and others on Big Data and Scala at polyglotprogramming.com. Programming Scala, 2nd Edition is forthcoming. photo: Dusk at 30,000 ft above the Central Plains of the U.S. on a Winter’s Day.
  • 3. Or this? Tuesday, September 30, 14 photo: https://twitter.com/john_overholt/status/447431985750106112/photo/1
  • 4. Hadoop circa 2013 Tuesday, September 30, 14 The state of Hadoop as of last year. Image: Detail of the London Eye
  • 5. Hadoop v2.X Cluster node Node Mgr Data Node DiskDiskDiskDiskDisk node Node Mgr Data Node DiskDiskDiskDiskDisk node Node Mgr Data Node DiskDiskDiskDiskDisk master Resource Mgr Name Node master Name Node Tuesday, September 30, 14 Schematic view of a Hadoop 2 cluster. For a more precise definition of the services and what they do, see e.g., http://hadoop.apache.org/ docs/r2.3.0/hadoop-yarn/hadoop-yarn-site/YARN.html We aren’t interested in great details at this point, but we’ll call out a few useful things to know.
  • 6. Resource and Node Managers Hadoop v2.X Cluster node Node Mgr Data Node DiskDiskDiskDiskDisk node Node Mgr Data Node DiskDiskDiskDiskDisk node Node Mgr Data Node DiskDiskDiskDiskDisk master Resource Mgr Name Node master Name Node Tuesday, September 30, 14 Hadoop 2 uses YARN to manage resources via the master Resource Manager, which includes a pluggable job scheduler and an Applications Manager. It coordinates with the Node Manager on each node to schedule jobs and provide resources. Other services involved, including application-specific Containers and Application Masters are not shown.
  • 7. Name Node and Data Nodes Hadoop v2.X Cluster node Node Mgr Data Node DiskDiskDiskDiskDisk node Node Mgr Data Node DiskDiskDiskDiskDisk node Node Mgr Data Node DiskDiskDiskDiskDisk master Resource Mgr Name Node master Name Node Tuesday, September 30, 14 Hadoop 2 clusters federate the Name node services that manage the file system, HDFS. They provide horizontal scalability of file-system operations and resiliency when service instances fail. The data node services manage individual blocks for files.
  • 8. MapReduce The classic compute model for Hadoop Tuesday, September 30, 14 Hadoop 2 clusters federate the Name node services that manage the file system, HDFS. They provide horizontal scalability of file-system operations and resiliency when service instances fail. The data node services manage individual blocks for files.
  • 9. MapReduce 1 map step + 1 reduce step (wash, rinse, repeat) Tuesday, September 30, 14 You get 1 map step (although there is limited support for chaining mappers) and 1 reduce step. If you can’t implement an algorithm in these two steps, you can chain jobs together, but you’ll pay a tax of flushing the entire data set to disk between these jobs.
  • 10. MapReduce Example: Inverted Index Tuesday, September 30, 14 The inverted index is a classic algorithm needed for building search engines.
  • 11. Tuesday, September 30, 14 Before running MapReduce, crawl teh interwebs, find all the pages, and build a data set of URLs -> doc contents, written to flat files in HDFS or one of the more “sophisticated” formats.
  • 12. Tuesday, September 30, 14 Now we’re running MapReduce. In the map step, a task (JVM process) per file *block* (64MB or larger) reads the rows, tokenizes the text and outputs key-value pairs (“tuples”)...
  • 13. Map Task (hadoop,(wikipedia.org/hadoop,1)) (provides,(wikipedia.org/hadoop,1)) (mapreduce,(wikipedia.org/hadoop, 1)) (and,(wikipedia.org/hadoop,1)) (hdfs,(wikipedia.org/hadoop, 1)) Tuesday, September 30, 14 ... the keys are each word found and the values are themselves tuples, each URL and the count of the word. In our simplified example, there are typically only single occurrences of each work in each document. The real occurrences are interesting because if a word is mentioned a lot in a document, the chances are higher that you would want to find that document in a search for that word.
  • 15. Tuesday, September 30, 14 The output tuples are sorted by key locally in each map task, then “shuffled” over the cluster network to reduce tasks (each a JVM process, too), where we want all occurrences of a given key to land on the same reduce task.
  • 16. Tuesday, September 30, 14 Finally, each reducer just aggregates all the values it receives for each key, then writes out new files to HDFS with the words and a list of (URL-count) tuples (pairs).
  • 17. Altogether... Tuesday, September 30, 14 Finally, each reducer just aggregates all the values it receives for each key, then writes out new files to HDFS with the words and a list of (URL-count) tuples (pairs).
  • 18. What’s not to like? Tuesday, September 30, 14 This seems okay, right? What’s wrong with it?
  • 19. Awkward Most algorithms are much harder to implement in this restrictive map-then-reduce model. Tuesday, September 30, 14 Writing MapReduce jobs requires arcane, specialized skills that few master. For a good overview, see http://lintool.github.io/ MapReduceAlgorithms/.
  • 20. Awkward Lack of flexibility inhibits optimizations, too. Tuesday, September 30, 14 The inflexible compute model leads to complex code to improve performance where hacks are used to work around the limitations. Hence, optimizations are hard to implement. The Spark team has commented on this, see http://databricks.com/blog/2014/03/26/Spark-SQL-manipulating- structured-data-using-Spark.html
  • 21. Performance Full dump to disk between jobs. Tuesday, September 30, 14 Sequencing jobs wouldn’t be so bad if the “system” was smart enough to cache data in memory. Instead, each job dumps everything to disk, then the next job reads it back in again. This makes iterative algorithms particularly painful.
  • 22. Enter Spark spark.apache.org Tuesday, September 30, 14
  • 23. Cluster Computing Can be run in: •YARN (Hadoop 2) •Mesos (Cluster management) •EC2 •Standalone mode Tuesday, September 30, 14 If you have a Hadoop cluster, you can run Spark as a seamless compute engine on YARN. (You can also use pre-YARN Hadoop v1 clusters, but there you have manually allocate resources to the embedded Spark cluster vs Hadoop.) Mesos is a general-purpose cluster resource manager that can also be used to manage Hadoop resources. Scripts for running a Spark cluster in EC2 are available. Standalone just means you run Spark’s built-in support for clustering (or run locally on a single box - e.g., for development). EC2 deployments are usually standalone...
  • 24. Compute Model Fine-grained “combinators” for composing algorithms. Tuesday, September 30, 14 Once you learn the core set of primitives, it’s easy to compose non-trivial algorithms with little code.
  • 25. Compute Model RDDs: Resilient, Distributed Datasets Tuesday, September 30, 14 RDDs shard the data over a cluster, like a virtualized, distributed collection (analogous to HDFS). They support intelligent caching, which means no naive flushes of massive datasets to disk. This feature alone allows Spark jobs to run 10-100x faster than comparable MapReduce jobs! The “resilient” part means they will reconstitute shards lost due to process/server crashes.
  • 26. Compute Model Tuesday, September 30, 14 RDDs shard the data over a cluster, like a virtualized, distributed collection (analogous to HDFS). They support intelligent caching, which means no naive flushes of massive datasets to disk. This feature alone allows Spark jobs to run 10-100x faster than comparable MapReduce jobs! The “resilient” part means they will reconstitute shards lost due to process/server crashes.
  • 27. Compute Model Written in Scala, with Java and Python APIs. Tuesday, September 30, 14 Once you learn the core set of primitives, it’s easy to compose non-trivial algorithms with little code.
  • 28. Inverted Index in MapReduce (Java). Tuesday, September 30, 14 Let’s see an an actual implementaEon of the inverted index. First, a Hadoop MapReduce (Java) version, adapted from hOps:// developer.yahoo.com/hadoop/tutorial/module4.html#soluEon It’s about 90 lines of code, but I reformaOed to fit beOer. This is also a slightly simpler version that the one I diagrammed. It doesn’t record a count of each word in a document; it just writes (word,doc-­‐Etle) pairs out of the mappers and the final (word,list) output by the reducers just has a list of documentaEons, hence repeats. A second job would be necessary to count the repeats.
  • 29. import java.io.IOException; import java.util.*; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.*; import org.apache.hadoop.mapred.*; public class LineIndexer { public static void main(String[] args) { JobClient client = new JobClient(); JobConf conf = new JobConf(LineIndexer.class); conf.setJobName("LineIndexer"); conf.setOutputKeyClass(Text.class); conf.setOutputValueClass(Text.class); FileInputFormat.addInputPath(conf, new Path("input")); FileOutputFormat.setOutputPath(conf, Tuesday, September 30, 14 I’ve shortened the original code a bit, e.g., using * import statements instead of separate imports for each class. I’m not going to explain every line ... nor most lines. Everything is in one outer class. We start with a main rouEne that sets up the job. LoOa boilerplate... I used yellow for method calls, because methods do the real work!! But noEce that the funcEons in this code don’t really do a whole lot...
  • 30. JobClient client = new JobClient(); JobConf conf = new JobConf(LineIndexer.class); conf.setJobName("LineIndexer"); conf.setOutputKeyClass(Text.class); conf.setOutputValueClass(Text.class); FileInputFormat.addInputPath(conf, new Path("input")); FileOutputFormat.setOutputPath(conf, new Path("output")); conf.setMapperClass( LineIndexMapper.class); conf.setReducerClass( LineIndexReducer.class); client.setConf(conf); try { JobClient.runJob(conf); } catch (Exception e) { Tuesday, September 30, 14 boilerplate...
  • 31. LineIndexMapper.class); conf.setReducerClass( LineIndexReducer.class); client.setConf(conf); try { JobClient.runJob(conf); } catch (Exception e) { e.printStackTrace(); } } public static class LineIndexMapper extends MapReduceBase implements Mapper<LongWritable, Text, Text, Text> { private final static Text word = new Text(); private final static Text location = new Text(); Tuesday, September 30, 14 main ends with a try-catch clause to run the job.
  • 32. public static class LineIndexMapper extends MapReduceBase implements Mapper<LongWritable, Text, Text, Text> { private final static Text word = new Text(); private final static Text location = new Text(); public void map( LongWritable key, Text val, OutputCollector<Text, Text> output, Reporter reporter) throws IOException { FileSplit fileSplit = (FileSplit)reporter.getInputSplit(); String fileName = fileSplit.getPath().getName(); location.set(fileName); Tuesday, September 30, 14 This is the LineIndexMapper class for the mapper. The map method does the real work of tokenization and writing the (word, document-name) tuples.
  • 33. Reporter reporter) throws IOException { FileSplit fileSplit = (FileSplit)reporter.getInputSplit(); String fileName = fileSplit.getPath().getName(); location.set(fileName); String line = val.toString(); StringTokenizer itr = new StringTokenizer(line.toLowerCase()); while (itr.hasMoreTokens()) { word.set(itr.nextToken()); output.collect(word, location); } } } public static class LineIndexReducer extends MapReduceBase implements Reducer<Text, Text, Text, Text> { Tuesday, September 30, 14 The rest of the LineIndexMapper class and map method.
  • 34. public static class LineIndexReducer extends MapReduceBase implements Reducer<Text, Text, Text, Text> { public void reduce(Text key, Iterator<Text> values, OutputCollector<Text, Text> output, Reporter reporter) throws IOException { boolean first = true; StringBuilder toReturn = new StringBuilder(); while (values.hasNext()) { if (!first) toReturn.append(", "); first=false; toReturn.append( values.next().toString()); } output.collect(key, new Text(toReturn.toString())); } Tuesday, September 30, 14 The reducer class, LineIndexReducer, with the reduce method that is called for each key and a list of values for that key. The reducer is stupid; it just reformats the values collection into a long string and writes the final (word,list-string) output.
  • 35. Reporter reporter) throws IOException { boolean first = true; StringBuilder toReturn = new StringBuilder(); while (values.hasNext()) { if (!first) toReturn.append(", "); first=false; toReturn.append( values.next().toString()); } output.collect(key, new Text(toReturn.toString())); } } } Tuesday, September 30, 14 EOF
  • 36. Altogether import java.io.IOException; import java.util.*; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.*; import org.apache.hadoop.mapred.*; public class LineIndexer { public static void main(String[] args) { JobClient client = new JobClient(); JobConf conf = new JobConf(LineIndexer.class); conf.setJobName("LineIndexer"); conf.setOutputKeyClass(Text.class); conf.setOutputValueClass(Text.class); FileInputFormat.addInputPath(conf, new Path("input")); FileOutputFormat.setOutputPath(conf, new Path("output")); conf.setMapperClass( LineIndexMapper.class); conf.setReducerClass( LineIndexReducer.class); client.setConf(conf); try { JobClient.runJob(conf); } catch (Exception e) { e.printStackTrace(); } } public static class LineIndexMapper extends MapReduceBase implements Mapper<LongWritable, Text, Text, Text> { private final static Text word = new Text(); private final static Text location = new Text(); public void map( LongWritable key, Text val, OutputCollector<Text, Text> output, Reporter reporter) throws IOException { FileSplit fileSplit = (FileSplit)reporter.getInputSplit(); String fileName = fileSplit.getPath().getName(); location.set(fileName); String line = val.toString(); StringTokenizer itr = new StringTokenizer(line.toLowerCase()); while (itr.hasMoreTokens()) { word.set(itr.nextToken()); output.collect(word, location); } } } public static class LineIndexReducer extends MapReduceBase implements Reducer<Text, Text, Text, Text> { public void reduce(Text key, Iterator<Text> values, OutputCollector<Text, Text> output, Reporter reporter) throws IOException { boolean first = true; StringBuilder toReturn = new StringBuilder(); while (values.hasNext()) { if (!first) toReturn.append(", "); first=false; toReturn.append( values.next().toString()); } output.collect(key, new Text(toReturn.toString())); } } } Tuesday, September 30, 14 The whole shebang (6pt. font)
  • 37. Inverted Index in Spark (Scala). Tuesday, September 30, 14 This code is approximately 45 lines, but it does more than the previous Java example, it implements the original inverted index algorithm I diagrammed where word counts are computed and included in the data.
  • 38. import org.apache.spark.SparkContext import org.apache.spark.SparkContext._ object InvertedIndex { def main(args: Array[String]) = { val sc = new SparkContext( "local", "Inverted Index") sc.textFile("data/crawl") .map { line => val array = line.split("t", 2) (array(0), array(1)) } .flatMap { case (path, text) => text.split("""W+""") map { word => (word, path) } Tuesday, September 30, 14 It starts with imports, then declares a singleton object (a first-­‐class concept in Scala), with a main rouEne (as in Java). The methods are colored yellow again. Note this Eme how dense with meaning they are this Eme. }
  • 39. val sc = new SparkContext( "local", "Inverted Index") sc.textFile("data/crawl") .map { line => val array = line.split("t", 2) (array(0), array(1)) } .flatMap { case (path, text) => text.split("""W+""") map { word => (word, path) } } .map { case (w, p) => ((w, p), 1) } .reduceByKey { case (n1, n2) => n1 + n2 } .map { Tuesday, September 30, 14 You being the workflow by declaring a SparkContext (in “local” mode, in this case). The rest of the program is a sequence of funcEon calls, analogous to “pipes” we connect together to perform the data flow. Next we read one or more text files. If “data/crawl” has 1 or more Hadoop-­‐style “part-­‐NNNNN” files, Spark will process all of them (in parallel if running a distributed configuraEon; they will be processed synchronously in local mode).
  • 40. sc.textFile("data/crawl") .map { line => val array = line.split("t", 2) (array(0), array(1)) } .flatMap { case (path, text) => text.split("""W+""") map { word => (word, path) } } .map { case (w, p) => ((w, p), 1) } .reduceByKey { case (n1, n2) => n1 + n2 } .map { case ((w, p), n) => (w, (p, n)) } .groupBy { case (w, (p, n)) => w Tuesday, September 30, 14 sc.textFile returns an RDD with a string for each line of input text. So, the first thing we do is map over these strings to extract the original document id (i.e., file name), followed by the text in the document, all on one line. We assume tab is the separator. “(array(0), array(1))” returns a two-­‐element “tuple”. Think of the output RDD has having a schema “String fileName, String text”.
  • 41. } .flatMap { case (path, text) => text.split("""W+""") map { word => (word, path) } Beautiful, } .map { case (w, p) => ((w, p), 1) } .reduceByKey { case (n1, n2) => n1 + n2 } .map { case ((w, p), n) => (w, (p, n)) } .groupBy { case (w, (p, n)) => w } .map { case (w, seq) => no? Tuesday, September 30, 14 flatMap maps over each of these 2-­‐element tuples. We split the text into words on non-­‐alphanumeric characters, then output collecEons of word (our ulEmate, final “key”) and the path. Each line is converted to a collecEon of (word,path) pairs, so flatMap converts the collecEon of collecEons into one long “flat” collecEon of (word,path) pairs. Then we map over these pairs and add a single count of 1.
  • 42. Tuesday, September 30, 14 Another example of a beauEful and profound DSL, in this case from the world of Physics: Maxwell’s equaEons: hOp://upload.wikimedia.org/ wikipedia/commons/c/c4/Maxwell'sEquaEons.svg
  • 43. case (w, p) => ((w, p), 1) } .reduceByKey { case (n1, n2) => n1 + n2 } .map { case ((w, p), n) => (w, (p, n)) } .groupBy { case (w, (p, n)) => w } .map { case (w, seq) => (word1, (path1, n1)) (word2, (path2, n2)) ... val seq2 = seq map { case (_, (p, n)) => (p, n) } (w, seq2.mkString(", ")) } .saveAsTextFile(argz.outpath) sc.stop() } Tuesday, September 30, 14 reduceByKey does an implicit “group by” to bring together all occurrences of the same (word, path) and then sums up their counts. Note the input to the next map is now ((word, path), n), where n is now >= 1. We transform these tuples into the form we actually want, (word, (path, n)).
  • 44. } .groupBy { case (w, (p, n)) => w } .map { case (w, seq) => (word, seq((word, (path1, n1)), (word, (path2, n2)), ...)) val seq2 = seq map { case (_, (p, n)) => (p, n) } (w, seq2.mkString(", ")) } .saveAsTextFile(argz.outpath) sc.stop() } } (word, “(path1, n1), (path2, n2), ...”) Tuesday, September 30, 14 Now we do an explicit group by to bring all the same words together. The output will be (word, (word, (path1, n1)), (word, (path2, n2)), ...). The last map removes the redundant “word” values in the sequences of the previous output. It outputs the sequence as a final string of comma-­‐ separated (path,n) pairs. We finish by saving the output as text file(s) and stopping the workflow.
  • 45. import org.apache.spark.SparkContext import org.apache.spark.SparkContext._ object InvertedIndex { def main(args: Array[String]) = { val sc = new SparkContext( "local", "Inverted Index") sc.textFile("data/crawl") .map { line => val array = line.split("t", 2) (array(0), array(1)) } .flatMap { case (path, text) => text.split("""W+""") map { word => (word, path) } } .map { case (w, p) => ((w, p), 1) } .reduceByKey { case (n1, n2) => n1 + n2 } .map { case ((w, p), n) => (w, (p, n)) } .groupBy { case (w, (p, n)) => w } .map { case (w, seq) => val seq2 = seq map { case (_, (p, n)) => (p, n) } (w, seq2.mkString(", ")) } .saveAsTextFile(argz.outpath) sc.stop() } } Altogether Tuesday, September 30, 14 The whole shebang (12pt. font, this Eme)
  • 46. sc.textFile("data/crawl") .map { line => val array = line.split("t", 2) (array(0), array(1)) } .flatMap { case (path, text) => text.split("""W+""") map { word => (word, path) } Concise Combinators! } .map { case (w, p) => ((w, p), 1) } .reduceByKey{ case (n1, n2) => n1 + n2 } .map { case ((w, p), n) => (w, (p, n)) } .groupBy { Tuesday, September 30, 14 I’ve shortened the original code a bit, e.g., using * import statements instead of separate imports for each class. I’m not going to explain every line ... nor most lines. Everything is in one outer class. We start with a main rouEne that sets up the job. LoOa boilerplate...
  • 47. The Spark version took me ~30 minutes to write. Tuesday, September 30, 14 Once you learn the core primiEves I used, and a few tricks for manipulaEng the RDD tuples, you can very quickly build complex algorithms for data processing! The Spark API allowed us to focus almost exclusively on the “domain” of data transformaEons, while the Java MapReduce version (which does less), forced tedious aOenEon to infrastructure mechanics.
  • 48. Use a SQL query when you can!! Tuesday, September 30, 14
  • 49. Spark SQL! Mix SQL queries with the RDD API. Tuesday, September 30, 14 Use the best tool for a particular problem.
  • 50. Spark SQL! Create, Read, and Delete Hive Tables Tuesday, September 30, 14 Interoperate with Hive, the original Hadoop SQL tool.
  • 51. Spark SQL! Read JSON and Infer the Schema Tuesday, September 30, 14 Read strings that are JSON records, infer the schema on the fly. Also, write RDD records as JSON.
  • 52. SparkSQL ~10-100x the performance of Hive, due to in-memory caching of RDDs & better Spark abstractions. Tuesday, September 30, 14
  • 53. Combine SparkSQL queries with Machine Learning code. Tuesday, September 30, 14 We’ll use the Spark “MLlib” in the example, then return to it in a moment.
  • 54. CREATE TABLE Users( userId INT, name STRING, email STRING, age INT, latitude DOUBLE, longitude DOUBLE, subscribed BOOLEAN); CREATE TABLE Events( userId INT, action INT); HiveQL Schemas definiEons. Tuesday, September 30, 14 This example adapted from the following blog post announcing Spark SQL: hOp://databricks.com/blog/2014/03/26/Spark-­‐SQL-­‐manipulaEng-­‐structured-­‐data-­‐using-­‐Spark.html Assume we have these Hive/Shark tables, with data about our users and events that have occurred.
  • 55. val trainingDataTable = sql(""" SELECT e.action, u.age, u.latitude, u.longitude FROM Users u JOIN Events e ON u.userId = e.userId""") val trainingData = trainingDataTable map { row => val features = Array[Double](row(1), row(2), row(3)) LabeledPoint(row(0), features) } val model = new LogisticRegressionWithSGD() .run(trainingData) val allCandidates = sql(""" SELECT userId, age, latitude, longitude Tuesday, September 30, 14 Here is some Spark (Scala) code with an embedded SQL query that joins the Users and Events tables. The “””...””” string allows embedded line feeds. The “sql” funcEon returns an RDD, which we then map over to create LabeledPoints, an object used in Spark’s MLlib (machine learning library) for a recommendaEon engine. The “label” is the kind of event and the user’s age and lat/long coordinates are the “features” used for making recommendaEons. (E.g., if you’re 25 and near a certain locaEon in the city, you might be interested a nightclub near by...)
  • 56. } val model = new LogisticRegressionWithSGD() .run(trainingData) val allCandidates = sql(""" SELECT userId, age, latitude, longitude FROM Users WHERE subscribed = FALSE""") case class Score( userId: Int, score: Double) val scores = allCandidates map { row => val features = Array[Double](row(1), row(2), row(3)) Score(row(0), model.predict(features)) } // Hive table scores.registerAsTable("Scores") Tuesday, September 30, 14 Next we train the recommendaEon engine, using a “logisEc regression” fit to the training data, where “stochasEc gradient descent” (SGD) is used to train it. (This is a standard tool set for recommendaEon engines; see for example: hOp://www.cs.cmu.edu/~wcohen/10-­‐605/assignments/ sgd.pdf)
  • 57. .run(trainingData) val allCandidates = sql(""" SELECT userId, age, latitude, longitude FROM Users WHERE subscribed = FALSE""") case class Score( userId: Int, score: Double) val scores = allCandidates map { row => val features = Array[Double](row(1), row(2), row(3)) Score(row(0), model.predict(features)) } // Hive table scores.registerAsTable("Scores") val topCandidates = sql(""" SELECT u.name, u.email FROM Scores s JOIN Users u ON s.userId = u.userId Tuesday, September 30, 14 Now run a query against all users who aren’t already subscribed to noEficaEons.
  • 58. case class Score( userId: Int, score: Double) val scores = allCandidates map { row => val features = Array[Double](row(1), row(2), row(3)) Score(row(0), model.predict(features)) } // Hive table scores.registerAsTable("Scores") val topCandidates = sql(""" SELECT u.name, u.email FROM Scores s JOIN Users u ON s.userId = u.userId ORDER BY score DESC LIMIT 100""") Tuesday, September 30, 14 Declare a class to hold each user’s “score” as produced by the recommendaEon engine and map the “all” query results to Scores. Then “register” the scores RDD as a “Scores” table in Hive’s metadata respository. This is equivalent to running a “CREATE TABLE Scores ...” command at the Hive/Shark prompt!
  • 59. } // Hive table scores.registerAsTable("Scores") val topCandidates = sql(""" SELECT u.name, u.email FROM Scores s JOIN Users u ON s.userId = u.userId ORDER BY score DESC LIMIT 100""") Tuesday, September 30, 14 Finally, run a new query to find the people with the highest scores that aren’t already subscribing to noEficaEons. You might send them an email next recommending that they subscribe...
  • 60. Event Stream Processing Tuesday, September 30, 14
  • 61. Spark Streaming Use the same abstractions for near real-time, event streaming. Tuesday, September 30, 14 Once you learn the core set of primitives, it’s easy to compose non-trivial algorithms with little code.
  • 62. Tuesday, September 30, 14 A DSTream (discretized stream) wraps the RDDs for each “batch” of events. You can specify the granularity, such as all events in 1 second batches, then your Spark job is passed each batch of data for processing. You can also work with moving windows of batches.
  • 63. Very similar code... Tuesday, September 30, 14
  • 64. val sc = new SparkContext(...) val ssc = new StreamingContext( sc, Seconds(1)) // A DStream that will listen to server:port val lines = ssc.socketTextStream(server, port) // Word Count... val words = lines flatMap { line => line.split("""W+""") } val pairs = words map (word => (word, 1)) val wordCounts = pairs reduceByKey ((n1, n2) => n1 + n2) wordCount.print() // print a few counts... ssc.start() Tuesday, September 30, 14 This example adapted from the following page on the Spark website: hOp://spark.apache.org/docs/0.9.0/streaming-­‐programming-­‐guide.html#a-­‐quick-­‐example We create a StreamingContext that wraps a SparkContext (there are alternaEve ways to construct it...). It will “clump” the events into 1-­‐second intervals. Next we setup a socket to stream text to us from another server and port (one of several ways to ingest data).
  • 65. ssc.socketTextStream(server, port) // Word Count... val words = lines flatMap { line => line.split("""W+""") } val pairs = words map (word => (word, 1)) val wordCounts = pairs reduceByKey ((n1, n2) => n1 + n2) wordCount.print() // print a few counts... ssc.start() ssc.awaitTermination() Tuesday, September 30, 14 Now the “word count” happens over each interval (aggregaEon across intervals is also possible), but otherwise it works like before. Once we setup the flow, we start it and wait for it to terminate through some means, such as the server socket closing.
  • 66. Machine Learning Library Tuesday, September 30, 14
  • 67. MLlib •Linear regression •Binary classification •Collaborative filtering •Clustering •Others... Tuesday, September 30, 14 Not as full-featured as more mature toolkits, but the Mahout project has announced they are going to port their algorithms to Spark, which include powerful Mathematics, e.g., Matrix support libraries.
  • 68. Distributed Graph Computing Tuesday, September 30, 14 Some problems are more naturally represented as graphs. Extends RDDs to support property graphs with directed edges.
  • 69. Graphs •Examples: •Facebook friend networks •Twitter followers •Page Rank Tuesday, September 30, 14
  • 70. Graphs •Graph algorithms •Friends of friends •Minimum spanning tree •Cliques Tuesday, September 30, 14
  • 72. Tuesday, September 30, 14 Why is Spark so good (and Java MapReduce so bad)? Because fundamentally, data analytics is Mathematics and programming tools inspired by Mathematics - like Functional Programming - are ideal tools for working with data. This is why Spark code is so concise, yet powerful. This is why it is a great platform for performance optimizations. This is why Spark is a great platform for higher-level tools, like SQL, graphs, etc. Interest in FP started growing ~10 years ago as a tool to attack concurrency. I believe that data is now driving FP adoption even faster. I know many Java shops that switched to Scala when they adopted tools like Spark and Scalding (https://github.com/twitter/scalding).
  • 73. Spark A flexible, scalable distributed compute platform with concise, powerful APIs and higher-order tools. spark.apache.org Tuesday, September 30, 14
  • 74. Why Spark Is the Next Top (Compute) Model @deanwampler polyglotprogramming.com/talks Tuesday, September 30, 14 Copyright (c) 2014, Dean Wampler, All Rights Reserved, unless otherwise noted. Image: The London Eye on one side of the Thames, Parliament on the other.
