This document describes how to perform latent semantic analysis (LSA) on Wikipedia data using Apache Spark. It discusses parsing Wikipedia XML data, creating a term-document matrix, applying singular value decomposition to reduce the matrix's rank, and interpreting the results to find concepts and related documents. Key steps include parsing Wikipedia pages into terms and documents, cleaning the data through lemmatization and removing stop words, creating a tf-idf weighted term-document matrix, applying SVD to get U, S, and V matrices, and using these to find terms and documents most strongly related to given queries.

1. 1© Cloudera, Inc. All rights reserved.
LSA-ing Wikipedia with Spark
Sandy Ryza | Senior Data Scientist

2. 2© Cloudera, Inc. All rights reserved.
Me
• Data scientist at Cloudera
• Recently lead Cloudera’s Apache Spark
development
• Author of Advanced Analytics with Spark

3. 3© Cloudera, Inc. All rights reserved.
LSA-ing Wikipedia with Spark
Sandy Ryza | Senior Data Scientist

4. 4© Cloudera, Inc. All rights reserved.
Latent Semantic Analysis
• Fancy name for applying a matrix decomposition (SVD) to text data

5. 5© Cloudera, Inc. All rights reserved.

6. 6© Cloudera, Inc. All rights reserved.

7. 7© Cloudera, Inc. All rights reserved.
Parse
Raw Data
Clean
Term-
Document
Matrix
SVD
Interpret
Results

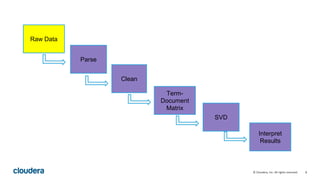

8. 8© Cloudera, Inc. All rights reserved.
Parse
Raw Data
Clean
Term-
Document
Matrix
SVD
Interpret
Results

9. 9© Cloudera, Inc. All rights reserved.

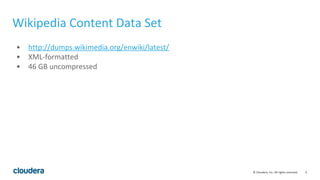

Wikipedia Content Data Set
• http://dumps.wikimedia.org/enwiki/latest/
• XML-formatted
• 46 GB uncompressed

10. 10© Cloudera, Inc. All rights reserved.

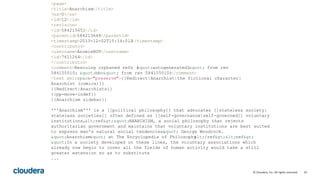

<page>
<title>Anarchism</title>
<ns>0</ns>
<id>12</id>
<revision>
<id>584215651</id>
<parentid>584213644</parentid>
<timestamp>2013-12-02T15:14:01Z</timestamp>
<contributor>
<username>AnomieBOT</username>
<id>7611264</id>
</contributor>
<comment>Rescuing orphaned refs (&quot;autogenerated1&quot; from rev
584155010; &quot;bbc&quot; from rev 584155010)</comment>
<text xml:space="preserve">{{Redirect|Anarchist|the fictional character|
Anarchist (comics)}}
{{Redirect|Anarchists}}
{{pp-move-indef}}
{{Anarchism sidebar}}
'''Anarchism''' is a [[political philosophy]] that advocates [[stateless society|
stateless societies]] often defined as [[self-governance|self-governed]] voluntary
institutions,&lt;ref&gt;&quot;ANARCHISM, a social philosophy that rejects
authoritarian government and maintains that voluntary institutions are best suited
to express man's natural social tendencies.&quot; George Woodcock.
&quot;Anarchism&quot; at The Encyclopedia of Philosophy&lt;/ref&gt;&lt;ref&gt;
&quot;In a society developed on these lines, the voluntary associations which
already now begin to cover all the fields of human activity would take a still
greater extension so as to substitute
...

11. 11© Cloudera, Inc. All rights reserved.

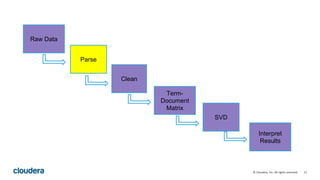

Parse
Raw Data
Clean
Term-
Document
Matrix
SVD
Interpret
Results

12. 12© Cloudera, Inc. All rights reserved.

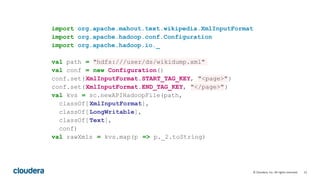

import org.apache.mahout.text.wikipedia.XmlInputFormat
import org.apache.hadoop.conf.Configuration
import org.apache.hadoop.io._
val path = "hdfs:///user/ds/wikidump.xml"
val conf = new Configuration()
conf.set(XmlInputFormat.START_TAG_KEY, "<page>")
conf.set(XmlInputFormat.END_TAG_KEY, "</page>")
val kvs = sc.newAPIHadoopFile(path,
classOf[XmlInputFormat],
classOf[LongWritable],
classOf[Text],
conf)
val rawXmls = kvs.map(p => p._2.toString)

13. 13© Cloudera, Inc. All rights reserved.

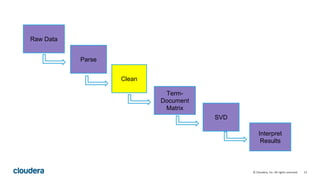

Parse
Raw Data
Clean
Term-
Document
Matrix
SVD
Interpret
Results

14. 14© Cloudera, Inc. All rights reserved.

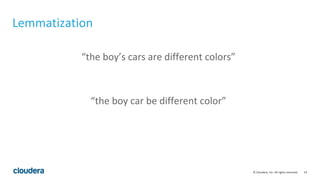

Lemmatization
“the boy’s cars are different colors”
“the boy car be different color”

15. 15© Cloudera, Inc. All rights reserved.

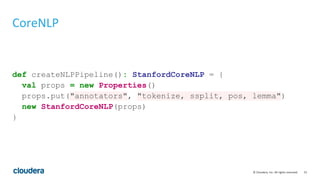

CoreNLP
def createNLPPipeline(): StanfordCoreNLP = {
val props = new Properties()
props.put("annotators", "tokenize, ssplit, pos, lemma")
new StanfordCoreNLP(props)
}

16. 16© Cloudera, Inc. All rights reserved.

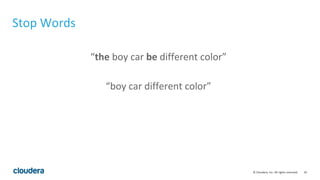

Stop Words
“the boy car be different color”
“boy car different color”

17. 17© Cloudera, Inc. All rights reserved.

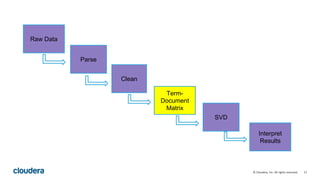

Parse
Raw Data
Clean
Term-
Document
Matrix
SVD
Interpret
Results

18. 18© Cloudera, Inc. All rights reserved.
Tail Monkey Algorithm Scala
Document 1 1.5 1.8
Document 2 2.0 4.3
Document 3 1.4 6.7
Document 4 1.6
Document 5 1.2
Term-Document Matrix

19. 19© Cloudera, Inc. All rights reserved.

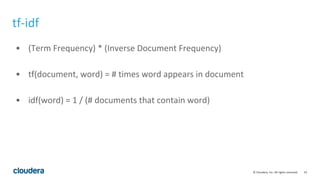

tf-idf
• (Term Frequency) * (Inverse Document Frequency)
• tf(document, word) = # times word appears in document
• idf(word) = 1 / (# documents that contain word)

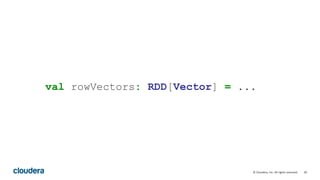

20. 20© Cloudera, Inc. All rights reserved.
val rowVectors: RDD[Vector] = ...

21. 21© Cloudera, Inc. All rights reserved.

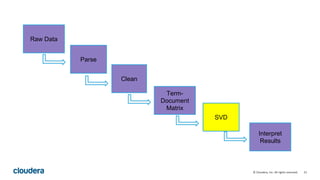

Parse
Raw Data
Clean
Term-
Document
Matrix
SVD
Interpret
Results

22. 22© Cloudera, Inc. All rights reserved.

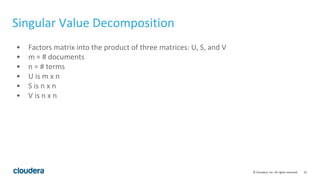

Singular Value Decomposition
• Factors matrix into the product of three matrices: U, S, and V
• m = # documents
• n = # terms
• U is m x n
• S is n x n
• V is n x n

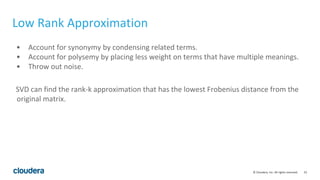

23. 23© Cloudera, Inc. All rights reserved.
Low Rank Approximation
• Account for synonymy by condensing related terms.
• Account for polysemy by placing less weight on terms that have multiple meanings.
• Throw out noise.
SVD can find the rank-k approximation that has the lowest Frobenius distance from the
original matrix.

24. 24© Cloudera, Inc. All rights reserved.

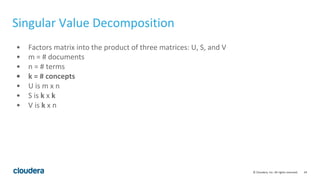

Singular Value Decomposition
• Factors matrix into the product of three matrices: U, S, and V
• m = # documents
• n = # terms
• k = # concepts
• U is m x n
• S is k x k
• V is k x n

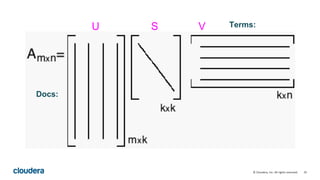

25. 25© Cloudera, Inc. All rights reserved.
Docs:
Terms:U S V

26. 26© Cloudera, Inc. All rights reserved.

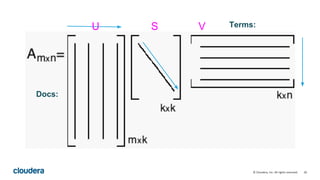

Docs:
Terms:U S V

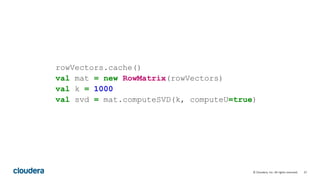

27. 27© Cloudera, Inc. All rights reserved.
rowVectors.cache()
val mat = new RowMatrix(rowVectors)
val k = 1000
val svd = mat.computeSVD(k, computeU=true)

28. 28© Cloudera, Inc. All rights reserved.

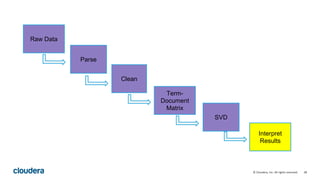

Parse
Raw Data
Clean
Term-
Document
Matrix
SVD
Interpret
Results

29. 29© Cloudera, Inc. All rights reserved.

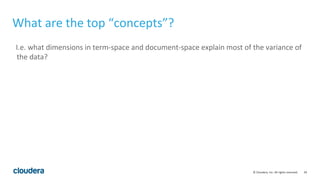

What are the top “concepts”?
I.e. what dimensions in term-space and document-space explain most of the variance of
the data?

30. 30© Cloudera, Inc. All rights reserved.
Docs:
Terms:U S V

31. 31© Cloudera, Inc. All rights reserved.

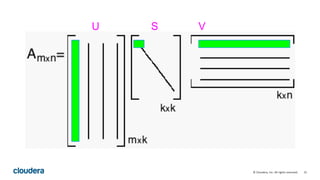

U S V

32. 32© Cloudera, Inc. All rights reserved.
U S V

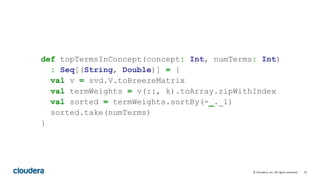

33. 33© Cloudera, Inc. All rights reserved.
def topTermsInConcept(concept: Int, numTerms: Int)
: Seq[(String, Double)] = {
val v = svd.V.toBreezeMatrix
val termWeights = v(::, k).toArray.zipWithIndex
val sorted = termWeights.sortBy(-_._1)
sorted.take(numTerms)
}

34. 34© Cloudera, Inc. All rights reserved.

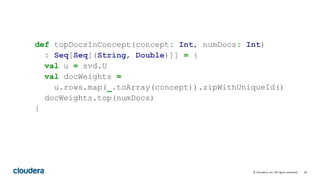

def topDocsInConcept(concept: Int, numDocs: Int)
: Seq[Seq[(String, Double)]] = {
val u = svd.U
val docWeights =
u.rows.map(_.toArray(concept)).zipWithUniqueId()
docWeights.top(numDocs)
}

35. 35© Cloudera, Inc. All rights reserved.

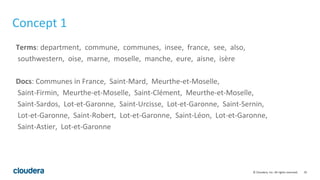

Concept 1
Terms: department, commune, communes, insee, france, see, also,
southwestern, oise, marne, moselle, manche, eure, aisne, isère
Docs: Communes in France, Saint-Mard, Meurthe-et-Moselle,
Saint-Firmin, Meurthe-et-Moselle, Saint-Clément, Meurthe-et-Moselle,
Saint-Sardos, Lot-et-Garonne, Saint-Urcisse, Lot-et-Garonne, Saint-Sernin,
Lot-et-Garonne, Saint-Robert, Lot-et-Garonne, Saint-Léon, Lot-et-Garonne,
Saint-Astier, Lot-et-Garonne

36. 36© Cloudera, Inc. All rights reserved.

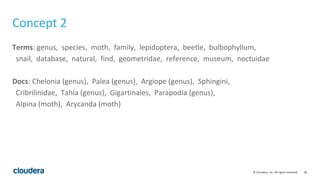

Concept 2
Terms: genus, species, moth, family, lepidoptera, beetle, bulbophyllum,
snail, database, natural, find, geometridae, reference, museum, noctuidae
Docs: Chelonia (genus), Palea (genus), Argiope (genus), Sphingini,
Cribrilinidae, Tahla (genus), Gigartinales, Parapodia (genus),
Alpina (moth), Arycanda (moth)

37. 37© Cloudera, Inc. All rights reserved.

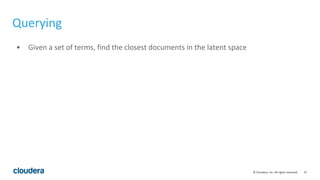

Querying
• Given a set of terms, find the closest documents in the latent space

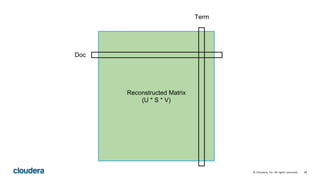

38. 38© Cloudera, Inc. All rights reserved.
Reconstructed Matrix
(U * S * V)
Doc
Term

39. 39© Cloudera, Inc. All rights reserved.

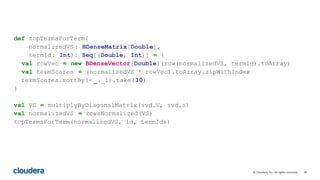

def topTermsForTerm(
normalizedVS : BDenseMatrix[Double],
termId: Int): Seq[(Double, Int)] = {
val rowVec = new BDenseVector[Double](row(normalizedVS, termId).toArray)
val termScores = (normalizedVS * rowVec).toArray.zipWithIndex
termScores.sortBy(- _._1).take(10)
}
val VS = multiplyByDiagonalMatrix(svd.V, svd.s)
val normalizedVS = rowsNormalized(VS)
topTermsForTerm(normalizedVS, id, termIds)

40. 40© Cloudera, Inc. All rights reserved.

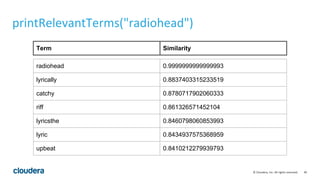

printRelevantTerms("radiohead")
radiohead 0.9999999999999993
lyrically 0.8837403315233519
catchy 0.8780717902060333
riff 0.861326571452104
lyricsthe 0.8460798060853993
lyric 0.8434937575368959
upbeat 0.8410212279939793
Term Similarity

41. 41© Cloudera, Inc. All rights reserved.

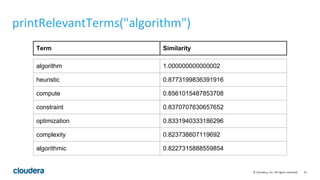

printRelevantTerms("algorithm")
algorithm 1.000000000000002
heuristic 0.8773199836391916
compute 0.8561015487853708
constraint 0.8370707630657652
optimization 0.8331940333186296
complexity 0.823738607119692
algorithmic 0.8227315888559854
Term Similarity

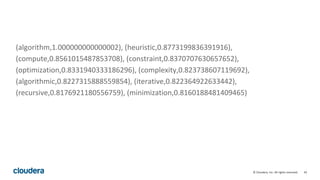

42. 42© Cloudera, Inc. All rights reserved.
(algorithm,1.000000000000002), (heuristic,0.8773199836391916),
(compute,0.8561015487853708), (constraint,0.8370707630657652),
(optimization,0.8331940333186296), (complexity,0.823738607119692),
(algorithmic,0.8227315888559854), (iterative,0.822364922633442),
(recursive,0.8176921180556759), (minimization,0.8160188481409465)

43. 43© Cloudera, Inc. All rights reserved.

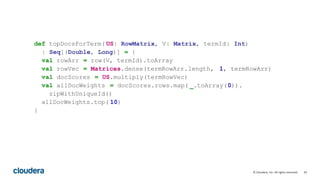

def topDocsForTerm( US: RowMatrix, V: Matrix, termId: Int)
: Seq[(Double, Long)] = {
val rowArr = row(V, termId).toArray
val rowVec = Matrices.dense(termRowArr.length, 1, termRowArr)
val docScores = US.multiply(termRowVec)
val allDocWeights = docScores.rows.map( _.toArray(0)).
zipWithUniqueId()
allDocWeights.top( 10)
}

44. 44© Cloudera, Inc. All rights reserved.

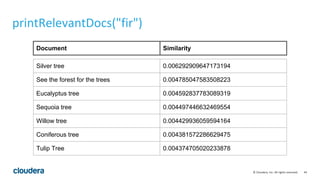

printRelevantDocs("fir")
Silver tree 0.006292909647173194
See the forest for the trees 0.004785047583508223
Eucalyptus tree 0.004592837783089319
Sequoia tree 0.004497446632469554
Willow tree 0.004429936059594164
Coniferous tree 0.004381572286629475
Tulip Tree 0.004374705020233878
Document Similarity

45. 45© Cloudera, Inc. All rights reserved.

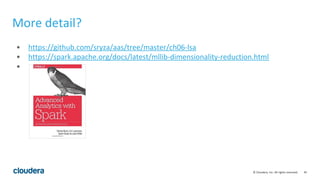

• https://github.com/sryza/aas/tree/master/ch06-lsa
• https://spark.apache.org/docs/latest/mllib-dimensionality-reduction.html
•
More detail?

46. 46© Cloudera, Inc. All rights reserved.
Thank you
@sandysifting
