Solr JDBC allows users to query indexed data in Apache Solr using standard SQL. It provides a JDBC driver and integrates with existing JDBC tools, allowing SQL skills to be leveraged with Solr. The presenter demonstrated Solr JDBC with various programming languages and tools like Java, Python, R, Apache Zeppelin, RStudio, DbVisualizer and SQuirreL SQL. Future improvements may include replacing Presto with Calcite for SQL processing and enhancing compatibility. Joining data from multiple Solr collections was also discussed.

1. O C T O B E R 1 1 - 1 4 , 2 0 1 6 • B O S T O N , M A

2. Solr JDBC
Kevin Risden
Apache Lucene/Solr Committer; Avalon Consulting, LLC

3. 3
03

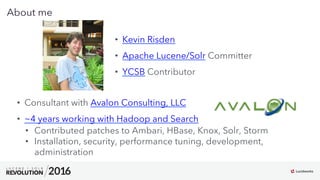

About me
• Consultant with Avalon Consulting, LLC
• ~4 years working with Hadoop and Search
• Contributed patches to Ambari, HBase, Knox, Solr, Storm
• Installation, security, performance tuning, development,
administration
• Kevin Risden
• Apache Lucene/Solr Committer
• YCSB Contributor

4. 4
03

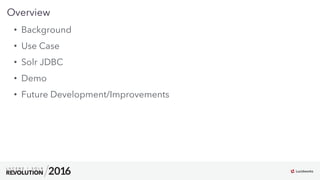

Overview
• Background
• Use Case
• Solr JDBC
• Demo
• Future Development/Improvements

5. 5
01

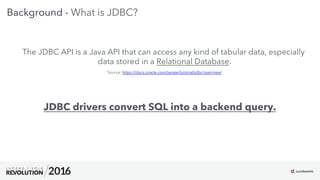

Background - What is JDBC?
The JDBC API is a Java API that can access any kind of tabular data, especially
data stored in a Relational Database.
Source: https://docs.oracle.com/javase/tutorial/jdbc/overview/
JDBC drivers convert SQL into a backend query.

6. 6
01

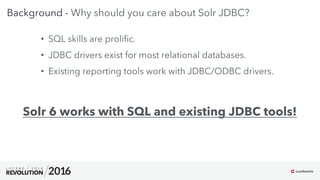

Background - Why should you care about Solr JDBC?
• SQL skills are prolific.
• JDBC drivers exist for most relational databases.
• Existing reporting tools work with JDBC/ODBC drivers.
Solr 6 works with SQL and existing JDBC tools!

7. 7
01

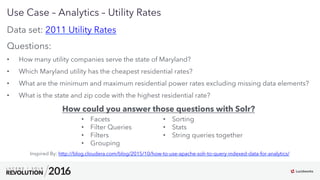

Use Case – Analytics – Utility Rates
Data set: 2011 Utility Rates
Questions:
• How many utility companies serve the state of Maryland?
• Which Maryland utility has the cheapest residential rates?
• What are the minimum and maximum residential power rates excluding missing data elements?
• What is the state and zip code with the highest residential rate?
How could you answer those questions with Solr?
Inspired By: http://blog.cloudera.com/blog/2015/10/how-to-use-apache-solr-to-query-indexed-data-for-analytics/
• Facets
• Filter Queries
• Filters
• Grouping
• Sorting
• Stats
• String queries together

8. 8
01
Use Case – Analytics – Utility Rates
Inspired By: http://blog.cloudera.com/blog/2015/10/how-to-use-apache-solr-to-query-indexed-data-for-analytics/
Method: Lucene syntax
Questions:
• How many utility companies serve the state of Maryland?
http://solr:8983/solr/rates/select?q=state%3A%22MD
%22&wt=json&indent=true&group=true&group.field=utility_name&rows=10&group.limit=1
• Which Maryland utility has the cheapest residential rates?
http://solr:8983/solr/rates/select?q=state%3A%22MD
%22&wt=json&indent=true&group=true&group.field=utility_name&rows=1&group.limit=1&sort=res_rate+asc
• What are the minimum and maximum residential power rates excluding missing data elements?
http://solr:8983/solr/rates/select?q=*:*&fq=%7b!frange+l%3D0.0+incl%3Dfalse
%7dres_rate&wt=json&indent=true&rows=0&stats=true&stats.field=res_rate
• What is the state and zip code with the highest residential rate?
http://solr:8983/solr/rates/select?q=res_rate:0.849872773537&wt=json&indent=true&rows=1
Is there a better way?

9. 9
01

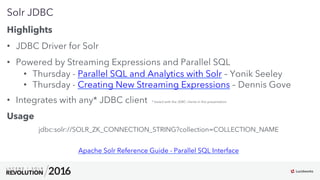

Solr JDBC
Highlights
• JDBC Driver for Solr
• Powered by Streaming Expressions and Parallel SQL
• Thursday - Parallel SQL and Analytics with Solr – Yonik Seeley
• Thursday - Creating New Streaming Expressions – Dennis Gove
• Integrates with any* JDBC client * tested with the JDBC clients in this presentation
Usage
jdbc:solr://SOLR_ZK_CONNECTION_STRING?collection=COLLECTION_NAME
Apache Solr Reference Guide - Parallel SQL Interface

10. 10
01

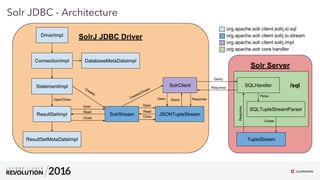

Solr JDBC - Architecture

11. 11
01

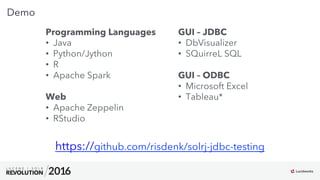

Demo
Programming Languages
• Java
• Python/Jython
• R
• Apache Spark
Web
• Apache Zeppelin
• RStudio
GUI – JDBC
• DbVisualizer
• SQuirreL SQL
GUI – ODBC
• Microsoft Excel
• Tableau*
https://github.com/risdenk/solrj-jdbc-testing

12. 12
01

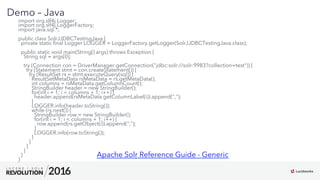

Demo – Java
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.sql.*;
public class SolrJJDBCTestingJava {
private static final Logger LOGGER = LoggerFactory.getLogger(SolrJJDBCTestingJava.class);
public static void main(String[] args) throws Exception {
String sql = args[0];
try (Connection con = DriverManager.getConnection("jdbc:solr://solr:9983?collection=test")) {
try (Statement stmt = con.createStatement()) {
try (ResultSet rs = stmt.executeQuery(sql)) {
ResultSetMetaData rsMetaData = rs.getMetaData();
int columns = rsMetaData.getColumnCount();
StringBuilder header = new StringBuilder();
for(int i = 1; i < columns + 1; i++) {
header.append(rsMetaData.getColumnLabel(i)).append(",");
}
LOGGER.info(header.toString());
while (rs.next()) {
StringBuilder row = new StringBuilder();
for(int i = 1; i < columns + 1; i++) {
row.append(rs.getObject(i)).append(",");
}
LOGGER.info(row.toString());
}
}
}
}
}
}
Apache Solr Reference Guide - Generic

13. 13
01

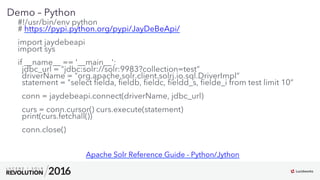

Demo – Python
#!/usr/bin/env python
# https://pypi.python.org/pypi/JayDeBeApi/
import jaydebeapi
import sys
if __name__ == '__main__':
jdbc_url = "jdbc:solr://solr:9983?collection=test”
driverName = "org.apache.solr.client.solrj.io.sql.DriverImpl”
statement = "select fielda, fieldb, fieldc, fieldd_s, fielde_i from test limit 10”
conn = jaydebeapi.connect(driverName, jdbc_url)
curs = conn.cursor() curs.execute(statement)
print(curs.fetchall())
conn.close()
Apache Solr Reference Guide - Python/Jython

14. 14
01

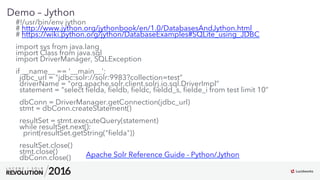

Demo – Jython
#!/usr/bin/env jython
# http://www.jython.org/jythonbook/en/1.0/DatabasesAndJython.html
# https://wiki.python.org/jython/DatabaseExamples#SQLite_using_JDBC
import sys from java.lang
import Class from java.sql
import DriverManager, SQLException
if __name__ == '__main__':
jdbc_url = "jdbc:solr://solr:9983?collection=test”
driverName = "org.apache.solr.client.solrj.io.sql.DriverImpl”
statement = "select fielda, fieldb, fieldc, fieldd_s, fielde_i from test limit 10”
dbConn = DriverManager.getConnection(jdbc_url)
stmt = dbConn.createStatement()
resultSet = stmt.executeQuery(statement)
while resultSet.next():
print(resultSet.getString("fielda"))
resultSet.close()
stmt.close()
dbConn.close() Apache Solr Reference Guide - Python/Jython

15. 15
01

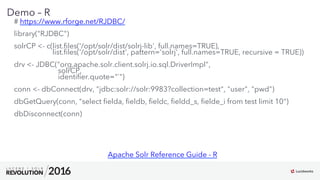

Demo – R
# https://www.rforge.net/RJDBC/
library("RJDBC")
solrCP <- c(list.files('/opt/solr/dist/solrj-lib', full.names=TRUE),
list.files('/opt/solr/dist', pattern='solrj', full.names=TRUE, recursive = TRUE))
drv <- JDBC("org.apache.solr.client.solrj.io.sql.DriverImpl",
solrCP,
identifier.quote="`")
conn <- dbConnect(drv, "jdbc:solr://solr:9983?collection=test", "user", "pwd")
dbGetQuery(conn, "select fielda, fieldb, fieldc, fieldd_s, fielde_i from test limit 10")
dbDisconnect(conn)
Apache Solr Reference Guide - R

16. 16
01

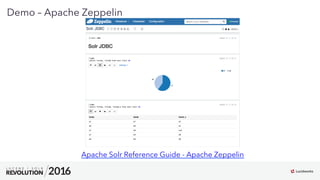

Demo – Apache Zeppelin
Apache Solr Reference Guide - Apache Zeppelin

17. 17
01

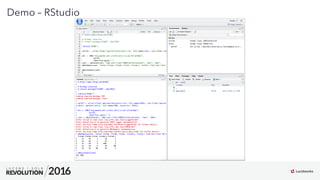

Demo – RStudio

18. 18
01

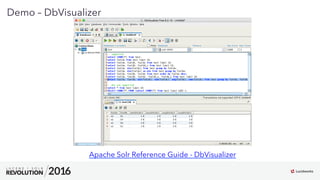

Demo – DbVisualizer
Apache Solr Reference Guide - DbVisualizer

19. 19
01

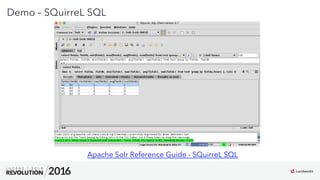

Demo – SQuirreL SQL
Apache Solr Reference Guide - SQuirreL SQL

20. 20
01

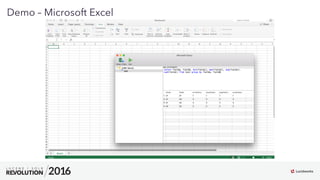

Demo – Microsoft Excel

21. 21
01

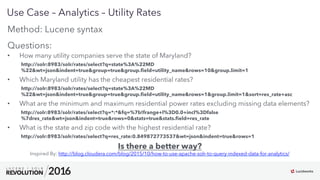

Use Case – Analytics – Utility Rates
Inspired By: http://blog.cloudera.com/blog/2015/10/how-to-use-apache-solr-to-query-indexed-data-for-analytics/
Method: Lucene syntax
Questions:
• How many utility companies serve the state of Maryland?
http://solr:8983/solr/rates/select?q=state%3A%22MD
%22&wt=json&indent=true&group=true&group.field=utility_name&rows=10&group.limit=1
• Which Maryland utility has the cheapest residential rates?
http://solr:8983/solr/rates/select?q=state%3A%22MD
%22&wt=json&indent=true&group=true&group.field=utility_name&rows=1&group.limit=1&sort=res_rate+asc
• What are the minimum and maximum residential power rates excluding missing data elements?
http://solr:8983/solr/rates/select?q=*:*&fq=%7b!frange+l%3D0.0+incl%3Dfalse
%7dres_rate&wt=json&indent=true&rows=0&stats=true&stats.field=res_rate
• What is the state and zip code with the highest residential rate?
http://solr:8983/solr/rates/select?q=res_rate:0.849872773537&wt=json&indent=true&rows=1
Is there a better way?

22. 22
01

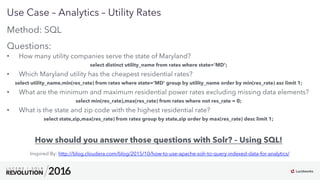

Use Case – Analytics – Utility Rates
Method: SQL
Questions:
• How many utility companies serve the state of Maryland?
select distinct utility_name from rates where state='MD';
• Which Maryland utility has the cheapest residential rates?
select utility_name,min(res_rate) from rates where state='MD' group by utility_name order by min(res_rate) asc limit 1;
• What are the minimum and maximum residential power rates excluding missing data elements?
select min(res_rate),max(res_rate) from rates where not res_rate = 0;
• What is the state and zip code with the highest residential rate?
select state,zip,max(res_rate) from rates group by state,zip order by max(res_rate) desc limit 1;
How should you answer those questions with Solr? – Using SQL!
Inspired By: http://blog.cloudera.com/blog/2015/10/how-to-use-apache-solr-to-query-indexed-data-for-analytics/

23. 23
01
Use Case – Analytics – Utility Rates
How should you answer those questions with Solr? – Using SQL!
Inspired By: http://blog.cloudera.com/blog/2015/10/how-to-use-apache-solr-to-query-indexed-data-for-analytics/

24. 24
01

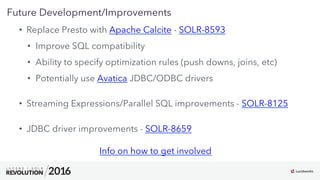

Future Development/Improvements
• Replace Presto with Apache Calcite - SOLR-8593
• Improve SQL compatibility
• Ability to specify optimization rules (push downs, joins, etc)
• Potentially use Avatica JDBC/ODBC drivers
• Streaming Expressions/Parallel SQL improvements - SOLR-8125
• JDBC driver improvements - SOLR-8659
Info on how to get involved

25. 25
01

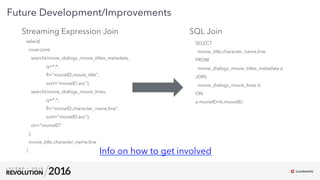

Future Development/Improvements
SQL Join
Info on how to get involved
SELECT
movie_title,character_name,line
FROM
movie_dialogs_movie_titles_metadata a
JOIN
movie_dialogs_movie_lines b
ON
a.movieID=b.movieID;
select(
innerJoin(
search(movie_dialogs_movie_titles_metadata,
q=*:*,
fl="movieID,movie_title",
sort="movieID asc"),
search(movie_dialogs_movie_lines,
q=*:*,
fl="movieID,character_name,line",
sort="movieID asc"),
on="movieID”
),
movie_title,character_name,line
)
Streaming Expression Join

26. 26
01
Questions?
