Solaris DTrace Simplified

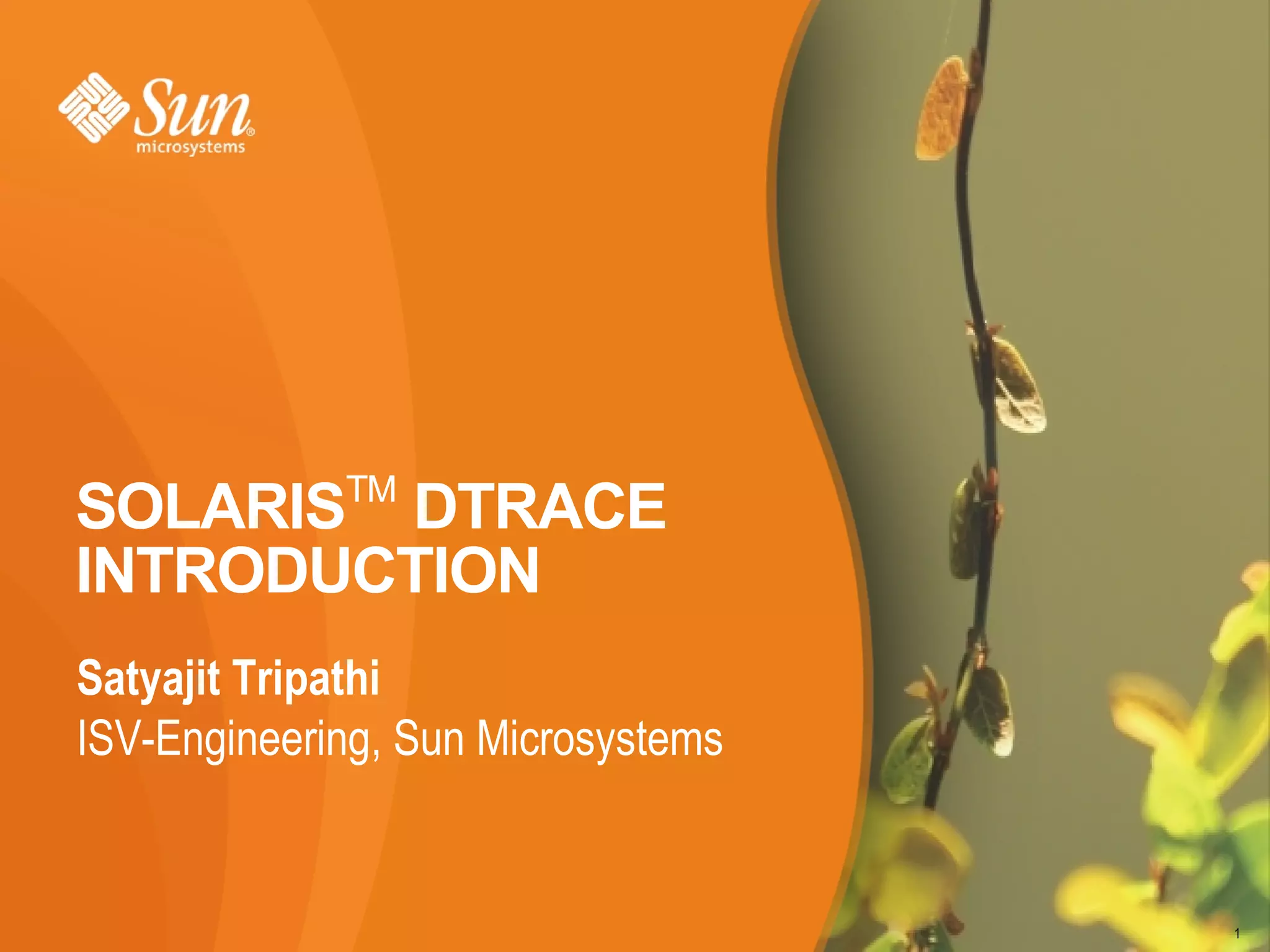

1. SOLARISTM DTRACE
INTRODUCTION
Satyajit Tripathi
ISV-Engineering, Sun Microsystems
1

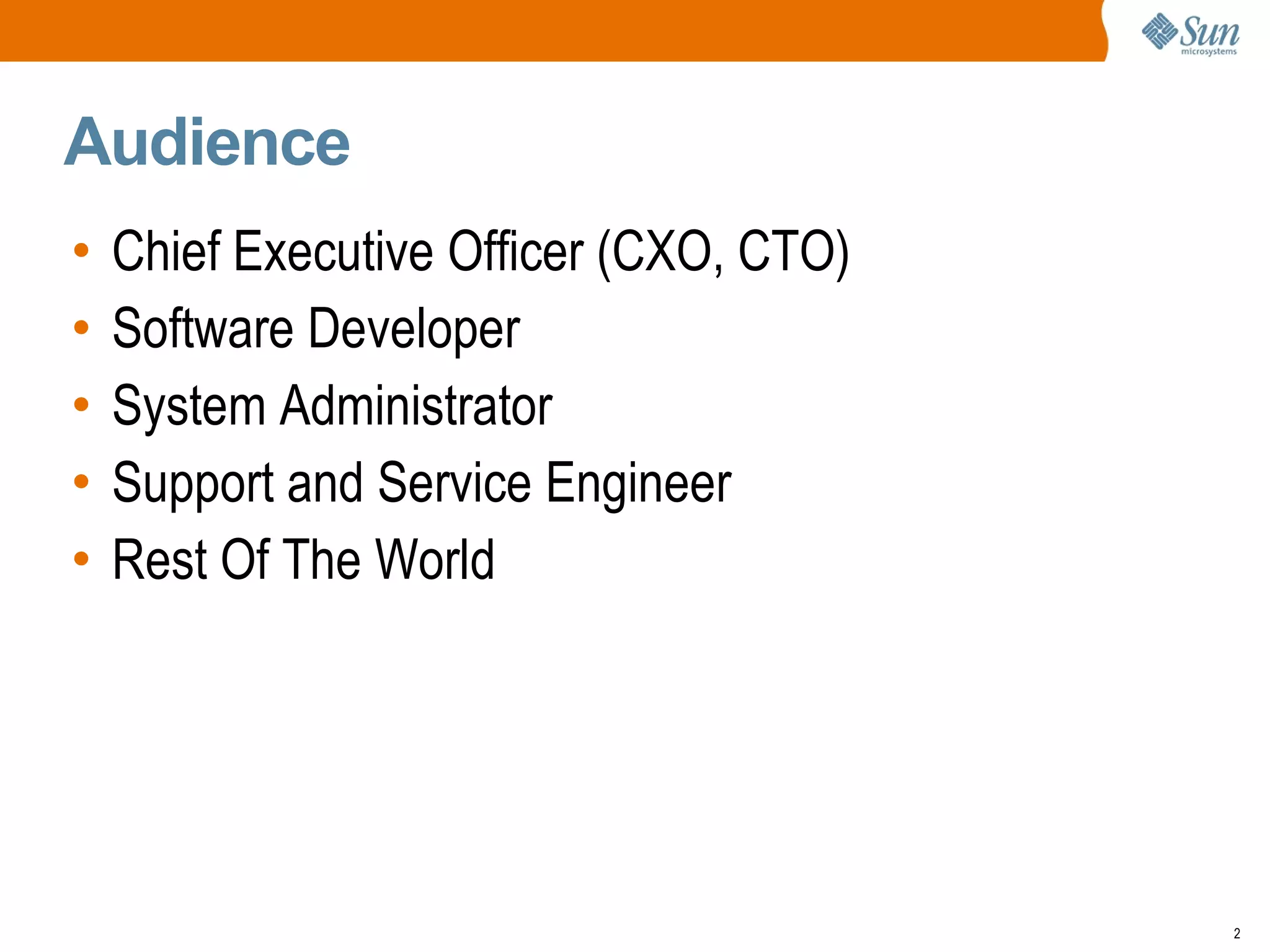

2. Audience
• Chief Executive Officer (CXO, CTO)
• Software Developer
• System Administrator
• Support and Service Engineer
• Rest Of The World
2

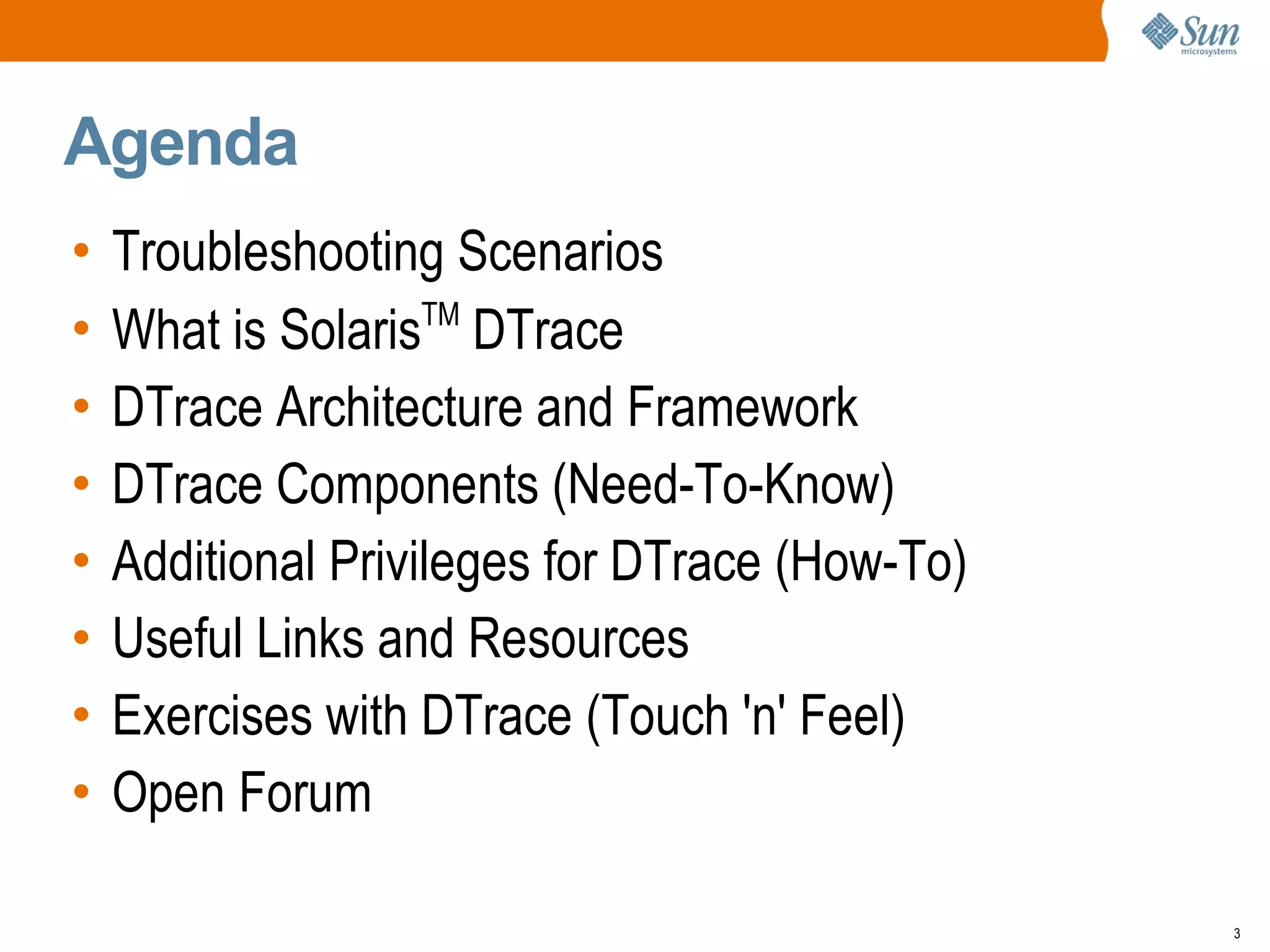

3. Agenda
• Troubleshooting Scenarios
• What is SolarisTM DTrace
• DTrace Architecture and Framework
• DTrace Components (Need-To-Know)
• Additional Privileges for DTrace (How-To)
• Useful Links and Resources
• Exercises with DTrace (Touch 'n' Feel)
• Open Forum
3

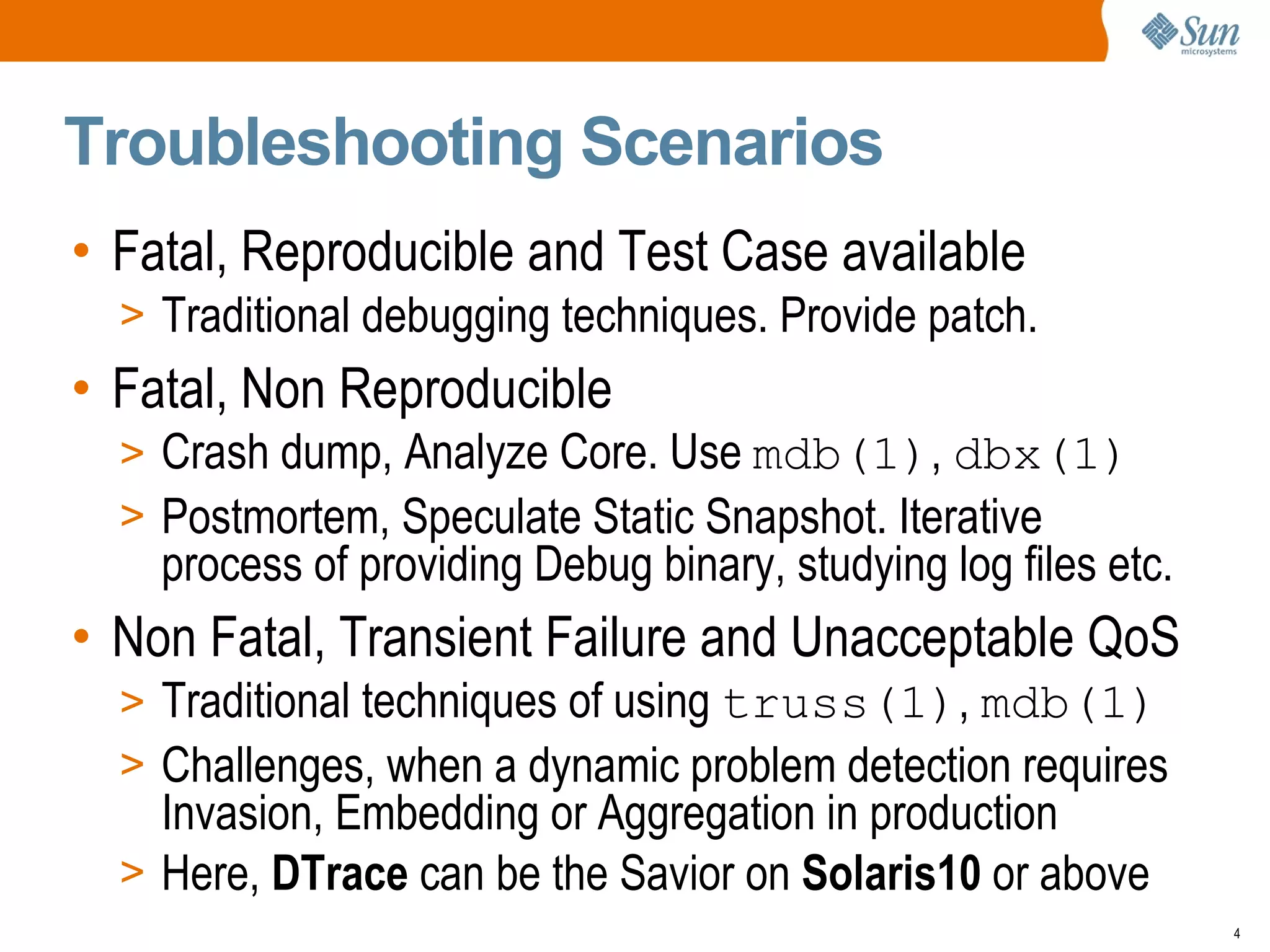

4. Troubleshooting Scenarios
• Fatal, Reproducible and Test Case available
> Traditional debugging techniques. Provide patch.
• Fatal, Non Reproducible
> Crash dump, Analyze Core. Use mdb(1), dbx(1)
> Postmortem, Speculate Static Snapshot. Iterative
process of providing Debug binary, studying log files etc.
• Non Fatal, Transient Failure and Unacceptable QoS
> Traditional techniques of using truss(1), mdb(1)
> Challenges, when a dynamic problem detection requires
Invasion, Embedding or Aggregation in production
> Here, DTrace can be the Savior on Solaris10 or above
4

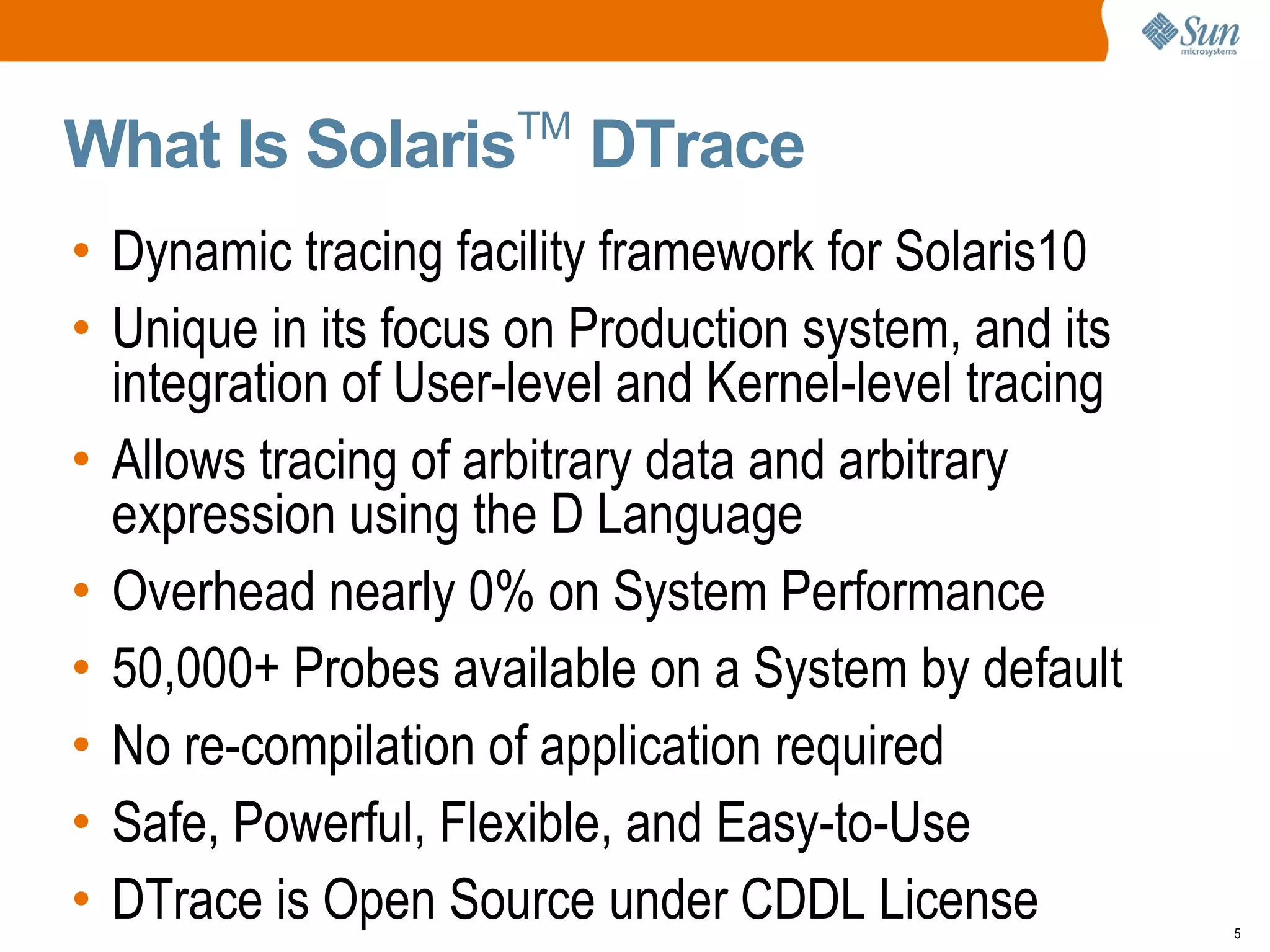

5. TM
What Is Solaris DTrace
• Dynamic tracing facility framework for Solaris10
• Unique in its focus on Production system, and its
integration of User-level and Kernel-level tracing
• Allows tracing of arbitrary data and arbitrary
expression using the D Language
• Overhead nearly 0% on System Performance
• 50,000+ Probes available on a System by default
• No re-compilation of application required
• Safe, Powerful, Flexible, and Easy-to-Use
• DTrace is Open Source under CDDL License 5

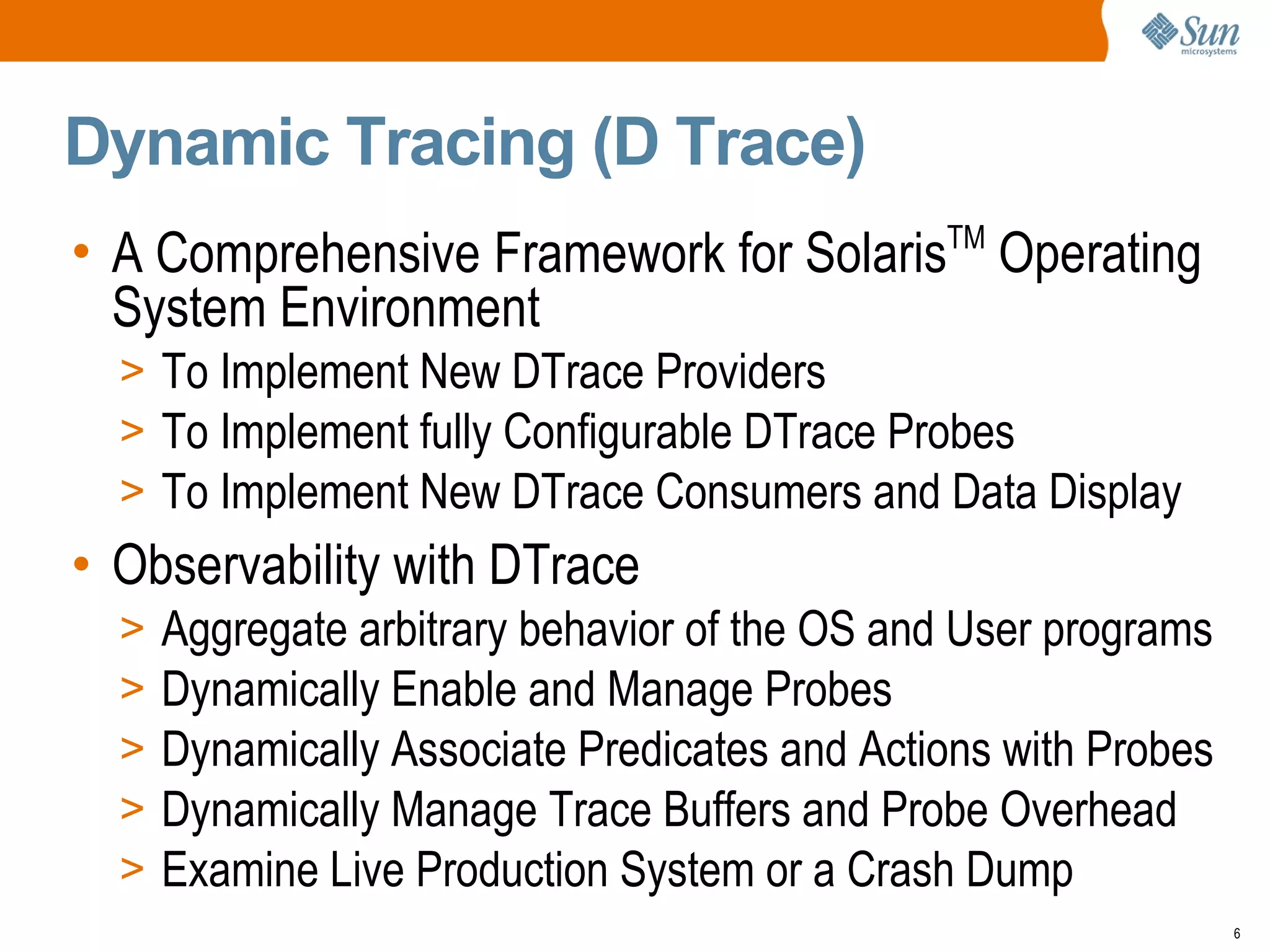

6. Dynamic Tracing (D Trace)
• A Comprehensive Framework for SolarisTM Operating
System Environment
> To Implement New DTrace Providers
> To Implement fully Configurable DTrace Probes
> To Implement New DTrace Consumers and Data Display
• Observability with DTrace
> Aggregate arbitrary behavior of the OS and User programs
> Dynamically Enable and Manage Probes
> Dynamically Associate Predicates and Actions with Probes
> Dynamically Manage Trace Buffers and Probe Overhead
> Examine Live Production System or a Crash Dump
6

7. DTrace Architecture and Framework
• Need To Know
> D Language
> DTrace Probes
> DTrace Provider
> Actions for Probes
> DTrace Consumer
Probes
7

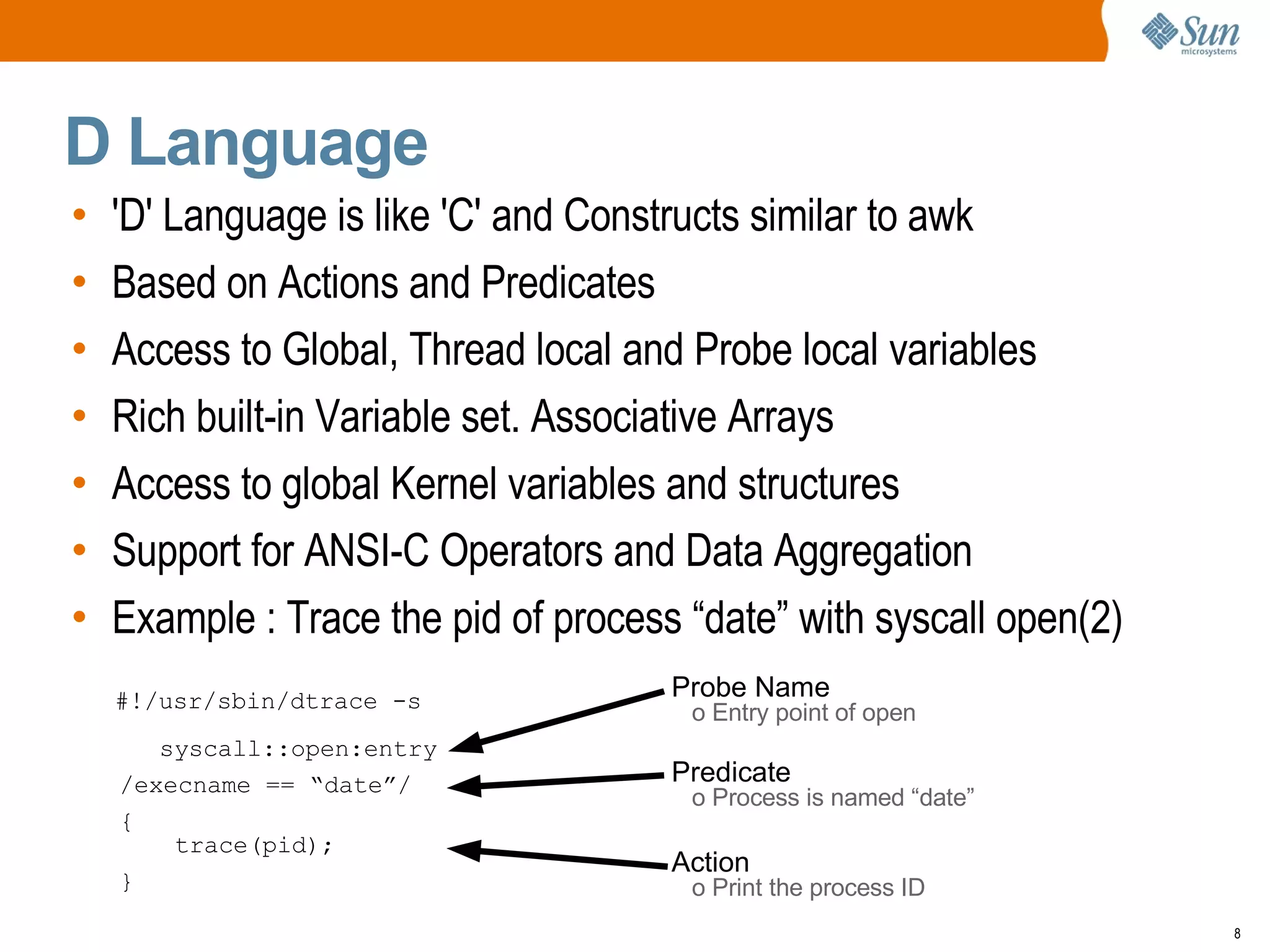

8. D Language
• 'D' Language is like 'C' and Constructs similar to awk
• Based on Actions and Predicates
• Access to Global, Thread local and Probe local variables
• Rich built-in Variable set. Associative Arrays
• Access to global Kernel variables and structures
• Support for ANSI-C Operators and Data Aggregation
• Example : Trace the pid of process “date” with syscall open(2)
#!/usr/sbin/dtrace -s Probe Name
o Entry point of open
syscall::open:entry
/execname == “date”/ Predicate
o Process is named “date”
{
trace(pid);
Action
} o Print the process ID
8

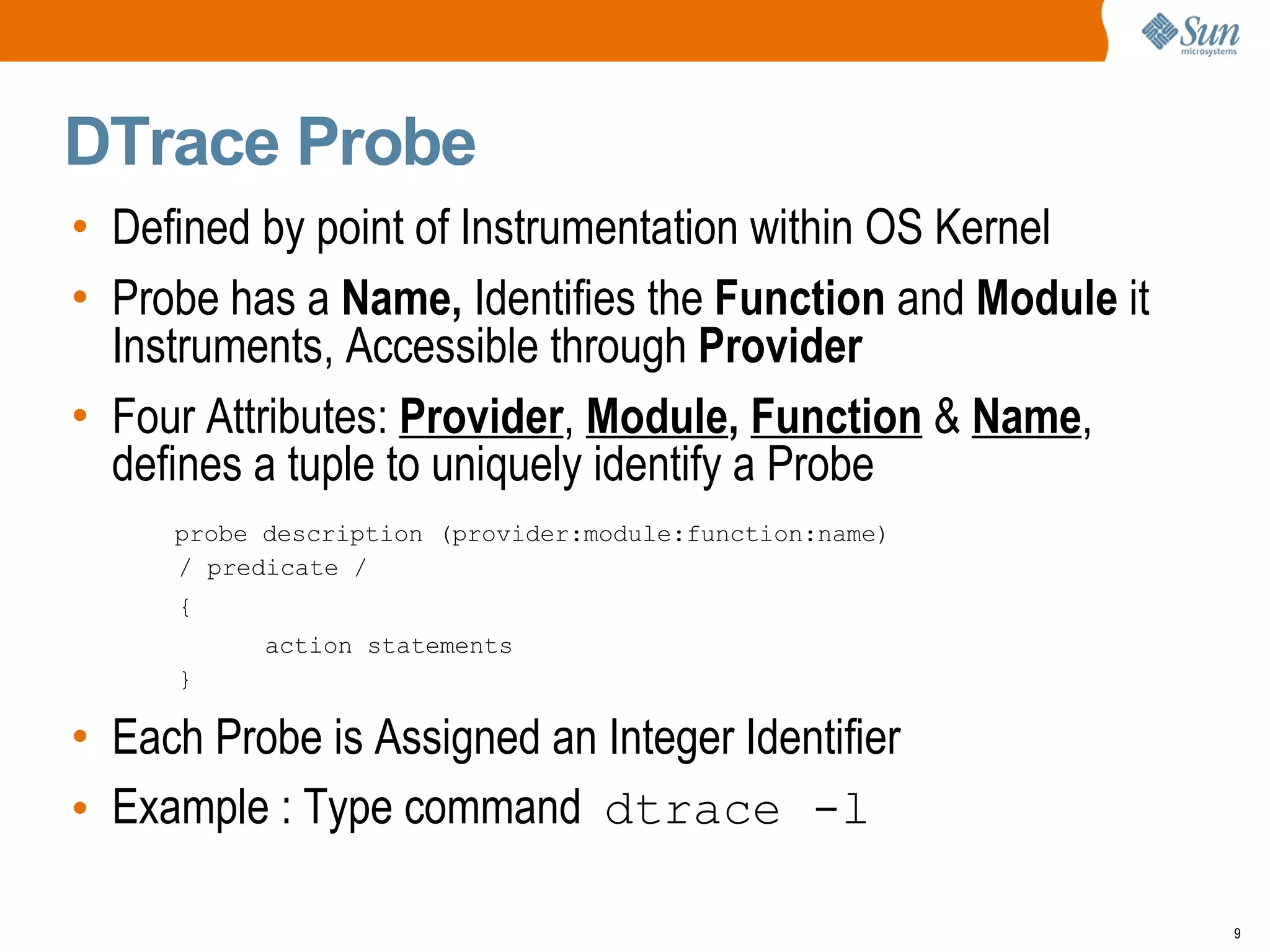

9. DTrace Probe
• Defined by point of Instrumentation within OS Kernel
• Probe has a Name, Identifies the Function and Module it
Instruments, Accessible through Provider
• Four Attributes: Provider, Module, Function & Name,
defines a tuple to uniquely identify a Probe
probe description (provider:module:function:name)
/ predicate /
{
action statements
}
• Each Probe is Assigned an Integer Identifier
• Example : Type command dtrace -l
9

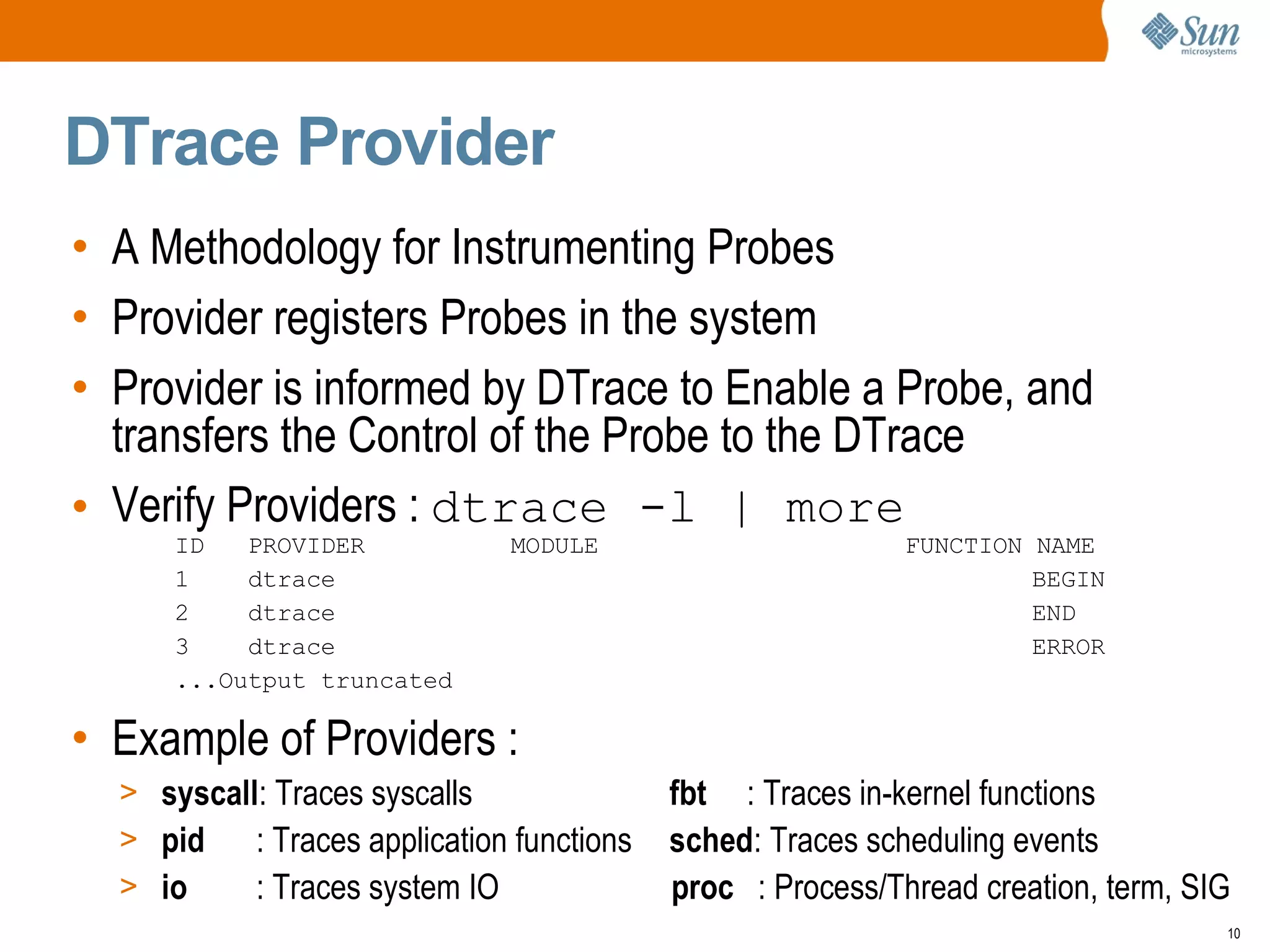

10. DTrace Provider
• A Methodology for Instrumenting Probes
• Provider registers Probes in the system
• Provider is informed by DTrace to Enable a Probe, and
transfers the Control of the Probe to the DTrace
• Verify Providers : dtrace -l | more
ID PROVIDER MODULE FUNCTION NAME
1 dtrace BEGIN
2 dtrace END
3 dtrace ERROR
...Output truncated
• Example of Providers :
> syscall: Traces syscalls fbt : Traces in-kernel functions
> pid : Traces application functions sched: Traces scheduling events
> io : Traces system IO proc : Process/Thread creation, term, SIG
10

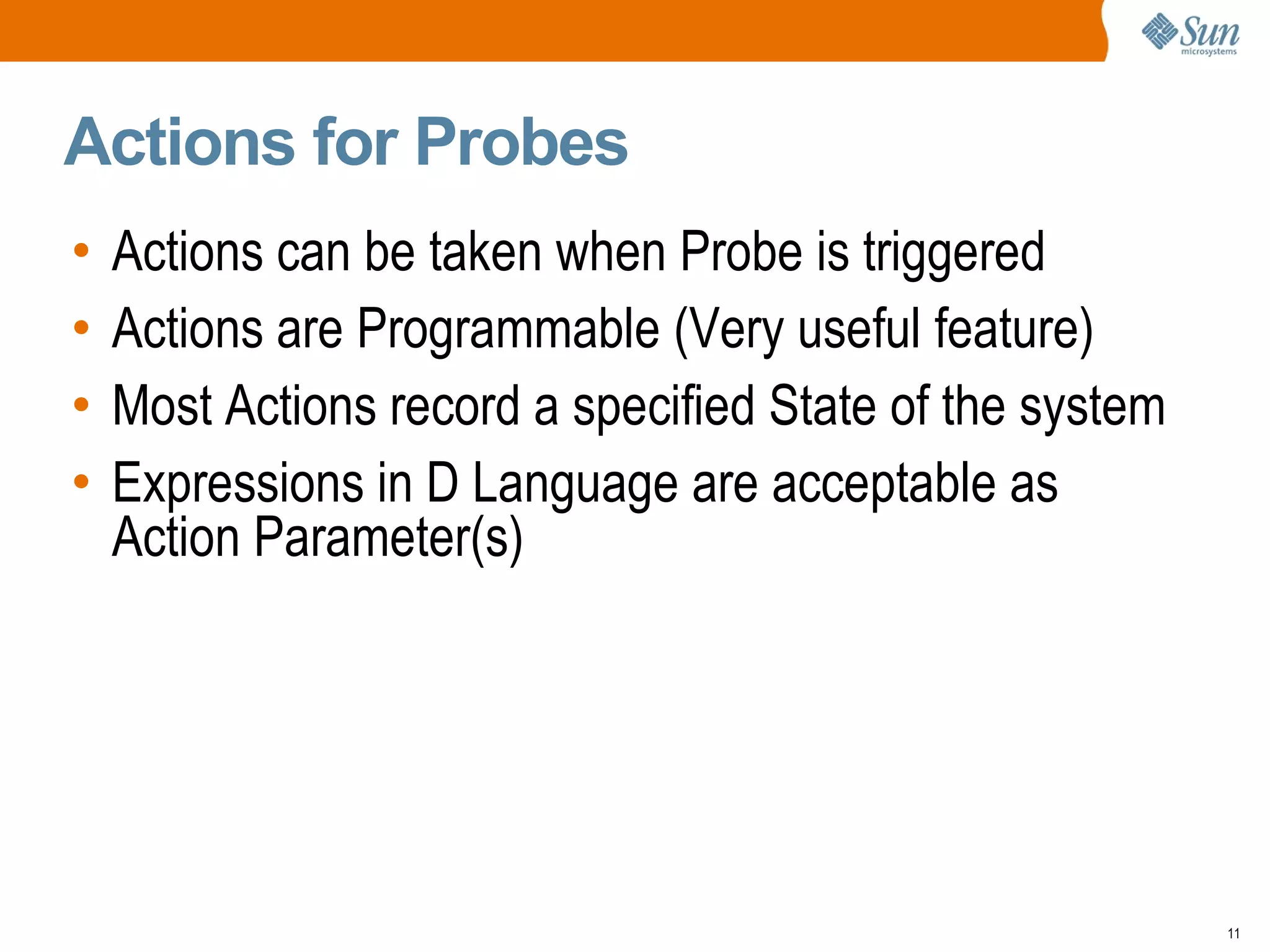

11. Actions for Probes
• Actions can be taken when Probe is triggered
• Actions are Programmable (Very useful feature)
• Most Actions record a specified State of the system
• Expressions in D Language are acceptable as
Action Parameter(s)
11

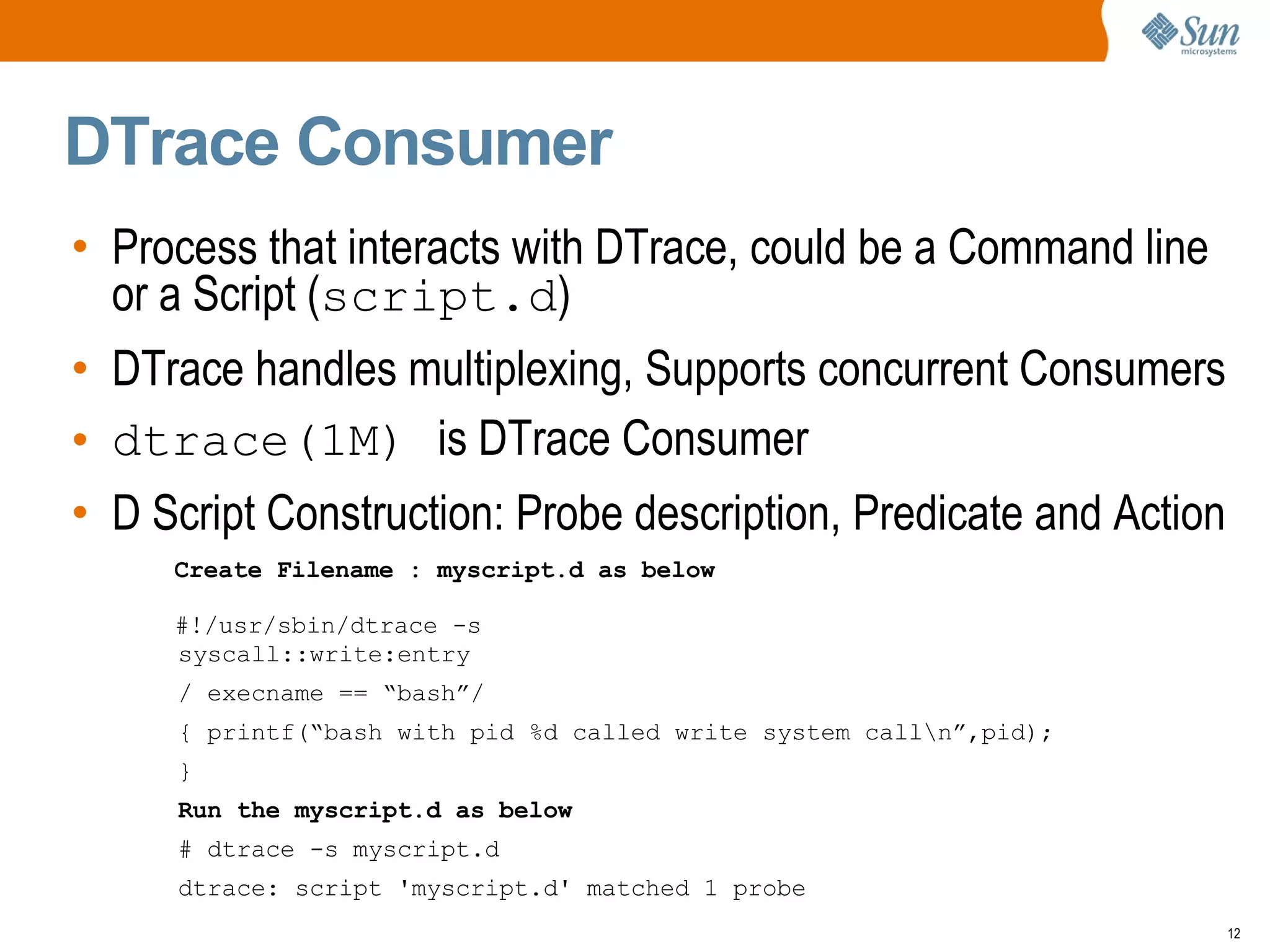

12. DTrace Consumer
• Process that interacts with DTrace, could be a Command line
or a Script (script.d)
• DTrace handles multiplexing, Supports concurrent Consumers
• dtrace(1M) is DTrace Consumer
• D Script Construction: Probe description, Predicate and Action
Create Filename : myscript.d as below
#!/usr/sbin/dtrace -s
syscall::write:entry
/ execname == “bash”/
{ printf(“bash with pid %d called write system calln”,pid);
}
Run the myscript.d as below
# dtrace -s myscript.d
dtrace: script 'myscript.d' matched 1 probe
12

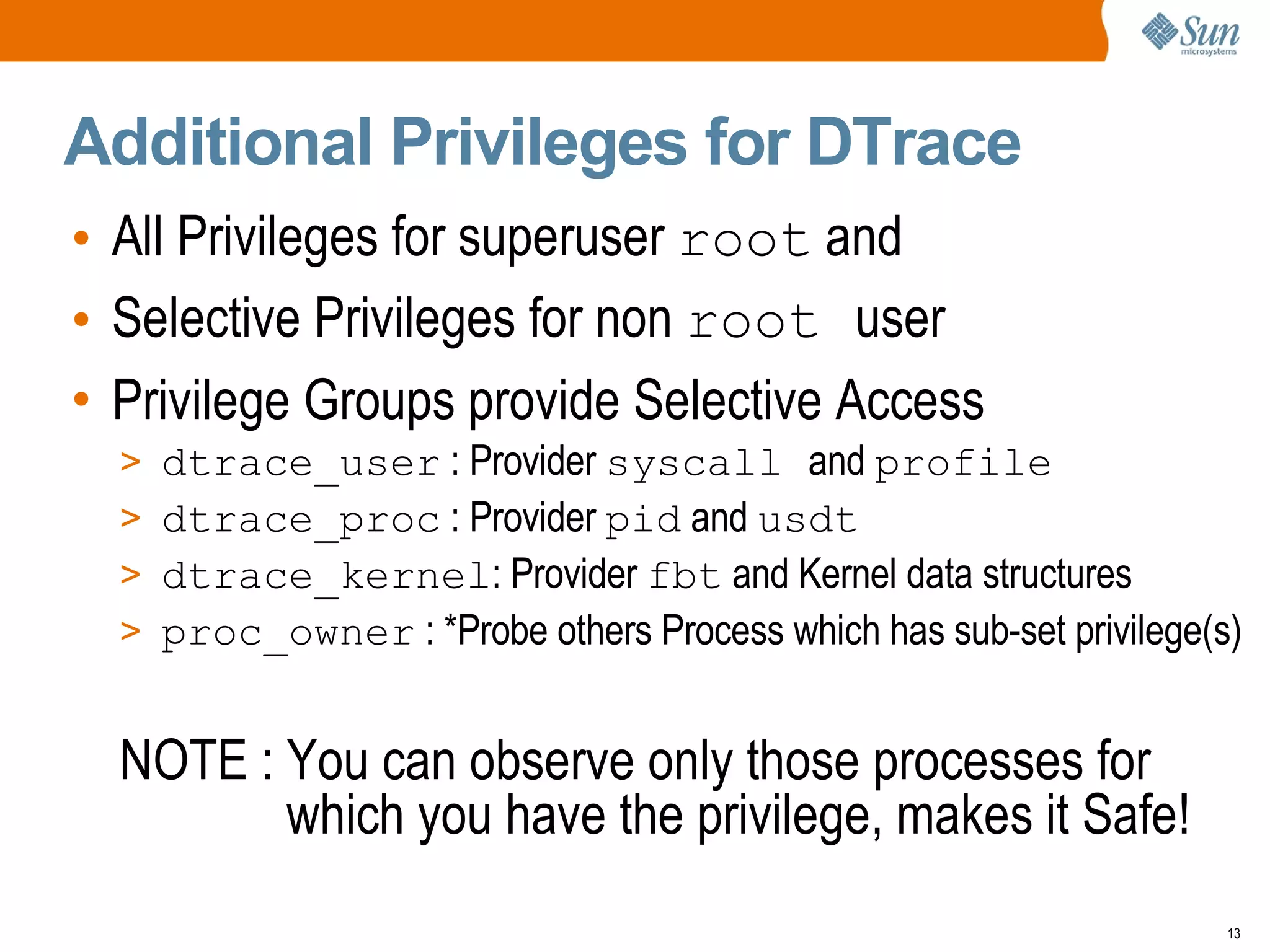

13. Additional Privileges for DTrace
• All Privileges for superuser root and
• Selective Privileges for non root user
• Privilege Groups provide Selective Access
> dtrace_user : Provider syscall and profile
> dtrace_proc : Provider pid and usdt
> dtrace_kernel: Provider fbt and Kernel data structures
> proc_owner : *Probe others Process which has sub-set privilege(s)
NOTE : You can observe only those processes for
which you have the privilege, makes it Safe!
13

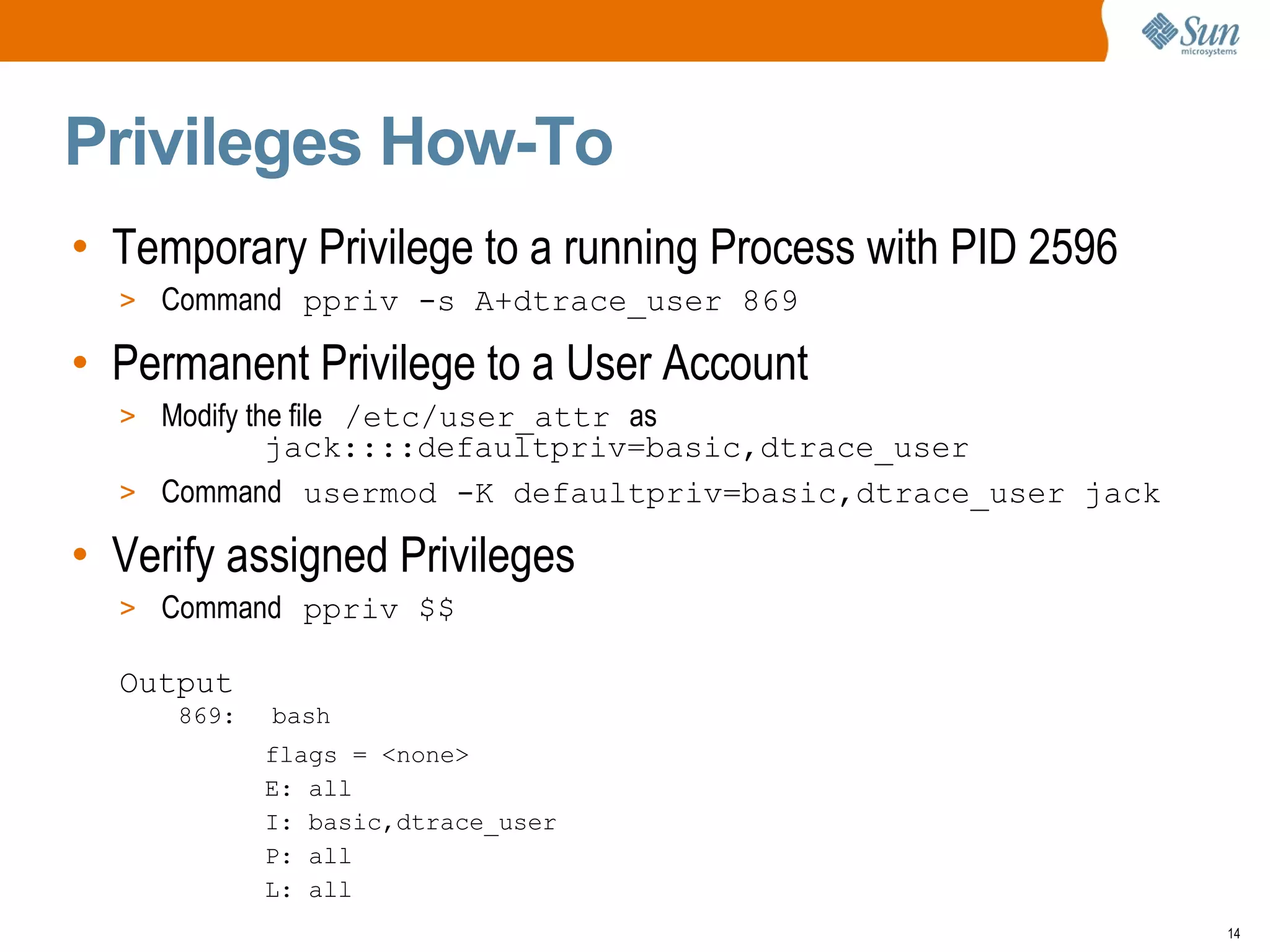

14. Privileges How-To
• Temporary Privilege to a running Process with PID 2596
> Command ppriv -s A+dtrace_user 869
• Permanent Privilege to a User Account
> Modify the file /etc/user_attr as
jack::::defaultpriv=basic,dtrace_user
> Command usermod -K defaultpriv=basic,dtrace_user jack
• Verify assigned Privileges
> Command ppriv $$
Output
869: bash
flags = <none>
E: all
I: basic,dtrace_user
P: all
L: all
14

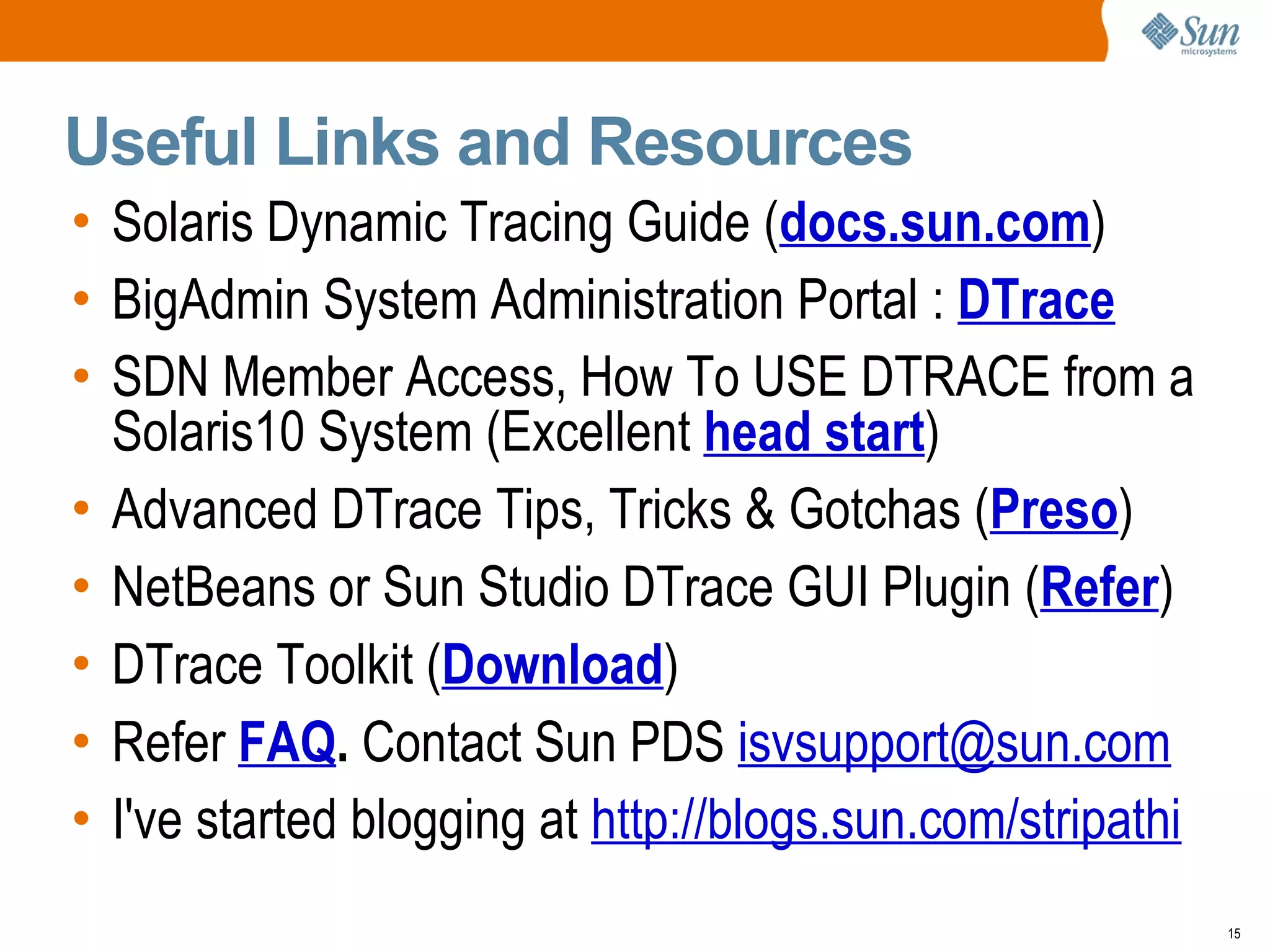

15. Useful Links and Resources
• Solaris Dynamic Tracing Guide (docs.sun.com)
• BigAdmin System Administration Portal : DTrace
• SDN Member Access, How To USE DTRACE from a
Solaris10 System (Excellent head start)
• Advanced DTrace Tips, Tricks & Gotchas (Preso)
• NetBeans or Sun Studio DTrace GUI Plugin (Refer)
• DTrace Toolkit (Download)
• Refer FAQ. Contact Sun PDS isvsupport@sun.com
• I've started blogging at http://blogs.sun.com/stripathi
15

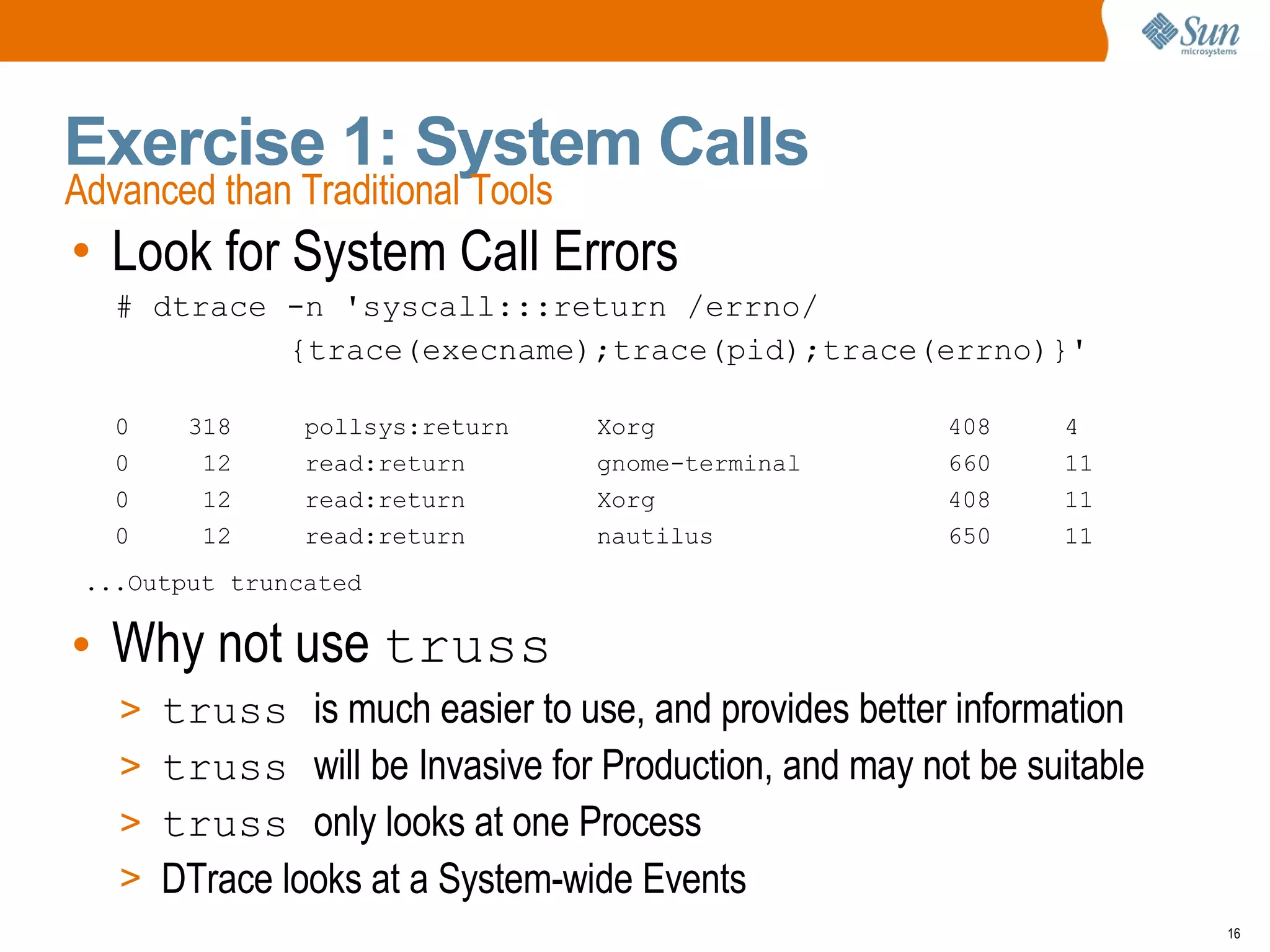

16. Exercise 1: System Calls
Advanced than Traditional Tools
• Look for System Call Errors
# dtrace -n 'syscall:::return /errno/
{trace(execname);trace(pid);trace(errno)}'
0 318 pollsys:return Xorg 408 4
0 12 read:return gnome-terminal 660 11
0 12 read:return Xorg 408 11
0 12 read:return nautilus 650 11
...Output truncated
• Why not use truss
> truss is much easier to use, and provides better information
> truss will be Invasive for Production, and may not be suitable
> truss only looks at one Process
> DTrace looks at a System-wide Events
16

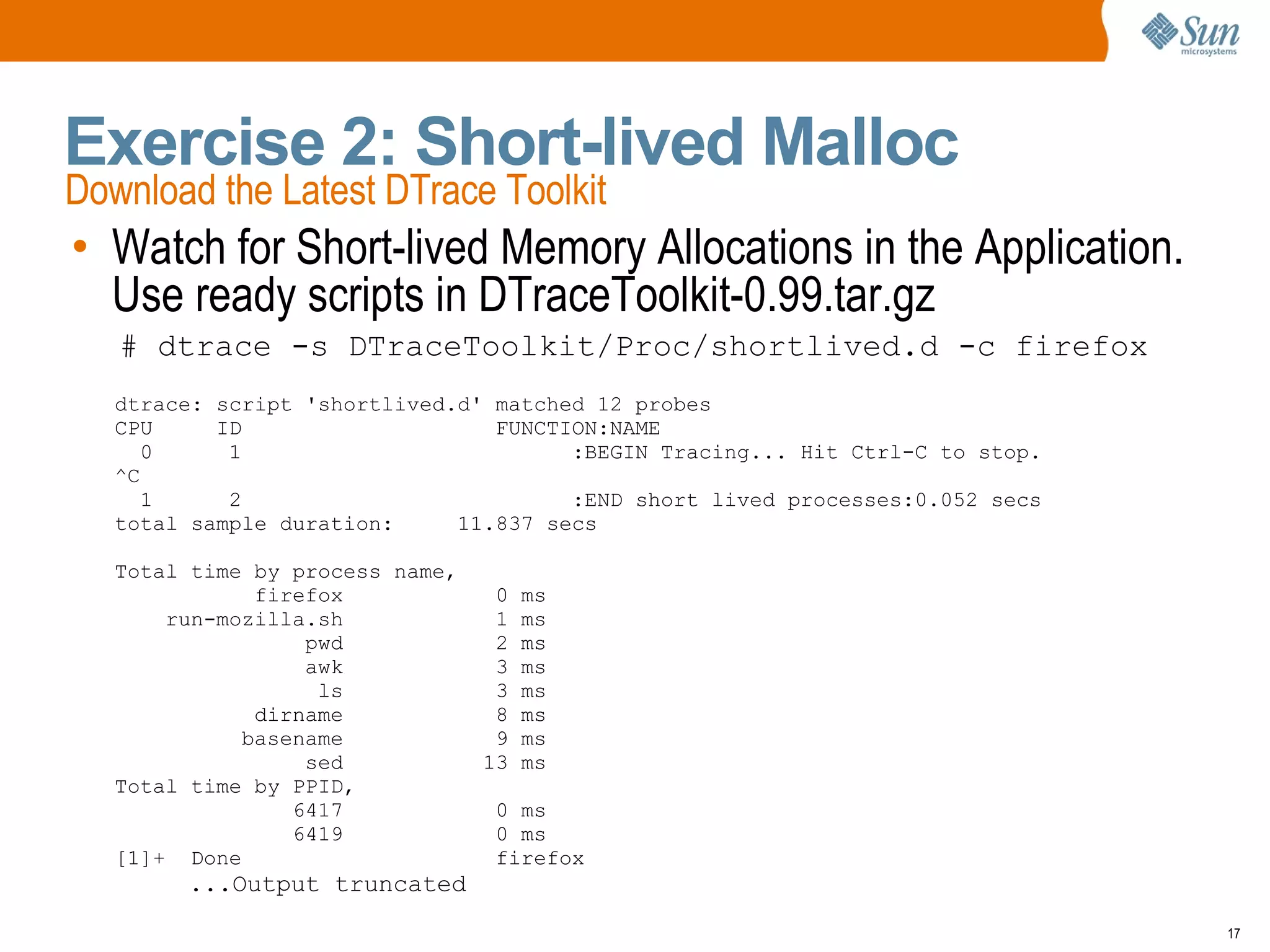

17. Exercise 2: Short-lived Malloc
Download the Latest DTrace Toolkit
• Watch for Short-lived Memory Allocations in the Application.
Use ready scripts in DTraceToolkit-0.99.tar.gz
# dtrace -s DTraceToolkit/Proc/shortlived.d -c firefox
dtrace: script 'shortlived.d' matched 12 probes
CPU ID FUNCTION:NAME
0 1 :BEGIN Tracing... Hit Ctrl-C to stop.
^C
1 2 :END short lived processes:0.052 secs
total sample duration: 11.837 secs
Total time by process name,
firefox 0 ms
run-mozilla.sh 1 ms
pwd 2 ms
awk 3 ms
ls 3 ms
dirname 8 ms
basename 9 ms
sed 13 ms
Total time by PPID,
6417 0 ms
6419 0 ms
[1]+ Done firefox
...Output truncated
17

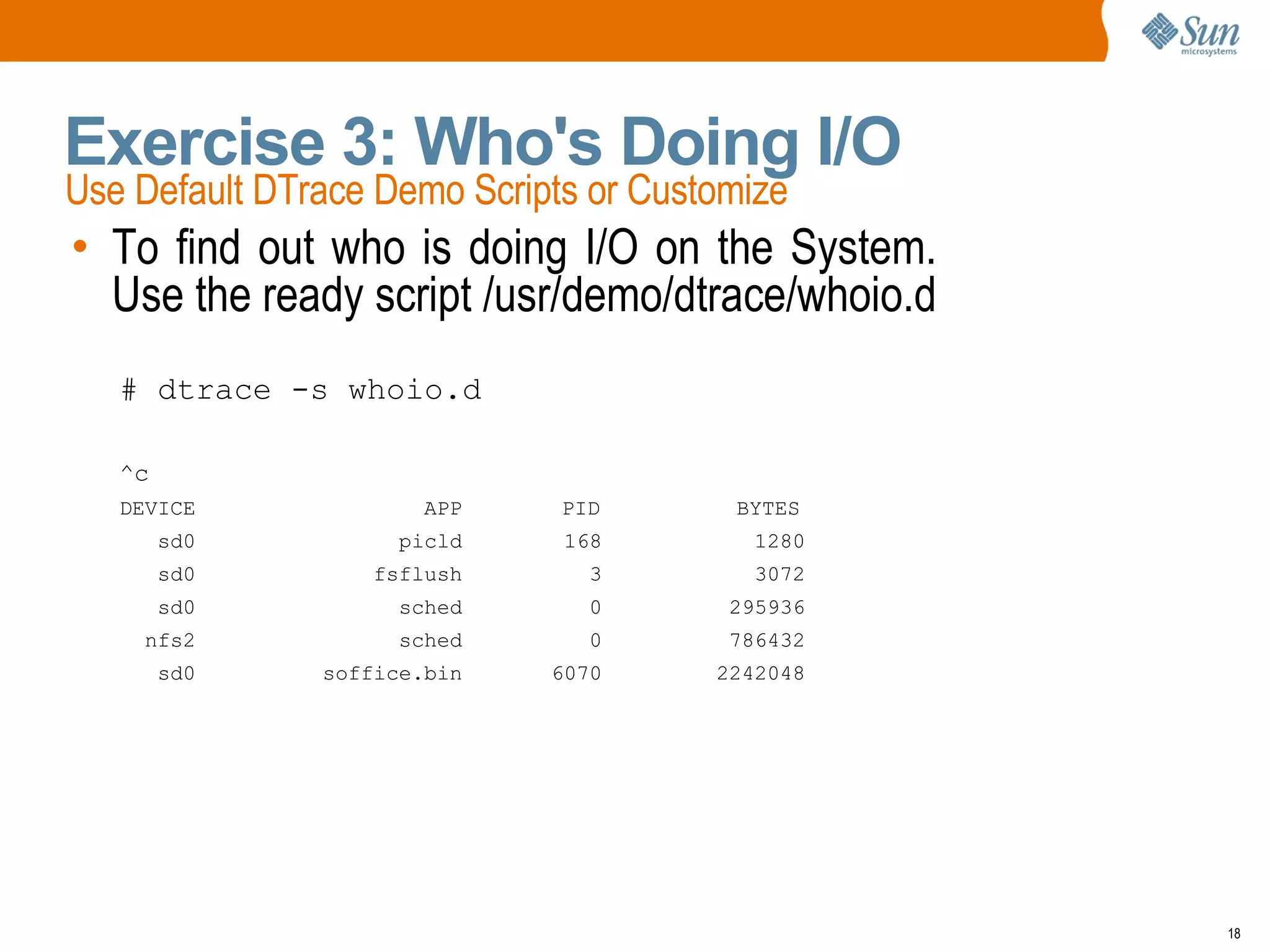

18. Exercise 3: Who's Doing I/O
Use Default DTrace Demo Scripts or Customize
• To find out who is doing I/O on the System.
Use the ready script /usr/demo/dtrace/whoio.d
# dtrace -s whoio.d
^c
DEVICE APP PID BYTES
sd0 picld 168 1280
sd0 fsflush 3 3072
sd0 sched 0 295936
nfs2 sched 0 786432
sd0 soffice.bin 6070 2242048
18

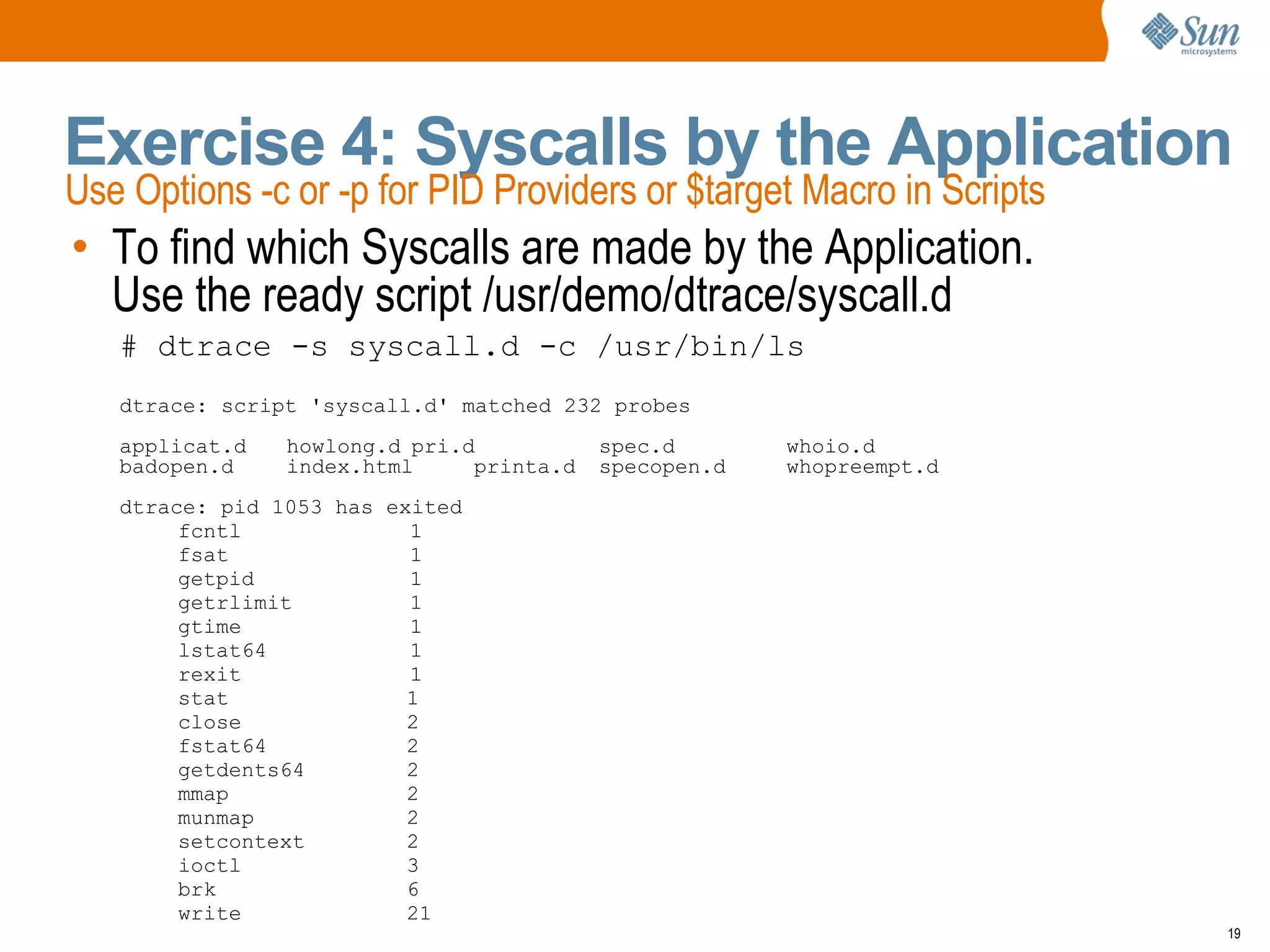

19. Exercise 4: Syscalls by the Application
Use Options -c or -p for PID Providers or $target Macro in Scripts
• To find which Syscalls are made by the Application.
Use the ready script /usr/demo/dtrace/syscall.d
# dtrace -s syscall.d -c /usr/bin/ls
dtrace: script 'syscall.d' matched 232 probes
applicat.d howlong.d pri.d spec.d whoio.d
badopen.d index.html printa.d specopen.d whopreempt.d
dtrace: pid 1053 has exited
fcntl 1
fsat 1
getpid 1
getrlimit 1
gtime 1
lstat64 1
rexit 1
stat 1
close 2
fstat64 2
getdents64 2
mmap 2
munmap 2
setcontext 2
ioctl 3
brk 6
write 21
19

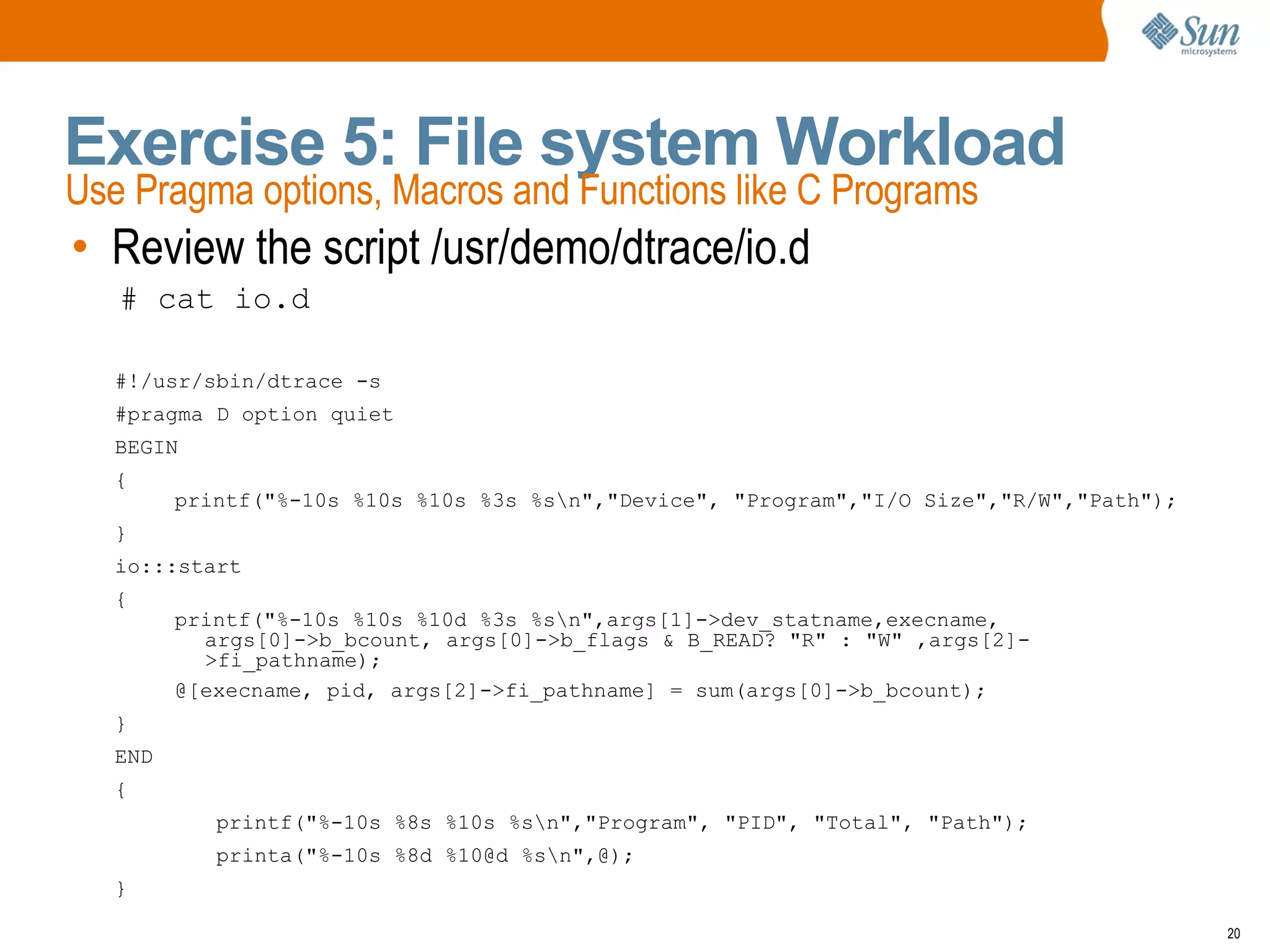

20. Exercise 5: File system Workload
Use Pragma options, Macros and Functions like C Programs
• Review the script /usr/demo/dtrace/io.d
# cat io.d
#!/usr/sbin/dtrace -s
#pragma D option quiet
BEGIN
{
printf("%-10s %10s %10s %3s %sn","Device", "Program","I/O Size","R/W","Path");
}
io:::start
{
printf("%-10s %10s %10d %3s %sn",args[1]->dev_statname,execname,
args[0]->b_bcount, args[0]->b_flags & B_READ? "R" : "W" ,args[2]-
>fi_pathname);
@[execname, pid, args[2]->fi_pathname] = sum(args[0]->b_bcount);
}
END
{
printf("%-10s %8s %10s %sn","Program", "PID", "Total", "Path");
printa("%-10s %8d %10@d %sn",@);
}
20

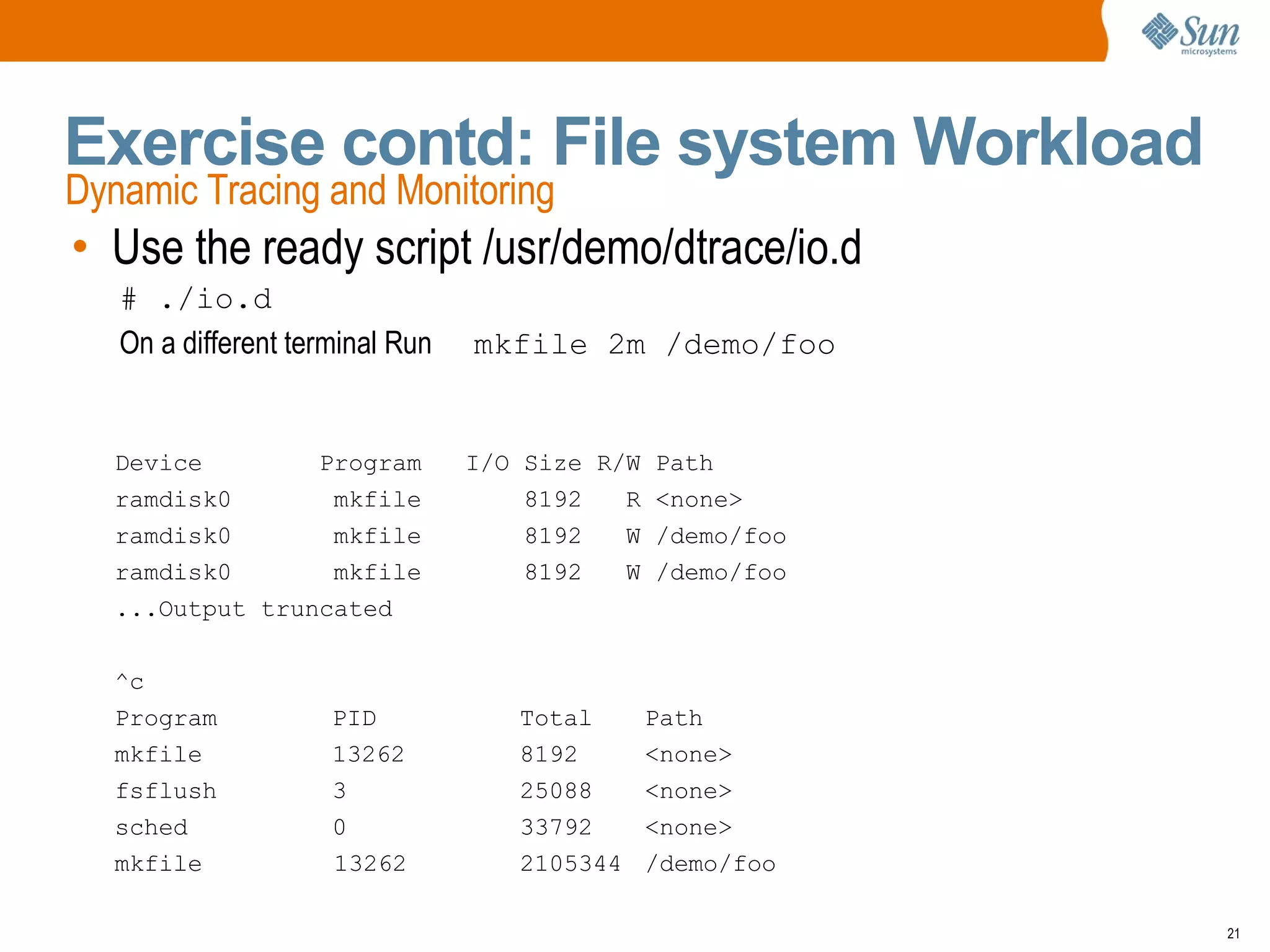

21. Exercise contd: File system Workload
Dynamic Tracing and Monitoring
• Use the ready script /usr/demo/dtrace/io.d
# ./io.d
On a different terminal Run mkfile 2m /demo/foo
Device Program I/O Size R/W Path
ramdisk0 mkfile 8192 R <none>
ramdisk0 mkfile 8192 W /demo/foo
ramdisk0 mkfile 8192 W /demo/foo
...Output truncated
^c
Program PID Total Path
mkfile 13262 8192 <none>
fsflush 3 25088 <none>
sched 0 33792 <none>
mkfile 13262 2105344 /demo/foo
21

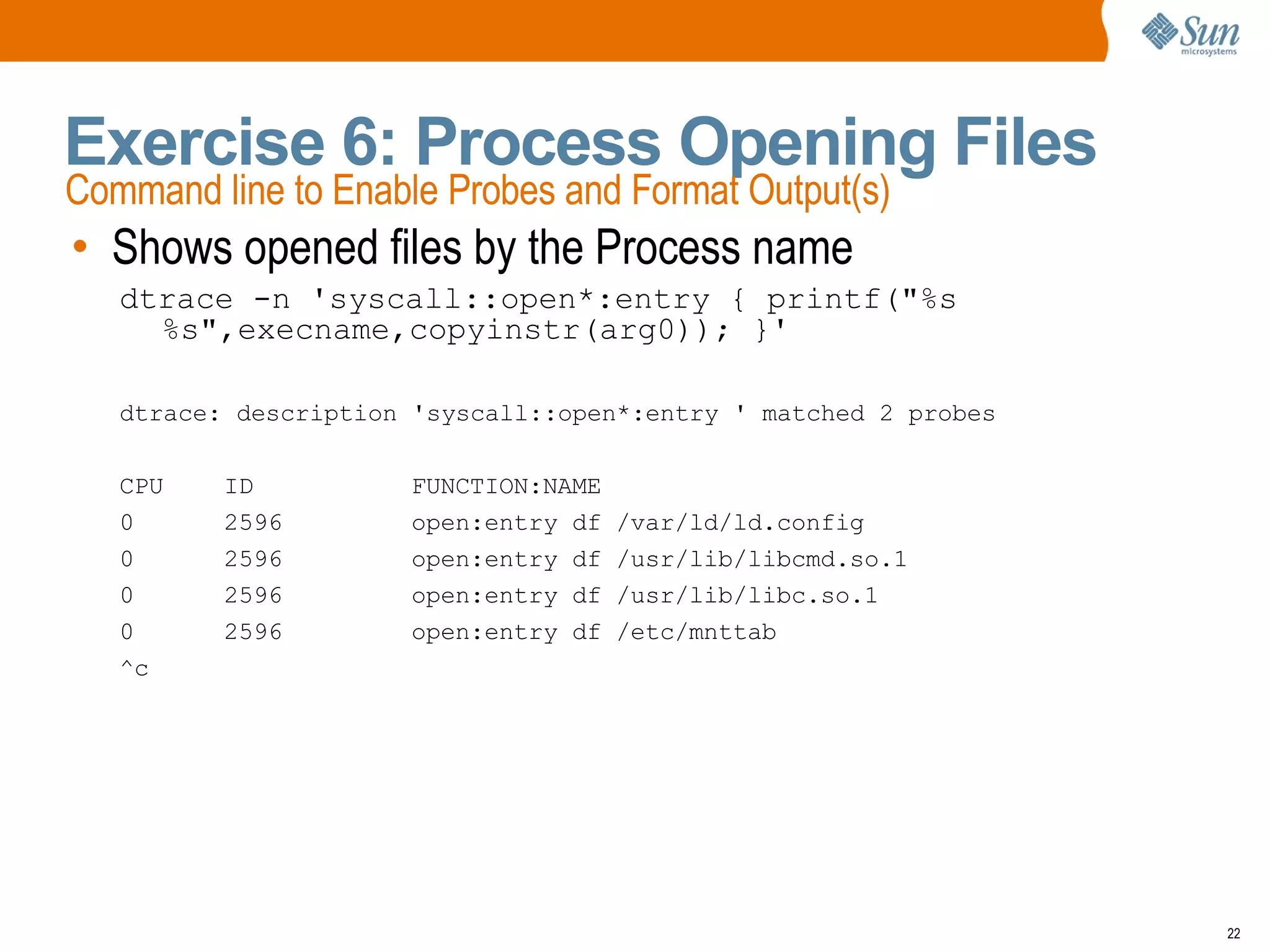

22. Exercise 6: Process Opening Files
Command line to Enable Probes and Format Output(s)
• Shows opened files by the Process name
dtrace -n 'syscall::open*:entry { printf("%s
%s",execname,copyinstr(arg0)); }'
dtrace: description 'syscall::open*:entry ' matched 2 probes
CPU ID FUNCTION:NAME
0 2596 open:entry df /var/ld/ld.config
0 2596 open:entry df /usr/lib/libcmd.so.1
0 2596 open:entry df /usr/lib/libc.so.1
0 2596 open:entry df /etc/mnttab
^c
22

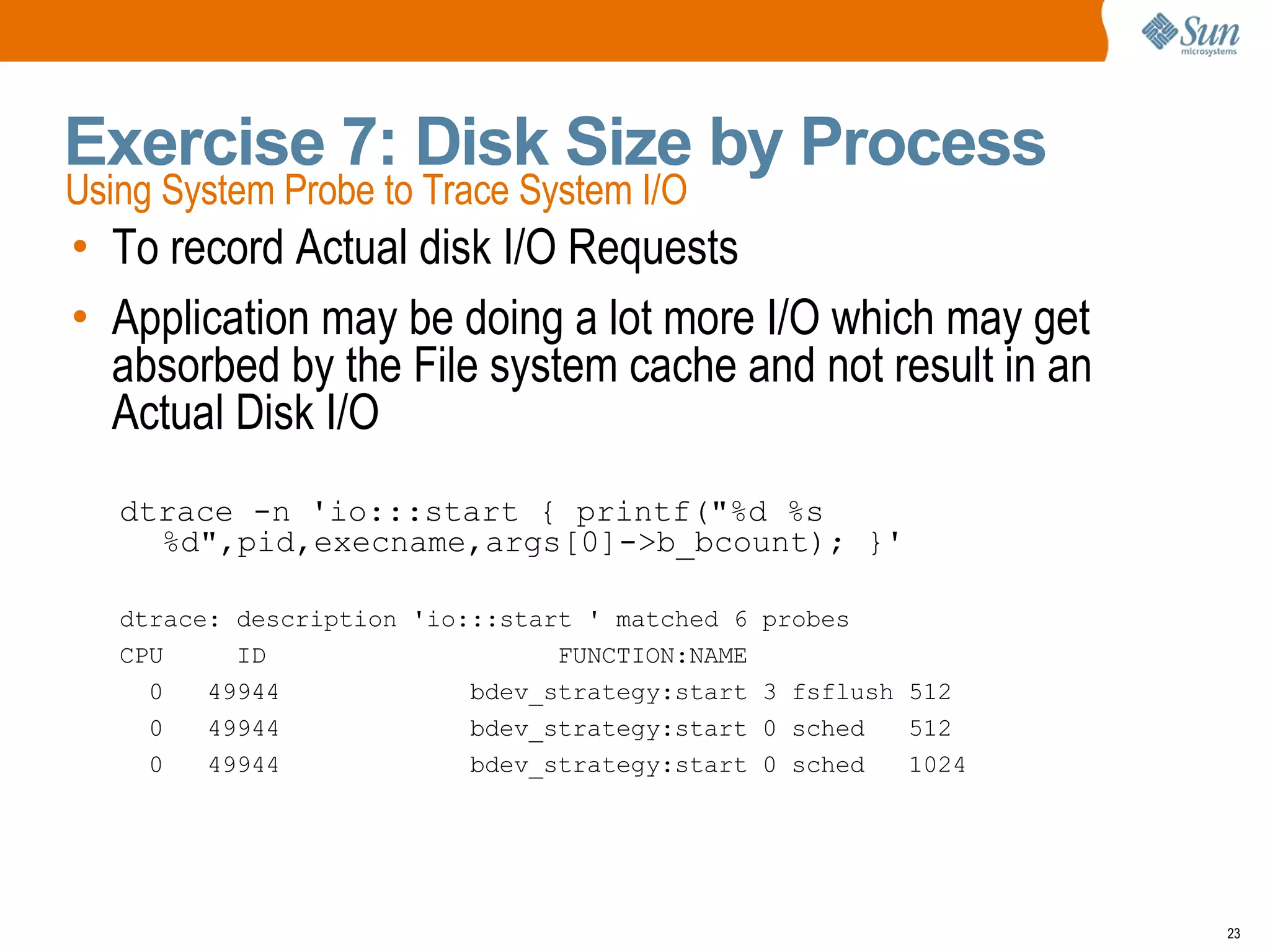

23. Exercise 7: Disk Size by Process
Using System Probe to Trace System I/O
• To record Actual disk I/O Requests
• Application may be doing a lot more I/O which may get
absorbed by the File system cache and not result in an
Actual Disk I/O
dtrace -n 'io:::start { printf("%d %s
%d",pid,execname,args[0]->b_bcount); }'
dtrace: description 'io:::start ' matched 6 probes
CPU ID FUNCTION:NAME
0 49944 bdev_strategy:start 3 fsflush 512
0 49944 bdev_strategy:start 0 sched 512
0 49944 bdev_strategy:start 0 sched 1024
23

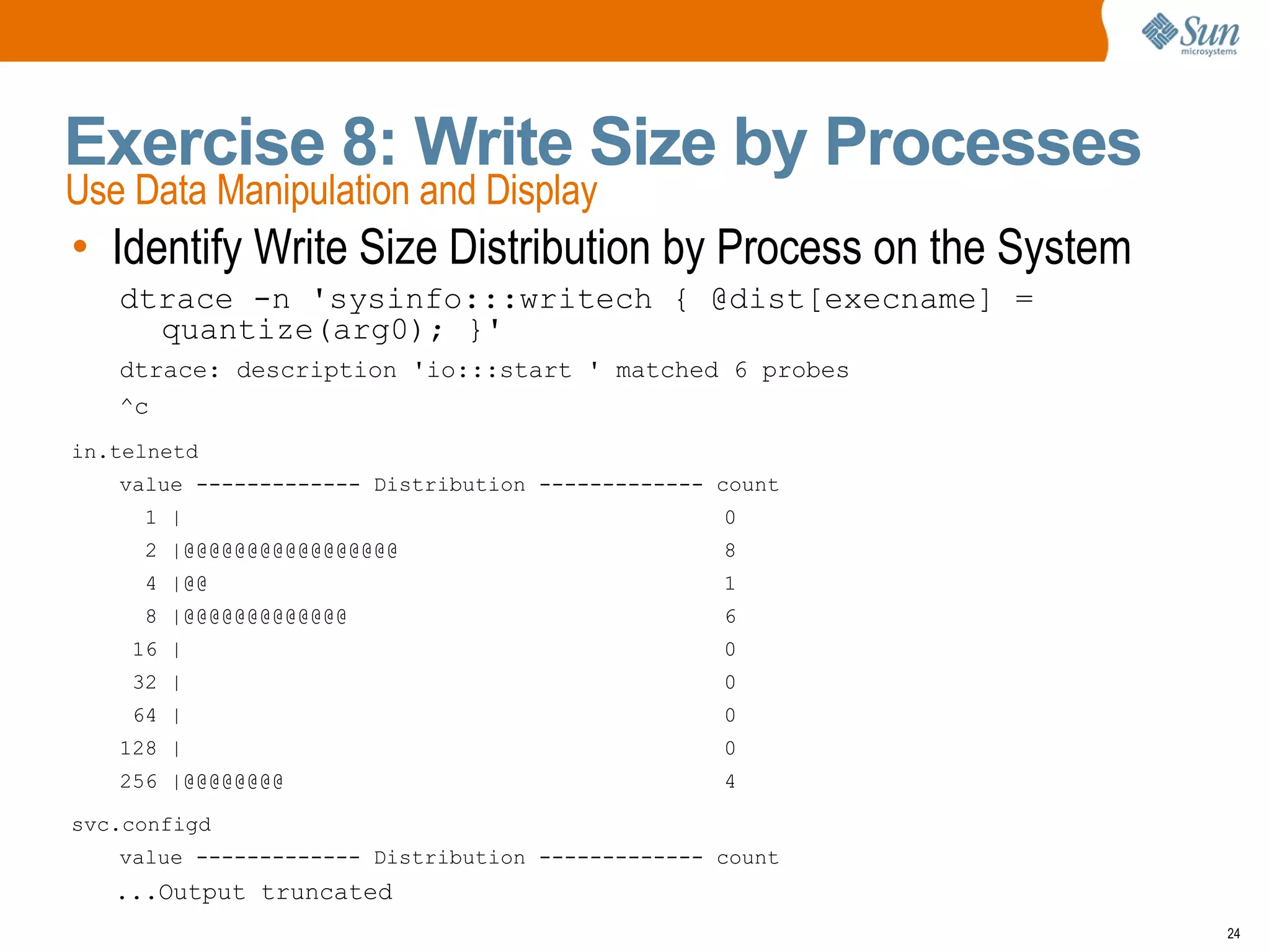

24. Exercise 8: Write Size by Processes
Use Data Manipulation and Display
• Identify Write Size Distribution by Process on the System
dtrace -n 'sysinfo:::writech { @dist[execname] =
quantize(arg0); }'
dtrace: description 'io:::start ' matched 6 probes
^c
in.telnetd
value ------------- Distribution ------------- count
1 | 0
2 |@@@@@@@@@@@@@@@@@ 8
4 |@@ 1
8 |@@@@@@@@@@@@@ 6
16 | 0
32 | 0
64 | 0
128 | 0
256 |@@@@@@@@ 4
svc.configd
value ------------- Distribution ------------- count
...Output truncated
24

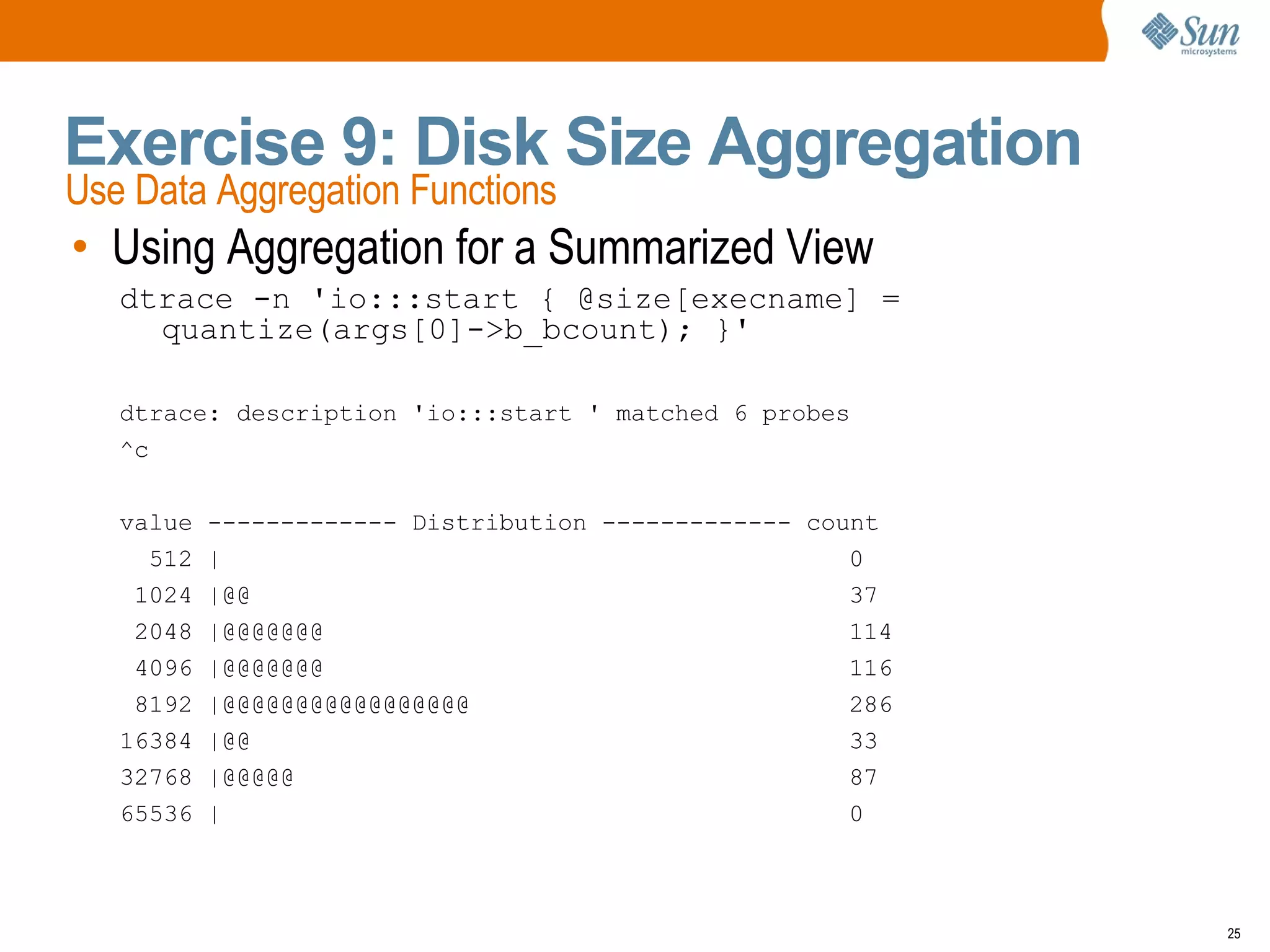

25. Exercise 9: Disk Size Aggregation
Use Data Aggregation Functions
• Using Aggregation for a Summarized View
dtrace -n 'io:::start { @size[execname] =
quantize(args[0]->b_bcount); }'
dtrace: description 'io:::start ' matched 6 probes
^c
value ------------- Distribution ------------- count
512 | 0
1024 |@@ 37
2048 |@@@@@@@ 114
4096 |@@@@@@@ 116
8192 |@@@@@@@@@@@@@@@@@ 286
16384 |@@ 33
32768 |@@@@@ 87
65536 | 0
25

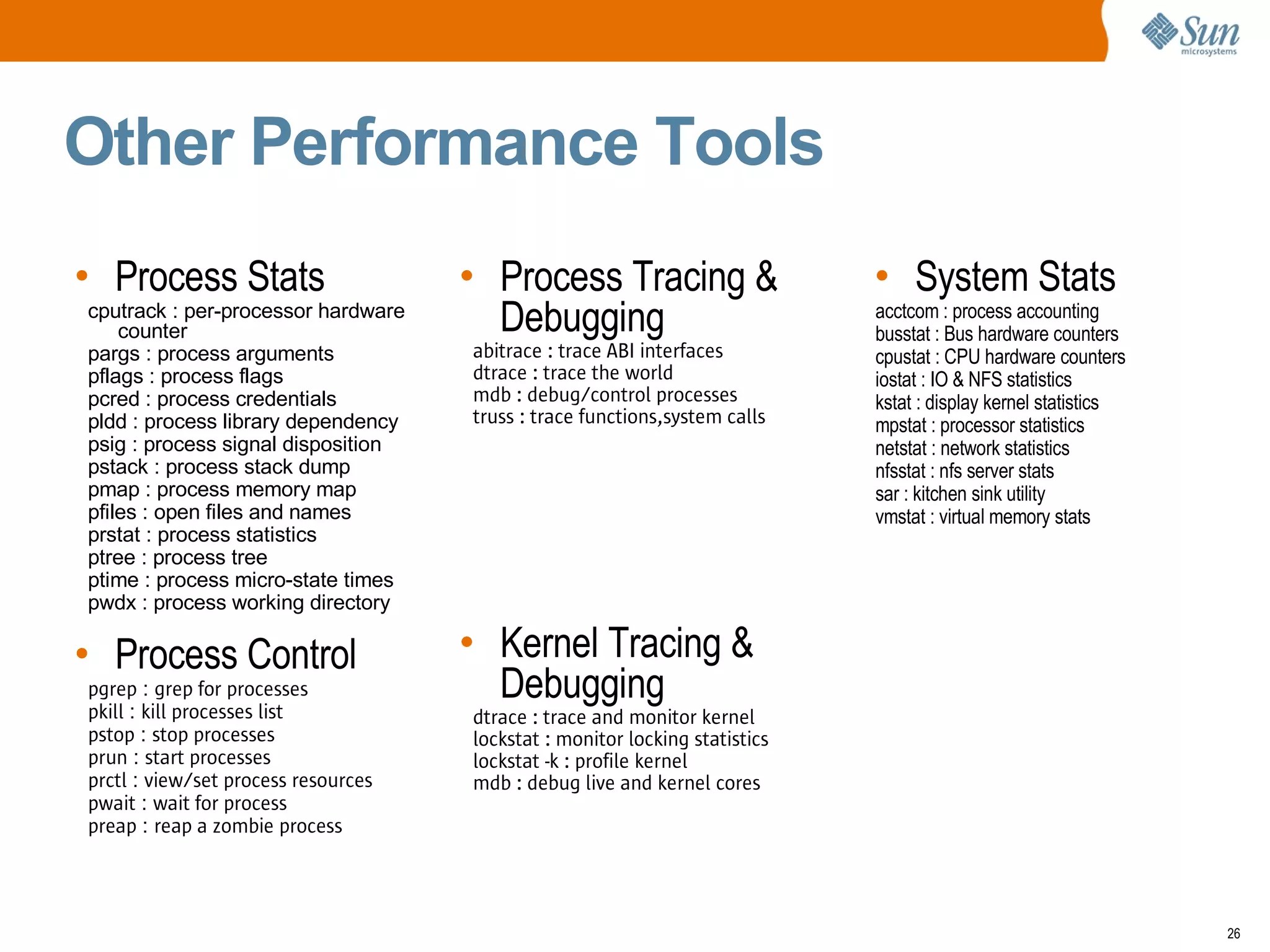

26. Other Performance Tools
• Process Stats • Process Tracing & • System Stats
cputrack : per-processor hardware
counter Debugging acctcom : process accounting
busstat : Bus hardware counters
pargs : process arguments abitrace : trace ABI interfaces cpustat : CPU hardware counters
pflags : process flags dtrace : trace the world iostat : IO & NFS statistics
pcred : process credentials mdb : debug/control processes kstat : display kernel statistics
pldd : process library dependency truss : trace functions,system calls mpstat : processor statistics
psig : process signal disposition netstat : network statistics
pstack : process stack dump nfsstat : nfs server stats
pmap : process memory map sar : kitchen sink utility
pfiles : open files and names vmstat : virtual memory stats
prstat : process statistics
ptree : process tree
ptime : process micro-state times
pwdx : process working directory
• Process Control • Kernel Tracing &
pgrep : grep for processes
pkill : kill processes list
Debugging
dtrace : trace and monitor kernel
pstop : stop processes lockstat : monitor locking statistics
prun : start processes lockstat -k : profile kernel
prctl : view/set process resources mdb : debug live and kernel cores
pwait : wait for process
preap : reap a zombie process
26

27. TM
SOLARIS DTRACE
Satyajit Tripathi
http://blogs.sun.com/stripathi
27
