Linux
  4.x
  Performance

Using
  BPF
  Superpowers

Brendan Gregg
Senior Performance Architect
Feb

2016

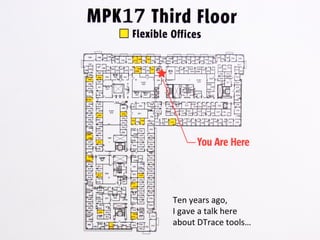

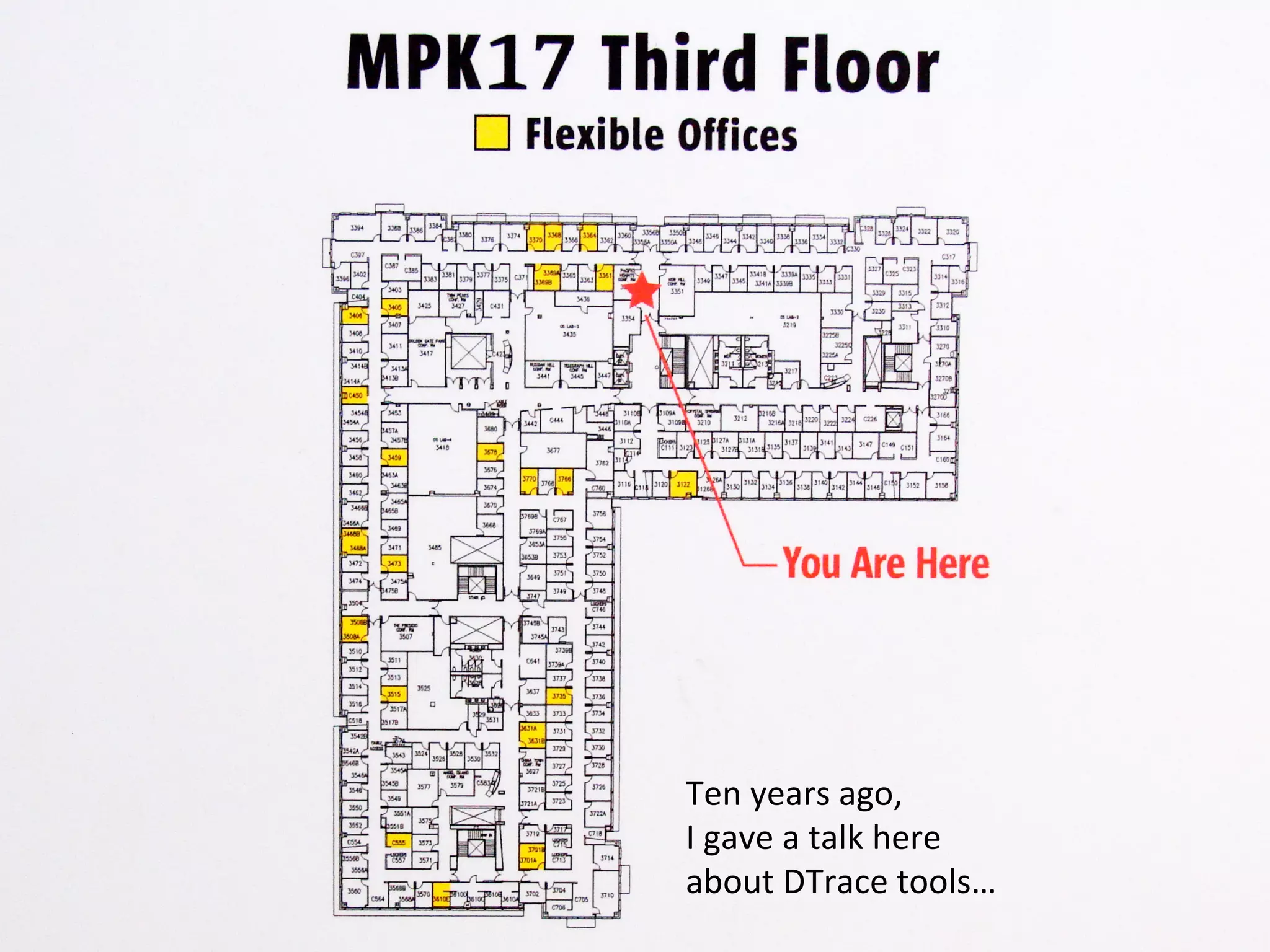

Ten
  years
  ago,

I
  gave
  a
  talk
  here


about
  DTrace
  tools…

Superpowers
  are
  coming
  to
  Linux


Solve performance issues that were previously impossible
For example, full off-CPU analysis…

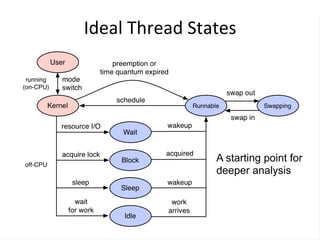

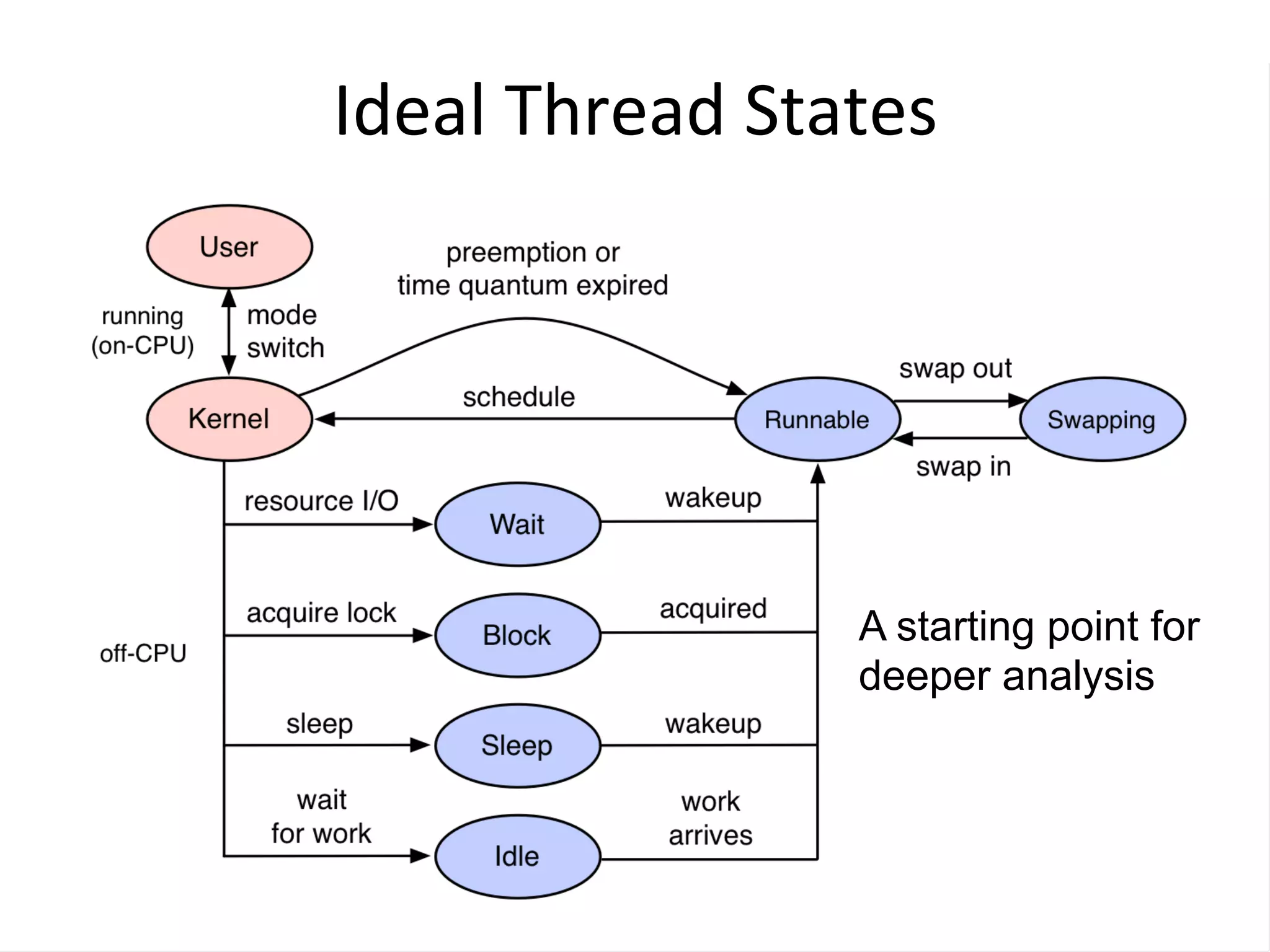

Ideal
  Thread
  States

A starting point for
deeper analysis

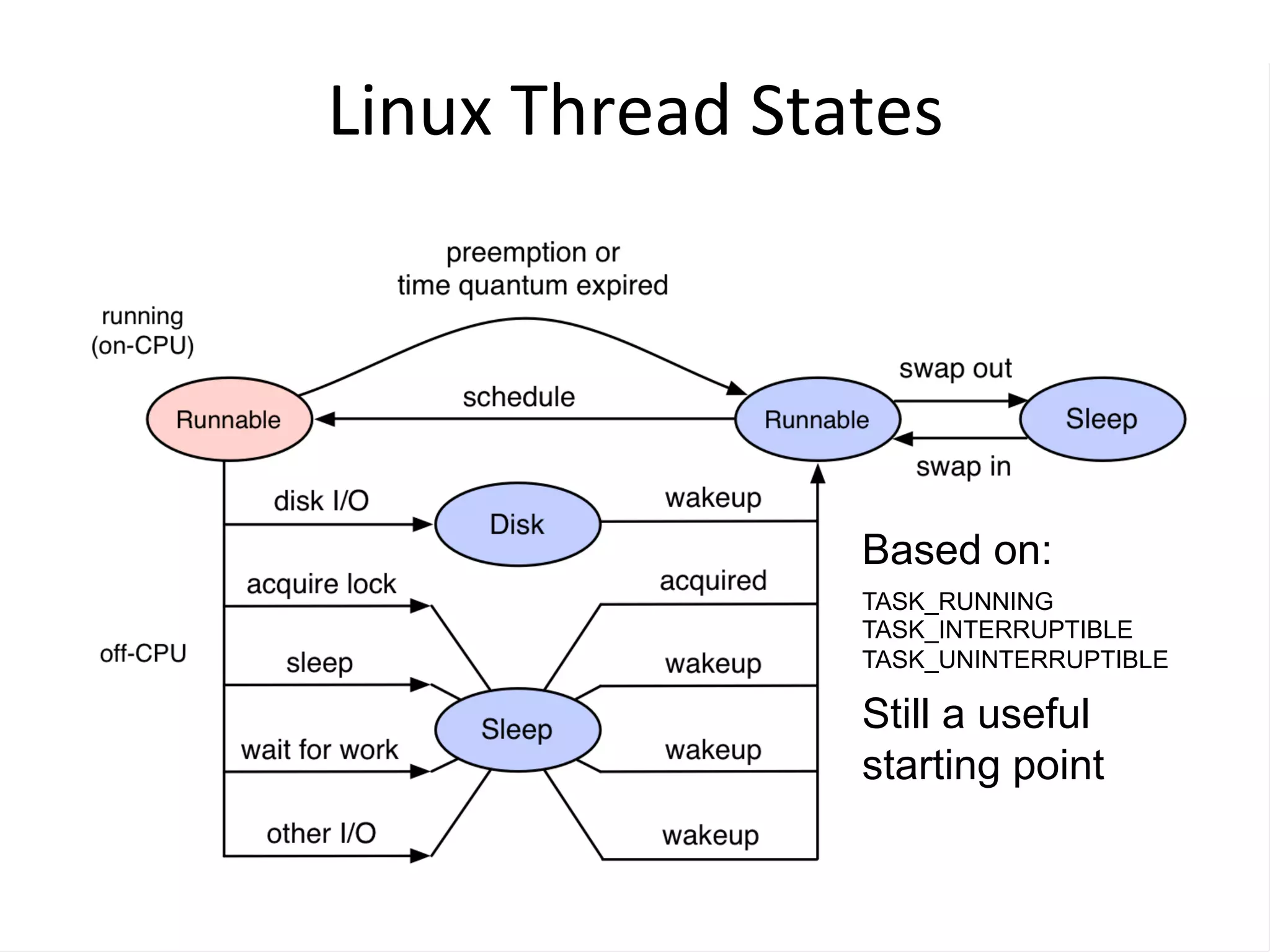

Linux
  Thread
  States

Based on:
TASK_RUNNING
TASK_INTERRUPTIBLE
TASK_UNINTERRUPTIBLE
Still a useful
starting point

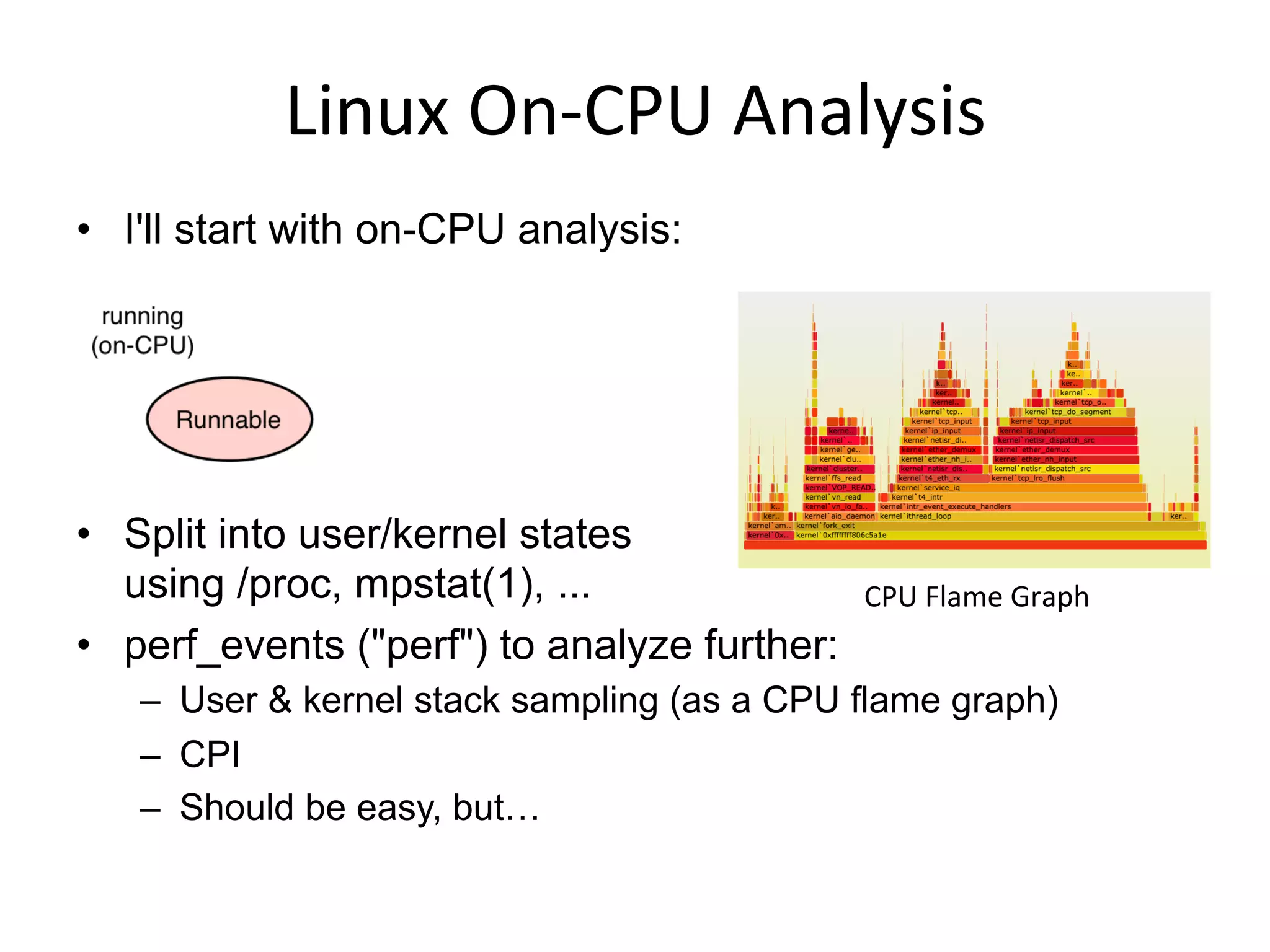

Linux
  On-­‐CPU
  Analysis

CPU
  Flame
  Graph

•  I'll start with on-CPU analysis:
•  Split into user/kernel states
using /proc, mpstat(1), ...
•  perf_events ("perf") to analyze further:
–  User & kernel stack sampling (as a CPU flame graph)
–  CPI
–  Should be easy, but…

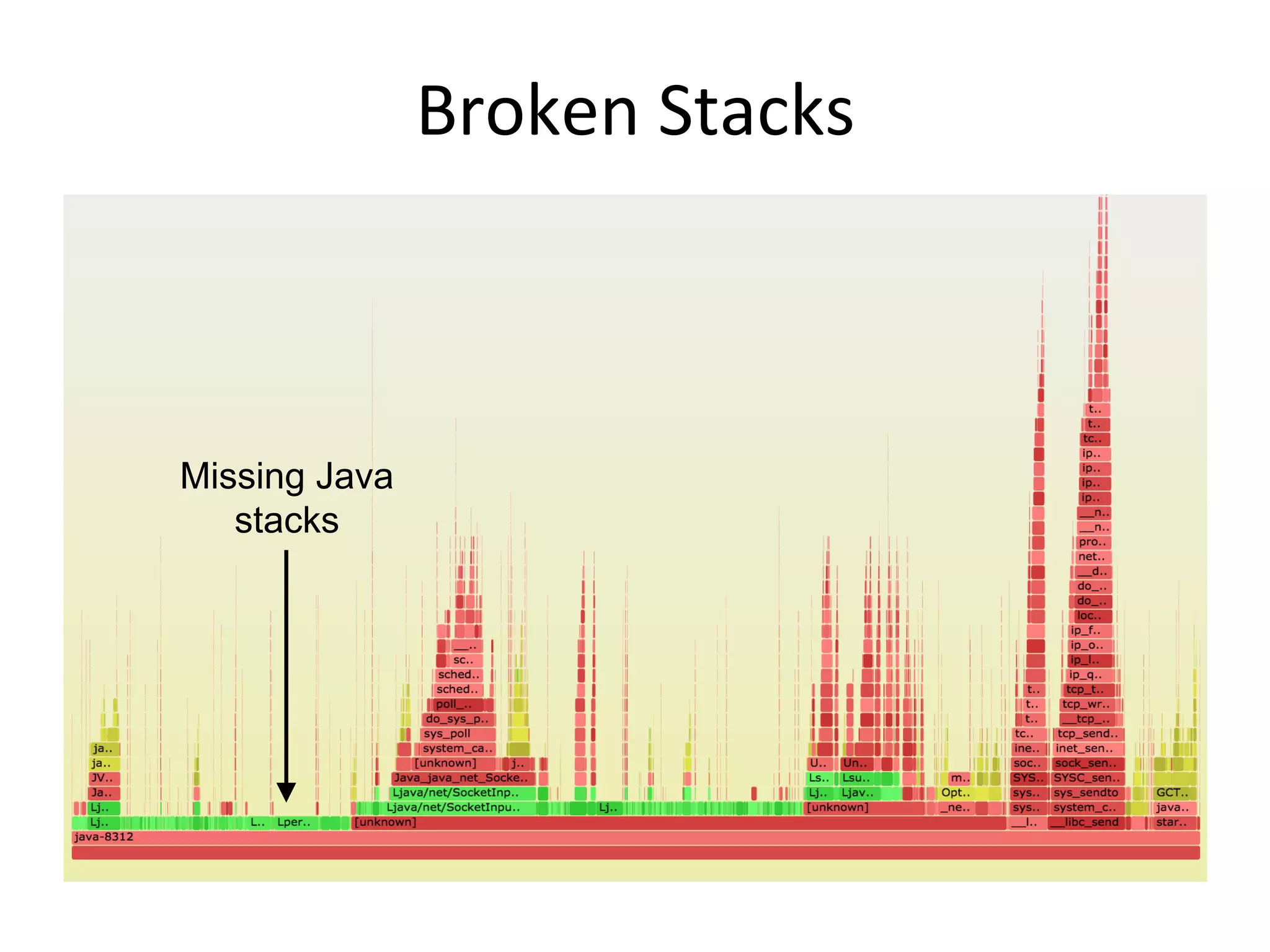

Broken
  Stacks

Missing Java
stacks

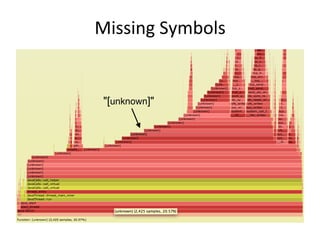

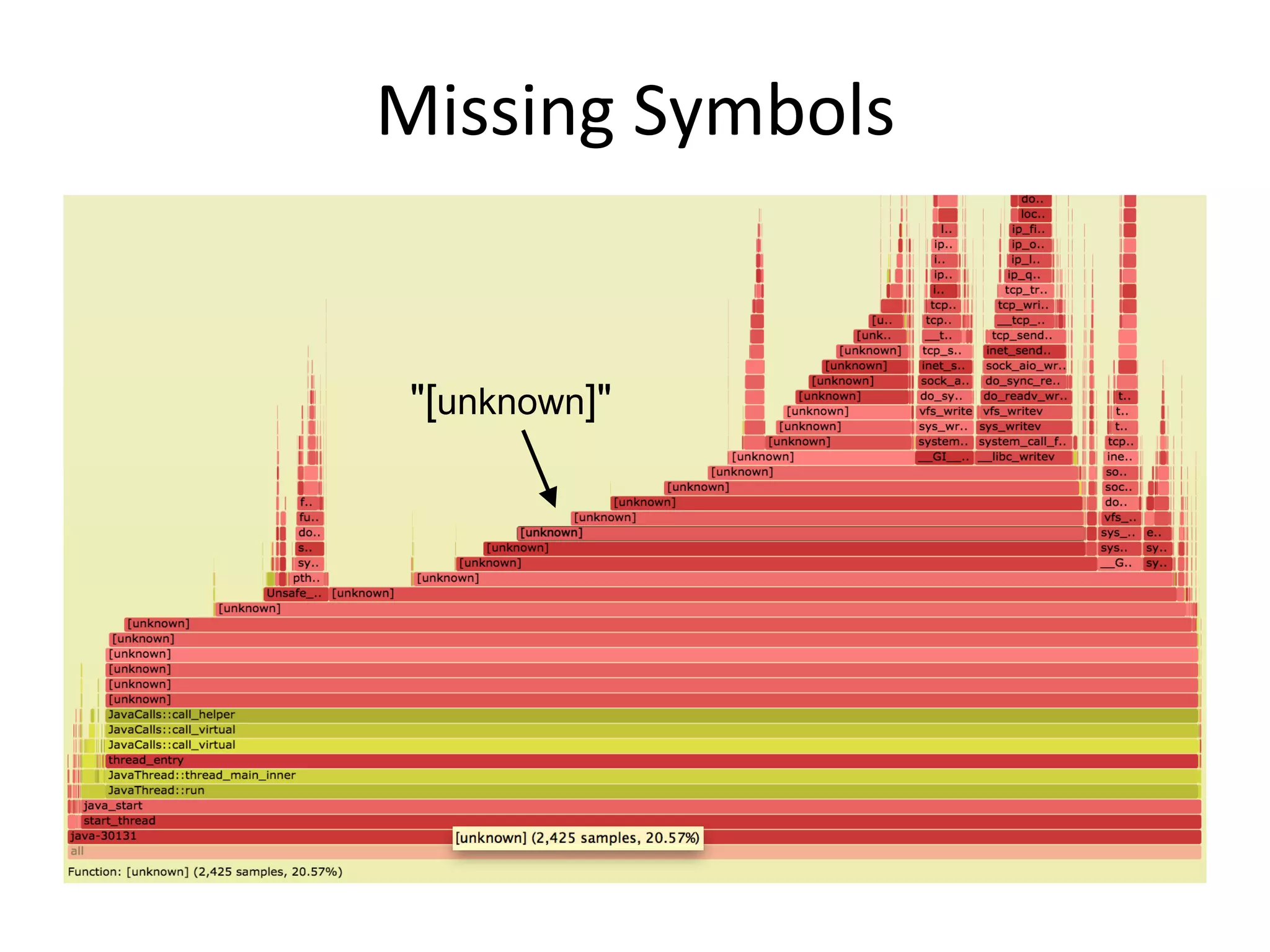

Missing
  Symbols

"[unknown]"

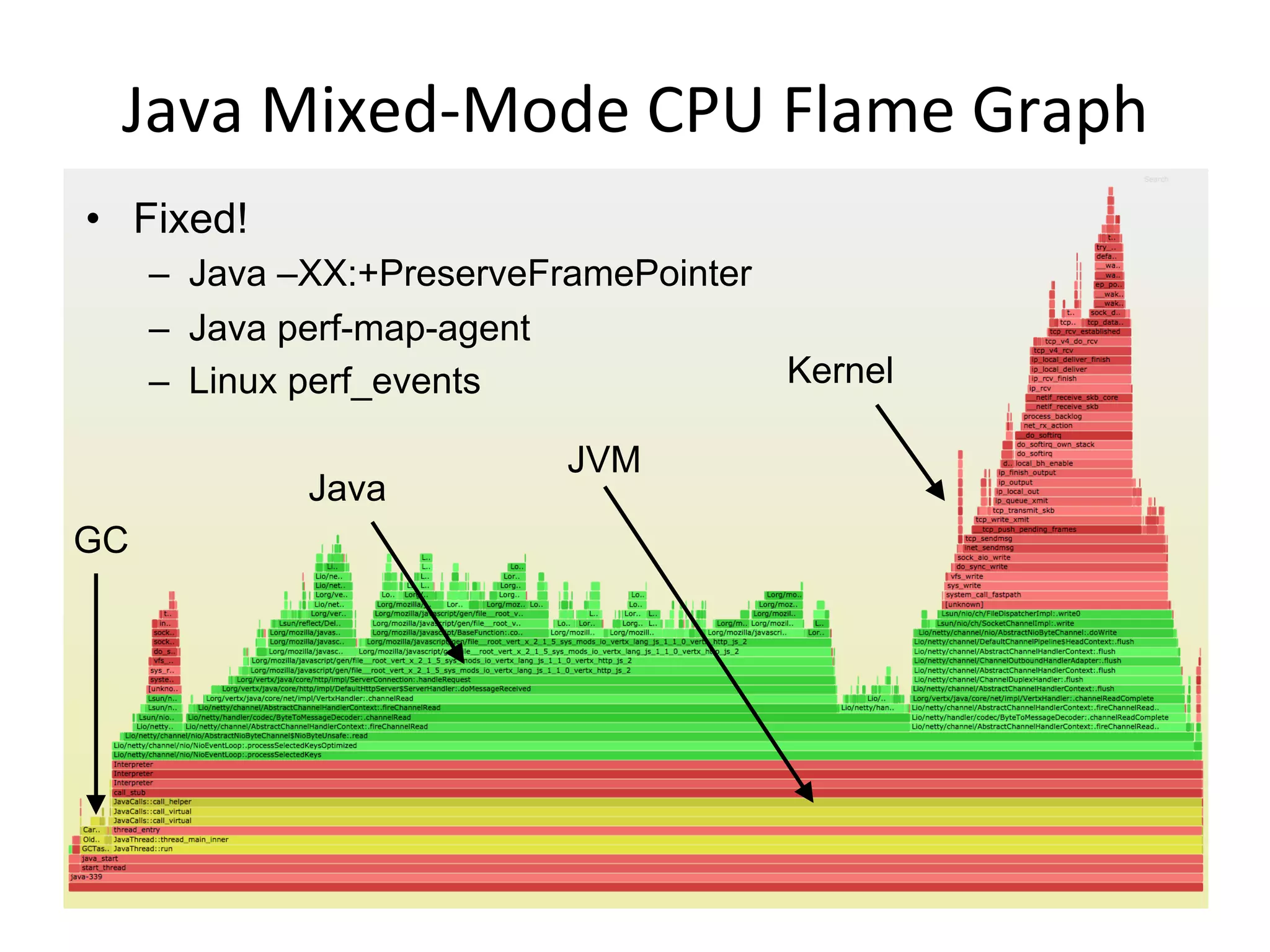

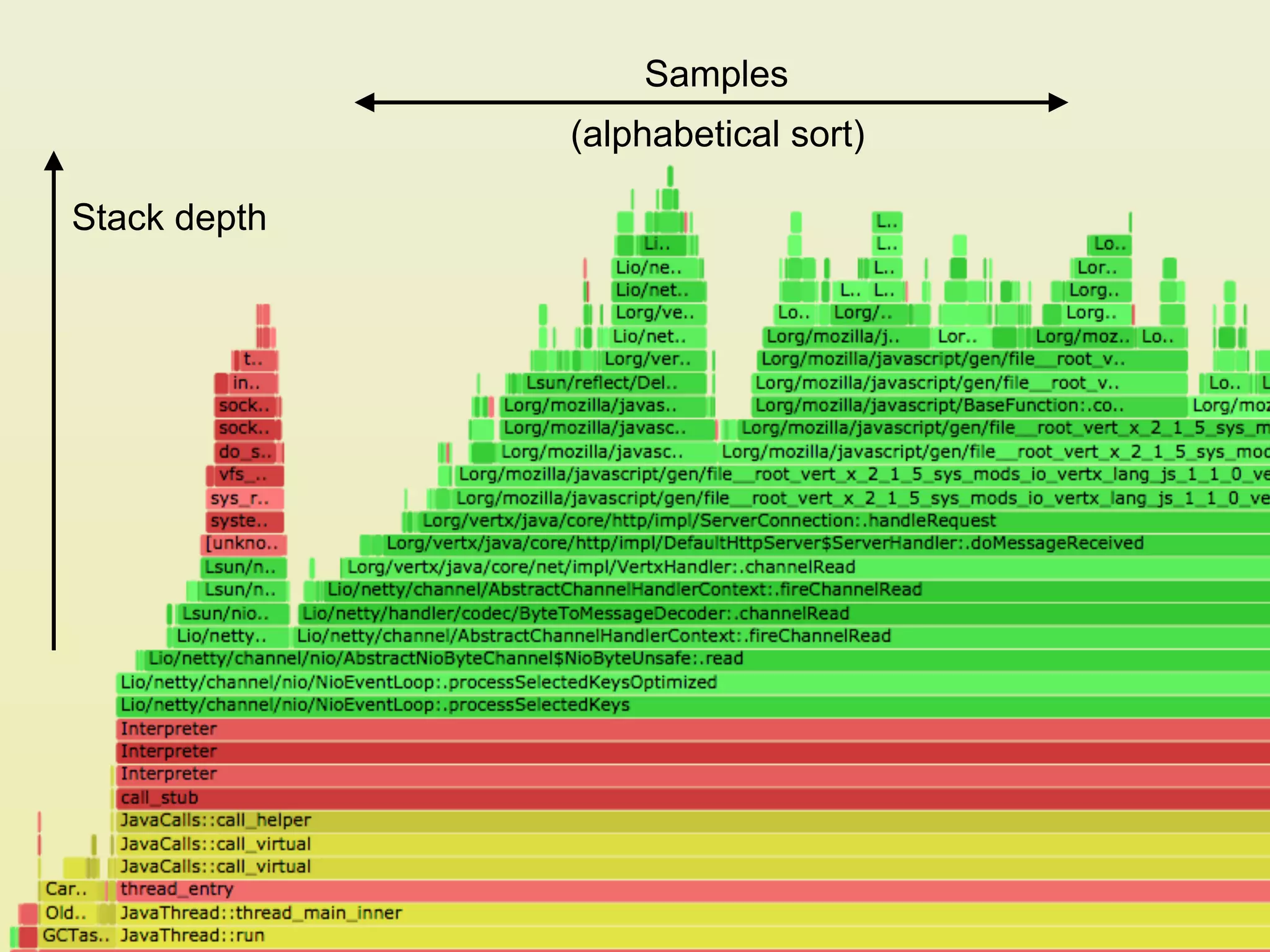

Java
  Mixed-­‐Mode
  CPU
  Flame
  Graph

Java
JVM
Kernel
GC
•  Fixed!
–  Java –XX:+PreserveFramePointer
–  Java perf-map-agent
–  Linux perf_events
Stack depth
Samples
(alphabetical sort)

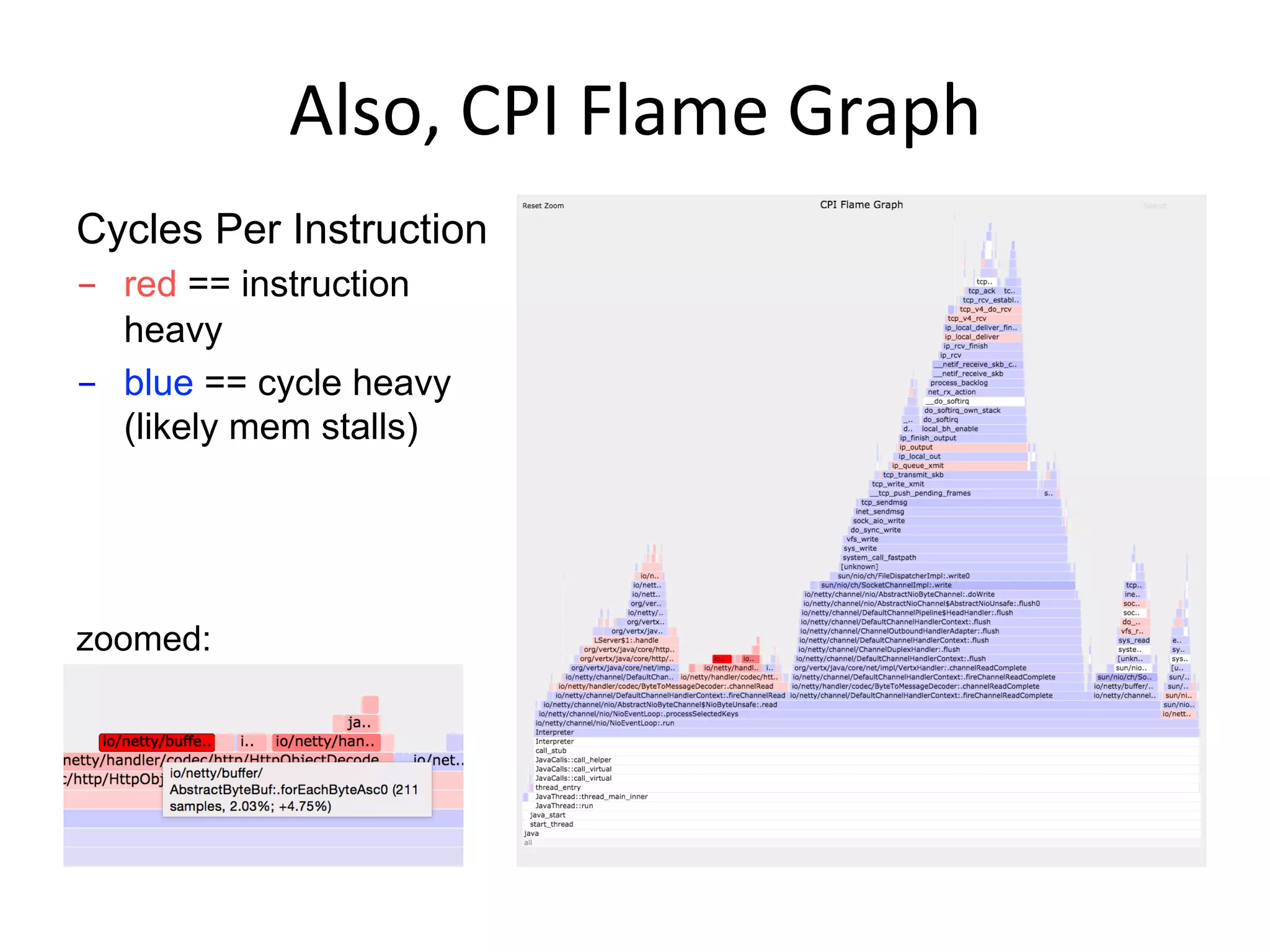

Also,
  CPI
  Flame
  Graph

Cycles Per Instruction
-  red == instruction
heavy
-  blue == cycle heavy
(likely mem stalls)
zoomed:

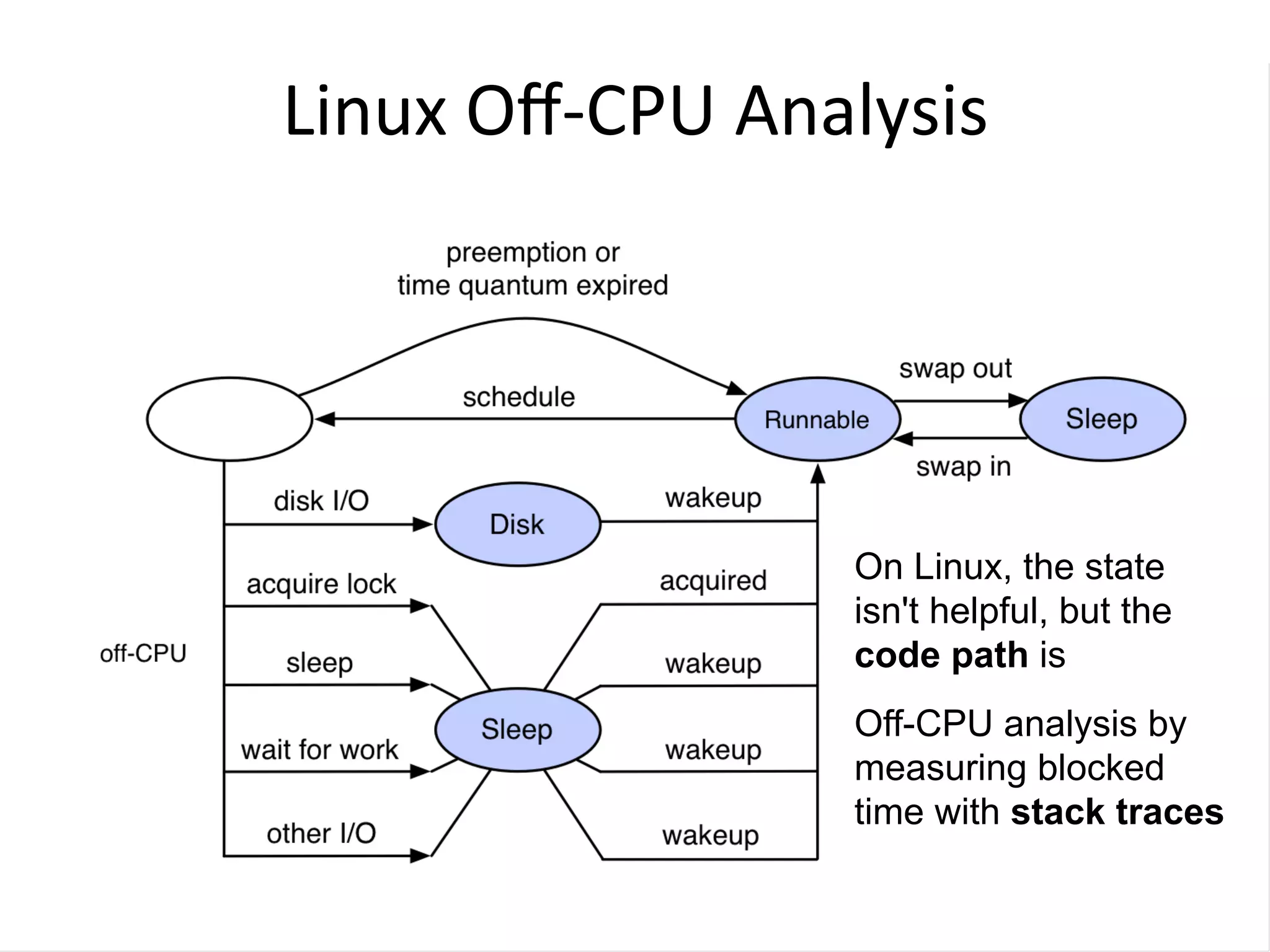

Linux
  Off-­‐CPU
  Analysis

On Linux, the state
isn't helpful, but the
code path is
Off-CPU analysis by
measuring blocked
time with stack traces

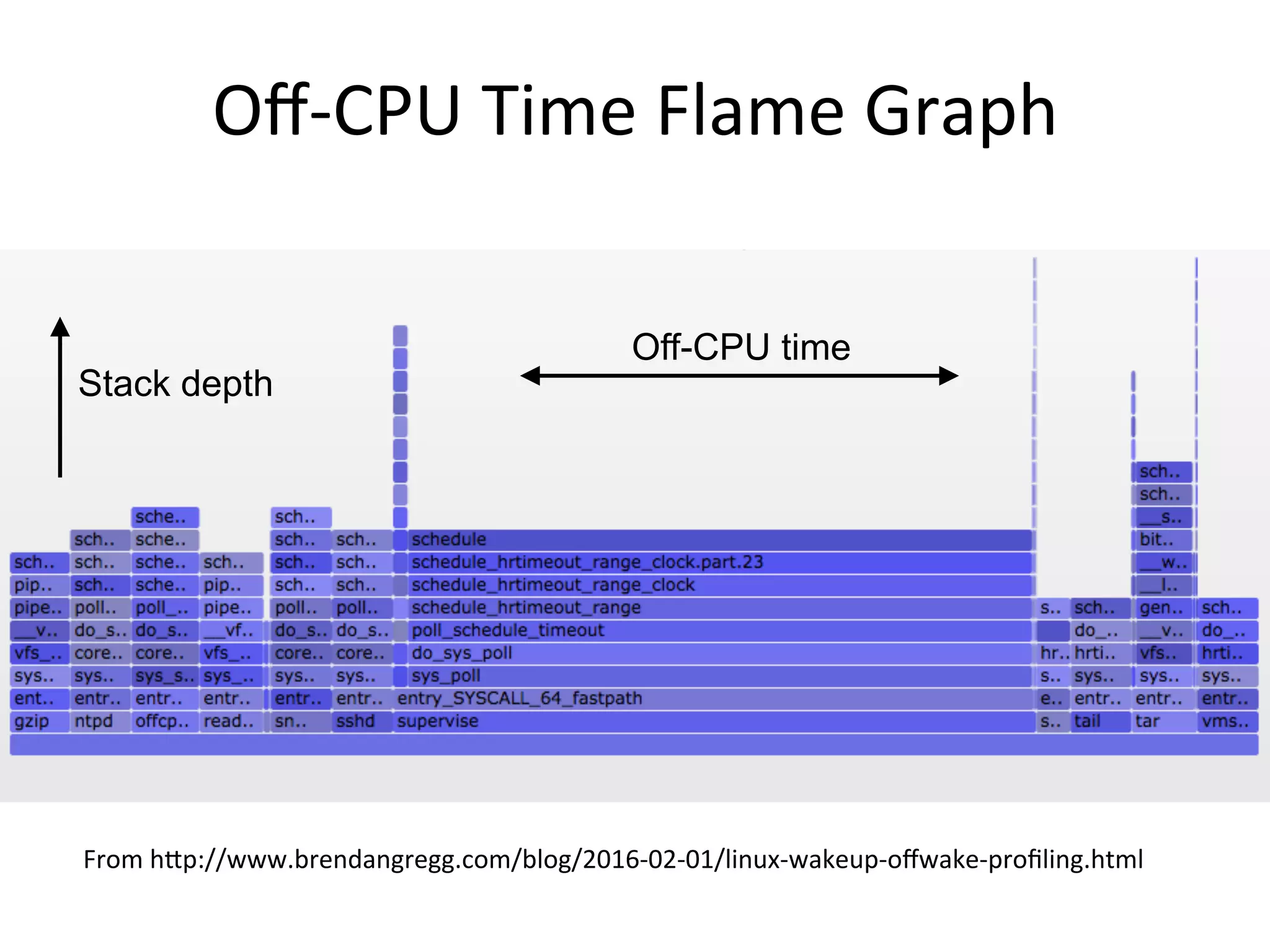

Off-­‐CPU
  Time
  Flame
  Graph

From
  hRp://www.brendangregg.com/blog/2016-­‐02-­‐01/linux-­‐wakeup-­‐offwake-­‐profiling.html

Stack depth
Off-CPU time

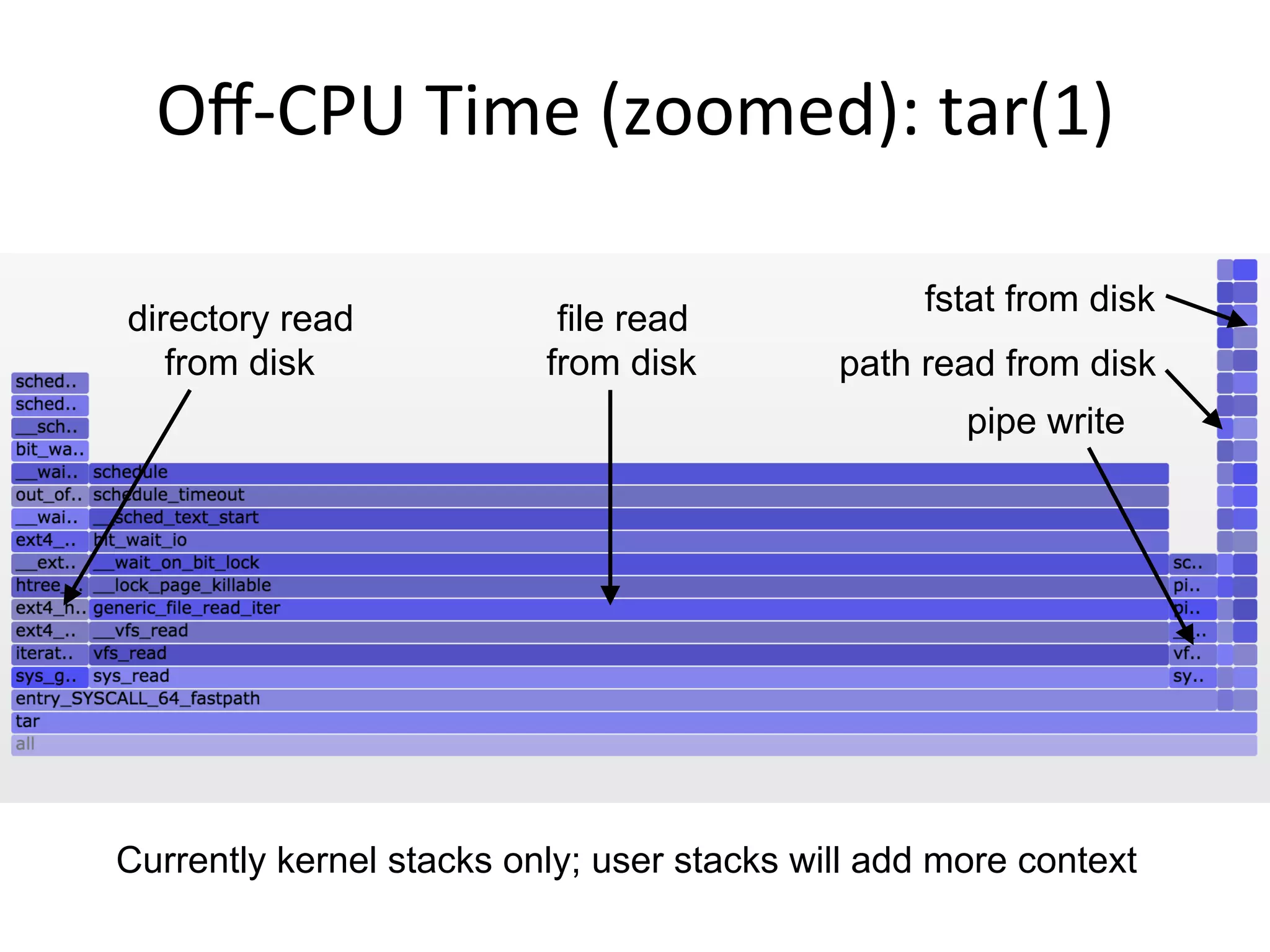

Off-­‐CPU
  Time
  (zoomed):
  tar(1)

file read
from disk
directory read
from disk
Currently kernel stacks only; user stacks will add more context
pipe write
path read from disk
fstat from disk

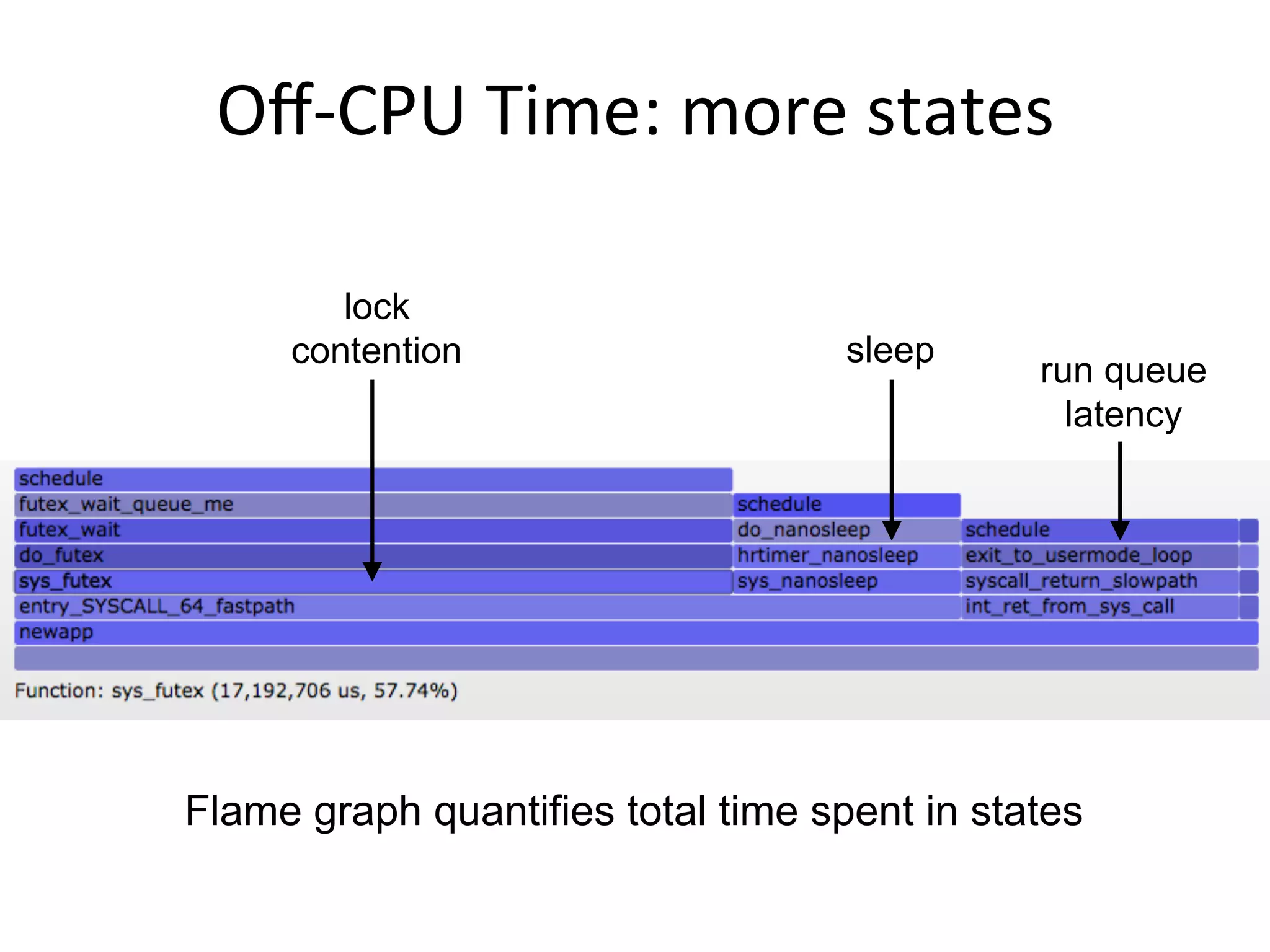

Off-­‐CPU
  Time:
  more
  states

lock
contention sleep
run queue
latency
Flame graph quantifies total time spent in states

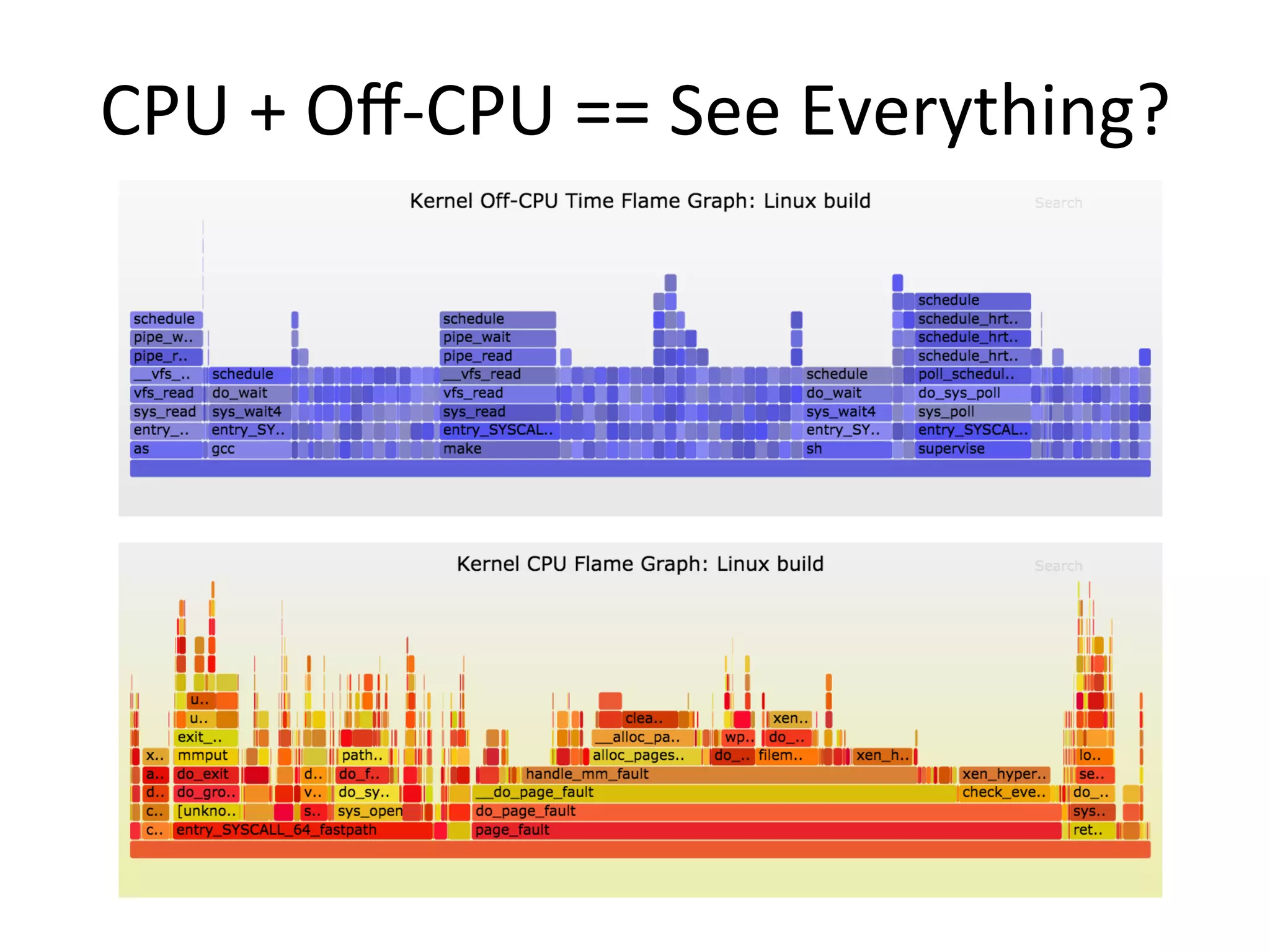

CPU
  +
  Off-­‐CPU
  ==
  See
  Everything?

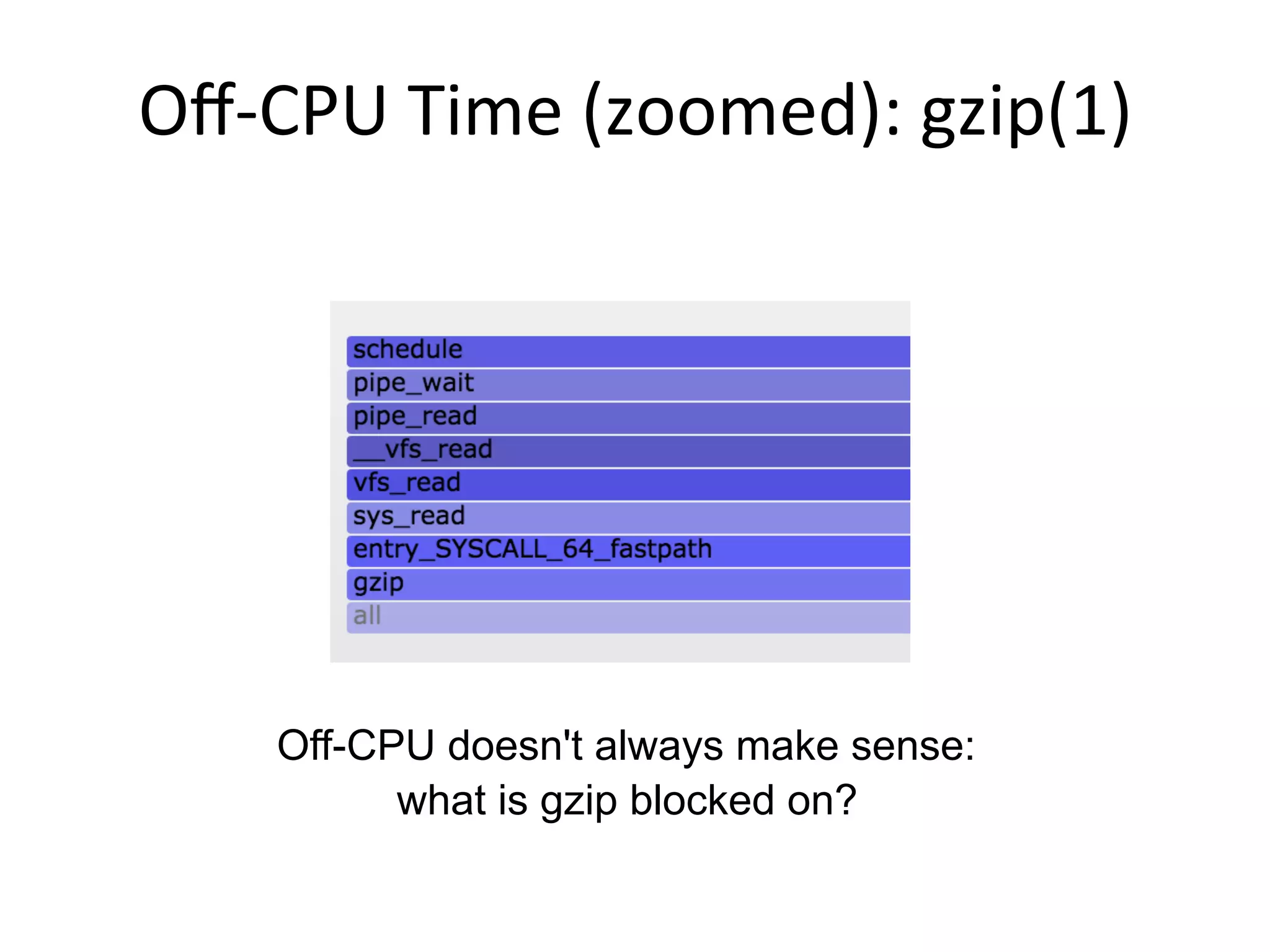

Off-­‐CPU
  Time
  (zoomed):
  gzip(1)

Off-CPU doesn't always make sense:
what is gzip blocked on?

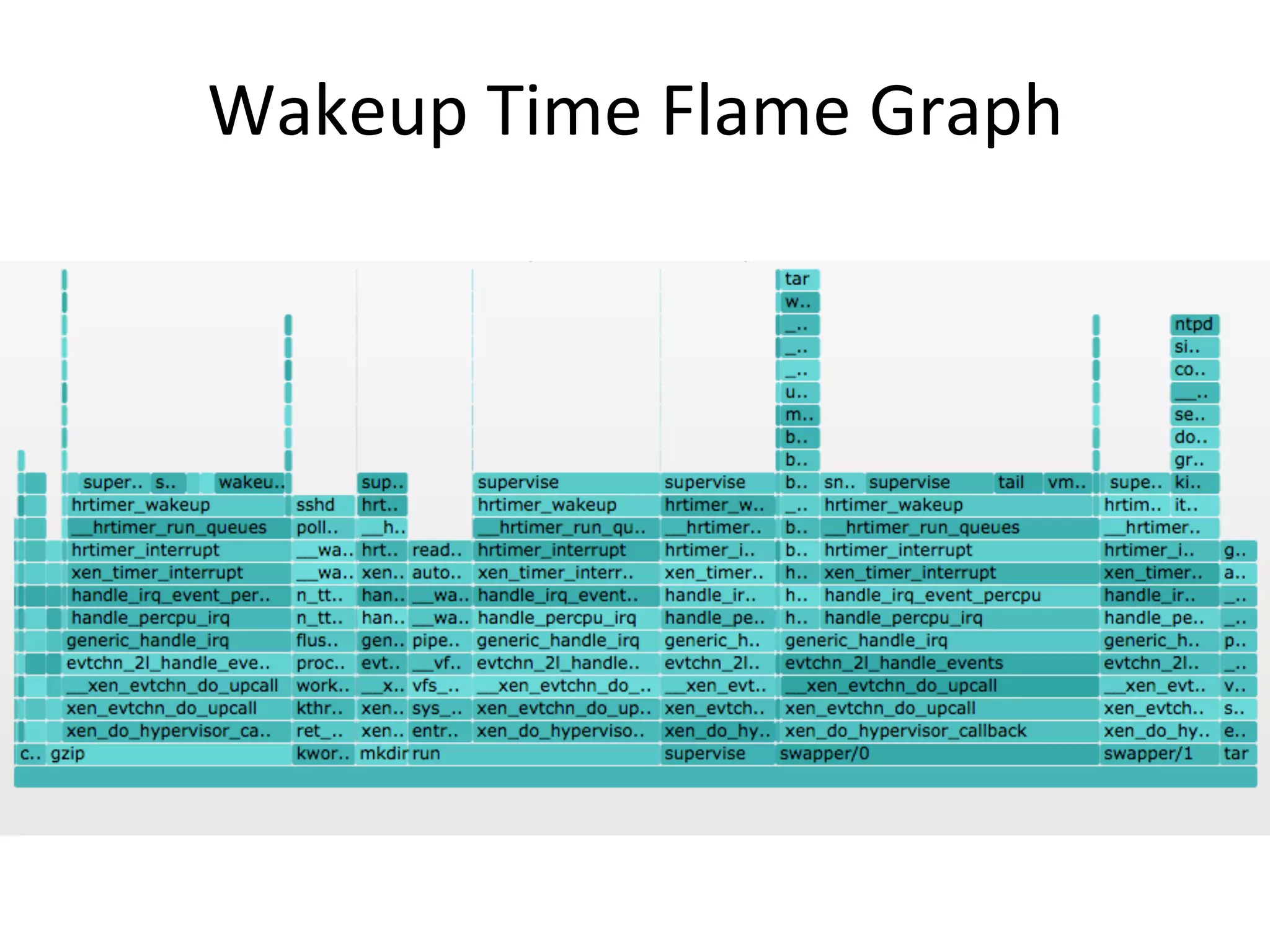

Wakeup
  Time
  Flame
  Graph

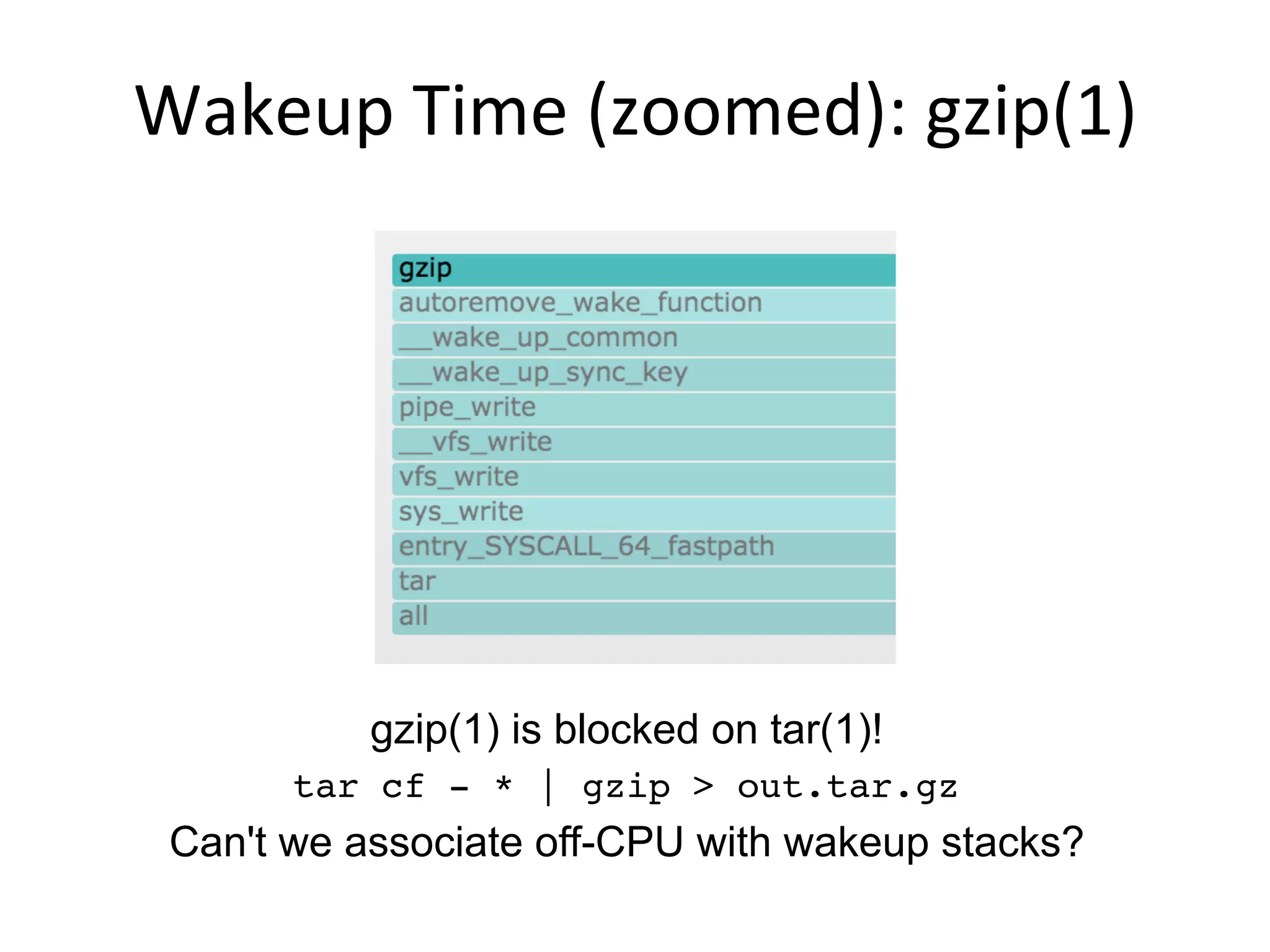

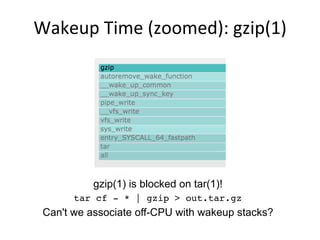

Wakeup
  Time
  (zoomed):
  gzip(1)

gzip(1) is blocked on tar(1)!
tar cf - * | gzip > out.tar.gz
Can't we associate off-CPU with wakeup stacks?

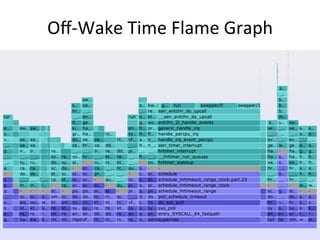

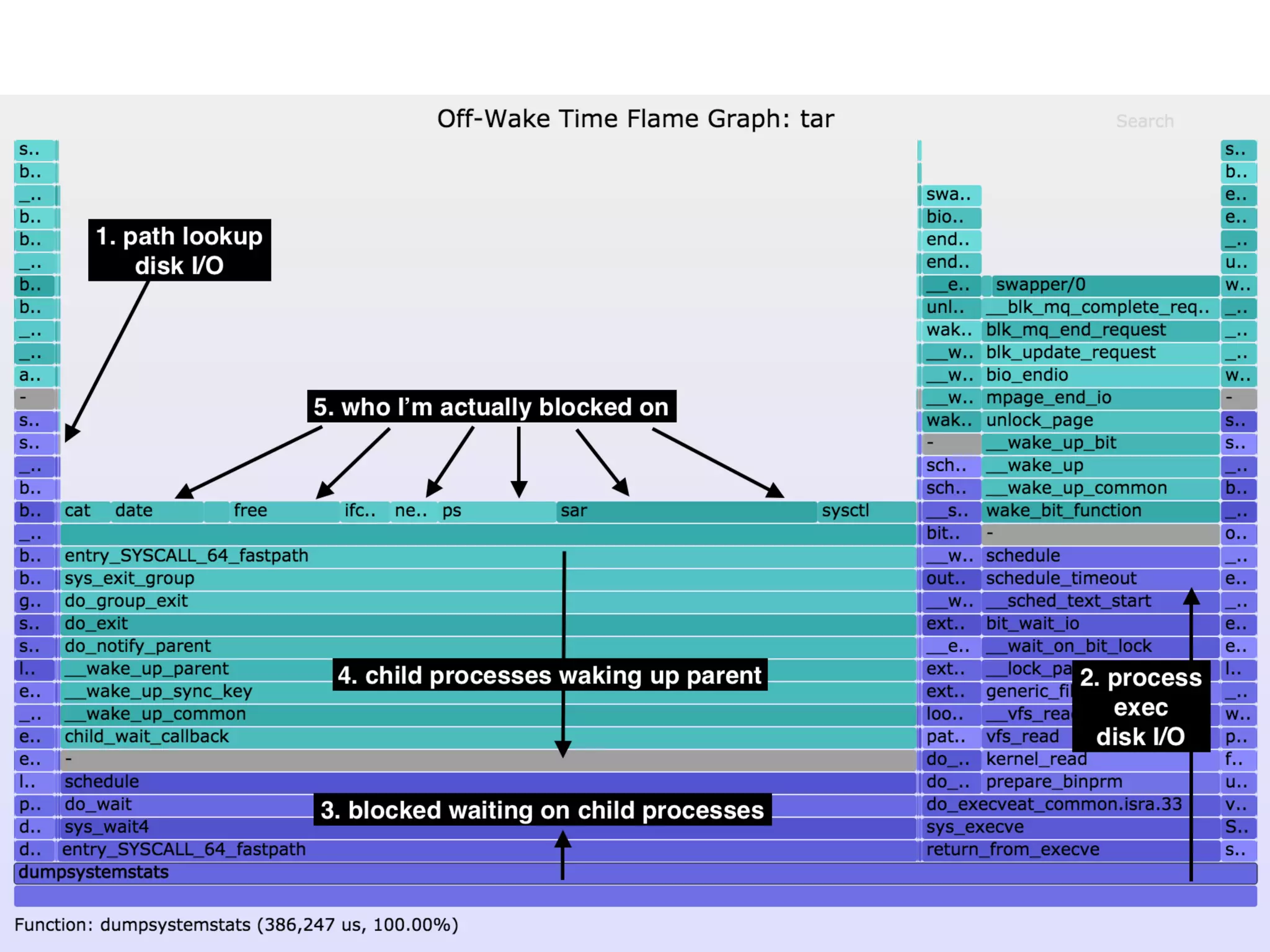

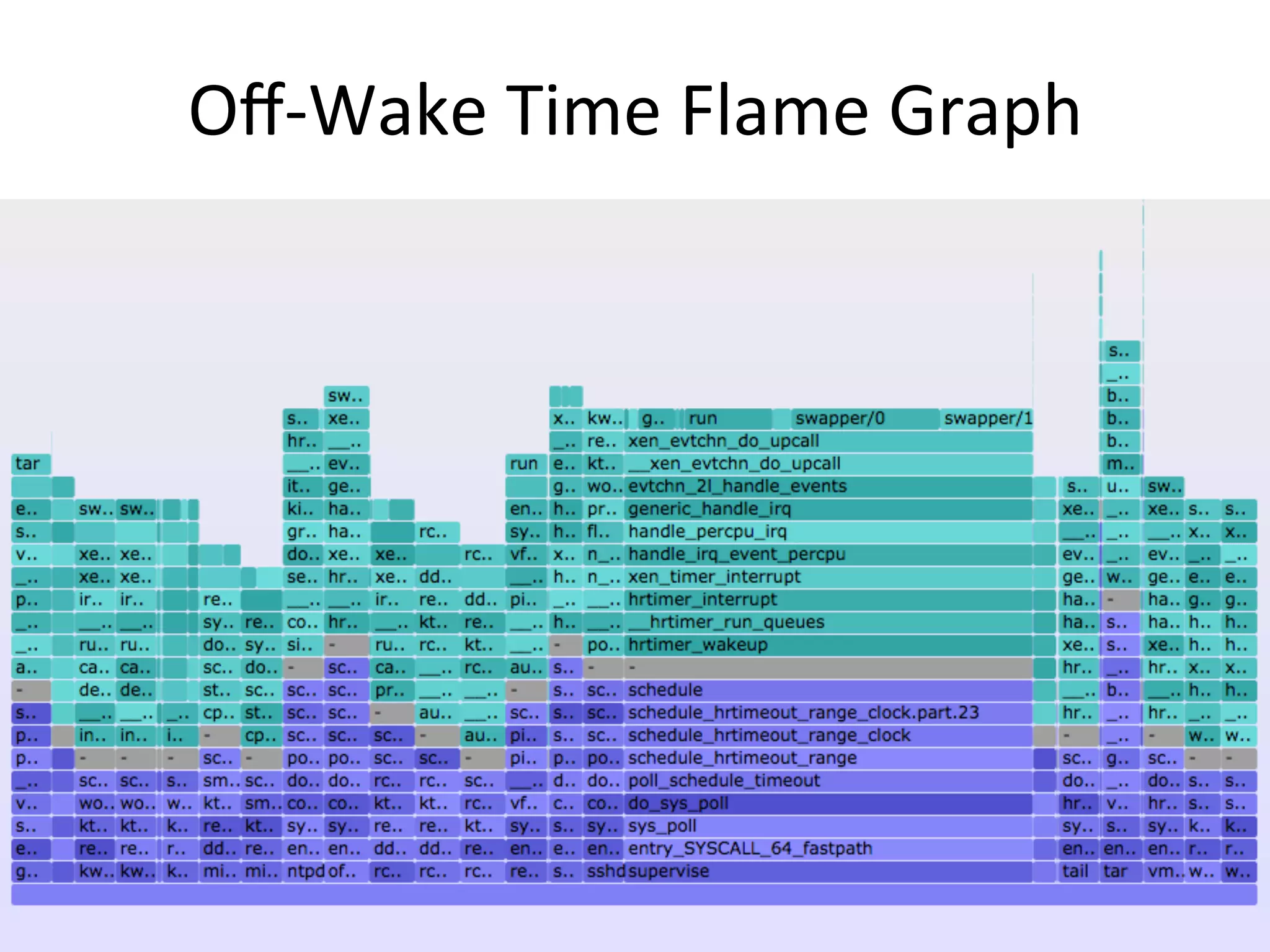

Off-­‐Wake
  Time
  Flame
  Graph

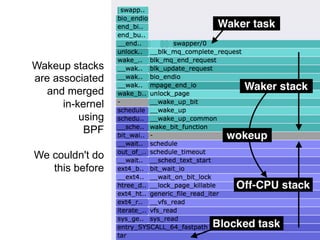

Wakeup stacks
are associated
and merged
in-kernel
using
BPF
We couldn't do
this before

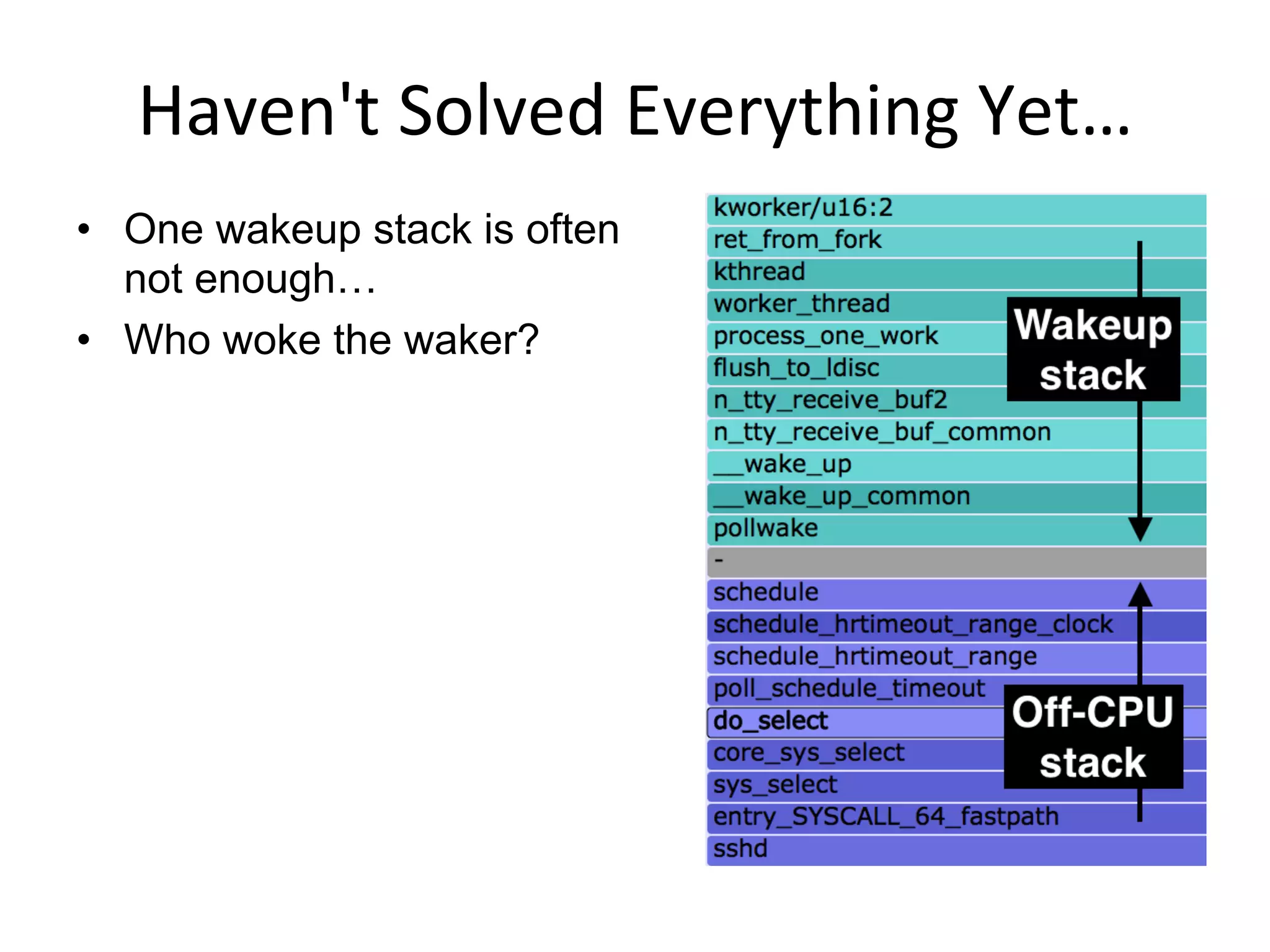

•  One wakeup stack is often
not enough…
•  Who woke the waker?
Haven't
  Solved
  Everything
  Yet…

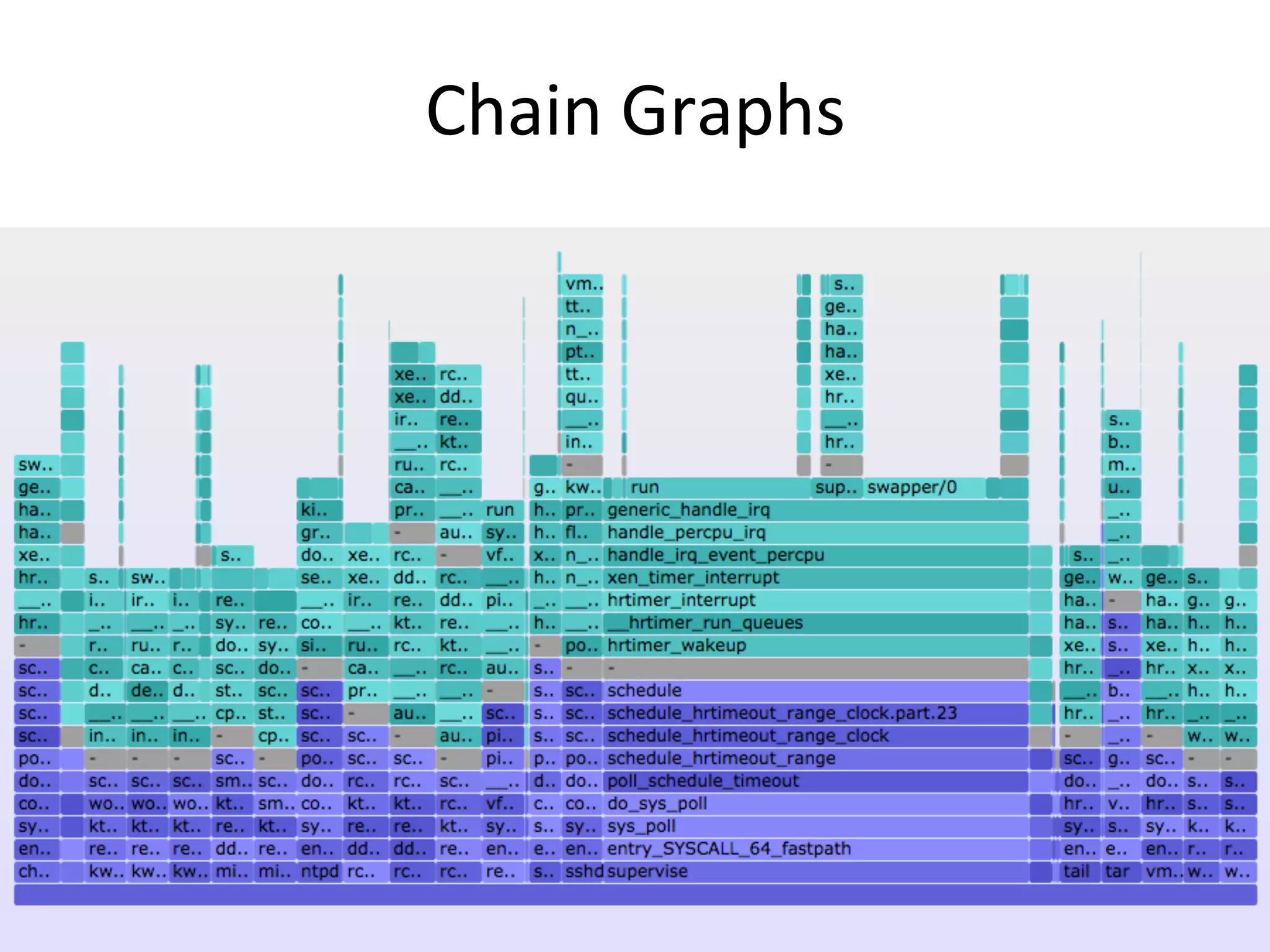

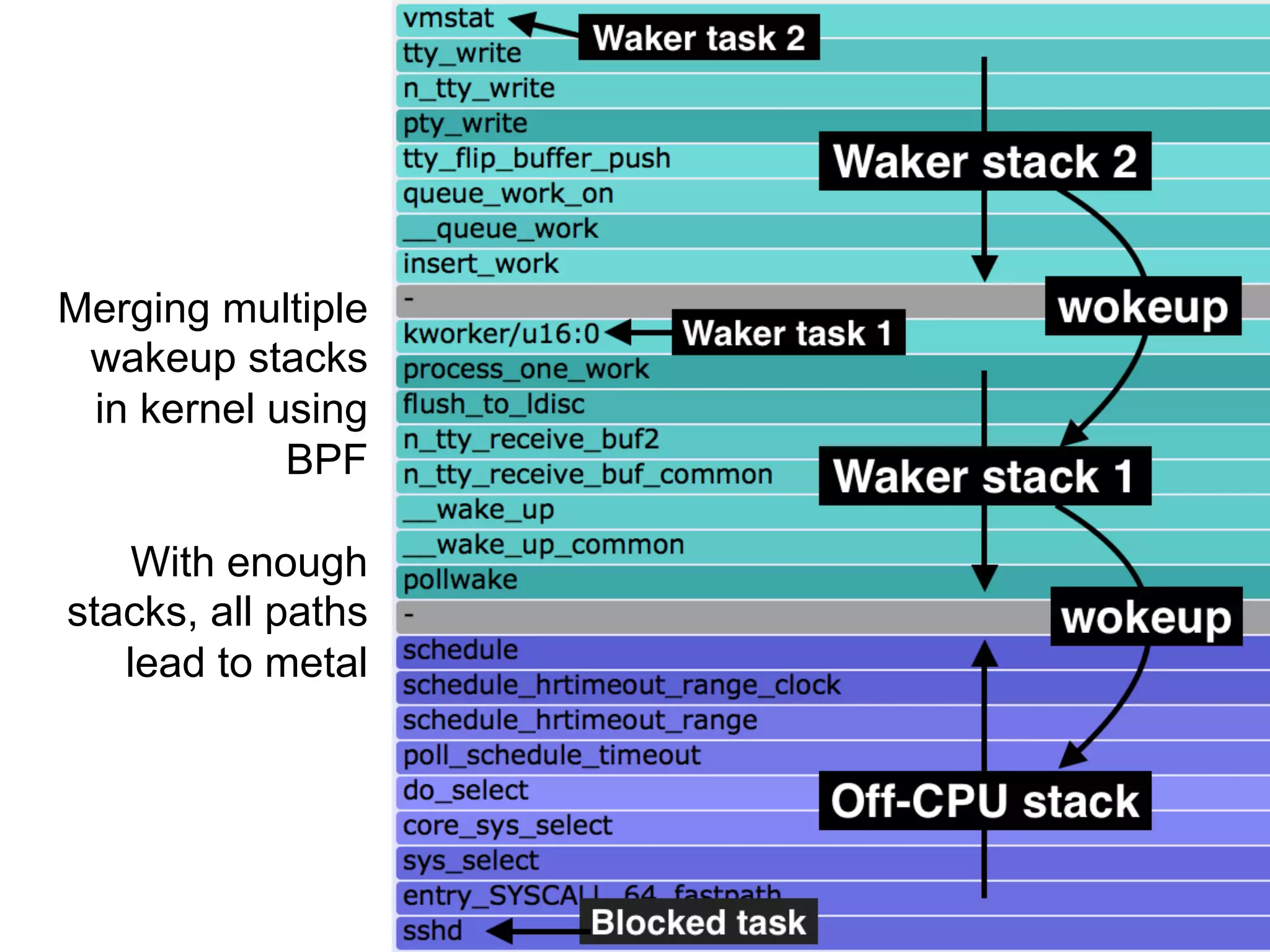

Chain
  Graphs

Merging multiple
wakeup stacks
in kernel using
BPF
With enough
stacks, all paths
lead to metal

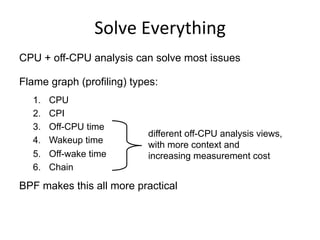

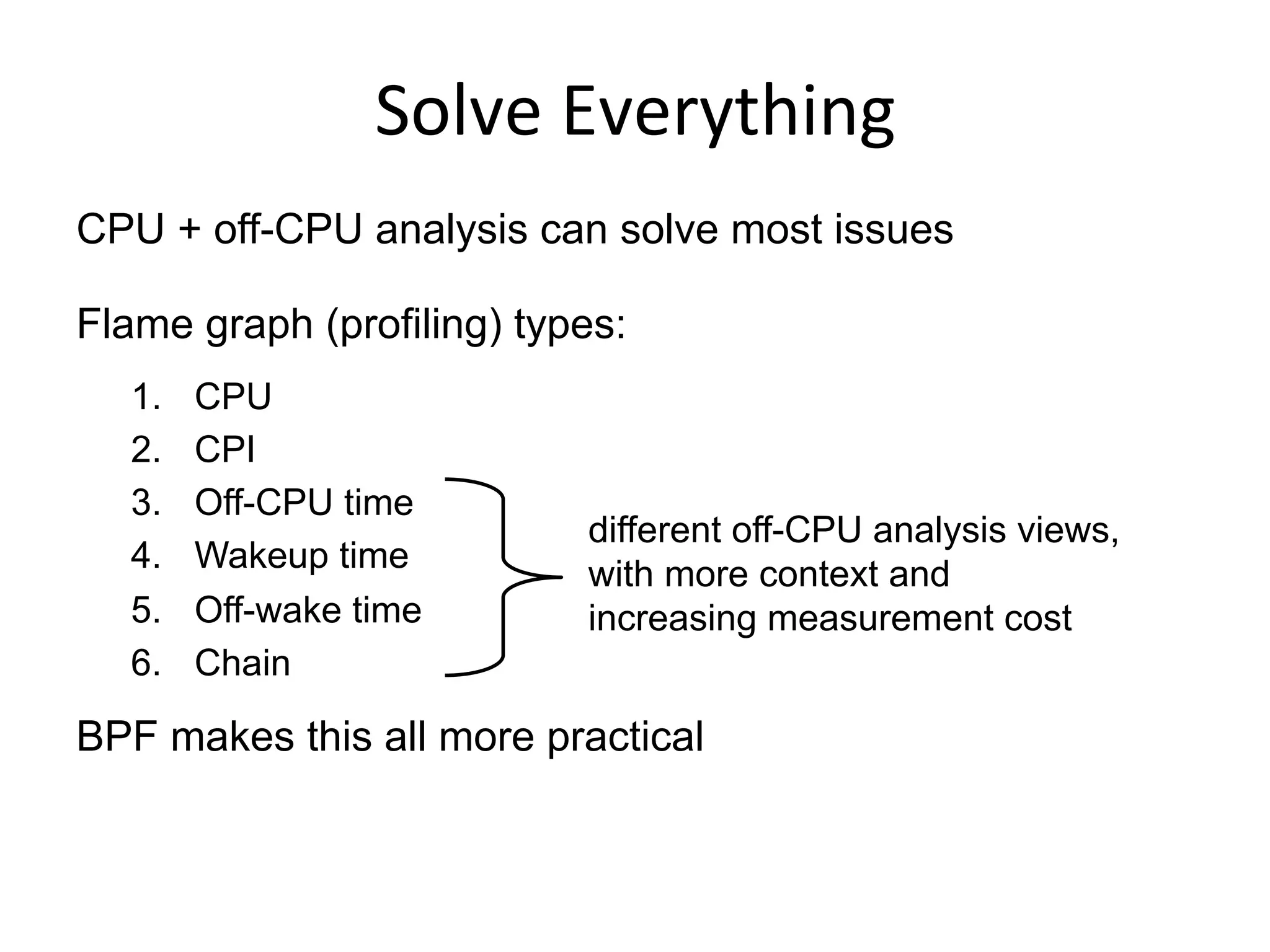

Solve
  Everything

CPU + off-CPU analysis can solve most issues
Flame graph (profiling) types:
1.  CPU
2.  CPI
3.  Off-CPU time
4.  Wakeup time
5.  Off-wake time
6.  Chain
BPF makes this all more practical
different off-CPU analysis views,
with more context and
increasing measurement cost

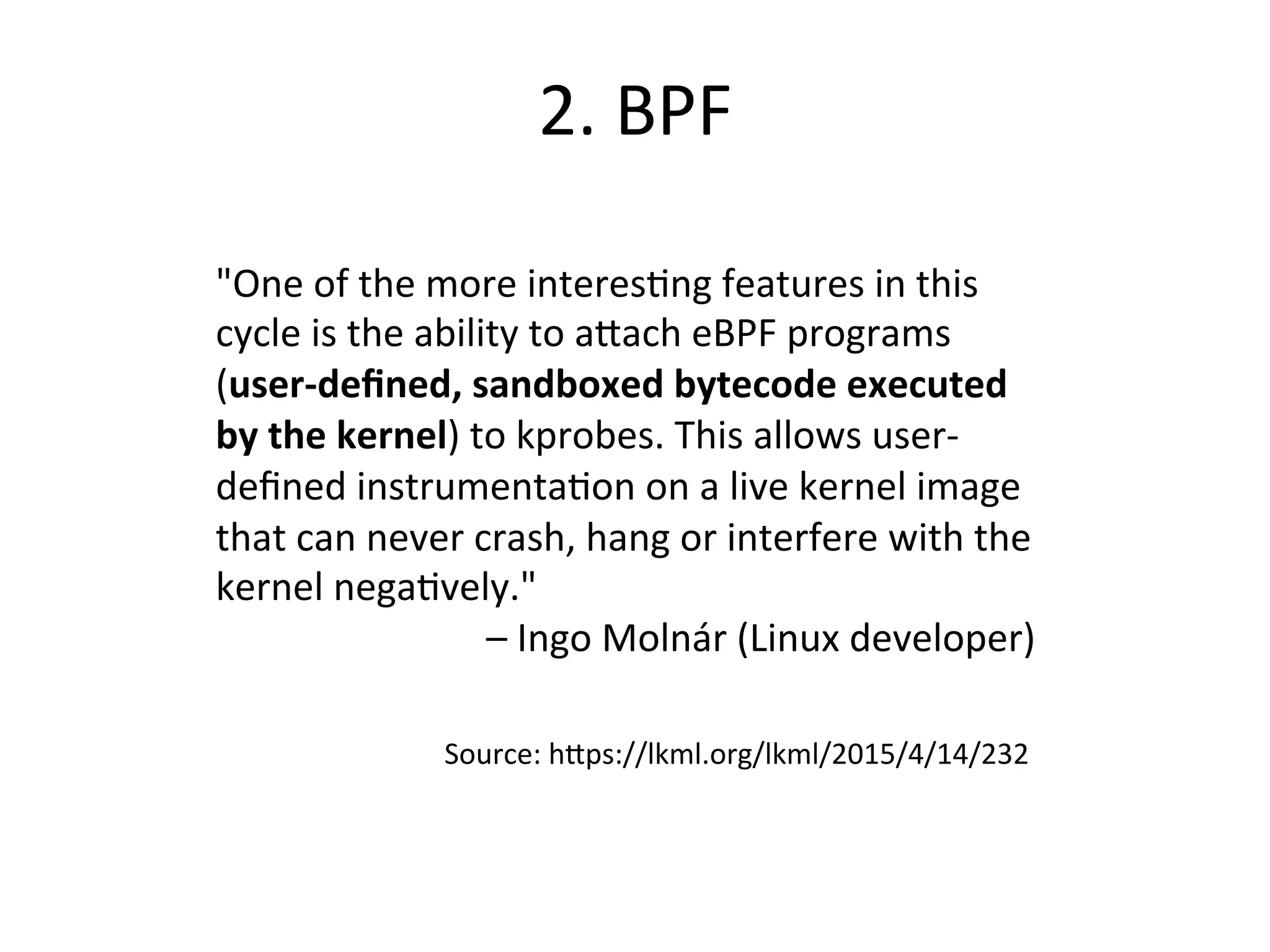

2.
  BPF

"One
  of
  the
  more
  interesbng
  features
  in
  this

cycle
  is
  the
  ability
  to
  aRach
  eBPF
  programs

(user-­‐defined,
  sandboxed
  bytecode
  executed

by
  the
  kernel)
  to
  kprobes.
  This
  allows
  user-­‐
defined
  instrumentabon
  on
  a
  live
  kernel

that
  can
  never
  crash,
  hang
  or
  interfere
  with
  the

kernel
  negabvely."

–
  Ingo
  Molnár
  (Linux
  developer)

Source:
  hRps://lkml.org/lkml/2015/4/14/232

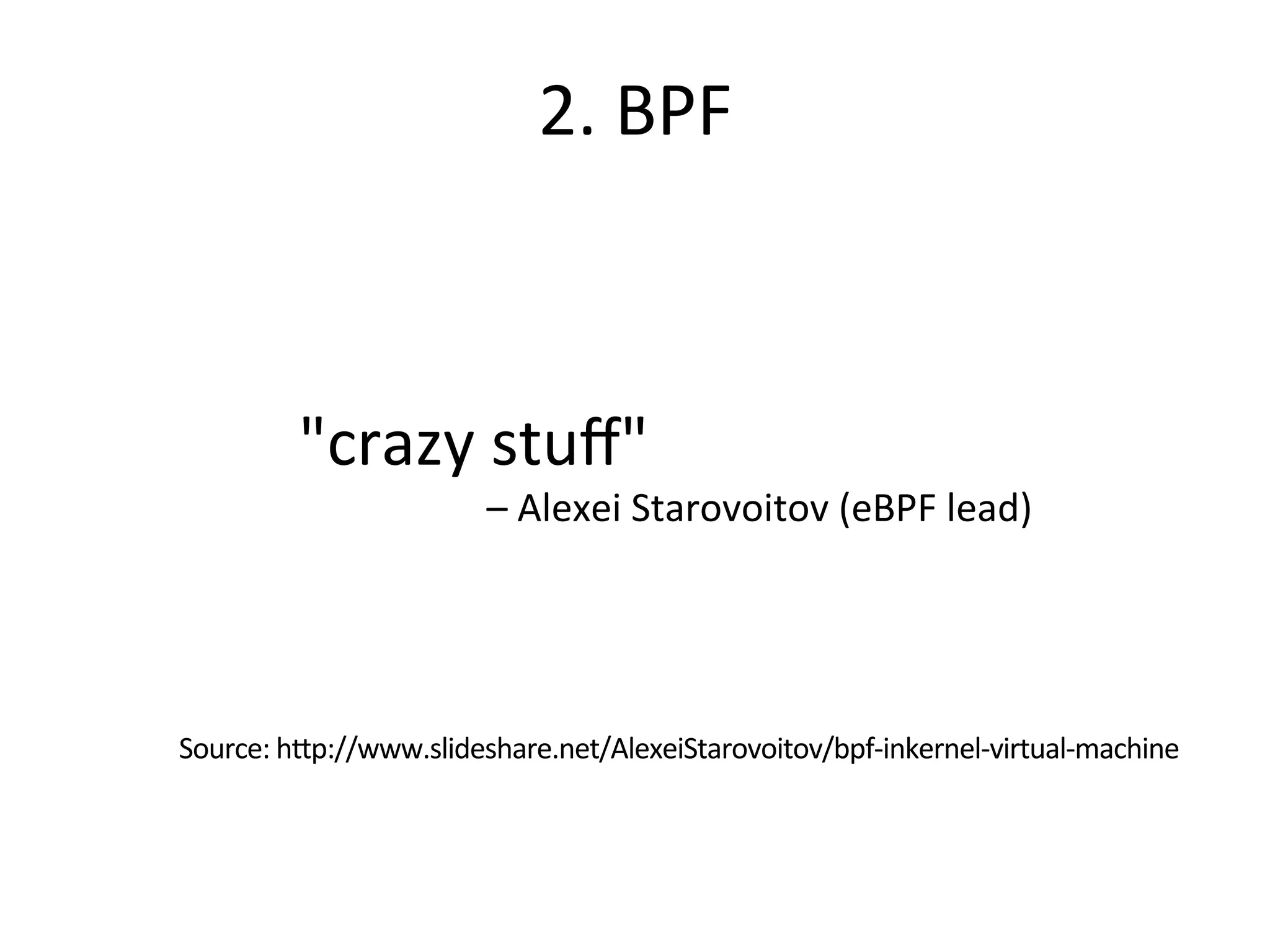

2.
  BPF

"crazy
  stuff"

–
  Alexei
  Starovoitov
  (eBPF
  lead)

Source:
  hRp://www.slideshare.net/AlexeiStarovoitov/bpf-­‐inkernel-­‐virtual-­‐machine

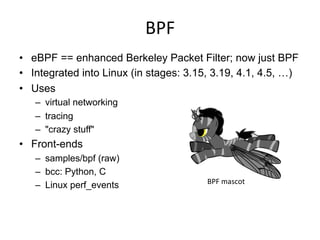

BPF

•  eBPF == enhanced Berkeley Packet Filter; now just BPF
•  Integrated into Linux (in stages: 3.15, 3.19, 4.1, 4.5, …)
•  Uses
–  virtual networking
–  tracing
–  "crazy stuff"
•  Front-ends
–  samples/bpf (raw)
–  bcc: Python, C
–  Linux perf_events BPF
  mascot

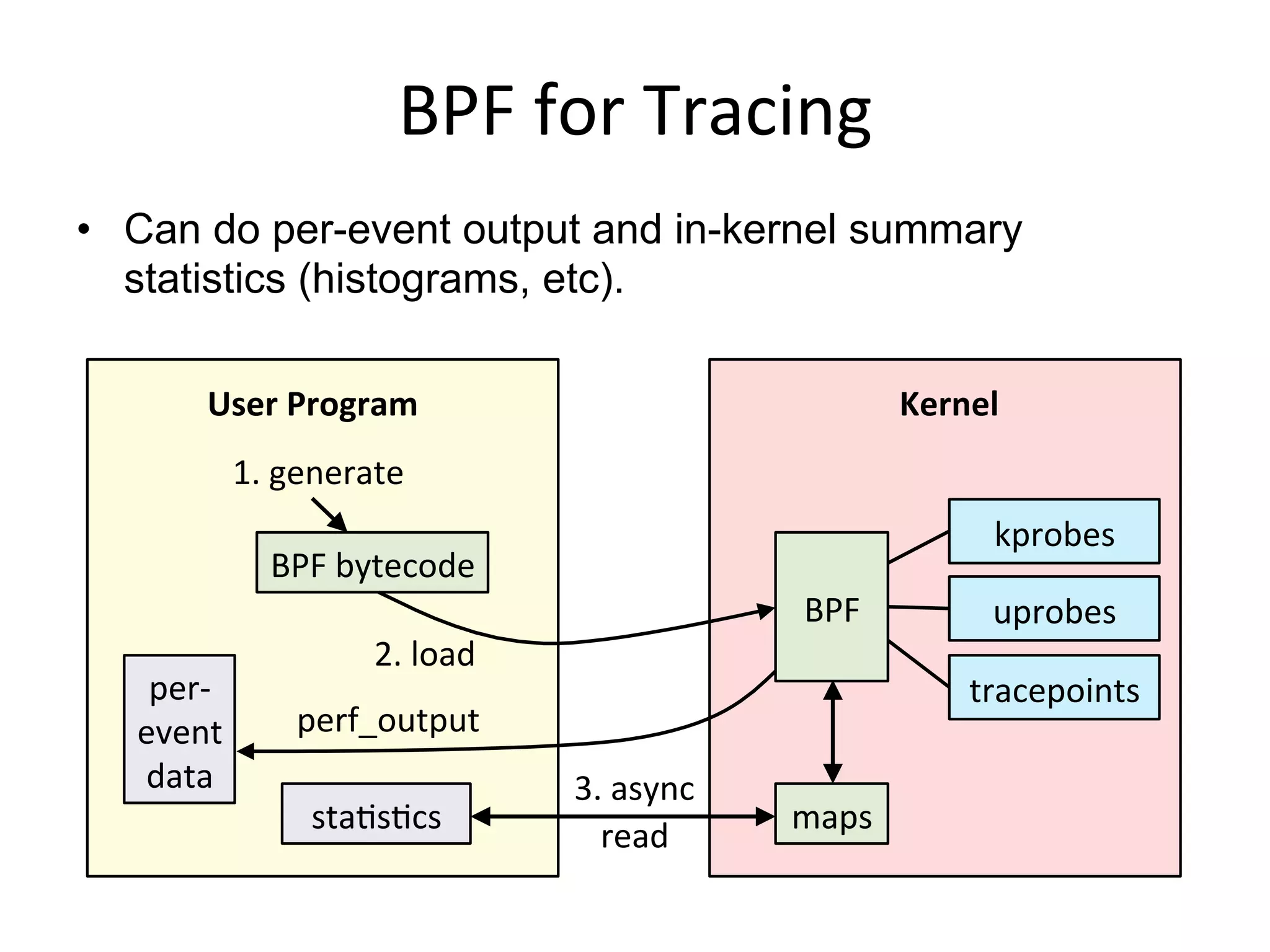

BPF
  for
  Tracing

•  Can do per-event output and in-kernel summary
statistics (histograms, etc).
BPF
  bytecode

User
  Program

1.
  generate

2.
  load

Kernel

kprobes

uprobes

tracepoints

BPF

maps

perf_output

per-­‐
event

data

stabsbcs

3.
  async

read

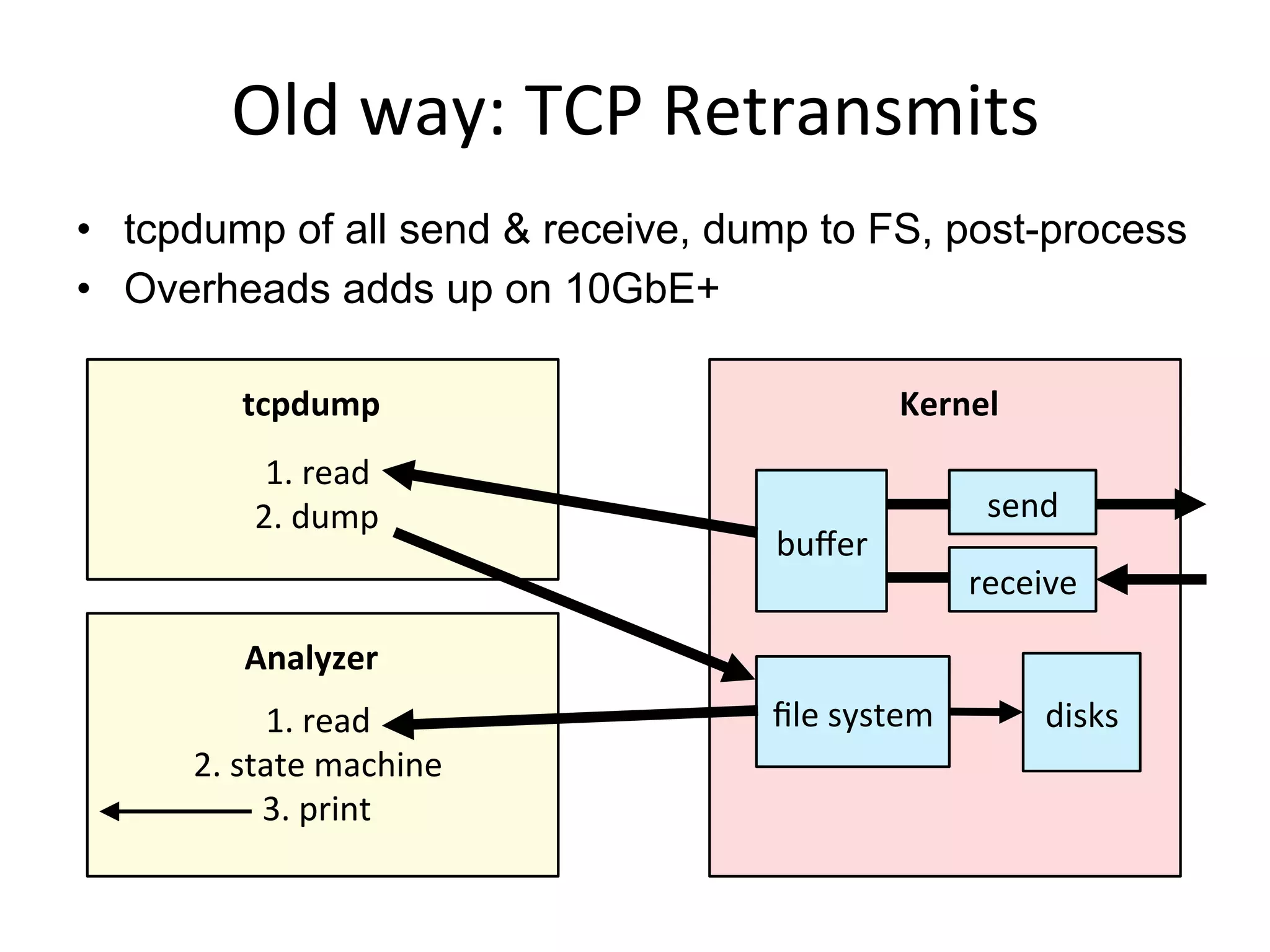

Old
  way:
  TCP
  Retransmits

•  tcpdump of all send & receive, dump to FS, post-process
•  Overheads adds up on 10GbE+
send

receive

tcpdump
   Kernel

file
  system

1.
  read

2.
  dump

Analyzer

1.
  read

2.
  state
  machine

3.
  print

disks

buffer

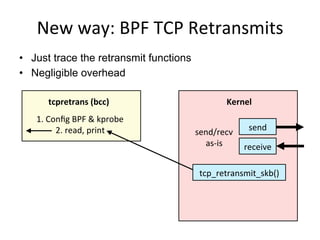

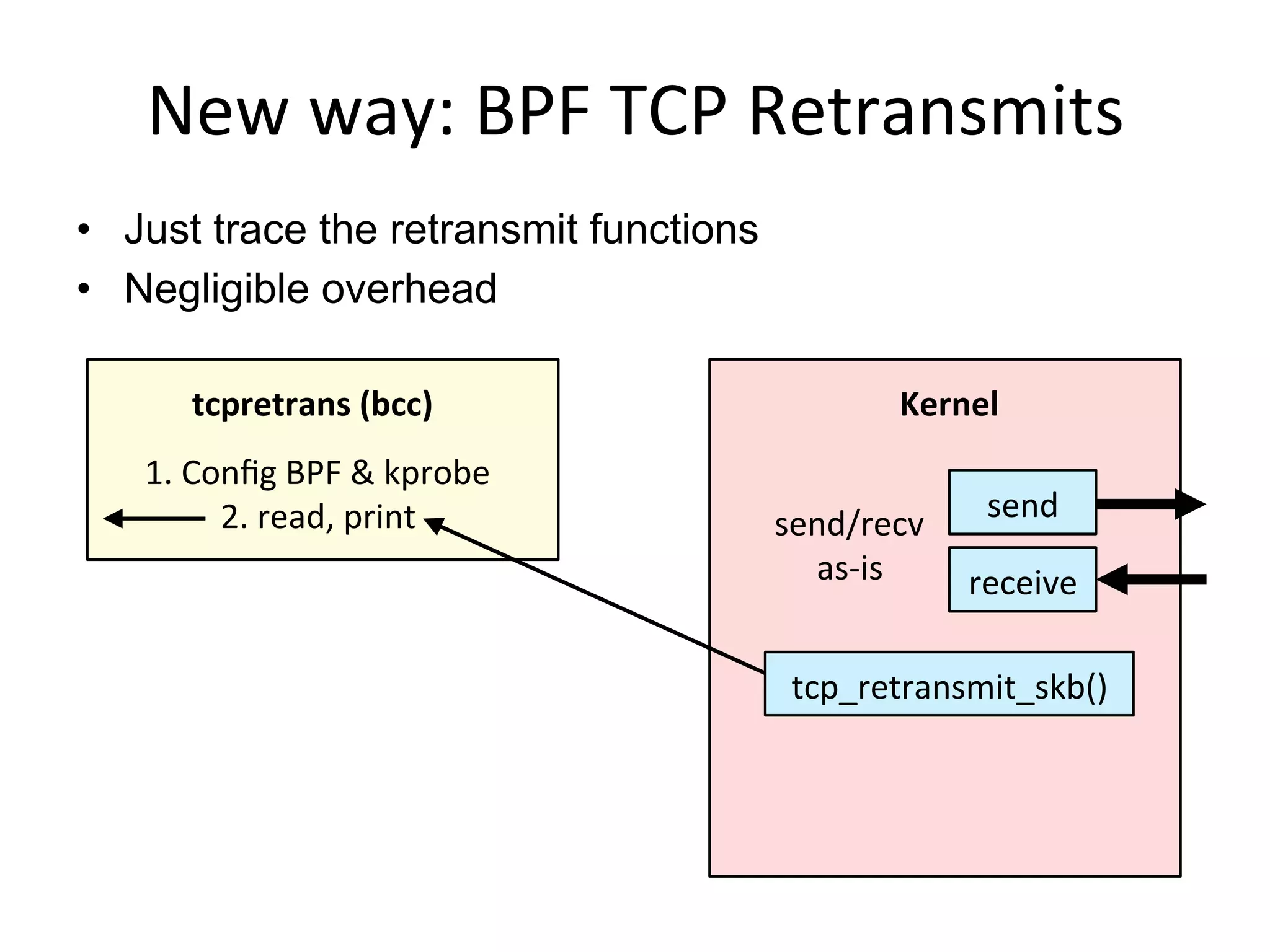

New
  way:
  BPF
  TCP
  Retransmits

•  Just trace the retransmit functions
•  Negligible overhead
send

receive

tcpretrans
  (bcc)
   Kernel

tcp_retransmit_skb()

1.
  Config
  BPF
  &
  kprobe

2.
  read,
  print
   send/recv

as-­‐is

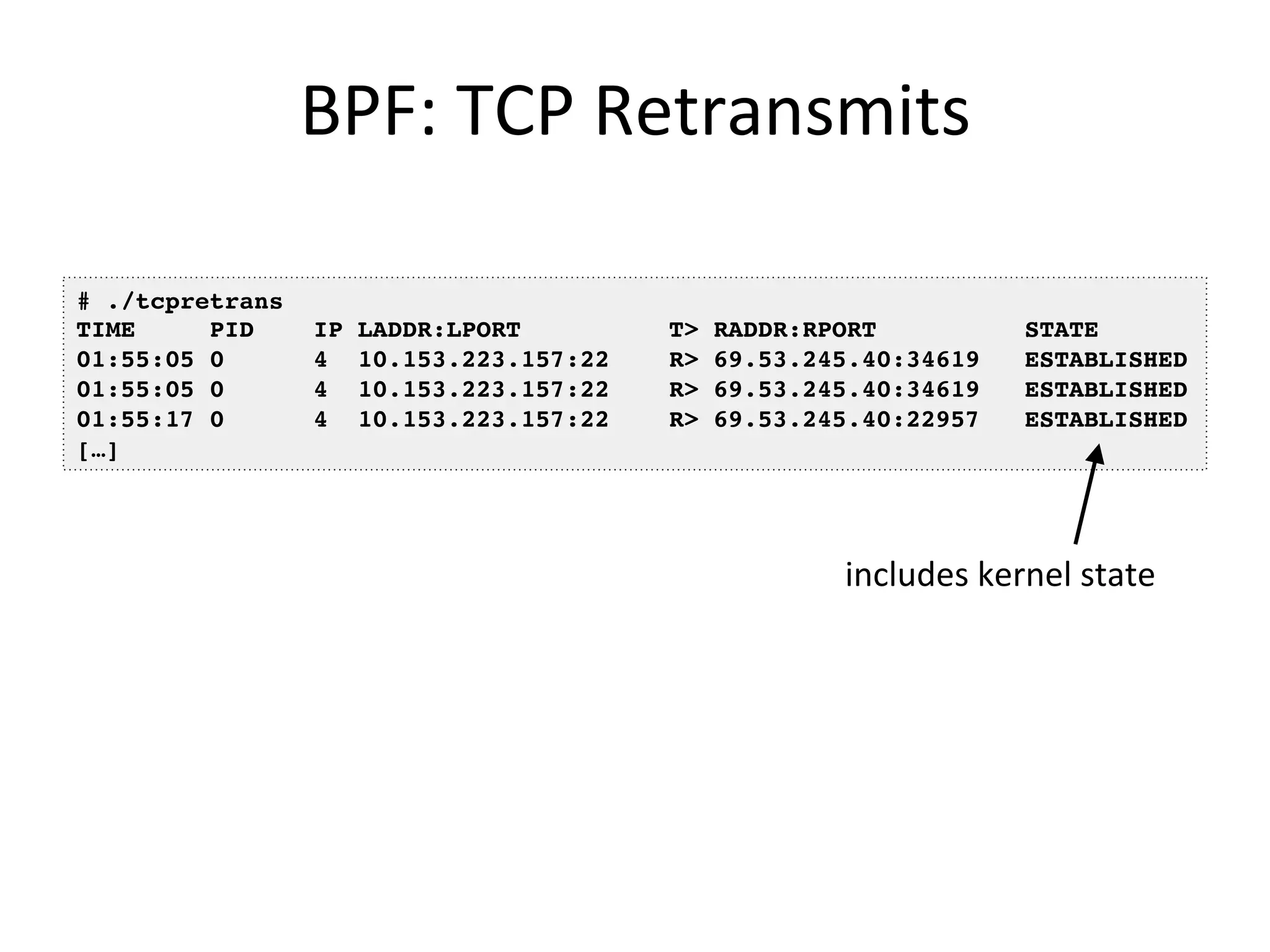

BPF:
  TCP
  Retransmits

# ./tcpretrans
TIME PID IP LADDR:LPORT T> RADDR:RPORT STATE
01:55:05 0 4 10.153.223.157:22 R> 69.53.245.40:34619 ESTABLISHED
01:55:05 0 4 10.153.223.157:22 R> 69.53.245.40:34619 ESTABLISHED
01:55:17 0 4 10.153.223.157:22 R> 69.53.245.40:22957 ESTABLISHED
[…]
includes
  kernel
  state

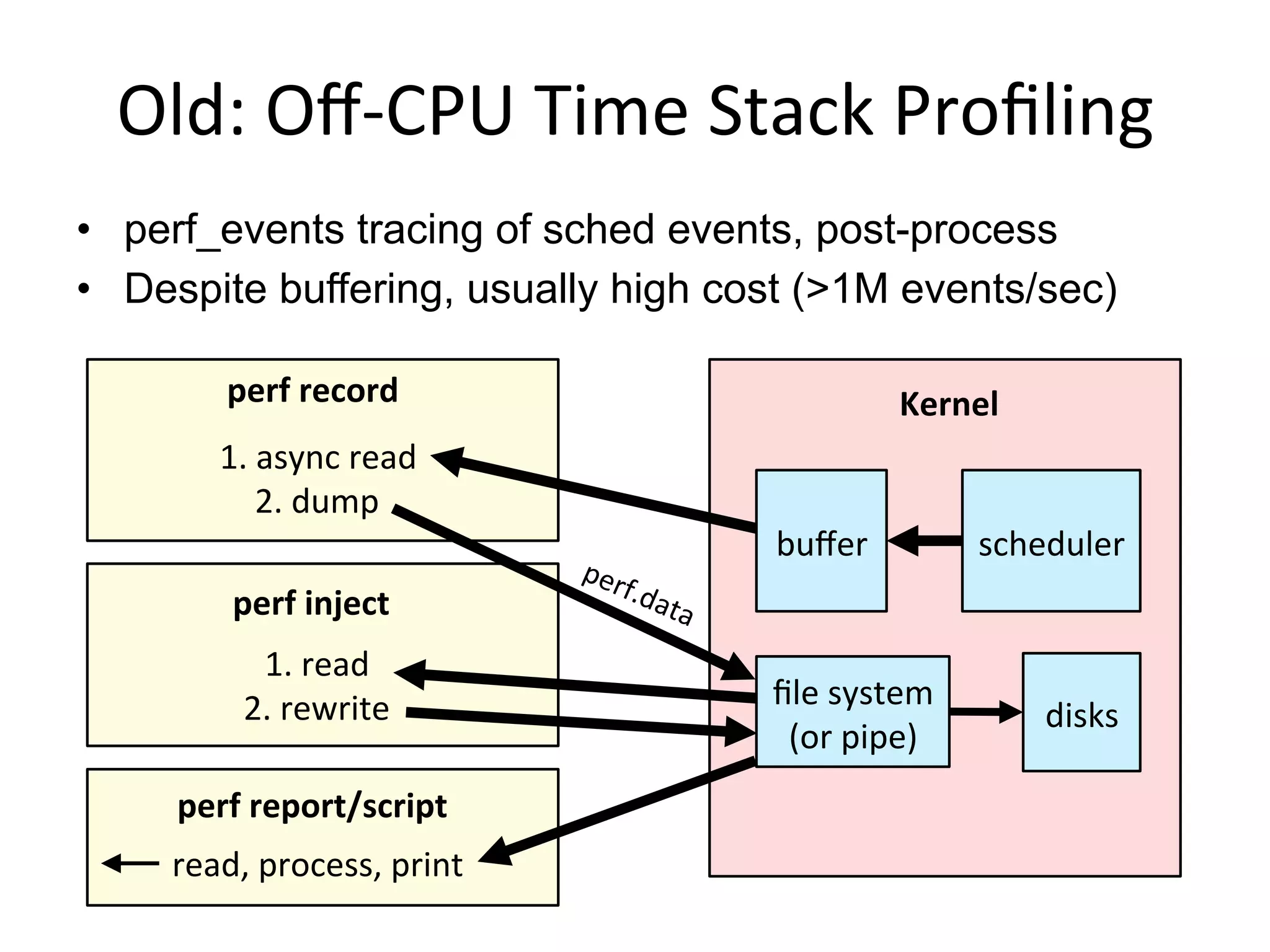

Old:
  Off-­‐CPU
  Time
  Stack
  Profiling

•  perf_events tracing of sched events, post-process
•  Despite buffering, usually high cost (>1M events/sec)
perf
  record
   Kernel

scheduler

1.
  async
  read

2.
  dump

perf
  inject

1.
  read

2.
  rewrite
   disks

perf
  report/script

read,
  process,
  print

buffer

file
  system

(or
  pipe)

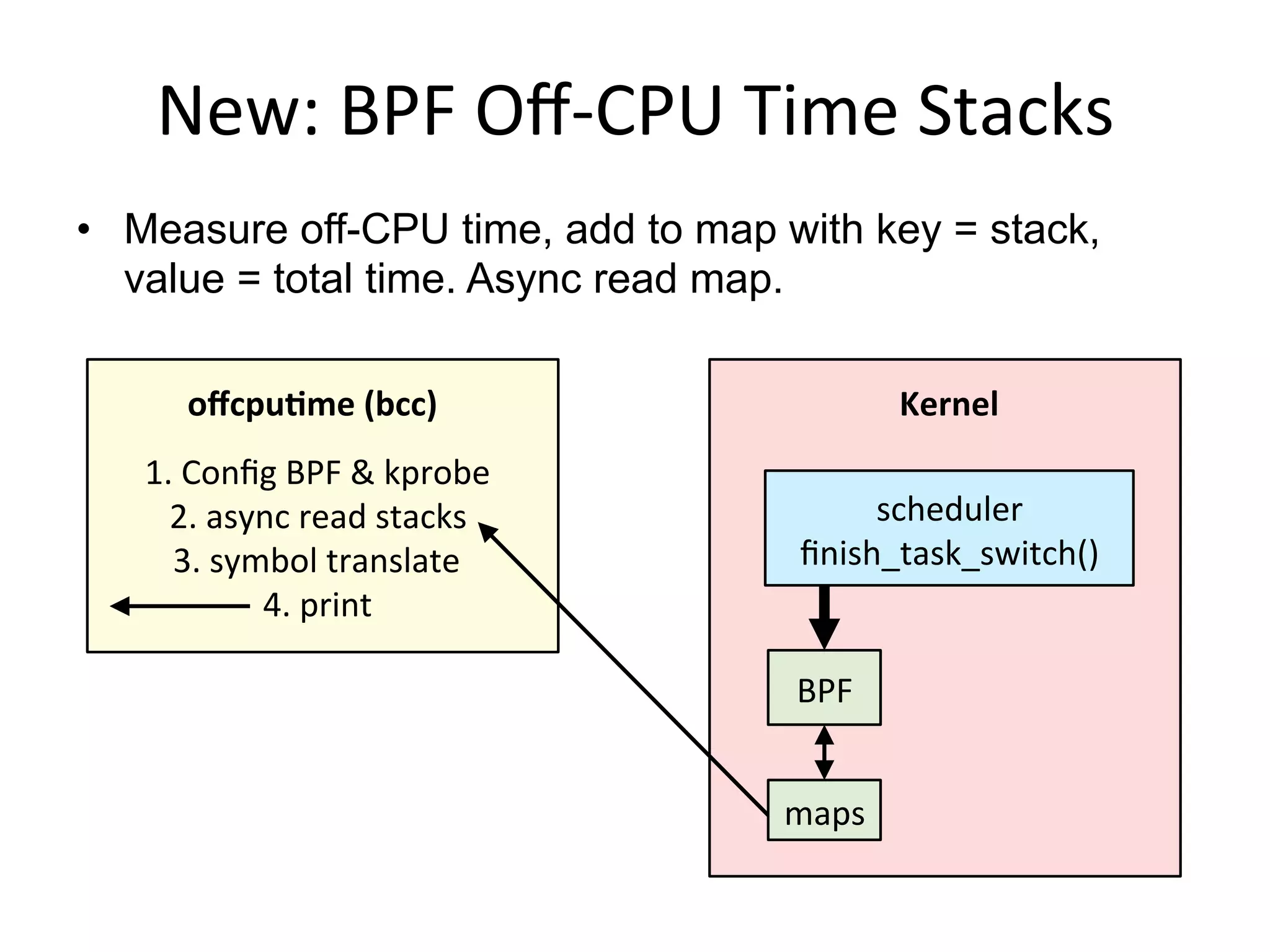

New:
  BPF
  Off-­‐CPU
  Time
  Stacks

•  Measure off-CPU time, add to map with key = stack,
value = total time. Async read map.
offcpuDme
  (bcc)
   Kernel

1.
  Config
  BPF
  &
  kprobe

2.
  async
  read
  stacks

3.
  symbol
  translate

4.
  print

maps

BPF

scheduler

finish_task_switch()

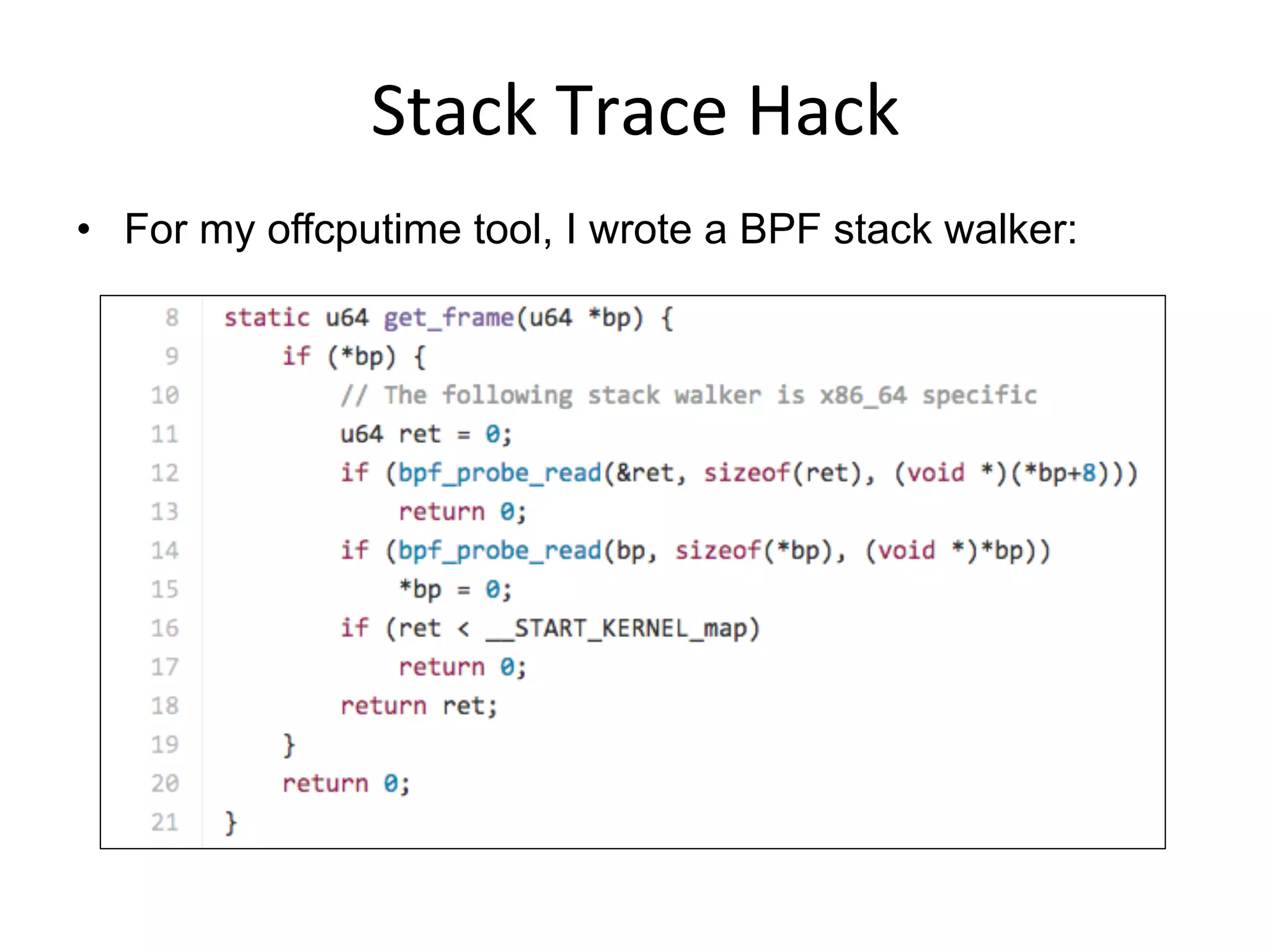

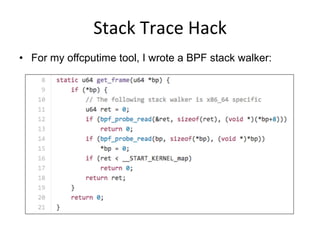

Stack
  Trace
  Hack

•  For my offcputime tool, I wrote a BPF stack walker:

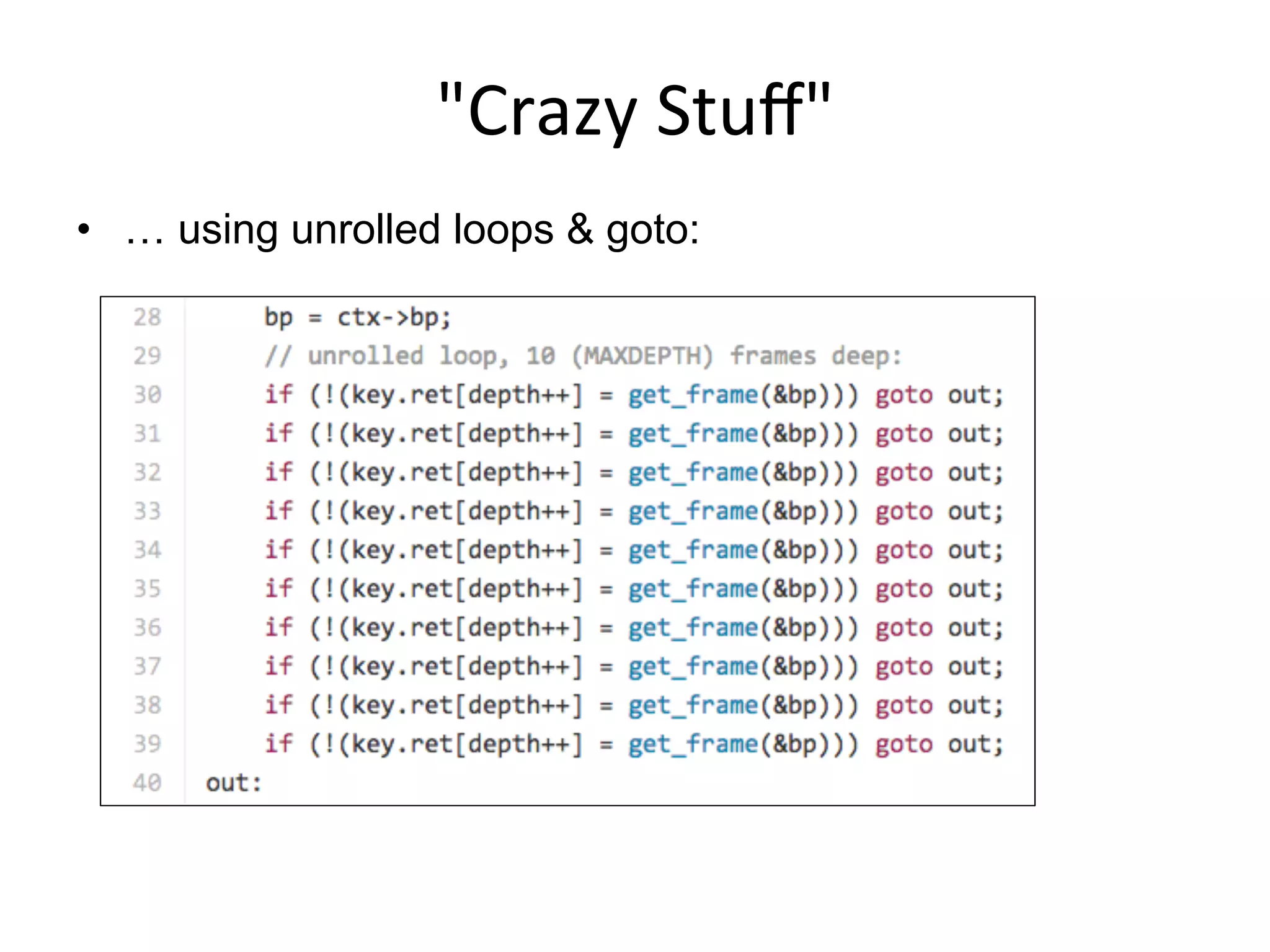

"Crazy
  Stuff"

•  … using unrolled loops & goto:

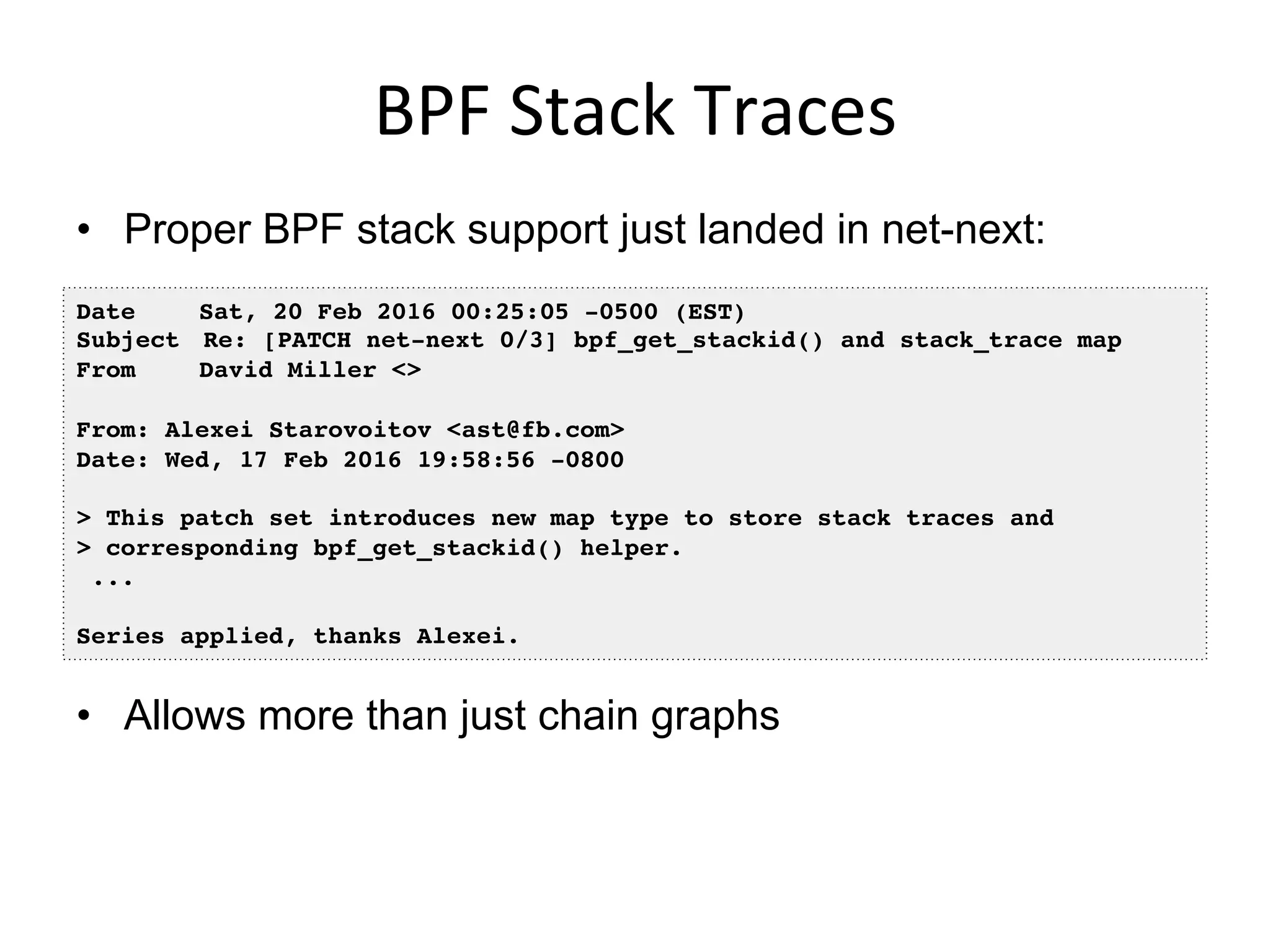

BPF
  Stack
  Traces

•  Proper BPF stack support just landed in net-next:
•  Allows more than just chain graphs
Date Sat, 20 Feb 2016 00:25:05 -0500 (EST)
Subject Re: [PATCH net-next 0/3] bpf_get_stackid() and stack_trace map
From David Miller <>
From: Alexei Starovoitov <ast@fb.com>
Date: Wed, 17 Feb 2016 19:58:56 -0800
> This patch set introduces new map type to store stack traces and
> corresponding bpf_get_stackid() helper.
...
Series applied, thanks Alexei.

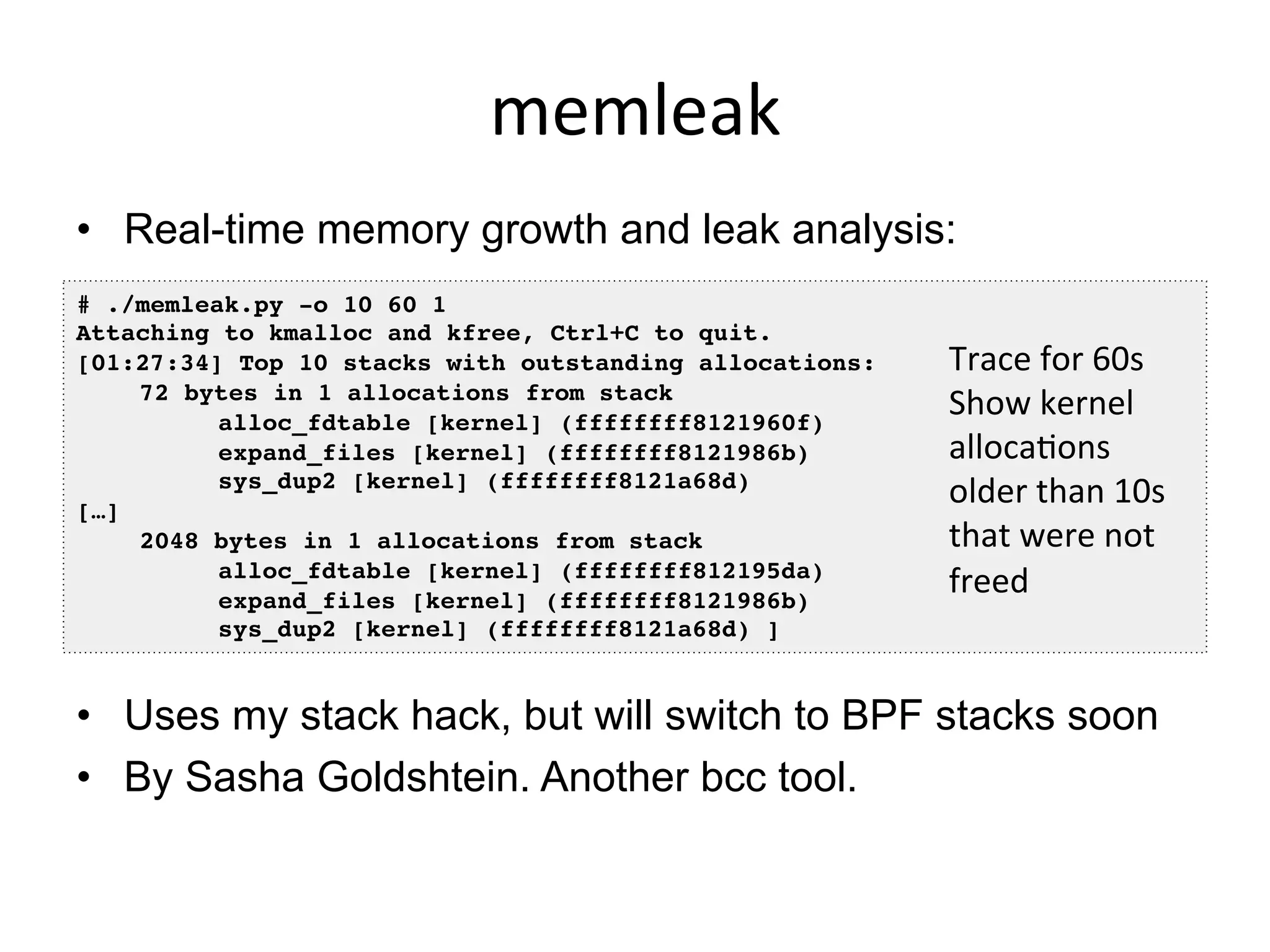

memleak

•  Real-time memory growth and leak analysis:
•  Uses my stack hack, but will switch to BPF stacks soon
•  By Sasha Goldshtein. Another bcc tool.
# ./memleak.py -o 10 60 1
Attaching to kmalloc and kfree, Ctrl+C to quit.
[01:27:34] Top 10 stacks with outstanding allocations:
72 bytes in 1 allocations from stack
alloc_fdtable [kernel] (ffffffff8121960f)
expand_files [kernel] (ffffffff8121986b)
sys_dup2 [kernel] (ffffffff8121a68d)
[…]
2048 bytes in 1 allocations from stack
alloc_fdtable [kernel] (ffffffff812195da)
expand_files [kernel] (ffffffff8121986b)
sys_dup2 [kernel] (ffffffff8121a68d) ]
Trace
  for
  60s

Show
  kernel

allocabons

older
  than
  10s

that
  were
  not

freed

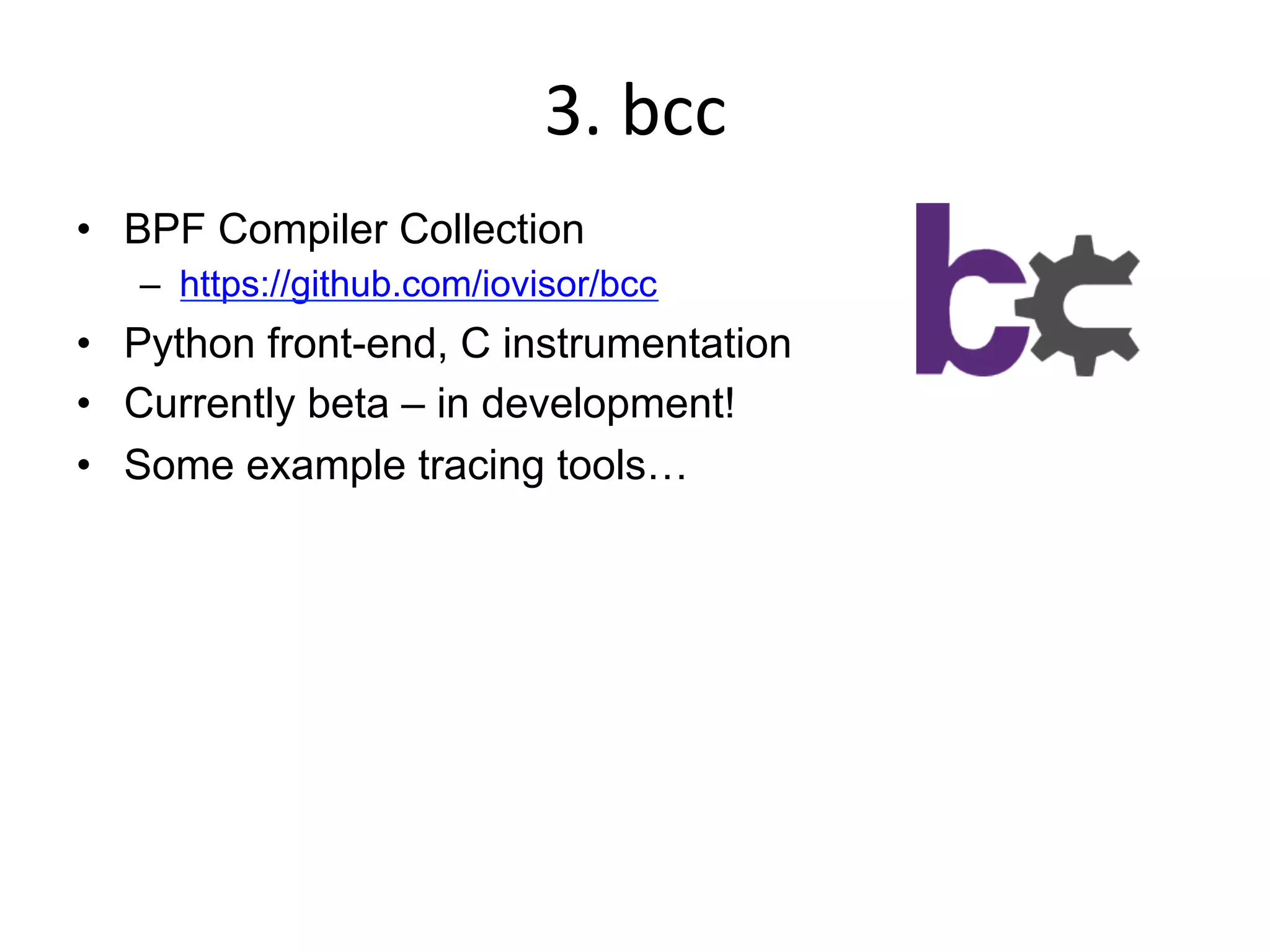

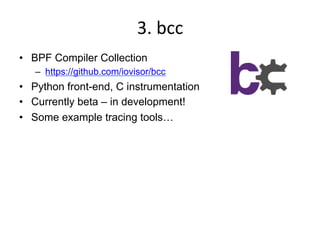

3.
  bcc

•  BPF Compiler Collection
–  https://github.com/iovisor/bcc
•  Python front-end, C instrumentation
•  Currently beta – in development!
•  Some example tracing tools…

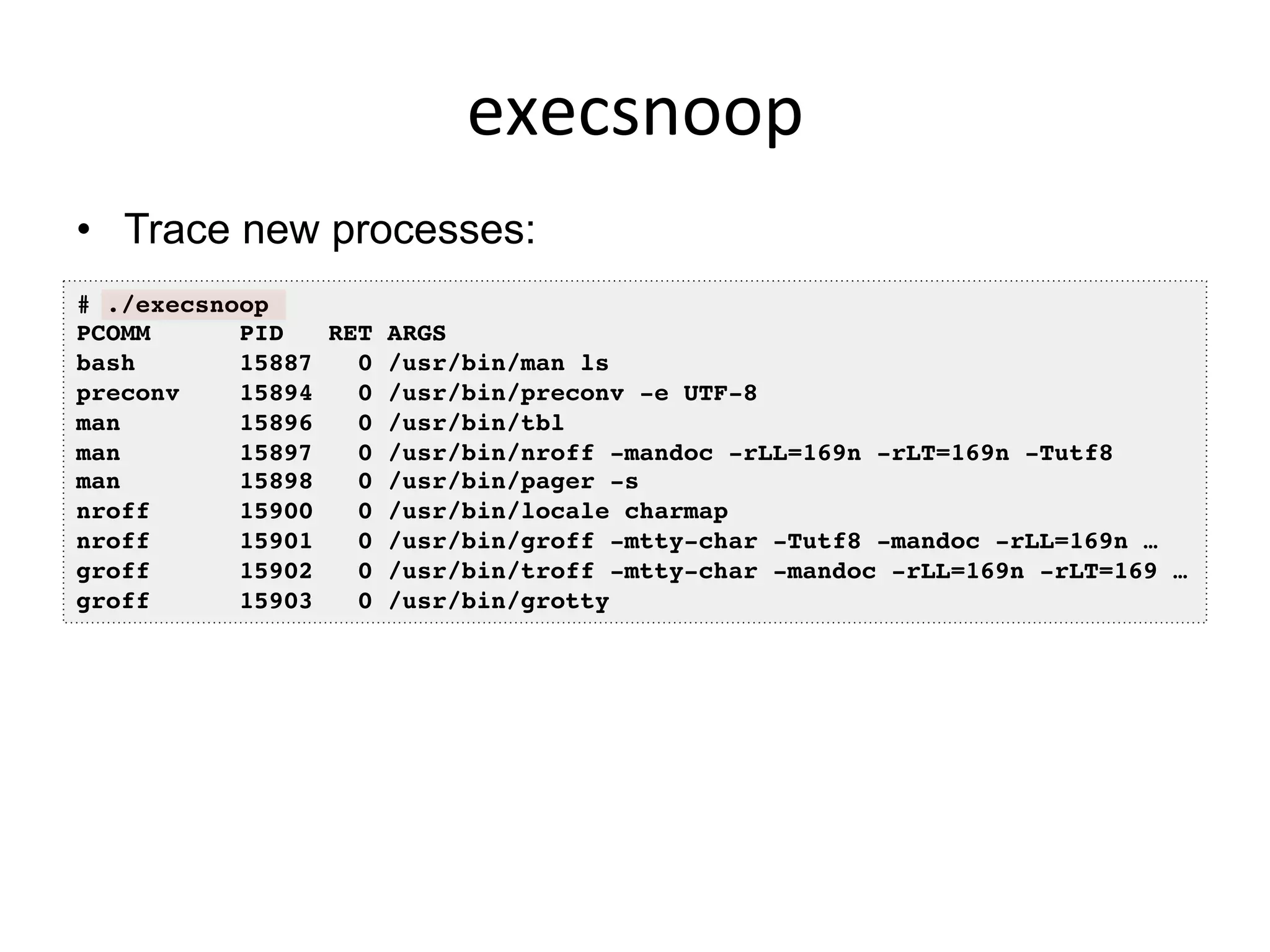

execsnoop

•  Trace new processes:
# ./execsnoop
PCOMM PID RET ARGS
bash 15887 0 /usr/bin/man ls
preconv 15894 0 /usr/bin/preconv -e UTF-8
man 15896 0 /usr/bin/tbl
man 15897 0 /usr/bin/nroff -mandoc -rLL=169n -rLT=169n -Tutf8
man 15898 0 /usr/bin/pager -s
nroff 15900 0 /usr/bin/locale charmap
nroff 15901 0 /usr/bin/groff -mtty-char -Tutf8 -mandoc -rLL=169n …
groff 15902 0 /usr/bin/troff -mtty-char -mandoc -rLL=169n -rLT=169 …
groff 15903 0 /usr/bin/grotty

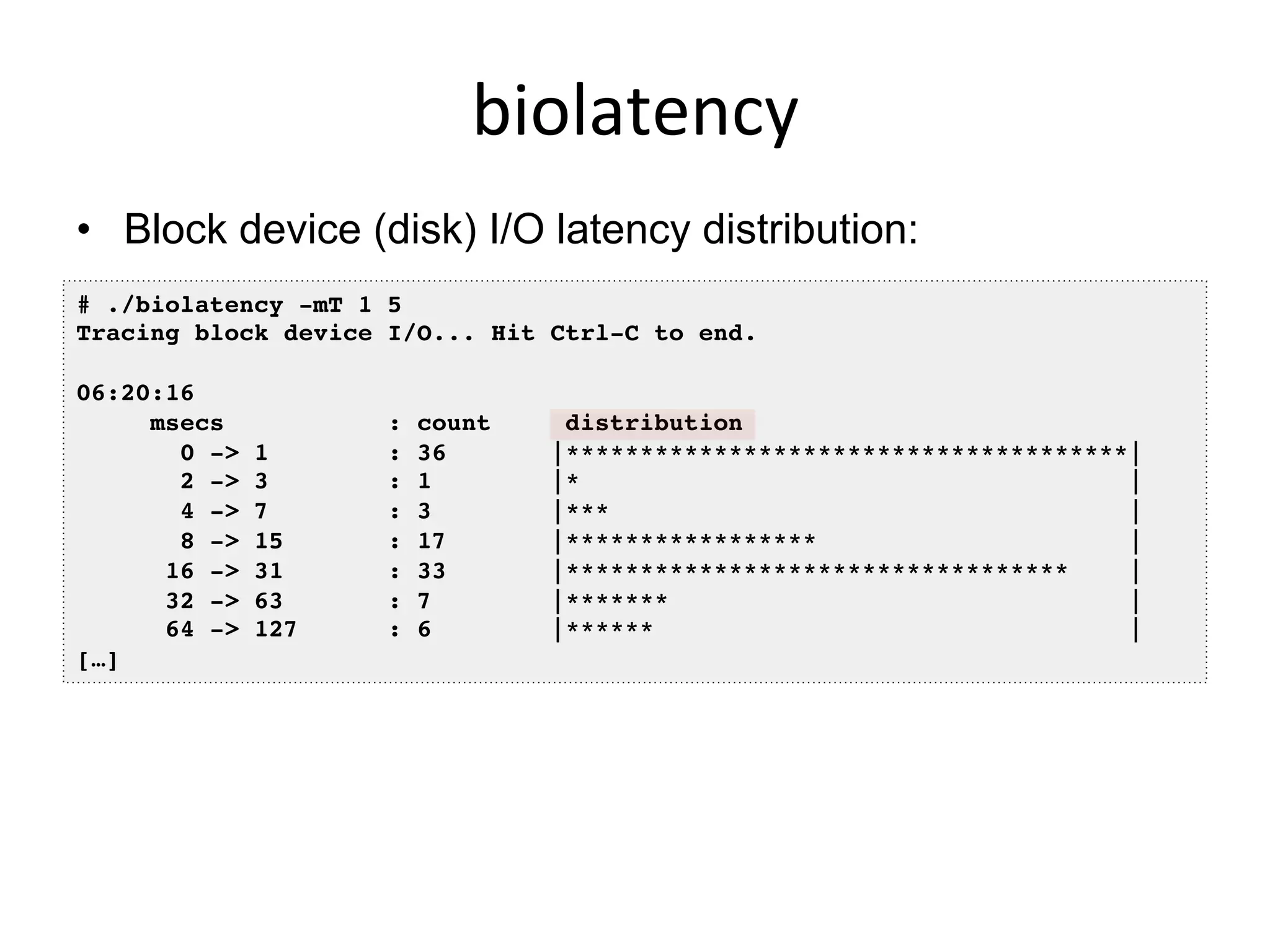

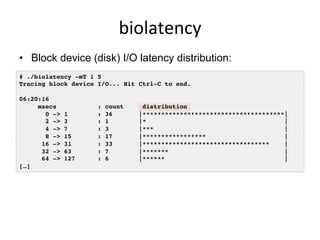

biolatency

•  Block device (disk) I/O latency distribution:
# ./biolatency -mT 1 5
Tracing block device I/O... Hit Ctrl-C to end.
06:20:16
msecs : count distribution
0 -> 1 : 36 |**************************************|
2 -> 3 : 1 |* |
4 -> 7 : 3 |*** |
8 -> 15 : 17 |***************** |
16 -> 31 : 33 |********************************** |
32 -> 63 : 7 |******* |
64 -> 127 : 6 |****** |
[…]

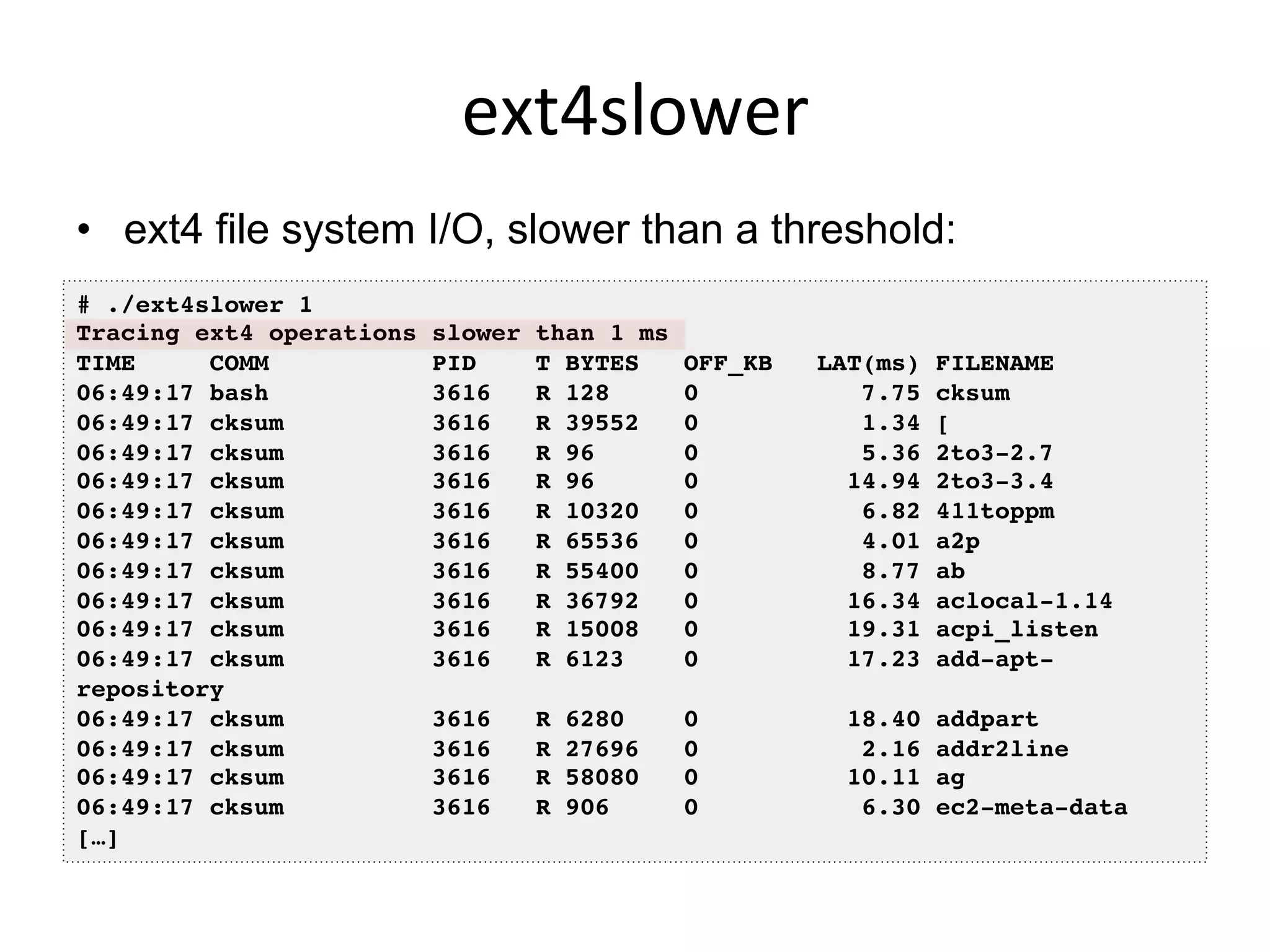

ext4slower

•  ext4 file system I/O, slower than a threshold:
# ./ext4slower 1
Tracing ext4 operations slower than 1 ms
TIME COMM PID T BYTES OFF_KB LAT(ms) FILENAME
06:49:17 bash 3616 R 128 0 7.75 cksum
06:49:17 cksum 3616 R 39552 0 1.34 [
06:49:17 cksum 3616 R 96 0 5.36 2to3-2.7
06:49:17 cksum 3616 R 96 0 14.94 2to3-3.4
06:49:17 cksum 3616 R 10320 0 6.82 411toppm
06:49:17 cksum 3616 R 65536 0 4.01 a2p
06:49:17 cksum 3616 R 55400 0 8.77 ab
06:49:17 cksum 3616 R 36792 0 16.34 aclocal-1.14
06:49:17 cksum 3616 R 15008 0 19.31 acpi_listen
06:49:17 cksum 3616 R 6123 0 17.23 add-apt-
repository
06:49:17 cksum 3616 R 6280 0 18.40 addpart
06:49:17 cksum 3616 R 27696 0 2.16 addr2line
06:49:17 cksum 3616 R 58080 0 10.11 ag
06:49:17 cksum 3616 R 906 0 6.30 ec2-meta-data
[…]

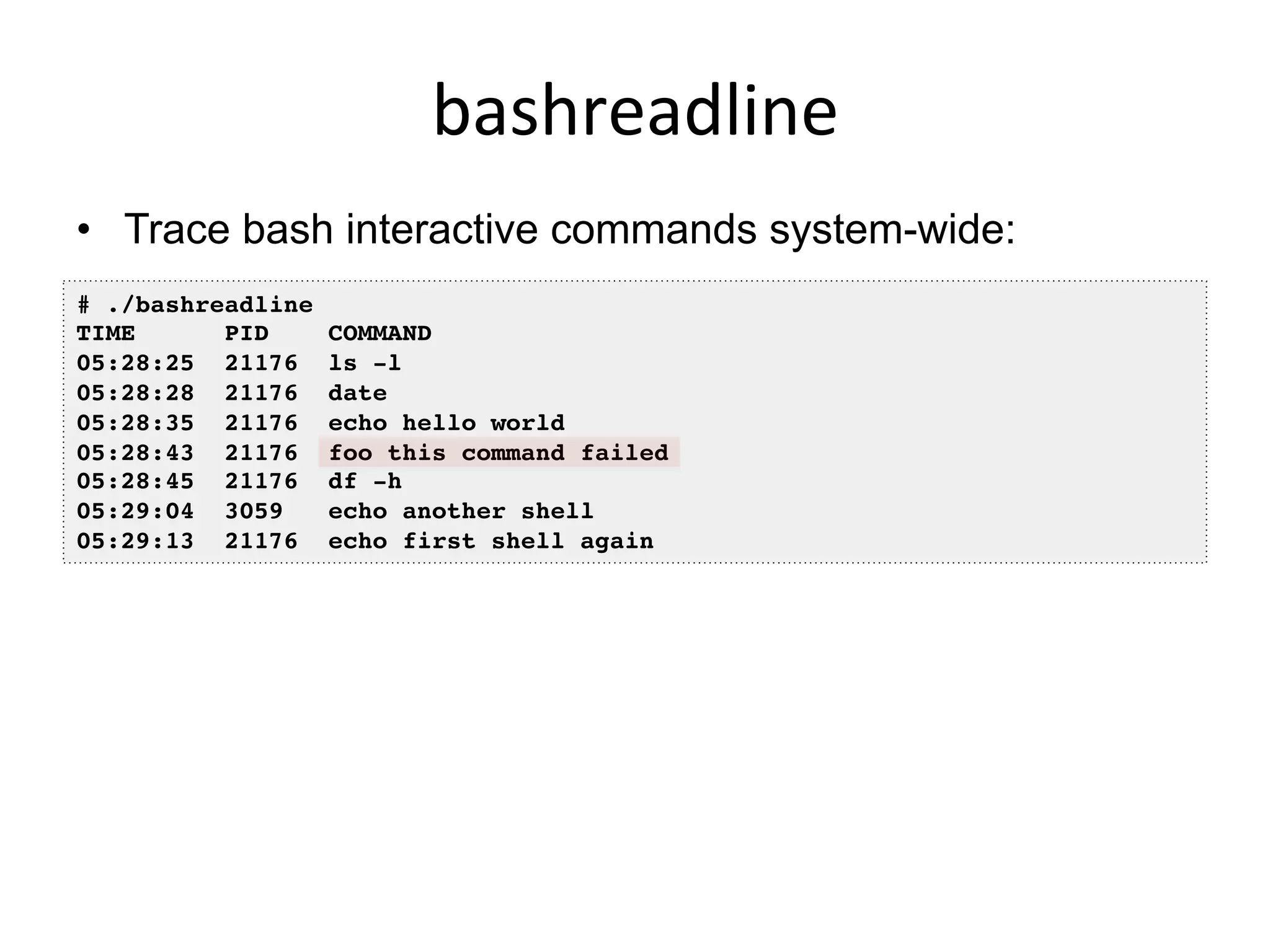

bashreadline

•  Trace bash interactive commands system-wide:
# ./bashreadline
TIME PID COMMAND
05:28:25 21176 ls -l
05:28:28 21176 date
05:28:35 21176 echo hello world
05:28:43 21176 foo this command failed
05:28:45 21176 df -h
05:29:04 3059 echo another shell
05:29:13 21176 echo first shell again

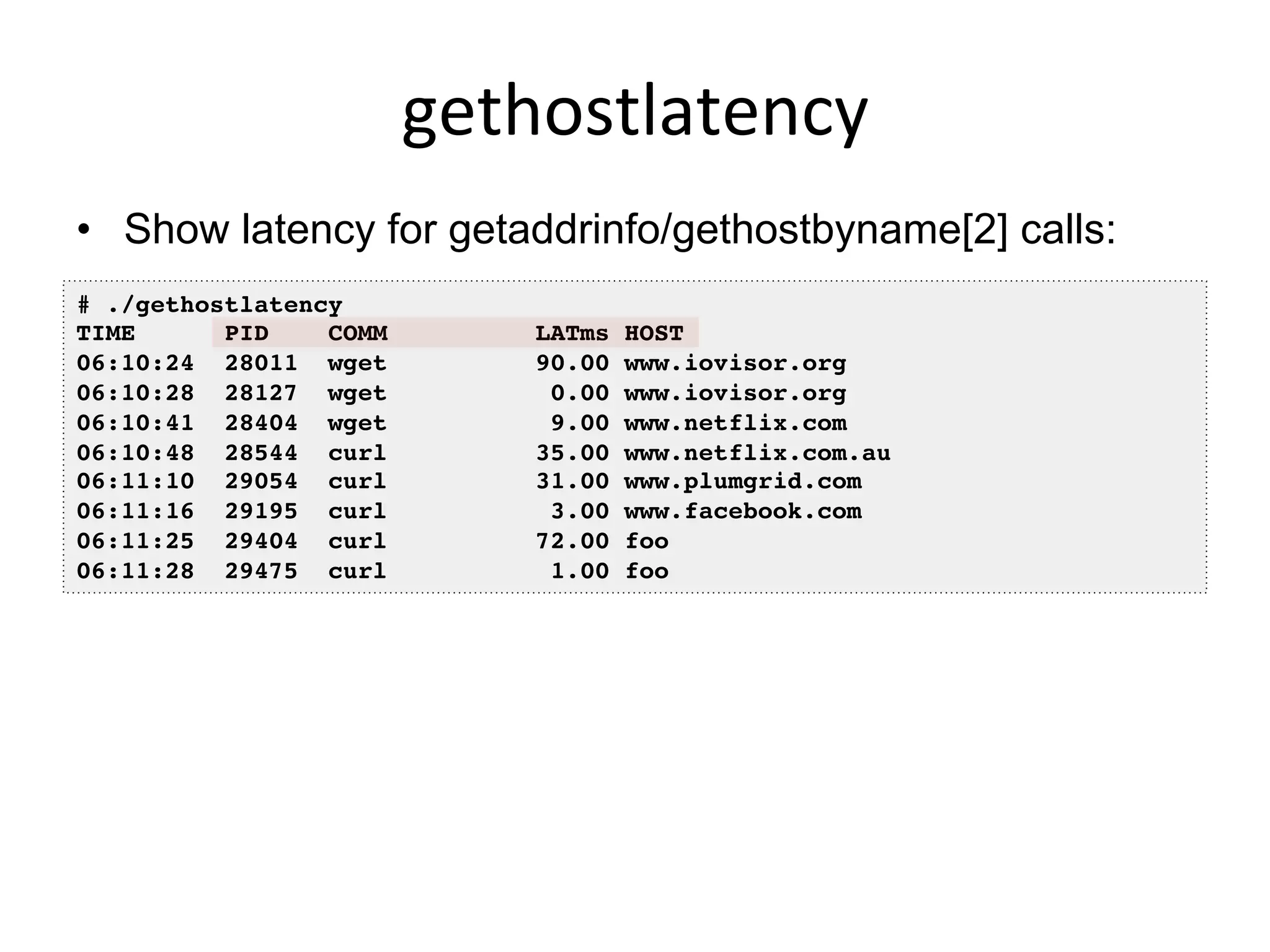

gethostlatency

•  Show latency for getaddrinfo/gethostbyname[2] calls:
# ./gethostlatency
TIME PID COMM LATms HOST
06:10:24 28011 wget 90.00 www.iovisor.org
06:10:28 28127 wget 0.00 www.iovisor.org
06:10:41 28404 wget 9.00 www.netflix.com
06:10:48 28544 curl 35.00 www.netflix.com.au
06:11:10 29054 curl 31.00 www.plumgrid.com
06:11:16 29195 curl 3.00 www.facebook.com
06:11:25 29404 curl 72.00 foo
06:11:28 29475 curl 1.00 foo

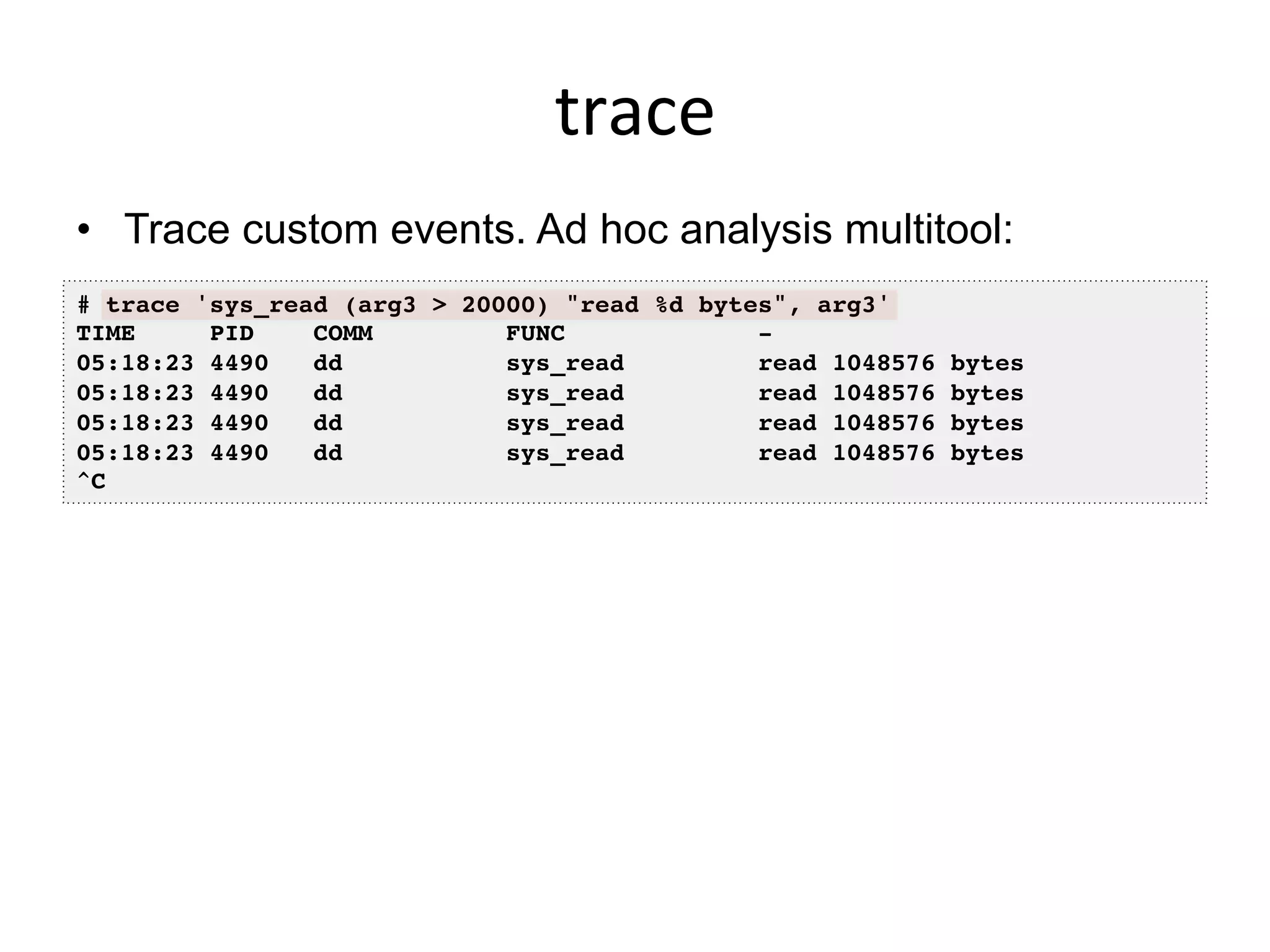

trace

•  Trace custom events. Ad hoc analysis multitool:
# trace 'sys_read (arg3 > 20000) "read %d bytes", arg3'
TIME PID COMM FUNC -
05:18:23 4490 dd sys_read read 1048576 bytes
05:18:23 4490 dd sys_read read 1048576 bytes
05:18:23 4490 dd sys_read read 1048576 bytes
05:18:23 4490 dd sys_read read 1048576 bytes
^C

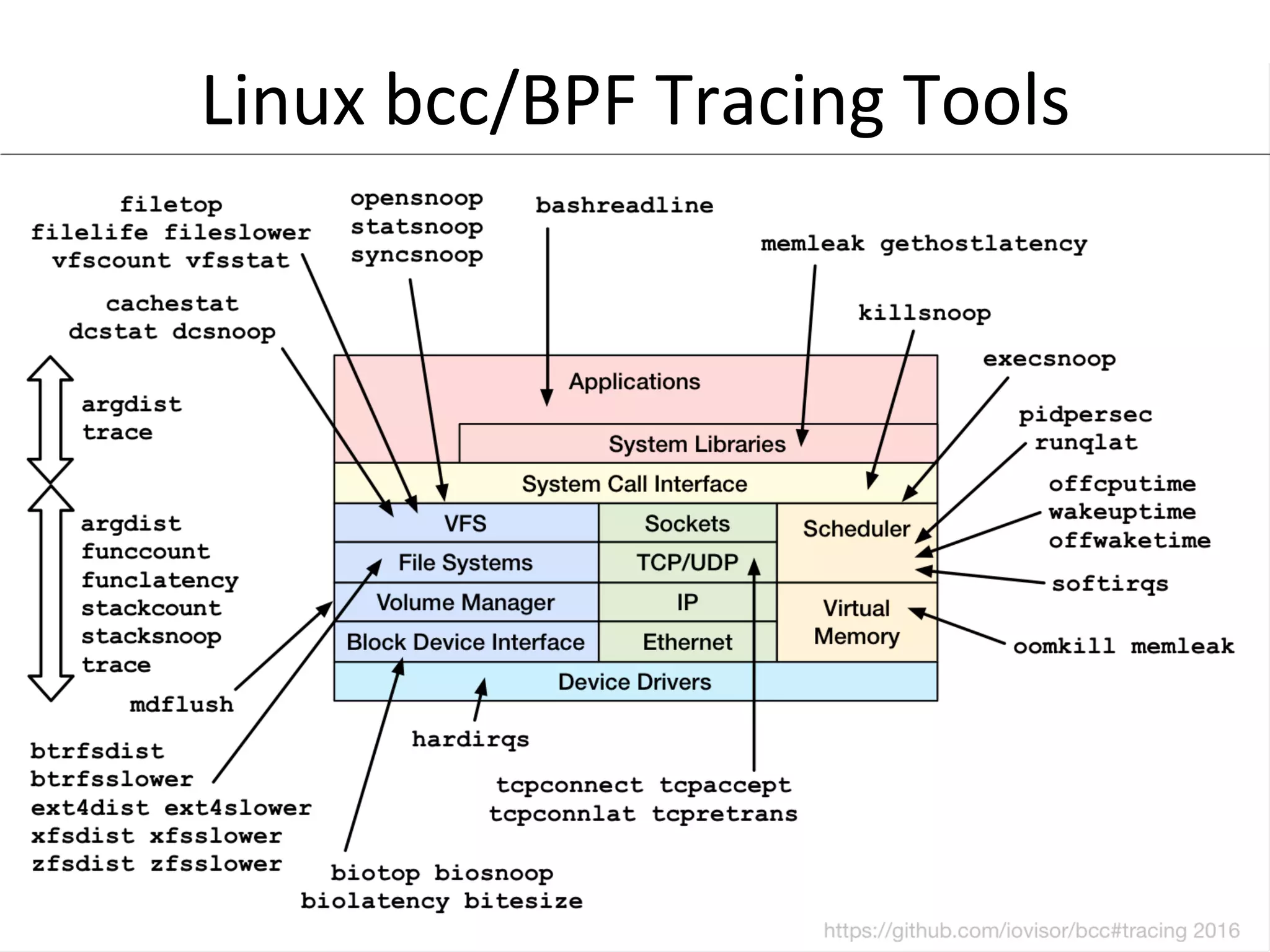

Linux
  bcc/BPF
  Tracing
  Tools

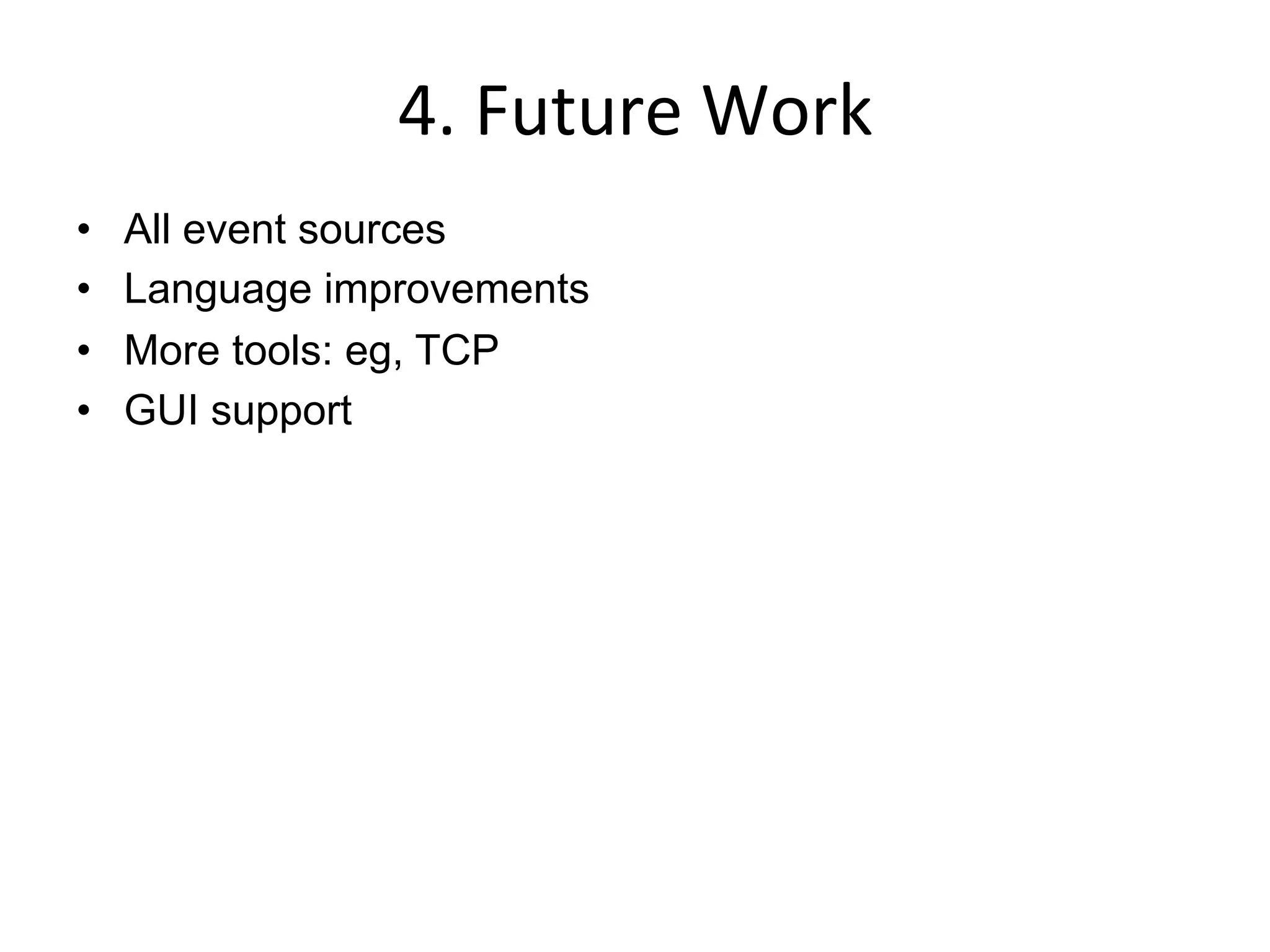

4.
  Future
  Work

•  All event sources
•  Language improvements
•  More tools: eg, TCP
•  GUI support

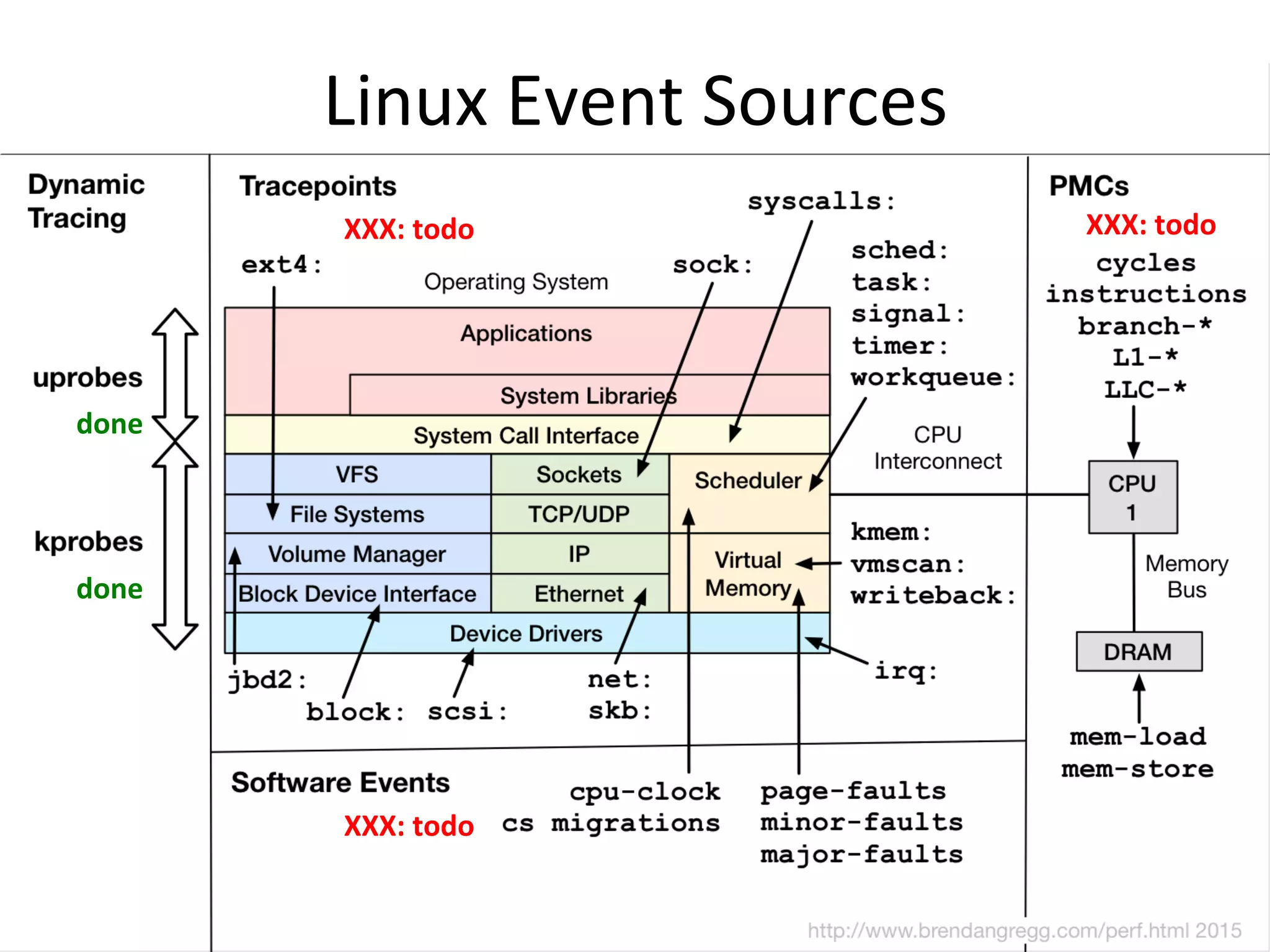

Linux
  Event
  Sources

done

XXX:
  todo
   XXX:
  todo

XXX:
  todo

done

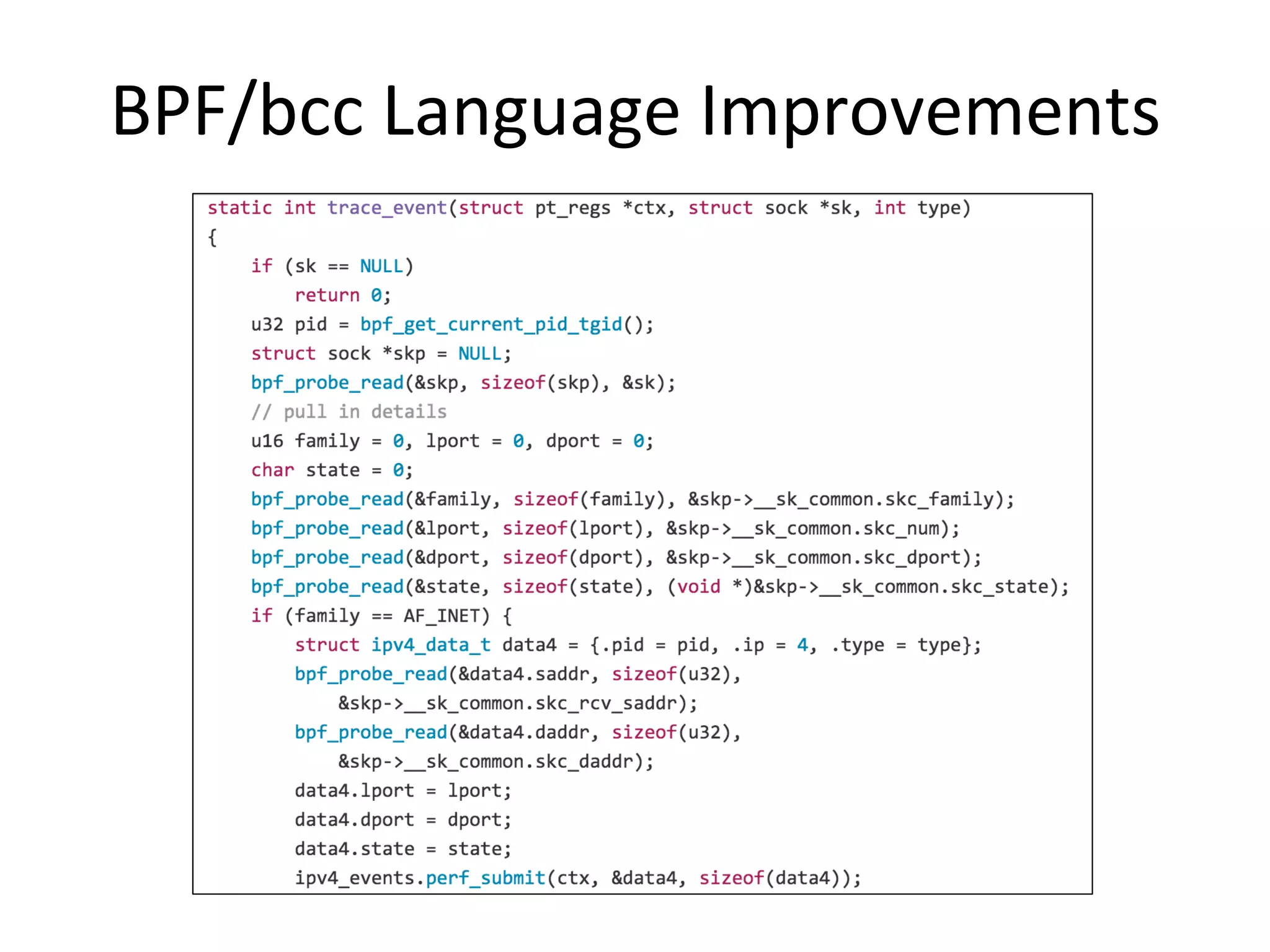

BPF/bcc
  Language
  Improvements

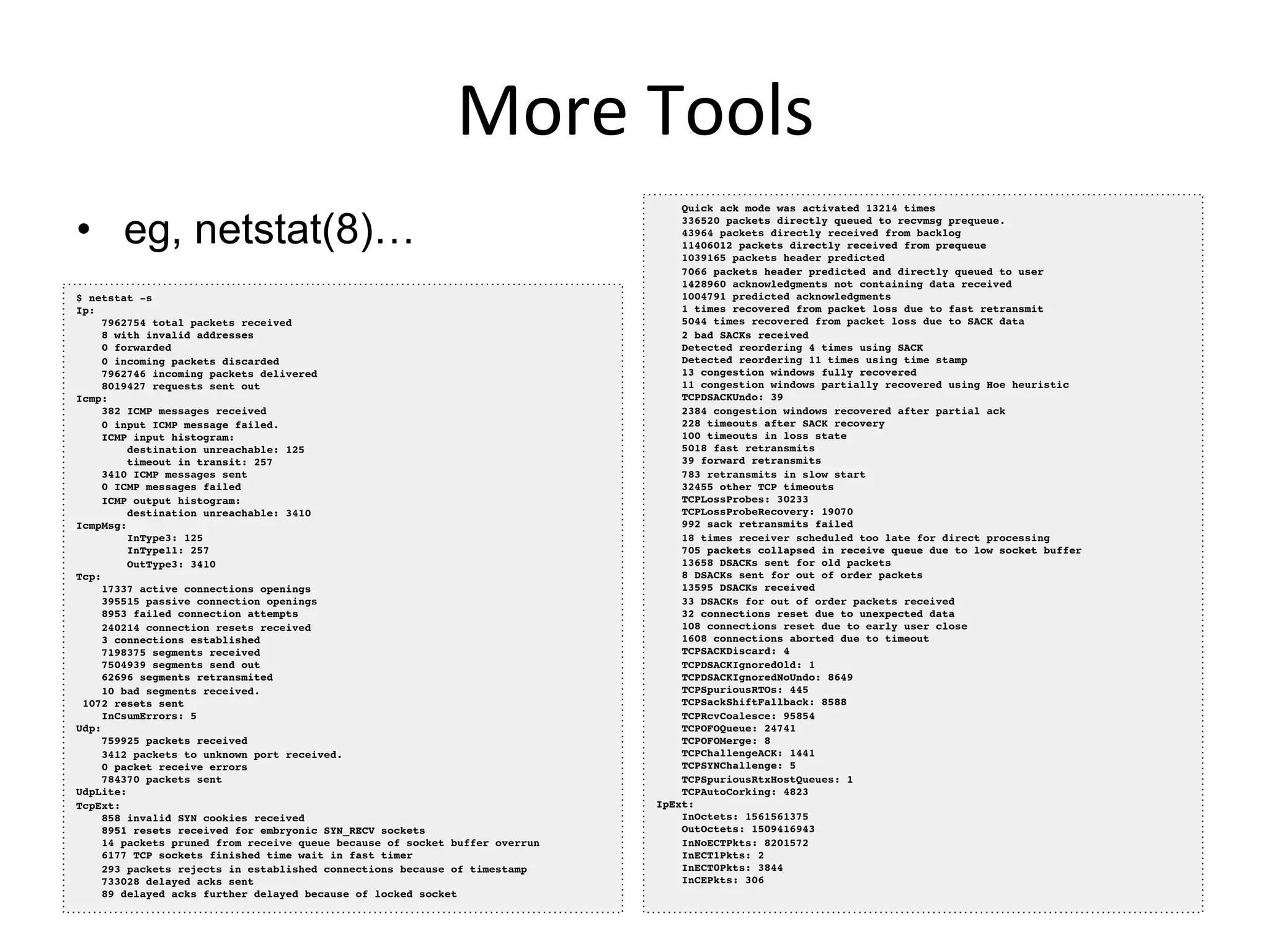

More
  Tools

•  eg, netstat(8)…
$ netstat -s
Ip:
7962754 total packets received
8 with invalid addresses
0 forwarded
0 incoming packets discarded
7962746 incoming packets delivered
8019427 requests sent out
Icmp:
382 ICMP messages received
0 input ICMP message failed.
ICMP input histogram:
destination unreachable: 125
timeout in transit: 257
3410 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
destination unreachable: 3410
IcmpMsg:
InType3: 125
InType11: 257
OutType3: 3410
Tcp:
17337 active connections openings
395515 passive connection openings
8953 failed connection attempts
240214 connection resets received
3 connections established
7198375 segments received
7504939 segments send out
62696 segments retransmited
10 bad segments received.
1072 resets sent
InCsumErrors: 5
Udp:
759925 packets received
3412 packets to unknown port received.
0 packet receive errors
784370 packets sent
UdpLite:
TcpExt:
858 invalid SYN cookies received
8951 resets received for embryonic SYN_RECV sockets
14 packets pruned from receive queue because of socket buffer overrun
6177 TCP sockets finished time wait in fast timer
293 packets rejects in established connections because of timestamp
733028 delayed acks sent
89 delayed acks further delayed because of locked socket
Quick ack mode was activated 13214 times
336520 packets directly queued to recvmsg prequeue.
43964 packets directly received from backlog
11406012 packets directly received from prequeue
1039165 packets header predicted
7066 packets header predicted and directly queued to user
1428960 acknowledgments not containing data received
1004791 predicted acknowledgments
1 times recovered from packet loss due to fast retransmit
5044 times recovered from packet loss due to SACK data
2 bad SACKs received
Detected reordering 4 times using SACK
Detected reordering 11 times using time stamp
13 congestion windows fully recovered
11 congestion windows partially recovered using Hoe heuristic
TCPDSACKUndo: 39
2384 congestion windows recovered after partial ack
228 timeouts after SACK recovery
100 timeouts in loss state
5018 fast retransmits
39 forward retransmits
783 retransmits in slow start
32455 other TCP timeouts
TCPLossProbes: 30233
TCPLossProbeRecovery: 19070
992 sack retransmits failed
18 times receiver scheduled too late for direct processing
705 packets collapsed in receive queue due to low socket buffer
13658 DSACKs sent for old packets
8 DSACKs sent for out of order packets
13595 DSACKs received
33 DSACKs for out of order packets received
32 connections reset due to unexpected data
108 connections reset due to early user close
1608 connections aborted due to timeout
TCPSACKDiscard: 4
TCPDSACKIgnoredOld: 1
TCPDSACKIgnoredNoUndo: 8649
TCPSpuriousRTOs: 445
TCPSackShiftFallback: 8588
TCPRcvCoalesce: 95854
TCPOFOQueue: 24741
TCPOFOMerge: 8
TCPChallengeACK: 1441
TCPSYNChallenge: 5
TCPSpuriousRtxHostQueues: 1
TCPAutoCorking: 4823
IpExt:
InOctets: 1561561375
OutOctets: 1509416943
InNoECTPkts: 8201572
InECT1Pkts: 2
InECT0Pkts: 3844
InCEPkts: 306

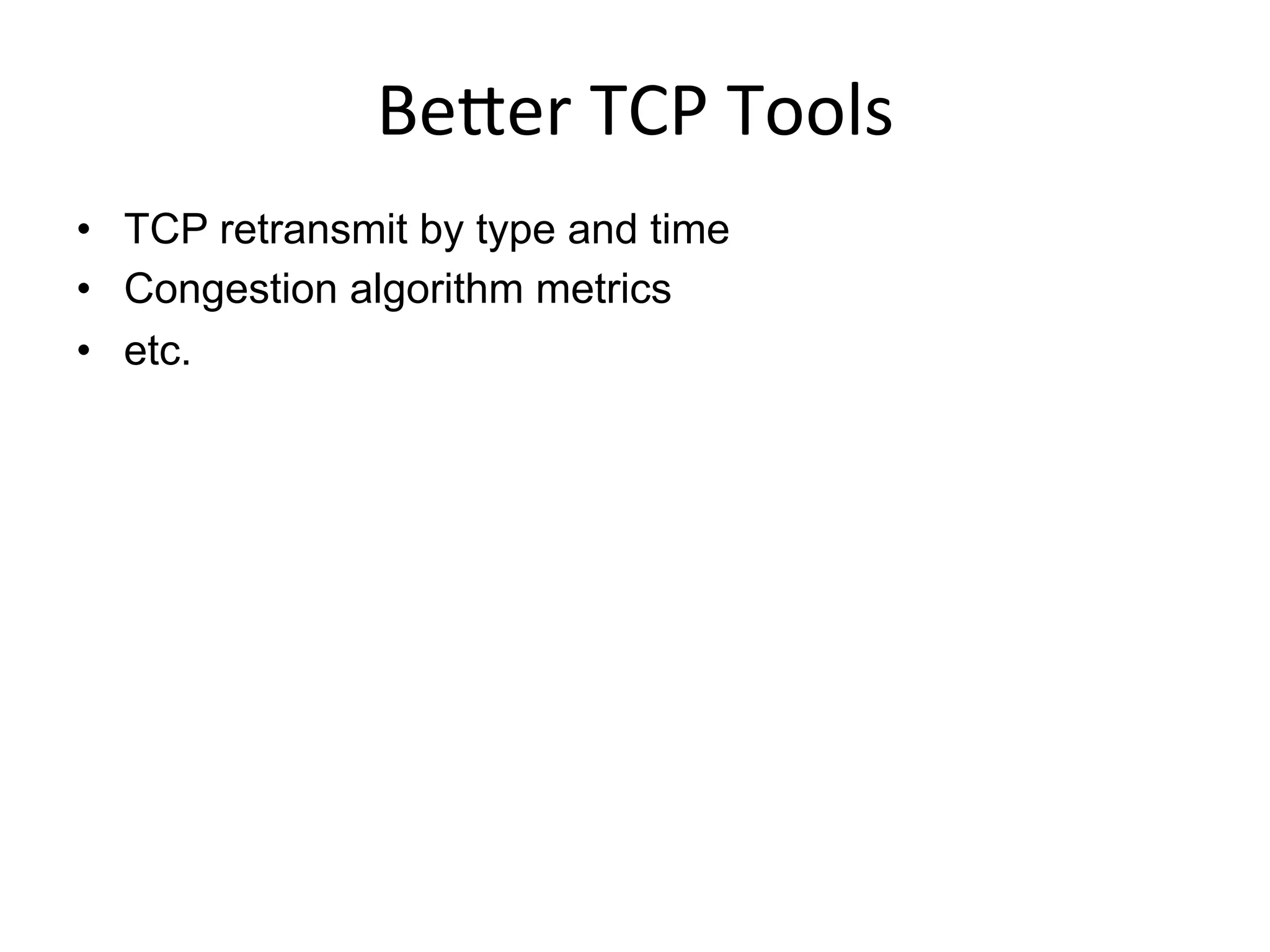

BeRer
  TCP
  Tools

•  TCP retransmit by type and time
•  Congestion algorithm metrics
•  etc.
GUI
  Support

•  eg, Netflix Vector: open source instance analyzer:

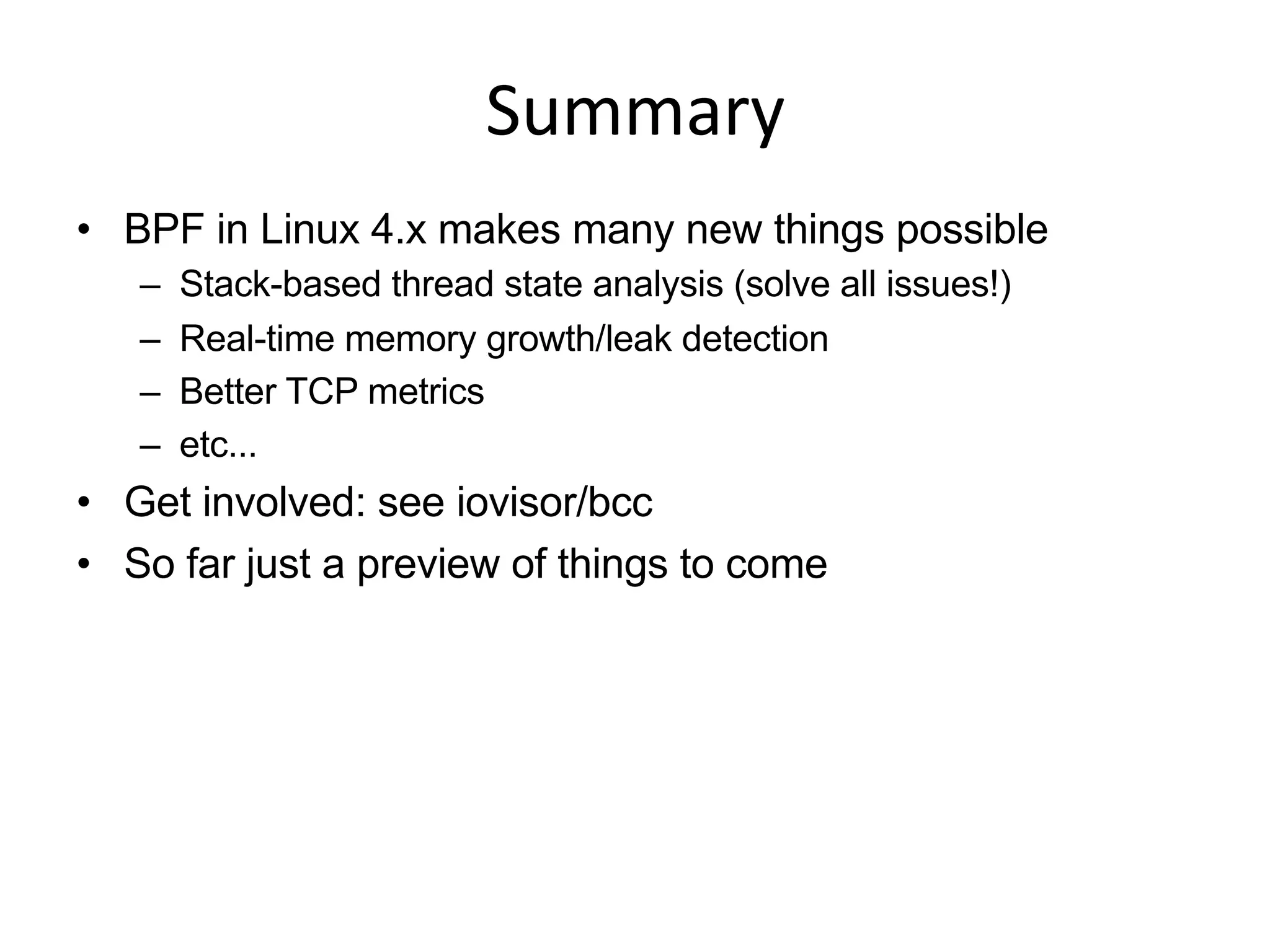

Summary

•  BPF in Linux 4.x makes many new things possible
–  Stack-based thread state analysis (solve all issues!)
–  Real-time memory growth/leak detection
–  Better TCP metrics
–  etc...
•  Get involved: see iovisor/bcc
•  So far just a preview of things to come

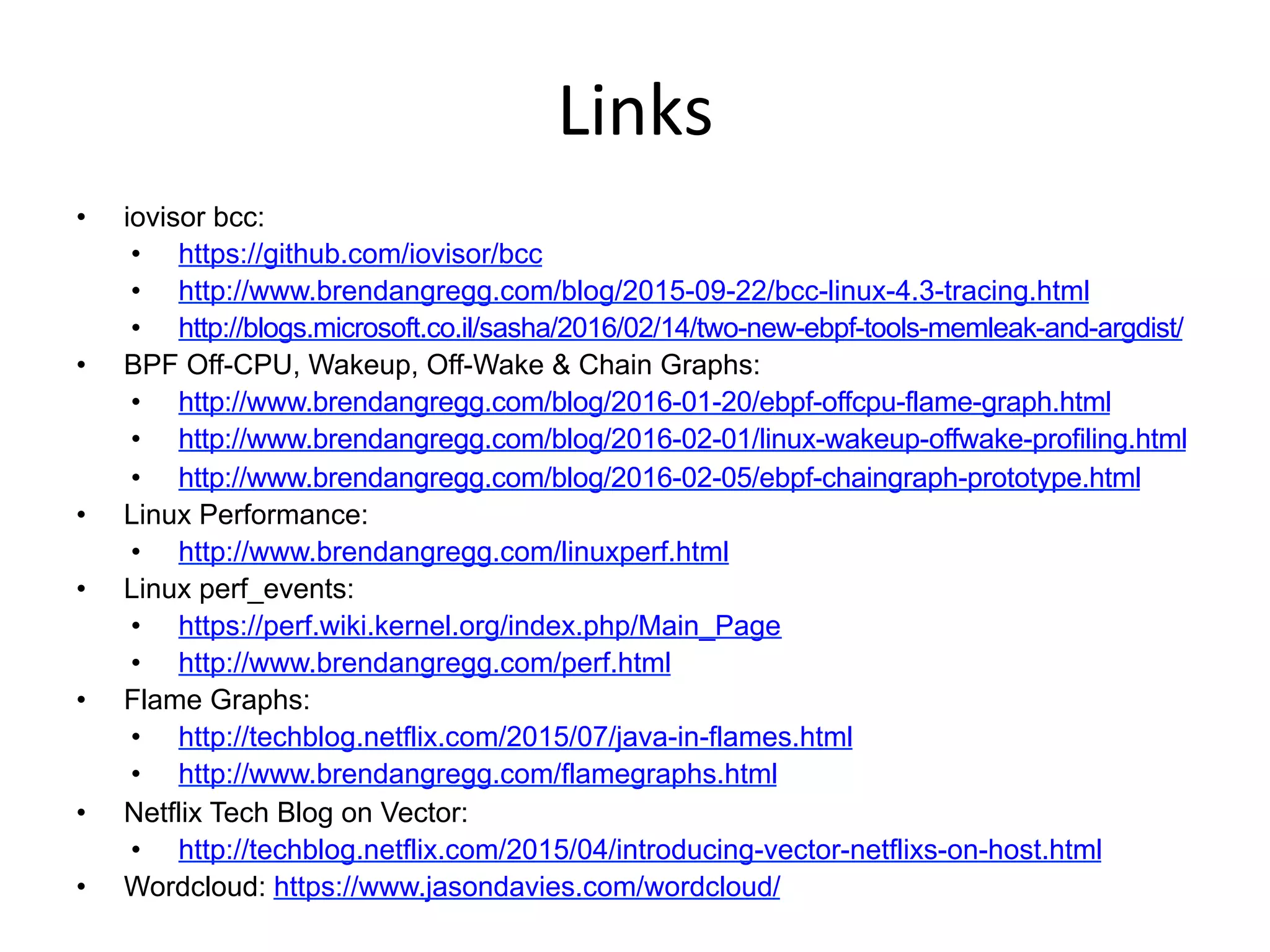

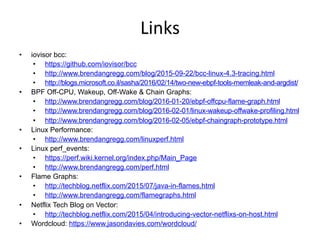

Links

•  iovisor bcc:
•  https://github.com/iovisor/bcc
•  http://www.brendangregg.com/blog/2015-09-22/bcc-linux-4.3-tracing.html
•  http://blogs.microsoft.co.il/sasha/2016/02/14/two-new-ebpf-tools-memleak-and-argdist/
•  BPF Off-CPU, Wakeup, Off-Wake & Chain Graphs:
•  http://www.brendangregg.com/blog/2016-01-20/ebpf-offcpu-flame-graph.html
•  http://www.brendangregg.com/blog/2016-02-01/linux-wakeup-offwake-profiling.html
•  http://www.brendangregg.com/blog/2016-02-05/ebpf-chaingraph-prototype.html
•  Linux Performance:
•  http://www.brendangregg.com/linuxperf.html
•  Linux perf_events:
•  https://perf.wiki.kernel.org/index.php/Main_Page
•  http://www.brendangregg.com/perf.html
•  Flame Graphs:
•  http://techblog.netflix.com/2015/07/java-in-flames.html
•  http://www.brendangregg.com/flamegraphs.html
•  Netflix Tech Blog on Vector:
•  http://techblog.netflix.com/2015/04/introducing-vector-netflixs-on-host.html
•  Wordcloud: https://www.jasondavies.com/wordcloud/
Feb

2016

•  Questions?
•  http://slideshare.net/brendangregg
•  http://www.brendangregg.com
•  bgregg@netflix.com
•  @brendangregg
Thanks to Alexei Starovoitov (Facebook), Brenden
Blanco (PLUMgrid), Daniel Borkmann (Cisco), Wang
Nan (Huawei), Sasha Goldshtein (Sela), and other
BPF and bcc contributors!

More Related Content

What's hot

Linux kernel tracing
Linux kernel tracingLinux kernel tracing
Linux kernel tracingViller Hsiao

BPF Internals (eBPF)
BPF Internals (eBPF)BPF Internals (eBPF)
BPF Internals (eBPF)Brendan Gregg

Staring into the eBPF Abyss
Staring into the eBPF AbyssStaring into the eBPF Abyss
Staring into the eBPF AbyssSasha Goldshtein

Performance Wins with BPF: Getting Started
Performance Wins with BPF: Getting StartedPerformance Wins with BPF: Getting Started
Performance Wins with BPF: Getting StartedBrendan Gregg

Linux 4.x Tracing Tools: Using BPF Superpowers
Linux 4.x Tracing Tools: Using BPF SuperpowersLinux 4.x Tracing Tools: Using BPF Superpowers
Linux 4.x Tracing Tools: Using BPF SuperpowersBrendan Gregg

eBPF Trace from Kernel to Userspace
eBPF Trace from Kernel to UserspaceeBPF Trace from Kernel to Userspace
eBPF Trace from Kernel to UserspaceSUSE Labs Taipei

BPF - in-kernel virtual machine
BPF - in-kernel virtual machineBPF - in-kernel virtual machine
BPF - in-kernel virtual machineAlexei Starovoitov

New Ways to Find Latency in Linux Using Tracing
New Ways to Find Latency in Linux Using TracingNew Ways to Find Latency in Linux Using Tracing
New Ways to Find Latency in Linux Using TracingScyllaDB

Linux Profiling at Netflix
Linux Profiling at NetflixLinux Profiling at Netflix
Linux Profiling at NetflixBrendan Gregg

UM2019 Extended BPF: A New Type of Software
UM2019 Extended BPF: A New Type of SoftwareUM2019 Extended BPF: A New Type of Software
UM2019 Extended BPF: A New Type of SoftwareBrendan Gregg

Systems@Scale 2021 BPF Performance Getting Started
Systems@Scale 2021 BPF Performance Getting StartedSystems@Scale 2021 BPF Performance Getting Started
Systems@Scale 2021 BPF Performance Getting StartedBrendan Gregg

Kernel Recipes 2017: Using Linux perf at Netflix
Kernel Recipes 2017: Using Linux perf at NetflixKernel Recipes 2017: Using Linux perf at Netflix
Kernel Recipes 2017: Using Linux perf at NetflixBrendan Gregg

eBPF - Rethinking the Linux Kernel
eBPF - Rethinking the Linux KerneleBPF - Rethinking the Linux Kernel
eBPF - Rethinking the Linux KernelThomas Graf

Linux Networking Explained
Linux Networking ExplainedLinux Networking Explained
Linux Networking ExplainedThomas Graf

re:Invent 2019 BPF Performance Analysis at Netflix
re:Invent 2019 BPF Performance Analysis at Netflixre:Invent 2019 BPF Performance Analysis at Netflix
re:Invent 2019 BPF Performance Analysis at NetflixBrendan Gregg

Cilium - Container Networking with BPF & XDP
Cilium - Container Networking with BPF & XDPCilium - Container Networking with BPF & XDP
Cilium - Container Networking with BPF & XDPThomas Graf

Security Monitoring with eBPF
Security Monitoring with eBPFSecurity Monitoring with eBPF
Security Monitoring with eBPFAlex Maestretti

LSFMM 2019 BPF Observability
LSFMM 2019 BPF ObservabilityLSFMM 2019 BPF Observability
LSFMM 2019 BPF ObservabilityBrendan Gregg

Xdp and ebpf_maps
Xdp and ebpf_mapsXdp and ebpf_maps
Xdp and ebpf_mapslcplcp1


What's hot (20)

Linux kernel tracing
Linux kernel tracingLinux kernel tracing
Linux kernel tracing

BPF Internals (eBPF)
BPF Internals (eBPF)BPF Internals (eBPF)
BPF Internals (eBPF)

Staring into the eBPF Abyss
Staring into the eBPF AbyssStaring into the eBPF Abyss
Staring into the eBPF Abyss

Performance Wins with BPF: Getting Started
Performance Wins with BPF: Getting StartedPerformance Wins with BPF: Getting Started
Performance Wins with BPF: Getting Started

Linux 4.x Tracing Tools: Using BPF Superpowers
Linux 4.x Tracing Tools: Using BPF SuperpowersLinux 4.x Tracing Tools: Using BPF Superpowers
Linux 4.x Tracing Tools: Using BPF Superpowers

eBPF Trace from Kernel to Userspace
eBPF Trace from Kernel to UserspaceeBPF Trace from Kernel to Userspace
eBPF Trace from Kernel to Userspace

BPF - in-kernel virtual machine
BPF - in-kernel virtual machineBPF - in-kernel virtual machine
BPF - in-kernel virtual machine

New Ways to Find Latency in Linux Using Tracing
New Ways to Find Latency in Linux Using TracingNew Ways to Find Latency in Linux Using Tracing
New Ways to Find Latency in Linux Using Tracing

Linux Profiling at Netflix
Linux Profiling at NetflixLinux Profiling at Netflix
Linux Profiling at Netflix

UM2019 Extended BPF: A New Type of Software
UM2019 Extended BPF: A New Type of SoftwareUM2019 Extended BPF: A New Type of Software
UM2019 Extended BPF: A New Type of Software

Systems@Scale 2021 BPF Performance Getting Started
Systems@Scale 2021 BPF Performance Getting StartedSystems@Scale 2021 BPF Performance Getting Started
Systems@Scale 2021 BPF Performance Getting Started

Kernel Recipes 2017: Using Linux perf at Netflix
Kernel Recipes 2017: Using Linux perf at NetflixKernel Recipes 2017: Using Linux perf at Netflix
Kernel Recipes 2017: Using Linux perf at Netflix

Understanding DPDK
Understanding DPDKUnderstanding DPDK
Understanding DPDK

eBPF - Rethinking the Linux Kernel
eBPF - Rethinking the Linux KerneleBPF - Rethinking the Linux Kernel
eBPF - Rethinking the Linux Kernel

Linux Networking Explained
Linux Networking ExplainedLinux Networking Explained
Linux Networking Explained

re:Invent 2019 BPF Performance Analysis at Netflix
re:Invent 2019 BPF Performance Analysis at Netflixre:Invent 2019 BPF Performance Analysis at Netflix
re:Invent 2019 BPF Performance Analysis at Netflix

Cilium - Container Networking with BPF & XDP
Cilium - Container Networking with BPF & XDPCilium - Container Networking with BPF & XDP
Cilium - Container Networking with BPF & XDP

Security Monitoring with eBPF
Security Monitoring with eBPFSecurity Monitoring with eBPF
Security Monitoring with eBPF

LSFMM 2019 BPF Observability
LSFMM 2019 BPF ObservabilityLSFMM 2019 BPF Observability
LSFMM 2019 BPF Observability

Xdp and ebpf_maps
Xdp and ebpf_mapsXdp and ebpf_maps
Xdp and ebpf_maps


Viewers also liked

Velocity 2015 linux perf tools
Velocity 2015 linux perf toolsVelocity 2015 linux perf tools
Velocity 2015 linux perf toolsBrendan Gregg

Velocity 2017 Performance analysis superpowers with Linux eBPF
Velocity 2017 Performance analysis superpowers with Linux eBPFVelocity 2017 Performance analysis superpowers with Linux eBPF
Velocity 2017 Performance analysis superpowers with Linux eBPFBrendan Gregg

ACM Applicative System Methodology 2016
ACM Applicative System Methodology 2016ACM Applicative System Methodology 2016
ACM Applicative System Methodology 2016Brendan Gregg

Stop the Guessing: Performance Methodologies for Production Systems
Stop the Guessing: Performance Methodologies for Production SystemsStop the Guessing: Performance Methodologies for Production Systems
Stop the Guessing: Performance Methodologies for Production SystemsBrendan Gregg

Netflix: From Clouds to Roots
Netflix: From Clouds to RootsNetflix: From Clouds to Roots
Netflix: From Clouds to RootsBrendan Gregg

SREcon 2016 Performance Checklists for SREs
SREcon 2016 Performance Checklists for SREsSREcon 2016 Performance Checklists for SREs
SREcon 2016 Performance Checklists for SREsBrendan Gregg

Performance Tuning EC2 Instances
Performance Tuning EC2 InstancesPerformance Tuning EC2 Instances
Performance Tuning EC2 InstancesBrendan Gregg

Blazing Performance with Flame Graphs
Blazing Performance with Flame GraphsBlazing Performance with Flame Graphs
Blazing Performance with Flame GraphsBrendan Gregg

Linux Systems Performance 2016
Linux Systems Performance 2016Linux Systems Performance 2016
Linux Systems Performance 2016Brendan Gregg

Broken Linux Performance Tools 2016
Broken Linux Performance Tools 2016Broken Linux Performance Tools 2016
Broken Linux Performance Tools 2016Brendan Gregg

Berkeley Packet Filters
Berkeley Packet FiltersBerkeley Packet Filters
Berkeley Packet FiltersKernel TLV

Running Hadoop as Service in AltiScale Platform
Running Hadoop as Service in AltiScale PlatformRunning Hadoop as Service in AltiScale Platform
Running Hadoop as Service in AltiScale PlatformInMobi Technology

ACM DEBS 2015: Realtime Streaming Analytics Patterns
ACM DEBS 2015: Realtime Streaming Analytics PatternsACM DEBS 2015: Realtime Streaming Analytics Patterns
ACM DEBS 2015: Realtime Streaming Analytics PatternsSrinath Perera

Мониторь, автоматизируй Docker
Мониторь, автоматизируй DockerМониторь, автоматизируй Docker
Мониторь, автоматизируй DockerBadoo Development

Linux 4.x Tracing: Performance Analysis with bcc/BPF
Linux 4.x Tracing: Performance Analysis with bcc/BPFLinux 4.x Tracing: Performance Analysis with bcc/BPF
Linux 4.x Tracing: Performance Analysis with bcc/BPFBrendan Gregg

Docker в Badoo: ПМЖ или временная регистрация
Docker в Badoo: ПМЖ или временная регистрацияDocker в Badoo: ПМЖ или временная регистрация
Docker в Badoo: ПМЖ или временная регистрацияBadoo Development

Архитектура поиска в Avito / Андрей Смирнов (Avito)
Архитектура поиска в Avito / Андрей Смирнов (Avito)Архитектура поиска в Avito / Андрей Смирнов (Avito)
Архитектура поиска в Avito / Андрей Смирнов (Avito)Ontico


Viewers also liked (20)

Velocity 2015 linux perf tools
Velocity 2015 linux perf toolsVelocity 2015 linux perf tools
Velocity 2015 linux perf tools

Velocity 2017 Performance analysis superpowers with Linux eBPF
Velocity 2017 Performance analysis superpowers with Linux eBPFVelocity 2017 Performance analysis superpowers with Linux eBPF
Velocity 2017 Performance analysis superpowers with Linux eBPF

ACM Applicative System Methodology 2016
ACM Applicative System Methodology 2016ACM Applicative System Methodology 2016
ACM Applicative System Methodology 2016

Stop the Guessing: Performance Methodologies for Production Systems
Stop the Guessing: Performance Methodologies for Production SystemsStop the Guessing: Performance Methodologies for Production Systems
Stop the Guessing: Performance Methodologies for Production Systems

Netflix: From Clouds to Roots
Netflix: From Clouds to RootsNetflix: From Clouds to Roots
Netflix: From Clouds to Roots

SREcon 2016 Performance Checklists for SREs
SREcon 2016 Performance Checklists for SREsSREcon 2016 Performance Checklists for SREs
SREcon 2016 Performance Checklists for SREs

Performance Tuning EC2 Instances
Performance Tuning EC2 InstancesPerformance Tuning EC2 Instances
Performance Tuning EC2 Instances

Blazing Performance with Flame Graphs
Blazing Performance with Flame GraphsBlazing Performance with Flame Graphs
Blazing Performance with Flame Graphs

Linux Systems Performance 2016
Linux Systems Performance 2016Linux Systems Performance 2016
Linux Systems Performance 2016

Broken Linux Performance Tools 2016
Broken Linux Performance Tools 2016Broken Linux Performance Tools 2016
Broken Linux Performance Tools 2016

Berkeley Packet Filters
Berkeley Packet FiltersBerkeley Packet Filters
Berkeley Packet Filters

Storage Area Network interview Questions
Storage Area Network interview QuestionsStorage Area Network interview Questions
Storage Area Network interview Questions

Running Hadoop as Service in AltiScale Platform
Running Hadoop as Service in AltiScale PlatformRunning Hadoop as Service in AltiScale Platform
Running Hadoop as Service in AltiScale Platform

ACM DEBS 2015: Realtime Streaming Analytics Patterns
ACM DEBS 2015: Realtime Streaming Analytics PatternsACM DEBS 2015: Realtime Streaming Analytics Patterns
ACM DEBS 2015: Realtime Streaming Analytics Patterns

Docker networking
Docker networkingDocker networking
Docker networking

Мониторь, автоматизируй Docker
Мониторь, автоматизируй DockerМониторь, автоматизируй Docker
Мониторь, автоматизируй Docker

Linux 4.x Tracing: Performance Analysis with bcc/BPF
Linux 4.x Tracing: Performance Analysis with bcc/BPFLinux 4.x Tracing: Performance Analysis with bcc/BPF
Linux 4.x Tracing: Performance Analysis with bcc/BPF

Docker в Badoo: ПМЖ или временная регистрация
Docker в Badoo: ПМЖ или временная регистрацияDocker в Badoo: ПМЖ или временная регистрация
Docker в Badoo: ПМЖ или временная регистрация

Архитектура поиска в Avito / Андрей Смирнов (Avito)
Архитектура поиска в Avito / Андрей Смирнов (Avito)Архитектура поиска в Avito / Андрей Смирнов (Avito)
Архитектура поиска в Avito / Андрей Смирнов (Avito)

Docker penetration
Docker penetrationDocker penetration
Docker penetration


Similar to Linux BPF Superpowers

OSSNA 2017 Performance Analysis Superpowers with Linux BPF
OSSNA 2017 Performance Analysis Superpowers with Linux BPFOSSNA 2017 Performance Analysis Superpowers with Linux BPF
OSSNA 2017 Performance Analysis Superpowers with Linux BPFBrendan Gregg

Modern Linux Tracing Landscape
Modern Linux Tracing LandscapeModern Linux Tracing Landscape
Modern Linux Tracing LandscapeSasha Goldshtein

USENIX ATC 2017 Performance Superpowers with Enhanced BPF
USENIX ATC 2017 Performance Superpowers with Enhanced BPFUSENIX ATC 2017 Performance Superpowers with Enhanced BPF
USENIX ATC 2017 Performance Superpowers with Enhanced BPFBrendan Gregg

Container Performance Analysis Brendan Gregg, Netflix
Container Performance Analysis Brendan Gregg, NetflixContainer Performance Analysis Brendan Gregg, Netflix
Container Performance Analysis Brendan Gregg, NetflixDocker, Inc.

Container Performance Analysis
Container Performance AnalysisContainer Performance Analysis
Container Performance AnalysisBrendan Gregg

Linux Perf Tools
Linux Perf ToolsLinux Perf Tools
Linux Perf ToolsRaj Pandey

Modern Linux Tracing Landscape
Modern Linux Tracing LandscapeModern Linux Tracing Landscape
Modern Linux Tracing LandscapeKernel TLV

Designing Tracing Tools
Designing Tracing ToolsDesigning Tracing Tools
Designing Tracing ToolsBrendan Gregg

Kernel Recipes 2019 - BPF at Facebook
Kernel Recipes 2019 - BPF at FacebookKernel Recipes 2019 - BPF at Facebook
Kernel Recipes 2019 - BPF at FacebookAnne Nicolas

Designing Tracing Tools
Designing Tracing ToolsDesigning Tracing Tools
Designing Tracing ToolsSysdig

Playing BBR with a userspace network stack
Playing BBR with a userspace network stackPlaying BBR with a userspace network stack
Playing BBR with a userspace network stackHajime Tazaki

Network Programming: Data Plane Development Kit (DPDK)
Network Programming: Data Plane Development Kit (DPDK)Network Programming: Data Plane Development Kit (DPDK)
Network Programming: Data Plane Development Kit (DPDK)Andriy Berestovskyy

Kernel bug hunting
Kernel bug huntingKernel bug hunting
Kernel bug huntingAndrea Righi

Kernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysisKernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysisAnne Nicolas

Fast boot
Fast bootFast boot
Fast bootSZ Lin

Linux Kernel Platform Development: Challenges and Insights
 Linux Kernel Platform Development: Challenges and Insights Linux Kernel Platform Development: Challenges and Insights
Linux Kernel Platform Development: Challenges and InsightsGlobalLogic Ukraine

Linux Capabilities - eng - v2.1.5, compact
Linux Capabilities - eng - v2.1.5, compactLinux Capabilities - eng - v2.1.5, compact
Linux Capabilities - eng - v2.1.5, compactAlessandro Selli

Accelerating microbiome research with OpenACC
Accelerating microbiome research with OpenACCAccelerating microbiome research with OpenACC
Accelerating microbiome research with OpenACCIgor Sfiligoi

JavaOne 2015 Java Mixed-Mode Flame Graphs
JavaOne 2015 Java Mixed-Mode Flame GraphsJavaOne 2015 Java Mixed-Mode Flame Graphs
JavaOne 2015 Java Mixed-Mode Flame GraphsBrendan Gregg


Similar to Linux BPF Superpowers (20)

OSSNA 2017 Performance Analysis Superpowers with Linux BPF
OSSNA 2017 Performance Analysis Superpowers with Linux BPFOSSNA 2017 Performance Analysis Superpowers with Linux BPF
OSSNA 2017 Performance Analysis Superpowers with Linux BPF

Modern Linux Tracing Landscape
Modern Linux Tracing LandscapeModern Linux Tracing Landscape
Modern Linux Tracing Landscape

USENIX ATC 2017 Performance Superpowers with Enhanced BPF
USENIX ATC 2017 Performance Superpowers with Enhanced BPFUSENIX ATC 2017 Performance Superpowers with Enhanced BPF
USENIX ATC 2017 Performance Superpowers with Enhanced BPF

Container Performance Analysis Brendan Gregg, Netflix
Container Performance Analysis Brendan Gregg, NetflixContainer Performance Analysis Brendan Gregg, Netflix
Container Performance Analysis Brendan Gregg, Netflix

Container Performance Analysis
Container Performance AnalysisContainer Performance Analysis
Container Performance Analysis

Linux Perf Tools
Linux Perf ToolsLinux Perf Tools
Linux Perf Tools

Modern Linux Tracing Landscape
Modern Linux Tracing LandscapeModern Linux Tracing Landscape
Modern Linux Tracing Landscape

Designing Tracing Tools
Designing Tracing ToolsDesigning Tracing Tools
Designing Tracing Tools

Kernel Recipes 2019 - BPF at Facebook
Kernel Recipes 2019 - BPF at FacebookKernel Recipes 2019 - BPF at Facebook
Kernel Recipes 2019 - BPF at Facebook

Designing Tracing Tools
Designing Tracing ToolsDesigning Tracing Tools
Designing Tracing Tools

Playing BBR with a userspace network stack
Playing BBR with a userspace network stackPlaying BBR with a userspace network stack
Playing BBR with a userspace network stack

Network Programming: Data Plane Development Kit (DPDK)
Network Programming: Data Plane Development Kit (DPDK)Network Programming: Data Plane Development Kit (DPDK)
Network Programming: Data Plane Development Kit (DPDK)

Kernel bug hunting
Kernel bug huntingKernel bug hunting
Kernel bug hunting

Kernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysisKernel Recipes 2015 - Kernel dump analysis
Kernel Recipes 2015 - Kernel dump analysis

Fast boot
Fast bootFast boot
Fast boot

eBPF Basics
eBPF BasicseBPF Basics
eBPF Basics

Linux Kernel Platform Development: Challenges and Insights
 Linux Kernel Platform Development: Challenges and Insights Linux Kernel Platform Development: Challenges and Insights
Linux Kernel Platform Development: Challenges and Insights

Linux Capabilities - eng - v2.1.5, compact
Linux Capabilities - eng - v2.1.5, compactLinux Capabilities - eng - v2.1.5, compact
Linux Capabilities - eng - v2.1.5, compact

Accelerating microbiome research with OpenACC
Accelerating microbiome research with OpenACCAccelerating microbiome research with OpenACC
Accelerating microbiome research with OpenACC

JavaOne 2015 Java Mixed-Mode Flame Graphs
JavaOne 2015 Java Mixed-Mode Flame GraphsJavaOne 2015 Java Mixed-Mode Flame Graphs
JavaOne 2015 Java Mixed-Mode Flame Graphs


More from Brendan Gregg

YOW2021 Computing Performance
YOW2021 Computing PerformanceYOW2021 Computing Performance
YOW2021 Computing PerformanceBrendan Gregg

Computing Performance: On the Horizon (2021)
Computing Performance: On the Horizon (2021)Computing Performance: On the Horizon (2021)
Computing Performance: On the Horizon (2021)Brendan Gregg

YOW2020 Linux Systems Performance
YOW2020 Linux Systems PerformanceYOW2020 Linux Systems Performance
YOW2020 Linux Systems PerformanceBrendan Gregg

LPC2019 BPF Tracing Tools
LPC2019 BPF Tracing ToolsLPC2019 BPF Tracing Tools
LPC2019 BPF Tracing ToolsBrendan Gregg

YOW2018 CTO Summit: Working at netflix
YOW2018 CTO Summit: Working at netflixYOW2018 CTO Summit: Working at netflix
YOW2018 CTO Summit: Working at netflixBrendan Gregg

YOW2018 Cloud Performance Root Cause Analysis at Netflix
YOW2018 Cloud Performance Root Cause Analysis at NetflixYOW2018 Cloud Performance Root Cause Analysis at Netflix
YOW2018 Cloud Performance Root Cause Analysis at NetflixBrendan Gregg

NetConf 2018 BPF Observability
NetConf 2018 BPF ObservabilityNetConf 2018 BPF Observability
NetConf 2018 BPF ObservabilityBrendan Gregg

ATO Linux Performance 2018
ATO Linux Performance 2018ATO Linux Performance 2018
ATO Linux Performance 2018Brendan Gregg

Linux Performance 2018 (PerconaLive keynote)
Linux Performance 2018 (PerconaLive keynote)Linux Performance 2018 (PerconaLive keynote)
Linux Performance 2018 (PerconaLive keynote)Brendan Gregg

How Netflix Tunes EC2 Instances for Performance
How Netflix Tunes EC2 Instances for PerformanceHow Netflix Tunes EC2 Instances for Performance
How Netflix Tunes EC2 Instances for PerformanceBrendan Gregg

LISA17 Container Performance Analysis
LISA17 Container Performance AnalysisLISA17 Container Performance Analysis
LISA17 Container Performance AnalysisBrendan Gregg

Kernel Recipes 2017: Performance Analysis with BPF
Kernel Recipes 2017: Performance Analysis with BPFKernel Recipes 2017: Performance Analysis with BPF
Kernel Recipes 2017: Performance Analysis with BPFBrendan Gregg

EuroBSDcon 2017 System Performance Analysis Methodologies
EuroBSDcon 2017 System Performance Analysis MethodologiesEuroBSDcon 2017 System Performance Analysis Methodologies
EuroBSDcon 2017 System Performance Analysis MethodologiesBrendan Gregg

USENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame GraphsUSENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame GraphsBrendan Gregg


More from Brendan Gregg (16)

YOW2021 Computing Performance
YOW2021 Computing PerformanceYOW2021 Computing Performance
YOW2021 Computing Performance

Computing Performance: On the Horizon (2021)
Computing Performance: On the Horizon (2021)Computing Performance: On the Horizon (2021)
Computing Performance: On the Horizon (2021)

YOW2020 Linux Systems Performance
YOW2020 Linux Systems PerformanceYOW2020 Linux Systems Performance
YOW2020 Linux Systems Performance

LPC2019 BPF Tracing Tools
LPC2019 BPF Tracing ToolsLPC2019 BPF Tracing Tools
LPC2019 BPF Tracing Tools

YOW2018 CTO Summit: Working at netflix
YOW2018 CTO Summit: Working at netflixYOW2018 CTO Summit: Working at netflix
YOW2018 CTO Summit: Working at netflix

YOW2018 Cloud Performance Root Cause Analysis at Netflix
YOW2018 Cloud Performance Root Cause Analysis at NetflixYOW2018 Cloud Performance Root Cause Analysis at Netflix
YOW2018 Cloud Performance Root Cause Analysis at Netflix

BPF Tools 2017
BPF Tools 2017BPF Tools 2017
BPF Tools 2017

NetConf 2018 BPF Observability
NetConf 2018 BPF ObservabilityNetConf 2018 BPF Observability
NetConf 2018 BPF Observability

FlameScope 2018
FlameScope 2018FlameScope 2018
FlameScope 2018

ATO Linux Performance 2018
ATO Linux Performance 2018ATO Linux Performance 2018
ATO Linux Performance 2018

Linux Performance 2018 (PerconaLive keynote)
Linux Performance 2018 (PerconaLive keynote)Linux Performance 2018 (PerconaLive keynote)
Linux Performance 2018 (PerconaLive keynote)

How Netflix Tunes EC2 Instances for Performance
How Netflix Tunes EC2 Instances for PerformanceHow Netflix Tunes EC2 Instances for Performance
How Netflix Tunes EC2 Instances for Performance

LISA17 Container Performance Analysis
LISA17 Container Performance AnalysisLISA17 Container Performance Analysis
LISA17 Container Performance Analysis

Kernel Recipes 2017: Performance Analysis with BPF
Kernel Recipes 2017: Performance Analysis with BPFKernel Recipes 2017: Performance Analysis with BPF
Kernel Recipes 2017: Performance Analysis with BPF

EuroBSDcon 2017 System Performance Analysis Methodologies
EuroBSDcon 2017 System Performance Analysis MethodologiesEuroBSDcon 2017 System Performance Analysis Methodologies
EuroBSDcon 2017 System Performance Analysis Methodologies

USENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame GraphsUSENIX ATC 2017: Visualizing Performance with Flame Graphs
USENIX ATC 2017: Visualizing Performance with Flame Graphs


Recently uploaded

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...panagenda

Syngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdfSyngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdfSyngulon

How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdfHow Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdfFIDO Alliance

Optimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through ObservabilityOptimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through ObservabilityScyllaDB

Speed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in MinutesSpeed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in Minutesconfluent

What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024Stephanie Beckett

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGDSC PJATK

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfFIDO Alliance

Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)
Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)
Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)Julian Hyde

AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101vincent683379

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfUK Journal

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...CzechDreamin

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...FIDO Alliance

Enterprise Knowledge Graphs - Data Summit 2024
Enterprise Knowledge Graphs - Data Summit 2024Enterprise Knowledge Graphs - Data Summit 2024
Enterprise Knowledge Graphs - Data Summit 2024Enterprise Knowledge

Powerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaPowerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaCzechDreamin

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimaginedpanagenda

Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxUnpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxDavid Michel

Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...CzechDreamin

How we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfHow we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfSrushith Repakula


Recently uploaded (20)

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

Syngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdfSyngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdf

How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdfHow Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf

Optimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through ObservabilityOptimizing NoSQL Performance Through Observability
Optimizing NoSQL Performance Through Observability

Speed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in MinutesSpeed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in Minutes

What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 Warsaw

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf

Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)
Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)
Measures in SQL (a talk at SF Distributed Systems meetup, 2024-05-22)

AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101AI presentation and introduction - Retrieval Augmented Generation RAG 101
AI presentation and introduction - Retrieval Augmented Generation RAG 101

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdf

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...

Enterprise Knowledge Graphs - Data Summit 2024
Enterprise Knowledge Graphs - Data Summit 2024Enterprise Knowledge Graphs - Data Summit 2024
Enterprise Knowledge Graphs - Data Summit 2024

Powerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaPowerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara Laskowska

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimagined

Overview of Hyperledger Foundation
Overview of Hyperledger FoundationOverview of Hyperledger Foundation
Overview of Hyperledger Foundation

Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxUnpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx

Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...

How we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfHow we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdf


Linux BPF Superpowers

  • 1. Linux  4.x  Performance   Using  BPF  Superpowers   Brendan Gregg Senior Performance Architect Feb   2016
  • 2. Ten  years  ago,   I  gave  a  talk  here     about  DTrace  tools…
  • 3.
  • 4. Superpowers  are  coming  to  Linux     Solve performance issues that were previously impossible For example, full off-CPU analysis…
  • 5.
  • 6.
  • 7. Ideal  Thread  States   A starting point for deeper analysis
  • 8. Linux  Thread  States   Based on: TASK_RUNNING TASK_INTERRUPTIBLE TASK_UNINTERRUPTIBLE Still a useful starting point
  • 9. Linux  On-­‐CPU  Analysis   CPU  Flame  Graph   •  I'll start with on-CPU analysis: •  Split into user/kernel states using /proc, mpstat(1), ... •  perf_events ("perf") to analyze further: –  User & kernel stack sampling (as a CPU flame graph) –  CPI –  Should be easy, but…
  • 12. Java  Mixed-­‐Mode  CPU  Flame  Graph   Java JVM Kernel GC •  Fixed! –  Java –XX:+PreserveFramePointer –  Java perf-map-agent –  Linux perf_events
  • 14. Also,  CPI  Flame  Graph   Cycles Per Instruction -  red == instruction heavy -  blue == cycle heavy (likely mem stalls) zoomed:
  • 15. Linux  Off-­‐CPU  Analysis   On Linux, the state isn't helpful, but the code path is Off-CPU analysis by measuring blocked time with stack traces
  • 16. Off-­‐CPU  Time  Flame  Graph   From  hRp://www.brendangregg.com/blog/2016-­‐02-­‐01/linux-­‐wakeup-­‐offwake-­‐profiling.html   Stack depth Off-CPU time
  • 17. Off-­‐CPU  Time  (zoomed):  tar(1)   file read from disk directory read from disk Currently kernel stacks only; user stacks will add more context pipe write path read from disk fstat from disk
  • 18. Off-­‐CPU  Time:  more  states   lock contention sleep run queue latency Flame graph quantifies total time spent in states
  • 19. CPU  +  Off-­‐CPU  ==  See  Everything?
  • 20. Off-­‐CPU  Time  (zoomed):  gzip(1)   Off-CPU doesn't always make sense: what is gzip blocked on?
  • 21. Wakeup  Time  Flame  Graph
  • 22. Wakeup  Time  (zoomed):  gzip(1)   gzip(1) is blocked on tar(1)! tar cf - * | gzip > out.tar.gz Can't we associate off-CPU with wakeup stacks?
  • 24. Wakeup stacks are associated and merged in-kernel using BPF We couldn't do this before
  • 25.
  • 26. •  One wakeup stack is often not enough… •  Who woke the waker? Haven't  Solved  Everything  Yet…
  • 28. Merging multiple wakeup stacks in kernel using BPF With enough stacks, all paths lead to metal
  • 29. Solve  Everything   CPU + off-CPU analysis can solve most issues Flame graph (profiling) types: 1.  CPU 2.  CPI 3.  Off-CPU time 4.  Wakeup time 5.  Off-wake time 6.  Chain BPF makes this all more practical different off-CPU analysis views, with more context and increasing measurement cost
  • 30. 2.  BPF   "One  of  the  more  interesbng  features  in  this   cycle  is  the  ability  to  aRach  eBPF  programs   (user-­‐defined,  sandboxed  bytecode  executed   by  the  kernel)  to  kprobes.  This  allows  user-­‐ defined  instrumentabon  on  a  live  kernel  image   that  can  never  crash,  hang  or  interfere  with  the   kernel  negabvely."   –  Ingo  Molnár  (Linux  developer)   Source:  hRps://lkml.org/lkml/2015/4/14/232
  • 31. 2.  BPF   "crazy  stuff"   –  Alexei  Starovoitov  (eBPF  lead)   Source:  hRp://www.slideshare.net/AlexeiStarovoitov/bpf-­‐inkernel-­‐virtual-­‐machine
  • 32. BPF   •  eBPF == enhanced Berkeley Packet Filter; now just BPF •  Integrated into Linux (in stages: 3.15, 3.19, 4.1, 4.5, …) •  Uses –  virtual networking –  tracing –  "crazy stuff" •  Front-ends –  samples/bpf (raw) –  bcc: Python, C –  Linux perf_events BPF  mascot
  • 33. BPF  for  Tracing   •  Can do per-event output and in-kernel summary statistics (histograms, etc). BPF  bytecode   User  Program   1.  generate   2.  load   Kernel   kprobes   uprobes   tracepoints   BPF   maps   perf_output   per-­‐ event   data   stabsbcs   3.  async   read
  • 34. Old  way:  TCP  Retransmits   •  tcpdump of all send & receive, dump to FS, post-process •  Overheads adds up on 10GbE+ send   receive   tcpdump   Kernel   file  system   1.  read   2.  dump   Analyzer   1.  read   2.  state  machine   3.  print   disks   buffer
  • 35. New  way:  BPF  TCP  Retransmits   •  Just trace the retransmit functions •  Negligible overhead send   receive   tcpretrans  (bcc)   Kernel   tcp_retransmit_skb()   1.  Config  BPF  &  kprobe   2.  read,  print   send/recv   as-­‐is
  • 36. BPF:  TCP  Retransmits   # ./tcpretrans TIME PID IP LADDR:LPORT T> RADDR:RPORT STATE 01:55:05 0 4 10.153.223.157:22 R> 69.53.245.40:34619 ESTABLISHED 01:55:05 0 4 10.153.223.157:22 R> 69.53.245.40:34619 ESTABLISHED 01:55:17 0 4 10.153.223.157:22 R> 69.53.245.40:22957 ESTABLISHED […] includes  kernel  state
  • 37. Old:  Off-­‐CPU  Time  Stack  Profiling   •  perf_events tracing of sched events, post-process •  Despite buffering, usually high cost (>1M events/sec) perf  record   Kernel   scheduler   1.  async  read   2.  dump   perf  inject   1.  read   2.  rewrite   disks   perf  report/script   read,  process,  print   buffer   file  system   (or  pipe)
  • 38. New:  BPF  Off-­‐CPU  Time  Stacks   •  Measure off-CPU time, add to map with key = stack, value = total time. Async read map. offcpuDme  (bcc)   Kernel   1.  Config  BPF  &  kprobe   2.  async  read  stacks   3.  symbol  translate   4.  print   maps   BPF   scheduler   finish_task_switch()
  • 39. Stack  Trace  Hack   •  For my offcputime tool, I wrote a BPF stack walker:
  • 40. "Crazy  Stuff"   •  … using unrolled loops & goto:
  • 41. BPF  Stack  Traces   •  Proper BPF stack support just landed in net-next: •  Allows more than just chain graphs Date Sat, 20 Feb 2016 00:25:05 -0500 (EST) Subject Re: [PATCH net-next 0/3] bpf_get_stackid() and stack_trace map From David Miller <> From: Alexei Starovoitov <ast@fb.com> Date: Wed, 17 Feb 2016 19:58:56 -0800 > This patch set introduces new map type to store stack traces and > corresponding bpf_get_stackid() helper. ... Series applied, thanks Alexei.
  • 42. memleak   •  Real-time memory growth and leak analysis: •  Uses my stack hack, but will switch to BPF stacks soon •  By Sasha Goldshtein. Another bcc tool. # ./memleak.py -o 10 60 1 Attaching to kmalloc and kfree, Ctrl+C to quit. [01:27:34] Top 10 stacks with outstanding allocations: 72 bytes in 1 allocations from stack alloc_fdtable [kernel] (ffffffff8121960f) expand_files [kernel] (ffffffff8121986b) sys_dup2 [kernel] (ffffffff8121a68d) […] 2048 bytes in 1 allocations from stack alloc_fdtable [kernel] (ffffffff812195da) expand_files [kernel] (ffffffff8121986b) sys_dup2 [kernel] (ffffffff8121a68d) ] Trace  for  60s   Show  kernel   allocabons   older  than  10s   that  were  not   freed
  • 43. 3.  bcc   •  BPF Compiler Collection –  https://github.com/iovisor/bcc •  Python front-end, C instrumentation •  Currently beta – in development! •  Some example tracing tools…
  • 44. execsnoop   •  Trace new processes: # ./execsnoop PCOMM PID RET ARGS bash 15887 0 /usr/bin/man ls preconv 15894 0 /usr/bin/preconv -e UTF-8 man 15896 0 /usr/bin/tbl man 15897 0 /usr/bin/nroff -mandoc -rLL=169n -rLT=169n -Tutf8 man 15898 0 /usr/bin/pager -s nroff 15900 0 /usr/bin/locale charmap nroff 15901 0 /usr/bin/groff -mtty-char -Tutf8 -mandoc -rLL=169n … groff 15902 0 /usr/bin/troff -mtty-char -mandoc -rLL=169n -rLT=169 … groff 15903 0 /usr/bin/grotty
  • 45. biolatency   •  Block device (disk) I/O latency distribution: # ./biolatency -mT 1 5 Tracing block device I/O... Hit Ctrl-C to end. 06:20:16 msecs : count distribution 0 -> 1 : 36 |**************************************| 2 -> 3 : 1 |* | 4 -> 7 : 3 |*** | 8 -> 15 : 17 |***************** | 16 -> 31 : 33 |********************************** | 32 -> 63 : 7 |******* | 64 -> 127 : 6 |****** | […]
  • 46. ext4slower   •  ext4 file system I/O, slower than a threshold: # ./ext4slower 1 Tracing ext4 operations slower than 1 ms TIME COMM PID T BYTES OFF_KB LAT(ms) FILENAME 06:49:17 bash 3616 R 128 0 7.75 cksum 06:49:17 cksum 3616 R 39552 0 1.34 [ 06:49:17 cksum 3616 R 96 0 5.36 2to3-2.7 06:49:17 cksum 3616 R 96 0 14.94 2to3-3.4 06:49:17 cksum 3616 R 10320 0 6.82 411toppm 06:49:17 cksum 3616 R 65536 0 4.01 a2p 06:49:17 cksum 3616 R 55400 0 8.77 ab 06:49:17 cksum 3616 R 36792 0 16.34 aclocal-1.14 06:49:17 cksum 3616 R 15008 0 19.31 acpi_listen 06:49:17 cksum 3616 R 6123 0 17.23 add-apt- repository 06:49:17 cksum 3616 R 6280 0 18.40 addpart 06:49:17 cksum 3616 R 27696 0 2.16 addr2line 06:49:17 cksum 3616 R 58080 0 10.11 ag 06:49:17 cksum 3616 R 906 0 6.30 ec2-meta-data […]
  • 47. bashreadline   •  Trace bash interactive commands system-wide: # ./bashreadline TIME PID COMMAND 05:28:25 21176 ls -l 05:28:28 21176 date 05:28:35 21176 echo hello world 05:28:43 21176 foo this command failed 05:28:45 21176 df -h 05:29:04 3059 echo another shell 05:29:13 21176 echo first shell again
  • 48. gethostlatency   •  Show latency for getaddrinfo/gethostbyname[2] calls: # ./gethostlatency TIME PID COMM LATms HOST 06:10:24 28011 wget 90.00 www.iovisor.org 06:10:28 28127 wget 0.00 www.iovisor.org 06:10:41 28404 wget 9.00 www.netflix.com 06:10:48 28544 curl 35.00 www.netflix.com.au 06:11:10 29054 curl 31.00 www.plumgrid.com 06:11:16 29195 curl 3.00 www.facebook.com 06:11:25 29404 curl 72.00 foo 06:11:28 29475 curl 1.00 foo
  • 49. trace   •  Trace custom events. Ad hoc analysis multitool: # trace 'sys_read (arg3 > 20000) "read %d bytes", arg3' TIME PID COMM FUNC - 05:18:23 4490 dd sys_read read 1048576 bytes 05:18:23 4490 dd sys_read read 1048576 bytes 05:18:23 4490 dd sys_read read 1048576 bytes 05:18:23 4490 dd sys_read read 1048576 bytes ^C
  • 51. 4.  Future  Work   •  All event sources •  Language improvements •  More tools: eg, TCP •  GUI support
  • 52. Linux  Event  Sources   done   XXX:  todo   XXX:  todo   XXX:  todo   done
  • 54. More  Tools   •  eg, netstat(8)… $ netstat -s Ip: 7962754 total packets received 8 with invalid addresses 0 forwarded 0 incoming packets discarded 7962746 incoming packets delivered 8019427 requests sent out Icmp: 382 ICMP messages received 0 input ICMP message failed. ICMP input histogram: destination unreachable: 125 timeout in transit: 257 3410 ICMP messages sent 0 ICMP messages failed ICMP output histogram: destination unreachable: 3410 IcmpMsg: InType3: 125 InType11: 257 OutType3: 3410 Tcp: 17337 active connections openings 395515 passive connection openings 8953 failed connection attempts 240214 connection resets received 3 connections established 7198375 segments received 7504939 segments send out 62696 segments retransmited 10 bad segments received. 1072 resets sent InCsumErrors: 5 Udp: 759925 packets received 3412 packets to unknown port received. 0 packet receive errors 784370 packets sent UdpLite: TcpExt: 858 invalid SYN cookies received 8951 resets received for embryonic SYN_RECV sockets 14 packets pruned from receive queue because of socket buffer overrun 6177 TCP sockets finished time wait in fast timer 293 packets rejects in established connections because of timestamp 733028 delayed acks sent 89 delayed acks further delayed because of locked socket Quick ack mode was activated 13214 times 336520 packets directly queued to recvmsg prequeue. 43964 packets directly received from backlog 11406012 packets directly received from prequeue 1039165 packets header predicted 7066 packets header predicted and directly queued to user 1428960 acknowledgments not containing data received 1004791 predicted acknowledgments 1 times recovered from packet loss due to fast retransmit 5044 times recovered from packet loss due to SACK data 2 bad SACKs received Detected reordering 4 times using SACK Detected reordering 11 times using time stamp 13 congestion windows fully recovered 11 congestion windows partially recovered using Hoe heuristic TCPDSACKUndo: 39 2384 congestion windows recovered after partial ack 228 timeouts after SACK recovery 100 timeouts in loss state 5018 fast retransmits 39 forward retransmits 783 retransmits in slow start 32455 other TCP timeouts TCPLossProbes: 30233 TCPLossProbeRecovery: 19070 992 sack retransmits failed 18 times receiver scheduled too late for direct processing 705 packets collapsed in receive queue due to low socket buffer 13658 DSACKs sent for old packets 8 DSACKs sent for out of order packets 13595 DSACKs received 33 DSACKs for out of order packets received 32 connections reset due to unexpected data 108 connections reset due to early user close 1608 connections aborted due to timeout TCPSACKDiscard: 4 TCPDSACKIgnoredOld: 1 TCPDSACKIgnoredNoUndo: 8649 TCPSpuriousRTOs: 445 TCPSackShiftFallback: 8588 TCPRcvCoalesce: 95854 TCPOFOQueue: 24741 TCPOFOMerge: 8 TCPChallengeACK: 1441 TCPSYNChallenge: 5 TCPSpuriousRtxHostQueues: 1 TCPAutoCorking: 4823 IpExt: InOctets: 1561561375 OutOctets: 1509416943 InNoECTPkts: 8201572 InECT1Pkts: 2 InECT0Pkts: 3844 InCEPkts: 306
  • 55.
  • 56. BeRer  TCP  Tools   •  TCP retransmit by type and time •  Congestion algorithm metrics •  etc.
  • 57. GUI  Support   •  eg, Netflix Vector: open source instance analyzer:
  • 58. Summary   •  BPF in Linux 4.x makes many new things possible –  Stack-based thread state analysis (solve all issues!) –  Real-time memory growth/leak detection –  Better TCP metrics –  etc... •  Get involved: see iovisor/bcc •  So far just a preview of things to come
  • 59. Links   •  iovisor bcc: •  https://github.com/iovisor/bcc •  http://www.brendangregg.com/blog/2015-09-22/bcc-linux-4.3-tracing.html •  http://blogs.microsoft.co.il/sasha/2016/02/14/two-new-ebpf-tools-memleak-and-argdist/ •  BPF Off-CPU, Wakeup, Off-Wake & Chain Graphs: •  http://www.brendangregg.com/blog/2016-01-20/ebpf-offcpu-flame-graph.html •  http://www.brendangregg.com/blog/2016-02-01/linux-wakeup-offwake-profiling.html •  http://www.brendangregg.com/blog/2016-02-05/ebpf-chaingraph-prototype.html •  Linux Performance: •  http://www.brendangregg.com/linuxperf.html •  Linux perf_events: •  https://perf.wiki.kernel.org/index.php/Main_Page •  http://www.brendangregg.com/perf.html •  Flame Graphs: •  http://techblog.netflix.com/2015/07/java-in-flames.html •  http://www.brendangregg.com/flamegraphs.html •  Netflix Tech Blog on Vector: •  http://techblog.netflix.com/2015/04/introducing-vector-netflixs-on-host.html •  Wordcloud: https://www.jasondavies.com/wordcloud/
  • 60. Feb   2016   •  Questions? •  http://slideshare.net/brendangregg •  http://www.brendangregg.com •  bgregg@netflix.com •  @brendangregg Thanks to Alexei Starovoitov (Facebook), Brenden Blanco (PLUMgrid), Daniel Borkmann (Cisco), Wang Nan (Huawei), Sasha Goldshtein (Sela), and other BPF and bcc contributors!
