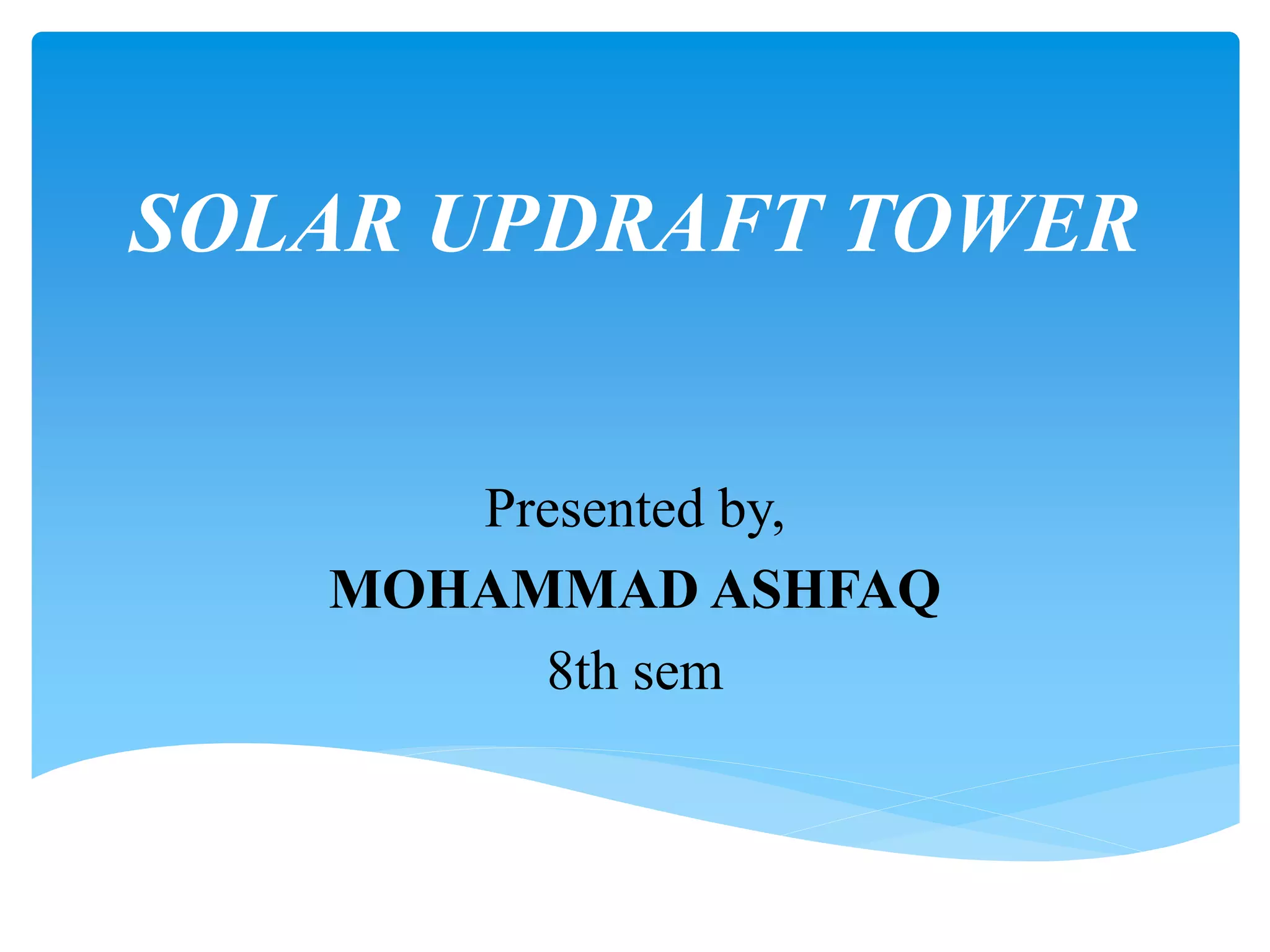

1. SOLAR UPDRAFT TOWER
Presented by,
MOHAMMAD ASHFAQ
8th sem

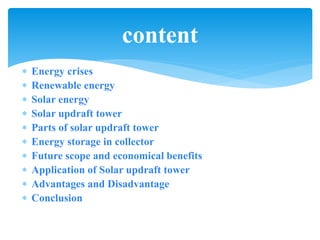

2.  Energy crises
 Renewable energy
 Solar energy
 Solar updraft tower
 Parts of solar updraft tower
 Energy storage in collector
 Future scope and economical benefits
 Application of Solar updraft tower
 Advantages and Disadvantage
 Conclusion
content

3. Currently earths most of the Non renewable energy is depleted by
human needs.
Some of the Non renewable energy resources are
Natural gas
Petroleum
Coal
Nuclear energy
Energy Crises

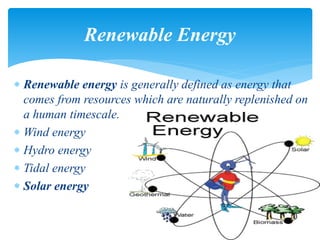

4.  Renewable energy is generally defined as energy that
comes from resources which are naturally replenished on
a human timescale.
 Wind energy
 Hydro energy
 Tidal energy
 Solar energy
Renewable Energy

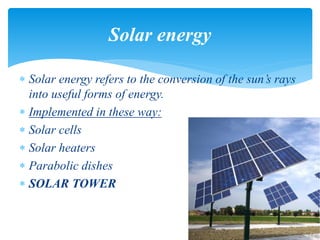

5.  Solar energy refers to the conversion of the sun’s rays
into useful forms of energy.
 Implemented in these way:
 Solar cells
 Solar heaters
 Parabolic dishes
 SOLAR TOWER
Solar energy

6.  The solar updraft tower is
renewable type power
plant.
 Solar updraft towers are
like an inverted funnel,
with a wide skirt to collect
air to then turn a turbine
in the tower
Solar updraft tower

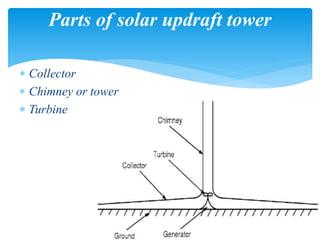

7.  Collector
 Chimney or tower
 Turbine
Parts of solar updraft tower

8.  Collector is the part, which is used to produce hot air by
green-house effect.
 It is usually 5-6 meters high and covers a very large area
about thousands of m²
 The larger the area, the more energy generated from the
chimney.
 Covering materials may be different, such as; glass,
plastic film or glazed collector.
 The most efficient one is glazed collector. It can convert up
to 70% of irradiated solar energy into heat.
Collector

9. Collector figure
Inside view of collector area

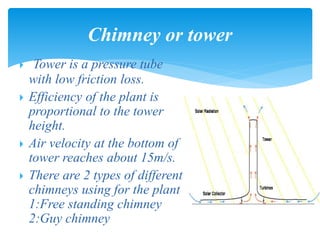

10.  Tower is a pressure tube
with low friction loss.
 Efficiency of the plant is
proportional to the tower
height.
 Air velocity at the bottom of
tower reaches about 15m/s.
 There are 2 types of different
chimneys using for the plant
1:Free standing chimney
2:Guy chimney
Chimney or tower

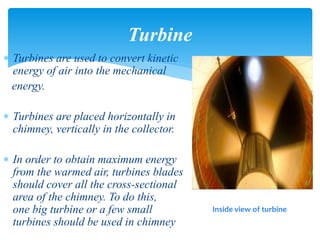

11.  Turbines are used to convert kinetic
energy of air into the mechanical
energy.
 Turbines are placed horizontally in
chimney, vertically in the collector.
 In order to obtain maximum energy
from the warmed air, turbines blades
should cover all the cross-sectional
area of the chimney. To do this,
one big turbine or a few small
turbines should be used in chimney
Turbine
Inside view of turbine

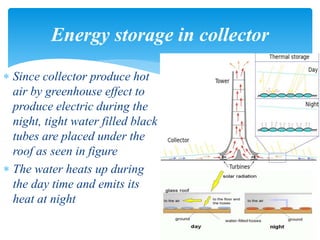

12.  Since collector produce hot
air by greenhouse effect to
produce electric during the
night, tight water filled black
tubes are placed under the
roof as seen in figure
 The water heats up during
the day time and emits its
heat at night
Energy storage in collector

13.  One 200MW power station provide
enough electricity for around 200,000
typical household
 Will reduce production over 900,000 tones
of green house gases annually
 Net energy payback is estimated to be 2-3
years.
Future scope and economical
benefits

14.  Renewable source of energy is used.
 Continuous energy is available.
 Unlike other power plants no cooling water is
required.
 Raw material needed for construction are easily
available.
Application of Solar Updraft Tower

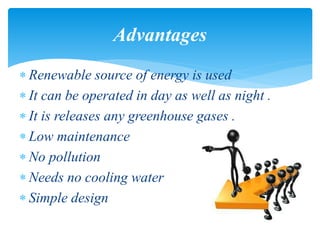

15.  Renewable source of energy is used
 It can be operated in day as well as night .
 It is releases any greenhouse gases .
 Low maintenance
 No pollution
 Needs no cooling water
 Simple design
Advantages

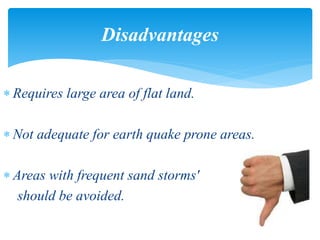

16.  Requires large area of flat land.
 Not adequate for earth quake prone areas.
 Areas with frequent sand storms'
should be avoided.
Disadvantages

17.  Current energy production from coal and oil is damaging
our environment and non renewable energy sources .
SOLAR ENERGY IS THE ANSWER
Technology for the use of solar energy must be:
-Be simple and reliable
-Be accessible to the technologically less
developed countries that are sunny and often have limited
raw materials resources.
Conclusion

18. SOLAR UPDRAFT TOWER
MEETS THESE
CONDITIONs!!!!

19. KEEP CALM
N
GO SOLAR
