solar Stirling engine ppt
The document discusses solar Stirling engines, which can convert solar energy to mechanical energy. A Stirling engine uses heat from an external source to power its operation. It was invented in 1816 and can achieve near-maximum theoretical efficiency. For solar applications, the heat source is solar energy collected via a dish collector. It then works by using pressure changes from heated gas to power pistons or generate electricity. Some benefits are its efficiency, quiet operation, and ability to provide power independent of transmission lines. It has potential applications for electricity generation, industries, homes, agriculture, and rural electrification. However, it also faces challenges in manufacturing and competing with established solar technologies.
More Related Content
Similar to solar Stirling engine ppt
solar Stirling engine ppt
- 1. SOLAR STIRLING ENGINE Guidedby: SUNIL P (ASSISTANT PROFESSOR IN MECHANICAL ENGINEERING) Presented By : BASIL BENNY BATCH :A ROLL NO :21 REG No:14024472

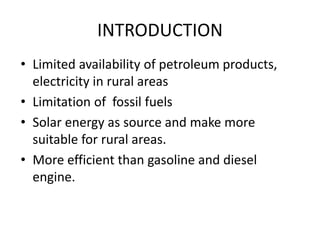

- 2. INTRODUCTION • Limited availabilityof petroleum products, electricity in rural areas • Limitation of fossil fuels • Solar energy as source and make more suitable for rural areas. • More efficient than gasoline and diesel engine.

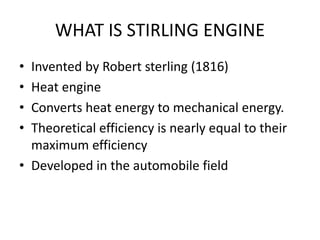

- 3. WHAT IS STIRLINGENGINE • Invented by Robert sterling (1816) • Heat engine • Converts heat energy to mechanical energy. • Theoretical efficiency is nearly equal to their maximum efficiency • Developed in the automobile field

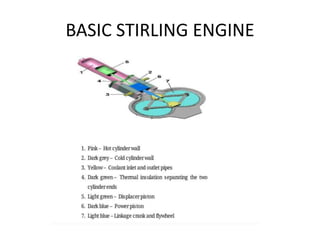

- 4.

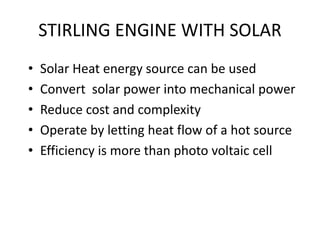

- 5. STIRLING ENGINE WITHSOLAR • Solar Heat energy source can be used • Convert solar power into mechanical power • Reduce cost and complexity • Operate by letting heat flow of a hot source • Efficiency is more than photo voltaic cell

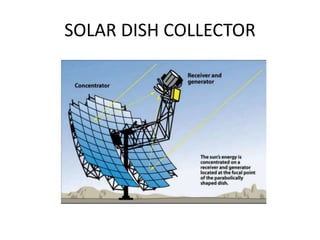

- 6.

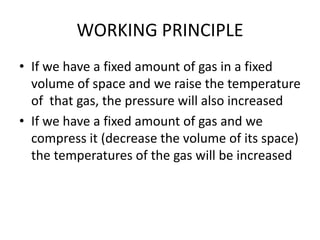

- 7. WORKING PRINCIPLE • Ifwe have a fixed amount of gas in a fixed volume of space and we raise the temperature of that gas, the pressure will also increased • If we have a fixed amount of gas and we compress it (decrease the volume of its space) the temperatures of the gas will be increased

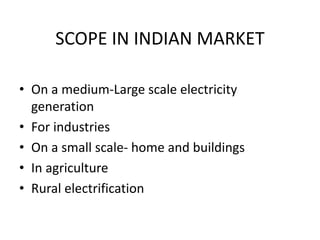

- 8. SCOPE IN INDIANMARKET • On a medium-Large scale electricity generation • For industries • On a small scale- home and buildings • In agriculture • Rural electrification

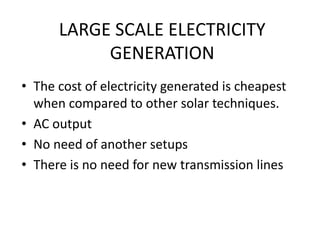

- 9. LARGE SCALE ELECTRICITY GENERATION •The cost of electricity generated is cheapest when compared to other solar techniques. • AC output • No need of another setups • There is no need for new transmission lines
- 10. FOR INDUSTRIES • Reducedpower cuts • Each unit can generate from 10KW or even lower up to 1MW • Each individual unit is capable of producing electricity • An industrial area can be given its own power generation instead of each company as no larger scale, the system are cost effective

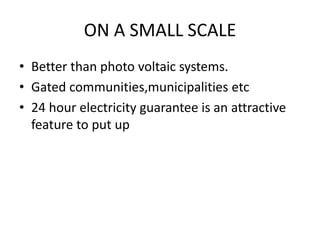

- 11. ON A SMALLSCALE • Better than photo voltaic systems. • Gated communities,municipalities etc • 24 hour electricity guarantee is an attractive feature to put up
- 12. AGRICULTURE • Solar Stirlingwater pumps • Solar Stirling pump is very compact hence can be shared by various field

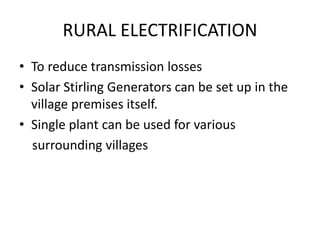

- 13. RURAL ELECTRIFICATION • Toreduce transmission losses • Solar Stirling Generators can be set up in the village premises itself. • Single plant can be used for various surrounding villages

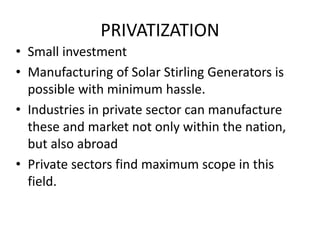

- 14. PRIVATIZATION • Small investment •Manufacturing of Solar Stirling Generators is possible with minimum hassle. • Industries in private sector can manufacture these and market not only within the nation, but also abroad • Private sectors find maximum scope in this field.
- 15.
- 16.

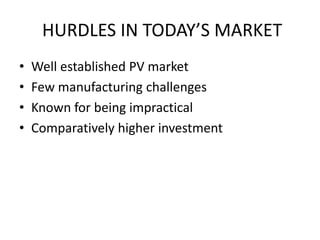

- 17. HURDLES IN TODAY’SMARKET • Well established PV market • Few manufacturing challenges • Known for being impractical • Comparatively higher investment

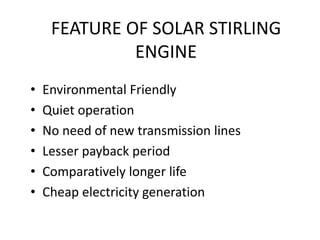

- 18. FEATURE OF SOLARSTIRLING ENGINE • Environmental Friendly • Quiet operation • No need of new transmission lines • Lesser payback period • Comparatively longer life • Cheap electricity generation

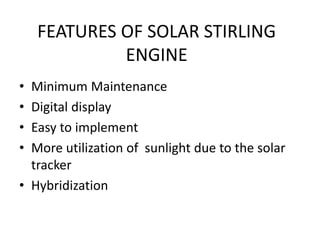

- 19. FEATURES OF SOLARSTIRLING ENGINE • Minimum Maintenance • Digital display • Easy to implement • More utilization of sunlight due to the solar tracker • Hybridization

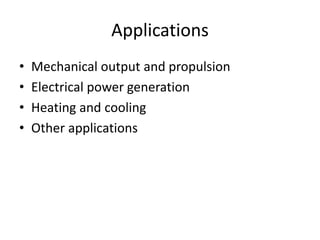

- 20. Applications • Mechanical outputand propulsion • Electrical power generation • Heating and cooling • Other applications

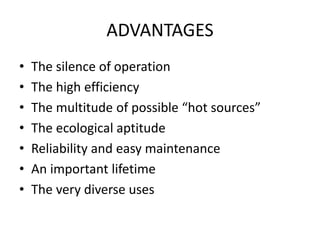

- 21. ADVANTAGES • The silenceof operation • The high efficiency • The multitude of possible “hot sources” • The ecological aptitude • Reliability and easy maintenance • An important lifetime • The very diverse uses

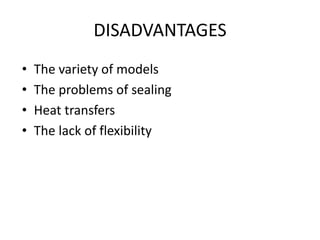

- 22. DISADVANTAGES • The varietyof models • The problems of sealing • Heat transfers • The lack of flexibility

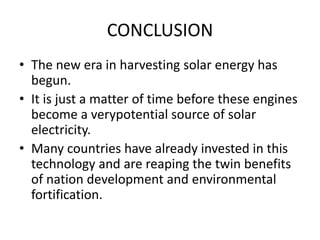

- 23. CONCLUSION • The newera in harvesting solar energy has begun. • It is just a matter of time before these engines become a verypotential source of solar electricity. • Many countries have already invested in this technology and are reaping the twin benefits of nation development and environmental fortification.
- 24. REFERENCES 1. Keerthi SirishaNomula,Scope and manufacturability of solar stirling engine generator in india,October 2015 2. Rakesh K.Bumataria and Nikul K Patel,Review of Stirling engines for pumping water using solar energy as a source of power,januvary 2013 3. Anish Saini,Sivam Kohli and Ajesh J Pillai,Solar powered stirling engine driven water pump,November 2013
- 25.
