This document discusses how software defined networking (SDN) and network functions virtualization (NFV) will impact Colt's operations support systems (OSS) and business support systems (BSS). SDN/NFV promises more flexible and agile services for customers but current OSS/BSS are not designed for this level of flexibility. Colt's approach is to have their OSS focus on products, services, and customers while using domain-based orchestration to automate network provisioning and assurance across physical, virtual, and software defined infrastructure domains enabled by SDN/NFV. This choreography of domains will allow Colt to deliver on the promises of SDN/NFV in a manageable way for

1. Software Defined Future
The impact on Colt’s OSS/BSS
Malcolm Orr
Senior Platform Architect
1

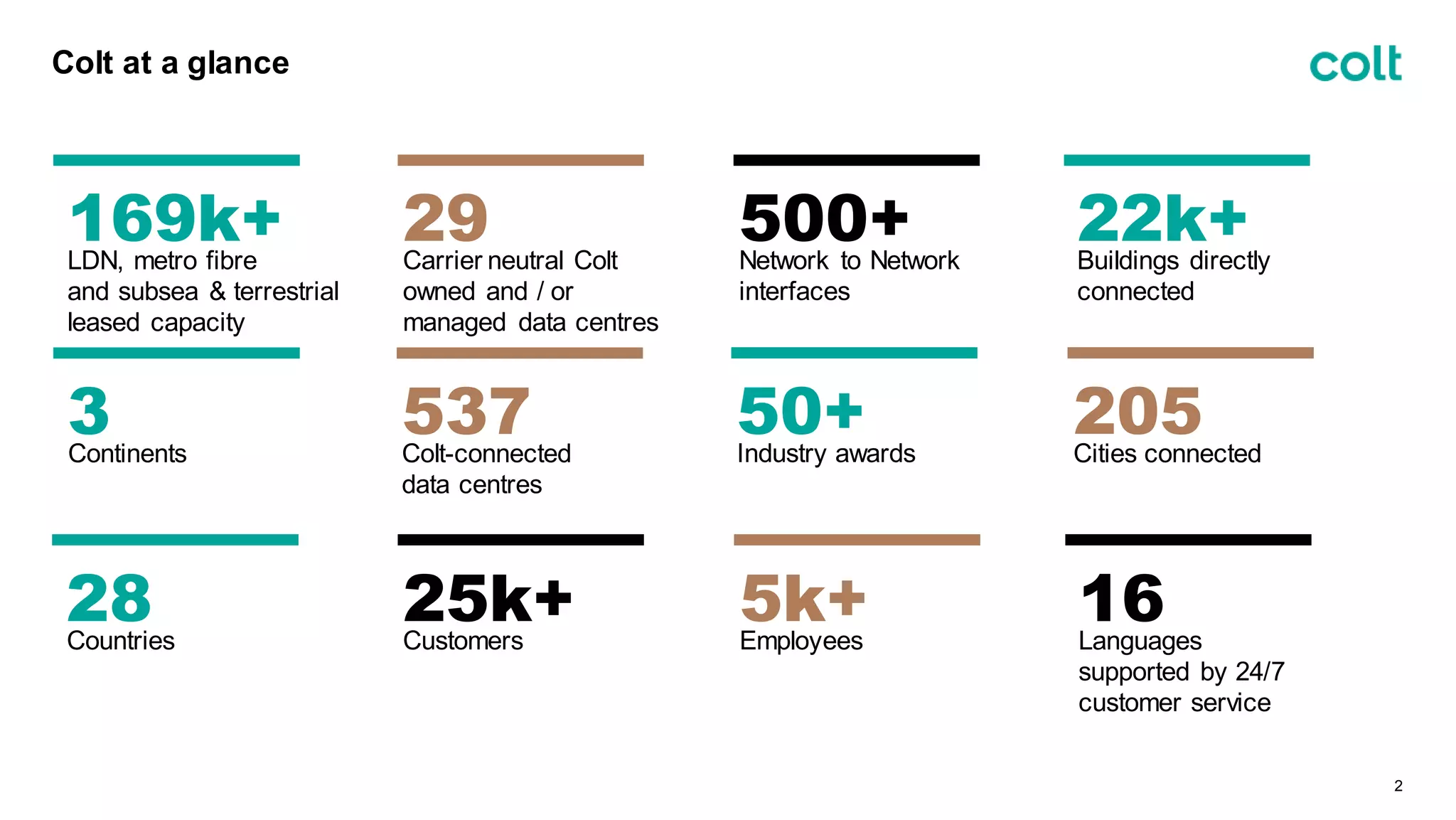

2. Colt at a glance
2
22k+Buildings directly
connected
205Cities connected
16Languages
supported by 24/7
customer service
500+Network to Network
interfaces
5k+Employees
50+Industry awards
29Carrier neutral Colt
owned and / or
managed data centres
25k+Customers
537Colt-connected
data centres
169k+LDN, metro fibre
and subsea & terrestrial
leased capacity
28Countries
3Continents

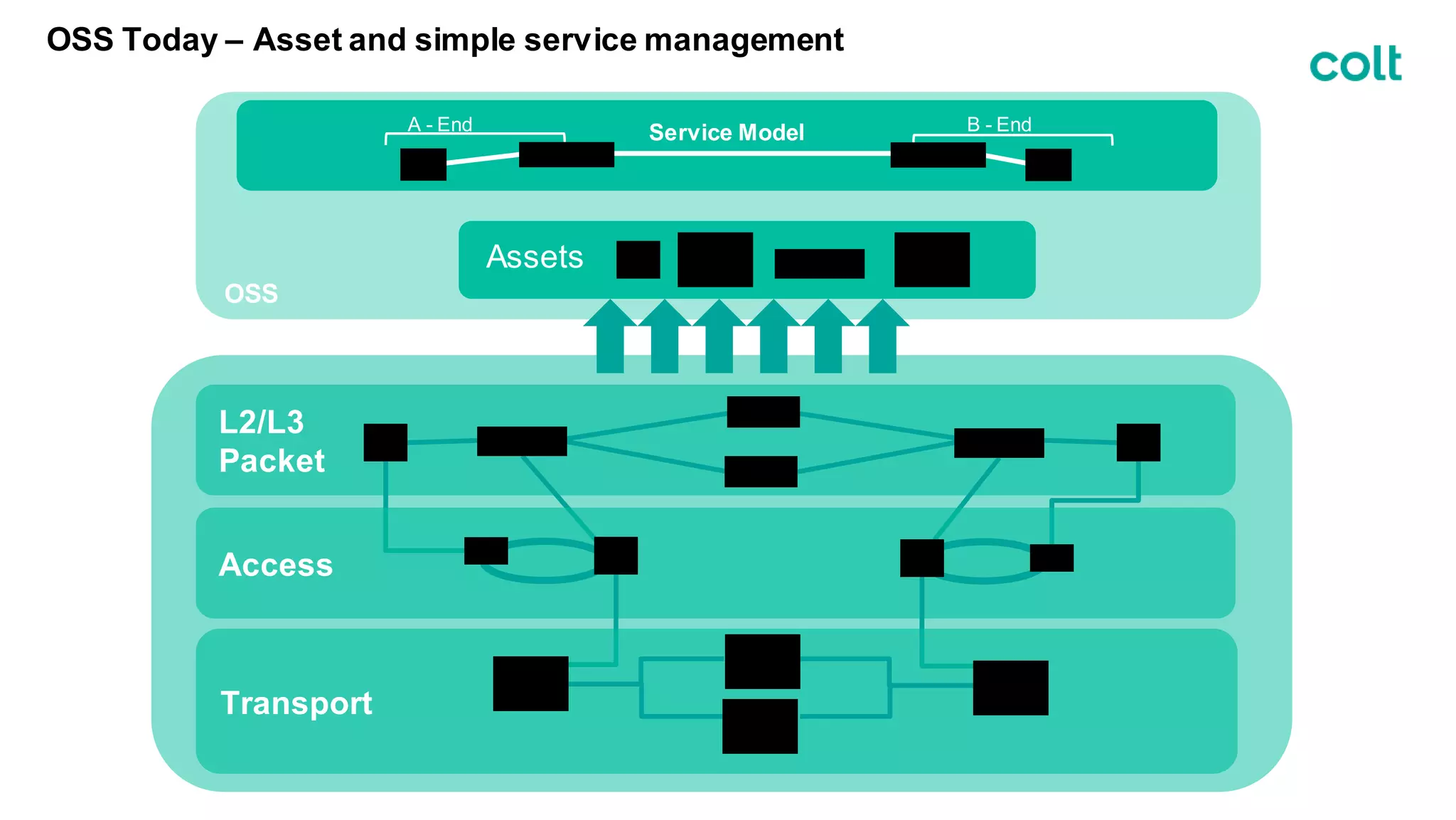

3. OSS
OSS Today – Asset and simple service management
L2/L3
Packet
Access
Transport
Service ModelA - End B - End
Assets

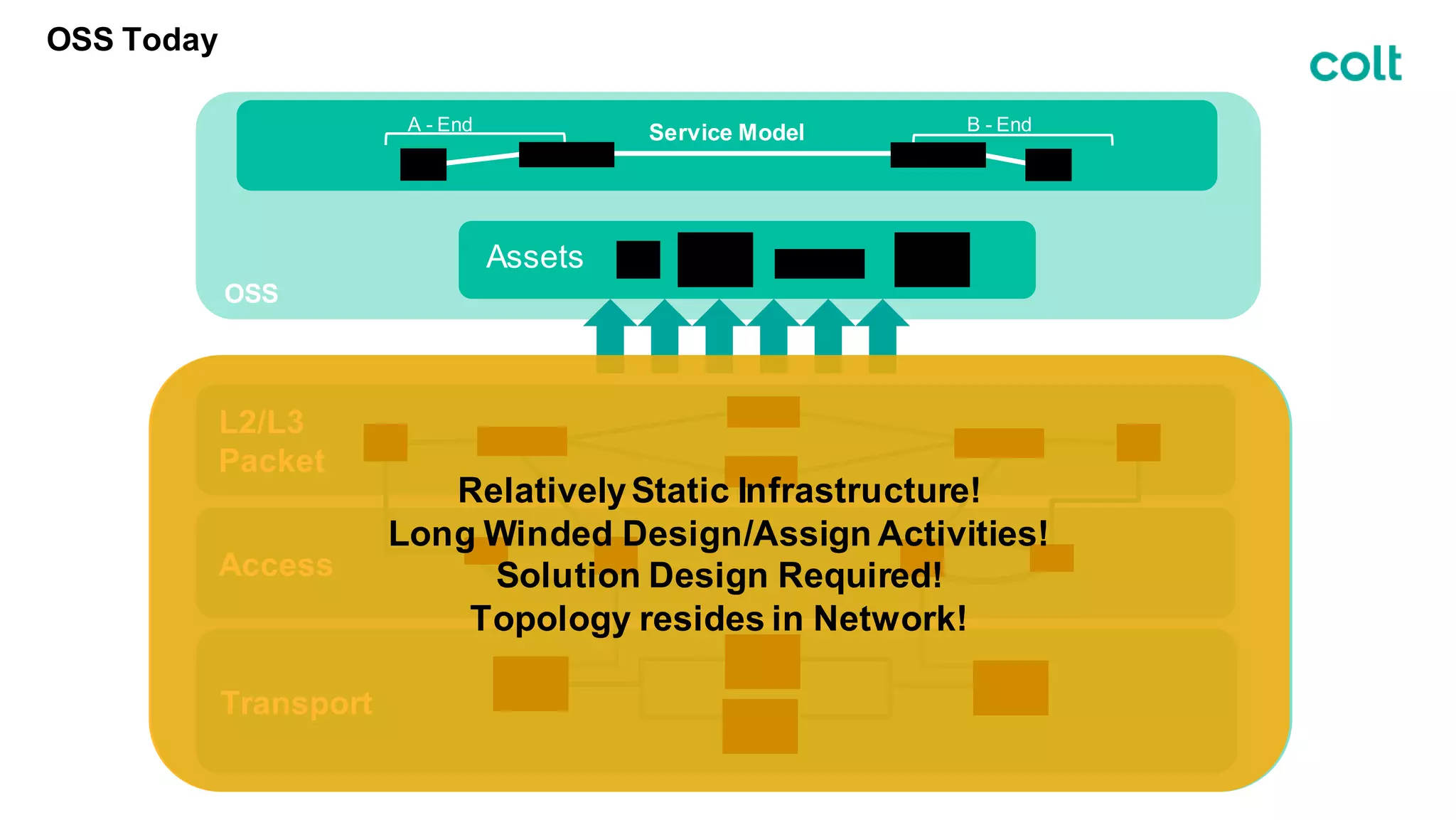

4. OSS
OSS Today
L2/L3
Packet
Access
Transport
Service ModelA - End B - End
Assets
RelativelyStatic Infrastructure!
Long Winded Design/Assign Activities!
Solution Design Required!
Topology resides in Network!

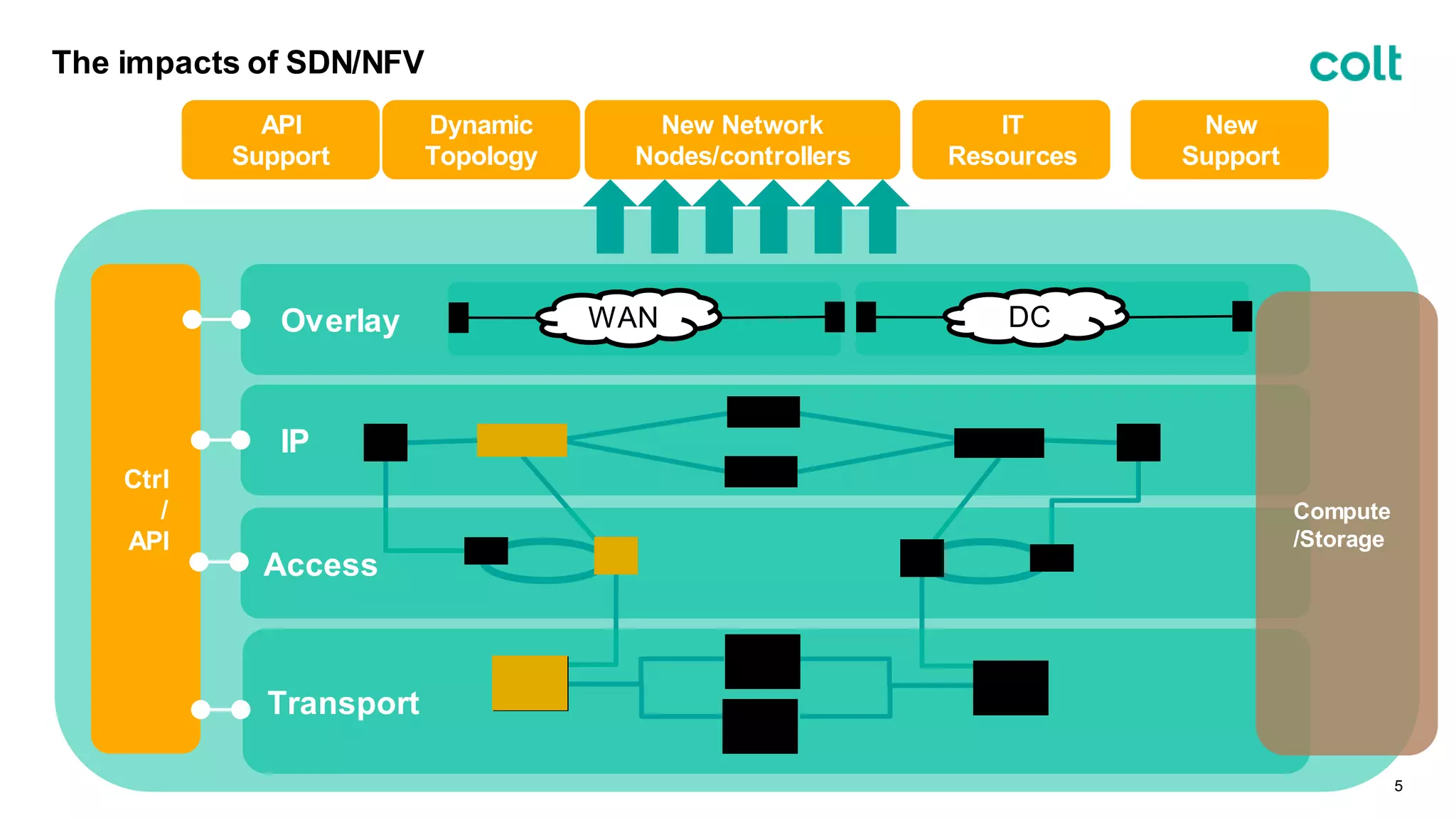

5. The impacts of SDN/NFV
5
IP
Access
Transport
Ctrl
/
API
Overlay
WAN
WAN
WAN
DC
Compute
/Storage
API
Support
Dynamic
Topology
New Network
Nodes/controllers
IT
Resources
New
Support

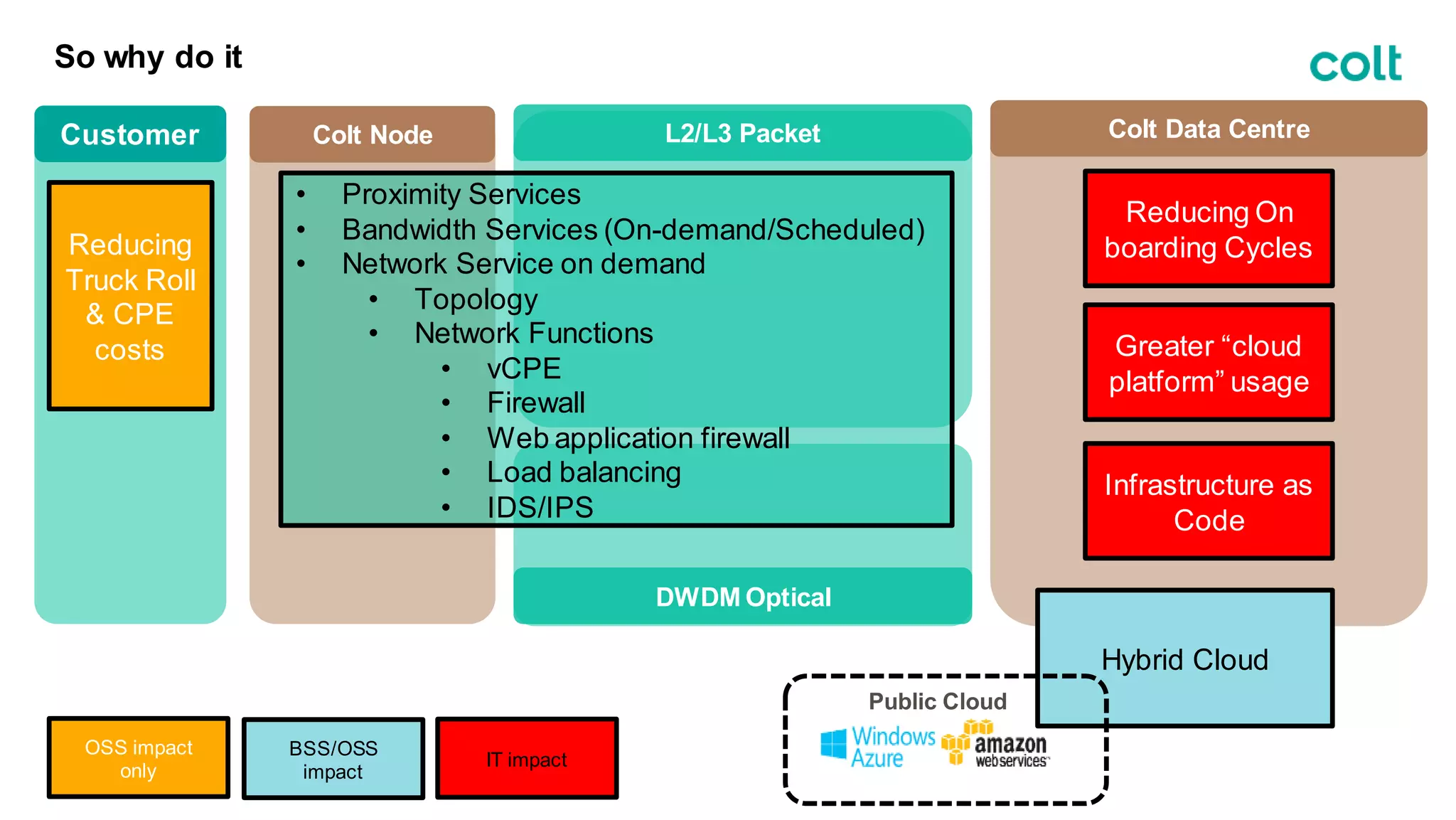

6. So why do it
Customer L2/L3 Packet
DWDM Optical
Colt Data CentreColt Node
Reducing
Truck Roll
& CPE
costs
Reducing On
boarding Cycles
Greater “cloud
platform” usage
Infrastructure as
Code
• Proximity Services
• Bandwidth Services (On-demand/Scheduled)
• Network Service on demand
• Topology
• Network Functions
• vCPE
• Firewall
• Web application firewall
• Load balancing
• IDS/IPS
Hybrid Cloud
OSS impact
only
BSS/OSS
impact
Public Cloud
IT impact

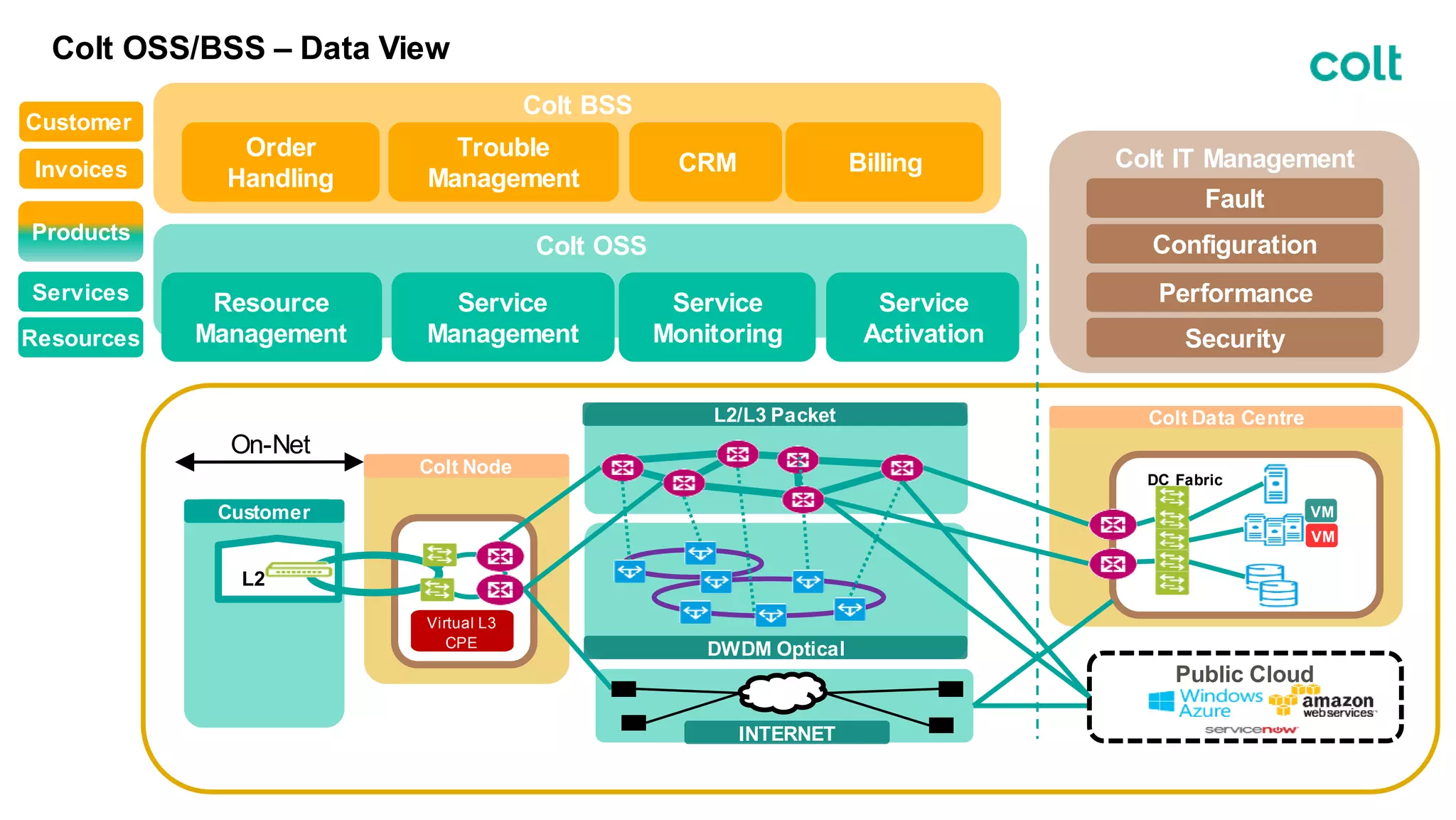

7. Colt OSS/BSS – Data View
7
Colt OSS
Customer
L2/L3 Packet
DWDM Optical
DC Fabric
INTERNET
L2
VM
VM
Virtual L3
CPE
Colt Data Centre
Colt Node
Colt OSS
Colt BSS
Order
Handling
CRM
Trouble
Management
Billing
Service
Management
Service
Activation
Resource
Management
Service
Monitoring
Customer
Products
Services
Resources
Invoices Colt IT Management
Fault
Configuration
Performance
Security
Public Cloud
On-Net

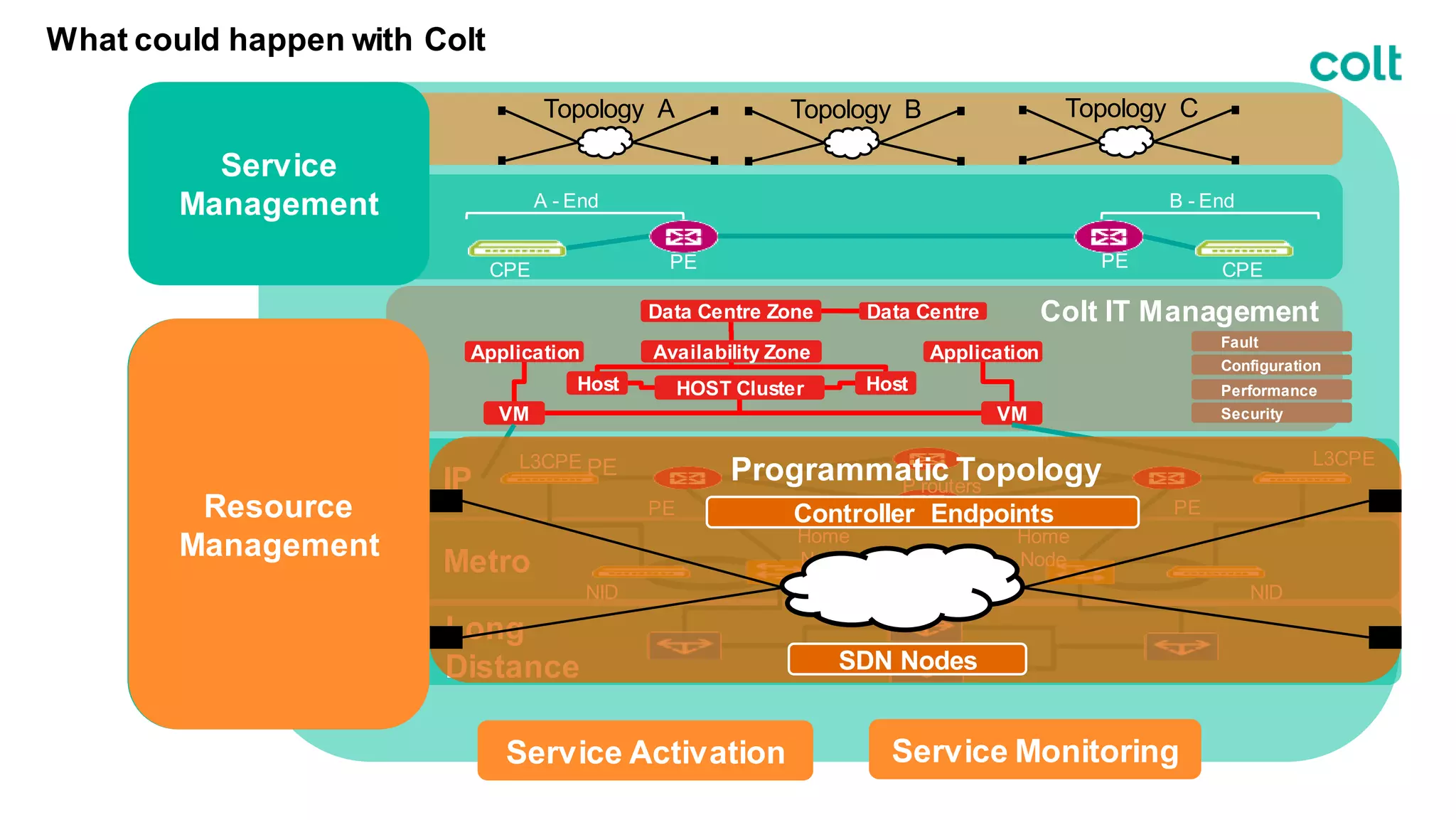

8. What could happen with Colt
Service Activation Service Monitoring
A - End B - End
CPE CPEPE PE
IP
Metro
Long
Distance
L3CPE
PE PE
P routers
L3CPE
NID NID
Home
Node
Home
Node
PE
Colt IT Management
VM VM
Application Application
HOST ClusterHost Host
Fault
Configuration
Performance
Security
Availability Zone
Data Centre Zone Data Centre
Programmatic Topology
Controller Endpoints
SDN Nodes
Topology A Topology B Topology C
Service
Management
Resource
Management
Resource
Management

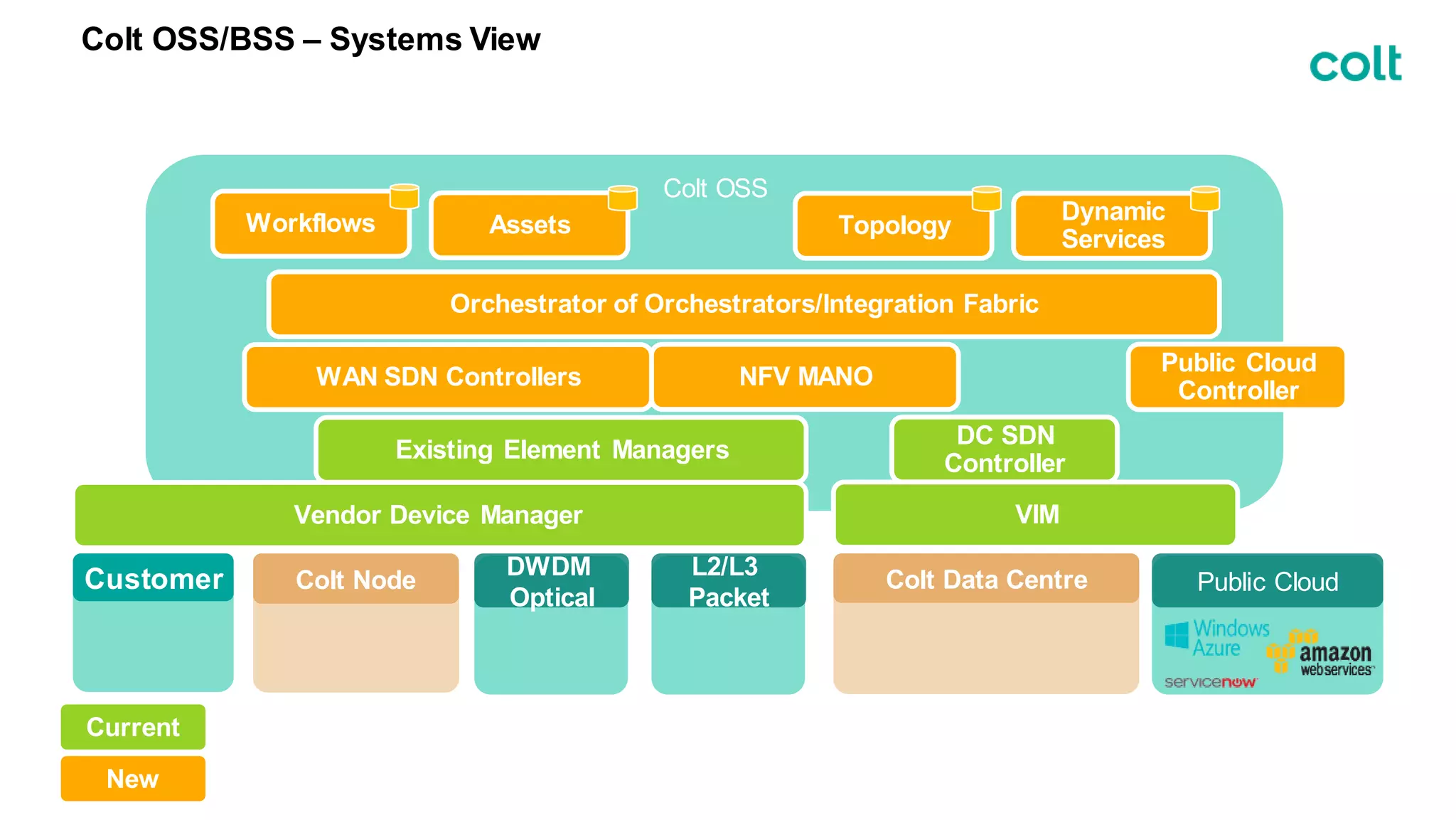

9. Colt OSS
DC SDN
Controller
Colt OSS/BSS – Systems View
Customer DWDM
Optical
Existing Element Managers
Vendor Device Manager
Public Cloud
Controller
NFV MANOWAN SDN Controllers
VIM
Colt Data CentreColt Node
New
Current
L2/L3
Packet
Public Cloud
Orchestrator of Orchestrators/Integration Fabric
Workflows Assets Topology
Dynamic
Services

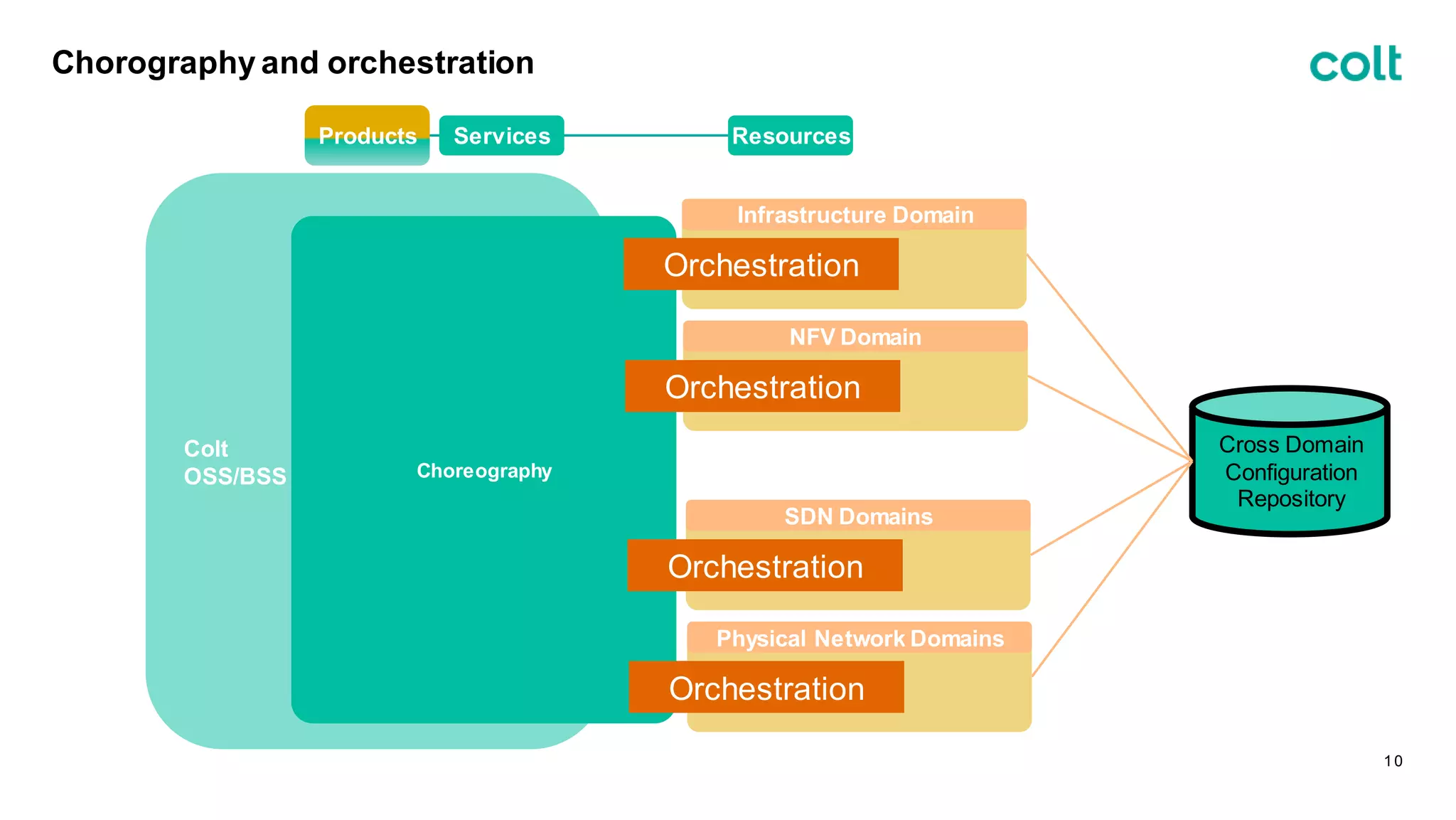

10. Chorography and orchestration
10
Products ResourcesServices
Colt
OSS/BSS Choreography
Infrastructure Domain
Orchestration
NFV Domain
Orchestration
SDN Domains
Orchestration
Physical Network Domains
Orchestration
Cross Domain
Configuration
Repository

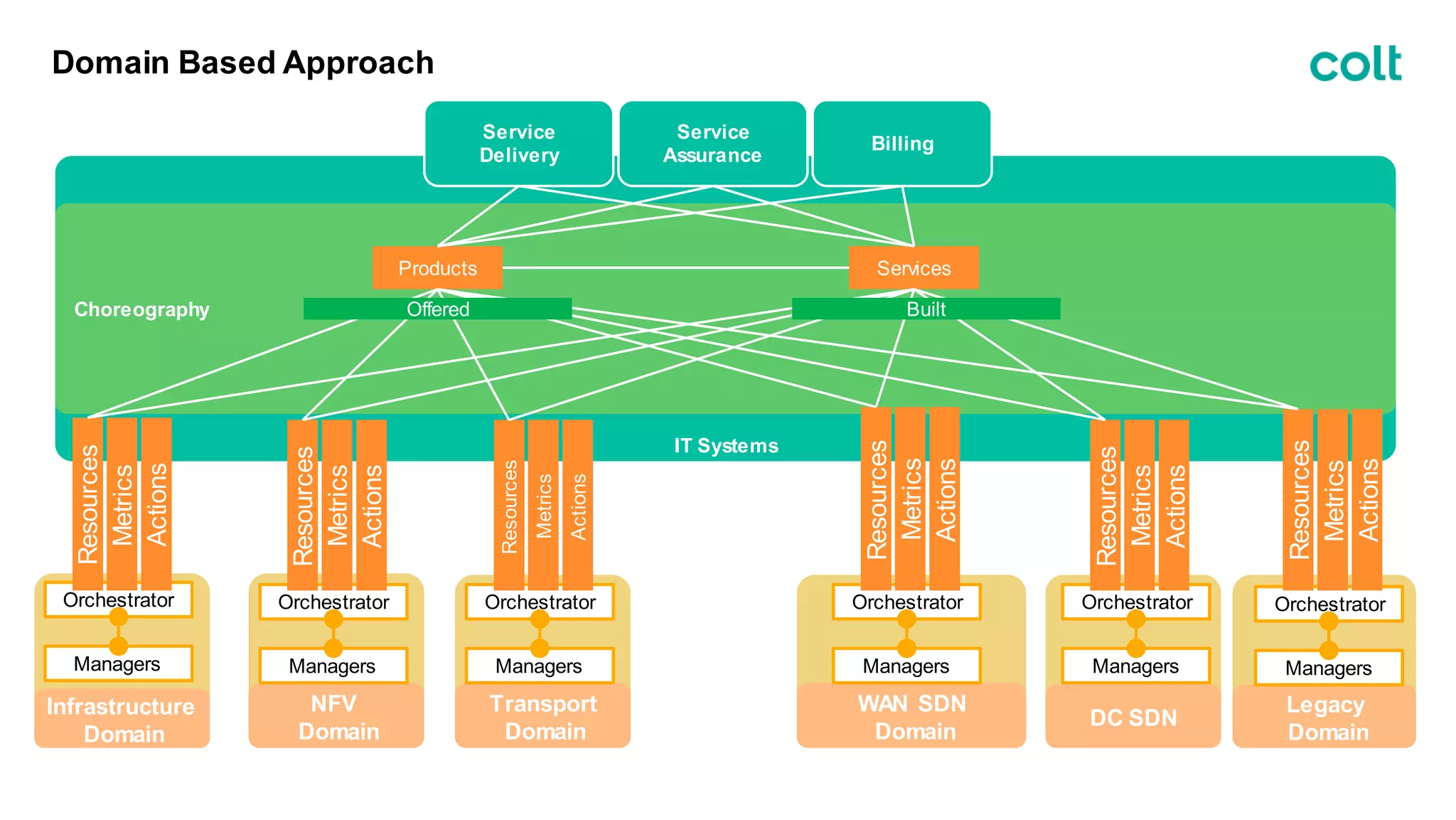

11. IT Systems
Choreography
Domain Based Approach
Infrastructure
Domain
NFV
Domain
Transport
Domain
WAN SDN
Domain
DC SDN
Legacy
Domain
Orchestrator
Managers
Resources
Metrics
Actions
Orchestrator
Managers
Resources
Metrics
Actions
Orchestrator
Managers
Resources
Metrics
Actions
Orchestrator
Managers
Resources
Metrics
Actions
Orchestrator
Managers
Resources
Metrics
Actions
Orchestrator
Managers
Resources
Metrics
Actions
Products Services
Service
Assurance
Service
Delivery
Billing
Offered Built

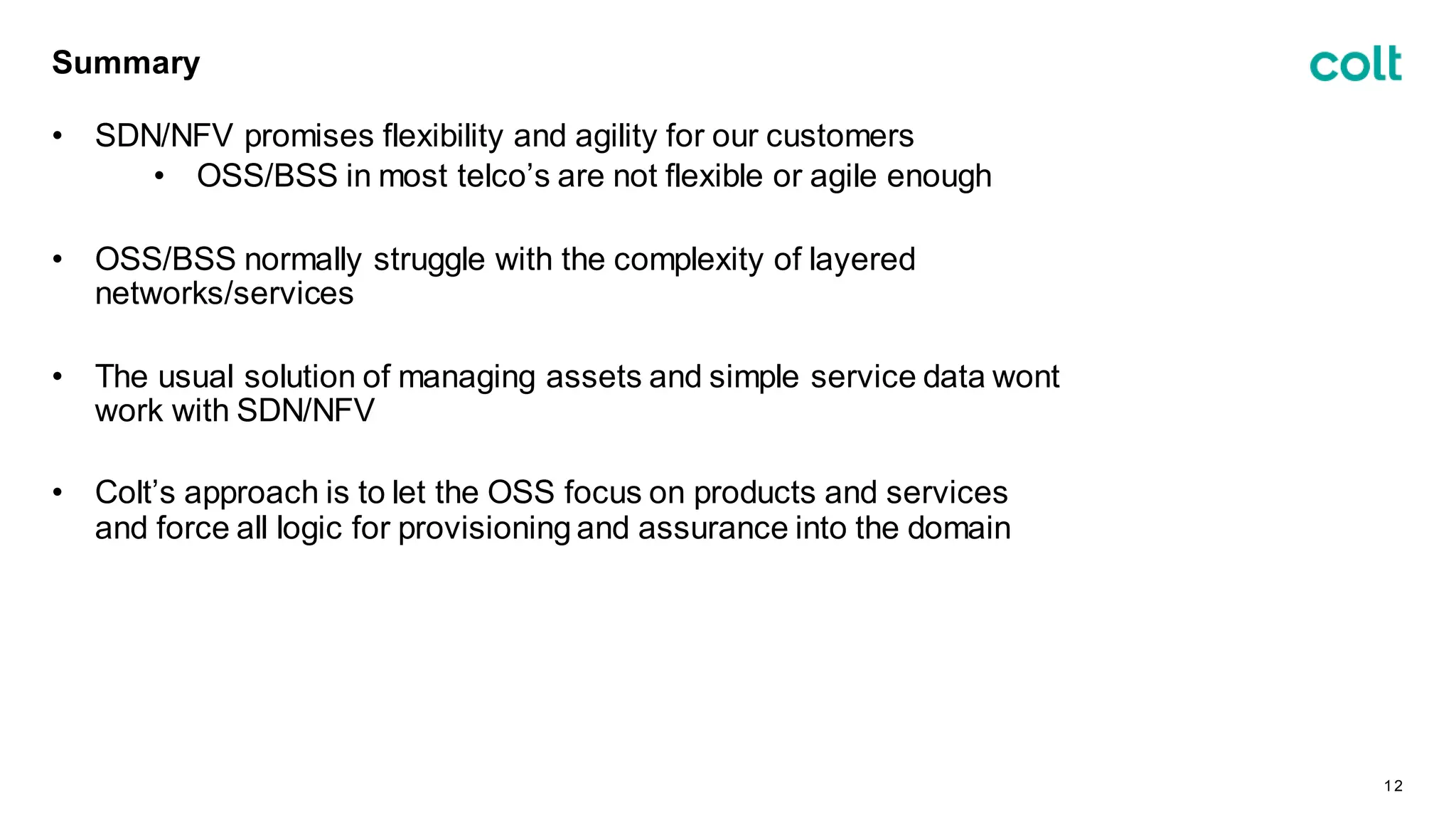

12. Summary
• SDN/NFV promises flexibility and agility for our customers
• OSS/BSS in most telco’s are not flexible or agile enough
• OSS/BSS normally struggle with the complexity of layered
networks/services
• The usual solution of managing assets and simple service data wont
work with SDN/NFV
• Colt’s approach is to let the OSS focus on products and services
and force all logic for provisioning and assurance into the domain
12

13. Thankyou
For your time
