Colt Optical SDN Innovation
Colt's Optical SDN Innovation aims to transform network services through an elastic, programmable, and software-defined optical transport network. The project targets improved customer experience with on-demand connectivity across data centers, enterprise buildings, and cloud services, while offering scalability and real-time provisioning. The journey towards full optical SDN is ongoing, with initial solutions expected to be implemented in 2018.
More Related Content
Similar to Colt Optical SDN Innovation
Colt Optical SDN Innovation
- 1. Optical SDN Innovation Extending ColtOn Demand to Optical services Javier Benitez

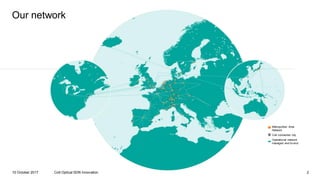

- 2. Our network 210 October2017 Colt Optical SDN Innovation Metropolitan Area Network Colt connected city Operational network managed end-to-end
- 3. Our network 310 October2017 Colt Optical SDN Innovation Metropolitan Area Network Colt connected city Operational network managed end-to-end 25k+ Buildings directly connected 200+ Cities connected across 28 countries 6 Languages supported by 24/7 customer service 900+ Network to network interfaces 100+ Industry awards 25k+ Customers 5k+ Employees 187k+ LDN, metro fibre and subsea and terrestrial leased capacity 800+ Key data centres, clouds and carrier hotels connected
- 4. Colt SDN/NFV transformationprogramme (Novitas) And delivering important benefits: Elastic Topology Elastic Service Deliver programmable flexible topologies based on overlay and underlay networks. Deliver virtualised off-net and on-net L2 and L3 edge services on top of basic connectivity. SDN NFV Elastic Bandwidth Deliver programmable elastic links with variable bandwidth. The Vision: to transform the way network services are ordered and consumed, delivering a cloud like customer experience (self-provision, in real-time) 4 Flexible commercials Bandwidth scalability Real-time provisioning Self- service 10 October 2017 Colt Optical SDN Innovation

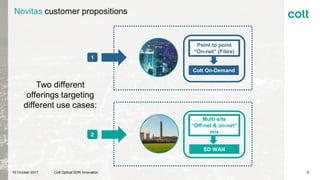

- 5. Novitas customer propositions 5 Pointto point “On-net” (Fibre) Colt On-Demand Multi-site “Off-net & on-net” mix SD WAN Two different offerings targeting different use cases: 1 2 10 October 2017 Colt Optical SDN Innovation

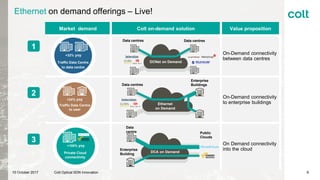

- 6. Ethernet on demandofferings – Live! Market demand Colt on-demand solution Value proposition On-Demand connectivity between data centres On-Demand connectivity to enterprise buildings On Demand connectivity into the cloud 1 2 3 +24% yoy Traffic Data Centre to user +32% yoy Traffic Data Centre to data centre +100% yoy Private Cloud connectivity Ethernet on Demand Data centres Enterprise Buildings DCA on Demand Data centre Public Clouds Enterprise Building DCNet on Demand Data centres Data centres 610 October 2017 Colt Optical SDN Innovation

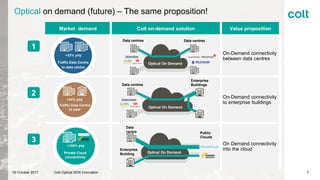

- 7. Optical on demand(future) – The same proposition! Market demand Colt on-demand solution Value proposition On-Demand connectivity between data centres On-Demand connectivity to enterprise buildings On Demand connectivity into the cloud 1 2 3 +24% yoy Traffic Data Centre to user +32% yoy Traffic Data Centre to data centre +100% yoy Private Cloud connectivity Data centres Enterprise Buildings Data centre Public Clouds Enterprise Building Data centres Data centres 710 October 2017 Colt Optical SDN Innovation Optical On Demand Optical On Demand Optical On Demand

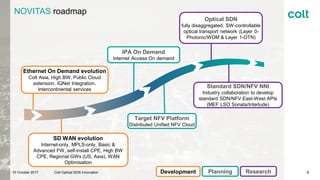

- 8. NOVITAS roadmap 8 Ethernet OnDemand evolution Colt Asia, High BW, Public Cloud extension, IQNet Integration, Intercontinental services SD WAN evolution Internet-only, MPLS-only, Basic & Advanced FW, self-install CPE, High BW CPE, Regional GWs (US, Asia), WAN Optimisation PlanningDevelopment Research Target NFV Platform Distributed Unified NFV Cloud Standard SDN/NFV NNI Industry collaboration to develop standard SDN/NFV East-West APIs (MEF LSO Sonata/Interlude) IPA On Demand Internet Access On demand Optical SDN fully disaggregated, SW-controllable optical transport network (Layer 0- Photonic/WDM & Layer 1-OTN) Colt Optical SDN Innovation10 October 2017
- 9. Optical SDN definitionand use cases 9 A fully disaggregated, software-controllable optical transport network both across Layer 0-Photonic/WDM as well as Layer 1-OTN 10 October 2017 Colt Optical SDN Innovation Operator (Internal) • Network & Service Automation • Multi-vendor Optical Network • Multi-layer Optical/Packet Optimisation Customer (External) • Service Flexing (BW, Topology, NFV) • Optical interfaces: grey, single wave and WDM • P2P & Optical VPN • Route On Demand

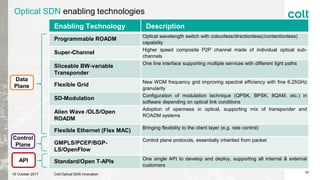

- 10. Optical SDN enablingtechnologies 1010 October 2017 Colt Optical SDN Innovation Enabling Technology Description Programmable ROADM Optical wavelength switch with colourless/directionless(/contentionless) capability Super-Channel Higher speed composite P2P channel made of individual optical sub- channels Sliceable BW-variable Transponder One line interface supporting multiple services with different light paths Flexible Grid New WDM frequency grid improving spectral efficiency with fine 6.25GHz granularity SD-Modulation Configuration of modulation technique (QPSK, BPSK, 8QAM, etc.) in software depending on optical link conditions Alien Wave /OLS/Open ROADM Adoption of openness in optical, supporting mix of transponder and ROADM systems Flexible Ethernet (Flex MAC) Bringing flexibility to the client layer (e.g. rate control) GMPLS/PCEP/BGP- LS/OpenFlow Control plane protocols, essentially inherited from packet Standard/Open T-APIs One single API to develop and deploy, supporting all internal & external customers Data Plane Control Plane API
- 11. Optical SDN highlevel service architecture 1110 October 2017 Colt Optical SDN Innovation Application Layer Novitas Portal Novitas Engine Control Layer Customer Customer Colt OSS/BSS Novitas API Novitas API Novitas API Optical Infrastructure Layer CMD WSS WSS WSS CMD WSS WSS WSS CMD WSS WSS WSS CMD WSS WSS WSS TP TP MP MP TP TP MP MP Topology Path Computation Service Abstraction Resource Manager API API Open ROADM Control REST, RESTconf, NETCONF PCEP, BGP-LS, NETCONF, OVSDB, OTS, REST, OpenFlow, SNMP UI Colt delivery UI Programmable ROADM, flexible grid and GMPLS Super-channel, sliceable and SD modulation Flexible Ethernet Alien wave, open line system and open ROADM

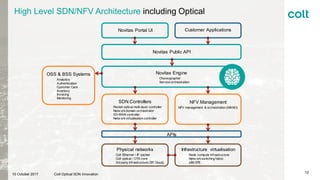

- 12. High Level SDN/NFVArchitecture including Optical 1210 October 2017 Colt Optical SDN Innovation Novitas Engine Choreographer Service orchestration OSS & BSS Systems Analytics Authentication Customer Care Inventory Invoicing Monitoring Customer Applications Physical networks Colt Ethernet / IP packet Colt optical / OTN core 3rd party infrastructure (SP, Cloud) Novitas Portal UI Novitas Public API APIs Infrastructure virtualisation Node compute infrastructure Netw orkswitching fabric x86 CPE SDN Controllers Packet-optical multi-layer controller Netw orkdomain orchestrator SD-WAN controller Netw orkvirtualisation controller NFV Management NFV management & orchestration (MANO)
- 13. Conclusions 1310 October 2017Colt Optical SDN Innovation • Packet SDN is a reality – Colt’s Packet OD solutions live • Next step is to expand OD to the optical domain • Colt RFI on-going (Vendors/Analysts/SDOs) • Optical SDN journey may take longer – higher proprietary environment • Internal Operator use cases expected to bring quicker benefits • Still, we observe some customer demand • First Optical SDN tactical solutions planned for 2018 • Keep tuned… you will hear from us!
- 14. Thank you 10 October2017 Colt Optical SDN Innovation 14
