1. Colt WAN SDN
Experience, Learnings and
Future Plans
MPLS+SDN+NFV World Congress,
Paris March 2017
Javier Benitez

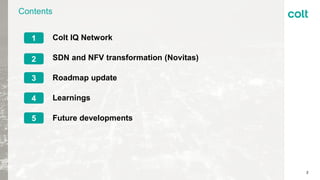

2. Contents
2
Colt IQ Network
SDN and NFV transformation (Novitas)
Roadmap update
Learnings
Future developments
1
2
3
4
5

3. 33
On-Net Fibre Coverage Network Reach Partner Coverage
• 24K + On-Net buildings
• 700+ 3rd-party data centres
• 29 Colt-owned DCs
• 205 city PoPs in 28
countries
• 49 MANs
• 49K+ km terrestrial network
• 130K+ km subsea network
• 919 COs (635 EFM)
• 390 E-NNIs in 180 cities to
146 countries

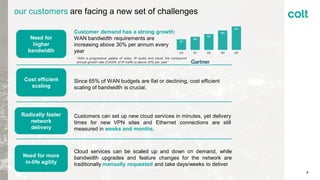

4. our customers are facing a new set of challenges
4
Need for
higher
bandwidth
Customer demand has a strong growth:
WAN bandwidth requirements are
increasing above 30% per annum every
year
Customers can set up new cloud services in minutes, yet delivery
times for new VPN sites and Ethernet connections are still
measured in weeks and months.
Radically faster
network
delivery
Need for more
in-life agility
Cost efficient
scaling
Cloud services can be scaled up and down on demand, while
bandwidth upgrades and feature changes for the network are
traditionally manually requested and take days/weeks to deliver
Since 65% of WAN budgets are flat or declining, cost efficient
scaling of bandwidth is crucial.
“With a progressive uptake of video, IP audio and cloud, the compound
annual growth rate (CAGR) of IP traffic is above 30% per year”

5. In response to this we are…
5
Investing in a new ultra-high bandwidth
network
Introducing a high bandwidth
optimised portfolio
Launching On Demand and
Software Defined WAN Services
Further increasing focus on Enterprise
market

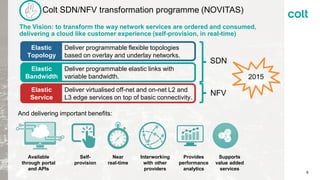

6. 6
Colt SDN/NFV transformation programme (NOVITAS)
Self-
provision
Near
real-time
Interworking
with other
providers
Available
through portal
and APIs
Provides
performance
analytics
And delivering important benefits:
Supports
value added
services
Elastic
Topology
Elastic
Service
Deliver programmable flexible topologies
based on overlay and underlay networks.
Deliver virtualised off-net and on-net L2 and
L3 edge services on top of basic connectivity.
SDN
NFV
Elastic
Bandwidth
Deliver programmable elastic links with
variable bandwidth.
The Vision: to transform the way network services are ordered and consumed,
delivering a cloud like customer experience (self-provision, in real-time)
2015

7. 7
NOVITAS Engine (Choreographer / Service Orchestration)
Colt portalAPIsCustomer portal
Packet/Optical
Multi-layer SDN
Controller
SDN
Network
virtualisation
controller
NFV
MANO
Node
Infrastructure
Cloud (x86 &
Merchant silicon)
SDN
Fabric
3rd-Party Network
Infrastructure
Optical / OTN
Core
Address
Book
Inventory
Billing
Order Mgmt
Customer Care
Monitoring
Analytics
OSS/BSS
Systems
Software Defined Networking
Network Function Virtualisation
Telco Node Virtualisation
APIs
Network
domain
orchestrator
(Model-driven
YANG/TOSCA)
SD WAN
Controller
IQ Network
(integrated
Ethernet+IP)
SP Cloud
x86
CPE
SDN NFV
Compute
Virtualisation
NOVITAS target architecture

8. 8

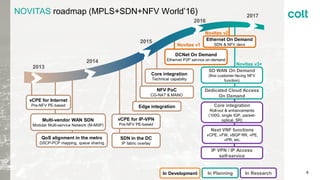

NOVITAS roadmap (MPLS+SDN+NFV World’16)
vCPE for Internet
Pre-NFV PE-based
QoS alignment in the metro
DSCP-PCP mapping, queue sharing
Edge integration
Core integration
Technical capability
2014
2013
2015
2016
DCNet On Demand
Ethernet P2P service on-demand
2017
Multi-vendor WAN SDN
Modular Multi-service Network (M-MSP)
SDN in the DC
IP fabric overlay
vCPE for IP-VPN
Pre-NFV PE-based
NFV PoC
CG-NAT & MANO
Novitas v1
Novitas v2
Ethernet On Demand
SDN & NFV devs
SD WAN On Demand
(first customer-facing NFV
function)
Novitas v3+
In PlanningIn Development In Research
Core integration
Roll-out & enhancements
(100G, single IGP, packet-
optical, SR)
Next VNF functions
vCPE, vFW, vBGP RR, vPE,
vPR, etc.
IP VPN / IP Access
self-service
Dedicated Cloud Access
On Demand

9. 9
NOVITAS roadmap (progress and update)
2017
2016
2018
2019
2020
SD WAN
Basic service for hybrid site
(MPLS & Internet), Oct’16
In Planning
Target NFV Platform
Distributed Unified NFV Cloud
DCNet On Demand
Inter-DC Ethernet on Demand
Apr’16 (27 sites)
Ethernet On Demand
Extension to Enterprise buildings
(~ 300 buildings, Nov’17)
DCA on Demand
Public Cloud Access on
demand
Microsoft Azure (Feb’17) and
AWS (Mar’17)
DCNet & Ethernet On Demand
400 DCs eligible, 42 Managed capacity
~ 5000 enterprise buildings, Mar’17)
On Demand evolution
Colt Asia, BW Calendaring, additional sites
Public Cloud extensions
In Development
SD WAN evolution
Internet-only, MPLS-only, FW,
DPI, self-install CPE, etc
IQNet Packet Network
MPLS SR, external SDN
Control (PCE), vBGP RR
In Research
Standard SDN/NFV NNI
Industry collaboration to develop
standard SDN/NFV East-West
APIs (MEF LSO Sonata/Interlude)
IPA On Demand
Internet Access On demand
Optical SDN
fully disaggregated, SW-
controllable optical transport
network (Layer 0-Photonic/WDM
& Layer 1-OTN)

10. 10

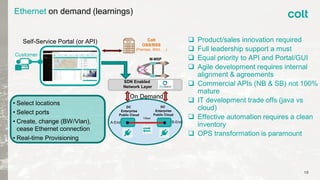

Ethernet on demand (learnings)
 Product/sales innovation required
 Full leadership support a must
 Equal priority to API and Portal/GUI
 Agile development requires internal
alignment & agreements
 Commercial APIs (NB & SB) not 100%
mature
 IT development trade offs (java vs
cloud)
 Effective automation requires a clean
inventory
 OPS transformation is paramount
Customer
DC
Enterprise
Public Cloud
SDN Enabled
Network Layer
• Select locations
• Select ports
• Create, change (BW/Vlan),
cease Ethernet connection
• Real-time Provisioning
A-End B-End
1Gbps
On Demand
Self-Service Portal (or API)
M-MSP
Colt
OSS/BSS
(Premise, XNG, …)
DC
Enterprise
Public Cloud

11. 11
SD WAN on demand (learnings)
 Initial technical complexity
(IPSEC/MPLS/BGP)
 Not 100% technology maturity
 Compute performance limitations
 Self-Install / ZTP a must
 Big change in the operating &
development model
 Strong customer demand (renewal
requirement)
MPLS
QoS
enabled
Branch site 1
Novitas CPE
E.g.
Salesforce
Ethernet OLO (premium)
MPLS VPN
IPsec Tunnels
Internet
On-net site
Data centre
Management
SD WAN
Controller
Premium
Traffic
Internet
Best Effort Traffic
Branch site 2
Novitas CPE
Cloud
SD-MPLS
GW
Customer
portal

12. 12
Packet SDN IQ Network (under deployment)
 MPLS to the edge with last mile CE
 MPLS Segment Routing: combines
advantages LDP / RSVP-TE with high
scaling, improved FRR and SDN
 Integrated Packet Network (Internet,
IPVPN, EVPN)
 SDN controller SR: path computation
(PCE) for traffic steering (disjoint E2E,
low latency, BWoD using live traffic
analytics, custom paths)
 New E2E Orchestration platform
CoreMetro MetroL2 PECPE
PE
P
PE
P
PE PE
PE
P
PE
P
L2 PE
Customer
CPE
Customer
MPLS SR
CE CE
MPLS SR
MPLS SR
Service & Network Orchestration
SDN Controller
PCE / Topology / Resource Manager / Analytics
CLI,
NETCONF
CLI,
NETCONF
SNMP,
BGP-LS,
PCEP
SNMP,
BGP-LS,
PCEP
SDN Controller
NB API

13. 13

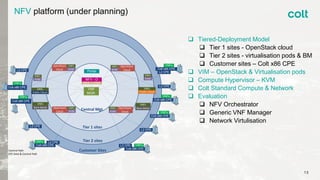

NFV platform (under planning)
 Tiered-Deployment Model
 Tier 1 sites - OpenStack cloud
 Tier 2 sites - virtualisation pods & BM
 Customer sites – Colt x86 CPE
 VIM – OpenStack & Virtualisation pods
 Compute Hypervisor – KVM
 Colt Standard Compute & Network
 Evaluation
 NFV Orchestrator
 Generic VNF Manager
 Network Virtulisation
Customer Sites
Tier 2 sites
Tier 1 sites
Central Mgt.
OpenStack
CloudKVM
VNFs
OpenStack
Cloud KVM
VNFs
OpenStack
Cloud KVM
VNFs
OpenStack
CloudKVM
VNFs
KVM
VNFs
KVM
VNFs
NFV - O
Portal
VNF
MGR.
Bare Metal
VNFs
L2 CPE
Bare Metal
VNFs
L2 CPE
L2 CPE
L2 CPE
L2 CPE
Colt x86 CPE
L2 CPE
L2 CPE
Control Path
CPE Data & Control Path
OSSBSS
Public Cloud
VNFs
Public Cloud
VNFs
VNFs
VNFs
VNFs
VNFs
Colt x86 CPE
Colt x86 CPE
Colt x86 CPE
Colt x86 CPE
Colt x86 CPE
Colt x86 CPE
VNFs
VNFs
VNFs

14. 14

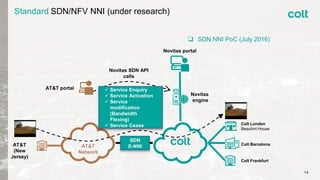

Standard SDN/NFV NNI (under research)
 SDN NNI PoC (July 2016)
AT&T
Network
AT&T
(New
Jersey)
Colt London
Beaufort House
Colt Barcelona
Colt Frankfurt
AT&T portal
Novitas portal
Novitas
engine
 Service Enquiry
 Service Activation
 Service
modification
(Bandwidth
Flexing)
 Service Cease
Novitas SDN API
calls
SDN
E-NNI

15. 15

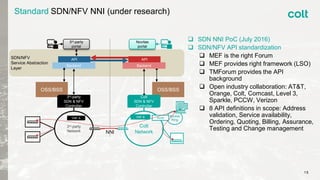

Standard SDN/NFV NNI (under research)
 SDN NNI PoC (July 2016)
 SDN/NFV API standardization
 MEF is the right Forum
 MEF provides right framework (LSO)
 TMForum provides the API
background
 Open industry collaboration: AT&T,
Orange, Colt, Comcast, Level 3,
Sparkle, PCCW, Verizon
 8 API definitions in scope: Address
validation, Service availability,
Ordering, Quoting, Billing, Assurance,
Testing and Change management
Backend
Access
Ring
3rd-party
Network
Colt
Network
Node
NNI
3rd-party
portal
Novitas
portal
OSS/BSSOSS/BSS
SDN/NFV
Service Abstraction
Layer
API
Backend
Colt
SDN & NFV
Controller
3rd-party
SDN & NFV
Controller
API
VNF A VNF B

16. 16
Optical SDN (under research)
 Objective: Fully disaggregated, software-
controllable optical transport network
(Photonic/WDM and -OTN)
 Operator internal use cases
 Service and network automation
 Multi-vendor optical network (open line
system, open ROADM)
 Optical & packet multi-layer resource
optimization
 Customer use cases
 Optical connectivity on-demand (Grey,
colored and WDM/spectrum)
 Optical VPN (p2p and mp2mp)
 Route selection on-demand
(centralized PCE engine)
Application Layer
Novitas
Portal
Novitas
Engine
Control Layer
Customer
Customer
Colt
OSS/BSS
Novitas
API
Novitas
API
Novitas
API
Optical Infrastructure Layer
CMD
WSS
WSS
WSS
CMD
WSS
WSS
WSS
CMD
WSS
WSS
WSS
CMD
WSS
WSS
WSS
TP
TP
MP
MP
TP
TP
MP
MP
Topology
Path
Computation
Service
Abstraction
Resource
ManagerAPI
API
Open
ROADM
Control
REST, RESTconf, NETCONF
PCEP, BGP-LS, NETCONF, OVSDB, OTS, REST, OpenFlow, SNMP
UI
Colt delivery
UI
Programmable ROADM,
flexible grid and GMPLS
Super-channel,
sliceable and SD
modulation
Flexible Ethernet
Alien wave, open line
system and open
ROADM

17. 17
