1. Smart-M3
The Open Source Release
Jukka Honkola, Hannu Laine,
Ron Brown, Olli Tyrkkö
Company Confidential
1 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

2. M3 Concepts
• Information level interoperability
• Simple API to access information, “standard” ontologies
• Independent agents operating on information
• Lightweight implementation
• No heavy infrastructure
• Accommodates existing systems
• Evolution is possible
• “Bridging” walled gardens
• Sharing embedded information
2 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

3. M3 Functional Architecture
Triple governance transactions using Smart Space: a named
Smart Space Access Protocol (SSAP): search extent of information
Physical distribution
e.g. join, leave, insert, remove, update, of a Smart Space
query, subscribe, unsubscribe
Smart Space
SIB
KP KP
Knowledge Processor (KP): An entity SIB SIB
contributing to (insert / remove) and/or
Semantic Information Broker (SIB):
consuming (query / subscribe) content
An entity performing triple
according to ontology relevant to its
governance in possible co-operation
defined functionality. A KP needs one or
with other SIBs for one Smart Space.
more partner KPs for useful sharing of
A SIB may be a concrete or virtual
content, implying an agreed semantics for
entity.
the used ontology
3 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

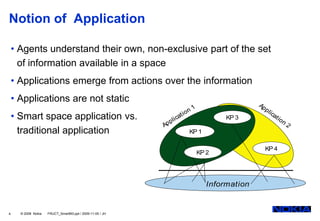

4. Notion of Application
• Agents understand their own, non-exclusive part of the set
of information available in a space
• Applications emerge from actions over the information
• Applications are not static Ap
o n1 p lic
• Smart space application vs. at i KP 3 at
p lic io
n
Ap 2
traditional application KP 1
KP 4
KP 2
Information
4 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

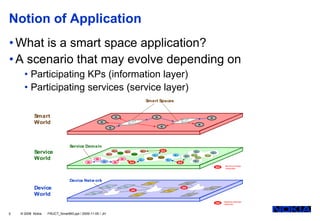

5. Notion of Application
• What is a smart space application?
• A scenario that may evolve depending on
• Participating KPs (information layer)
• Participating services (service layer)
Smart Spaces
Smart N N N
Smart
World N Smart
Space
Space
N
N
N
Service Domain
Service Serv
Serv
Client
Serv
Client
Serv
Srv
SOI
Srv C
Srv
lient
Srv
Srv Client
World SN
AN
SN Srv
Client
Client
Srv
C
Srv
lient
SN SN SOI SOI
service ontology
SOI interpreter
Device Netw ork
Dev Dev
Device Dev Dev
GW Dev
GW Dev
World Dev
Dev Dev
Gateway between
GW netw orks
5 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

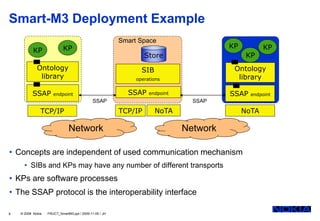

6. Smart-M3 Deployment Example
Smart Space
KP KP KP
KP
Store KP
Ontology SIB Ontology
library operations library
SSAP endpoint SSAP endpoint SSAP endpoint
SSAP SSAP
TCP/IP TCP/IP NoTA NoTA
Network Network
• Concepts are independent of used communication mechanism
• SIBs and KPs may have any number of different transports
• KPs are software processes
• The SSAP protocol is the interoperability interface
6 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

7. M3 Implementation Architecture
Design time ontology code generator
GLib/C API Qt/C++ API Python API
SIB
daemon
D-Bus
SIB IF
KP IF
KP Python KP
Library
D-Bus SIB Daemon
Access IF
GObject API GObject API
D-Bus
TCP SIB NoTA SIB
Service Service
GObject GObject Python
API API TCP SIB
SIBAccess SIBAccess
Access
NoTA TCP
7 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

8. Smart-M3 Open Source
• Available in sourceforge.net: http://sourceforge.net/projects/smart-m3/
• Currently available are:
• C/GLib, Qt, Python KP APIs with TCP/IP and NoTA connectivity
• SIB with TCP/IP and NoTA connectivity
• Ontology library generators for C/GLib and Python APIs
• Documentation for building the system
• Future development (already underway)
• Java and C# KP APIs
• “ANSI-C” KP API
• Ontology generator for “ANSI-C” KP API
• Demos are released separately
• No demos available yet, but VTT will release their Smart-M3 based demo as open
source
8 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

9. The Smart-M3 Release – Knowledge Processor
• libwhiteboard: C/GLib based API for KPs
• Integration with GLib main loop for GUI applications
• qt_kp_core_api: Qt based API for KPs
• Integration with Qt main loop for GUI applications
• Qt advanced API will be released in near future
• Depends on GLib also via whiteboardd and DBus connections
• whiteboardd: Daemon for handling connections from KPs to SIBs
• Handles most of the work in KP-SIB connections
• sib-access-*: Transport-specific components of KP
• One for each implemented transport, corresponding components also on SIB side
• Python-KP: Python KP API
• Self-contained, new version will be released in near future
9 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

10. The Smart-M3 Release – SIB
• sibd
• The SIB, implements the SIB operations
• Depends on GLib and DBus, contains optional Python parts (WQL)
• sib-nota, sib-tcp
• Transport specific components of the SIB, correspond to sib-access-* on KP side
• Depend on GLib and DBus
• piglet_m3
• The RDF store used by the SIB
10 © 2008 Nokia FRUCT_SmartM3.ppt / 2009-11-05 / JH

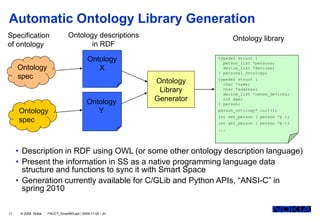

11. Automatic Ontology Library Generation
Specification Ontology descriptions Ontology library
of ontology in RDF
Ontology typedef struct {
person_list *persons;
Ontology X device_list *devices;
} personal_ontology;
spec
Ontology typedef struct {
char *name;
Library char *address;
device_list *owned_devices;
Ontology Generator int age;
} person;
Ontology Y person_ontology* init();
int set_person ( person *p );
spec int get_person ( person *p );
...
• Description in RDF using OWL (or some other ontology description language)
• Present the information in SS as a native programming language data
structure and functions to sync it with Smart Space
• Generation currently available for C/GLib and Python APIs, “ANSI-C” in
spring 2010
