After max+phonegap
- 1. 移动应用开发 PhoneGap + JQuery+ Dreamweaver
- 3.
- 4. But, less than 7yue
- 5.
- 6. Web App or Hybrid App or Native App
- 7. ？MOBILE HTML http://mobilehtml5.org/

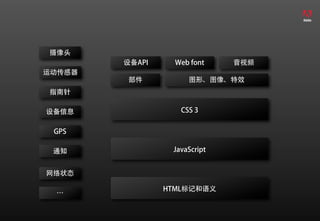

- 8. 摄像头 设备API Web font 音视频 运动传感器 部件 图形、图像、特效 指南针 设备信息 CSS 3 GPS 通知 JavaScript 网络状态 HTML标记和语义 …

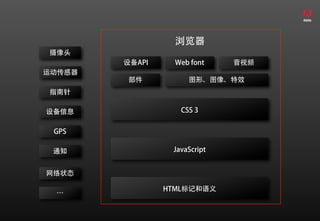

- 9. 浏览器 摄像头 设备API Web font 音视频 运动传感器 部件 图形、图像、特效 指南针 设备信息 CSS 3 GPS 通知 JavaScript 网络状态 HTML标记和语义 …

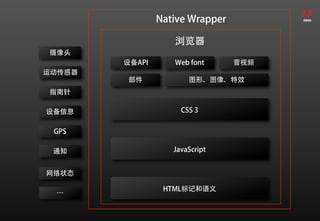

- 10. Native Wrapper 浏览器 摄像头 设备API Web font 音视频 运动传感器 部件 图形、图像、特效 指南针 设备信息 CSS 3 GPS 通知 JavaScript 网络状态 HTML标记和语义 …

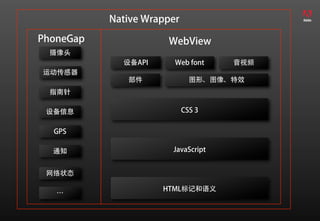

- 11. Native Wrapper PhoneGap WebView 摄像头 设备API Web font 音视频 运动传感器 部件 图形、图像、特效 指南针 设备信息 CSS 3 GPS 通知 JavaScript 网络状态 HTML标记和语义 …

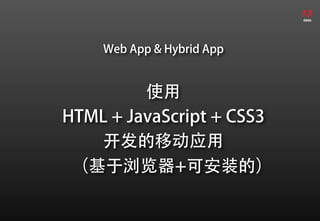

- 12. Web App &Hybrid App 使用 HTML + JavaScript + CSS3 开发的移动应用 （基于浏览器+可安装的）
- 13.
- 15. JQuery mobile (http://jquerymobile.com/) 创建面向现代智能移动设备的 跨平台UI框架

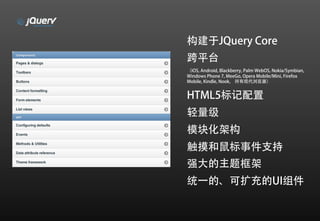

- 16. 构建于JQuery Core 跨平台 （iOS, Android,Blackberry, Palm WebOS, Nokia/Symbian, Windows Phone 7, MeeGo, Opera Mobile/Mini, Firefox Mobile, Kindle, Nook， 所有现代浏览器） HTML5标记配置 轻量级 模块化架构 触摸和鼠标事件支持 强大的主题框架 统一的、可扩充的UI组件

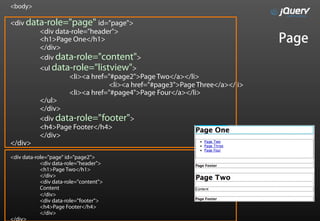

- 17. <body> <div data-role="page" id="page"> <div data-role="header"> <h1>Page One</h1> Page </div> <div data-role="content"> <ul data-role="listview"> <li><a href="#page2">Page Two</a></li> <li><a href="#page3">Page Three</a></li> <li><a href="#page4">Page Four</a></li> </ul> </div> <div data-role="footer"> <h4>Page Footer</h4> </div> </div> <div data-role="page" id="page2"> <div data-role="header"> <h1>Page Two</h1> </div> <div data-role="content"> Content </div> <div data-role="footer"> <h4>Page Footer</h4> </div> </div>

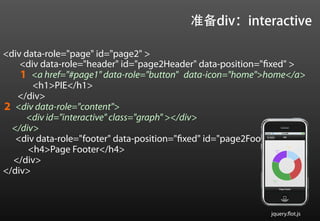

- 18. 准备div：interactive <div data-role="page" id="page2"> <div data-role="header" id="page2Header" data-position="fixed" > 1 <a href="#page1" data-role="button" data-icon="home">home</a> <h1>PIE</h1> </div> 2 <div data-role="content"> <div id="interactive" class="graph" ></div> </div> <div data-role="footer" data-position="fixed" id="page2Footer"> <h4>Page Footer</h4> </div> </div> jquery.flot.js

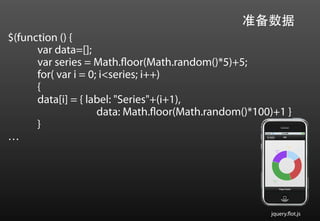

- 19. 准备数据 $(function () { var data=[]; var series = Math.floor(Math.random()*5)+5; for( var i = 0; i<series; i++) { data[i] = { label: "Series"+(i+1), data: Math.floor(Math.random()*100)+1 } } … jquery.flot.js

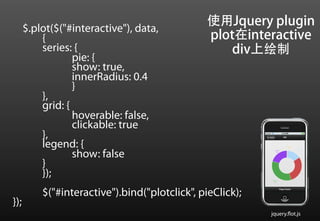

- 20. $.plot($("#interactive"), data, 使用Jquery plugin { plot在interactive series: { div上绘制 pie: { show: true, innerRadius: 0.4 } }, grid: { hoverable: false, clickable: true }, legend: { show: false } }); $("#interactive").bind("plotclick", pieClick); }); jquery.flot.js

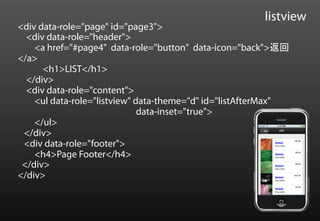

- 21. listview <div data-role="page" id="page3"> <div data-role="header"> <a href="#page4" data-role="button" data-icon="back">返回 </a> <h1>LIST</h1> </div> <div data-role="content"> <ul data-role="listview" data-theme="d" id="listAfterMax" data-inset="true"> </ul> </div> <div data-role="footer"> <h4>Page Footer</h4> </div> </div>

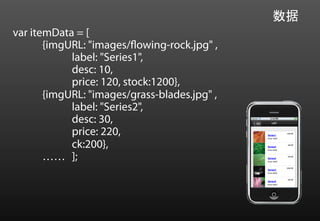

- 22. 数据 var itemData =[ {imgURL: "images/flowing-rock.jpg" , label: "Series1", desc: 10, price: 120, stock:1200}, {imgURL: "images/grass-blades.jpg" , label: "Series2", desc: 30, price: 220, ck:200}, …… ];

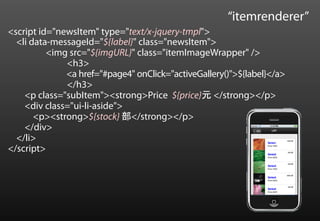

- 23. “itemrenderer” <script id="newsItem" type="text/x-jquery-tmpl"> <li data-messageId="${label}" class="newsItem"> <img src="${imgURL}" class="itemImageWrapper" /> <h3> <a href="#page4" onClick="activeGallery()">${label}</a> </h3> <p class="subItem"><strong>Price ${price}元 </strong></p> <div class="ui-li-aside"> <p><strong>${stock} 部</strong></p> </div> </li> </script>

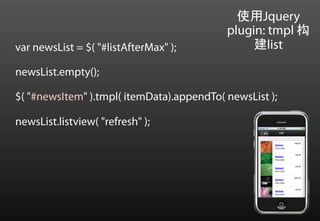

- 24. 使用Jquery plugin: tmpl 构 var newsList = $( "#listAfterMax" ); 建list newsList.empty(); $( "#newsItem" ).tmpl( itemData).appendTo( newsList ); newsList.listview( "refresh" );
- 25.
- 26. MORE… http://www.markus-falk.com/mobile-frameworks-comparison-chart/

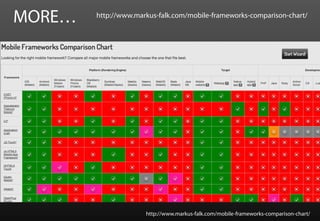

- 27. MORE… http://www.markus-falk.com/mobile-frameworks-comparison-chart/ http://www.markus-falk.com/mobile-frameworks-comparison-chart/
- 28.
- 29.
- 31.

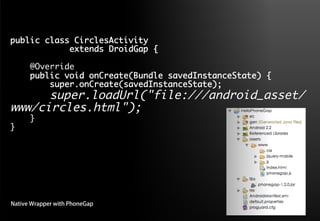

- 32. public class CirclesActivity extends DroidGap { @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); super.loadUrl("file:///android_asset/ www/circles.html"); } } Native Wrapper with PhoneGap
- 33.
- 34.

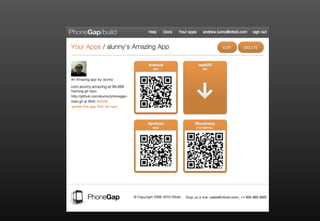

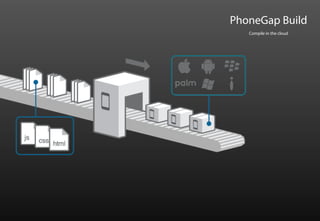

- 35. PhoneGap Build Compile in the cloud
- 37.

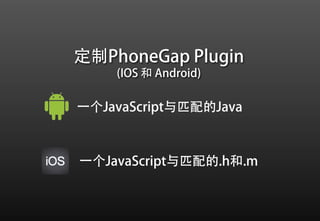

- 38. 定制PhoneGap Plugin (IOS 和 Android) 一个JavaScript与匹配的Java 一个JavaScript与匹配的.h和.m
- 39.
- 40. PhoneGap架构 Web App PhoneGap Plug-ins HTML5+JavaScript+CSS3 摄像头 运动传感器 设备信息 指南针 GPS 通知 HTML5 PhoneGap API JS API 网络状态 … PhoneGap Native API HTML Engine 定制plugin (WebView、UIWebView…) OS API OS API Mobile OS
- 41.
- 42. public class CirclesActivity extends DroidGap { @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); super.loadUrl("file:///android_asset/ www/index.html"); } } Native Wrapper with PhoneGap

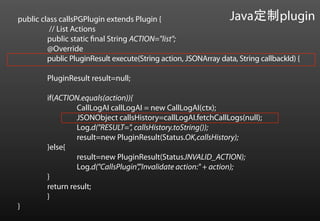

- 43. public class callsPGPluginextends Plugin { Java定制plugin // List Actions public static final String ACTION="list"; @Override public PluginResult execute(String action, JSONArray data, String callbackId) { PluginResult result=null; if(ACTION.equals(action)){ CallLogAI callLogAI = new CallLogAI(ctx); JSONObject callsHistory=callLogAI.fetchCallLogs(null); Log.d("RESULT=", callsHistory.toString()); result=new PluginResult(Status.OK,callsHistory); }else{ result=new PluginResult(Status.INVALID_ACTION); Log.d("CallsPlugin","Invalidate action:" + action); } return result; } }
- 44. 注册plugin <?xml version="1.0" encoding="UTF-8"?> <plugins> <plugin name="App" value="com.phonegap.App"/> <plugin name="Geolocation" value="com.phonegap.GeoBroker"/> <plugin name="Device" value="com.phonegap.Device"/> …… <plugin name="Temperature" value="com.phonegap.TempListener"/> <plugin name="FileTransfer" value="com.phonegap.FileTransfer"/> <plugin name="Capture" value="com.phonegap.Capture"/> <plugin name="CallsHistoryPlugin" value="com.mark.phonegap.plugin.callsPGPlugin" /> </plugins>

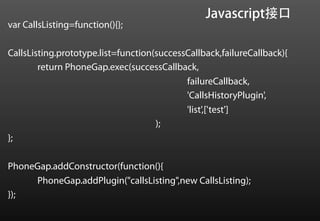

- 45. Javascript接口 var CallsListing=function(){}; CallsListing.prototype.list=function(successCallback,failureCallback){ return PhoneGap.exec(successCallback, failureCallback, 'CallsHistoryPlugin', 'list',['test'] ); }; PhoneGap.addConstructor(function(){ PhoneGap.addPlugin("callsListing",new CallsListing); });

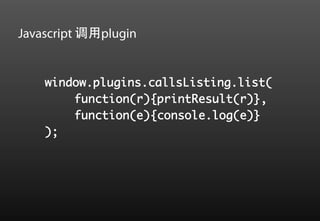

- 46. Javascript 调用plugin window.plugins.callsListing.list( function(r){printResult(r)}, function(e){console.log(e)} );

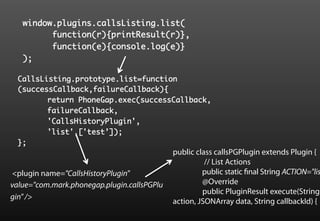

- 47. window.plugins.callsListing.list( function(r){printResult(r)}, function(e){console.log(e)} ); CallsListing.prototype.list=function (successCallback,failureCallback){ return PhoneGap.exec(successCallback, failureCallback, 'CallsHistoryPlugin', 'list',['test’]); }; public class callsPGPlugin extends Plugin { // List Actions <plugin name="CallsHistoryPlugin" public static final String ACTION="lis value="com.mark.phonegap.plugin.callsPGPlu @Override public PluginResult execute(String gin" /> action, JSONArray data, String callbackId) {
- 48.
- 49.

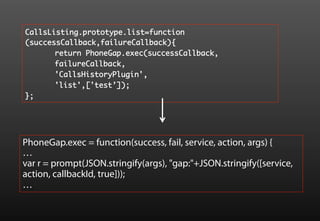

- 50. CallsListing.prototype.list=function (successCallback,failureCallback){ return PhoneGap.exec(successCallback, failureCallback, 'CallsHistoryPlugin', 'list',['test’]); }; PhoneGap.exec = function(success, fail, service, action, args) { … var r = prompt(JSON.stringify(args), "gap:"+JSON.stringify([service, action, callbackId, true])); …

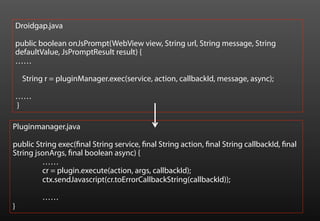

- 51. Droidgap.java public boolean onJsPrompt(WebView view, String url, String message, String defaultValue, JsPromptResult result) { …… String r = pluginManager.exec(service, action, callbackId, message, async); …… } Pluginmanager.java public String exec(final String service, final String action, final String callbackId, final String jsonArgs, final boolean async) { …… cr = plugin.execute(action, args, callbackId); ctx.sendJavascript(cr.toErrorCallbackString(callbackId)); …… }

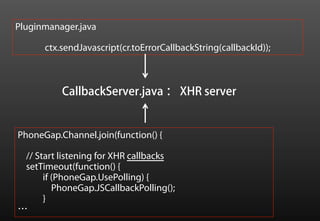

- 52. Pluginmanager.java ctx.sendJavascript(cr.toErrorCallbackString(callbackId)); CallbackServer.java ： XHR server PhoneGap.Channel.join(function() { // Start listening for XHR callbacks setTimeout(function() { if (PhoneGap.UsePolling) { PhoneGap.JSCallbackPolling(); } …
- 53. Appcelerator Titanium Native？ JavaScriptCore Mozilla Rhino
