jQuery Mobile Introduction ( demo on EZoapp )
- 1.
- 2. What is jQueryMobileļ¼

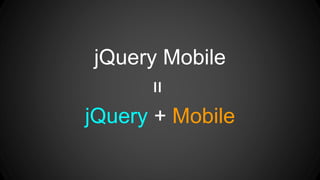

- 3. jQuery + Mobile jQueryMobile =
- 4. So simple, weall know it!
- 5. But, What isjQuery Mobile? Can we eat it?

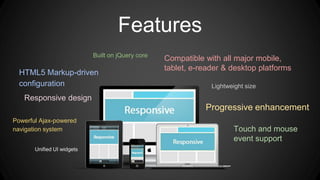

- 6. Features Powerful Ajax-powered navigation system HTML5Markup-driven configuration Built on jQuery core Responsive design Progressive enhancement Touch and mouse event support Lightweight size Compatible with all major mobile, tablet, e-reader & desktop platforms Unified UI widgets
- 7. However, I heardthat jQuery Mobile is fat
- 8. jQuery Mobile Version1.4.3 Significantly improved performance than ever
- 9.
- 10. Letās Learn jQueryMobileļ¼

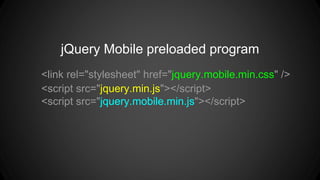

- 11. <link rel="stylesheet" href="jquery.mobile.min.css"/> <script src="jquery.min.js"></script> <script src="jquery.mobile.min.js"></script> jQuery Mobile preloaded program
- 12. <head> <title>jQuery Mobile</title> <link rel="stylesheet"href="http://code.jquery.com/mobile/1.0a1/jquery.mobile.min.css" /> <script src="http://code.jquery.com/jquery-1.4.3.min.js"></script> <script src="http://code.jquery.com/mobile/1.0a1/jquery.mobile.min.js"></script> </head> <body> <div data-role="page"> <div data-role="header"> <h1>header</h1> </div> <div class="ui-content"> <p>content</p> </div> <div data-role="footer"> <h4>footer</h4> </div> </div> </body> First step

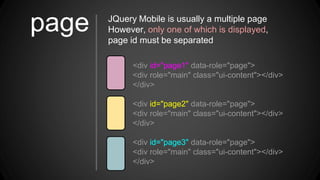

- 13. <div id="page1" data-role="page"> <divrole="main" class="ui-content"></div> </div> <div id="page2" data-role="page"> <div role="main" class="ui-content"></div> </div> <div id="page3" data-role="page"> <div role="main" class="ui-content"></div> </div> JQuery Mobile is usually a multiple page However, only one of which is displayed, page id must be separated page

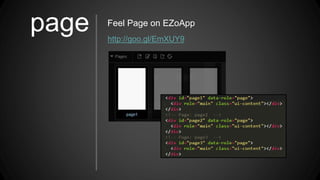

- 14. page Feel Pageon EZoApp http://goo.gl/EmXUY9

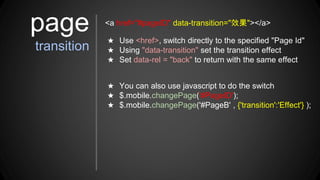

- 15. ā Use <href>,switch directly to the specified "Page Id" ā Using "data-transition" set the transition effect ā Set data-rel = "back" to return with the same effect page transition <a href="#pageID" data-transition="ęę"></a> ā You can also use javascript to do the switch ā $.mobile.changePage('#PageID'); ā $.mobile.changePage('#PageB' , {'transition':'Effect'} );

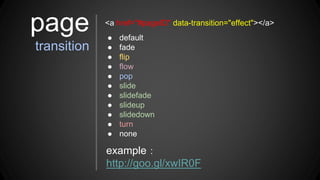

- 16. ā default ā fade āflip ā flow ā pop ā slide ā slidefade ā slideup ā slidedown ā turn ā none <a href="#pageID" data-transition="effect"></a> exampleļ¼ http://goo.gl/xwIR0F page transition

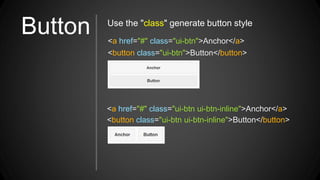

- 17. Button <a href="#"class="ui-btn">Anchor</a> <button class="ui-btn">Button</button> Use the "class" generate button style <a href="#" class="ui-btn ui-btn-inline">Anchor</a> <button class="ui-btn ui-btn-inline">Button</button>

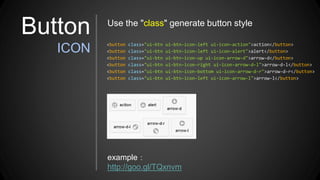

- 18. Button ICON <button class="ui-btnui-btn-icon-left ui-icon-action">action</button> <button class="ui-btn ui-btn-icon-left ui-icon-alert">alert</button> <button class="ui-btn ui-btn-icon-up ui-icon-arrow-d">arrow-d</button> <button class="ui-btn ui-btn-icon-right ui-icon-arrow-d-l">arrow-d-l</button> <button class="ui-btn ui-btn-icon-bottom ui-icon-arrow-d-r">arrow-d-r</button> <button class="ui-btn ui-btn-icon-left ui-icon-arrow-l">arrow-l</button> exampleļ¼ http://goo.gl/TQxnvm Use the "class" generate button style

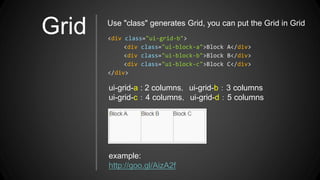

- 19. Grid <div class="ui-grid-b"> <divclass="ui-block-a">Block A</div> <div class="ui-block-b">Block B</div> <div class="ui-block-c">Block C</div> </div> Use "class" generates Grid, you can put the Grid in Grid ui-grid-a : 2 columnsļ¼ui-grid-bļ¼3 columns ui-grid-cļ¼4 columnsļ¼ui-grid-dļ¼5 columns example: http://goo.gl/AizA2f

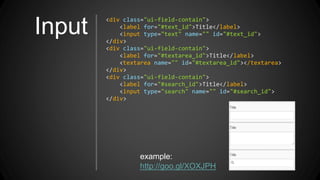

- 20. Input <div class="ui-field-contain"> <label for="#text_id">Title</label> <inputtype="text" name="" id="#text_id"> </div> <div class="ui-field-contain"> <label for="#textarea_id">Title</label> <textarea name="" id="#textarea_id"></textarea> </div> <div class="ui-field-contain"> <label for="#search_id">Title</label> <input type="search" name="" id="#search_id"> </div> example: http://goo.gl/XOXJPH

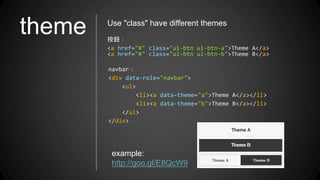

- 21. theme Use "class"have different themes ęéļ¼ <a href="#" class="ui-btn ui-btn-a">Theme A</a> <a href="#" class="ui-btn ui-btn-b">Theme B</a> navbarļ¼ <div data-role="navbar"> <ul> <li><a data-theme="a">Theme A</a></li> <li><a data-theme="b">Theme B</a></li> </ul> </div> example: http://goo.gl/E8QcW9

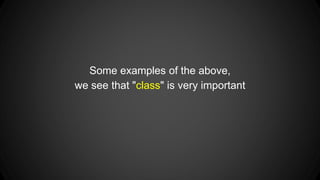

- 22. Some examples ofthe above, we see that "class" is very important
- 23.
- 24. Of course ! Thesecond is also very important: data attribute 2
- 25. What is dataattributeļ¼

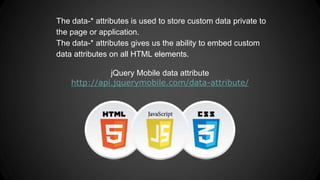

- 26. The data-* attributesis used to store custom data private to the page or application. The data-* attributes gives us the ability to embed custom data attributes on all HTML elements. jQuery Mobile data attribute http://api.jquerymobile.com/data-attribute/

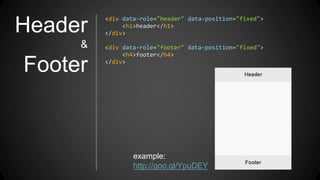

- 27. Header & Footer <div data-role="header" data-position="fixed"> <h1>header</h1> </div> <divdata-role="footer" data-position="fixed"> <h4>footer</h4> </div> example: http://goo.gl/YpuDEY

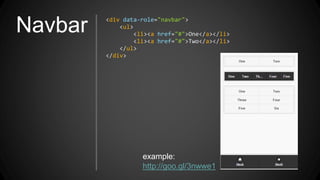

- 28. Navbar <div data-role="navbar"> <ul> <li><ahref="#">One</a></li> <li><a href="#">Two</a></li> </ul> </div> example: http://goo.gl/3nwwe1
- 29. Radio button <form> <fieldset data-role="controlgroup" data-type="horizontal"> <legend>Horizontal:</legend> <inputtype="radio" name="radio-choice-h-2" id="radio-choice-h-2a" value="on" checked="checked"> <label for="radio-choice-h-2a">One</label> <input type="radio" name="radio-choice-h-2" id="radio-choice-h-2b" value="off"> <label for="radio-choice-h-2b">Two</label> <input type="radio" name="radio-choice-h-2" id="radio-choice-h-2c" value="other"> <label for="radio-choice-h-2c">Three</label> </fieldset> </form> example: http://goo.gl/Vh67Vf
- 30. Check box <form> <fieldset data-role="controlgroup"> <legend>Vertical:</legend> <input type="checkbox"name="checkbox-v-2a" id="checkbox-v-2a"> <label for="checkbox-v-2a">One</label> <input type="checkbox" name="checkbox-v-2b" id="checkbox-v-2b"> <label for="checkbox-v-2b">Two</label> <input type="checkbox" name="checkbox-v-2c" id="checkbox-v-2c"> <label for="checkbox-v-2c">Three</label> </fieldset> </form> example: http://goo.gl/x7vfGr

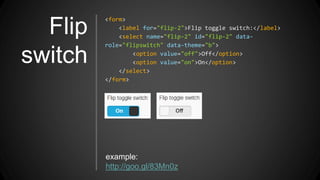

- 31. Flip switch <form> <label for="flip-2">Flip toggleswitch:</label> <select name="flip-2" id="flip-2" data- role="flipswitch" data-theme="b"> <option value="off">Off</option> <option value="on">On</option> </select> </form> example: http://goo.gl/83Mn0z

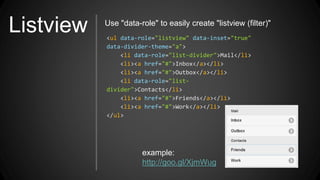

- 32. Listview <ul data-role="listview"data-inset="true" data-divider-theme="a"> <li data-role="list-divider">Mail</li> <li><a href="#">Inbox</a></li> <li><a href="#">Outbox</a></li> <li data-role="list- divider">Contacts</li> <li><a href="#">Friends</a></li> <li><a href="#">Work</a></li> </ul> Use "data-role" to easily create "listview (filter)" example: http://goo.gl/XjmWug

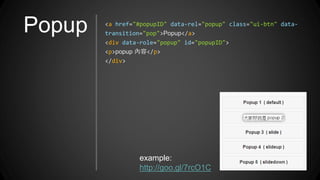

- 33. Popup <a href="#popupID"data-rel="popup" class="ui-btn" data- transition="pop">Popup</a> <div data-role="popup" id="popupID"> <p>popup å §å®¹</p> </div> example: http://goo.gl/7rcO1C

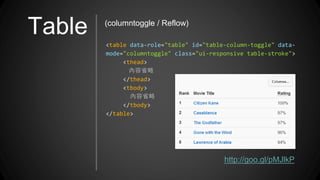

- 34. Table <table data-role="table" id="table-column-toggle"data- mode="columntoggle" class="ui-responsive table-stroke"> <thead> å §å®¹ēē„ </thead> <tbody> å §å®¹ēē„ </tbody> </table> http://goo.gl/pMJlkP (columntoggle / Reflow)

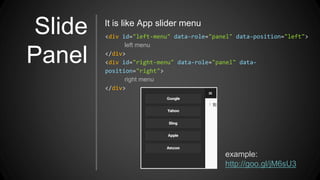

- 35. Slide Panel <div id="left-menu" data-role="panel"data-position="left"> left menu </div> <div id="right-menu" data-role="panel" data- position="right"> right menu </div> It is like App slider menu example: http://goo.gl/jM6sU3
- 36. How to make"jQuery Mobile" work? How ?

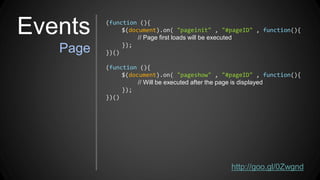

- 37. Events Page (function (){ $(document).on( "pageinit", "#pageID" , function(){ // Page first loads will be executed }); })() (function (){ $(document).on( "pageshow" , "#pageID" , function(){ // Will be executed after the page is displayed }); })() http://goo.gl/0Zwgnd

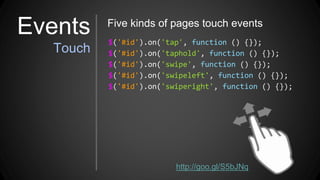

- 38. $('#id').on('tap', function (){}); $('#id').on('taphold', function () {}); $('#id').on('swipe', function () {}); $('#id').on('swipeleft', function () {}); $('#id').on('swiperight', function () {}); Five kinds of pages touch events http://goo.gl/S5bJNq Events Touch

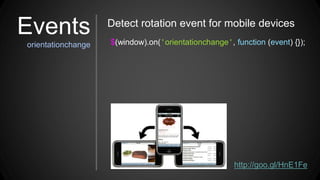

- 39. $(window).on('orientationchange', function (event){}); Detect rotation event for mobile devices http://goo.gl/HnE1Fe Events orientationchange
- 40. After a seriesof presentations Everyone should understand a little jQuery Mobile right? ? ? ? ? ?
- 41. Let's look atsome examples of jQuery Mobile
- 42. Example 1 ļ¼ Changefont size http://goo.gl/ov5WEf
- 43.
- 44.

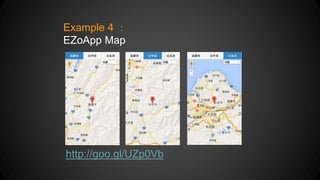

- 45. Example 4 ļ¼ EZoAppMap http://goo.gl/UZp0Vb
- 46. The above isa basic introduction to jQuery Mobile If you are interested, you can learn more on the official website http://jquerymobile.com/
