This document discusses testing single page web applications built with AngularJS. It covers using fixtures to stub HTTP responses during functional testing. Static fixtures can return pre-defined responses from files, while dynamic fixtures allow generating responses programmatically. The jasmine.test.SinonFakeServer wrapper facilitates advanced dynamic fixtures by intercepting AJAX requests and returning fake responses, simulating network delays. This allows testing the application without changing code to use stubbed responses during tests.

1. silvio.montanari@thoughtworks.com

2. Agenda
ns:
eb applicatio MVC framewor
Single page w ks:
s AngularJS
basic concept
Javascript maturity
Testing: n it
n onJS, FuncU
Jasmine, Si
A simple dem
o
app: Jashboa
rd

3. Javascript:
a first class citizen?

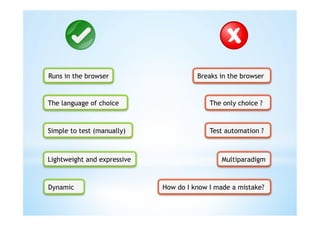

4. Runs in the browser Breaks in the browser
The language of choice The only choice ?
Simple to test (manually) Test automation ?
Lightweight and expressive Multiparadigm
Dynamic How do I know I made a mistake?

5. The Challenges
o UI interactions
o Asynchronous communication
o Frequent DOM manipulation
How to separate view and How to test effectively
behaviour Event handling
Where’s the business logic? Data-binding
Where’s the rendering logic? Callbacks

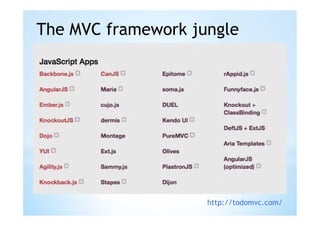

6. The MVC framework jungle
http://todomvc.com/

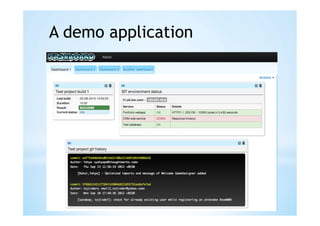

7. A demo application

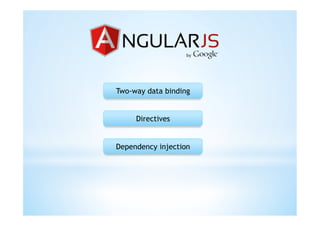

8. Two-way data binding
Directives
Dependency injection

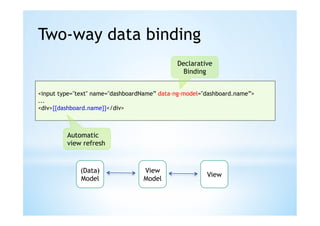

9. Two-way data binding
Declarative
Binding
<input type="text" name="dashboardName” data-ng-model="dashboard.name”>
...
<div>{{dashboard.name}}</div>
Automatic
view refresh
(Data) View
View
Model Model

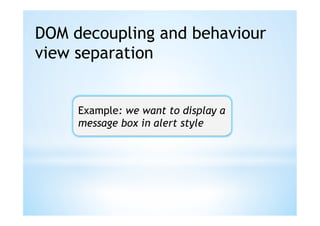

10. DOM decoupling and behaviour
view separation
Example: we want to display a
message box in alert style

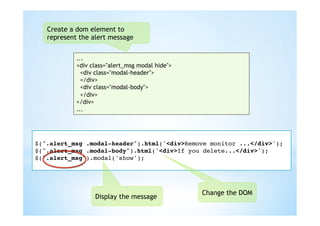

11. Create a dom element to
represent the alert message
...
<div class="alert_msg modal hide">
<div class="modal-header">
</div>
<div class="modal-body">
</div>
</div>
...
!
$(".alert_msg .modal-header").html('<div>Remove monitor ...</div>');!
$(".alert_msg .modal-body").html('<div>If you delete...</div>');!
$(".alert_msg").modal('show');!
!
Change the DOM
Display the message

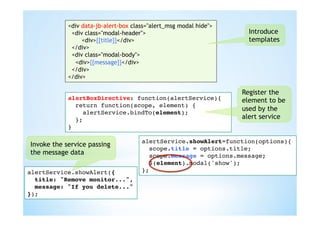

12. <div class="alert_msg modal hide">
data-jb-alert-box class="alert_msg modal hide">
<div class="modal-header"> Introduce
<div>{{title}}</div> templates
</div>
<div class="modal-body">
<div>{{message}}</div>
</div>
</div>
Register the
alertBoxDirective: function(alertService){! element to be
Wrap the
return function(scope, element) {!
widget logic used by the
alertService.bindTo(element);!
};! into a service alert service
}!
alertService.showAlert=function(options){!
Invoke the service passing
scope.title = options.title;!
the message data scope.message = options.message;!
$(element).modal('show');!
$(".alert_msg").modal('show');!
alertService.showAlert({! };!
title: "Remove monitor...",!
message: "If you delete..."!
});!

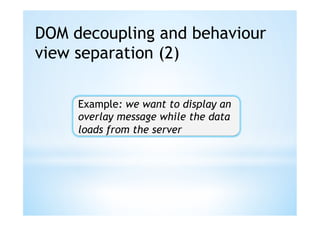

13. DOM decoupling and behaviour
view separation (2)
Example: we want to display an
overlay message while the data
loads from the server

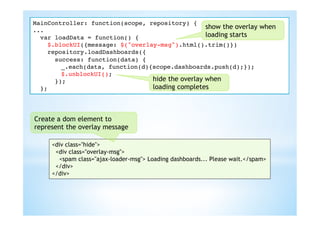

14. MainController: function(scope, repository) {!
...!
show the overlay when
var loadData = function() {! loading starts
$.blockUI({message: $("overlay-msg").html().trim()})!
repository.loadDashboards({!
repository.loadDashboards({!
success: function(data) {!
! success: function(data) {!
!_.each(data, function(d){scope.dashboards.push(d);});!
! });!_.each(data, function(d){scope.dashboards.push(d);}); ! !!
!
};! });!
! $.unblockUI();!
! };! });! hide the overlay when
! };! loading completes
Create a dom element to
represent the overlay message
<div class="hide">
<div class="overlay-msg">
<spam class="ajax-loader-msg"> Loading dashboards... Please wait.</spam>
</div>
</div>

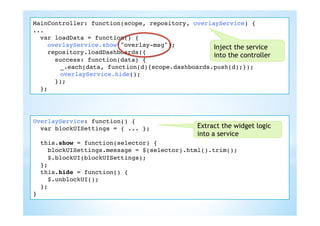

15. MainController: function(scope, repository) overlayService) {!
repository, {!
...!
var loadData = function() {!
overlayService.show("overlay-msg");!
$.blockUI({message: $("overlay-msg").html().trim()})! service
Inject the
repository.loadDashboards({!
into the controller
success: function(data) {!
! !_.each(data, function(d){scope.dashboards.push(d);});! !
function(d){scope.dashboards.push(d);}); !
! !overlayService.hide();!
!$.unblockUI();!
});!
};!
OverlayService: function() {!
var blockUISettings = { ... };! Extract the widget logic
! into a service
this.show = function(selector) {!
blockUISettings.message = $(selector).html().trim();!
$.blockUI(blockUISettings);!
};!
this.hide = function() {!
$.unblockUI();!
};!
}!

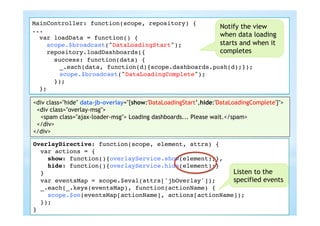

16. MainController: function(scope, repository) {!
MainController: function(scope, repository, overlayService) {!
repository) {!
Notify the view
...!
...!
var loadData = function() {!
var loadData = function() {!{ ! when data loading
scope.$broadcast("DataLoadingStart");!
overlayService.show("overlay-msg");!
repository.loadDashboards({! starts and when it
repository.loadDashboards({!
repository.loadDashboards({!
success: function(data) {! completes
! success: function(data) {!
success: function(data) {!
!_.each(data, function(d){scope.dashboards.push(d);}); !!
! });!
! !_.each(data, function(d){scope.dashboards.push(d);});! !!
!_.each(data, function(d){scope.dashboards.push(d);}); ! !
! !scope.$broadcast("DataLoadingComplete"); !!
!overlayService.hide();!
};! });!
! };! });!
});!
! };!
};!
<div class="hide">
class="hide" data-jb-overlay="{show:'DataLoadingStart’,hide:'DataLoadingComplete'}">
<div class="overlay-msg">
<spam class="ajax-loader-msg"> Loading dashboards... Please wait.</spam>
</div>
</div>
OverlayDirective: function(scope, element, attrs) {!
var actions = {!
show: function(){overlayService.show(element);},!
hide: function(){overlayService.hide(element);}!
}! Listen to the
var eventsMap = scope.$eval(attrs['jbOverlay']);! specified events
_.each(_.keys(eventsMap), function(actionName) { !
scope.$on(eventsMap[actionName], actions[actionName]);!
});!
}!

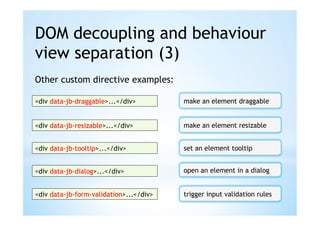

17. DOM decoupling and behaviour
view separation (3)
Other custom directive examples:
<div data-jb-draggable>...</div> make an element draggable
<div data-jb-resizable>...</div> make an element resizable
<div data-jb-tooltip>...</div> set an element tooltip
<div data-jb-dialog>...</div> open an element in a dialog
<div data-jb-form-validation>...</div> trigger input validation rules

18. Dependency injection
DashboardFormController: function(scope, repository) {!
scope.saveDashboard = function() {!
repository.createDashboard({name: this.dashboardName});!
...!
!
Repository: function(httpService) {!
this.createDashboard = function(parameters) {!
!httpService.postJSON("/ajax/dashboard", parameters);!
};!
...!
!
DashboardFormController Repository HttpService
With Angular you can use plain javascript to define your models,
services, controllers, etc.

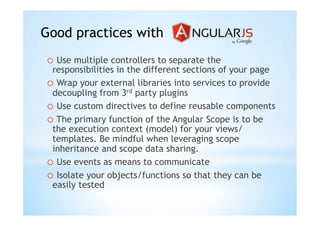

19. Good practices with
o Use multiple controllers to separate the
responsibilities in the different sections of your page
o Wrap your external libraries into services to provide
decoupling from 3rd party plugins
o Use custom directives to define reusable components
o The primary function of the Angular Scope is to be
the execution context (model) for your views/
templates. Be mindful when leveraging scope
inheritance and scope data sharing.
o Use events as means to communicate
o Isolate your objects/functions so that they can be
easily tested

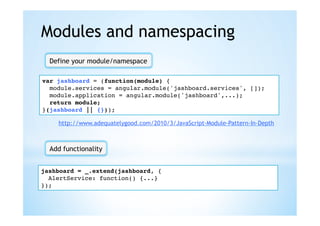

20. Modules and namespacing
Define your module/namespace
var jashboard = (function(module) {!
module.services = angular.module('jashboard.services', []);!
module.application = angular.module('jashboard',...); !
return module;!
}(jashboard || {}));!
http://www.adequatelygood.com/2010/3/JavaScript-Module-Pattern-In-Depth
Add functionality
jashboard = _.extend(jashboard, {!
AlertService: function() {...}!
});!

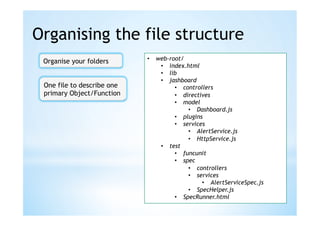

21. Organising the file structure
Organise your folders • web-root/
• index.html
• lib
• jashboard
One file to describe one • controllers
primary Object/Function • directives
• model
• Dashboard.js
• plugins
• services
• AlertService.js
• HttpService.js
• test
• funcunit
• spec
• controllers
• services
• AlertServiceSpec.js
• SpecHelper.js
• SpecRunner.html

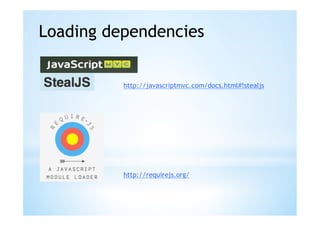

22. Loading dependencies
http://javascriptmvc.com/docs.html#!stealjs
http://requirejs.org/

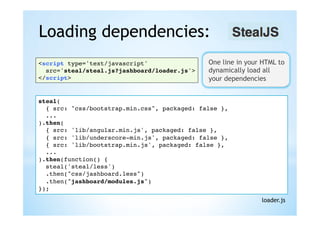

23. Loading dependencies:
<script type='text/javascript' ! One line in your HTML to
src='steal/steal.js?jashboard/loader.js'>! dynamically load all
</script>! your dependencies
steal(!
{ src: "css/bootstrap.min.css", packaged: false },!
...!
).then(!
{ src: 'lib/angular.min.js', packaged: false },!
{ src: 'lib/underscore-min.js', packaged: false },!
{ src: 'lib/bootstrap.min.js', packaged: false },!
...!
).then(function() {!
steal('steal/less')!
.then("css/jashboard.less")!
.then("jashboard/modules.js")!
});!
loader.js

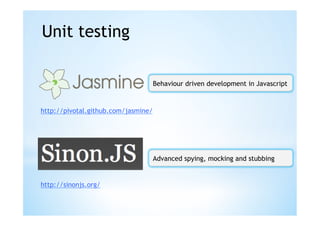

24. Unit testing
Behaviour driven development in Javascript
http://pivotal.github.com/jasmine/
Advanced spying, mocking and stubbing
http://sinonjs.org/

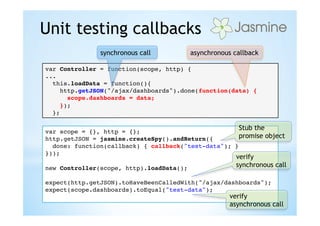

25. Unit testing callbacks
synchronous call asynchronous callback
var Controller = function(scope, http) {!
...!
this.loadData = function(){!
http.getJSON("/ajax/dashboards").done(function(data) {!
scope.dashboards = data;!
});!
};!
var scope = {}, http = {};!
Stub the
http.getJSON = jasmine.createSpy().andReturn({! promise object
done: function(callback) { callback("test-data"); }!
}));!
!
verify
new Controller(scope, http).loadData();! synchronous call
!
expect(http.getJSON).toHaveBeenCalledWith("/ajax/dashboards");!
expect(scope.dashboards).toEqual("test-data");!
! verify
asynchronous call

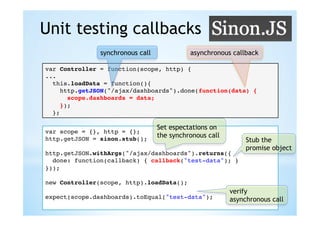

26. Unit testing callbacks
synchronous call asynchronous callback
var Controller = function(scope, http) {!
...!
this.loadData = function(){!
http.getJSON("/ajax/dashboards").done(function(data) {!
scope.dashboards = data;!
});!
};!
Set espectations on
var scope = {}, http = {};!
the synchronous call
http.getJSON = sinon.stub();! Stub the
! promise object
http.getJSON.withArgs("/ajax/dashboards").returns({!
done: function(callback) { callback("test-data"); }!
}));!
!
new Controller(scope, http).loadData();!
! verify
expect(scope.dashboards).toEqual("test-data");! asynchronous call
!

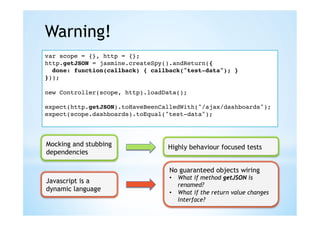

27. Warning!
var scope = {}, http = {};!
http.getJSON = jasmine.createSpy().andReturn({!
done: function(callback) { callback("test-data"); }!
}));!
!
new Controller(scope, http).loadData();!
!
expect(http.getJSON).toHaveBeenCalledWith("/ajax/dashboards");!
expect(scope.dashboards).toEqual("test-data");!
!
Mocking and stubbing Highly behaviour focused tests
dependencies
No guaranteed objects wiring
• What if method getJSON is
Javascript is a
renamed?
dynamic language • What if the return value changes
interface?

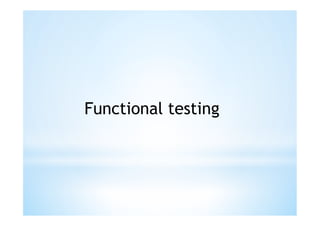

28. Functional testing

29. Browser/client
side
Asynchronous
HTTP request
(AJAX)
HTTP response
• HTML
• XML
• JSON Server side
• TEXT
• …

30. Browser/client
side
Asynchronous
HTTP request
(AJAX)
HTTP response
• HTML
• XML
• JSON Stub server Server side
• TEXT
• …

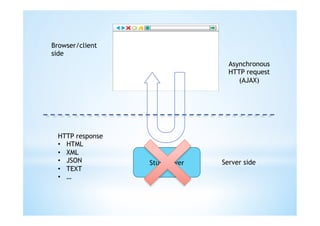

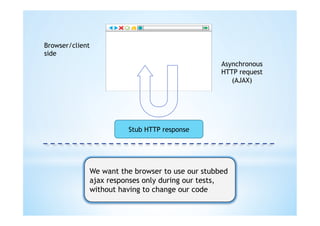

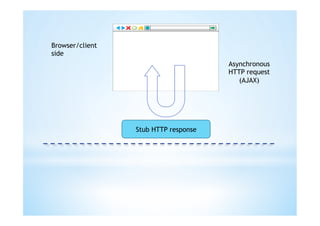

31. Browser/client
side
Asynchronous
HTTP request
(AJAX)
Stub HTTP response

32. $httpBackend (service in module ngMockE2E)
http://docs.angularjs.org/api/ngMock.$httpBackend

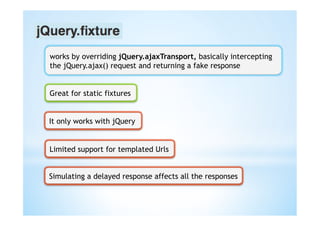

http://javascriptmvc.com/docs.html#!jQuery.fixture
FakeXMLHttpRequest!
http://sinonjs.org/docs/#server

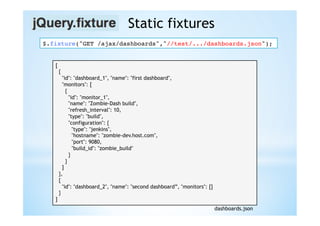

33. Static fixtures
$.fixture("GET /ajax/dashboards","//test/.../dashboards.json");!
[
{
"id": "dashboard_1", "name": "first dashboard",
"monitors": [
{
"id": "monitor_1",
"name": "Zombie-Dash build",
"refresh_interval": 10,
"type": "build",
"configuration": {
"type": "jenkins",
"hostname": "zombie-dev.host.com",
"port": 9080,
"build_id": "zombie_build"
}
}
]
},
{
"id": "dashboard_2", "name": "second dashboard”, "monitors": []
}
]
dashboards.json

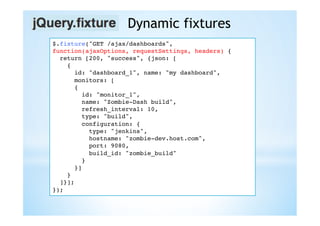

34. Dynamic fixtures
$.fixture("GET /ajax/dashboards",
function(ajaxOptions, requestSettings, headers) {!
return [200, "success", {json: [!
{!
id: "dashboard_1", name: "my dashboard",!
monitors: [!
{!
id: "monitor_1",!
name: "Zombie-Dash build",!
refresh_interval: 10,!
type: "build",!
configuration: {!
type: "jenkins",!
hostname: "zombie-dev.host.com",!
port: 9080,!
build_id: "zombie_build"!
}!
}]!
}!
]}];!
});!

35. Browser/client
side
Asynchronous
HTTP request
(AJAX)
Stub HTTP response
We want the browser to use our stubbed
ajax responses only during our tests,
without having to change our code

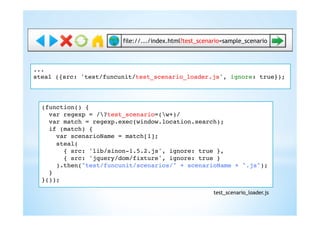

36. file://.../index.html?test_scenario=sample_scenario
...!
steal ({src: 'test/funcunit/test_scenario_loader.js', ignore: true});!
!
(function() {!
var regexp = /?test_scenario=(w+)/!
var match = regexp.exec(window.location.search);!
if (match) {!
var scenarioName = match[1];!
steal(!
{ src: 'lib/sinon-1.5.2.js', ignore: true },!
{ src: 'jquery/dom/fixture', ignore: true }!
).then("test/funcunit/scenarios/" + scenarioName + ".js");!
}!
}());!
test_scenario_loader.js

37. Example scenario
Static fixtures
$.fixture("GET /ajax/dashboards", "//test/funcunit/fixtures/
fixture_dashboards.json");!
$.fixture("GET /ajax/monitor/monitor_1/runtime", "//test/funcunit/
fixtures/fixture_build_monitor_1.json");!
!
$.fixture("POST /ajax/dashboard", function(ajaxOriginalOptions, !
ajaxOptions, headers) {!
var data = JSON.parse(ajaxOptions.data);!
!
return [201, "success", {json: {id: "dashboard_4", name: !
data.name, monitors: [] } }, {} ];!
});!
Dynamic fixture

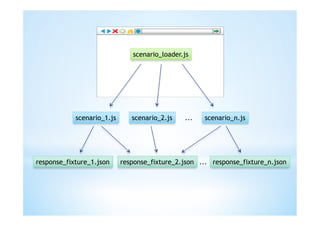

38. scenario_loader.js
scenario_1.js scenario_2.js ... scenario_n.js
response_fixture_1.json response_fixture_2.json ... response_fixture_n.json

39. works by overriding jQuery.ajaxTransport, basically intercepting
the jQuery.ajax() request and returning a fake response
Great for static fixtures
It only works with jQuery
Limited support for templated Urls
Simulating a delayed response affects all the responses

40. Advanced dynamic fixtures with
Wrapper around
sinon.fakeServer and
sinon.useFakeXMLHttpRequest
var server = new jashboard.test.SinonFakeServer();!
!
server.fakeResponse = function(httpMethod, url, response);!
response = {!
returnCode: 200,!
contentType: "application/json",!
content: {},!
delay: 1!
}!

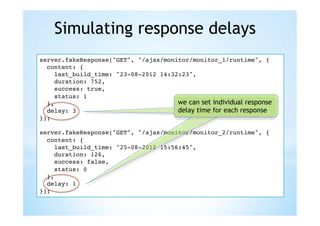

41. Simulating response delays
server.fakeResponse("GET", "/ajax/monitor/monitor_1/runtime", {!
content: {!
last_build_time: "23-08-2012 14:32:23",!
duration: 752,!
success: true,!
status: 1!
},! we can set individual response
delay: 3! delay time for each response
});!
!
server.fakeResponse("GET", "/ajax/monitor/monitor_2/runtime", {!
content: {!
last_build_time: "25-08-2012 15:56:45",!
duration: 126,!
success: false,!
status: 0!
},!
delay: 1!
});!

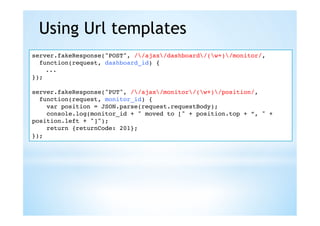

42. Using Url templates
server.fakeResponse("POST", //ajax/dashboard/(w+)/monitor/, !
function(request, dashboard_id) {!
!...!
});!
!
server.fakeResponse("PUT", //ajax/monitor/(w+)/position/, !
function(request, monitor_id) {!
var position = JSON.parse(request.requestBody);!
console.log(monitor_id + " moved to [" + position.top + ”, " +
position.left + "]");!
return {returnCode: 201};!
});!

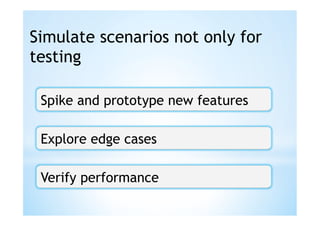

43. Simulate scenarios not only for
testing
Spike and prototype new features
Explore edge cases
Verify performance

44. Automating functional tests
o Extension of QUnit
o Integrated with popular automation frameworks like
Selenium and PhantomJS (?)
• Open a web page
• Use a jQuery-like syntax to look up elements and simulate
a user action
• Wait for a condition to be true
• Run assertions

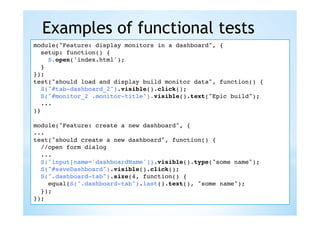

45. Examples of functional tests
module("Feature: display monitors in a dashboard", {!
setup: function() {!
S.open('index.html');!
}!
});!
test("should load and display build monitor data", function() {!
S("#tab-dashboard_2").visible().click();!
S("#monitor_2 .monitor-title").visible().text("Epic build");!
...!
)}!
!
module("Feature: create a new dashboard", {!
...!
test("should create a new dashboard", function() {!
//open form dialog!
...!
S("input[name='dashboardName']).visible().type("some name");!
S("#saveDashboard").visible().click();!
S(".dashboard-tab").size(4, function() {!
equal(S(".dashboard-tab").last().text(), "some name"); !
});!
});!

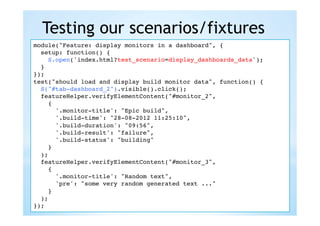

46. Testing our scenarios/fixtures
module("Feature: display monitors in a dashboard", {!
setup: function() {!
S.open('index.html?test_scenario=display_dashboards_data');!
S.open('index.html');!
}!
});!
test("should load and display build monitor data", function() {!
S("#tab-dashboard_2").visible().click();!
featureHelper.verifyElementContent("#monitor_2",!
{!
'.monitor-title': "Epic build",!
'.build-time': "28-08-2012 11:25:10",!
'.build-duration': "09:56",!
'.build-result': "failure",!
'.build-status': "building"!
}!
);!
featureHelper.verifyElementContent("#monitor_3",!
{!
'.monitor-title': "Random text",!
'pre': "some very random generated text ..."!
}!
);!
});!

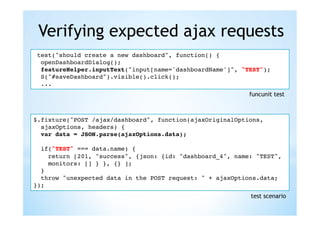

47. Verifying expected ajax requests
test("should create a new dashboard", function() {!
openDashboardDialog();!
featureHelper.inputText("input[name='dashboardName']", "TEST");!
S("#saveDashboard").visible().click();!
...!
funcunit test
$.fixture("POST /ajax/dashboard", function(ajaxOriginalOptions, !
ajaxOptions, headers) {!
var data = JSON.parse(ajaxOptions.data);!
!
if("TEST" === data.name) {!
return [201, "success", {json: {id: "dashboard_4", name: "TEST", !
monitors: [] } }, {} ];!
}!
throw "unexpected data in the POST request: " + ajaxOptions.data;!
});!
test scenario

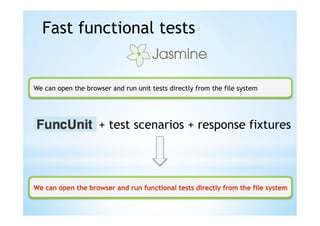

48. Fast functional tests
We can open the browser and run unit tests directly from the file system
+ test scenarios + response fixtures

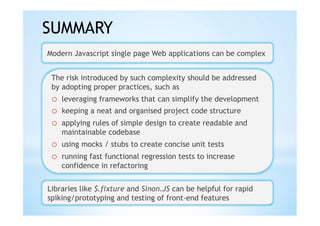

49. SUMMARY
Modern Javascript single page Web applications can be complex
The risk introduced by such complexity should be addressed
by adopting proper practices, such as
o leveraging frameworks that can simplify the development
o keeping a neat and organised project code structure
o applying rules of simple design to create readable and
maintainable codebase
o using mocks / stubs to create concise unit tests
o running fast functional regression tests to increase
confidence in refactoring
Libraries like $.fixture and Sinon.JS can be helpful for rapid
spiking/prototyping and testing of front-end features
