[FEConf Korea 2017]Angular 컴포넌트 대화법

Angular 컴포넌트 대화법
Jeado Ko

+jeado.ko (고재도)
haibane84@gmail.com
- “Google Developer Expert” WebTech
- “Kakao Bank 빅데이터 파트” Developer

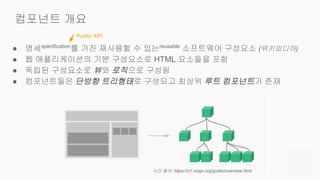

● 명세specification
를 가진 재사용할 수 있는reusable
소프트웨어 구성요소 (위키피디아)
● 웹 애플리케이션의 기본 구성요소로 HTML 요소들을 포함
● 독립된 구성요소로 뷰와 로직으로 구성됨
● 컴포넌트들은 단방향 트리형태로 구성되고 최상위 루트 컴포넌트가 존재
Public API
사진 출처: https://v1.vuejs.org/guide/overview.html
컴포넌트 개요

Angular의 Hello World 컴포넌트
import { Component } from '@angular/core' ;
@Component({
selector: 'my-hello-world' ,
template: '<h1>{{title}}</h1>' ,
styles: ['h1 { color: red }' ]
})
export class HelloWorldComponent {
title = 'Hello World!!' ;
}

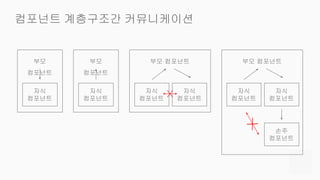

컴포넌트 계층구조간 커뮤니케이션
부모
컴포넌트
자식
컴포넌트
부모
컴포넌트
자식
컴포넌트
부모 컴포넌트
자식
컴포넌트
자식
컴포넌트
손주
컴포넌트
부모 컴포넌트
자식
컴포넌트
자식
컴포넌트

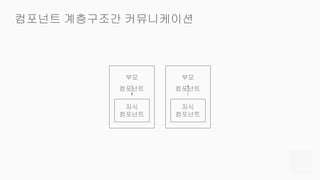

컴포넌트 계층구조간 커뮤니케이션
부모
컴포넌트
자식
컴포넌트
부모
컴포넌트
자식
컴포넌트

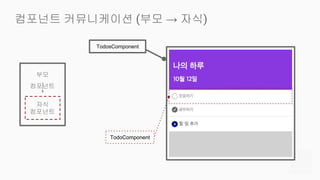

컴포넌트 커뮤니케이션 (부모 → 자식)
부모
컴포넌트
자식
컴포넌트
TodosComponent
TodoComponent

● 자식컴포넌트에서 부모가 전달할 속성에 @Input() 데코레이터를 사용
import {Component, Input, OnInit} from '@angular/core';
import {Todo} from '../../share/todo.model';
@Component({
selector: 'app-todo',
template: `
<input type="checkbox" [checked]="todo.done"> <label>{{ todo.text }}</label>
`,
styles: [`...`] // 생략
})
export class TodoComponent {
@Input() todo: Todo;
constructor() { }
}

● 부모 컴포넌트에서는 속성 바인딩을 통해 데이터 전달

<div *ngFor="let todo of todos" >
<app-todo [todo]="todo"></app-todo>
</div>
// todos.compotonent.ts
@Component({
selector: 'app-todos' ,
templateUrl: './todos.component.html' ,
styleUrls: ['./todos.component.css' ]
})
export class TodosComponent implements OnInit {
todos: Todo[];
constructor () {
this.todos = [
{ done: false, text: '운동하기' },
{ done: true, text: '공부하기'}
];
}
|

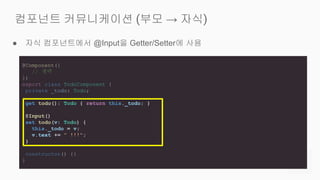

● 자식 컴포넌트에서 @Input을 Getter/Setter에 사용
@Component({
// 생략
})
export class TodoComponent {
private _todo: Todo;
get todo(): Todo { return this._todo; }
@Input()
set todo(v: Todo) {
this._todo = v;
v.text += " !!!";
}
constructor() {}
}

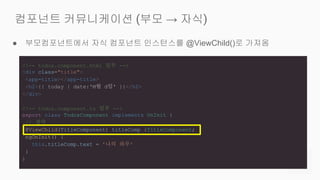

● 부모컴포넌트에서 자식 컴포넌트 인스턴스를 @ViewChild()로 가져옴
<div class="title">
<app-title></app-title>
<h2>{{ today | date:'M월 d일' }}</h2>
</div>

export class TodosComponent implements OnInit {
// 생략
@ViewChild(TitleComponent) titleComp :TitleComponent;
ngOnInit() {
this.titleComp.text = '나의 하루'
}
}

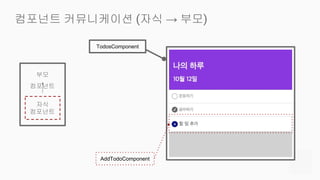

컴포넌트 커뮤니케이션 (자식 → 부모)
부모
컴포넌트
자식
컴포넌트
TodosComponent
AddTodoComponent

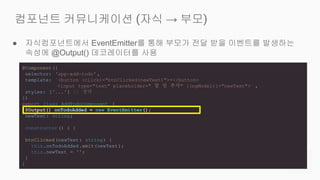

● 자식컴포넌트에서 EventEmitter를 통해 부모가 전달 받을 이벤트를 발생하는
속성에 @Output() 데코레이터를 사용
@Component({
selector: 'app-add-todo' ,
template: `<button (click)="btnClicked(newText)">+</button>
<input type="text" placeholder=" 할 일 추가" [(ngModel)]="newText">` ,
styles: ['...'] // 생략
})
export class AddTodoComponent {
@Output() onTodoAdded = new EventEmitter();
newText: string;
constructor () { }
btnClicked(newText: string) {
this.onTodoAdded .emit(newText);
this.newText = '';
}
}

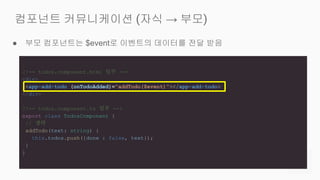

● 부모 컴포넌트는 $event로 이벤트의 데이터를 전달 받음
<div>
<app-add-todo (onTodoAdded)="addTodo($event)"></app-add-todo>
</div>

export class TodosComponent {
// 생략
addTodo(text: string) {
this.todos.push({done : false, text});
}
}

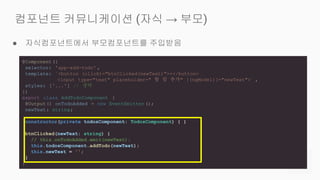

● 자식컴포넌트에서 부모컴포넌트를 주입받음
@Component({
selector: 'app-add-todo' ,
template: `<button (click)="btnClicked(newText)">+</button>
<input type="text" placeholder=" 할 일 추가" [(ngModel)]="newText">` ,
styles: ['...'] // 생략
})
export class AddTodoComponent {
@Output() onTodoAdded = new EventEmitter ();
newText: string;
constructor(private todosComponent: TodosComponent) { }
btnClicked(newText: string) {
// this.onTodoAdded.emit(newText);
this.todosComponent.addTodo(newText);
this.newText = '';
}
}

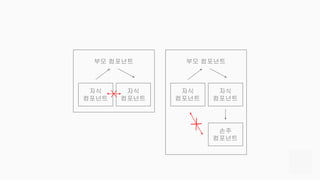

부모 컴포넌트
자식
컴포넌트
자식
컴포넌트
부모 컴포넌트
자식
컴포넌트
자식
컴포넌트
손주
컴포넌트

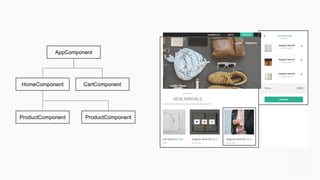

AppComponent
CartComponentHomeComponent
ProductComponent ProductComponent

라우터를 연결하고 다른 모듈을 넣었다면?!

<app-drawer #drawer>
<app-cart (onClose)="drawer.close()"></fc-cart>
</app-drawer>
<app-navi></app-navi>
<main [ngClass]="{'m-t-main': !isHome}">
<router-outlet></router-outlet>
</main>

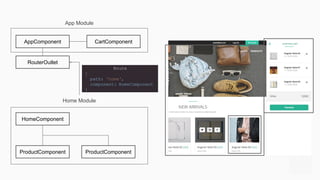

AppComponent CartComponent
HomeComponent
ProductComponent ProductComponent
RouterOutlet
App Module
Home Module
Route
{
path: 'home',
component: HomeComponent
}

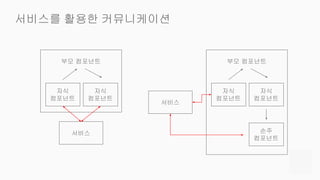

서비스를 활용한 커뮤니케이션
부모 컴포넌트
자식
컴포넌트
자식
컴포넌트
서비스
부모 컴포넌트
자식
컴포넌트
자식
컴포넌트
손주
컴포넌트
서비스

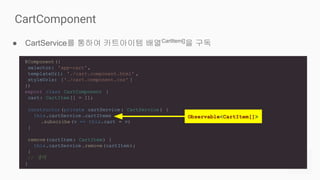

● CartService를 통하여 카트아이템 배열CartItem[]
을 구독
CartComponent
@Component({
selector: 'app-cart',
templateUrl: './cart.component.html' ,
styleUrls: ['./cart.component.css' ]
})
export class CartComponent {
cart: CartItem[] = [];
constructor (private cartService : CartService ) {
this.cartService .cartItems
.subscribe(v => this.cart = v)
}
remove(cartItem: CartItem) {
this.cartService .remove(cartItem);
}
// 생략
}
Observable<CartItem[]>

● CartService를 통하여 카트아이템 배열CartItem[]
을 구독
HomeComponent
@Component({
selector: 'app-home',
templateUrl: './home.component.html',
styleUrls: ['./home.component.css']
})
export class HomeComponent {
constructor( private cartService: CartService) { }
addCart(product: Product) {
this.cartService.addCart(product);
}
// 생략
}

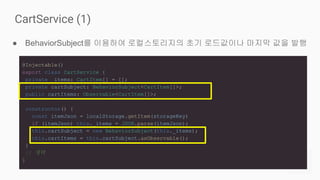

● BehaviorSubject를 이용하여 로컬스토리지의 초기 로드값이나 마지막 값을 발행
CartService (1)
@Injectable()
export class CartService {
private _items: CartItem[] = [];
private cartSubject: BehaviorSubject<CartItem[]>;
public cartItems: Observable<CartItem[]>;
constructor() {
const itemJson = localStorage.getItem(storageKey)
if (itemJson) this._items = JSON.parse(itemJson);
this.cartSubject = new BehaviorSubject(this._items);
this.cartItems = this.cartSubject.asObservable();
}
// 생략
}

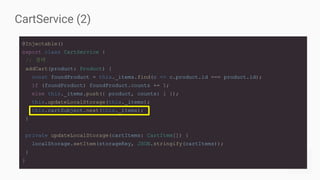

CartService (2)
@Injectable()
// 생략
addCart(product: Product) {
const foundProduct = this._items.find(c => c.product.id === product.id);
if (foundProduct) foundProduct.counts += 1;
else this._items.push({ product, counts: 1 });
this.updateLocalStorage(this._items);
this.cartSubject.next(this._items);
}
private updateLocalStorage(cartItems: CartItem[]) {
localStorage.setItem(storageKey, JSON.stringify(cartItems));
}
}

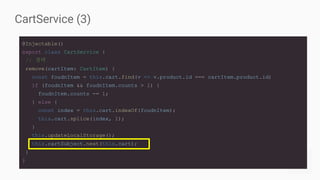

CartService (3)
@Injectable()
// 생략
remove(cartItem: CartItem) {
const foudnItem = this.cart.find(v => v.product.id === cartItem.product.id)
if (foudnItem && foudnItem.counts > 1) {
foudnItem.counts -= 1;
} else {
const index = this.cart.indexOf(foudnItem);
this.cart.splice(index, 1);
}
this.updateLocalStorage();
this.cartSubject.next(this.cart);
}
}

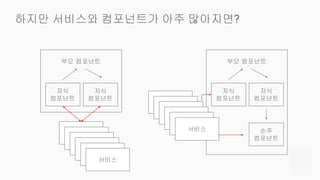

하지만 서비스와 컴포넌트가 아주 많아지면?
부모 컴포넌트
자식
컴포넌트
자식
컴포넌트
서비스
부모 컴포넌트
자식
컴포넌트
자식
컴포넌트
손주
컴포넌트
서비스
서비스
서비스
서비스
서비스
서비스
서비스
서비스
서비스
서비스
서비스

자바스크립트 앱을 위한
예측가능한 상태
컨테이너
PREDICTABLE STATE
CONTAINER
FOR JAVASCRIPT APPS

WITHOUT REDUX
● 컴포넌트간 직접적인 통신
(속성 바인딩, eventEmitter 활용)

WITH REDUX
● 컴포넌트간의 직접 통신이 없다.
● 스토어를 통한 단 하나의 상태로
관리

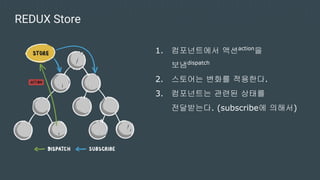

REDUX Store
1. 컴포넌트에서 액션action
을
보냄dispatch
2. 스토어는 변화를 적용한다.
3. 컴포넌트는 관련된 상태를
전달받는다. (subscribe에 의해서)

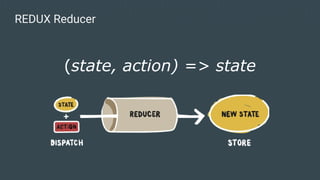

REDUX Reducer
(state, action) => state

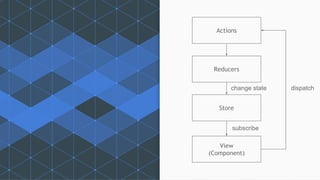

Actions
Reducers
Store
View
(Component)
subscribe
change state dispatch

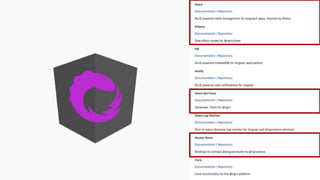

● @ngrx - Reactive Extensions for Angular
ngrx (https://ngrx.github.io/)

참고 : https://gist.github.com/btroncone/a6e4347326749f938510

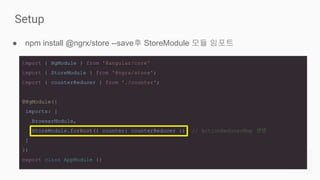

Setup
● npm install @ngrx/store --save후 StoreModule 모듈 임포트
import { NgModule } from '@angular/core'
import { StoreModule } from '@ngrx/store';
import { counterReducer } from './counter';
@NgModule({
imports: [
BrowserModule,
StoreModule.forRoot({ counter: counterReducer }) // ActionReducerMap 전달
]
})
export class AppModule {}

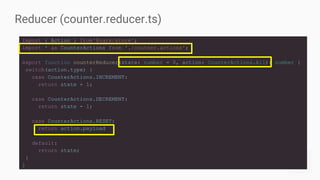

Reducer (counter.reducer.ts)
import { Action } from'@ngrx/store';
import * as CounterActions from './coutner.actions';
export function counterReducer(state: number = 0, action: CounterActions.All): number {
switch(action.type) {
case CounterActions.INCREMENT:
return state + 1;
case CounterActions.DECREMENT:
return state - 1;
case CounterActions.RESET:
return action.payload
default:
return state;
}
}

Action (counter.actions.ts)
import { Action } from '@ngrx/store';
export const INCREMENT = '[Counter] Increment';
export const DECREMENT = '[Counter] Decrement';
export const RESET = '[Counter] Reset';
export class Increment implements Action {
readonly type = INCREMENT;
}
export class Decrement implements Action {
readonly type = DECREMENT;
}
export class Reset implements Action {
readonly type = RESET;
constructor(public payload: number) {}
}
export type All = Increment | Decrement | Reset;

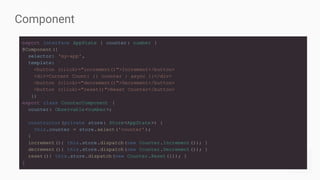

Component
export interface AppState { counter: number }
@Component({
selector: 'my-app',
template: `
<button (click)="increment()">Increment</button>
<div>Current Count: {{ counter | async }}</div>
<button (click)="decrement()">Decrement</button>
<button (click)="reset()">Reset Counter</button>
`})
export class CounterComponent {
counter: Observable<number>;
constructor (private store: Store<AppState>) {
this.counter = store.select('counter');
}
increment(){ this.store.dispatch(new Counter.Increment()); }
decrement(){ this.store.dispatch(new Counter.Decrement()); }
reset(){ this.store.dispatch(new Counter.Reset(1)); }
}

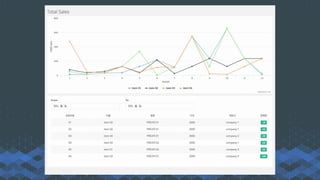

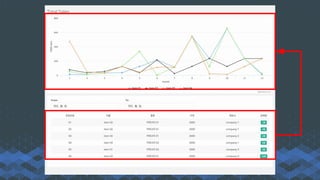

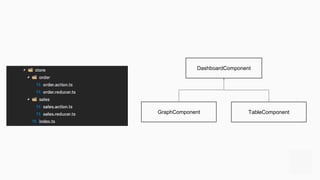

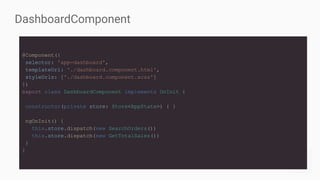

DashboardComponent
TableComponentGraphComponent

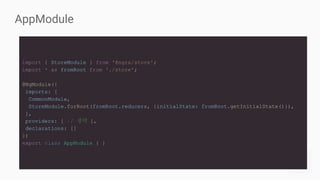

AppModule
import { StoreModule } from '@ngrx/store';
import * as fromRoot from './store';
@NgModule({
imports: [
CommonModule,
StoreModule.forRoot(fromRoot.reducers, {initialState: fromRoot.getInitialState()}),
],
providers: [ // 생략 ],
declarations: []
})
export class AppModule { }

import * as fromSales from './sales/sales.reducer' ;
import * as fromOrder from './order/order.reducer' ;
export interface AppState {
sales: fromSales.State;
orders: fromOrder.OrderState;
}
export const initialState : AppState = {
sales: fromSales.initialState ,
orders: fromOrder.initialState
};
export function getInitialState (): AppState {
return initialState ;
}
export const reducers: ActionReducerMap <AppState> = {
sales: fromSales.reducer,
orders: fromOrder.reducer
};
store/index.ts

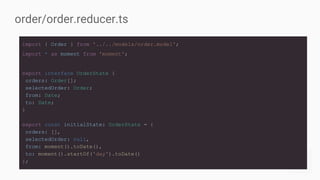

import { Order } from '../../models/order.model';
import * as moment from 'moment';
export interface OrderState {
orders: Order[];
selectedOrder: Order;
from: Date;
to: Date;
}
export const initialState: OrderState = {
orders: [],
selectedOrder: null,
from: moment().toDate(),
to: moment().startOf('day').toDate()
};
order/order.reducer.ts

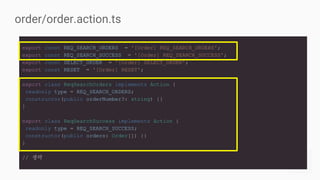

export const SEARCH_ORDERS = '[Order] SEARCH_ORDERS';
export const SELECT_ORDER = '[Order] SELECT_ORDER';
export const RESET = '[Order] RESET';
export class SearchOrder implements Action {
readonly type = SEARCH_ORDERS;
}
export class SelectOrder implements Action {
readonly type = SELECT_ORDER;
constructor(public order: Order) {}
}
export class Reset implements Action {
readonly type = RESET;
}
export type All = ReqSearchOrders | SearchOrder | SelectOrder | Reset;
order/order.action.ts

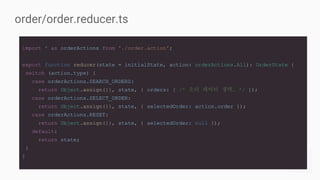

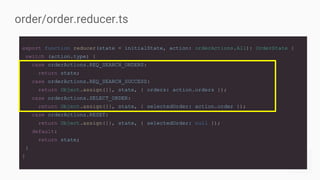

import * as orderActions from './order.action';
export function reducer(state = initialState, action: orderActions.All): OrderState {
switch (action.type) {
case orderActions.SEARCH_ORDERS:
return Object.assign({}, state, { orders: [ /* 오더 데이터 생략… */ ]);
case orderActions.SELECT_ORDER:
return Object.assign({}, state, { selectedOrder: action.order });
case orderActions.RESET:
return Object.assign({}, state, { selectedOrder: null });
default:
return state;
}
}

@Component({
selector: 'app-table' ,
templateUrl: './table.component.html' ,
styleUrls: ['./table.component.scss' ]
})
export class TableComponent implements OnInit {
orders: Observable<Order[]>;
selectedOrder : Order;
constructor (private store: Store<AppState>) {
this.orders = store.select(v => v.orders.orders)
this.store.select(v => v.orders.selectedOrder )
.subscribe(v => this.selectedOrder = v);
}
select(p: Order) {
if (p === this.selectedOrder ) {
this.store.dispatch(new orderActions .Reset());
} else {
this.store.dispatch(new orderActions .SelectOrder (p));
}
}
}
TableComponent

@Component({
selector: 'app-dashboard',
templateUrl: './dashboard.component.html',
styleUrls: ['./dashboard.component.scss']
})
export class DashboardComponent implements OnInit {
constructor(private store: Store<AppState>) { }
ngOnInit() {
this.store.dispatch(new SearchOrders())
this.store.dispatch(new GetTotalSales())
}
}
DashboardComponent

코드에 박힌
데이터 말고 실제
서비스는 어떻게
하는데…

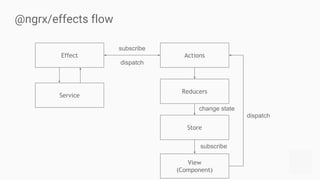

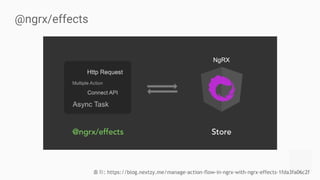

@ngrx/effects
출처: https://blog.nextzy.me/manage-action-flow-in-ngrx-with-ngrx-effects-1fda3fa06c2f

Actions
Reducers
Store
View
(Component)
subscribe
change state
dispatch
Effect
@ngrx/effects flow
Service
subscribe
dispatch

export const REQ_SEARCH_ORDERS = '[Order] REQ_SEARCH_ORDERS';
export const REQ_SEARCH_SUCCESS = '[Order] REQ_SEARCH_SUCCESS';
export const SELECT_ORDER = '[Order] SELECT_ORDER';
export const RESET = '[Order] RESET';
export class ReqSearchOrders implements Action {
readonly type = REQ_SEARCH_ORDERS;
constructor(public orderNumber?: string) {}
}
export class ReqSearchSuccess implements Action {
readonly type = REQ_SEARCH_SUCCESS;
constructor(public orders: Order[]) {}
}
// 생략
order/order.action.ts

export function reducer(state = initialState, action: orderActions.All): OrderState {
switch (action.type) {
case orderActions.REQ_SEARCH_ORDERS:
return state;
case orderActions.REQ_SEARCH_SUCCESS:
return Object.assign({}, state, { orders: action.orders });
case orderActions.SELECT_ORDER:
return Object.assign({}, state, { selectedOrder: action.order });
case orderActions.RESET:
return Object.assign({}, state, { selectedOrder: null });
default:
return state;
}
}

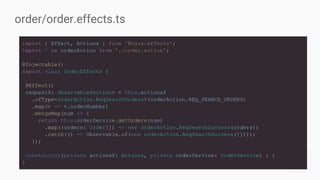

import { Effect, Actions } from '@ngrx/effects';
import * as orderAction from './order.action';
@Injectable()
export class OrderEffects {
@Effect()
request$: Observable<Action> = this.actions$
.ofType<orderAction.ReqSearchOrders>(orderAction.REQ_SEARCH_ORDERS)
.map(v => v.orderNumber)
.mergeMap(num => {
return this.orderService.getOrders(num)
.map((orders: Order[]) => new orderAction.ReqSearchSuccess(orders))
.catch(() => Observable.of(new orderAction.ReqSearchSuccess([])));
});
constructor(private actions$: Actions, private orderService: OrderService) { }
}
order/order.effects.ts

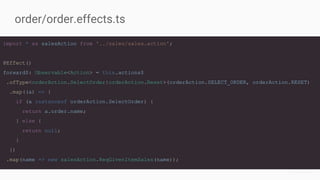

import * as salesAction from '../sales/sales.action';
@Effect()
forward$: Observable<Action> = this.actions$
.ofType<orderAction.SelectOrder|orderAction.Reset>(orderAction.SELECT_ORDER, orderAction.RESET)
.map((a) => {
if (a instanceof orderAction.SelectOrder) {
return a.order.name;
} else {
return null;
}
})
.map(name => new salesAction.ReqGivenItemSales(name));

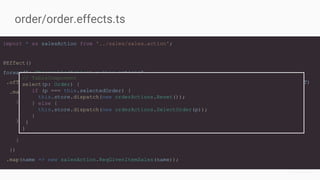

import * as salesAction from '../sales/sales.action';
@Effect()
forward$: Observable<Action> = this.actions$
.ofType<orderAction.SelectOrder|orderAction.Reset>(orderAction.SELECT_ORDER, orderAction.RESET)
.map((a) => {
if (a instanceof orderAction.SelectOrder) {
return a.order.name;
} else {
return null;
}
})
.map(name => new salesAction.ReqGivenItemSales(name));
// TableComponent
select(p: Order) {
if (p === this.selectedOrder) {
this.store.dispatch(new orderActions.Reset());
} else {
this.store.dispatch(new orderActions.SelectOrder(p));
}
}
}

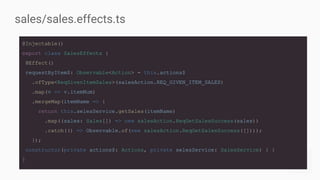

sales/sales.effects.ts
@Injectable()
export class SalesEffects {
@Effect()
requestByItem$: Observable<Action> = this.actions$
.ofType<ReqGivenItemSales>(salesAction.REQ_GIVEN_ITEM_SALES)
.map(v => v.itemNum)
.mergeMap(itemName => {
return this.selesService.getSales(itemName)
.map((sales: Sales[]) => new salesAction.ReqGetSalesSuccess(sales))
.catch(() => Observable.of(new salesAction.ReqGetSalesSuccess([])));
});
constructor(private actions$: Actions, private selesService: SalesService) { }
}

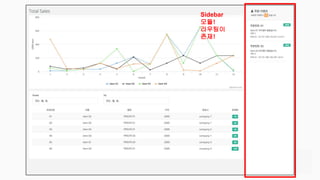

Sidebar
모듈!
라우팅이
존재!

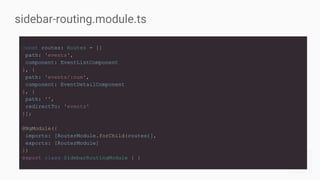

sidebar-routing.module.ts
const routes: Routes = [{
path: 'events',
component: EventListComponent
}, {
path: 'events/:num',
component: EventDetailComponent
}, {
path: '',
redirectTo: 'events'
}];
@NgModule({
imports: [RouterModule.forChild(routes)],
exports: [RouterModule]
})
export class SidebarRoutingModule { }

/**

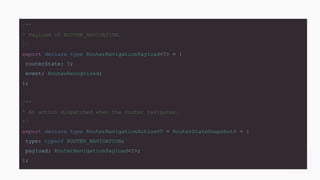

* Payload of ROUTER_NAVIGATION.
*/
export declare type RouterNavigationPayload<T> = {
routerState: T;
event: RoutesRecognized;
};
/**
* An action dispatched when the router navigates.
*/
export declare type RouterNavigationAction<T = RouterStateSnapshot> = {
type: typeof ROUTER_NAVIGATION;
payload: RouterNavigationPayload<T>;
};

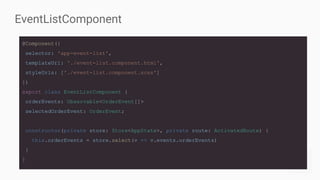

EventListComponent
@Component({
selector: 'app-event-list',
templateUrl: './event-list.component.html',
styleUrls: ['./event-list.component.scss']
})
export class EventListComponent {
orderEvents: Observable<OrderEvent[]>
selectedOrderEvent: OrderEvent;
constructor(private store: Store<AppState>, private route: ActivatedRoute) {
this.orderEvents = store.select(v => v.events.orderEvents)
}
}

event-list.component.html 일부
<ul class="sidebar-list">
<li *ngFor="let event of orderEvents | async" [routerLink]="[event.orderNumber]">
<a>
<span class="label label-primary pull-right">NEW</span>
<h4>주문번호: {{event.orderNumber}}</h4>
{{event.text}}
<div class="small">수량: {{event.salesNumber}}</div>
<div class="small text-muted m-t-xs">판매시간 - {{event.date | date:'medium'}}</div>
</a>
</li>
</ul>

EventEffects는
에디터에서 보겠습니다.

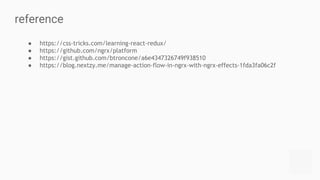

● https://css-tricks.com/learning-react-redux/
● https://github.com/ngrx/platform
● https://gist.github.com/btroncone/a6e4347326749f938510
● https://blog.nextzy.me/manage-action-flow-in-ngrx-with-ngrx-effects-1fda3fa06c2f
reference

[FEConf Korea 2017]Angular 컴포넌트 대화법

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (6)

Similar to [FEConf Korea 2017]Angular 컴포넌트 대화법

Similar to [FEConf Korea 2017]Angular 컴포넌트 대화법 (20)

Recently uploaded

Recently uploaded (20)

[FEConf Korea 2017]Angular 컴포넌트 대화법
