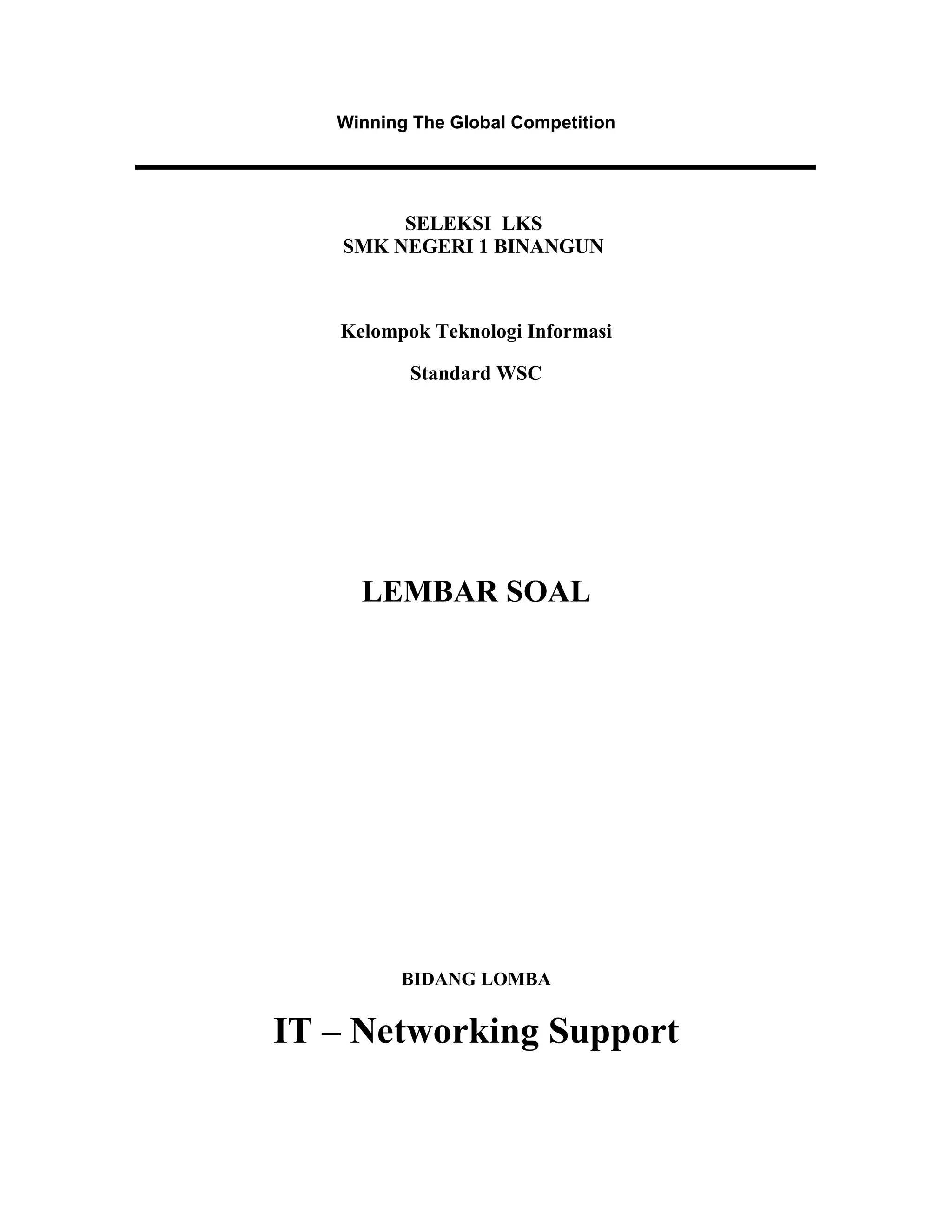

1. Winning The Global Competition
SELEKSI LKS
SMK NEGERI 1 BINANGUN
Kelompok Teknologi Informasi
Standard WSC
LEMBAR SOAL
BIDANG LOMBA
IT – Networking Support

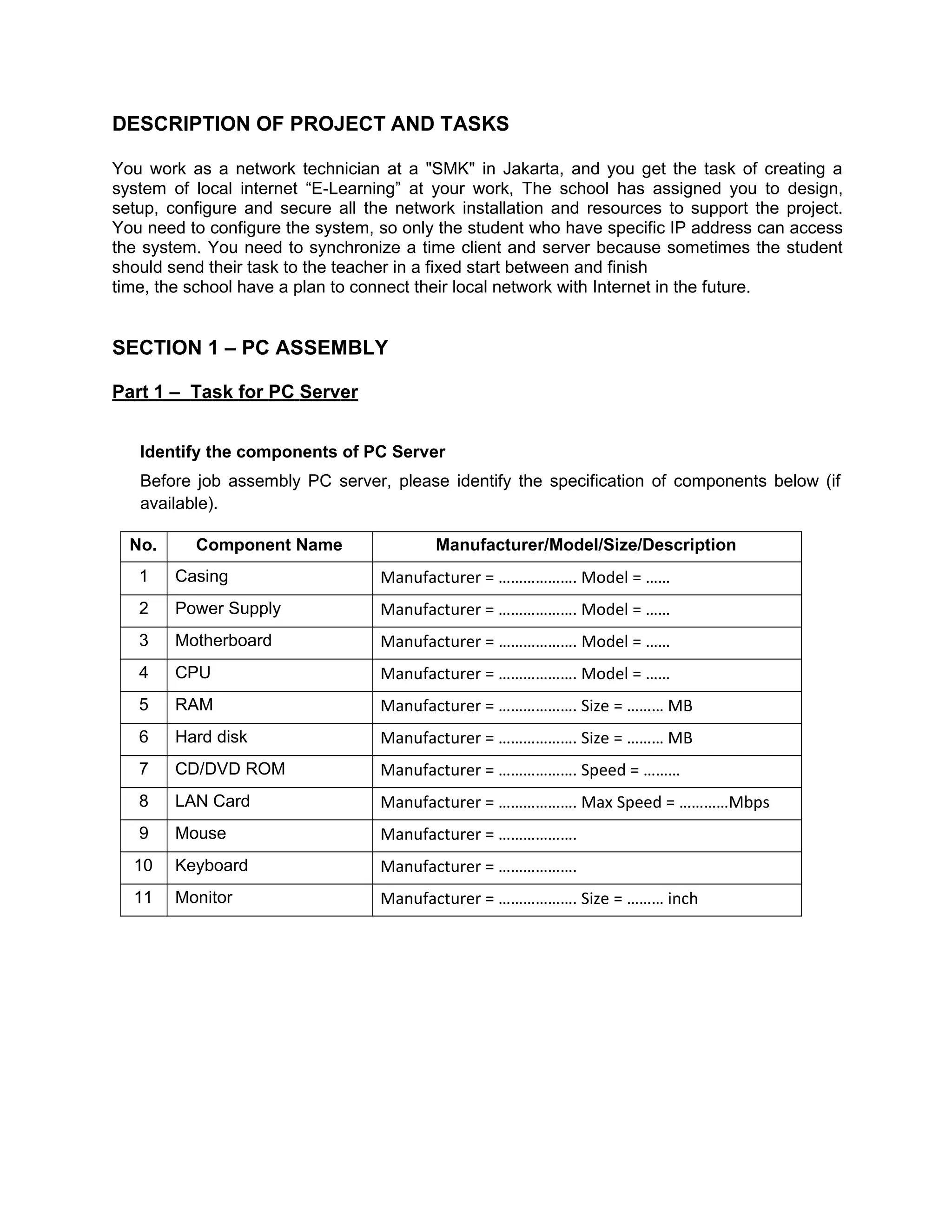

2. DESCRIPTION OF PROJECT AND TASKS
You work as a network technician at a "SMK" in Jakarta, and you get the task of creating a
system of local internet “E-Learning” at your work, The school has assigned you to design,
setup, configure and secure all the network installation and resources to support the project.
You need to configure the system, so only the student who have specific IP address can access
the system. You need to synchronize a time client and server because sometimes the student
should send their task to the teacher in a fixed start between and finish
time, the school have a plan to connect their local network with Internet in the future.
SECTION 1 – PC ASSEMBLY
Part 1 – Task for PC Server
Identify the components of PC Server
Before job assembly PC server, please identify the specification of components below (if
available).
No. Component Name Manufacturer/Model/Size/Description
1 Casing Manufacturer = ………………. Model = ……
2 Power Supply Manufacturer = ………………. Model = ……
3 Motherboard Manufacturer = ………………. Model = ……
4 CPU Manufacturer = ………………. Model = ……
5 RAM Manufacturer = ………………. Size = ……… MB
6 Hard disk Manufacturer = ………………. Size = ……… MB
7 CD/DVD ROM Manufacturer = ………………. Speed = ………
8 LAN Card Manufacturer = ………………. Max Speed = …………Mbps
9 Mouse Manufacturer = ……………….
10 Keyboard Manufacturer = ……………….
11 Monitor Manufacturer = ………………. Size = ……… inch

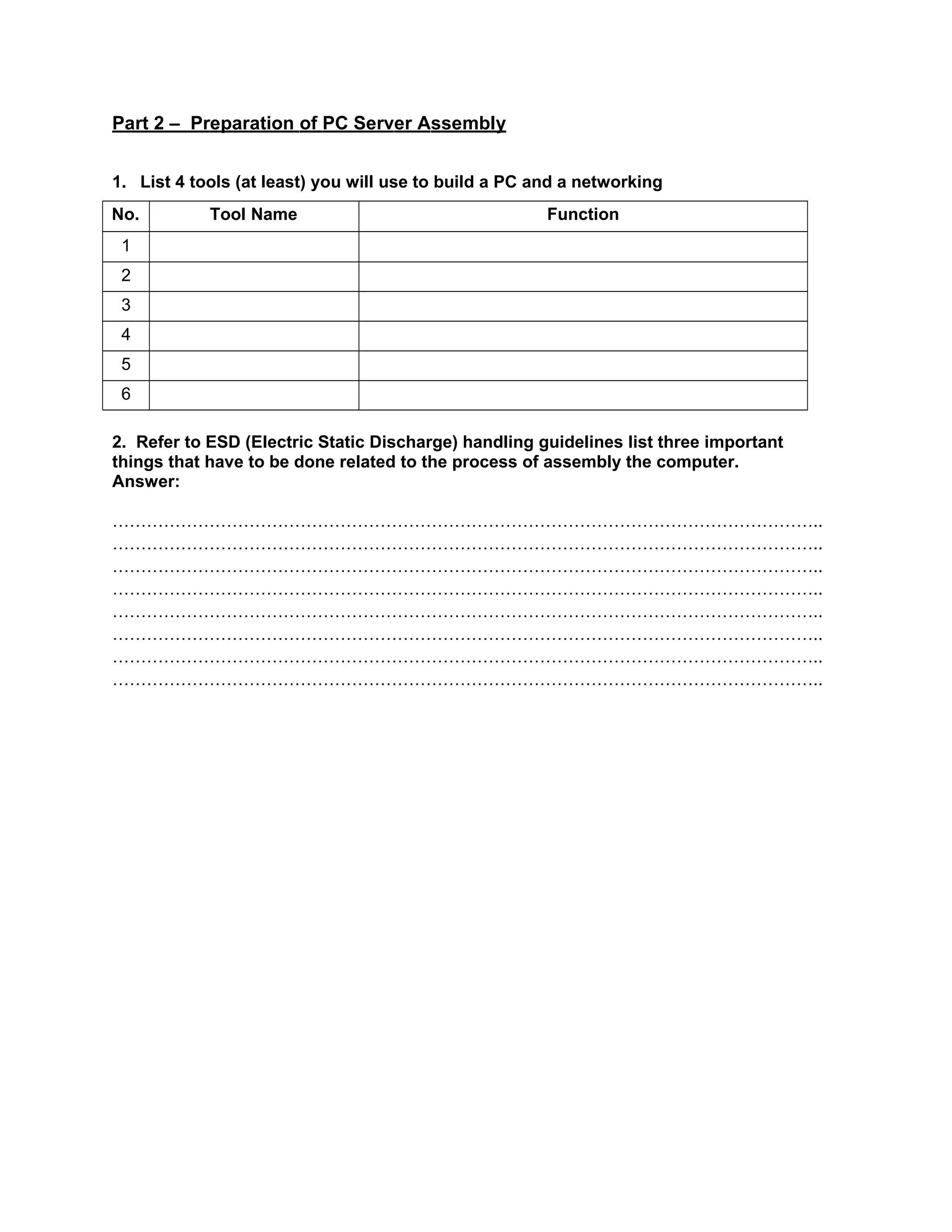

3. Part 2 – Preparation of PC Server Assembly
1. List 4 tools (at least) you will use to build a PC and a networking
No. Tool Name Function
1
2
3
4
5
6
2. Refer to ESD (Electric Static Discharge) handling guidelines list three important
things that have to be done related to the process of assembly the computer.
Answer:
……………………………………………………………………………………………………………..
……………………………………………………………………………………………………………..
……………………………………………………………………………………………………………..
……………………………………………………………………………………………………………..
……………………………………………………………………………………………………………..
……………………………………………………………………………………………………………..
……………………………………………………………………………………………………………..
……………………………………………………………………………………………………………..

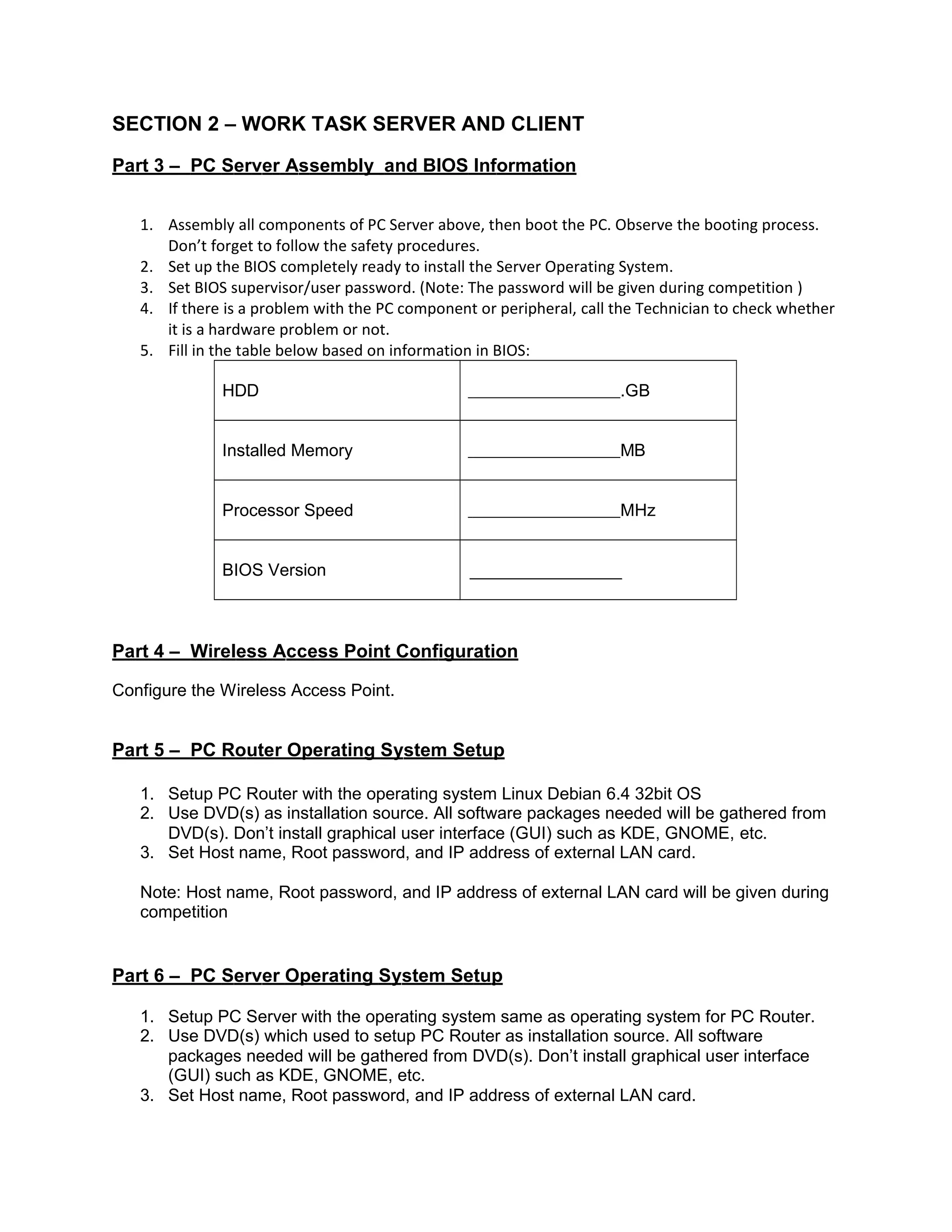

4. SECTION 2 – WORK TASK SERVER AND CLIENT
Part 3 – PC Server Assembly and BIOS Information
1. Assembly all components of PC Server above, then boot the PC. Observe the booting process.
Don’t forget to follow the safety procedures.
2. Set up the BIOS completely ready to install the Server Operating System.
3. Set BIOS supervisor/user password. (Note: The password will be given during competition )
4. If there is a problem with the PC component or peripheral, call the Technician to check whether
it is a hardware problem or not.
5. Fill in the table below based on information in BIOS:
HDD .GB
Installed Memory MB
Processor Speed MHz
BIOS Version
Part 4 – Wireless Access Point Configuration
Configure the Wireless Access Point.
Part 5 – PC Router Operating System Setup
1. Setup PC Router with the operating system Linux Debian 6.4 32bit OS
2. Use DVD(s) as installation source. All software packages needed will be gathered from
DVD(s). Don’t install graphical user interface (GUI) such as KDE, GNOME, etc.
3. Set Host name, Root password, and IP address of external LAN card.
Note: Host name, Root password, and IP address of external LAN card will be given during
competition
Part 6 – PC Server Operating System Setup
1. Setup PC Server with the operating system same as operating system for PC Router.
2. Use DVD(s) which used to setup PC Router as installation source. All software
packages needed will be gathered from DVD(s). Don’t install graphical user interface
(GUI) such as KDE, GNOME, etc.
3. Set Host name, Root password, and IP address of external LAN card.

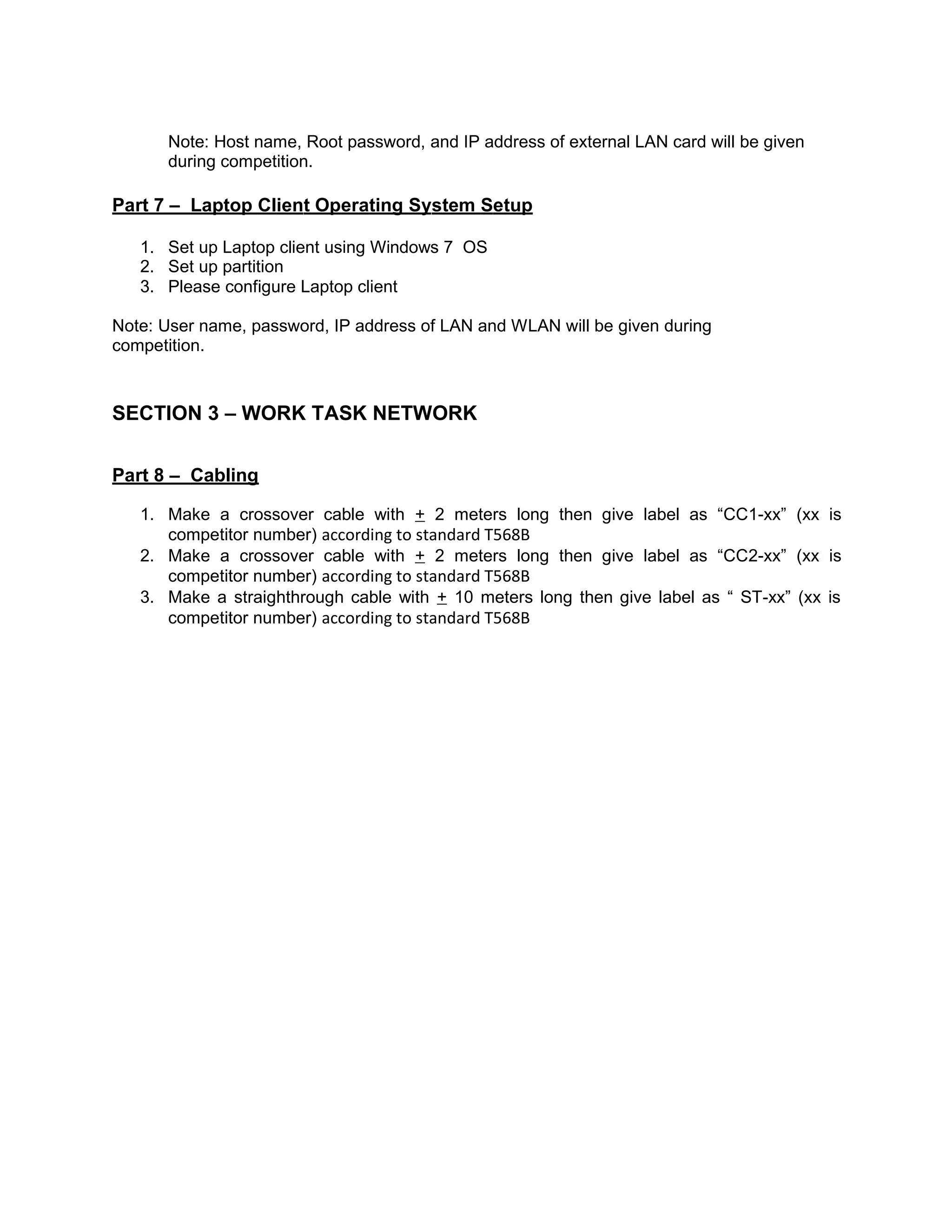

5. Note: Host name, Root password, and IP address of external LAN card will be given
during competition.
Part 7 – Laptop Client Operating System Setup
1. Set up Laptop client using Windows 7 OS
2. Set up partition
3. Please configure Laptop client
Note: User name, password, IP address of LAN and WLAN will be given during
competition.
SECTION 3 – WORK TASK NETWORK
Part 8 – Cabling
1. Make a crossover cable with + 2 meters long then give label as “CC1-xx” (xx is
competitor number) according to standard T568B
2. Make a crossover cable with + 2 meters long then give label as “CC2-xx” (xx is
competitor number) according to standard T568B
3. Make a straighthrough cable with + 10 meters long then give label as “ ST-xx” (xx is
competitor number) according to standard T568B

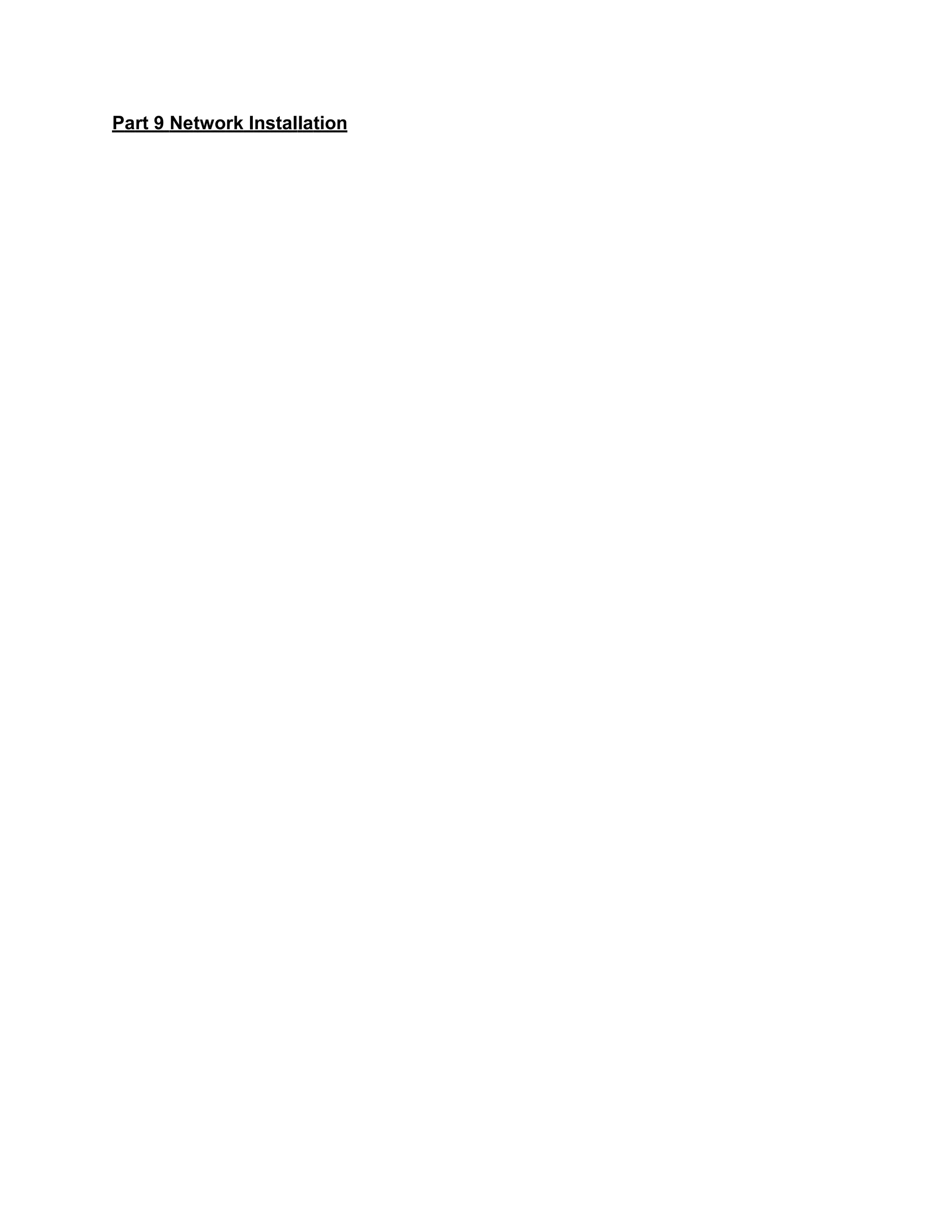

6. Part 9 Network Installation

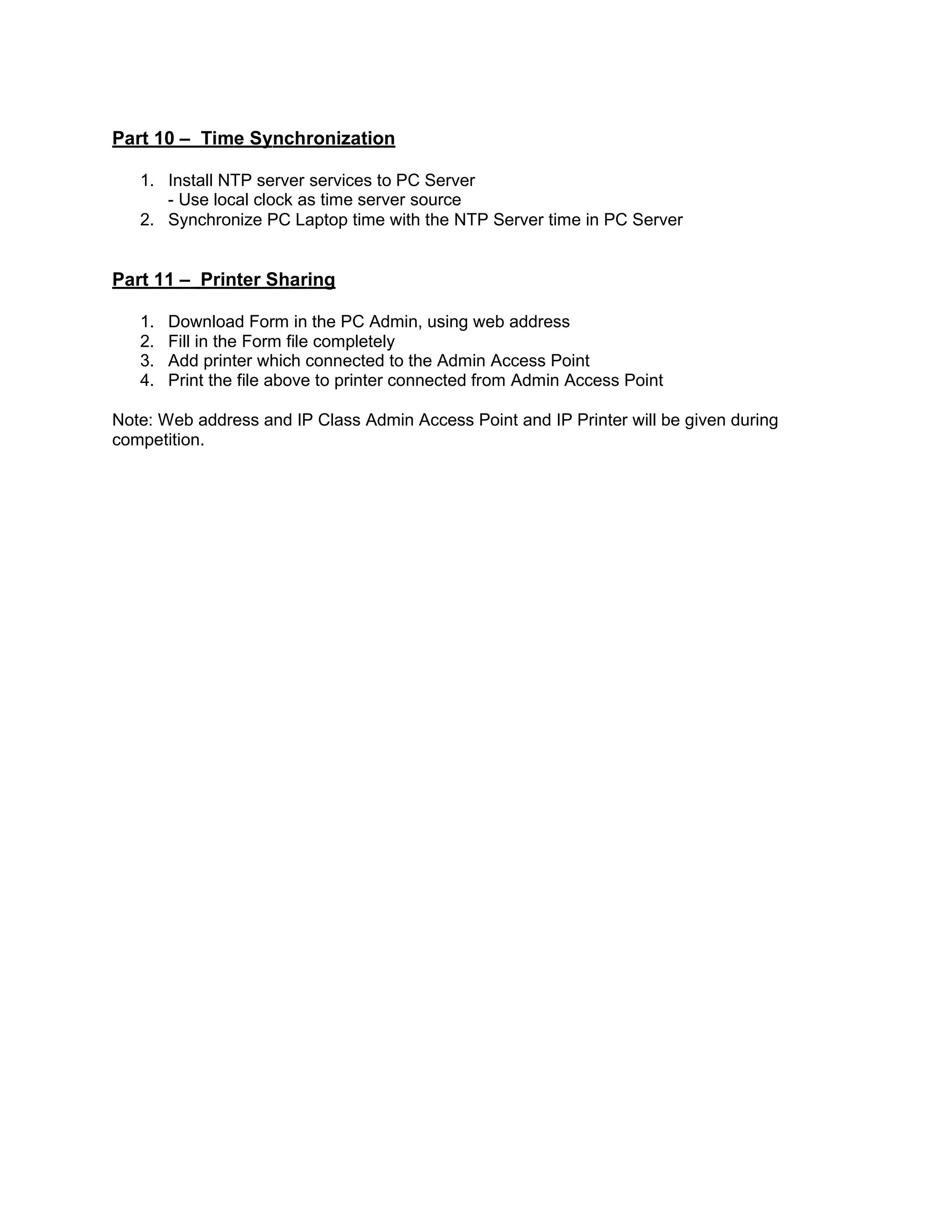

7. Part 10 – Time Synchronization
1. Install NTP server services to PC Server
- Use local clock as time server source
2. Synchronize PC Laptop time with the NTP Server time in PC Server
Part 11 – Printer Sharing
1. Download Form in the PC Admin, using web address
2. Fill in the Form file completely
3. Add printer which connected to the Admin Access Point
4. Print the file above to printer connected from Admin Access Point
Note: Web address and IP Class Admin Access Point and IP Printer will be given during
competition.

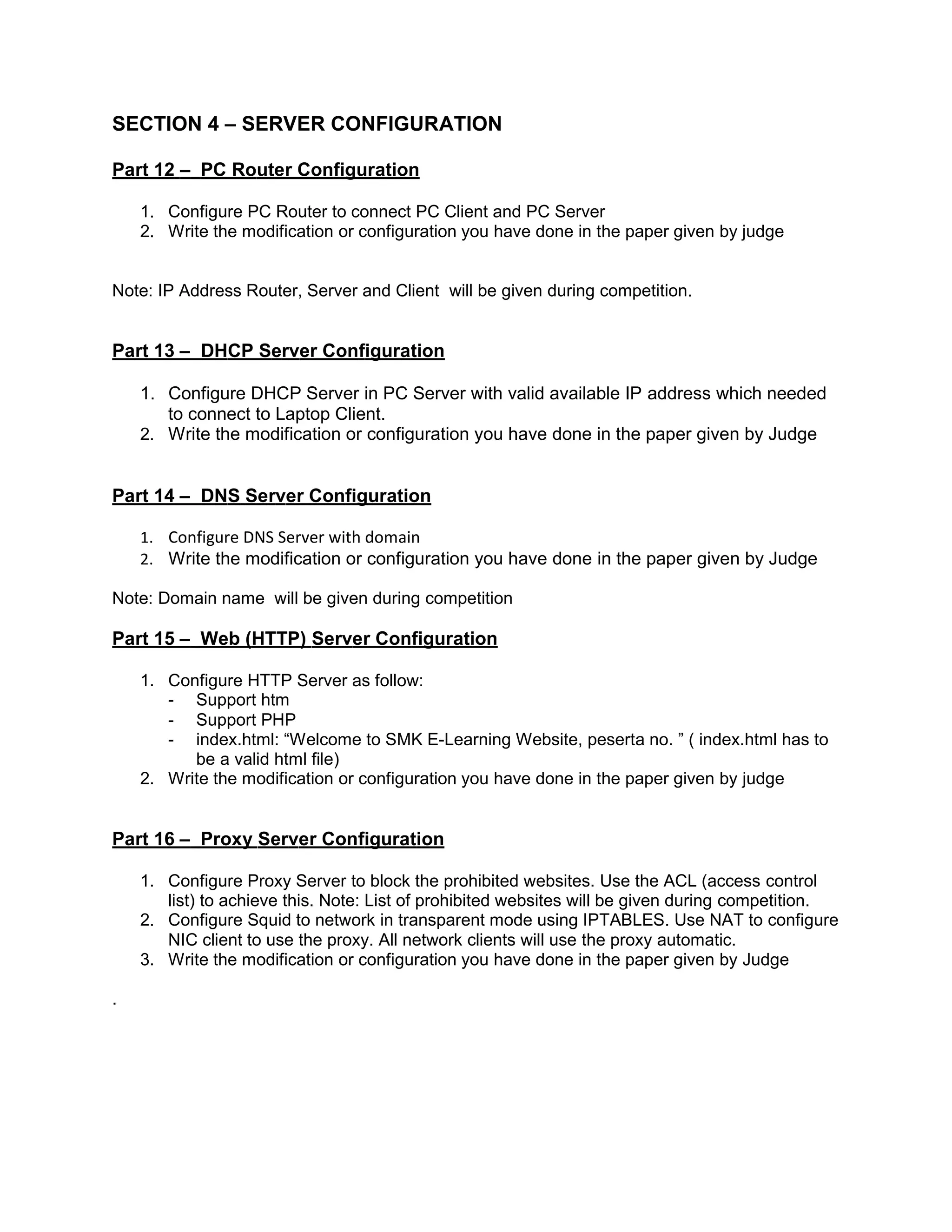

8. SECTION 4 – SERVER CONFIGURATION
Part 12 – PC Router Configuration
1. Configure PC Router to connect PC Client and PC Server
2. Write the modification or configuration you have done in the paper given by judge
Note: IP Address Router, Server and Client will be given during competition.
Part 13 – DHCP Server Configuration
1. Configure DHCP Server in PC Server with valid available IP address which needed
to connect to Laptop Client.
2. Write the modification or configuration you have done in the paper given by Judge
Part 14 – DNS Server Configuration
1. Configure DNS Server with domain
2. Write the modification or configuration you have done in the paper given by Judge
Note: Domain name will be given during competition
Part 15 – Web (HTTP) Server Configuration
1. Configure HTTP Server as follow:
- Support htm
- Support PHP
- index.html: “Welcome to SMK E-Learning Website, peserta no. ” ( index.html has to
be a valid html file)
2. Write the modification or configuration you have done in the paper given by judge
Part 16 – Proxy Server Configuration
1. Configure Proxy Server to block the prohibited websites. Use the ACL (access control
list) to achieve this. Note: List of prohibited websites will be given during competition.
2. Configure Squid to network in transparent mode using IPTABLES. Use NAT to configure
NIC client to use the proxy. All network clients will use the proxy automatic.
3. Write the modification or configuration you have done in the paper given by Judge
.

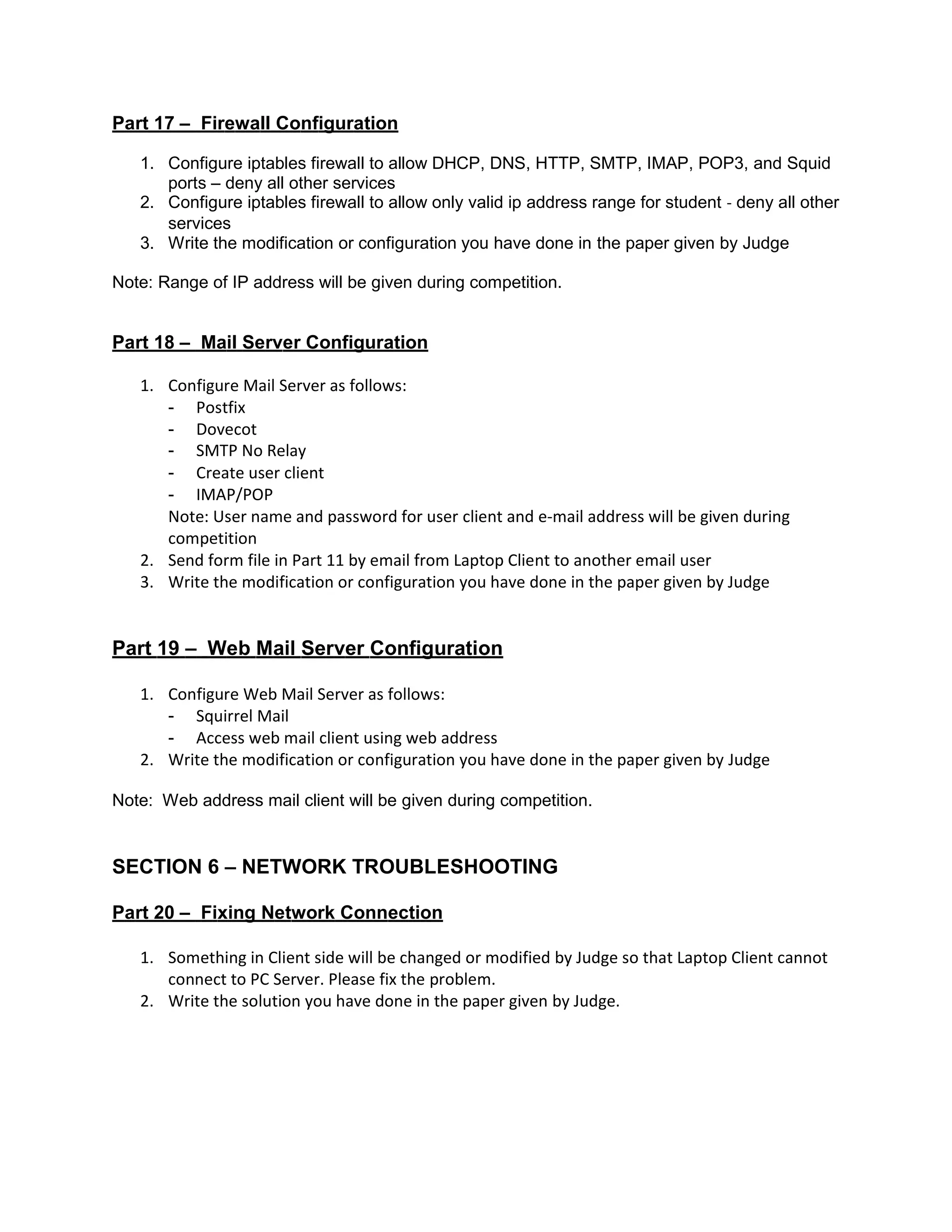

9. Part 17 – Firewall Configuration
1. Configure iptables firewall to allow DHCP, DNS, HTTP, SMTP, IMAP, POP3, and Squid
ports – deny all other services
2. Configure iptables firewall to allow only valid ip address range for student ‐ deny all other
services
3. Write the modification or configuration you have done in the paper given by Judge
Note: Range of IP address will be given during competition.
Part 18 – Mail Server Configuration
1. Configure Mail Server as follows:
- Postfix
- Dovecot
- SMTP No Relay
- Create user client
- IMAP/POP
Note: User name and password for user client and e‐mail address will be given during
competition
2. Send form file in Part 11 by email from Laptop Client to another email user
3. Write the modification or configuration you have done in the paper given by Judge
Part 19 – Web Mail Server Configuration
1. Configure Web Mail Server as follows:
- Squirrel Mail
- Access web mail client using web address
2. Write the modification or configuration you have done in the paper given by Judge
Note: Web address mail client will be given during competition.
SECTION 6 – NETWORK TROUBLESHOOTING
Part 20 – Fixing Network Connection
1. Something in Client side will be changed or modified by Judge so that Laptop Client cannot
connect to PC Server. Please fix the problem.
2. Write the solution you have done in the paper given by Judge.
