The document provides details for a networking project. The student has been hired to design the network infrastructure for a new UMUC building in Adelphi, Maryland that will house offices, classrooms, a library and computer labs. The student must submit a network proposal with sections on the physical design, network addressing, and network services. The proposal must meet criteria such as separating student and staff networks, using physical cabling with some wireless access, and assigning IP addresses within the 10.11.12.0/23 range. Floor plans and details about the building layout, including the number of computers in each room, are provided to aid in the network design.

1. Buy here:
http://theperfecthomework.com/cmit-265-network-design
-paper/
You have been hired as part of the networking team at UMUC. After completing orientation
and training in your first week, your manager calls you into a meeting to discuss your first
project.
The university has recently leased a building in Adelphi, Maryland. The building will house
some offices, classrooms, a library, and computer labs. Security is very important for UMUC,
as the university must protect students’ and employees’ data, as well as any intellectual
property that UMUC has on its servers and computers. As a result, IT management would
like to take the time to review some proposals on how best to move forward. As a network
engineer, you have been asked to prepare a network proposal on how to set up a secure
network infrastructure in this new building to support university operations.
After speaking to your manager, you are excited about the project, but you realize you will
have a busy schedule. As you write your proposal, you will also have to prepare for the
Network+ Certification exam. One of the conditions of your employment at this company is
that you obtain this certification within 60 days of being hired. You will have to manage your
time wisely, because you will have to take a practice certification test just as you are
completing your final project.
In this learning demonstration, you will use the TestOut Network Pro (LabSim) to learn about
the different types of networks and how to configure them. These activities will prepare you
for the CompTIA Network+ Certification exam. In order to identify your strengths and
weaknesses, you will first complete the Network+ Certification Practice exam. The practice
exam is designed to assess your preparedness for the CompTIA Network+ certification
exam. Then, during the course of the next eight weeks, as you step through each set of
activities in LabSim, you will also be drafting sections of your design proposal.
Use the results of the certification practice exam you took at the beginning of the class to
help guide you on which areas within LabSim you should pay closer attention to. You must
complete all online labs in LabSim; these are the activities with the computer mouse icon.

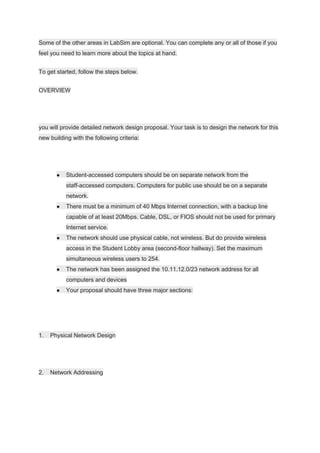

2. Some of the other areas in LabSim are optional. You can complete any or all of those if you
feel you need to learn more about the topics at hand.
To get started, follow the steps below.
OVERVIEW
you will provide detailed network design proposal. Your task is to design the network for this
new building with the following criteria:
● Student-accessed computers should be on separate network from the
staff-accessed computers. Computers for public use should be on a separate
network.
● There must be a minimum of 40 Mbps Internet connection, with a backup line
capable of at least 20Mbps. Cable, DSL, or FIOS should not be used for primary
Internet service.
● The network should use physical cable, not wireless. But do provide wireless
access in the Student Lobby area (second-floor hallway). Set the maximum
simultaneous wireless users to 254.
● The network has been assigned the 10.11.12.0/23 network address for all
computers and devices
● Your proposal should have three major sections:
1. Physical Network Design
2. Network Addressing

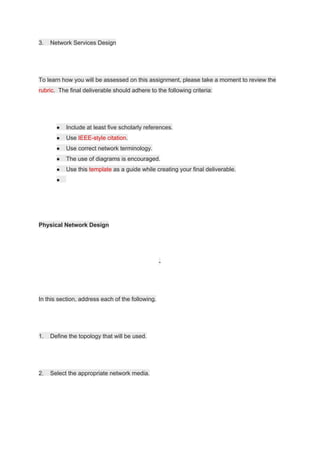

3. 3. Network Services Design
To learn how you will be assessed on this assignment, please take a moment to review the
rubric​. The final deliverable should adhere to the following criteria:
● Include at least five scholarly references.
● Use ​IEEE-style citation​.
● Use correct network terminology.
● The use of diagrams is encouraged.
● Use this ​template​ as a guide while creating your final deliverable.
●
Physical Network Design
-
In this section, address each of the following.
1. Define the topology that will be used.
2. Select the appropriate network media.

4. 3. Select the appropriate network connecting devices, including network security devices.
4. Select the appropriate computer systems to use to support the network design.
5. Determine a physical layout of the computers on the floor plan, along with the network
wires (network wiring diagram).
6. Provide justifications for each element of your network design (numbers 1–4 above)
Network Addressing
-
In this section, address each of the following.
1. Define the subnets (based on rooms, floor, department, or other criteria).

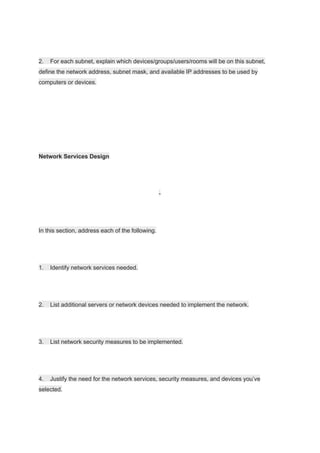

5. 2. For each subnet, explain which devices/​groups/​users/​rooms will be on this subnet,
define the network address, subnet mask, and available IP addresses to be used by
computers or devices.
Network Services Design
-
In this section, address each of the following.
1. Identify network services needed.
2. List additional servers or network devices needed to implement the network.
3. List network security measures to be implemented.
4. Justify the need for the network services, security measures, and devices you’ve
selected.

6. 5.
6.BUILDING DETAILS
7.-
The 50-year-old, two-story building has the following layout:
Building dimensions: Length: 240 Feet, Width: 95 Feet, Height: 30 Feet
The building will house six computer labs that will be used for instruction. In the building
diagrams above, the labs are labeled Classroom #1, Classroom #2, and Classroom #4 on
the first floor and Classroom #1, Classroom #2, and Classroom #5 on the second floor; each
computer lab will have a closet. Each lab will have 32 computers: 30 student computers, 1
instructor computer, and 1 server in the closet for instructional use.

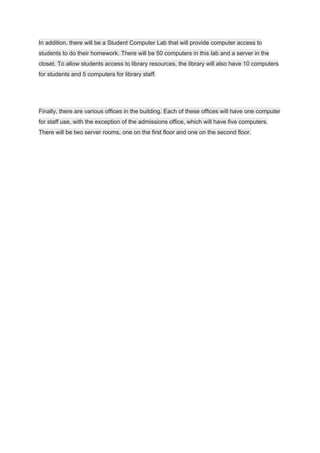

7. In addition, there will be a Student Computer Lab that will provide computer access to
students to do their homework. There will be 50 computers in this lab and a server in the
closet. To allow students access to library resources, the library will also have 10 computers
for students and 5 computers for library staff.
Finally, there are various offices in the building. Each of these offices will have one computer
for staff use, with the exception of the admissions office, which will have five computers.
There will be two server rooms, one on the first floor and one on the second floor.
