Slides for the Apache Geode Hands-on Meetup and Hackathon Announcement
This document provides an agenda for a hands-on introduction and hackathon kickoff for Apache Geode. The agenda includes details about the hackathon, an introduction to Apache Geode including its history and key features, a hands-on lab to build, run, and use Geode, and a Q&A session. It also outlines how to contribute to the Geode project through code, documentation, issue tracking, and mailing lists.
More Related Content
Similar to Slides for the Apache Geode Hands-on Meetup and Hackathon Announcement
Slides for the Apache Geode Hands-on Meetup and Hackathon Announcement
- 1. Hands-on Introduction & HackathonKickoff Ashvin Agrawal William Markito @william_markito@aasoj Powered by Pivotal Open Source Hub (POSH) (incubating)

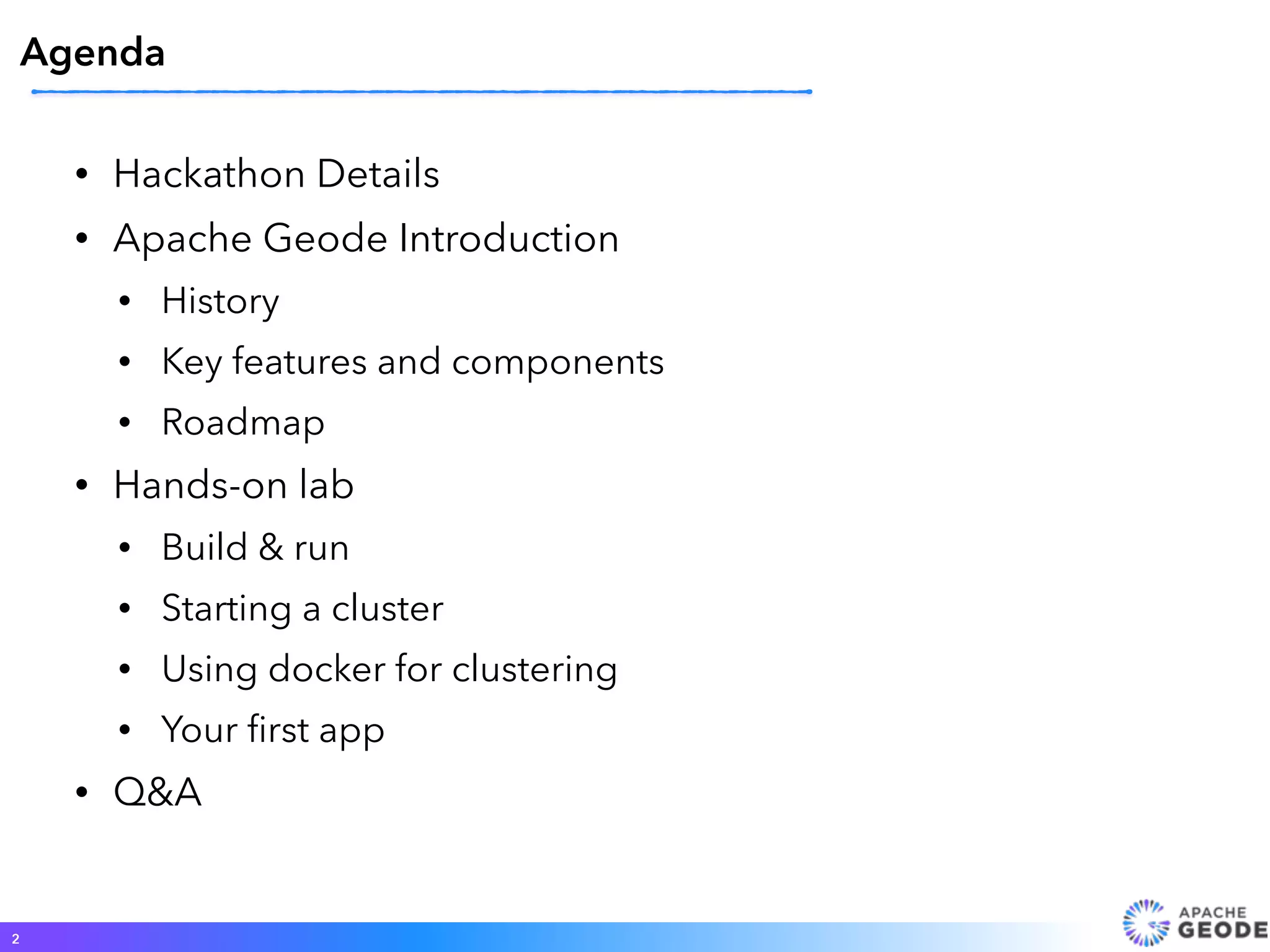

- 2. • Hackathon Details •Apache Geode Introduction • History • Key features and components • Roadmap • Hands-on lab • Build & run • Starting a cluster • Using docker for clustering • Your first app • Q&A 2 Agenda
- 3. Hackathon details Powered by PivotalOpen Source Hub (POSH) http://ambitious-apps.challengepost.com/
- 4.

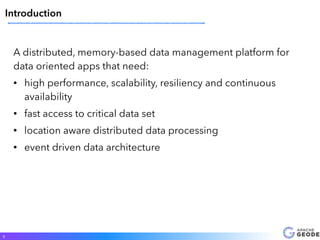

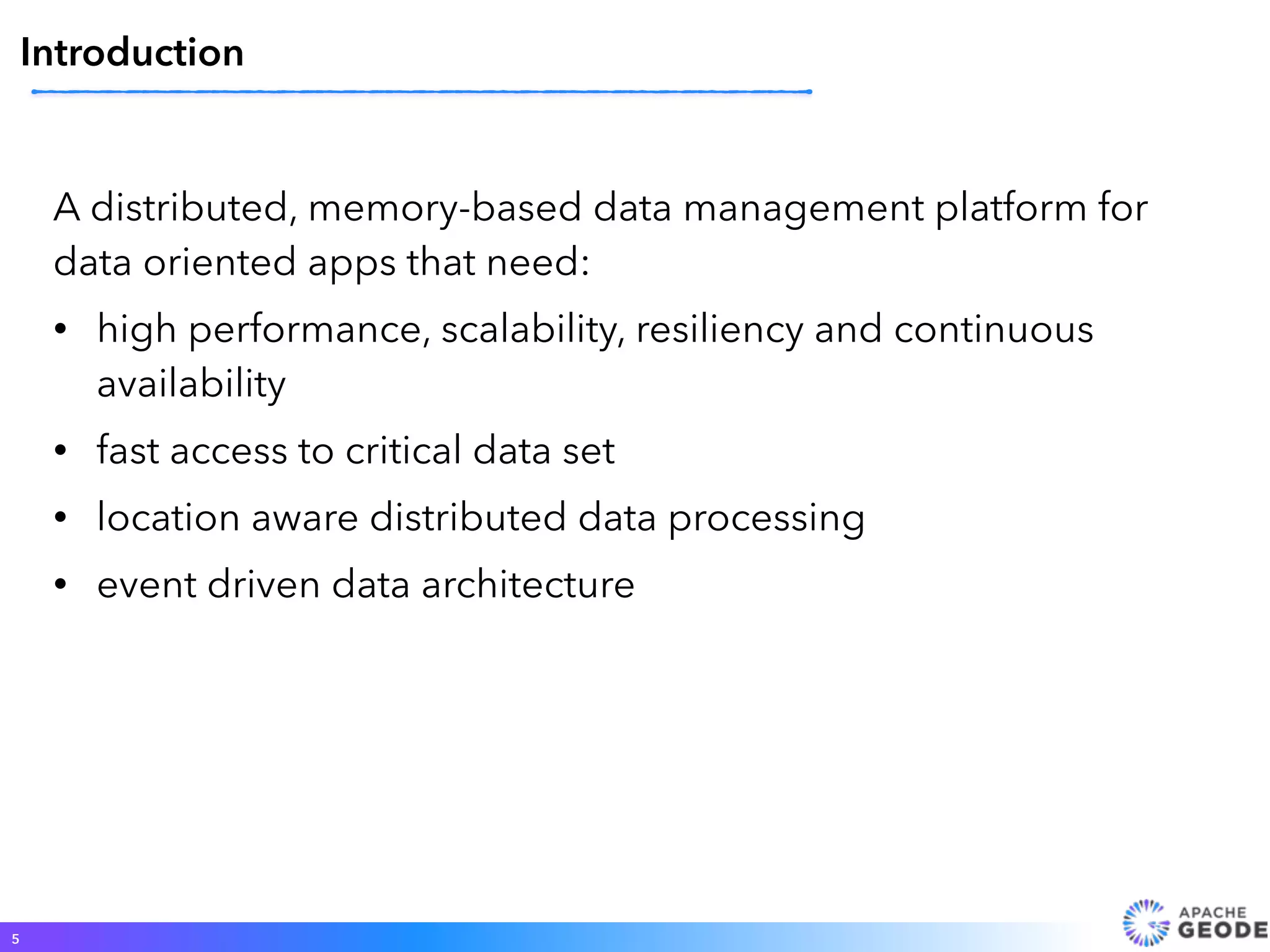

- 5. A distributed, memory-baseddata management platform for data oriented apps that need: • high performance, scalability, resiliency and continuous availability • fast access to critical data set • location aware distributed data processing • event driven data architecture 5 Introduction
- 6. 6 One size fitsall ? Cost of sorting is nlog(n)

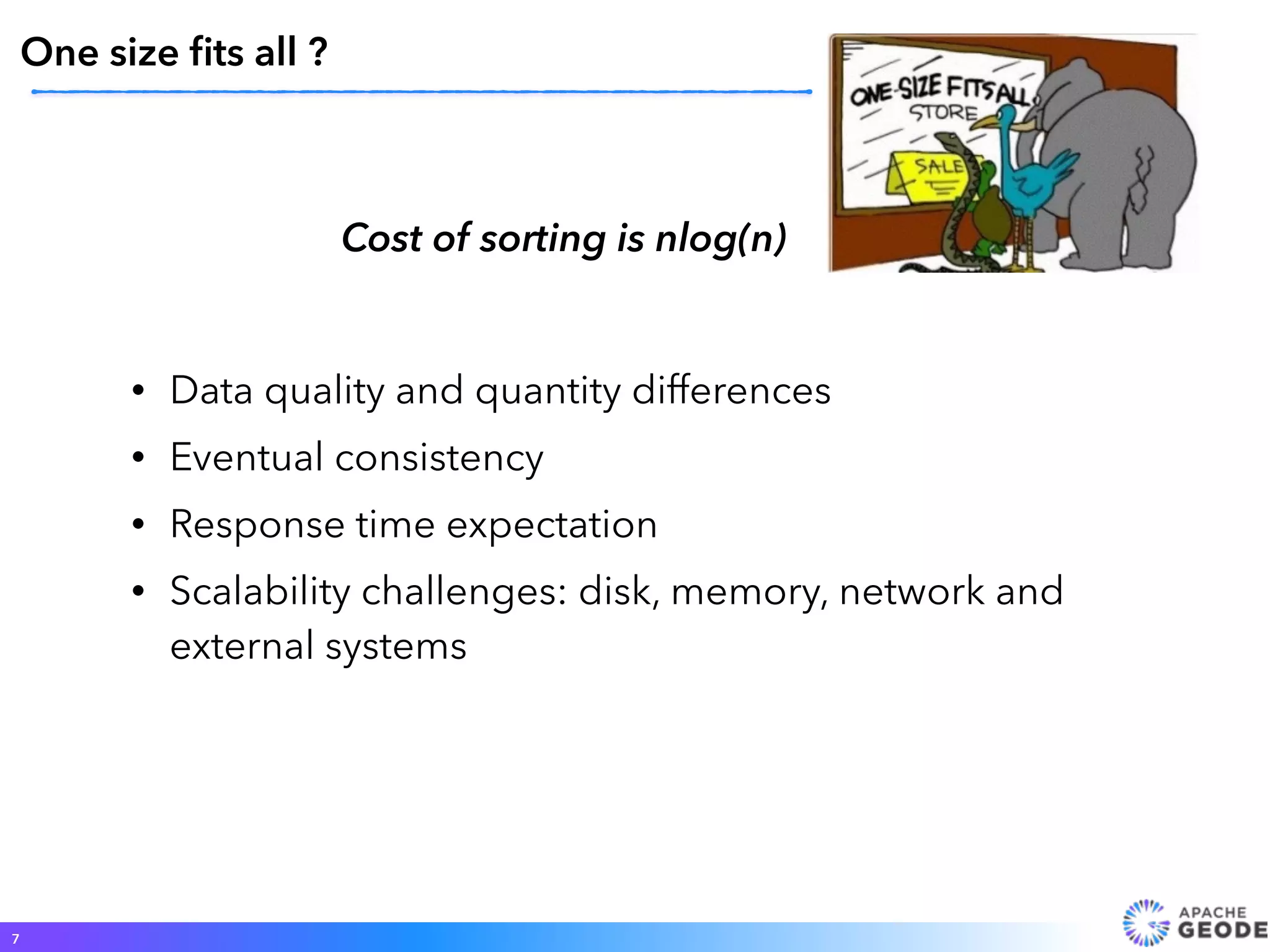

- 7. 7 One size fitsall ? Cost of sorting is nlog(n) • Data quality and quantity differences • Eventual consistency • Response time expectation • Scalability challenges: disk, memory, network and external systems

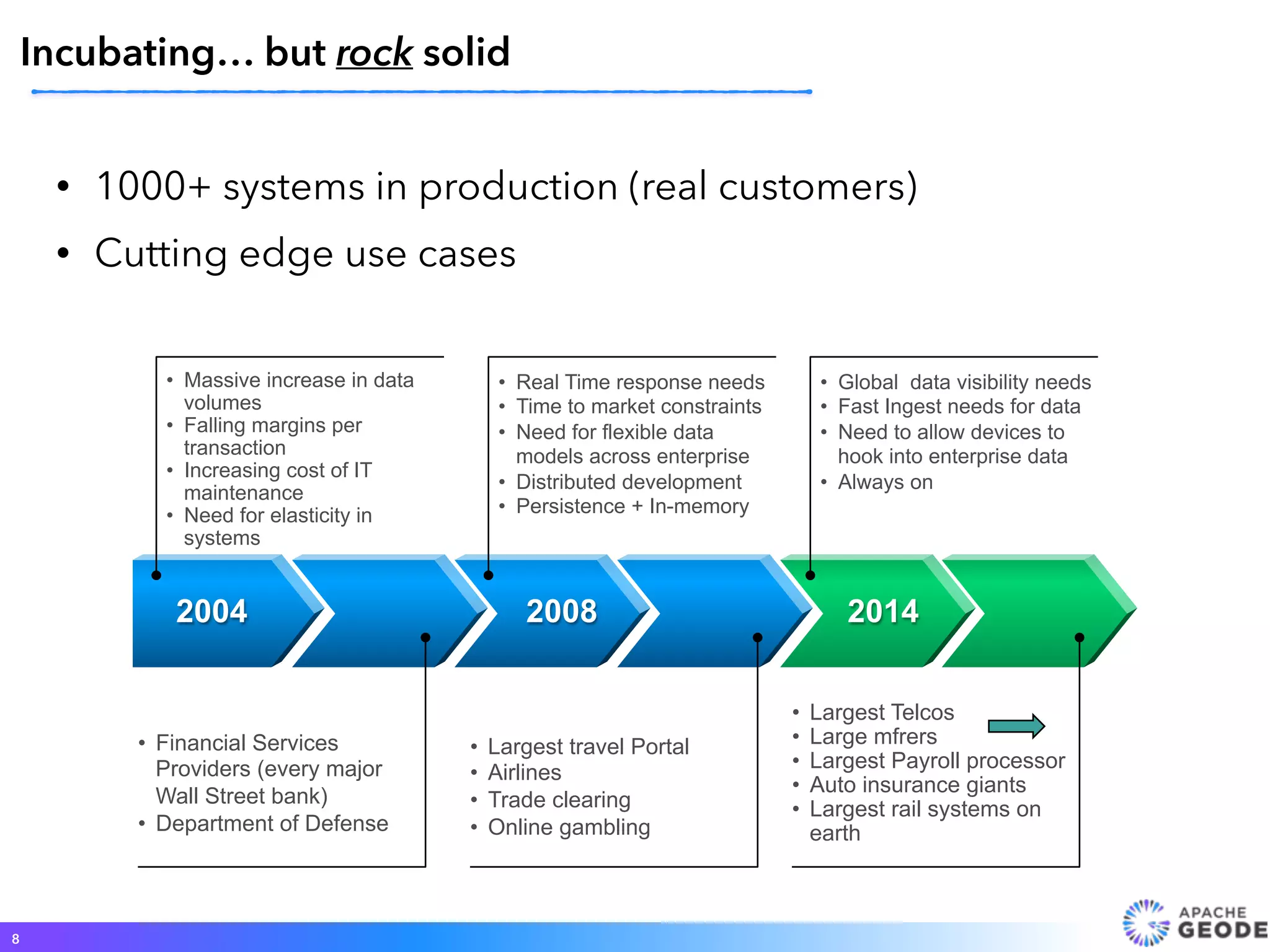

- 8. • 1000+ systemsin production (real customers) • Cutting edge use cases 8 Incubating… but rock solid 2004 2008 2014 • Massive increase in data volumes • Falling margins per transaction • Increasing cost of IT maintenance • Need for elasticity in systems • Financial Services Providers (every major Wall Street bank) • Department of Defense • Real Time response needs • Time to market constraints • Need for flexible data models across enterprise • Distributed development • Persistence + In-memory • Global data visibility needs • Fast Ingest needs for data • Need to allow devices to hook into enterprise data • Always on • Largest travel Portal • Airlines • Trade clearing • Online gambling • Largest Telcos • Large mfrers • Largest Payroll processor • Auto insurance giants • Largest rail systems on earth

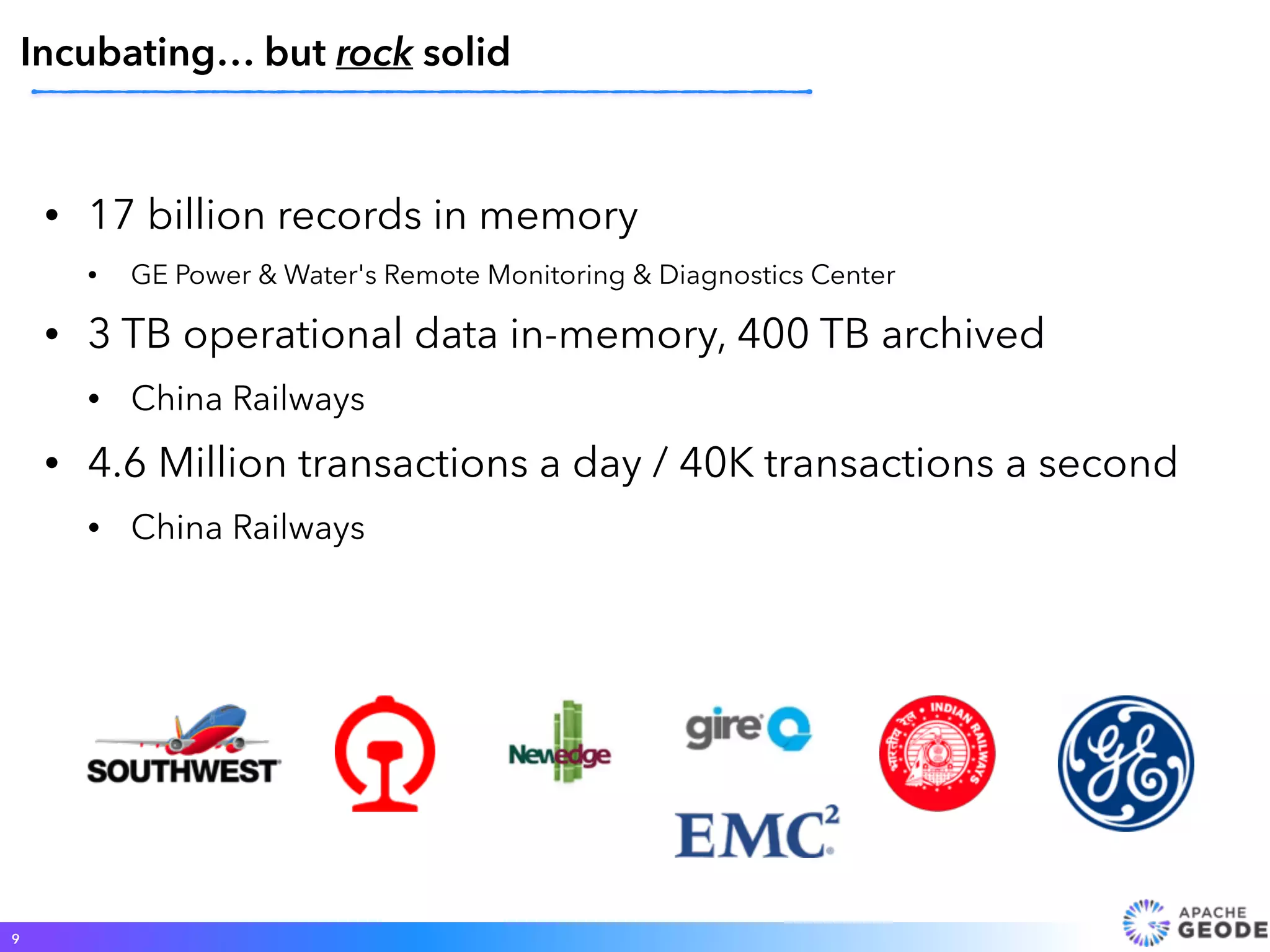

- 9. • 17 billionrecords in memory • GE Power & Water's Remote Monitoring & Diagnostics Center • 3 TB operational data in-memory, 400 TB archived • China Railways • 4.6 Million transactions a day / 40K transactions a second • China Railways 9 Incubating… but rock solid

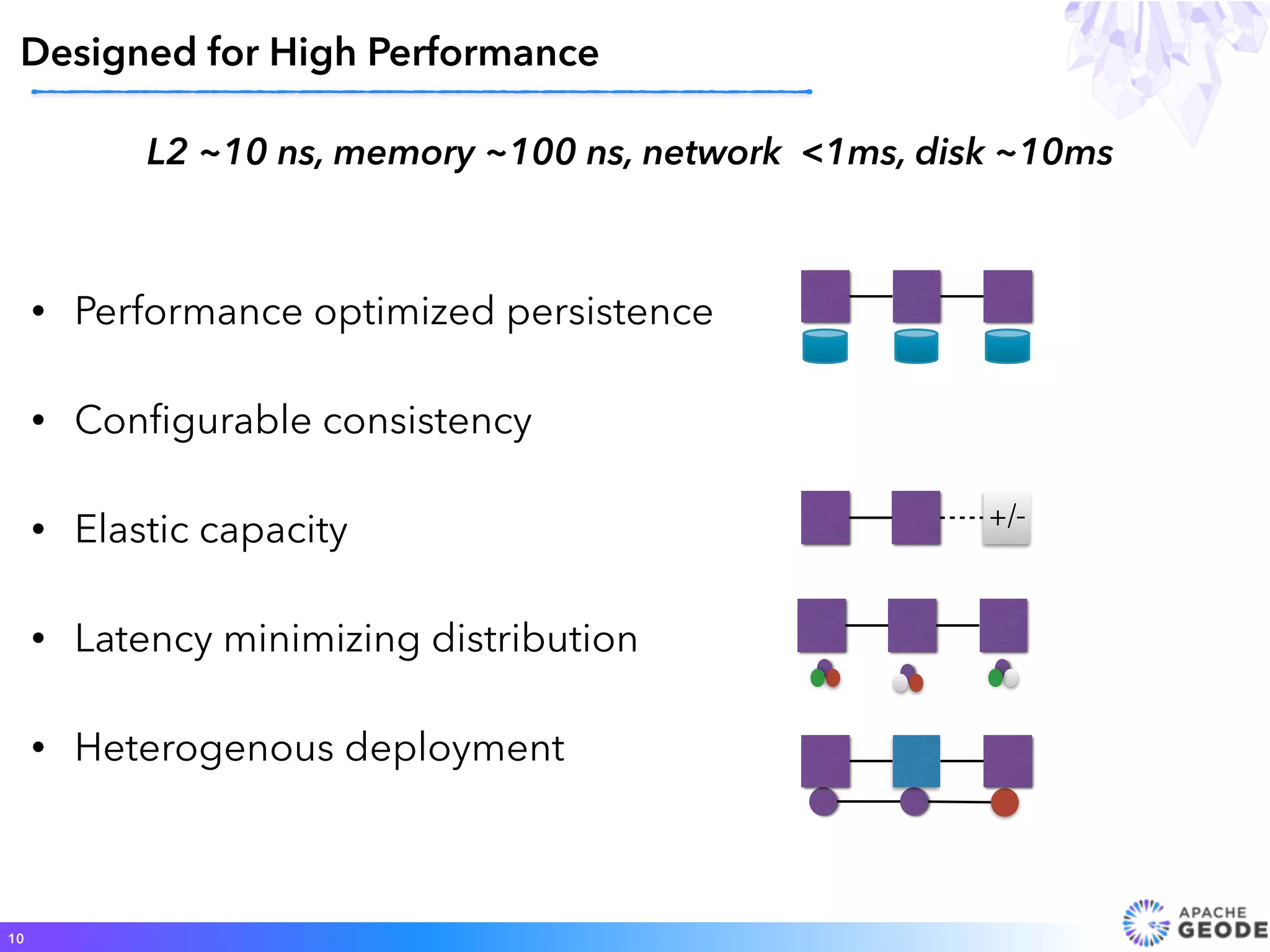

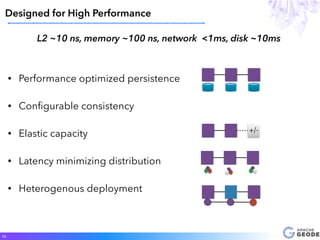

- 10. • Performance optimizedpersistence • Configurable consistency • Elastic capacity • Latency minimizing distribution • Heterogenous deployment Designed for High Performance 10 +/- L2 ~10 ns, memory ~100 ns, network <1ms, disk ~10ms

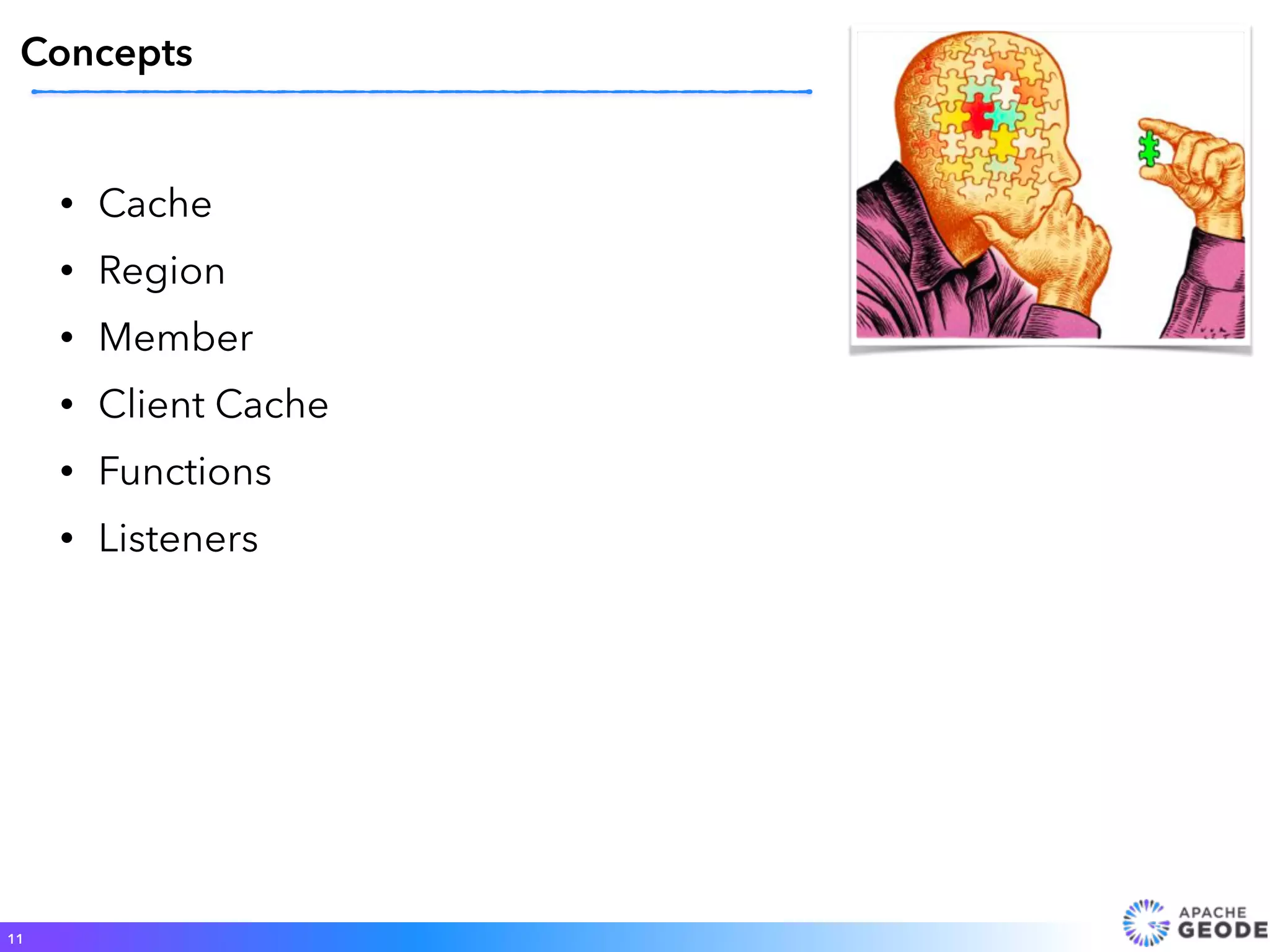

- 11. • Cache • Region •Member • Client Cache • Functions • Listeners 11 Concepts

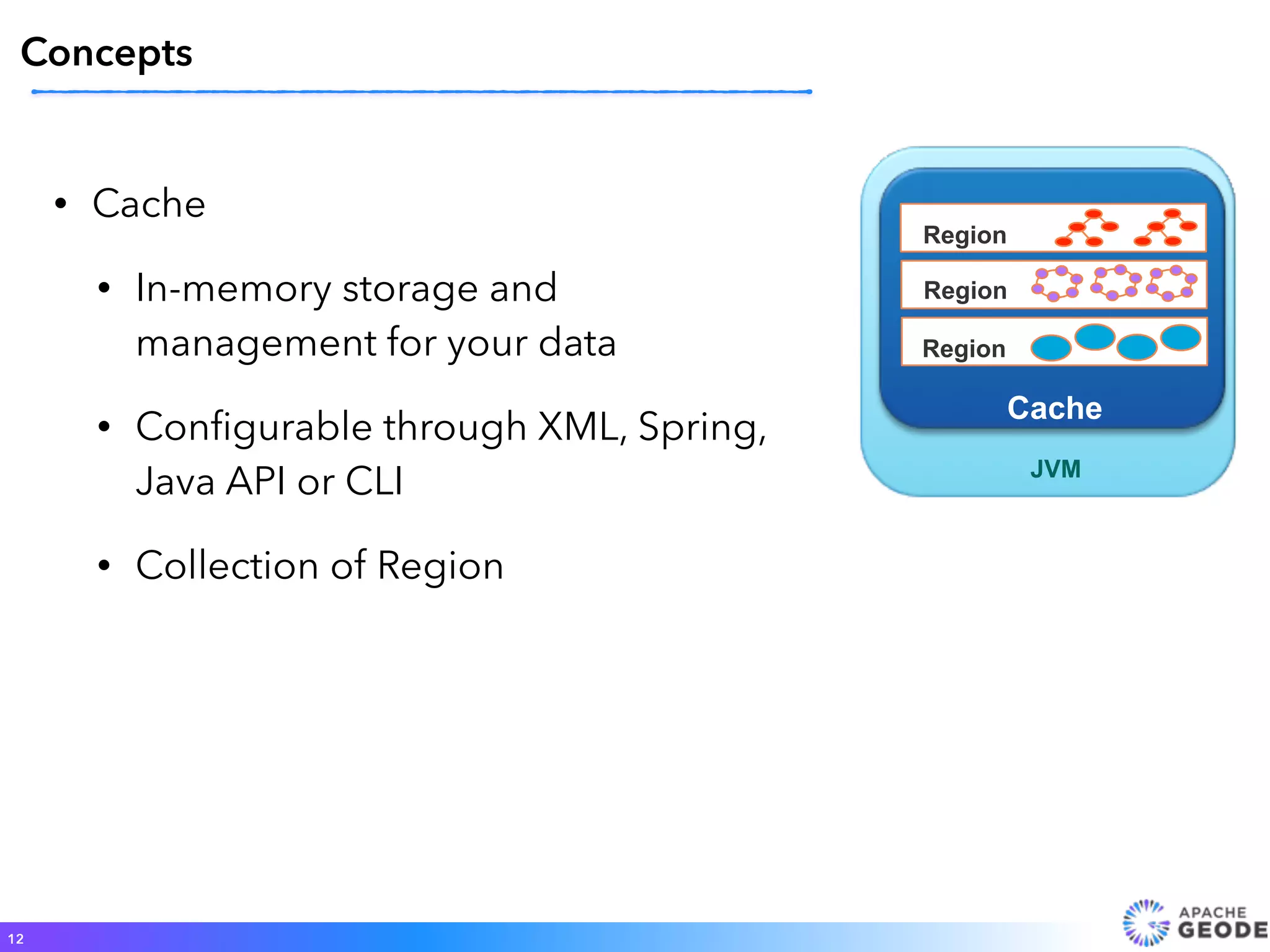

- 12. • Cache • In-memorystorage and management for your data • Configurable through XML, Spring, Java API or CLI • Collection of Region 12 Concepts Region Region Region Cache JVM

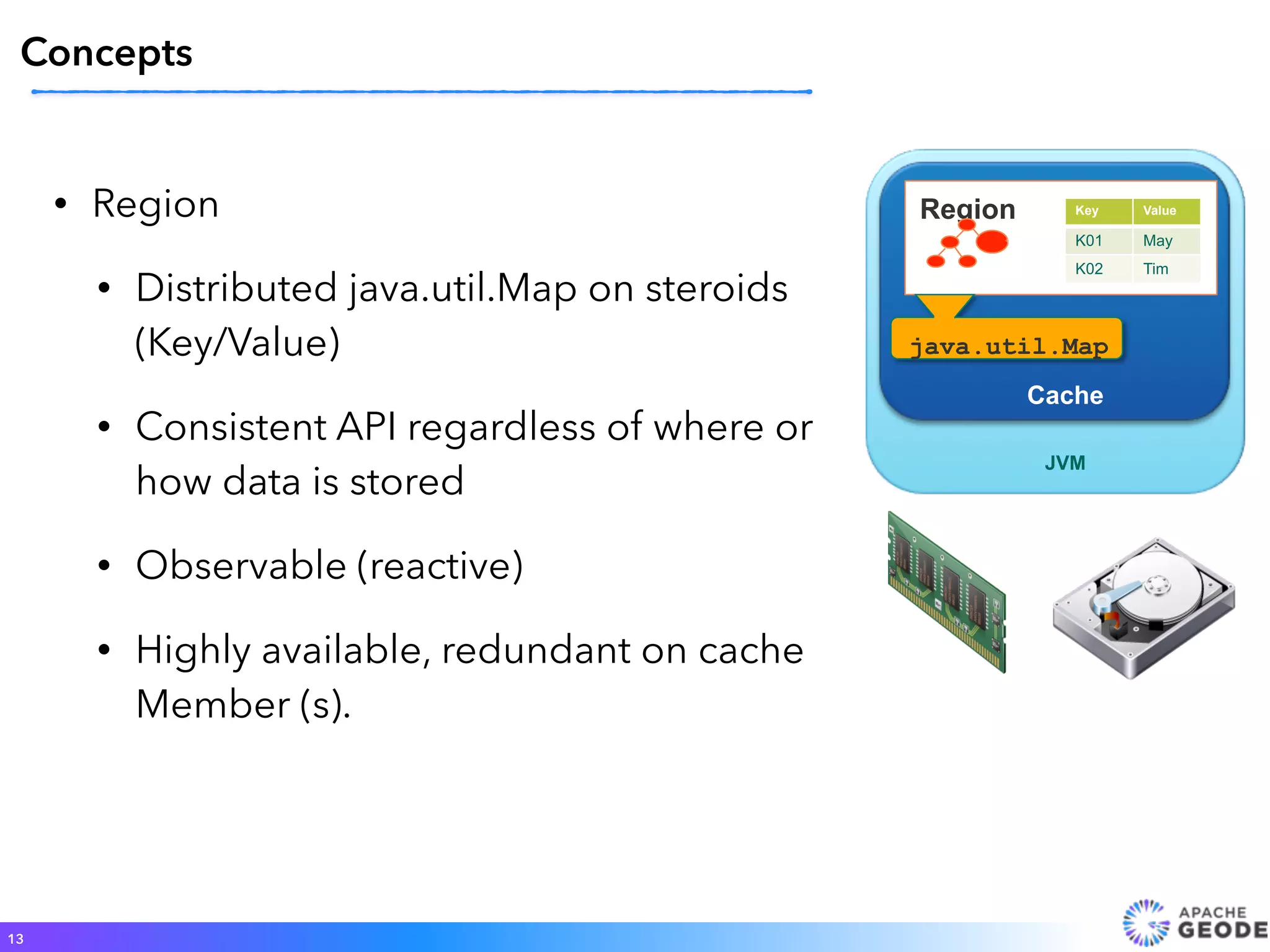

- 13. • Region • Distributedjava.util.Map on steroids (Key/Value) • Consistent API regardless of where or how data is stored • Observable (reactive) • Highly available, redundant on cache Member (s). 13 Concepts Region Cache java.util.Map JVM Key Value K01 May K02 Tim

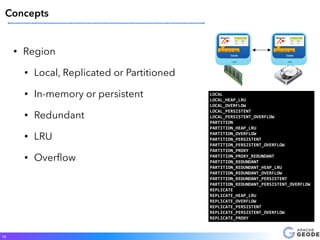

- 14. • Region • Local,Replicated or Partitioned • In-memory or persistent • Redundant • LRU • Overflow 14 Concepts Region Cache java.util.Map JVM Key Value K01 May K02 Tim Region Cache java.util.Map JVM Key Value K01 May K02 Tim LOCAL LOCAL_HEAP_LRU LOCAL_OVERFLOW LOCAL_PERSISTENT LOCAL_PERSISTENT_OVERFLOW PARTITION PARTITION_HEAP_LRU PARTITION_OVERFLOW PARTITION_PERSISTENT PARTITION_PERSISTENT_OVERFLOW PARTITION_PROXY PARTITION_PROXY_REDUNDANT PARTITION_REDUNDANT PARTITION_REDUNDANT_HEAP_LRU PARTITION_REDUNDANT_OVERFLOW PARTITION_REDUNDANT_PERSISTENT PARTITION_REDUNDANT_PERSISTENT_OVERFLOW REPLICATE REPLICATE_HEAP_LRU REPLICATE_OVERFLOW REPLICATE_PERSISTENT REPLICATE_PERSISTENT_OVERFLOW REPLICATE_PROXY

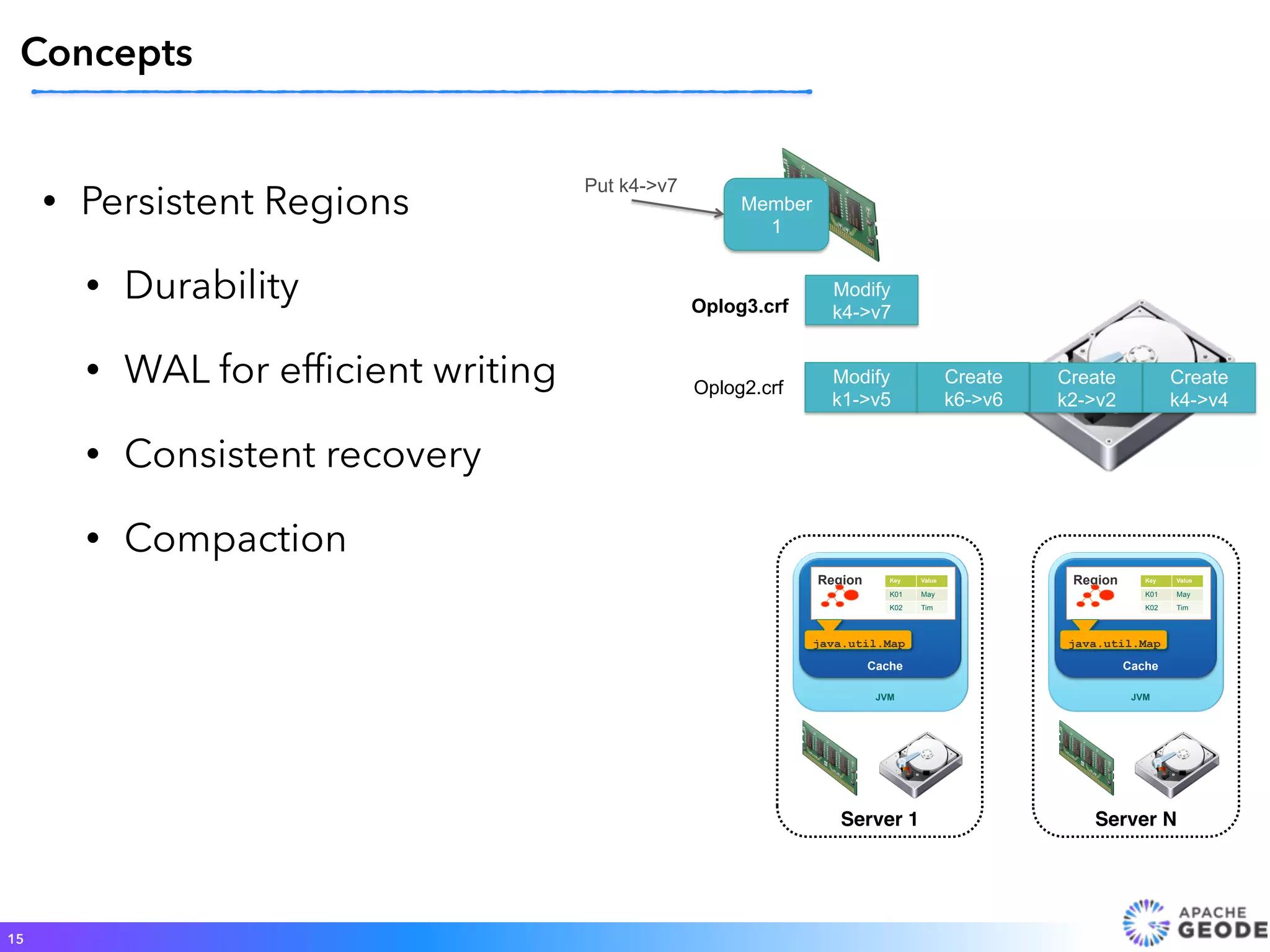

- 15. • Persistent Regions •Durability • WAL for efficient writing • Consistent recovery • Compaction 15 Concepts Modify k1->v5 Create k6->v6 Create k2->v2 Create k4->v4 Oplog2.crf Member 1 Modify k4->v7Oplog3.crf Put k4->v7 Region Cache java.util.Map JVM Key Value K01 May K02 Tim Region Cache java.util.Map JVM Key Value K01 May K02 Tim Server 1 Server N

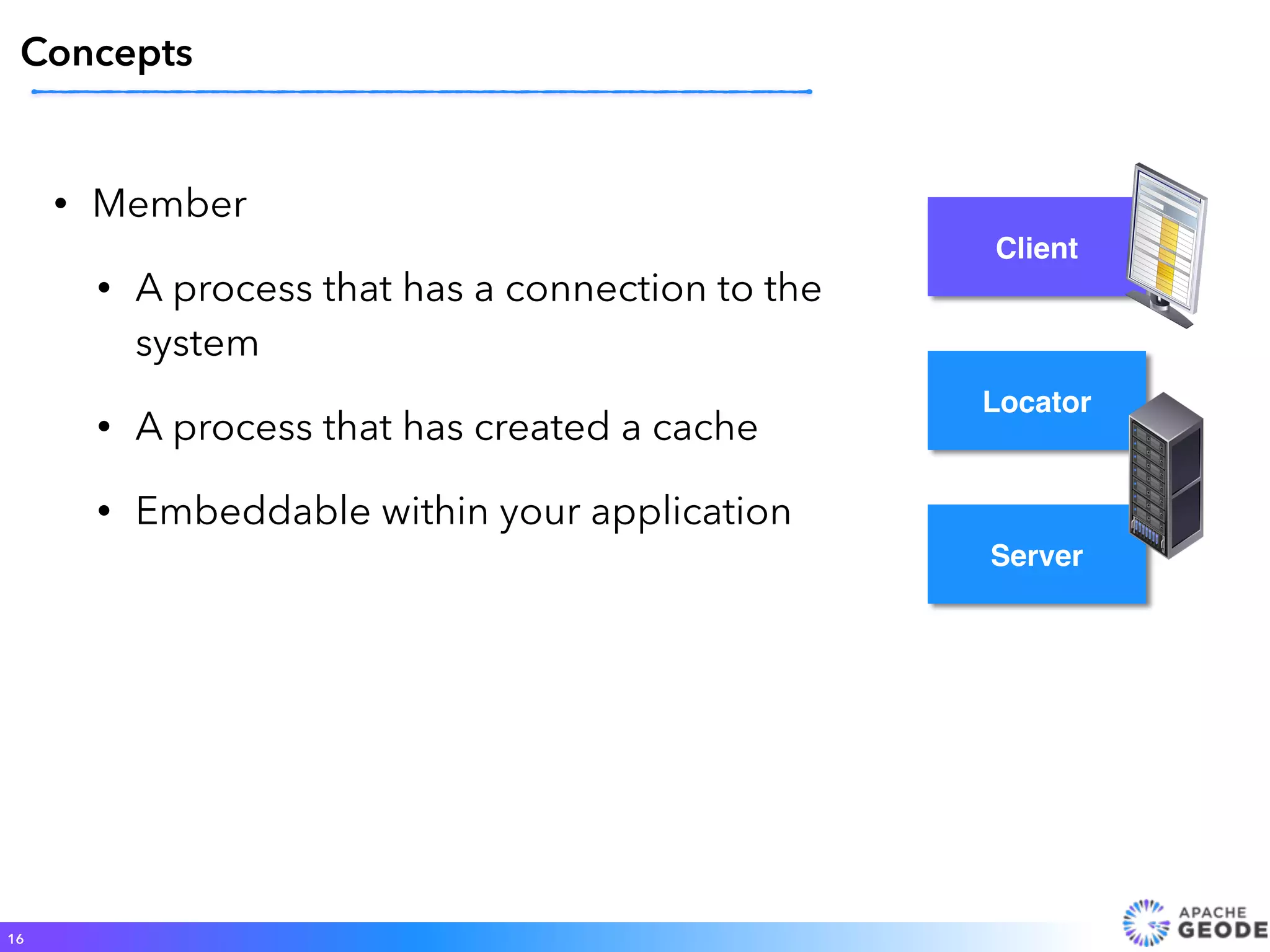

- 16. • Member • Aprocess that has a connection to the system • A process that has created a cache • Embeddable within your application 16 Concepts Client Locator Server

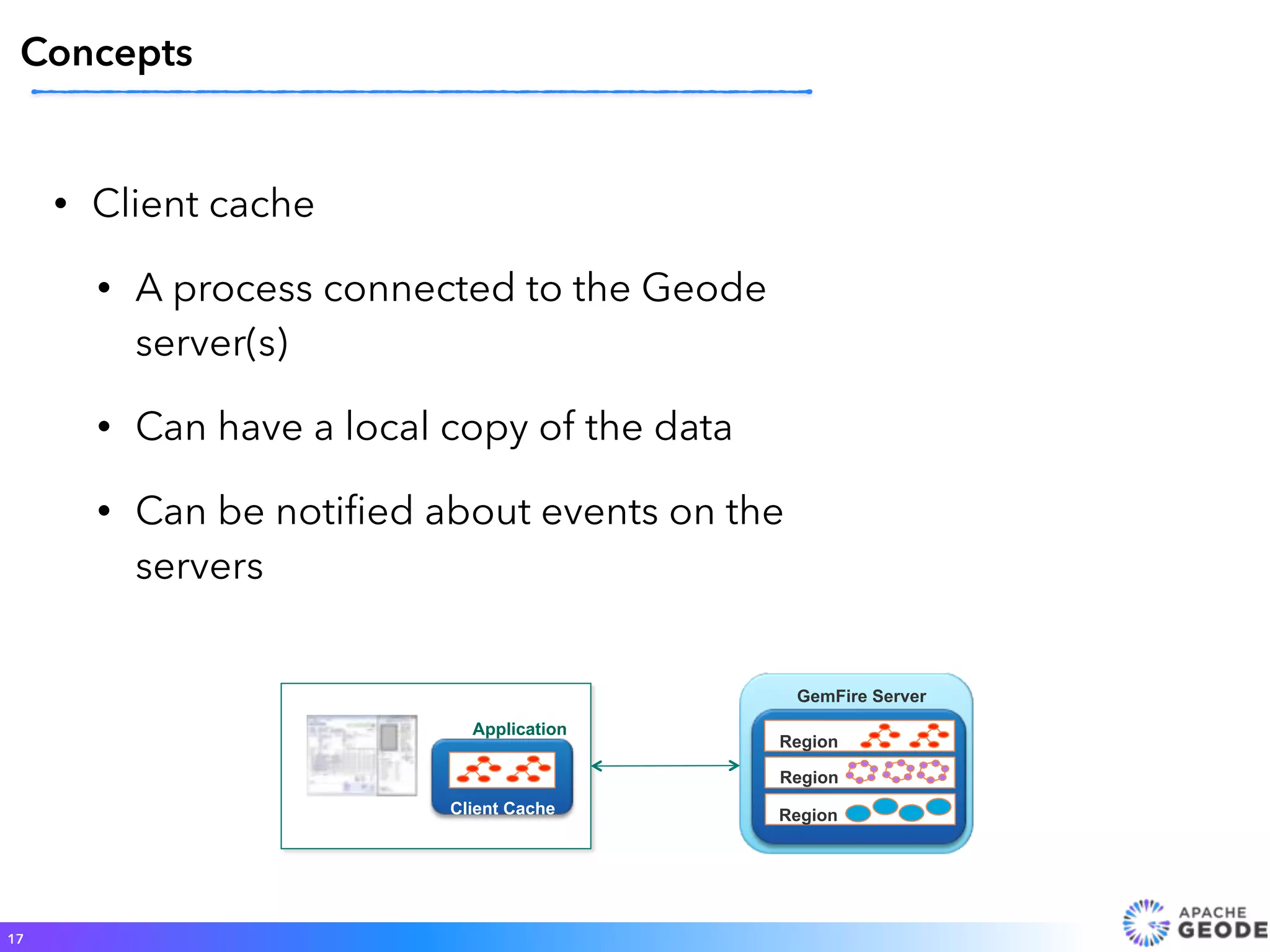

- 17. • Client cache •A process connected to the Geode server(s) • Can have a local copy of the data • Can be notified about events on the servers 17 Concepts Application GemFire Server Region Region RegionClient Cache

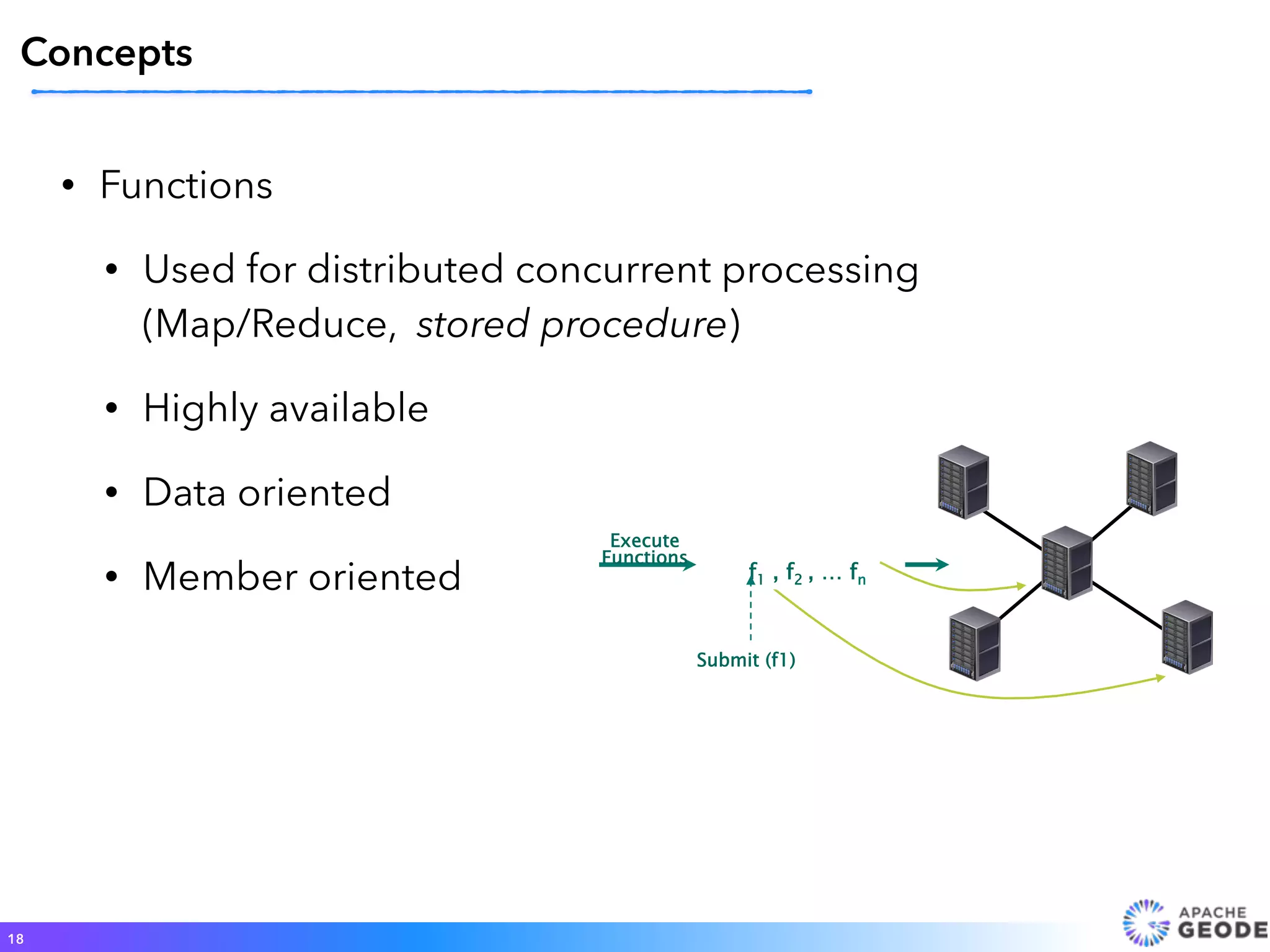

- 18. • Functions • Usedfor distributed concurrent processing (Map/Reduce, stored procedure) • Highly available • Data oriented • Member oriented 18 Concepts Submit (f1) f1 , f2 , … fn Execute Functions

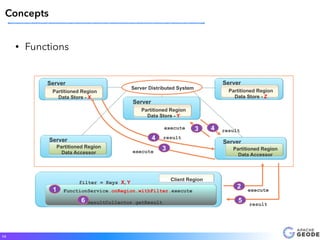

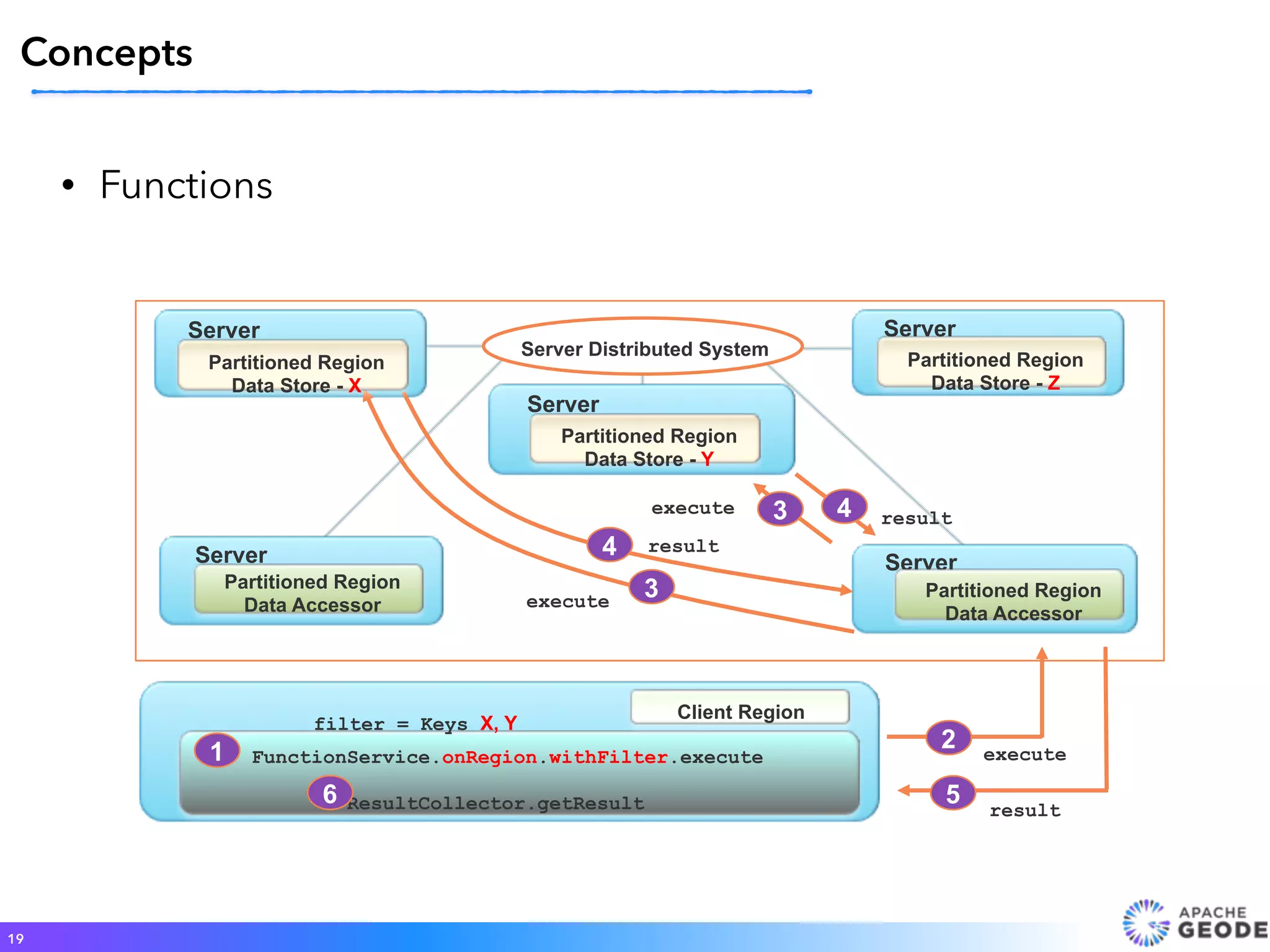

- 19. 19 Concepts Server Server FunctionService.onRegion.withFilter.execute ResultCollector.getResult Server DistributedSystem execute Server Server 6 1 result execute execute result result 2 5 3 4 3 4 Server Partitioned Region Data Store - X Partitioned Region Data Store - Y Partitioned Region Data Store - Z Partitioned Region Data Accessor Partitioned Region Data Accessor filter = Keys X, Y Client Region • Functions

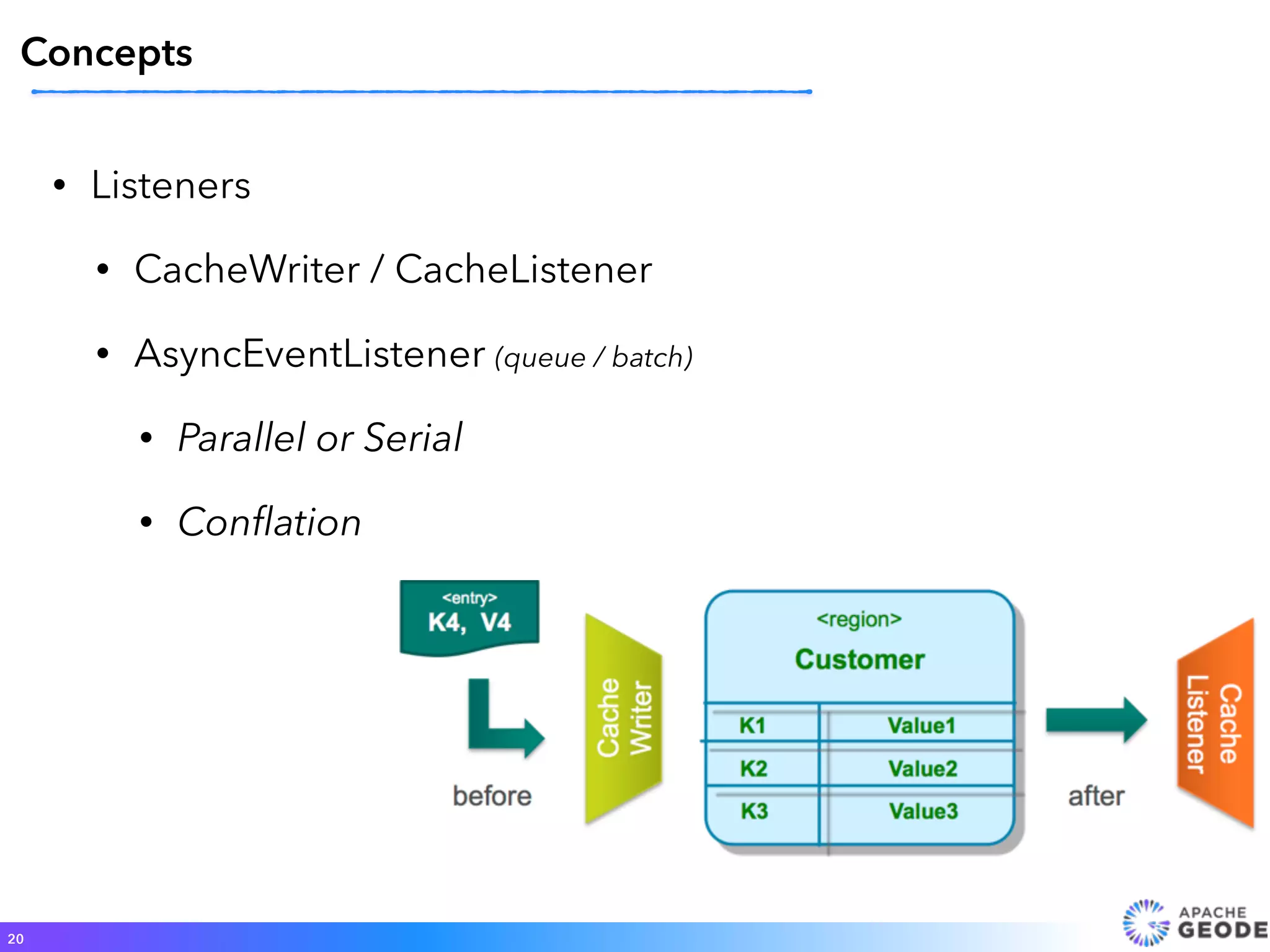

- 20. • Listeners • CacheWriter/ CacheListener • AsyncEventListener (queue / batch) • Parallel or Serial • Conflation 20 Concepts
- 21.

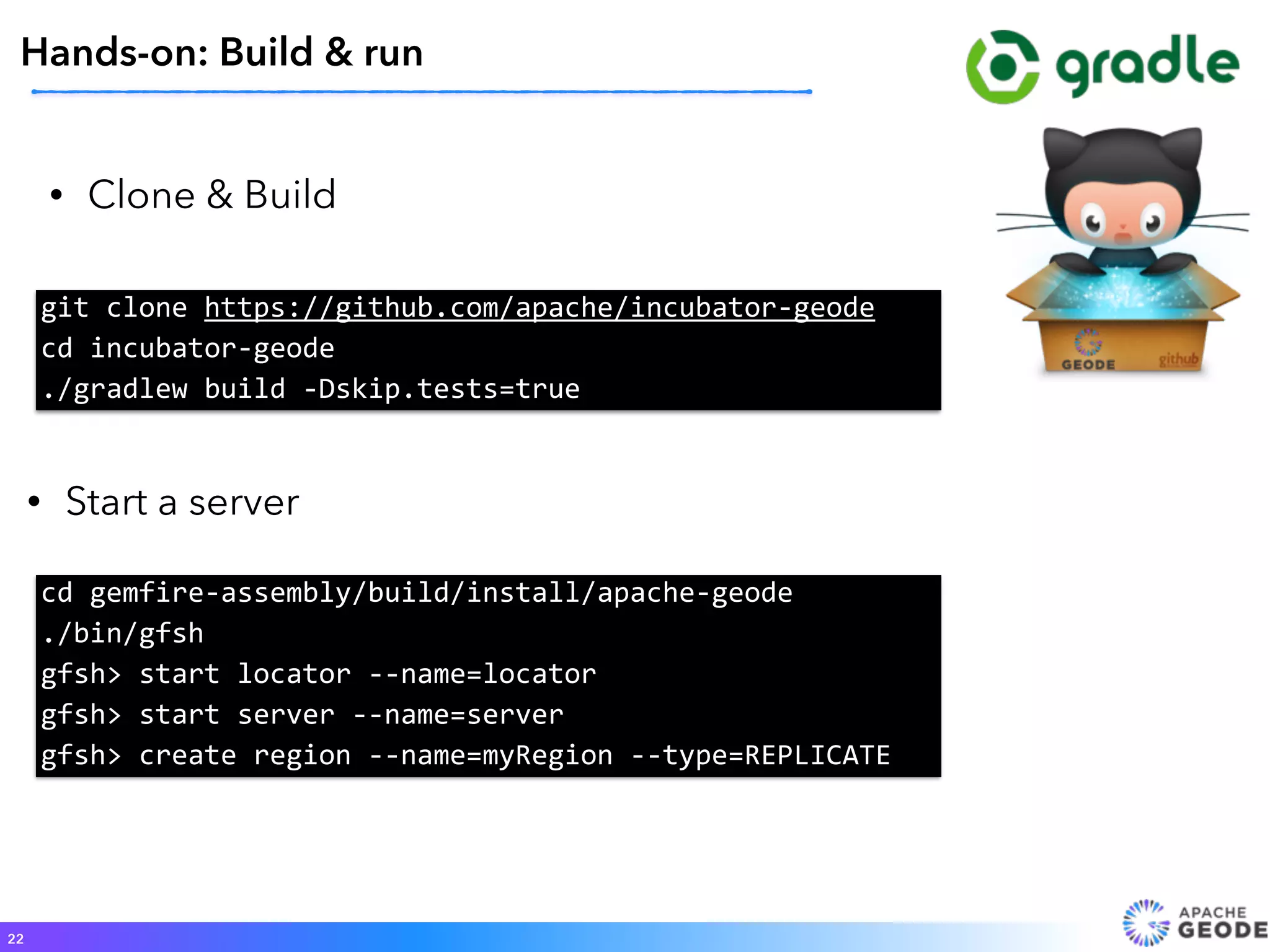

- 22. • Clone &Build 22 Hands-on: Build & run git clone https://github.com/apache/incubator-‐geode cd incubator-‐geode ./gradlew build -‐Dskip.tests=true • Start a server cd gemfire-‐assembly/build/install/apache-‐geode ./bin/gfsh gfsh> start locator -‐-‐name=locator gfsh> start server -‐-‐name=server gfsh> create region -‐-‐name=myRegion -‐-‐type=REPLICATE
- 23.
- 24. • Containers • FreeBSDJails (2000) • Solaris Zones (2004) • Docker (2013) • Operating system level virtualization • Isolated user space instances 24 * https://linuxcontainers.org/ Hands-on: Docker

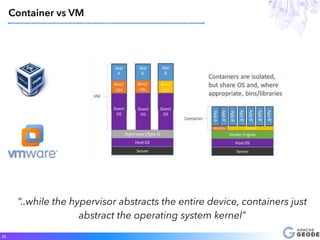

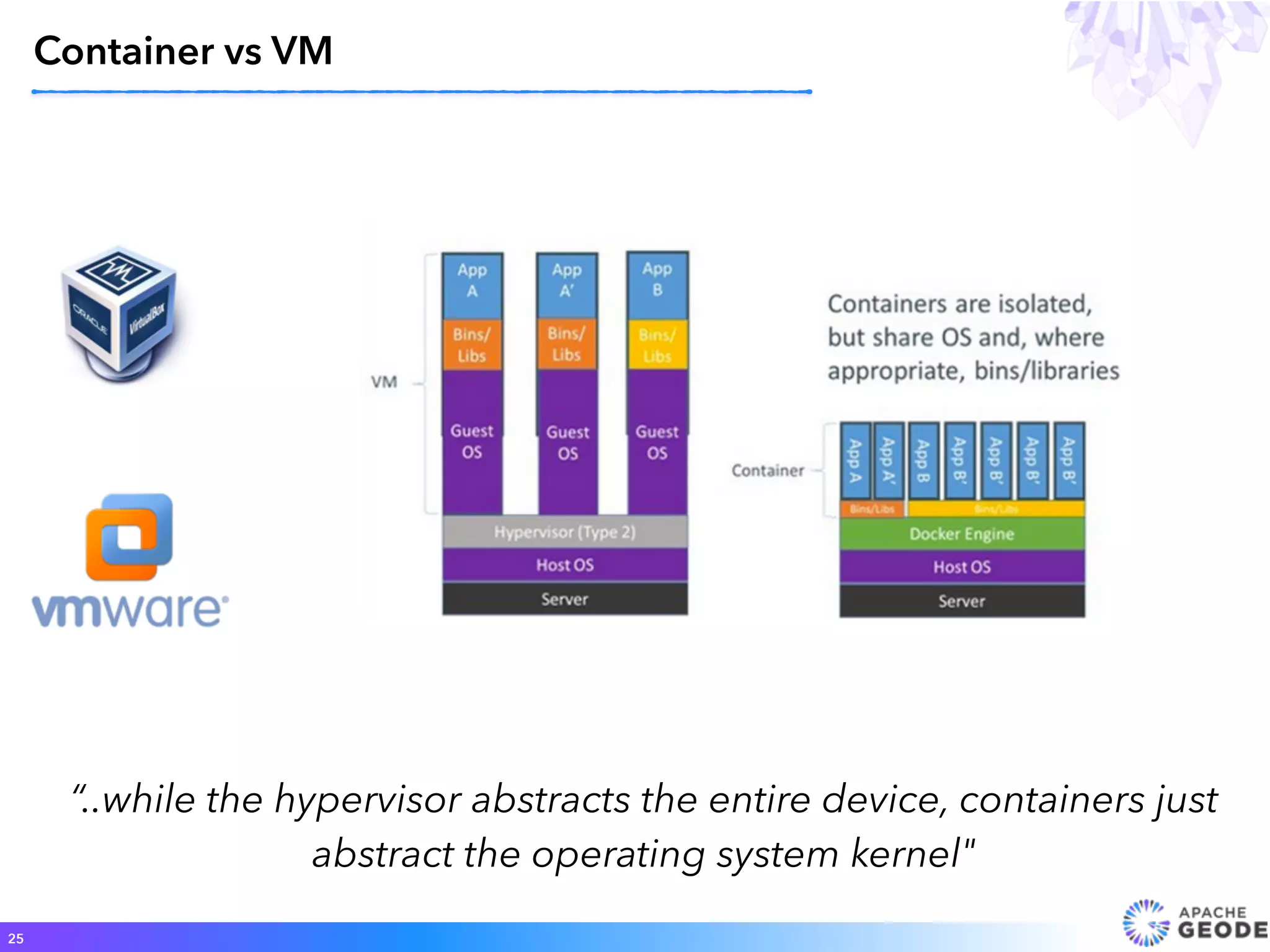

- 25. 25 Container vs VM “..whilethe hypervisor abstracts the entire device, containers just abstract the operating system kernel"

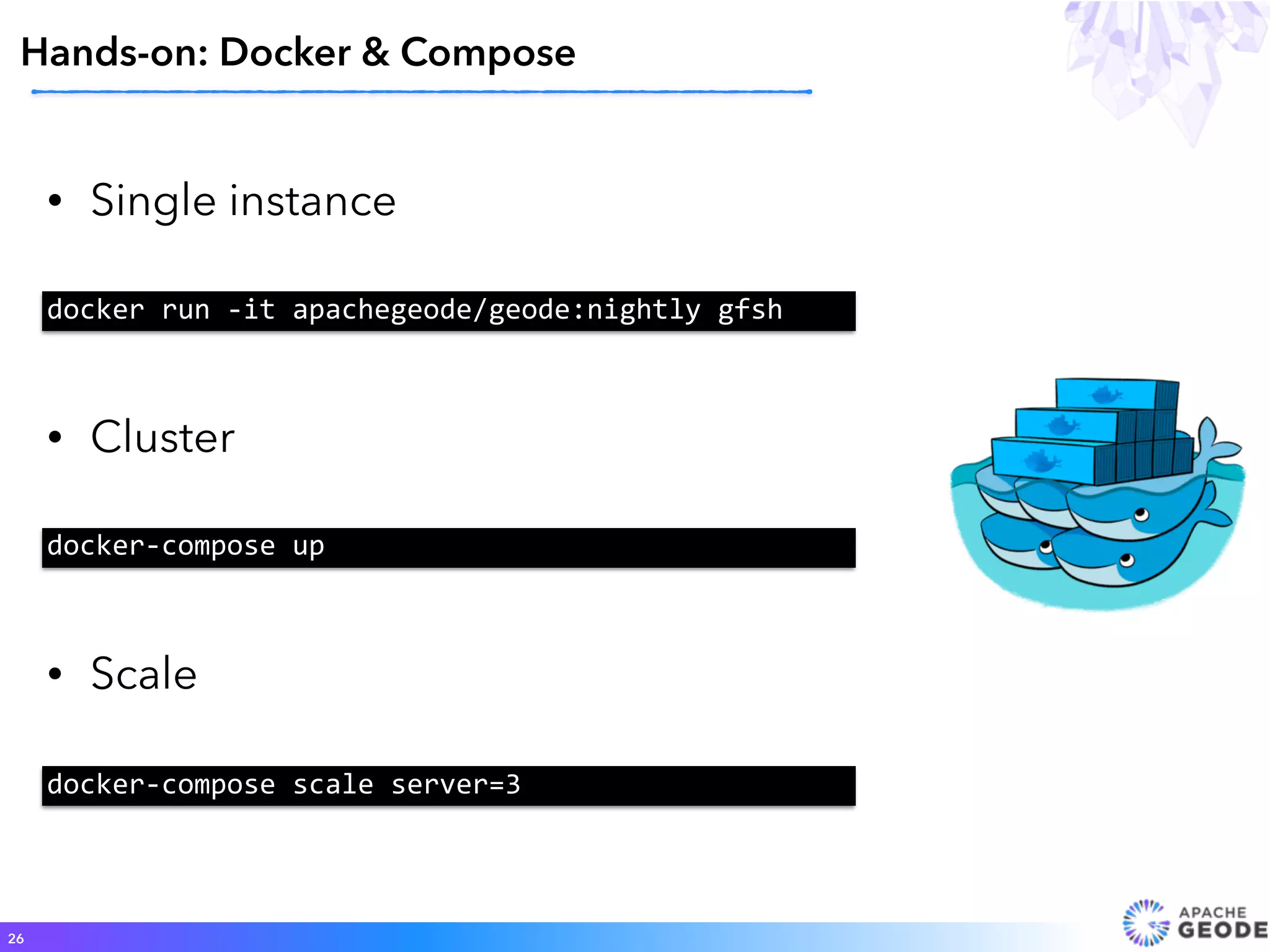

- 26. Hands-on: Docker &Compose 26 • Single instance docker run -‐it apachegeode/geode:nightly gfsh • Cluster docker-‐compose up • Scale docker-‐compose scale server=3

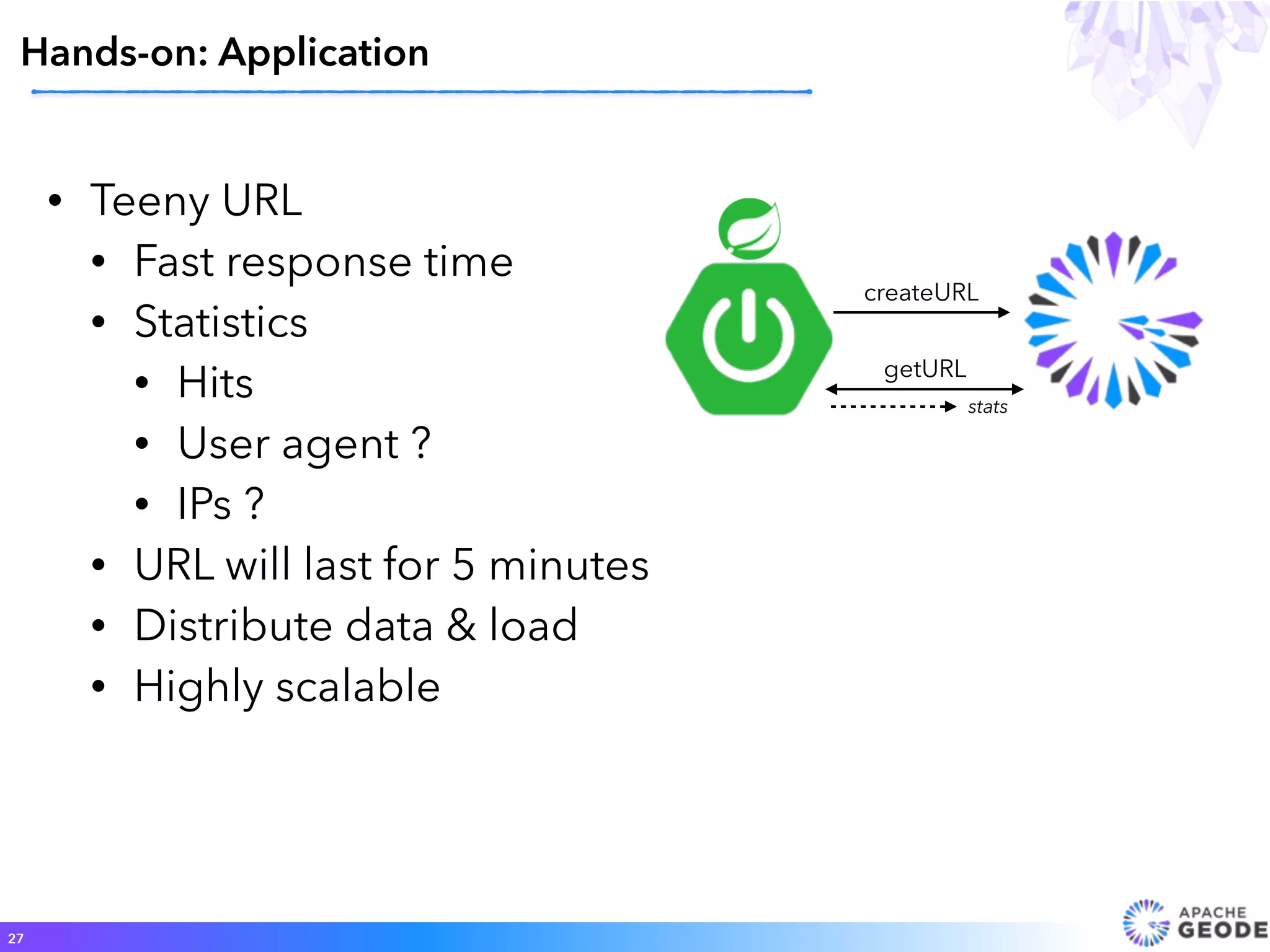

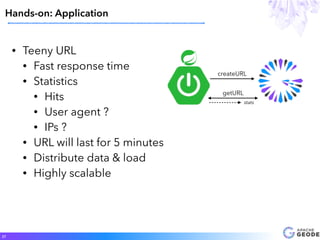

- 27. Hands-on: Application 27 • TeenyURL • Fast response time • Statistics • Hits • User agent ? • IPs ? • URL will last for 5 minutes • Distribute data & load • Highly scalable createURL getURL stats

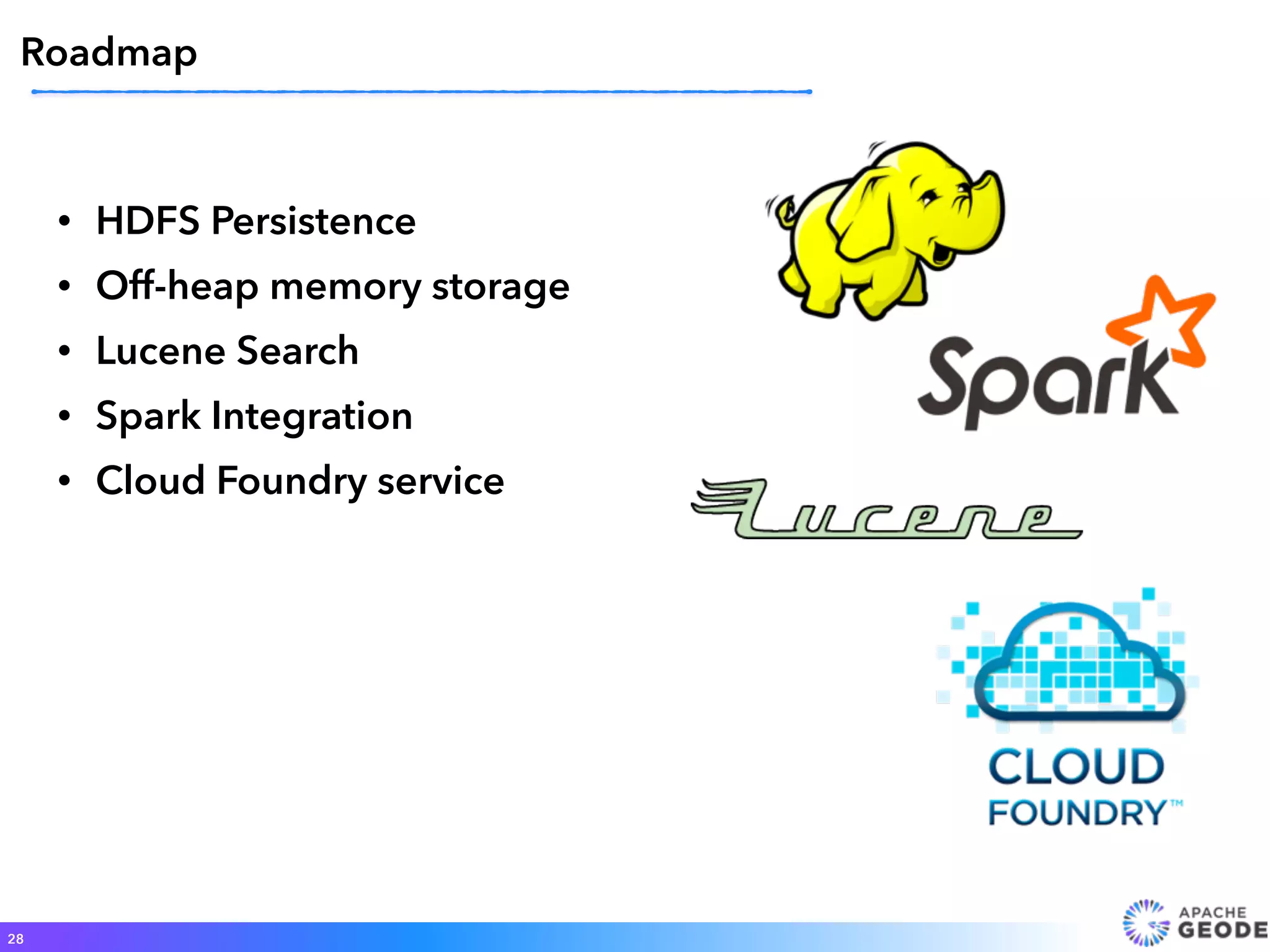

- 28. • HDFS Persistence •Off-heap memory storage • Lucene Search • Spark Integration • Cloud Foundry service 28 Roadmap

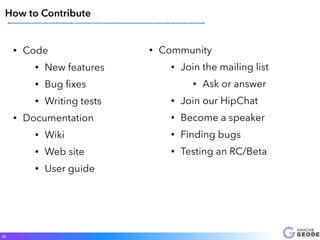

- 29. • Code • Newfeatures • Bug fixes • Writing tests • Documentation • Wiki • Web site • User guide 29 How to Contribute • Community • Join the mailing list • Ask or answer • Join our HipChat • Become a speaker • Finding bugs • Testing an RC/Beta

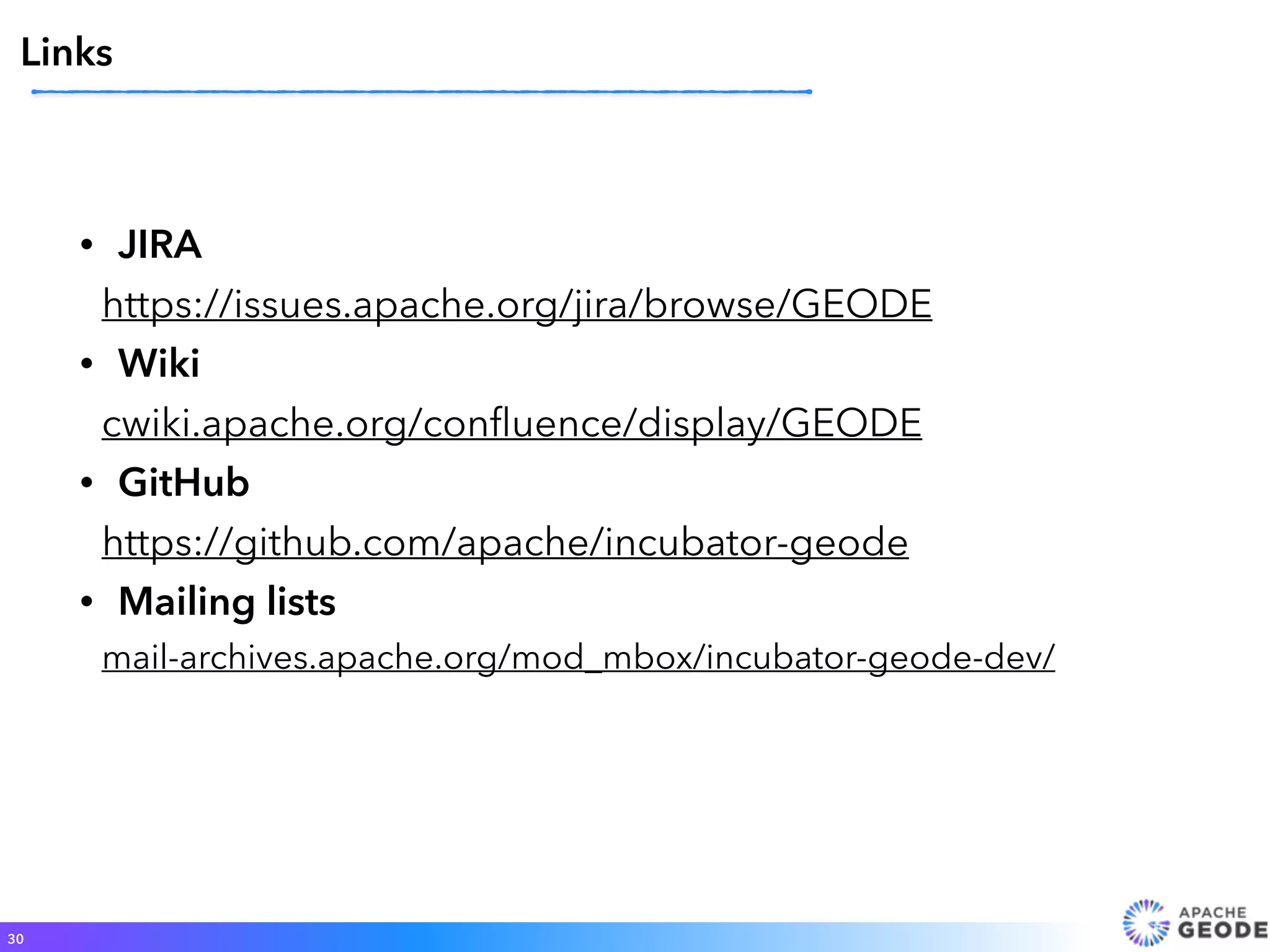

- 30. • JIRA https://issues.apache.org/jira/browse/GEODE • Wiki cwiki.apache.org/confluence/display/GEODE •GitHub https://github.com/apache/incubator-geode • Mailing lists mail-archives.apache.org/mod_mbox/incubator-geode-dev/ 30 Links
- 31.
