1. Hands-on Introduction
& Hackathon Kickoff
Ashvin Agrawal William Markito
@william_markito@aasoj
Powered by
Pivotal Open Source Hub (POSH)
(incubating)

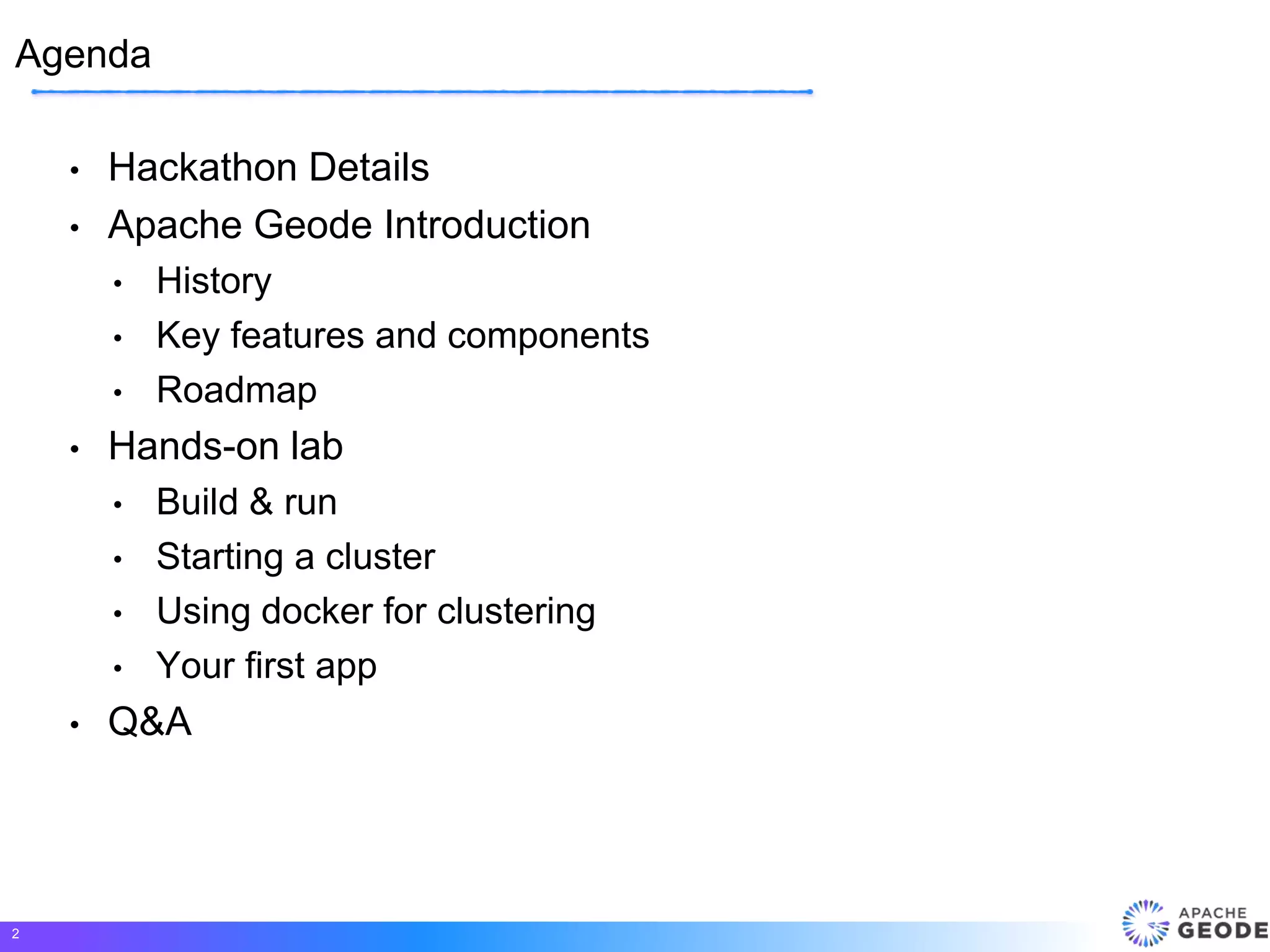

2. • Hackathon Details
• Apache Geode Introduction
• History
• Key features and components
• Roadmap
• Hands-on lab
• Build & run
• Starting a cluster
• Using docker for clustering
• Your first app
• Q&A
2
Agenda

3. Hackathon details
Powered by
Pivotal Open Source Hub (POSH)
http://ambitious-apps.challengepost.com/

4. 4
Introduction

5. A distributed, memory-based data management platform for data
oriented apps that need:
• high performance, scalability, resiliency and continuous
availability
• fast access to critical data set
• location aware distributed data processing
• event driven data architecture
5
Introduction

6. 6
One size fits all ?
Cost of sorting is nlog(n)

7. 7
One size fits all ?
Cost of sorting is nlog(n)
• Data quality and quantity differences
• Eventual consistency
• Response time expectation
• Scalability challenges: disk, memory, network and
external systems

8. • 1000+ systems in production (real customers)
• Cutting edge use cases
8
Incubating… but rock solid

9. • 17 billion records in memory
• GE Power & Water's Remote Monitoring & Diagnostics Center
• 3 TB operational data in-memory, 400 TB archived
• China Railways
• 4.6 Million transactions a day / 40K transactions a second
• China Railways
9
Incubating… but rock solid

10. • Performance optimized persistence
• Configurable consistency
• Elastic capacity
• Latency minimizing distribution
• Heterogenous deployment
Designed for High Performance
10
+/-
L2 ~10 ns, memory ~100 ns, network <1ms, disk ~10ms

11. • Cache
• Region
• Member
• Client Cache
• Functions
• Listeners
11
Concepts

12. • Cache
• In-memory storage and management
for your data
• Configurable through XML, Spring,
Java API or CLI
• Collection of Region
12
Concepts

13. • Region
• Distributed java.util.Map on steroids
(Key/Value)
• Consistent API regardless of where or
how data is stored
• Observable (reactive)
• Highly available, redundant on cache
Member (s).
13
Concepts

14. • Region
• Local, Replicated or Partitioned
• In-memory or persistent
• Redundant
• LRU
• Overflow
14
Concepts
LOCAL
LOCAL_HEAP_LRU
LOCAL_OVERFLOW
LOCAL_PERSISTENT
LOCAL_PERSISTENT_OVERFLOW
PARTITION
PARTITION_HEAP_LRU
PARTITION_OVERFLOW
PARTITION_PERSISTENT
PARTITION_PERSISTENT_OVERFLOW
PARTITION_PROXY
PARTITION_PROXY_REDUNDANT
PARTITION_REDUNDANT
PARTITION_REDUNDANT_HEAP_LRU
PARTITION_REDUNDANT_OVERFLOW
PARTITION_REDUNDANT_PERSISTENT
PARTITION_REDUNDANT_PERSISTENT_OVERFLOW
REPLICATE
REPLICATE_HEAP_LRU
REPLICATE_OVERFLOW
REPLICATE_PERSISTENT
REPLICATE_PERSISTENT_OVERFLOW
REPLICATE_PROXY

15. • Persistent Regions
• Durability
• WAL for efficient writing
• Consistent recovery
• Compaction
15
Concepts
Server 1 Server N

16. • Member
• A process that has a connection to the
system
• A process that has created a cache
• Embeddable within your application
16
Concepts
Client
Locator
Server

17. • Client cache
• A process connected to the Geode
server(s)
• Can have a local copy of the data
• Can be notified about events on the
servers
17
Concepts

18. • Functions
• Used for distributed concurrent processing
(Map/Reduce, stored procedure)
• Highly available
• Data oriented
• Member oriented
18
Concepts

19. 19
Concepts
• Functions

20. • Listeners
• CacheWriter / CacheListener
• AsyncEventListener (queue / batch)
• Parallel or Serial
• Conflation
20
Concepts

21. Hands on

22. • Clone & Build
22
Hands-on: Build & run
git clone https://github.com/apache/incubator-geode
cd incubator-geode
./gradlew build -Dskip.tests=true
• Start a server
cd gemfire-assembly/build/install/apache-geode
./bin/gfsh
gfsh> start locator --name=locator
gfsh> start server --name=server
gfsh> create region --name=myRegion --type=REPLICATE

23. 23
Hands-on: Docker
&

24. • Containers
• FreeBSD Jails (2000)
• Solaris Zones (2004)
• Docker (2013)
• Operating system level virtualization
• Isolated user space instances
24
* https://linuxcontainers.org/
Hands-on: Docker

25. 25
Container vs VM
pervisor abstracts the entire device, containers just abstract the operating

26. Hands-on: Docker & Compose
26
• Single instance
docker run -it apachegeode/geode:nightly gfsh
• Cluster
docker-compose up
• Scale
docker-compose scale server=3

27. Hands-on: Application
27
• Teeny URL
• Fast response time
• Statistics
• Hits
• User agent ?
• IPs ?
• URL will last for 5 minutes
• Distribute data & load
• Highly scalable
createURL
getURL
stats

28. • HDFS Persistence
• Off-heap memory storage
• Lucene Search
• Spark Integration
• Cloud Foundry service
28
Roadmap

29. • Code
• New features
• Bug fixes
• Writing tests
• Documentation
• Wiki
• Web site
• User guide
29
How to Contribute
• Community
• Join the mailing list
• Ask or answer
• Join our HipChat
• Become a speaker
• Finding bugs
• Testing an RC/Beta

30. • JIRA
https://issues.apache.org/jira/browse/GEODE
• Wiki
cwiki.apache.org/confluence/display/GEODE
• GitHub
https://github.com/apache/incubator-geode
• Mailing lists
mail-archives.apache.org/mod_mbox/incubator-geode-dev/
30
Links

31. 31
Thank you
http://geode.incubator.apache.org
https://github.com/Pivotal-Open-Source-Hub
