Chandrayaan 3 is India's third lunar mission to soft land on the lunar south pole region in order to conduct scientific experiments studying the lunar geology, atmosphere, and environment. The mission was launched on July 14, 2023 and successfully landed the Vikram lander and Pragyan rover on the Moon's south pole on August 23, 2023, making India the first nation to soft land in that region. The lander and rover will conduct experiments over the next 14 days.

1. CHANDRAYAAN 3
A Mission Of Hope For The Future Of Space Exploration.

2. Chandrayaan 3 is India's third lunar mission
to soft land on the lunar south pole region.
The mission will conduct scientific
experiments to study the lunar geology,
atmosphere, and environment.
Introduction Of
Chandrayaan 3

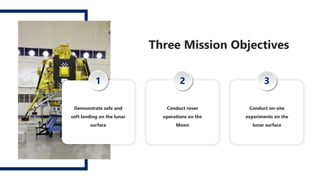

3. Three Mission Objectives
Demonstrate safe and
soft landing on the lunar
surface
Conduct rover
operations on the
Moon
Conduct on-site
experiments on the
lunar surface
1 2 3

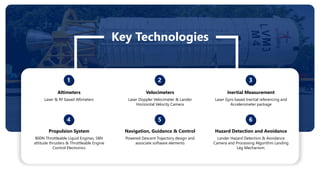

4. Key Technologies
Hazard Detection and Avoidance
Lander Hazard Detection & Avoidance
Camera and Processing Algorithm Landing
Leg Mechanism.
Inertial Measurement
Laser Gyro based Inertial referencing and
Accelerometer package
Altimeters
Laser & RF based Altimeters
Propulsion System
800N Throttleable Liquid Engines, 58N
attitude thrusters & Throttleable Engine
Control Electronics
Velocimeters
Laser Doppler Velocimeter & Lander
Horizontal Velocity Camera
Navigation, Guidance & Control
Powered Descent Trajectory design and
associate software elements
1 2 3
4 5 6

5. Lander Special Tests
Integrated Cold Test: For the demonstration of
Integrated Sensors & Navigation performance test
using helicopter as test platform
Integrated Hot test: For the demonstration of closed
loop performance test with sensors, actuators and
NGC using Tower crane as test platform
Lander Leg mechanism performance test on a lunar
simulant test bed simulating different touch down
conditions.

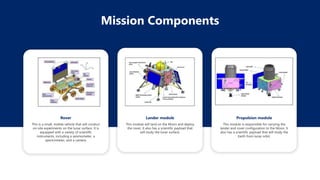

6. Mission Components
Propulsion module
This module is responsible for carrying the
lander and rover configuration to the Moon. It
also has a scientific payload that will study the
Earth from lunar orbit.
Lander module
This module will land on the Moon and deploy
the rover. It also has a scientific payload that
will study the lunar surface.
Rover
This is a small, mobile vehicle that will conduct
on-site experiments on the lunar surface. It is
equipped with a variety of scientific
instruments, including a seismometer, a
spectrometer, and a camera.

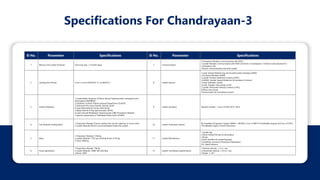

7. Specifications For Chandrayaan-3
Sl No. Parameter Specifications Sl No. Parameter Specifications
1. Mission Life (Lander & Rover) One lunar day (~14 Earth days) 7. Communication
1.Propulsion Module: Communicates with IDSN
2.Lander Module: Communicates with IDSN and Rover. Chandrayaan-2 Orbiter is also planned for
contingency link.
3.Rover: Communicates only with Lander.
2. Landing Site (Prime) 4 km x 2.4 km 69.367621 S, 32.348126 E 8. Lander Sensors
1.Laser Inertial Referencing and Accelerometer Package (LIRAP)
2.Ka-Band Altimeter (KaRA)
3.Lander Position Detection Camera (LPDC)
4.LHDAC (Lander Hazard Detection & Avoidance Camera)
5.Laser Altimeter (LASA)
6.Laser Doppler Velocimeter (LDV)
7.Lander Horizontal Velocity Camera (LHVC)
8.Micro Star sensor
9.Inclinometer & Touchdown sensors
3. Science Payloads
1.Lander:Radio Anatomy of Moon Bound Hypersensitive ionosphere and
Atmosphere (RAMBHA)
2.Chandra’s Surface Thermo physical Experiment (ChaSTE)
3.Instrument for Lunar Seismic Activity (ILSA)
4.Laser Retroreflector Array (LRA) Rover:
5.Alpha Particle X-Ray Spectrometer (APXS)
6.Laser Induced Breakdown Spectroscope (LIBS) Propulsion Module:
7.Spectro-polarimetry of HAbitable Planet Earth (SHAPE)
9. Lander Actuators Reaction wheels – 4 nos (10 Nms & 0.1 Nm)
4. Two Module Configuration
1.Propulsion Module (Carries Lander from launch injection to Lunar orbit)
2.Lander Module (Rover is accommodated inside the Lander)
10. Lander Propulsion System
Bi-Propellant Propulsion System (MMH + MON3), 4 nos. of 800 N Throttleable engines & 8 nos. of 58 N;
Throttleable Engine Control Electronics
5. Mass
1.Propulsion Module: 2148 kg
2.Lander Module: 1752 kg including Rover of 26 kg
3.Total: 3900 kg
11. Lander Mechanisms
1.Lander leg
2.Rover Ramp (Primary & Secondary)
3.Rover
4.ILSA, Rambha & Chaste Payloads
5.Umbilical connector Protection Mechanism,
6.X- Band Antenna
6. Power generation
1.Propulsion Module: 758 W
2.Lander Module: 738W, WS with Bias
3.Rover: 50W
12. Lander Touchdown specifications
1.Vertical velocity: ≤ 2 m / sec
2.Horizontal velocity: ≤ 0.5 m / sec
3.Slope: ≤ 120

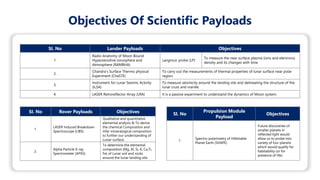

8. Objectives Of Scientific Payloads
SI. No Lander Payloads Objectives
1.
Radio Anatomy of Moon Bound
Hypersensitive ionosphere and
Atmosphere (RAMBHA)
Langmuir probe (LP)
To measure the near surface plasma (ions and electrons)
density and its changes with time
2.
Chandra’s Surface Thermo physical
Experiment (ChaSTE)
To carry out the measurements of thermal properties of lunar surface near polar
region.
3.
Instrument for Lunar Seismic Activity
(ILSA)
To measure seismicity around the landing site and delineating the structure of the
lunar crust and mantle.
4. LASER Retroreflector Array (LRA) It is a passive experiment to understand the dynamics of Moon system.
SI. No Rover Payloads Objectives
1.
LASER Induced Breakdown
Spectroscope (LIBS)
Qualitative and quantitative
elemental analysis & To derive
the chemical Composition and
infer mineralogical composition
to further our understanding of
Lunar-surface.
2.
Alpha Particle X-ray
Spectrometer (APXS)
To determine the elemental
composition (Mg, Al, Si, K, Ca,Ti,
Fe) of Lunar soil and rocks
around the lunar landing site.
Sl. No
Propulsion Module
Payload
Objectives
1.
Spectro-polarimetry of HAbitable
Planet Earth (SHAPE)
Future discoveries of
smaller planets in
reflected light would
allow us to probe into
variety of Exo-planets
which would qualify for
habitability (or for
presence of life).

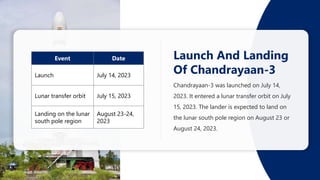

9. Launch And Landing
Of Chandrayaan-3
Chandrayaan-3 was launched on July 14,
2023. It entered a lunar transfer orbit on July
15, 2023. The lander is expected to land on
the lunar south pole region on August 23 or
August 24, 2023.
Event Date
Launch July 14, 2023
Lunar transfer orbit July 15, 2023
Landing on the lunar
south pole region
August 23-24,
2023

10. First Indian mission
to land on the lunar
south pole region
First Indian mission
to carry a rover Advances India's
space exploration
capabilities
Promotes
international
cooperation in space
exploration
The Significance
Of Chandrayaan-3

11. Mission Life
Propulsion Module
3 to 6 months
Lander Rover
1 Lunar Day
Landing Site
69.36 degree S, 32.34 degree E; slightly off the site
for Chandrayaan-2

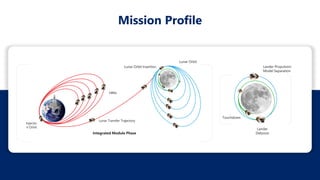

12. Integrated Module Phase
Lunar Transfer Trajectory
Injectio
n Orbit
EBNs
Lunar Orbit Insertion
Lunar Orbit
Lander
Deboost
Lander Propulsion
Model Separation
Touchdown
Mission Profile

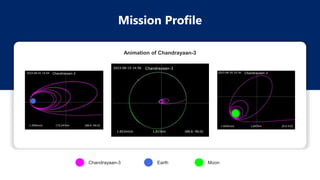

13. Mission Profile
Animation of Chandrayaan-3
Chandrayaan-3 Earth Moon

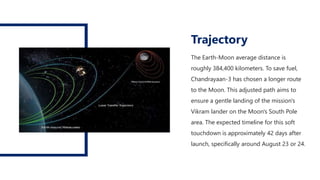

14. The Earth-Moon average distance is
roughly 384,400 kilometers. To save fuel,
Chandrayaan-3 has chosen a longer route
to the Moon. This adjusted path aims to
ensure a gentle landing of the mission's
Vikram lander on the Moon's South Pole
area. The expected timeline for this soft
touchdown is approximately 42 days after
launch, specifically around August 23 or 24.
Trajectory

15. 01
02
03
04
05
06 07

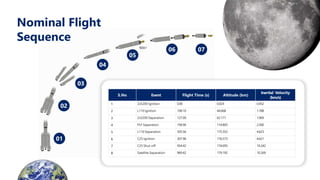

Nominal Flight
Sequence
S.No Event Flight Time (s) Altitude (km)
Inertial Velocity
(km/s)
1 2xS200 Ignition 0.00 0.024 0.452
2 L110 Ignition 108.10 44.668 1.788
3 2xS200 Separation 127.00 62.171 1.969
4 PLF Separation 194.96 114.805 2.560
5 L110 Separation 305.56 175.352 4.623
6 C25 Ignition 307.96 176.573 4.621
7 C25 Shut-off 954.42 174.695 10.242
8 Satellite Separation 969.42 179.192 10.269

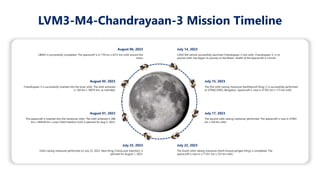

16. LVM3-M4-Chandrayaan-3 Mission Timeline
July 14, 2023
LVM3 M4 vehicle successfully launched Chandrayaan-3 into orbit. Chandrayaan-3, in its
precise orbit, has begun its journey to the Moon. Health of the Spacecraft is normal.
July 22, 2023
The fourth orbit-raising maneuver (Earth-bound perigee firing) is completed. The
spacecraft is now in a 71351 km x 233 km orbit.
August 06, 2023
LBN#2 is successfully completed. The spacecarft is in 170 km x 4313 km orbit around the
moon
July 25, 2023
Orbit-raising maneuver performed on July 25, 2023. Next firing (TransLunar Injection), is
planned for August 1, 2023.
July 15, 2023
The first orbit-raising maneuver (Earthbound firing-1) is successfully performed
at ISTRAC/ISRO, Bengaluru. Spacecraft is now in 41762 km x 173 km orbit.
July 17, 2023
The second orbit-raising maneuver performed. The spacecraft is now in 41603
km x 226 km orbit.
August 05, 2023
Chandrayaan-3 is successfully inserted into the lunar orbit. The orbit achieved
is 164 km x 18074 km, as intended.
August 01, 2023
The spacecraft is inserted into the translunar orbit. The orbit achieved is 288
km x 369328 km. Lunar-Orbit Insertion (LOI) is planned for Aug 5, 2023.

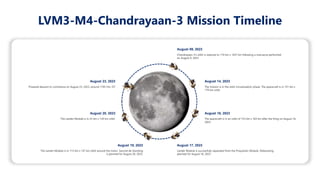

17. LVM3-M4-Chandrayaan-3 Mission Timeline
August 09, 2023
Chandrayaan-3's orbit is reduced to 174 km x 1437 km following a manuevre performed
on August 9, 2023
August 17, 2023
Lander Module is successfully separated from the Propulsion Module. Deboosting
planned for August 18, 2023
August 19, 2023
The Lander Module is in 113 km x 157 km orbit around the moon. Second de-boosting
is planned for August 20, 2023.
August 14, 2023
The mission is in the orbit circularisation phase. The spacecraft is in 151 km x
179 km orbit.
August 16, 2023
The spacecraft is in an orbit of 153 km x 163 km after the firing on August 16,
2023.
August 23, 2023
Powered descent to commence on August 23, 2023, around 1745 Hrs. IST
August 20, 2023
The Lander Module is in 25 km x 134 km orbit.

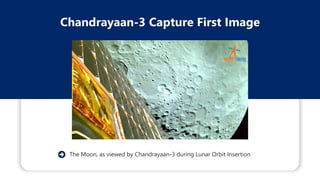

18. Chandrayaan-3 Capture First Image
The Moon, as viewed by Chandrayaan-3 during Lunar Orbit Insertion

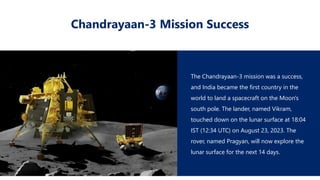

19. Chandrayaan-3 Mission Success
The Chandrayaan-3 mission was a success,
and India became the first country in the
world to land a spacecraft on the Moon's
south pole. The lander, named Vikram,
touched down on the lunar surface at 18:04
IST (12:34 UTC) on August 23, 2023. The
rover, named Pragyan, will now explore the
lunar surface for the next 14 days.

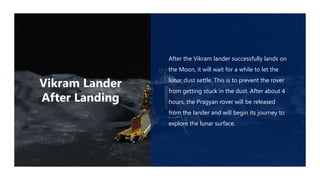

20. After the Vikram lander successfully lands on
the Moon, it will wait for a while to let the
lunar dust settle. This is to prevent the rover
from getting stuck in the dust. After about 4
hours, the Pragyan rover will be released
from the lander and will begin its journey to
explore the lunar surface.
Vikram Lander
After Landing

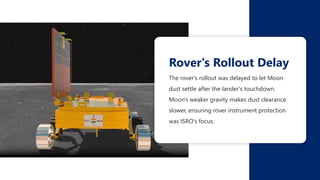

21. The rover's rollout was delayed to let Moon
dust settle after the lander's touchdown.
Moon's weaker gravity makes dust clearance
slower, ensuring rover instrument protection
was ISRO's focus.
Rover's Rollout Delay

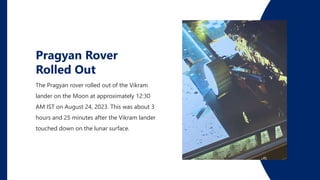

22. The Pragyan rover rolled out of the Vikram
lander on the Moon at approximately 12:30
AM IST on August 24, 2023. This was about 3
hours and 25 minutes after the Vikram lander
touched down on the lunar surface.
Pragyan Rover
Rolled Out

23. Pragyan is crafted to mark the national
emblem and ISRO's logo on the lunar surface.
It will traverse unexplored lunar terrain,
transmitting data and visuals after its landing.
Pragyan's Symbolic
Imprints

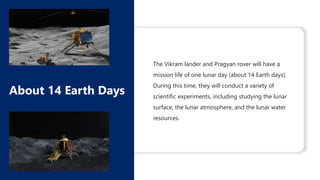

24. The Vikram lander and Pragyan rover will have a
mission life of one lunar day (about 14 Earth days).
During this time, they will conduct a variety of
scientific experiments, including studying the lunar
surface, the lunar atmosphere, and the lunar water
resources.
About 14 Earth Days

25. Conclusion Of
Chandrayaan 3
The success of Chandrayaan-3 is a major
milestone for India's space program and a
testament to the hard work and dedication
of the ISRO team. It also opens up new
possibilities for scientific research on the
Moon.

26. Icons

27. Icons

28. You can add and edit some shapes to your presentation to present your data in a visual way.
● Choose your favourite infographic and insert it in your presentation using Ctrl C + Ctrl V or Cmd C +
Cmd V in Mac.
● Select one of the parts and ungroup it by right-clicking and choosing “Ungroup”.
● Change the color by clicking on the paint bucket.
● Then resize the element by clicking and dragging one of the square-shaped points of its bounding
box (the cursor should look like a double-headed arrow). Remember to hold Shift while dragging to
keep the proportions.
● Group the elements again by selecting them, right-clicking and choosing “Group”.
● Repeat the steps above with the other parts and when you’re done editing, copy the end result and
paste it into your presentation.
● Remember to choose the “Keep source formatting” option so that it keeps the design. For more
info, please visit Slideegg (Tips & Tricks).
How To Edit Shapes

29. Terms Of Use (Free Users)
If you are a free subscriber, you should credit SlideEgg by keeping the “Thank You” slide.
Kindly refer to the following slide for the Terms of Use for premium users.
You can:
• Customize or edit this template
• Use this template for both business and personal endeavors.
You can not:
• Sell, rent, or second-license SlideEgg content or its altered version.
Promulgate, unless explicitly permitted, SlideEgg content, by SlideEgg.
• Incorporate SlideEgg content in any database or file online or offline.
• Obtain SlideEgg content’s copyright.
Kindly refer to our Tutorial page or FAQ for advanced slide modification guidelines.

30. Terms Of Use (Premium Users)
Being a premium subscriber, you have the privilege of using this PPT template
without giving attribution to SlideEgg or keeping the “Thank You” slide.
You can:
• Customize or edit this template.
• Use this template for both business and personal endeavors.
• Circulate or share the editable format of this template with anyone you want.
You can not:
• Sell, rent or second-license SlideEgg content or the altered version of it.
Promulgate or include the templates in any other services database
• that performs as distribution or resale platform, unless explicitly permitted, by SlideEgg.
• Incorporate the elements used in SlideEgg templates separately.
• Obtain SlideEgg copyright for the elements used in this template as a logo or trademark.
Kindly refer to our Tutorial page or FAQ for advanced slide modification guidelines.

31. www.slideegg.com
Thank You!
We respect your valuable time with SlideEgg!
If you have any questions, please reach us
CREDIT: SlideEgg created this PowerPoint template.
Let this slide be kept for attribution.
Do you have a design request, please visit our redesign page.
