1. SKILLWISE – SPRING
FRAMEWORK

2. 2
Contents
 What is Spring Framework?
 History of Spring Framework
 Spring Overview
 Spring Architecture
 IOC and Dependency Injection
 Bean Factory, Beans and Bean Definition
 Lifecycle events of a Bean
 Bean Post Processor
 Advantages of Spring
 Spring and EJB

3. 3
What is Spring Framework?
 Spring is an open source framework
 Spring is a Lightweight Application framework
 Where Struts, WebWork and others can be considered
Web frameworks, Spring addresses all tiers of an
application
 Spring provides the plumbing so that you don’t have to
do the unwanted redundant job
 Essence of Spring is providing enterprise services to
simple POJO

4. 4

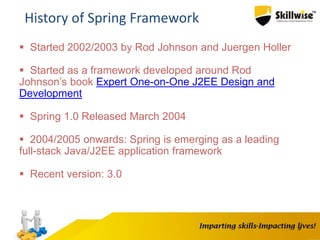

History of Spring Framework
 Started 2002/2003 by Rod Johnson and Juergen Holler
 Started as a framework developed around Rod
Johnson’s book Expert One-on-One J2EE Design and
Development
 Spring 1.0 Released March 2004
 2004/2005 onwards: Spring is emerging as a leading
full-stack Java/J2EE application framework
 Recent version: 3.0

5. 5

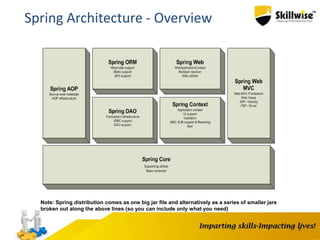

Spring Architecture - Overview
Note: Spring distribution comes as one big jar file and alternatively as a series of smaller jars
broken out along the above lines (so you can include only what you need)

6. 6

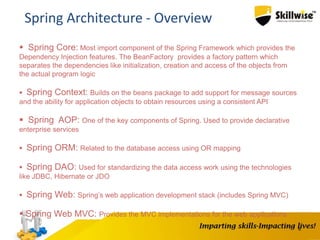

Spring Architecture - Overview
 Spring Core: Most import component of the Spring Framework which provides the
Dependency Injection features. The BeanFactory provides a factory pattern which
separates the dependencies like initialization, creation and access of the objects from
the actual program logic
 Spring Context: Builds on the beans package to add support for message sources
and the ability for application objects to obtain resources using a consistent API
 Spring AOP: One of the key components of Spring. Used to provide declarative
enterprise services
 Spring ORM: Related to the database access using OR mapping
 Spring DAO: Used for standardizing the data access work using the technologies
like JDBC, Hibernate or JDO
 Spring Web: Spring’s web application development stack (includes Spring MVC)
 Spring Web MVC: Provides the MVC implementations for the web applications

7. 7
But really, What is Spring?
 At it’s core, Spring provides:
• An Inversion of Control Container
o Also known as Dependency Injection
• An AOP Framework
o Spring provides a proxy-based AOP framework
• A Service Abstraction Layer
o Consistent integration with various standard and 3rd party APIs
 These together enables to write powerful, scalable
applications using POJOs
 Spring at it’s core is a framework for wiring up your
entire application
 Bean Factories are the heart of Spring

8. 8

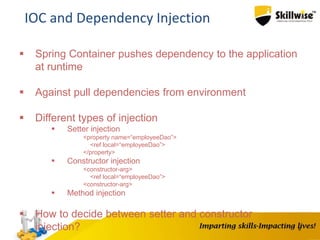

IOC and Dependency Injection
 Spring Container pushes dependency to the application
at runtime
 Against pull dependencies from environment
 Different types of injection
 Setter injection
<property name=“employeeDao”>
<ref local=“employeeDao”>
</property>
 Constructor injection
<constructor-arg>
<ref local=“employeeDao”>
<constructor-arg>
 Method injection
 How to decide between setter and constructor
injection?

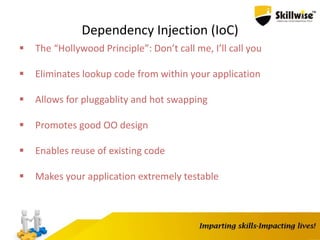

9. Dependency Injection (IoC)
 The “Hollywood Principle”: Don’t call me, I’ll call you
 Eliminates lookup code from within your application
 Allows for pluggablity and hot swapping
 Promotes good OO design
 Enables reuse of existing code
 Makes your application extremely testable

10. 10
Bean Factory
 A BeanFactory is typically configured in an XML file
with the root element: <beans>
 The XML contains one or more <bean> elements
 id (or name) attribute to identify the bean
 class attribute to specify the fully qualified class
 By default, beans are treated as singletons
 Can also be prototypes
<beans>
<bean id=“widgetService”
class=“com.zabada.base.WidgetService”>
<property name=“poolSize”>
<!—-property value here-->
</property>
</bean>
</beans>
The bean’s ID
The bean’s fully-
qualified
classname
Maps to a setPoolSize() call

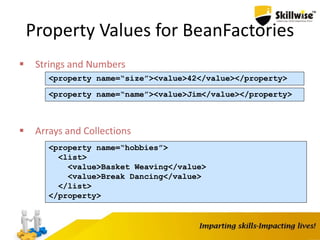

11. Property Values for BeanFactories
 Strings and Numbers
 Arrays and Collections
<property name=“size”><value>42</value></property>
<property name=“name”><value>Jim</value></property>
<property name=“hobbies”>
<list>
<value>Basket Weaving</value>
<value>Break Dancing</value>
</list>
</property>

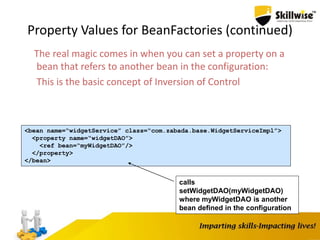

12. Property Values for BeanFactories (continued)
The real magic comes in when you can set a property on a
bean that refers to another bean in the configuration:
This is the basic concept of Inversion of Control
<bean name=“widgetService” class=“com.zabada.base.WidgetServiceImpl”>
<property name=“widgetDAO”>
<ref bean=“myWidgetDAO”/>
</property>
</bean>
calls
setWidgetDAO(myWidgetDAO)
where myWidgetDAO is another
bean defined in the configuration

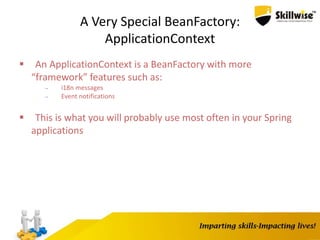

13. A Very Special BeanFactory:
ApplicationContext
 An ApplicationContext is a BeanFactory with more
“framework” features such as:
– i18n messages
– Event notifications
 This is what you will probably use most often in your Spring
applications

14. 14
Bean Factory and Configurations (Contd..,)
 Bean factory works as the container
 BeanFactory is an Interface
 ApplicationContext is also a beanfactory. It is a sub
class of BeanFactory interface
 How to start the container?
ApplicationContext context = new ClassPathApplicationContext(
new FileSystemXmlApplicationContext(

15. 15

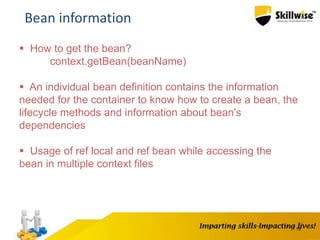

Bean information
 How to get the bean?
context.getBean(beanName)
 An individual bean definition contains the information
needed for the container to know how to create a bean, the
lifecycle methods and information about bean's
dependencies
 Usage of ref local and ref bean while accessing the
bean in multiple context files

16. 16

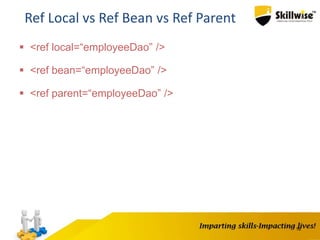

Ref Local vs Ref Bean vs Ref Parent
 <ref local=“employeeDao” />
 <ref bean=“employeeDao” />
 <ref parent=“employeeDao” />

17. 17

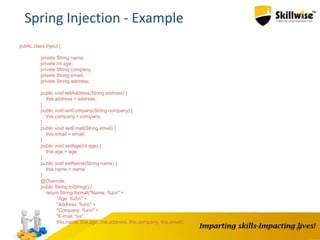

Spring Injection - Example
public class Inject {
private String name;
private int age;
private String company;
private String email;
private String address;
public void setAddress(String address) {
this.address = address;
}
public void setCompany(String company) {
this.company = company;
}
public void setEmail(String email) {
this.email = email;
}
public void setAge(int age) {
this.age = age;
}
public void setName(String name) {
this.name = name;
}
@Override
public String toString() {
return String.format("Name: %sn" +
"Age: %dn" +
"Address: %sn" +
"Company: %sn" +
"E-mail: %s",
this.name, this.age, this.address, this.company, this.email);
}
}

18. 18

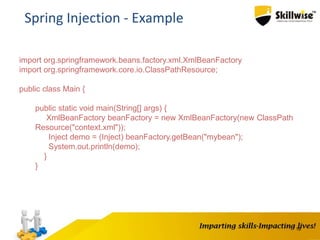

Spring Injection - Example
import org.springframework.beans.factory.xml.XmlBeanFactory
import org.springframework.core.io.ClassPathResource;
public class Main {
public static void main(String[] args) {
XmlBeanFactory beanFactory = new XmlBeanFactory(new ClassPath
Resource("context.xml"));
Inject demo = (Inject) beanFactory.getBean("mybean");
System.out.println(demo);
}
}

19. 19

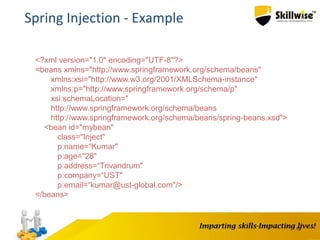

Spring Injection - Example
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="mybean"
class="Inject"
p:name=“Kumar"
p:age="28"
p:address=“Trivandrum"
p:company=“UST"
p:email=“kumar@ust-global.com"/>
</beans>

20. 20

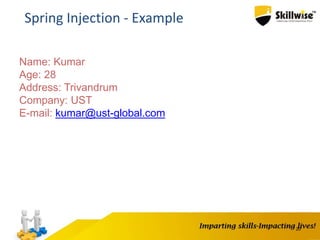

Spring Injection - Example
Name: Kumar
Age: 28
Address: Trivandrum
Company: UST
E-mail: kumar@ust-global.com

21. 21
Other features of Bean configuration
 Auto wiring
 Automatically wires the beans
 Bean Post processor
 Special Listeners
 Post processing logic after a bean is initialized
Public interface BeanPostProcessor {
Object postProcessBeforeInitialization(Object bean, String beanName)
Object postProcessAfterInitialization(Object bean, String beanName)
}
 Property Place holder
 Place the property information in context.xml

22. 22

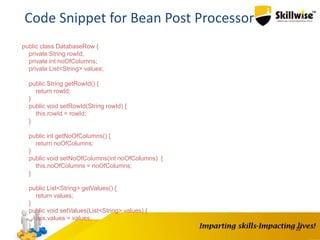

Code Snippet for Bean Post Processor
public class DatabaseRow {
private String rowId;
private int noOfColumns;
private List<String> values;
public String getRowId() {
return rowId;
}
public void setRowId(String rowId) {
this.rowId = rowId;
}
public int getNoOfColumns() {
return noOfColumns;
}
public void setNoOfColumns(int noOfColumns) {
this.noOfColumns = noOfColumns;
}
public List<String> getValues() {
return values;
}
public void setValues(List<String> values) {
this.values = values;
}
}

23. 23

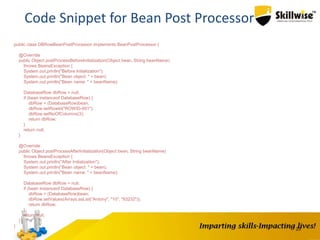

Code Snippet for Bean Post Processor
public class DBRowBeanPostProcessor implements BeanPostProcessor {
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName)
throws BeansException {
System.out.println("Before Initialization");
System.out.println("Bean object: " + bean);
System.out.println("Bean name: " + beanName);
DatabaseRow dbRow = null;
if (bean instanceof DatabaseRow) {
dbRow = (DatabaseRow)bean;
dbRow.setRowId("ROWID-001");
dbRow.setNoOfColumns(3);
return dbRow;
}
return null;
}
@Override
public Object postProcessAfterInitialization(Object bean, String beanName)
throws BeansException {
System.out.println("After Initialization");
System.out.println("Bean object: " + bean);
System.out.println("Bean name: " + beanName);
DatabaseRow dbRow = null;
if (bean instanceof DatabaseRow) {
dbRow = (DatabaseRow)bean;
dbRow.setValues(Arrays.asList("Antony", "10", "93232"));
return dbRow;
}
return null;
}
}

24. 24

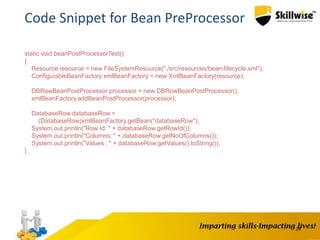

Code Snippet for Bean PreProcessor
static void beanPostProcessorTest()
{
Resource resource = new FileSystemResource("./src/resources/bean-lifecycle.xml");
ConfigurableBeanFactory xmlBeanFactory = new XmlBeanFactory(resource);
DBRowBeanPostProcessor processor = new DBRowBeanPostProcessor();
xmlBeanFactory.addBeanPostProcessor(processor);
DatabaseRow databaseRow =
(DatabaseRow)xmlBeanFactory.getBean("databaseRow");
System.out.println("Row Id: " + databaseRow.getRowId());
System.out.println("Columns: " + databaseRow.getNoOfColumns());
System.out.println("Values : " + databaseRow.getValues().toString());
}

25. 25

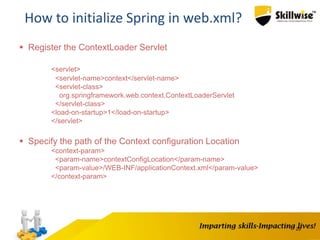

How to initialize Spring in web.xml?
 Register the ContextLoader Servlet
<servlet>
<servlet-name>context</servlet-name>
<servlet-class>
org.springframework.web.context.ContextLoaderServlet
</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
 Specify the path of the Context configuration Location
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/applicationContext.xml</param-value>
</context-param>

26. 26

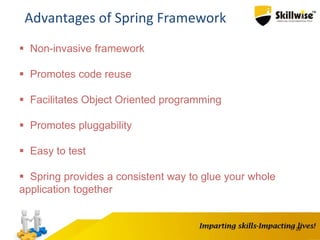

Advantages of Spring Framework
 Non-invasive framework
 Promotes code reuse
 Facilitates Object Oriented programming
 Promotes pluggability
 Easy to test
 Spring provides a consistent way to glue your whole
application together

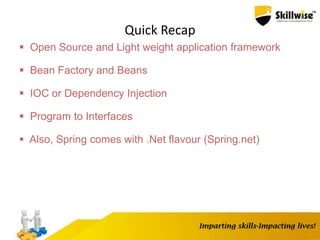

27. Quick Recap
 Open Source and Light weight application framework
 Bean Factory and Beans
 IOC or Dependency Injection
 Program to Interfaces
 Also, Spring comes with .Net flavour (Spring.net)

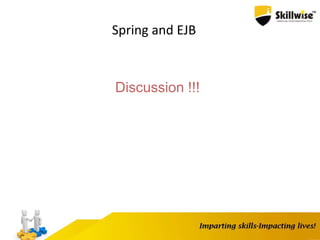

28. Spring and EJB
Discussion !!!

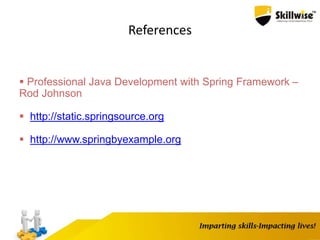

29. References
 Professional Java Development with Spring Framework –
Rod Johnson
 http://static.springsource.org
 http://www.springbyexample.org

30. 30
Questions?
