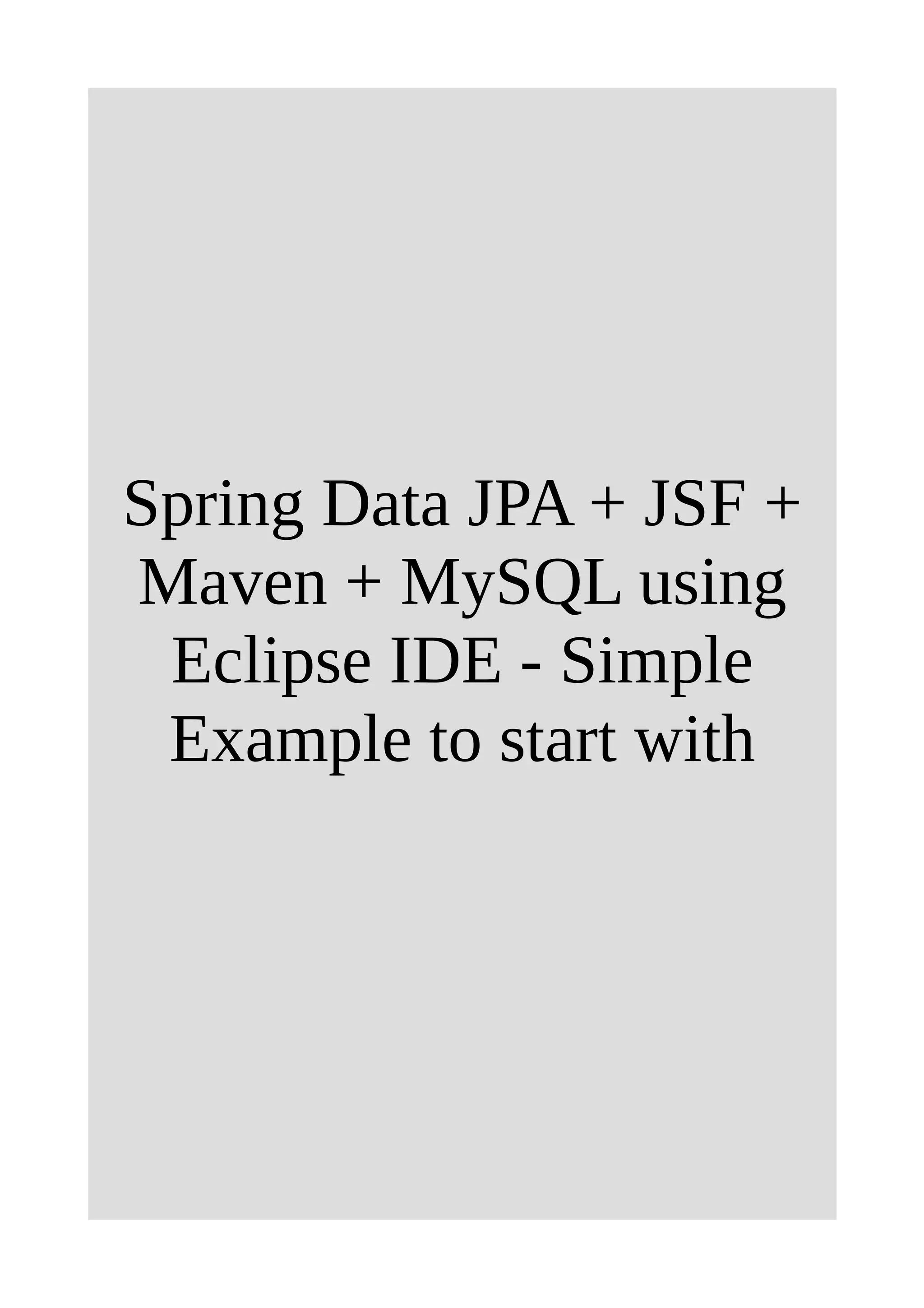

The document provides steps to create a simple example application using Spring Data JPA and JSF for learning purposes. It involves creating a database table, setting up a Maven project in Eclipse with necessary dependencies, configuring the web.xml file, and creating basic Java classes for the domain entity and JSF managed bean. The goal is to provide a starting point for learners facing issues integrating the two frameworks.

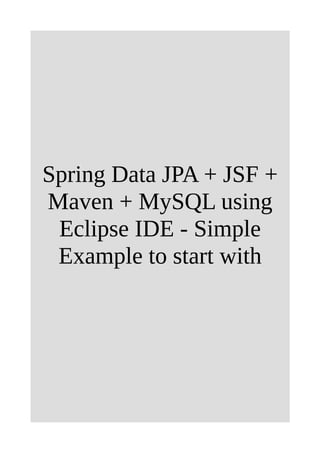

1. Spring Data JPA + JSF +
Maven + MySQL using
Eclipse IDE - Simple
Example to start with

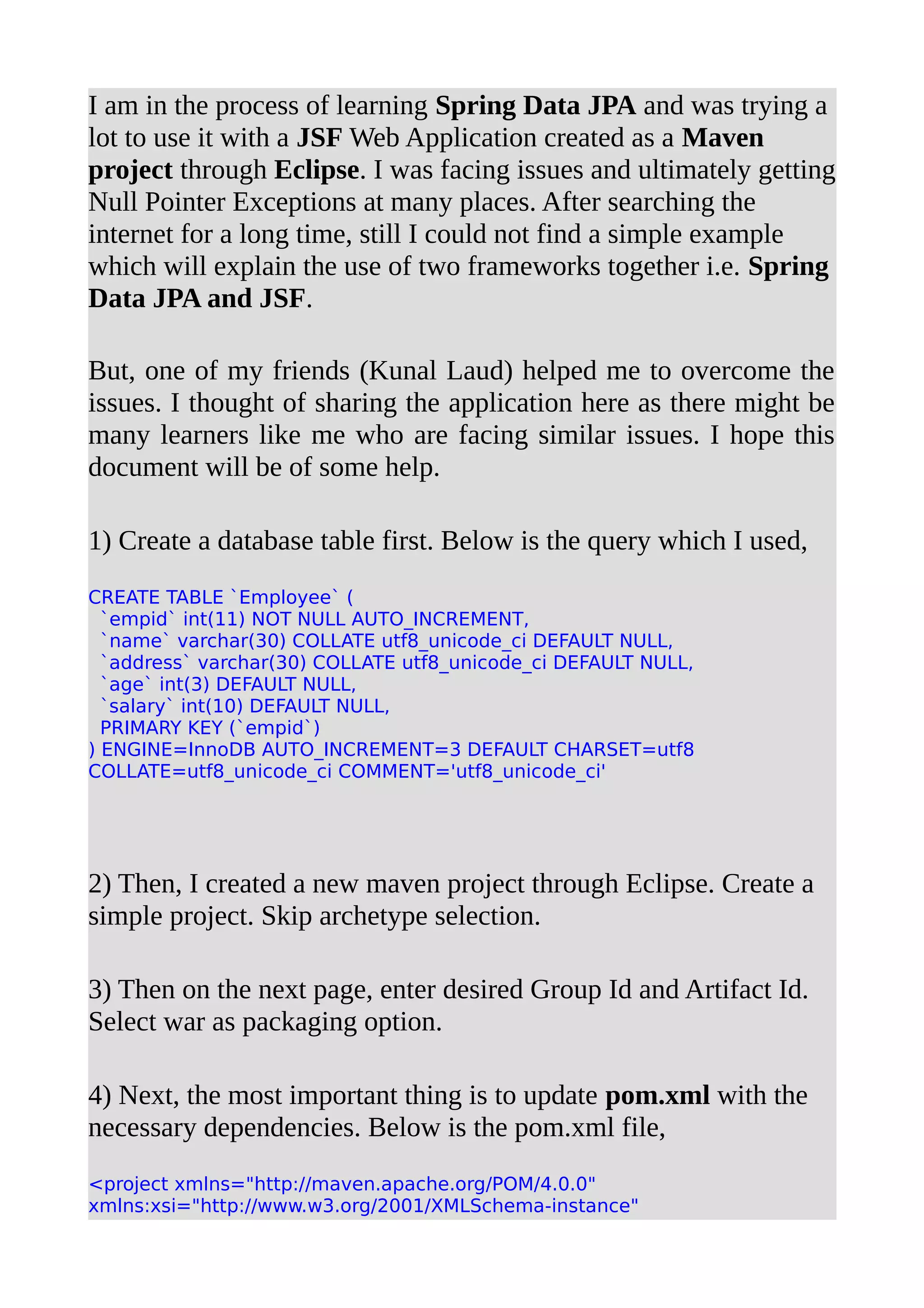

2. I am in the process of learning Spring Data JPA and was trying a
lot to use it with a JSF Web Application created as a Maven
project through Eclipse. I was facing issues and ultimately getting
Null Pointer Exceptions at many places. After searching the
internet for a long time, still I could not find a simple example
which will explain the use of two frameworks together i.e. Spring
Data JPA and JSF.
But, one of my friends (Kunal Laud) helped me to overcome the
issues. I thought of sharing the application here as there might be
many learners like me who are facing similar issues. I hope this
document will be of some help.
1) Create a database table first. Below is the query which I used,
CREATE TABLE `Employee` (
`empid` int(11) NOT NULL AUTO_INCREMENT,
`name` varchar(30) COLLATE utf8_unicode_ci DEFAULT NULL,
`address` varchar(30) COLLATE utf8_unicode_ci DEFAULT NULL,
`age` int(3) DEFAULT NULL,
`salary` int(10) DEFAULT NULL,
PRIMARY KEY (`empid`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8
COLLATE=utf8_unicode_ci COMMENT='utf8_unicode_ci'
2) Then, I created a new maven project through Eclipse. Create a
simple project. Skip archetype selection.
3) Then on the next page, enter desired Group Id and Artifact Id.
Select war as packaging option.
4) Next, the most important thing is to update pom.xml with the
necessary dependencies. Below is the pom.xml file,
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

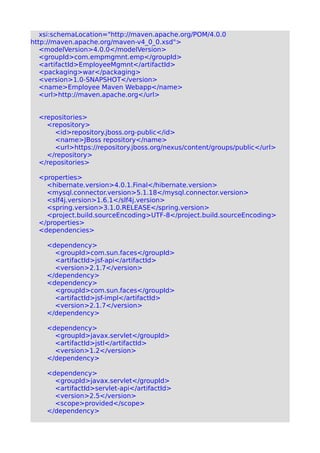

3. xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.empmgmnt.emp</groupId>
<artifactId>EmployeeMgmnt</artifactId>
<packaging>war</packaging>
<version>1.0-SNAPSHOT</version>
<name>Employee Maven Webapp</name>
<url>http://maven.apache.org</url>
<repositories>
<repository>
<id>repository.jboss.org-public</id>
<name>JBoss repository</name>
<url>https://repository.jboss.org/nexus/content/groups/public</url>
</repository>
</repositories>
<properties>
<hibernate.version>4.0.1.Final</hibernate.version>
<mysql.connector.version>5.1.18</mysql.connector.version>
<slf4j.version>1.6.1</slf4j.version>
<spring.version>3.1.0.RELEASE</spring.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>com.sun.faces</groupId>
<artifactId>jsf-api</artifactId>
<version>2.1.7</version>
</dependency>
<dependency>
<groupId>com.sun.faces</groupId>
<artifactId>jsf-impl</artifactId>
<version>2.1.7</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>

4. <dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>com.sun.el</groupId>
<artifactId>el-ri</artifactId>
<version>1.0</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax</groupId>
<artifactId>javaee-api</artifactId>
<version>6.0</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-orm</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>

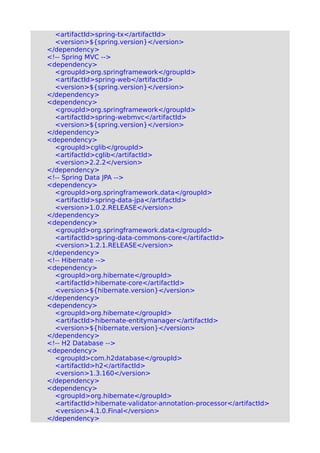

5. <artifactId>spring-tx</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- Spring MVC -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-web</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib</artifactId>
<version>2.2.2</version>
</dependency>
<!-- Spring Data JPA -->
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-jpa</artifactId>
<version>1.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.data</groupId>
<artifactId>spring-data-commons-core</artifactId>
<version>1.2.1.RELEASE</version>
</dependency>
<!-- Hibernate -->
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-core</artifactId>
<version>${hibernate.version}</version>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-entitymanager</artifactId>
<version>${hibernate.version}</version>
</dependency>
<!-- H2 Database -->
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<version>1.3.160</version>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-validator-annotation-processor</artifactId>
<version>4.1.0.Final</version>
</dependency>

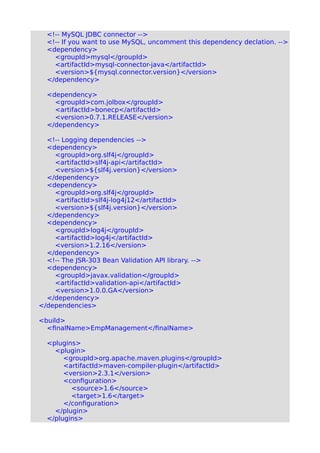

6. <!-- MySQL JDBC connector -->
<!-- If you want to use MySQL, uncomment this dependency declation. -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql.connector.version}</version>
</dependency>
<dependency>
<groupId>com.jolbox</groupId>
<artifactId>bonecp</artifactId>
<version>0.7.1.RELEASE</version>
</dependency>
<!-- Logging dependencies -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${slf4j.version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${slf4j.version}</version>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.16</version>
</dependency>
<!-- The JSR-303 Bean Validation API library. -->
<dependency>
<groupId>javax.validation</groupId>
<artifactId>validation-api</artifactId>
<version>1.0.0.GA</version>
</dependency>
</dependencies>
<build>
<finalName>EmpManagement</finalName>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>2.3.1</version>
<configuration>
<source>1.6</source>
<target>1.6</target>
</configuration>
</plugin>
</plugins>

7. </build>
</project>
Once you save the pom.xml file, Maven will automatically start
downloading the required dependencies. If not, you can
a) right click on project under Project Explorer
b) Click on Run As
c) Select maven install
5) Next, update the web.xml as follows
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
id="WebApp_ID" version="2.5">
<display-name>EmpManagement</display-name>
<!-- Change to "Production" when you are ready to deploy -->
<context-param>
<param-name>javax.faces.PROJECT_STAGE</param-name>
<param-value>Development</param-value>
</context-param>
<!-- Welcome page -->
<welcome-file-list>
<welcome-file>faces/hello.xhtml</welcome-file>
</welcome-file-list>
<servlet>
<servlet-name>Spring MVC Dispatcher Servlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-cl
ass>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/applicationContext.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>

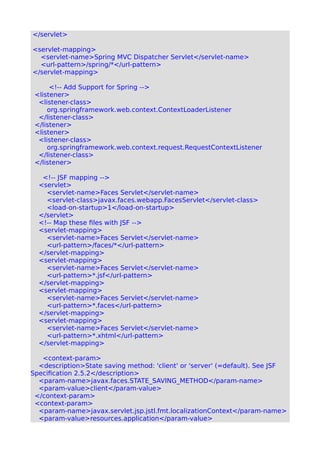

8. </servlet>
<servlet-mapping>
<servlet-name>Spring MVC Dispatcher Servlet</servlet-name>
<url-pattern>/spring/*</url-pattern>
</servlet-mapping>
<!-- Add Support for Spring -->
<listener>
<listener-class>
org.springframework.web.context.ContextLoaderListener
</listener-class>
</listener>
<listener>
<listener-class>
org.springframework.web.context.request.RequestContextListener
</listener-class>
</listener>
<!-- JSF mapping -->
<servlet>
<servlet-name>Faces Servlet</servlet-name>
<servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map these files with JSF -->
<servlet-mapping>
<servlet-name>Faces Servlet</servlet-name>
<url-pattern>/faces/*</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>Faces Servlet</servlet-name>
<url-pattern>*.jsf</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>Faces Servlet</servlet-name>
<url-pattern>*.faces</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>Faces Servlet</servlet-name>
<url-pattern>*.xhtml</url-pattern>
</servlet-mapping>
<context-param>
<description>State saving method: 'client' or 'server' (=default). See JSF
Specification 2.5.2</description>
<param-name>javax.faces.STATE_SAVING_METHOD</param-name>
<param-value>client</param-value>
</context-param>
<context-param>
<param-name>javax.servlet.jsp.jstl.fmt.localizationContext</param-name>
<param-value>resources.application</param-value>

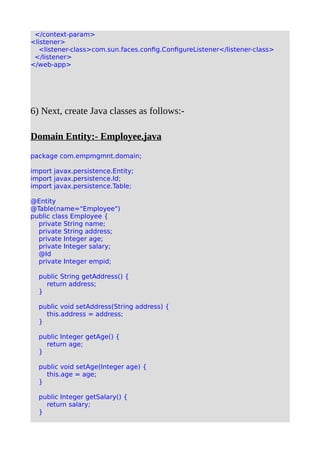

9. </context-param>
<listener>
<listener-class>com.sun.faces.config.ConfigureListener</listener-class>
</listener>
</web-app>
6) Next, create Java classes as follows:-
Domain Entity:- Employee.java
package com.empmgmnt.domain;
import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;
@Entity
@Table(name="Employee")
public class Employee {
private String name;
private String address;
private Integer age;
private Integer salary;
@Id
private Integer empid;
public String getAddress() {
return address;
}
public void setAddress(String address) {
this.address = address;
}
public Integer getAge() {
return age;
}
public void setAge(Integer age) {
this.age = age;
}
public Integer getSalary() {
return salary;
}

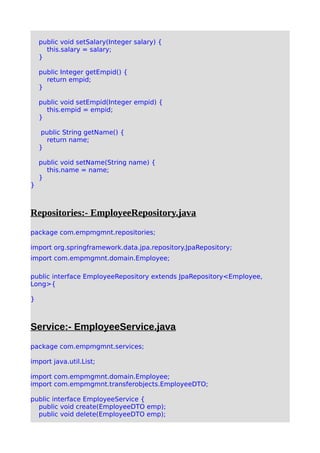

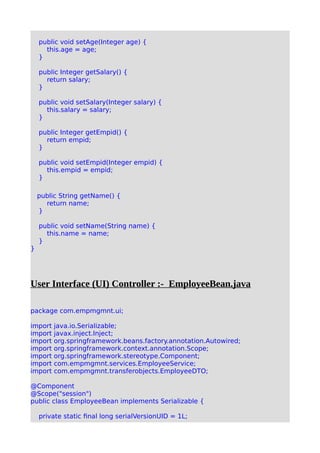

10. public void setSalary(Integer salary) {
this.salary = salary;
}
public Integer getEmpid() {
return empid;
}
public void setEmpid(Integer empid) {
this.empid = empid;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
Repositories:- EmployeeRepository.java
package com.empmgmnt.repositories;
import org.springframework.data.jpa.repository.JpaRepository;
import com.empmgmnt.domain.Employee;
public interface EmployeeRepository extends JpaRepository<Employee,
Long>{
}
Service:- EmployeeService.java
package com.empmgmnt.services;
import java.util.List;
import com.empmgmnt.domain.Employee;
import com.empmgmnt.transferobjects.EmployeeDTO;
public interface EmployeeService {
public void create(EmployeeDTO emp);
public void delete(EmployeeDTO emp);

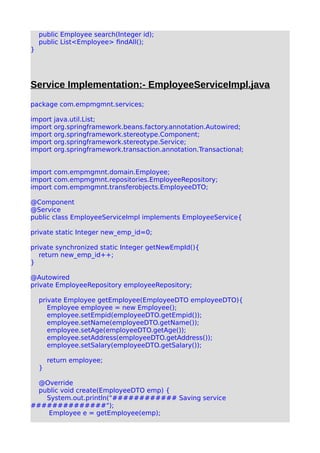

11. public Employee search(Integer id);
public List<Employee> findAll();
}
Service Implementation:- EmployeeServiceImpl.java
package com.empmgmnt.services;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import com.empmgmnt.domain.Employee;
import com.empmgmnt.repositories.EmployeeRepository;
import com.empmgmnt.transferobjects.EmployeeDTO;
@Component
@Service
public class EmployeeServiceImpl implements EmployeeService{
private static Integer new_emp_id=0;
private synchronized static Integer getNewEmpId(){
return new_emp_id++;
}
@Autowired
private EmployeeRepository employeeRepository;
private Employee getEmployee(EmployeeDTO employeeDTO){
Employee employee = new Employee();
employee.setEmpid(employeeDTO.getEmpid());
employee.setName(employeeDTO.getName());
employee.setAge(employeeDTO.getAge());
employee.setAddress(employeeDTO.getAddress());
employee.setSalary(employeeDTO.getSalary());
return employee;
}
@Override
public void create(EmployeeDTO emp) {
System.out.println("############ Saving service
##############");
Employee e = getEmployee(emp);

12. e.setEmpid(EmployeeServiceImpl.getNewEmpId());
employeeRepository.save(e);
System.out.println("########### After Saving service
##############");
}
@Override
public void delete(EmployeeDTO emp) {
employeeRepository.delete(getEmployee(emp));
}
@Override
public Employee search(Integer id) {
return employeeRepository.findOne(Long.valueOf(id));
}
@Override
public List<Employee> findAll() {
return employeeRepository.findAll();
}
}
Transfer Object:- EmployeeDTO.java
package com.empmgmnt.transferobjects;
import java.io.Serializable;
public class EmployeeDTO implements Serializable{
private String name;
private String address;
private Integer age;
private Integer salary;
private Integer empid;
public String getAddress() {
return address;
}
public void setAddress(String address) {
this.address = address;
}
public Integer getAge() {
return age;
}

13. public void setAge(Integer age) {
this.age = age;
}
public Integer getSalary() {
return salary;
}
public void setSalary(Integer salary) {
this.salary = salary;
}
public Integer getEmpid() {
return empid;
}
public void setEmpid(Integer empid) {
this.empid = empid;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
User Interface (UI) Controller :- EmployeeBean.java
package com.empmgmnt.ui;
import java.io.Serializable;
import javax.inject.Inject;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import com.empmgmnt.services.EmployeeService;
import com.empmgmnt.transferobjects.EmployeeDTO;
@Component
@Scope("session")
public class EmployeeBean implements Serializable {
private static final long serialVersionUID = 1L;

14. private String name;
private String address;
private Integer age;
private Integer salary;
private Integer empid;
@Inject
@Autowired
EmployeeService employeeServiceImpl;
public String getAddress() {
return address;
}
public void setAddress(String address) {
this.address = address;
}
public Integer getAge() {
return age;
}
public void setAge(Integer age) {
this.age = age;
}
public Integer getSalary() {
return salary;
}
public void setSalary(Integer salary) {
this.salary = salary;
}
public Integer getEmpid() {
return empid;
}
public void setEmpid(Integer empid) {
this.empid = empid;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}

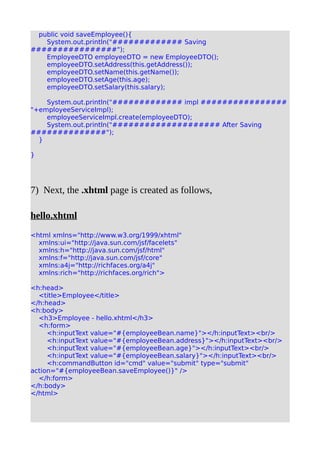

15. public void saveEmployee(){
System.out.println("############# Saving
################");
EmployeeDTO employeeDTO = new EmployeeDTO();
employeeDTO.setAddress(this.getAddress());
employeeDTO.setName(this.getName());
employeeDTO.setAge(this.age);
employeeDTO.setSalary(this.salary);
System.out.println("############# impl ################
"+employeeServiceImpl);
employeeServiceImpl.create(employeeDTO);
System.out.println("#################### After Saving
##############");
}
}
7) Next, the .xhtml page is created as follows,
hello.xhtml
<html xmlns="http://www.w3.org/1999/xhtml"
xmlns:ui="http://java.sun.com/jsf/facelets"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:f="http://java.sun.com/jsf/core"
xmlns:a4j="http://richfaces.org/a4j"
xmlns:rich="http://richfaces.org/rich">
<h:head>
<title>Employee</title>
</h:head>
<h:body>
<h3>Employee - hello.xhtml</h3>
<h:form>
<h:inputText value="#{employeeBean.name}"></h:inputText><br/>
<h:inputText value="#{employeeBean.address}"></h:inputText><br/>
<h:inputText value="#{employeeBean.age}"></h:inputText><br/>
<h:inputText value="#{employeeBean.salary}"></h:inputText><br/>
<h:commandButton id="cmd" value="submit" type="submit"
action="#{employeeBean.saveEmployee()}" />
</h:form>
</h:body>
</html>

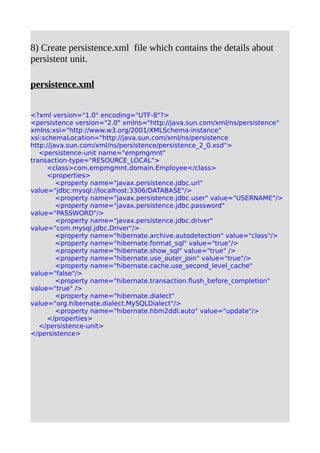

16. 8) Create persistence.xml file which contains the details about
persistent unit.
persistence.xml
<?xml version="1.0" encoding="UTF-8"?>
<persistence version="2.0" xmlns="http://java.sun.com/xml/ns/persistence"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/persistence
http://java.sun.com/xml/ns/persistence/persistence_2_0.xsd">
<persistence-unit name="empmgmnt"
transaction-type="RESOURCE_LOCAL">
<class>com.empmgmnt.domain.Employee</class>
<properties>
<property name="javax.persistence.jdbc.url"
value="jdbc:mysql://localhost:3306/DATABASE"/>
<property name="javax.persistence.jdbc.user" value="USERNAME"/>
<property name="javax.persistence.jdbc.password"
value="PASSWORD"/>
<property name="javax.persistence.jdbc.driver"
value="com.mysql.jdbc.Driver"/>
<property name="hibernate.archive.autodetection" value="class"/>
<property name="hibernate.format_sql" value="true"/>
<property name="hibernate.show_sql" value="true" />
<property name="hibernate.use_outer_join" value="true"/>
<property name="hibernate.cache.use_second_level_cache"
value="false"/>
<property name="hibernate.transaction.flush_before_completion"
value="true" />
<property name="hibernate.dialect"
value="org.hibernate.dialect.MySQLDialect"/>
<property name="hibernate.hbm2ddl.auto" value="update"/>
</properties>
</persistence-unit>
</persistence>

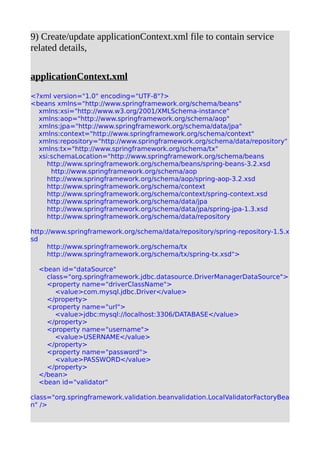

17. 9) Create/update applicationContext.xml file to contain service
related details,
applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:jpa="http://www.springframework.org/schema/data/jpa"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:repository="http://www.springframework.org/schema/data/repository"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-3.2.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/data/jpa
http://www.springframework.org/schema/data/jpa/spring-jpa-1.3.xsd
http://www.springframework.org/schema/data/repository
http://www.springframework.org/schema/data/repository/spring-repository-1.5.x
sd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd">
<bean id="dataSource"
class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName">
<value>com.mysql.jdbc.Driver</value>
</property>
<property name="url">
<value>jdbc:mysql://localhost:3306/DATABASE</value>
</property>
<property name="username">
<value>USERNAME</value>
</property>
<property name="password">
<value>PASSWORD</value>
</property>
</bean>
<bean id="validator"
class="org.springframework.validation.beanvalidation.LocalValidatorFactoryBea
n" />

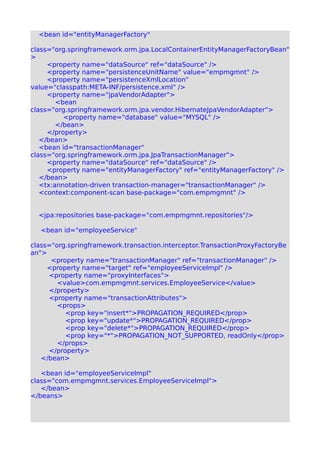

18. <bean id="entityManagerFactory"
class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean"
>
<property name="dataSource" ref="dataSource" />
<property name="persistenceUnitName" value="empmgmnt" />
<property name="persistenceXmlLocation"
value="classpath:META-INF/persistence.xml" />
<property name="jpaVendorAdapter">
<bean
class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter">
<property name="database" value="MYSQL" />
</bean>
</property>
</bean>
<bean id="transactionManager"
class="org.springframework.orm.jpa.JpaTransactionManager">
<property name="dataSource" ref="dataSource" />
<property name="entityManagerFactory" ref="entityManagerFactory" />
</bean>
<tx:annotation-driven transaction-manager="transactionManager" />
<context:component-scan base-package="com.empmgmnt" />
<jpa:repositories base-package="com.empmgmnt.repositories"/>
<bean id="employeeService"
class="org.springframework.transaction.interceptor.TransactionProxyFactoryBe
an">
<property name="transactionManager" ref="transactionManager" />
<property name="target" ref="employeeServiceImpl" />
<property name="proxyInterfaces">
<value>com.empmgmnt.services.EmployeeService</value>
</property>
<property name="transactionAttributes">
<props>
<prop key="insert*">PROPAGATION_REQUIRED</prop>
<prop key="update*">PROPAGATION_REQUIRED</prop>
<prop key="delete*">PROPAGATION_REQUIRED</prop>
<prop key="*">PROPAGATION_NOT_SUPPORTED, readOnly</prop>
</props>
</property>
</bean>
<bean id="employeeServiceImpl"
class="com.empmgmnt.services.EmployeeServiceImpl">
</bean>
</beans>

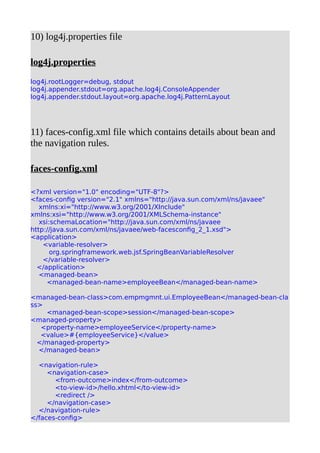

19. 10) log4j.properties file
log4j.properties
log4j.rootLogger=debug, stdout
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
11) faces-config.xml file which contains details about bean and
the navigation rules.
faces-config.xml
<?xml version="1.0" encoding="UTF-8"?>
<faces-config version="2.1" xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xi="http://www.w3.org/2001/XInclude"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-facesconfig_2_1.xsd">
<application>
<variable-resolver>
org.springframework.web.jsf.SpringBeanVariableResolver
</variable-resolver>
</application>
<managed-bean>
<managed-bean-name>employeeBean</managed-bean-name>
<managed-bean-class>com.empmgmnt.ui.EmployeeBean</managed-bean-cla
ss>
<managed-bean-scope>session</managed-bean-scope>
<managed-property>
<property-name>employeeService</property-name>
<value>#{employeeService}</value>
</managed-property>
</managed-bean>
<navigation-rule>
<navigation-case>
<from-outcome>index</from-outcome>
<to-view-id>/hello.xhtml</to-view-id>
<redirect />
</navigation-case>
</navigation-rule>
</faces-config>

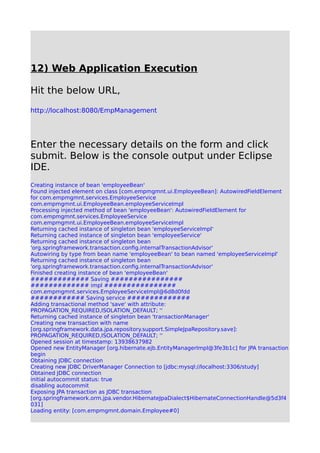

20. 12) Web Application Execution
Hit the below URL,
http://localhost:8080/EmpManagement
Enter the necessary details on the form and click
submit. Below is the console output under Eclipse
IDE.
Creating instance of bean 'employeeBean'
Found injected element on class [com.empmgmnt.ui.EmployeeBean]: AutowiredFieldElement
for com.empmgmnt.services.EmployeeService
com.empmgmnt.ui.EmployeeBean.employeeServiceImpl
Processing injected method of bean 'employeeBean': AutowiredFieldElement for
com.empmgmnt.services.EmployeeService
com.empmgmnt.ui.EmployeeBean.employeeServiceImpl
Returning cached instance of singleton bean 'employeeServiceImpl'
Returning cached instance of singleton bean 'employeeService'
Returning cached instance of singleton bean
'org.springframework.transaction.config.internalTransactionAdvisor'
Autowiring by type from bean name 'employeeBean' to bean named 'employeeServiceImpl'
Returning cached instance of singleton bean
'org.springframework.transaction.config.internalTransactionAdvisor'
Finished creating instance of bean 'employeeBean'
############# Saving ################
############# impl ################
com.empmgmnt.services.EmployeeServiceImpl@6d8d0fdd
############ Saving service ##############
Adding transactional method 'save' with attribute:
PROPAGATION_REQUIRED,ISOLATION_DEFAULT; ''
Returning cached instance of singleton bean 'transactionManager'
Creating new transaction with name
[org.springframework.data.jpa.repository.support.SimpleJpaRepository.save]:
PROPAGATION_REQUIRED,ISOLATION_DEFAULT; ''
Opened session at timestamp: 13938637982
Opened new EntityManager [org.hibernate.ejb.EntityManagerImpl@3fe3b1c] for JPA transaction
begin
Obtaining JDBC connection
Creating new JDBC DriverManager Connection to [jdbc:mysql://localhost:3306/study]
Obtained JDBC connection
initial autocommit status: true
disabling autocommit
Exposing JPA transaction as JDBC transaction
[org.springframework.orm.jpa.vendor.HibernateJpaDialect$HibernateConnectionHandle@5d3f4
031]
Loading entity: [com.empmgmnt.domain.Employee#0]

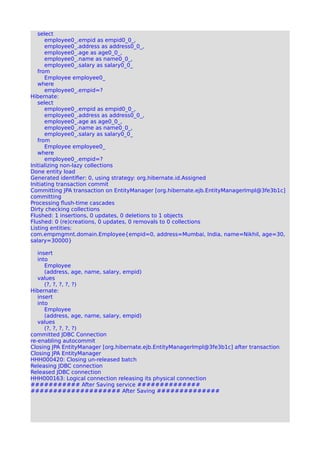

21. select
employee0_.empid as empid0_0_,
employee0_.address as address0_0_,
employee0_.age as age0_0_,
employee0_.name as name0_0_,
employee0_.salary as salary0_0_
from
Employee employee0_
where
employee0_.empid=?
Hibernate:
select
employee0_.empid as empid0_0_,
employee0_.address as address0_0_,
employee0_.age as age0_0_,
employee0_.name as name0_0_,
employee0_.salary as salary0_0_
from
Employee employee0_
where
employee0_.empid=?
Initializing non-lazy collections
Done entity load
Generated identifier: 0, using strategy: org.hibernate.id.Assigned
Initiating transaction commit
Committing JPA transaction on EntityManager [org.hibernate.ejb.EntityManagerImpl@3fe3b1c]
committing
Processing flush-time cascades
Dirty checking collections
Flushed: 1 insertions, 0 updates, 0 deletions to 1 objects
Flushed: 0 (re)creations, 0 updates, 0 removals to 0 collections
Listing entities:
com.empmgmnt.domain.Employee{empid=0, address=Mumbai, India, name=Nikhil, age=30,
salary=30000}
insert
into
Employee
(address, age, name, salary, empid)
values
(?, ?, ?, ?, ?)
Hibernate:
insert
into
Employee
(address, age, name, salary, empid)
values
(?, ?, ?, ?, ?)
committed JDBC Connection
re-enabling autocommit
Closing JPA EntityManager [org.hibernate.ejb.EntityManagerImpl@3fe3b1c] after transaction
Closing JPA EntityManager
HHH000420: Closing un-released batch
Releasing JDBC connection
Released JDBC connection
HHH000163: Logical connection releasing its physical connection
########### After Saving service ##############
#################### After Saving ##############

22. MySQL Database has the below entry:-
