This document discusses the components and functions of a motherboard. It begins by defining a motherboard as the main circuit board that forms the foundation for major computer components. The document then lists parts of an ATX motherboard including the power supply connector, CPU, AGP slot, VGA port, and audio section. It also presents true/false statements about the CMOS backup battery, PCI and AGP architectures, the CPU's role, the northbridge chipset, and uses of the parallel port. Reference materials on computer hardware servicing are also listed.

1. mcbangi

2. mcbangi

3. Mother Board – This is the major circuitry
of the computersystem which is the
foundation of the major components as

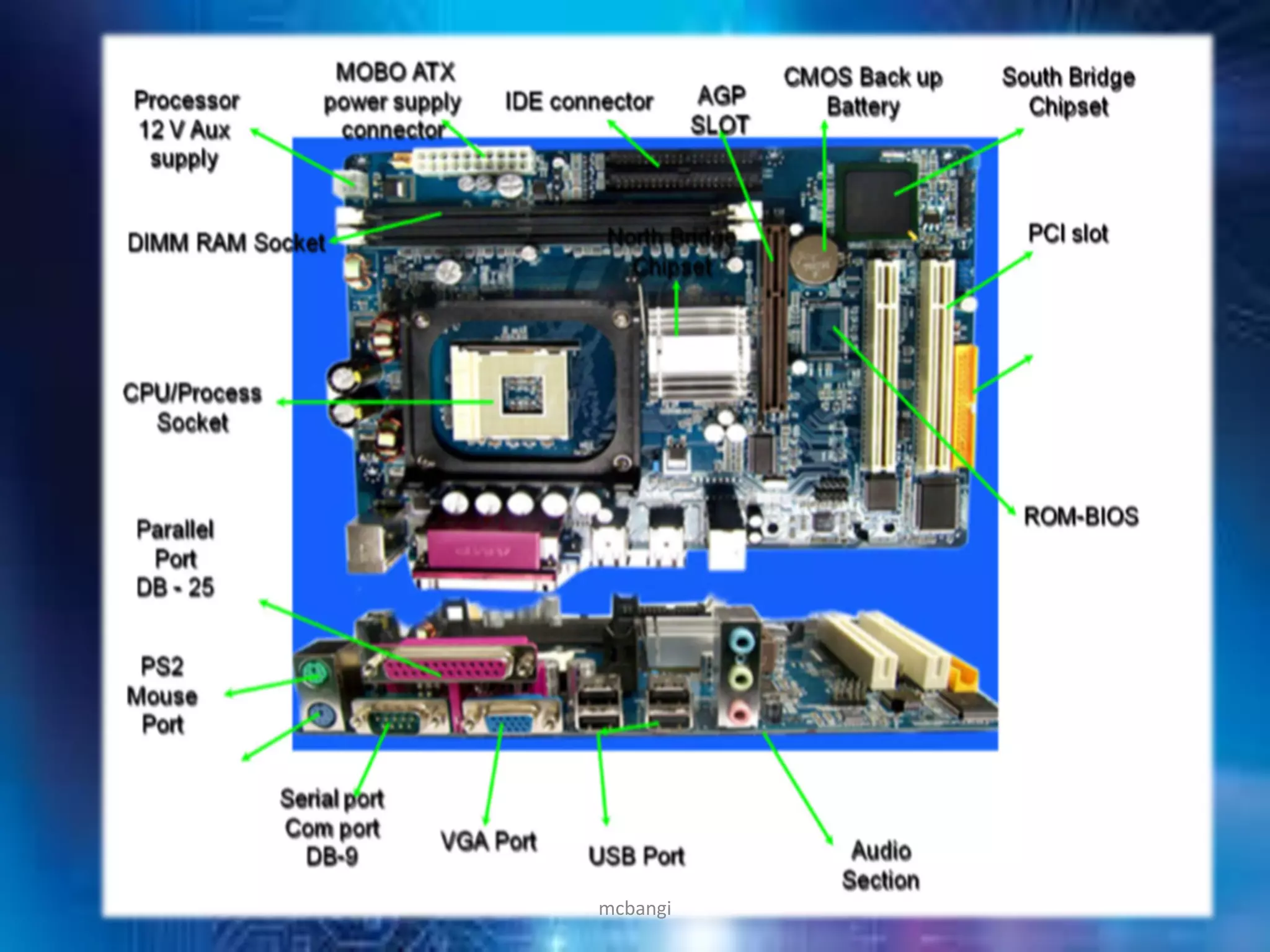

shown in the figure below. Mother
board also called MOBO, System Board or
Main Board.
mcbangi
GUIDE CARD

4. mcbangi

5. mcbangi

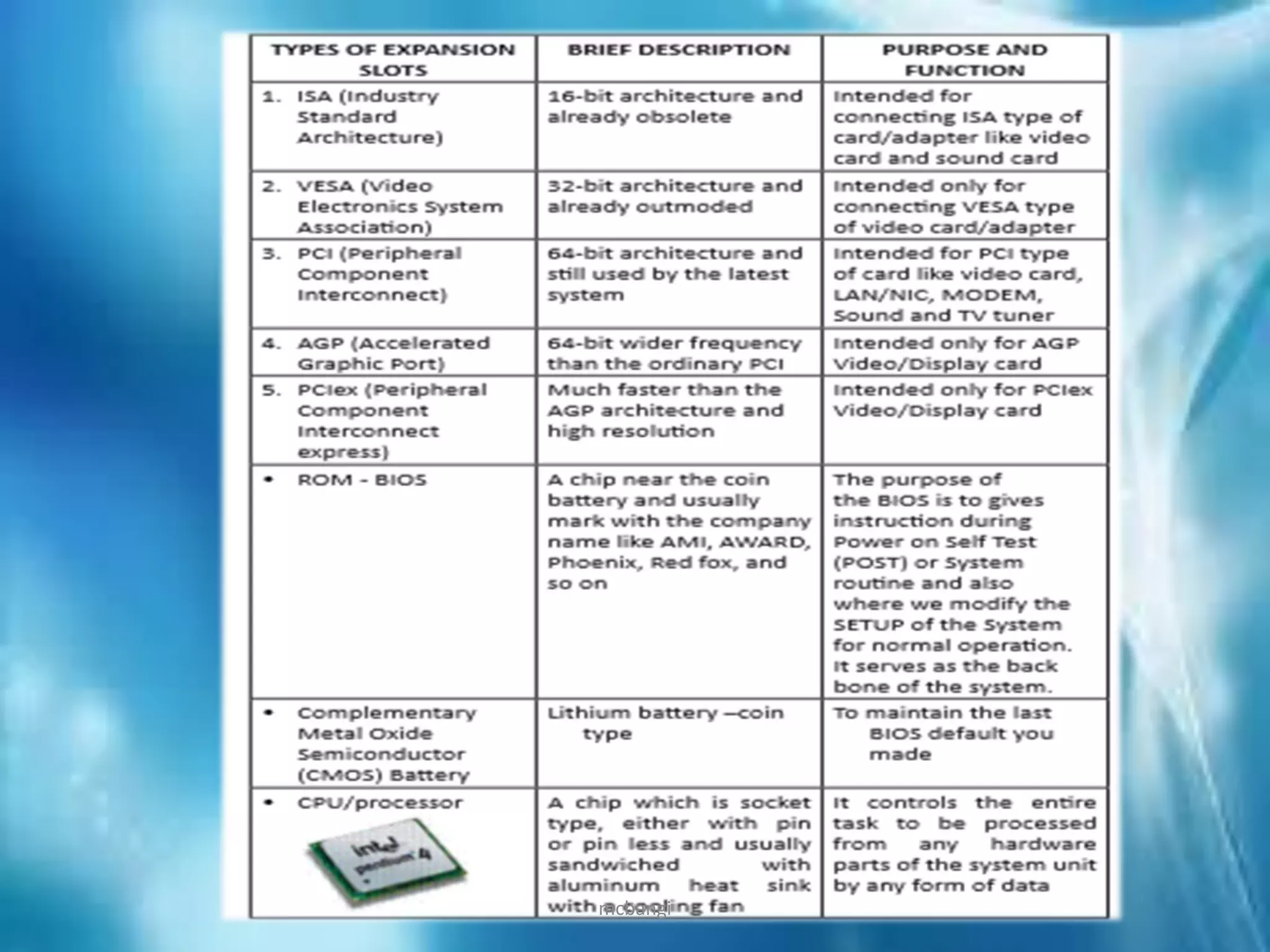

6. mcbangi

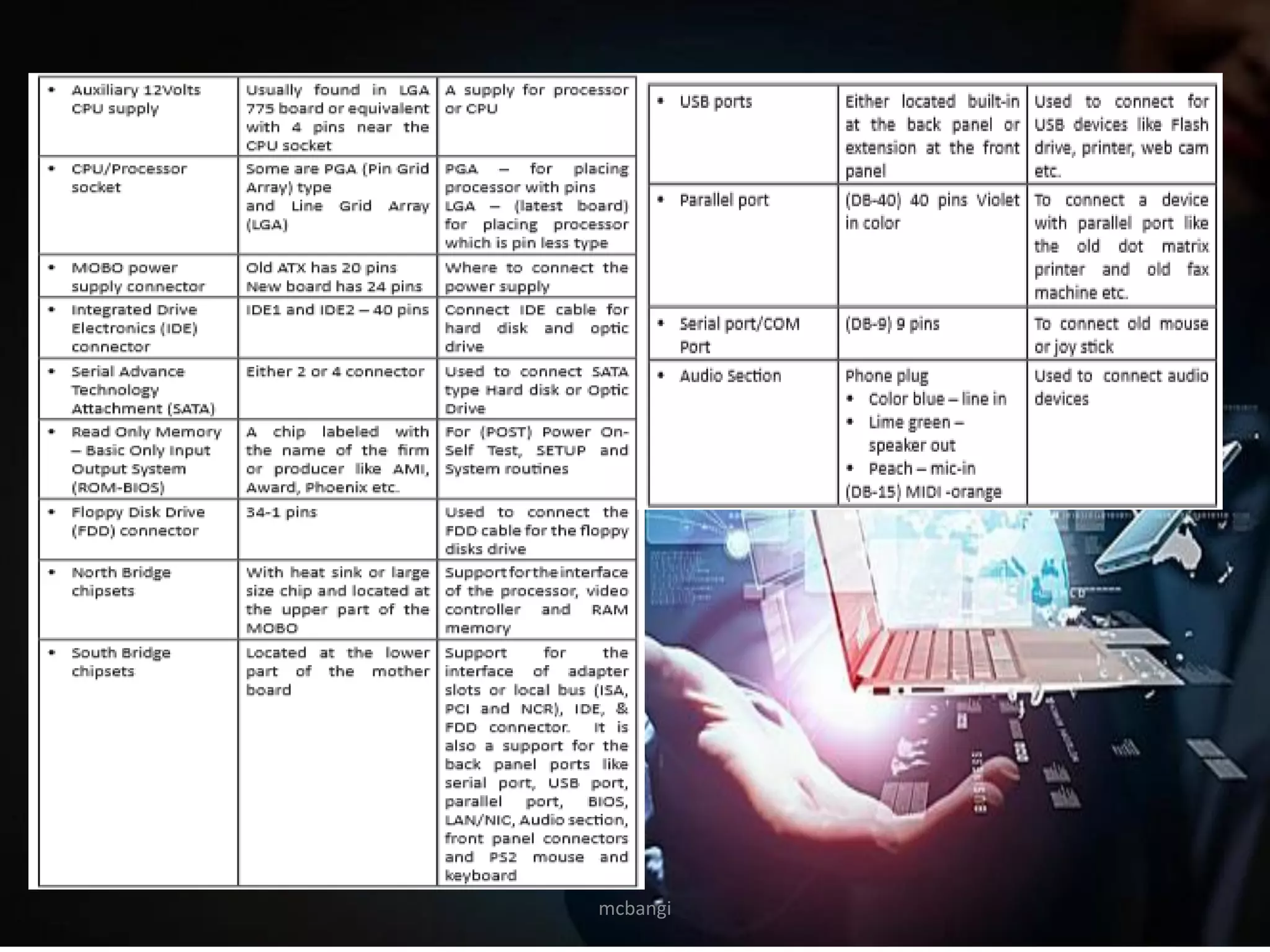

7. mcbangi

8. mcbangi
ACTIVITY CARD

9. mcbangi
ASSESSMENT CARD
Give the functions for the following parts
of the ATX Motherboard:
1.Mobo ATX power supply connector
2.CPU/Processor
3. AGP SLOT
4.VGA PORT
5.AUDIO SECTION

10. mcbangi
ENRICHMENT CARD
True or False: Write T if the statement is true and write
F if the statement is false.
1.The CMOS Back up battery is used to maintain thelast
BIOS default youmade.
2.PCI IS much faster than the AGP architecture and high
resolution.
3.The CPU serves as theback bone of thesystem.
4.Northbridge chipset supports the interface of the
processor, video controller and RAM memory.
5.Parallel port is used to connect old mouse or joystick.

11. mcbangi
REFERENCE CARD
K TO 12 PC HARDWARE SERVICING LEARNING MODULE
K TO 12 ICT-COMPUTER SYSTEM SERVICING TEACHER'S GUIDE
TESDA COMPUTER SYSTEM SERVICING TRAINING REGULATIONS
