SharePoint TechCon 2009 - 602
This document discusses the challenges of customized SharePoint applications in production environments. It notes that such applications often work on a developer's machine but fail when released due to requesting too much data, inefficient data access, inefficient resource usage, inefficient rendering, and lack of testing with real world data or load testing. The document provides recommendations in these areas and examples of how to optimize performance.
More Related Content
Similar to SharePoint TechCon 2009 - 602
More from Andreas Grabner
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
SharePoint TechCon 2009 - 602
- 1. 602: INTO THEWILD THE CHALLENGES OF CUSTOMIZED SHAREPOINT APPS IN RELEASE SPTechCon 2009-01-29, dynaTrace software Inc Andreas Grabner, andreas.grabner@dynatrace.com Technology Strategist

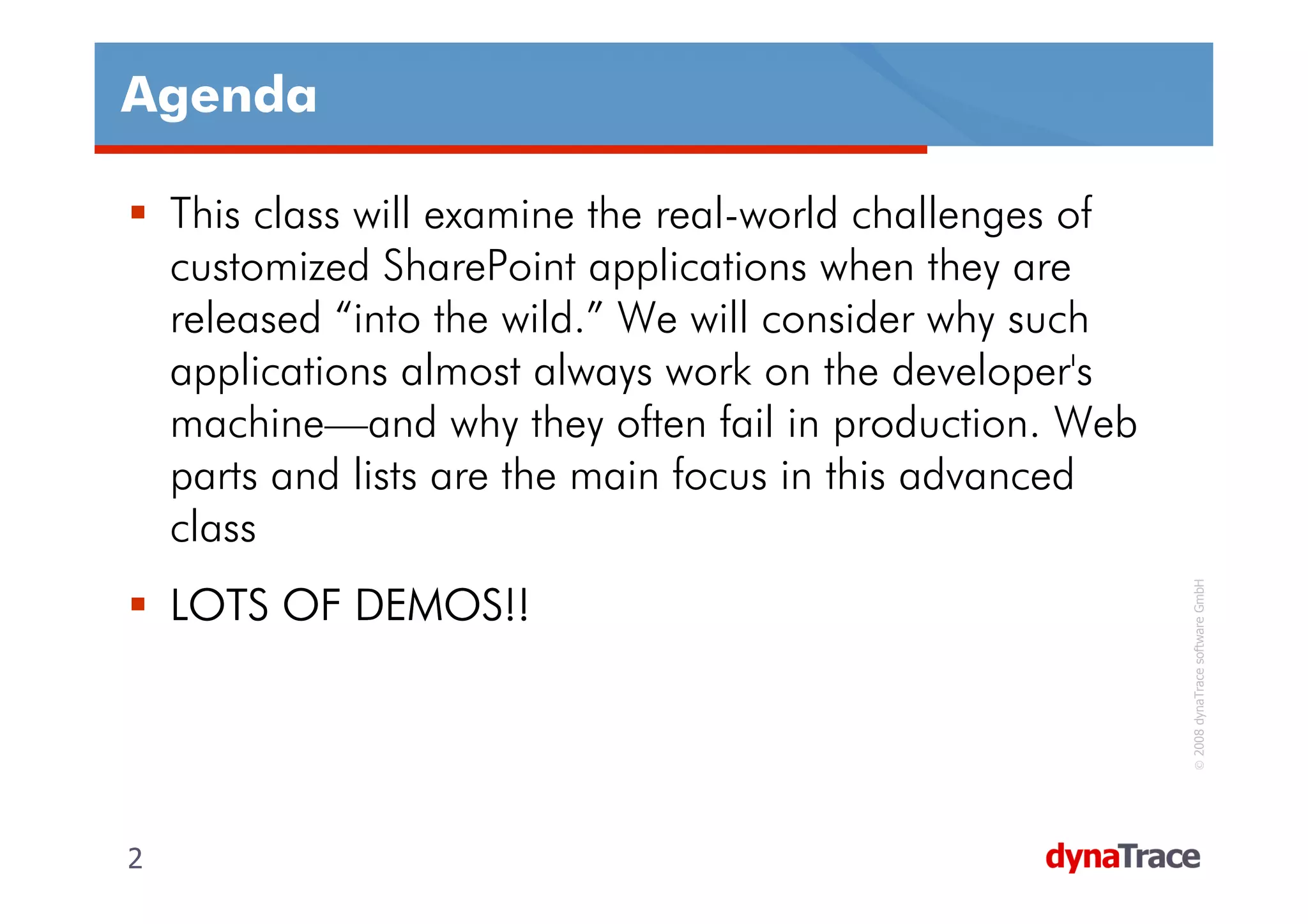

- 2. Agenda This class will examine the real-world challenges of customized SharePoint applications when they are released “into the wild.” We will consider why such applications almost always work on the developer's machine—and why they often fail in production. Web parts and lists are the main focus in this advanced class © 2008 dynaTrace software GmbH LOTS OF DEMOS!! 2 2

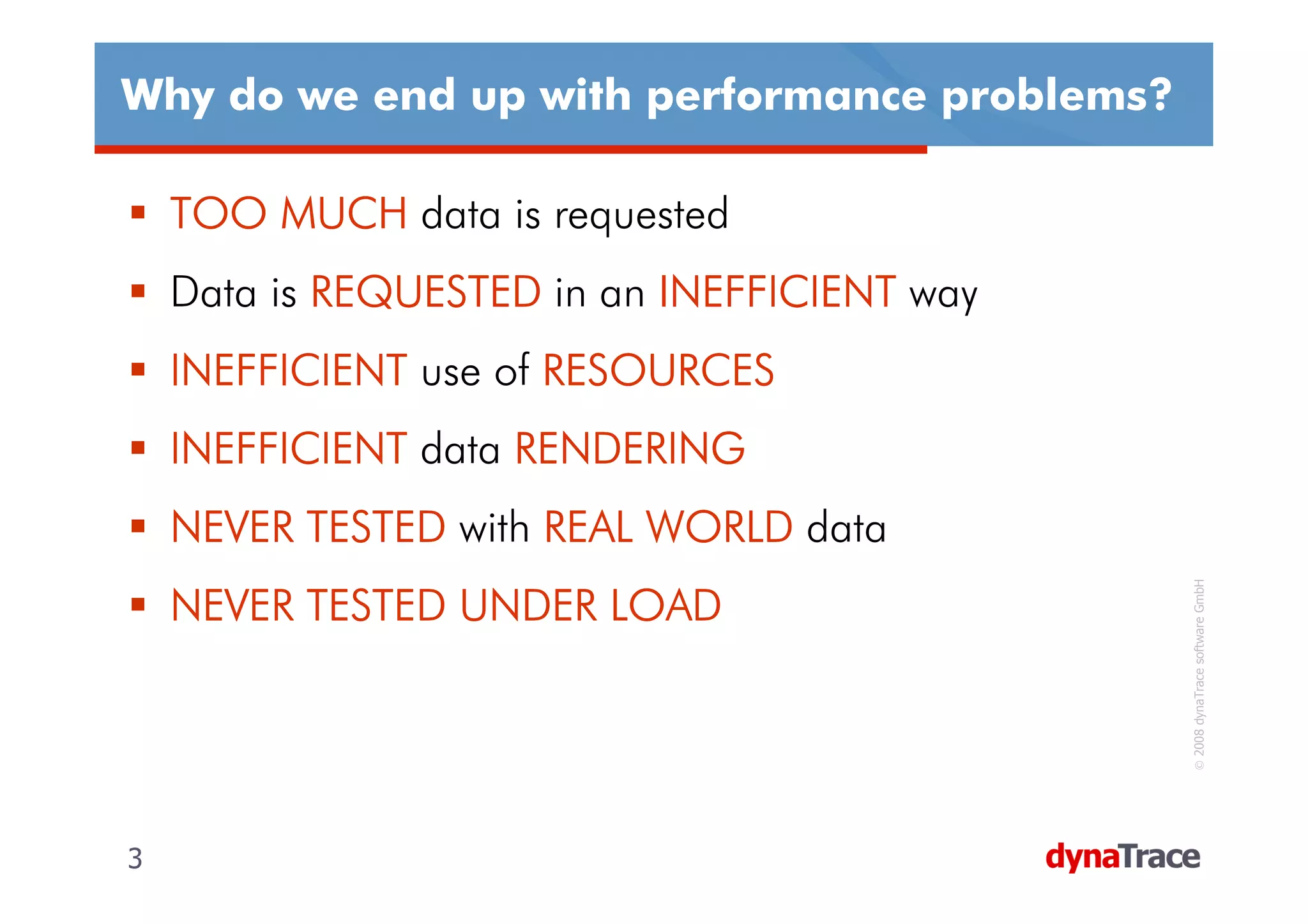

- 3. Why do weend up with performance problems? TOO MUCH data is requested Data is REQUESTED in an INEFFICIENT way INEFFICIENT use of RESOURCES INEFFICIENT data RENDERING NEVER TESTED with REAL WORLD data © 2008 dynaTrace software GmbH NEVER TESTED UNDER LOAD 3 3

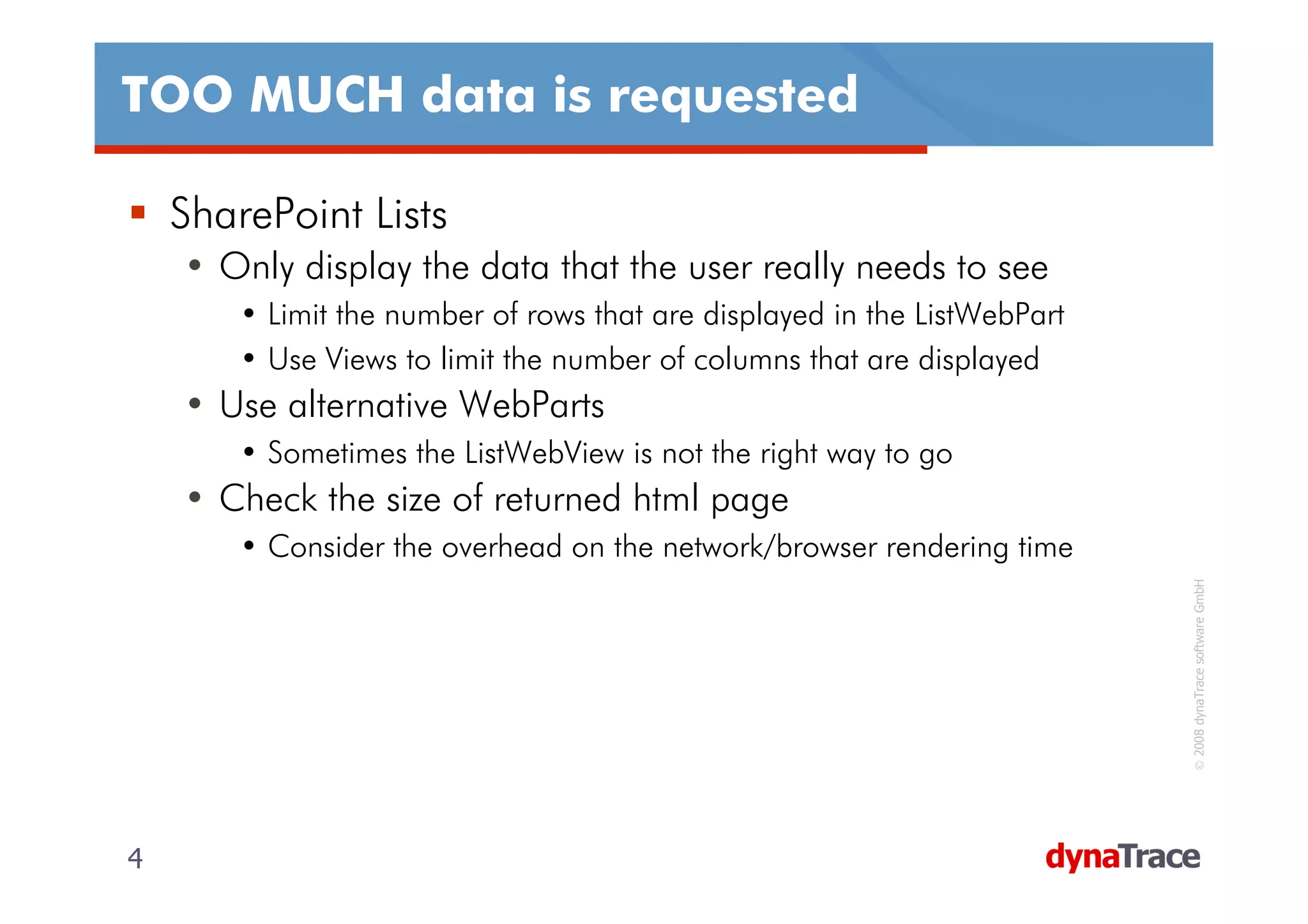

- 4. TOO MUCH datais requested SharePoint Lists • Only display the data that the user really needs to see • Limit the number of rows that are displayed in the ListWebPart • Use Views to limit the number of columns that are displayed • Use alternative WebParts • Sometimes the ListWebView is not the right way to go • Check the size of returned html page • Consider the overhead on the network/browser rendering time © 2008 dynaTrace software GmbH 4 4

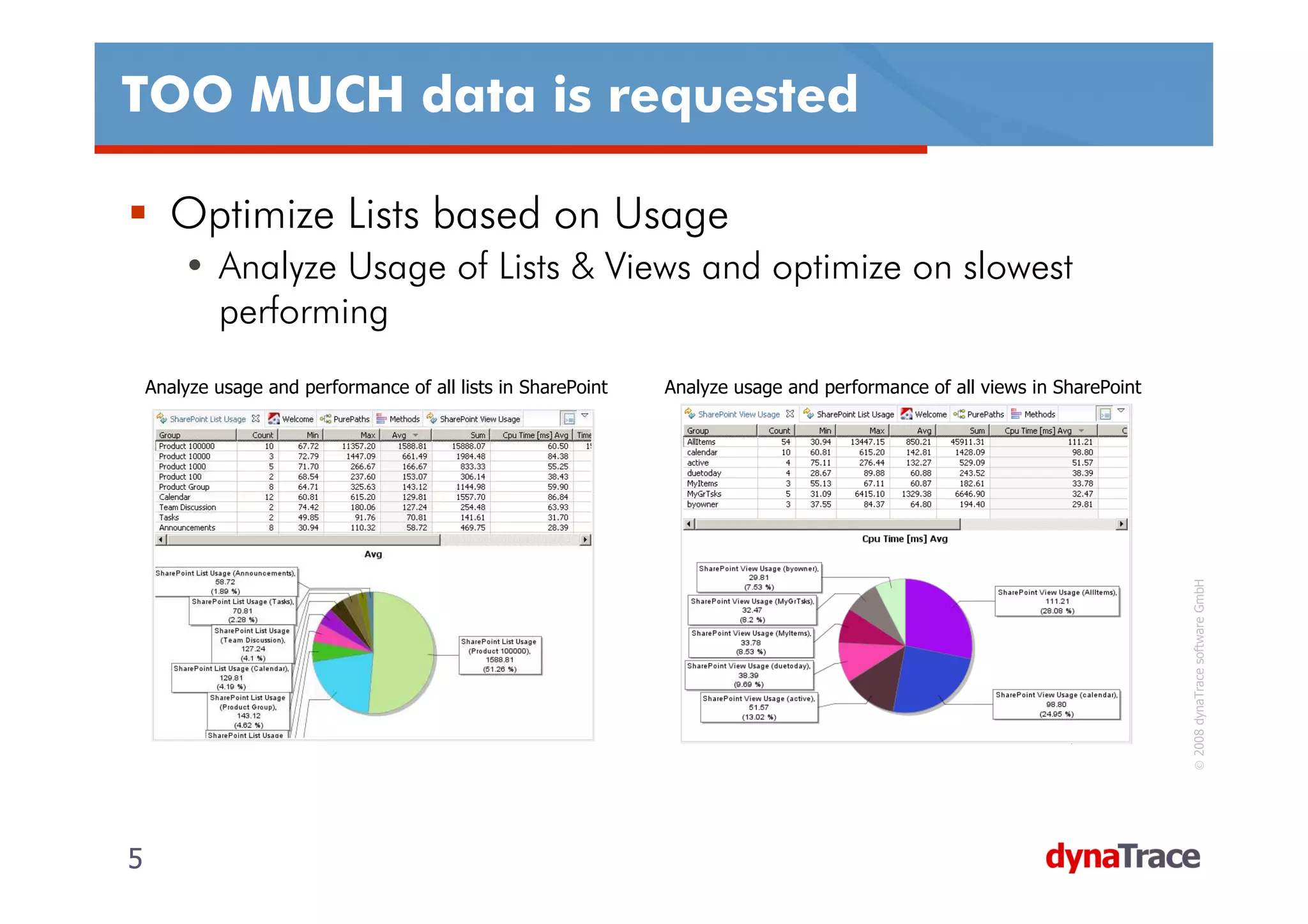

- 5. TOO MUCH datais requested Optimize Lists based on Usage • Analyze Usage of Lists & Views and optimize on slowest performing Analyze usage and performance of all lists in SharePoint Analyze usage and performance of all views in SharePoint © 2008 dynaTrace software GmbH 5 5

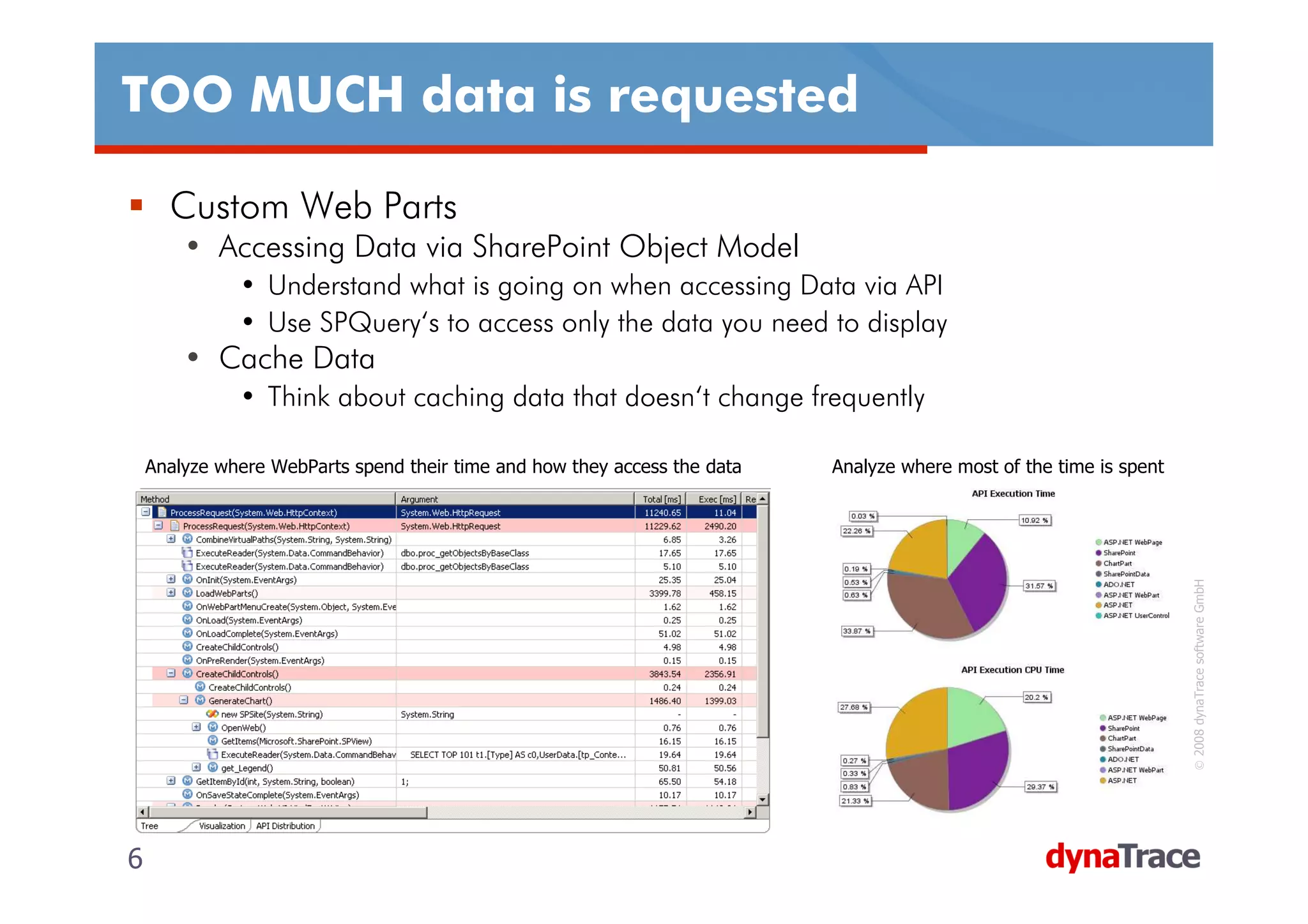

- 6. TOO MUCH datais requested Custom Web Parts • Accessing Data via SharePoint Object Model • Understand what is going on when accessing Data via API • Use SPQuery‘s to access only the data you need to display • Cache Data • Think about caching data that doesn‘t change frequently Analyze where WebParts spend their time and how they access the data Analyze where most of the time is spent © 2008 dynaTrace software GmbH 6 6

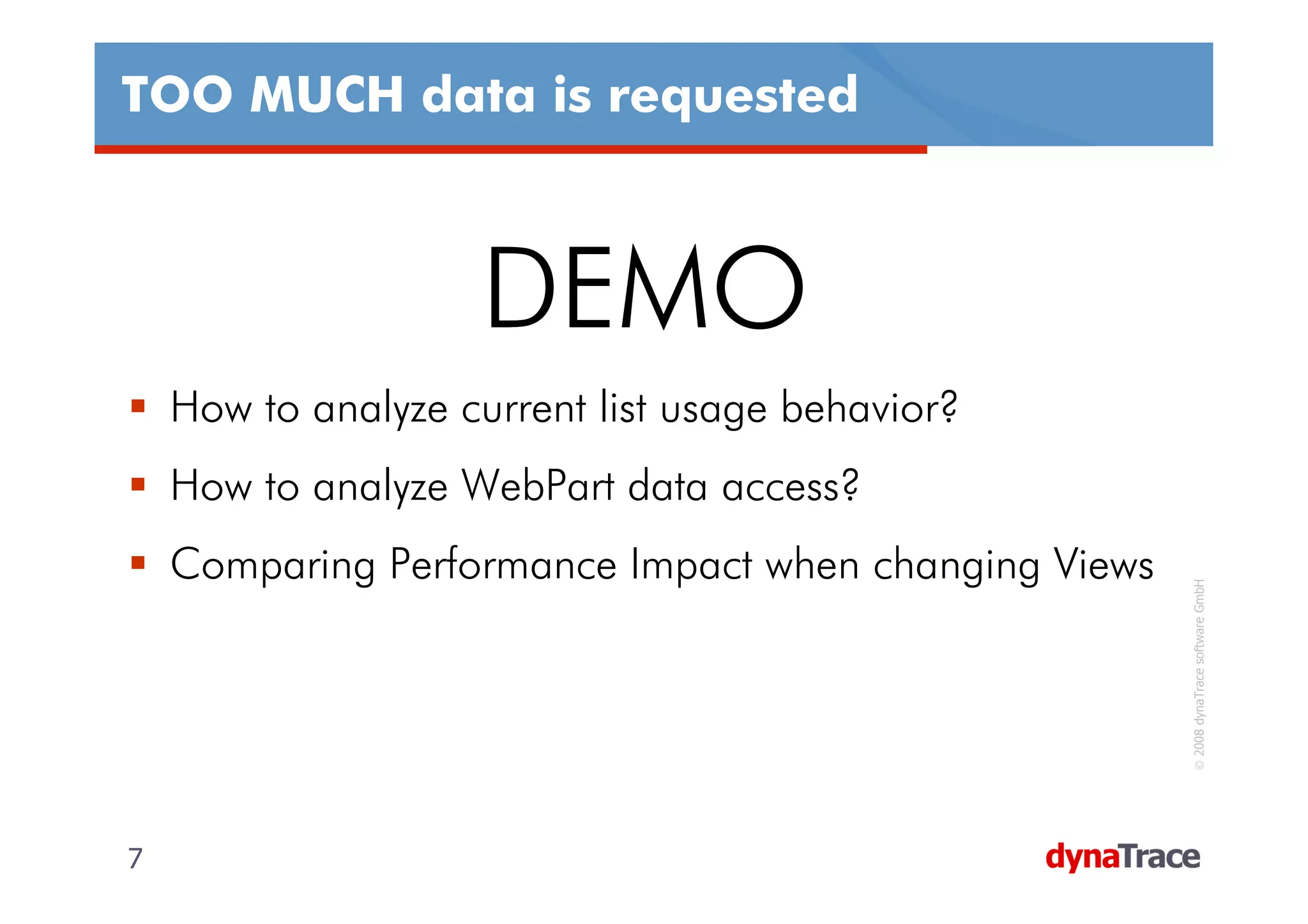

- 7. TOO MUCH datais requested DEMO How to analyze current list usage behavior? How to analyze WebPart data access? Comparing Performance Impact when changing Views © 2008 dynaTrace software GmbH 7 7

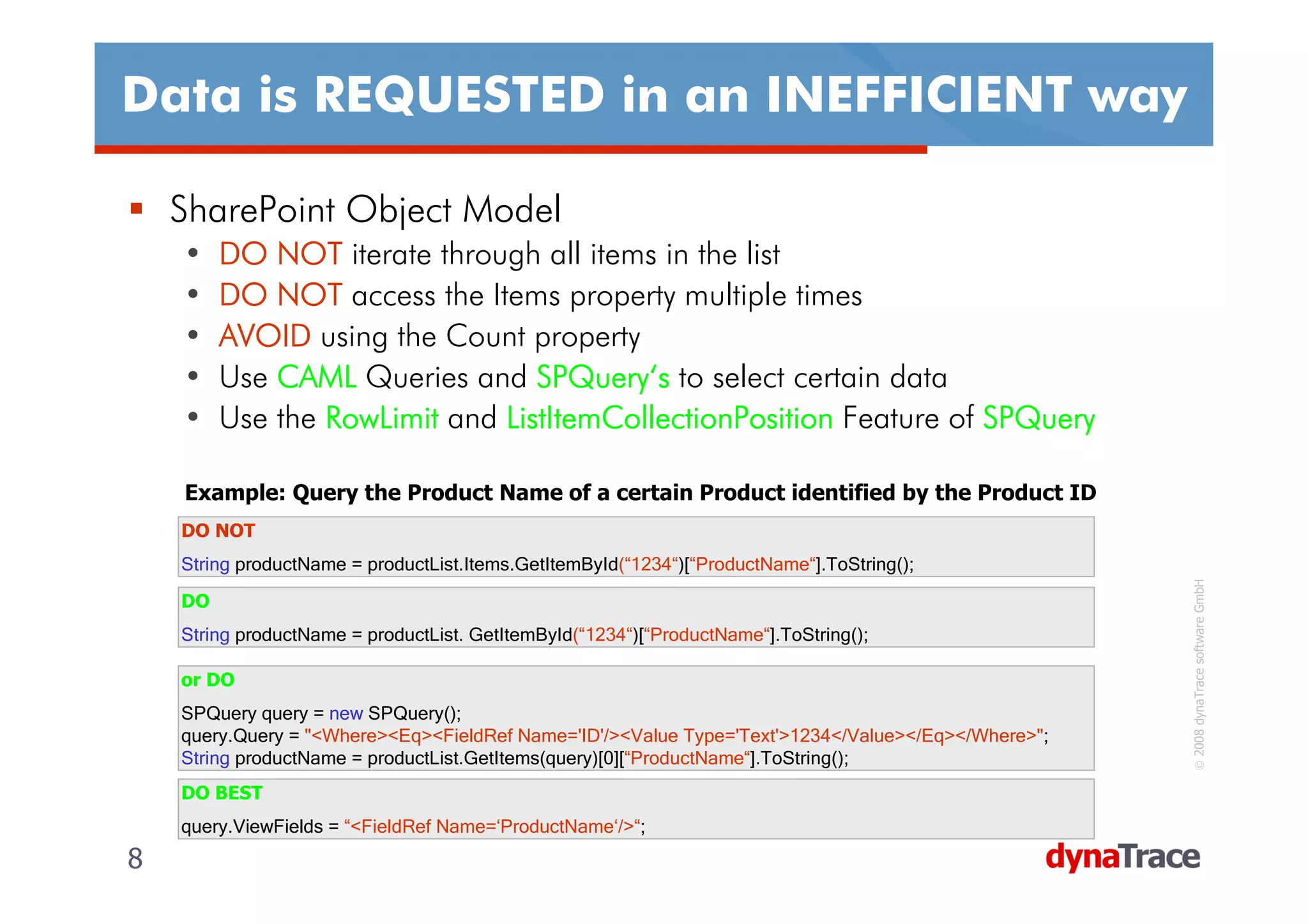

- 8. Data is REQUESTEDin an INEFFICIENT way SharePoint Object Model • DO NOT iterate through all items in the list • DO NOT access the Items property multiple times • AVOID using the Count property • Use CAML Queries and SPQuery‘s to select certain data SPQuery‘ • Use the RowLimit and ListItemCollectionPosition Feature of SPQuery Example: Query the Product Name of a certain Product identified by the Product ID DO NOT String productName = productList.Items.GetItemById(“1234“)[“ProductName“].ToString(); © 2008 dynaTrace software GmbH DO String productName = productList. GetItemById(“1234“)[“ProductName“].ToString(); or DO SPQuery query = new SPQuery(); query.Query = "<Where><Eq><FieldRef Name='ID'/><Value Type='Text'>1234</Value></Eq></Where>"; String productName = productList.GetItems(query)[0][“ProductName“].ToString(); DO BEST query.ViewFields = “<FieldRef Name=‘ProductName‘/>“; 8 8

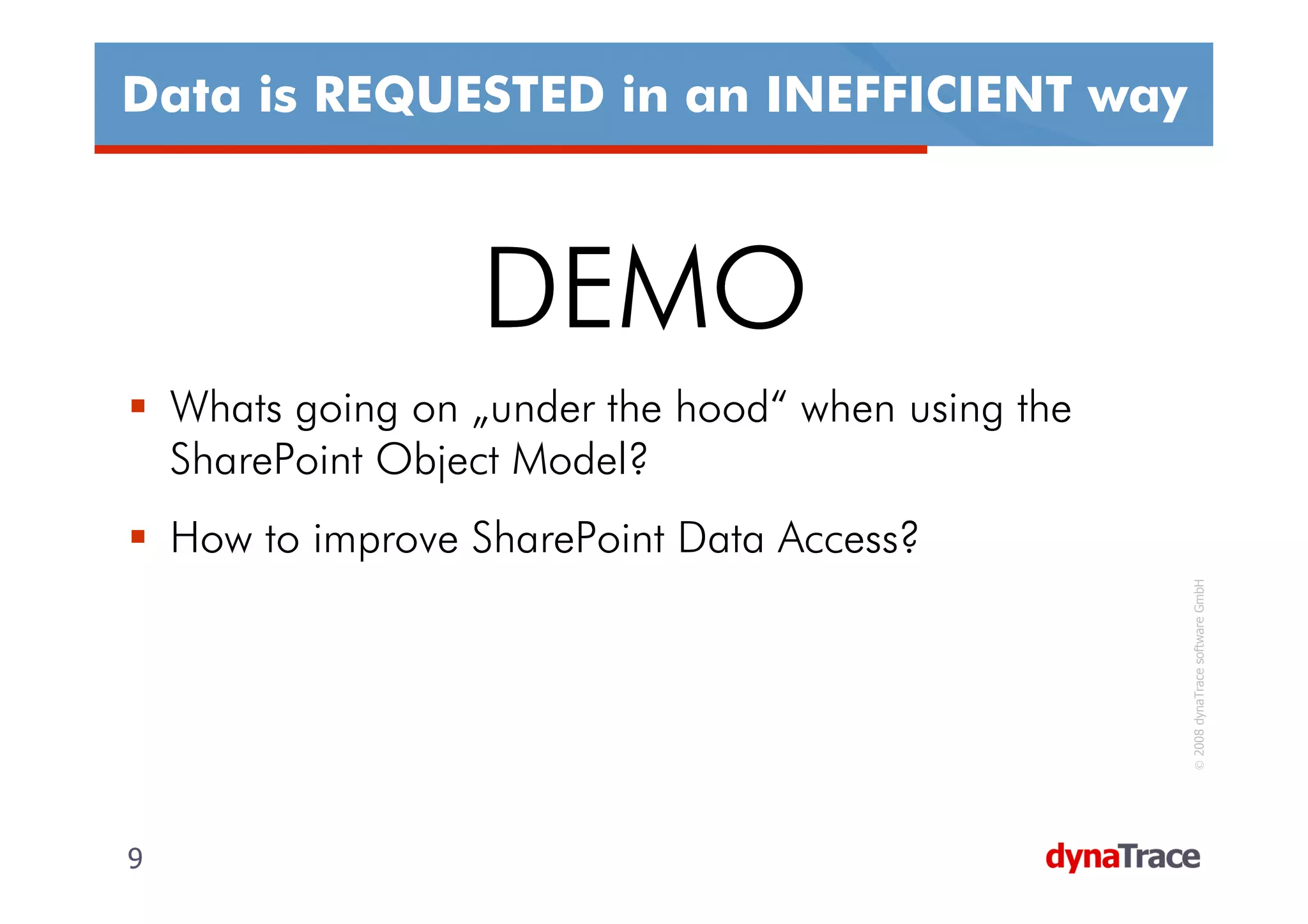

- 9. Data is REQUESTEDin an INEFFICIENT way DEMO Whats going on „under the hood“ when using the SharePoint Object Model? How to improve SharePoint Data Access? © 2008 dynaTrace software GmbH 9 9

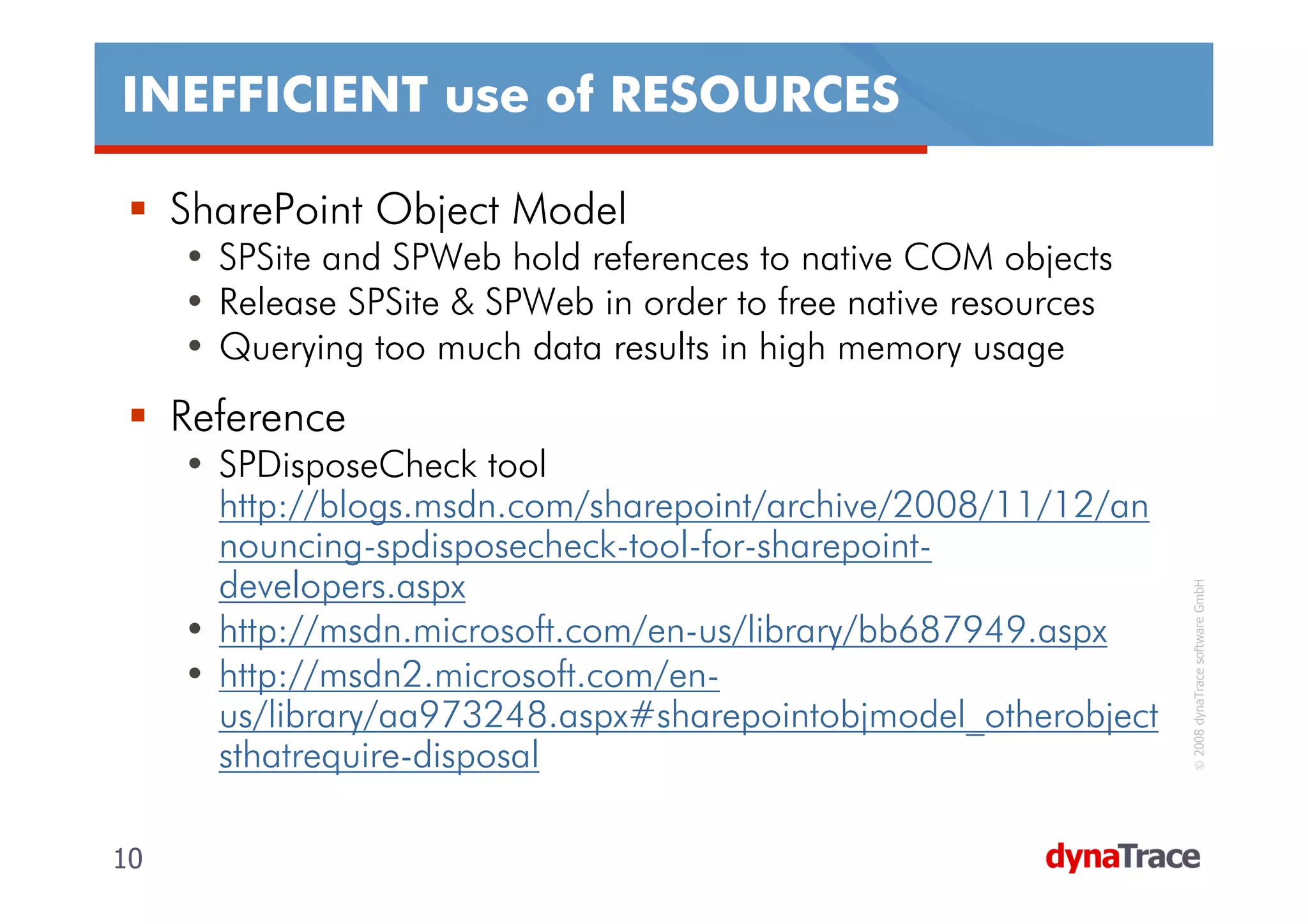

- 10. INEFFICIENT use ofRESOURCES SharePoint Object Model • SPSite and SPWeb hold references to native COM objects • Release SPSite & SPWeb in order to free native resources • Querying too much data results in high memory usage Reference • SPDisposeCheck tool http://blogs.msdn.com/sharepoint/archive/2008/11/12/an nouncing-spdisposecheck-tool-for-sharepoint- developers.aspx © 2008 dynaTrace software GmbH • http://msdn.microsoft.com/en-us/library/bb687949.aspx • http://msdn2.microsoft.com/en- us/library/aa973248.aspx#sharepointobjmodel_otherobject sthatrequire-disposal 10 10

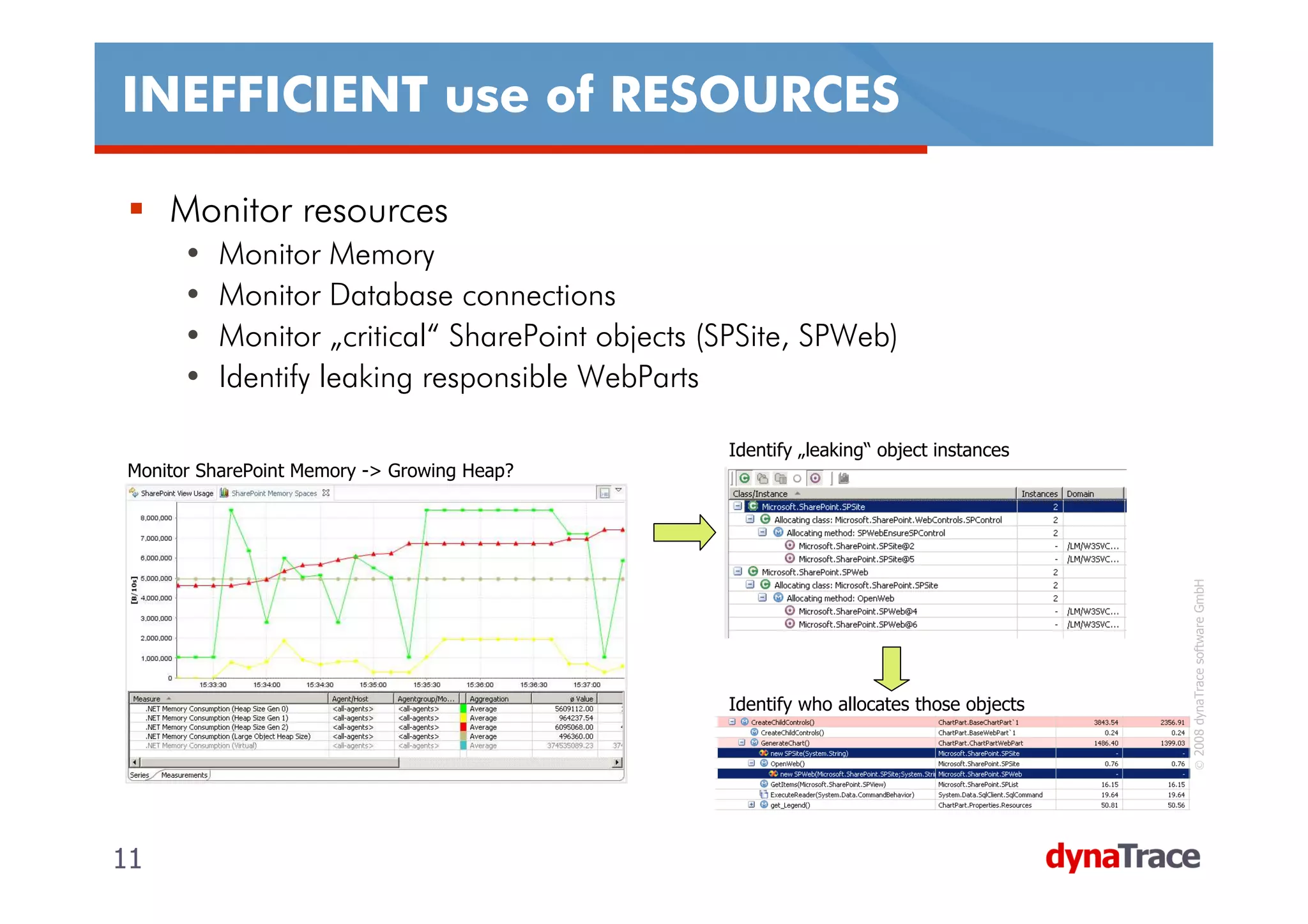

- 11. INEFFICIENT use ofRESOURCES Monitor resources • Monitor Memory • Monitor Database connections • Monitor „critical“ SharePoint objects (SPSite, SPWeb) • Identify leaking responsible WebParts Identify „leaking“ object instances Monitor SharePoint Memory -> Growing Heap? © 2008 dynaTrace software GmbH Identify who allocates those objects 11 11

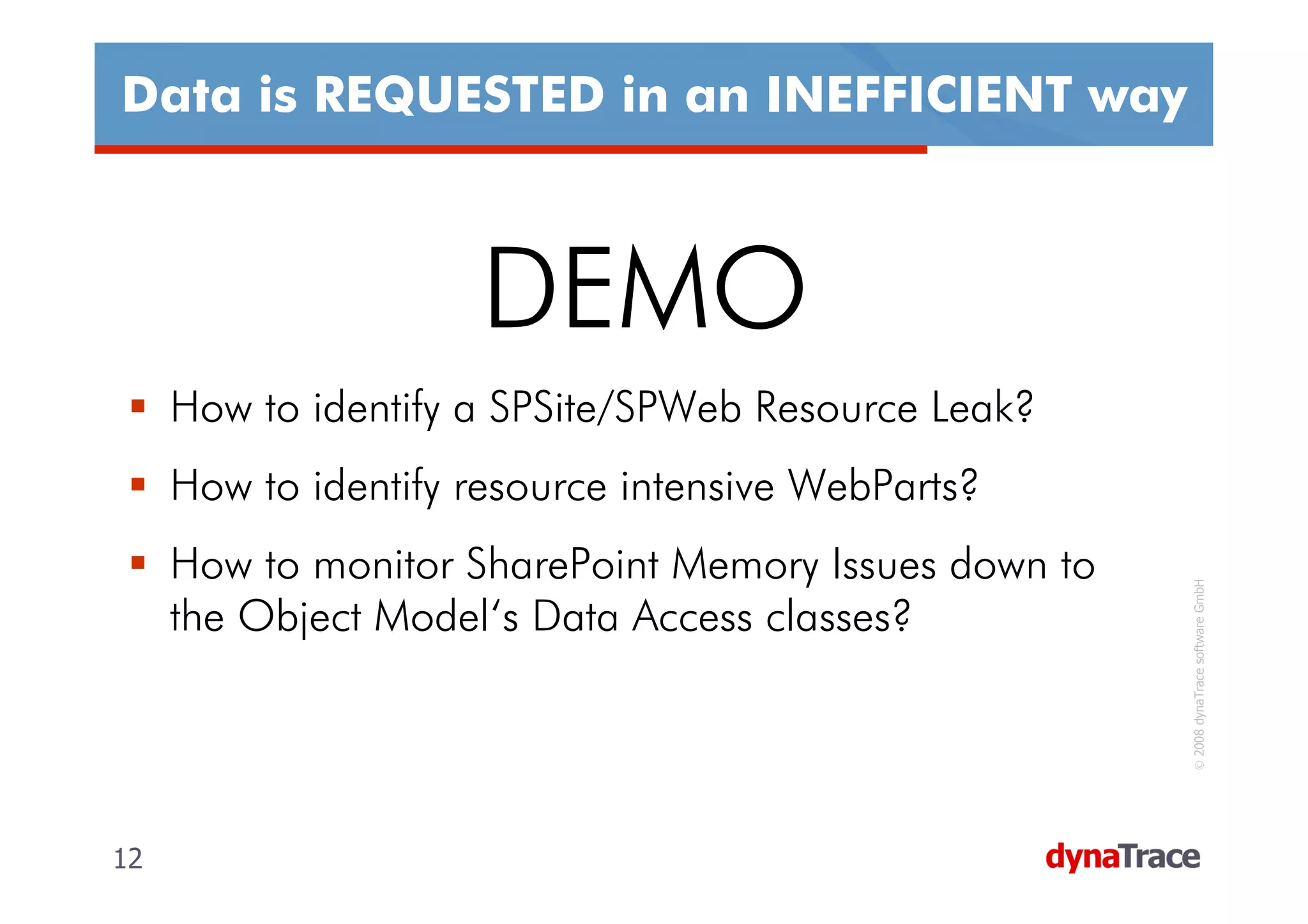

- 12. Data is REQUESTEDin an INEFFICIENT way DEMO How to identify a SPSite/SPWeb Resource Leak? How to identify resource intensive WebParts? How to monitor SharePoint Memory Issues down to © 2008 dynaTrace software GmbH the Object Model‘s Data Access classes? 12 12

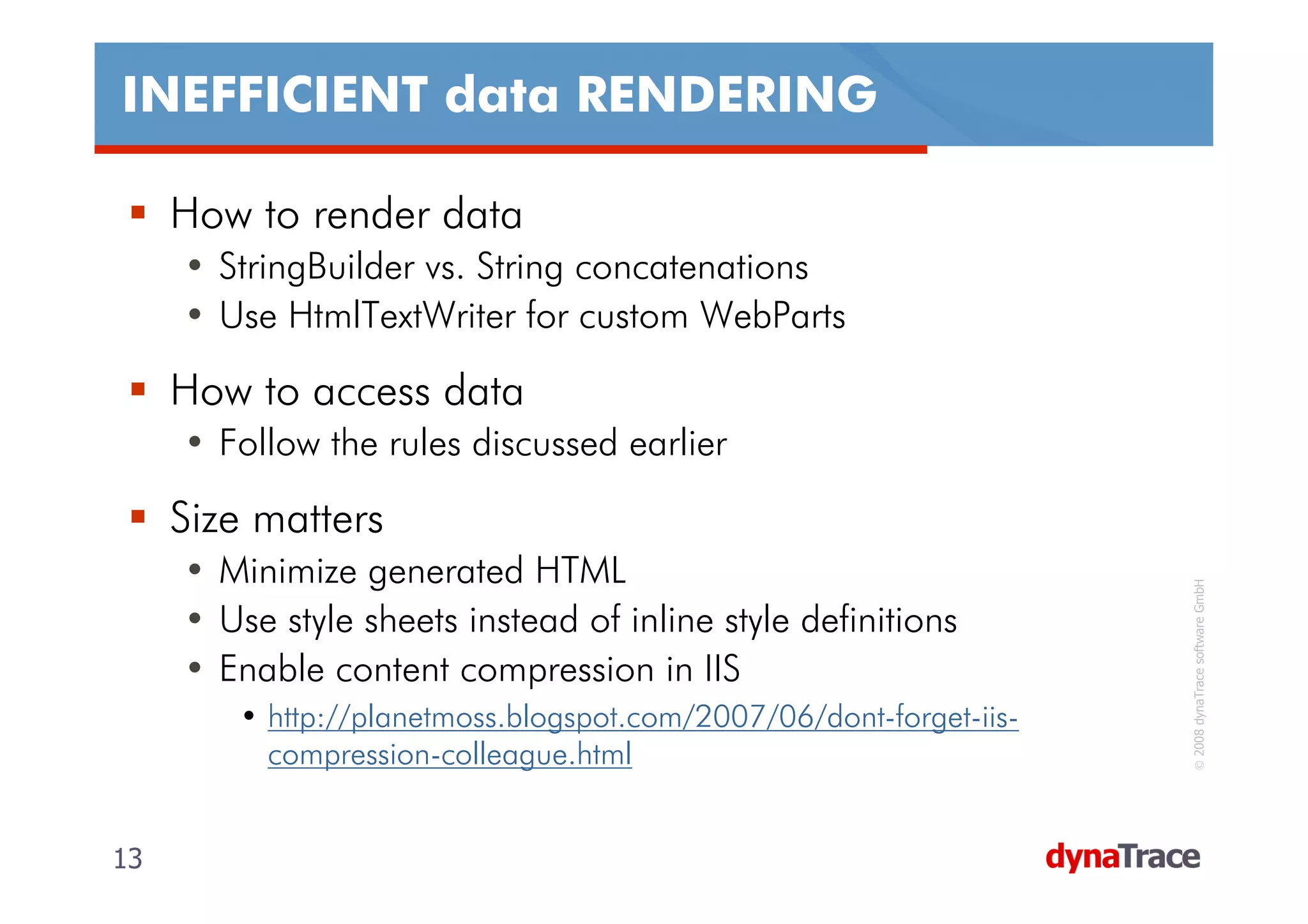

- 13. INEFFICIENT data RENDERING How to render data • StringBuilder vs. String concatenations • Use HtmlTextWriter for custom WebParts How to access data • Follow the rules discussed earlier Size matters • Minimize generated HTML © 2008 dynaTrace software GmbH • Use style sheets instead of inline style definitions • Enable content compression in IIS • http://planetmoss.blogspot.com/2007/06/dont-forget-iis- compression-colleague.html 13 13

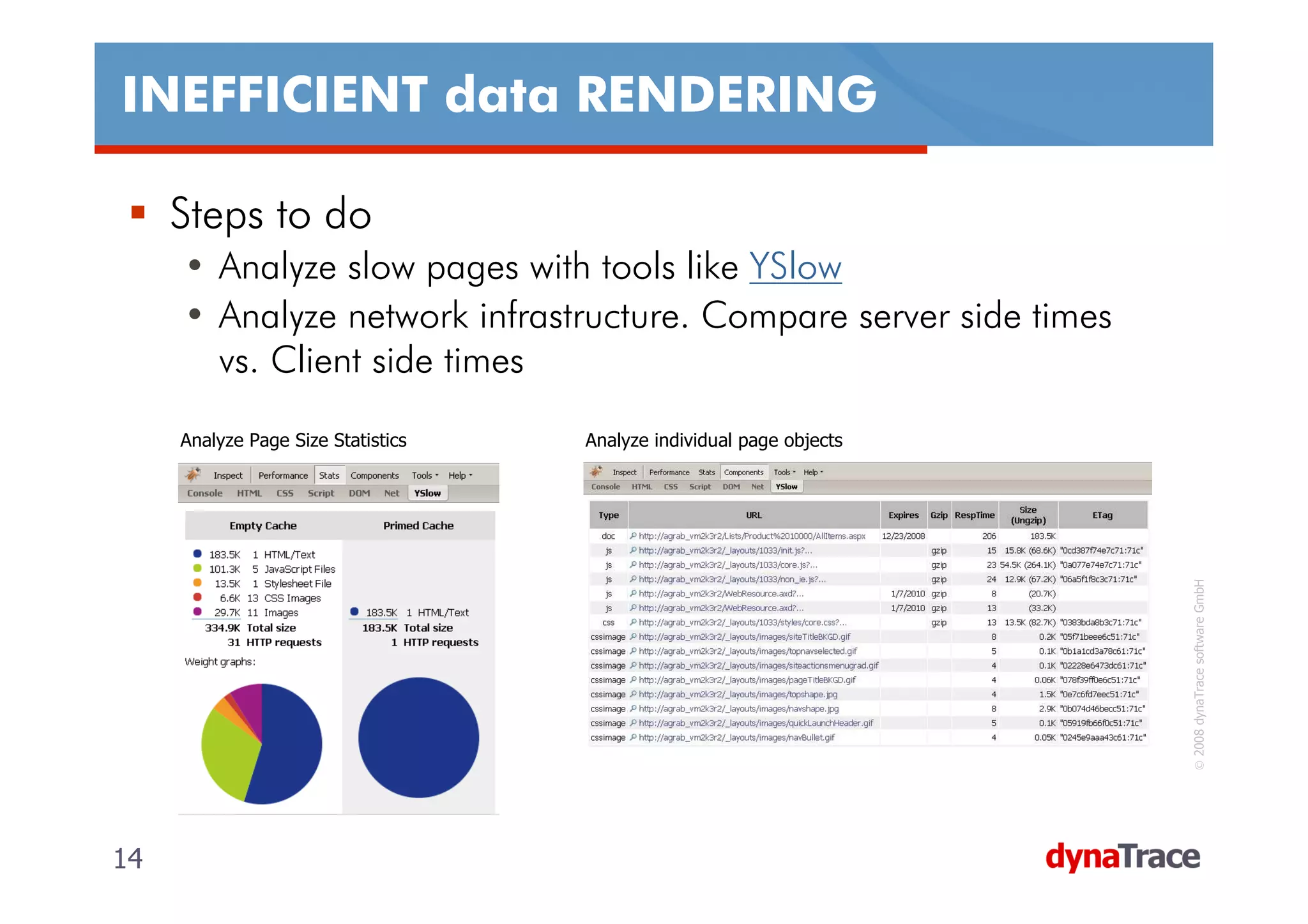

- 14. INEFFICIENT data RENDERING Steps to do • Analyze slow pages with tools like YSlow • Analyze network infrastructure. Compare server side times vs. Client side times Analyze Page Size Statistics Analyze individual page objects © 2008 dynaTrace software GmbH 14 14

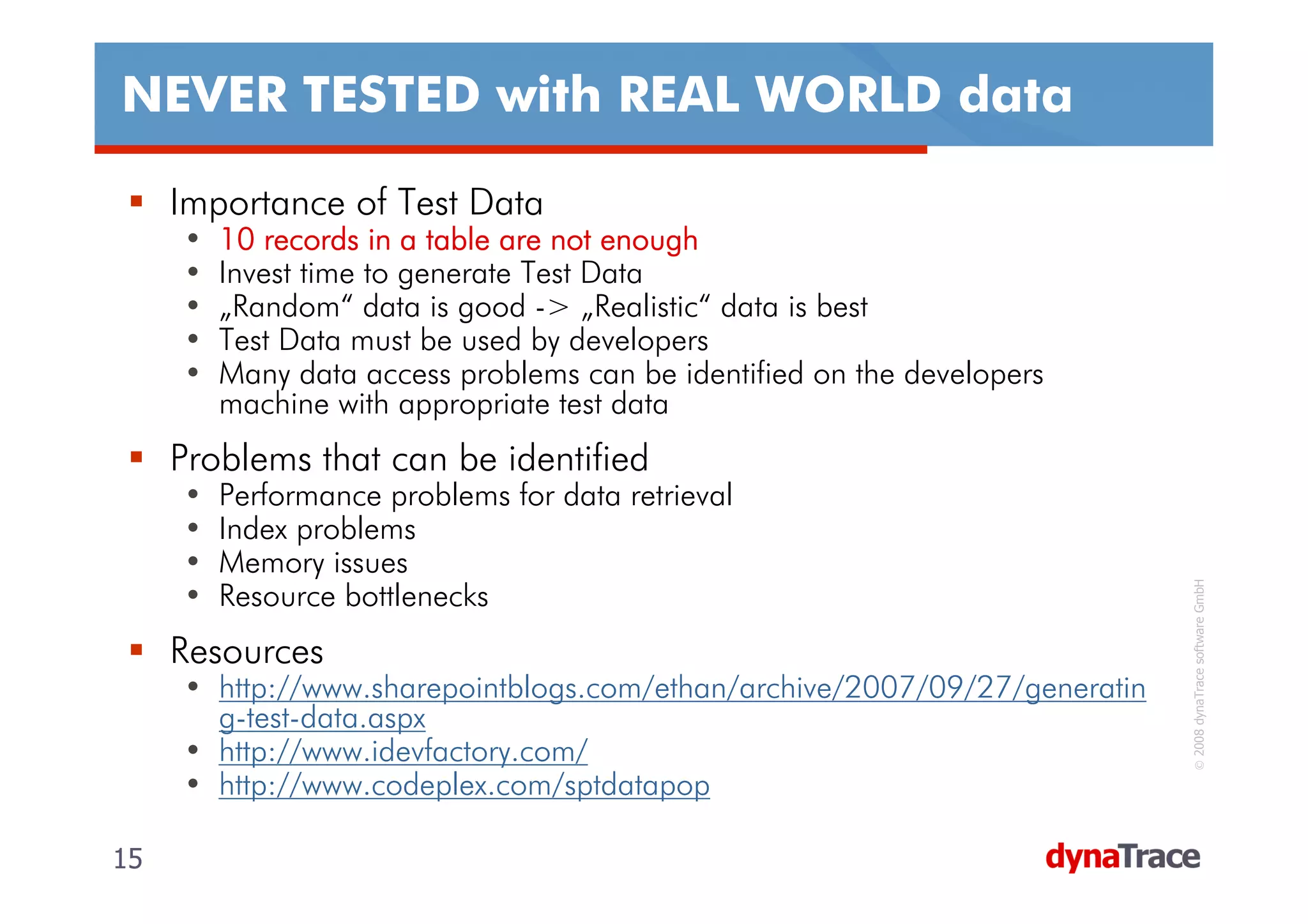

- 15. NEVER TESTED withREAL WORLD data Importance of Test Data • 10 records in a table are not enough • Invest time to generate Test Data • „Random“ data is good -> „Realistic“ data is best • Test Data must be used by developers • Many data access problems can be identified on the developers machine with appropriate test data Problems that can be identified • Performance problems for data retrieval • Index problems • Memory issues © 2008 dynaTrace software GmbH • Resource bottlenecks Resources • http://www.sharepointblogs.com/ethan/archive/2007/09/27/generatin g-test-data.aspx • http://www.idevfactory.com/ • http://www.codeplex.com/sptdatapop 15 15

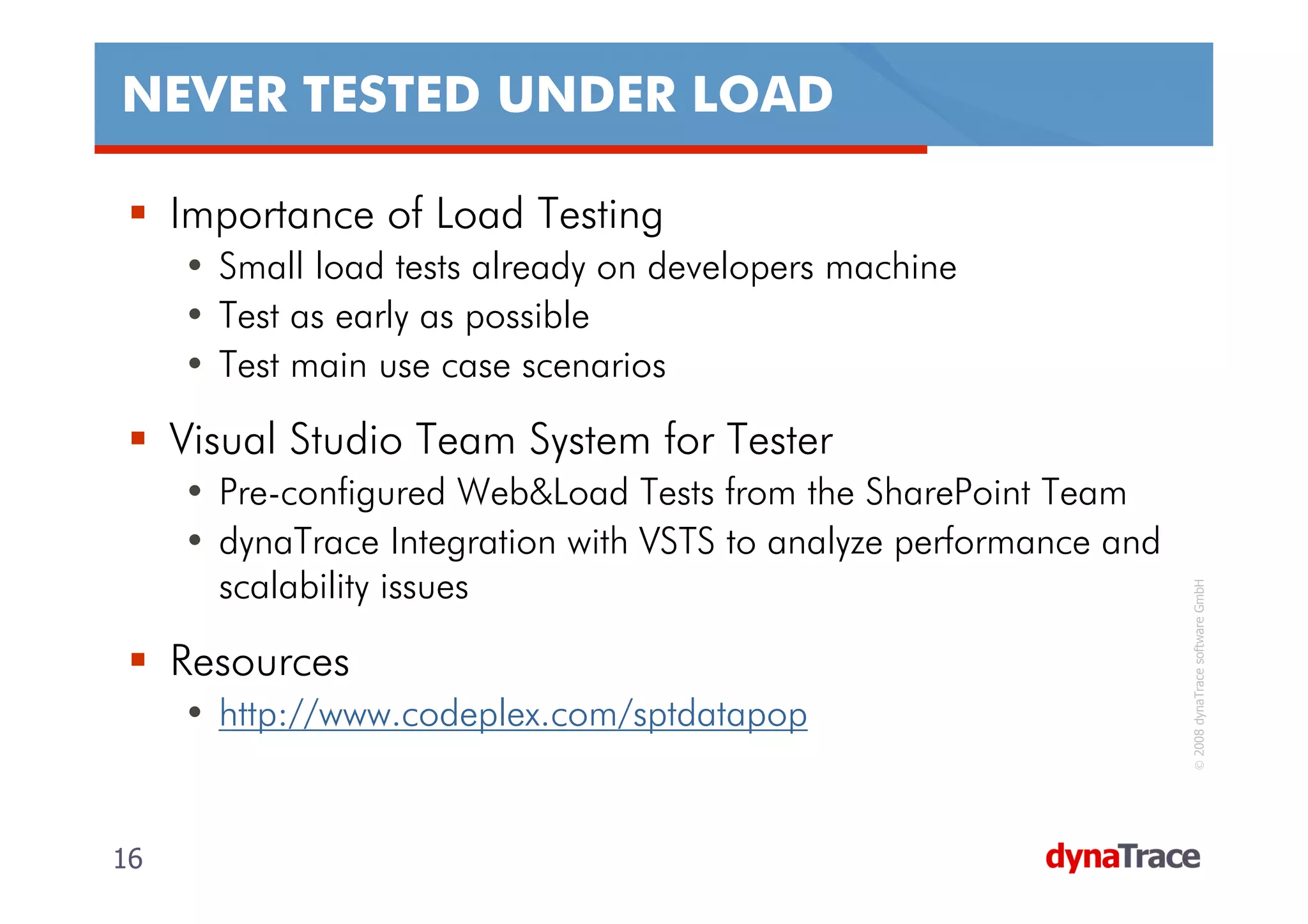

- 16. NEVER TESTED UNDERLOAD Importance of Load Testing • Small load tests already on developers machine • Test as early as possible • Test main use case scenarios Visual Studio Team System for Tester • Pre-configured Web&Load Tests from the SharePoint Team • dynaTrace Integration with VSTS to analyze performance and scalability issues © 2008 dynaTrace software GmbH Resources • http://www.codeplex.com/sptdatapop 16 16

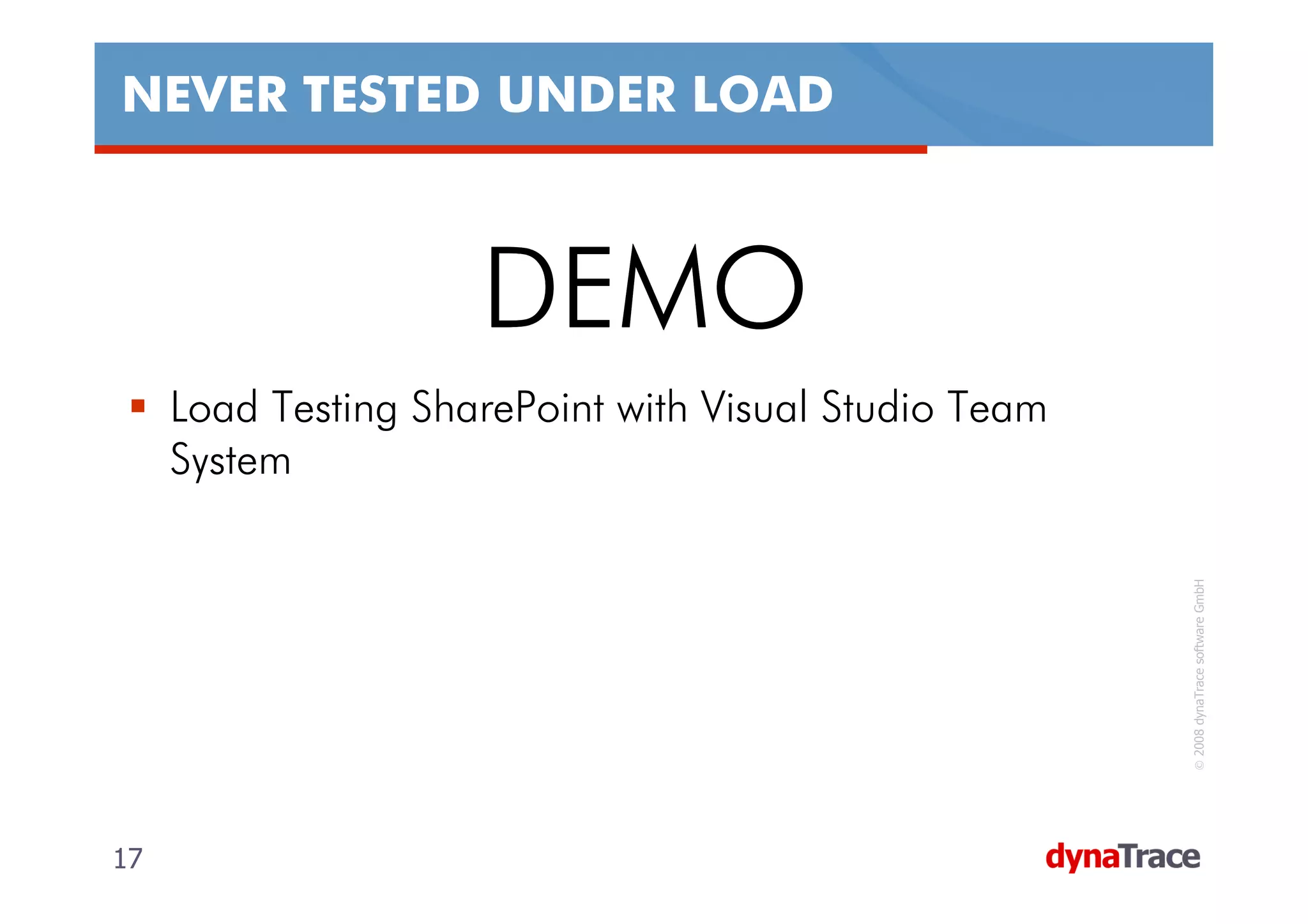

- 17. NEVER TESTED UNDERLOAD DEMO Load Testing SharePoint with Visual Studio Team System © 2008 dynaTrace software GmbH 17 17

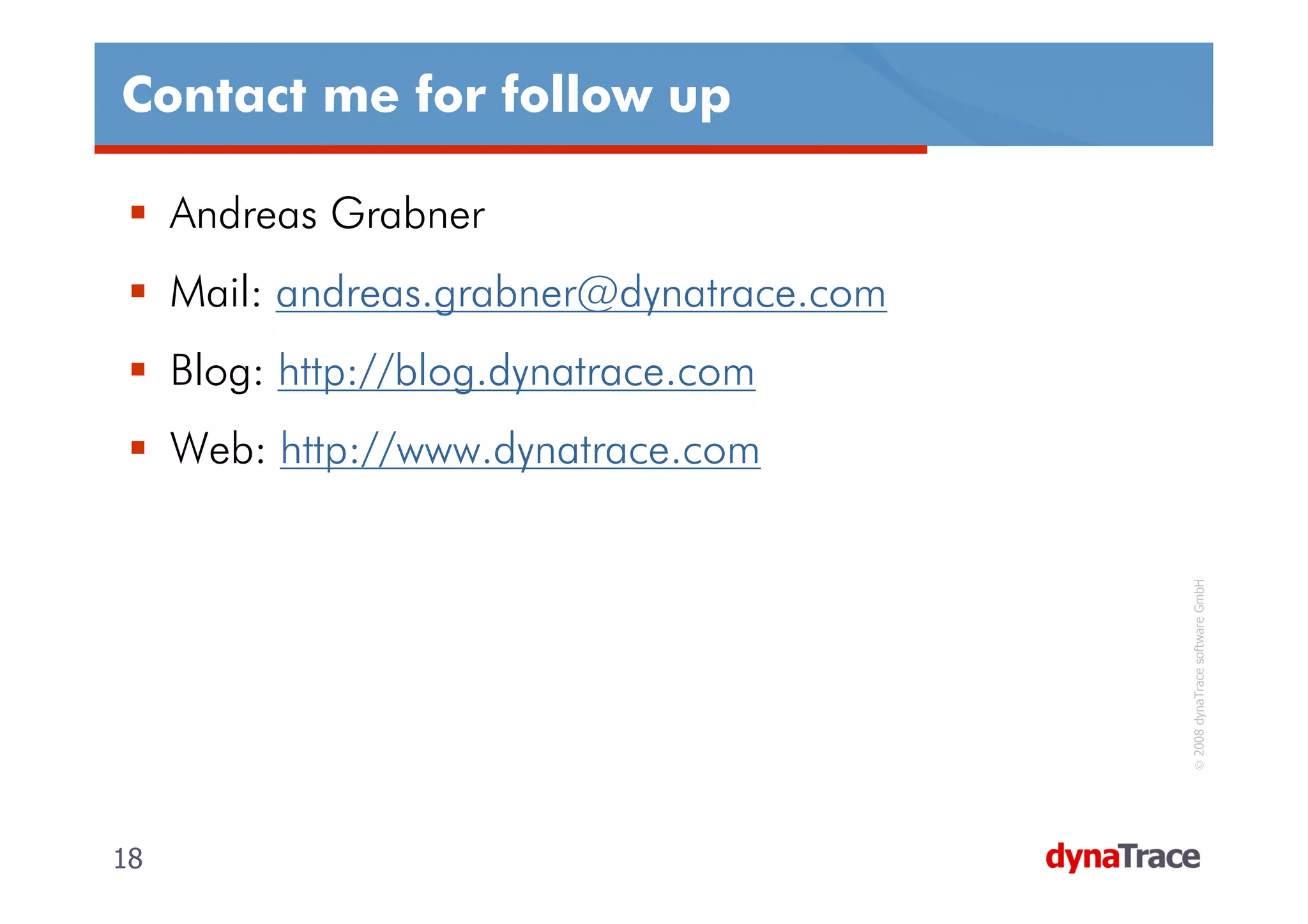

- 18. Contact me forfollow up Andreas Grabner Mail: andreas.grabner@dynatrace.com Blog: http://blog.dynatrace.com Web: http://www.dynatrace.com © 2008 dynaTrace software GmbH 18 18
